Satellite archaeology
The document discusses the application of satellite archaeology, emphasizing its pros and cons, including complexities related to cost, resolution, and understanding. It highlights the use of satellite imagery for archaeological prospection and landscape surveys, particularly in data-poor environments, while also addressing issues of detection, classification, and image selection. Specific examples from areas like Homs, Syria are provided to illustrate the potential of satellite imagery in archaeological and landscape analysis.
More Related Content
Similar to Satellite archaeology
Satellite archaeology
- 1. Satellite Archaeology Anthony (Ant)Beck Twitter: AntArch IC ArchPro Workshop 1 - Airborne Remote Sensing Vienna - 30th November 2011 School of Computing Faculty of Engineering
- 2. Some background – “Idon‟t like the term satellite archaeology”

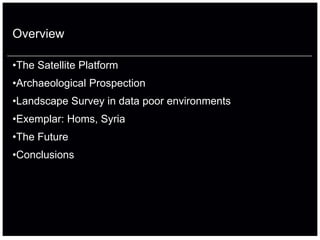

- 3. Overview •The Satellite Platform •ArchaeologicalProspection •Landscape Survey in data poor environments •Exemplar: Homs, Syria •The Future •Conclusions
- 4. Overview There is noneed to take notes: Slides – Text – http://dl.dropbox.com/u/393477/MindMaps/Events/Conference sAndWorkshops.html There is every need to ask questions
- 5. Characteristics of thesatellite platform Sensor Types – Active and Passive

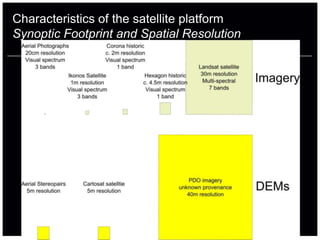

- 6. Characteristics of thesatellite platform Synoptic Footprint and Spatial Resolution
- 7. Characteristics of thesatellite platform Spatial Resolution - 20cm Aerial Photography Detailed mapping Field backdrop Small area
- 8. Characteristics of thesatellite platform Spatial Resolution - 1m Ikonos Detailed mapping Field backdrop Large area

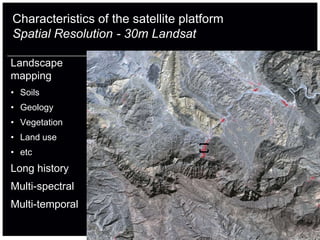

- 9. Characteristics of thesatellite platform Spatial Resolution - 30m Landsat Landscape mapping • Soils • Geology • Vegetation • Land use • etc Long history Multi-spectral Multi-temporal
- 10. Characteristics of thesatellite platform Spatial Resolution - 30m Landsat (geology bands) Landscape mapping • Soils • Geology • Vegetation • Land use • etc Long history Multi-spectral Multi-temporal

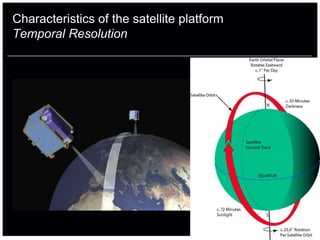

- 11. Characteristics of thesatellite platform Temporal Resolution
- 12. Characteristics of thesatellite platform Temporal Resolution
- 13. Characteristics of thesatellite platform Spectral Resolution
- 14. Characteristics of thesatellite platform A large archive
- 15. Problems of thesatellite platform Atmospheric Attenuation
- 16. Problems of thesatellite platform Topographic Distortion

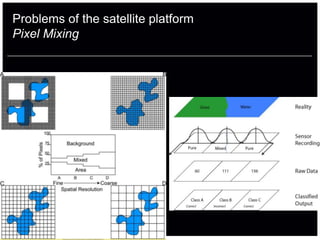

- 17. Problems of thesatellite platform Pixel Mixing
- 18. Problems of thesatellite platform Classification
- 19. Characteristics of thesatellite platform Perceived issues for archaeologists Cost • It‟s perceived to be expensive Complexity • It‟s perceived to be complex to understand and process Temporal constraints • Revisits are frequent. • Times of collection are fixed The „Google Earth‟ effect
- 20. Characteristics of thesatellite platform My issues with satellite applications A solution searching for a problem • Does it have a place in well understood landscapes? Cropmarks • Unless you‟ve got lots of money, why would you want to prospect for spatio- temporally ephemeral cropmarks with a sensor with a large synoptic footprint Everyone focuses on prospection at the expense of • The Landscape • Integrated Cultural Resource Management
- 22. Archaeological Prospection What isthe basis for detection

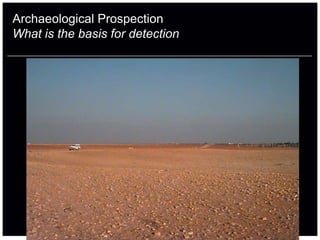

- 23. Archaeological Prospection What isthe basis for detection

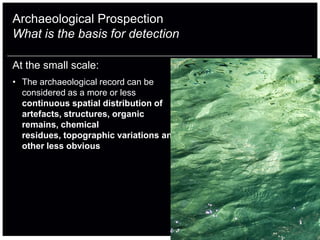

- 24. Archaeological Prospection What isthe basis for detection At the small scale: • The archaeological record can be considered as a more or less continuous spatial distribution of artefacts, structures, organic remains, chemical residues, topographic variations and other less obvious
- 25. Archaeological Prospection What isthe basis for detection At the large scale: • The distribution is far from even, with large areas where archaeological remains are widely and infrequently dispersed. There are other areas, however, where materials and other remains are abundant and clustered. It is these peaks of abundance that are commonly referred to as sites, features, anomalies (whatever!).

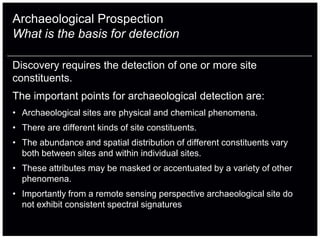

- 26. Archaeological Prospection What isthe basis for detection Discovery requires the detection of one or more site constituents. The important points for archaeological detection are: • Archaeological sites are physical and chemical phenomena. • There are different kinds of site constituents. • The abundance and spatial distribution of different constituents vary both between sites and within individual sites. • These attributes may be masked or accentuated by a variety of other phenomena. • Importantly from a remote sensing perspective archaeological site do not exhibit consistent spectral signatures
- 27. Archaeological Prospection What isthe basis for detection
- 28. Archaeological Prospection Whatis the basis for detection Micro-Topographic variations Soil Marks • variation in mineralogy and moisture properties Differential Crop Marks • constraint on root depth and moisture availability changing crop stress/vigour Proxy Thaw Marks • Exploitation of different thermal capacities of objects expressed in the visual component as thaw marks Now you see me dont
- 29. Archaeological Prospection What isthe basis for detection We detect Contrast: • Between the expression of the remains and the local 'background' value Direct Contrast: • where a measurement, which exhibits a detectable contrast with its surroundings, is taken directly from an archaeological residue. Proxy Contrast: • where a measurement, which exhibits a detectable contrast with its surroundings, is taken indirectly from an archaeological residue (for example from a crop mark).
- 30. Archaeological Prospection What isthe basis for detection
- 31. Archaeological Prospection What isthe basis for detection

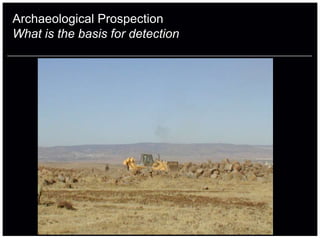

- 32. Archaeological Prospection What isthe basis for detection
- 33. Archaeological Prospection What isthe basis for detection

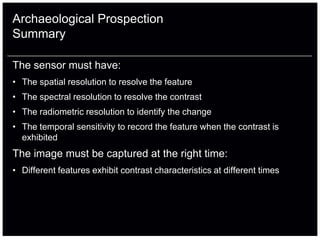

- 34. Archaeological Prospection Summary The sensormust have: • The spatial resolution to resolve the feature • The spectral resolution to resolve the contrast • The radiometric resolution to identify the change • The temporal sensitivity to record the feature when the contrast is exhibited The image must be captured at the right time: • Different features exhibit contrast characteristics at different times
- 35. Satellite images archaeologistsuse High spatial resolution optical Essentially large footprint vertical photographs Lower spatial resolution than aerial (0.5 – 4m) Panchromatic (higher spatial resolution) 4 band multi-spectral (lower spatial resolution) • Blue • Green • Red • Near Infra-Red

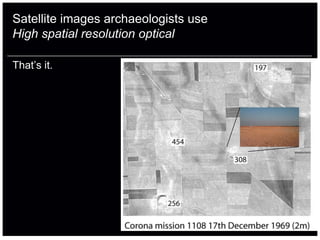

- 36. Satellite images archaeologistsuse High spatial resolution optical That‟s it.
- 37. Satellite images archaeologistsuse High spatial resolution optical Nothing more to say really
- 38. Satellite images archaeologistsuse High spatial resolution optical Well there‟s a bit more – Image sources • Major providers (GeoEye, DigitalGlobe), archive and bespoke • Declassified Cold War „spy‟ photography • Before modern „destructive modification‟ Free viewers • Google, Yahoo, Bing • No control over the data

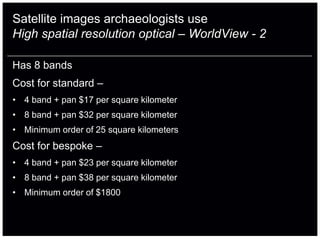

- 39. Satellite images archaeologistsuse High spatial resolution optical – WorldView - 2 Has 8 bands Cost for standard – • 4 band + pan $17 per square kilometer • 8 band + pan $32 per square kilometer • Minimum order of 25 square kilometers Cost for bespoke – • 4 band + pan $23 per square kilometer • 8 band + pan $38 per square kilometer • Minimum order of $1800

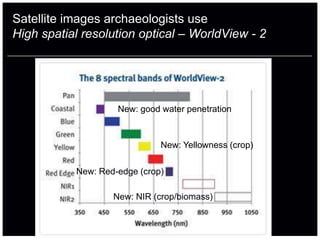

- 40. Satellite images archaeologistsuse High spatial resolution optical – WorldView - 2 New: good water penetration New: Yellowness (crop) New: Red-edge (crop) New: NIR (crop/biomass)

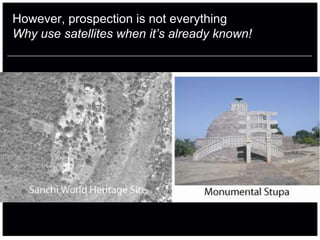

- 41. However, prospection isnot everything Why use satellites when it’s already known!
- 42. However, prospection isnot everything Landscape survey It's not just about finding stuff • It's about placing it in a context where it can be useful Most countries do not have mature cultural management frameworks • e.g. Homs region of Syria or Vidisha area of India • Archaeological inventory is significantly biased towards large and prominent landscape features • What about the rest of the landscape?
- 43. However, prospection isnot everything Landscape survey This is an inventory problem • OK we need to do more prospection! • Bring on the planes! • NO If we were to start from the beginning would we do it all the same way again • Learn from our experiences This is what I hope to show in the rest of the presentation
- 44. However, prospection isnot everything Landscape survey – Types of survey Reconnaissance survey: (Detection) • primarily designed to detect all the positive and negative archaeological evidence within a study area. Evaluation survey: (Recognition) • to assess the archaeological content of a landscape using survey techniques that facilitate subsequent field-prospection, statistical hypothesis building or the identification of spatial structure.
- 45. However, prospection isnot everything Landscape survey – Types of survey Landscape research: (Identification) • to form theoretical understanding of the relationships between settlement dynamics, hinterlands and the landscape itself. Cultural Resource Management (CRM): (Management and Protection) • primarily designed for management of the available resources. CRM applications are not necessarily distinct from other survey objectives although they may be conducted as part of a more general information capture system. Improve Reconnaissance Survey and impact on all the others.
- 46. However, prospection isnot everything Landscape survey – Desk Based Assessments
- 47. However, prospection isnot everything Landscape survey – Desk Based Assessments Sources that are normally considered for reference during a DBA are: • Regional and national site inventories. • Public and private collections of artefacts and ecofacts. • Modern and historical mapping. • Geo-technical information (such as soil maps and borehole data). • Historic documents. • Aerial photography and other remote sensing. How can satellite imagery help in data poor environments.
- 48. Landscape Survey indata poor environments Ecological Setting Hinterland Ecofacts Sites Artefacts

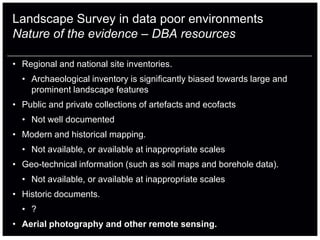

- 49. Landscape Survey indata poor environments Nature of the evidence – DBA resources • Regional and national site inventories. • Archaeological inventory is significantly biased towards large and prominent landscape features • Public and private collections of artefacts and ecofacts • Not well documented • Modern and historical mapping. • Not available, or available at inappropriate scales • Geo-technical information (such as soil maps and borehole data). • Not available, or available at inappropriate scales • Historic documents. • ? • Aerial photography and other remote sensing.

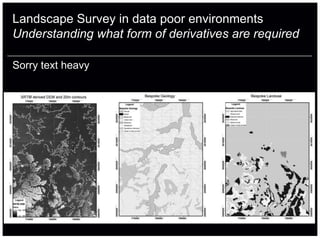

- 50. Landscape Survey indata poor environments Understanding what form of derivatives are required Sorry text heavy
- 51. Landscape Survey indata poor environments Understand the nature of the study area • The geology and soil types in the study area • The surface vegetation regimes • The nature, range and size of the archaeological residues • How these residues may contrast against a background value • Residue or proxy detection • Localised masking (i.e. crop, terraces) • What conditions enhance the contrast between a residue and its background and when this is maximised
- 52. Landscape Survey indata poor environments Understand the nature of the study area • How any of the above conditions may change during a year • What resolution is required for detection • Spatial • Spectral • Temporal • Radiometric
- 53. Landscape Survey indata poor environments Image Selection What has an impact on the derivatives you want to create: • Environment • Topography • Agriculture • Land use • Image fidelity • Cloud Cover, Atmospheric Haze

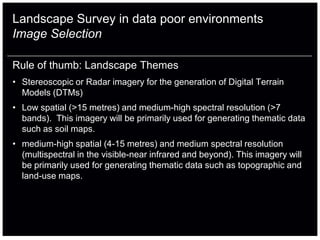

- 54. Landscape Survey indata poor environments Image Selection Rule of thumb: Landscape Themes • Stereoscopic or Radar imagery for the generation of Digital Terrain Models (DTMs) • Low spatial (>15 metres) and medium-high spectral resolution (>7 bands). This imagery will be primarily used for generating thematic data such as soil maps. • medium-high spatial (4-15 metres) and medium spectral resolution (multispectral in the visible-near infrared and beyond). This imagery will be primarily used for generating thematic data such as topographic and land-use maps.
- 55. Landscape Survey indata poor environments Image Selection Rule of thumb: • high spatial resolution (0.5-2 metres) and medium-low spectral resolution (panchromatic and multispectral in the visible-near infrared wavelengths). Used for the location and mapping of fine spatial resolution archaeological features . • Other • There will always be a requirement for other data
- 56. Landscape Survey indata poor environments Image Selection – What to consult On-line streaming • Bing Maps • Yahoo Maps • Google Maps • Open Street Map • Open Aerial Map Use Caution – The „Google Earth‟ effect Strongly consider adding new data to the Open collection movements (OSM empowers local communities)
- 57. Landscape Survey indata poor environments Image Selection – What to consult The libraries of free or low cost imagery • Spot maps • Cheap ortho-rectified 2.5m imagery • 2 euro per kilometer • A good backdrop for rectification in lie of mapping or other ground control • 10m RMSE • They also do Elevation models • Corona/Hexagon/Gambit • Historic Imagery • variable parameters • 60's onwards
- 58. Landscape Survey indata poor environments Image Selection – What to consult The libraries of free or low cost imagery • Landsat • Family of sensors operating from 1973 onwards • Multispectral • ASTER • DEM • Multispectral • SRTM Bespoke

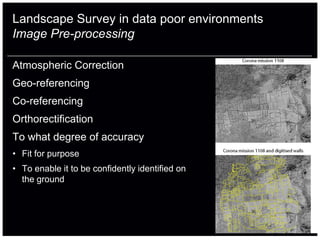

- 59. Landscape Survey indata poor environments Image Pre-processing Atmospheric Correction Geo-referencing Co-referencing Orthorectification To what degree of accuracy • Fit for purpose • To enable it to be confidently identified on the ground
- 60. Landscape Survey indata poor environments Theme Extraction - DTM I assume most of this will be covered by Geert • Two sources • Radar/LiDAR • Photogrammetry/Computer vision • Many free sources of data • Shuttle Radar Topographic Mapping: SRTM • 3 arc seconds • c.90m • ASTER • GDEM2 released October 17th 2011 • 1 arc seconds • c. 30m
- 61. Landscape Survey indata poor environments Theme Extraction - DTM I assume most of this will be covered by Geert • Photogrammetry • Stereo pairs • Corona (5m results) – beware of clouds
- 62. Landscape Survey indata poor environments Theme Extraction - Landscape Satellite imagery has an established pedigree of doing this • Corine Land Cover • NASA Global Maps • Soil Maps • Vegetation maps Processing is dependent on • Type of theme • Desired scale

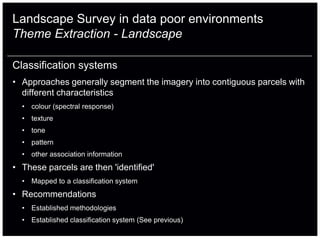

- 63. Landscape Survey indata poor environments Theme Extraction - Landscape Classification systems • Approaches generally segment the imagery into contiguous parcels with different characteristics • colour (spectral response) • texture • tone • pattern • other association information • These parcels are then 'identified' • Mapped to a classification system • Recommendations • Established methodologies • Established classification system (See previous)
- 64. Landscape Survey indata poor environments Archaeological Prospection – Positive Evidence
- 65. Landscape Survey indata poor environments Archaeological Prospection – Negative Evidence

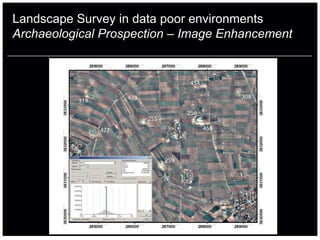

- 66. Landscape Survey indata poor environments Archaeological Prospection – Image Enhancement
- 67. Landscape Survey indata poor environments Archaeological Prospection – Documentation or KT Knowledge Transfer is important Good access is important Consider Open approaches (OSM, Open Archaeology Map) • Ethics?

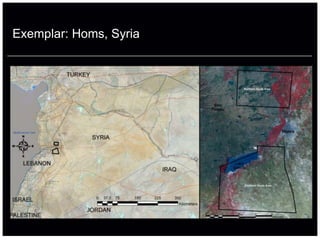

- 68.
- 69. Exemplar: Homs, Syria Overview– SHR Project To establish a framework to understand settlement dynamics and diversity in the Homs region, Syria. C. 650 sq km 2 principal contrasting environmental zones • Basalt • Marl Initial program of surface/site survey No sites and monuments record! • No aerial photography available („closed skies‟) • Satellite imagery evaluated as a prospection tool
- 70. Exemplar: Homs, Syria PreliminaryEnquiries • The main agricultural season was between October (seeding) and May (harvesting). • Establishing sites from crop marks would be difficult due to the perceived lack of negative features (i.e. „positive‟ mud-brick construction as opposed to „negative‟ postholes and ditches). • Except for fluvial margins, the landscape could be considered as either completely bare soil or a combination of bare soil and crop throughout the year.

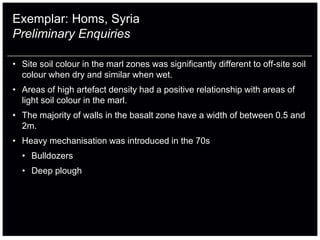

- 71. Exemplar: Homs, Syria PreliminaryEnquiries • Site soil colour in the marl zones was significantly different to off-site soil colour when dry and similar when wet. • Areas of high artefact density had a positive relationship with areas of light soil colour in the marl. • The majority of walls in the basalt zone have a width of between 0.5 and 2m. • Heavy mechanisation was introduced in the 70s • Bulldozers • Deep plough
- 72. Exemplar: Homs, Syria ImageSelection – implications from the zone • Apart from the irrigated areas crop cover is only significant in the few months preceding harvest (May). • Atmospheric dust, if applicable, will be at its lowest during the significant rains (December to May). • Cloud cover could significantly impact imagery between December and May. • Sites in the marl exhibit greater contrast during periods of (hyper) aridity from September to December. • The smallest sites in the basalt zone will require very fine (high) resolution imagery with good image fidelity (i.e. low dust levels)
- 73. Exemplar: Homs, Syria ImageSelection Corona KH-4B photography (1970) 1.83 - 2.5 m panchromatic Photogrammetrically scanned to 8 bit raster imagery Ikonos 11 bit digital imagery (1999 - present) 1 m panchromatic/colour 0.45-0.9 m 4 m Multispectral: 0.45-0.52 m Blue 0.52-0.60 m Green 0.63-0.69 m Red 0.76-0.90 m NIR Landsat 8 bit 7 band (and ETM+) digital imagery (1974 - present) 0.45-0.52 m, 30 m 0.52-0.60 m, 30 m 0.63-0.69 m, 30 m 0.76-0.90 m, 30 m 1.55-1.75 m, 30 m 10.40-12.50 m, 120 m 2.08-2.35 m, 30 m
- 74. Exemplar: Homs, Syria ImageSelection
- 75. Exemplar: Homs, Syria ImagePre-processing Atmospheric correction Geo-referencing Corona (using Ikonos as a backdrop)
- 76. Exemplar: Homs, Syria LandscapeThemes Themes include • Land use and cover (topography) • Communication networks (Ikonos, Corona, Landsat) • Hydrology networks (Ikonos, Corona, Landsat) • Settlements (Ikonos, Corona, Landsat) • Field Systems (Ikonos, Corona) • Vegetation • Identification - Ikonos • Presence - Landsat • Soil/geology maps • Landsat • DEM/DTM - Not discussed further
- 77. Exemplar: Homs, Syria LandscapeThemes – Classification Systems Used standard classification system (USGS) • Designed with remote sensing in mind • Similar to CORINE • 3 Level Nested Hierarchy • Level 1 – USGS Coarse Classification (for Landsat) • Level 2 – USGS Detailed Classification (for finer spatial/spectral data) • Level 3 – Bespoke classification
- 78. Exemplar: Homs, Syria LandscapeThemes – Classification Systems Segmented the imagery into contiguous parcels with different characteristics • Combination of qualitative and quantitative techniques • Principal Component Analysis • Unsupervised classification • Band ratios • Transparent overlays • Visual interpretation Insert classification ID

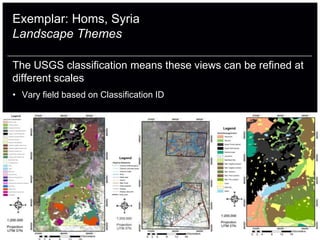

- 79. Exemplar: Homs, Syria LandscapeThemes The USGS classification means these views can be refined at different scales • Vary field based on Classification ID

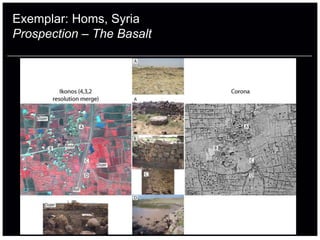

- 80. Exemplar: Homs, Syria Prospection– The Basalt

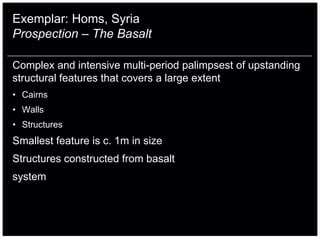

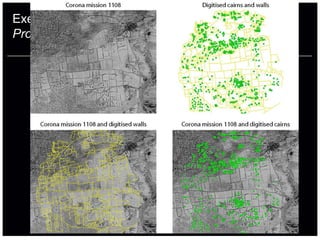

- 81. Exemplar: Homs, Syria Prospection– The Basalt Complex and intensive multi-period palimpsest of upstanding structural features that covers a large extent • Cairns • Walls • Structures Smallest feature is c. 1m in size Structures constructed from basalt system
- 82. Exemplar: Homs, Syria Prospection– The Basalt Detected by: • Topographic effect (shadows) • Spectral response Requirements: • High spatial resolution • High image fidelity • High degree of georeferencing accuracy required to locate features on the ground (<10m RMSE) • Try mapping all the basalt with aerial photography or GPS! One needs a metrically accurate system

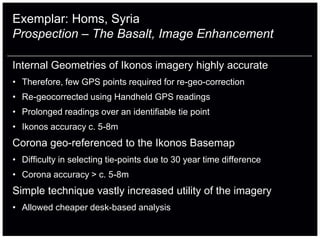

- 83. Exemplar: Homs, Syria Prospection– The Basalt, Image Enhancement Internal Geometries of Ikonos imagery highly accurate • Therefore, few GPS points required for re-geo-correction • Re-geocorrected using Handheld GPS readings • Prolonged readings over an identifiable tie point • Ikonos accuracy c. 5-8m Corona geo-referenced to the Ikonos Basemap • Difficulty in selecting tie-points due to 30 year time difference • Corona accuracy > c. 5-8m Simple technique vastly increased utility of the imagery • Allowed cheaper desk-based analysis
- 84. Exemplar: Homs, Syria Prospection– The Basalt , Image Enhancement
- 85. Exemplar: Homs, Syria Prospection– The Basalt, Image Enhancement Linear enhancements • Edge detection • Crisp • Generally unsuccessful Image fusion/overlay • Fuse 1m pan with 4m MS for Ikonos • Transparent overlay • Very successful

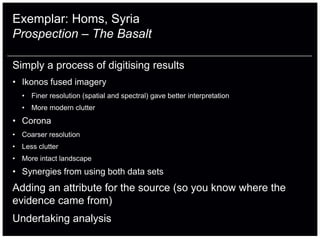

- 86. Exemplar: Homs, Syria Prospection– The Basalt Simply a process of digitising results • Ikonos fused imagery • Finer resolution (spatial and spectral) gave better interpretation • More modern clutter • Corona • Coarser resolution • Less clutter • More intact landscape • Synergies from using both data sets Adding an attribute for the source (so you know where the evidence came from) Undertaking analysis
- 87. Exemplar: Homs, Syria Prospection– The Basalt
- 88. Exemplar: Homs, Syria Prospection– The Marl

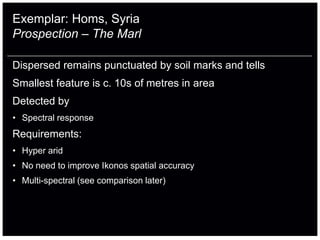

- 89. Exemplar: Homs, Syria Prospection– The Marl Dispersed remains punctuated by soil marks and tells Smallest feature is c. 10s of metres in area Detected by • Spectral response Requirements: • Hyper arid • No need to improve Ikonos spatial accuracy • Multi-spectral (see comparison later)

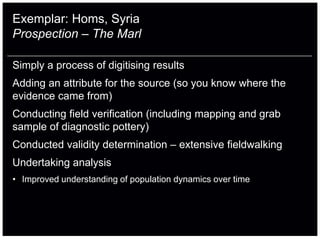

- 90. Exemplar: Homs, Syria Prospection– The Marl Simply a process of digitising results Adding an attribute for the source (so you know where the evidence came from) Conducting field verification (including mapping and grab sample of diagnostic pottery) Conducted validity determination – extensive fieldwalking Undertaking analysis • Improved understanding of population dynamics over time

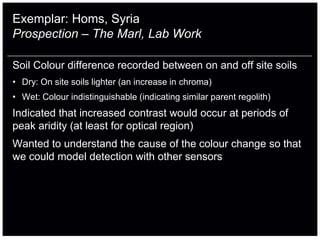

- 91. Exemplar: Homs, Syria Prospection– The Marl, Lab Work Soil Colour difference recorded between on and off site soils • Dry: On site soils lighter (an increase in chroma) • Wet: Colour indistinguishable (indicating similar parent regolith) Indicated that increased contrast would occur at periods of peak aridity (at least for optical region) Wanted to understand the cause of the colour change so that we could model detection with other sensors

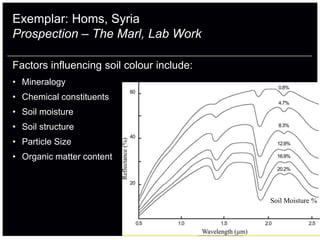

- 92. Exemplar: Homs, Syria Prospection– The Marl, Lab Work Factors influencing soil colour include: • Mineralogy • Chemical constituents • Soil moisture • Soil structure • Particle Size • Organic matter content Soil Moisture %
- 93. Exemplar: Homs, Syria Prospection– The Marl, Lab Work Soil samples were taken across a number of site transects Analysed for: • Moist and dry spectro-radiometer readings • Particle size measurement • Magnetic susceptibility • Geochemical analysis

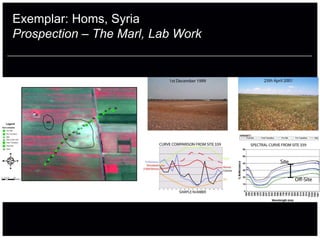

- 94. Exemplar: Homs, Syria Prospection– The Marl, Lab Work
- 95. Exemplar: Homs, Syria Prospection– The Marl, Lab Work Concluded difference in spectral reflectance principally due to variations in: • moisture content • grain size • soil structure Site soils share similar spectral curve to off site soils • Measurable relative reflectance difference (in this zone) • NO unique archaeological spectral curve

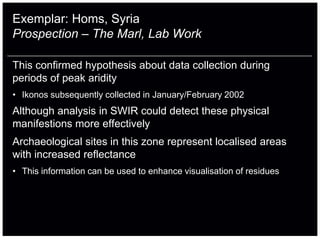

- 96. Exemplar: Homs, Syria Prospection– The Marl, Lab Work This confirmed hypothesis about data collection during periods of peak aridity • Ikonos subsequently collected in January/February 2002 Although analysis in SWIR could detect these physical manifestions more effectively Archaeological sites in this zone represent localised areas with increased reflectance • This information can be used to enhance visualisation of residues

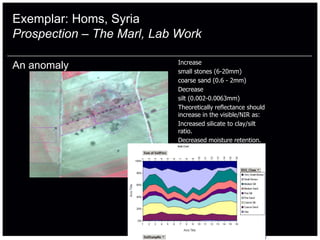

- 97. Exemplar: Homs, Syria Prospection– The Marl, Lab Work Increase An anomaly small stones (6-20mm) coarse sand (0.6 - 2mm) Decrease silt (0.002-0.0063mm) Theoretically reflectance should increase in the visible/NIR as: Increased silicate to clay/silt ratio. Decreased moisture retention.
- 98. Exemplar: Homs, Syria Prospection– The Marl, Image Enhancement Archaeological residues as localised background soil variations • subtracting an averaged background soil pixel for an area will theoretically produce a positive value at an archaeological site • Off-site values should produce a value approaching zero Features enhanced • Archaeological residues • Roads • Buildings • Crops • Small water bodies
- 99. Exemplar: Homs, Syria Prospection– The Marl, Image Enhancement Requirements • Moving average kernel • What size? • Trial and Error gave 200m • processor intensive

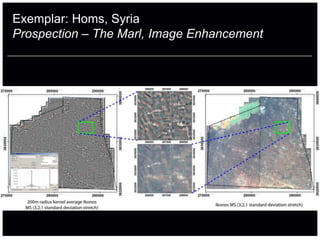

- 100. Exemplar: Homs, Syria Prospection– The Marl, Image Enhancement
- 101. Exemplar: Homs, Syria Prospection– The Marl: evaluation
- 102. Exemplar: Homs, Syria Prospection– The Marl: evaluation
- 103. Exemplar: Homs, Syria Prospection– The Marl: evaluation
- 104. Exemplar: Homs, Syria General–multispectral helps

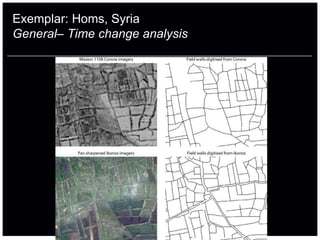

- 105. Exemplar: Homs, Syria General–Time change analysis

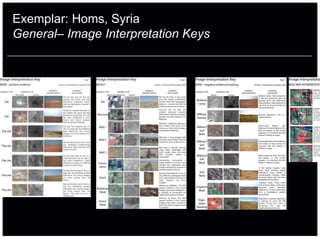

- 106. Exemplar: Homs, Syria General–Image Interpretation Keys
- 107. The Future High resolutionhyperspectral I will talk about in more detail this afternoon Better land-unit segmentation Better understanding of when to order bespoke imagery (or fly)

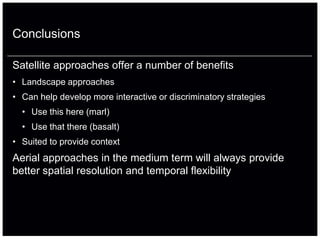

- 108. Conclusions Satellite approaches offera number of benefits • Landscape approaches • Can help develop more interactive or discriminatory strategies • Use this here (marl) • Use that there (basalt) • Suited to provide context Aerial approaches in the medium term will always provide better spatial resolution and temporal flexibility

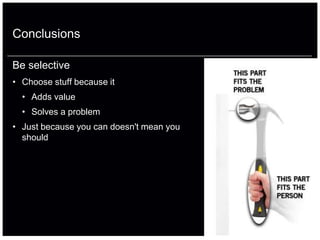

- 109. Conclusions Be selective • Choosestuff because it • Adds value • Solves a problem • Just because you can doesn't mean you should
- 110.
Editor's Notes
- #3 Video re-used under a Creative Commons licence: http://www.youtube.com/watch?v=kYZ-Bj3tZtsIntroduction Satellite Archaeology I don't like the term satellite archaeology Sometimes I do Remote Sensing Sometimes I do Remote Sensing in archaeology When I do this I will try to use tools that are Fit for purpose Given the problem and the current state of knowledge Cost effective Appropriate
- #6 Images re-used under a reative Commons licencehttp://www.flickr.com/photos/cbcthermal/1475766746http://www.flickr.com/photos/dartproject/6001559320Active and Passive Thermal Optical Radar
- #7 High sampling density of relatively large areas
- #8 All have the same pixel resolution
- #9 Of the same areaAll have the same pixel resolution
- #10 Of the same areaAll have the same pixel resolution
- #11 The APs,Ikonos and Landsat are all centered on the same area in WadiSerin. These three give an indication of scale and the different applications they can be used for.Of the same areaAll have the same pixel resolution
- #12 Image re-used under a Creative Commons Licence: http://upload.wikimedia.org/wikipedia/commons/thumb/c/c8/RapidEye_Satellites_Artist_Impression.jpg/1280px-RapidEye_Satellites_Artist_Impression.jpgSun synchronous orbits. Revisits are frequent. Times of collection are fixed Constellations of satellites (Rapid-eye a 1 day re-visit off-nadir)
- #14 Image re-used under a creative commons licence: http://www.flickr.com/photos/dartproject/6005193142
- #15 Image re-used under a creative commons licence: http://www.flickr.com/photos/dolescum/3567689465/
- #17 This image is in the public domain: http://en.wikipedia.org/w/index.php?title=File%3AAerialDigitalPhoto.JPG
- #18 Image re-used under a creative commons licence: http://www.flickr.com/photos/dartproject/6004647401
- #19 Image re-used under a creative commons licence: http://www.flickr.com/photos/dartproject/6004646971Image re-used under a creative commons licence: http://www.flickr.com/photos/dartproject/6005192120
- #20 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/san_drino/1454922072/Cost It’s perceived to be expensive Complexity It’s perceived to be complex to understand and process Temporal constraints Revisits are frequent. Times of collection are fixed The ‘Google Earth’ effect Google Earth is NOT a panacea It is an excellent viewer It has access to data That data is outside the control of the user That data may not be appropriate for the archaeological problem in hand
- #21 Image re-used under an ambiguous licence: http://worrydream.com/ABriefRantOnTheFutureOfInteractionDesign/It’s sexy – and has been misrepresented The recent programme on the BBC
- #22 Satellite approaches should be considered in a multi-sensor environment which includes ground survey and excavationThe point is to learn more about the past
- #23 Image re-used under a creative commons licence: http://www.flickr.com/photos/irenicrhonda/3468242704Landscape features show up at different scalesThe archaeological record SurficialBuried Depending on scale of examination essentially invisble to the human eye
- #24 Ploughed out flat sites:Very difficult to find on the groundLittle is known about their significance in the hinterland
- #25 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/mikkomiettinen/2587623210At the small scale: The archaeological record can be considered as a more or less continuous spatial distribution of artefacts, structures, organic remains, chemical residues, topographic variations and other less obvious modifications.
- #26 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/arenamontanus/8231697At the large scale: The distribution is far from even, with large areas where archaeological remains are widely and infrequently dispersed. There are other areas where materials and other remains are abundant and clustered. It is these peaks of abundance that are commonly referred to as sites.
- #28 Traces can be identified through evidence Clusters of artefacts Chemical and physical residues Proxy biological variations Changes in surface relief
- #29 Traces can be identified through evidence Clusters of artefacts Chemical and physical residues Proxy biological variations Changes in surface relief
- #30 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/catikaoe/183454010/We identify contrast Between the expression of the remains and the local 'background' value In most scenarios direct contrast measurements are preferable as these measurements will have less attenuation.Proxy contrast measurements are extremely useful when the residue under study does not produce a directly discernable contrast or it exists in a regime where direct observation is impossible
- #31 Dependant on localised formation and deformation Localised formation and deformation SchifferHarrisPhysical/chemical structure
- #32 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/arpentnourricier/2385863532Dependant on localised formation and deformation Environmental conditions Soil moisture Crop Temperature and emmisivity
- #33 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/dartproject/6001577156Dependant on localised formation and deformation Land management
- #34 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/dartproject/6001577156Dependant on localised formation and deformation Land management
- #35 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/dartproject/6001577156Dependant on localised formation and deformation Land management
- #39 High spatial resolution optical Archive imagery Cheaper Declassified imagery Before destructive modifications Corona Hexagon Gambit KVR Free viewers Google Yahoo Bing Issues Although the images are not as degraded as they used to be There is no control over the collection parameters One can only do qualitative analysis
- #40 High spatial resolution optical Archive imagery Cheaper Declassified imagery Before destructive modifications Corona Hexagon Gambit KVR Free viewers Google Yahoo Bing Issues Although the images are not as degraded as they used to be There is no control over the collection parameters One can only do qualitative analysis
- #41 The 'new' bands Coastal Band (400 - 450 nm): This band supports vegetation identification and analysis, and supports bathymetric studies based upon its chlorophyll and water penetration characteristics. Also, this band is subject to atmospheric scattering and will be used to investigate atmospheric correction techniques. Yellow Band (585 - 625 nm): Used to identify "yellow-ness" characteristics of targets, important for vegetation applications. Also, this band assists in the development of "true-color" hue correction for human vision representation. Red Edge Band (705 - 745 nm): Aids in the analysis of vegetative condition. Directly related to plant health revealed through chlorophyll production. Near Infrared 2 Band (860 - 1040 nm): This band overlaps the NIR 1 band but is less affected by atmospheric influence. It supports vegetation analysis and biomass studies.
- #42 You can detect stuff with satellites If you already know about it -then WHY! What value is being added
- #43 It's not just about finding stuff It's about placing it in a context where it can be useful Most countries do not have mature cultural management frameworks Exemplar Homs region of Syria. or Vidisha area of indiaData poor environment Archaeological inventory is significantly biased towards large and prominent landscape features What about the rest of the landscape?
- #44 This is an inventory problem OK we need to do more prospection! ;-) Bring on the planes! NO If we were to start from the beginning would we do it all the same way again Learn from our experiences
- #47 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/jeffwerner/797327111/The Institute of Field Archaeologists (IFA) defines a DBA as [11]: “... a programme of assessment of the known or potential archaeological resource within a specified area or site on land, inter-tidal zone or underwater. It consists of a collation of existing written, graphic, photographic and electronic information in order to identify the likely character, extent, quality and worth of the known or potential archaeological resource in a local, regional, national or international context as appropriate.”
- #48 Sources that are normally considered for reference during a DBA are: Regional and national site inventories. Public and private collections of artefacts and ecofacts. Modern and historical mapping. Geo-technical information (such as soil maps and borehole data). Historic documents. Aerial photography and other remote sensing.
- #49 Nature of the evidence Regional and national site inventories. Archaeological inventory is significantly biased towards large and prominent landscape features Public and private collections of artefacts and ecofacts. Crude Difficult to access Modern and historical mapping. Not available Or available at inappropriate scales Geo-technical information (such as soil maps and borehole data). Not available Or available at inappropriate scales Historic documents. ? Aerial photography and other remote sensing.
- #50 Nature of the evidence Regional and national site inventories. Archaeological inventory is significantly biased towards large and prominent landscape features Public and private collections of artefacts and ecofacts. Crude Difficult to access Modern and historical mapping. Not available Or available at inappropriate scales Geo-technical information (such as soil maps and borehole data). Not available Or available at inappropriate scales Historic documents. ? Aerial photography and other remote sensing.
- #51 Understanding what form of derivatives are required Traditional Mapping Elevation dataLand use Soils Archaeological mapping
- #52 Understand the nature of the study area The geology and soil types in the study area The surface vegetation regimes The nature, range and size of the archaeological residues How these residues may contrast against a background value Residue or proxy detection Localised masking (i.e. crop, terraces) What conditions enhance the contrast between a residue and its background and when this is maximised
- #53 Understand the nature of the study area How any of the above conditions may change during a year What resolution is required for detection Spatial Spectral Temporal Radiometric
- #54 Image Selection What has an impact on the derivatives you want to create Environment Topography Agriculture Land use Image fidelity Cloud Cover Atmospheric haze
- #55 Image Selection Broadly Stereoscopic or Radar imagery for the generation of Digital Terrain Models (DTMs) Low spatial (>15 metres) and medium-high spectral resolution (>7 bands). This imagery will be primarily used for generating thematic data such as soil maps. medium-high spatial (4-15 metres) and medium spectral resolution (multispectral in the visible-near infrared and beyond). This imagery will be primarily used for generating thematic data such as topographic and land-use maps.
- #56 Image Selection high spatial resolution (0.5-2 metres) and medium-low spectral resolution (panchromatic and multispectral in the visible-near infrared wavelengths). Used for the location and mapping of fine spatial resolution archaeological features . Other There will always be a requirement for other data
- #57 On-line streamingBing Maps Yahoo Maps Google Maps Open Street Map Open Aerial MapUse Caution – The ‘Google Earth’ effectStrongly consider adding new data to the Open collection movements (OSM empowers local communities)
- #58 The libraries of free or low cost imagerySpot maps Cheap ortho-rectified 2.5m imagery2 euro per kilometerA good backdrop for rectification in lie of mapping or other ground control10m RMSEThey also do Elevation modelsCorona/Hexagon/Gambit Historic Imageryvariable parameters60's onwards
- #59 The libraries of free or low cost imageryLandsatFamily of sensors operating from 1973 onwardsMultispectralASTER DEMMultispectralSRTM Bespoke
- #60 Geo-referencing Co-referencing OrthorectificationTo what degree of accuracy Fit for purpose To enable it to be confidently identified on the ground Example of Basalt versus Marl in homs
- #61 I assume most of this will be covered by GeertTwo sourcesRadar/LiDARPhotogrammetry/Computer visionMany free sources of dataShuttle Radar Topographic Mapping: SRTM3 arc secondsc.90mASTERGDEM2 released October 17th 20111 arc secondsc. 30m
- #62 I assume most of this will be covered by GeertPhotogrammetryStereo pairsCorona (5m results) – beware of clouds
- #63 Landscape theme generation Satellite imagery has an established pedigree of doing this ~ Corine Land Cover ~ NASA Global Maps ~ Soil Maps ~ Vegetation maps Processing is dependent on Type of theme Desired scale
- #64 Classification systems Approaches generally segment the imagery into contiguous parcels with different characteristics colour (spectral response) texture tone pattern other association information These parcels are then 'identified' Mapped to a classification system Recommendations Established methodologies Established classification system See ~ Corine Land Cover ~ USGS ~ NASA Global Maps ~ Soil Maps ~ Vegetation maps
- #65 Archaeological Prospection Positive evidence the identification of an actual archaeological residue, or the interpretation, by proxy, of objects that would lead one to assume that archaeological residues exist
- #66 Archaeological Prospection Negative evidence \r\n Negative evidence is the identification of features that appear to be archaeological but are in fact natural features or residues of other processes.\r\n
- #67 Archaeological Prospection Image enhancement Techniques that can be used to enhance visual or quantitative identification
- #68 Archaeological Prospection Documentation Image interpretation keys Strongly consider adding new data to the Open collection movements (OSM empowers local communities)
- #70 To establish a framework to understand settlement dynamics and diversity in the Homs region, Syria.C. 650 sq km2 principal contrasting environmental zonesBasaltMarlInitial program of surface/site surveyNo sites and monuments record!No aerial photography available (‘closed skies’)Satellite imagery evaluated as a prospection tool
- #71 The main agricultural season was between October (seeding) and May (harvesting). Establishing sites from crop marks would be difficult due to the perceived lack of negative features (i.e. ‘positive’ mud-brick construction as opposed to ‘negative’ postholes and ditches). Except for fluvial margins, the landscape could be considered as either completely bare soil or a combination of bare soil and crop throughout the year.
- #72 Site soil colour in the marl zones was significantly different to off-site soil colour when dry and similar when wet. Areas of high artefact density had a positive relationship with areas of light soil colour in the marl. The majority of walls in the basalt zone have a width of between 0.5 and 2m. Heavy mechanisation was introduced in the 70s Bulldozers Deep plough
- #73 Apart from the irrigated areas crop cover is only significant in the few months preceding harvest (May).Atmospheric dust, if applicable, will be at its lowest during the significant rains (December to May).Cloud cover could significantly impact imagery between December and May.Sites in the marl exhibit greater contrast during periods of (hyper) aridity from September to December.The smallest sites in the basalt zone will require very fine (high) resolution imagery with good image fidelity (i.e. low dust levels)
- #77 Themes includeLand use and cover (topography)Communication networks (Ikonos, Corona, Landsat)Hydrology networks (Ikonos, Corona, Landsat)Settlements (Ikonos, Corona, Landsat)Field Systems (Ikonos, Corona)VegetationIdentification - IkonosPresence - LandsatSoil/geology mapsLandsatDEM/DTM - Not discussed further
- #78 Used standard classification system (USGS)Designed with remote sensing in mindSimilar to CORINE3 Level Nested HierarchyLevel 1 – USGS Coarse Classification (for Landsat)Level 2 – USGS Detailed Classification (for finer spatial/spectral data)Level 3 – Bespoke classification
- #79 Segmented the imagery into contiguous parcels with different characteristicsCombination of qualitative and quantitative techniquesPrincipal Component AnalysisUnsupervised classificationBand ratiosTransparent overlaysVisual interpretationInsert classification ID
- #80 The USGS classification means these views can be refined at different scalesVary field based on Classification ID
- #82 Dispersed remains punctuated by soil marks and tellsSmallest feature is c. 10s of metres in areaDetected bySpectral responseRequirements:Hyper aridNo need to improve Ikonos spatial accuracyMulti-spectral (see comparison later)
- #83 Dispersed remains punctuated by soil marks and tellsSmallest feature is c. 10s of metres in areaDetected bySpectral responseRequirements:Hyper aridNo need to improve Ikonos spatial accuracyMulti-spectral (see comparison later)
- #90 Dispersed remains punctuated by soil marks and tellsSmallest feature is c. 10s of metres in areaDetected bySpectral responseRequirements:Hyper aridNo need to improve Ikonos spatial accuracyMulti-spectral (see comparison later)
- #91 Simply a process of digitising resultsAdding an attribute for the source (so you know where the evidence came from)Conducting field verification (including mapping and grab sample of diagnostic pottery)Undertaking analysisImproved understanding of population dynamics over time
- #93 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/dartproject/6004648237Factors influencing soil colour include:MineralogyChemical constituentsSoil moistureSoil structureParticle SizeOrganic matter content
- #94 Soil samples were taken across a number of site transectsAnalysed for:Moist and dry spectro-radiometer readingsParticle size measurementMagnetic susceptibilityGeochemical analysis
- #96 Concluded difference in spectral reflectance principally due to variations in:moisture contentgrain sizesoil structureSite soils share similar spectral curve to off site soilsMeasurable relative reflectance difference (in this zone)NO unique archaeological spectral curve
- #97 This confirmed hypothesis about data collection during periods of peak aridityIkonos subsequently collected in January/February 2002Although analysis in SWIR could detect these physical manifestions more effectivelyArchaeological sites in this zone represent localised areas with increased reflectanceThis information can be used to enhance visualisation of residues
- #99 Archaeological residues as localised background soil variationssubtracting an averaged background soil pixel for an area will theoretically produce a positive value at an archaeological siteOff-site values should produce a value approaching zeroFeatures enhancedArchaeological residuesRoadsBuildingsCropsSmall water bodies
- #100 RequirementsMoving average kernelWhat size?Trial and Error gave 200mprocessor intensive
- #101 Enhancement algorithmSignificant improvement in visual detectionReduces variance due to variations in soil typesOriginal dataAppears saturated and washed outIn practice has proven a robust detection techniqueHas identified the majority of surficial sites (only 1 site found exclusively through fieldwalking)
- #105 Image fusion (to give co-collected imagery the best spectral and spatial characteristics of the component sensors) is goodA transparent overlay of the multispectral over the pan is just as effective
- #106 Time change analysis Just how representative are your modern interpretations of a landscape that's been messed around. How do you know it's been messed with?
- #107 Time change analysis Just how representative are your modern interpretations of a landscape that's been messed around. How do you know it's been messed with?
- #111 Image re-used under a Creative Commons licence: http://www.flickr.com/photos/ebacchus/119676111/
