This document provides specifications for the SAR07030 series of ultra-high current SMT power inductors. It includes dimensions, electrical ratings, ordering information, test data, reliability test requirements, and packaging details for the inductors. The inductors feature shielded construction, frequencies up to 3MHz, low DCR/uH, high saturation current, and flame retardant encapsulation. Inductance ranges from 0.15uH to 33uH with currents from 52A to 2.5A.

1. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 1 -

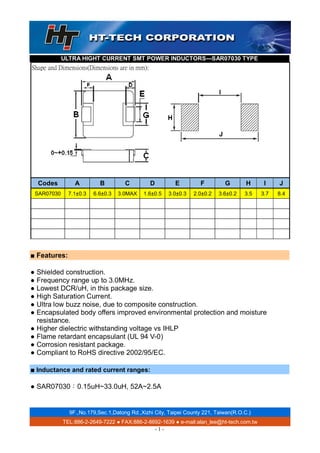

ULTRA HIGHT CURRENT SMT POWER INDUCTORS---SAR07030 TYPE
Shape and Dimensions(Dimensions are in mm):
Codes A B C D E F G H I J
SAR07030 7.1±0.3 6.6±0.3 3.0MAX 1.6±0.5 3.0±0.3 2.0±0.2 3.6±0.2 3.5 3.7 8.4
■ Features:
● Shielded construction.
● Frequency range up to 3.0MHz.
● Lowest DCR/uH, in this package size.
● High Saturation Current.
● Ultra low buzz noise, due to composite construction.
● Encapsulated body offers improved environmental protection and moisture
resistance.
● Higher dielectric withstanding voltage vs IHLP
● Flame retardant encapsulant (UL 94 V-0)
● Corrosion resistant package.
● Compliant to RoHS directive 2002/95/EC.
■ Inductance and rated current ranges:
● SAR07030：0.15uH~33.0uH, 52A~2.5A

2. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 2 -

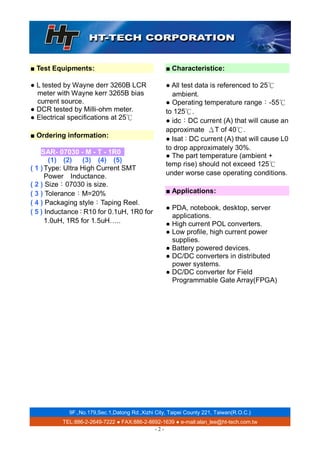

■ Test Equipments:
● L tested by Wayne derr 3260B LCR
meter with Wayne kerr 3265B bias
current source.
● DCR tested by Milli-ohm meter.
● Electrical specifications at 25℃
■ Ordering information:
SAR- 07030 - M - T - 1R0
(1) (2) (3) (4) (5)
( 1 )Type: Ultra High Current SMT
Power Inductance.
( 2 ) Size：07030 is size.
( 3 ) Tolerance：M=20%
( 4 ) Packaging style：Taping Reel.
( 5 ) Inductance：R10 for 0.1uH, 1R0 for
1.0uH, 1R5 for 1.5uH…..
■ Characteristice:
● All test data is referenced to 25℃
ambient.
● Operating temperature range：-55℃
to 125℃.
● idc：DC current (A) that will cause an
approximate ΔT of 40℃.
● Isat：DC current (A) that will cause L0
to drop approximately 30%.
● The part temperature (ambient +
temp rise) should not exceed 125℃
under worse case operating conditions.
■ Applications:
● PDA, notebook, desktop, server
applications.
● High current POL converters.
● Low profile, high current power
supplies.
● Battery powered devices.
● DC/DC converters in distributed
power systems.
● DC/DC converter for Field
Programmable Gate Array(FPGA)

3. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 3 -

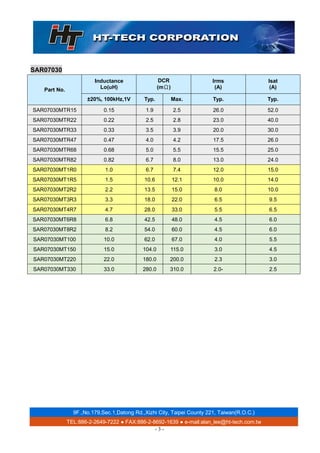

SAR07030
Part No.
Inductance
Lo(uH)
DCR
(mΩ)
Irms
(A)
Isat
(A)
±20%, 100kHz,1V Typ. Max. Typ. Typ.
SAR07030MTR15 0.15 1.9 2.5 26.0 52.0
SAR07030MTR22 0.22 2.5 2.8 23.0 40.0
SAR07030MTR33 0.33 3.5 3.9 20.0 30.0
SAR07030MTR47 0.47 4.0 4.2 17.5 26.0
SAR07030MTR68 0.68 5.0 5.5 15.5 25.0
SAR07030MTR82 0.82 6.7 8.0 13.0 24.0
SAR07030MT1R0 1.0 6.7 7.4 12.0 15.0
SAR07030MT1R5 1.5 10.6 12.1 10.0 14.0
SAR07030MT2R2 2.2 13.5 15.0 8.0 10.0
SAR07030MT3R3 3.3 18.0 22.0 6.5 9.5
SAR07030MT4R7 4.7 28.0 33.0 5.5 6.5
SAR07030MT6R8 6.8 42.5 48.0 4.5 6.0
SAR07030MT8R2 8.2 54.0 60.0 4.5 6.0
SAR07030MT100 10.0 62.0 67.0 4.0 5.5
SAR07030MT150 15.0 104.0 115.0 3.0 4.5
SAR07030MT220 22.0 180.0 200.0 2.3 3.0
SAR07030MT330 33.0 280.0 310.0 2.0- 2.5

4. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 4 -

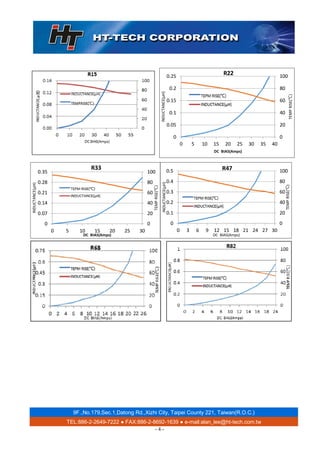

0
0.05
0.1
0.15
0.2
0.25
0
20
40
60
80
100
0 5 10 15 20 25 30 35 40
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
R22
0
0.07
0.14
0.21
0.28
0.35
0
20
40
60
80
100
0 5 10 15 20 25 30
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
R33
0
0.1
0.2
0.3
0.4
0.5
0
20
40
60
80
100
0 3 6 9 12 15 18 21 24 27 30
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
R47

5. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 5 -

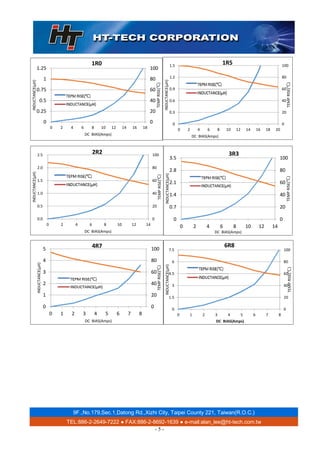

0
0.25
0.5
0.75
1
1.25
0
20
40
60
80
100
0 2 4 6 8 10 12 14 16 18
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
1R0
0
0.3
0.6
0.9
1.2
1.5
0
20
40
60
80
100
0 2 4 6 8 10 12 14 16 18 20
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
1R5
0.0
0.5
1.0
1.5
2.0
2.5
0
20
40
60
80
100
0 2 4 6 8 10 12 14
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
2R2
0
0.7
1.4
2.1
2.8
3.5
0
20
40
60
80
100
0 2 4 6 8 10 12 14
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
3R3
0
1
2
3
4
5
0
20
40
60
80
100
0 1 2 3 4 5 6 7 8
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
4R7
0
1.5
3
4.5
6
7.5
0
20
40
60
80
100
0 1 2 3 4 5 6 7 8
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
6R8

6. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 6 -

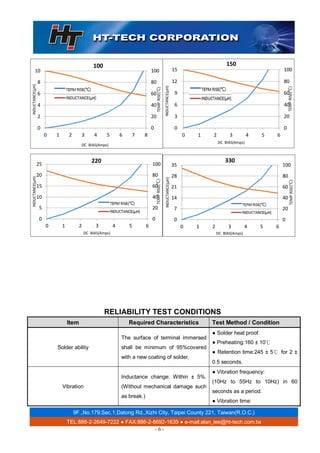

RELIABILITY TEST CONDITIONS
Item Required Characteristics Test Method / Condition
Solder ability
The surface of terminal immersed
shall be minimum of 95%covered
with a new coating of solder.
● Solder heat proof:
● Preheating:160 ± 10℃
● Retention time:245 ± 5℃ for 2 ±
0.5 seconds.
Vibration
Inductance change: Within ± 5%.
(Without mechanical damage such
as break.)
● Vibration frequency:
(10Hz to 55Hz to 10Hz) in 60
seconds as a period.
● Vibration time:
0
2
4
6
8
10
0
20
40
60
80
100
0 1 2 3 4 5 6 7 8
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
100
0
3
6
9
12
15
0
20
40
60
80
100
0 1 2 3 4 5 6
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
150
0
20
40
60
80
100
0
5
10
15
20
25
0 1 2 3 4 5 6
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
220
0
7
14
21
28
35
0
20
40
60
80
100
0 1 2 3 4 5 6
TEMPRISE(℃)
INDUCTANCE(μH)
DC BIAS(Amps)
330

7. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 7 -

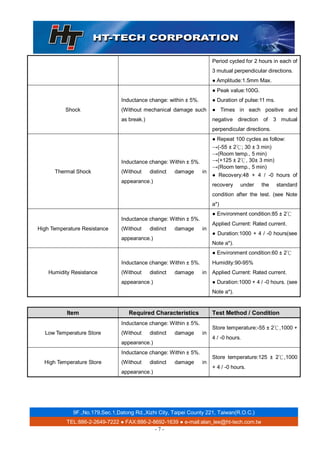

Period cycled for 2 hours in each of
3 mutual perpendicular directions.
● Amplitude:1.5mm Max.
Shock
Inductance change: within ± 5%.
(Without mechanical damage such
as break.)
● Peak value:100G.
● Duration of pulse:11 ms.
● Times in each positive and
negative direction of 3 mutual
perpendicular directions.
Thermal Shock
Inductance change: Within ± 5%.
(Without distinct damage in
appearance.)
● Repeat 100 cycles as follow:
→(-55 ± 2℃; 30 ± 3 min)
→(Room temp., 5 min)
→(+125 ± 2℃, 30± 3 min)
→(Room temp., 5 min)
● Recovery:48 + 4 / -0 hours of
recovery under the standard
condition after the test. (see Note
a*)
High Temperature Resistance
Inductance change: Within ± 5%.
(Without distinct damage in
appearance.)
● Environment condition:85 ± 2℃
Applied Current: Rated current.
● Duration:1000 + 4 / -0 hours(see
Note a*).
Humidity Resistance
Inductance change: Within ± 5%.
(Without distinct damage in
appearance.)
● Environment condition:60 ± 2℃
Humidity:90-95%
Applied Current: Rated current.
● Duration:1000 + 4 / -0 hours. (see
Note a*).
Item Required Characteristics Test Method / Condition
Low Temperature Store
Inductance change: Within ± 5%.
(Without distinct damage in
appearance.)
Store temperature:-55 ± 2℃,1000 +
4 / -0 hours.
High Temperature Store
Inductance change: Within ± 5%.
(Without distinct damage in
appearance.)
Store temperature:125 ± 2℃,1000
+ 4 / -0 hours.

8. 9F.,No.179,Sec.1,Datong Rd.,Xizhi City, Taipei County 221, Taiwan(R.O.C.)
TEL:886-2-2649-7222 ● FAX:886-2-8692-1639 ● e-mail:alan_lee@ht-tech.com.tw
- 8 -

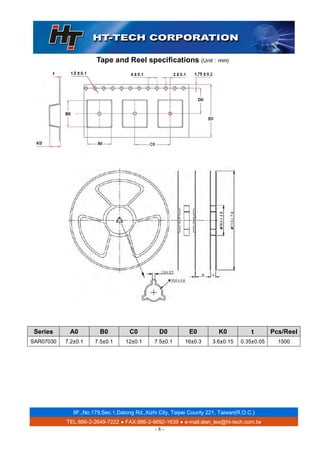

Tape and Reel specifications (Unit：mm)
Series A0 B0 C0 D0 E0 K0 t Pcs/Reel
SAR07030 7.2±0.1 7.5±0.1 12±0.1 7.5±0.1 16±0.3 3.6±0.15 0.35±0.05 1500

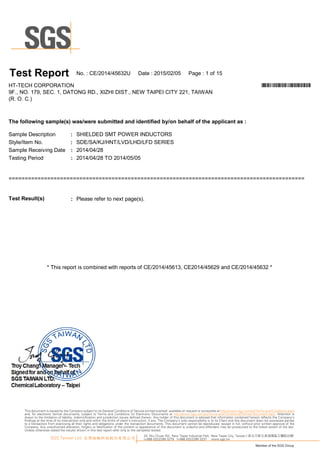

9. :
:
:
:
= = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = = =
: Please refer to nextp age(s).T es t Res u lt(s )
Sam p le R eceivingD ate
TestingPeriod
N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :1 of1 5T es t Report
*CE/2014/45632U*H T-TEC H C O R PO R A TIO N
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
SD E/SA /KJ/H N T/L VD /L H D /L FD SER IES
Sam p le D escrip tion
Style/Item N o.
SH IEL D ED SM T PO W ER IN D U C TO R S
T hefollow ing s am ple(s )w as /w eres u bm itted and identified by/on behalfoftheapplicant as :
20 1 4/0 4/28 TO 20 1 4/0 5/0 5
20 1 4/0 4/28
*This rep ortis com binedwith rep orts ofC E/20 1 4/4561 3, C E20 1 4/45629andC E/20 1 4/45632 *
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

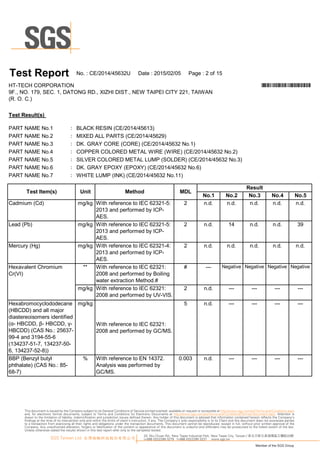

10. T es t Res u lt(s )
：
：
：
：
：
：
：
N o.1 N o.2 N o.3 N o.4 N o.5
m g/kg W ith reference to IEC 62321 -5:
20 1 3 andp erform edby IC P-
A ES.
2 n.d. n.d. n.d. n.d. n.d.
m g/kg W ith reference to IEC 62321 -5:
20 1 3 andp erform edby IC P-
A ES.
2 n.d. 1 4 n.d. n.d. 39
m g/kg W ith reference to IEC 62321 -4:
20 1 3 andp erform edby IC P-
A ES.
2 n.d. n.d. n.d. n.d. n.d.
** W ith reference to IEC 62321 :
20 0 8 andp erform edby B oiling
water extraction M ethod.#
# --- N egative N egative N egative N egative
m g/kg W ith reference to IEC 62321 :
20 0 8 andp erform edby U V-VIS.
2 n.d. --- --- --- ---
m g/kg
W ith reference to IEC 62321 :
20 0 8 andp erform edby G C /M S.
5 n.d. --- --- --- ---

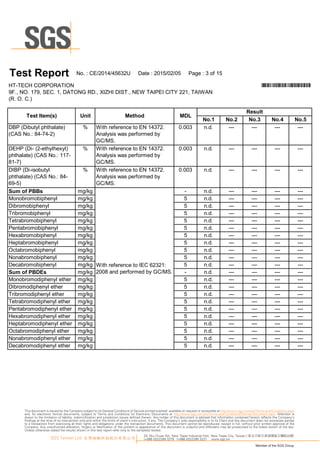

% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. --- --- --- ---
D K.G R A Y C O R E(C O R E) (C E/20 1 4/45632 N o.1 )
M DLM ethod
M IXED A L L PA R TS (C E/20 1 4/45629)
C O PPER C O L O R ED M ETA L W IR E(W IR E) (C E/20 1 4/45632 N o.2)
SIL VER C O L O R ED M ETA L L U M P (SO L D ER ) (C E/20 1 4/45632 N o.3)
W H ITEL U M P (IN K) (C E/20 1 4/45632 N o.1 1 )
B L A C K R ESIN (C E/20 1 4/4561 3)
D K.G R A Y EPO XY (EPO XY) (C E/20 1 4/45632 N o.6)
PA R T N A M EN o.1
PA R T N A M EN o.4
PA R T N A M EN o.5
PA R T N A M EN o.6
PA R T N A M EN o.2
H exavalentC hrom iu m
C r(VI)
T es t Item (s )
M ercu ry (H g)
C adm iu m (C d)
L ead(Pb)
PA R T N A M EN o.3
Res u lt
T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :2 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
PA R T N A M EN o.7
U nit
H exabrom ocyclododecane
(H B C D D ) andallm ajor
diastereoisom ers identified
(α-H B C D D , β-H B C D D , γ-
H B C D D ) (C A S N o.:25637-
99-4 and31 94-55-6
(1 34237-51 -7, 1 34237-50 -
6, 1 34237-52-8))
B B P (B enzylbu tyl
p hthalate) (C A S N o.:85-
68-7)
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

11. N o.1 N o.2 N o.3 N o.4 N o.5
% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. --- --- --- ---
% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. --- --- --- ---
% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. --- --- --- ---
m g/kg - n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg - n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
m g/kg 5 n.d. --- --- --- ---
D IB P (D i-isobu tyl
p hthalate) (C A S N o.:84-
69-5)
H ep tabrom odip henylether
O ctabrom odip henylether
Pentabrom obip henyl
Tetrabrom obip henyl
Su m ofPB B s
M onobrom obip henyl
D ibrom obip henyl
Tribrom obip henyl
M onobrom odip henylether
D ibrom odip henylether
Tribrom odip henylether
Tetrabrom odip henylether
N onabrom obip henyl
D ecabrom obip henyl
H exabrom obip henyl
H ep tabrom obip henyl
O ctabrom obip henyl
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
N onabrom odip henylether
D ecabrom odip henylether
Pentabrom odip henylether
H exabrom odip henylether
D B P (D ibu tylp hthalate)
(C A S N o.:84-74-2)
D EH P (D i-(2-ethylhexyl)
p hthalate) (C A S N o.:1 1 7-
81 -7)
T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :3 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
Su m ofPB DEs
W ith reference to IEC 62321 :
20 0 8 andp erform edby G C /M S.
T es t Item (s ) U nit M ethod M DL
Res u lt
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

12. N o.1 N o.2 N o.3 N o.4 N o.5
m g/kg 50 n.d. --- --- --- ---
m g/kg 50 243 --- --- --- ---
m g/kg 50 n.d. --- --- --- ---
m g/kg 50 n.d. --- --- --- ---
N o.6 N o.7
m g/kg W ith reference to IEC 62321 -5:
20 1 3 andp erform edby IC P-
A ES.
2 n.d. n.d.
m g/kg W ith reference to IEC 62321 -5:
20 1 3 andp erform edby IC P-
A ES.
2 n.d. n.d.
m g/kg W ith reference to IEC 62321 -4:
20 1 3 andp erform edby IC P-
A ES.
2 n.d. n.d.
m g/kg W ith reference to IEC 62321 :
20 0 8 andp erform edby U V-VIS.
2 n.d. n.d.
m g/kg W ith reference to IEC 62321 :
20 0 8 m ethod.A nalysis was
p erform edby G C /M S.
5 n.d. n.d.
% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. n.d.
% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. n.d.
W ith reference to B S EN
1 4582:20 0 7.A nalysis was
p erform edby IC .
T es t Item (s ) U nit M ethod M DL
Res u lt
D B P (D ibu tylp hthalate)
(C A S N o.:84-74-2)
T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :4 of1 5
H T-TEC H C O R PO R A TIO N
H exavalentC hrom iu m
C r(VI)
M ercu ry (H g)
B B P (B enzylbu tyl
p hthalate) (C A S N o.:85-
68-7)
M ethod M DLU nit
H alogen-Iodine (I) (C A S
N o.:1 4362-44-8)
*CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
H alogen
Res u lt
H exabrom ocyclododecane
(H B C D D ) andallm ajor
diastereoisom ers identified
(α-H B C D D , β-H B C D D , γ-
H B C D D ) (C A S N o.:25637-
99-4 and31 94-55-6
(1 34237-51 -7, 1 34237-50 -
6, 1 34237-52-8))
L ead(Pb)
C adm iu m (C d)
T es t Item (s )
H alogen-Flu orine (F) (C A S
N o.:1 4762-94-8)
H alogen-C hlorine (C l)
(C A S N o.:22537-1 5-1 )
H alogen-B rom ine (B r)
(C A S N o.:1 0 0 97-32-2)
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

13. N o.6 N o.7
% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. n.d.
% W ith reference to EN 1 4372.
A nalysis was p erform edby
G C /M S.
0 .0 0 3 n.d. n.d.
m g/kg 50 1 78 n.d.
m g/kg 50 538 n.d.
m g/kg 50 n.d. n.d.
m g/kg 50 n.d. n.d.
m g/kg - n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg - n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
m g/kg 5 n.d. n.d.
Su m ofPB DEs
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
W ith reference to IEC 62321 :
20 0 8 andp erform edby G C /M S.
T es t Report
H alogen-Flu orine (F) (C A S
N o.:1 4762-94-8)
Tetrabrom odip henylether
Pentabrom odip henylether
H exabrom odip henylether
D IB P (D i-isobu tyl
p hthalate) (C A S N o.:84-
69-5)
D EH P (D i-(2-ethylhexyl)
p hthalate) (C A S N o.:1 1 7-
81 -7)
M onobrom obip henyl
Su m ofPB B s
H alogen-Iodine (I) (C A S
N o.:1 4362-44-8)
H alogen-B rom ine (B r)
(C A S N o.:1 0 0 97-32-2)
H alogen
H alogen-C hlorine (C l)
(C A S N o.:22537-1 5-1 )
M onobrom odip henylether
D ibrom odip henylether
Pentabrom obip henyl
Tribrom obip henyl
Tetrabrom obip henyl
D ibrom obip henyl
H exabrom obip henyl
H ep tabrom obip henyl
O ctabrom obip henyl
N onabrom obip henyl
D ecabrom obip henyl
D ecabrom odip henylether
Tribrom odip henylether
H ep tabrom odip henylether
O ctabrom odip henylether
N onabrom odip henylether
N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :5 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
T es t Item (s ) U nit M ethod M DL
Res u lt
W ith reference to B S EN
1 4582:20 0 7.A nalysis was
p erform edby IC .
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

14. 1 .
2.
3.
4.
5.
6.
7.
8.
T es t Report
*CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
The sam p le(s) was/were analyzedon behalfofthe ap p licantas m ixingsam p le in one testing.The above resu lt(s)
was/were only given as the inform ality valu e.
H T-TEC H C O R PO R A TIO N
m g/kg= p p m ；0 .1 wt% = 1 0 0 0 p p m
M D L = M ethodD etection L im it
**= Q u alitative analysis (N o U nit)
N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :6of1 5
N ote：
#= a.Positive m eans the p resence ofC rVI on the testedareas
b.N egative m eans the absence ofC rVI on the testedareas
The detectedconcentration in boiling-water-extraction solu tion is eq u alor greater than 0 .0 2 m g/kgwith 50 cm ²tested
areas.
n.d.= N otD etected
"-"= N otR egu lated
"---"= N otC ondu cted
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

15. T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :7 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)

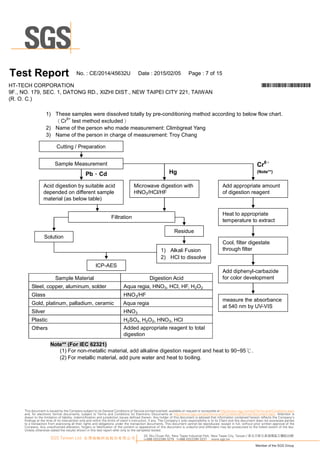

N ote**(ForIEC 62321)
(1 ) For non-m etallicm aterial, addalkaline digestion reagentandheatto 90 ~95℃.
(2) For m etallicm aterial, addp u re w ater andheatto boiling.
1 ) Thesesam p les w eredissolvedtotally by p re-conditioningm ethodaccordingto below flow chart.
（C r
6+
testm ethodexclu ded）
2) N am e ofthep erson w ho m ade m easu rem ent:C lim bgreatYang
3) N am e ofthep erson in charge ofm easu rem ent:Troy C hang
C u tting/ Prep aration
Sam p le M easu rem ent
Pb、C d
A ciddigestion by su itable acid
dep endedon differentsam p le
m aterial(as below table)
M icrowave digestion w ith
H N O 3/H C l/H F
Filtration
A ddap p rop riate am ou nt
ofdigestion reagent
H eatto ap p rop riate
tem p eratu re to extract
C ool, filter digestate
throu ghfilter
A dddip henyl-carbazide
for color develop m ent
m easu re the absorbance
at540 nm by U V-VIS
H g
Solu tion
R esidu e
1 ) A lkaliFu sion
2) H C lto dissolve
IC P-A ES
Sam p leM aterial D igestionA cid
Steel, cop p er, alu m inu m , solder A q u a regia, H N O 3, H C l, H F, H 2O 2
G lass H N O 3/H F
G old, p latinu m , p alladiu m , ceram ic A q u a regia
Silver H N O 3
Plastic H 2SO 4, H 2O 2, H N O 3, H C l
O thers A ddedap p rop riatereagentto total
digestion
C r6＋
(N ote**)
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

16. T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :8 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)

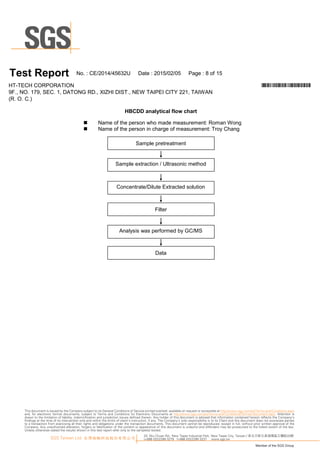

H B C DD analyticalflow chart
 N am e ofthep erson w ho m ade m easu rem ent:R om anW ong
 N am e ofthep erson in charge ofm easu rem ent:Troy C hang
D ata
Sam p le extraction / U ltrasonicm ethod
A nalysis was p erform edby G C /M S
Filter
Sam p le p retreatm ent
C oncentrate/D ilu te Extractedsolu tion
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

17. T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :9of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)

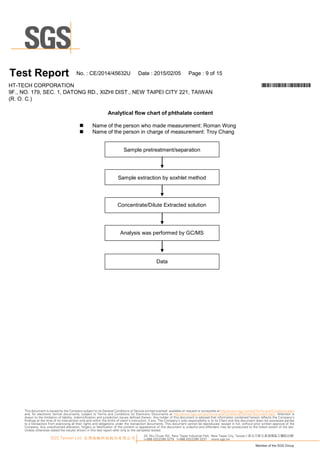

Analyticalflow chart ofphthalatecontent
 N am e ofthe p erson w ho m ade m easu rem ent:R om an W ong
 N am e ofthe p erson in charge ofm easu rem ent:Troy C hang
Sam p le p retreatm ent/sep aration
Sam p le extraction by soxhletm ethod
C oncentrate/D ilu te Extractedsolu tion
A nalysis w as p erform edby G C /M S
D ata
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

18. T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :1 0 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)

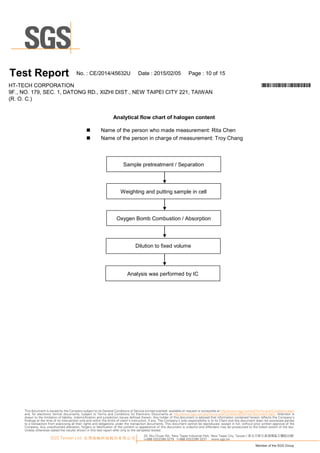

Analyticalflow chart ofhalogen content
 N am e ofthe p erson w ho m ade m easu rem ent:R ita C hen
 N am e ofthe p erson in charge ofm easu rem ent:Troy C hang
Sam p le p retreatm ent/ Sep aration
W eightingandp u ttingsam p le in cell
O xygen B om bC om bu stion / A bsorp tion
A nalysis w as p erform edby IC
D ilu tion to fixedvolu m e
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

19. 9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :1 1 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*

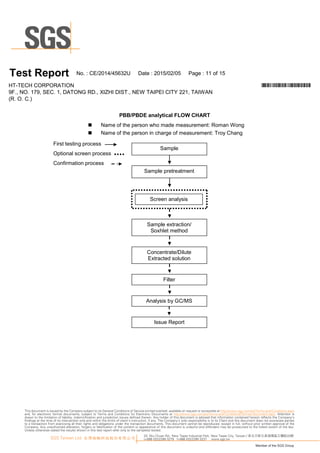

PB B /PB DE analyticalFL OW C H ART
Firsttestingp rocess
O p tionalscreen p rocess
C onfirm ationp rocess
Sam p le
Screen analysis
Issu e R ep ort
Sam p le p retreatm ent
Sam p le extraction/
Soxhletm ethod
C oncentrate/D ilu te
Extractedsolu tion
A nalysis by G C/M S
Filter
 N am eofthep erson w ho m ade m easu rem ent:R om an W ong
 N am eofthep erson in charge ofm easu rem ent:Troy C hang
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

20. T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :1 2 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)

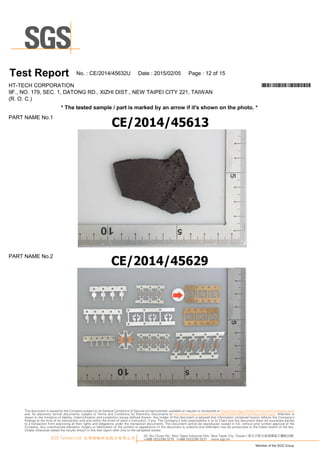

*T hetes ted s am ple/part is m arked by an arrow ifit's s how n on thephoto.*
PA R T N A M EN o.1
PA R T N A M EN o.2
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

21. T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :1 3 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)

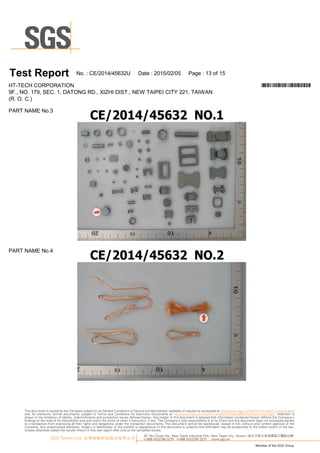

PA R T N A M EN o.3
PA R T N A M EN o.4
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

22. #PIC

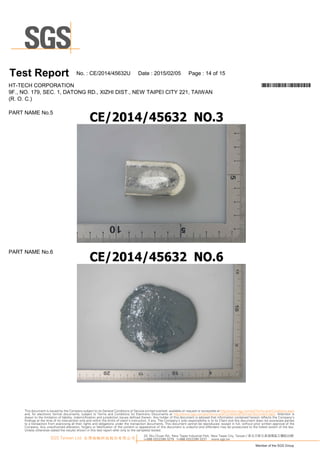

T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :1 4 of1 5
PA R T N A M EN o.5
PA R T N A M EN o.6
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.

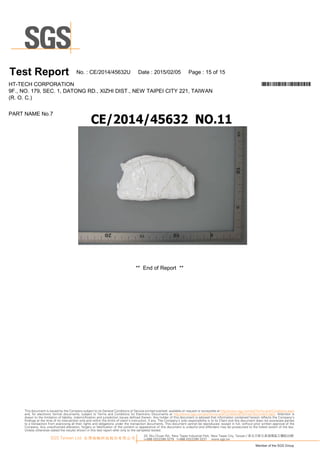

23. ** EndofR ep ort **
PA R T N A M EN o.7
T es t Report N o.:C E/20 1 4/45632U D ate :20 1 5/0 2/0 5 Page :1 5 of1 5
H T-TEC H C O R PO R A TIO N *CE/2014/45632U*
9F., N O .1 79, SEC .1 , D A TO N G R D ., XIZ H I D IST., N EW TA IPEI C ITY 221 , TA IW A N
(R .O .C .)
33, Wu Chuan Rd., New Taipei Industrial Park, New Taipei City, Taiwan / 新北市新北產業園區五權路33號
t+886 (02)2299 3279 f+886 (02)2299 3237 www.sgs.tw
Member of the SGS Group
SGS Taiwan Ltd. 台灣檢驗科技股份有限公司
This document is issued by the Company subject to its General Conditions of Service printed overleaf, available on request or accessible at http://www.sgs.com/en/Terms-and-Conditions.aspx
and, for electronic format documents, subject to Terms and Conditions for Electronic Documents at http://www.sgs.com/en/Terms-and-Conditions/Termse-Document.aspx. Attention is
drawn to the limitation of liability, indemnification and jurisdiction issues defined therein. Any holder of this document is advised that information contained hereon reflects the Company’s
findings at the time of its intervention only and within the limits of client’s instruction, if any. The Company’s sole responsibility is to its Client and this document does not exonerate parties
to a transaction from exercising all their rights and obligations under the transaction documents. This document cannot be reproduced, except in full, without prior written approval of the
Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law.
Unless otherwise stated the results shown in this test report refer only to the sample(s) tested.
