![7
BEHAVIOR
Feature: <short description>
<story>
<scenario 1>
<scenario n>
WHO? As a <role>
WHAT? I want <feature>
WHY? so that <business
value>
Scenario: <description>
Given <preconditions, context>
[And] <additional preconditions>
When <action, behaviour>
Then <postconditions>
[And] <additional postconditions>](https://image.slidesharecdn.com/d152494b-0f07-46ab-823d-0ad11a762739-160903023248/85/Cucumber_Training_ForQA-7-320.jpg)
![9
BDD Frameworks
Basic .feature (User Story)
Structure:
Feature: [Title]
As a [Role]
I want [Some Action]
So that [Business Value]
Scenario: Title
Given [Context]
And [More Context]
When (I do) [Action]
And [Other Action]
Then (I should see) [Outcome]
And [More Outcomes]
- Description of Feature
- Stakeholder and/or User role
- Action to be taken by user.
- Business Value Provided
- Description of Scenario
- Preconditions of Scenario
- Actions taken in Scenario
- Outcome Expected
One or more Scenarios defined](https://image.slidesharecdn.com/d152494b-0f07-46ab-823d-0ad11a762739-160903023248/85/Cucumber_Training_ForQA-9-320.jpg)
![26
• Step definition maps the test case steps in the feature files
• It must match the given component in a feature
• Java implementation
• Regex Expressions used for data parameters
@Given("^I am on Flipkart Website$")
public void I_am_on_Flipkart_Website() throws Throwable {
// Express the Regexp above with the code you wish you had
throw new PendingException();
}
@When("^When I Enter "([^"]*)" and "([^"]*)"")
public void When_I_Enter_Username_and_Password(String arg1,String arg2) throws Throwable {
// Express the Regexp above with the code you wish you had
throw new PendingException();
}
Step Definitions](https://image.slidesharecdn.com/d152494b-0f07-46ab-823d-0ad11a762739-160903023248/85/Cucumber_Training_ForQA-26-320.jpg)
![27
@And("^And I click on Login Button$")
public void An_ I_click_on_Sign_in_Button() throws Throwable {
// Express the Regexp above with the code you wish you had
throw new PendingException();
}
@Then("^Then I am able to Login "([^"]*)"$")
public void Then_I_am_able_to_Login_Successfully(String arg) throws Throwable {
// Express the Regexp above with the code you wish you had
throw new PendingException();
}
Step Definitions](https://image.slidesharecdn.com/d152494b-0f07-46ab-823d-0ad11a762739-160903023248/85/Cucumber_Training_ForQA-27-320.jpg)
![42
"<?xml version="1.0" encoding="UTF-8"?><testsuite failures="1" name="cucumber.runtime.formatter.JUnitFormatter" skipped="0" tests="2"
time="62.17886">
<testcase classname="Mercury" name="Login into Flipkart Application" time="19.504004">
<system-out><![CDATA[Given I am on Flipkart Website..............................................passed
When I click on Sign in.....................................................passed
And I Enter "sbansal23@sapient.com" and "sapient123"........................passed
And I click on Sign in Button...............................................passed
Then I am able to Login "pass"..............................................passed
]]></system-out>
</testcase>
<testcase classname="Mercury" name="Login into Flipkart Application 2" time="42.674856">
[CDATA[Given I am on Flipkart Website..............................................passed
When I click on Sign in.....................................................passed
And I Enter "Automationtester" and "incorrectpassword"......................passed
And I click on Sign in Button...............................................passed
Then I am able to Login "fail"..............................................failed
Junit - Example](https://image.slidesharecdn.com/d152494b-0f07-46ab-823d-0ad11a762739-160903023248/85/Cucumber_Training_ForQA-42-320.jpg)
Cucumber_Training_ForQA
- 1.
- 2. 2 PRESENTED BY: Meenakshi Singhal (SeniorAssociate QA L1)
- 3. 3 AGENDA 1. Introduction toBDD 2. Introduction to Cucumber 3. Usage of Cucumber with Selenium 4. Gherkin Language, Feature Files, Step Definitions & Tags 5. Cucumber Reports 6. Demo Project
- 4.

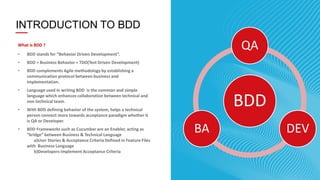

- 5. 5 INTRODUCTION TO BDD Whatis BDD ? • BDD stands for “Behavior Driven Development”. • BDD = Business Behavior + TDD(Test Driven Development) • BDD complements Agile methodology by establishing a communication protocol between business and implementation. • Language used in writing BDD is the common and simple language which enhances collaboration between technical and non technical team. • With BDD defining behavior of the system, helps a technical person connect more towards acceptance paradigm whether it is QA or Developer. • BDD Frameworks such as Cucumber are an Enabler, acting as “bridge” between Business & Technical Language a)User Stories & Acceptance Criteria Defined in Feature Files with Business Language b)Developers Implement Acceptance Criteria BDD QA DEVBA

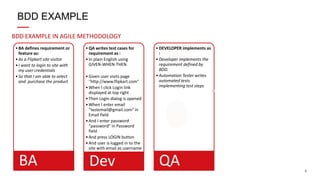

- 6. 6 BDD EXAMPLE INAGILE METHODOLOGY BDD EXAMPLE •BA defines requirement or feature as: •As a Flipkart site visitor •I want to login to site with my user credentials •So that I am able to select and purchase the product BA •QA writes test cases for requirement as : •In plain English using GIVEN-WHEN-THEN •Given user visits page "http://www.flipkart.com" •When I click Login link displayed at top right •Then Login dialog is opened •When I enter email “testemail@gmail.com" in Email field •And I enter password “password" in Password field •And press LOGIN button •And user is logged in to the site with email as username Dev •DEVELOPER implements as : •Developer implements the requirement defined by BDD. •Automation Tester writes automated tests implementing test steps QA

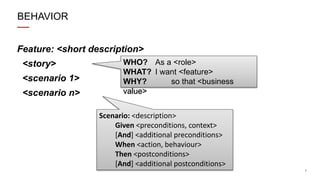

- 7. 7 BEHAVIOR Feature: <short description> <story> <scenario1> <scenario n> WHO? As a <role> WHAT? I want <feature> WHY? so that <business value> Scenario: <description> Given <preconditions, context> [And] <additional preconditions> When <action, behaviour> Then <postconditions> [And] <additional postconditions>

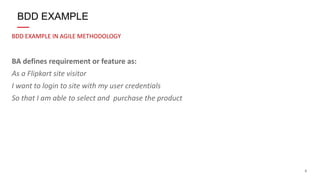

- 8. 8 BDD EXAMPLE INAGILE METHODOLOGY BA defines requirement or feature as: As a Flipkart site visitor I want to login to site with my user credentials So that I am able to select and purchase the product BDD EXAMPLE

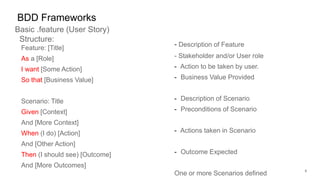

- 9. 9 BDD Frameworks Basic .feature(User Story) Structure: Feature: [Title] As a [Role] I want [Some Action] So that [Business Value] Scenario: Title Given [Context] And [More Context] When (I do) [Action] And [Other Action] Then (I should see) [Outcome] And [More Outcomes] - Description of Feature - Stakeholder and/or User role - Action to be taken by user. - Business Value Provided - Description of Scenario - Preconditions of Scenario - Actions taken in Scenario - Outcome Expected One or more Scenarios defined

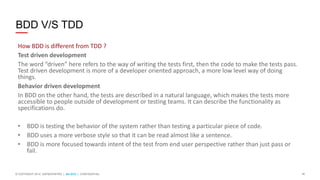

- 10. 10© COPYRIGHT 2014SAPIENTNITRO | QA SCG | CONFIDENTIAL BDD V/S TDD How BDD is different from TDD ? Test driven development The word “driven” here refers to the way of writing the tests first, then the code to make the tests pass. Test driven development is more of a developer oriented approach, a more low level way of doing things. Behavior driven development In BDD on the other hand, the tests are described in a natural language, which makes the tests more accessible to people outside of development or testing teams. It can describe the functionality as specifications do. • BDD is testing the behavior of the system rather than testing a particular piece of code. • BDD uses a more verbose style so that it can be read almost like a sentence. • BDD is more focused towards intent of the test from end user perspective rather than just pass or fail.
- 11. 11 Tools to PracticeBDD • Cucumber (Java & Ruby) • Jbehave(Java) • Concordion(Java) • Specflow(C#) • EasyB(Java) • Specflow(Ruby) Tools to practice BDD
- 12.

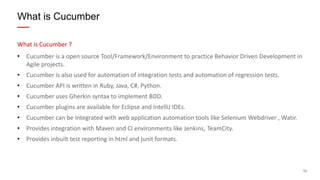

- 13. 13 What is Cucumber? • Cucumber is a open source Tool/Framework/Environment to practice Behavior Driven Development in Agile projects. • Cucumber is also used for automation of integration tests and automation of regression tests. • Cucumber API is written in Ruby, Java, C#, Python. • Cucumber uses Gherkin syntax to implement BDD. • Cucumber plugins are available for Eclipse and IntelliJ IDEs. • Cucumber can be integrated with web application automation tools like Selenium Webdriver , Watir. • Provides integration with Maven and CI environments like Jenkins, TeamCity. • Provides inbuilt test reporting in html and junit formats. What is Cucumber

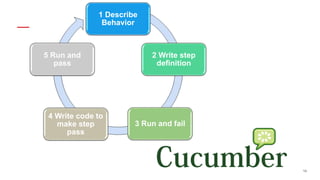

- 14. 14 1 Describe Behavior 2 Writestep definition 3 Run and fail 4 Write code to make step pass 5 Run and pass

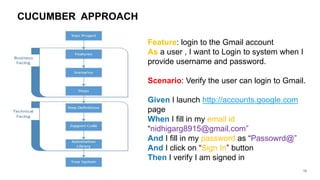

- 15. 15 CUCUMBER APPROACH Feature: loginto the Gmail account As a user , I want to Login to system when I provide username and password. Scenario: Verify the user can login to Gmail. Given I launch http://accounts.google.com page When I fill in my email id “nidhigarg8915@gmail.com” And I fill in my password as “Passowrd@” And I click on “Sign In” button Then I verify I am signed in
- 16. 3. Usage ofCucumber with Selenium

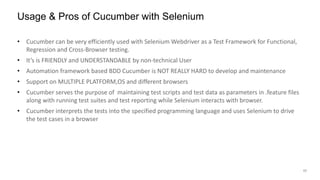

- 17. 17 • Cucumber canbe very efficiently used with Selenium Webdriver as a Test Framework for Functional, Regression and Cross-Browser testing. • It’s is FRIENDLY and UNDERSTANDABLE by non-technical User • Automation framework based BDD Cucumber is NOT REALLY HARD to develop and maintenance • Support on MULTIPLE PLATFORM,OS and different browsers • Cucumber serves the purpose of maintaining test scripts and test data as parameters in .feature files along with running test suites and test reporting while Selenium interacts with browser. • Cucumber interprets the tests into the specified programming language and uses Selenium to drive the test cases in a browser Usage & Pros of Cucumber with Selenium

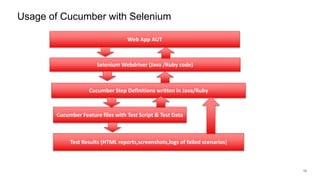

- 18. 18 Usage of Cucumberwith Selenium Web App AUT Selenium Webdriver (Java /Ruby code) Cucumber Step Definitions written in Java/Ruby Cucumber Feature files with Test Script & Test Data Test Results (HTML reports,screenshots,logs of failed scenarios)
- 19. 4. Gherkin Language,Feature Files, Step Definitions & Tags

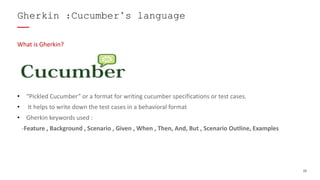

- 20. 20 What is Gherkin? •“Pickled Cucumber” or a format for writing cucumber specifications or test cases. • It helps to write down the test cases in a behavioral format • Gherkin keywords used : -Feature , Background , Scenario , Given , When , Then, And, But , Scenario Outline, Examples Gherkin :Cucumber’s language

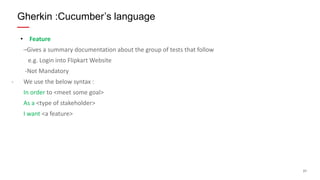

- 21. 21 • Feature –Gives asummary documentation about the group of tests that follow e.g. Login into Flipkart Website -Not Mandatory - We use the below syntax : In order to <meet some goal> As a <type of stakeholder> I want <a feature> Gherkin :Cucumber’s language
- 22. 22 Scenario -Example ofhow a system should behave in a particular situation. If you add together the behavior defined by all of the scenarios, that’s the expected behavior of the feature itself. Scenario Outline: Same scenario can be executed for multiple sets of data using scenario outline. The data is provided by a tabular structure separated by (I I). Given, When, Then In Gherkin, we use the keywords Given, When, and Then to identify those three different parts of the scenario: • Given: It specifies the context of the text to be executed. By using datatables "Given", step can also be parameterized. • When: "When" specifies the test action that has to performed • Then: The expected outcome of the test can be represented by "Then" Gherkin :Cucumber’s language

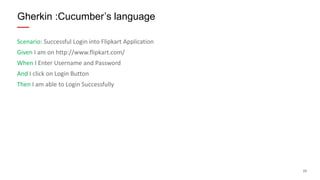

- 23. 23 Scenario: Successful Logininto Flipkart Application Given I am on http://www.flipkart.com/ When I Enter Username and Password And I click on Login Button Then I am able to Login Successfully Gherkin :Cucumber’s language

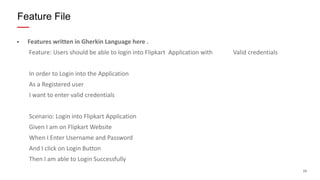

- 24. 24 • Features writtenin Gherkin Language here . Feature: Users should be able to login into Flipkart Application with Valid credentials In order to Login into the Application As a Registered user I want to enter valid credentials Scenario: Login into Flipkart Application Given I am on Flipkart Website When I Enter Username and Password And I click on Login Button Then I am able to Login Successfully Feature File

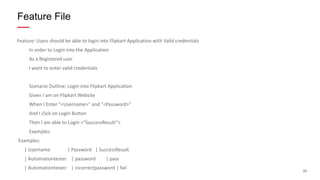

- 25. 25 Feature: Users shouldbe able to login into Flipkart Application with Valid credentials In order to Login into the Application As a Registered user I want to enter valid credentials Scenario Outline: Login into Flipkart Application Given I am on Flipkart Website When I Enter "<Username>" and "<Password>" And I click on Login Button Then I am able to Login <“SuccessResult”> Examples: Examples: | Username | Password | SuccessResult | Automationtester | password | pass | Automationtester | incorrectpassword | fail Feature File

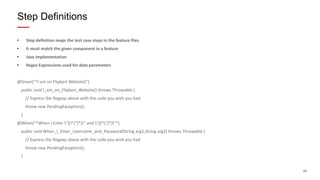

- 26. 26 • Step definitionmaps the test case steps in the feature files • It must match the given component in a feature • Java implementation • Regex Expressions used for data parameters @Given("^I am on Flipkart Website$") public void I_am_on_Flipkart_Website() throws Throwable { // Express the Regexp above with the code you wish you had throw new PendingException(); } @When("^When I Enter "([^"]*)" and "([^"]*)"") public void When_I_Enter_Username_and_Password(String arg1,String arg2) throws Throwable { // Express the Regexp above with the code you wish you had throw new PendingException(); } Step Definitions

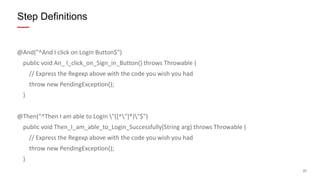

- 27. 27 @And("^And I clickon Login Button$") public void An_ I_click_on_Sign_in_Button() throws Throwable { // Express the Regexp above with the code you wish you had throw new PendingException(); } @Then("^Then I am able to Login "([^"]*)"$") public void Then_I_am_able_to_Login_Successfully(String arg) throws Throwable { // Express the Regexp above with the code you wish you had throw new PendingException(); } Step Definitions

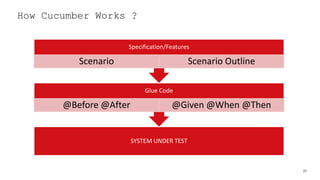

- 28. 28 How Cucumber Works? SYSTEM UNDER TEST Glue Code @Before @After @Given @When @Then Specification/Features Scenario Scenario Outline

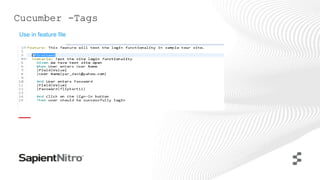

- 29. Cucumber -Tags Use infeature file
- 30. Cucumber -Tags Using Junitto Control tags

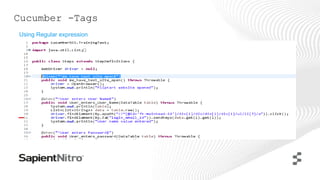

- 31. Cucumber -Tags Using Regularexpression
- 32.

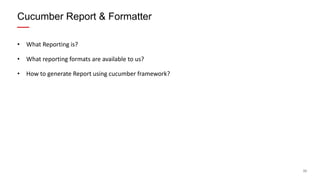

- 33. 33 • What Reportingis? • What reporting formats are available to us? • How to generate Report using cucumber framework? Cucumber Report & Formatter
- 34. 34 • Mechanism ofgenerating files having set of results • Access outside or within cucumber framework • Some Report formatters generate files while others print to STDOUT • Report formatters are used with @CucumberOptions in Runner class • Example: import org.junit.runner.RunWith; import cucumber.api.CucumberOptions; import cucumber.api.junit.Cucumber; @RunWith(Cucumber.class) @CucumberOptions( features = {"src/"},plugin={“pretty”, html:target/cucumber-html-report/“, json:target/json/cucumber-json-report.json, junit:target/cucumber-junit-report/allcukes.xml"}, tags = {"@Runme"} ) public class CukeRunner { } Cucumber Reporting

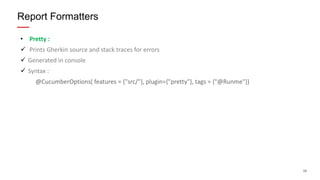

- 35. 35 • Pretty : Prints Gherkin source and stack traces for errors Generated in console Syntax : @CucumberOptions( features = {"src/"}, plugin={"pretty"}, tags = {"@Runme"}) Report Formatters

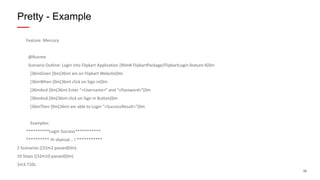

- 36. 36 Feature: Mercury @Runme Scenario Outline:Login into Flipkart Application [90m# FlipkartPackage/FlipkartLogin.feature:4[0m [36mGiven [0m[36mI am on Flipkart Website[0m [36mWhen [0m[36mI click on Sign in[0m [36mAnd [0m[36mI Enter "<Username>" and "<Password>"[0m [36mAnd [0m[36mI click on Sign in Button[0m [36mThen [0m[36mI am able to Login "<SuccessResult>"[0m Examples: **********Login Success*********** ********** Hi sbansal... ! *********** 2 Scenarios ([32m2 passed[0m) 10 Steps ([32m10 passed[0m) 1m3.710s Pretty - Example

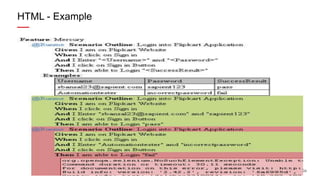

- 37. 37 • HTML Easilyaccessible from directories, server or outside cucumber framework Handy and readable Format type and location are must Generates formatter.js, jquery.js, report.js, index.html and style.css Syntax: @CucumberOptions( features = {"src/"}, plugin={“html:target/cucumber-html-report/"}, tags = {"@Runme"}) Report Formatters
- 38.

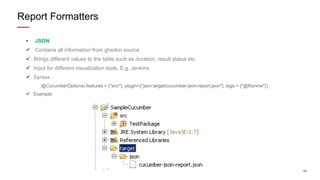

- 39. 39 • JSON Containsall information from gherkin source Brings different values to the table such as duration, result status etc. Input for different visualization tools, E.g. Jenkins Syntax : @CucumberOptions( features = {"src/"}, plugin={“json:target/cucumber-json-report.json"}, tags = {"@Runme"}) Example: Report Formatters

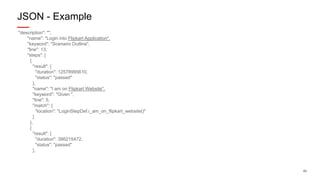

- 40. 40 "description": "", "name": "Logininto Flipkart Application", "keyword": "Scenario Outline", "line": 13, "steps": [ { "result": { "duration": 12578995610, "status": "passed" }, "name": "I am on Flipkart Website", "keyword": "Given ", "line": 5, "match": { "location": "LoginStepDef.i_am_on_flipkart_website()" } }, { "result": { "duration": 386215472, "status": "passed" }, JSON - Example

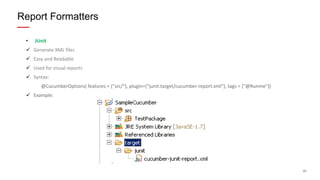

- 41. 41 • JUnit GenerateXML files Easy and Readable Used for visual reports Syntax: @CucumberOptions( features = {"src/"}, plugin={“junit:target/cucumber-report.xml"}, tags = {"@Runme"}) Example: Report Formatters

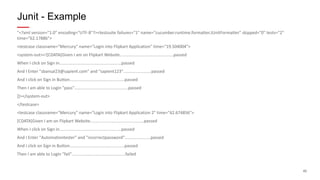

- 42. 42 "<?xml version="1.0" encoding="UTF-8"?><testsuitefailures="1" name="cucumber.runtime.formatter.JUnitFormatter" skipped="0" tests="2" time="62.17886"> <testcase classname="Mercury" name="Login into Flipkart Application" time="19.504004"> <system-out><![CDATA[Given I am on Flipkart Website..............................................passed When I click on Sign in.....................................................passed And I Enter "sbansal23@sapient.com" and "sapient123"........................passed And I click on Sign in Button...............................................passed Then I am able to Login "pass"..............................................passed ]]></system-out> </testcase> <testcase classname="Mercury" name="Login into Flipkart Application 2" time="42.674856"> [CDATA[Given I am on Flipkart Website..............................................passed When I click on Sign in.....................................................passed And I Enter "Automationtester" and "incorrectpassword"......................passed And I click on Sign in Button...............................................passed Then I am able to Login "fail"..............................................failed Junit - Example
- 43.
