SAP HANA on POWER9 systems

© 2020 IBM Corporation
IBM Cognitive Systems
SAP HANA on POWER
Ander Ochoa – ander.ochoa.gilo@ibm.com
Cognitive Systems Architect for SPGI
OpenPOWER Foundation member
https://es.linkedin.com/in/anderotxoa
Three Days International Summit on
AI and Machine Learning in
Industry 4.0
using IBMOpenPOWER / POWER Systems along with
PSNACET

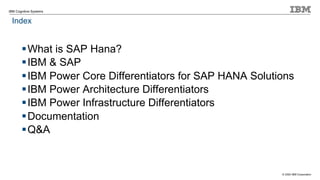

Index
§What is SAP Hana?
§IBM & SAP
§IBM Power Core Differentiators for SAP HANA Solutions
§IBM Power Architecture Differentiators
§IBM Power Infrastructure Differentiators

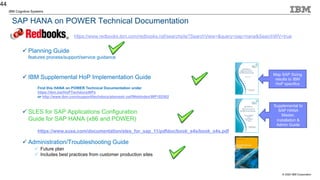

§Documentation
§Q&A

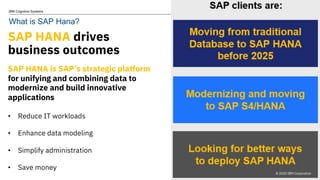

SAP HANA drives
business outcomes
SAP HANA is SAP’s strategic platform
for unifying and combining data to
modernize and build innovative
applications
• Reduce IT workloads
• Enhance data modeling
• Simplify administration
• Save money
3 © 2020 IBM Corporation
What is SAP Hana?

4
What is SAP Hana?
What we call “SAP Hana” from the IBM Systems standpoint is a Workload mainly based on:
- One Client (running in an end user computer). Out of our scope.
- One Presentation Server [optional] . SAP Fiori. UX.
- One (or more) Application Servers (running ABAP or Java).
- One Data Base. (In-Memory, Columnar, Insert Only, Compressed…)
- Other components… (Central Instance…)
Types:
• OLTP: Online Transactional Process. (ERP)
• OLAP: Online Analytical Process. (BW)
What is SAP S/4HANA? (OLTP Enterprise Resource Planning)
SAP S/4HANA is a future-ready enterprise resource planning (ERP) system with built-in intelligent technologies,
including AI, machine learning, and advanced analytics. It transforms business processes with intelligent automation
and runs on SAP HANA – a market-leading in-memory database that offers real-time processing speeds and a
dramatically simplified data model.
What is SAP BW/4HANA? (OLAP Business Warehouse)
SAP BW/4HANA is a packaged data warehouse based on SAP HANA. As the on-premise data warehouse layer of
SAP’s Business Technology Platform, it allows you to consolidate data across the enterprise to get a consistent,
agreed-upon view of your data.

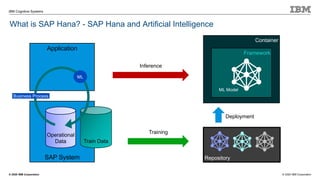

Application
Container
Framework
SAP System
Operational
Data
ML Model
Repository
Train Data
Deployment
Training
Inference
Business Process
ML
What is SAP Hana? - SAP Hana and Artificial Intelligence

6

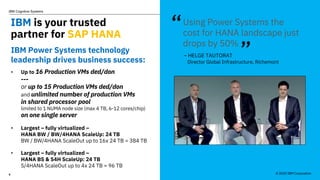

IBM is your trusted
partner for SAP HANA
IBM Power Systems technology
leadership drives business success:

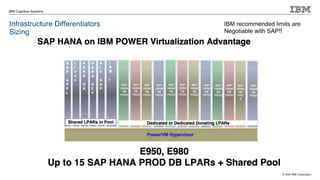

• Up to 16 Production VMs ded/don
---
or up to 15 Production VMs ded/don
and unlimited number of production VMs
in shared processor pool
limited to 1 NUMA node size (max 4 TB, 6-12 cores/chip)
on one single server

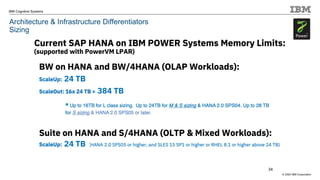

• Largest – fully virtualized –
HANA BW / BW/4HANA ScaleUp: 24 TB
BW / BW/4HANA ScaleOut up to 16x 24 TB = 384 TB
• Largest – fully virtualized –
HANA BS & S4H ScaleUp: 24 TB
S/4HANA ScaleOut up to 4x 24 TB = 96 TB
Using Power Systems the
cost for HANA landscape just
drops by 50%
– HELGE TAUTORAT
Director Global Infrastructure, Richemont
“
”

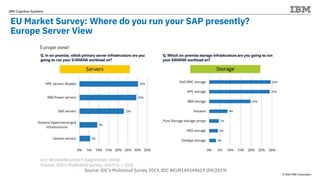

EU Market Survey: Where do you run your SAP presently?
Europe Server View
Source: IDC’s Multicloud Survey 2019, IDC #EUR145549619 (09/2019)

Your can rely on the IBM + SAP team to deliver business value
8

9
This award recognizes an SAP
partner who has demonstrated a
commitment to deliver innovative
solutions that meet a multitude of
customer deployment scenarios,
including on-premise, cloud, and
hybrid, as well as virtualized
architectures.
The winning partner is selected on
the basis of successful customer
digital transformation, alignment
and affinity with SAP’s vision and
platform road map, ability to
address and expand markets, and
its success and relevance within
the SAP ecosystem.
SAP Pinnacle Awards 2018:
Infrastructure Winner = IBM/SAP Global Partner of the Year!

10

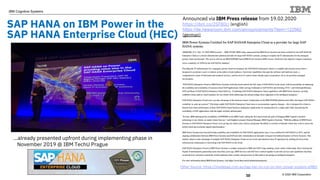

SAP HANA on IBM Power in the
SAP HANA Enterprise Cloud (HEC)
...already presented upfront during implementing phase in
November 2019 @ IBM TechU Prague
Other Source: https://insidesap.com.au/sap-hec-to-run-on-ibm-power-system-e980/
Announced via IBM Press release from 19.02.2020
https://ibm.co/2SF80ci (english)
https://de.newsroom.ibm.com/announcements?item=122562
(german)

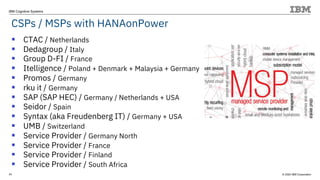

CSPs / MSPs with HANAonPower
11
§ CTAC / Netherlands
§ Dedagroup / Italy
§ Group D-FI / France
§ Itelligence / Poland + Denmark + Malaysia + Germany
§ Promos / Germany
§ rku it / Germany
§ SAP (SAP HEC) / Germany / Netherlands + USA
§ Seidor / Spain
§ Syntax (aka Freudenberg IT) / Germany + USA
§ UMB / Switzerland
§ Service Provider / Germany North
§ Service Provider / France
§ Service Provider / Finland
§ Service Provider / South Africa

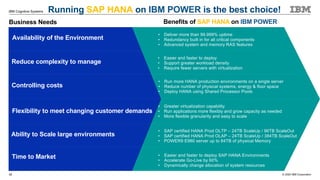

IBM Cognitive Systems Running SAP HANA on IBM POWER is the best choice!
Benefits of SAP HANA on IBM POWER
• Easier and faster to deploy
• Support greater workload density
• Require fewer servers with virtualization
Business Needs
Reduce complexity to manage
Controlling costs
Flexibility to meet changing customer demands
Ability to Scale large environments
• Run more HANA production environments on a single server
• Reduce number of physical systems, energy & floor space
• Deploy HANA using Shared Processor Pools
• Greater virtualization capability
• Run applications more flexibly and grow capacity as needed
• More flexible granularity and easy to scale
• SAP certified HANA Prod OLTP – 24TB ScaleUp / 96TB ScaleOut
• SAP certified HANA Prod OLAP – 24TB ScaleUp / 384TB ScaleOut
• POWER9 E980 server up to 64TB of physical Memory
• Easier and faster to deploy SAP HANA Environments
• Accelerate Go-Live by 60%
• Dynamically change allocation of system resources
Time to Market
• Deliver more than 99.999% uptime
• Redundancy built in for all critical components
• Advanced system and memory RAS features
Availability of the Environment
12

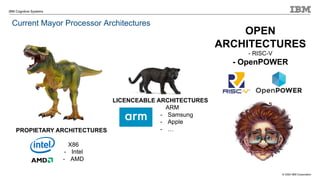

Current Mayor Processor Architectures
PROPIETARY ARCHITECTURES
X86
- Intel
- AMD
LICENCEABLE ARCHITECTURES
ARM
- Samsung
- Apple
- …
OPEN
ARCHITECTURES
- RISC-V
- OpenPOWER

14

15

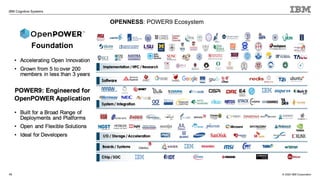

OPENNESS: POWER9 Ecosystem

Open POWER moves to Linux Foundation
IBM Demonstrates Commitment to Open Hardware Movement
https://openpowerfoundation.org/?resource_lib=power-isa-version-3-0
• Open POWER ISA (instruction set architecture)
• Microwatt (Power ISA soft core. ISA 3.0)
• Open CAPI (coherent acelerator processor interface)
• OMI (Open Memory Interface)
https://openpowerfoundation.org/the-next-step-in-the-openpower-foundation-journey/
https://www.talospace.com/2019/09/a-beginners-guide-to-hacking-microwatt.html

Core differentiators: Traditional DB model
Traditional DB in storage
Main memory
Storage
Cached data & Modified data still not
saved to disk
SQL query

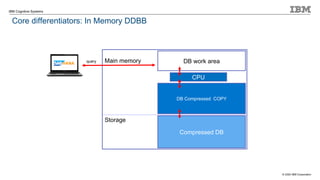

Core differentiators: In Memory DDBB
Compressed DB
Main memory
Storage
DB Compressed COPY
query DB work area
CPU

Compressed DB
DB Compressed COPY

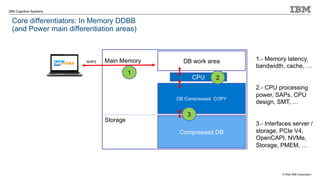

Core differentiators: In Memory DDBB
(and Power main differentiation areas)
Main Memory
Storage
query DB work area
CPU
1
3
2
1.- Memory latency,
bandwidth, cache, …
2.- CPU processing
power, SAPs, CPU
design, SMT, …
3.- Interfaces server /
storage, PCIe V4,
OpenCAPI, NVMe,
Storage, PMEM, …

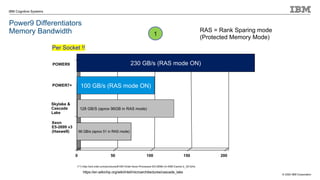

Per Socket !!
0 50 100 150 200
(*1) http://ark.intel.com/products/81061/Intel-Xeon-Processor-E5-2699-v3-45M-Cache-2_30-GHz
68 GB/s (aprox 51 in RAS mode)
128 GB/S (aprox 96GB in RAS mode)
230 GB/s (RAS mode ON)
Xeon
E5-2699 v3
(Haswell)
POWER9
100 GB/s (RAS mode ON)
POWER7+
Power9 Differentiators
Memory Bandwidth 1
https://en.wikichip.org/wiki/intel/microarchitectures/cascade_lake
Skylake &
Cascade
Lake
RAS = Rank Sparing mode
(Protected Memory Mode)

Memory
Buffer
DRAM
Chips
DDR Interfaces
POW
ER8
Link
Scheduler &
Management
16M
B
Mem
ory
Cach
e
The cores of the Power9 processor are supported and
fed by a 128-Mbyte L3 cache based on nonuniform
cache architecture (NUCA). The L3 cache is designed as
12 regions of a 20-way associative cache with advanced
replacement policies. The L3 cache system is, in turn,
fed by an on-chip fabric that delivers up to 7 Tbytes per
second (TBps) of on-chip bandwidth.
The Power9 processor has a 512-Kbyte,
private, eight-way set-associative L2
cache per SMT8 core. This cache also
functions as a privately shared cache
between two SMT4 cores. The Power9
processor has a total of 120 Mbytes of L3
NUCA cache.
L1 + L2 + L3 + L4
Cache memory
1

The CPU power 2
6850
(*1)
IBM POWER9
5451
IBM POWER8
*Baseline: SAPS per Core for Power9 E950, 16 Cores, 3.8 Ghz

23

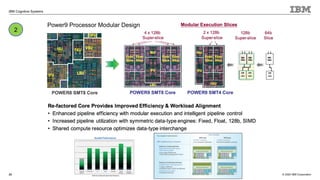

Power9 Processor Modular Design
2

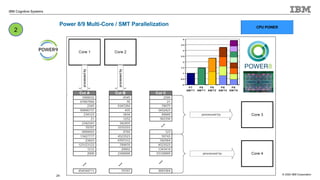

Power 8/9 Multi-Core / SMT Parallelization
24
CPU POWER
2

25

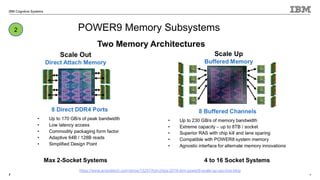

https://www.anandtech.com/show/13257/hot-chips-2018-ibm-power9-scale-up-cpu-live-blog
2

The CPU
26

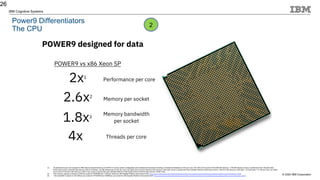

POWER9 designed for data
2.6x2
Performance per core
Memory per socket
POWER9 vs x86 Xeon SP
(1) 2X performance per core is based on IBM Internal measurements as of 2/28/18 on various system configuration and workload environments including (1) Enterprise Database (2.22X per core): 20c L922 (2x10-core/2.9 GHz/256 GB memory): 1,039,365 Ops/sec versus 2-socket Intel Xeon Skylake Gold
6148 (2x20-core/2.4 GHz/256 GB memory): 932,273 Ops/sec. (2) DB2 Warehouse (2.43X per core): 20c S922 (2x10-core/2.9 GHz/512 GB memory): 3242 QpH versus 2-socket Intel Xeon Skylake Platinum 8168 (2x24-core/2.7 GHz/512 GB memory): 3203 QpH. (3) DayTrader 7 (3.19X per core): 24c S924
(2x12-core/3.4 GHz/512 GB memory): 32221.4 tps versus 2-socket Intel Xeon Skylake Platinum 8180 (2x28-core/2.5 GHz/512 GB memory): 23497.4 tps.
(2) 2.6X memory capacity is based on 4TB per socket for POWER9 and 1.5TB per socket for x86 Scalable Platform Intel product brief: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/xeon-scalable-platform-brief.pdf?asset=14606
(3) 1.8X bandwidth is based on 230 GB/sec per socket for POWER9 and 128GB/sec per socket for x86 Scalable Platform Intel product brief: https://www.intel.com/content/dam/www/public/us/en/documents/product-briefs/xeon-scalable-platform-brief.pdf?asset=14606
1.8x3
Memory bandwidth
per socket
2x1
4x Threads per core
2

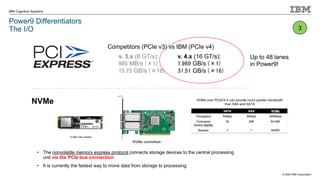

Competitors (PCIe v3) vs IBM (PCIe v4)
v. 3.x (8 GT/s):
985 MB/s (×1)
15.75 GB/s (×16)
v. 4.x (16 GT/s):
1.969 GB/s (×1)
31.51 GB/s (×16)
NVMe
• The nonvolatile memory express protocol connects storage devices to the central processing
unit via the PCIe bus connection
• It is currently the fastest way to move data from storage to processing.
Internal disks
NVMe controllers
The I/O 3
Up to 48 lanes
in Power9!
NVMe over PCIeV4.0 can provide much greater bandwidth
than SAS and SATA

The I/O

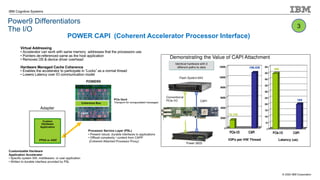

POWER CAPI (Coherent Accelerator Processor Interface)
FPGA or ASIC
Custom
Hardware
Application
Customizable Hardware
Application Accelerator
• Specific system SW, middleware, or user application
• Written to durable interface provided by PSL
POWER8
CAPP
Coherence Bus
POWER9
PCIe Gen4
Transport for encapsulated messages
Processor Service Layer (PSL)
• Present robust, durable interfaces to applications
• Offload complexity / content from CAPP
(Coherent Attached Processor Proxy)
Virtual Addressing
• Accelerator can work with same memory addresses that the processors use
• Pointers de-referenced same as the host application
• Removes OS & device driver overhead
Hardware Managed Cache Coherence
• Enables the accelerator to participate in “Locks” as a normal thread
• Lowers Latency over IO communication model
3

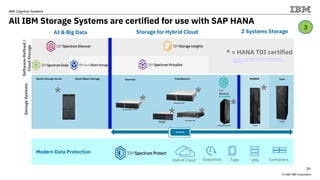

Adapter

Software-Defined
/
Cloud
Storage
TS7700
FlashSystem 900
AI & Big Data Storage for Hybrid Cloud
Modern Data Protection
Storage
Systems
FlashSystem 9100
Storwize V5000 / V7000
Storwize FlashSystem
Cloud Object Storage
Elastic Storage Server DS8000 Tape
Z Systems Storage
VMs
Tape
Hybrid Cloud Containers
SAN Volume
Controller
DS888x
FlashSystem A9000/R
Networking
Snapshots
* = HANA TDI certified
*
*
*
* *
*
*
https://www.sap.com/dmc/exp/2014-09-02-hana-hardware/enEN/enterprise-
storage.html#categories=certified%23International%20Business%20Machines
%20Corporation
All IBM Storage Systems are certified for use with SAP HANA
29
3

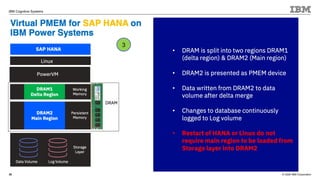

30
3

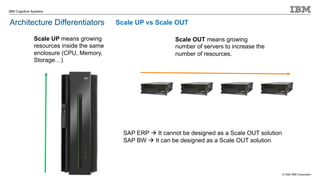

Scale UP vs Scale OUT
Scale UP means growing
resources inside the same
enclosure (CPU, Memory,
Storage…)
Scale OUT means growing
number of servers to increase the
number of resources.
SAP ERP à It cannot be designed as a Scale OUT solution
SAP BW à It can be designed as a Scale OUT solution
Architecture Differentiators

32
Source: SAP SE

Scale up:
- E980 internal bandwidth 230 GB/Sec
- 90 nanoseconds latency
Scale out:
- 100 GbE bandwidth = 12.5 GB/Sec
- 100.000 nanoseconds latency
IBM POWER
Scale up:
• 18 x higher bandwidth
• + 1.100 times less latency

34
Architecture & Infrastructure Differentiators
Sizing
384 TB
4x 24 TB = 96 TB
24 TB
24 TB

BBDD
Application
Server
SAP Fiori
(presentation
services)
Co-Location
BBDD
Application
Server
SAP Fiori
(presentation
services)
1 server
1 server 1 server 1 server
SAP can be a 4 tiers platform
Infrastructure Differentiators
Co-location
NO Co-Location
PowerVM Hypervisor
S.D.N. S.D.N.

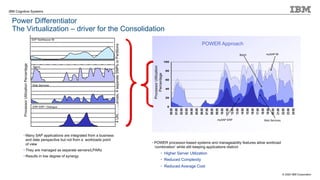

Power Differentiator
The Virtualization – driver for the Consolidation
4
UNIX
Instances,
4
separate
SMPs
or
Partitions
00:00 02:00 04:00 06:00 08:00 10:00 12:00 14:00 16:00 18:00 20:00 22:00 24:00
01:00 03:00 05:00 07:00 09:00 11:00 13:00 15:00 17:00 19:00 21:00 23:00
Processor
Utilization
Percentage
ERP ERP / Dialogue
Batch
SAP NetWeaver BI
Web Services
• Many SAP applications are integrated from a business
and date perspective but not from a workloads point
of view
• They are managed as separate servers/LPARs
• Results in low degree of synergy
00:00
01:00
02:00
03:00
04:00
05:00
06:00
07:00
08:00
09:00
10:00
11:00
12:00
13:00
14:00
15:00
16:00
17:00
18:00
19:00
20:00
21:00
22:00
23:00
24:00
0
20
40
60
80
100
Processor
Utilization
Percentage
mySAP ERP
Batch
Web Services
mySAP BI
POWER Approach
• POWER processor-based systems and manageability features allow workload
‘combination’ while still keeping applications distinct
• Higher Server Utilization
• Reduced Complexity
• Reduced Average Cost

Sizing
IBM recommended limits are
Negotiable with SAP!!

SAP HANA Sizing Example

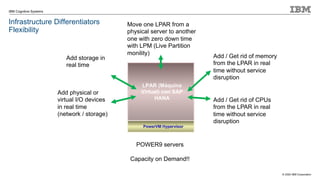

PowerVM Hypervisor
POWER9 servers
Capacity on Demand!!
LPAR (Máquina
Virtual) con SAP
HANA
Add / Get rid of memory
from the LPAR in real
time without service
disruption
Add storage in
real time
Add / Get rid of CPUs
from the LPAR in real
time without service
disruption
Move one LPAR from a
physical server to another
one with zero down time
with LPM (Live Partition
monility)
Add physical or
virtual I/O devices
in real time
(network / storage)
Flexibility

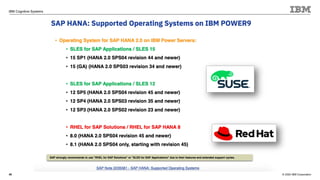

40

41
SAP Hana certified architecture (not servers)
Power7+
Power8
Power9
Power10
...

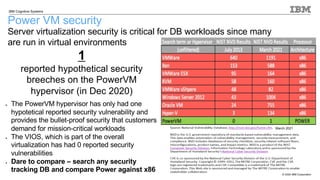

Server virtualization security is critical for DB workloads since many
are run in virtual environments
• The PowerVM hypervisor has only had one
hypotetical reported security vulnerability and
provides the bullet-proof security that customers
demand for mission-critical workloads
• The VIOS, which is part of the overall
virtualization has had 0 reported security
vulnerabilities
• Dare to compare – search any security
tracking DB and compare Power against x86
1
reported hypothetical security
breeches on the PowerVM
hypervisor (in Dec 2020)
Power VM security
March 2021

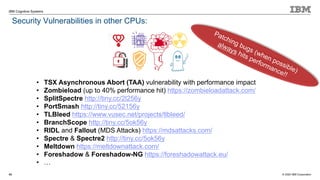

Security Vulnerabilities in other CPUs:
43
• TSX Asynchronous Abort (TAA) vulnerability with performance impact
• Zombieload (up to 40% performance hit) https://zombieloadattack.com/
• SplitSpectre http://tiny.cc/2l256y
• PortSmash http://tiny.cc/52156y
• TLBleed https://www.vusec.net/projects/tlbleed/
• BranchScope http://tiny.cc/5ok56y
• RIDL and Fallout (MDS Attacks) https://mdsattacks.com/
• Spectre & Spectre2 http://tiny.cc/5ok56y
• Meltdown https://meltdownattack.com/
• Foreshadow & Foreshadow-NG https://foreshadowattack.eu/
• …
Patching bugs (when possible)
always hits performance!!

ü Planning Guide
features process/support/service guidance
ü IBM Supplemental HoP Implementation Guide
ü SLES for SAP Applications Configuration
Guide for SAP HANA (x86 and POWER)
ü Administration/Troubleshooting Guide
ü Future plan
ü Includes best practices from customer production sites
44
Map SAP Sizing
results to IBM
HoP specifics
Supplemental to
SAP HANA
Master,
Installation &
Admin Guide
Find this HANA on POWER Technical Documentation under
https://ibm.biz/HoPTechdocsWPs
or http://www.ibm.com/support/techdocs/atsmastr.nsf/WebIndex/WP102502
https://www.suse.com/documentation/sles_for_sap_11/pdfdoc/book_s4s/book_s4s.pdf
SAP HANA on POWER Technical Documentation
https://www.redbooks.ibm.com/redbooks.nsf/searchsite?SearchView=&query=sap+hana&SearchWV=true

45
For more information about HANA
SAP-IBM alliance from IBM:
»http://www.ibm-sap.com
SAP-IBM alliance from SAP:
»http://service.sap.com/ibm
SAP HANA website:
http://www.saphana.com (http://hana.sap.com).

Notice and disclaimers
ü Copyright © 2017 by International Business Machines Corporation (IBM). No part of this document may be reproduced or transmitted in any form without written permission from IBM.
ü U.S. Government Users Restricted Rights — use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM.
ü Information in these presentations (including information relating to products that have not yet been announced by IBM) has been reviewed for accuracy as of the date of initial publication and could
include unintentional technical or typographical errors. IBM shall have no responsibility to update this information. This document is distributed “as is” without any warranty, either express or
implied. In no event shall IBM be liable for any damage arising from the use of this information, including but not limited to, loss of data, business interruption, loss of profit or loss of
opportunity. IBM products and services are warranted according to the terms and conditions of the agreements under which they are provided.
ü IBM products are manufactured from new parts or new and used parts. In some cases, a product may not be new and may have been previously installed. Regardless, our warranty terms apply.”
ü Any statements regarding IBM's future direction, intent or product plans are subject to change or withdrawal without notice.
ü Performance data contained herein was generally obtained in a controlled, isolated environments. Customer examples are presented as illustrations of how those customers have used
IBM products and the results they may have achieved. Actual performance, cost, savings or other results in other operating environments may vary.
ü References in this document to IBM products, programs, or services does not imply that IBM intends to make such products, programs or services available in all countries in which IBM operates or
does business.
ü Workshops, sessions and associated materials may have been prepared by independent session speakers, and do not necessarily reflect the views of IBM. All materials and discussions are provided
for informational purposes only, and are neither intended to, nor shall constitute legal or other guidance or advice to any individual participant or their specific situation.
ü It is the customer’s responsibility to insure its own compliance with legal requirements and to obtain advice of competent legal counsel as to the identification and interpretation of any relevant laws
and regulatory requirements that may affect the customer’s business and any actions the customer may need to take to comply with such laws. IBM does not provide legal advice or represent or
warrant that its services or products will ensure that the customer is in compliance with any law.

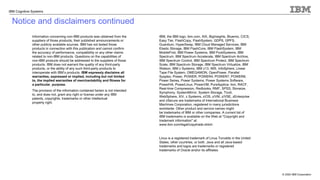

Notice and disclaimers continued
Information concerning non-IBM products was obtained from the
suppliers of those products, their published announcements or
other publicly available sources. IBM has not tested those
products in connection with this publication and cannot confirm
the accuracy of performance, compatibility or any other claims
related to non-IBM products. Questions on the capabilities of
non-IBM products should be addressed to the suppliers of those
products. IBM does not warrant the quality of any third-party
products, or the ability of any such third-party products to
interoperate with IBM’s products. IBM expressly disclaims all
warranties, expressed or implied, including but not limited
to, the implied warranties of merchantability and fitness for
a particular, purpose.
The provision of the information contained herein is not intended
to, and does not, grant any right or license under any IBM
patents, copyrights, trademarks or other intellectual
property right.
IBM, the IBM logo, ibm.com, AIX, BigInsights, Bluemix, CICS,
Easy Tier, FlashCopy, FlashSystem, GDPS, GPFS,
Guardium, HyperSwap, IBM Cloud Managed Services, IBM
Elastic Storage, IBM FlashCore, IBM FlashSystem, IBM
MobileFirst, IBM Power Systems, IBM PureSystems, IBM
Spectrum, IBM Spectrum Accelerate, IBM Spectrum Archive,
IBM Spectrum Control, IBM Spectrum Protect, IBM Spectrum
Scale, IBM Spectrum Storage, IBM Spectrum Virtualize, IBM
Watson, IBM z Systems, IBM z13, IMS, InfoSphere, Linear
Tape File System, OMEGAMON, OpenPower, Parallel
Sysplex, Power, POWER, POWER4, POWER7, POWER8,
Power Series, Power Systems, Power Systems Software,
PowerHA, PowerLinux, PowerVM, PureApplica- tion, RACF,
Real-time Compression, Redbooks, RMF, SPSS, Storwize,
Symphony, SystemMirror, System Storage, Tivoli,
WebSphere, XIV, z Systems, z/OS, z/VM, z/VSE, zEnterprise
and zSecure are trademarks of International Business
Machines Corporation, registered in many jurisdictions
worldwide. Other product and service names might
be trademarks of IBM or other companies. A current list of
IBM trademarks is available on the Web at "Copyright and
trademark information" at:
www.ibm.com/legal/copytrade.shtml.
Linux is a registered trademark of Linus Torvalds in the United
States, other countries, or both. Java and all Java-based
trademarks and logos are trademarks or registered
trademarks of Oracle and/or its affiliates.

48
by
Your Innovation Platform!

SAP HANA on POWER9 systems

More Related Content

Similar to SAP HANA on POWER9 systems

More from Ganesan Narayanasamy

Recently uploaded

SAP HANA on POWER9 systems
