Sailthru is a marketing automation platform that uses MongoDB as its primary datastore. It has evolved its use of MongoDB from a single node replica set to autosharding across multiple nodes to support growing data and traffic volumes. Sailthru selected a hashed _id as its shard key to distribute data evenly. It also uses a "key collection" to optimize lookups by fields like email across shards. Sailthru migrated its data from its existing replica set to the new autosharding cluster without downtime using Mongo Connector.

2. Ian White
CTO and Co-Founder, Sailthru
@eonwhite
ian@sailthru.com
www.sailthru.com ian@sailthru.com
App Sharding to Autosharding

3. • Every user is unique
• Email, onsite, mobile, social, offline personalization on an individual level
• Optimizes conversion and drives retention for eCommerce and media
• Founded in 2008 by three engineers
• 170 employees in NYC, SF, LA, London

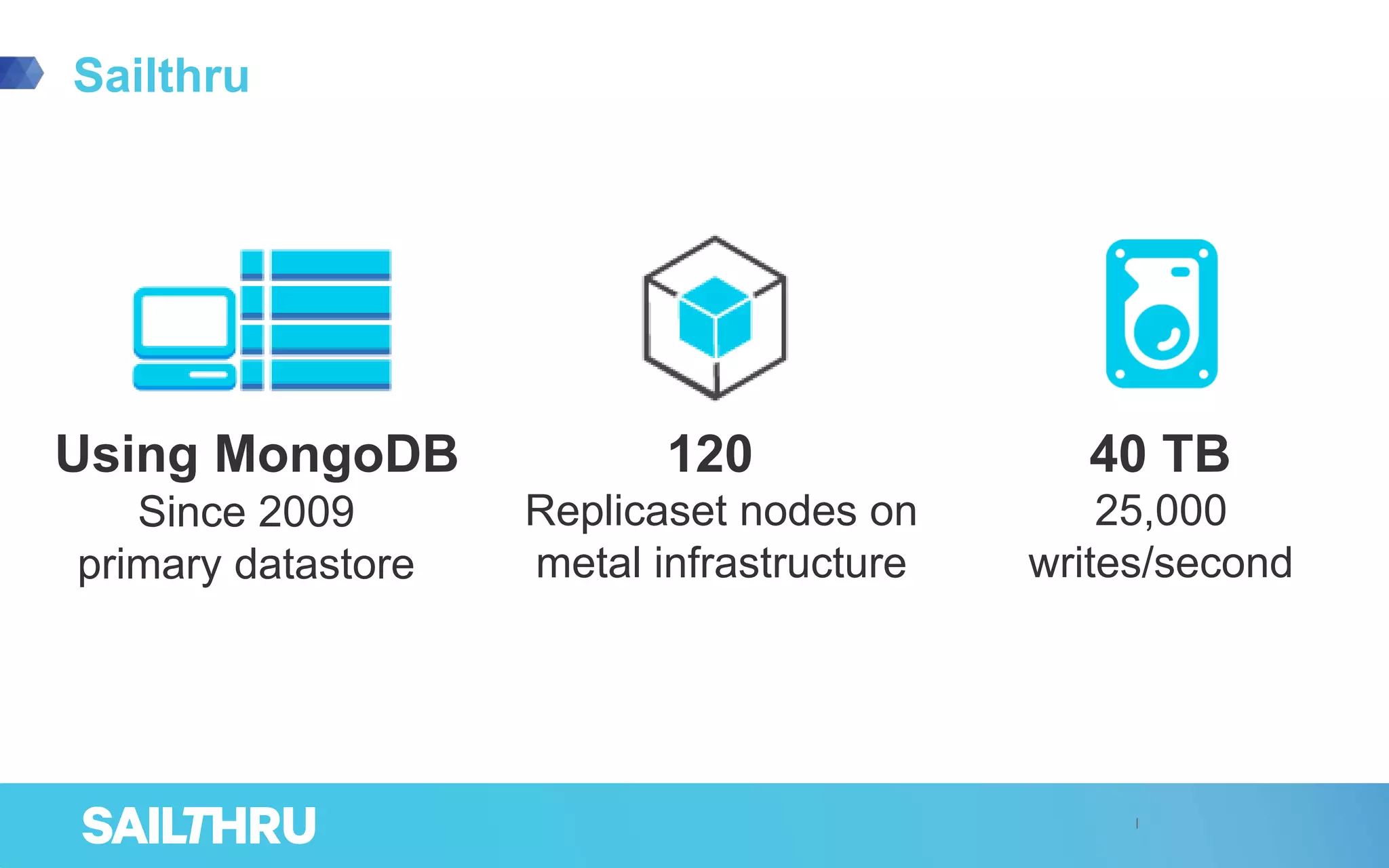

4. Sailthru
Using MongoDB 120 40 TB
Since 2009
primary datastore
Replicaset nodes on
metal infrastructure
25,000
writes/second

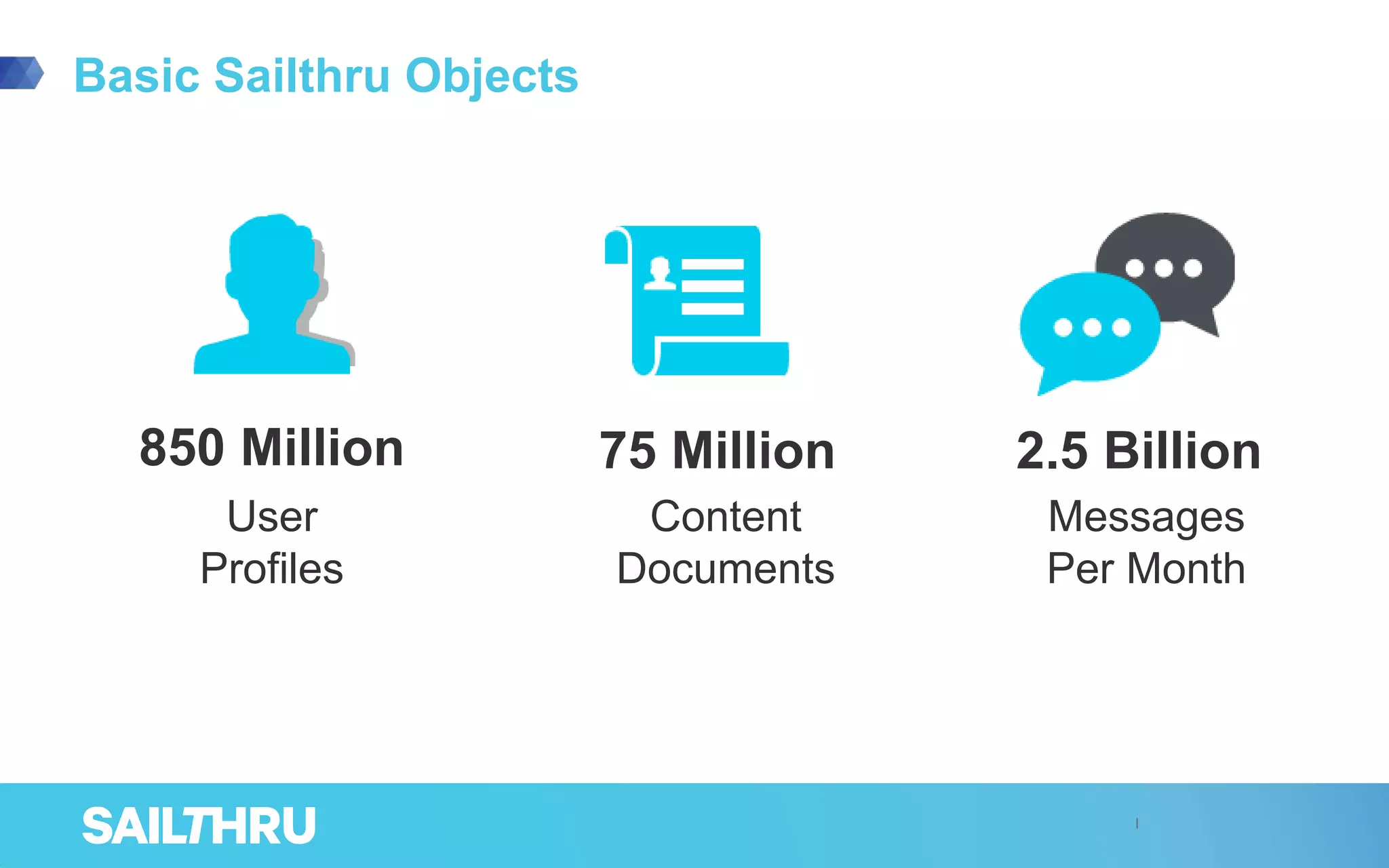

5. Basic Sailthru Objects
850 Million 75 Million 2.5 Billion
User
Profiles
Content
Documents
Messages
Per Month

6. The Challenge
• Sailthru is both
• Some apps are ready-heavy
• Some apps are write-heavy

7. Why Shard?
• Using MongoDB since 2009
• No autosharding capabilities at the time
• Too much data for a single node

8. Application Sharding?
• Application-level sharding
• Partition data by client
• Db class examines query
and routes to an appropriate
replica set and collection

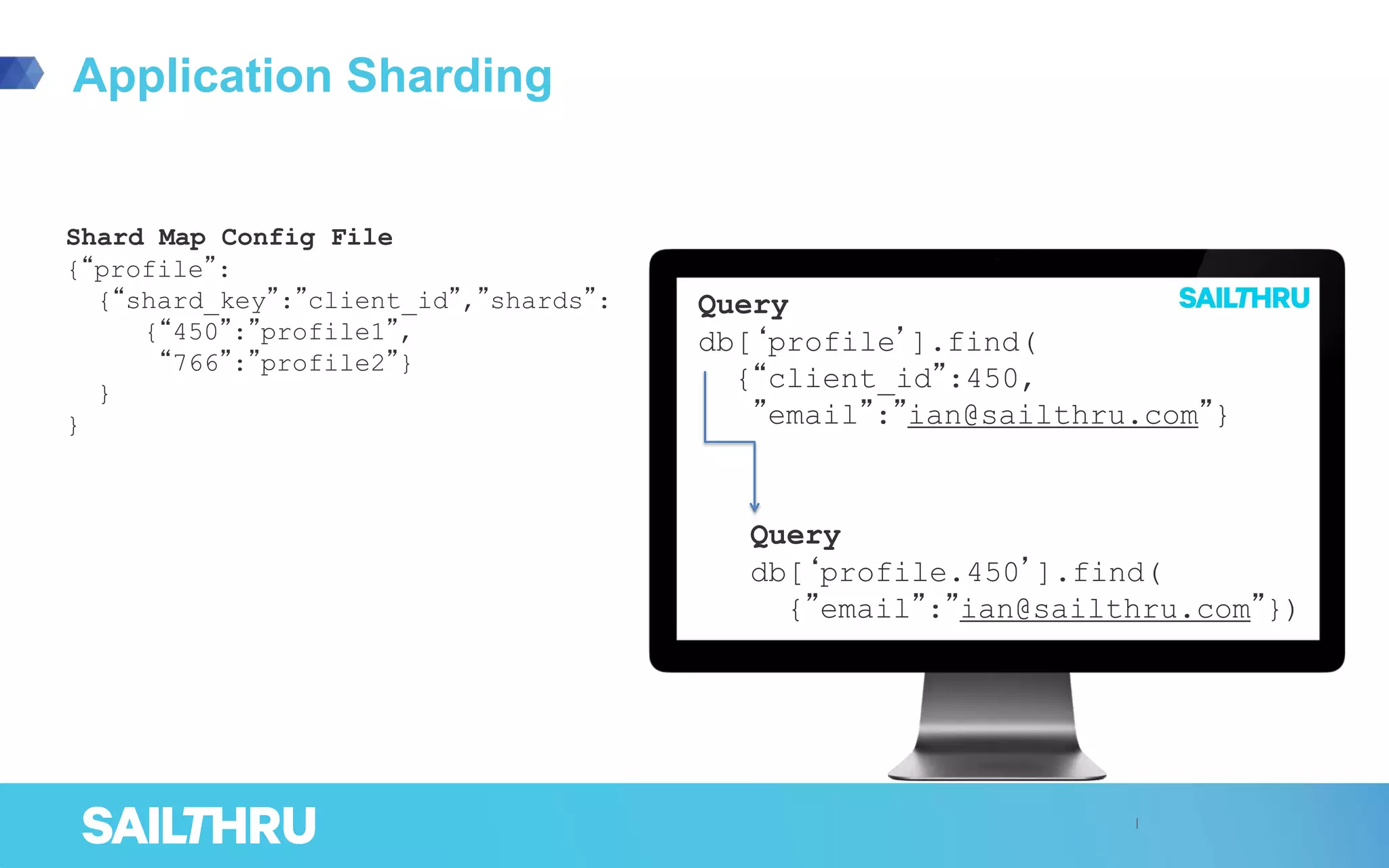

9. Application Sharding
Query
db[‘profile’].find(
{“client_id”:450,
”email”:”ian@sailthru.com”}
Query
db[‘profile.450’].find(
{”email”:”ian@sailthru.com”})
Shard Map Config File
{“profile”:
{“shard_key”:”client_id”,”shards”:
{“450”:”profile1”,
“766”:”profile2”}
}
}

10. App Sharding: Advantages
• Smaller indexes due to collection partitioning
• Ability to add specific indices per client
(not done much in practice)

11. App Sharding: Problems
• Uneven load distribution
• Writes bottlenecked by capacity of
single server
• Manual rebalancing and allocation = lots
of work for DB team

12. Solution:
Autosharding
(Since MongoDB 1.6)

13. Selecting a Shard Key
• Individual reads
• Individual writes
• Cursored reads

14. Shard Key Options
• client_id? Uneven distribution
• email? Hard to handle null bucket
• _id? Uneven time-based distribution

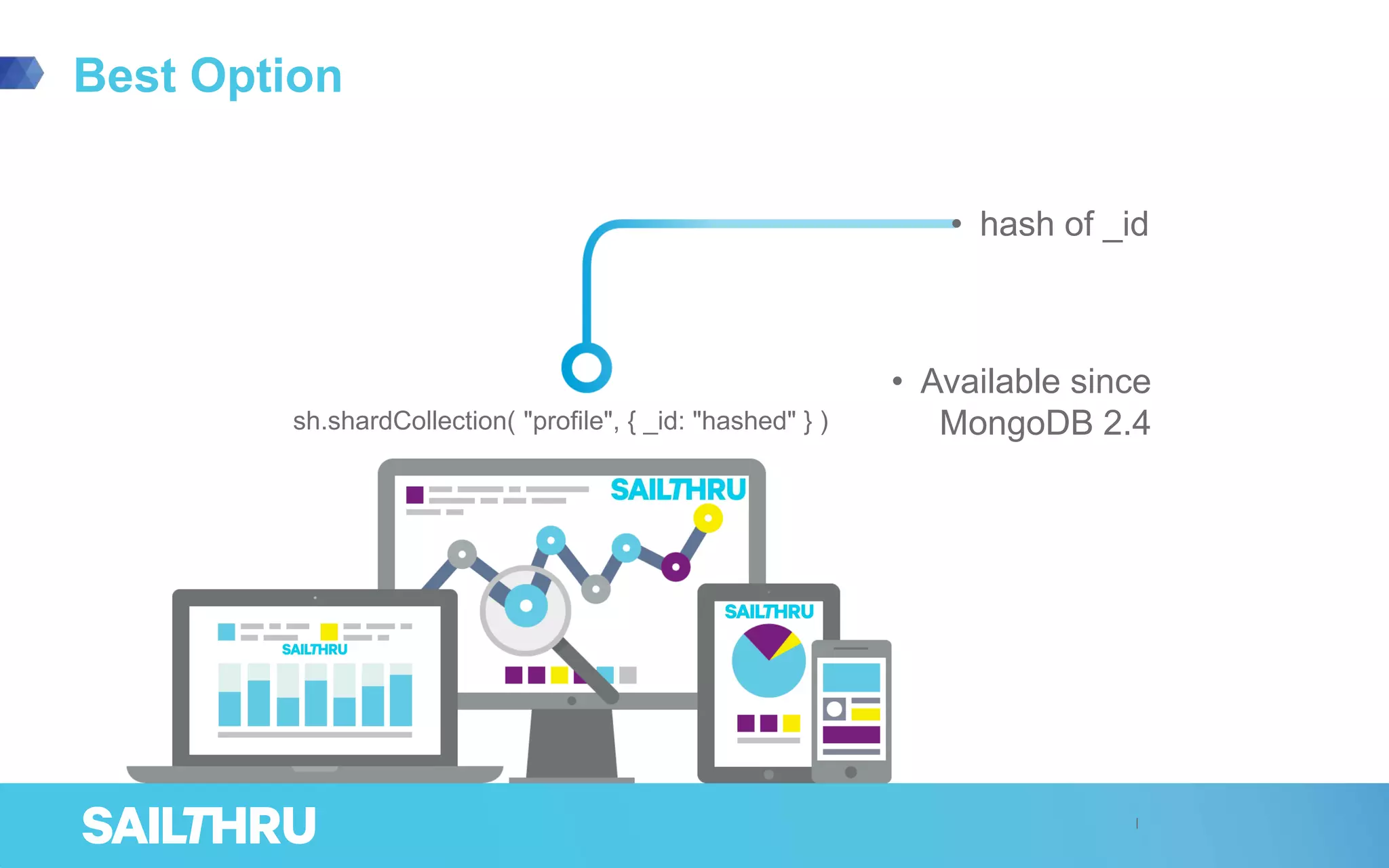

15. Best Option
sh.shardCollection( "profile", { _id: "hashed" } )
• hash of _id
• Available since
MongoDB 2.4

16. What about lookups by email?
Don’t want to hit every shard on every lookup

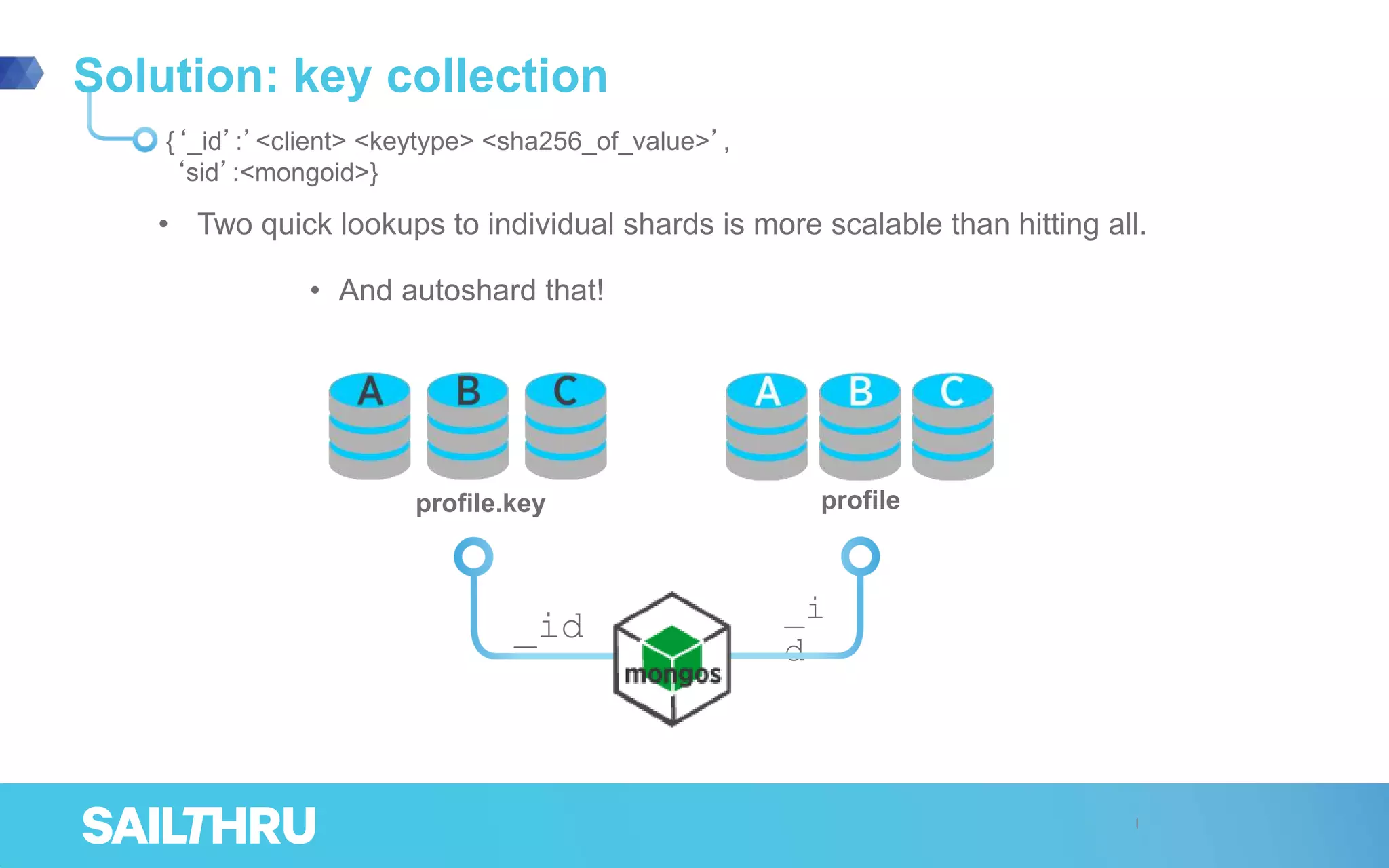

17. Solution: key collection
{‘_id’:’<client> <keytype> <sha256_of_value>’,
‘sid’:<mongoid>}
profileprofile.key
_id _i
d
• Two quick lookups to individual shards is more scalable than hitting all.
• And autoshard that!

18. How We Did
The Move.
Uptime is critical- cannot bring
service down for infrastructure
changes

19. Solution:
Mongo-Connector
Created by MongoDB interns
two summers ago.
The Swiss army knife of
moving data from set to set.

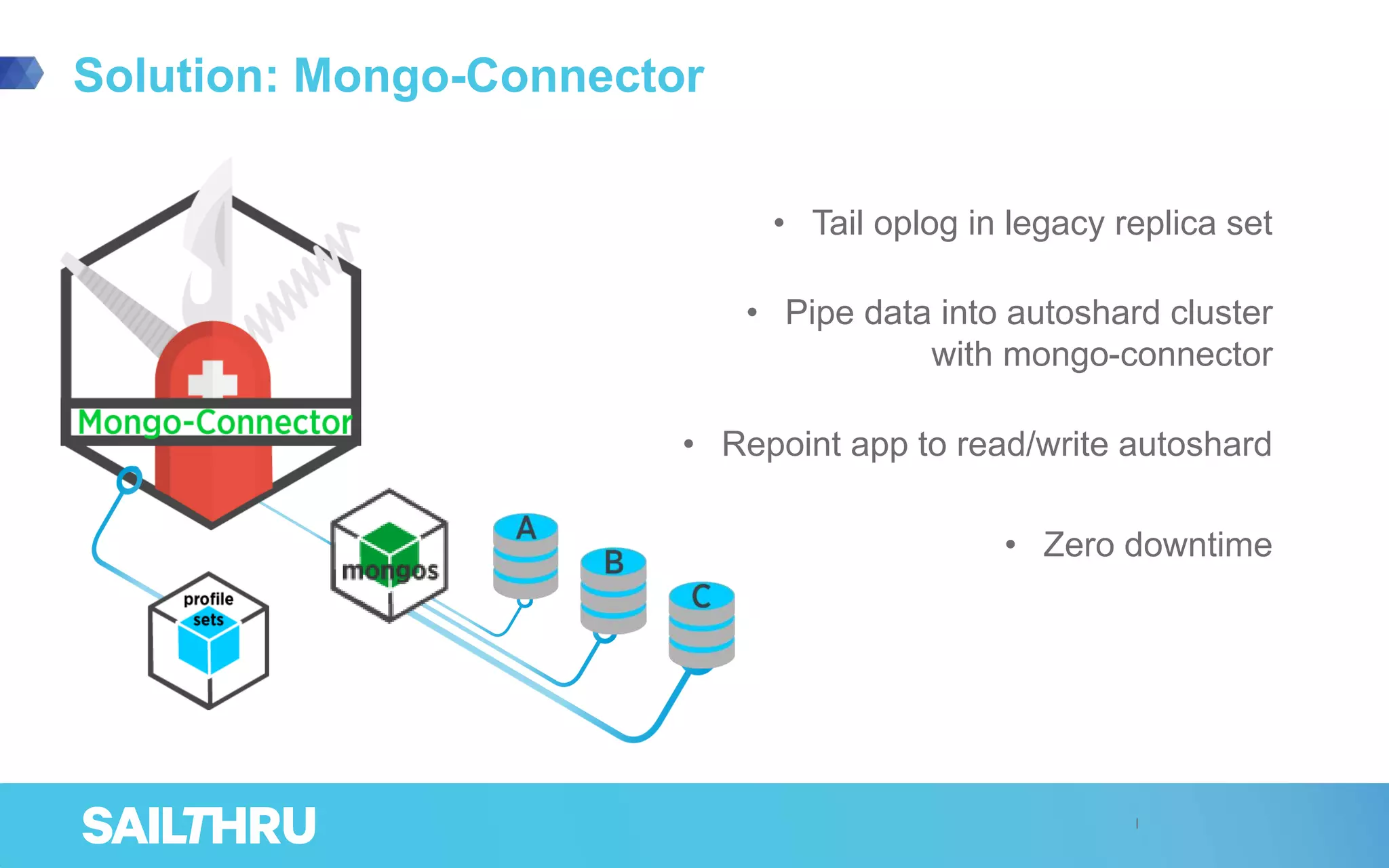

20. Solution: Mongo-Connector
• Tail oplog in legacy replica set
• Pipe data into autoshard cluster
with mongo-connector
• Repoint app to read/write autoshard
• Zero downtime

21. Solution: Mongo-Connector
• Our fork contains some improvements
• ts(timestamp) and ns(namespace)
get added in separate collection
instead of the target document
https://github.com/sailthru/mongo-connector

22. But Wait! There’s More
• Mongo-Connector can also be used to
• Pipe data into alternate data stores
(Hadoop, Solr, etc)
• Change autoshard keys if you made a mistake

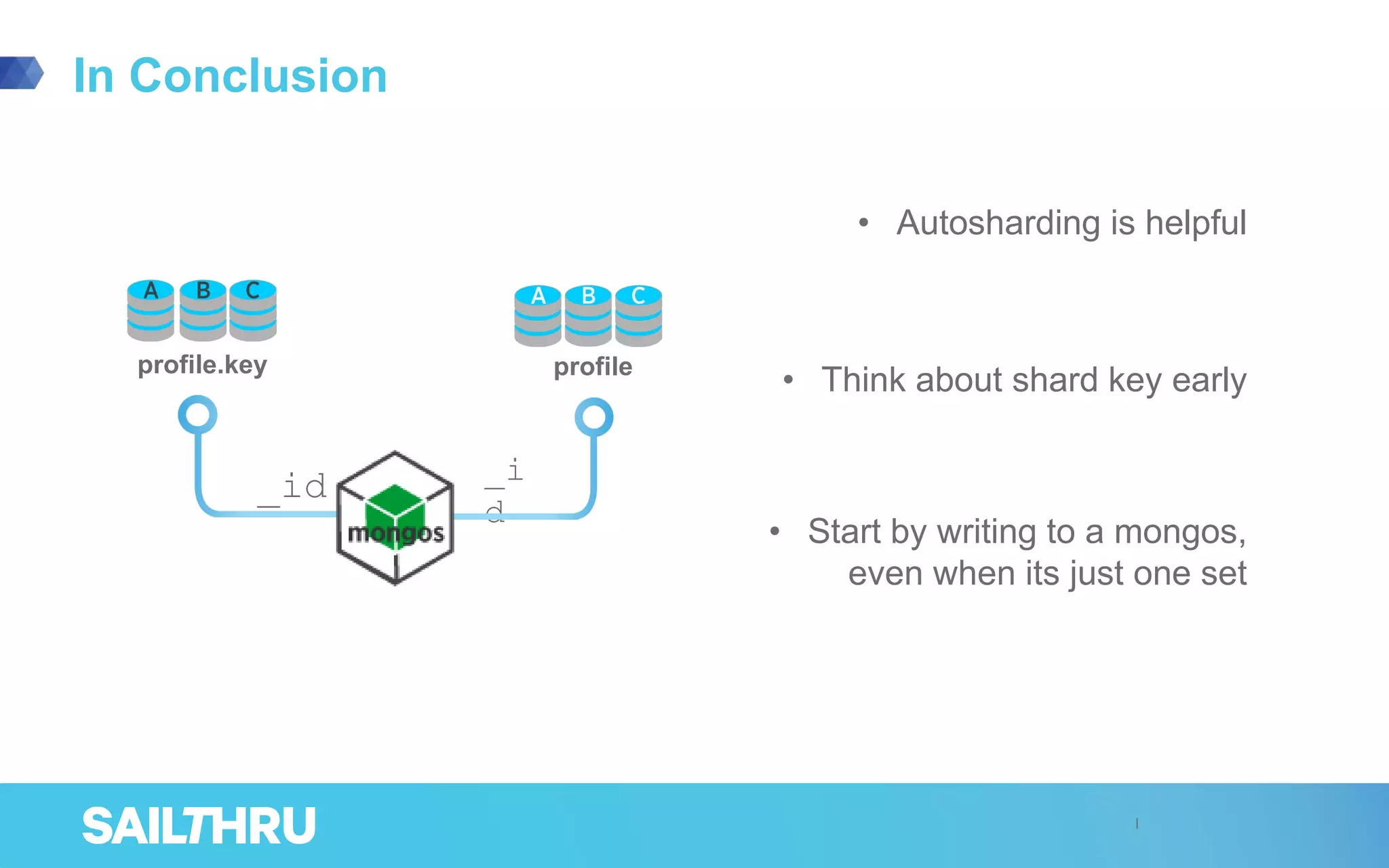

23. In Conclusion
• Autosharding is helpful
• Think about shard key early
• Start by writing to a mongos,
even when its just one set
profileprofile.key
_id _i
d
