This document lists various safety and navigation equipment including alarms, fire safety equipment, life saving equipment, signaling devices, first aid kits, flotation devices, compasses, and navigation instruments. It provides details on specific models of propane and carbon monoxide detectors, alarm systems, bilge alarms, engine monitoring systems, and security systems from manufacturers like Fireboy/Xintex, Marine Technologies, Seaward, Sierra, and Aqualarm.

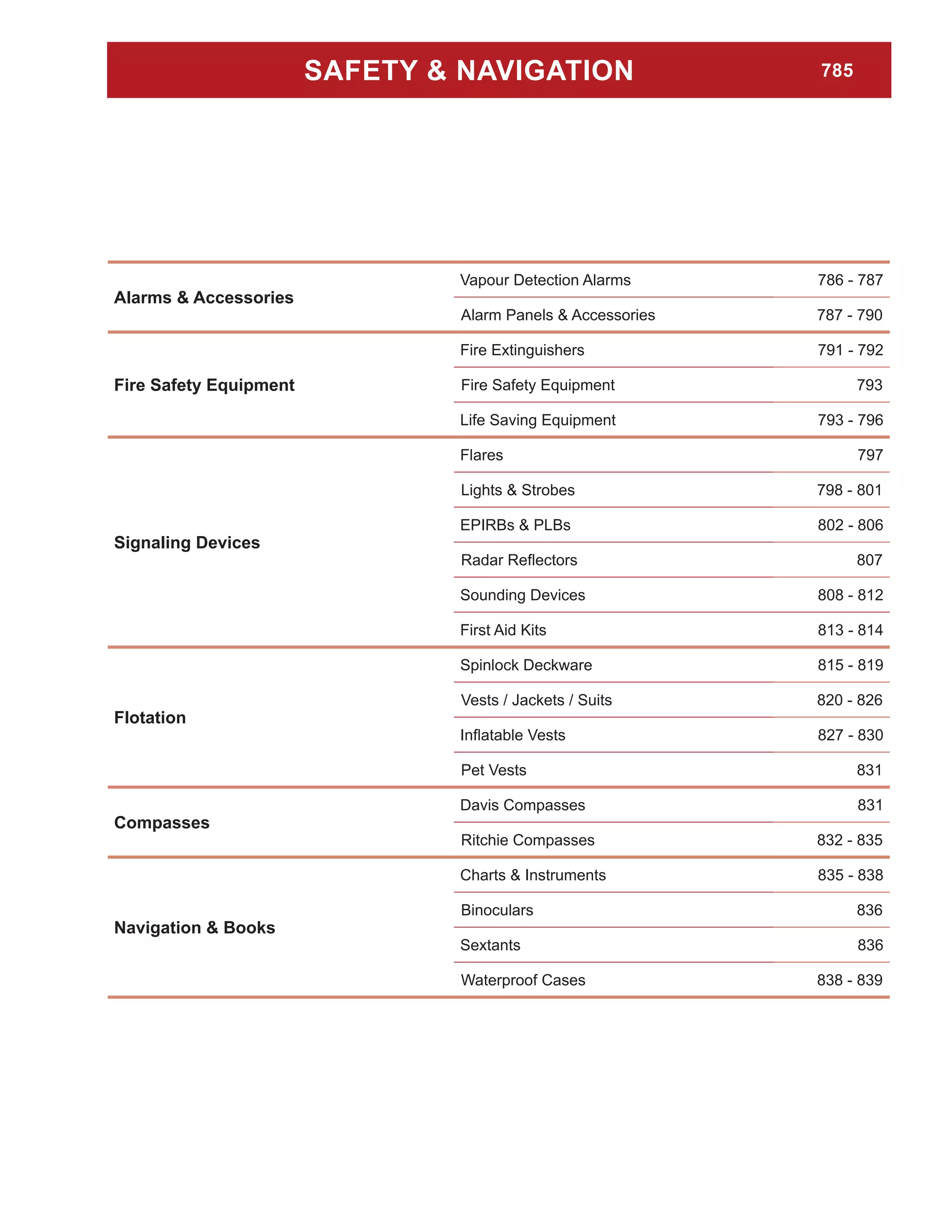

1. SAFETY & NAVIGATION 785
Alarms & Accessories
Vapour Detection Alarms 786 - 787
Alarm Panels & Accessories 787 - 790
Fire Safety Equipment
Fire Extinguishers 791 - 792
Fire Safety Equipment 793

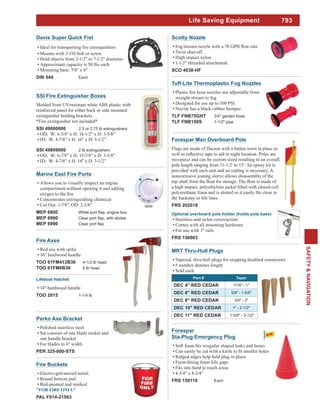

Life Saving Equipment 793 - 796
Signaling Devices
Flares 797

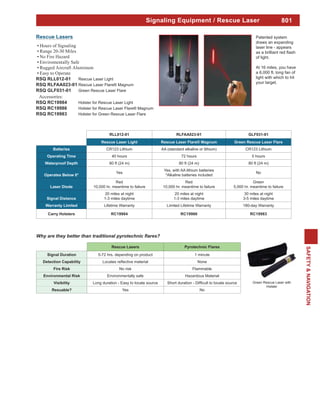

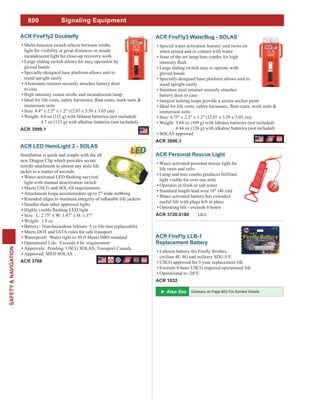

Lights & Strobes 798 - 801

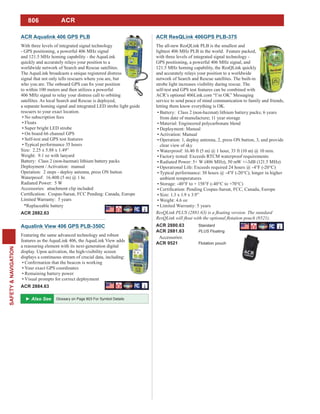

EPIRBs & PLBs 802 - 806
807

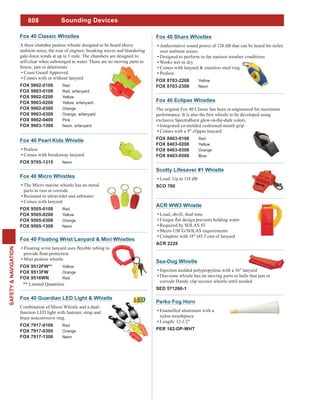

Sounding Devices 808 - 812

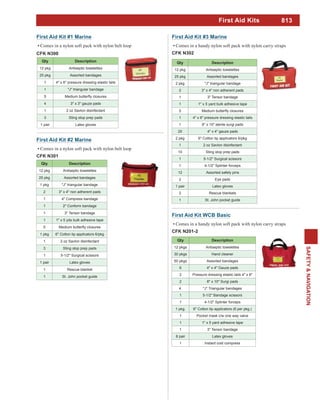

First Aid Kits 813 - 814
Flotation

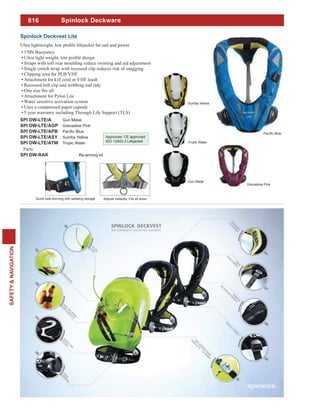

Spinlock Deckware 815 - 819

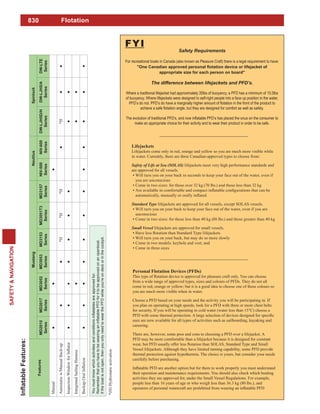

Vests / Jackets / Suits 820 - 826
827 - 830
Pet Vests 831
Compasses
Davis Compasses 831

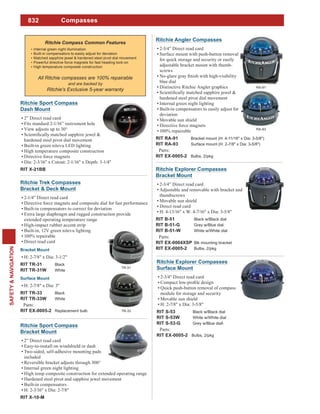

Ritchie Compasses 832 - 835
Navigation & Books
Charts & Instruments 835 - 838
Binoculars 836
Sextants 836
Waterproof Cases 838 - 839

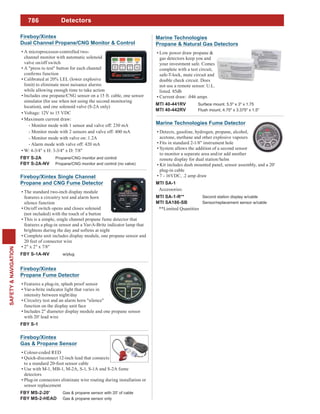

2. 786
SAFETY&NAVIGATION
Fireboy/Xintex Single Channel
Propane and CNG Fume Detector
The standard two-inch display module
features a circuitry test and alarm horn
silence function
On/off switch opens and closes solenoid
(not included) with the touch of a button
This is a simple, single channel propane fume detector that
features a plug-in sensor and a Var-A-Brite indicator lamp that
brightens during the day and softens at night
Complete unit includes display module, one propane sensor and
20 feet of connector wire
2" x 2" x 7/8"
FBY S-1A-NV w/plug
Fireboy/Xintex
Propane Fume Detector
Features a plug-in, splash proof sensor
Var-a-brite indicator light that varies in
intensity between night/day
Circuitry test and an alarm horn "silence"
function on the display unit face
Includes 2" diameter display module and one propane sensor
with 20' lead wire
FBY S-1
Fireboy/Xintex
Dual Channel Propane/CNG Monitor & Control
A microprocessor-controlled two-
channel monitor with automatic solenoid
valve on/off switch
A "press to test" button for each channel
Calibrated at 20% LEL (lower explosive
limit) to eliminate most nuisance alarms
while allowing enough time to take action
Includes one propane/CNG sensor on a 15 ft. cable, one sensor
simulator (for use when not using the second monitoring
location), and one solenoid valve (S-2A only)
Voltage: 12V to 15 VDC
Maximum current draw:
- Monitor mode with 1 sensor and valve off: 230 mA
- Monitor mode with 2 sensors and valve off: 400 mA
- Monitor mode with valve on: 1.2A
- Alarm mode with valve off: 420 mA
W: 4-3/4" x H: 3-3/4" x D: 7/8"
FBY S-2A Propane/CNG monitor and control
FBY S-2A-NV Propane/CNG monitor and control (no valve)
Fireboy/Xintex
Gas & Propane Sensor
Colour-coded RED
Quick-disconnect 12-inch lead that connects
to a standard 20-foot sensor cable
Use with M-1, MB-1, M-2A, S-1, S-1A and S-2A fume
detectors
Plug-in connectors eliminate wire routing during installation or
sensor replacement
FBY MS-2-20' Gas & propane sensor with 20' of cable
FBY MS-2-HEAD Gas & propane sensor only
Marine Technologies Fume Detector
Detects, gasoline, hydrogen, propane, alcohol,
acetone, methane and other explosive vapours
Fits in standard 2-1/8" instrument hole
System allows the addition of a second sensor
to monitor a separate area and/or add another
remote display for dual station/helm
Kit includes dash mounted panel, sensor assembly, and a 20'
plug-in cable
7 - 16VDC, .2 amp draw
MTI SA-1
Accessories:
MTI SA-1-R** Second station display w/cable
MTI SA186-SB Sensor/replacement sensor w/cable
**Limited Quantities
Detectors
Marine Technologies
Propane & Natural Gas Detectors
Low power draw propane &
gas detectors keep you and
your investment safe. Comes
complete with a test circuit,
safe-T-lock, mute circuit and
double check circuit. Does
not use a remote sensor. U.L.
listed. 85db
Current draw: .046 amps
MTI 40-441RV Surface mount. 5.5" x 3" x 1.75
MTI 40-442RV Flush mount, 4.75" x 3.375" x 1.5"

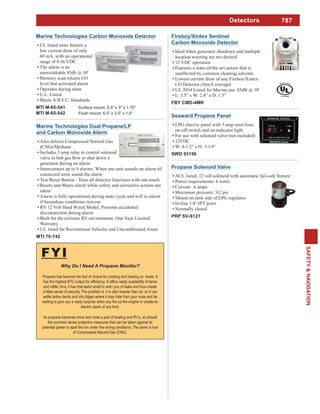

3. 787
SAFETY&NAVIGATION
FYI
Propane has become the fuel of choice for cooking and heating on boats. It
a false sense of security. The problem is, it is also heavier than air, so it can
settle below decks and into bilges where it may hide from your nose and be
electric spark of any kind.
As propane becomes more and more a part of boating and RV’s, so should
the common sense protective measures that can be taken against its
potential power to spoil the fun under the wrong conditions. The same is true
of Compressed Natural Gas (CNG).
Detectors
Fireboy/Xintex Sentinel
Carbon Monoxide Detector
Ideal when generator shutdown and multiple
location warning are not desired
12 VDC operation
Features a state-of-the-art sensor that is
unaffected by common cleaning solvents
Lowest current draw of any Fireboy-Xintex
CO Detector (16mA average)
UL 2034 Listed for Marine use. 85dB @ 10'
L: 3.5” x W: 2.4” x D: 1.3”
FBY CMD-4MR
Marine Technologies Dual Propane/LP
and Carbon Monoxide Alarm
Also detects Compressed Natural Gas
(CNG)/Methane
Includes 3 amp relay to control solenoid
generator during an alarm
Interconnect up to 9 alarms. When one unit sounds an alarm all
connected units sound the alarm
Test/Reset Button - Tests all detector functions with one touch
Resets and Mutes alarm while safety and corrective actions are
taken
Alarm is fully operational during mute cycle and will re-alarm
if hazardous conditions reoccur
RV 12 Volt Hard Wired Model. Prevents accidental
disconnection during alarm
Built for the extreme RV environment. One Year Limited
Warranty
UL listed for Recreational Vehicles and Unconditioned Areas
MTI 70-742
Seaward Propane Panel
LPG electric panel with 5 amp reset fuse,
on-off switch and on indicator light
For use with solenoid valve (not included)
12VDC
W: 4-1/2" x H: 3-1/4"
SWD 93156
Marine Technologies Carbon Monoxide Detector
UL listed units feature a
low current draw of only
60 mA, with an operational
range of 8-16 VDC
The alarm is an
unmistakable 85db @ 10'
Memory scan retains CO
level that activated alarm
Operates during mute
U.L. Listed
Meets A.B.Y.C. Standards
MTI M-65-541 Surface mount. 5.5" x 3" x 1.75"
MTI M-65-542 Flush mount. 6.5" x 3.5" x 1.5"
Propane Solenoid Valve
AUL listed, 12 volt solenoid with automatic fail-safe feature
Power requirements: 6 watts
Current: .6 amps
Maximum pressure: 312 psi
Mount on tank side of LPG regulator
In-line 1/4" IPT ports
Normally closed
PRP SV-S121

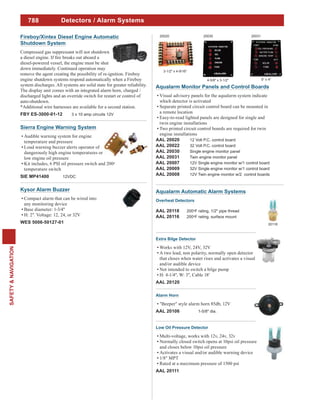

4. 788
SAFETY&NAVIGATION
Detectors / Alarm Systems
Fireboy/Xintex Diesel Engine Automatic
Shutdown System
Compressed gas suppressant will not shutdown
diesel-powered vessel, the engine must be shut
down immediately. Continued operation may
remove the agent creating the possibility of re-ignition. Fireboy
engine shutdown systems respond automatically when a Fireboy
system discharges. All systems are solid state for greater reliability.
The display unit comes with an integrated alarm horn, charged /
discharged lights and an override switch for restart or control of
auto-shutdown.
*Additional wire harnesses are available for a second station.
FBY ES-3000-01-12 3 x 10 amp circuits 12V
Kysor Alarm Buzzer
Compact alarm that can be wired into
any monitoring device
Base diameter: 1-3/4"
H: 2". Voltage: 12, 24, or 32V
WES 5006-50127-01
Sierra Engine Warning System
Audible warning system for engine
temperature and pressure
Loud warning buzzer alerts operator of
dangerously high engine temperatures or
low engine oil pressure
Kit includes, 6 PSI oil pressure switch and 200o
temperature switch
SIE MP41400 12VDC
Aqualarm Monitor Panels and Control Boards
Visual advisory panels for the aqualarm system indicate
which detector is activated
Separate printed circuit control board can be mounted in
a remote location
Easy-to-read lighted panels are designed for single and
twin engine installations
Two printed circuit control boards are required for twin
engine installations
AAL 20020 12 Volt P.C. control board
AAL 20022 32 Volt P.C. control board
AAL 20030 Single engine monitor panel
AAL 20031 Twin engine monitor panel
AAL 20007 12V Single engine monitor w/1 control board
AAL 20009 32V Single engine monitor w/1 control board
AAL 20008 12V Twin engine monitor w/2 control boards
20020
3-1/2" x 4-9/16"
20030
4-5/8" x 3-1/2"
20031
5" x 4"
Aqualarm Automatic Alarm Systems
Alarm Horn
"Beeper" style alarm horn 85db, 12V
AAL 20106 1-5/8" dia.
Extra Bilge Detector
Works with 12V, 24V, 32V
A two lead, non polarity, normally open detector
that closes when water rises and activates a visual
and/or audible device
Not intended to switch a bilge pump
H: 4-1/4", W: 3", Cable 18'
AAL 20120
Low Oil Pressure Detector
Multi-voltage, works with 12v, 24v, 32v
Normally closed switch opens at 10psi oil pressure
and closes below 10psi oil pressure
Activates a visual and/or audible warning device
1/8" MPT
Rated at a maximum pressure of 1500 psi
AAL 20111
Overheat Detectors
AAL 20118 200oF rating, 1/2" pipe thread
AAL 20116 200oF rating, surface mount
20118

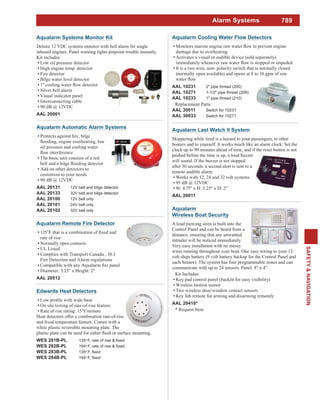

5. 789
SAFETY&NAVIGATION
Alarm Systems
Aqualarm Automatic Alarm Systems
oil pressure and cooling water
The basic unit consists of a red
Add on other detectors to
customize to your needs
90 dB @ 12VDC
AAL 20131 12V bell and bilge detector
AAL 20133 32V bell and bilge detector
AAL 20100 12V bell only
AAL 20101 24V bell only
AAL 20102 32V bell only
Aqualarm Systems Monitor Kit
Deluxe 12 VDC systems monitor with bell alarm for single
inboard engines. Panel warning lights pinpoint trouble instantly.
Kit includes:
Low oil pressure detector
High engine temp. detector
Fire detector
Bilge water level detector
Silver bell alarm
Visual indicator panel
Interconnecting cable
90 dB @ 12VDC
AAL 20001
Aqualarm
Wireless Boat Security
A loud piercing siren is built into the
Control Panel and can be heard from a
distance, ensuring that any unwanted
intruder will be noticed immediately.
Very easy installation with no messy
wires running throughout your boat. One easy wiring to your 12
volt ships battery (9 volt battery backup for the Control Panel and
each Sensor). The system has four programmable zones and can
communicate wtih up to 24 sensors. Panel: 8" x 4"
Kit Includes:
Key pad control panel (backlit for easy visibility)
Wireless motion sensor
Two wireless door/window contact sensors
Key fob remote for arming and disarming remotely
AAL 20410*
* Request Item
Aqualarm Cooling Water Flow Detectors
damage due to overheating
Activates a visual or audible device (sold separately)
It is a two wire, non- polarity switch that is normally closed
(normally open available) and opens at 8 to 10 gpm of raw
AAL 10231 2" pipe thread (200)
AAL 10271 1-1/2" pipe thread (206)
AAL 10233 1" pipe thread (210)
Replacement Parts:
AAL 30011 Switch for 10231
AAL 30033 Switch for 10271
Aqualarm Last Watch II System
Skippering while tired is a hazard to your passengers, to other
boaters and to yourself. It works much like an alarm clock: Set the
clock up to 99 minutes ahead of time, and if the reset button is not
pushed before the time is up, a loud buzzer
will sound. If the buzzer is not stopped
after 30 seconds, a second alert is sent to a
remote audible alarm.
Works with 12, 24 and 32 volt systems
95 dB @ 12VDC
W: 4.75" x H: 3.25" x D: 2"
AAL 20011
Edwards Heat Detectors
On site testing of rate-of-rise feature
Rate of rise rating: 15°F/minute
Heat detectors offer a combination rate-of-rise
white plastic reversible mounting plate. The
WES 281B-PL 135o
WES 282B-PL 194o
WES 283B-PL 135o
WES 284B-PL 194o
Aqualarm Remote Fire Detector
rate of rise
Normally open contacts
UL Listed
Complies with Transport Canada , 10.3
Fire Detection and Alarm regulations
Diameter: 5.25" x Height: 2"
AAL 20512

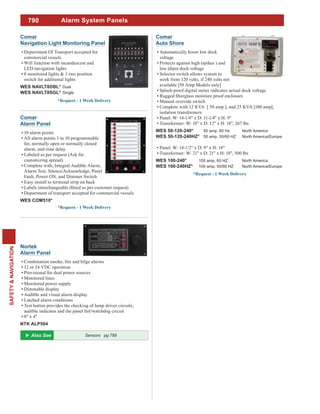

6. 790
SAFETY&NAVIGATION
Alarm System Panels
Comar
Navigation Light Monitoring Panel
Department Of Transport accepted for
commercial vessels
Will function with incandescent and
LED navigation lights
8 monitored lights & 1 two position
switch for additional lights
WES NAVLT8DBL* Dual
WES NAVLT8SGL* Single
Comar
Alarm Panel
10 alarm points
All alarm points 1 to 10 programmable
for, normally open or normally closed
alarm, and time delay
Labeled as per request (Ask for
customizing spread)
Complete with, Integral Audible Alarm,
Alarm Test, Silence/Acknowledge, Panel
Fault, Power ON, and Dimmer Switch
Easy install to terminal strip on back
Department of transport accepted for commercial vessels
WES COM510*
Comar
Auto Shore
Automatically boost low dock
voltage
Protects against high (spikes ) and
low (dips) dock voltage
Selector switch allows system to
work from 120 volts, if 240 volts not
available [50 Amp Models only]
Splash proof digital meter indicates actual dock voltage
Manual override switch
Complete with 12 KVA [ 50 amp ], and 25 KVA [100 amp],
isolation transformers
Panel: W: 14-1/4" x D: 11-1/4" x H: 9"
Transformer: W: 18" x D: 12" x H: 18", 267 lbs
WES 50-120-240* 50 amp, 60 Hz North America
WES 50-120-240HZ* 50 amp, 50/60 HZ North America/Europe
Panel: W: 14-1/2" x D: 9" x H: 18"
Transformer: W: 21" x D: 21" x H: 18", 500 lbs
WES 100-240* 100 amp, 60 HZ North America
WES 100-240HZ* 100 amp, 50/60 HZ North America/Europe
Nortek
Alarm Panel
12 or 24 VDC operation
Provisional for dual power sources
Monitored lines
Monitored power supply
Dimmable display
Audible and visual alarm display
Latched alarm conditions
Test button provides the checking of lamp driver circuits,
audible indicator and the panel fail/watchdog circuit
8" x 4"
NTK ALP504
Sensors pg 789

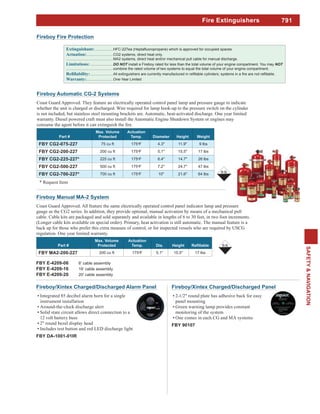

7. 791
SAFETY&NAVIGATION
..................
Actuation:..........................CG2 systems, direct heat only.
..............................................MA2 systems, direct heat and/or mechanical pull cable for manual discharge.
Limitations: ...................... install a Fireboy rated for less than the total volume of your engine compartment. You may
..............................................combine the rated volume of two systems to equal the total volume of your engine compartment.
......................
..........................One-Year Limited
Fireboy Fire Protection
Fireboy Automatic CG-2 Systems
Coast Guard Approved. They feature an electrically operated control panel lamp and pressure gauge to indicate
whether the unit is charged or discharged. Wire required for lamp hook-up to the pressure switch on the cylinder
is not included, but stainless steel mounting brackets are. Automatic, heat-activated discharge. One year limited
warranty. Diesel powered craft must also install the Automatic Engine Shutdown System or engines may
Part #
Max. Volume
Protected
Actuation
Temp. Diameter Height Weight
FBY CG2-075-227 75 cu ft 175oF 4.3" 11.9" 9 lbs
FBY CG2-200-227 200 cu ft 175oF 5.1" 15.5" 17 lbs
FBY CG2-225-227* 225 cu ft 175o
F 6.4" 14.7" 26 lbs
FBY CG2-500-227 500 cu ft 175oF 7.2" 24.7" 47 lbs
FBY CG2-700-227* 700 cu ft 175o
F 10" 21.6" 64 lbs
Fireboy Manual MA-2 System
Coast Guard Approved. All feature the same electrically operated control panel indicator lamp and pressure
gauge as the CG2 series. In addition, they provide optional, manual activation by means of a mechanical pull
cable. Cable kits are packaged and sold separately and available in lengths of 6 to 30 feet, in two foot increments.
(Longer cable kits available on special order). Primary, heat activation is still automatic. The manual feature is a
back up for those who prefer this extra measure of control, or for inspected vessels who are required by USCG
regulation. One year limited warranty.
Part #
Max. Volume
Protected
Actuation
Temp. Dia. Height
FBY MA2-200-227 200 cu ft 175o
F 5.1" 15.5" 17 lbs
FBY E-4209-06 6' cable assembly
FBY E-4209-16 16' cable assembly
FBY E-4209-20 20' cable assembly
Fireboy/Xintex Charged/Discharged Panel
2-1/2" round plate has adhesive back for easy
panel mounting
Green warning lamp provides constant
monitoring of the system
One comes in each CG and MA systems
FBY 90107
Fire Extinguishers
Fireboy/Xintex Charged/Discharged Alarm Panel
Integrated 85 decibel alarm horn for a single
instrument installation
Around-the-clock discharge alert
Solid state circuit allows direct connection to a
12 volt battery buss
2" round bezel display head
Includes test button and red LED discharge light
FBY DA-1001-01IR
* Request Item

8. 792
SAFETY&NAVIGATION

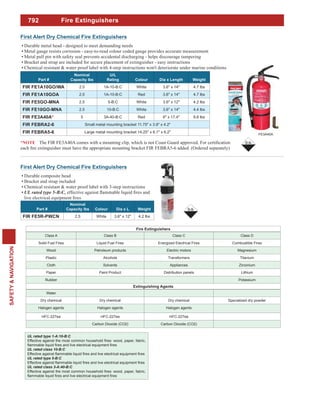

Fire Extinguishers
Fire Extinguishers
Class A Class B Class C Class D
Solid Fuel Fires Liquid Fuel Fires Energized Electrical Fires Combustible Fires
Wood Petroleum products Electric motors Magnesium
Plastic Alcohols Transformers Titanium
Cloth Solvents Appliances Zirconium
Paper Paint Product Distribution panels Lithium
Rubber Potassium
Extinguishing Agents
Water
Dry chemical Dry chemical Dry chemical Specialized dry powder
Halogen agents Halogen agents Halogen agents
HFC-227ea HFC-227ea HFC-227ea
Carbon Dioxide (CO2) Carbon Dioxide (CO2)
First Alert Dry Chemical Fire Extinguishers
Durable metal head - designed to meet demanding needs
Metal gauge resists corrosion - easy-to-read colour coded gauge provides accurate measurement
Metal pull pin with safety seal prevents accidental discharging - helps discourage tampering
Bracket and strap are included for secure placement of extinguisher - easy instructions
Chemical resistant & water proof label with 4-step instructions won't deteriorate under marine conditions
Part #
Nominal
Capacity lbs
U/L
Rating Colour Dia x Length Weight
FIR FE1A10GO/WA 2.5 1A-10-B:C White 3.6" x 14" 4.7 lbs
FIR FE1A10GOA 2.5 1A-10-B:C Red 3.6" x 14" 4.7 lbs
FIR FE5GO-MNA 2.5 5-B:C White 3.6" x 12" 4.2 lbs
FIR FE10GO-MNA 2.5 10-B:C White 3.6" x 14" 4.4 lbs
FIR FE3A40A* 5 3A-40-B:C Red 6" x 17.4" 9.8 lbs
FIR FEBRA2-6 Small metal mounting bracket 11.75" x 3.9" x 4.2"
FIR FEBRA5-6 Large metal mounting bracket 14.25" x 6.1" x 6.2"
FE3A40A
First Alert Dry Chemical Fire Extinguishers
Durable composite head
Bracket and strap included
Chemical resistant & water proof label with 3-step instructions
UL rated type 5-B:C,
Part #
Nominal
Capacity lbs Colour Dia x L Weight
FIR FE5R-PWCN 2.5 White 3.6" x 12" 4.2 lbs

9. 793
SAFETY&NAVIGATION
Life Saving Equipment
Scotty Nozzle
Twist shut-off.
High impact nylon
1-1/2" threaded attachment.
SCO 4038-HF
Perko Axe Bracket
Polished stainless steel
Set consists of one blade socket and
one handle bracket
For blades to 6" width
PER 325-000-STS
Fire Buckets
Electro-galvanized metal
Round bottom pail
Red-painted and marked
PAL F014-21563
SSI Fire Extinguisher Boxes
Molded from UV-resistant white ABS plastic with
reinforced panel for either back or side mounted
extinguisher holding brackets.
*Fire extinguisher not included*
SSI 49800000 2.5 or 2.75 lb extinguishers
SSI 49809000 2 lb extinguishers
Marine East Fire Ports
Allows you to visually inspect an engine
compartment without opening it and adding
Concentrates extinguishing chemical
Cut Out: 1-7/8", OD: 2-3/4"
MEP 6800
MEP 6960
MEP 6990
6800
Forespar Man Overboard Pole
Flags are made of Dacron with a batten sewn in place as
two-piece and can be custom sized resulting in an overall
pole length ranging from 11-1/2' to 15'. An epoxy kit is
provided with each unit and no cutting is necessary. A
noncorrosive joining sleeve allows disassembly of the
the backstay or life lines.
FRS 202018
Optional overboard pole holder (holds pole base)
Stainless and nylon construction
Comes with all mounting hardware
For use with 1" rails
FRS 156003
Davis Super Quick Fist
Mounts with 3 #10 bolt or screw
Hold objects from 2-1/2" to 7-1/2" diameter
Approximate capacity is 50 lbs each
Mounting base: 7/8" x 6"
DIN 544 Each
MRT Thru-Hull Plugs
Tapered, thru-hull plugs for stopping disabled connectors
# number denotes length
Sold each
Part # Taper
DEC 4" RED CEDAR 7/16" - 1"
DEC 6" RED CEDAR 5/8" - 1-5/8"
DEC 8" RED CEDAR 3/4" - 2"
DEC 10" RED CEDAR 1" - 2-1/2"
DEC 11" RED CEDAR 1-5/8" - 3-1/2"
Tuff-Lite Thermoplastic Fog Nozzles
straight stream to fog
Designed for use up to 100 PSI
Nozzle has a black rubber bumper
TLF FNB75GHT 3/4" garden hose
TLF FNB150S 1-1/2" pipe
Fire Axes
Red axe with spike
36" hardwood handle
TOO 61FM412B36 4-1/2 lb head
TOO 61FM6B36 6 lb head
Lifeboat Hatchet
14" hardwood handle
TOO 2015 1-1/4 lb
Forespar
Sta-Plug Emergency Plug
Ridged edges help hold plug in place
Fits into hard to reach areas
4-3/4" x 8-3/4"
FRS 150110 Each

10. 794
SAFETY&NAVIGATION

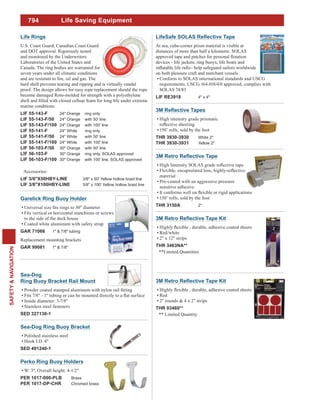

Life Saving Equipment
High intensity grade prismatic
150’ rolls, sold by the foot
THR 3930-3930 White 2"
THR 3930-3931 Yellow 2"
material
Pre-coated with an aggressive pressure
sensitive adhesive
150’ rolls, sold by the foot
THR 3150A 2"
Red/white
2" x 12" strips
THR 3463NA**
**Limited Quantities
At sea, cube-corner prism material is visible at
distances of more than half a kilometre. SOLAS
devices - life jackets, ring buoys, life boats and
on both pleasure craft and merchant vessels.
Conform to SOLAS international standards and USCG
SOLAS 74/83
LIF RE3918 4" x 4"
Life Rings
U.S. Coast Guard, Canadian Coast Guard
and DOT approval. Rigorously tested
and monitored by the Underwriters
Laboratories of the United States and
Canada. The ring bodies are warranted for
seven years under all climatic conditions
hard shell prevents tearing and ripping and is virtually vandal
proof. The design allows for easy rope replacement should the rope
become damaged Roto-molded for strength with a polyethylene
marine conditions.
LIF 55-143-F 24" Orange ring only
LIF 55-143-F/50 24" Orange with 50' line
LIF 55-143-F/100 24" Orange with 100' line
LIF 55-141-F 24" White ring only
LIF 55-141-F/50 24" White with 50' line
LIF 55-141-F/100 24" White with 100' line
LIF 56-103-F/50 30" Orange with 50' line
LIF 56-103-F 30" Orange ring only, SOLAS approved
LIF 56-103-F/100 30" Orange with 100' line, SOLAS approved
Accessories:
LIF 3/8"X50HBY-LINE 3/8" x 50' Yellow hollow braid line
LIF 3/8"X100HBY-LINE 3/8" x 100' Yellow hollow braid line
Garelick Ring Buoy Holder
Fits vertical or horizontal stanchions or screws
to the side of the deck house
Coated white aluminum with safety strap
GAR 71066 1" & 7/8" tubing
Replacement mounting brackets
GAR 99081 1" & 7/8"
Sea-Dog
Ring Buoy Bracket Rail Mount
Inside diameter: 3-7/8"
Stainless steel fasteners
SED 327130-1
Sea-Dog Ring Buoy Bracket
Polished stainless steel
Hook I.D. 4"
SED 491240-1
Perko Ring Buoy Holders
W: 3", Overall height: 4-1/2"
PER 1017-000-PLB Brass
PER 1017-DP-CHR Chromed brass
Red
2" rounds & 4 x 2" strips
THR 03460**
** Limited Quantity

11. 795
SAFETY&NAVIGATION
Life Saving Equipment
Scotty Rescue Throw Bag
50’ x 9/32” 660 lb test
Bright orange nylon and polyester self-draining
bag c/w adjustable strap
SCO 793
Kwik Tek Rescue Throw Bag
50 foot rescue line
Integrated strap with side release buckle
Easy to understand and implement graphics are printed
on the outside of the bright orange nylon bag
KWI LL-1
Fox 40
Watercraft Safety Throw
Body of the water safety throw has an
integrated handle, clearly visible and
easy to grasp
Quick-release plug prevents rope from
deploying inadvertently
900lbs breaking strength
Superior alternative to fabric throw bags
FOX 7901-0201
Canada Cordage Polypropylene Heaving Lines
these highly visible, buoyant polypropylene
heaving lines exceed pleasure craft needs and
meet commercial requirements.
CCI HL-3/8"x100 3/8" x 100'
CCI HL-5/16"x50 5/16" x 50'
CCI HL-5/16"x90 5/16" x 100'
Wesmar Float
Polyfoam construction
Approx 3-1/2" diameter by 5-7/8" long
Maximum 3/4" line
WES SHE-6
Kwik Tek Float
Ultrasonically welded plastic
L: 5" x Dia: 3" with a 1/2" centre hole
KWI F-5Y
Fox 40 Heaving Line
density braid
Softer and easier to handle than
conventional coarsely-braided rope
50' length
Float is made of expanded polyvinyl chloride
FOX 7905-0000 50'
to a person at risk of drowning.
Simply remove the baton from its
waterproof bag and throw near the
person. Once contact is made with
head above water until help arrives.
14” in length and weighs less than 1 lb
Simple to repack and reuse
Can be thrown 100 feet or further with accuracy
Extremely easy to use
MUS MRD101
Mustang Rescue Stick
Fox 40 Rescue Throw Bag
Waterproof throw bag contains a length of
rope with 900 lb breaking strength
Easy to use and handle
FOX 7907-0102 50' Red bag
FOX 7909-0302 90' Orange bag
Canada Cordage Sea Anchor Line
33' of 5/16" 3-strand nylon with a 5/16"
galvanized thimble spliced into one end.
CCI SAL-5/16"N
Cal-June Trolling Sea Anchors
Vinyl coated nylon
1/4" polypropylene shroud lines
Easily collapsible for storage
Will not rot or mildew
929: USCG approved for storm sea anchor
Part # Dia. Boats
CAL 926 18" up to 25'
CAL 927 24" 26' - 46'
CAL 928 30" 47' - 66'
CAL 929 36" N/A
Canada Metal Sounding Lead
Seven pound with sample collector
in the bottom
CMT SOL-7

12. 796
SAFETY&NAVIGATION
Life Saving Equipment
BoatMates Safety Gear Bag
Commercial weight ventilated bag
Holds 4 adult, and 2 childs' PFD's in
main body, plus separate storage area
Large mesh pocket in front
Heavy web carrying handles, non-skid
feet on bottom, and grommet openings for drainage
Nylon, self-repairing zippers on bag and lid
D-rings on each end allow bag to be secured to
deck on boat or dinghy
BOT 3118-6
Scotty Small Vessel Safety Kit
For vessels up to 8 metres
15 m buoyant heaving line (attach to bailer
for maximum heaving distance)
Bailer. (watertight container)
Sound signalling device (whistle)
Requires 2 AA batteries (not included)
Meets CCG minimum standards
SCO 779
Kwik Tek Lifeline Boat Safety Kit
This boat safety kit contains 4 items required by the Canadian
Coast Guard for boats up to 8 metres (26 ft.) long.
15 metre (50') buoyant heaving line
Bailer (watertight container)
Sound signalling device
(pea-less whistle)
Requires 2 AA batteries (not included)
KWI LL-2
Scotty Watertight
Emergency Equipment Container
Rugged plastic container in international orange for
rations, matches, etc. Net buoyancy: 1 kg (2.2 lbs)
SCO 774
ACR Survival Gear Pouch
Two zipped storage areas with
5 securing clips
Padded body for comfort with adjustable
waist buckle
Holds your personal locator beacon &
emergency gear
L: 8-1/2" x H: 5-1/2" x D: 3-1/2"
ACR 2274
First Aid Thermal Survival Blanket
52" x 84"
Wind & water resistant
CFK L-12391
Fox 40 Boat Essentials Kit
Basic waterproof kit designed to help bring
your Boat, Canoe or Kayak up to regulations.
Container also acts as bailer bucket.
Pearl pealess safety whistle
Requires 2 AA batteries (not included)
FOX 7910-0200
Fox 40 Boat Safety Kit
Innovative design makes the bailer easy to grab in an emergency.
Includes all minimum safety requirements for your personal
watercraft - no need to buy everything
separately.
Pealess safety whistle
50' (15 m) water safety rope
Bailer capped with mirrored lid
Uses 2 AA batteries (included)
FOX 7903-0201
Fox 40 Deluxe Boat Safety Kit
Case: W:15.5" x H:7.0" x D: 9.5
Waterproof marine incandescent
Pearl pealess safety whistle
1.5 kg anchor
50 ft (15 m) anchor line with carabiner clip
FOX 7911-0002

13. 797

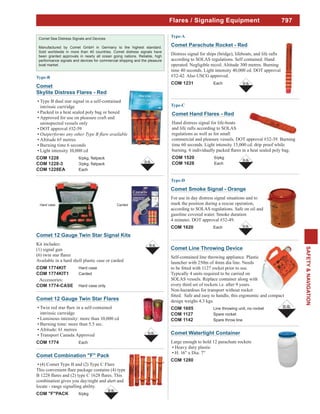

SAFETY&NAVIGATION
Flares / Signaling Equipment
Comet Sea Distress Signals and Devices
Manufactured by Comet GmbH in Germany to the highest standard.
Sold worldwide in more than 40 countries. Comet distress signals have
been granted approvals in nearly all ocean going nations. Reliable, high
performance signals and devices for commercial shipping and the pleasure
boat market.
Comet Combination "F" Pack
(4) Comet Type B and (2) Type C Flare
combination gives you day/night and alert and
locate - range signalling ability.
COM "F"PACK 6/pkg
Comet Hand Flares - Red
Hand distress signal for life-boats
and life rafts according to SOLAS
regulations as well as for small
commercial and pleasure vessels. DOT approval #32-39. Burning
time 60 seconds. Light intensity 15,000 cd. drip proof while
COM 1520 6/pkg
COM 1628 Each
Comet Parachute Rocket - Red
Distress signal for ships (bridge), lifeboats, and life rafts
according to SOLAS regulations. Self contained. Hand
operated. Negligible recoil. Altitude 300 metres. Burning
time 40 seconds. Light intensity 40,000 cd. DOT approval
#32-42. Also USCG approved.
COM 1231 Each
Comet Smoke Signal - Orange
For use in day distress signal situations and to
mark the position during a rescue operation,
according to SOLAS regulations. Safe on oil and
gasoline covered water. Smoke duration
4 minutes. DOT approval #32-49.
COM 1620 Each
Comet
Skylite Distress Flares - Red
Type B dual star signal in a self-contained
intrinsic cartridge
Packed in a heat sealed poly bag or boxed
Approved for use on pleasure craft and
uninspected vessels only
DOT approval #32-59
Altitude 65 metres
Burning time 6 seconds
Light intensity 10,000 cd
COM 1228
COM 1228-3
COM 1228EA Each
Comet Watertight Container
Large enough to hold 12 parachute rockets
Heavy duty plastic
H: 16" x Dia: 7"
COM 1280
Comet Line Throwing Device
Self-contained line throwing appliance. Plastic
launcher with 250m of 4mm dia line. Needs
Typically 4 units required to be carried on
SOLAS vessels. Replace container along with
every third set of rockets i.e. after 9 years.
Non-hazardous for transport without rocket
design weighs 4.3 kgs.
COM 1605 Line throwing unit, no rocket
COM 1127 Spare rocket
COM 1142 Spare throw line
Comet 12 Gauge Twin Star Flares
intrinsic cartridge
Luminous intensity: more than 10,000 cd
Burning time: more than 5.5 sec.
Altitude: 61 metres
Transport Canada Approved
COM 1774 Each
Comet 12 Gauge Twin Star Signal Kits
Kit includes:
(1) signal gun
Available in a hard shell plastic case or carded
COM 1774KIT Hard case
COM 1774KIT1 Carded
Accessories:
COM 1774-CASE Hard case only
Hard case Carded

14. 798

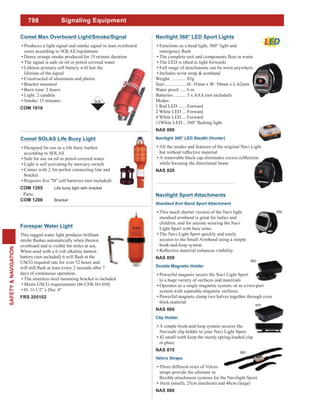

SAFETY&NAVIGATION
Signaling Equipment
Comet SOLAS Life Buoy Light
Designed for use as a life buoy marker
according to SOLAS
Safe for use on oil or petrol covered water
Light is self activating by mercury switch
Comes with 2.5m perlon connecting line and
bracket
COM 1205 Life buoy light with bracket
Parts:
COM 1206 Bracket
Forespar Water Light
This rugged water light produces brilliant
overboard and is visible for miles at sea.
When used with a 6 volt alkaline lantern
USCG required rate for over 52 hours and
days of continuous operation.
The stainless steel mounting bracket is included
Meets USCG requirements (46 CFR-161.010)
H: 11-1/2" x Dia: 4"
FRS 205102
Comet Man Overboard Light/Smoke/Signal
Produces a light signal and smoke signal in man overboard
cases according to SOLAS regulations
Dense orange smoke produced for 15 minute duration
The signal is safe on oil or petrol covered water
Lithium primary cell battery will last the
lifetime of the signal
Constructed of aluminum and plastic
Bracket mounted
Burn time: 2 hours
Light: 2 candela
Smoke: 15 minutes
COM 1616
Navilight Sport Attachments
Standard Arm Band Sport Attachment
This much shorter version of the Navi light
standard armband is great for ladies and
children, and for anyone wearing the Navi
Light Sport with bare arms
The Navi Light Sport quickly and easily
secures to the Small Armband using a simple
hook-and-loop system
NAS 850
Double Magnetic Holder
Powerful magnets secure the Navi Light Sport
to a huge variety of surfaces and materials
Operates as a single magnetic system, or as a two-part
system with separable magnetic surfaces
Powerful magnets clamp two halves together through even
thick material
NAS 860
Clip Holder
A simple hook-and-loop system secures the
Navisafe clip holder to your Navi Light Sport
42 small teeth keep the sturdy spring-loaded clip
in place
NAS 870
Velcro Straps
Three different sizes of Velcro
straps provide the ultimate in
16cm (small), 25cm (medium) and 48cm (large)
NAS 880
850
880
Navilight 360° LED Sport Lights
Functions as a head light, 360° light and
The LED is tilted to light forwards
Full range of attachments can be worn anywhere
Includes wrist strap & armband
Weight: ............ 85g
Size:.................. H: 35mm x W: 50mm x L:62mm
Water proof: ..... 6 m
Batteries: .......... 3 x AAA (not included)
Modes:
1 Red LED ....... Forward
2 White LED.... Forward
4 White LED.... Forward
11White LED...
NAS 800
Navilight 360° LED Stealth (Hunter)
All the modes and features of the original Navi Light
while focusing the directional beam
NAS 820
860
870

15. 799
SAFETY&NAVIGATION
Signaling Equipment
Includes wrist strap
Omni-directional strobe visible up to
2 miles (3.2 km)
Waterproof to 328 ft (100 m)
Floats if dropped overboard
Operates on 2 “AA” alkaline or two
1.5V lithium batteries (not included)
Operating life - strobe: 10 hours
Size: 5.3" x 1.5" (13.5 x 3.8 cm)
Weight:5 oz (142 g)
ACR 1916
Forespar
Personal Rescue Strobe Light
USCG 161.012 when powered by an alkaline
“C” battery replaced annually (Batteries not
included)
Flashes for over 24 hours.
Waterproof to 120 feet
Velcro strap for attachment to upper arm or safety harness
Measure approx. 5” high
Weighs only 5 oz.
FRS 202102
ACR C-Light w/Clip
Attaches easily to life vest or jacket with
stainless steel pin or integral lash loops and
velcro strap
Waterproof and corrosion resistant case
prevents accidental disassembly
Twist ON/OFF control can be operated by
gloved hands and in adverse conditions
Adjustable wrist strap provides a means for
keeping light secure
Intense incandescent light visible for up to two miles depending
Lens simultaneously focuses a beam of light straight ahead and a
ring of light all around
brighter at the horizon and 75 times at the vertical cone of light
Size: 5.6" x 1.3" (14.3 x 3.2 cm)
Weight: 1.3 oz (37 g) without batteries (not included)
ACR 3355
ACR C-Strobe w/Clip
Strobe light visible up to 2 miles (3.2 km)
Waterproof and corrosion resistant case
accidental disassembly
Slim, lightweight design
Steel clip and adjustable velcro strap
Size: 6" x 1.6" (15.3 x 4 cm)
Weight: 2.6 oz (74 g)
USCG 161.012/41/0 approved with 2 “AA”
lithium batteries (not included)
ACR 3959
standard life vest
Pull-pin activation: Automatically lights when
protection
chamber
Light test feature with "Test Key" to ensure readiness-can be
tested many times
jacket
"Tamper Tab" breaks to indicate light has been activated
Long term storage lithium battery-10 year storage life
(recommended replacement 5 years from date of purchase-write
month/year of replacement date on case at time of purchase)
Size: L: 3.1" x W: 1.8" x D: 1.6" (7.9 x 4.6 x 4.1 cm)
Weight: 3.3 oz (93.6 g)
ACR 3961.1
Leland Xenon Strobe
USCG approved, requires 1x 'D' cell alkaline
battery to be replaced annually. Stainless locking
PFD’s. Three to four mile visibility at sea level
and then switches to 20-30 fpm for another 8-12
hours.
Omni-directional 360° view pattern
More powerful than LED bulbs
Waterproof and rugged
D-cell battery (not included) for up to 24 hours
LND 60646M

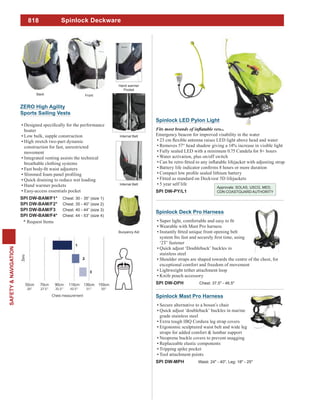

Spinlock LED Pylon Light
Emergency beacon for improved visability
in the water
above head and water
Removes 57° head shadow giving a 14%
increase in visible light
Fully sealed LED with a minimum 0.75
Candela for 8+ hours
Water activation, plus on/off switch
lifejacket with adjusting strap
Fitted as standard on Deckvest 5D lifejackets
5 year self life
SPI DW-PY/L1
Approvals: SOLAS, USCG, MED,
CDN COASTGUARD AUTHORITY

16. 800
SAFETY&NAVIGATION
ACR FireFly3 WaterBug - SOLAS
Special water activation feature: unit turns on
when armed and in contact with water
State of the art lamp/lens combo for high
Large sliding switch easy to operate with
gloved hands
Specially designed base platform allows unit to
stand upright easily
Stainless steel retainer securely attaches
battery door to case
Integral lashing loops provide a secure anchor point
immersion suits
Size: 4.75" x 2.2" x 1.2" (12.07 x 5.59 x 3.05 cm)
Weight: 3.84 oz (109 g) with lithium batteries (not included)
4.44 oz (126 g) with alkaline batteries (not included)
SOLAS approved
ACR 3996.3
ACR LED HemiLight 2 - SOLAS
Installation is quick and simple with the all
new Dragon Clip which provides secure
jacket in a matter of seconds.
light with manual deactivation switch
Meets USCG and SOLAS requirements
Attachment loops accommodate up to 2" wide webbing
Smaller than other approved lights
Size: L: 2.75" x W: 1.47" x H: 1.37"
Weight: 1.9 oz
Battery: Non-hazardous lithium. 5 yr life (not replaceable)
Meets DOT and IATA rules for safe transport
Waterproof: Water tight to 30 ft Meets IMO standard
Operational Life: Exceeds 8 hr. requirement
Approvals: Pending: USCG SOLAS, Transport Canada
Approved: MED SOLAS
ACR 3768
Multi-function switch selects between strobe
light for visibility at great distances or steady
incandescent light for close-up recovery work
Large sliding switch allows for easy operation by
gloved hands
Specially-designed base platform allows unit to
stand upright easily
Aluminum retainer securely attaches battery door
to case
High intensity xenon strobe and incandescent lamp
immersion suits
Size: 4.4" x 2.2" x 1.2" (12.07 x 5.59 x 3.05 cm)
Weight: 4.0 oz (113 g) with lithium batteries (not included)
4.7 oz (133 g) with alkaline batteries (not included)
ACR 3999.1
ACR FireFly LLB-1
Replacement Battery
civilian 4F, 4G and military SDU-5/E
USCG approved for 5-year replacement life
Exceeds 8-hour USCG required operational life
Operational to -20°C
ACR 1032
Signaling Equipment
ACR Personal Rescue Light
Water activated personal rescue light for
life vests and rafts
Lamp and lens combo produces brilliant
light visible for over one mile
Operates in fresh or salt water
Standard length lead wire 18" (46 cm)
Water activated battery has extended
useful life with plugs left in place
Operating life - exceeds 8 hours
ACR 3720.0180 L8-3
Glossary on Page 803 For Symbol Details

17. 801
SAFETY&NAVIGATION
RLL012-01 RLFAA023-01 GLF031-01
Rescue Laser Light Rescue Laser Flare® Magnum Green Rescue Laser Flare
Batteries CR123 Lithium AA (standard alkaline or lithium) CR123 Lithium
Operating Time 40 hours 72 hours 5 hours
Waterproof Depth 80 ft (24 m) 80 ft (24 m) 80 ft (24 m)
Operates Below 0°
Yes
Yes, with AA lithium batteries
*Alkaline batteries included
No
Laser Diode
Red
10,000 hr. meantime to failure
Red
10,000 hr. meantime to failure
Green
5,000 hr. meantime to failure
Signal Distance
20 miles at night
1-3 miles daytime
20 miles at night
1-3 miles daytime
30 miles at night
3-5 miles daytime
Warranty Limited Lifetime Warranty Limited Lifetime Warranty 180-day Warranty
Carry Holsters RC19984 RC19986 RC19983
Rescue Lasers Pyrotechnic Flares
Signal Duration 5-72 hrs. depending on product 1 minute
Detection Capability None
Fire Risk No risk Flammable
Environmental Risk Environmentally safe Hazardous Material
Visibility Long duration - Easy to locate source
Resuable? Yes No
Patented system
draws an expanding
laser line - appears
of light.
At 16 miles, you have
a 6,000 ft. long fan of
light with which to hit
your target.
Green Rescue Laser with
Holster
Rescue Lasers
Hours of Signaling
Range 20-30 Miles
No Fire Hazard
Enviromentally Safe
Rugged Aircraft Aluminum
Easy to Operate
RSQ RLL012-01 Rescue Laser Light
RSQ RLFAA023-01 Rescue Laser Flare® Magnum
RSQ GLF031-01 Green Rescue Laser Flare
Accessories:
RSQ RC19984 Holster for Rescue Laser Light
RSQ RC19986 Holster for Rescue Laser Flare® Magnum
RSQ RC19983 Holster for Green Rescue Laser Flare
Signaling Equipment / Rescue Laser

18. 802
SAFETY&NAVIGATION
ACR
ModelProduct#SizeWeight
Water-
proof
BeamAngleActivationVisibilityFlashRateLampBatteryType
Operational
Life
Operation
C-Strobe
3959
6.0x1.6"
2.6oz
withoutbatteries
to10'
Omni-
Directional
360°
Manual
upto
2mi
60±
10/min
nominal
tube
2“AA”
alkaline(1yr
replacement)or
1.5Vlithium(5
yrreplacement)
161.012/41/0approved
(w/datedlithium
batteries)
Morethan
8hours
continuous@
-1°C
Twist
“ON-OFF”
AutoHemiLight2
3768
2.75x1.47x1.37"
1.9oz
to30'
Alldirections
oftheupper
hemisphere
Water
visibility1
mile
N/ALED
Lithium5
yrlife(not
replaceable)
MeetsUSCGand
SOLASrequirements
MeetsDOTandIATA
rulesforsafetransport
Exceeds8
hours@-1°C
Activates
when
Inwater
C-Light
3355
5.6x1.3"
1.3oz
withoutbatteries
Waterproof
and
corrosion
resistant
case
Simultaneously
focusesabeam
oflightupward/
ringoflightall
around
Manual
upto
2mi
N/AIncandescent
2“AA”
alkaline(1yr
replacement)or
1.5Vlithium(5
yrreplacement)
161.012/36/0approved
(w/datedlithium
batteries)Patent
#5237491
Morethan
8hours
continuous@
-1°C
Twist
“ON-OFF”
RapidFireStrobe
3961.1
3.1x1.8x1.6"
2.75oz
to10'
Omni
Directional
360°
Manual&
Automatic
over
1mile
min±10for4
minduringlast
4hrs
tube
Lithium5
yrlife(not
replaceable)
N/A
Approximately
8hoursat
-20°C
automatic
onsome
vests
1916
5.3x1.5"
5.0oz
withoutbatteries
to328'
when
properly
lubricated
Omni
Directional
360°
Manual
upto
2mi
(strobe)
40to60
tubeand
kryptonbulb
2“AA”
alkaline(1yr
replacement)or
1.5Vlithium(5
yrreplacement)
N/A
Strobe:
10hours/
2hours
continuous
Twistleftor
rightfor
strobe/
3995.3*
4.75x2.2x1.1"
4.0oz
Testedto
33'
Omni-
Directional360°
Manual
1nm1.9
km
60±10/min
nominal
Highintensity
Xenonstrobe
2“AA”
alkaline(1yr
replacement)or
1.5Vlithium(5
yrreplacement)
USCG161.012/58/0,
USCG,SOLAS
161.112/50/0w/dated
(TSO-C85),CE
Minimum8
hours
Switch“ON-
OFF”
3996.3*
4.75x2.2x1.1"
4.0oz
Testedto
33'
Omni-
Directional360°
Water&
Manual
1nm1.9
km
60±10/min
nominal
Highintensity
Xenonstrobe
2“AA”
alkaline(1yr
replacement)or
1.5Vlithium(5
yrreplacement)
USCG161.012/58/0,
USCG,SOLAS
161.112/50/0w/dated
(TSO-C85),CE
Minimum8
hours
Lightswhen
inwaterwith
switch“ON”
3999.1*
4.4x2.2x1.1"
4.0oz
Testedto
33'
Omni-
Directional360°
Manual
1nm1.9
km
60±10/min
nominal
Highintensity
Xenonstrobe/
2“AA”
alkaline(1yr
replacement)or
1.5Vlithium(5
yrreplacement)
CE
Strobe:
minimum
8hours/
Incandescent:
2hours
continuous
Multi-
function
switch“ON-
OFF-ON”
*RequestItems

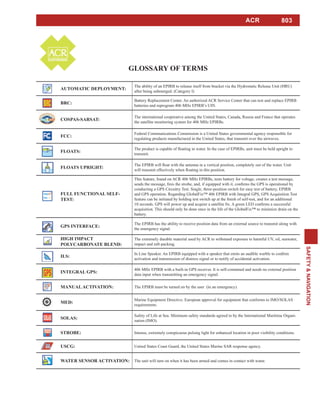

19. 803
SAFETY&NAVIGATION
ACR
The ability of an EPIRB to release itself from bracket via the Hydrostatic Release Unit (HRU)
after being submerged. (Category I)
BRC:
Battery Replacement Center. An authorized ACR Service Center that can test and replace EPIRB
batteries and reprogram 406 MHz EPIRB’s UIN.
The international cooperative among the United States, Canada, Russia and France that operates
the satellite monitoring system for 406 MHz EPIRBs.
FCC:
Federal Communications Commission is a United States governmental agency responsible for
regulating products manufactured in the United States, that transmit over the airwaves.
transmit.
This feature, found on ACR 406 MHz EPIRBs, tests battery for voltage, creates a test message,
conducting a GPS Circuitry Test. Single, three-position switch for easy test of battery, EPIRB
and GPS operation. Regarding GlobalFix™ 406 EPIRB with Integral GPS, GPS Acquisition Test
acquisition. This should only be done once in the life of the GlobalFix™ to minimize drain on the
battery.
The EPIRB has the ability to receive position data from an external source to transmit along with
the emergency signal.
The extremely durable material used by ACR to withstand exposure to harmful UV, oil, seawater,
impact and raft-packing.
activation and transmission of distress signal or to notify of accidental activation.
406 MHz EPIRB with a built-in GPS receiver. It is self-contained and needs no external position
data input when transmitting an emergency signal.
The EPIRB must be turned on by the user (in an emergency).
Marine Equipment Directive. European approval for equipment that conforms to IMO/SOLAS
requirements.
Safety of Life at Sea. Minimum safety standards agreed to by the International Maritime Organi-
zation (IMO).
Intense, extremely conspicuous pulsing light for enhanced location in poor visibility conditions.
United States Coast Guard, the United States Marine SAR response agency.
The unit will turn on when it has been armed and comes in contact with water.

20. 804
SAFETY&NAVIGATION
ACR
The GlobalFix iPRO is a breakthrough product that
boasts a digital display and dual GPS technology.
GlobalFix iPRO sports a digital display that allows
you to see all of the beacon's operational activities.
The screen displays GPS LAT/LON, operating
instructions, usage tips, transmission bursts as well
as battery power. iPRO makes self-testing your
beacon simple and easy to understand with the
digital display visually walking you through the
self test step by step, no more relying on listening
that offers Dual GPS Technology. Interface your iPRO to your
onboard GPS to ensure that your LAT/LON is stored inside so the
GPS Simulation Centre so that it will pin-point your exact location
faster than standard GPS enabled EPIRBs.
Nonhazardous batteries - no shipping hassles
Professional grade design - engineered, tested and built for years
of abusive marine use
available
Replacement: Replacement due six (6) years from date of
Size: 15.3 x 4.2 x 3.6 in (38.9 x 10.7 x 9.1 cm)
Weight: 1.32 lbs. (600 g)
Limited Warranty: 5 years
External GPS interface requirements: In order to be compatible
with the GlobalFix iPRO, an external GPS receiver must provide
location information according to the following requirements:
NMEA 0183, Version 1.5 or higher
Baud rate: 4800
ACR 2846.63 Category I, automatic
ACR 2848.63 Category II, manual
Parts:
ACR 9368 Replacement antenna
The GlobalFix PRO with an internal
GPS quickly and accurately relays
your position to a worldwide
network of Search and Rescue
satellites, reducing search time and
increasing your chances of survival.
The GlobalFix PRO broadcasts a
unique registered distress signal
that not only tells rescuers where
you are, but who you are. The
internal GPS will automatically
turn on and acquire your position
upon activation and then utilizes a
powerful 406 MHz signal to relay
your distress call to orbiting satellites. As local Search and Rescue
is deployed, a separate homing signal and integrated LED strobe
light guide rescuers to your exact location.
The GlobalFix PRO is small and rugged and comes with over 53
years of life saving technology built into every one. Performing
a full functional self test of the GlobalFix PRO internal circuitry,
battery voltage & power, and 406 MHz transmission gives you the
peace of mind knowing your EPIRB will work the moment you
need it the most. ACR Exclusive: Built-in GPS acquisition test
mode allows you to test the internal GPS receiver to ensure it's
working properly.
Internal 66 channel GPS - Fast cold start
Non-hazardous batteries - No shipping hassles
If you use it...we'll replace it, Free of Charge. Simply submit
your story, send us back your used beacon so we can have it
mounted on our Wall of Fame and we'll send you a brand new
beacon of equal or greater value.
NOTE These product are sold as"Bulk" with NO retail
packaging
ACR 2842.63P Category I, automatic
2842.63P

21. 805
SAFETY&NAVIGATION
ACR Universal Category II Mounting Bracket
SATELLITE 406 (Product Part # 2758).
SATELLITE 2 406 (Product Part # 2775).
RapidFix 406 (Product Part # 2777), and
GlobalFix (Product Part # 2744)
Keyed to eliminate possibility of installing
EPIRB backwards
Built-in magnet deactivates EPIRB’s water
sensor when in this bracket
Made of high density, UV stabilized polyethylene
ACR 9430
ACR Satellite3 406 MHz EPIRB
This redesigned workhorse utilizes
patented, proprietary electronics
package for faster, more stable 406
MHz transmissions to low-earth orbiting
LEOSAR satellites. In an emergency,
your registered, digitally-coded distress
message is broadcast via a powerful
6-watt, 406 MHz signal (typically within
1 hour). An integrated 121.5 MHz homing
signal then guides local Search and
Rescue efforts.
The automatic category I Sea Shelter3 bracket is
fully enclosed and is made of high density, UV-
stabilized polyethylene for years of extreme abuse,
while the manual category II QuickDraw has a low
Full functional self-test including battery voltage
and internal circuitry
Bright LED strobe conserves battery power
Single, three-position switch for easy test and
operation
Lanyard coiled on recessed spool for nontangling
deployment
Send I’M OK messages with optional 406Link.
com non-emergency messaging service
Battery: Class 2 (non-hazmat) lithium batteries
Replacement: Replacement due six (6) years from date of
Deployment: Category I-Hydrostatic release (auto)
Activation: Out of bracket and wet, or manually
Waterproof: 33 ft (10 m) @ 10 min. Exceeds RTCM standard
Radiated Power: 6.3 W (406.037 MHz), 50 mW +/-3dB (121.5
MHz)
Operational Life: 48 Hours minimum @ -4°F (-20°C) Typical 72
Size (no antenna): 7.0" X 4.2" X 3.6”
Weight: 1.3 lbs
Limited Warranty: 5 years
ACR 2874.63** Category I, automatic
ACR 2875.63** Category II, manual
** Limited Quantities
2874.63
2875.63
ACR Hydrostatic Release Kit
When submerged in water between
5-13 ft. (1.5 - 4 m), the HydroFix will disengage the rod allowing
the Category 1 bracket to release the EPIRB. ACR’s HydroFix is
now part of the standard replacement kit for the following EPIRBs*
and brackets:
Satellite 406 RLB-27 2754/2756/ 2772
(Closed and Open Face Brackets)
Satellite2 406 RLB-32 2774
RapidFix 406 RLB-33 2776
GlobalFix 406 RLB-35 2742
Sea Shelter 9327
Sea Shelter2 9435/9455
Expiry: 2 years from install or 3 years from date of manufacture
ACR 9490-1
*Not for use with RLB-23 406 EPIRB
ACR
Glossary on Page 803 For Symbol Details

22. 806
SAFETY&NAVIGATION
ACR Aqualink 406 GPS PLB
With three levels of integrated signal technology
- GPS positioning, a powerful 406 MHz signal
and 121.5 MHz homing capability - the AquaLink
quickly and accurately relays your position to a
worldwide network of Search and Rescue satellites.
The AquaLink broadcasts a unique registered distress
signal that not only tells rescuers where you are, but
to within 100 meters and then utilizes a powerful
406 MHz signal to relay your distress call to orbiting
satellites. As local Search and Rescue is deployed,
a separate homing signal and integrated LED strobe light guide
rescuers to your exact location.
No subscription fees
Floats
Super bright LED strobe
On board 66 channel GPS
Self-test and GPS test features
Typical performance 35 hours
Size: 2.25 x 5.88 x 1.49”
Weight: 9.1 oz with lanyard
Battery: Class 2 (non-hazmat) lithium battery packs
Deployment / Activation: manual
Operation: 2 steps - deploy antenna, press ON button
Waterproof: 16.40ft (5 m) @ 1 hr.
Radiated Power: 5 W
Accessories: attachment clip included
Limited Warranty: 5 years
*Replaceable battery
ACR 2882.63
Aqualink View 406 GPS PLB-350C
Featuring the same advanced technology and robust
features as the AquaLink 406, the AquaLink View adds
a reassuring element with its next-generation digital
display. Upon activation, the high-visibility screen
displays a continuous stream of crucial data, including:
Your exact GPS coordinates
Remaining battery power
Visual prompts for correct deployment
ACR 2884.63
ACR ResQLink 406GPS PLB-375
The all-new ResQLink PLB is the smallest and
lightest 406 MHz PLB in the world. Feature packed,
with three levels of integrated signal technology -
GPS positioning, a powerful 406 MHz signal, and
121.5 MHz homing capability, the ResQLink quickly
and accurately relays your position to a worldwide
network of Search and Rescue satellites. The built-in
strobe light increases visibility during rescue. The
self-test and GPS test features can be combined with
ACR’s optional 406Link.com “I’m OK” Messaging
service to send peace of mind communication to family and friends,
letting them know everything is OK.
Material: Engineered polycarbonate blend
Deployment: Manual
Activation: Manual
Operation: 1, deploy antenna, 2, press ON button, 3, and provide
clear view of sky
Waterproof: 16.40 ft (5 m) @ 1 hour, 33 ft (10 m) @ 10 min.
Factory tested: Exceeds RTCM waterproof requirements
Radiated Power: 5+ W (406 MHz), 50 mW +/-3dB (121.5 MHz)
Operational Life: Exceeds required 24 hours @ -4°F (-20°C)
Typical performance: 30 hours @ -4°F (-20°C), longer in higher
ambient temperatures
Storage: -40°F to + 158°F (-40°C to +70°C)
Size: 1.3 x 1.9 x 3.9”
Weight: 4.6 oz
Limited Warranty: 5 years
ACR 2880.63 Standard
ACR 2881.63 PLUS Floating
Accessories:
ACR 9521 Flotation pouch
Glossary on Page 803 For Symbol Details
ACR

23. 807
SAFETY&NAVIGATION
All aluminum construction
Built in quick corner brackets
Part # A B
SED 583422 10-3/4" 10-3/4"
SED 583426 17-3/4" 17-3/4"
Made of special plastic-metal foil laminate
Resists corrosion or peeling
Compact,. lightweight, folding
Diameter: 11.5"
DIN 151
12.5" diameter, 1.3 mm aluminum
maximum effective radar cross section
Quickly and easily assembled and mounted
Instructions provided
DIN 152
Davis "Echomaster" Mount
Comes with a plastic base, black anodized upright
tube, two corner blocks and all the hardware to
securely attach Echomaster to the unit
Installation fasteners or u-bolts for rail mounting
are not included.
Base: 2.75" x 3.75"
DIN 157
Comes with a tilting mounting bracket
Compact lightweight design
40 pieces of aluminium arranged at 90° and
staggered at 45°
Radar cross section of 2 square metres
2" x 23"
MOB M-2-B Black
Parts:
MOB MBRKT-M2B Mounting bracket
Compact lightweight design
28 pieces of aluminium arranged at 90° and
staggered at 22.5°
Radar cross section of 4 square metres
Noiseless, light weight, low windage and less
chance of chafe to the sails and rigging
4" x 23"
MOB S-4-B Black
Compact lightweight design
40 pieces of aluminium arranged at 90° and
staggered at 45°
Radar cross section of 2 square metres
Noiseless, light weight, low windage with less
chance of chafe to the sails and rigging
2" x 23"
MOB S-2-B Black
MOB S-2-W White
The Mobri M-3 and M-4 are designed with a mounting
bracket and are most suitable for use with power boats.
in use, just twist out and stow.
M-3 Radar cross section of 3 square metres
M-4 Radar cross section of 4 square metres
MOB M-3-B 4" x 15", Black
MOB M-3-W 4" x 15", White
MOB M-4-B 4" x 20", Black
MOB M-4-W 4" x 20", White
Parts:
MOB BASE-M3/4-B Black, base only
MOB BASE-M3/4-W White, base only
Black 24" folding signal shapes for N.U.C. signal
Contructed of a nylon mesh over steel ribbing
Chromed clasp and D-ring, with hanging eyes top and bottom
FIT SA-BALL
FIT SA-CONE
FIT SA-DIAMOND
Daylight Signals for Fishing Vessels
Radar Reflectors

24. 808
SAFETY&NAVIGATION
Sounding Devices
Fox 40 Micro Whistles
The Micro marine whistle has no metal
parts to rust or corrode
Resistant to ultraviolet and saltwater
Comes with lanyard
FOX 9505-0108 Red
FOX 9505-0208 Yellow
FOX 9505-0308 Orange
FOX 9505-1308 Neon
Fox 40 Classic Whistles
A three chamber pealess whistle designed to be heard above
ambient noise, the roar of engines, breaking waves and thundering
gale-force winds at up to 1 mile. The chambers are designed to
self-clear when submerged in water. There are no moving parts to
freeze, jam or deteriorate.
Coast Guard Approved
Comes with or without lanyard
FOX 9902-0100 Red
FOX 9903-0108 Red, w/lanyard
FOX 9902-0200 Yellow
FOX 9903-0208 Yellow, w/lanyard
FOX 9902-0300 Orange
FOX 9903-0308 Orange, w/lanyard
FOX 9902-0400 Pink
FOX 9903-1308 Neon, w/lanyard
Fox 40 Pearl Kids Whistle
Pealess
Comes with breakaway lanyard
FOX 9705-1315 Neon
Sea-Dog Whistle
Injection molded polypropylene with a 36" lanyard
Duo-tone whistle has no moving parts or balls that jam or
corrode Handy clip secures whistle until needed
SED 571260-1
Scotty Lifesaver #1 Whistle
Loud. Up to 118 dB
SCO 780
ACR WW3 Whistle
Loud, shrill, dual tone
Required by SOLAS 83
Meets USCG/SOLAS requirements
Complete with 18" (45.5 cm) of lanyard
ACR 2228
Fox 40 Floating Wrist Lanyard & Mini Whistles
Mini pealess whistle
FOX 9512FW** Yellow
FOX 9513FW Orange
FOX 9516WN Red
** Limited Quantities
Fox 40 Sharx Whistles
Authoritative sound power of 120 dB that can be heard for miles
over ambient noises
Designed to perform in the nastiest weather conditions
Works wet or dry
Comes with lanyard & stainless steel ring
Pealess
FOX 8703-2208 Yellow
FOX 8703-2308 Neon
Fox 40 Eclipse Whistles
The original Fox 40 Classic has been re-engineered for maximum
exclusive SpectraBurst glow-in-the-dark colors.
Integrated co-molded cushioned mouth grip
Comes with a 9" clipper lanyard
FOX 8403-0108 Red
FOX 8403-0208 Yellow
FOX 8403-0308 Orange
FOX 8403-0508 Blue
Fox 40 Guardian LED Light & Whistle
Combination of Micro Whistle and a dual-
function LED light with fastener, strap and
brass noncorrosive ring.
FOX 7917-0100 Red
FOX 7917-0300 Orange
FOX 7917-1300 Neon
Perko Fog Horn
Enamelled aluminum with a
nylon mouthpiece
Length: 12-1/2"
PER 162-DP-WHT

25. 809
SAFETY&NAVIGATION
Sounding Devices
AFI Mini Twin Horn
This compact dual horn is ideal for
small run-a-bouts
18.8 stainless steel cover, diaphragm
pad included
L: 3" x W: 8" x H: 1-3/4"
Frequency: 425Hz/108 dB @ 1 metre
12 volt,.max. amp draw: 5.0
AFI 10001
AFI Mini Horn
Compact size will mount almost anywhere
18.8 stainless steel cover, diaphragm, and
mounting bracket
Vibration dampening pad included
Frequency: 106 dB at 1 metre
12 volt, max. amp draw: 2.0
L: 3" x W: 3-1/4" x H: 1-3/4"
AFI 10035
Falcon Sports Horn
100% ozone-safe, propellant
Rugged, high-impact plastic trumpet -
guaranteed unbreakable
FAL FSH Sports horn
FAL FSHR
AFI Mini Hidden Horn
For enclosed areas only.
Type 304 stainless steel
Amp draw: 3 max.
db rating: 107 at one metre
12VDC
3" x 3-1/4" x 1-3/4"
AFI 10031
AFI Mini Blast Compact Horns
Above deck compact horn
Noncorrosive ASA plastic cover
Matching hole pattern to the AFI
10035 horn
db rating: 107 at one metre
12VDC
W: 3-3/8" x H: 2" x L: 4-3/8"
AFI 10098 Black
AFI 10099 White
AFI Drop-In "H" Horn
12VDC with 304 stainless steel
diaphragm
Maximum amp draw: 4 Amps
dB rating: 107 at one metre
Fundamental frequency: 370±20
Comes with a black & a white grill
Installation space H: 2" x W: 3-3/8" x D: 3-1/4"
AFI 10079
Falcon Eco Sound Horn
low Global Warming Potential (GWP) aerosol
propellant.
99.5% Lower GWP (Global Warming Potential)
Minimum carbon footprint canister
Meets US Coast Guard reommendations for
boats up to 65 ft. (20m)
Guaranteed unbreakable
Dimension:4.5" x 2.25" x 9.5"
FAL FMGRNHN Horn
FAL FMGRNHNR
Limited
Quantity
Shipping
D.G.
Falcon Button Signal Horns
Falcon horns use an
environmentally safe propellant
formulation which meets the latest
EPA ozone protection standards
Meets Coast Guard
recommendations - can be heard up
to one mile away
Made in the U.S.A. and individually hand tested
to assure reliability
Unbreakable plastic or chromed horn
FAL PBSHN-CN Push button horn
FAL PBSHNCSH-CN Chromed horn
FAL PBSHNR-CN
Limited
Quantity
Shipping
D.G.
Falcon Push Button Junior Signal Horn
Falcon horns use an environmentally safe
propellant formulation which meets the latest
EPA ozone protection standards
Meets Coast Guard recommendations - can be
heard up to one mile away.
Made in the U.S.A. and individually hand tested
to assure reliability
FAL PBNJC-CN Push button "JR"
FAL PBNJR-CN
Limited
Quantity
Shipping
D.G.
Falcon Super Sound Horn
This mini-horn produces a piercing blast which
can be heard up to 1 mile away over water
Environmentally safe, economical, palm size
convenience
Unbreakable and rust proof.
4-1/2" tall
FAL SH3 Super Sound
FAL SH3R
Limited
Quantity
Shipping
D.G.

26. 810
SAFETY&NAVIGATION
Sounding Devices
AFI Trumpet Horns
Recommended for saltwater use
18.8 stainless steel exterior
for vessels up to 12 metres
Vibration dampening pad included
12VDC
Part # Type / L Frequency
dB @ 1
Metre
Amp
Draw
AFI 10010 Single / 14" 460 108 3.5
AFI 10011 Double / 16" 460/415 110 7.0
AFI Premium XLP Trumpet Horns
Recommended for saltwater use
100% stainless steel exterior
Over-molded motor housing
Vibration dampening pad included
for vessels up to 12 metres
12VDC
5 year warranty
Part # Type Freq
dB @ 1
Metre
Amp
Draw
AFI 10028XLP Single 16-1/2" 390 118 5
AFI 10029XLP Double 18-1/2" 390/330 123 10
AFI Deluxe Trumpet Horn
Coast Guard rated for vessels up
to 12 metres
Excellent for saltwater use
100% stainless steel exterior,
bracket and diaphragm
Vibration dampening base and bracket
5 year warranty
Part # Type Frequency Volts
Amp
Draw
AFI 10018XL Double 18-1/2" 390/330 24 4.5
Sea-Dog Mini Horn
Stamped 304 stainless cover
110 db
12 VDC, 4 amps
Meets ABYC standard A-23, for use on vessels under 39’
3-5/16" x 3-5/8"
SED 431110-1
Sea-Dog Mini Twin Horn
Stamped 304 stainless cover
110 db
12 VDC, 8 amps
Meets ABYC standard A-23, for use on
vessels under 39’
8" x 3-5/16"
SED 431120-1
Sea-Dog
Sonic Mini Compact Horn
ASA plastic cover
106 db
12 VDC, 3 amps
Meets ABYC standard A-23, for use on vessels under 39’
3-3/8" x 4-3/8"
SED 431152-1
Sea-Dog
Drop-In Hidden Horn V.2 w/Grills
Powder coated steel/injection molded nylon
105 db
12 VDC, 3 amps
Includes chrome and white grills
Meets ABYC standard A-23, for use on
vessels under 39’
4-7/8" x 2-3/4" x 3-3/8" deep
SED 431230-1

27. 811
SAFETY&NAVIGATION
Sounding Devices
Sea-Dog
Maxblast Dual Trumpet Horn
Stamped 304 stainless w/over molded motor housing
120 db
12 VDC, 8 amps
Meets the U.S Coast Guard’s C.O.L.R.E.G.S. and U.S. Inland
Navigation Rules, Annex III Regulations for boats up to 20
meters/66 ft.
18" x 7"
5 year warranty
SED 431520-1
Sea-Dog
Compact Dual Trumpet Horn
Stamped 304 stainless
110 db
12 VDC, 7 amps
Meets ABYC standard A-23, for use on vessels under 39’
16" x 7-1/2"
SED 431620-1
Sea-Dog
Compact Single Trumpet Horn
Stamped 304 stainless
108 db
12 VDC, 3.5 amps
Meets ABYC standard A-23, for use on vessels under 39’
14" x 3-1/2"
SED 431610-1
Sea-Dog
Maxblast Air Horn - Single Trumpet
Chrome plated brass
120 db
12 VDC, 20 amps
9-11 PSI
Meets the U.S Coast Guard’s C.O.L.R.E.G.S. and U.S. Inland
Navigation Rules, Annex III Regulations for boats up to 20
meters/66 ft.
Includes 20A compressor, air tubing, and mounting hardware
17" x 2-3/4"
SED 432510-1
Sea-Dog
Maxblast Air Horn - Mini Single Trumpet
Chrome plated brass/powder coated brass
123 db
12 VDC, 20 amps
9-11 PSI
Meets the U.S Coast Guard’s C.O.L.R.E.G.S. and U.S. Inland
Navigation Rules, Annex III Regulations for boats up to 20
meters/66 ft.
Includes 20A compressor, air tubing, and mounting hardware
9-5/8" x 2-3/4"
SED 432610-1
Sea-Dog
Maxblast Air Horn - Dual Trumpet
Chrome plated brass
120 db
12 VDC, 20 amps
9-11 PSI
Meets the U.S Coast Guard’s C.O.L.R.E.G.S. and U.S. Inland
Navigation Rules, Annex III Regulations for boats up to 20
meters/66 ft.
Includes 20A compressor, air tubing, and mounting hardware
17" x 5-7/8"
SED 432520-1
Sea-Dog
Maxblast Single Trumpet Horn
Stamped 304 stainless w/over molded motor housing
120 db
12 VDC, 4 amps
Meets ABYC standard A-23, for use
on vessels under 39’
16" x 4"
5 year warranty
SED 431510-1

28. 812
SAFETY&NAVIGATION
Perko Ship's Bells
Medium weight with removable bracket
Part # Dia Height Finish
PER 420-008-CHR 8" 6-1/8" Chrome
PER 420-006-POL 6" 5" Polished Bronze
Sea-Dog Ship's Bell
Meets Coast Guard, ABYC and NMMA
requirements with a minimum of 200 cm
mouth opening and striker mass no less than
3% of mass of the bell.
8" diameter
Cast polished brass
Mounting bracket included
SED 455880-3
AFI Dual Trumpet Air Horns
Coast Guard rated for vessels up to 20 metres
Constructed for saltwater use
The bells, motor cover and brackets are constructed of chrome
plated solid brass
Diaphragms are made of noncorrosive Lexan
all mounting hardware.
L: 17" x W: 7" x H: 3-3/4"
17" & 15" horns
db rating: 121 at one metre: 121
AFI 10106 12V, 20 amp
AFI 10624 24V, 10 amp
Parts:
AFI 10102 12V compressor, L: 4-7/8" x W: 2-5/8"
includes mounting bracket
AFI 10224 24V compressor, 5" L x 2-5/8"W
includes mounting bracket
Fiamm Dual Air Horn
The Twin air horn is the result of a unique sound chamber design
which provides increased sound intensity from low pressure
air sources. The sleek self mount styling features stainless steel
projectors and an aluminum motor housing.
Produces a minimum of 120 Db @ 1 meter when supplied with
a minimum of 40 psi.
Made in the USA
Dimensions: L: 16" x W: 7-1/2" x D: 4-1/8" x Bell Dia. 3-3/4"
Frequency (Hz): 300/260
Min. Db Rating @1 Meter: 120
Power Source: Air - 14 to 110 psi
FIA 62330-14
AFI Single Trumpet Air Horn
Coast Guard rated for vessels up to 20 metres
Constructed for saltwater use
Bells, motor cover and brackets are constructed of chrome
plated solid brass
Diaphragms are made of noncorrosive Lexan
Comes complete with 12V
and all mounting hardware.
db rating: 120 at one metre
12VDC, amp draw: 20.0
L: 17" x W: 3-3/4" x H: 3-3/4"
AFI 10105 12V
Parts:
AFI 10102 12V compressor, L: 4-7/8" x W: 2-5/8"
includes mounting bracket
Sounding Devices

29. 813
SAFETY&NAVIGATION
First Aid Kit #1 Marine
Comes in a nylon soft pack with nylon belt loop
CFK N300
Qty Description
12 pkg Antiseptic towelettes
25 pkg Assorted bandages
1 4" x 6" pressure dressing elastic tails
1 "J" triangular bandage
5
4 3" x 3" gauze pads
1 2 oz Savlon disinfectant
3 Sting stop prep pads
1 pair Latex gloves
First Aid Kit #2 Marine
Comes in a nylon soft pack with nylon belt loop
CFK N301
Qty Description
12 pkg Antiseptic towelettes
25 pkg Assorted bandages
1 pkg "J" triangular bandage
2 3" x 4" non adherent pads
1 4" Compress bandage
1 2" Conform bandage
1 3" Tensor bandage
1 1" x 5 yds bulk adhesive tape
5
1 pkg 6" Cotton tip applicators 6/pkg
1 2 oz Savlon disinfectant
3 Sting stop prep pads
1 5-1/2" Surgical scissors
1 pair Latex gloves
1 Rescue blanket
1 St. John pocket guide
First Aid Kit WCB Basic
Comes in a handy nylon soft pack with nylon carry straps
CFK N201-2
Qty Description
12 pkgs Antiseptic towelettes
30 pkgs Hand cleaner
50 pkgs Assorted bandages
6 4" x 4" Gauze pads
2 Pressure dressing elastic tails 4" x 6"
2 8" x 10" Surgi pads
4. "J" Triangular bandages
1 5-1/2" Bandage scissors
1 4-1/2" Splinter forceps
1 pkg. 6" Cotton tip applicators (6 per pkg.)
1 Pocket mask c/w one way valve
1 1" x 5 yard adhesive tape
1 3" Tensor bandage
6 pair Latex gloves
1 Instant cold compress
First Aid Kit #3 Marine
Comes in a handy nylon soft pack with nylon carry straps
CFK N302
Qty Description
12 pkg Antiseptic towelettes
25 pkg Assorted bandages
2 pkg "J" triangular bandage
2 3" x 4" non adherent pads
1 3" Tensor bandage
1 1" x 5 yard bulk adhesive tape
5
1 4" x 6" pressure dressing elastic tails
1 8" x 10" sterile surgi pads
20 4" x 4" gauze pads
2 pkg 6" Cotton tip applicators 6/pkg
1 2 oz Savlon disinfectant
10 Sting stop prep pads
1 5-1/2" Surgical scissors
1 4-1/2" Splinter forceps
12 Assorted safety pins
2 Eye pads
1 pair Latex gloves
2 Rescue blankets
1 St. John pocket guide
First Aid Kits

30. 814
SAFETY&NAVIGATION
First Aid Kits
First Aid Kit WCB Level One
Comes in a handy nylon soft pack with a nylon shoulder strap
CFK N202-3
Qty Description
24 pkg Antiseptic towelettes
60 pkg Hand cleaner
100 pkg Assorted bandages
12 4" x 4" gauze pads
4 Pressure dressing elastic tails
2 3" Tensor bandage
1 1" x 5 yds bulk adhesive tape
4 8" x 10" sterile surgi pads
6 pkg "J" triangular bandages
1 5-1/2" Bandage scissors
1 4-1/2" Splinter forceps
2 pkg 6" Cotton tip applicators 6/pkg
1 Pocket mask c/w one way valve
6 pair Latex gloves
1 Accident record book
1 Pencil
1 Instant cold compress
3 Emergency blankets
Fox 40 Mini First Aid Kit
Durable white snap lid case made of plastic
with integrated handle. The Mini Kit can
be mounted, handy for any sized boat,
arena or home. Kit contains 53 items for
small to medium wounds.
Kit includes:
1 - Abdominal/Combine Pad (5” x 9”)
2 - Telfa Non-Adherent Pads (2” x 3”)
1 - Adhesive tape (0.75” x 1 yds)
2 - Cotton-Tipped Applicators 2/pk (3”)
2 - Tongue Depressors (3/4” x 6”)
1 - Elastic Compression Bandage (2” x 5 yds)
3 - Fabric Bandages (7/8” x 3”)
1 - Conforming Stretch Bandage (2” x 4 yds)
2 - Fingertip Fabric Bandages (1-3/4” x 2”)
2 - Gauze Pads (3” x 3”)
2 - Knuckle Fabric Bandages (1-1/2” x 3”)
8 - Plastic Adhesive Bandages (3/4” x 3”)
1 - First Aid & Emergency Care Guide
1 - Scissors (4-1/8”)
1 - Instant Cold Pack, large (6” x 9”)
3 - After Bite Treatment Swabs
8 - Alcohol Antiseptic Swabs
6 - Benzalkonium Chloride Antiseptic Towelettes
3 - First Aid Cream (0.03 oz)
1 - Water Jel, Cool Jel (0.8 oz)
2 - Splinter-Out
FOX 7928-0300
Scotty First Aid Kit
Contains 16 essential items, over 85 pieces, all in rugged
watertight buoyant container. Also included is a bonus
Lifesaver #1 safety emergency whistle.
SCO 789
Qty Contents
1 Tweezers
1 Triangular Bandage
10 Antiseptic Towelettes
4 Cotton Tip Applicators
1 First Aid Booklet
4 Latex Gloves
1/2" x 5 yds Adhesive Tape
2 Antiseptic Ointment Pad
2 12 Ply Gauze Pads
1 Conform Gauze 2" Roll
2 Finger Tip Bandages
2 Ammonia Inhalant Pads
2 Knuckle Bandages
50 Adhesive Strips
1 Scissors

31. it’s your life on the line
Deckvest5DZEROBuoyancyAidMastProHarnessKneePadsSafetyLines

32. 816
SAFETY&NAVIGATION
Spinlock Deckware
170N Buoyancy
Straps with soft rear moulding reduce twisting and aid adjustment
Single crotch strap with recessed clip reduces risk of snagging
Clipping area for PLB/VHF
Attachment for kill cord or VHF leash
Recessed belt clip and webbing end tidy
Attachment for Pylon Lite
Water sensitive activation system
Uses a compressed paper capsule
5 year warranty including Through Life Support (TLS)
SPI DW-LTE/A Gun Metal
SPI DW-LTE/AGP Grenadine Pink
SPI DW-LTE/APB
SPI DW-LTE/ASY Sumba Yellow
SPI DW-LTE/ATW Tropic Water
Parts:
SPI DW-RAK Re-arming kit
Approvals: CE approved
ISO 12402-3 Lifejacket
Spinlock Deckvest Lite
Quick side donning with webbing storage Adjusts instantly. Fits all sizes
Gun Metal
Grenadine Pink
Sumba Yellow
Tropic Water

33. 817
SAFETY&NAVIGATION
Spinlock Deckware
Common Features
back adjustment - hidden and non snag for easy simple adjustment
Soft loop safety line attachment
Mesh pocket for VHF/PLB Locator
Double Crotch Straps / Thigh straps with recessed clips
Quick Access Emergency safety line cutter
Spinlock
High visibility sprayhood to
protect from spray inhalation.
and locates to give unequalled
170N Buoyancy with Auto
status window.
New mesh pocket for VHF Radio /
PLB Emergency safety line cutter
and stowage pocket. Use with
Spinlock lightweight safety line.
Crotch and thigh
straps included.
New High intensity Pylon™
Light antenna for all-round
visibility 23cm antenna
for all round visibility.
Tropic White
Black
Deckvest 5D 170N Hammar
Designed for the Performance/Pro sailor for
The Hammar system is activated by water pressure and will
Water, spray and rain running down the vest will not cause
activation
Visible indicators to show the armed status of the cylinder
Single indicator clearly shows if unit is armed
SPI DW-LJH5D/H1 Chest: 23 - 35.5", Black
SPI DW-LJH5D/H2 Chest: 29 - 48", Black
SPI DW-LJH5D/H3 Chest: 38 - 59", Black
Parts:
SPI DW-MAK Manual conversion kit
SPI DW-RAH/150 Re-arming kit
Deckvest 5D 170N Pro Sensor
Water sensitive activation system
Uses a compressed paper capsule that dissolves and
releases a spring to puncture the gas cylinder. (Pro Sensor
has indictators to show status of cap and cylinder)
through the unit will cause it to activate. Water, spray and
rain running down jacket will not cause activation
SPI DW-LJH5D/A1 Chest: 23 - 35.5", Black
SPI DW-LJH5D/A2 Chest: 29 - 48", Black
SPI DW-LJH5D/A3 Chest: 38 - 59", Black
SPI DW-LJH5D/A1PB
SPI DW-LJH5D/A2PB
SPI DW-LJH5D/A3PB
SPI DW-LJH5D/A1TW Chest: 23 - 35.5", Tropic White
SPI DW-LJH5D/A2TW Chest: 29 - 48", Tropic White
SPI DW-LJH5D/A3TW Chest: 38 - 59", Tropic White
Parts:
SPI DW-MAK Manual conversion kit
SPI DW-RAK Re-arming kit

34. 818
SAFETY&NAVIGATION
ZERO High Agility
Sports Sailing Vests
boater
Low bulk, supple construction
High stretch two-part dynamic
construction for fast, unrestricted
movement
Integrated venting assists the technical
breathable clothing systems
Quick draining to reduce wet loading
Hand warmer pockets
Easy-access essentials pocket
SPI DW-BAM/F1* Chest: 30 - 35” (size 1)
SPI DW-BAM/F2* Chest: 35 - 40” (size 2)
SPI DW-BAM/F3 Chest: 40 - 44” (size 3)
SPI DW-BAM/F4* Chest: 44 - 53” (size 4)
* Request Items
Hand warmer
Pocket
Internal Belt
Internal Belt
Buoyancy Aid
FrontBack
Spinlock Mast Pro Harness
Secure alternative to a bosun’s chair
Quick adjust ‘doubleback’ buckles in marine
grade stainless steel
Extra tough IBQ Cordura leg strap covers
Ergonomic sculptured waist belt and wide leg
straps for added comfort & lumbar support
Neoprene buckle covers to prevent snagging
Replaceable elastic components
Tripping spike pocket
Tool attachment points
SPI DW-MPH Waist: 24" - 40", Leg: 18" - 25"
Spinlock Deck Pro Harness
Wearable with Mast Pro harness
‘2T’ fastener
Quick adjust ‘Doubleback’ buckles in
stainless steel
Shoulder straps are shaped towards the centre of the chest, for
exceptional comfort and freedom of movement
Lightweight tether attachment loop
Knife pouch accessory
SPI DW-DPH Chest: 37.5" - 46.5"
Spinlock Deckware
Spinlock LED Pylon Light
Emergency beacon for improved visability in the water
Removes 57° head shadow giving a 14% increase in visible light
Fully sealed LED with a minimum 0.75 Candela for 8+ hours
Water activation, plus on/off switch
Fitted as standard on Deckvest 5D lifejackets
5 year self life
SPI DW-PY/L1
Approvals: SOLAS, USCG, MED,
CDN COASTGUARD AUTHORITY

35. 819
SAFETY&NAVIGATION
Spinlock Wrist Support
A high strength elastic wrist wrap
designed to provide custom support and
aid central and lateral wrist stabilization
for long periods of time helming and
grinding.
SPI DW-WSP Universal, pair
Spinlock Knee Pads
High density moulded foam provides patella
support and protection
Extra tough IBQ Cordura fabric protection
Breathable stretch panelling for added comfort
Ergonomically shaped to maintain position
and prevent slipping
Low volume back panelling prevents bulking
SPI DW-KPD Small/Medium, pair
SPI DW-KPD/L Medium/Large, pair
Spinlock Performance Safety Lines
Lighter more compact safety lines for
performance sailing
Ultra compact line version
strength
Lightweight looped cow hitch attachment with clip(s) or
clip/clip(s) options
Full strength compact 16mm line 28% lighter than the
25mm standard
Dry-Coated to prevent water absorption and weight gain
Overload indicator displays when the load has exceeded
500kgs to show the line needs replacing
By wearing the easily stowed (optional) safety line ‘cutter’,
any safety line will satisfy ISAF and ORC recommendations
by providing a means of disconnection under load.
Single clip, 2m, 208gr
SPI DW-STR/2L
Single clip, elasticated 2m, 210gr
SPI DW-STR/2LE
Double clip, 1 x elasticated 2m, 1
x non-stretch 1m, 370gr
SPI DW-STR/3L
Double clip, 2m
SPI DW-STR/02
Double clip, elasticated 2m
SPI DW-STR/02E
Triple clip, 1 x elasticated
2m, 2 x non-stretch 1m
SPI DW-STR/03
Spinlock Cutter & Pouch
'S-Cutter’ is made for severing safety lines
under load by providing a reliable ‘means of
disconnection’
and ORC recommendations, whatever type
of safety line and whatever the type of clip used
With a guarded razor edge and stowed either in the special
pocket on the Deckvest or in a simple pouch worn on the life
jacket harness.
SPI DW-CTR
Wichard Elastic Safety Tethers
Elastic harness tether, conforms to B.S.1.
2 stainless steel carbine hooks
Retracts from 2 to 1 meter
Break load 4580 lbs
WIC 7001
Retractable tether
2 double action hooks
Break load 4580 lbs
WIC 7005
Triple tether has 1- 3ft tether and 1 - 6ft.
retractable tether
3 double action hooks
Break load 4580 lbs
WIC 7006
Safety Gear

36. DRY. WARM. SAFE.
AT WORK.TM
Over 125
years of
experience
behind every
product
FLOTATION SUITS AND COATS
WEIGHT RANGE CHEST SIZE WAIST INSEAM
SIZE lbs / kg in / cm in / cm in / cm
S 90+ / 41+ 34-37 / 86-94 28-32 / 71-81 28-30 / 71-76
M 90+ / 41+ 38-41 / 96-104 32-36 / 81-91 30-31 / 76-79
L 90+ / 41+ 42-45 / 106-114 36-40 / 91-102 31-32 / 79-81
XL 90+ / 41+ 46-49 / 116-124 40-44 / 102-112 31-32 / 79-81
2XL 90+ / 41+ 50-53 / 126-134 44-48 / 112-123 32-33 / 81-84
3XL 90+ / 41+ 54-57 / 136-144 48-52 / 123-132 32-33 / 81-84
INFLATABLES
WEIGHT RANGE CHEST SIZE
lbs / kg in / cm
UNIVERSAL 80+ / 36+ 30-52 / 76-132
M101 90+ / 41+ 34-57 / 86-145
M101
All-Purpose Vests
M502
Adult Keyhole
Lifejacket
HFC1000
Echo II Coat
HFS1000
Delta II One Piece Suit
NIV500 / NIV600

37. 821
SAFETY&NAVIGATION
Helly Hansen Echo II Parka
Waterproof 210 denier outer shell
Taped seams
High visibility, lined, stow-away hood
with adjustable cordlock for maximum
safety
#10 Vislon two way front zipper
drainage eyelets
Lower front cargo pockets, velcro closure with
drainage eyelets
Fleece lined collar
Adjustable waist for comfort and protection
from the elements
Soft PVC foam
D-ring attachment for motor kill switch
Zippered inner pocket for extra storage
Inner adjustable neoprene cuff with over cuff
Accessory patch for personal locator beacon
High rise storm collar
Approved Standard: CAN/CGSB 65.11-M88
Colour: Red/Black
HHP HFC1000S S
HHP HFC1000M M
HHP HFC1000L L
HHP HFC1000XL XL
HHP HFC10002XL XXL
Helly Hansen Hotel II Bib Pant
Waterproof 210 denier outer shell
Taped outer shell seams
Adjustable suspenders with side release buckle
#10 Vislon two way front zipper
Adjustable ankle straps
Front zippered side entry pocket with mesh
pocket bags
Front thigh cargo pockets, zipper closure with
drainage eyelets
Reinforced knees, seat and hem of 420D nylon
D-ring attachment for motor kill switch
Accessory patch for personal locator beacon
Soft PVC foam
Colour: Black
HHP HFP1000S S
HHP HFP1000M M
HHP HFP1000L L
HHP HFP1000XL XL
HHP HFP10002XL XXL
Helly Hansen Foxtrot II Bomber
Waterproof 210 denier outer shell
Taped seams
High visibility, lined, stow-away hood
with adjustable cordlock for maximum
safety
#10 Vislon two way front zipper
with drainage eyelets
Fleece lined collar
Soft PVC foam
Zippered inner pocket for extra storage
Inner adjustable neoprene cuff with over cuff
Accessory patch for personal locator beacon
High rise storm collar
Approved Standard: CAN/CGSB 65.11-M88
Colour: Red/Black
HHP HFJ1000S S
HHP HFJ1000M M
HHP HFJ1000L L
HHP HFJ1000XL XL
HHP HFJ10002XL XXL
Helly Hansen Sierra Parka
Waterproof 210 denier nylon outer shell
Fleece lined collar
High visibility, lined, stow-away hood
Patches for personal locator beacon
Zippered map pocket
Left sleeve accessory pockets for pencil,
External waist belt with dual adjustment buckle
D-ring for attachment of motor kill switch
Neoprene adjustable storm cuff with outer zipped over cuff
Lower cargo pockets with zipper closure and internal
D-rings to secure accessories
Hem shockcord with adjustable cordlocks at left and right side
TC/Cdn Coast Guard approved PFD
HHP 78001-S S (34" - 37" chest)
HHP 78001-M M (38" - 41" chest)
HHP 78001-L L (42" - 45" chest)
HHP 78001-XL XL (46" - 49" chest)
HHP 78001-2XL XXL (50" - 53" chest)
Flotation

38. 822
SAFETY&NAVIGATION
Helly Hansen Delta II One-Piece Suit
Waterproof 210 Denier outer shell
Taped outer shell seams
High visibility, lined, stow-away hood
with adjustable cordlock for maximum
safety
pockets with drainage eyelets
Front thigh cargo pockets, zipper
closure with drainage eyelets
Fleece lined collar
Adjustable waist, thigh and ankle strap
Leg zip inner gusset for easy access
D-ring attachment
Adjustable neoprene cuff w/over cuff
Accessory patch for personal locator beacon
Reinforced knees, seat and hem of 420D nylon
High rise storm collar
Zippered Inner pocket for extra storage
Approved Standard: CAN/CGSB 65.11-M88
Colour: Red/Black
HHP HFS1000S S
HHP HFS1000M M
HHP HFS1000L L
HHP HFS1000XL XL
HHP HFS10002XL 2XL
Helly Hansen Alpha One-Piece Suit
Waterproof 210 denier nylon outer shell
Fleece lined collar
visibility
Zippered map pocket
Lower cargo pockets with zipper closure
and internal D-rings
D-ring for attachment of kill switch
Hem shockcord with adjustable cordlocks
at left and right side
Adjustable thigh strap
Leg zip with inner gusset
Adjustable ankle strap
Back neck webbing handle
TC/Cdn Coast Guard approved PFD
HHP 78603-S S (34" - 37" chest)
HHP 78603-M M (38" - 41" chest)
HHP 78603-L L (42" - 45" chest)
HHP 78603-XL XL (46" - 49" chest)
HHP 78603-2XL XXL (50" - 53" chest)
Helly Hansen All Purpose Vests
Lightweight PE foam
Easy-to-use side release buckles
Split back foam panel for comfort
and easy storage
TC/Cdn Coast Guard approved PFD
Adult universal, 90+ lbs
HHP M101R Red/Navy 34" - 57" chest
HHP M101Y Yellow/Navy 34" - 57" chest
Flotation
Mustang Deluxe Paddling Vests
Front entry allows maximum comfort and mobility
Wide range of shoulder, side, and waist adjustments
Large, accessible, secure double chest pockets
500-Denier outer shell fabric
Fast-tab radio clip
Colour: Red/Carbon
MUS MV5801S/RC S
MUS MV5801M/RC M
MUS MV5801L/RC XL
MUS MV5801XL/RC XXL

39. 823
SAFETY&NAVIGATION
Flotation
Kwik Tek Adult Universal Life Vests
3 belt design
Universal sizing
TC/Cdn Coast Guard approved PFD
KWI 20002-15-A-BLUE
KWI 20002-15-A-RED
Kwik Tek
Adult Dual Size Life Vests
4 belt design
TC/Cdn Coast Guard approved PFD
KWI 20010-04-A-BL S/M
KWI 20010-05-A-BL L/XL
KWI 20010-06-A-BL 2XL/3XL
Kwik Tek Youth Life Vest
3 belt design
Safety grab strap for ease of rescue
Rated for 27-41 kg
TC/Cdn Coast Guard approved PFD
Colour: Blue/Yellow
KWI 20010-03-A-BLYW
Kwik Tek
Adult Neoprene Dual Size Life Vests
4 belt design
Neoprene shoulders and side panels
TC/Cdn Coast Guard approved PFD
KWI 20014-04-B-BL S/M
KWI 20014-05-B-BL L/XL
KWI 20014-06-B-BL 2XL/3XL
Mustang Classic Children's Vests
Head cushion adds extra buoyancy and cradles
head in water
Safety grab strap for ease of rescue
Adjustable waist belt and crotch strap
TC/Cdn Coast Guard approved PFD
Colour: Red/Black
MUS MV1203-RD/BK Infant 20 - 30 lbs
MUS MV1205-RD/BK Child 30 - 60 lbs
MUS MV1207-RD/BK Youth 60 - 90 lbs
Kwik Tek Infant Life Vest
3 belt design
Safety grab strap for ease of rescue
Crotch strap
Rated for 9-14 kg
TC/Cdn Coast Guard approved PFD
Colour: Yellow/Blue
KWI 20006-01-A-BL
Kwik Tek Child Life Vest
3 belt design
Safety grab strap for ease of rescue
Crotch strap
Rated for 14-27 kg
TC/Cdn Coast Guard approved PFD
Colour: Blue/Yellow
KWI 20010-02-A-BLYW
Kwik Tek
Adult Type II Keyhole Life Vests
4 adult size jackets in a stow bag
3 belt design
Universal sizing
TC/Cdn Coast Guard approved PFD
KWI 20002-20-A-RED

40. 824
SAFETY&NAVIGATION
Flotation
Mustang Search and Rescue Vests
Two large front cargo pockets
TC/Cdn Coast Guard approved PFD
Large cutaway armholes for maximum range of motion
Fast-tab radio clip
Colour: Red
MUS MV5601S-RD S
MUS MV5601M-RD M
MUS MV5601L-RD L
MUS MV5601XL-RD XL
MUS MV5601XXL-RD XXL
Mustang Industrial Vests
Lightweight, comfortable, easy to work in
All stress points are double stitched
Open side design with four Tug-Tite
Large arm holes for greater mobility
TC/Cdn Coast Guard approved PFD
Colour: Orange
MUS MV3107S S 32" - 36" chest size
MUS MV3107M M 36" - 40" chest size
MUS MV3107L L 40" - 44" chest size
MUS MV3107XL XL 44" - 48" chest size
MUS MV3107XXL XXL over 48" chest size
Helly Hansen Industrial Vests
Deep armholes
Soft PVC foam
Mesh upper with neoprene collar
Two large mesh pockets, whistle &
'D' ring
TC/Cdn Coast Guard approved PFD
Colour: Orange
HHP M610 S/M S/M 34" - 41" chest
HHP M610 L/XL L/XL 42" - 49" chest
HHP M610 2/3XL XXL/XXXL 50" - 57" chest
Helly Hansen Industrial Vests
Foam side panels contour body
Accessory patch and 'D' ring
TC/Cdn Coast Guard approved PFD
Colour: Orange/Black
HHP M110 S/M S/M 34" - 41" chest
HHP M110 L/XL L/XL 42" - 49" chest
HHP M110 2/3XL XXL/XXXL 50" - 57" chest
Jackets
MUS MJ5245S-RD/BLK S Chest 35" - 38"
MUS MJ5245M-RD/BLK M Chest 38" - 41"
MUS MJ5245L-RD/BLK L Chest 41" - 44"
MUS MJ5245XL-RD/BLK XL Chest 44" - 48"
MUS MJ5245XXL-RD/BLK XXL Chest 48" - 52"
Mustang
Catalyst Flotation Coats & Jackets
M-Tech Comfort System provides
unparalleled range of motion and mobility
Waterproof, breathable, tri-laminate outer
shell
Outer shell is waterproof to 10,000mm with
vapor transmission rate of 5,000 g/m2 per
24 hrs
Protection from rain and spray without
jackets
Field tested by Coast Guard training crews,
Interior pocket, zippered chest pocket and
front slash hand-warmer pockets
Underarm ventilation zippers
Front cargo pockets
ComfortCuff technology
D-ring
Coats
MUS MC5445S-RD/BLK S Chest 35" - 38"
MUS MC5445M-RD/BLK M Chest 38" - 41"
MUS MC5445L-RD/BLK L Chest 41" - 44"
MUS MC5445XL-RD/BLK XL Chest 44" - 48"
Coat
Jacket
Mustang Universal Adult Vest
For recreational or industrial boaters
3-adjustment belts
MUS MV3005

41. 825
SAFETY&NAVIGATION
Mustang High Visibility Floater Coat
Construction provides enhanced
Zipper closures on front pockets
TC/Cdn Coast Guard approved PFD
Colour: Yellow/Green
MUS MC1505T3-M M Chest 38" - 42"
MUS MC1505T3-L L Chest 42" - 46"
MUS MC1505T3-XL XL Chest 46" - 50"
MUS MC1505T3-XXL XXL Over 50"
Mustang Floater Coat
Construction provides enhanced
Zipper closures on front pockets
TC/Cdn Coast Guard approved PFD
Colour: Red
MUS MC1505M-RD M Chest 38" - 42"
MUS MC1505L-RD L Chest 42" - 46"
MUS MC1505XL-RD XL Chest 46" - 50"
Flotation
Helly Hansen Small Vessel Lifejacket
Orange shell
Grab strap on back of collar
Safety whistle
Adult universal sizing
Approved to Standard CAN/CGSB 65.7-M88
HHP M504
Helly Hansen Keyhole Lifejacket
Side pockets with SOLAS whistle
Side pocket and web strap for
SOLAS personal locator light
Approved to CAN/CGSB 65-GP-14M
Transport Canada approved Standard Life jacket
Colour: Orange
HHP M502 Adult universal, over 40 kg (30" - 50" chest)
HHP M503 Child universal, under 40 kg
Mustang Canadian Standard Lifejacket
Compact storage
Accessory tab with SOLAS approved whistle
Attachment point for personal light (light not
included)
Buoyant buddy line
Lifting loop
USCG Type I Lifejacket
USCG SOLAS
Marine Equipment Directive SOLAS
Transport Canada SOLAS
Child MV8035 Chest: 140 cm (55"), L: 56 cm (22") x W: 29 cm
(11-3/8") x D: 11 cm (4-3/8")
Adult MV8040 Chest: 175 cm (695"), L: 63 cm (24-3/4") x W: 32
cm (12-1/2") x D: 15 cm (5-3/4")
MUS MV 8040 Adult / over 41 kg (over 90 lbs)
MUS MV 8035 Child / 15-41 kg (33-90 lbs
Mustang Small Vessel Crew Vest
Small vessel regulation lifejacket
Large collar provides head support and
increased stability in water.
Dual adjustable belts and grab strap
Canadian Coast Guard approved Small Vessel
Regulation lifejacket CGSB #CAN2-65.7-M88
Colour: Orange
21 lbs bouyancy
Adult universal, 30" - 50" chest
MUS MVC10UN

42. 826
SAFETY&NAVIGATION
Fitzwright
9700 Immersion Suit
Made from 5mm closed cell neoprene,
through temperatures ranging from -30
degrees to 60 degrees Celsius. These
SOLAS and Transport Canada approved
immersion suits are triple glued and
stitched for superior resistance to stress.
The watertight face seal, the inherent
buoyancy of the rubber and heavy duty
zipper all help to make this a comfortable
suit to wear in all temperatures of water
With convenient features such as tethered
gloves, glove pockets, slim, tapered legs
9700 immersion suit is one the easiest suits to work in. There is
also an optional lifting harness available which speeds up removal
from the water by a helicopter or deck crane, especially in an
emergency situation when time is of an essence.
SVT FW-9700-U Universal
Mustang Survival Suit
Designed for use in commercial operations,
the new Immersion Suit from Mustang
Survival is the ideal ship abandonment suit
for workboats, transport vessels, drilling rigs,
supply ships, steamships and commercial
community.
Easy to don in stormy conditions
and dexterity
Water-tight face seal
Face shield protects against spray
Triple-sealed seam construction
weather detection
SOLAS grade hailing whistle
Light pocket made to accomodate a varity of SOLAS
approved lights
Non Slip, durable soles on foot bottom
Includes use and inspection manual
To keep your zipper in working condition each suit is
shipped with a tube of zipper lubricant
A value-buy for commercial operators and crews
Flotation
Part # Size Height Weight
SVT MIS230TC Small
47" - 67"
119cm - 170cm
88lbs - 220lbs
40kg - 100kg
SVT MIS220TC Universal
59" - 79"
150cm - 200cm
110lbs - 331lbs
50kg - 150kg
Fitzwright
Ocean Commander Immersion Suit
Transport Canada/SOLAS/MED
approved immersion suit
Fluorescent yellow-green
gives top protection from exposure
Full length body zipper gives a water-
tight seal
5 mm neoprene removable mitts provide
warmth and stow in sleeve pockets
Non-slip durable rubber soles provide
traction on wet surfaces
Detachable inner buoyancy liner
constructed of closed-cell AirSoft foam
provides additional buoyancy
performance urethane coated nylon exterior makes repairs and
cleaning easier
Neoprene wrist seals allow for easy donning and a better seal
Built in safety harness
Includes ACR Hemilight Water Activated Personal Locator
Light (MI5732)
SVT OC8003HR Universal
”Clo” is a measurement of the thermal comfort of a suit or device
(CLOthing Insulation). One ”Clo” represents the thermal comfort
of an average person in business clothing in a room temperature
indoor environment. Fractions of this thermal comfort are what are
perceived when worn in the water. Each of the values are below 1.0
because water transfers heat out of the body 25 times faster than air.
Our products are interlined with our exclusive AirSoft™ closed cell
foam. This foam not only provides maximum insulation against the
Wearing a Mustang Survival suit will increase cold water survival
time exponentially
This graph indicates random
samples of Clo values and the
corresponding estimation of
survival time in calm water
(assuming a thin person with
a 5.5°F [3°C] drop in core
temperature).
PROTECTION
CLO
VALUE
NUDE 0.060
CLOTHED 0.100
CATALYST SUIT 0.17
MS2195 0.420
SENTINEL SERIES 0.660
OCEAN COMMANDER 0.960

43. WE SAVE LIVES FOR A LIVING
THE FIRST AND ONLY
TRANSPORT CANADA APPROVED
INFLATABLE LIFE JACKET
Vetted by commercial fishermen,
the MD3157 Inflatable Life Jacket
receives top marks for lightweight
design, durability, comfort, and a
hydrostatic activation system that
eliminates accidental inflation in rain
or spray.
View our full line of commercial
marine solutions at:
www.mustangsurvival.com
©2014Safariland,LLC052813
A Brand of THE SAFARILAND GROUP

44. 828
SAFETY&NAVIGATION
Inflatables
Articulated neck
Safety whistle included
35 lbs of buoyancy
Adult universal size
TC/Cdn Coast Guard approved PFD
NAU NIV600RED Red
Parts:
NAU RKA6F Re-arm kit
Articulated neck
Safety whistle included
35 lbs of buoyancy
Adult universal size
TC/Cdn Coast Guard approved PFD
NAU NIV500RED Red
Parts:
NAU RKM6F Re-arm kit
MUS MD2015-B/G Black/Green
MUS MD2015-BLK Black/Blue
MUS MD2015-YEL Black/Yellow
Parts:
MUS MA2014 Re-arm kit
upon water immersion
MUS MD2017-B/G Black/Green
MUS MD2017-YEL Black/Yellow
Parts:
MUS MA2014 Re-arm kit
A premium product at an affordable price, the all new M.I.T.
100 was designed with style. This easy to wear and easy to use
500 Denier Cordura outer shell
1-fold, easy to repack design
Provides 26 lb (100 N) buoyancy for typical boating activities
More than 1.5 times the buoyancy of most foam PFDs
Manual
Comfortable neoprene collar
Easy-to-re-arm and repack
TC/Cdn Coast Guard approved PFD
MUS MD3051-RD Red
MUS MD3051-PINK Pink
MUS MD3051-ROY Royal Blue
MUS MD3052-NV Navy w/harness
MUS MD3052-ROY Royal Blue w/harness
Parts:
MUS MA7203 Re-arm kit
Automatic
immersion in water
Comfortable neoprene collar
Easy-to-re-arm and repack
TC/Cdn Coast Guard approved PFD
MUS MD3053-RD Red
MUS MD3053-PINK Pink
MUS MD3053-ROY Royal Blue
Parts:
MUS MA7202 Re-arm kit
MD3052-NV
MD3051-RD
MD3053-RD
repack SecureZip PFD closure system. Hydrostatic pressure is
needs only to be submerged 4 inches (10 cm) for hydrostatic
maintenance free for 5 years
Lightweight and comfortable design
Neoprene comfort collar
Cylinder is contained inside bladder to
protect against corrosion
Durable 420-Denier nylon and heavy duty
polyurethane coated nylon
Strobe light holder, safety whistle and
D-ring for kill switch attachment
TC/Cdn Coast Guard approved PFD
MUS MD3153-RD/BK Red/Black
MUS MD3153-CA/BK Carbon/Black
MUS MD3153-PINK Pink/Black
Parts:
MUS MA7214 Re-arm kit
Spinlock Deckvest pg 816 - 817

45. 829
SAFETY&NAVIGATION
Inflatables / Re-Arm Kits
approved lifejacket in Canada.
submerged in 4 or more inches of water and not inadvertently due
to rain, spray or humidity.
SecureZip closure
Light weight and comfortable design
Neoprene Comfort Collar
Cylinder is contained inside bladder to protect
against corrosion
Durable heavy duty polyurethane coated nylon
Strobe light holder, safety whistle and SOLAS
MUS MD3157 Orange
High Visibility ANSI - Automatic
repack SecureZip PFD closure system. Hydrostatic pressure is
needs only to be submerged 4 inches (10 cm) for hydrostatic
maintenance free for 5 years
Neoprene comfort collar
Durable 420-Denier nylon and heavy duty
polyurethane coated nylon
Strobe light holder, safety whistle and SOLAS
D-ring for kill switch attachment
TC/Cdn Coast Guard approved PFD
MUS MD3153T3 ANSI Yellow/Green
Parts:
MUS MA7214 Re-arm kit
Stays out of the way until activated
pulling activation cord
window - green means it's ready to go
Safety whistle
Re-Arm Kit: MA7203
MUS MD3071
Mustang Leg Strap Accessory
The properly attached AirForce leg strap
in the water
Compatible with PFDs that use 1.5" webbings
MA3032 falls outside of coastguard approvals
MUS MA3032
Nautilus Re-Arm Cartridges
NAU NRK1000 For manual NIV1000 and NIV1500
NAU NRK2000 For automatic, NIV2000 and NIV2500
Leland Auto Re-Arm Kits
cylinders and related gas handling equipment in safety,
food, medical and recreational products
They make over 250 variations of CO2 cylinders for
Approved re-arm kits and components for Mustang,
Helly Hansen & Nautilus
LND V85000-85202Z MA7270
LND V86000-85202Z MA7202
LND V90000-85202Z RKA6F
Leland Manual Re-Arm Kits
33GR CO2
LND 840AMU-85202Z MA7174/RKM6F
LND V86160-85202Z MA7203/NRK1000
38GR CO2
LND 840AMU-86121Z Stearns (38-MRP-1)
Parts:
LND V85006-00006 Green Indicator Pins (6/pk)
LND V80040-00003 Yellow Auto Bobbins (3/pk)
Limited
Quantity
Shipping
D.G.
Mustang Re-Arm Cartridges
Cartridge for models MD1165 and MIV10
MUS MI5700 Bulk
Cartridge for models MD1166 and MD3000
MUS MA7174 Bulk
Cartridge for models MD3017 and MD3019
MUS MA7270 Bulk
Limited
Quantity
Shipping
D.G.

46. 830
SAFETY&NAVIGATION
Flotation
*(H)Hydrostaticactivation
Features
MustangNautilusSpinlock
MD2015
Series
MD2017
Series
MD3052
Series
MD3053
Series
MD3153
Series
MD3051T3
Series
MD3157
Series
NIV-500
Series
NIV-600
Series
DW-LJH5D/H
Series
DW-LJH5/A
Series
DW-LTE
Series
Manual
Automaticw/ManualBack-up*H*H*H*H
IntegratedSailingHarness
Iftheboatisnotopen,thenyouonlyneedtowearthePFDwhileyou’reondeckorinthecockpit.
FYI
For recreational boats in Canada (also known as Pleasure Craft) there is a legal requirement to have:
appropriate size for each person on board"
Where a traditional lifejacket had approximately 35lbs of buoyancy, a PFD has a minimum of 15.5lbs
of buoyancy. Where lifejackets were designed to self-right people into a face up position in the water,
make an appropriate choice for their activity and to wear their product in order to be safe.
Lifejackets come only in red, orange and yellow so you are much more visible while
in water. Currently, there are three Canadian-approved types to choose from:
Safety of Life at Sea (SOLAS) lifejackets meet very high performance standards and
are approved for all vessels.
Will turn you on your back in seconds to keep your face out of the water, even if
you are unconscious
Come in two sizes: for those over 32 kg (70 lbs.) and those less than 32 kg
Standard Type lifejackets are approved for all vessels, except SOLAS vessels.
Will turn you on your back to keep your face out of the water, even if you are
unconscious
Come in two sizes: for those less than 40 kg (88 lbs.) and those greater than 40 kg
Small Vessel lifejackets are approved for small vessels.
Will turn you on your back, but may do so more slowly
Come in three sizes
from a wide range of approved types, sizes and colours of PFDs. They do not all
you are much more visible when in water.
Choose a PFD based on your needs and the activity you will be participating in. If
you plan on operating at high speeds, look for a PFD with three or more chest belts
for security. If you will be operating in cold water (water less than 15°C) choose a
uses are now available for all types of activities such as sailboarding, kayaking and
canoeing.
There are, however, some pros and cons to choosing a PFD over a lifejacket. A
PFD may be more comfortable than a lifejacket because it is designed for constant
Vessel lifejackets. Although they have limited turning capability, some PFD provide
thermal protection against hypothermia. The choice is yours, but consider your needs
carefully before purchasing.
their operation and maintenance requirements. You should also check which boating
activities they are approved for, under the Small Vessel Regulations. For example,
people less than 16 years of age or who weigh less than 36.3 kg (80 lbs.), and

47. 831
SAFETY&NAVIGATION
Pet Vests / Compasses
Paws Aboard Vest Sizing
Part # Weight Length Neck Girth Body Girth
#1100 to 6 lbs 6.5" 7-9" 11-16"
#1200 7-15 lbs 8.5" 8-12" 15-19"
#1300 15-20 lbs 11" 12-20" 17-22"
#1400 20-50 lbs 14" 20-25" 21-30"
#1500 50-90 lbs 16" 24-30" 30-37"
#1600 over 90 lbs 20" 29-34" 36-44"
Davis Hand Bearing Compasses
Stable, liquid-damped card
5o graduations
Large contoured, angled handle
Comes with lanyard
DIN 211
As above but features long lasting LED
illumination. Comes with 2 x AAA batteries.
DIN 215
Ritchie Sportabout Compass
Easy-to-read 2" direct-reading dial
Built-in roller diaphragm for extended
temperature operating range
Silicon impact resistant case with neck
lanyard
QuickSight V-Notch and lubber line for easy heading alignment
Nonelectric chem sticks provide 18 hours of night lighting
RIT X-11Y
Accessories:
RIT X-11-HW Holder bracket
RIT RS-0051-4 4 pack light sticks
Sportabout / Kayak Compass Kit
Comes with compass, compass
holder, light sticks and tie down
for kayak.
RIT X-11Y-TD
Accessories:
RIT RS-0051-4 4 pack light sticks
X-11-HW
Dog Boarding Ladder pg 312
Classic Yellow Vest
PAW 1100 XXS
PAW 1200 XS
PAW 1300 S
PAW 1400 M
PAW 1500 L
PAW 1600 XL
Pink Polka Dot Vest
PAW PP1100 XXS
PAW PP1200 XS
PAW PP1300 S
PAW PP1400 M
PAW PP1500 L
Nautical Vest
PAW N1100 XXS
PAW N1200 XS
PAW N1300 S
PAW N1400 M
PAW N1500 L
Neoprene Vest - Red/Silver
PAW R1100 XXS
PAW R1200 XS
PAW R1300 S
PAW R1400 M
PAW R1500 L
PAW R1600 XL
Paws Aboard Louie Vest
PAW L1400** M
PAW L1500** L
** Limited Quantity
Neoprene Vest - Blue/Yellow
PAW BY1100 XXS
PAW BY1200 XS
PAW BY1300 S
PAW BY1400 M
PAW BY1500 L
PAW BY1600 XL
Paws Aboard Blue Polka Dot Vest
PAW BP1100** XXS
PAW BP1400** M
** Limited Quantity
Flame Design Vest
PAW F1100 XXS
PAW F1200 XS
PAW F1300 S
PAW F1400 M
PAW F1500 L
PAW F1600 XL
Paws Aboard Dog Vests
jackets feature an advanced breathable mesh underbelly for proper
draining and drying, which provides your dog more comfort and
healthier conditions.
Handle on top for quick and easy grabbing
Adjustable nylon straps, quick-release buckles, heavy-duty
Velcro fastening system around the belly and neck to keep
securely fastened

48. 832
SAFETY&NAVIGATION
Compasses
Ritchie Sport Compass
Dash Mount
2” Direct read card
Fits standard 2-1/16” instrument hole
View adjusts up to 30°
hardened steel pivot dial movement
Built-in green nitevu LED lighting
High temperature composite construction
Directive force magnets
Dia: 2-3/16" x Cutout: 2-1/16" x Depth: 3-1/4"
RIT X-21BB
Ritchie Sport Compass
Bracket Mount
2” Direct read card
Easy-to-install on windshield or dash
Two-sided, self-adhesive mounting pads
included
Reversible bracket adjusts through 300°
Internal green night lighting
High temp composite construction for extended operating range
Hardened steel pivot and sapphire jewel movement
Built-in compensators
H: 2-3/16" x Dia: 2-7/8"
RIT X-10-M
Internal green night illumination
Built-in compensators to easily adjust for deviation
Matched sapphire jewel & hardened steel pivot dial movement
Powerful directive force magnets for fast heading lock-on
High temperature composite construction
All Ritchie compasses are 100% repairable
and are backed by
Ritchie Explorer Compasses
Bracket Mount
2-3/4” Direct read card
Adjustable and removable with bracket and
thumbscrews
Movable sun shield
Direct read card
H: 4-13/16" x W: 4-7/16" x Dia: 3-5/8"
RIT B-51 Black w/Black dial
RIT B-51-G Grey w/Blue dial
RIT B-51-W White w/White dial
Parts:
RIT EX-0004XSP Blk mounting bracket
RIT EX-0005-2 Bulbs, 2/pkg
Ritchie Trek Compasses
Bracket & Deck Mount
2-1/4” Direct read card
Directive force magnets and composite dial for fast performance
Built-in compensators to correct for deviation
Extra large diaphragm and rugged construction provide
extended operating temperature range
High-impact rubber accent strip
Built-in, 12V green nitevu lighting
100% repairable
Direct read card
Bracket Mount
H: 2-7/8" x Dia: 3-1/2"
RIT TR-31 Black
RIT TR-31W White
Surface Mount
H: 2-7/8" x Dia: 3"
RIT TR-33 Black
RIT TR-33W White
Parts:
RIT EX-0005-2 Replacement bulb TR-33
TR-31
Ritchie Angler Compasses
2-3/4” Direct read card
Surface mount with push-button removal
for quick storage and security or easily
adjustable bracket mount with thumb-
screws
blue dial
Distinctive Ritchie Angler graphics
hardened steel pivot dial movement
Internal green night lighting
Built-in compensators to easily adjust for
deviation
Movable sun shield
Directive force magnets
100% repairable
RIT RA-91 Bracket mount (H: 4-11/16" x Dia: 3-5/8")
RIT RA-93 Surface mount (H: 2-7/8" x Dia: 3-5/8")
Parts:
RIT EX-0005-2 Bulbs, 2/pkg
RA-91
RA-93
Ritchie Explorer Compasses
Surface Mount
2-3/4" Direct read card
Quick push-button removal of compass
module for storage and security
Movable sun shield
H: 2-7/8" x Dia: 3-5/8"
RIT S-53 Black w/Black dial
RIT S-53W White w/White dial
RIT S-53-G Grey w/Blue dial
Parts:
RIT EX-0005-2 Bulbs, 2/pkg

49. 833
SAFETY&NAVIGATION
Compasses
Ritchie Explorer Compass
Deck Mount
2-3/4" Direct read card
Quick push-button removal of compass
binnacle for storage and security
Movable sun shield
H: 4-1/16" x Dia: 3-15/16"
RIT D-55
Parts:
RIT EX-0005-2 Bulbs, 2/pkg
Ritchie Explorer Compass
Bulkhead Mount
2-3/4" Direct read card
Can be used on sailboats
Viewing is adjustable to 30°
Adjustable and removable with bracket
and thumbscrews
Dia: 3-3/4", Depth overall: 3-11/16"
Fits 3” instrument hole
RIT V-537
Ritchie Explorer Compass
Dash Mount
2-3/4" Direct read card
Bezels styled to match popular gauge
packages
Viewing is adjustable to 30°
Dia: 3-3/8 x Depth: 1-3/4"
Fits 3” instrument hole
RIT V-57.2
Ritchie Explorer Compasses
Flush Mount
2-3/4" Direct read card
Movable sun shield
H: 4-1/8" x Dia: 4-7/8" x Depth: 2-1/4"
Fits 3-3/4” mounting hole
RIT F-50 Black
RIT F-50W White
Ritchie
Voyager Compass
Flush Mount
3" Direct read card
Combi-damp dial
Easily installed.
Movable sun shield
Overall H: 3-5/16" (installed: 1-5/16") x Dia: 5-1/4"
RIT F-83
Parts:
RIT SH-0195KIT Green LED light assembly
Ritchie
Voyager Compass
Flush Mount
3" Flat read card
Easily installed
Movable sun shield
45° lubber lines
Overall H: 4-1/16" (installed: 1-5/16") x Dia: 5-1/4"
Fits 3-3/4” mounting hole
RIT F-82
Parts:
RIT SH-0195KIT Green LED light assembly
Ritchie Voyager Compass
Deck Mount
3" Flat read card
Movable sun shield
45° lubber lines
H: 4-9/16" x Dia: 5-1/8"
RIT D-84
Parts:
RIT SH-0195KIT Green LED light assembly
RIT V-80-C Cover for Voyager series
RIT VL-100 Voyager Black, night light kit
Ritchie Voyager Compasses
Bracket Mount
3" Flat read card
Adjustable and removable with bracket and
thumbscrews
Movable sun shield
45° lubber lines
H: 5-1/4" x W: 5-7/16" x Dia: 4-1/4"
RIT B-80 Flat reading card
RIT B-81 Combi reading card
Parts:
RIT SH-0195KIT Green LED light assembly
Ritchie Explorer Compass
Kayak Slope Mount
2-3/4" Direct read card
Viewing is adjustable to 45°
Dia: 3-3/4", Depth overall: 2-11/16"
Fits a 2.89” instrument hole
RIT V-527

50. 834
SAFETY&NAVIGATION
Compasses
Can be used with power or sail boats, 3-3/4" dial
Ritchie Helmsman Covers
in the Ritchie Helmsman series.
RIT H-71C Helmsman deck mount cover
RIT H-741-C
RIT HV-C Helmsman bulkhead mount cover
Ritchie Helmsman Compass
Flush Mount
3-3/4” Combi read card
mounting hole
Movable sun shield
45° lubber lines
Overall H: 4-3/4" (installed: 2-1/4") x Dia: 5-1/8"
RIT HF-743
Accessories:
RIT H-741-C Cover, White
Parts:
RIT SH-0195KIT Green LED light assembly
Ritchie Navigator Covers
RIT N-203-C Flush & Binnacle mount
RIT BN-C BN 202 bulkhead mount cover
Can be used with power or sail boats, 4-1/2" dial
Ritchie Navigator Compass
Binnacle Mount
4-1/2” Flat read card
Brushed stainless housing
Ideal for both power and sail boats
Fits all popular sailboat steering pedestals
Internal gimbal systems for maximum
stability during adverse pitch and roll
conditions
Movable sun shield
45° lubber lines
H: 6-1/16" x Dia: 6-1/2"
RIT DNP-200
Ritchie Navigator Compass
Flush Mount
4-1/2” Flat read card
Built-in compensators to easily
adjust for deviation
Powerful directive force magnets
for fast heading lock-on
Movable sun shield
45° lubber lines
Dia: 6-1/8", Depth overall: 5-5/8 (3" installed)
RIT FN-201 Black
Ritchie Helmsman Compasses
Deck Mount
3-3/4” Card
Movable sun shield
45° lubber lines
H: 5.341", Dia: 5.456"
RIT HD-744 Flat reading card
RIT HD-745 Combi reading card
Accessories:
RIT H-71-C Compass cover, White
Parts:
RIT SH-0195KIT Green LED light assembly
HD-744
HD-745
Ritchie Helmsman Compasses
Bracket Mount
3-3/4” Card
Adjustable and removable with bracket and
thumbscrews
Movable sun shield
45° lubber lines
H: 6-3/16" x W: 6-3/16 x Dia: 5-1/8"
RIT HB-740 Flat reading card
RIT HB-741 Combi reading card
Parts:
RIT SH-0029XSP LED light assembly
HB-740
HB-741

51. 835
SAFETY&NAVIGATION
Compasses / Charts
C-Map details pg 198
Canadian Government Publications
PUB P244 Current Atlas - Juan de Fuca
PUB P118 Vol.-1 Sailing Directions
CHY P232
PUB PAC200E
PUB PAC201E Juan De Fuca Strait Of Georgia
PUB PAC205E Sailing Directions Inner Passage-Queen
Charlotte Sound to Chatham Sound
PUB PAC206E Hecate Strait, Dixon Entrance, Portland Inlet
and Adjacent waters and Queen Charlotte
Islands
PUB P185(2014) 2014 Tide Table Vol 5 (Juan De Fuca Strait &
Strait of Georgia)
PUB P186(2014) 2014 Tide Table Vol 6 (Discovery Passage
including Port Hardy & West Coast
Vancouver Island)
PUB P18 7(2014) 2014 Tide Table Vol 7 (Queen Charlotte
Sound to Dixon Entrance)
CHY 1 Symbols, Abbreviations & Terms
Ritchie Globemaster Compass
Binnacle Mount
5” Flat read card
Brushed stainless binnacles
Ideal for both power and sail boats
all popular sailboat pedestals
45° and 90° lubber lines for easy reading
Full internal gimbals
Exclusive green nitevu LED 12V night lighting
High-capacity roller diaphragm for extended temperature
operating ranges
Built-in compensators
100% repairable
H: 7-1/4", Dia: 7-1/4"
Fits 7-1/8” mounting hole
RIT SP-5C Polished stainless
Accessories:
RIT GM-5-C Protective fabric cover
RIT LL-C
Ritchie Venture Sailboat Compass
3-3/4" Combi-dial
12V green led night lighting
4-1/2" mounting hole
Vertical mounting angle through 40
degrees
Clinometer (45°) included
Steady quick lock-on performance
Protective front & back covers are included
Dia: 6-7/16" x Depth: 2-1/2"
RIT SR-2
Ritchie Supersport Compass
Flush Mount
3-3/4" Flat read card
Fits 4"mounting hole
Built-in compensators to easily adjust
for deviation
hardened steel pivot dial movement
Internal gimbal systems for maximum
stability during adverse pitch and roll
conditions
Powerful directiveforce magnets for fast heading lock-on
Exclusive built-in green nitevu night illumination in movable
sun shields
45° lubber lines
100% repairable
RIT SS-1002 Black
Parts:
RIT SH-0195KIT Green LED light assembly
Canadian Hydrographic Charts are
Please ask for a chart catalogue

52. 836
SAFETY&NAVIGATION
Binoculars / Sextants
Davis Mark 15 Sextant
7 large sunshades
3 mm x 27 mm star scope
Micrometre drum vernier scale that
reads to 2/10th
of a degree
7" (18 cm) frame radius graduated from
120 degrees to -5 degrees
Traditional half-silvered mirror
DIN 026
Bushnell 7 x 50 Perma Focus Binoculars
Focus-free operation
7 power ocular, with a 50mm objective
yards
Complete with carrying case, neck
strap and lens cloth
BUS 17-5007
Bushnell 7 x 50 Waterproof
Marine Binoculars w/Compass
Hermetically sealed and nitrogen-
purged for waterproof and fog proof
performance
Large UV coated objective lenses for
bright images from dusk-to-dawn
Easy-grip rubber armour protects and provides
a secure hold - even when wet
Carrying case and strap included
Internal ranging reticule
Internal illuminated analog compass
BUS 13-7500
Bushnell 7 x 50 Waterproof Binoculars
Grace your boat deck with a
viewing.
BaK-4 prisms for bright, clear,
crisp viewing
Multi-coated optics for superior
light transmission
100% waterproof: O-ring sealed and nitrogen
purged for reliable, fog-free performance
Non-slip rubber armor absorbs shock while
Twist-up eyecups
Large center-focus knob for easy adjustments
Longer eye relief
BUS 15-7050
Professional Mariner
7 x 50 Waterproof Binoculars
Ruby coated lenses incorporate BAK4
prisms for great light retention and glare
reduction
HighSeas Marine binoculars are nitrogen
Retained lens caps
Integrated range calculator
PRO 12751
Professional Mariner
7 x 50 Binoculars
Green coated lenses incorporate
BAK4 prisms for great light
retention and glare reduction
Water-resistant, centre focus
Retained lens caps
Clam packaged
PRO 11752
Professional Mariner
7 x 50 Floating Binoculars
Float if dropped overboard
Rubber coated case
Retained lens caps
Molded grips
Green coated lenses
BAK4 high index prisms
Centre focus
Padded case and strap included
Field of view: 350 ft @ 1000 yards
PRO 11755

53. 837
SAFETY&NAVIGATION
Binnacle Vinyl Chart Cases
#10 gauge vinyl with heat sealed edges
Vinyl zipper and non-glare surface
BIN 6 10" x 16-1/2"
BIN 7 18" x 24"
BIN 8 24" x 36"
Marine Atlases
Olympia to Malcolm Island, 52 pages.
14" x 11-1/2"
PUB MA-1
Port Hardy to Skagway, 72 pages.
PUB MA-2
Ritchie WetNotes
WetNotes are a must for anyone who works
or plays outdoors, under water or in a wet
environment. All you need is a simple soft lead
pencil to record important notes & reminders.
RIT W-35 Note pad 3" x 5"
40 waterproof pages
RIT W-50 Binder 4-1/2" x 7-1/4"
45 waterproof pages
Wesmar Pilot Log Book
Log book with formatted pages
Measures: 5-1/2" x 8-1/2"
PUB PL
Davis Quick Reference Cards
Accurate, professional boating
information when you need it. These
8-1/2" x 11" rigid, weatherproof cards
are double sided and punched for a
3-hole binder.
DIN 125 Navigation Rules
DIN 126 Coastwise Piloting
DIN 127 International Rules
DIN 128 Boating Guide
DIN 129 Electronic Nav/Communication
DIN 131 Weather Forecasting
DIN 132 Celestial Navigation
Small Craft Piloting And Coastal Navigation
Written by E.A.Saunders, noted authority on the
art and science of navigation. Both the novice
practical navigational information contained in it.
9-1/4" x 7-1/2"
BIN 24 Hardback, 287 pages
Beckson Ship's Log Books
9" x 11-1/4". Heavy vinyl
supported cover with 22 ring plastic binder.
Part # Title Contents
BEC MM401 Radio Log All radio pages
BEC MM402 Guest Log All guest register pages
BEC MM403 Log Book
Combination log, radio &
guest pages
BEC MM406 GPS/Loran
Ship's log and log book &
way-point register
MM403
6-1/2" x 9". Laminated plastic
cover with plastic binder. Pages: cruising,
guest, radio, fuel, repairs and engine hour
readings. Cover colour is navy.
BEC MM503 Small Craft Log
BEC MM506 GPS Register
MM503
Beckson Power Boat Manager
Complete maintenance and reference
logs. This book contains pages of
equipment checklists, medical and
information, customs, Coast Guard and
procedures, inventory lists and location,
System information on each operating
system on board, engine, rigging, wiring, radio, etc. In short
everything needed in case someone else needs to take over.
9-1/2" x 8-1/4"
BEC ML-PBMGR
Navigation Tools
British made, solid brass dividers with stainless steel tips. Heavy
duty professional instrument.
BIN 46 7" one-handed
BIN 50 8" straight-legged
BIN 60 7" chrome-plated
46 50 60
Binnacle Solid Brass Dividers

54. 838
SAFETY&NAVIGATION
Navigation Tools
Cell phone protective case
Sandproof
Make phone calls
Take pictures underwater
Protect variables / cellphones
Case made of Polycarbonate (PC)
Membrane made of 100% clear Silicone
(check buoyancy before use)
WAVE
iPhones (3G, 3GS & 4 generations), iPod Touch (2nd & 3rd
generation), most Blackberry phones and any phone within the
maximum usable size.
Waterproof to 6 meters
4.55" x 2.56" x .55"
GRN WS13-B Black
TIDE
Samsung Model: , Galaxy S2 , Galaxy Pro, Galaxy S,
Galaxy S Super, Nexus, Nexus S 4G, HTC Model: Desire HD,
EVO 4G, Thunderbolt 4G, Salsa, Inscredible S. Any phone within
the maximum usable size.
Waterproof to 30 meters
4.88" x 2.70" x .55"
GRN WS12-B Black
Compatible with iPad I, II, & the new iPad
Sandproof & waterproof to 3' (IPX7)
Adjustable supporting stand
GRN WSIP-B
Davis Charting Kit
This charting kit comes with
one-arm protractor, course plotter,
protractor triangle, parallel rules,
dividers, pencil and instruction
booklet. It’s all organized in a
5-3/4” x 16-1/4” (146 mm x 413 mm) heavy gauge plastic storage
case. An excellent gift idea for cruisers and racers alike.
DIN 083
Binnacle Cockpit Plotter
The essential 2 part tool for accurate, rapid
plotting of courses, bearings or positions on
marine and aviation charts.
5" x 5" square
Time/Speed/Distance Scale
BIN 61
Binnacle Graduated Parallel Rules
Parallel rules with protractor degree
markings. Crystal clear plastic equipped
with cork friction pads to prevent slipping.
BIN 56 15"
BIN 57 18"
C-Thru Marine Kit
Kit includes plotter, divider, compass arm
protractor, parallel rule, divider, and pencil
packed in a vinyl portfolio. Pockets for
maps, pads and charts.
CTH MR-1600
C-Thru Parallel Rules
Clear plastic with aluminum bars. Non sliding
disc on bottom. Bevelled edges.
CTH 1500-12"
CTH 1500-15"
CTH 1500-18"
Binnacle Navigator Kit
This handy kit comes complete with
a time-speed-distance calculator,
15" parallel rule and set of 5-1/4"
dividers. All in a vinyl case.
BIN #86
Binnacle Square Navigation
Protractor
5" x 5" plastic square with black calibrations
Plot courses, bearings, lines of position, and
reciprocal courses with ease and accuracy.
BIN 1
Railblaza Tablet Holder pg 1081

55. 839
SAFETY&NAVIGATION
Waterproof Cases
Kwik Tek DryPaks
DRY PAKs provide simple, effective protection for cell phones, cameras,
GPSs, and PDAs. All DRY PAK items have cam lock clips on top that
hermetically seal out water, sand and dust. Many of the clear DRY PAK
items are constructed of a hi-tech thermal-plastic-polyurethane. Sounds
transmit through TPU with less than 5% loss of volume, making it the perfect
choice for phone and VHF radio cases.
Kwik Tek DryPak Phone/GPS/PDA
Clear TPU front, blue or white TPU back,
padded & lined.
Adjustable neck lanyard, anodized aluminum
spring hook
Holds cell phones, PDA, GPS & more
Maximum circumference: 7.25"
KWI DP-46 4" x 6" long, blue
KWI DP-48 4" x 8" long, blue
KWI DP-46W 4" x 6" long, white
KWI DP-56W 5” x 6” long, white
KWI DP-58W 5” x 8” long, white
Kwik Tek DryPak VHF Radio
Clear TPU front, blue TPU back, padded & lined
Adjustable neck lanyard, anodized aluminum
spring hook
Holds VHF radios, cell phones
KWI DP-412 4" x 12" x 7.25" dia.
KWI DP-512 5" x 12" x 9" dia
Kwik Tek DryPak Multi-Purpose Case
6" wide x 9" long
Clear heavy gauge vinyl
2 D-Rings sewn to corners
For paddling, boating, camping, hiking
Holds wallets, registrations, maps, electronics,
cameras, personal items
Maximum circumference: 11"
KWI DPC-69
Kwik Tek DryPak Multi-Purpose Case
9" wide x 12" long
For paddling, boating, camping
Holds owners manuals, snacks, maps,
electronics
Maximum circumference: 17"
KWI DPC-912
Kwik Tek DryPak Camera Cases
Shoot pictures through the case with
the optically clear TPU
Adjustable camera strap
Yellow sealing clip for high visibility
Holds 35mm & digital cameras, etc.
Maximum circumference: 11"
KWI DP-65C 6” x 5” x 2" deep
KWI DP-68C 6” x 8” x 2" deep
Kwik Tek DryPak Chart Case
Provide simple, effective protection
Cam lock clips on top that hermetically seal
out water, sand and dust
Hi-tech thermal-plastic-polyurethane
12" wide x 16" long
Holds maps, charts, laptops, snacks
Maximum circumference: 22"
KWI DPC-1216
Kwik Tek DryPak Roll Top Dry Bags
Round bottom dry bags
Shut out water by rolling down the top and
snapping the side release buckles together
Made of durable waterproof 19 oz. vinyl with RF-
welded seams
KWI WB-3 Dia: 9.5" x 16"
KWI WB-6 Dia: 11.5" x 19"
KWI WB-9 Dia: 12.5" x 28"
Chart Holders pg 837
Kwik Tek DryPak Clear Mult-Purpose Cases
Designed to protect iPODs, MP3 players and other electronics
from the elements
Integrated female jack RF welded at the bottom
Clear TPU front and back
Adjustable neck lanyard
For beach, pool, boating, paddling, etc.
KWI DPT-610W 6" x 10" Kindle
KWI DPT-912W 9" x 12" iPad
