1. Standing out from the crowd

2. History
2
 1973 – Founded in UK
 1979 – Established first crystal factory
 1998 – Acquired by CMAC
 2007 – Acquired by Rakon Ltd
 2008 – MBI by previous management team
 2012 – Opened US Sales Office
40+ years as a
manufacturer & supplier
of frequency products

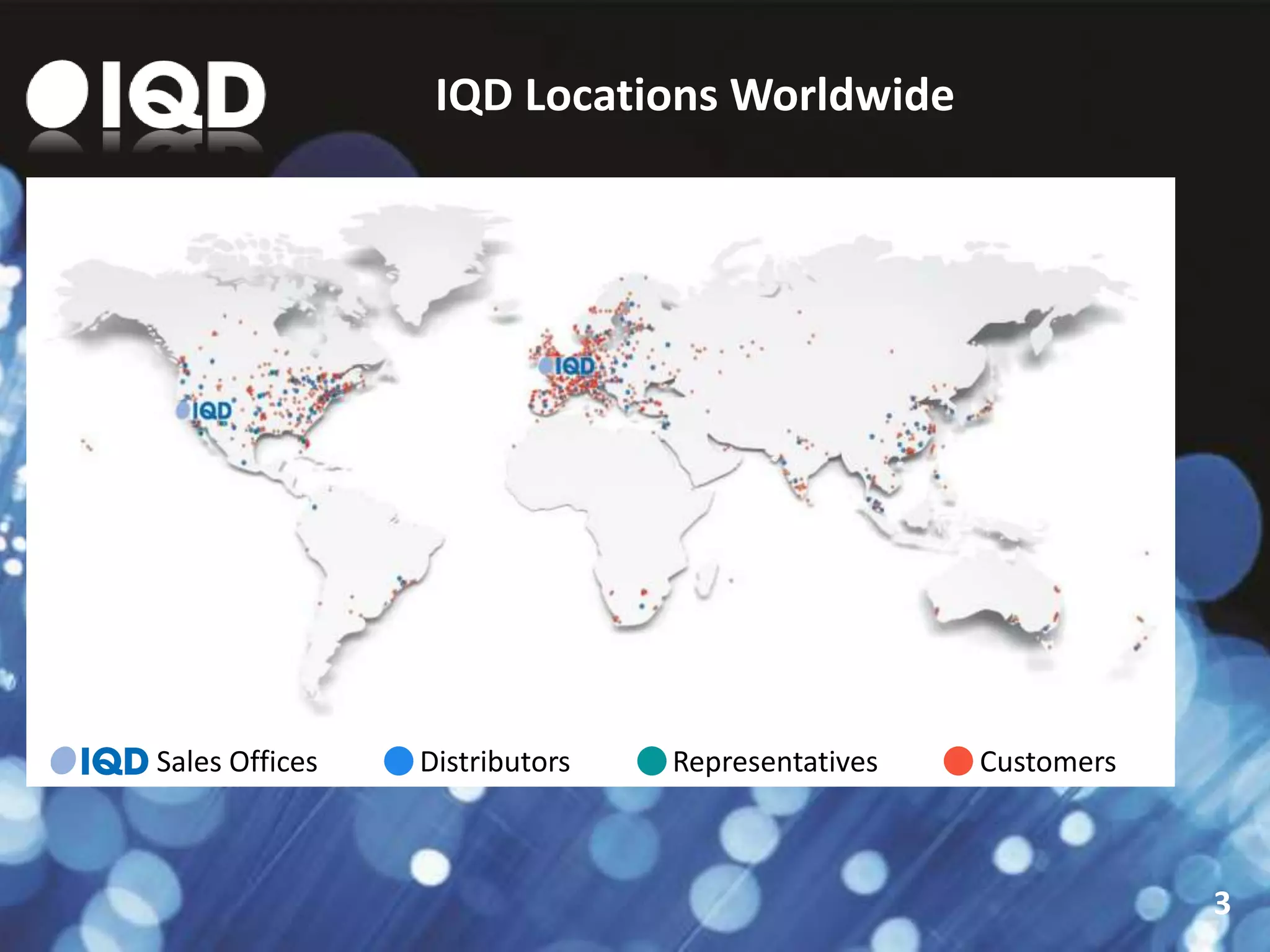

3. IQD Locations Worldwide
3
Sales Offices Distributors Representatives Customers

4. Strong constant
improvement culture
About Us
 Manufacture frequency products with
the following capacities:
 Crystals - 30 Million per month
 Oscillators - 10 Million per month
 VCXOs - 3 Million per month
 TCXOs - 1.5 Million per month
 OCXOs – 6000 per month
 Supporting customers worldwide
 Trusted partner of global companies
 Authorised Partner for Rakon & Statek
4

5. Worldwide Sales
5
 Over 3,500 active customers in
over 60 countries
Leading position in
European market
64%
21%
14% 1%
Europe Asia Americas Other

6. Global Distribution Channels
6
Global Distribution
Channels

7. Broad Market Engagement
7
 Aerospace
 Automotive
 Communications
 Computing
 Consumer
 Industrial
 Instrumentation
 Medical
 Military
 Test & Measurement
All markets other
than space supported

8. Full circuit
characterisation service
Engineering Support Services
 Application support for new designs &
problem resolution
 Sample development for prototypes
 Full electrical testing & screening
 Crystal test data for electrical modelling
by customer (i.e. motional parameters)
 Frequency/temperature testing with
customer specific ramp-profiles
 Product burn-in, heat-soak &
accelerated ageing
 Full circuit characterisation service
 MTIE/TDEV testing 8

9. ISO9001 approved
since 1988
Quality Process Management
 ISO9001 approved since 1988
 Automotive products to AEC-Q200 &
TS16949 release with full PPAP
 System controlled quality assurance:
 Suppliers & purchase material
 Change & Failure Management
 Calibration & Measurement
 8D Quality Reports
 Moisture Sensitivity Level (MSL)
compliance
 Full traceability
9

10. Over 70,000 parts &
millions of units ex-stock
Comprehensive Product Range
 >1000 Models
 Quartz Crystals including Automotive to
AEC-Q200/TS16949
 Crystal Clock Oscillators including fast
make programmable & Automotive to
AEC-Q200/TS16949
 VCXOs
 TCXOs & VCTCXOs
 OCXOs
 Advanced Modules including GPS
disciplined models
 Rubidium Oscillators 10

11. Packages down to
1.55 x 0.95mm
Quartz Crystals
 SMD & thru hole packages
 10kHz to 270MHz
 Frequency Tolerances from ±5ppm
 Frequency Stabilities from ±5ppm
(depending on temperature range)
 Operating Temperature Range
from –55 to 225°C
 Extreme high shock & vibration versions
available
 Automotive & Industrial models to
AEC-Q200/TS16949
11

12. Lowest cost SMD
package

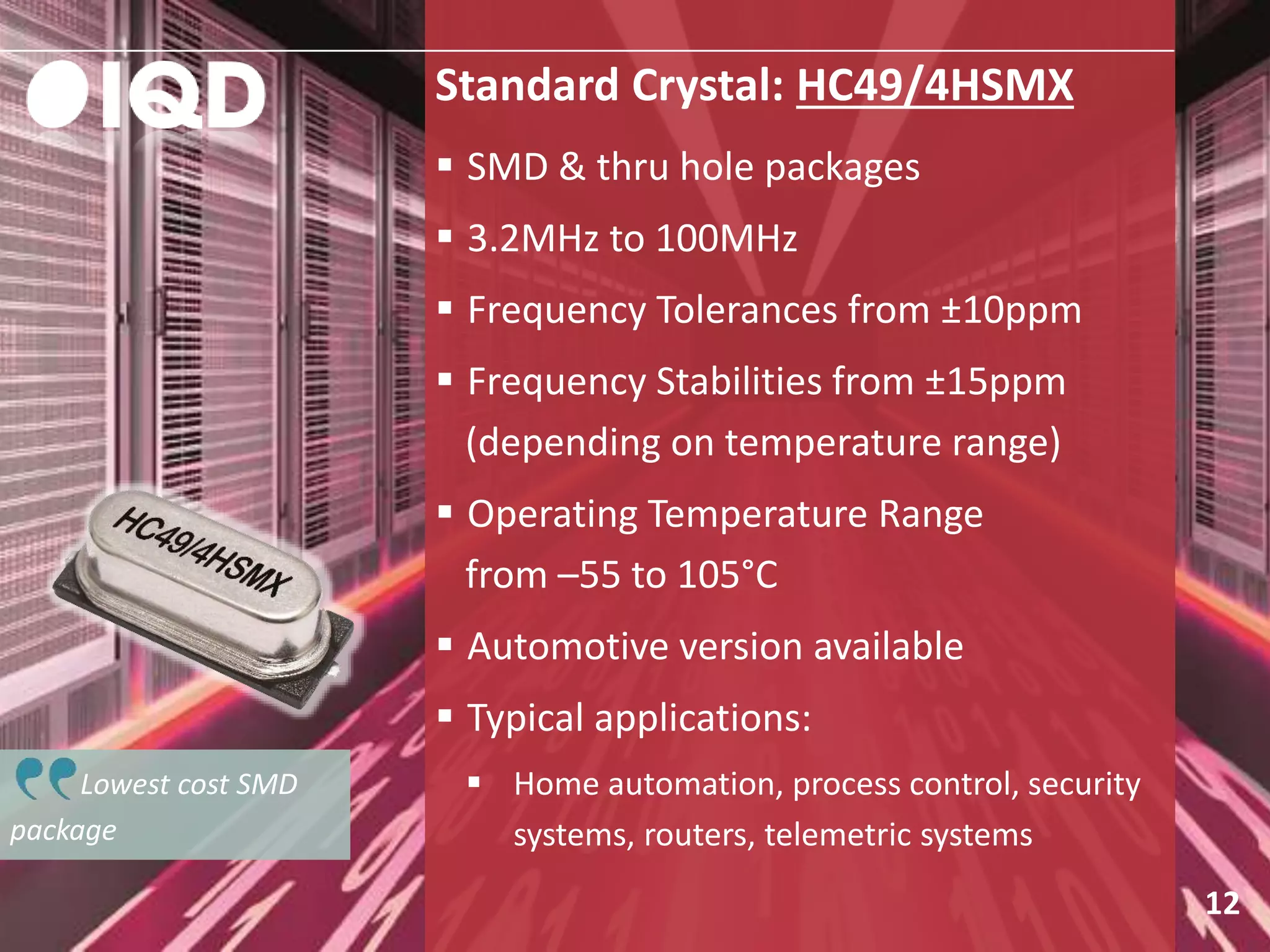

Standard Crystal: HC49/4HSMX
 SMD & thru hole packages
 3.2MHz to 100MHz
 Frequency Tolerances from ±10ppm
 Frequency Stabilities from ±15ppm
(depending on temperature range)
 Operating Temperature Range
from –55 to 105°C
 Automotive version available
 Typical applications:
 Home automation, process control, security
systems, routers, telemetric systems
12

13. 5 x 3.2mm ceramic
package
Industry Standard Crystal CFPX-104
 5 x 3.2mm ceramic package
 8 to 52MHz (Fund),
40 to 133MHz (3rd OT)
 Ageing ±3ppm max in first year
 Tolerance & stability from ±10ppm;
-40 to 85°C
 Typical applications:
 Industrial: Security systems, fire alarms,
home automation, utility smart meters, POS
systems
 Communications: Bluetooth, Zigbee, RF
modules, Wi-Fi & WiMAX, DAB radio
 Green energy: Solar panels, smart meters 13

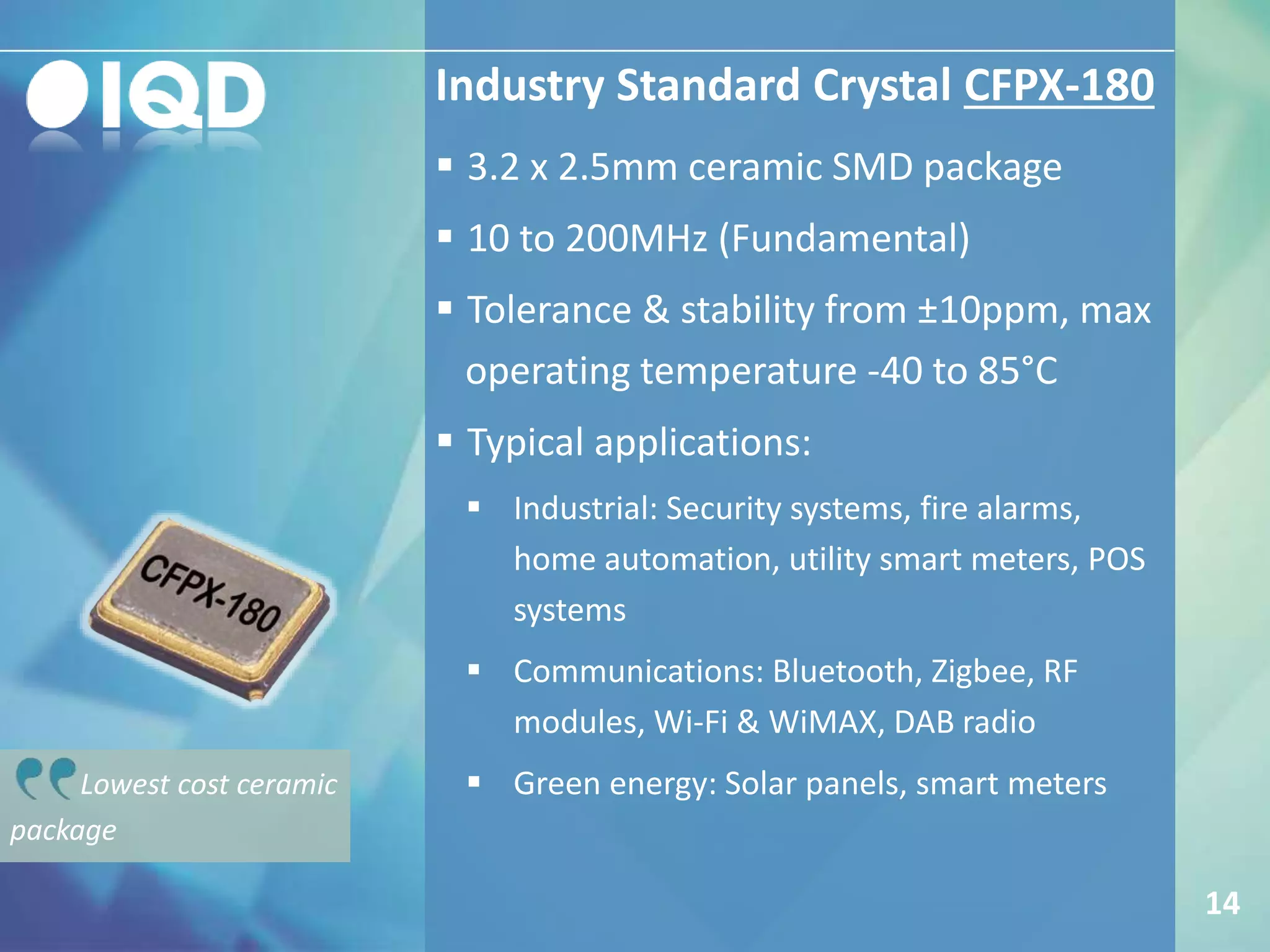

14. Industry Standard Crystal CFPX-180
14
 3.2 x 2.5mm ceramic SMD package
 10 to 200MHz (Fundamental)
 Tolerance & stability from ±10ppm, max
operating temperature -40 to 85°C
 Typical applications:
 Industrial: Security systems, fire alarms,
home automation, utility smart meters, POS
systems
 Communications: Bluetooth, Zigbee, RF
modules, Wi-Fi & WiMAX, DAB radio
 Green energy: Solar panels, smart metersLowest cost ceramic
package

15. One of the world’s
smallest quartz crystals

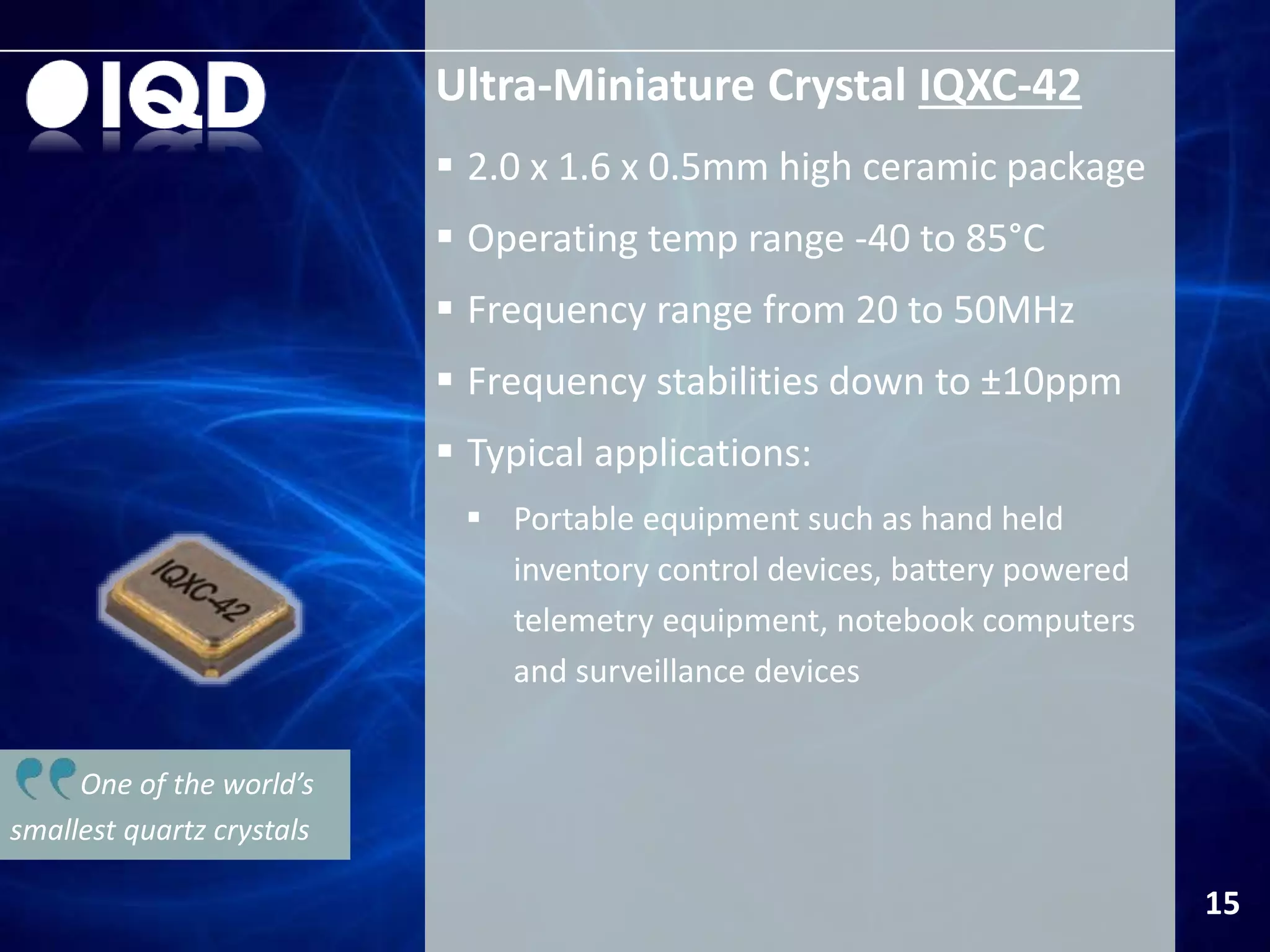

Ultra-Miniature Crystal IQXC-42
 2.0 x 1.6 x 0.5mm high ceramic package
 Operating temp range -40 to 85°C
 Frequency range from 20 to 50MHz
 Frequency stabilities down to ±10ppm
 Typical applications:
 Portable equipment such as hand held
inventory control devices, battery powered
telemetry equipment, notebook computers
and surveillance devices
15

16. Frequency
Stabilities from ±5ppm

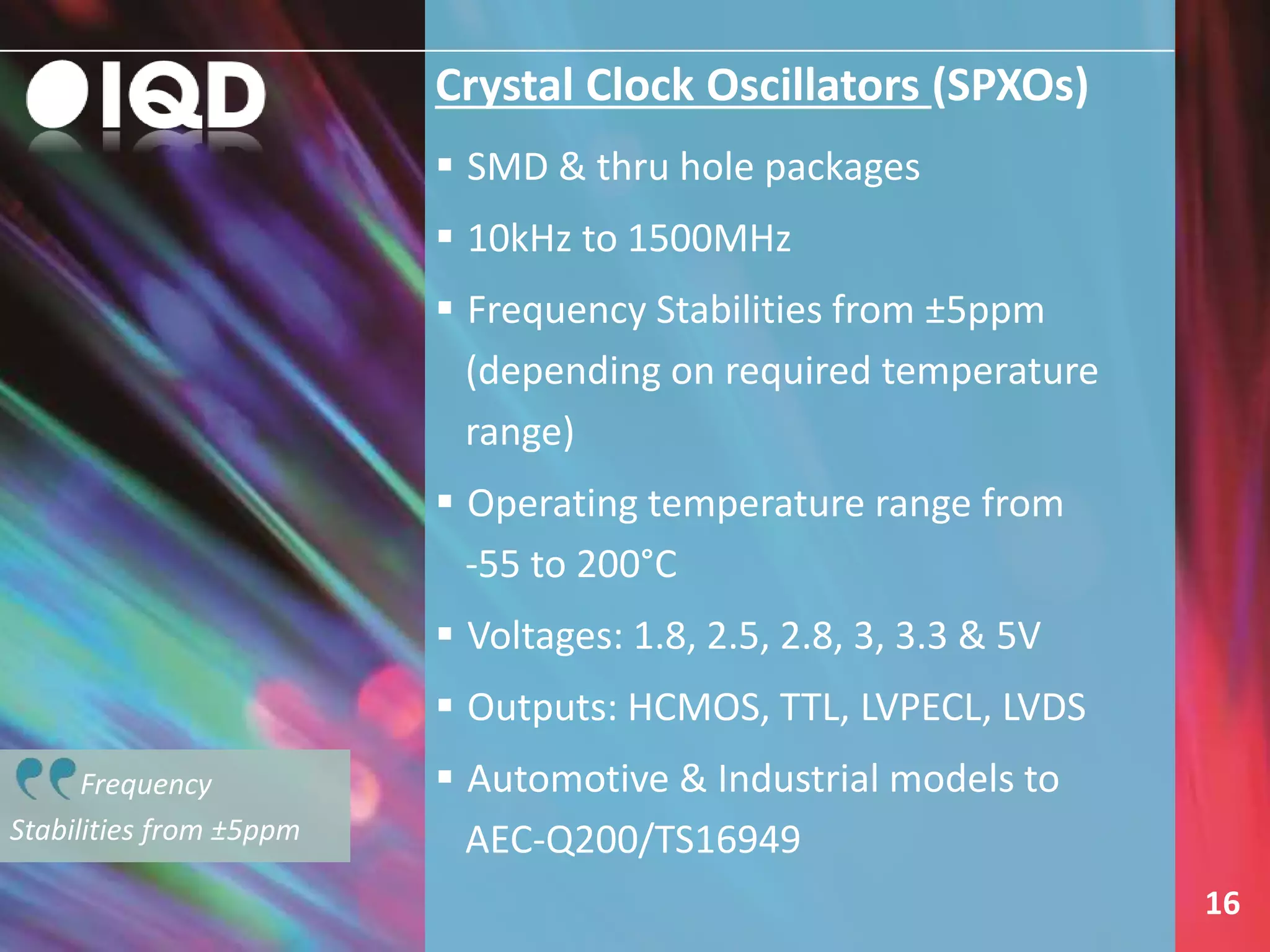

Crystal Clock Oscillators (SPXOs)
 SMD & thru hole packages
 10kHz to 1500MHz
 Frequency Stabilities from ±5ppm
(depending on required temperature
range)
 Operating temperature range from
-55 to 200°C
 Voltages: 1.8, 2.5, 2.8, 3, 3.3 & 5V
 Outputs: HCMOS, TTL, LVPECL, LVDS
 Automotive & Industrial models to
AEC-Q200/TS16949
16

17. Stability from
±20ppm over -40 to 85°C
Industry Standard SPXO CFPS-72/3
 7 x 5mm ceramic package
 CFPS-73 (3.3V) 0.5 to 157MHz
CFPS-72 (5V) 0.5 to 100MHz
 Ageing max ±3ppm in first year
 3.3 & 5V CMOS/TTL
 Stability from ±20ppm over -40 to 85°C
 Typical applications:
 Industrial: Process control, security systems
 Communications: Data comms, Ethernet,
routers
17

18. Current consumption
20mA typical
Industry standard SPXO CFPS-9
 5 x 3.2mm ceramic package
 Current consumption 20mA typical
 Frequencies 0.5 to 160MHz
 3.3V CMOS; ageing max ±3ppm first year
 Stability from ±25ppm over -40 to 85°C
 Typical applications:
 Industrial: Process control, security systems
 Communications: Data comms, Ethernet,
fibre channel, optical networking
18

19. Stability from
±25ppm over -40 to 85°C

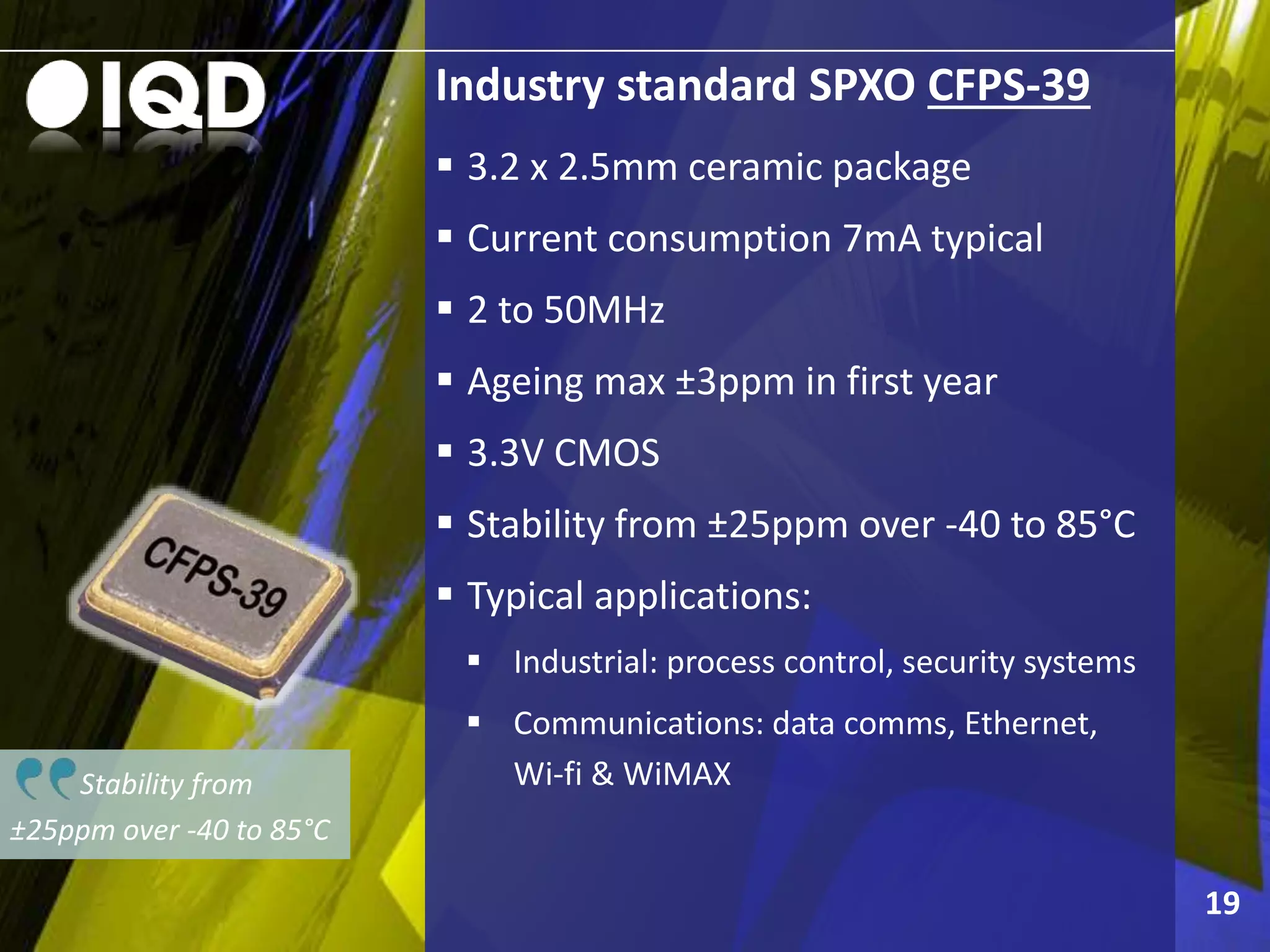

Industry standard SPXO CFPS-39
 3.2 x 2.5mm ceramic package
 Current consumption 7mA typical
 2 to 50MHz
 Ageing max ±3ppm in first year
 3.3V CMOS
 Stability from ±25ppm over -40 to 85°C
 Typical applications:
 Industrial: process control, security systems
 Communications: data comms, Ethernet,
Wi-fi & WiMAX
19

20. Low Jitter/Noise SPXO: IQXO-931
20
 2.5 x 2.0 x 1.0mm ceramic package
 0.5ps integrated RMS phase jitter
 8 to 1500MHz
 Stability from ±10ppm over -40 to +85°C
 Voltages; 2.5 & 3.3V
 Outputs; CMOS, LVPECL & LVDS
 Typical applications:
 Base stations, Ethernet, Femtocells,
SoNET/SDH, storage (SAN), video
broadcasting, WiMAX/WLAN
0.5ps integrated
RMS phase jitter

21. High Shock SMD SPXO HGXO
21
 High shock up to 100,000G; vibration
20g at 10-2000Hz swept sine per
MIL-STD-202G
 460kHz to 50MHz
 Voltages 3.3 & 5V
 Frequency stability ±40ppm over
-55 to 125°C
 HGXO typical applications:
 Military applications such as smart munitions
& projectile electronics
 Demanding industrial applications
High shock up to
100,000G

22. Frequencies to
1500MHz
VCXOs
 Voltage Controlled Crystal Oscillators
 SMD & thru hole packages
 1 to 1500MHz
 Frequency Stabilities from ±10ppm
(Depending on temperature range)
 Operating Temperature Range from
-40 to 85°C
 Pullability from ±50ppm min
 Voltages: 1.8, 2.5, 2.8, 3.3 & 5V
 Outputs: HCMOS, TTL, LVPECL, LVDS &
Sinewave
22

23. Pullability ±100ppm
min
Standard VCXO: IQXV-50/51/52
 Industry standard 7 x 5mm package
 Pullability ±100ppm min
 2.5, 3.3, 5V HCMOS
 Ageing max ±3ppm in first year
 1 to 60MHz
 Frequency Stability ±20ppm -40 to 85°C
 Typical applications:
 Communications: Ethernet, SDH/Sonet,
satellite communications, video networking
 T&M: Frequency synthesisers, network
analysers
23

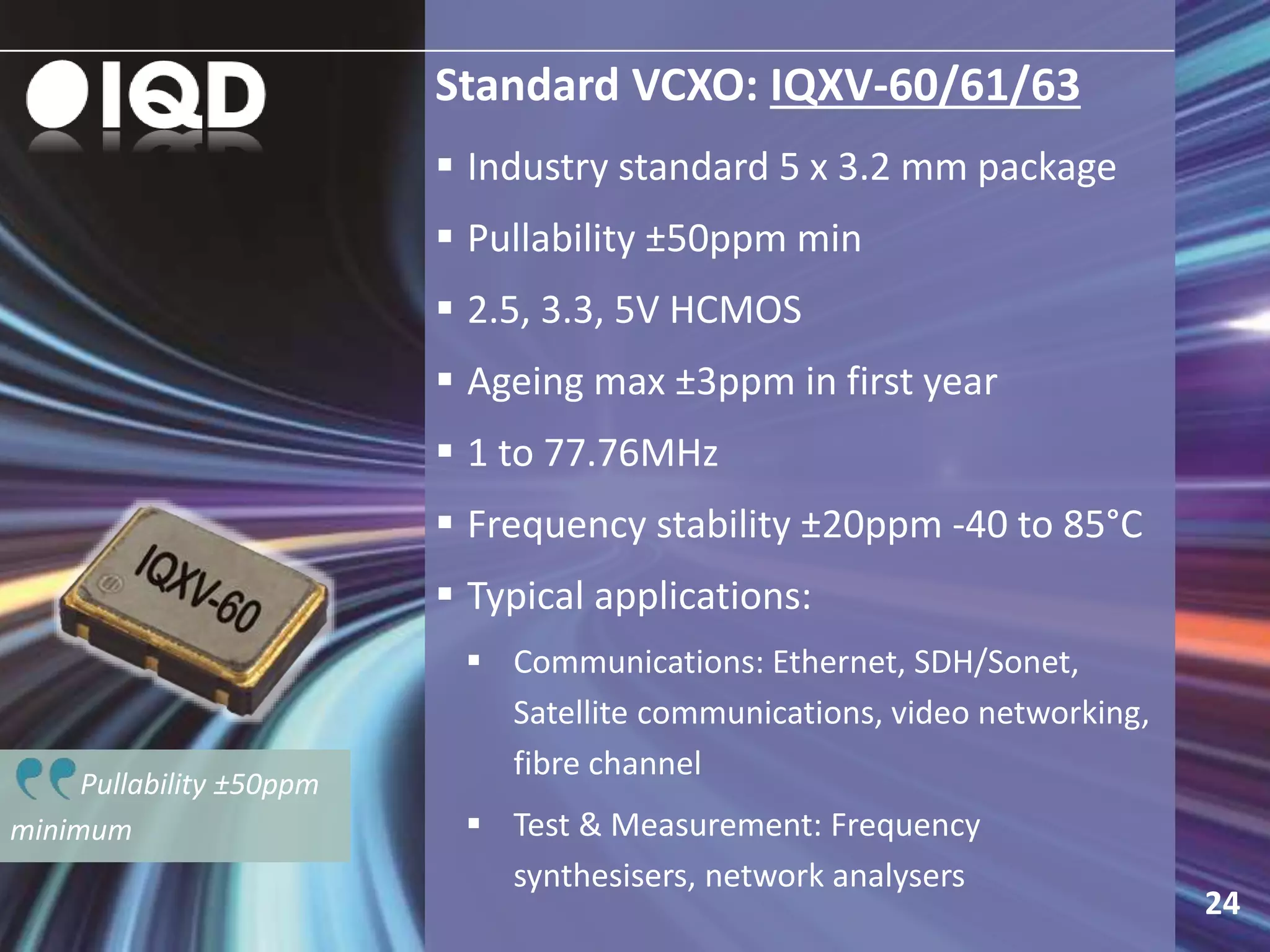

24. Pullability ±50ppm
minimum
Standard VCXO: IQXV-60/61/63
 Industry standard 5 x 3.2 mm package
 Pullability ±50ppm min
 2.5, 3.3, 5V HCMOS
 Ageing max ±3ppm in first year
 1 to 77.76MHz
 Frequency stability ±20ppm -40 to 85°C
 Typical applications:
 Communications: Ethernet, SDH/Sonet,
Satellite communications, video networking,
fibre channel
 Test & Measurement: Frequency
synthesisers, network analysers
24

25. Standard VCXO: IQXV-41/42/43
25
 Industry standard 3.2 x 2.5 mm package
 Current consumption down to 5mA (1.8V)
 Pullability ±50ppm min
 1.8,2.5,3.3VHCMOS
 Ageingmax±3ppmfirstyear
 1.25 to 54MHz -40 to 85°C
 Typical applications:
 Communications: Ethernet, SDH/Sonet,
satellite communications, video networking
 Test & Measurement: Frequency
synthesisers, network analysers
Industry standard
3.2 x 2.5 mm package

26. LVPECL/LVDS VCXO: IQXV-80/81
26
 Industry standard 3.2 x 2.5mm package
 40 to 170MHz
 Pullability ±80ppm min
 3.3V
 LVPECL (IQVX-80), LVDS (IQXV-81)
 Frequency Stability ±25ppm -40 to 85°C
 Ageing max ±2ppm first year
 Typical applications:
 Ethernet, SDH/Sonet, Digital imaging,
WiMax, WLAN, PLLsFrequencies up to
170MHz

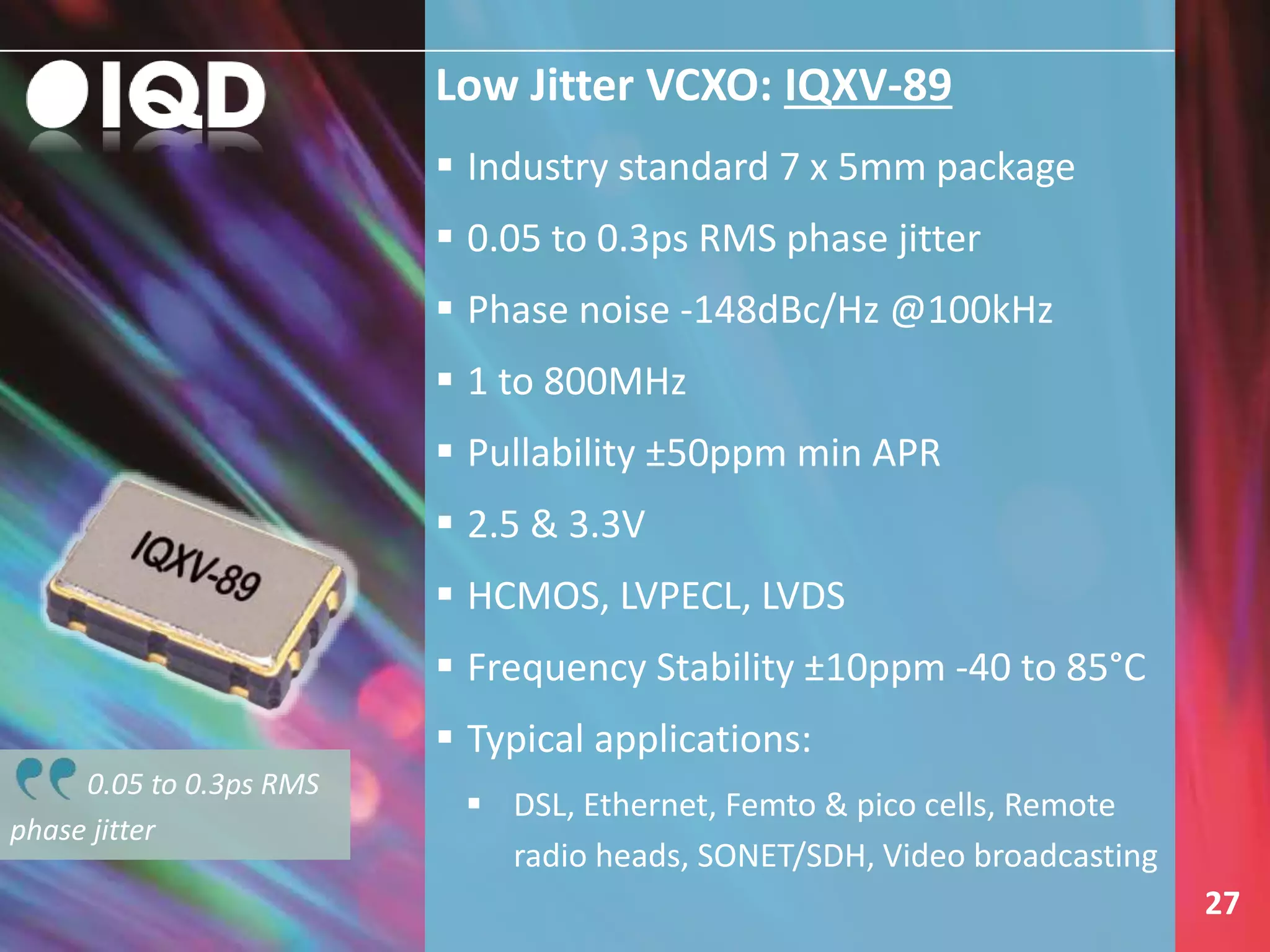

27. Low Jitter VCXO: IQXV-89
27
 Industry standard 7 x 5mm package
 0.05 to 0.3ps RMS phase jitter
 Phase noise -148dBc/Hz @100kHz
 1 to 800MHz
 Pullability ±50ppm min APR
 2.5 & 3.3V
 HCMOS, LVPECL, LVDS
 Frequency Stability ±10ppm -40 to 85°C
 Typical applications:
 DSL, Ethernet, Femto & pico cells, Remote
radio heads, SONET/SDH, Video broadcasting
0.05 to 0.3ps RMS
phase jitter

28. Frequency Stabilities
from ±0.05ppm
TCXOs & VCTCXOs
 Temperature Compensated Crystal
Oscillators
 SMD & thru hole packages
 1 to 800MHz
 Frequency Stabilities from ±0.05ppm
 Operating Temperature Range
from -40 to 85°C
 Pullability from ±5ppm (VCTCXOs)
 Voltages: 1.8, 2.5, 2.8, 3.0, 3.3, 5 & 12V
 Outputs: HCMOS, Sine, Clipped
Sinewave
28

29. Tight stability ±
0.5ppm over -40 to 85°C
Standard VCTCXO: CFPT-126
 7 x 5mm 3.3V HCMOS VCTCXO
 Tight stability ± 0.5ppm -40 to 85°C
 ±5ppm pulling
 Typical current consumption 3mA
 10 to 40MHz
 Typical applications:
 Communications: Base stations, repeater
stations, digital switching, SDH/Sonet
 Test & Measurement
29

30. 3.2 x 2.5mm
HCMOS VCTCXO
Standard VCTCXO: IQXT-191
 3.2 x 2.5mm HCMOS VCTCXO
 Voltages 2.5, 2.8, 3, 3.3V
 Frequency stability ±2.5ppm -30 to 85°C
 Typical current consumption 6mA
 8.192 to 40MHz
 Typical applications:
 Communications: Zigbee, Bluetooth, RF
modules, RFID, Wi-Fi & WiMAX
 Industrial: POS systems
30

31. ±0.14ppm
frequency stability

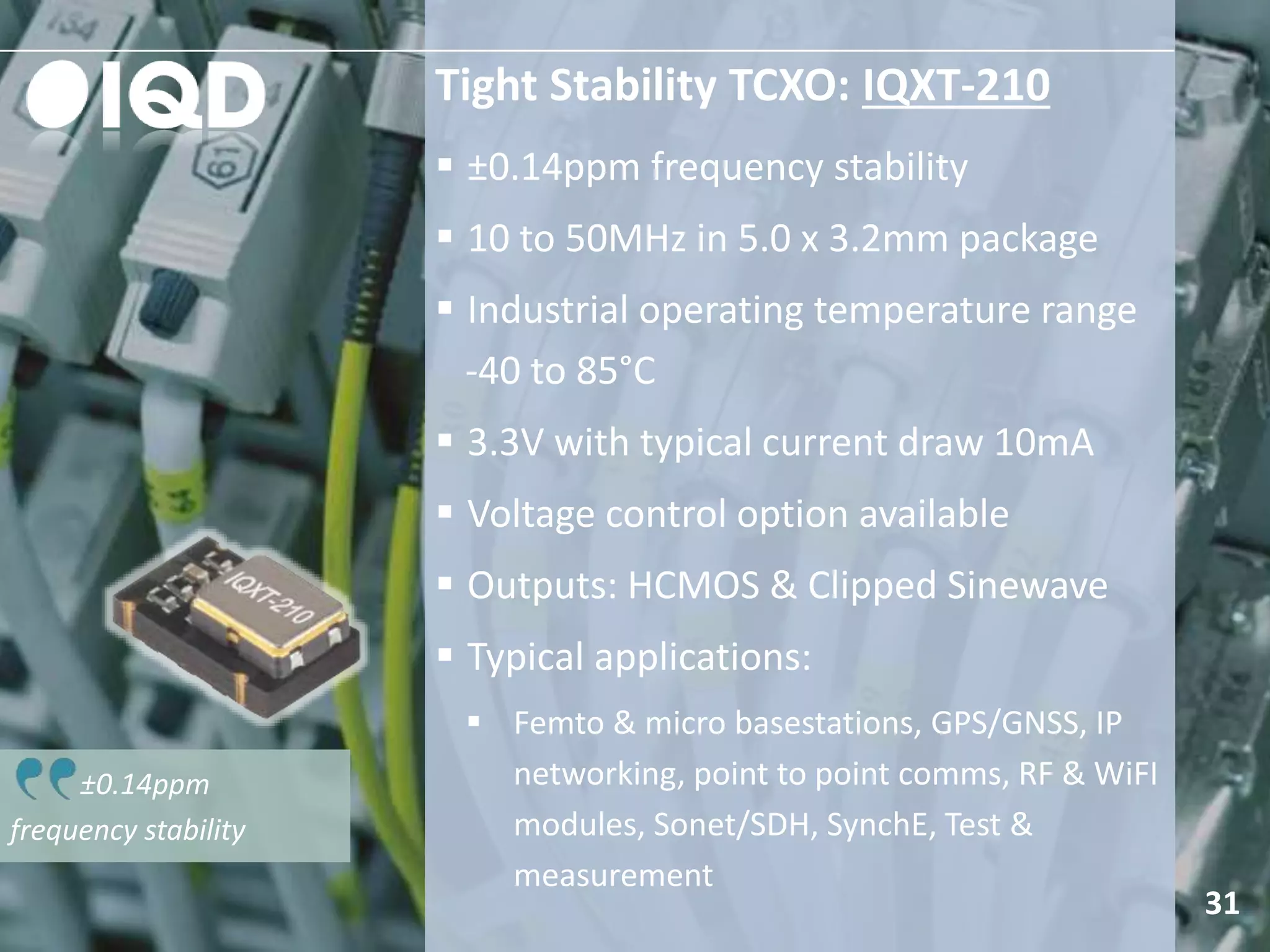

Tight Stability TCXO: IQXT-210
 ±0.14ppm frequency stability
 10 to 50MHz in 5.0 x 3.2mm package
 Industrial operating temperature range
-40 to 85°C
 3.3V with typical current draw 10mA
 Voltage control option available
 Outputs: HCMOS & Clipped Sinewave
 Typical applications:
 Femto & micro basestations, GPS/GNSS, IP
networking, point to point comms, RF & WiFI
modules, Sonet/SDH, SynchE, Test &
measurement
31

32. Low power TCXO/VCTCXO: IQXT-260
32
 2.5 x 2.0 x 0.8mm SMD package
 2mA current consumption & 0.01µA
standby current when in power down
mode
 ±0.5ppm frequency stability over -40 to
+85°C
 10 to 52MHz 1.8 to 3V
 Voltage control & enable/disable
options available
 Output: Clipped Sinewave
 Typical applications:
 GPS, PNDs, Ethernet, Wi-Fi, Wi-Max, WLAN
0.01µA standby
current

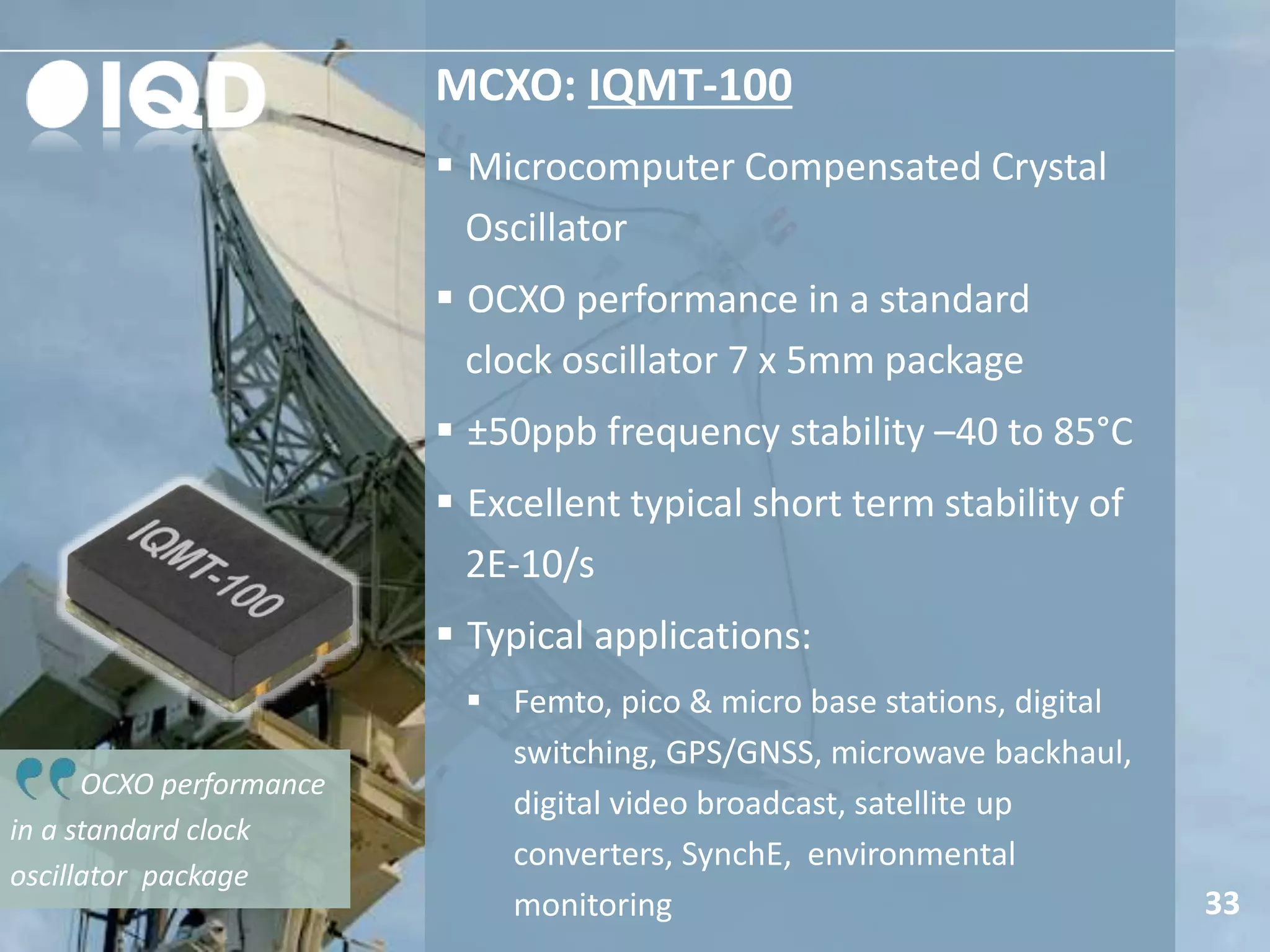

33. MCXO: IQMT-100
33
 Microcomputer Compensated Crystal
Oscillator
 OCXO performance in a standard
clock oscillator 7 x 5mm package
 ±50ppb frequency stability –40 to 85°C
 Excellent typical short term stability of
2E-10/s
 Typical applications:
 Femto, pico & micro base stations, digital
switching, GPS/GNSS, microwave backhaul,
digital video broadcast, satellite up
converters, SynchE, environmental
monitoring
OCXO performance
in a standard clock
oscillator package

34. OCXOs
34
 Oven Controlled Crystal Oscillators
 SMD & thru hole packages
 4.0 to130MHz
 Frequency Stabilities from ±0.2ppb
 Operating Temperature Range
from -40 to 85°C
 Voltages 3.3, 5.0, 12 & 15V
 Outputs HCMOS, ACMOS, Sinewave,
Clipped Sinewave
 Phase Noise -180dBc @100kHz
 Low Ageing < ±50ppb per year
Frequency
Stabilities from ±0.2ppb

35. Stabilities down to
±3ppb
Low ageing OCXO: IQOV-70
 36 x 27mm thru hole
 Stabilities from ±3ppb
 Operating temperature range
from -40 to 75°C
 Ageing in first year ±50ppb max
 Phase noise -150dBc/Hz @ 100kHz
 4 to 80MHz; available with Voltage Control
 Typical applications:
 Base stations, digital switching, remote radio
heads, satellite comms, Test & Measurement
equipment
35

36. Low ageing OCXO: IQOV-90
36
 25.4 x 22mm SMD
 Stability from ±3ppb
Operating temperature range
from -40 to 75°C
 Ageing in first year max ±50ppb
 Phase noise -150dBc/Hz @ 100kHz
 10to40MHz;availablewithVoltageControl
 Typical applications:
 Base stations, digital switching, remote radio
heads, satellite comms, Test & Measurement
equipment
Ageing in first year
max ±50ppb

37. Only 6.5mm high in
14 x 9mm package
Ultra Miniature OCXO: IQOV-162
 10ppb stability over -40 to 85°C
 Only 6.5mm high in 14 x 9mm package
 10 to 100MHz
 Ageing <±500ppb per year
 Typical applications:
 CDMA base stations, Femtocells, optical
networking, SynchE
 3G & 4G LTE, Ethernet, SoNET/SDH, ATM
backplanes, SATA
 Satellite communications
37

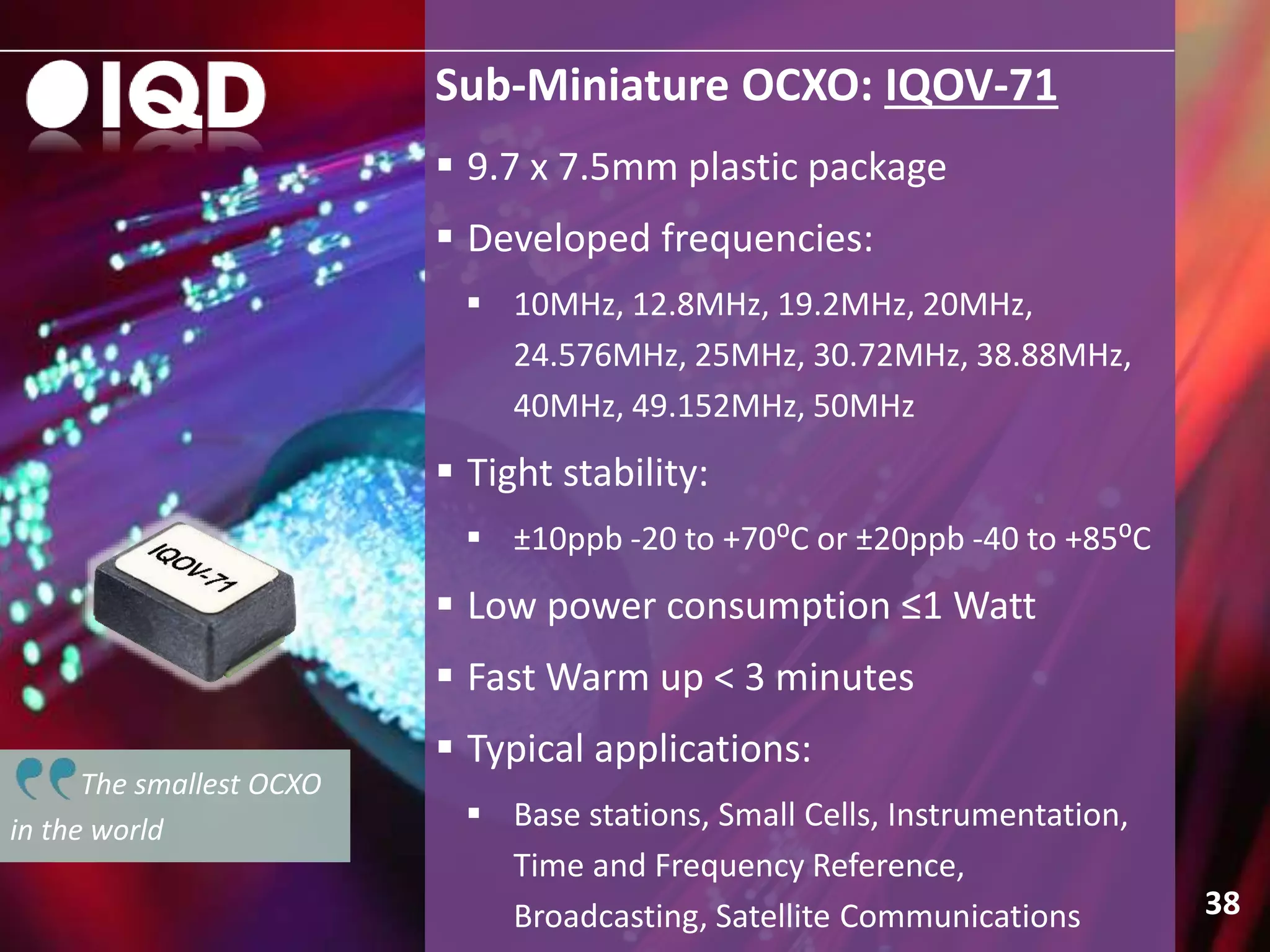

38. Sub-Miniature OCXO: IQOV-71
38
 9.7 x 7.5mm plastic package
 Developed frequencies:
 10MHz, 12.8MHz, 19.2MHz, 20MHz,
24.576MHz, 25MHz, 30.72MHz, 38.88MHz,
40MHz, 49.152MHz, 50MHz
 Tight stability:
 ±10ppb -20 to +70⁰C or ±20ppb -40 to +85⁰C
 Low power consumption ≤1 Watt
 Fast Warm up < 3 minutes
 Typical applications:
 Base stations, Small Cells, Instrumentation,
Time and Frequency Reference,
Broadcasting, Satellite Communications
The smallest OCXO
in the world

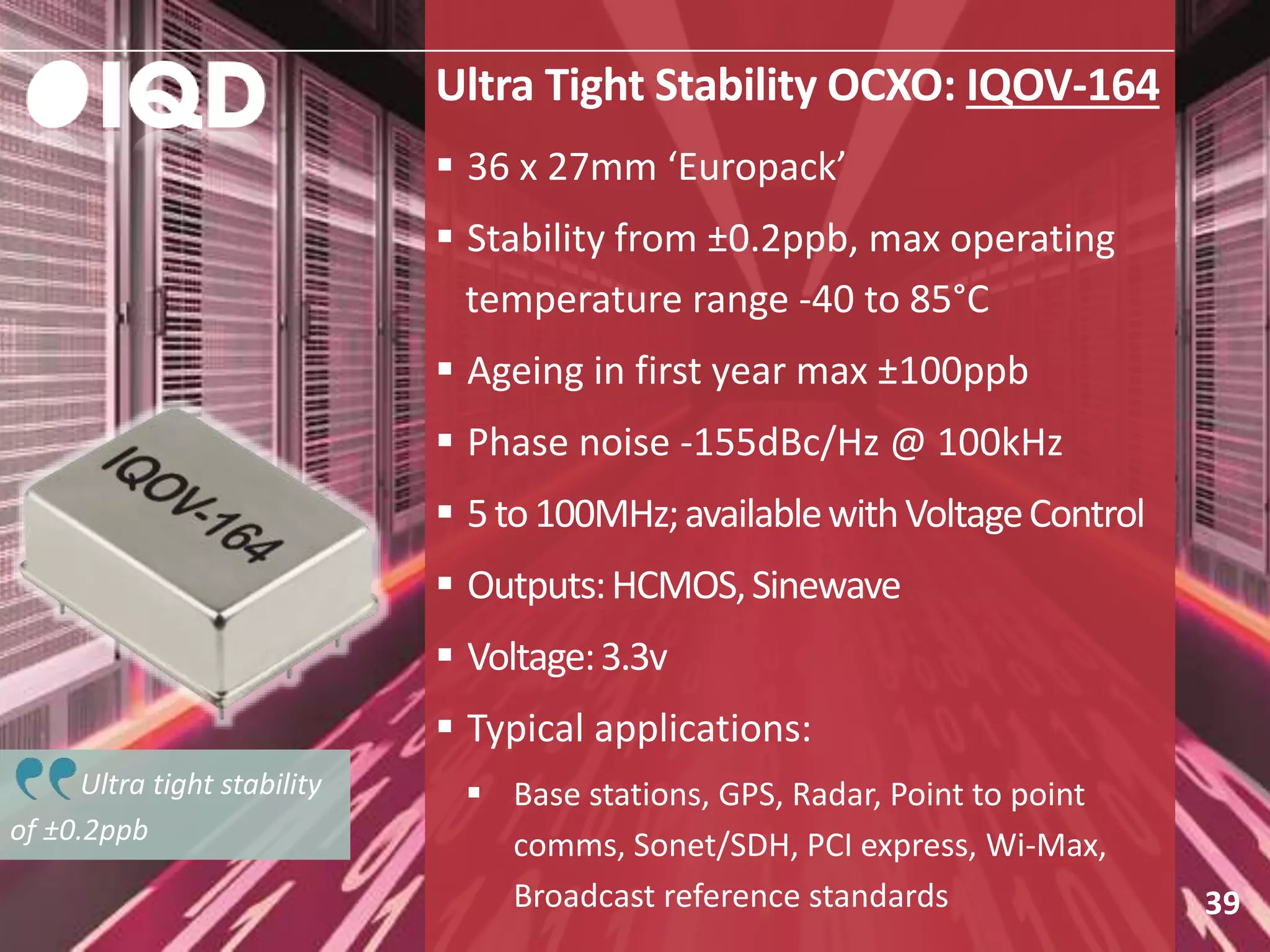

39. Ultra Tight Stability OCXO: IQOV-164
39
 36 x 27mm ‘Europack’
 Stability from ±0.2ppb, max operating
temperature range -40 to 85°C
 Ageing in first year max ±100ppb
 Phase noise -155dBc/Hz @ 100kHz
 5to100MHz;availablewithVoltageControl
 Outputs:HCMOS,Sinewave
 Voltage:3.3v
 Typical applications:
 Base stations, GPS, Radar, Point to point
comms, Sonet/SDH, PCI express, Wi-Max,
Broadcast reference standards
Ultra tight stability
of ±0.2ppb

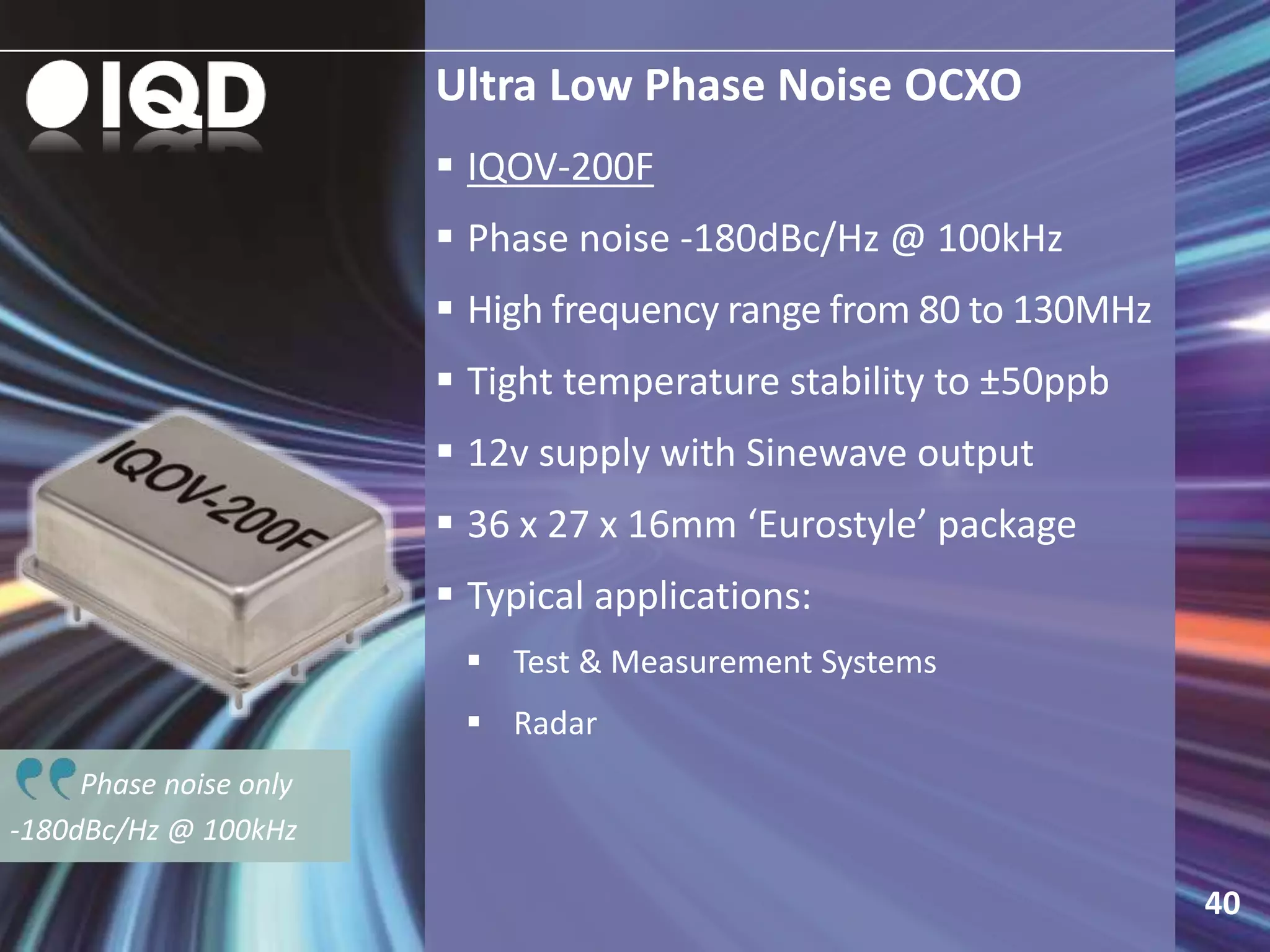

40. Phase noise only
-180dBc/Hz @ 100kHz
Ultra Low Phase Noise OCXO
 IQOV-200F
 Phase noise -180dBc/Hz @ 100kHz
 High frequency range from 80 to 130MHz
 Tight temperature stability to ±50ppb
 12v supply with Sinewave output
 36 x 27 x 16mm ‘Eurostyle’ package
 Typical applications:
 Test & Measurement Systems
 Radar
40

41. Advanced Modules
41
 SMD & thru hole packages
 1PPS Output (pulse per second)
 10MHz back up oscillator
 Operating temperature range
from -40 to 85°C
 Voltage 5V
 Outputs: HCMOS, Sinewave
1PPS Output (pulse
per second)

42. Frequency accuracy
to within ±1E-12
GPS Advanced OCXO Clock Module
 IQCM-100
 Holdover 1.5μs/24 hours when locked
to a 1PPS input from external GPS
receiver, easily meeting industry
standard requirements
 Adaptive algorithm ‘learns’ from stable
GPS signal over 2 days & can be adjusted to
allow for errors
 Frequency accuracy to within ±1E-12
when locked to a 1PPS GPS signal
 Typical applications:
 LTE & 4G base stations
42

43. Clock Module Evaluation Board
43
 Allows testing and evaluation of IQD’s
IQCM-100 & IQCM-110 clock modules
 Available with or without on board GPS
 Functions:
 Monitor output data word from the clock
module via standard serial interface on a PC
 Read clock module status via UART interface
 Monitor 1PPS and 10MHz output from the
clock module via BNC connections
 Monitor GPS 1PPS signal with respect to the
clock module 1PPS via BNC connections
 Switch between lock to GPS 1PPS, lock to
external 1PPS or No GPD lock
Testing & evaluation
of IQCM-100 & IQCM-110

44. Clock Module Evaluation Board
44
 Functions (continued):
 Optional on board GPS unit with GPS NMEA
data accessible via USB
 LED indication of GPS lock status
 LED indication of 1PPS clock module output
 Test point connections to allow for easy
monitoring of signals and status lines
 Removable clock module for testing of
multiple units
 Kit Contents (excludes clock module)
 1x Clock module evaluation PCB
 1x Serial Cable
 1x Power supply unit (5.0VDC @ 4A)
 1x GPS antenna (optional)
Clock module must
be ordered separately

45. 1,000 times more
accurate than typical
OCXO
Rubidium Oscillator: IQRB-1
 Accuracy of ±5E10-11 (±0.05ppb)
irrespective of temperature fluctuations
 Free run frequency source in applications
such as LTE (Long Term Evolution) systems
 50.8 x 50.8mm Leaded package
 Short Term Stability 100s 0.008ppb
 Phase Noise -140dBc @1kHz
 Typical applications:
 LTE systems that require exceptional timing
accuracy
 UTMS as well as extended holdover for CDMA
and WiMax
45

46. Consistent on-time
delivery >99%
In Summary
 Comprehensive product range
 Large stock for next day delivery
 Consistent on-time delivery >99%
 Engineering support from design to
production with dedicated applications
support team
 Multilingual sales team
 Custom product design to match your
requirements
46

47. Standing out from the crowd
47
