RUC 2003 reducing time to market using follow-the-sun techniques
1. IBM Software Group
IBM Software Group Rational software ®®
Click to edit Track Number on Title Master
Reducing Time to Market Using Follow-the-Sun
Techniques
Alex Cameron
EDS
Alex.Cameron@eds.com
2. IBM Software Group Rational softwareRational User Conference 2003
®

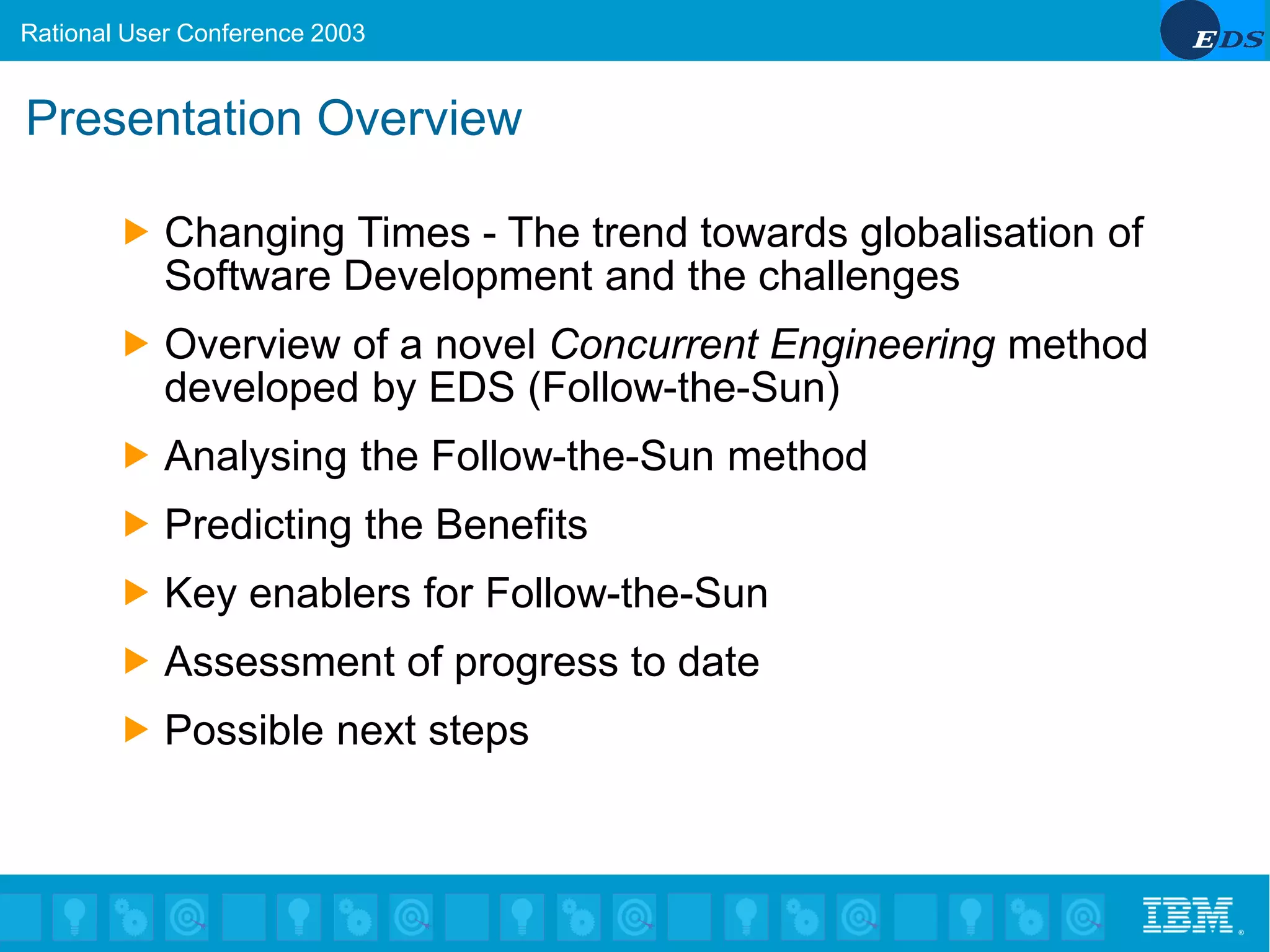

Presentation Overview
Changing Times - The trend towards globalisation of
Software Development and the challenges
Overview of a novel Concurrent Engineering method
developed by EDS (Follow-the-Sun)
Analysing the Follow-the-Sun method
Predicting the Benefits
Key enablers for Follow-the-Sun
Assessment of progress to date
Possible next steps
3. IBM Software Group Rational softwareRational User Conference 2003
®
Changing Times
Reducing the cost of IT and meeting time-to-market demands
is driving the IT industry
Global software development is an emerging phenomenon
and takes advantage of highly skilled off-shore resources
Speeding up the software development process is a most
strategic issue
Organisations are better positioned to harvest the future
growth opportunities if they:
Plan to move from sequential to concurrent
Plan to move from centralised to distributed software development (multi-
site)
Have a Global presence
Have mature processes and innovative development strategies
4. IBM Software Group Rational softwareRational User Conference 2003
®
The Challenges
There is a need to understand the challenges faced by
multi-site organisations working with stakeholders across
geographical and cultural boundaries
The globalisation of software development in many
companies raises significant problems with respect to
supporting collaboration
The usual problems of supporting collaboration are
compounded by the problems engendered by
geographical, temporal and cultural separation
The way we approach this is crucial, and it is more that
just sharing code
Development of Work Distribution Framework that
identifies specific Work Distribution patterns that can
integrate methods, tools and processes is required
5. IBM Software Group Rational softwareRational User Conference 2003
®
EDS Best Shore Solution Centres
South Africa
Brazil
Mexico
New Zealand
Ireland Czech Republic
India
Egypt
Italy
Argentina
Australia
16 offshore Global Solution Centres in 13 countries – more
than 5,700 global employees dedicated to offshore delivery
Malaysia
Location of Solution Centres
Canada
6. IBM Software Group
IBM Software Group Rational software ®®
Click to edit Track Number on Title Master
What are the benefits and key factors of
Follow-the-Sun techniques?
7. IBM Software Group Rational softwareRational User Conference 2003
®
The Benefits
Multi-Site/Distributed Development
▪ Huge leverage is possible
▪ Capitalises on technical expertise and skilled resources
▪ Greater potential for Re-Use
▪ Lower cost of development
▪ Greater insight into local markets
Follow-the-Sun Development
▪ Contraction in development schedules
▪ Higher productivity
▪ Higher quality
▪ Lower maintenance costs
These factors contribute to
▪ Faster time to market
▪ Earlier profitability for the client
8. IBM Software Group Rational softwareRational User Conference 2003
®
Key success factors
We must leverage global resources, technology,
processes and tools
We must find a method of reducing costs of developing
software
We must increase effective productivity
Cost = Rate*Amount of Effort
Factor 1
Factor 2
Productivity = ProductSize/(Effort * Schedule )
Effort
essentially
unaltered
9. IBM Software Group Rational softwareRational User Conference 2003
®
What is ‘Follow the Sun’ Development for EDS?
To produce the
same product
with
equal effort
in
Less Time and Less Cost
by using
Distributed Teams
and
Concurrent Processes
‘Follow the Sun’ Reduces
both Cost and Schedule
Cost is reduced by leveraging
“EDS Best Shore” concepts
Schedule is reduced by
leveraging the time zones
and virtual team concepts
and multi-site processes.
10. IBM Software Group Rational softwareRational User Conference 2003
®
Sites that have participated to date since Dec 2002
Follow the Sun – Proof of Concept project (230 FP)
▪ Site 1 – Australia(Adelaide Solution Centre)
▪ Site 2 – Egypt (Cairo Solution Centre)
▪ Site 3 –Mexico (NMx Solution Centre)
Project 2 (590 FP)
▪ Site 1 – Australia (Adelaide Solution Centre)
▪ Site 2 – Mexico (North Mexico Solution Centre)
Project 3 – ramping up
▪ Site 1 – Ireland (Ireland Solution Centre)
▪ Site 2 – Eqypt (Cairo Solution Centre)
▪ Site 3 – Mexico (NMx Solution Centre)
▪ Site 4 – Australia (Adelaide Solution Centre)
11. IBM Software Group
IBM Software Group Rational software ®®
Click to edit Track Number on Title Master
Analysing the method
12. IBM Software Group Rational softwareRational User Conference 2003
®
Concurrent techniques that are generally used…
Staff augmentation
Code sharing between distributed sites
Working on parallel features/enhancements at
distributed locations
Working shifts within a single site in order to
achieve concurrency
Focusing on just single process, ie Testing
Developing the complete application using
distributed resources
13. IBM Software Group Rational softwareRational User Conference 2003
®
Concurrent Software Development…methods
Centralise Concurrent
Centralised
Sequential
Distributed Concurrent
Distributed
Sequential
Parallelisation
Decentralisation
14. IBM Software Group Rational softwareRational User Conference 2003
®
Developing a base system
Decompose the problem and run core Process Workflows at
different sites and assume most workflows are concurrent
View concurrency from a perspective of exploiting the
different time zones
▪ Team is split over multiple time zones
▪ Teams organised by specialisation/expertise
▪ Overall project team size remains much the same
This will work if
▪ Work is focused on the core process workflow, throughout
all phases of the lifecycle
▪ Artefacts can be shared using integrated and automated
tools, e.g. Rational multi-site enabled
▪ “Design” authority is distributed and delegated
15. IBM Software Group Rational softwareRational User Conference 2003
®
Conventional development life-cycle phases
Define
Analyse
and Design Produce Optimise Implement
10% 30% 25% 25% 10%
% of Schedule
5% 20% 33% 32% 10%
% of Effort
Note: This diagram summarises the phases and does not
necessarily represent the development approach
16. IBM Software Group Rational softwareRational User Conference 2003
®
Conventional life-cycle phases that can be de-coupled
Define
Analyse
and Design Produce Optimise Implement
Potential for up to 80% of the life-cycle to
be distributed
10% 30% 25% 25% 10%
5% 20% 33% 32% 10%
Client facing
activities
17. IBM Software Group Rational softwareRational User Conference 2003
®
Comparison to RUP
18. IBM Software Group Rational softwareRational User Conference 2003
®
Distributing and aligning sites with the core disciplines
We define 3 types of site specialisations
▪ System Requirements and System Design site
▪ Detailed Design and Implementation site
▪ Testing Validation and Deployment site
Each centre is located in a complementary time-zone
We now need to develop a process that allows these three
sites to operate in a concurrent operation with respect to the
iteration and “optimally sequential” with respect to the core
process workflow
“optimally sequential ” refers to the need for an optimum
amount of sequential activity that will allow work to get done.
This is the purpose of the complementary time-zones
19. IBM Software Group Rational softwareRational User Conference 2003
®
Concurrent Software Development + Follow-the-Sun
Centralise Concurrent
Centralised
Sequential
Modified Distributed Concurrent
Distributed
Sequential
Parallelisation
Decentralisation
20. IBM Software Group Rational softwareRational User Conference 2003
®
Comparison to RUP
21. IBM Software Group Rational softwareRational User Conference 2003
®
The benefit is that we should achieve a schedule gain
Define
Analyse and
Design
Implement
Test
Accept
Site 1
Site 2
Site 3
AcceptAcceptAcceptAccept
GAIN
22. IBM Software Group Rational softwareRational User Conference 2003
®
Work within a single iteration
R A & D and System Design
Detailed Analysis & Design and Implementation
Deployment
Test Planning and Test Execution
Design
Authority
Solution
Centre
Implementation
Solution
Centre
Testing
Solution
Centre
Demand Driven
Products
Work on Next Iteration
23. IBM Software Group Rational softwareRational User Conference 2003
®
Continuous life-cycle engineering
24 hours
R A & Design Idle Time
Test Manage Idle Time
R A & Design
Implementation Idle Time Implementation
Demand
Driven Work
Products
D
D
DD= Optimum Sequential Portion
24. IBM Software Group
IBM Software Group Rational software ®®
Click to edit Track Number on Title Master
Predicting the Benefits
25. IBM Software Group Rational softwareRational User Conference 2003
®
Standard Development - Cost Model
Assume Productivity in Days per Function Point
P1 P2 P3
Project Start Project End
Nominal Productivity(NP) = P1+P2+P3 (Days/FP)
Design-Development-Test
RA & PD Acceptance
26. IBM Software Group Rational softwareRational User Conference 2003
®
Enhanced Productivity – Cost Model
Assume Enhanced Productivity is possible in EPP
Assume EPP = 50% (Amount of the Life-Cycle that can overlap)
P1 EPP P3
Project
Start
Project
End
AP = NP*(1-EPP) + NP*EPP*K
Des+Dev+Test
Acceptance
Achieved Productivity (AP) is now
Compression (K) related to number of Effective Parallel Activities
RA & PD
27. IBM Software Group Rational softwareRational User Conference 2003
®
Predicted outcome for a 230 FP with EPP = 0.5
One Site Two Sites Three Sites
Number of Staff (Average) 4.98 4.98 4.98
Average Example Cost 1,000 800 600
Predicted Productivity 3.48 3.48 3.48
Number of Sites 1 2 3
Enhanced Productivity Phase 0.5 0.5 0.5
Function Points 230 230 230
Effort (Man days) 800 800 800
Nominal Productivity 3.5 2.6 2.3
Relative Cost 160,723 128,578 96,434
Length of project (months) 8.5 6.4 5.7
Theoretical Gain ( Days/FP) 0 0.9 1.2
Project Attribute Value
28. IBM Software Group Rational softwareRational User Conference 2003
®
Theoretical gain for different EPP values
Gain
0
0.5
1
1.5
2
2.5
3
1 2 3 4 5
Number of Sites
GaininDays/FP
EPP= 0.8 Prod Gain
EPP=0.5 Prod Gain
29. IBM Software Group
IBM Software Group Rational software ®®
Click to edit Track Number on Title Master
Fundamental enablers for Follow-the-Sun
30. IBM Software Group Rational softwareRational User Conference 2003
®
Seven fundamental Follow-the-Sun enablers
1. Centres of specialisation
2. Unified development language
3. Well Defined Work Distribution Method/Process
4. Iterative, continual build and ‘Demand Driven’
techniques
5. Collaborative and Integrated tools and artifacts
6. Revised network topology
7. Shared and concurrent licensing
31. IBM Software Group Rational softwareRational User Conference 2003
®
1. Fundamental enablers: Leverage specialisation
Specialisation by site will:
▪ Capitalise on technical expertise
▪ Provides a more complete or holistic view of the problem and
solution domains
▪ Review and verification of requirements are independent
▪ Separate teams of testers and developers will weed out problems
such as un-stated assumptions, ambiguities and inconsistencies.
▪ Requirements will be evaluated against common criteria that will
uncover problems
▪ Formal “sub-contract” agreement between sites creates a mind-set
of a client-service provider relationship will formalise commitments
▪ Over time, each Solution Centre will refine its Best Practices and
develop additional assets for its particular field of endeavour
▪ Achieve greater re-use within a specialised site
▪ Allow a site to achieve higher productivity and fewer defects
▪ Specialisation will drive Re-Use and greater productivity
32. IBM Software Group Rational softwareRational User Conference 2003
®
2. Fundamental enablers: UML
Web Content
Creator
Business or
System
Analyst
Software
Developers
and Testers
Data
Analyst
Application Architecture
Requirements
Structure
Behavior
Architect
Integrator
33. IBM Software Group Rational softwareRational User Conference 2003
®
Distribution of UML models and relationship to other artefacts
Stakeholder
Scope
Use-Case
Model
Vision
Supplementary
Specification
End-User documentation
and Training Materials etc
Design Model Test Model
34. IBM Software Group Rational softwareRational User Conference 2003
®
Each major workflow
describes how to
create and maintain a
particular model
There is sharing
some aspects of the
model but authority
for rests with a
particular Solution
Centre
3. Fundamental enabler - work distribution process
Design
Authority
Development
Authority
Test
Authority
Use Cases
Design for Review
Handover Application
Defects
Tests for Review
Use Cases
1
1
2
3
4
5
35. IBM Software Group Rational softwareRational User Conference 2003
®
4. Fundamental enablers: Iterative development
Prototypes Architecture Functional Product
Releases Release
100%
Project Schedule
Modern
Project Profile
DevelopmentProgress
(%Coded)
Design
BreakageWaterfall
Project Profile
36. IBM Software Group Rational softwareRational User Conference 2003
®
4. Fundamental enablers: Continuous Building and
Testing
Continuous builds
find defects earlier
Fewer development
defects
Stimulates
“Demand driven”
development
Design &
Development
Test
Management
Design
Authority
Build 0
Build 0
Candidate
Build 0
Baseline
Build 1
Build 1
Candidate
Build 1
Baseline
Baseline Approved
Code
Baseline
Smoke
Test
System
Test
etc
Time Zone 1 Time Zone 3Time Zone 2
37. IBM Software Group Rational softwareRational User Conference 2003
®
5. Fundamental enablers: Integrated tools and artefacts
Client
Design Authority
Requirements
(ReqPro)
Releases
(from CC multisite)
Design & Dev
Use Cases (XDE, CC multi-site, ReqPro)
Architecture (CC multi-site, ReqPro)
Test Management
Application builds (CC multi-site)
Handover
Defects (CQ multi-site)
’Smoke Test’ Cases (Test Manager, ReqPro)
Test results (Test Manager, ReqPro)
Recommended builds (CC multi-site)
Risks/Issues/Change Requests/Defects
(CQ multisite)
Risks/Issues/Change Requests/Defects
(CQ multi-site)
XDE Design Model
Use Cases
Automation is
achieved by using
Rational’s UCM,
ClearCase and
ClearQuest multi-site
38. IBM Software Group Rational softwareRational User Conference 2003
®
5. Fundamental enablers: Collaborative Tools
Net Meeting
NetMeeting
Instant Messaging
Helps overcome
language difficulties
Allows faster
response times
Less protocol eases
communications
Improves
collaboration
Assists “handover”
report
Jabber
39. IBM Software Group Rational softwareRational User Conference 2003
®
6. Fundamental enablers: Well architected network
40. IBM Software Group Rational softwareRational User Conference 2003
®
6. Fundamental enablers: A network strategy
Topology – Acceptance of a new business model
Bandwidth – Productivity Driven Bandwidth
Connectivity – Standard EDS*LINK Templates
Security – Standard Security Templates to allow Support
of Client applications
Application Prioritisation- to reduce Bandwidth needs and
add intelligence to the network and increase efficiency
and reduce costs
41. IBM Software Group Rational softwareRational User Conference 2003
®
7. Fundamental enablers: Concurrent licencing
Shared Licence model benefits
▪ Reduces cost of project and cost of providing licences
▪ Higher return on investment
▪ Increases utilisation of tools by approximately 5 times
EDS Solution
▪ Set of 3 redundant licence servers
▪ Complete suite of Rational tools available to all
▪ ClearCase is FlexLM enabled
▪ UCM Multi-site enabled
42. IBM Software Group Rational softwareRational User Conference 2003
®
7. Fundamental enablers: Concurrent Tool Usage
▪ Early diagram demonstrating utilisation and
concurrency benefits
Early Rational Tool Usage Diagram
EMEA
New Zealand IndiaIndia
Australia EMEA
Americas
%ofLicences
43. IBM Software Group
IBM Software Group Rational software ®®
Click to edit Track Number on Title Master
Assessment of Progress to date
44. IBM Software Group Rational softwareRational User Conference 2003
®
Assessment of Progress to date
Lower number of defects is apparent
Amount of re-work appears to be low
Higher level of re-use is apparent
Continuous builds are driving progress and confidence
Productivity figures are matching predicted values
Defects severity classification/rectification priority are
driven more by build milestones than functional defects
Method was based on a strong foundation of Core EDS
Processes – this reduced the startup time and learning
phases
Quality of documentation is very high
45. IBM Software Group Rational softwareRational User Conference 2003
®
Next Steps
Consider architectural patterns techniques to further
improve productivity
▪ For example using ‘templates’ between the developer sites to
increase the productivity and to introduce a 4th site
▪ This has the potential to introduce a further gain
The method used to share artifacts is a key
Use Case approach to express requirements and to
concurrently and independently produce the test cases
and the technical design, has worked extremely well
This leads to a belief that requirements management
practices are a critical success factor
Things to be considered
46. IBM Software Group Rational softwareRational User Conference 2003
®
Alex Cameron
alex.cameron@eds.com
