The document discusses the HotRuby project, which aims to explore a server virtual machine (VM) for Ruby based on the Java VM. Some key points: - HotRuby aims to take advantage of how the JVM optimizes programs through adaptive optimizations and allowing longer runtime to optimize. - It uses an interpreter initially and then compiles code once the program definition is known, similar to other just-in-time VMs. - The implementation focuses on reducing memory usage and object churn through techniques like using Java locals and specializing compiled code for receiver types. - Initial performance results show HotRuby running at around 2.5 times faster than YARV, though it does not yet support all

1. Ruby on the JVM
Kresten Krab Thorup, Ph.D.
CTO, Trifork

2. A bit of history...
Smalltalk
Self OTI Smalltalk
Strongtalk VisualAge
HotSpot IBM Java
Sun IBM

3. Adaptive Optimizations
• Key insight: The VM knows more about
your program than you do.
• Consequence: Let the VM adapt to
program’s behavior
• VM will observe, tally and measure
• feed information into successive
optimizations

4. Time/Space Trade Off
• Classical compiler “ideology”
• “ahead of time” compilers don’t know
which parts of the code to optimize
• gcc -O0 ... -O6
• Adaptive VMs
• Affords letting the program run for a while
to see where optimizations will pay off.

5. The Ruby Nature
• Program is created as it is being
executed
• Class / module declarations are really
statements, not declarations.
• Programming style employs meta
programming extensively
• Very similar to Java, just “worse” :-)

6. “Just In Time” VMs
• For interpreted-style languages, perform
compilation when the program definition is
known.
• AFAIK Strongtalk/HotSpot brought the
innovation of a two-level VM:
• start interpreted (running byte code)
• optimize adaptively

7. The “HotRuby” project
• Explore a “Server VM” for Ruby
based on Java
• Assume “long running processes” where we
can afford “slow start”.
• Assume aggressive memory usage
• Exploit knowledge of how the JVM
optimizes programs

8. HotRuby Architecture
shared meta
model
interpreter compiler
~MRI performance ~2.5 x YARV performance

9. Design Philosophy
• Develop compiler and interpreter in
parallel, and
• Favor compiler in the design of the runtime
meta model
• Make trade-offs that reduce memory usage
• Write as much as possible in Ruby itself

10. Major Head Aches
• Method invocation
• Calling “virtual” methods is slow
• Program can change in many ways while
running
• Memory management
• Garbage collection is a resource hog

11. Naive Implementation
class RubyObject {
RubyClass isa;
HashTable<String,RubyObject> ivars;
boolean frozen, tainted;
}

12. Naive Implementation
class RubyModule extends RubyObject {
RubyVM vm;
List<RubyModule> included_modules;
HashTable<String,Callable> imethods;
HashTable<String,Callable> mmethods;
HashTable<String,RubyObject> constants;
}
class RubyClass extends RubyModule {
RubyClass super_class;
}

13. Naive Implementation
class Callable {
RubyObject call(RubyObject self,
RubyObject[] args,
RubyBlock block,
CallContext ctx);
}

14. Naive Implementation
def m(obj)
obj.foo(1, BAR)
end
... translates into something like ...
ctx = new MethodActivation(...);
ctx.set_local(args[0]);
obj = ctx.get_local(0)
one = ctx.new_fixnum(1);
bar = ctx.lookup_const(“BAR”);
callable = obj.isa.imethods.get(“foo”);
callable.call(obj, [one, bar], null, ctx)

15. Naive Implementation
Ruby level
Java level

16. Optimizing Calls
• Special-case common method names for
core classes (new, +, -, [], ...): They turn into
Java-level virtual calls.
• Compiled code is “specialized”, ...
• Method lookup is “compiled”, ...

17. Method Specialization
• Compiled code is “specialized” for the
receiving type,
• making self-calls non virtual,
• reducing public/private/protected checks:
Security-checks happen at method-
lookup, not invocation time.
• making constant lookups really constant.

18. Compiled Lookup
• With the “Naive” implementation, method
lookup is data-driven (HashTable).
• Compiled lookup means that we dynamically
generate/modify code, as the lookup table
changes.
• Allows the JVM’s optimizing compiler to
“know” how/when to eliminate or inline
lookups.

19. Reduce Footprint
• Reduce size of heap for “active state” in a
virtual machine
• Reduce “object churn”, i.e. rate of generated
garbage.

20. Reducing Footprint
• Java objects already have an “isa” pointer!
The implicit class reference.
• Use Java-level instance variables (in most
cases)
• Eliminate the arguments array for method
invocations (in most cases).
• Use Java-level local variables, removing the
need for a “MethodActivation” object for
each method call.

21. HotRuby Object
class RubyFoo {
ObjectState state = null;
RubyClass isa()
{ return state==null
? RubyClassFoo.class_object
: state.singletonClass; }
}
class ObjectState {
boolean frozen, tained;
RubyClass singletonClass;
HashTable<String,RubyObject> ivars;
}

22. HotRuby @ivars
• Generate Java classes lazily, upon first
instantiation.
• At that point, analyze all applicable methods
for reference to @ivars
• Generate Java-level ivars for all such
references.
• Additional ivars go into ObjectState’s hash
table.

23. Reducing Footprint
• The “Naive” implementation has an
overhead per object of
20 bytes + ~20 bytes / ivar
• HotRuby ideally reduces this to
12 bytes + 4 bytes / ivar
• Heap of 100.000 object with an average 3
ivars => 83% memory saving.

24. Use Java-Level locals
• The “cost” for having MethodActivation
objects is both
• The memory it consumes
• The fact that such memory needs to be
garbage collected
• Fall-back to MethodActivation object
strategy for methods that call eval (and
friends), and for local variables referenced
from inner blocks.

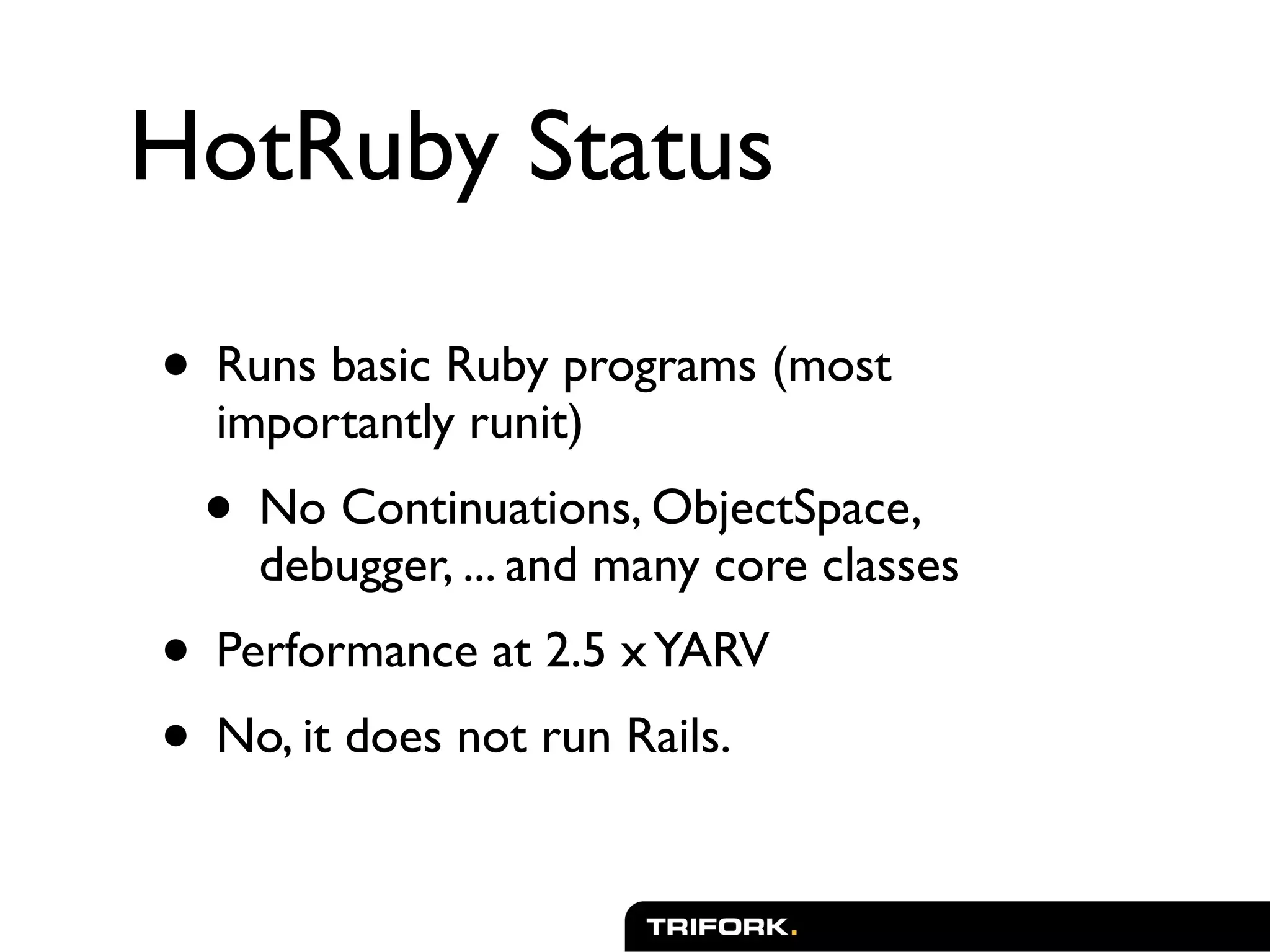

25. HotRuby Status
• Runs basic Ruby programs (most
importantly runit)
• No Continuations, ObjectSpace,
debugger, ... and many core classes
• Performance at 2.5 x YARV
• No, it does not run Rails.

26. Thanks

27. The Ruby
“Freak Show”
... getting started

28. Super Strange
def doit(x, y)
super.doit(x, y)
end

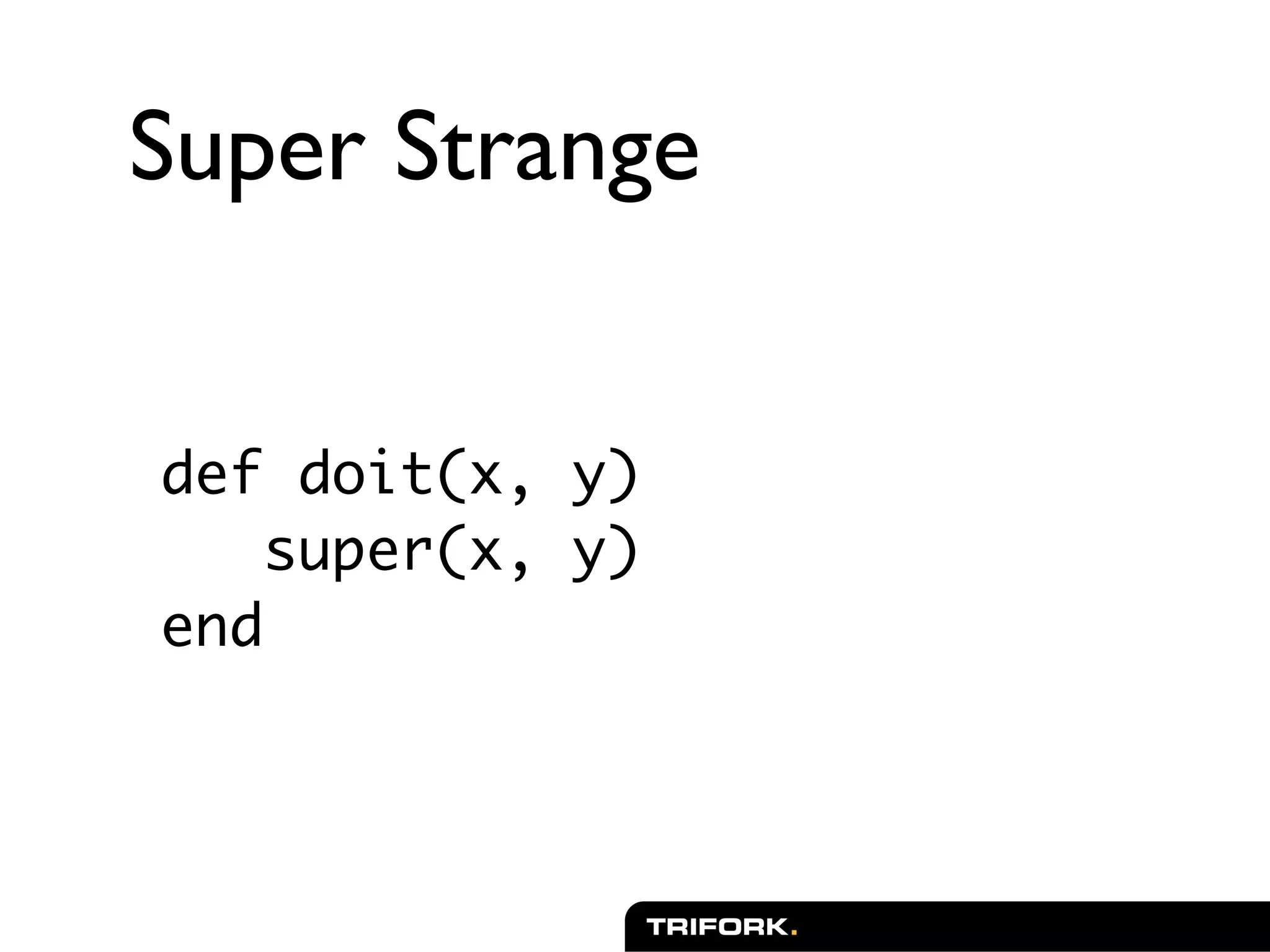

29. Super Strange
def doit(x, y)
super(x, y)
end

30. Super Strange
def doit(x, y)
super
end

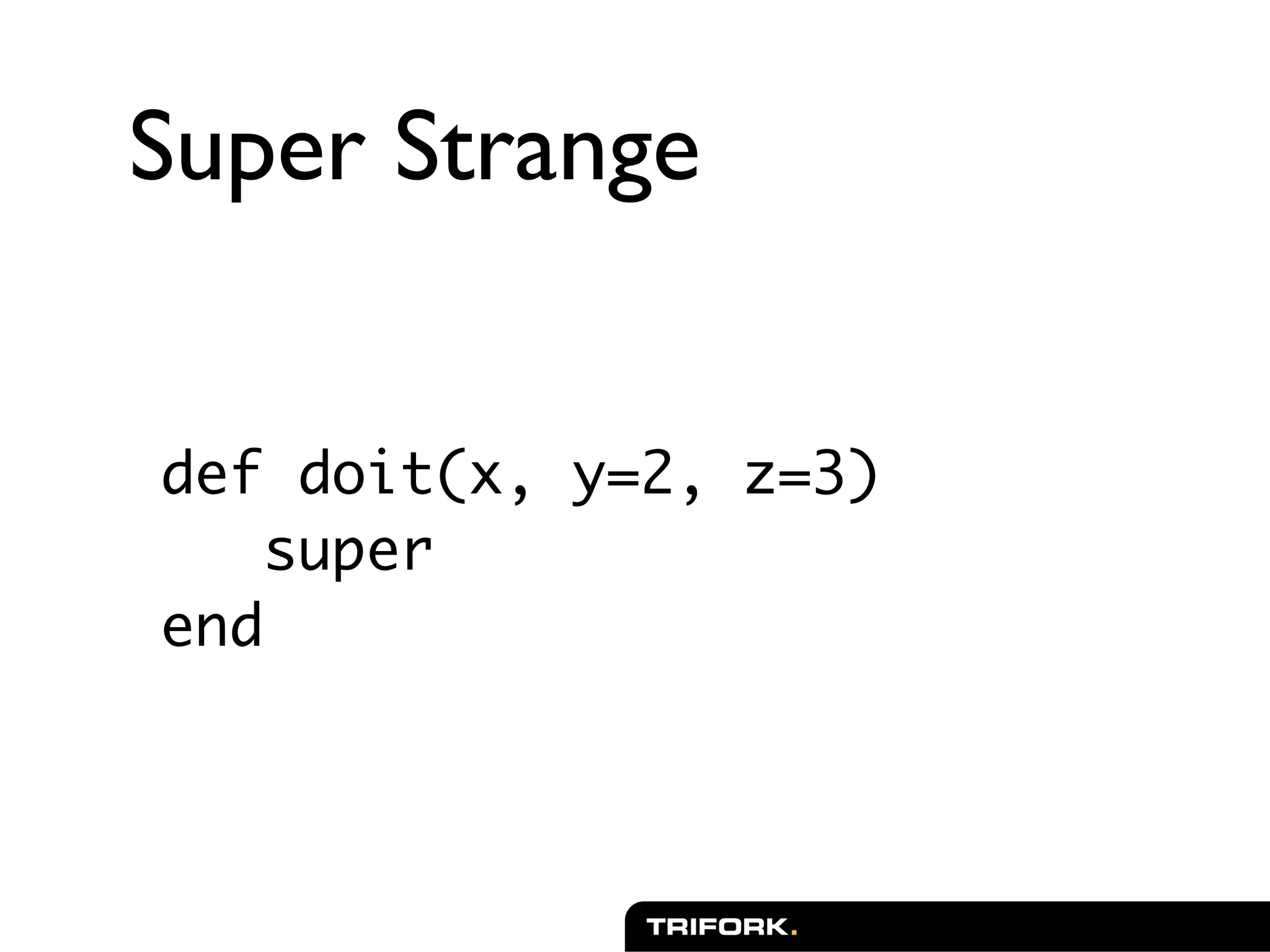

31. Super Strange
def doit(x, y=2, z=3)
super
end

32. Super Strange
def doit(x, y=super, z=3)
x+y+z
end

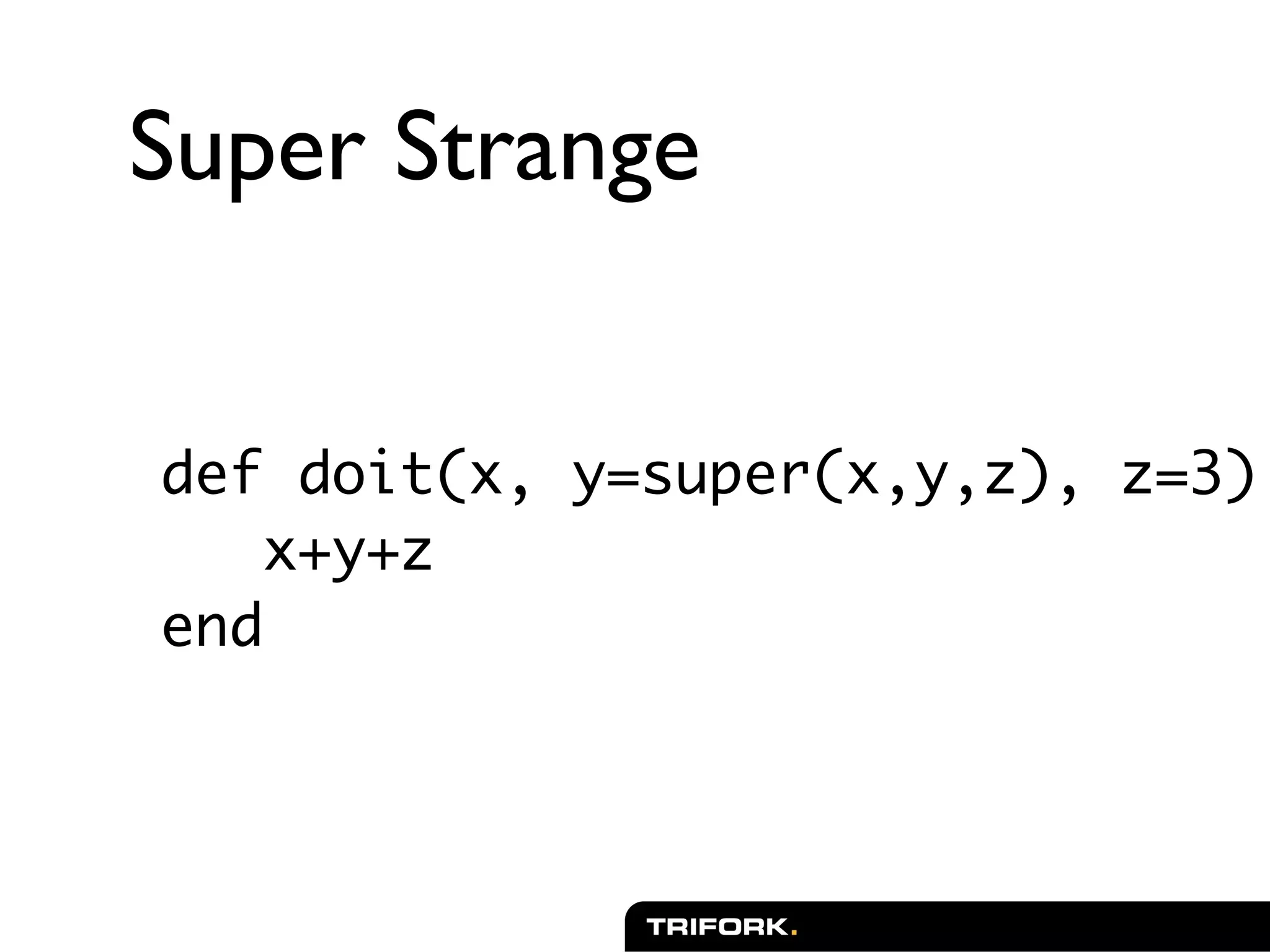

33. Super Strange
def doit(x, y=super(x,y,z), z=3)
x+y+z
end

34. Thanks
