This document provides instructions for setting up a Ruby on Rails development environment on Cloud9 using the suspenders gem. It describes installing Ruby 2.2.3, the suspenders gem, and its dependencies. It then explains how to create a new Rails project with suspenders and replace PostgreSQL with SQLite3. The document concludes by explaining how to launch the Rails server and install the simple_form gem for forms.

1. Ruby on Rails
#101 Preparing enviroment

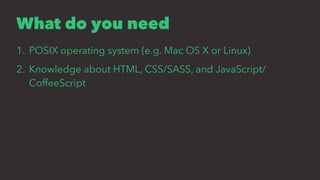

2. What do you need
1. POSIX operating system (e.g. Mac OS X or Linux)
2. Knowledge about HTML, CSS/SASS, and JavaScript/
CoffeeScript

3. Fu*k off, Windows

4. Cloud9
Online IDE to the rescue

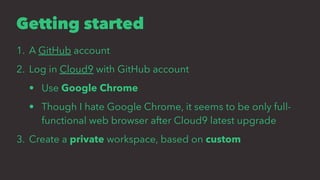

5. Getting started
1. A GitHub account
2. Log in Cloud9 with GitHub account
• Use Google Chrome
• Though I hate Google Chrome, it seems to be only full-
functional web browser after Cloud9 latest upgrade
3. Create a private workspace, based on custom

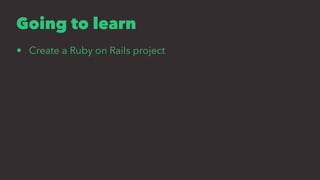

6. Going to learn
• Create a Ruby on Rails project

7. suspenders
Proudly released by thoughtbot

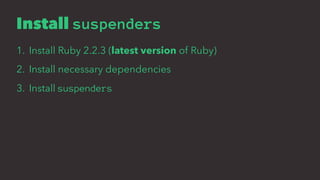

8. Install suspenders
1. Install Ruby 2.2.3 (latest version of Ruby)
2. Install necessary dependencies
3. Install suspenders

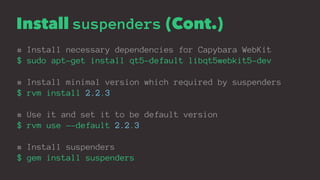

9. Install suspenders (Cont.)
# Install necessary dependencies for Capybara WebKit
$ sudo apt-get install qt5-default libqt5webkit5-dev
# Install minimal version which required by suspenders
$ rvm install 2.2.3
# Use it and set it to be default version
$ rvm use --default 2.2.3
# Install suspenders
$ gem install suspenders

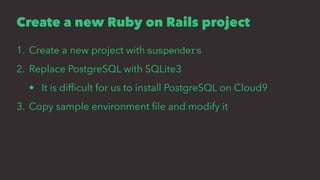

10. Create a new Ruby on Rails project
1. Create a new project with suspenders
2. Replace PostgreSQL with SQLite3
• It is difficult for us to install PostgreSQL on Cloud9
3. Copy sample environment file and modify it

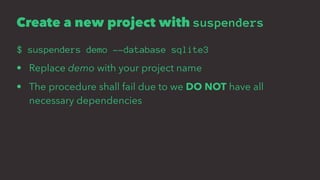

11. Create a new project with suspenders
$ suspenders demo --database sqlite3
• Replace demo with your project name
• The procedure shall fail due to we DO NOT have all
necessary dependencies

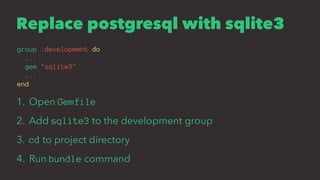

12. Replace postgresql with sqlite3
group :development do
...
gem "sqlite3"
...
end
1. Open Gemfile
2. Add sqlite3 to the development group
3. cd to project directory
4. Run bundle command

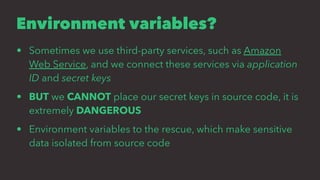

13. Environment variables?
• Sometimes we use third-party services, such as Amazon
Web Service, and we connect these services via application
ID and secret keys
• BUT we CANNOT place our secret keys in source code, it is
extremely DANGEROUS
• Environment variables to the rescue, which make sensitive
data isolated from source code

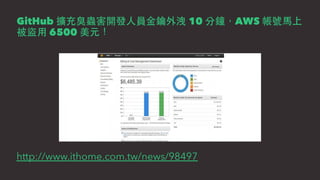

14. GitHub 10 AWS
6500
http://www.ithome.com.tw/news/98497

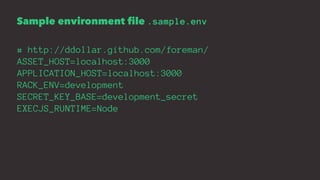

15. Sample environment file .sample.env
# http://ddollar.github.com/foreman/
ASSET_HOST=localhost:3000
APPLICATION_HOST=localhost:3000
RACK_ENV=development
SECRET_KEY_BASE=development_secret
EXECJS_RUNTIME=Node

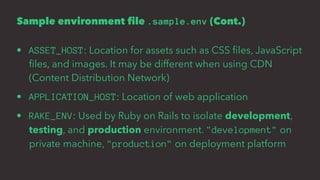

16. Sample environment file .sample.env (Cont.)
• ASSET_HOST: Location for assets such as CSS files, JavaScript
files, and images. It may be different when using CDN
(Content Distribution Network)
• APPLICATION_HOST: Location of web application
• RAKE_ENV: Used by Ruby on Rails to isolate development,
testing, and production environment. "development" on
private machine, "production" on deployment platform

17. Sample environment file .sample.env (Cont.)
• SECRET_KEY_BASE: String for "salting" session key or
passwords, produced by rake secret
• EXECJS_RUNTIME: JavaScript runtime to execute Node.js
applications such as SASS (preprocessor for CSS) or
CoffeeScript (preprocessor for JavaScript)

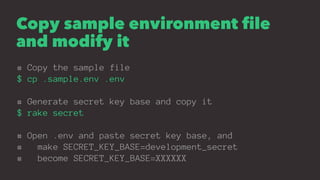

18. Copy sample environment file
and modify it
# Copy the sample file
$ cp .sample.env .env
# Generate secret key base and copy it
$ rake secret
# Open .env and paste secret key base, and
# make SECRET_KEY_BASE=development_secret
# become SECRET_KEY_BASE=XXXXXX

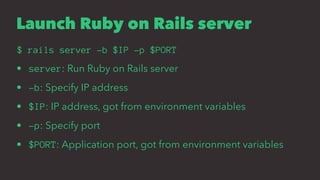

19. Launch Ruby on Rails server
$ rails server -b $IP -p $PORT
• server: Run Ruby on Rails server
• -b: Specify IP address
• $IP: IP address, got from environment variables
• -p: Specify port
• $PORT: Application port, got from environment variables

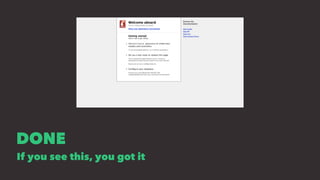

20. DONE
If you see this, you got it

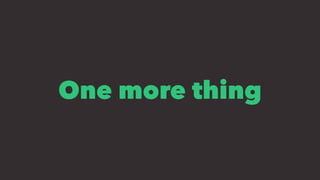

21. One more thing

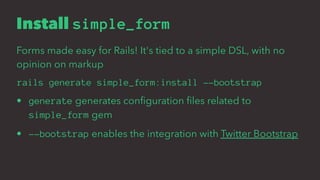

22. Install simple_form
Forms made easy for Rails! It's tied to a simple DSL, with no
opinion on markup
rails generate simple_form:install --bootstrap
• generate generates configuration files related to
simple_form gem
• --bootstrap enables the integration with Twitter Bootstrap

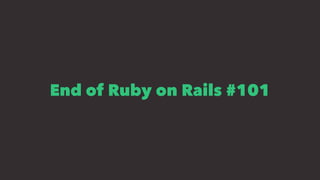

23. End of Ruby on Rails #101

24. Ruby on Rails
#102 Create static pages

25. High voltage
Linkin park

26. high_voltage gem
1. Developed by thoughtbot
2. Easily include static pages in your Rails app.

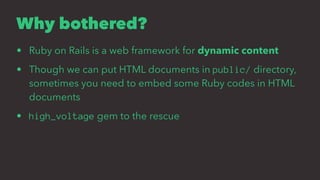

27. Why bothered?
• Ruby on Rails is a web framework for dynamic content
• Though we can put HTML documents in public/ directory,
sometimes you need to embed some Ruby codes in HTML
documents
• high_voltage gem to the rescue

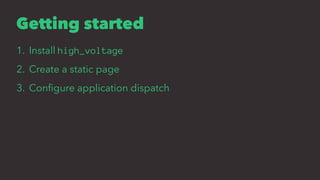

28. Getting started
1. Install high_voltage
2. Create a static page
3. Configure application dispatch

29. Install high_voltage
1. We don't need to install high_voltage gem. It has been
included in projects produced by suspenders
2. That's why we don't create the project from scratch

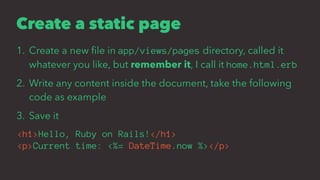

30. Create a static page
1. Create a new file in app/views/pages directory, called it
whatever you like, but remember it, I call it home.html.erb
2. Write any content inside the document, take the following
code as example
3. Save it
<h1>Hello, Ruby on Rails!</h1>
<p>Current time: <%= DateTime.now %></p>

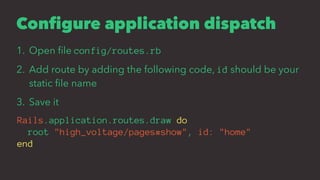

31. Configure application dispatch
1. Open file config/routes.rb
2. Add route by adding the following code, id should be your
static file name
3. Save it
Rails.application.routes.draw do
root "high_voltage/pages#show", id: "home"
end

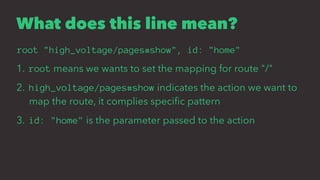

32. What does this line mean?
root "high_voltage/pages#show", id: "home"
1. root means we wants to set the mapping for route "/"
2. high_voltage/pages#show indicates the action we want to
map the route, it complies specific pattern
3. id: "home" is the parameter passed to the action

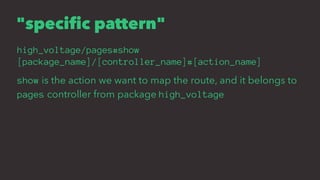

33. "specific pattern"
high_voltage/pages#show
[package_name]/[controller_name]#[action_name]
show is the action we want to map the route, and it belongs to
pages controller from package high_voltage

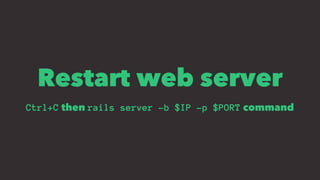

34. Restart web server
Ctrl+C then rails server -b $IP -p $PORT command

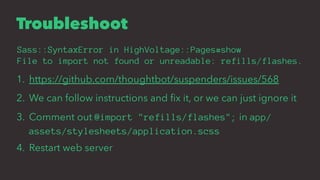

35. Troubleshoot
Sass::SyntaxError in HighVoltage::Pages#show
File to import not found or unreadable: refills/flashes.
1. https://github.com/thoughtbot/suspenders/issues/568
2. We can follow instructions and fix it, or we can just ignore it
3. Comment out @import "refills/flashes"; in app/
assets/stylesheets/application.scss
4. Restart web server

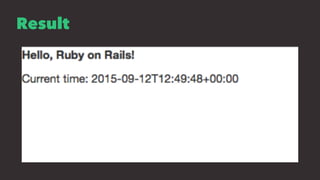

36. Result

37. Try to create another static pages
• Browse them via route pages/:page_name
• Replace :page_name with static page file name excluding
".html.erb"

38. End of Ruby on Rails #102

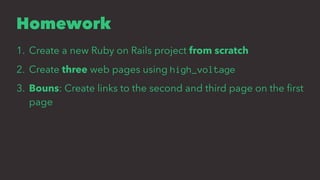

39. Homework
1. Create a new Ruby on Rails project from scratch
2. Create three web pages using high_voltage
3. Bouns: Create links to the second and third page on the first
page
