2. RIoT
Hackathon
Technologies:
Programming for
ESP32
RoadToRIoT - Bogor, Jul 15, 2017

3. fb.com/andri.yadi | a at dycode dot com
http://andriyadi.me | http://dycodex.com
Andri Yadi

4. makestro.comCEO
ambassador

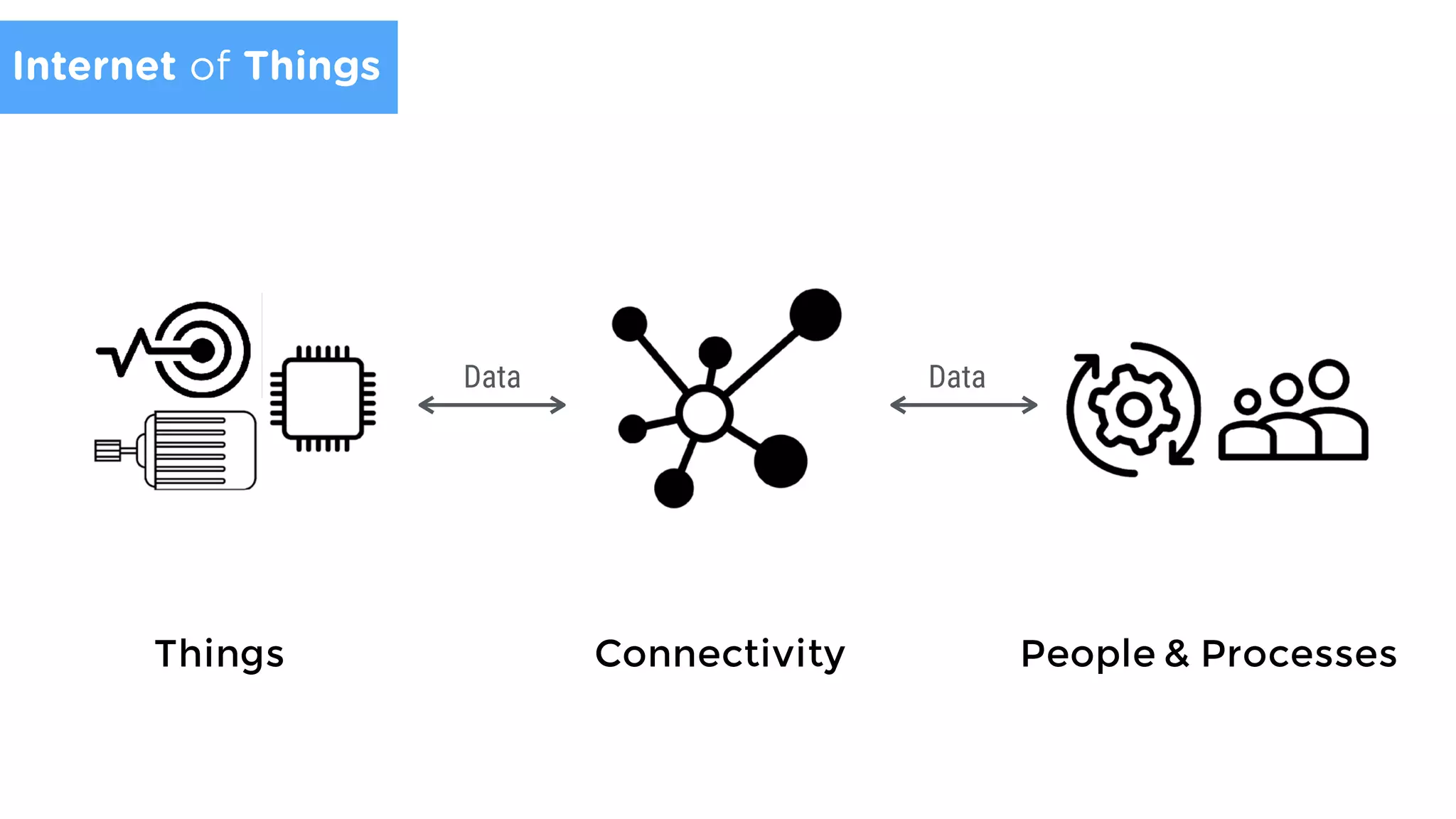

5. Things Connectivity People & Processes
Data Data
Internet of Things

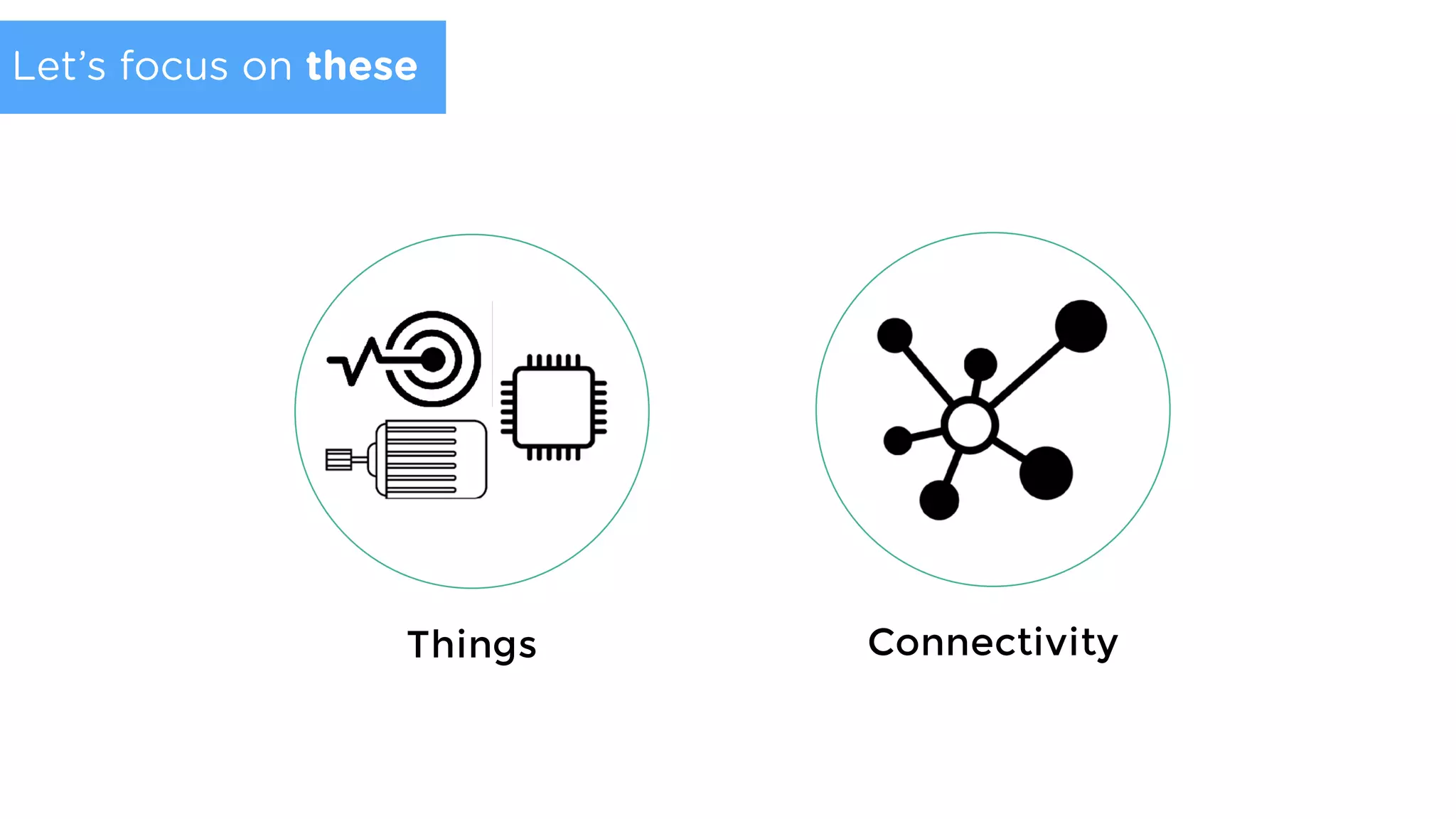

6. Things Connectivity
Let’s focus on these

7. NatureSmart Farming Smart City EducationSecurity
Smart Living Maritime
RIoT Hackathon Categories
Transportation Healthcare
Industrial IoT DifableEngagement
Fintech &
E-Commerce
Sport

8. RIoT
Hackathon
Hardware Kits

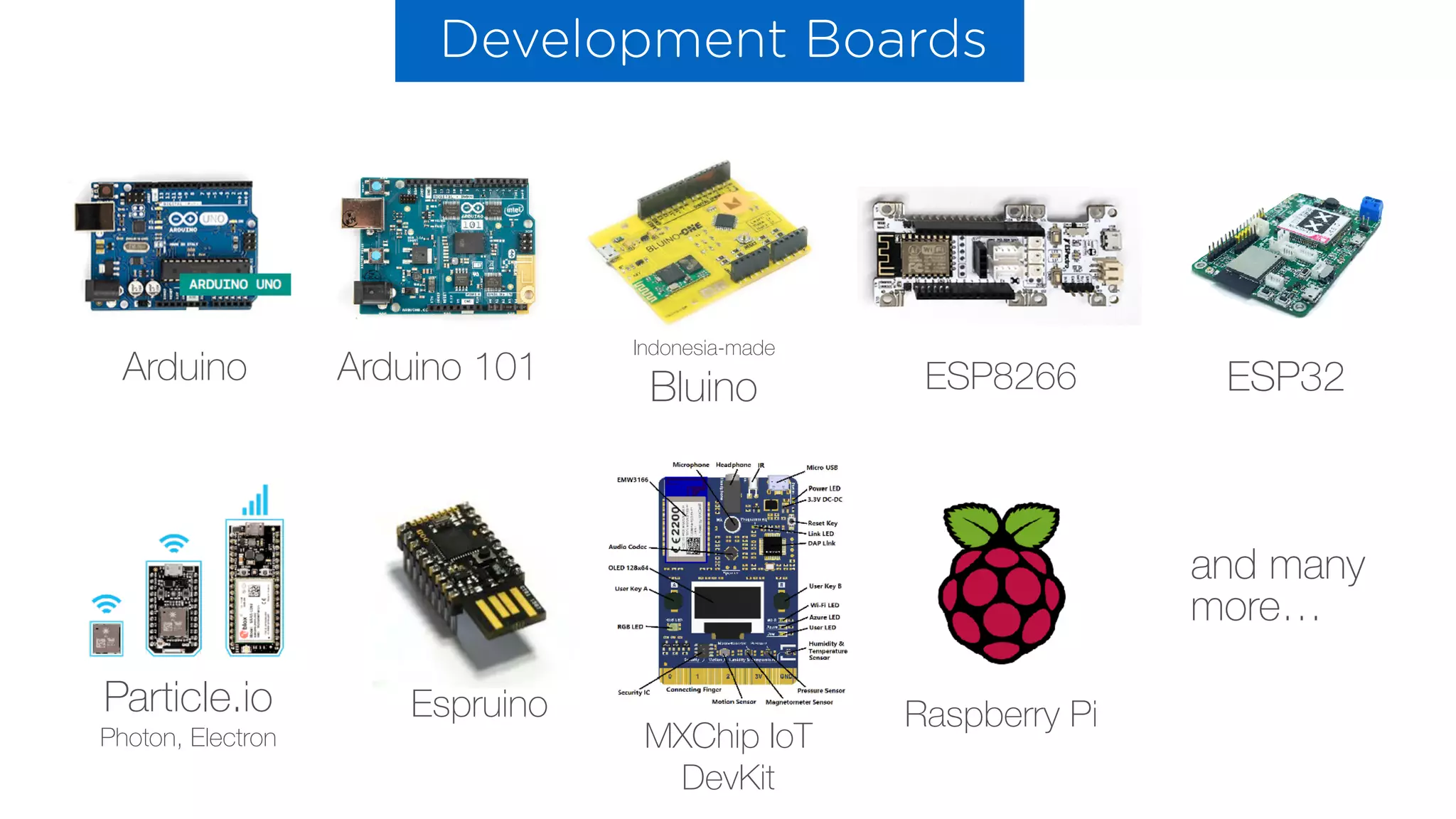

9. ESP8266Arduino ESP32
EspruinoParticle.io
Photon, Electron
Arduino 101
Indonesia-made
Bluino
MXChip IoT
DevKit
Raspberry Pi
and many
more…
Development Boards

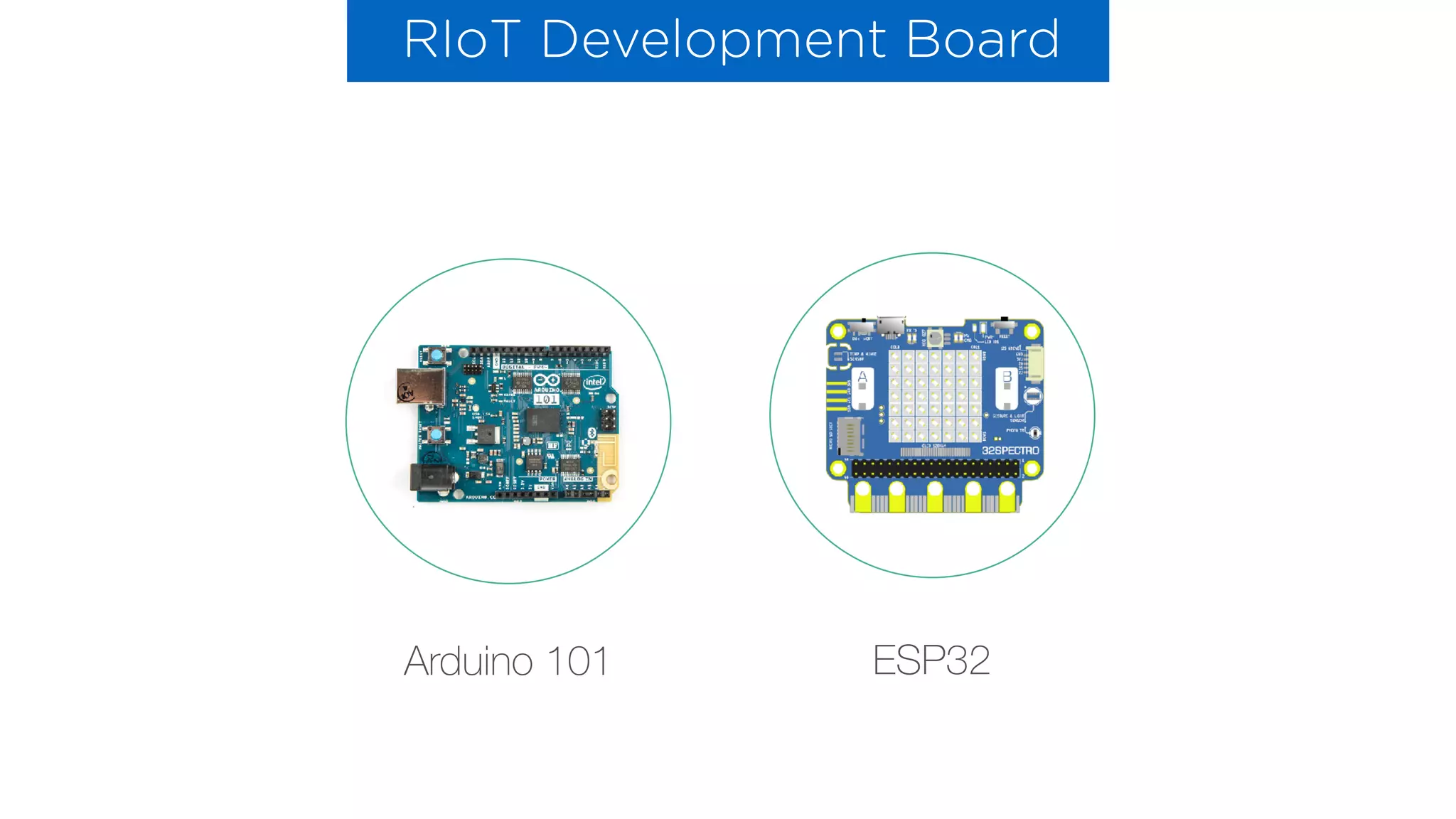

10. ESP32Arduino 101
RIoT Development Board

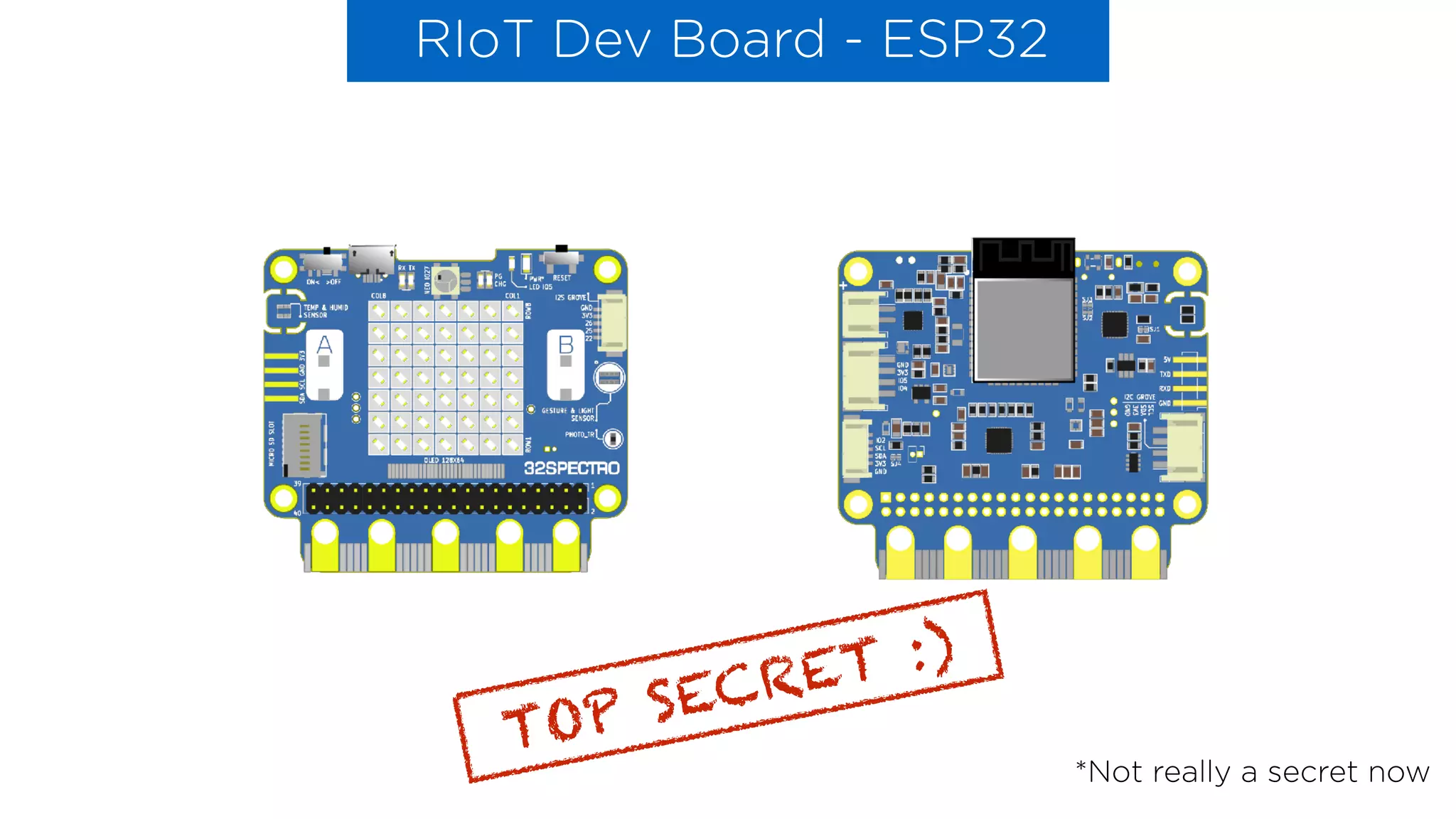

11. RIoT Dev Board - ESP32
TOP SECRET :)
*Not really a secret now

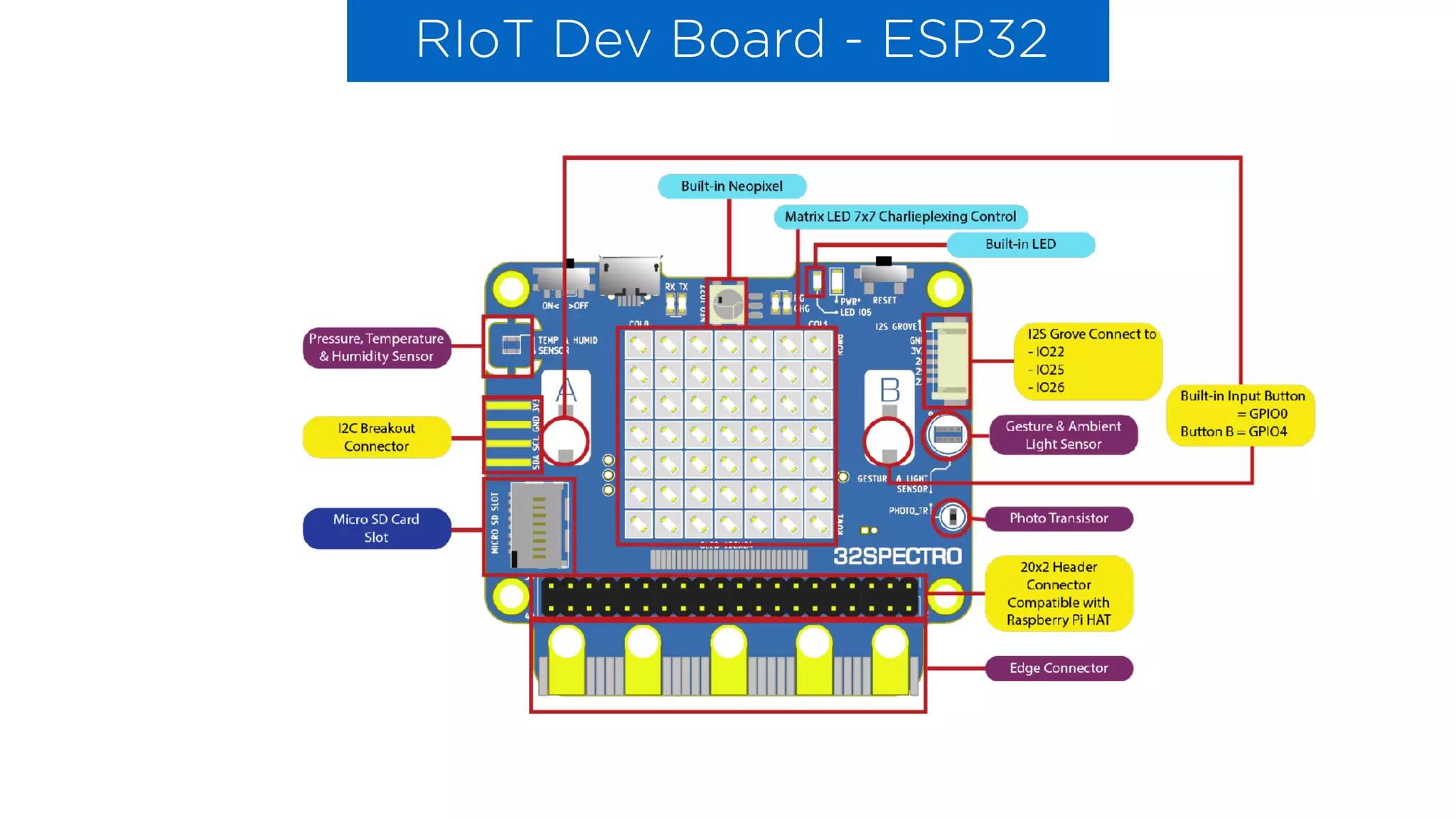

12. RIoT Dev Board - ESP32

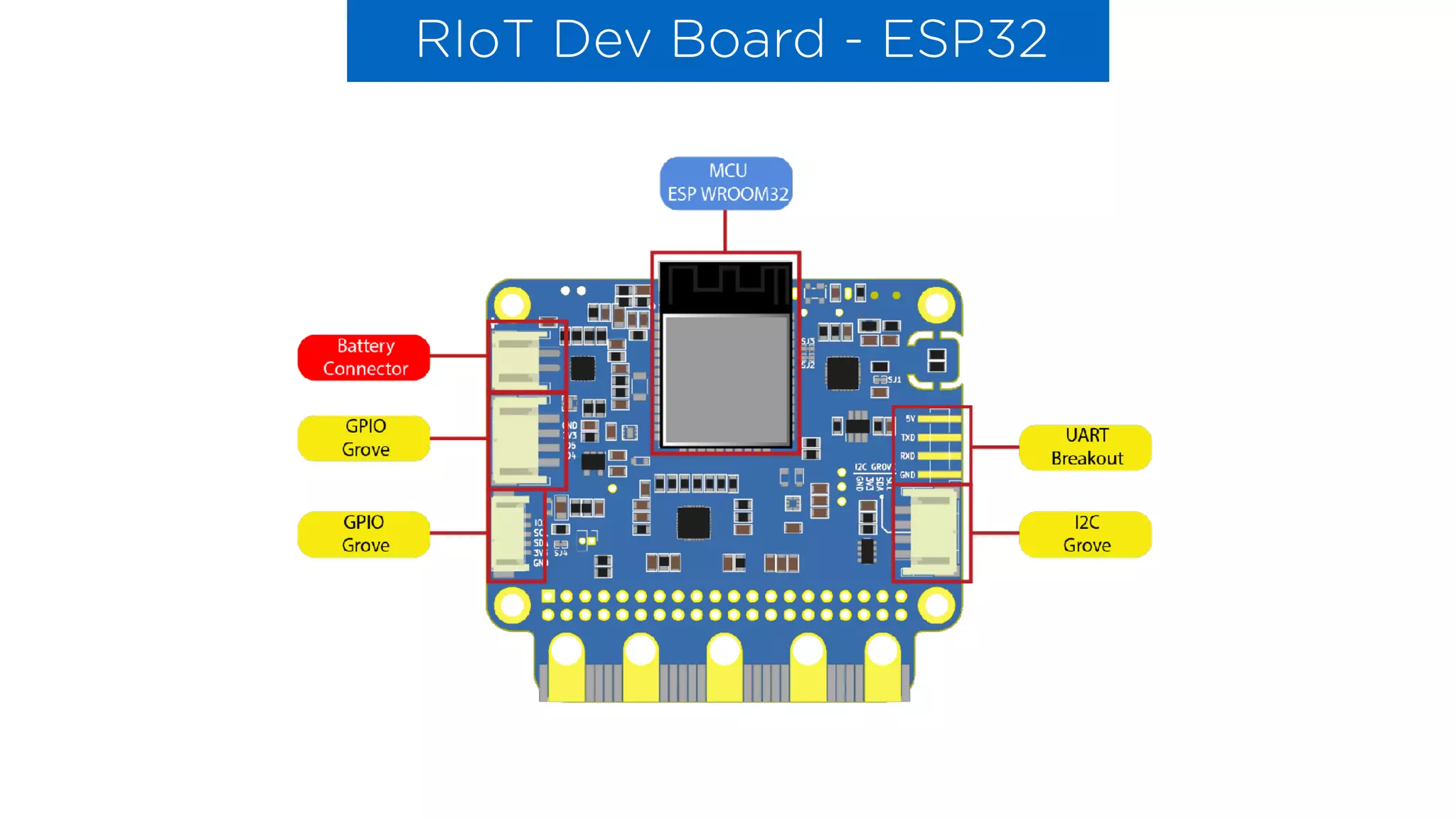

13. RIoT Dev Board - ESP32

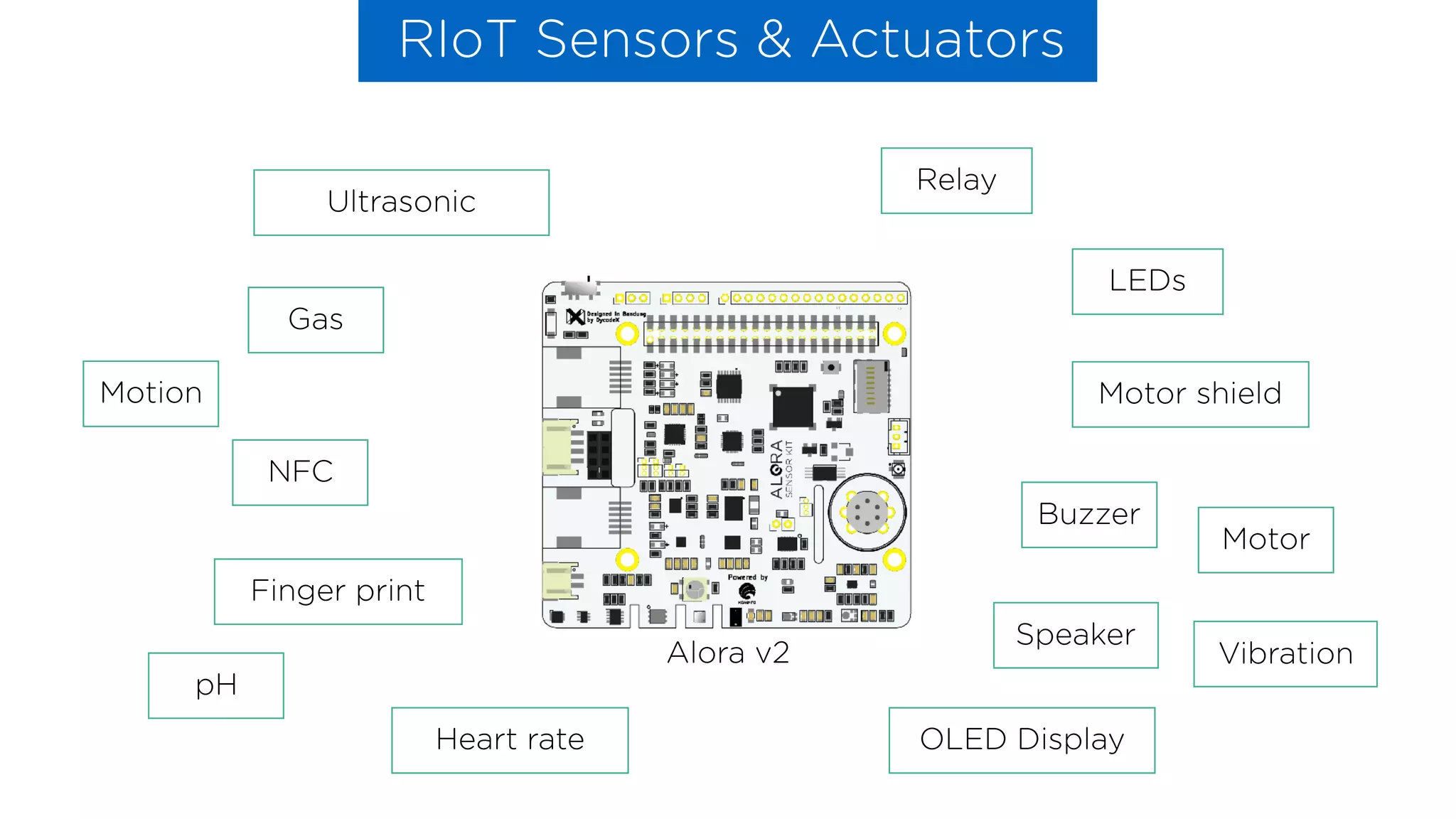

14. RIoT Sensors & Actuators
Ultrasonic
Relay
LEDs
Motor shield
Gas
Motion
NFC
Buzzer
pH
Heart rate
Finger print
OLED Display
Speaker
Motor
VibrationAlora v2

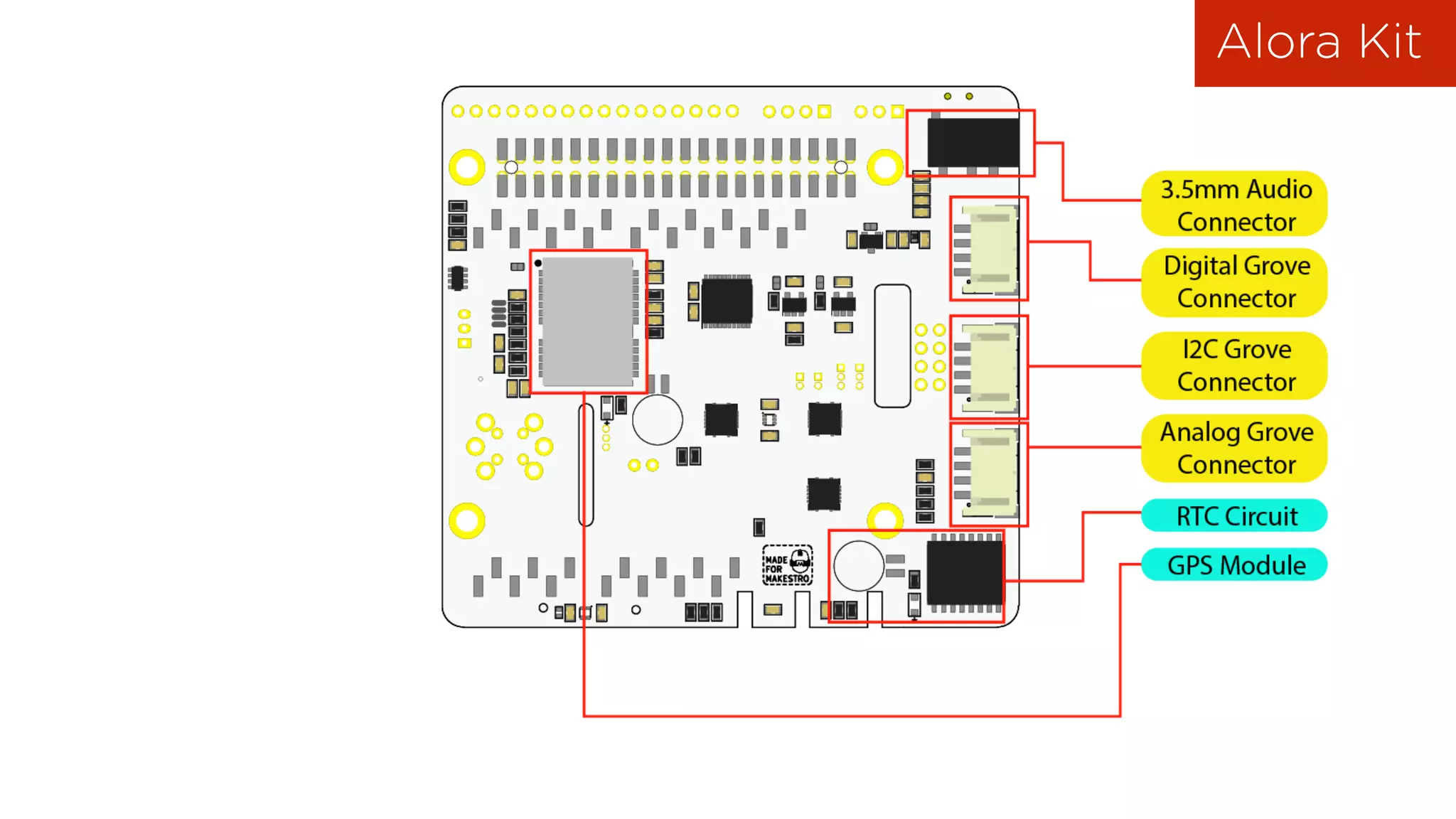

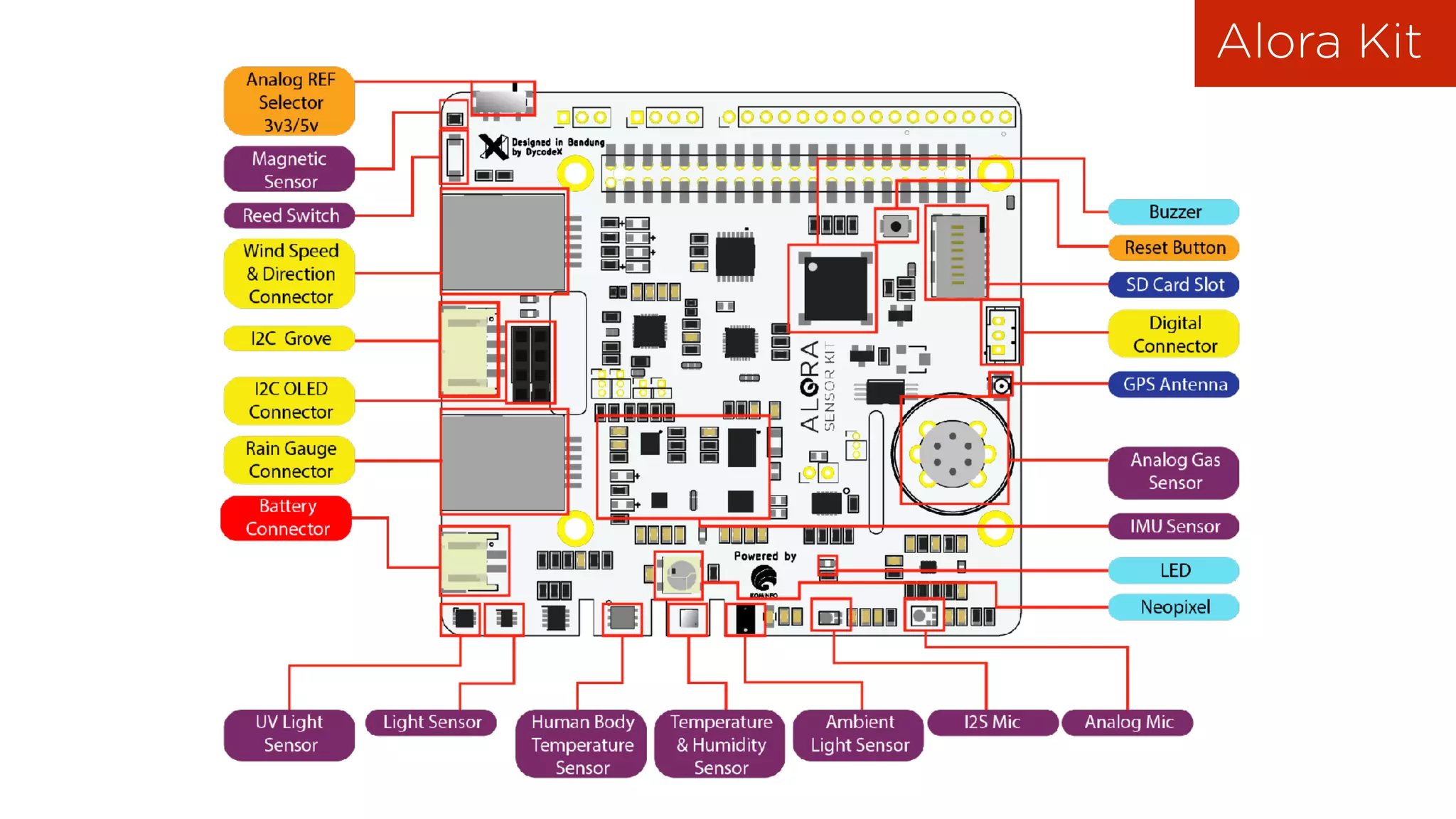

15. Alora Kit

16. Alora Kit

17. RIoT
Hardware
Connectivity

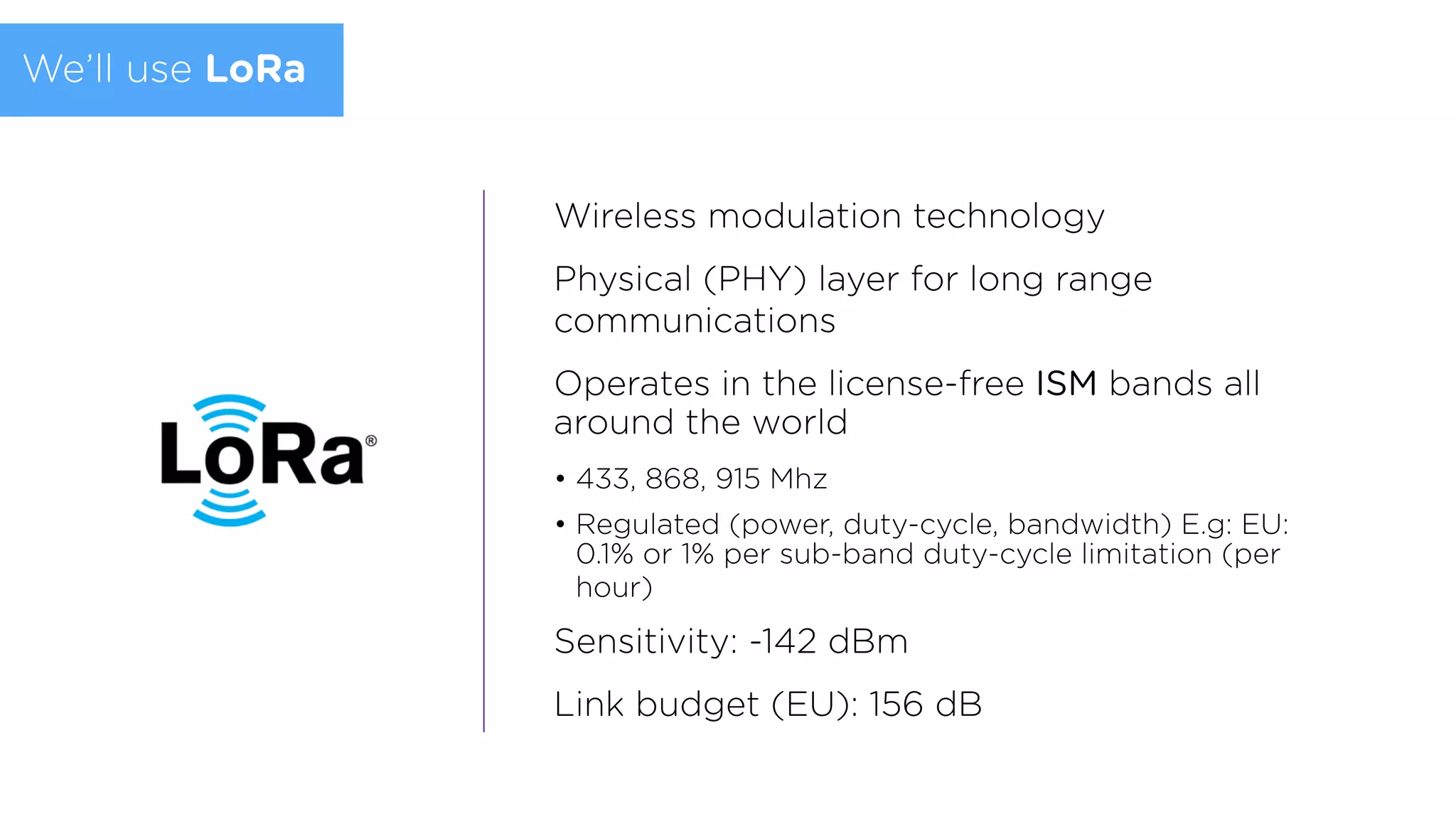

18. Wireless modulation technology
Physical (PHY) layer for long range
communications
Operates in the license-free ISM bands all
around the world
• 433, 868, 915 Mhz
• Regulated (power, duty-cycle, bandwidth) E.g: EU:
0.1% or 1% per sub-band duty-cycle limitation (per
hour)
Sensitivity: -142 dBm
Link budget (EU): 156 dB
We’ll use LoRa

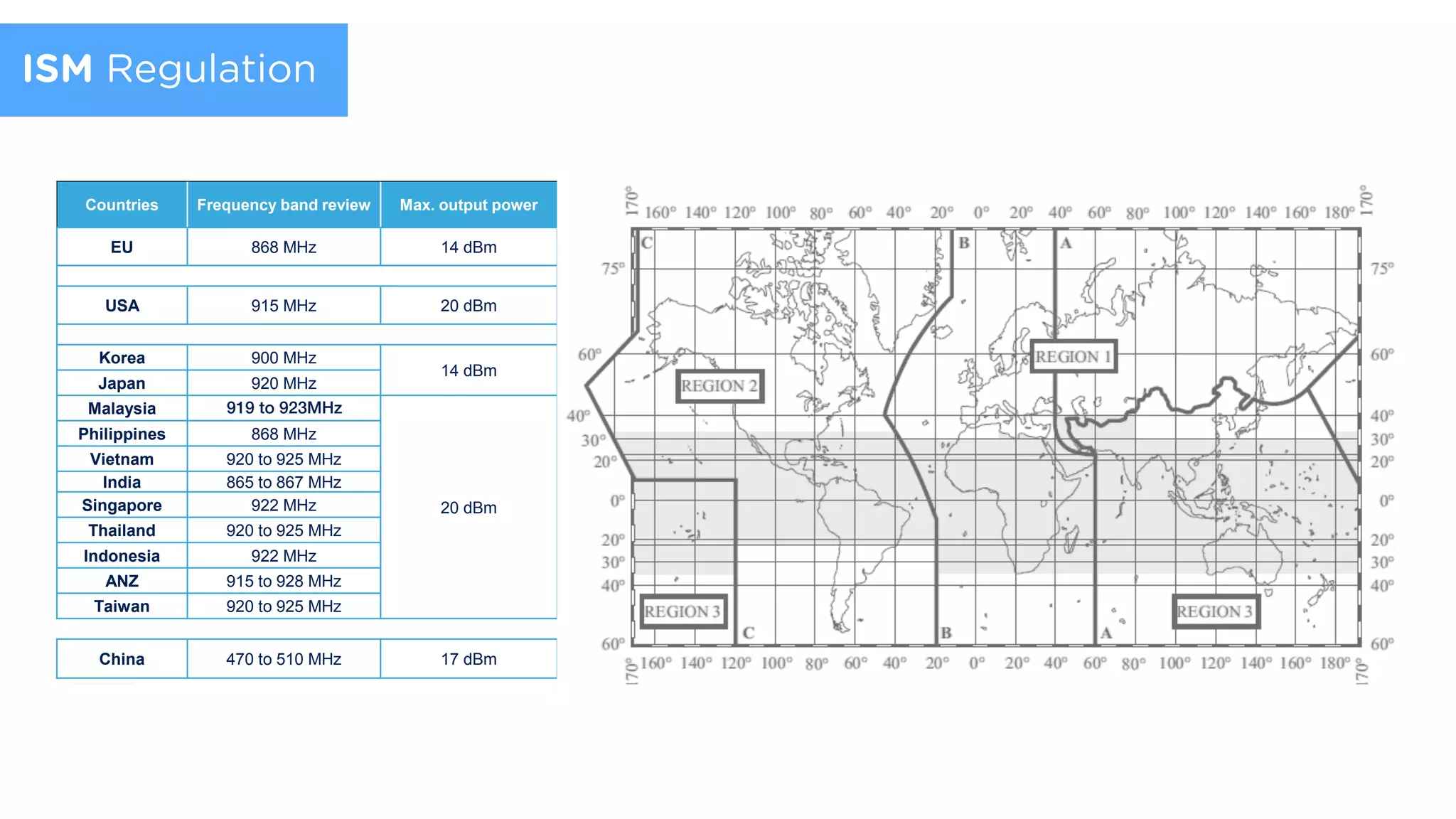

19. ISM Regulation ISM worldwide regulation 7
Output Power vs Duty Cycle
Countries Frequency band review Max. output power
EU 868 MHz 14 dBm
USA 915 MHz 20 dBm
Korea 900 MHz
14 dBm
Japan 920 MHz
Malaysia 862 to 875 MHz
20 dBm
Philippines 868 MHz
Vietnam 920 to 925 MHz
India 865 to 867 MHz
Singapore 922 MHz
Thailand 920 to 925 MHz
Indonesia 922 MHz
ANZ 915 to 928 MHz
Taiwan 920 to 925 MHz
China 470 to 510 MHz 17 dBm
919 to 923MHz

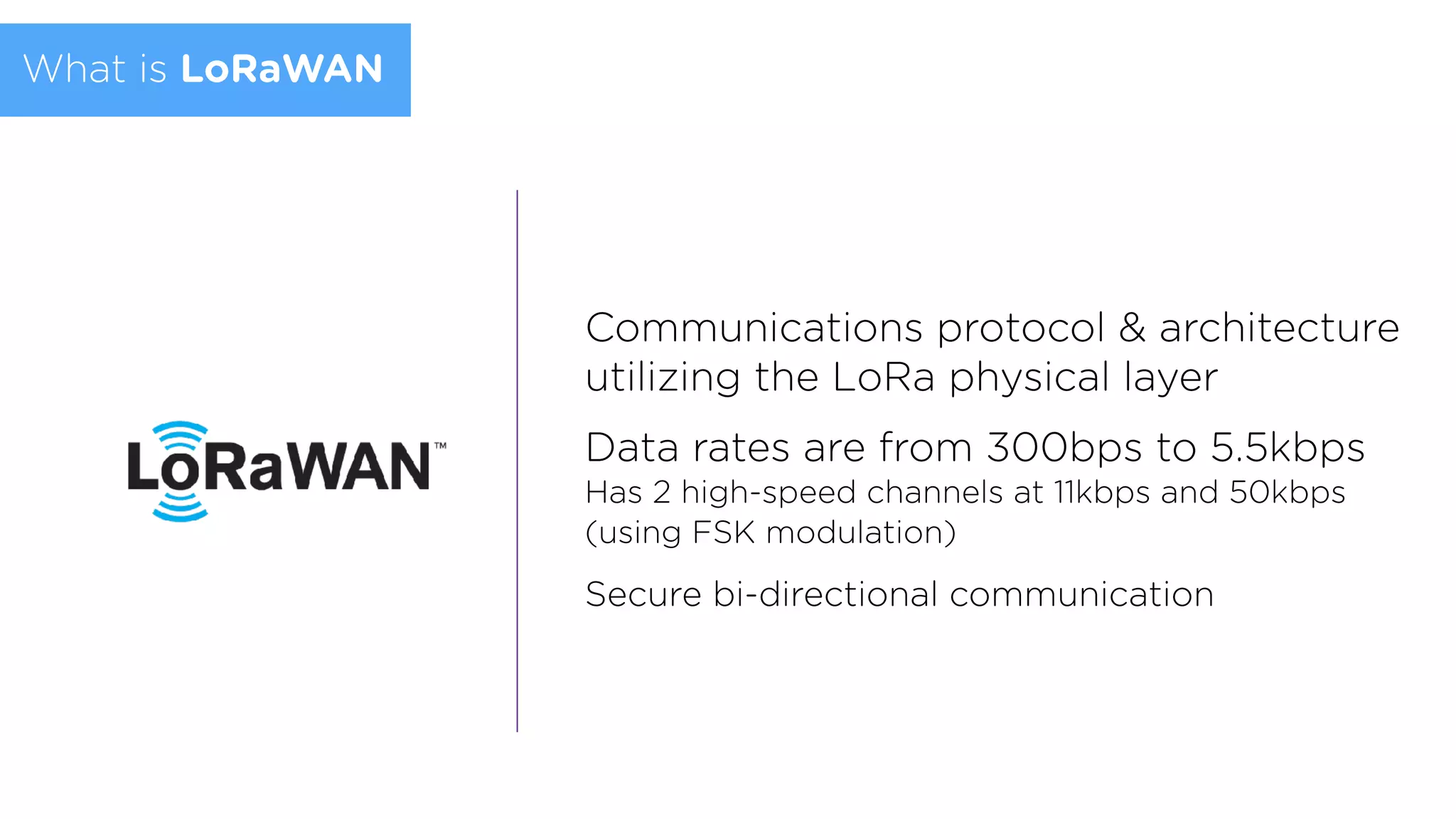

20. Communications protocol & architecture
utilizing the LoRa physical layer
Data rates are from 300bps to 5.5kbps
Has 2 high-speed channels at 11kbps and 50kbps
(using FSK modulation)
Secure bi-directional communication
What is LoRaWAN

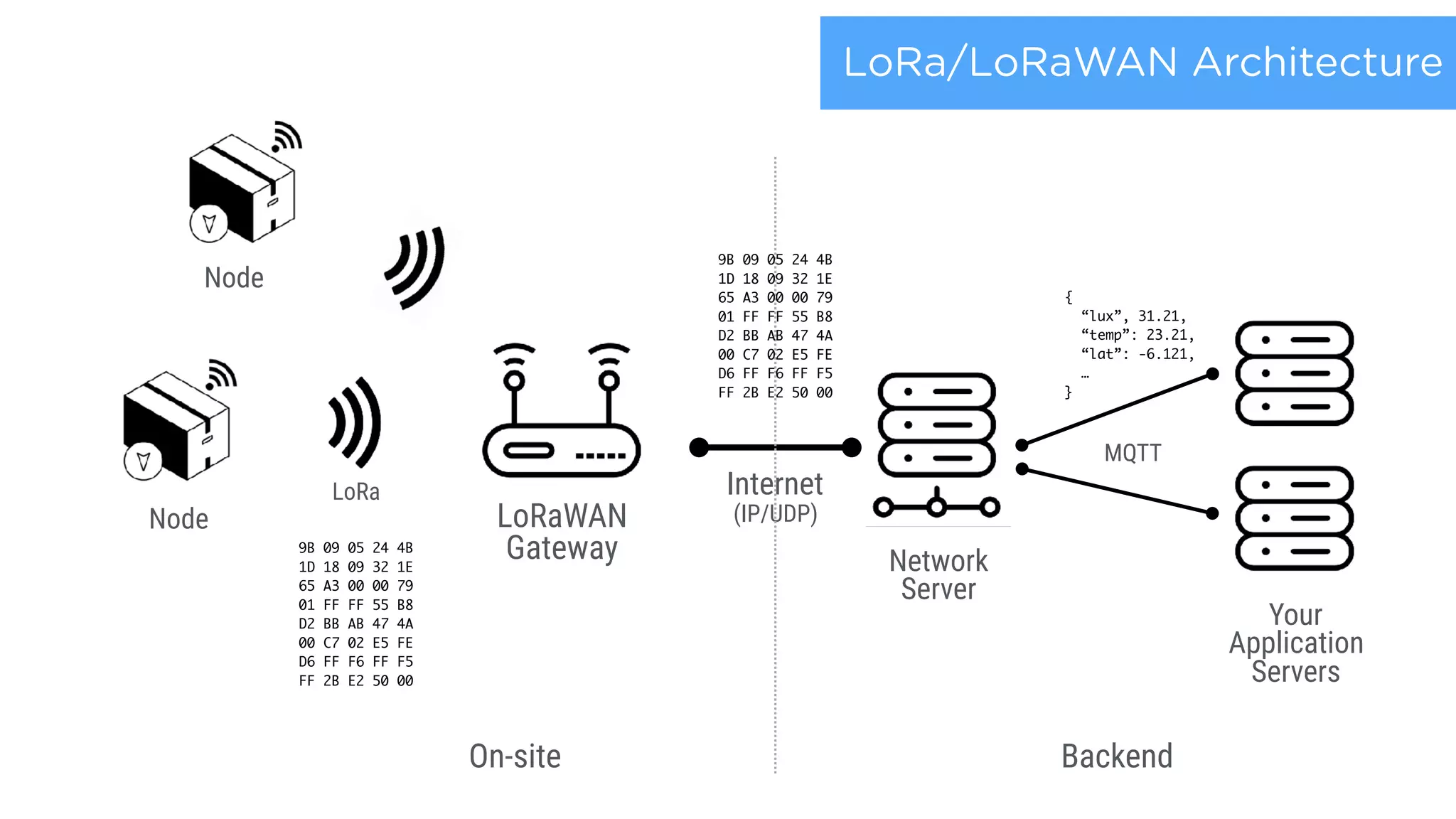

21. LoRa
LoRaWAN
Gateway Network
Server
Your
Application
Servers
Internet
(IP/UDP)Node
LoRa/LoRaWAN Architecture
MQTT
9B 09 05 24 4B
1D 18 09 32 1E
65 A3 00 00 79
01 FF FF 55 B8
D2 BB AB 47 4A
00 C7 02 E5 FE
D6 FF F6 FF F5
FF 2B E2 50 00
9B 09 05 24 4B
1D 18 09 32 1E
65 A3 00 00 79
01 FF FF 55 B8
D2 BB AB 47 4A
00 C7 02 E5 FE
D6 FF F6 FF F5
FF 2B E2 50 00
{
“lux”, 31.21,
“temp”: 23.21,
“lat”: -6.121,
…
}
Node
On-site Backend

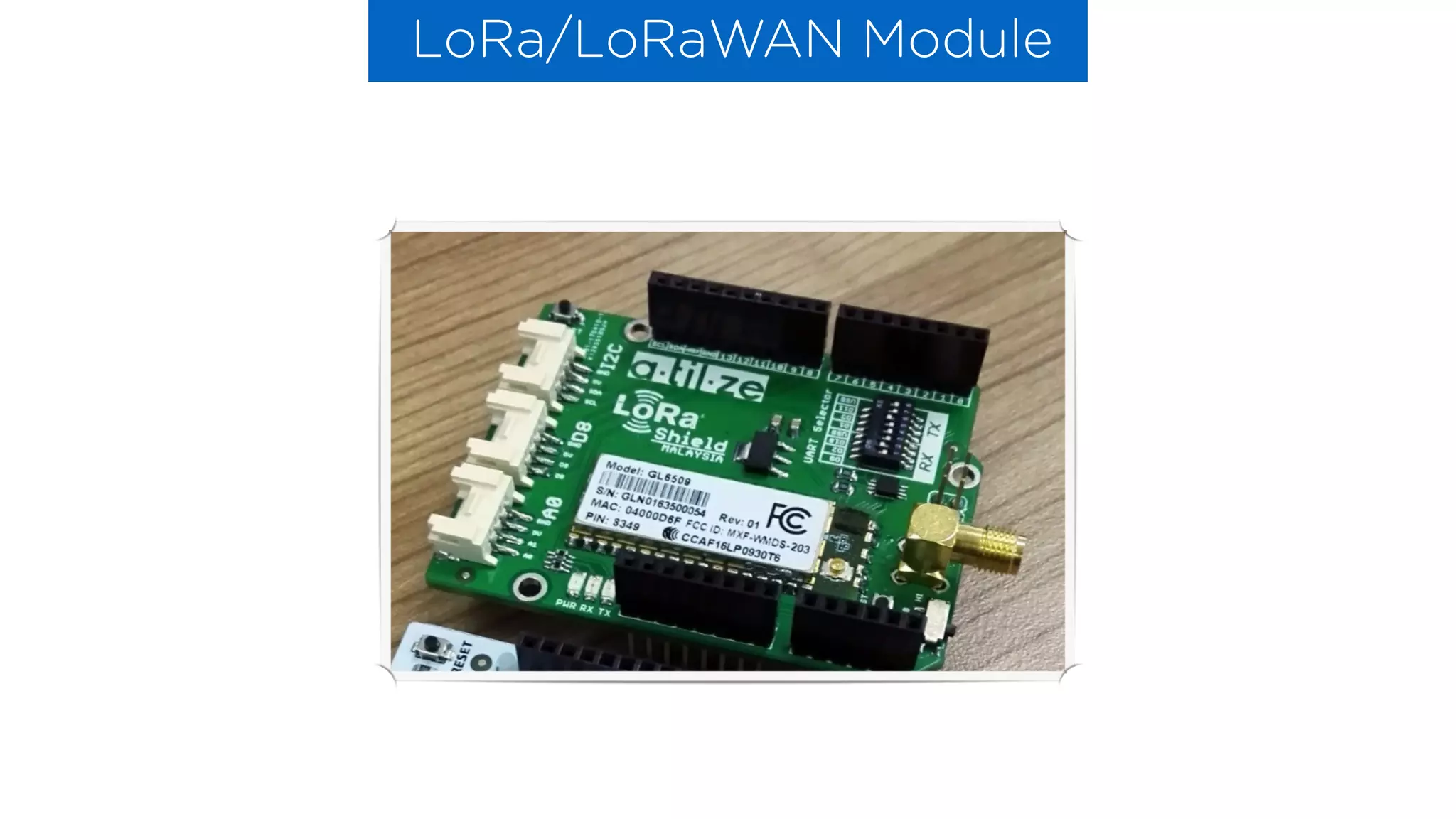

22. LoRa/LoRaWAN Module

23. RIoT
Hackathon
ESP32

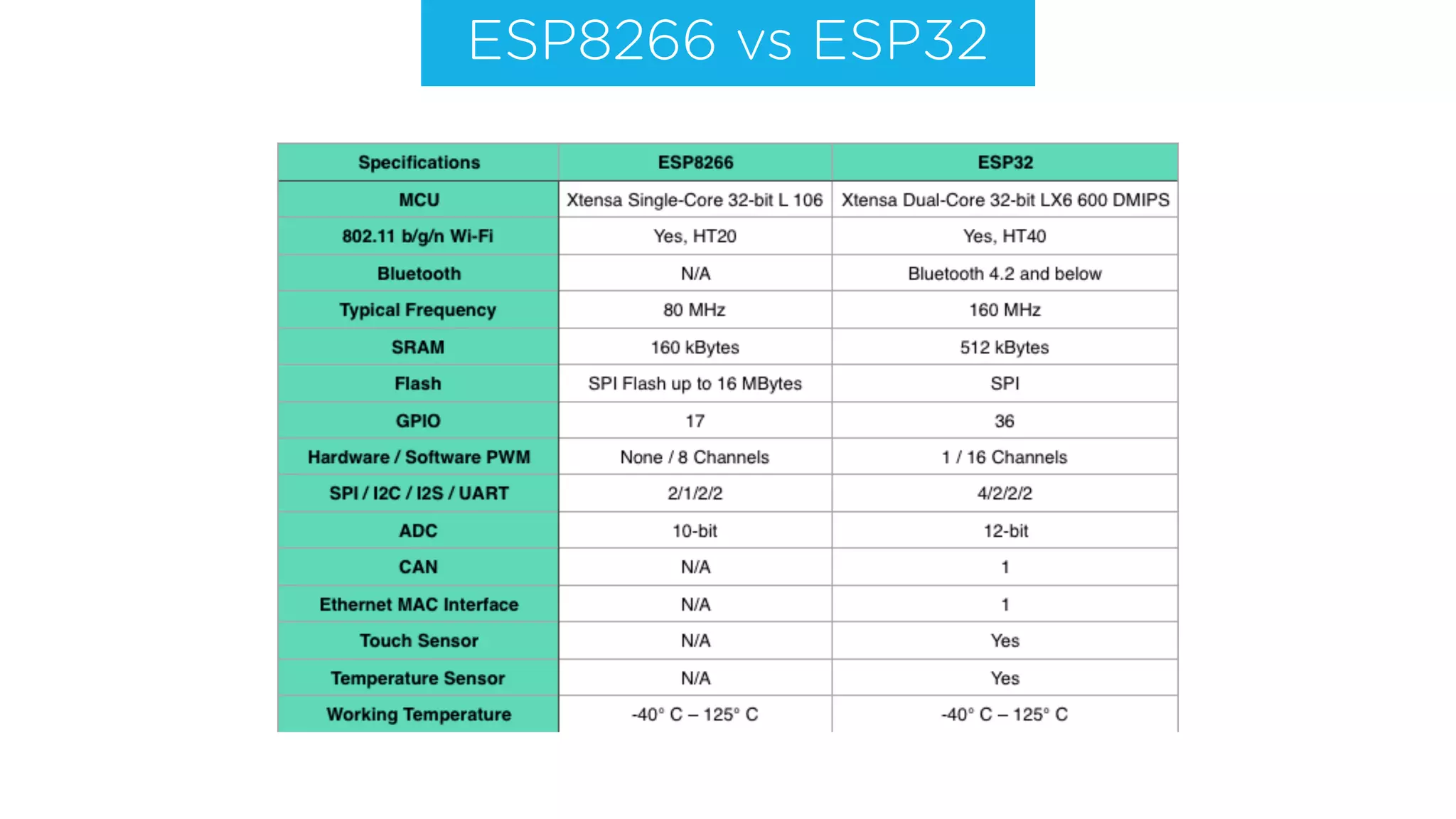

25. ESP8266 vs ESP32

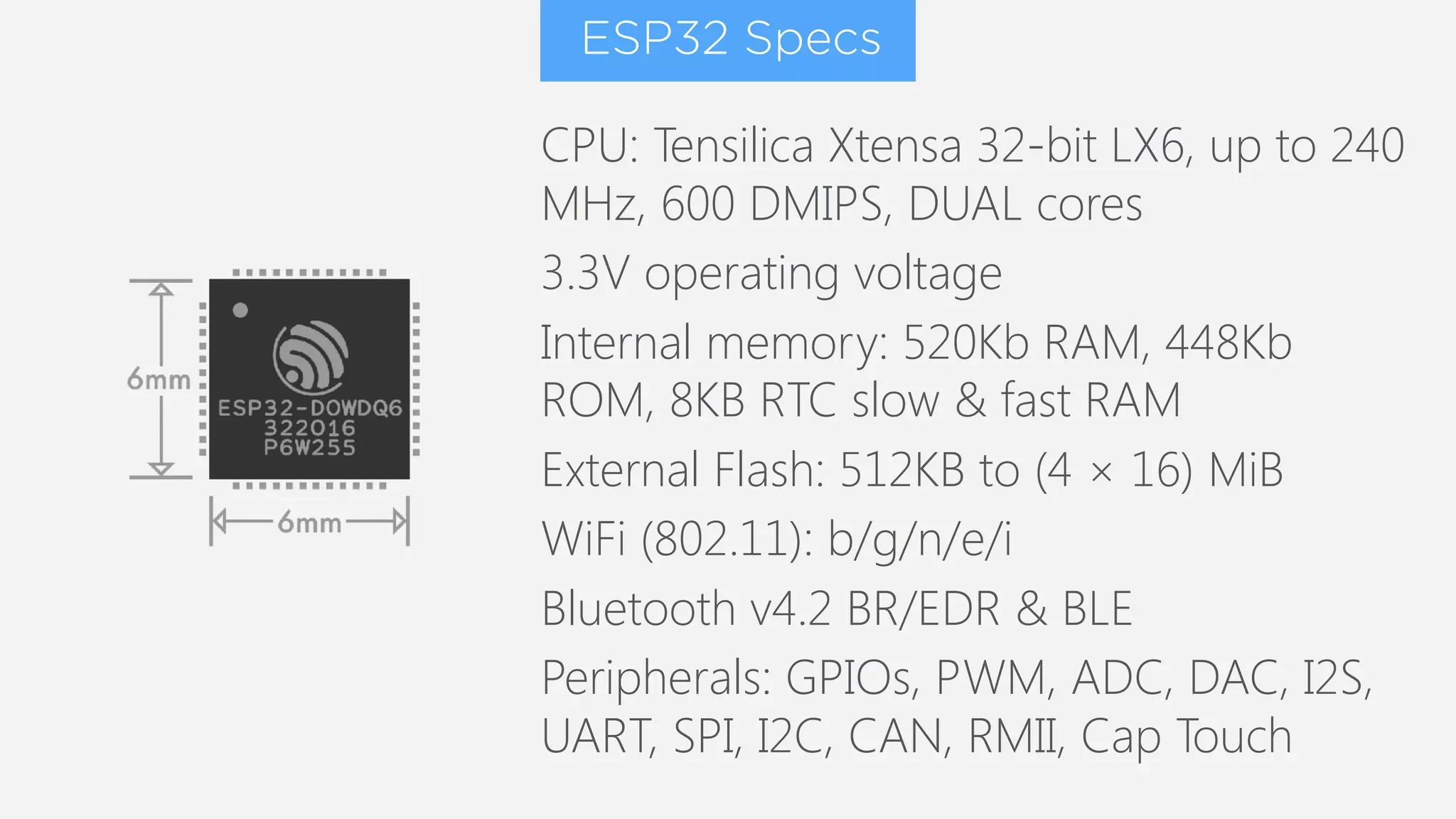

26. CPU: Tensilica Xtensa 32-bit LX6, up to 240
MHz, 600 DMIPS, DUAL cores
3.3V operating voltage
Internal memory: 520Kb RAM, 448Kb
ROM, 8KB RTC slow & fast RAM
External Flash: 512KB to (4 × 16) MiB
WiFi (802.11): b/g/n/e/i
Bluetooth v4.2 BR/EDR & BLE
Peripherals: GPIOs, PWM, ADC, DAC, I2S,
UART, SPI, I2C, CAN, RMII, Cap Touch
ESP32 Specs

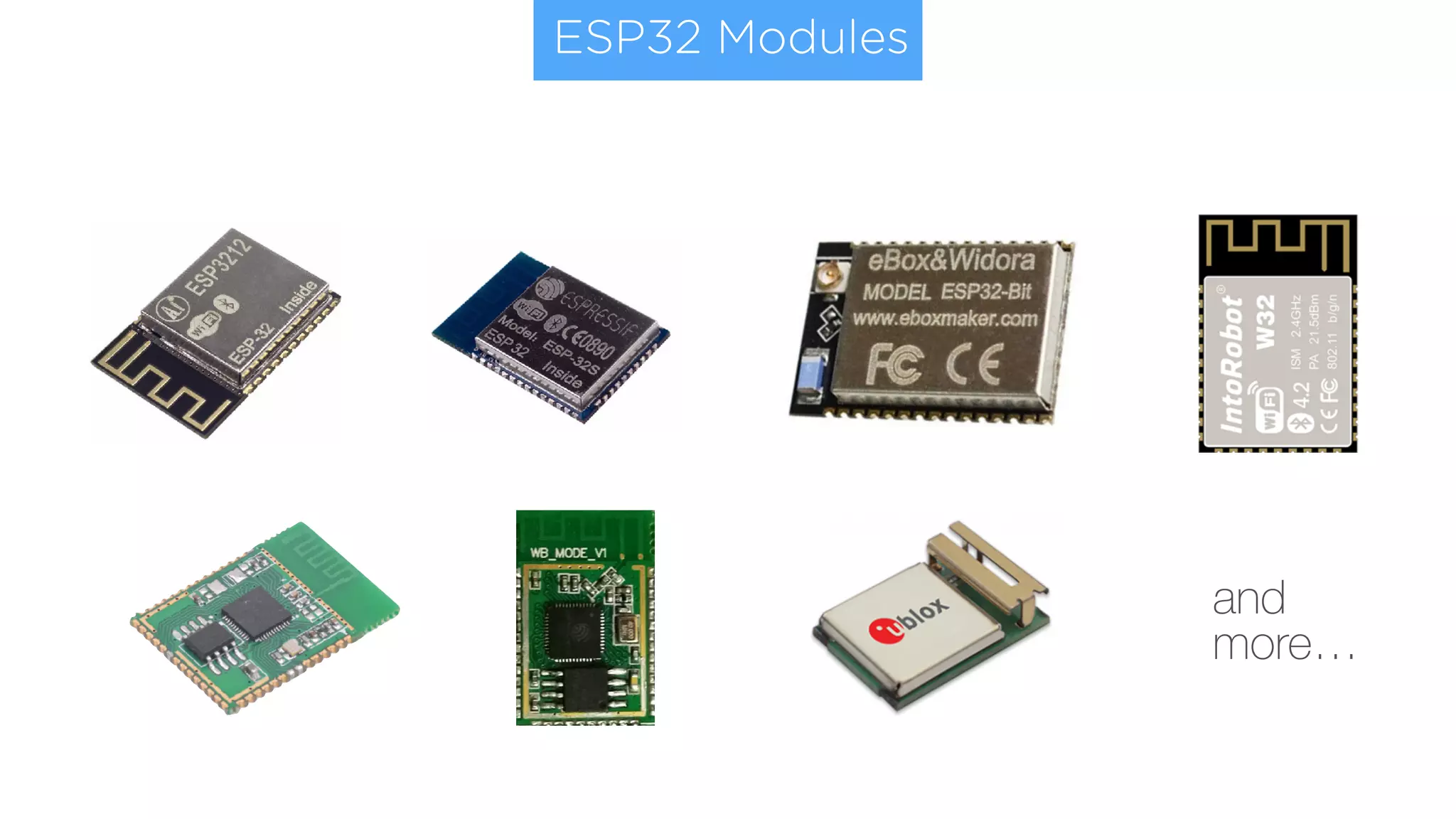

27. ESP32 Modules
and
more…

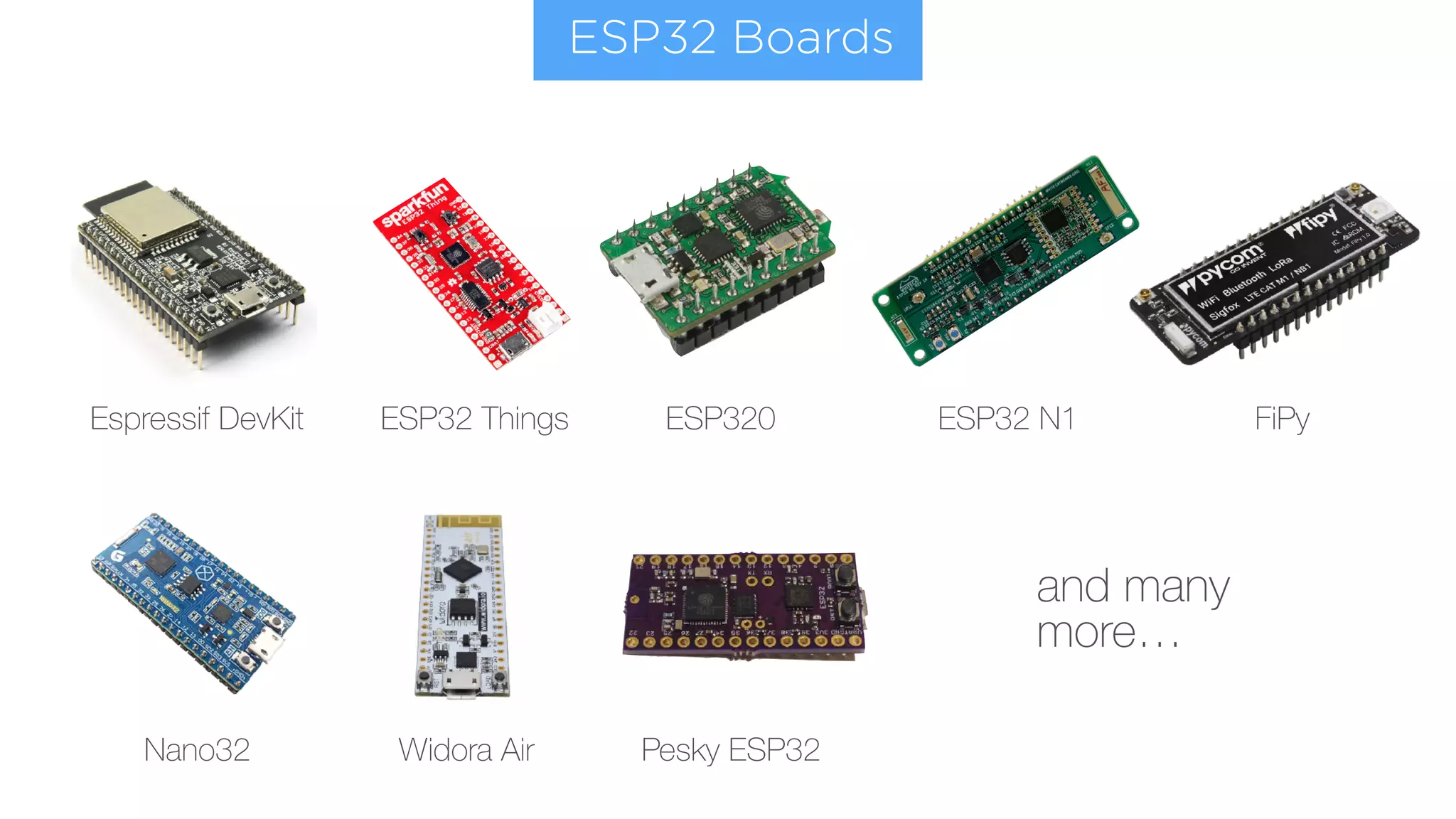

28. ESP32 Boards
Widora Air
Espressif DevKit
Nano32 Pesky ESP32
ESP32 Things ESP32 N1 FiPyESP320
and many
more…

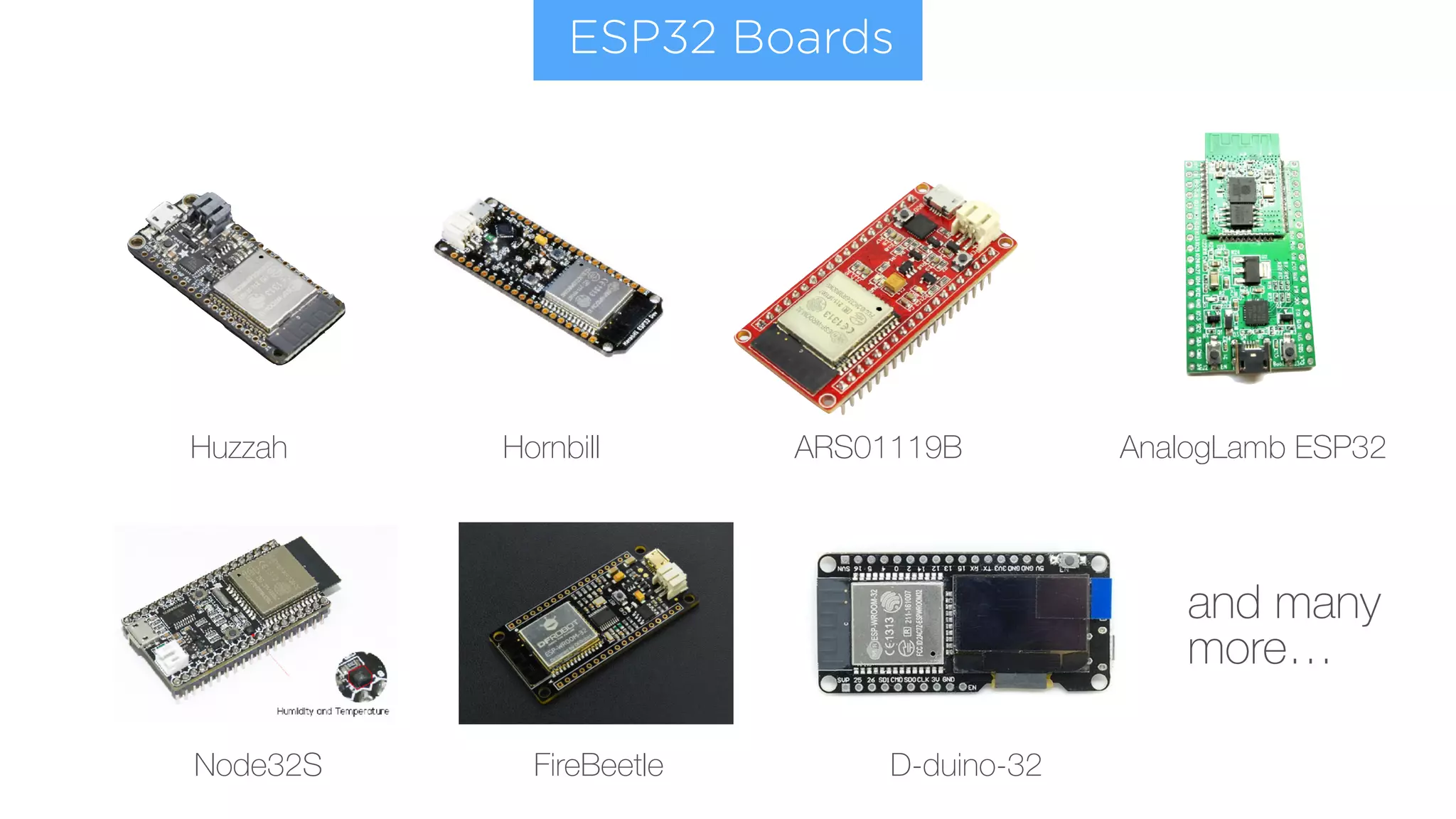

29. Hornbill ARS01119BHuzzah AnalogLamb ESP32
Node32S FireBeetle D-duino-32
ESP32 Boards
and many
more…

30. Programming Languages

31. Development Platforms
ESP-IDF

32. Development Tools/IDE

33. DEMO

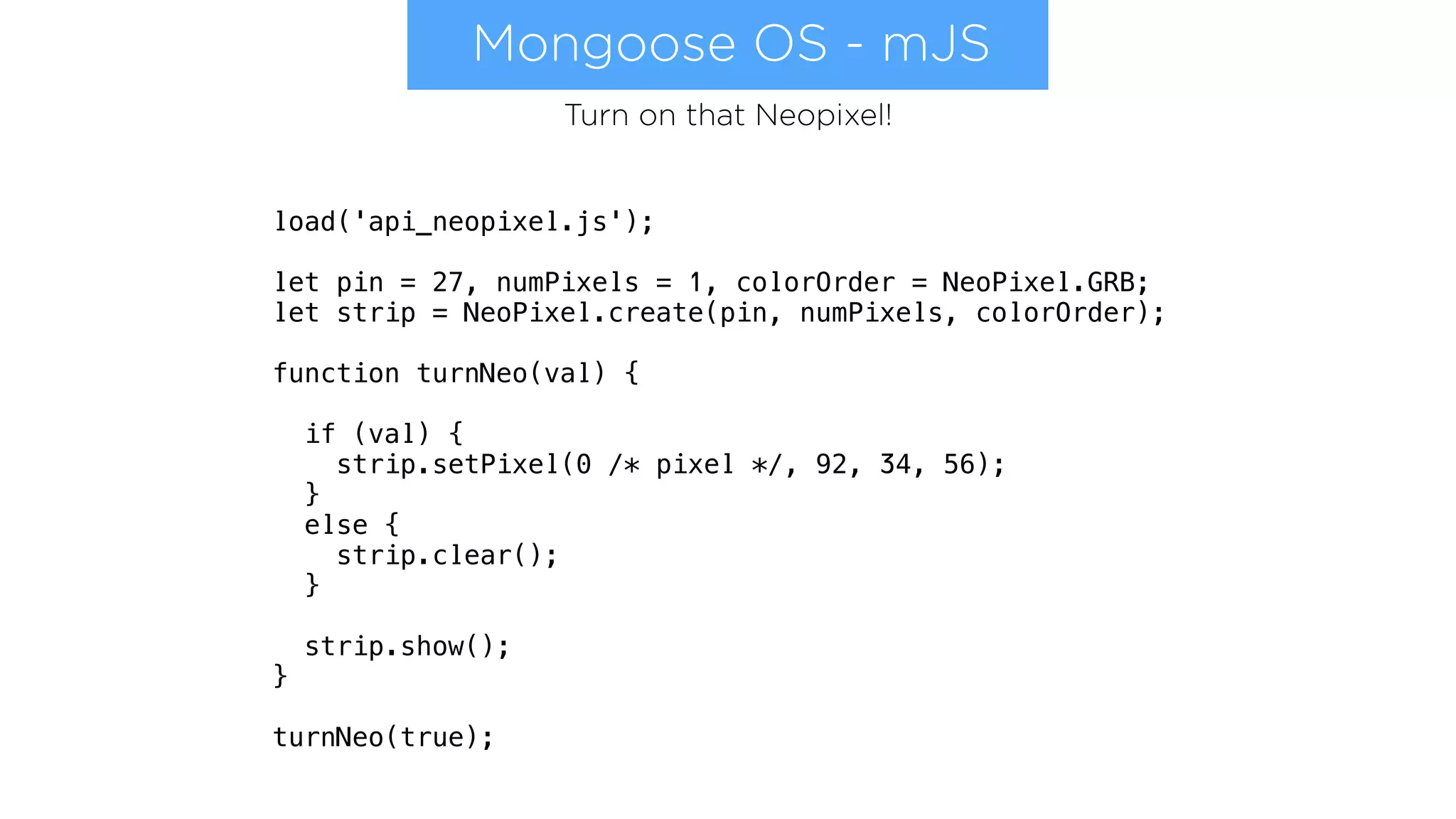

34. Mongoose OS - mJS
load('api_neopixel.js');
let pin = 27, numPixels = 1, colorOrder = NeoPixel.GRB;
let strip = NeoPixel.create(pin, numPixels, colorOrder);
function turnNeo(val) {
if (val) {
strip.setPixel(0 /* pixel */, 92, 34, 56);
}
else {
strip.clear();
}
strip.show();
}
turnNeo(true);
Turn on that Neopixel!

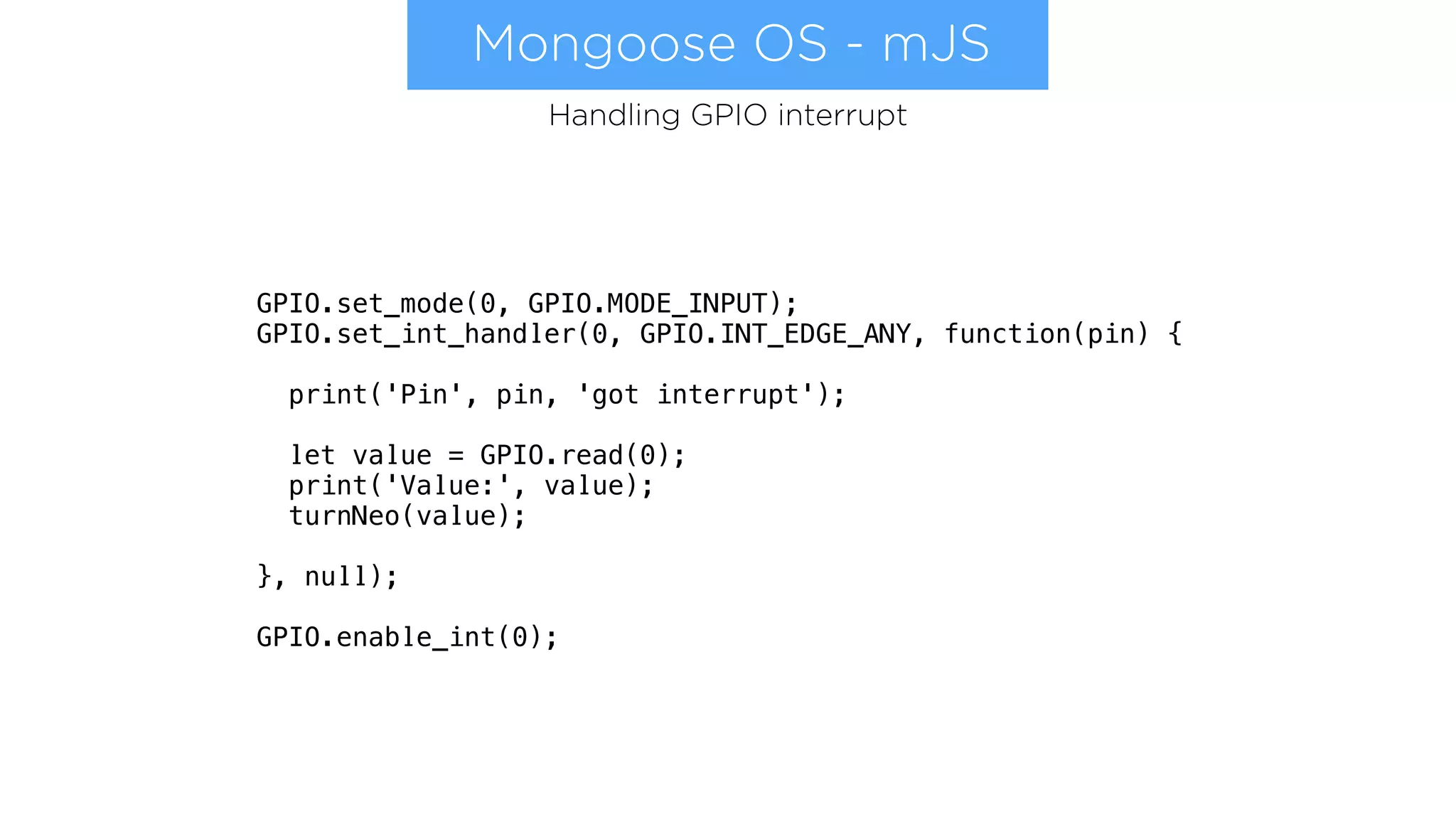

35. Mongoose OS - mJS
GPIO.set_mode(0, GPIO.MODE_INPUT);
GPIO.set_int_handler(0, GPIO.INT_EDGE_ANY, function(pin) {
print('Pin', pin, 'got interrupt');
let value = GPIO.read(0);
print('Value:', value);
turnNeo(value);
}, null);
GPIO.enable_int(0);
Handling GPIO interrupt

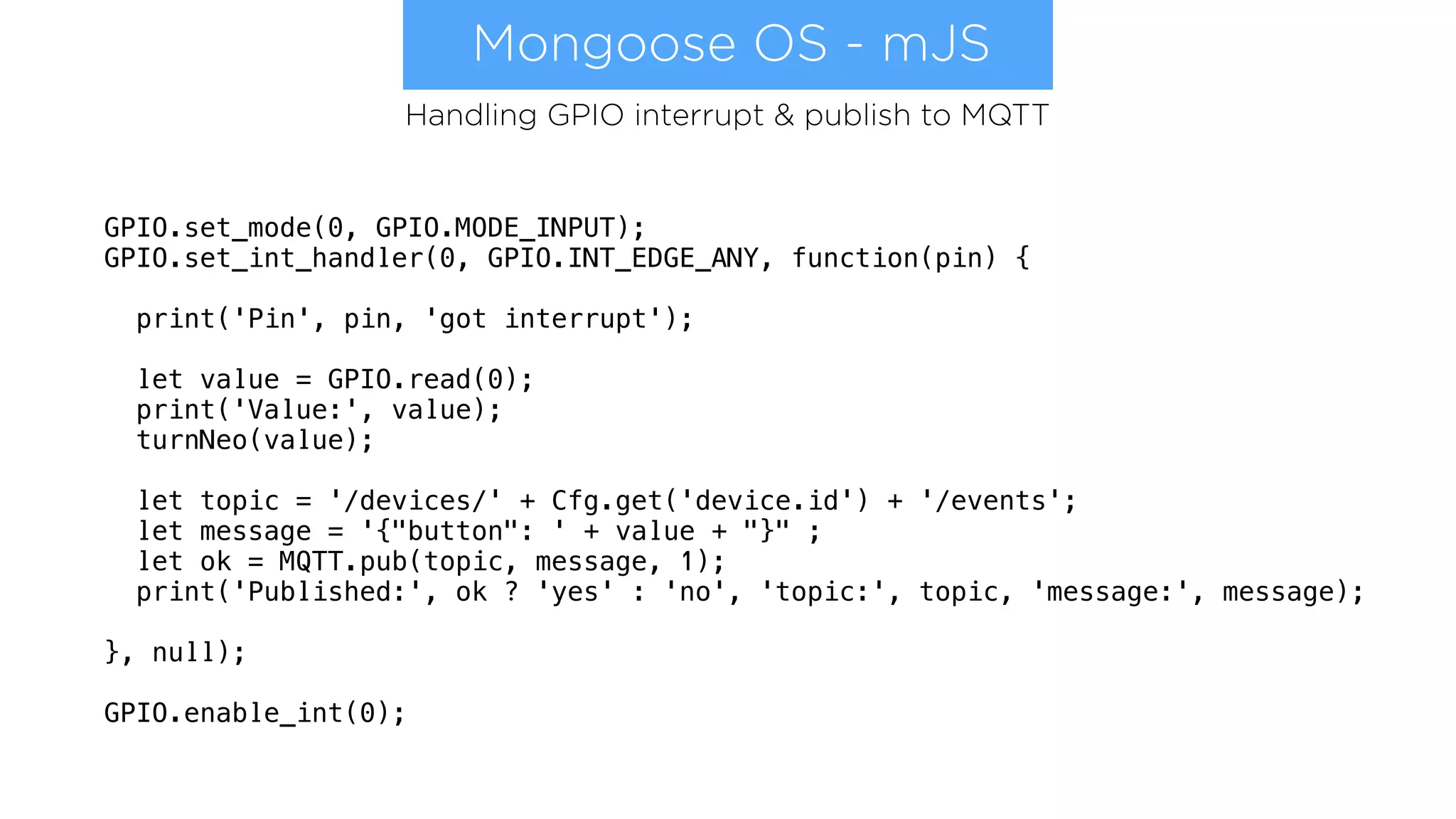

36. Mongoose OS - mJS
GPIO.set_mode(0, GPIO.MODE_INPUT);
GPIO.set_int_handler(0, GPIO.INT_EDGE_ANY, function(pin) {
print('Pin', pin, 'got interrupt');
let value = GPIO.read(0);
print('Value:', value);
turnNeo(value);
let topic = '/devices/' + Cfg.get('device.id') + '/events';
let message = '{"button": ' + value + "}" ;
let ok = MQTT.pub(topic, message, 1);
print('Published:', ok ? 'yes' : 'no', 'topic:', topic, 'message:', message);
}, null);
GPIO.enable_int(0);
Handling GPIO interrupt & publish to MQTT

37. Internet
of
Things
How to start?

38. Make your own!
BY SolvING your own problem
Start with…

39. Be a maker!

40. *Disclaimer: I have no data of all players in Indonesia yet. Sorry if you’re not listed.
and I’m talking about (electronics) maker-related players in general, not only IoT.
Indonesia
Indonesia
Join Communities
Makers.ID

41. A movement to “democratize”
knowledge, hardware kit, and software
to help makers to start making in
hardware.
Disclosure: it’s initiated and supported by DycodeX

42. ENABLING MAKER MOVEMENT

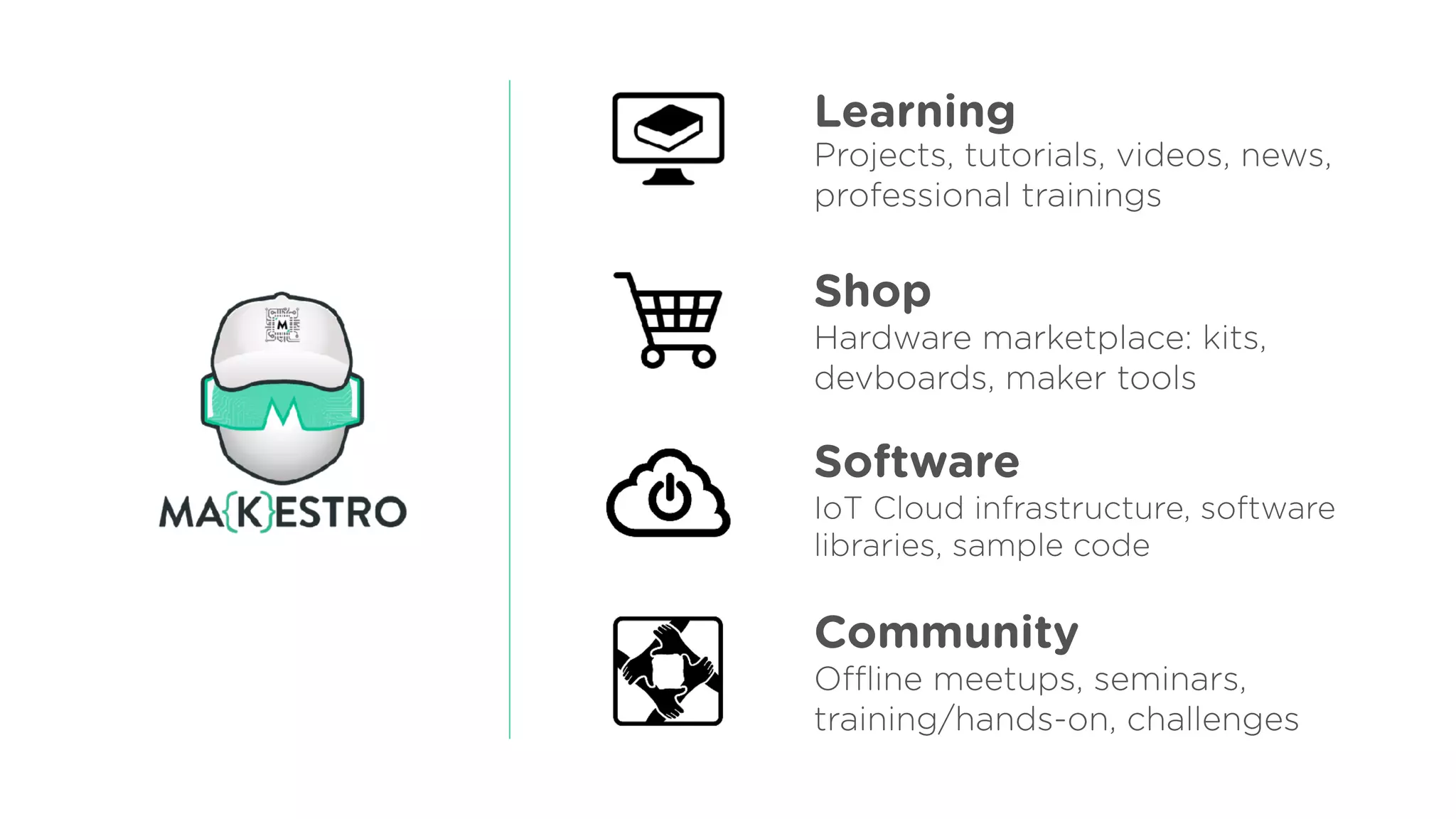

43. Learning
Shop
Community
Software
Projects, tutorials, videos, news,
professional trainings
Hardware marketplace: kits,
devboards, maker tools
IoT Cloud infrastructure, software
libraries, sample code
Offline meetups, seminars,
training/hands-on, challenges

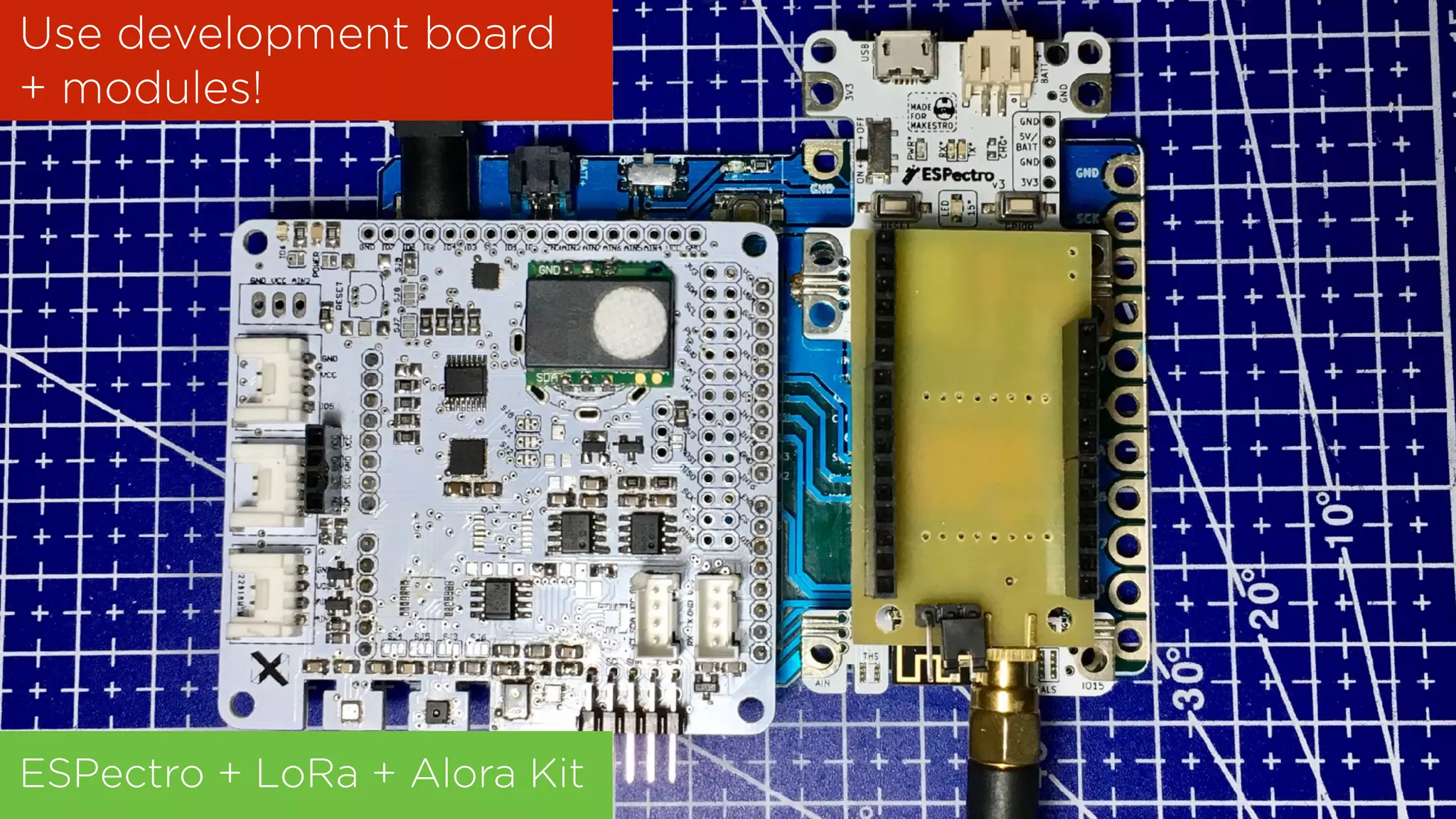

44. Use development board
+ modules!
ESPectro + LoRa + Alora Kit

45. makestroid
makestroid
makestroid

46. ..and for sure,
JOIN…

48. x@dycode.com | http://dycodex.com
IoT & maker movement enabler

49. DycodeX IS HIRING!
Interns are welcome
