The ring frame has a manufacturer of LMW, model LR6/S. It has a 3 over 3 drafting system with a top roll diameter of 32.5 mm, bottom roll diameter of 30 mm, and pressure of 20 kg. The ring frame has 480 spindles and a motor pulley diameter between 152-187 mm. The front roller speed is 245 rpm, spindle speed is 15000 rpm, and total production is 100 kg per shift per machine.

1. Ring Frame
Technical specifications of ring frame:
Manufacturer LMW
Model LR6/S
Drafting system 3 over 3
Top roll diameter 32.5 mm
Bottom roll diameter 30 mm
pressure 20 kg
Motor pulley diameter 152 – 187 mm
Total spindle 480
Sunday, October 23, 2011 TEXTILE INTERNSHIP- DILIP SINGH, KUMAR SARVESH, PRASHANT
GAURAV & RAJEEV SHARAN/ DFT-05/ NIFT BANGALORE

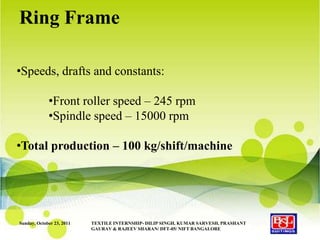

2. Ring Frame
•Speeds, drafts and constants:
•Front roller speed – 245 rpm
•Spindle speed – 15000 rpm
•Total production – 100 kg/shift/machine
Sunday, October 23, 2011 TEXTILE INTERNSHIP- DILIP SINGH, KUMAR SARVESH, PRASHANT
GAURAV & RAJEEV SHARAN/ DFT-05/ NIFT BANGALORE
