RFID & ITS APPLICATION The document discusses Radio Frequency Identification (RFID) including its components, types of tags, applications and a survey on potential industries for RFID application. It covers the basic makeup of an RFID system including tags, readers and antennas. Common applications mentioned are credit cards, transportation tolls and asset tracking. The survey found logistics, libraries and pharmaceuticals as top industries for RFID. Future developments could include more medical and library uses. In conclusion, RFID provides benefits over barcodes but also has higher costs and standardization issues to address.

1. RFID & ITS
APPLICATION
Members: ABC (11223344)
CDE (33221144)
…
GCIT1015
Monday, October 12,
2015

2. Flow of Presentation Contents
Introduction
of RFID
Applications
Survey
Results
Future
Development
and
Opportunities
Conclusion

3. RFID
◦ RFID = Radio Frequency Identification
◦ Electronic labeling and wireless identification of objects using radio frequency
◦ Tag carries with its information
◦ a serial number
◦ Model number
◦ Color or any other imaginable data
◦ When these tags pass through a field generated by a compatible reader, they
transmit this information back to the reader, thereby identifying the object

4. RFID components
◦ A basic RFID system consists of these components:
◦ A programmable RFID tag/inlay for storing item data;
◦ Consisting of an RFID chip for data storage
◦ an antenna to facilitate communication with the RFID chip
◦ A reader/antenna system to interrogate the RFID inlay
◦ Application software and a host computer system

5. RFID Tag
◦ The RFID tag consists of an integrated circuit (IC) embedded in a thin film
medium.
◦ Information stored in the memory of the RFID chip is transmitted by the antenna
circuit embedded in the RFID inlay via radio frequencies, to an RFID reader
◦ 3 types
◦ Passive
◦ Semi-passive
◦ Active

6. Types of RFID Tags
Active Tags
• Use a battery
• Communicate over
distances of several
meters
Semi-passive Tags
• Contain built-in
batteries to power the
chip’s circuitry, resist
interference and
circumvent a lack of
power from the reader
signal due to long
distance.
• They are different
from active tags in that
they only transmit data
at the time a response
is received
Passive Tags
• Derive their power
from the field
generated by the reader
• Without having an
active transmitter to
transfer the
information stored

7. Applications
Frequency Appx. Read Range Data Speed Cost of
Tags
Application
Low Frequency
(125kHz)
<5cm
(passive)
Low High • Animal Identification
• Access Control
High Frequency (13.56
Mhz)
10 cm – 1m
(passive)
Low to Moderate Medium
to Low
• Smart Cards
• Payment (paywave)
Ultra High Frequency
(433, 868-928 Mhz)
3m -7m
(passive)
Moderate to High Low • Logistics and Supply Chain
• Baggage Tracking
Microwave (2.45 & 5.8
Ghz)
10m -15m
(passive)
20m – 40m
(active)
High High • Electronic toll collection
(Autotoll)
• Container Tracking

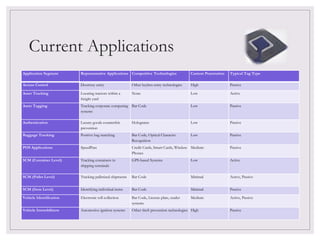

8. Current Applications
Application Segment Representative Applications Competitive Technologies Current Penetration Typical Tag Type
Access Control Doorway entry Other keyless entry technologies High Passive
Asset Tracking Locating tractors within a
freight yard
None Low Active
Asset Tagging Tracking corporate computing
systems
Bar Code Low Passive
Authentication Luxury goods counterfeit
prevention
Holograms Low Passive
Baggage Tracking Positive bag matching Bar Code, Optical Character
Recognition
Low Passive
POS Applications SpeedPass Credit Cards, Smart Cards, Wireless
Phones
Medium Passive
SCM (Container Level) Tracking containers in
shipping terminals
GPS-based Systems Low Active
SCM (Pallet Level) Tracking palletized shipments Bar Code Minimal Active, Passive
SCM (Item Level) Identifying individual items Bar Code Minimal Passive
Vehicle Identification Electronic toll collection Bar Code, License plate, reader
systems
Medium Active, Passive
Vehicle Immobilizers Automotive ignition systems Other theft prevention technologies High Passive

9. Applications
Credit Cards with RFID
(Paywave function)
Octopus (Smart Card)

10. Applications
Autotoll (Electronic toll collection)
Access Control

11. Online Survey
◦ Target: SME
◦ Information: Opinion on RFID and its applications
◦ Site:
◦ http://qtrial.qualtrics.com/SE/?SID=SV_9N5UPRZuyuWtsk4

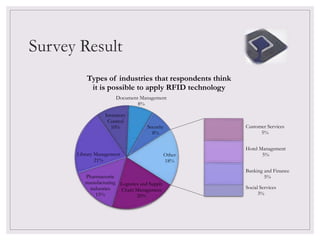

12. Survey Result
Logistics and Supply
Chain Management
20%
Pharmaceutic
manufacturing
industries
15%
Library Management
21%
Inventory
Control
10%
Document Management
8%
Security
8%
Customer Services
5%
Hotel Management
5%
Banking and Finance
5%
Social Services
3%
Other
18%
Types of industries that respondents think
it is possible to apply RFID technology

13. Further Development
◦ In medical uses and library management

14. Video

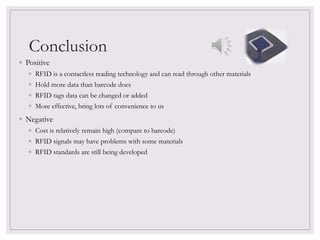

15. Conclusion
◦ Positive
◦ RFID is a contactless reading technology and can read through other materials
◦ Hold more data than barcode does
◦ RFID tags data can be changed or added
◦ More effective, bring lots of convenience to us
◦ Negative
◦ Cost is relatively remain high (compare to barcode)
◦ RFID signals may have problems with some materials
◦ RFID standards are still being developed
