1. RFID ANTI-THEFT
PROTECTION
SYSTEM

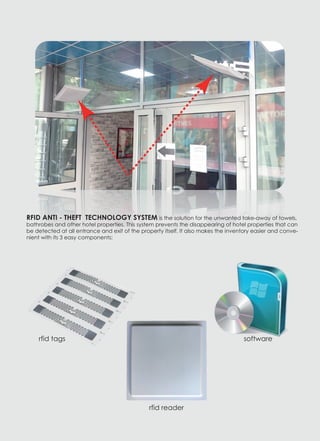

2. RFID ANTI - THEFT TECHNOLOGY SYSTEM is the solution for the unwanted take-away of towels,
bathrobes and other hotel properties. This system prevents the disappearing of hotel properties that can
be detected at all entrance and exit of the property itself. It also makes the inventory easier and conve-
nient with its 3 easy components:
rfid tags
rfid reader
software

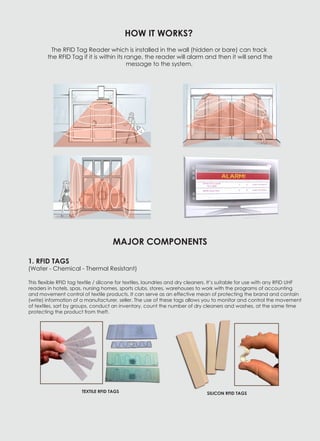

3. TEXTILE RFID TAGS SILICON RFID TAGS
1. RFID TAGS
(Water - Chemical - Thermal Resistant)
This flexible RFID tag textile / silicone for textiles, laundries and dry cleaners. It’s suitable for use with any RFID UHF
readers in hotels, spas, nursing homes, sports clubs, stores, warehouses to work with the programs of accounting
and movement control of textile products. It can serve as an effective mean of protecting the brand and contain
(write) information of a manufacturer, seller. The use of these tags allows you to monitor and control the movement
of textiles, sort by groups, conduct an inventory, count the number of dry cleaners and washes, at the same time
protecting the product from theft.
HOW IT WORKS?
The RFID Tag Reader which is installed in the wall (hidden or bare) can track
the RFID Tag if it is within its range, the reader will alarm and then it will send the
message to the system.
MAJOR COMPONENTS

4. SPECIFICATIONS
• Type: No-touch R/W rewritable
• Operating Frequency: UHF (860 ~ 960 MHz)
• IC Available at 860MHz ~ 960MHz: UHF EPC Gen2 (EPC Class 1 Gen 2)
• Size: 87 x 15 x 0,9 mm (textiles) / 55 x 11 x 1.1 mm (silicone)
• Reading distance: up to 300 cm to 500 cm
• Simultaneous identification of tags: up to 100 pcs. per second
• Validity: up to 200 washes / dry cleanings
• Operating temperature: - 25 ° C to 120 ° C | + 150 ° C, a total of 50
hours | + 205 ° C up to 20 seconds.
• Mechanical pressure up to 60 bar
• Storage: - 25 ° C to 90 ° C
• Number of programming cycles at + 25 ° C: 100,000 times
• Duration of data storage + 55 ° C:> 10 years
COMPETITIVE ADVANTAGE
• Waterproof IP 68
• Simultaneous tag identification up to 50 tags per second
• Reading distance up to 300 cm to 500 cm (depending on
environment)
• Data storage + 55 ° C:> 10 years
• 100,000 times of recording and rewriting
• Resistance to high temperature, harsh environmental conditions,
aggressive environments
2. RFID TAG READERS
2.1. Portable Tag Reader
Reader (Mobile Terminal for Data Collection)
RFID
Operating frequency UHF 860-960 MHz
Protocol ISO18000-6C, EPC Class 1 Gen 2, ISO18000-6B
Reading distance 400-1300 cm
RSSI Indicator of received signal
Discrepancy prevention Reading upto 400 tags at a time
Antenna polarization Circular polarization
SDK Free SDK conditions applied to a reader
SYSTEM POSSIBILITIES
Operation system Microsoft® Windows CE® 6.0 или Android OS v2.2
Processor SAMSUNG Cortex-A8(1GHz)
MEMORY
Memory 256MB/512MB Mobile DDR RAM
Flash-memory 256MB/512MB Nand Flash ROM
Additional inline memory Micro SD 32G (Maximum)
AUDIO, SLOTS, PORTS
USB ports yes
Slots 1 MicroSD Slot, 1 GSM/GPRS Slot
Camera It extends
1D bar-code available
2D bar-code It extends
INPUT/OUTPUT DEVICE
Input device QWERTY keyboard, touch-screen in color, stiles,
start button, upper-case input support
Output device 3.5” Transmitting LCD, QVGA(240 x 320) or
VGA(480 x 640), LED x 2, zoomer (sound buzzer)
COMMUNICATION FUNCTIONS
Wi-Fi 802.11b/g
GPRS (GSM) GSM/GPRS/EDGE: 850/900/1800/1900MHz
3G WCDMA / CDMA2000
Bluetooth Bluetooth 2.1 + EDR class 2
GPS integrated
FEATURES
Dimensions 190 x 75 x 30 mm
Weight 520 g (with a battery)
Case colour Matted black
ENERGY FEATURES
Battery Rechargeable 3.7V 4000mAh battery
(accumulator)
Power supply Ac adapter
USE CONDITIONS
International protection IP65
Operating temperature -10°C - 50°C
Storage temperature -20°C - 65°C
Charge temperature 0°C - 40°C
Moisture content 5% - 95% without a condensation product
RFID readers can be of two types: fixed and mobile (manual). These devices can operate one or the other way:
either independently or in constant connection to the accounting system. Among fixed RFID readers you can find
embedded, attached, combined types and others. They are mounted on walls, doors, and other horizontal and
vertical surfaces, mounted on the table, mounted on the loader, stacking machines, conveyors, etc. They have a
long range of operation, power. Fixed RFID readers track the movement of tagged objects and their location. They
work simultaneously with quite a lot of labels that can be counted up to several thousands. Typically, fixed readers
track tags through external antenna.

5. FEATURES
Supporting protocol ISO18000-6C EPC Gen2 / ISO18000-6B
Operating frequency ISM 902MHz ~ 928MHz, Or 920MHz ~ 925MHz
Adjustment frequency 860MHz ~ 960MHz
Operating regime Operation with a fixed frequency of
transmitting pulses that are set by a software
Transmitting power 20 dBm ~ 30 dB (It’s set by a software)
RECORDING/READING PERFORMANCE
Reading speed Average reading speed of one 64-bit card 64
less thanper 10 ms
Reading distance 4m – 8m (It depends on a tag and
environment)
Speed of recording 8 bit less thanper 30 ms
Recording distance 2m – 4m (It depends on a tag and
environment)
Lines reading Zoomer (signal)
INTERFACE DATA PORT
USB port / WiFi N/A
RS232 port Yes
RS485 port Yes
Weigand port Weigand26/34
Trigger port Yes
TCP/IP port (RJ45) N/A
ELECTRIC PARAMETRES
Power supply DC+9V,4A
Power consumption 6W
DIMENSIONS AND WEIGHT
Dimensions 250mmх250mmх50mm
Weight 1500 g
ENVIRONMENT OPERATING FACTORS
Operating temperature -30°C~70°C
2.2. Mounted Tag Reader
RFID CARD READER F5106 (25*25)
RFID Card Reader F5106
NAME FM6950 OTHER MODELS
Operation 3 modes: a proactive mode, answer mode,
startup mode
Usually 1 mode, some models can
have 2 modes
Anti-conflict Support for labels anti-conflict with excellent
effect, the algorithm has no errors
A large number of errors in the
algorithm, the instability of the anti-
conflict effect
Label data storage Integrated storage system of label data
includes port code for the antennas, time,
data labels content, etc.
Usually without a storage, it may
contain only store data, without other
information
Label loading data system Different systems of loading data: manual,
time estimate, choice of a certain time,
release, addition, modification
-
Label process facilities Support the reserved area, EPC areas, TID
fields, user’s operational areas, it supports
complex data masking tape for various fields
Only to achieve EPC area by a direct
operation without data masking.
Indirectly to finalize TID field
Real time Integrated real-time clock with no data loss
when power is off, reading and writing labels
has a timestamp.
-
Full labels EAC operation, support the relay
link.
-
Privacy Label privacy function is fully supported -
High speed of data
operation
Support for such high-speed data operations
as mass flow erase and mass reading, the
speed is four times higher.
-
Functional configuration Without malfunction and supply fail -
RFID CARD READER WITH 4 ANTENNA PORTS F6950

6. FEATURES
Supporting protocol ISO18000-6CEPC Gen2 / ISO18000-6B
Operating frequency ISM 902MHz ~ 928MHz, Or 920MHz ~ 925MHz
Adjustment frequency 860MHz ~ 960MHz
Operating regime Operation with a fixed frequency of transmitting pulses that
are set by a software
Transmitting power 20dBm ~ 30 dBm (set by a software)
READING/RECORDING PERFORMANCE
Reading speed Average reading speed of one 64-bit card 64 less thanper 10
ms
Reading distance 8m -15m (It depends on a tag and environment)
Recording speed 8 bit less thanper 30 ms
Recording distance 4m -7m (It depends on a tag and environment)
Lines reading Zoomer (signal)
INTERFACE DATA PORT
USB port / WiFi N/A
RS232 port Yes
RS485 port Yes
Weigand port Weigand26/34
Trigger port Yes
TCP/IP port (RJ45) N/A
ELECTRIC PARAMETRES
Power supply DC+9V,4A
Power consumption 6W
DIMENSIONS AND WEIGHT
Dimensions 450mm х 450mm х 60mm
Weight 3700 g
ENVIRONMENT OPERATING CONDITIONS
Operating temperature -30°C~70°C
UHF CARD READER F5112 (45*45) PLUS LONG-RANGE
3. SOFTWARE
Anti-Theft Software Radio Frequency Identification (RFID) is a software used to reduce loss rate and can be use
in the inventory as well. It makes counting easier and convenient. The system includes special equipment and
software that enables to maintain accounting, assign numbers and track the movement of inventory. All modules
of RFID-system operate on a single hardware and software platform. Due to this fact, all data kept in single
database are available for viewing and modification to all the staff right away, who maintain accounting of
inventories.
