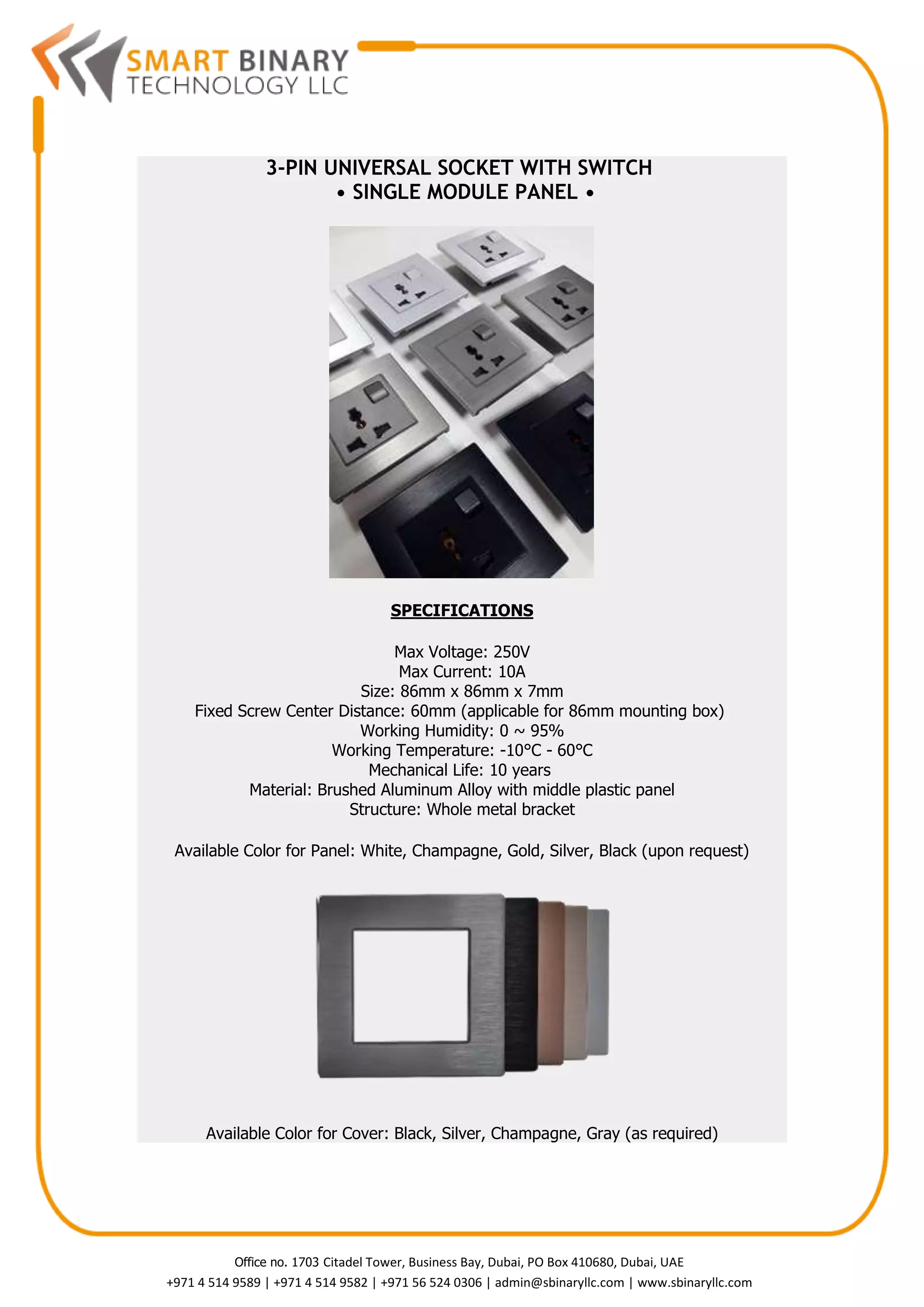

3-PIN UNIVERSAL SOCKET WITH SWITCH
• SINGLE MODULE PANEL •
SPECIFICATIONS
Max Voltage: 250V
Max Current: 10A
Size: 86mm x 86mm x 7mm
Fixed Screw Center Distance: 60mm (applicable for 86mm mounting box)
Working Humidity: 0 ~ 95%
Working Temperature: -10°C - 60°C
Mechanical Life: 10 years
Material: Brushed Aluminum Alloy with middle plastic panel
Structure: Whole metal bracket
Available Color for Panel: White, Champagne, Gold, Silver, Black (upon request)
Available Color for Cover: Black, Silver, Champagne, Gray (as required)

2. Office no. 1703 Citadel Tower, Business Bay, Dubai, PO Box 410680, Dubai, UAE
+971 4 514 9589 | +971 4 514 9582 | +971 56 524 0306 | admin@sbinaryllc.com | www.sbinaryllc.com

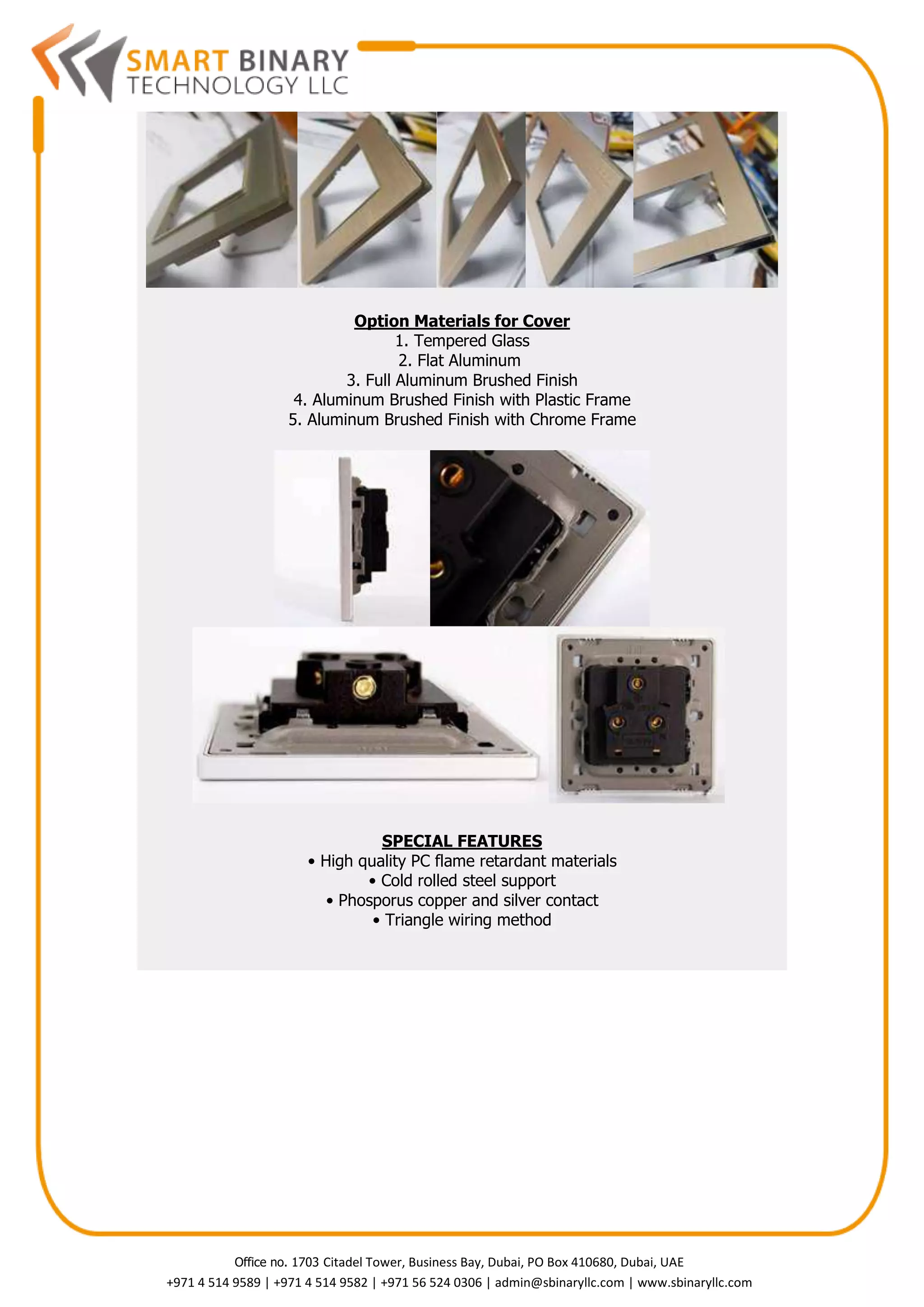

Option Materials for Cover
1. Tempered Glass
2. Flat Aluminum
3. Full Aluminum Brushed Finish
4. Aluminum Brushed Finish with Plastic Frame
5. Aluminum Brushed Finish with Chrome Frame
SPECIAL FEATURES
• High quality PC flame retardant materials
• Cold rolled steel support
• Phosporus copper and silver contact
• Triangle wiring method
