1. BYO Java RetroPi Console
Stephen Chin (@steveonjava)
Lead Java Community Manager
JavaOne Conference Co-Chair

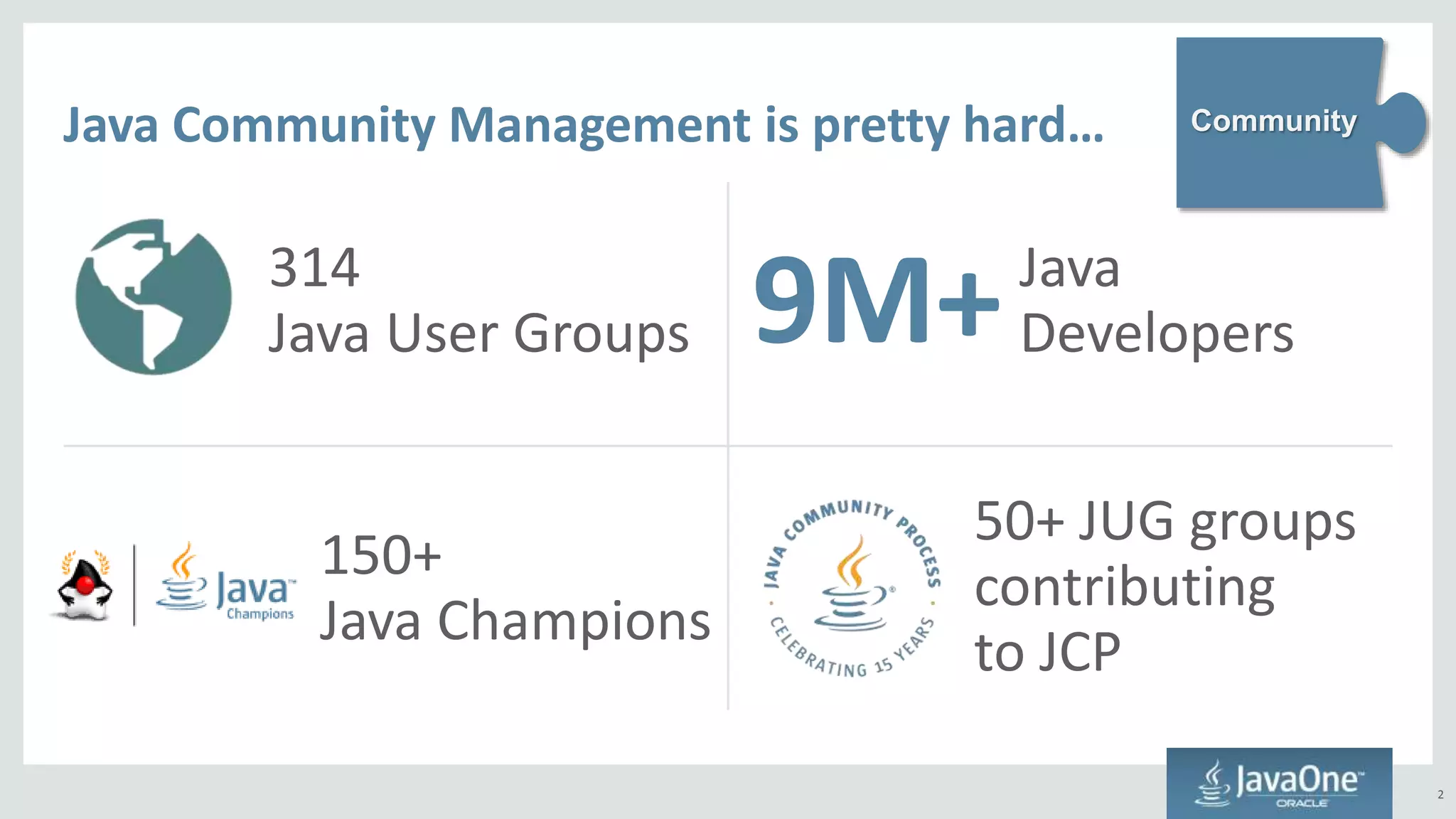

2. Java Community Management is pretty hard…
314
Java User Groups 9M+Java
Developers
150+ 150+
Java Champions
50+ JUG groups
contributing
to JCP
2
Community

3. 3
NEW CHALLENGER!!!

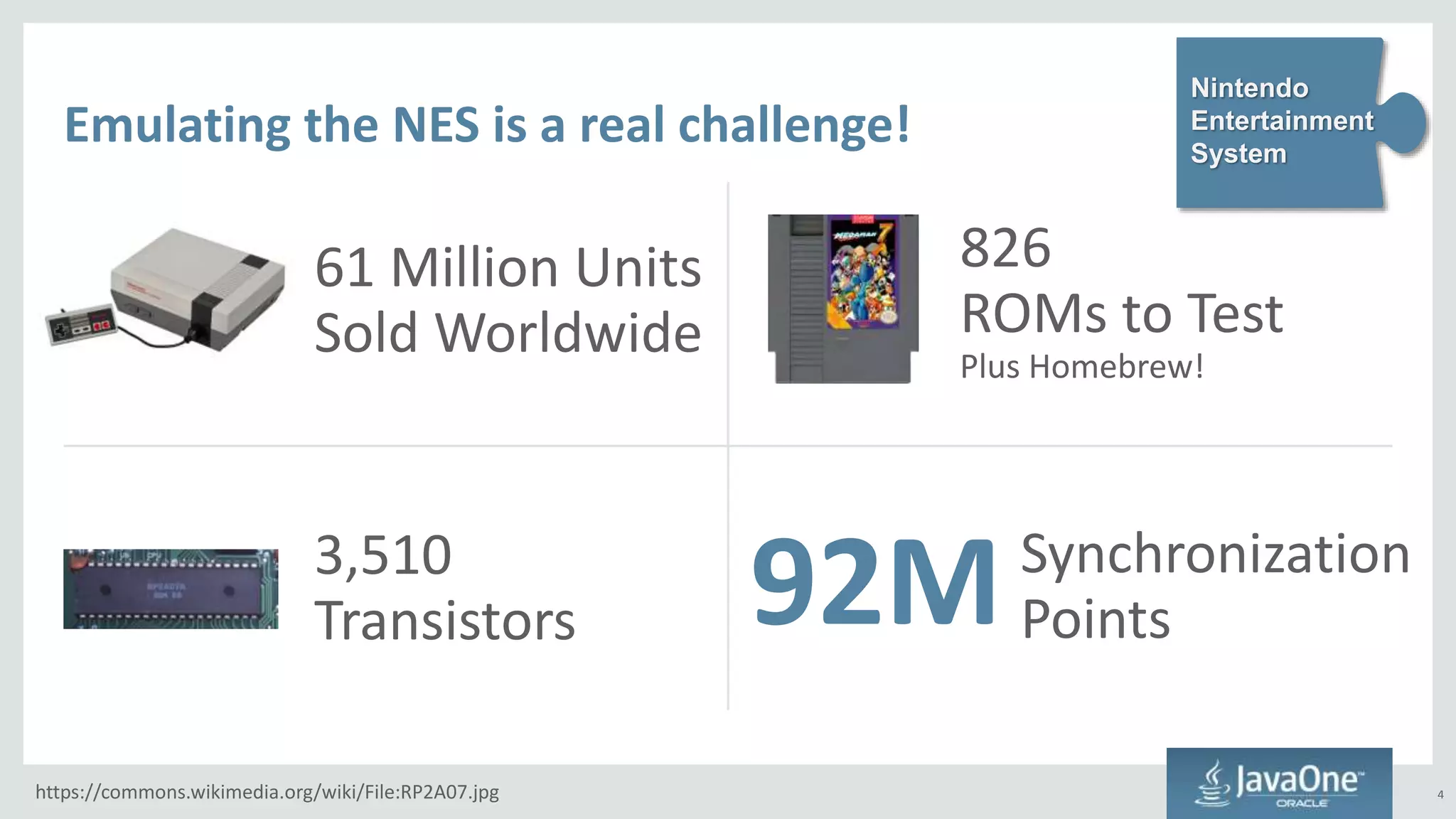

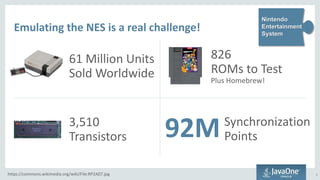

4. Emulating the NES is a real challenge!
826
ROMs to Test
Plus Homebrew!
92M
61 Million Units
Sold Worldwide
3,510
Transistors
Synchronization
Points
4
Nintendo
Entertainment
System
https://commons.wikimedia.org/wiki/File:RP2A07.jpg

5. 5

6. 6

7. 7

8. Up-Up-Down-Down-Left-Right-
Left-Right B, A, Start
8

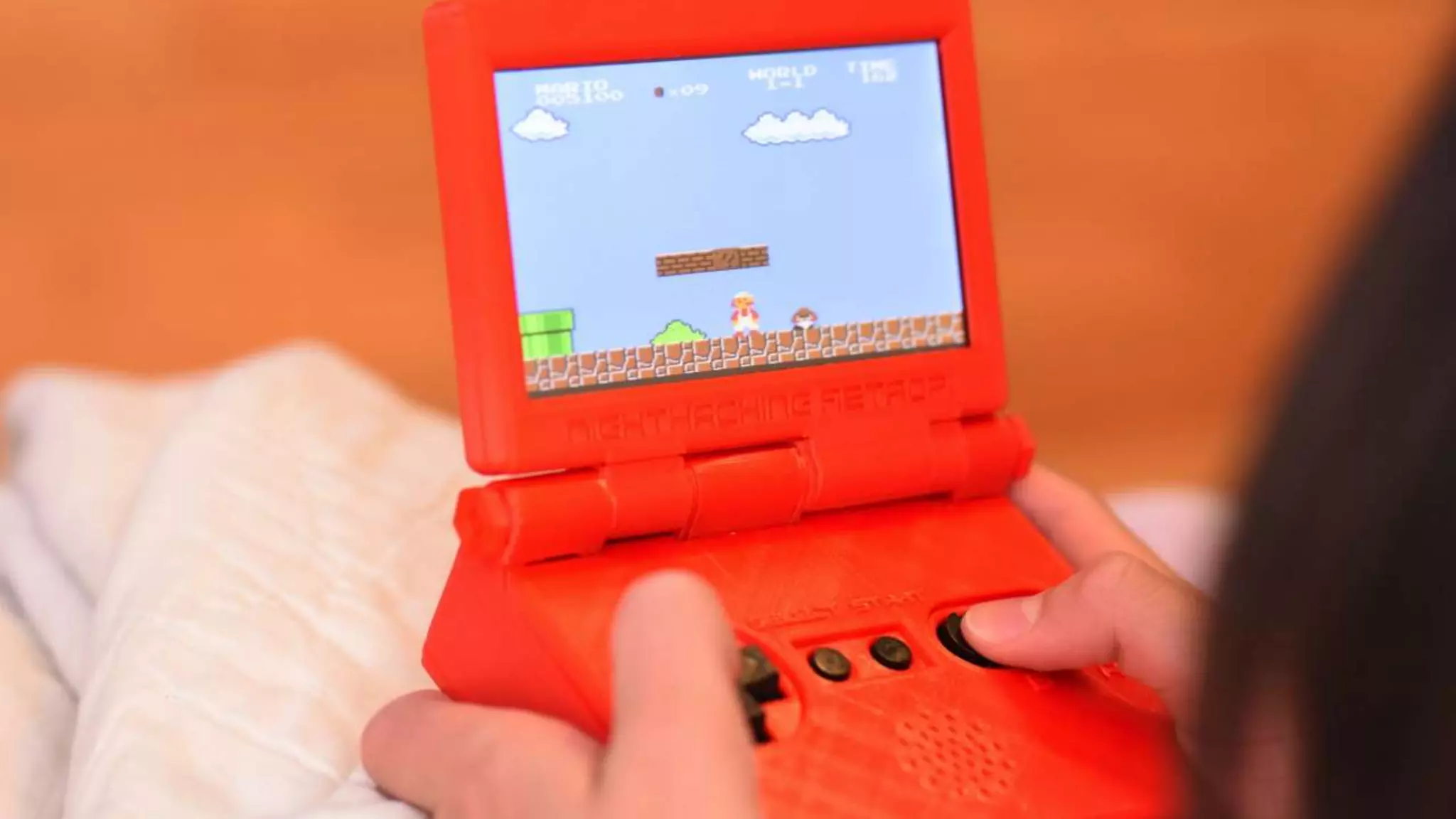

9. 9

10. Electronics
10

11. https://commons.wikimedia.org/wiki/File:Raspberry_Pi_2_Model_B_v1.1_front_angle_new.jpg
=

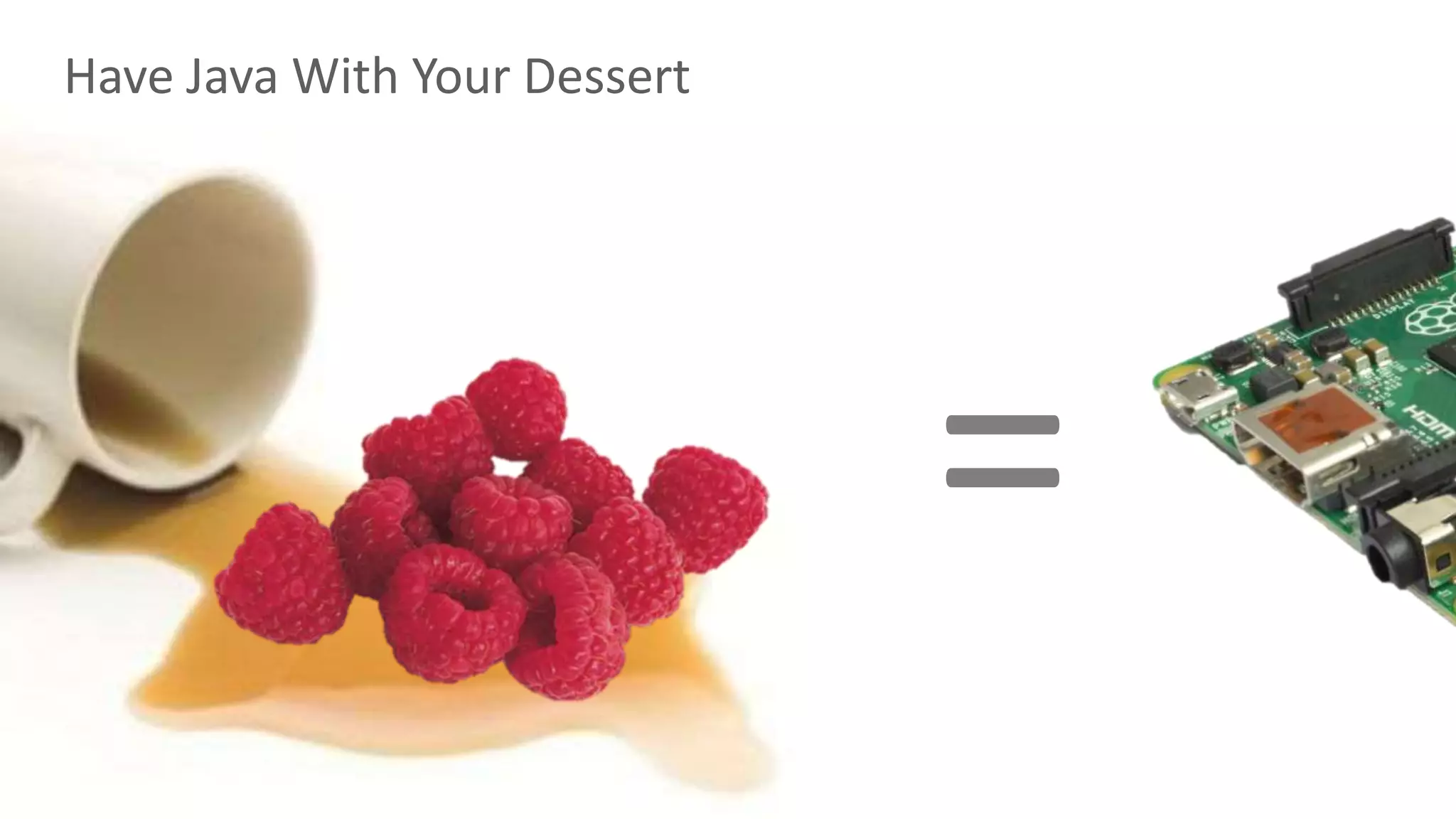

Have Java With Your Dessert

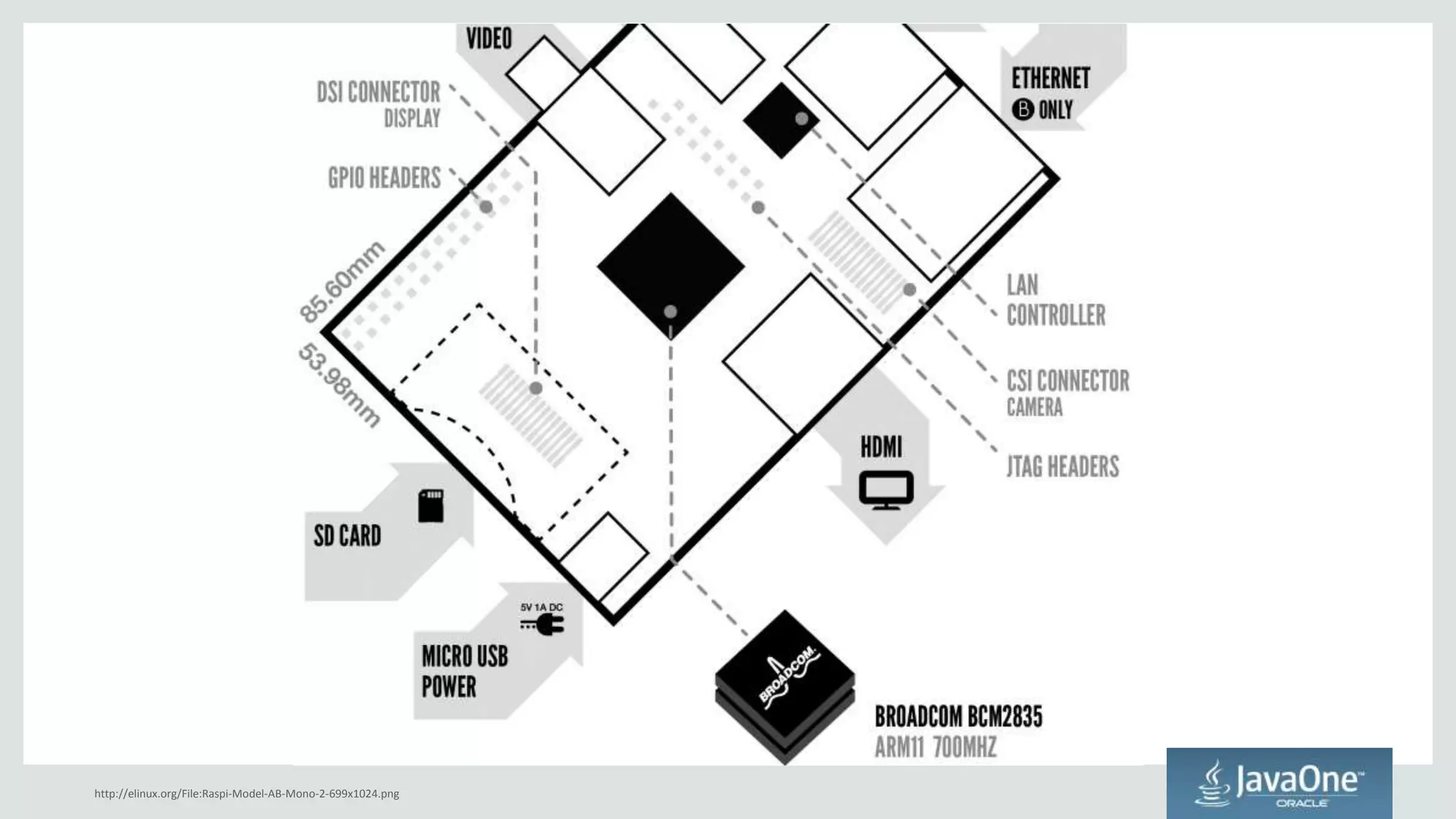

12. http://elinux.org/File:Raspi-Model-AB-Mono-2-699x1024.png

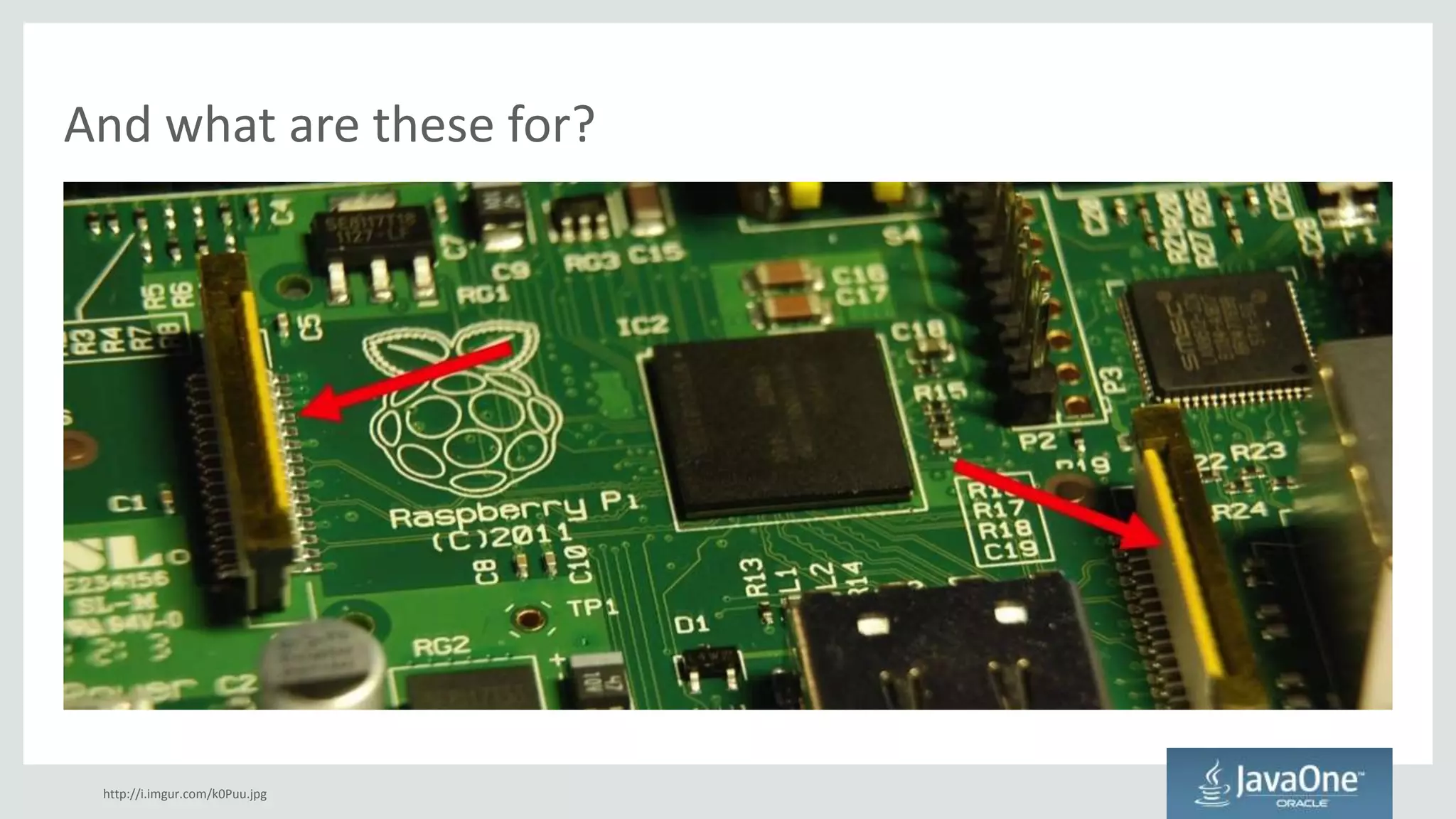

13. And what are these for?
http://i.imgur.com/k0Puu.jpg

14. Portable Display Options
Graphics Bus Quality Speed Power Usage
Composite Low Fast High
HDMI High Fast High
SPI High Slow Low
Device Tree High Fast Low
14

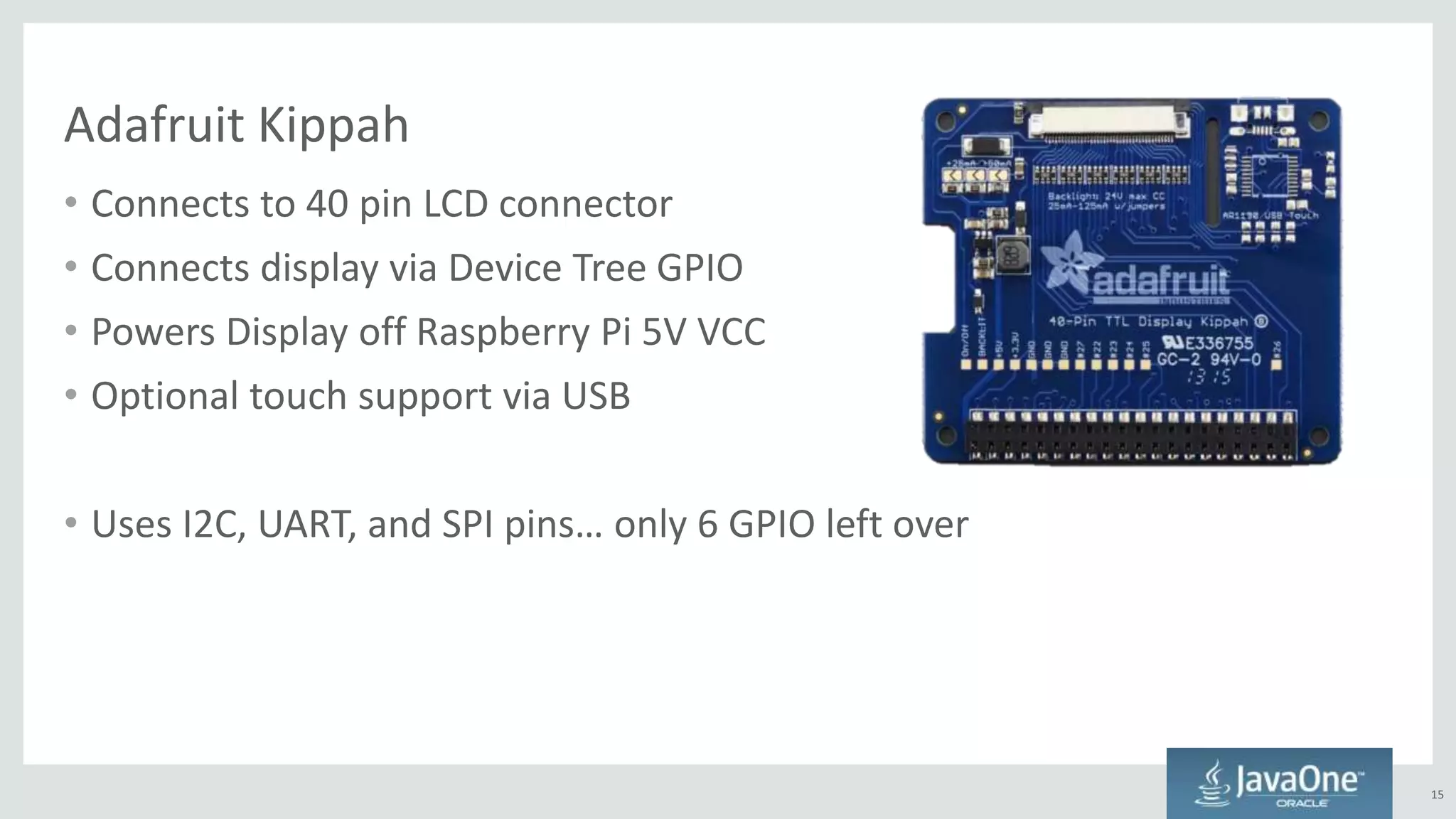

15. Adafruit Kippah
• Connects to 40 pin LCD connector
• Connects display via Device Tree GPIO
• Powers Display off Raspberry Pi 5V VCC
• Optional touch support via USB
• Uses I2C, UART, and SPI pins… only 6 GPIO left over
15

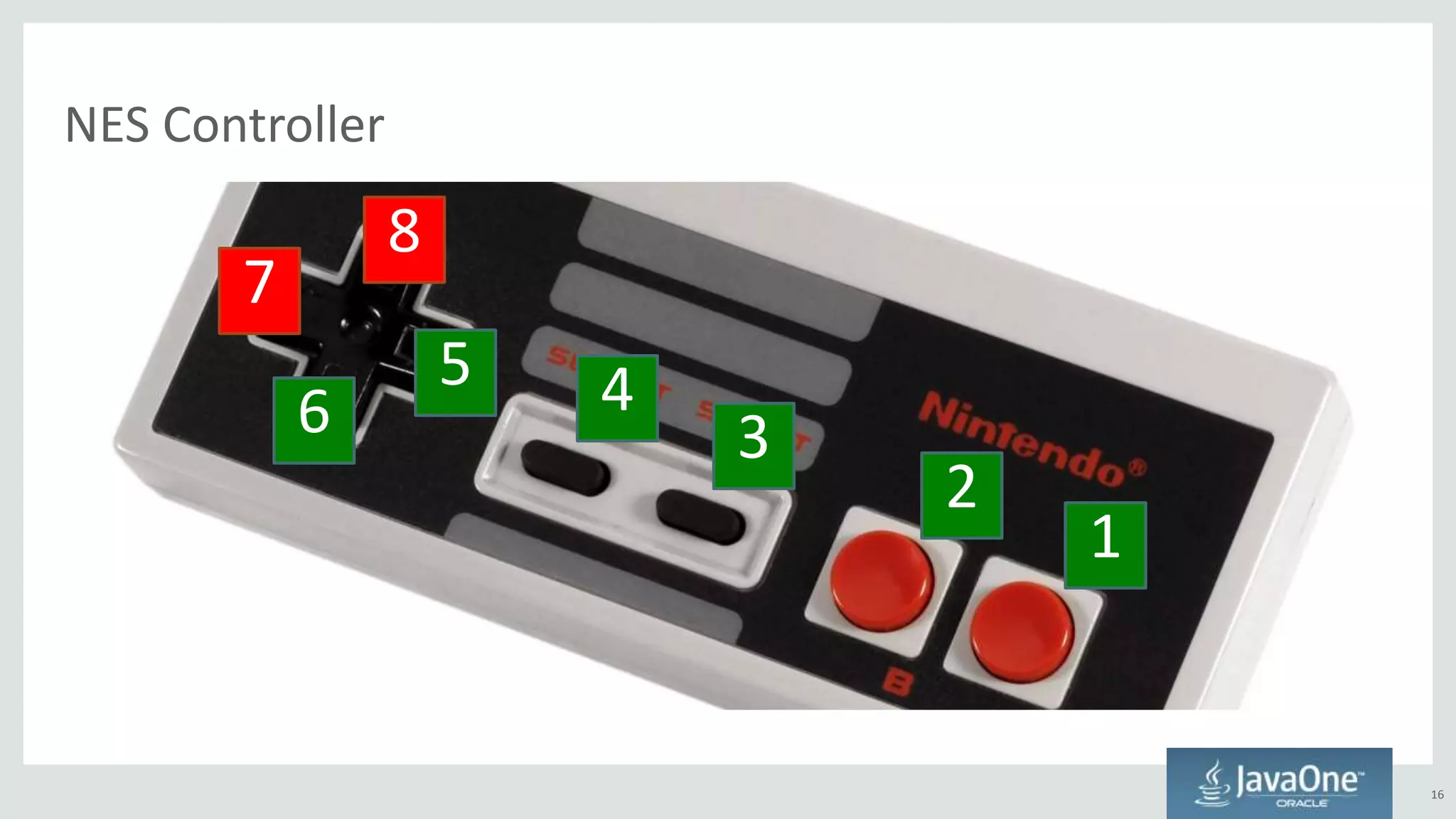

16. NES Controller
16
1
2
3
45
6
7
8

17. 17

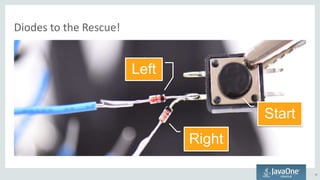

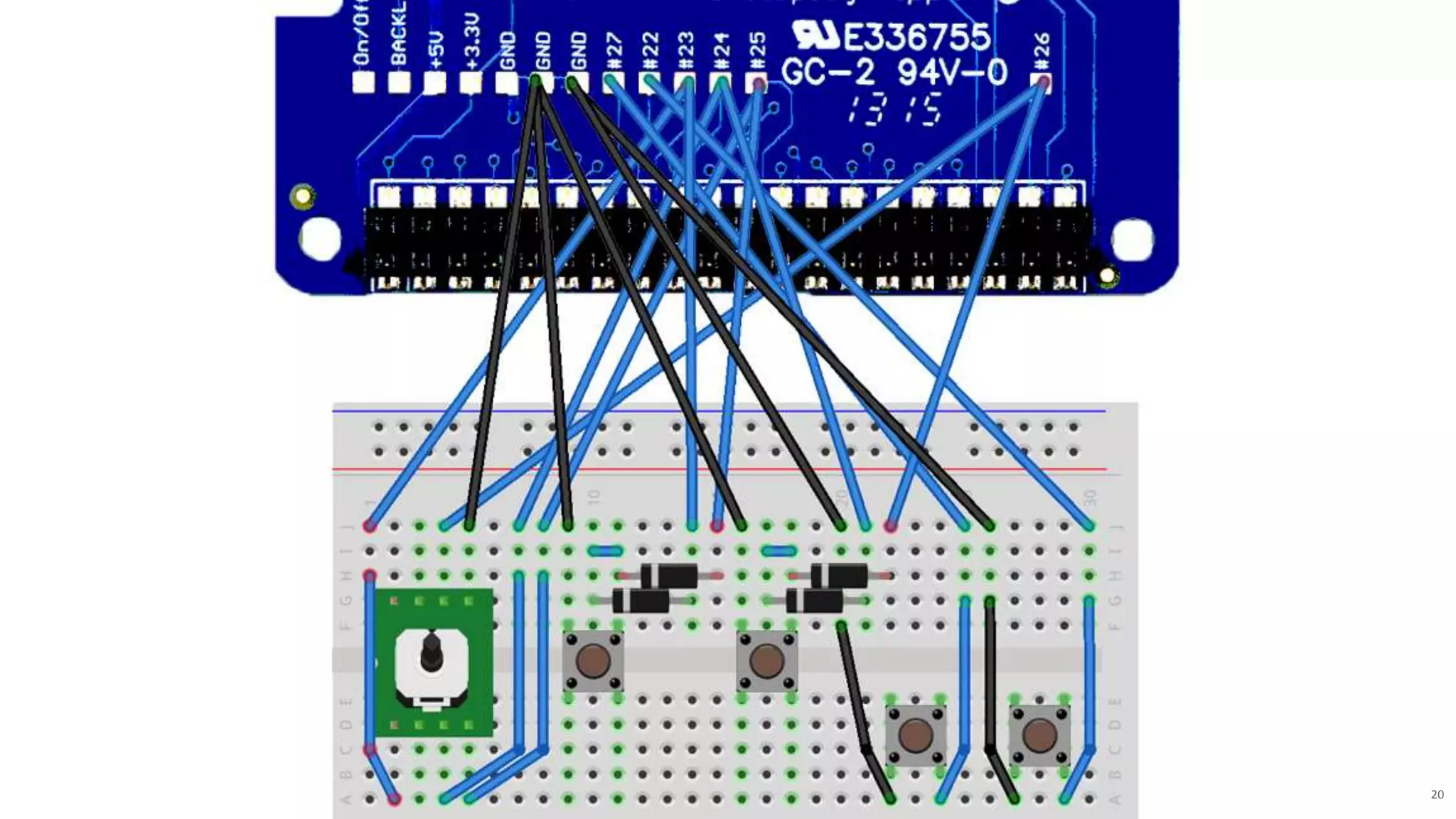

18. Diodes to the Rescue!
19
Left
Right
Start

19. 20

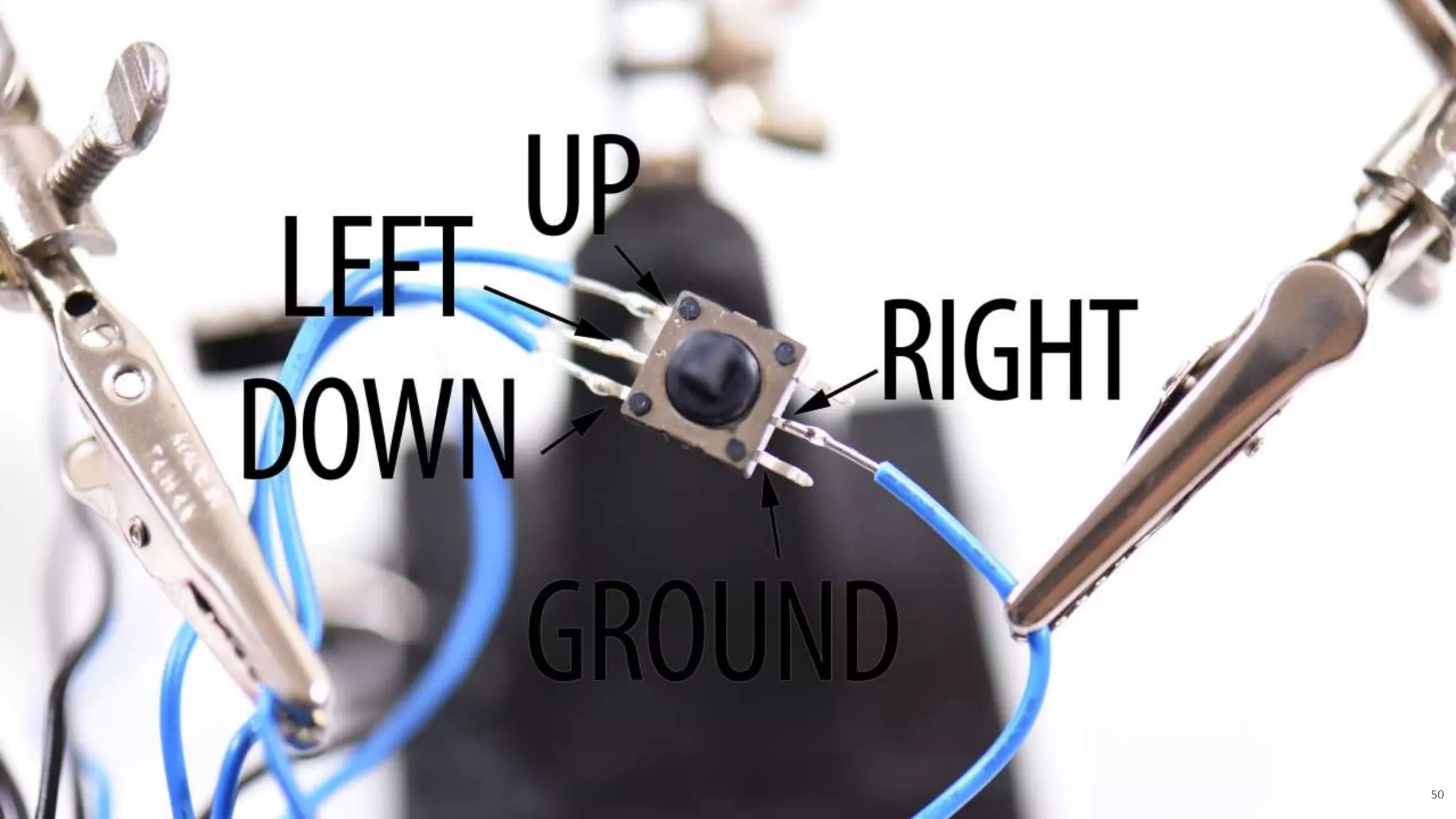

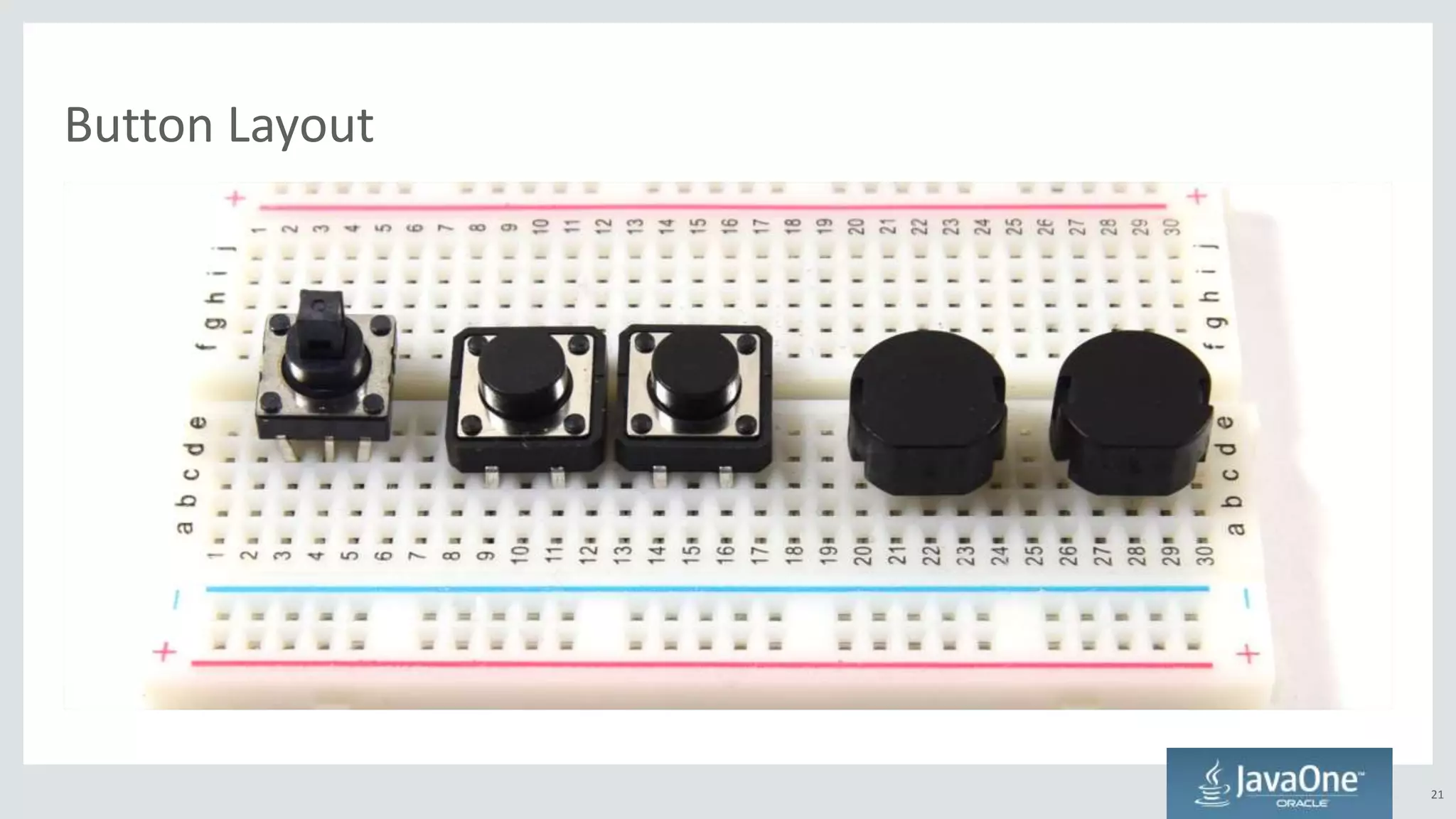

20. Button Layout
21

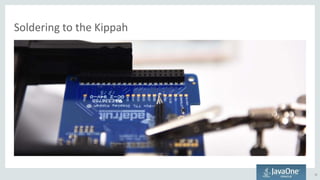

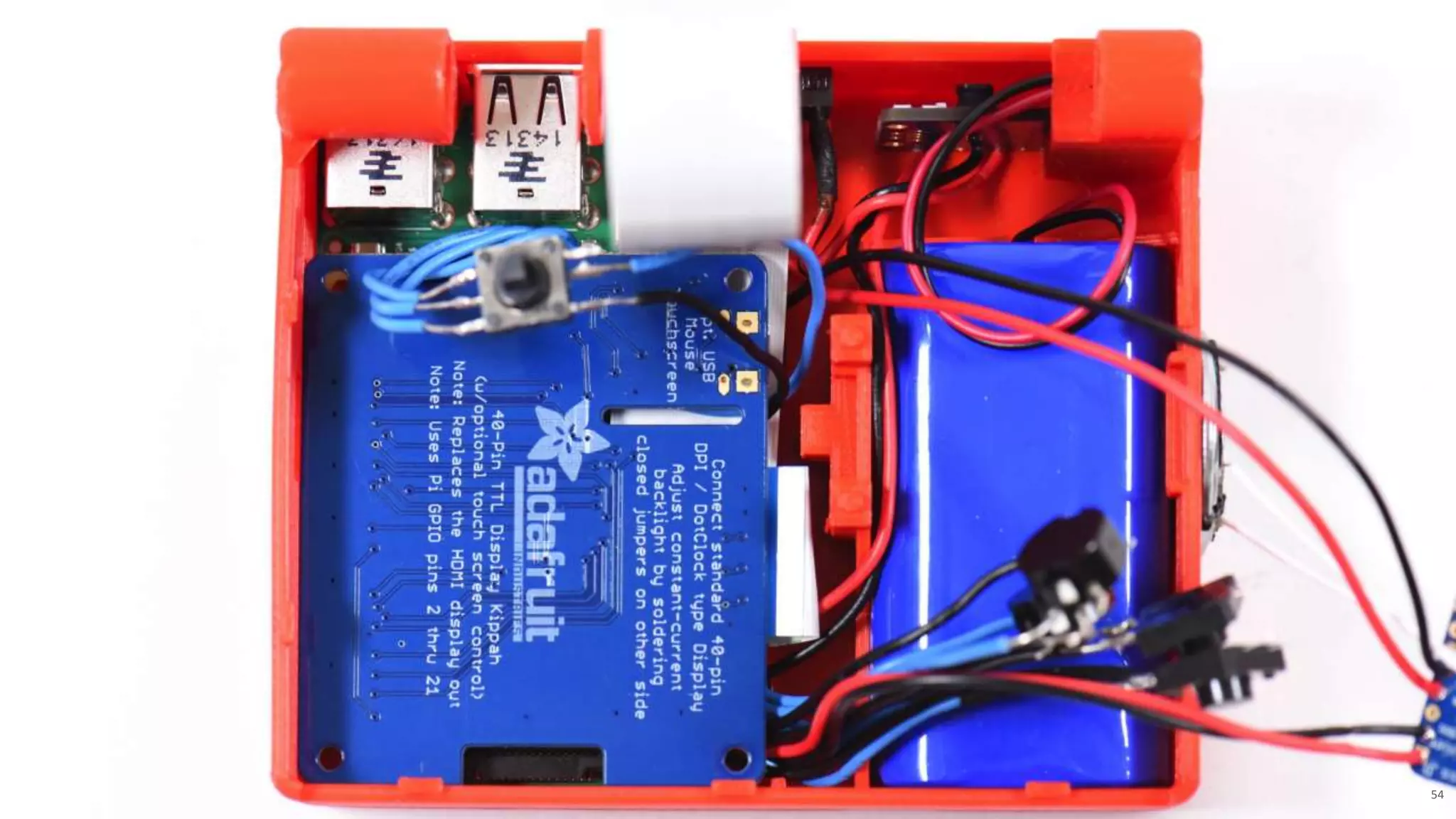

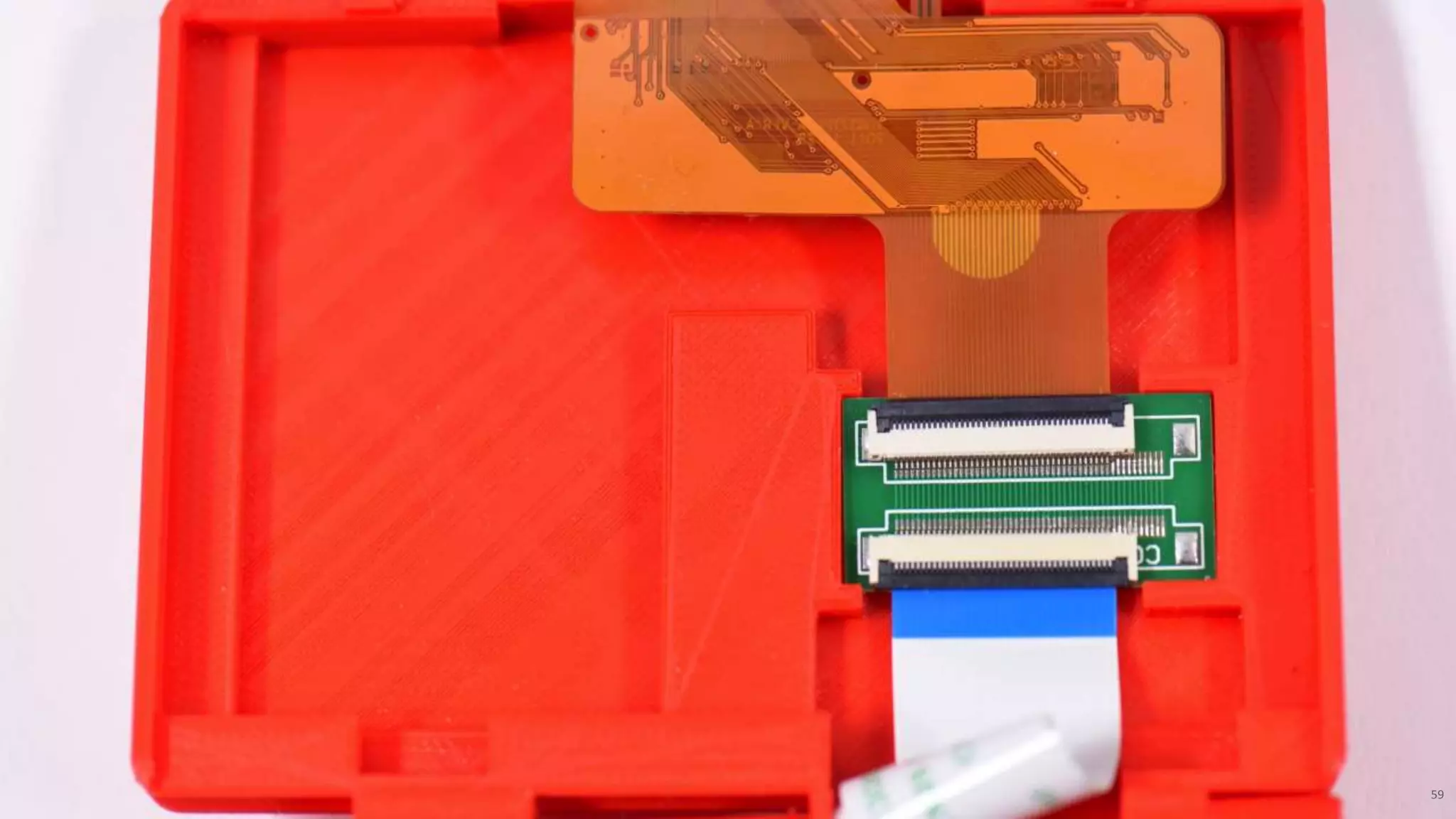

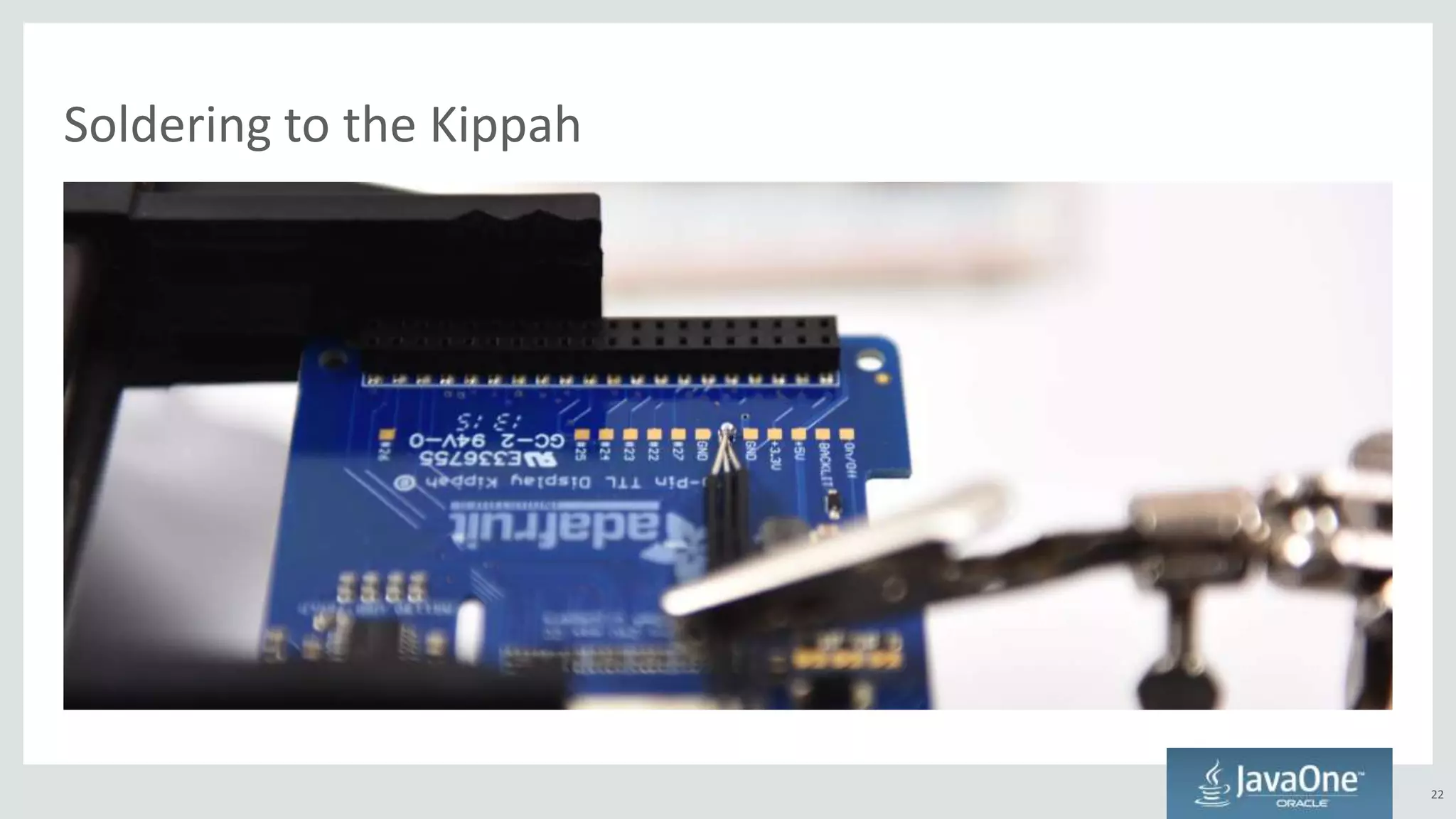

21. Soldering to the Kippah
22

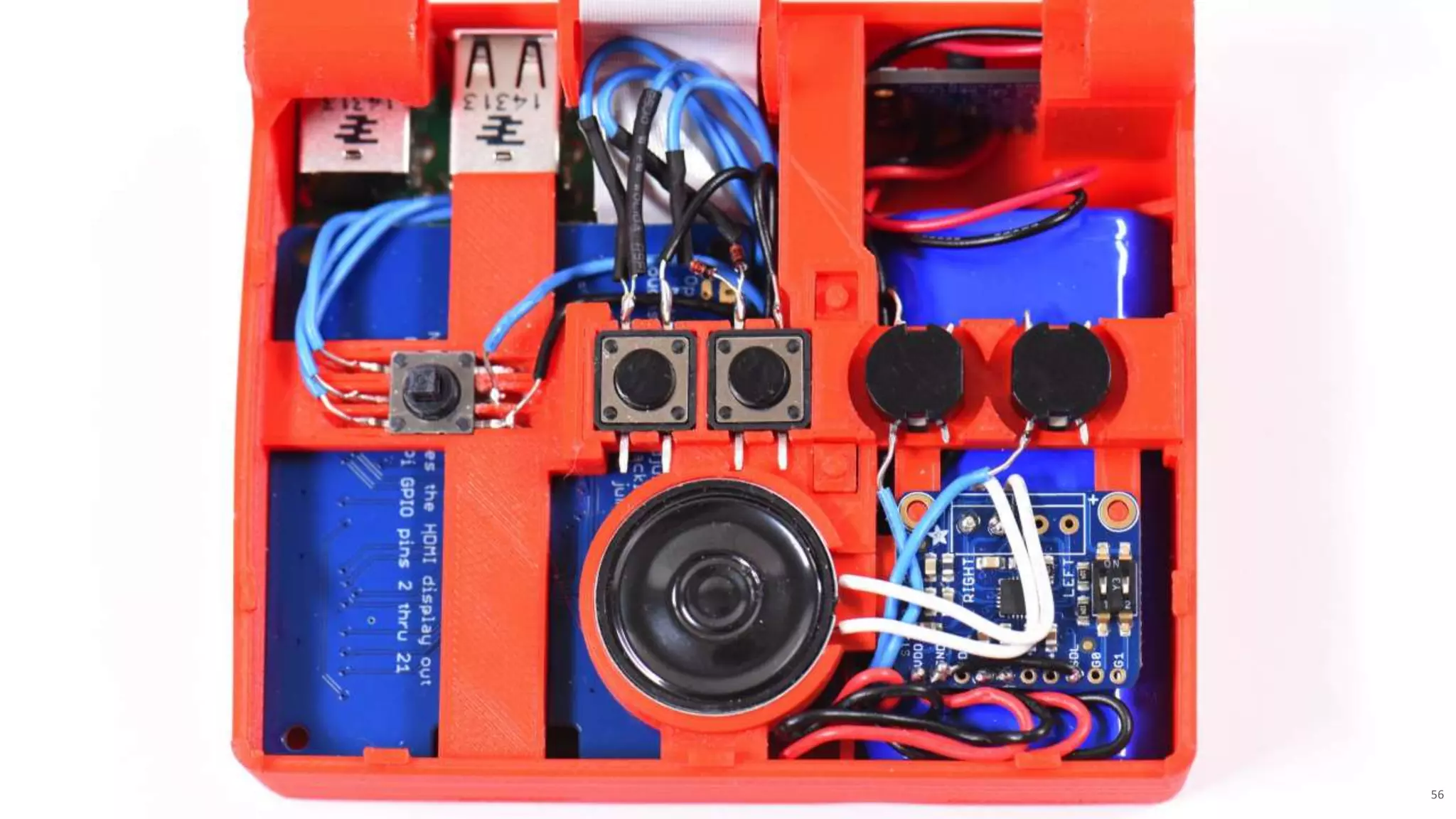

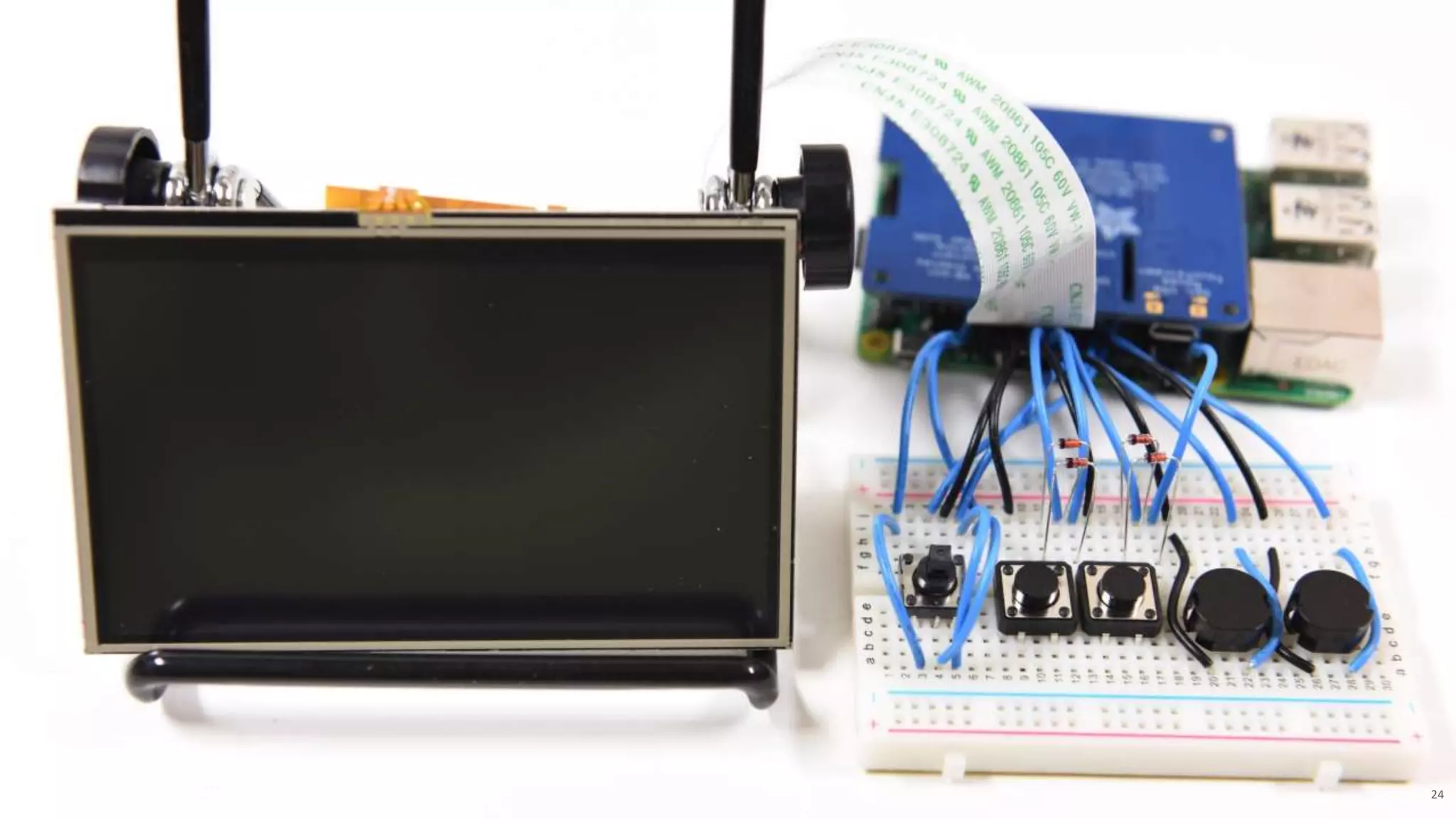

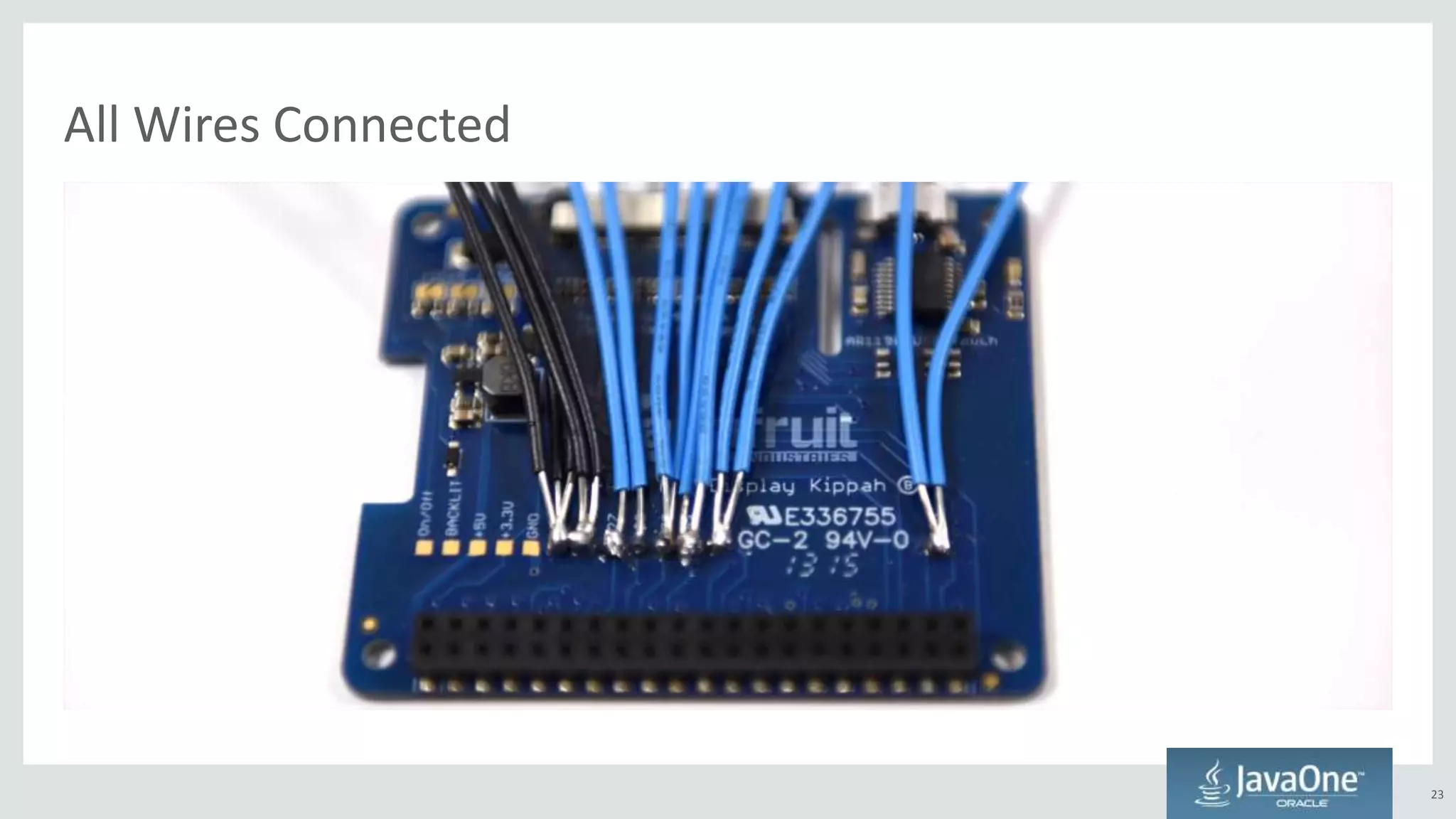

22. All Wires Connected
23

23. 24

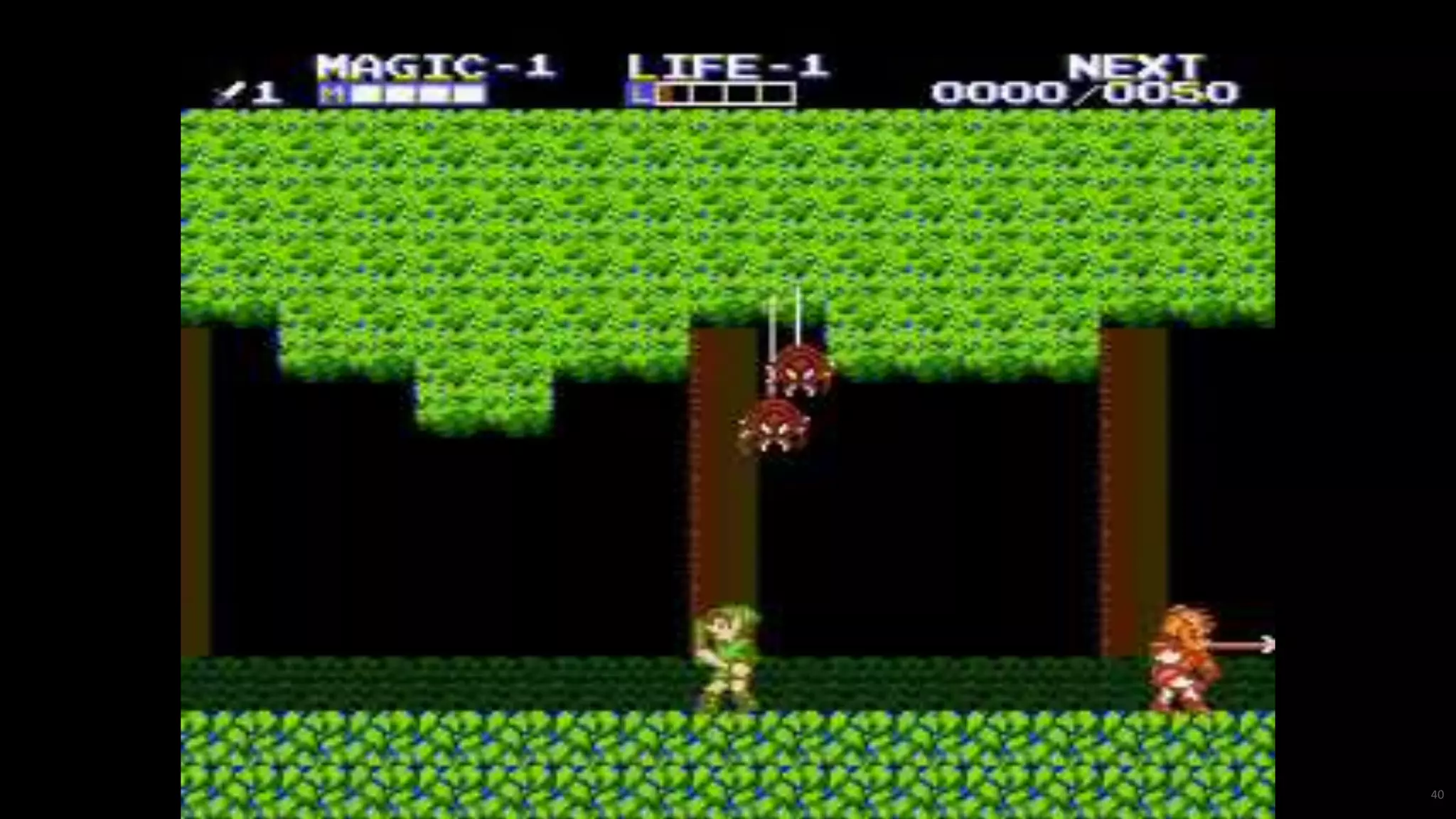

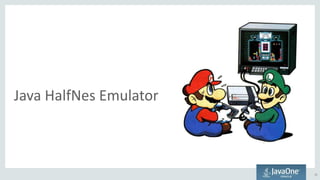

24. Java HalfNes Emulator
25

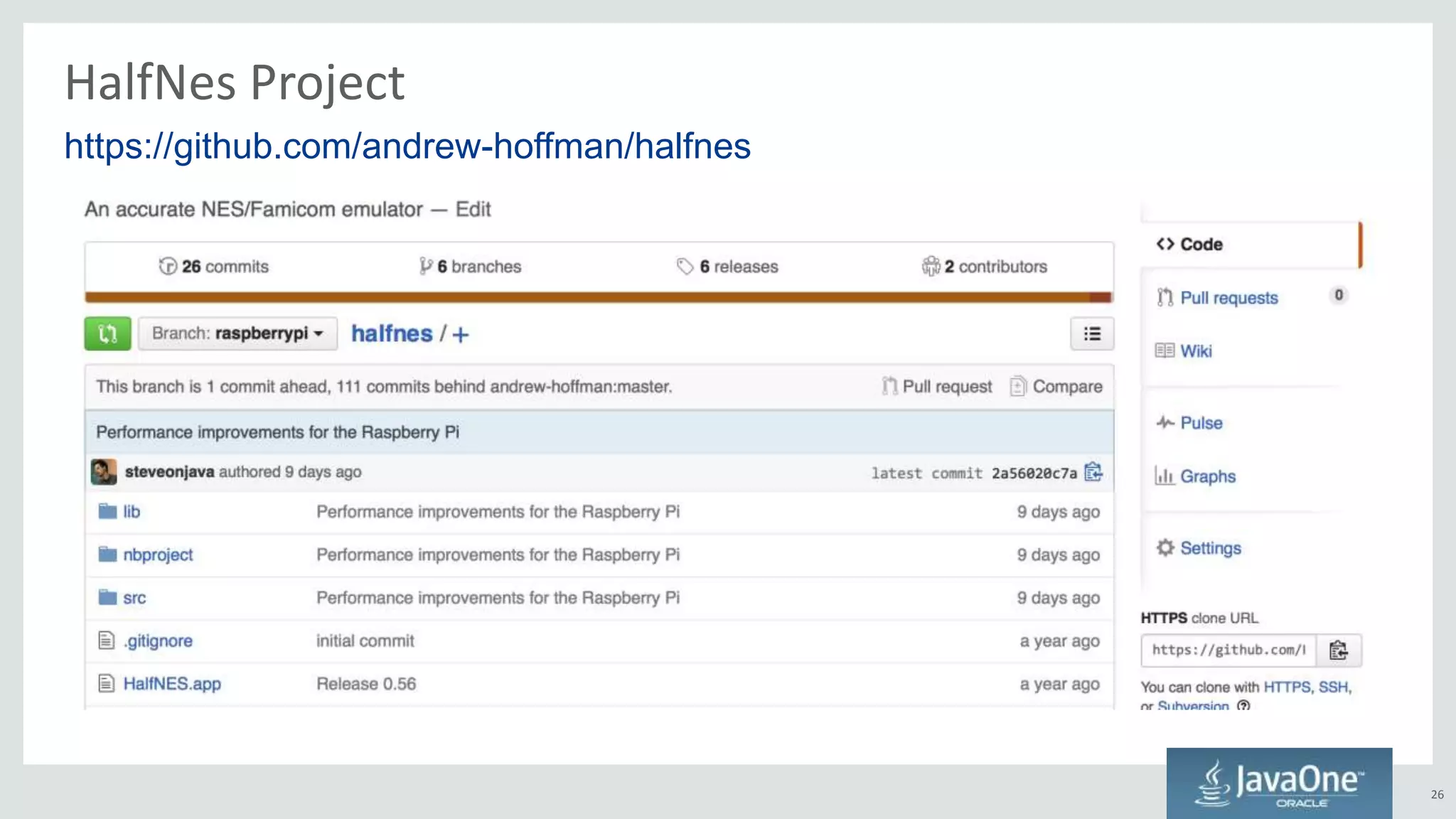

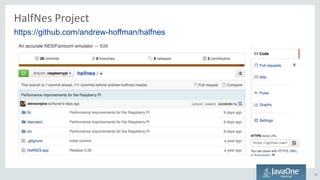

25. HalfNes Project
26
https://github.com/andrew-hoffman/halfnes

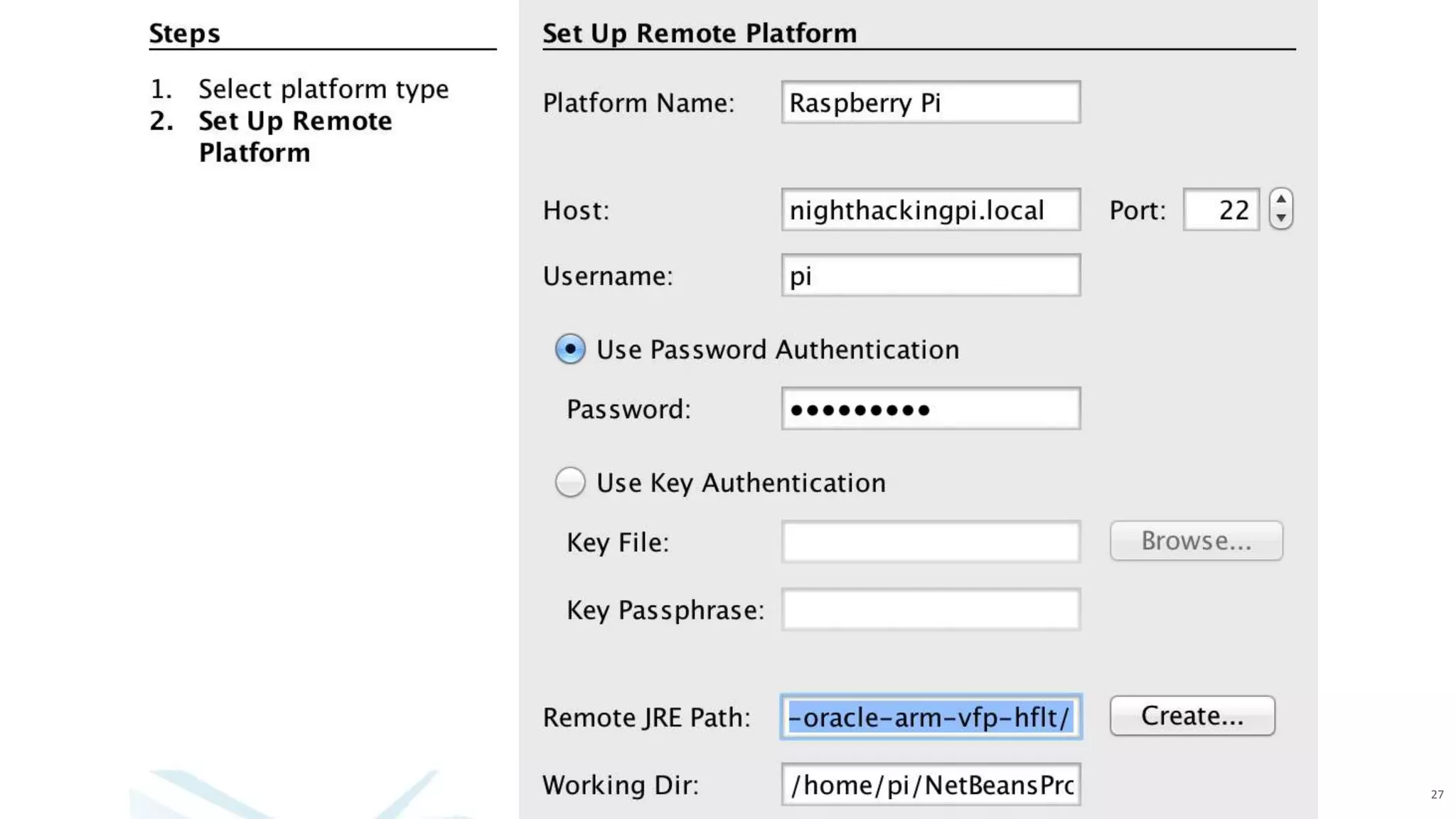

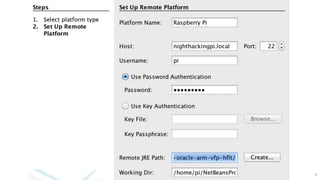

26. 27

27. 28

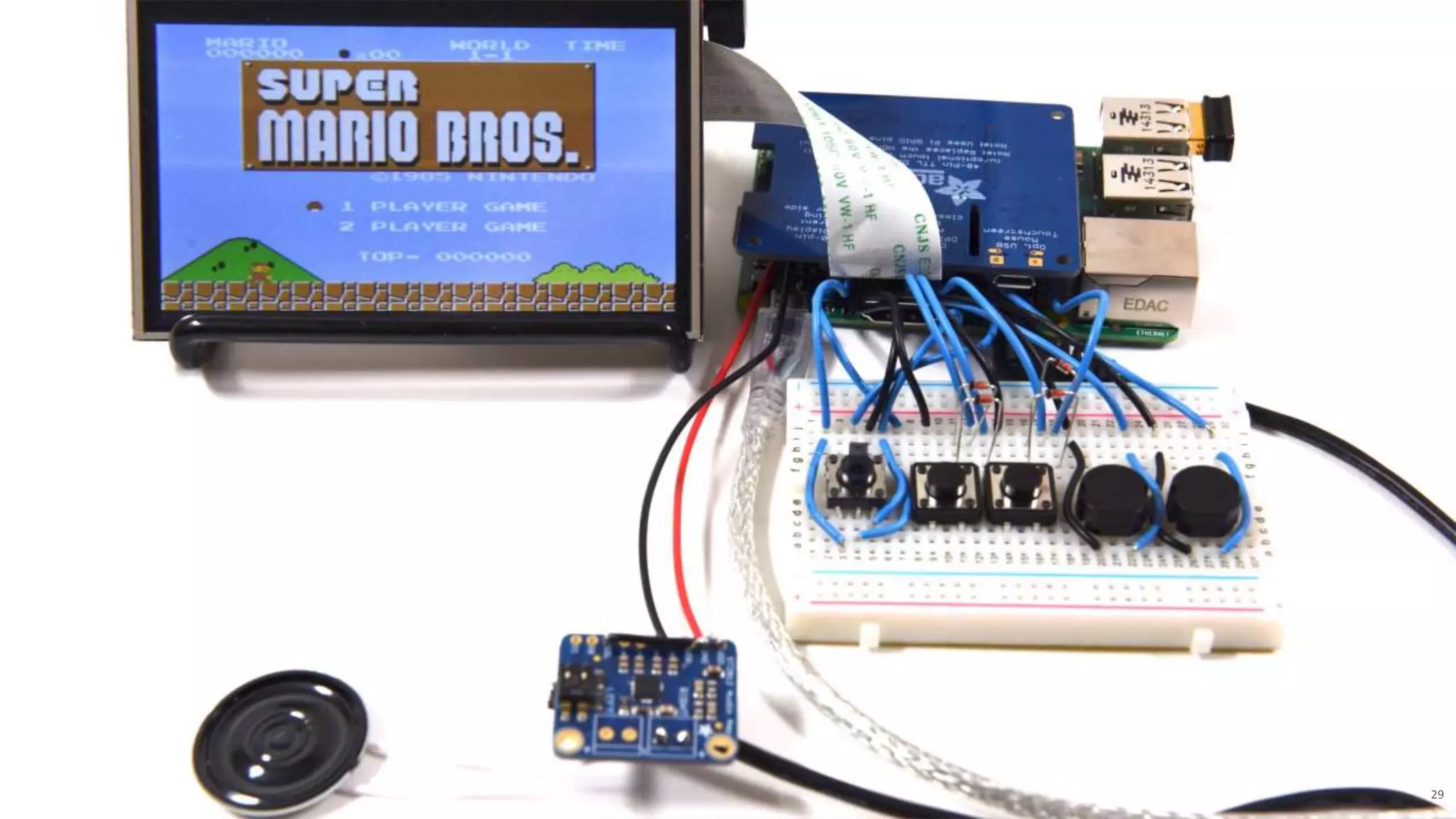

28. 29

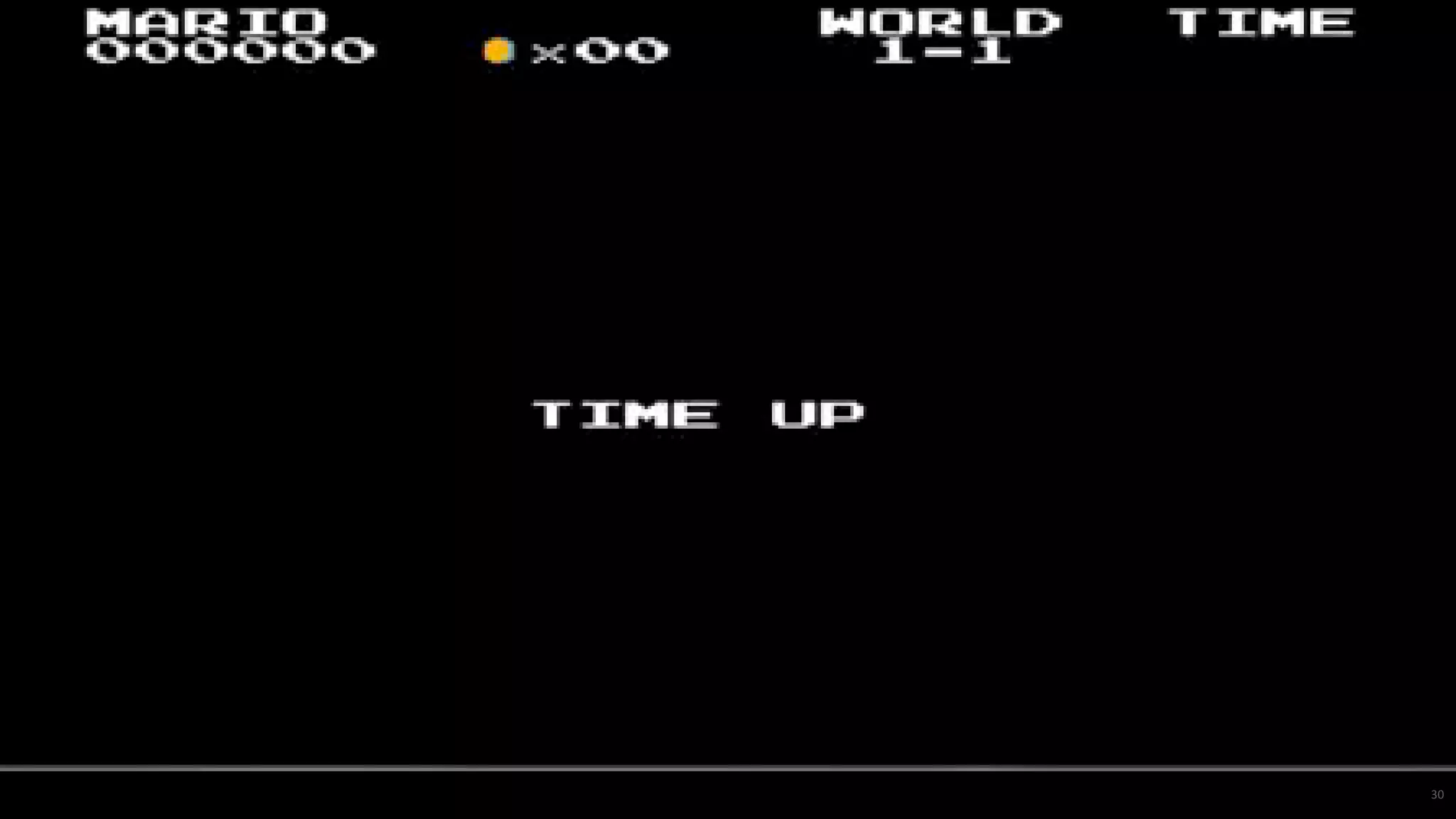

29. 30

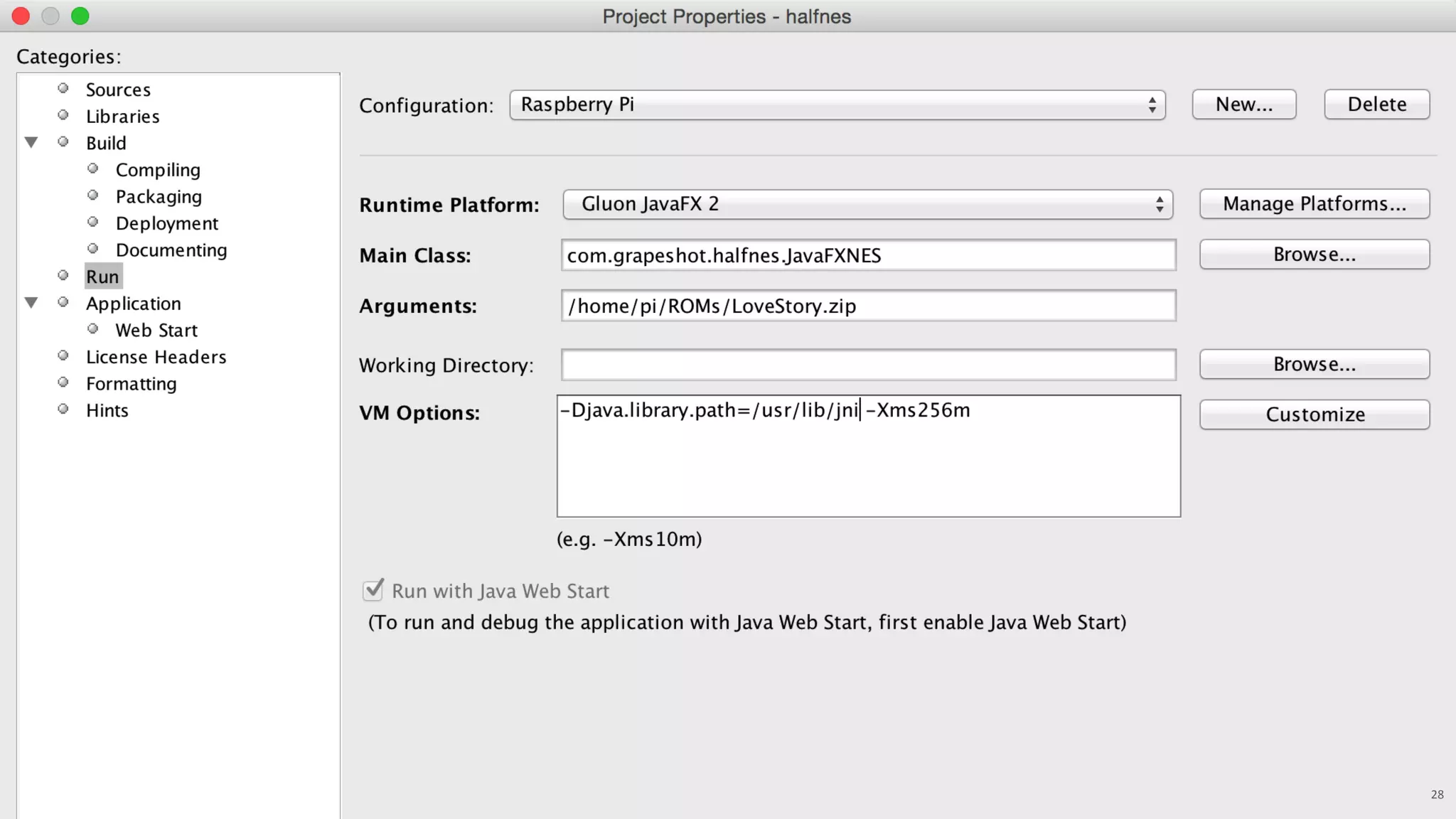

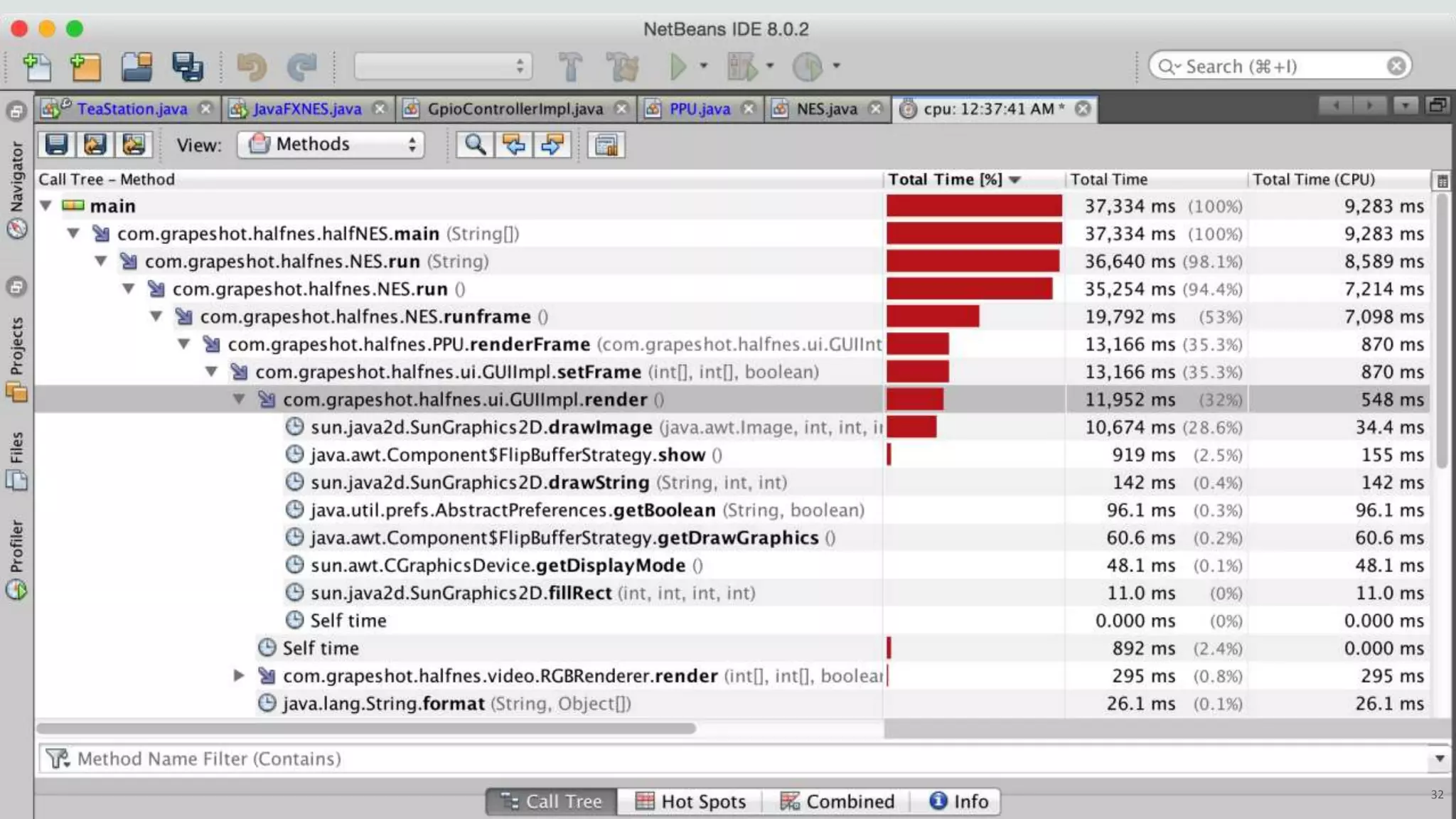

30. 32

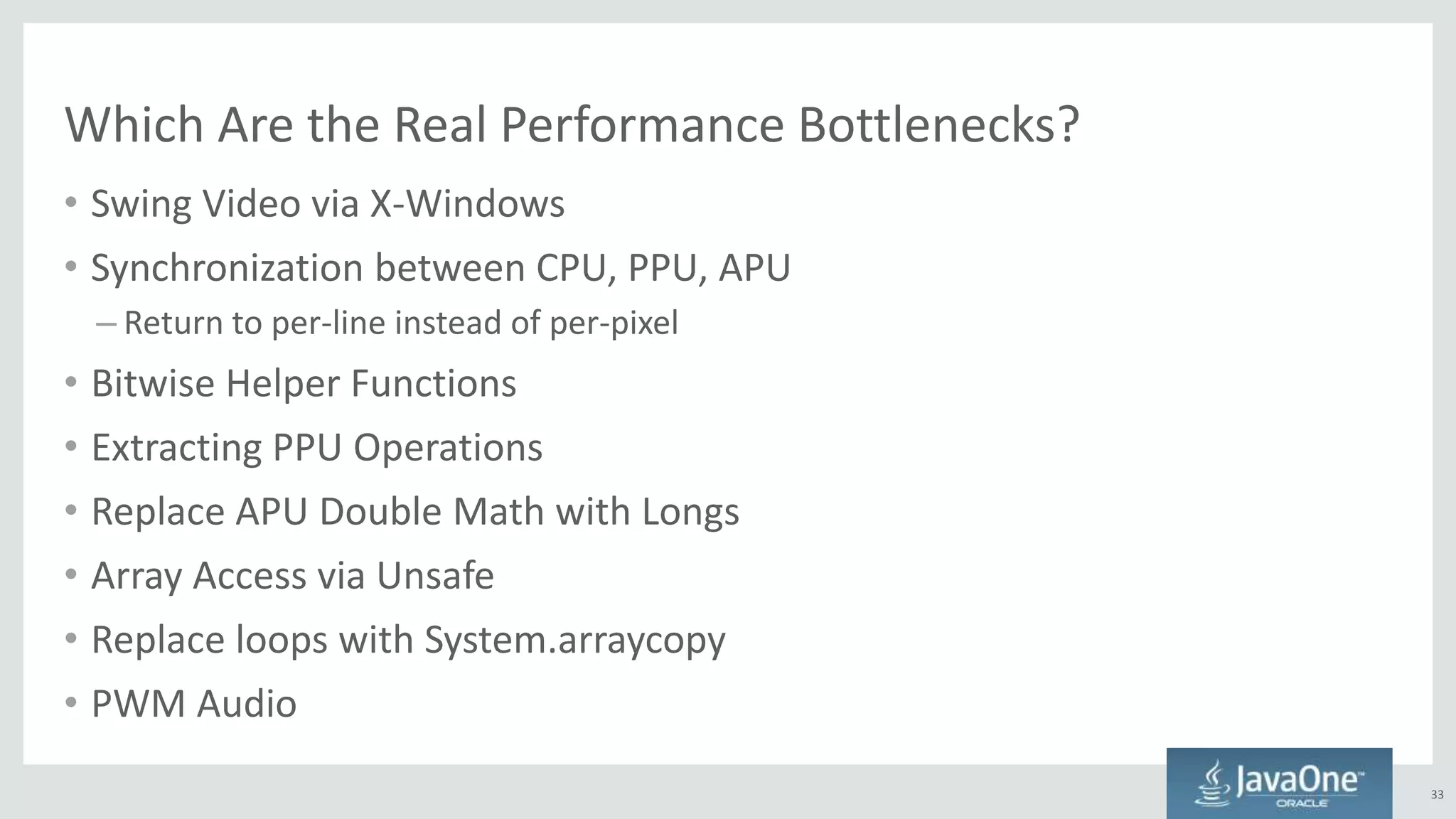

31. Which Are the Real Performance Bottlenecks?
• Swing Video via X-Windows
• Synchronization between CPU, PPU, APU
– Return to per-line instead of per-pixel
• Bitwise Helper Functions
• Extracting PPU Operations
• Replace APU Double Math with Longs
• Array Access via Unsafe
• Replace loops with System.arraycopy
• PWM Audio
33

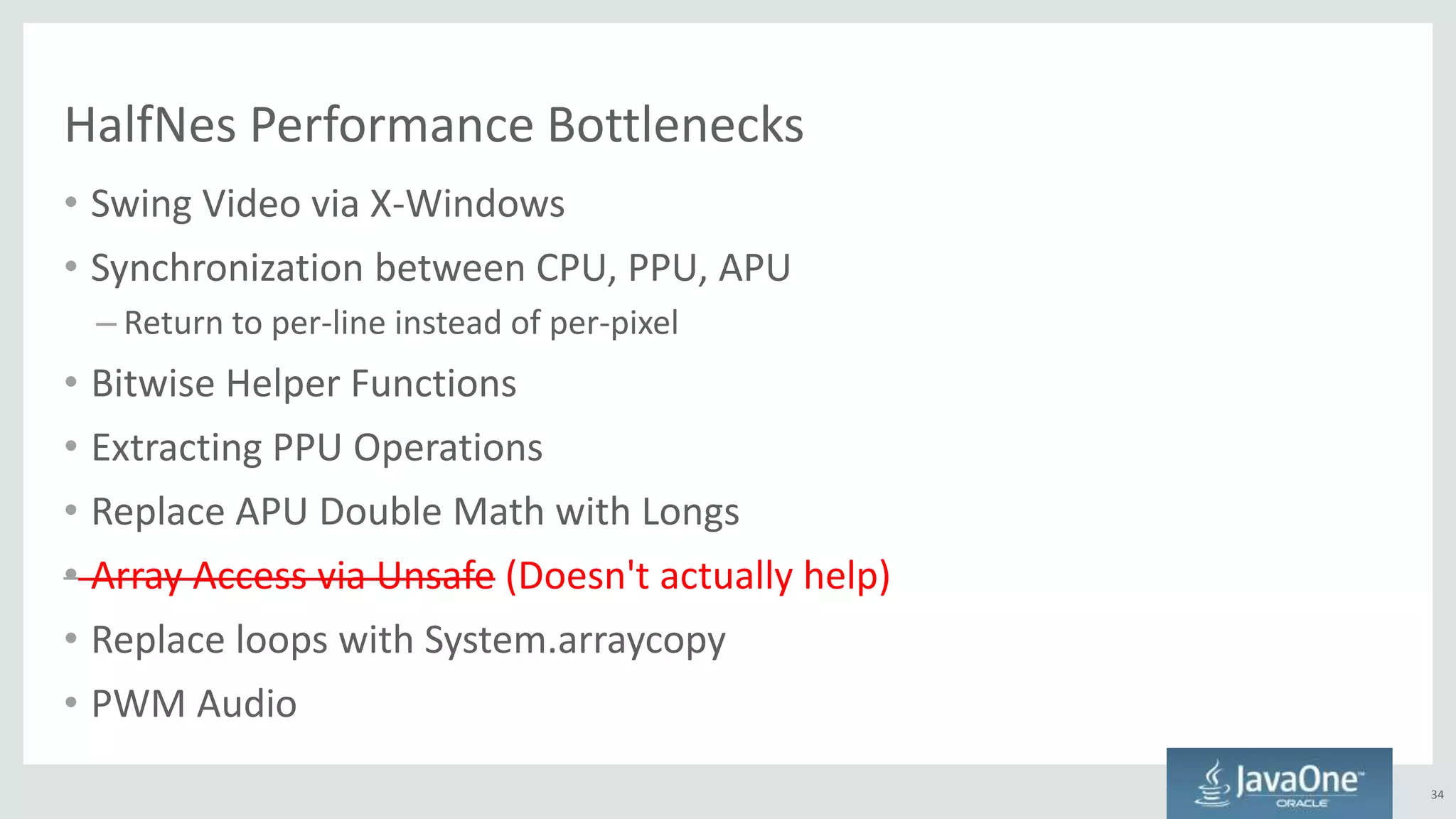

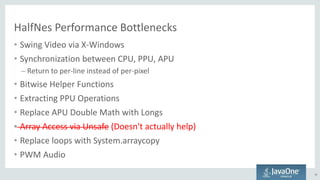

32. HalfNes Performance Bottlenecks
• Swing Video via X-Windows
• Synchronization between CPU, PPU, APU
– Return to per-line instead of per-pixel
• Bitwise Helper Functions
• Extracting PPU Operations
• Replace APU Double Math with Longs
• Array Access via Unsafe (Doesn't actually help)
• Replace loops with System.arraycopy
• PWM Audio
34

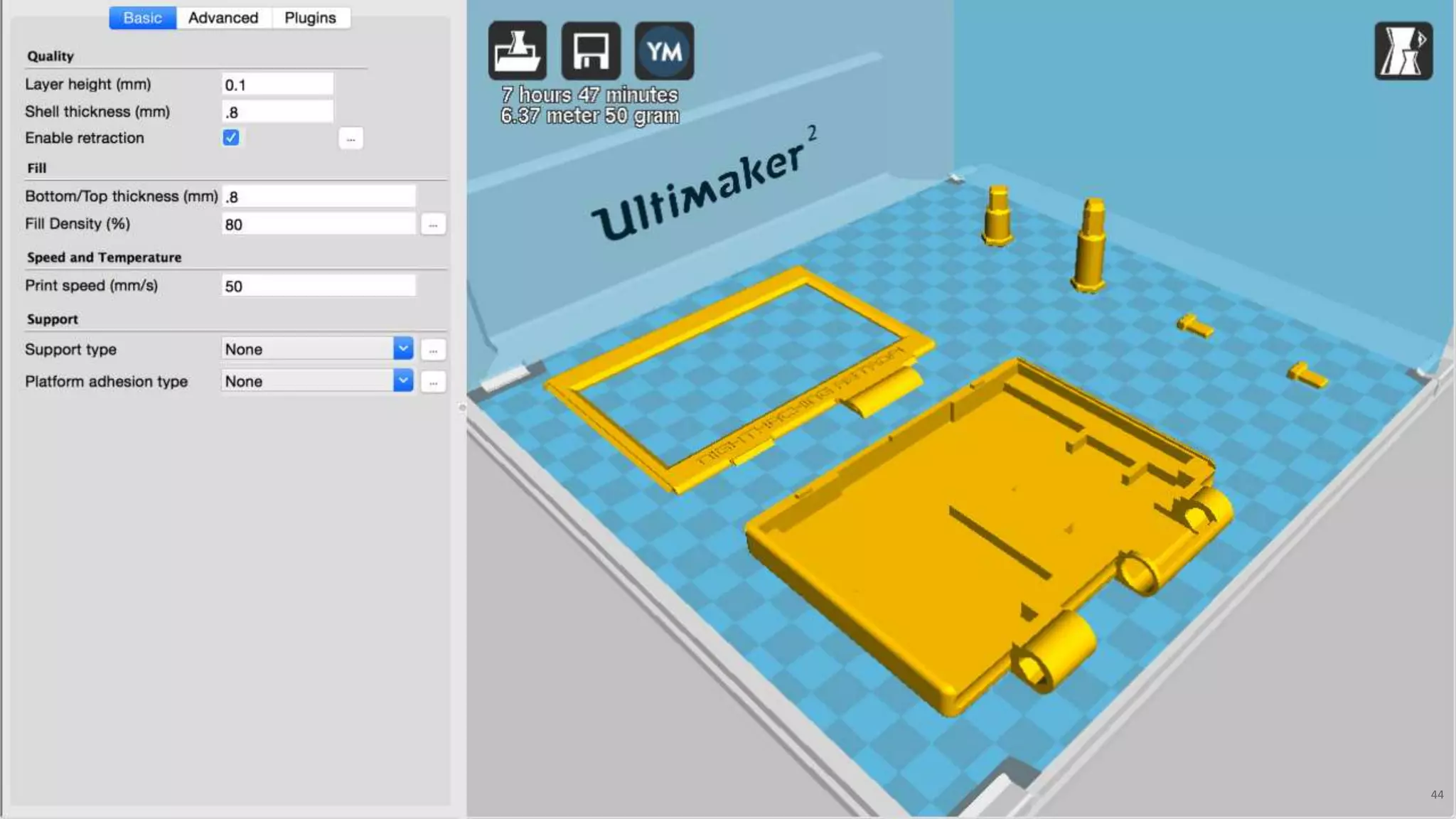

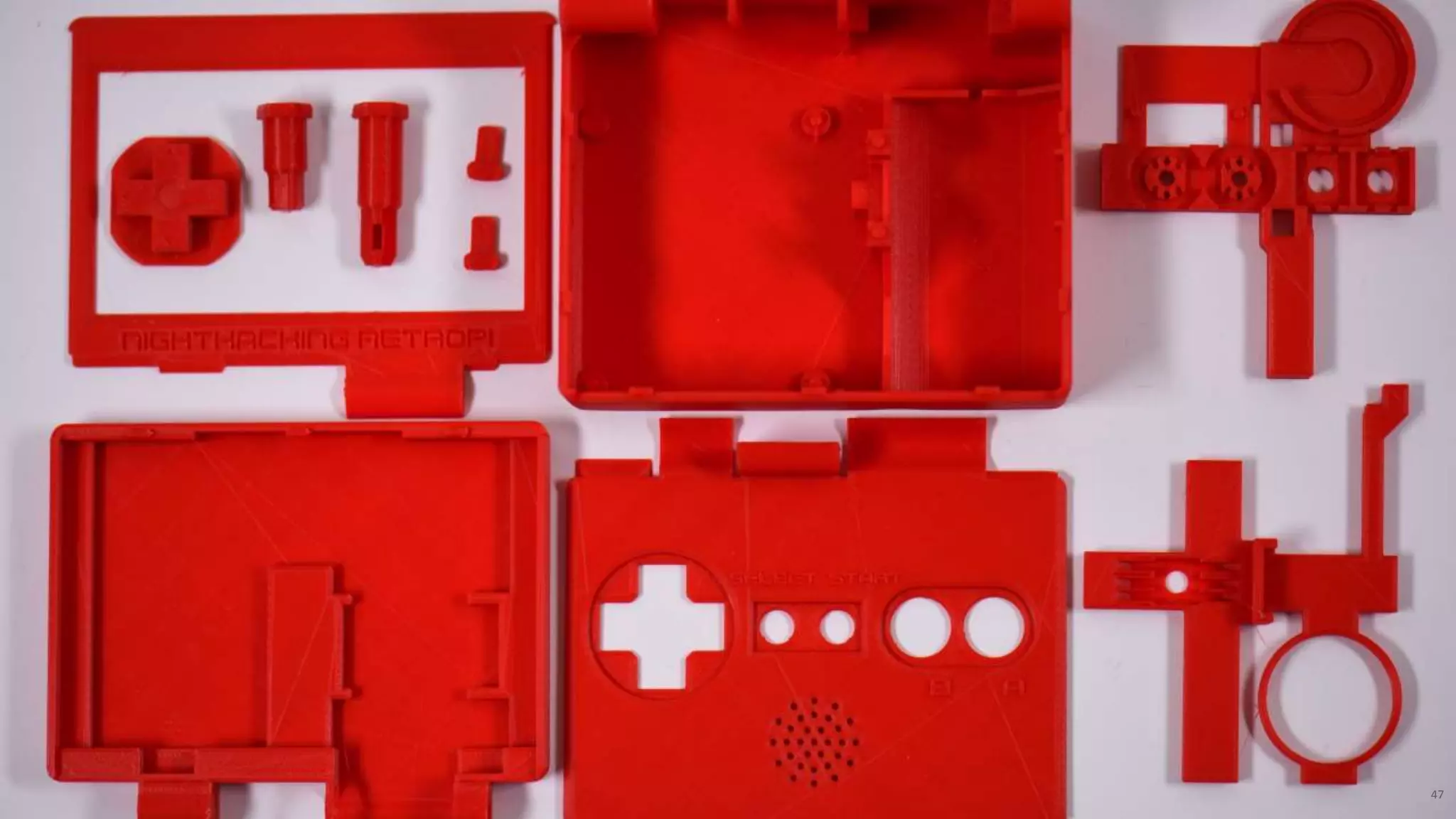

33. 3D Printing a Case
35http://vidal-design.deviantart.com/art/Mario-Versus-Bullet-Bill-3D-printed-402524749

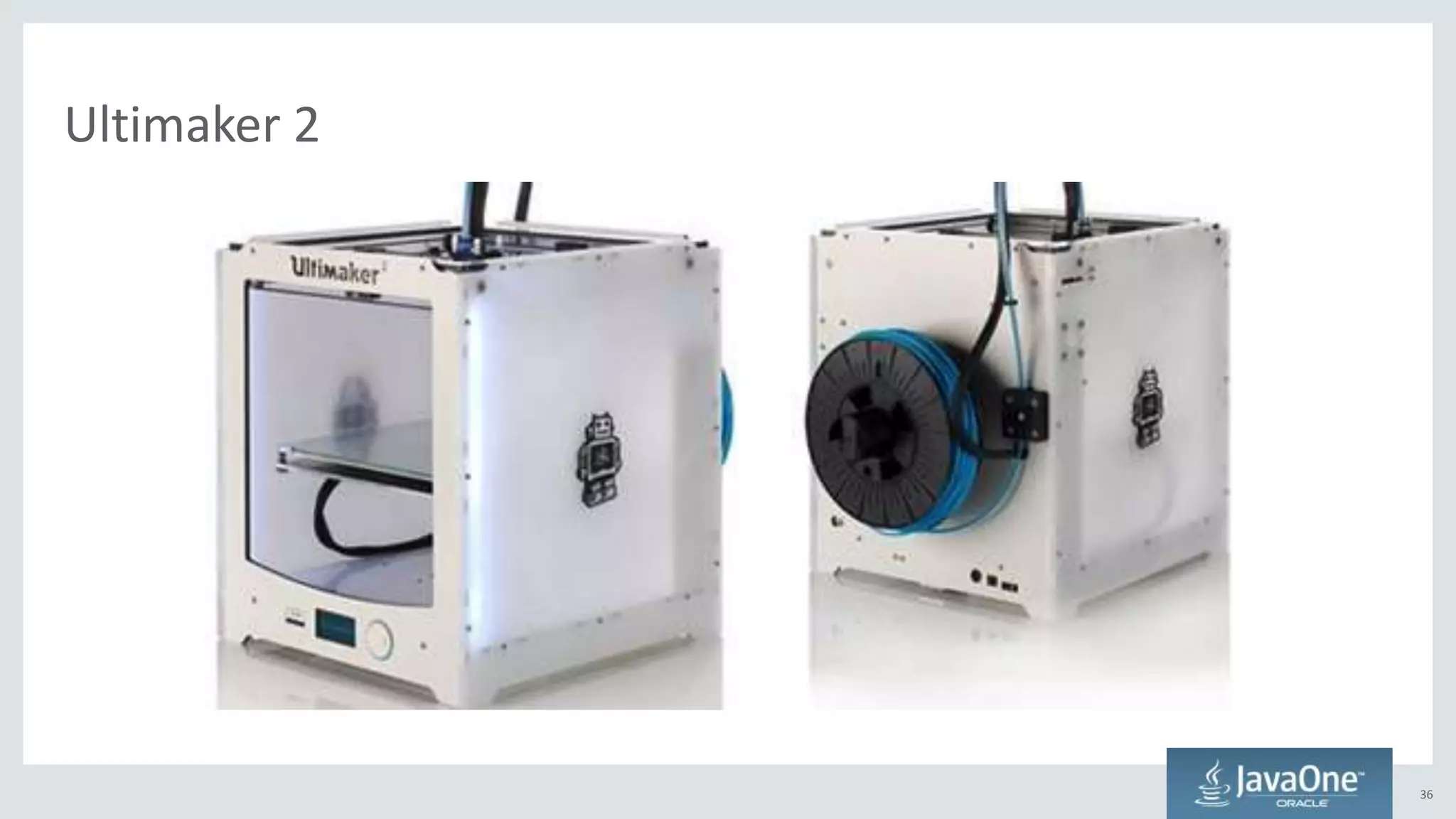

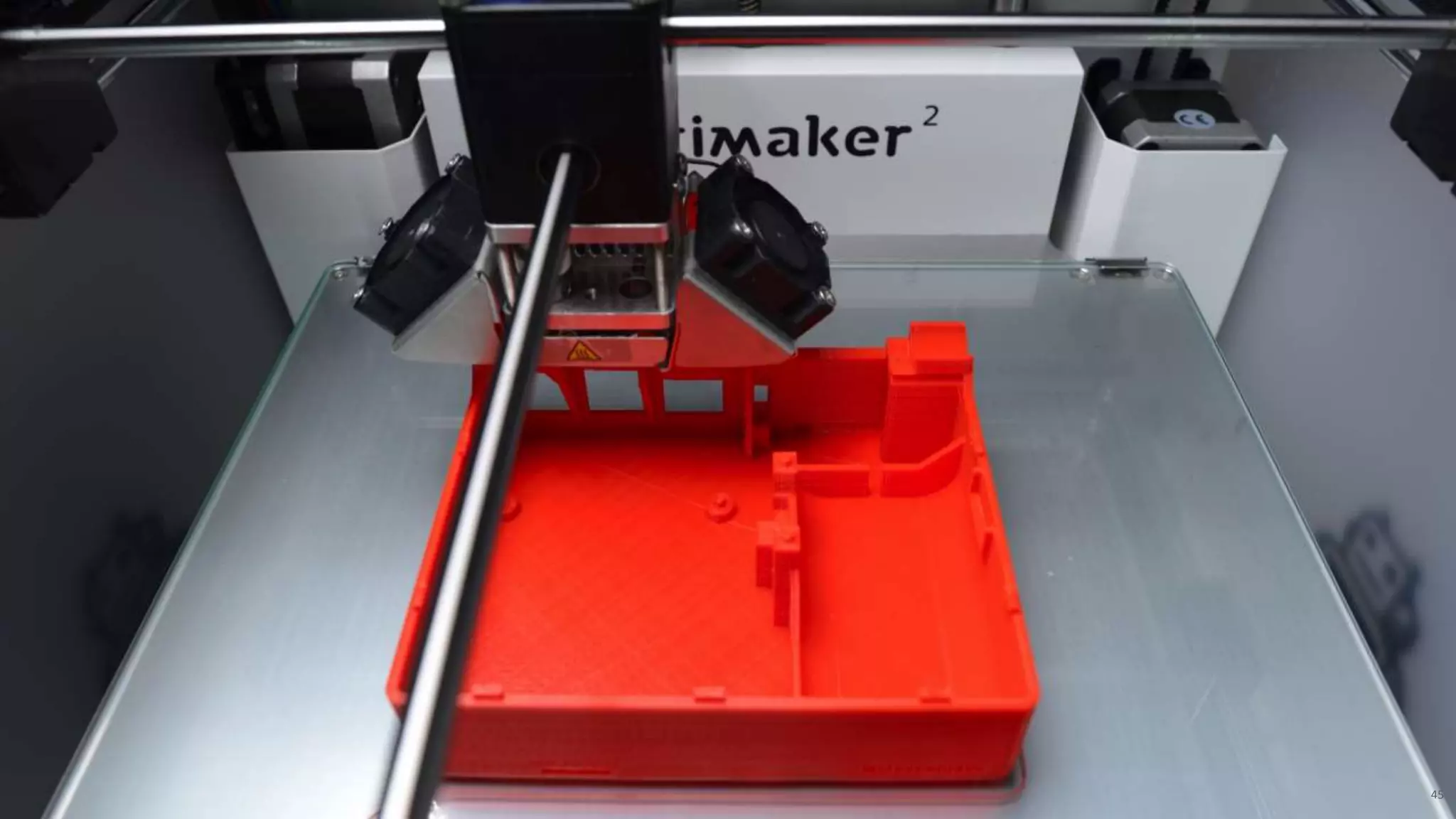

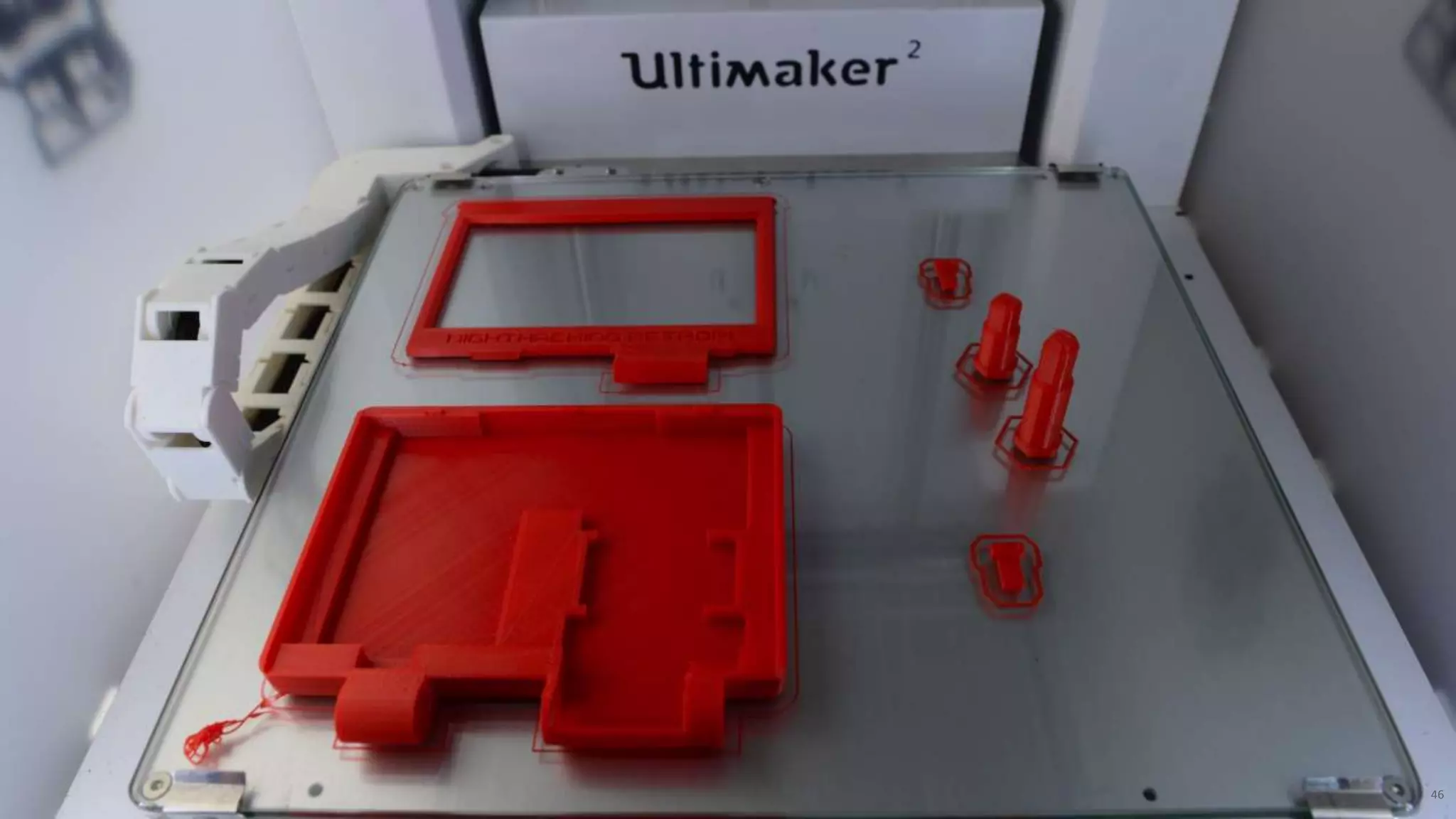

34. Ultimaker 2
36

35. 37

36. 38

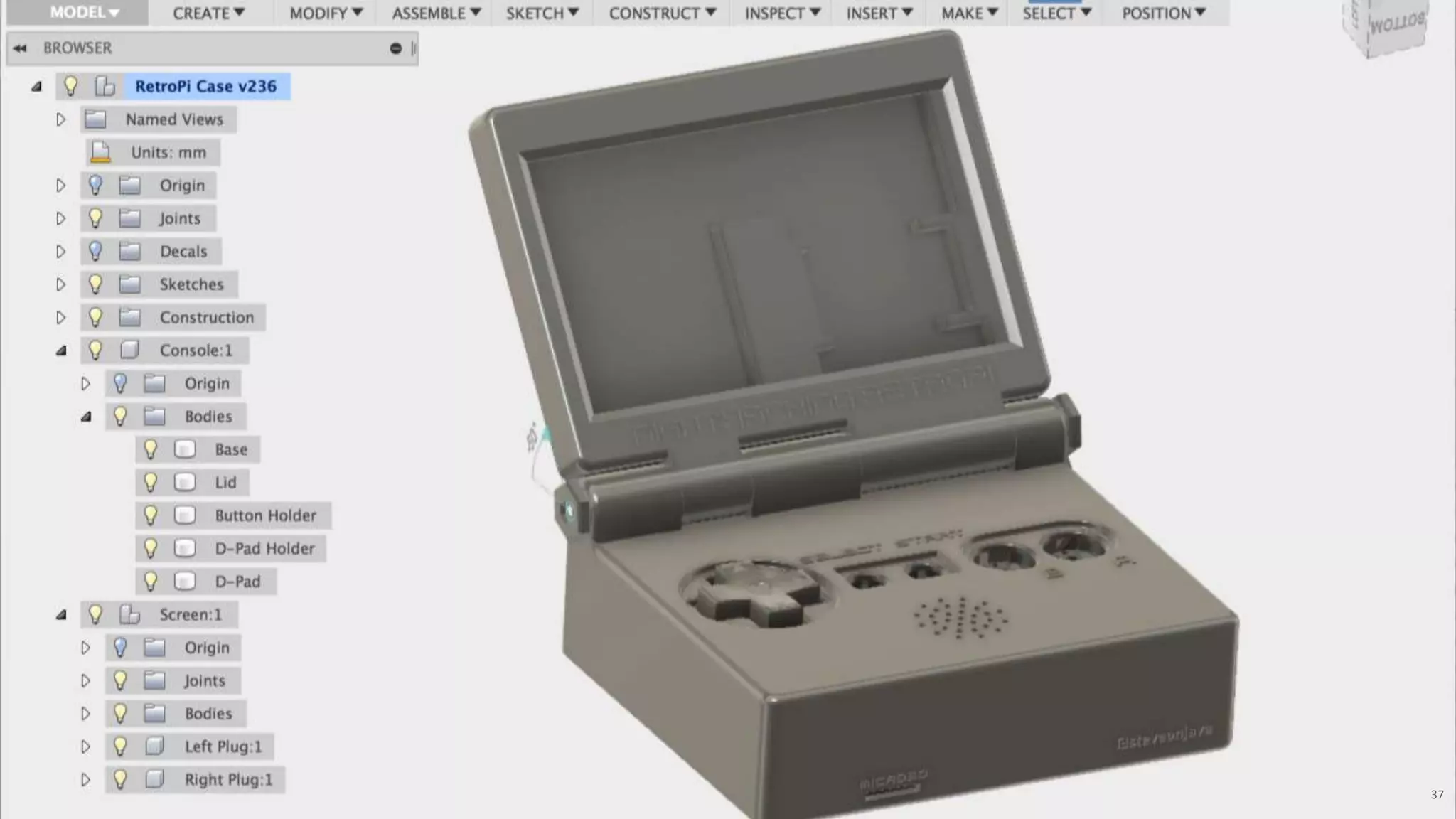

37. 39

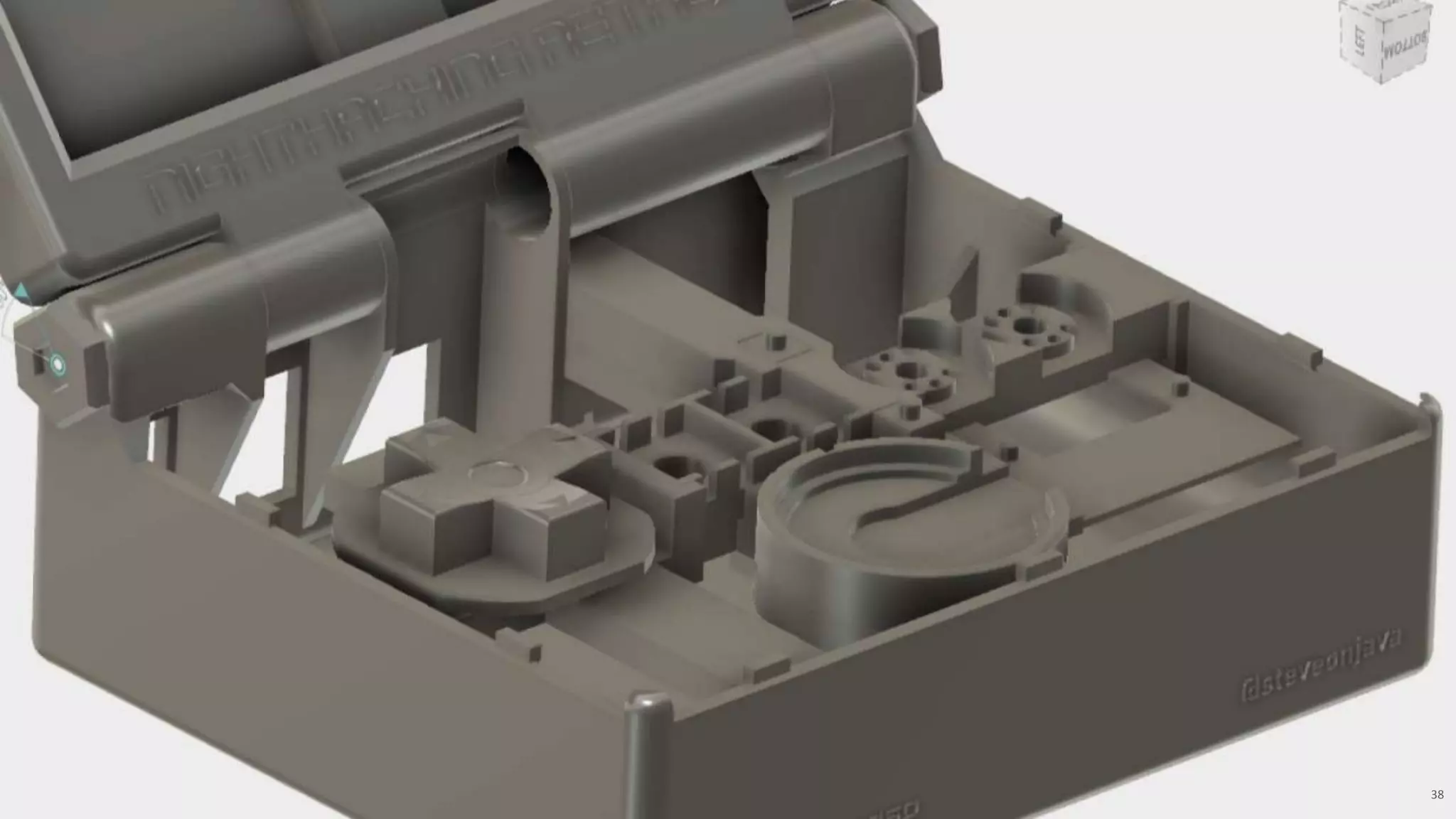

38. 40

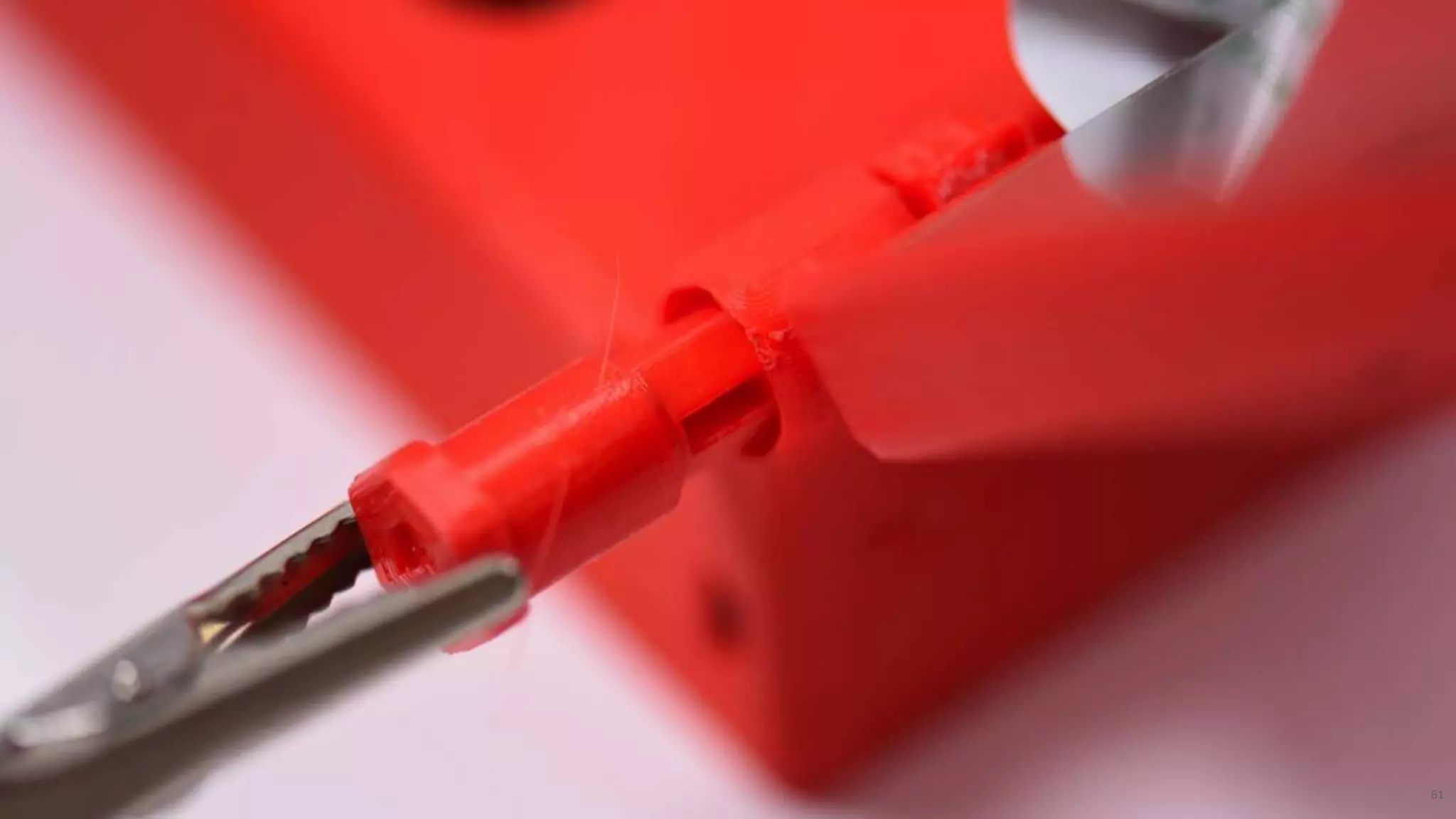

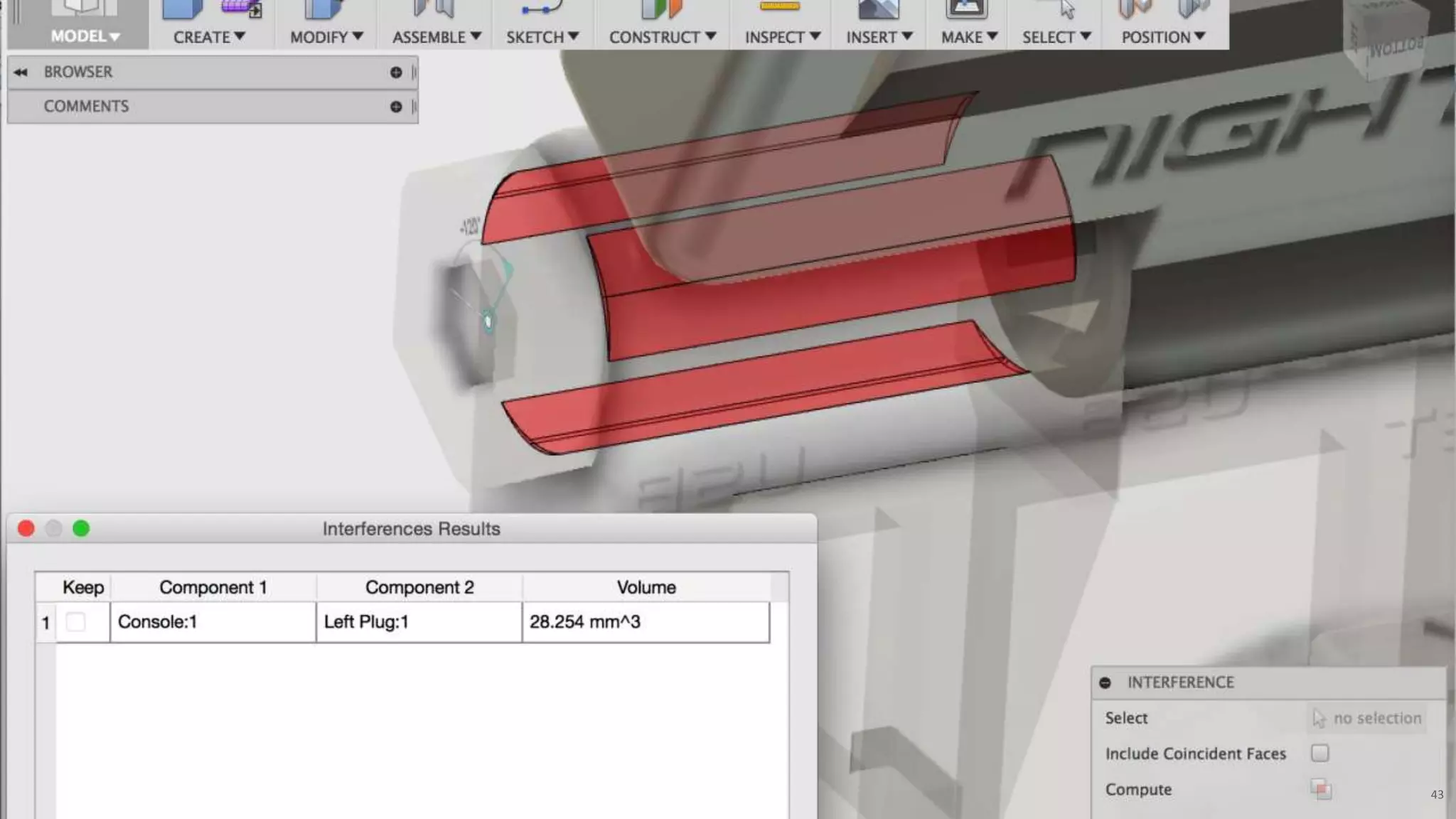

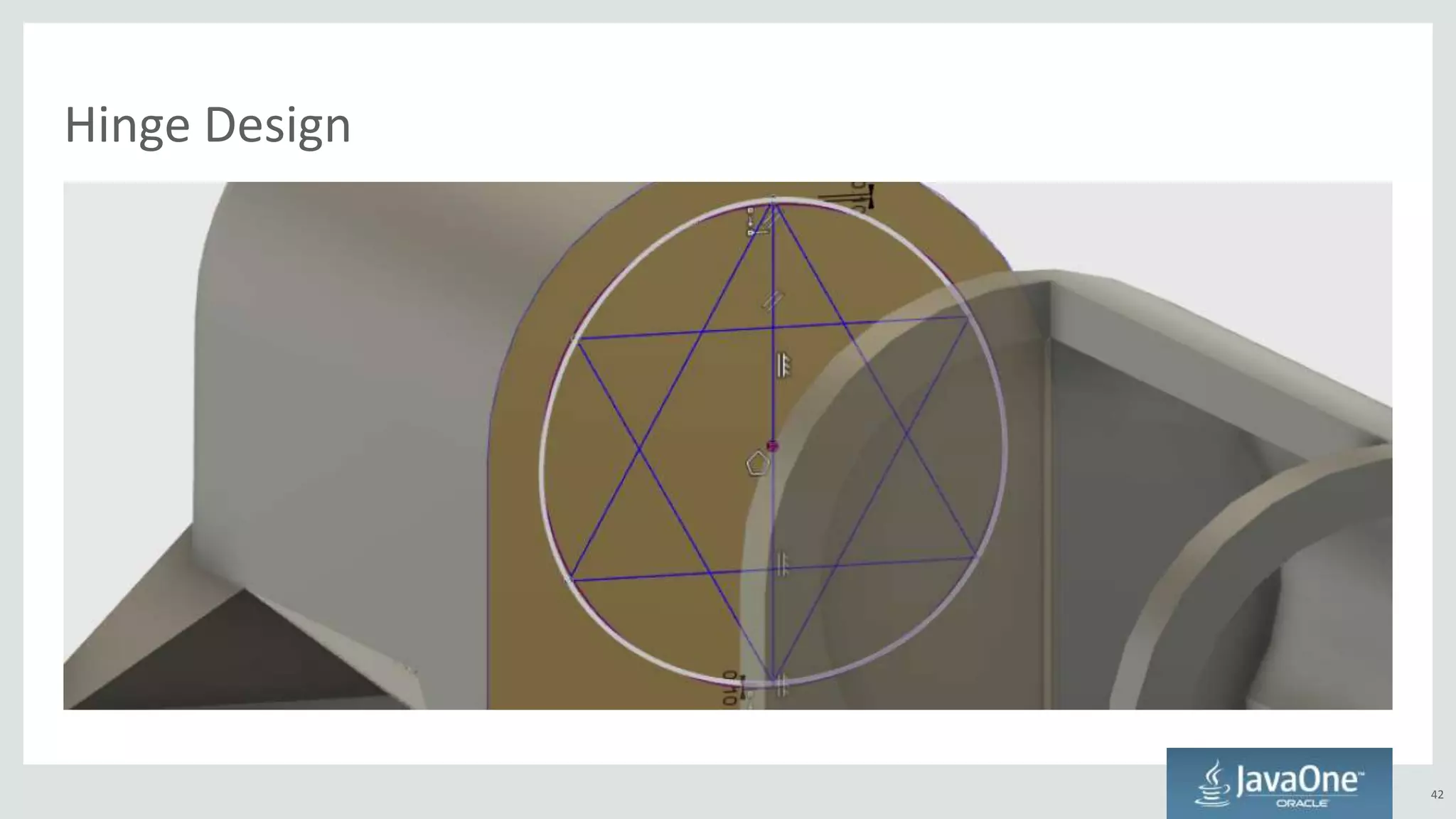

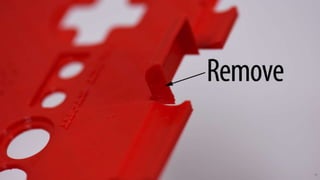

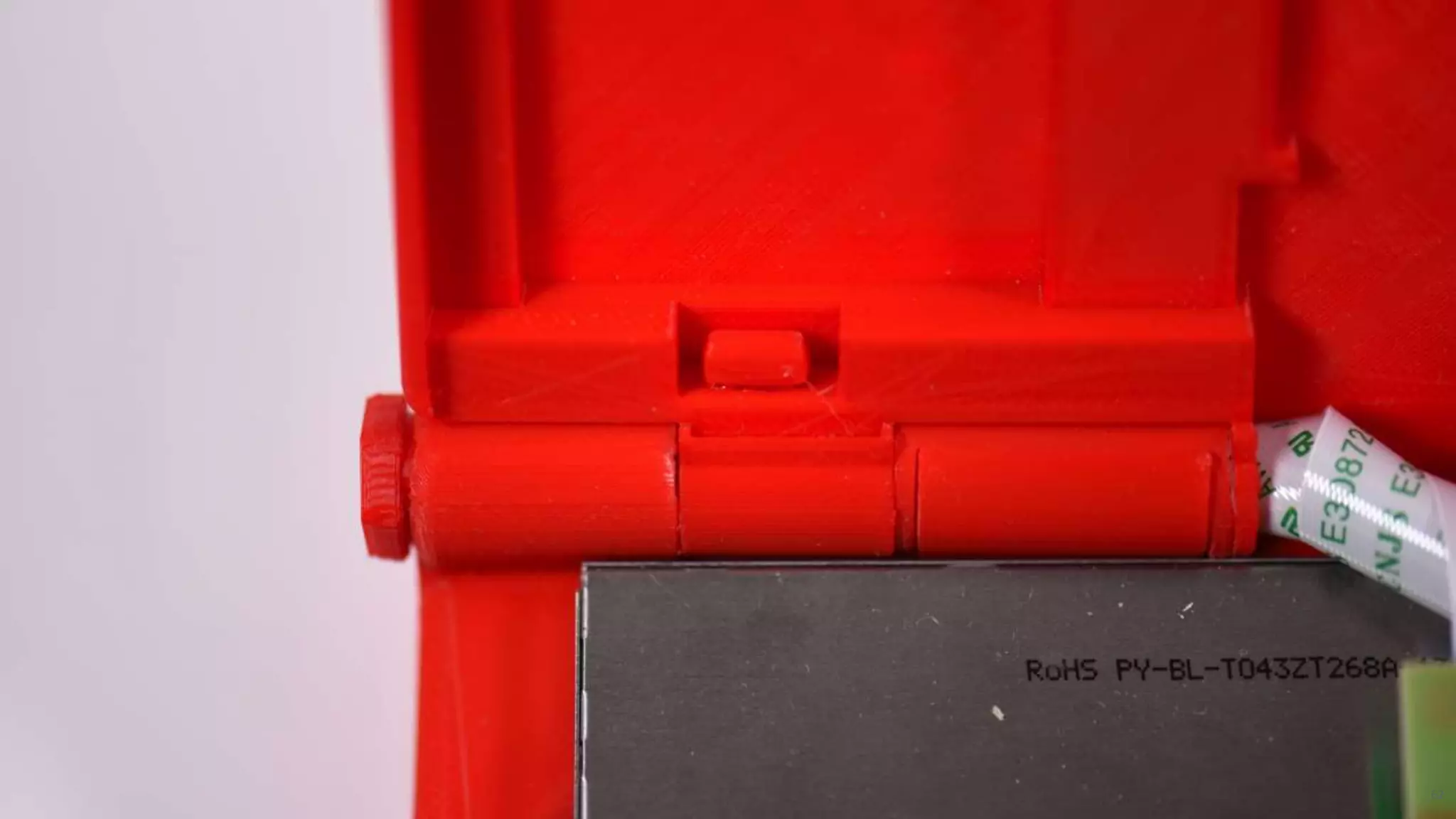

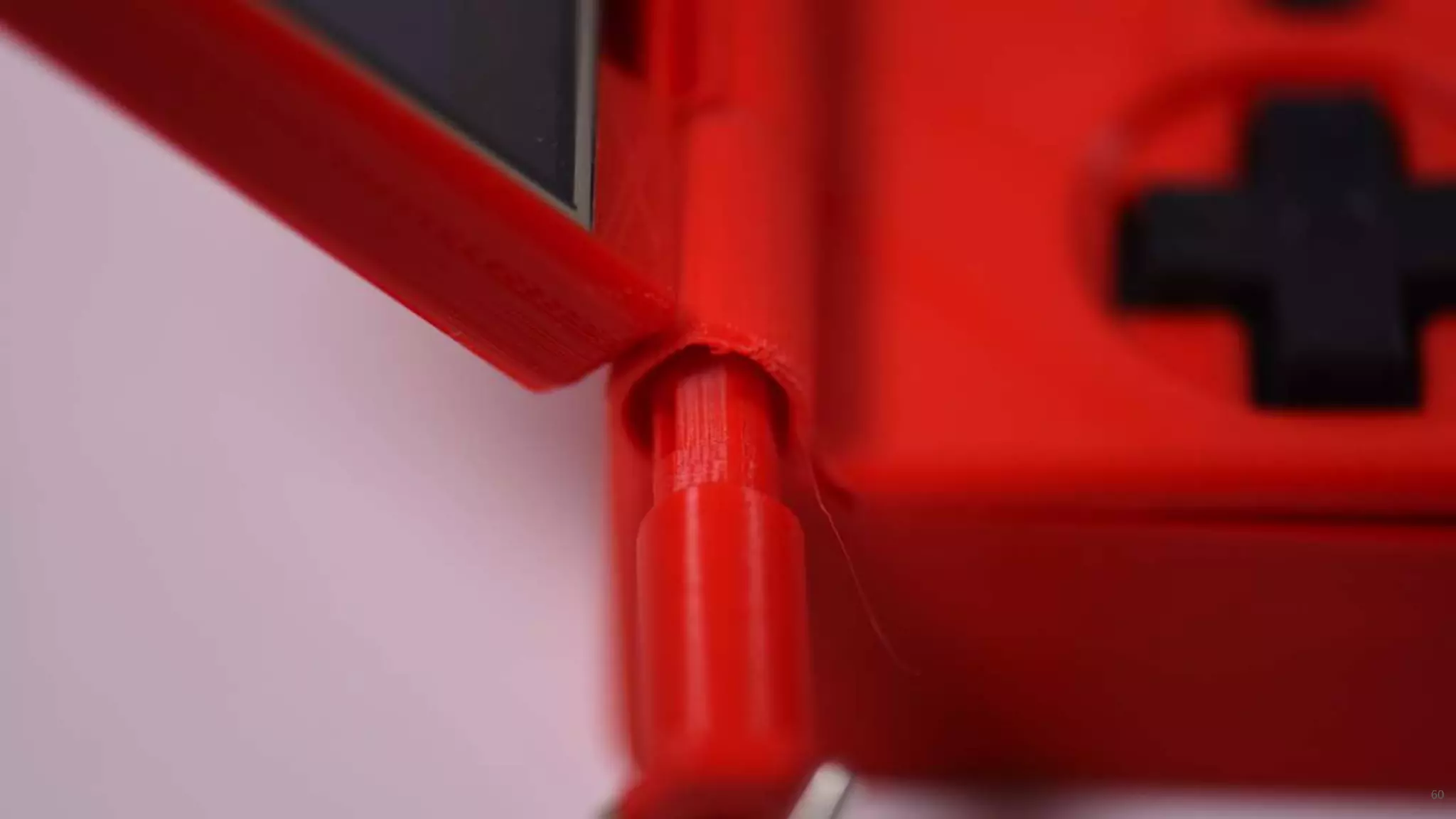

39. Hinge Design
42

40. 43

41. 44

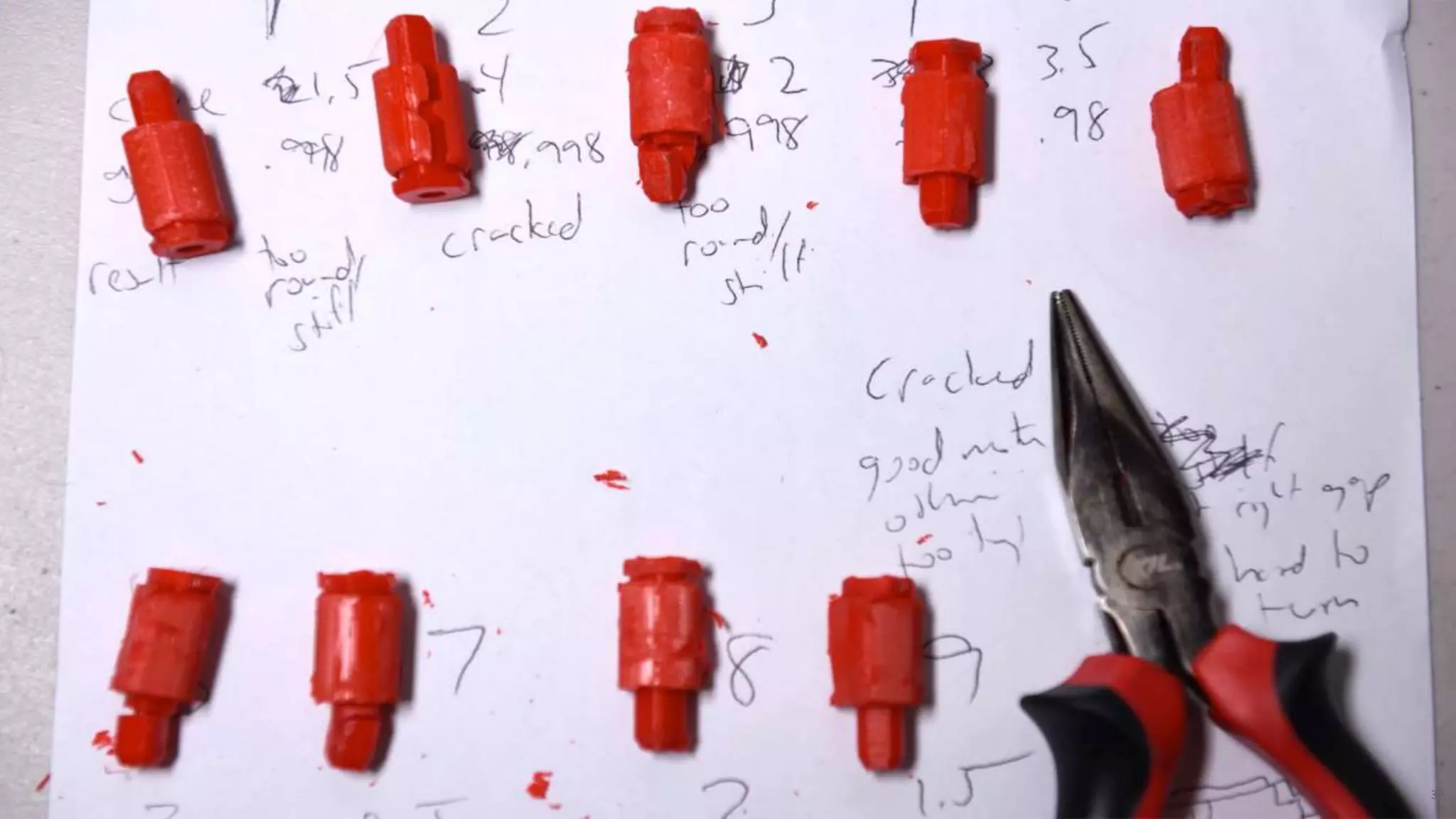

42. 45

43. 46

44. 47

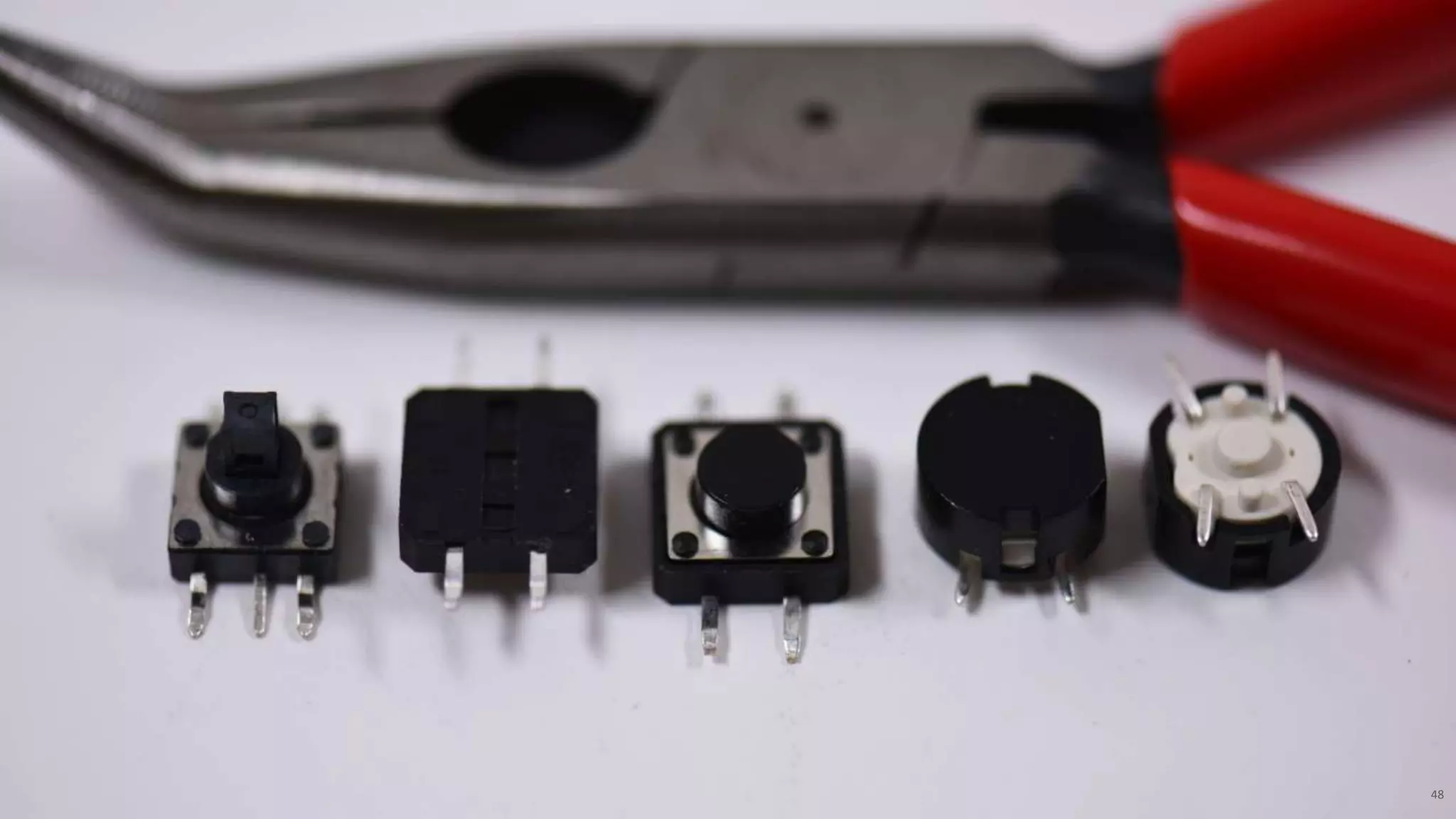

45. 48

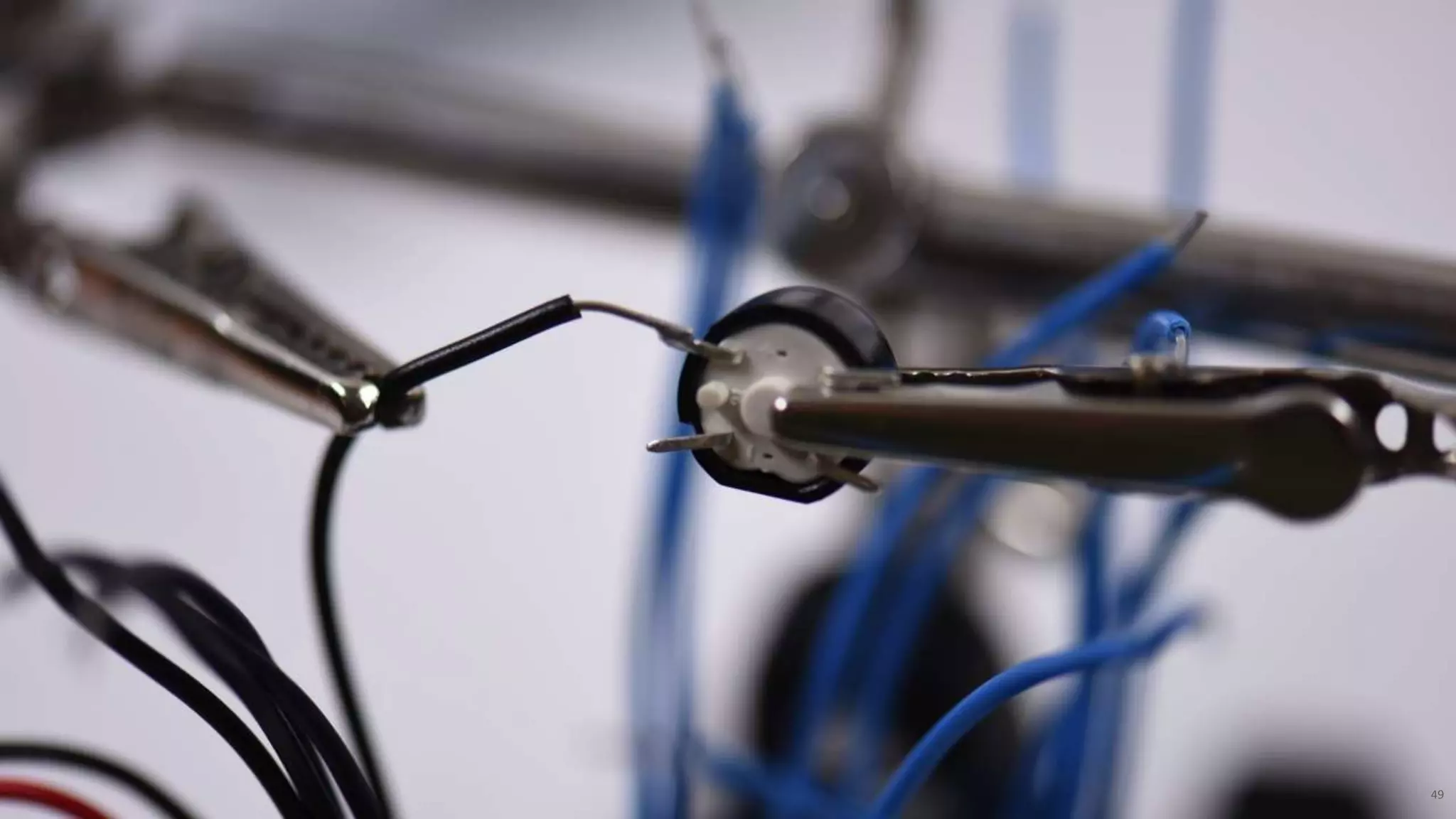

46. 49

47. 50

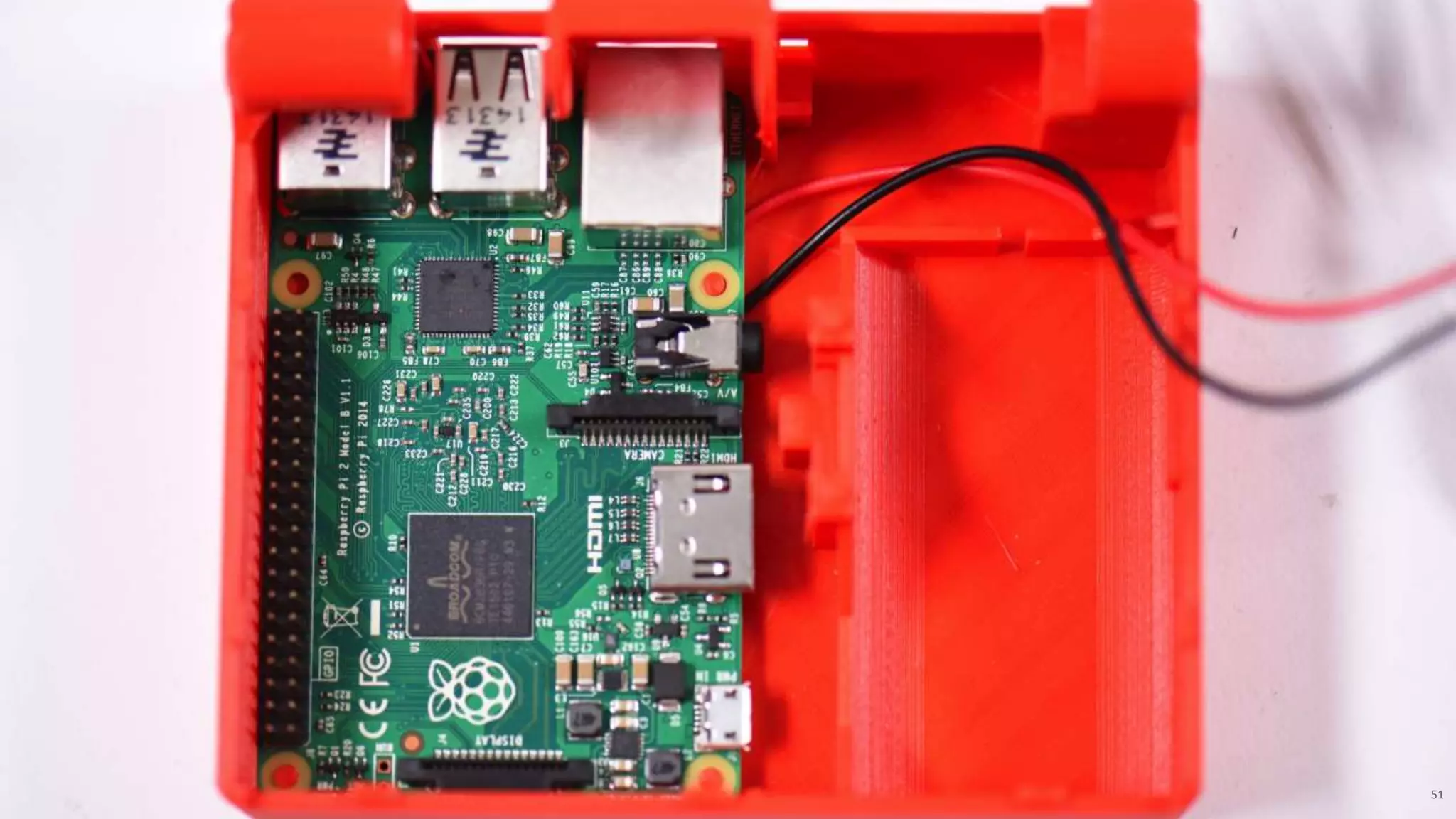

48. 51

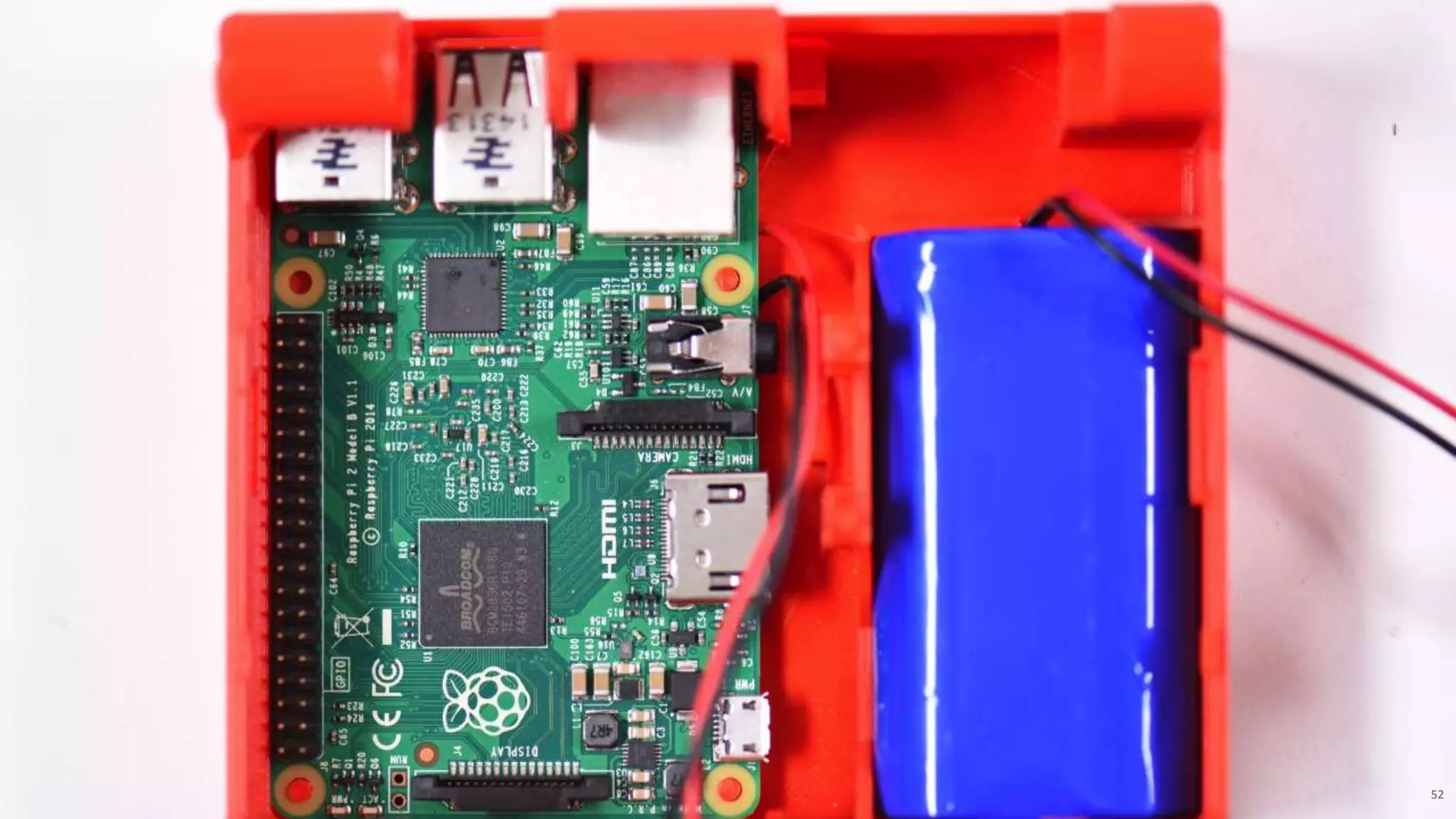

49. 52

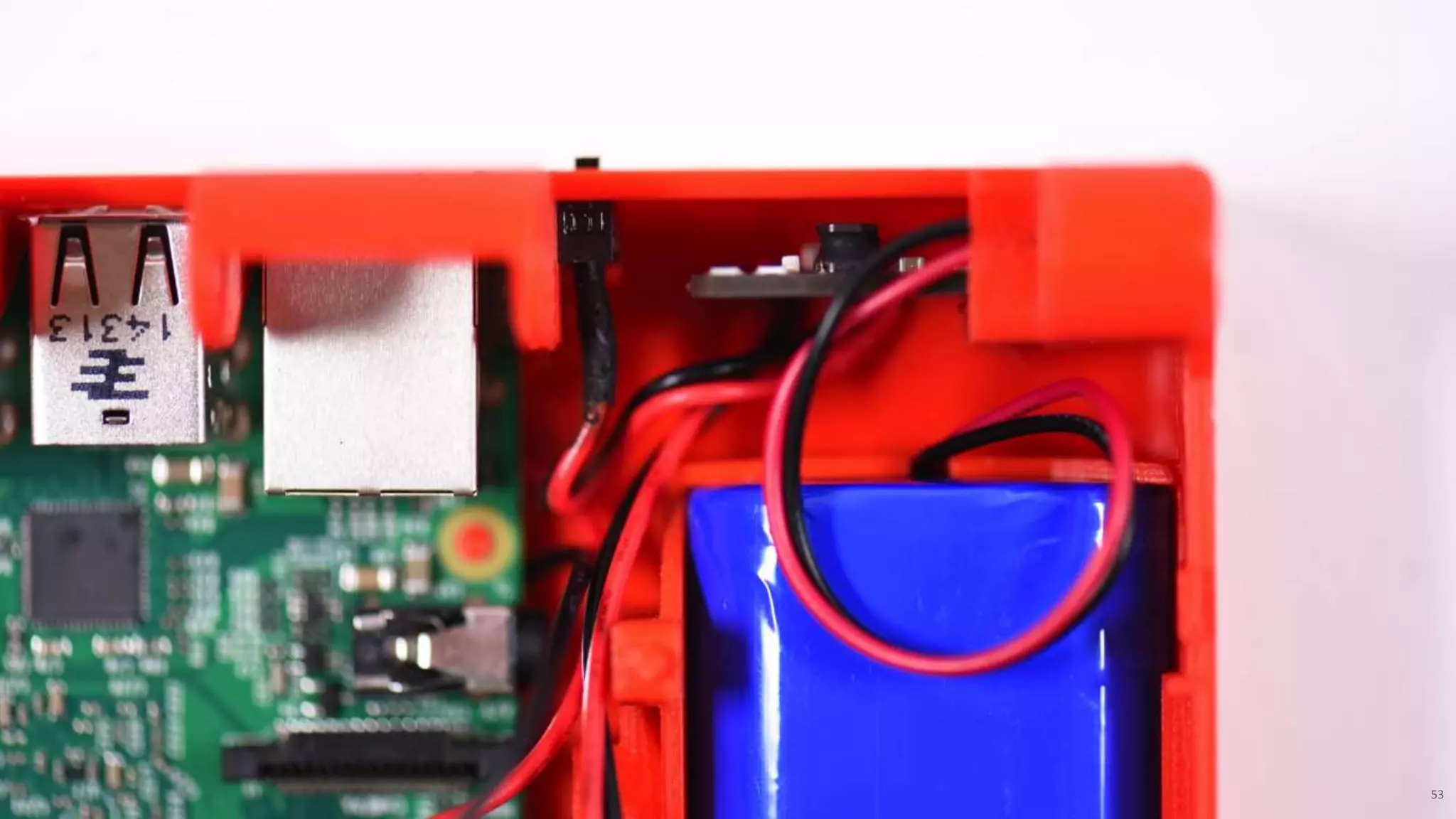

50. 53

51. 54

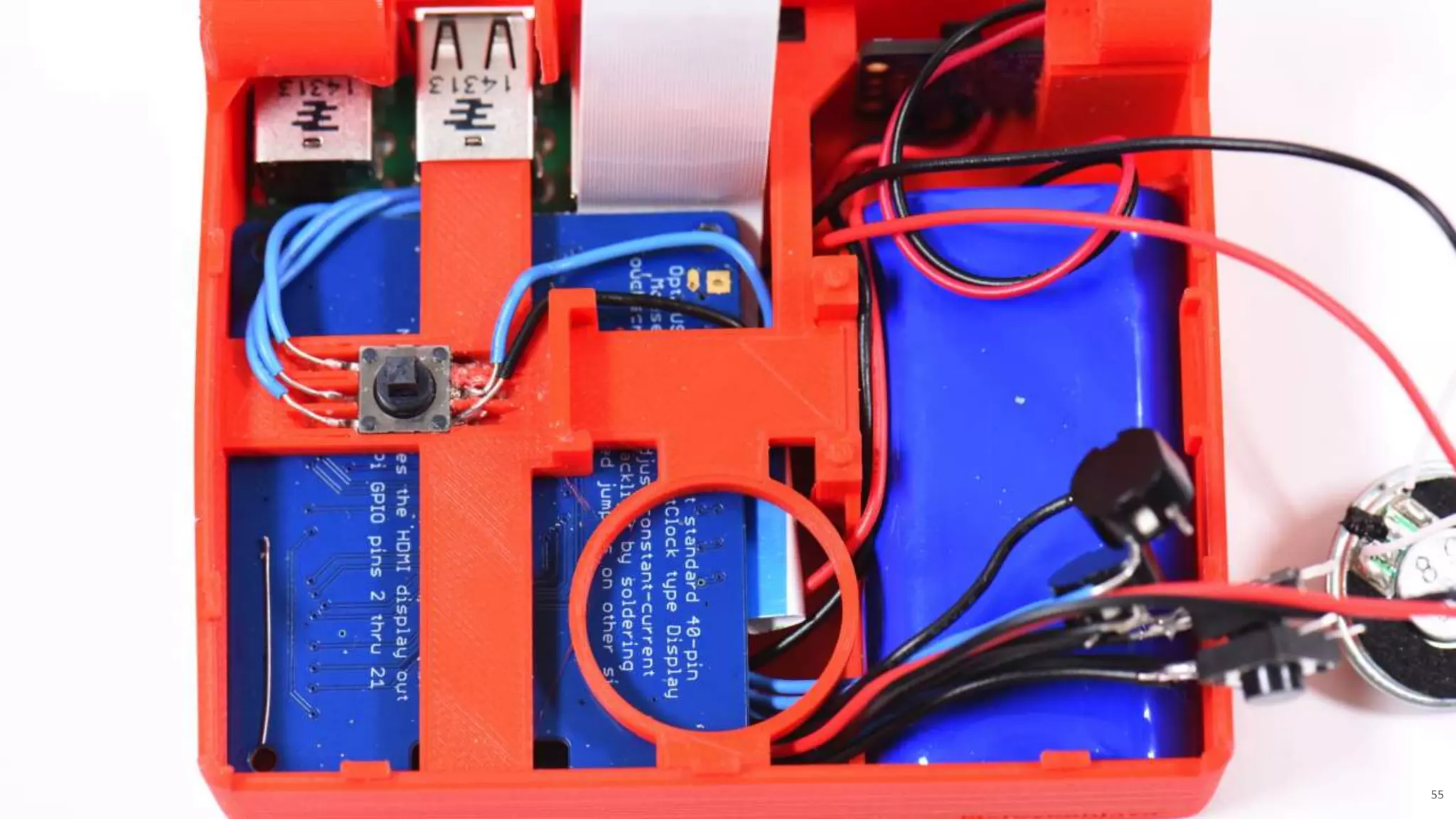

52. 55

53. 56

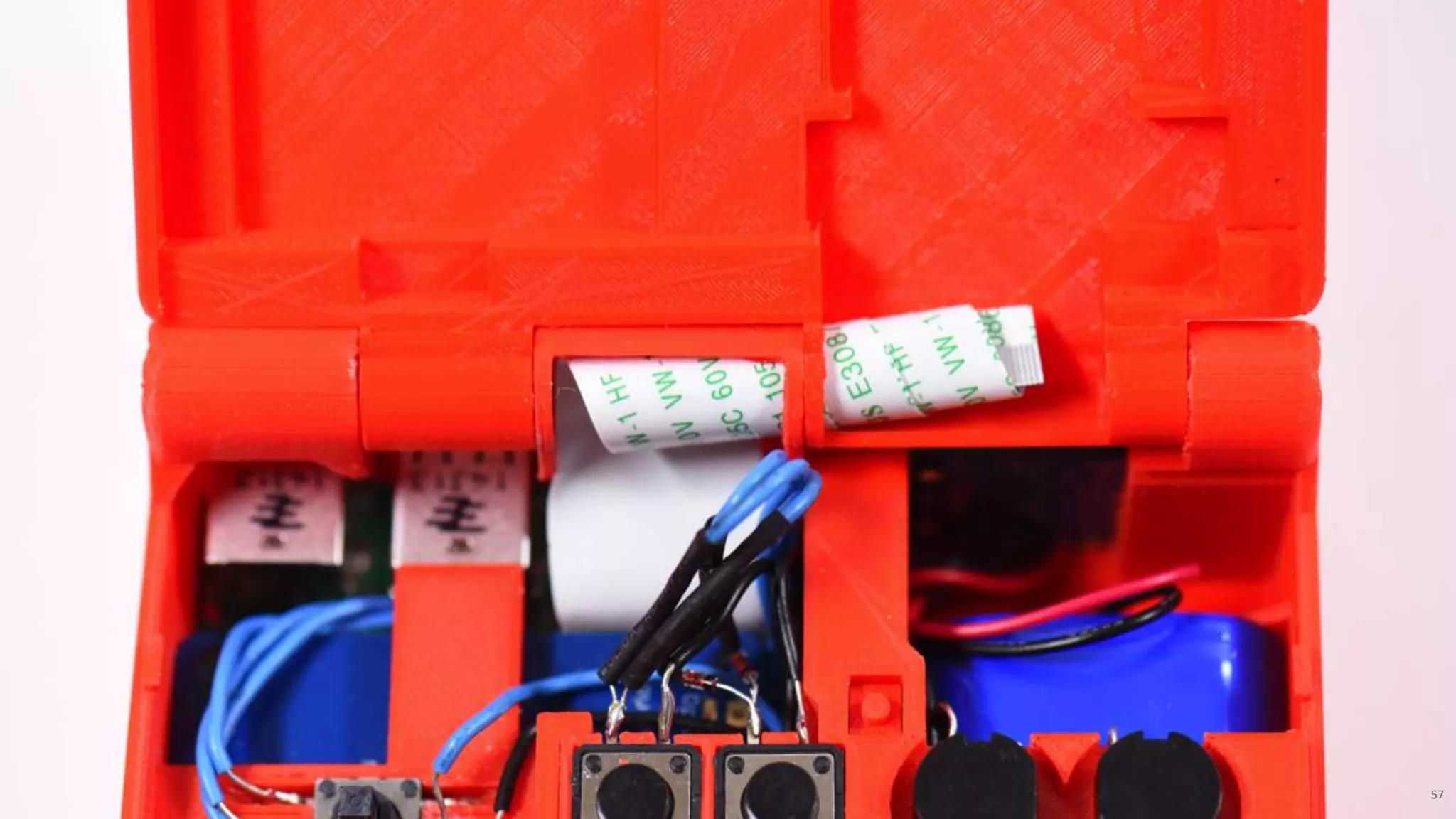

54. 57

55. 58

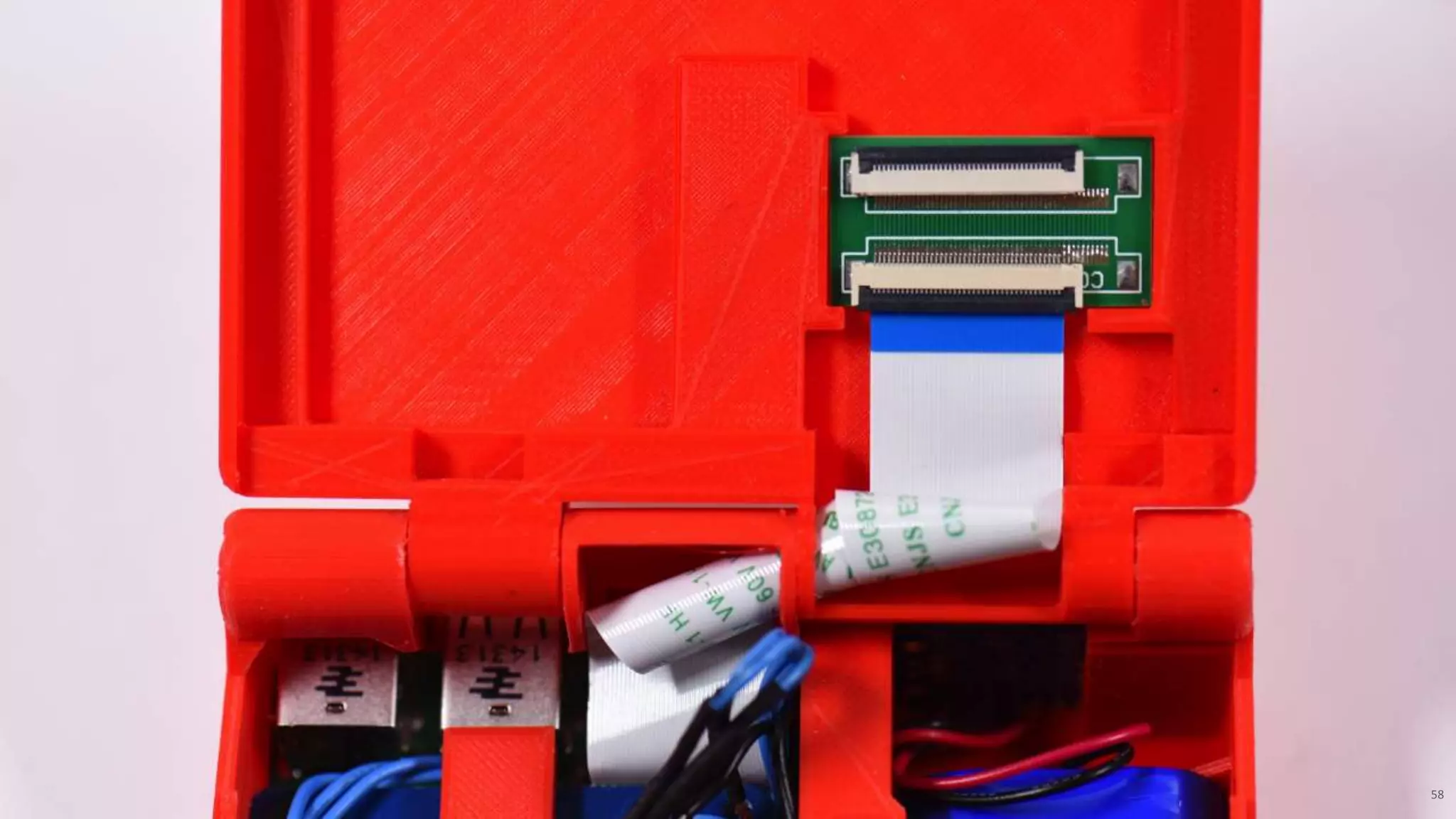

56. 59

57. 60

58. 61

59. 62

60. 63

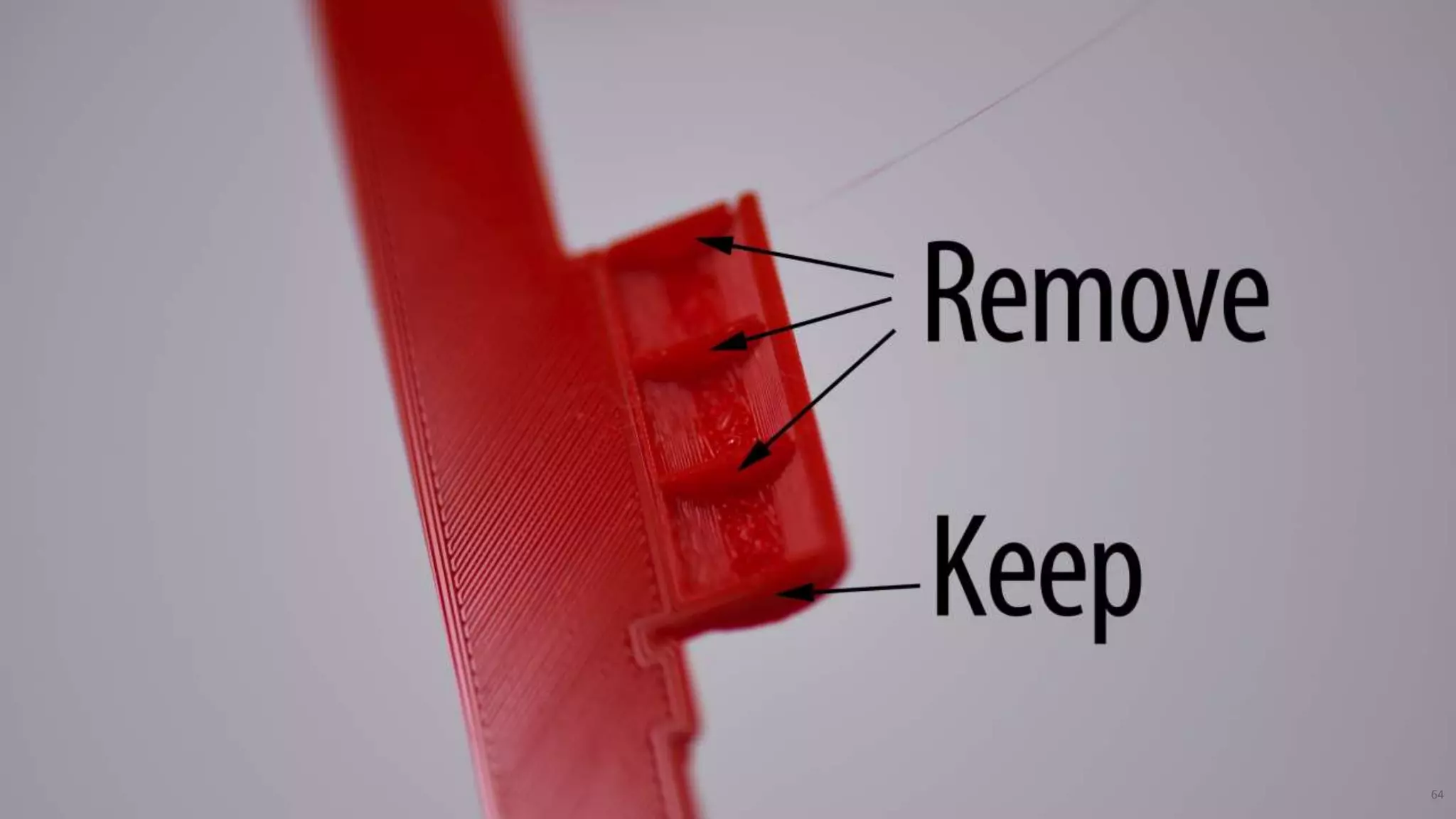

61. 64

62. 65

63. 66

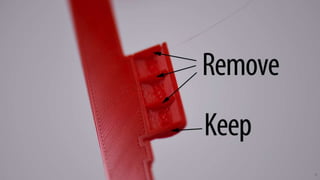

64. 67

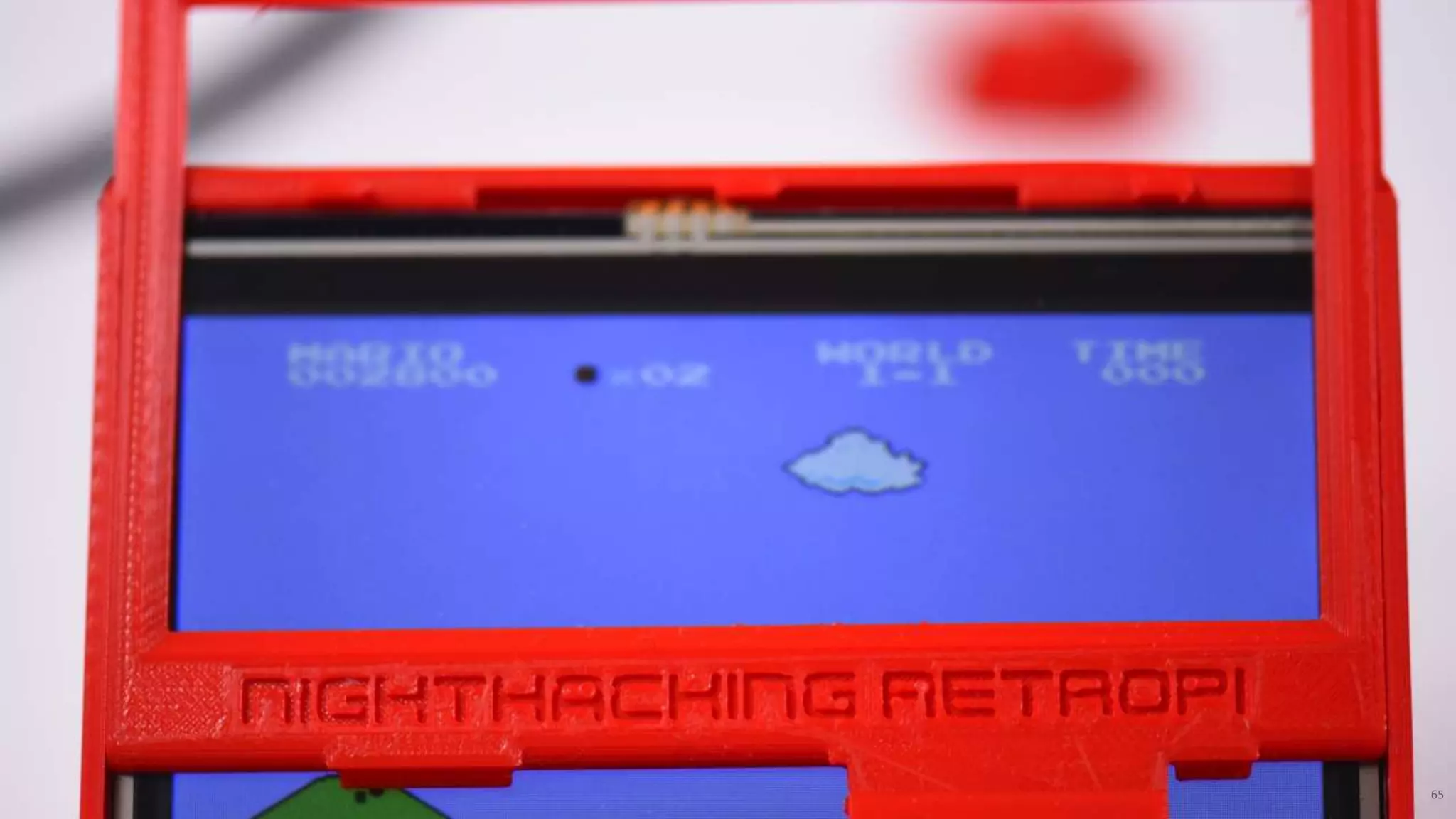

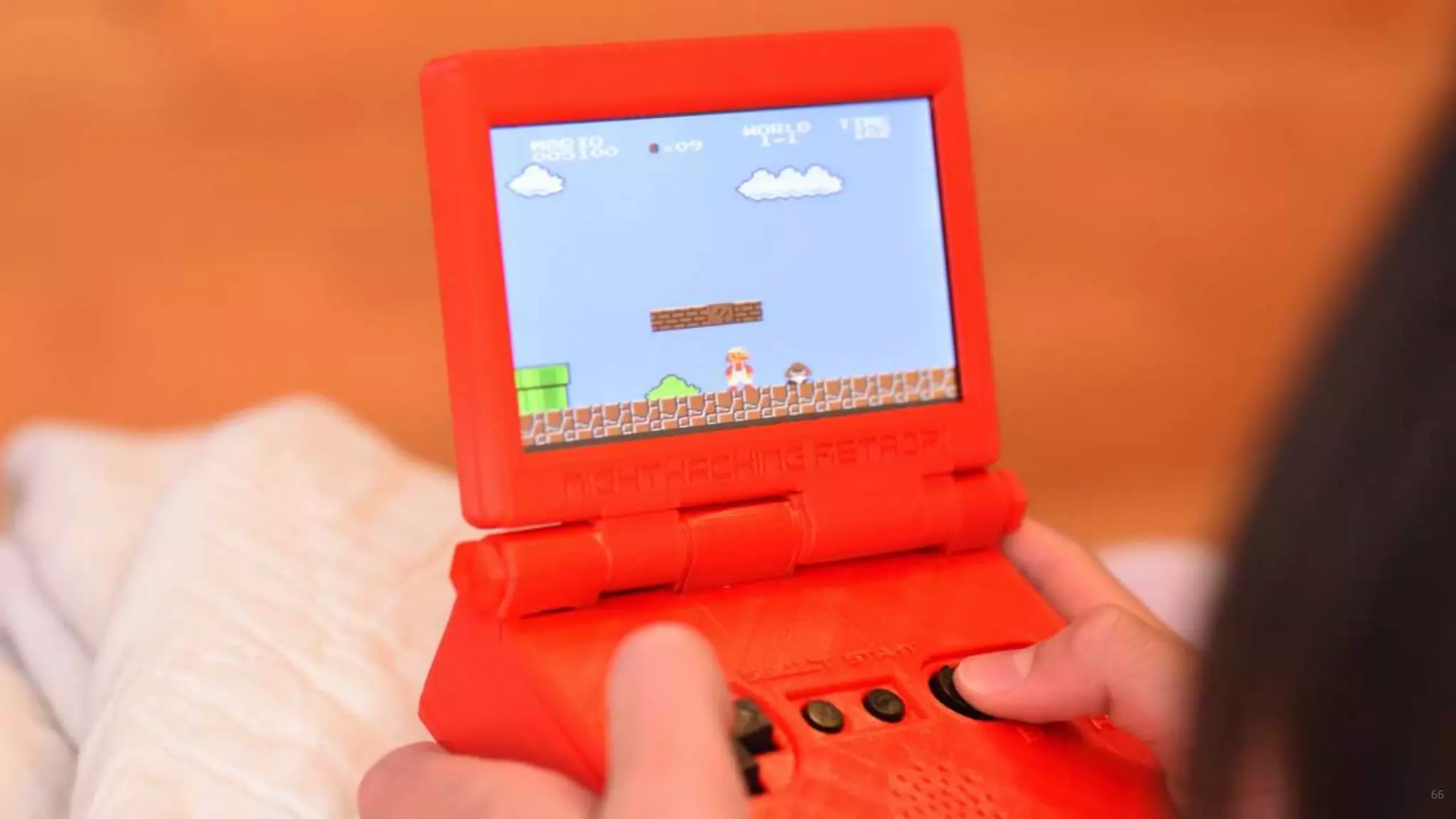

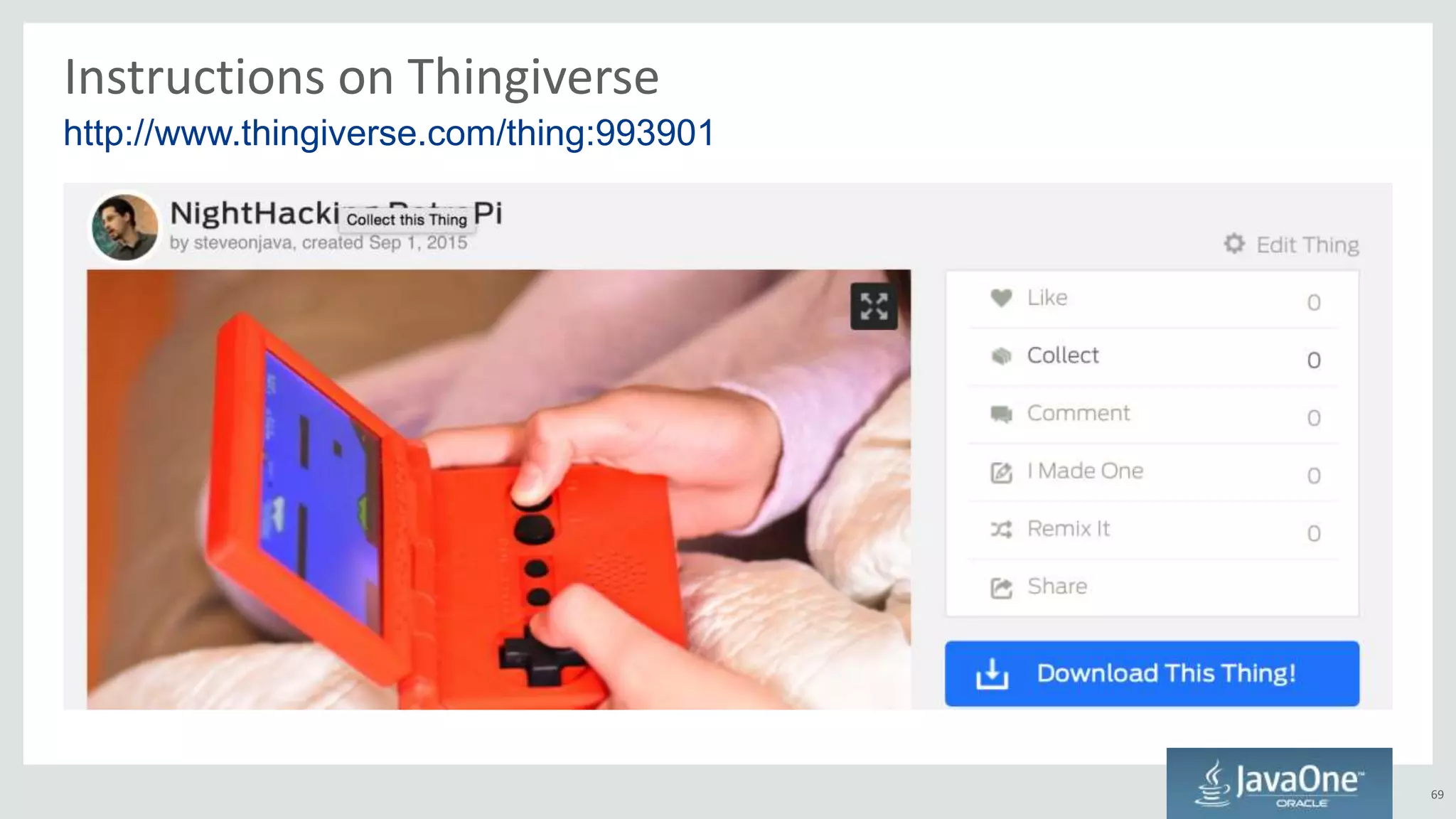

65. Instructions on Thingiverse
69
http://www.thingiverse.com/thing:993901

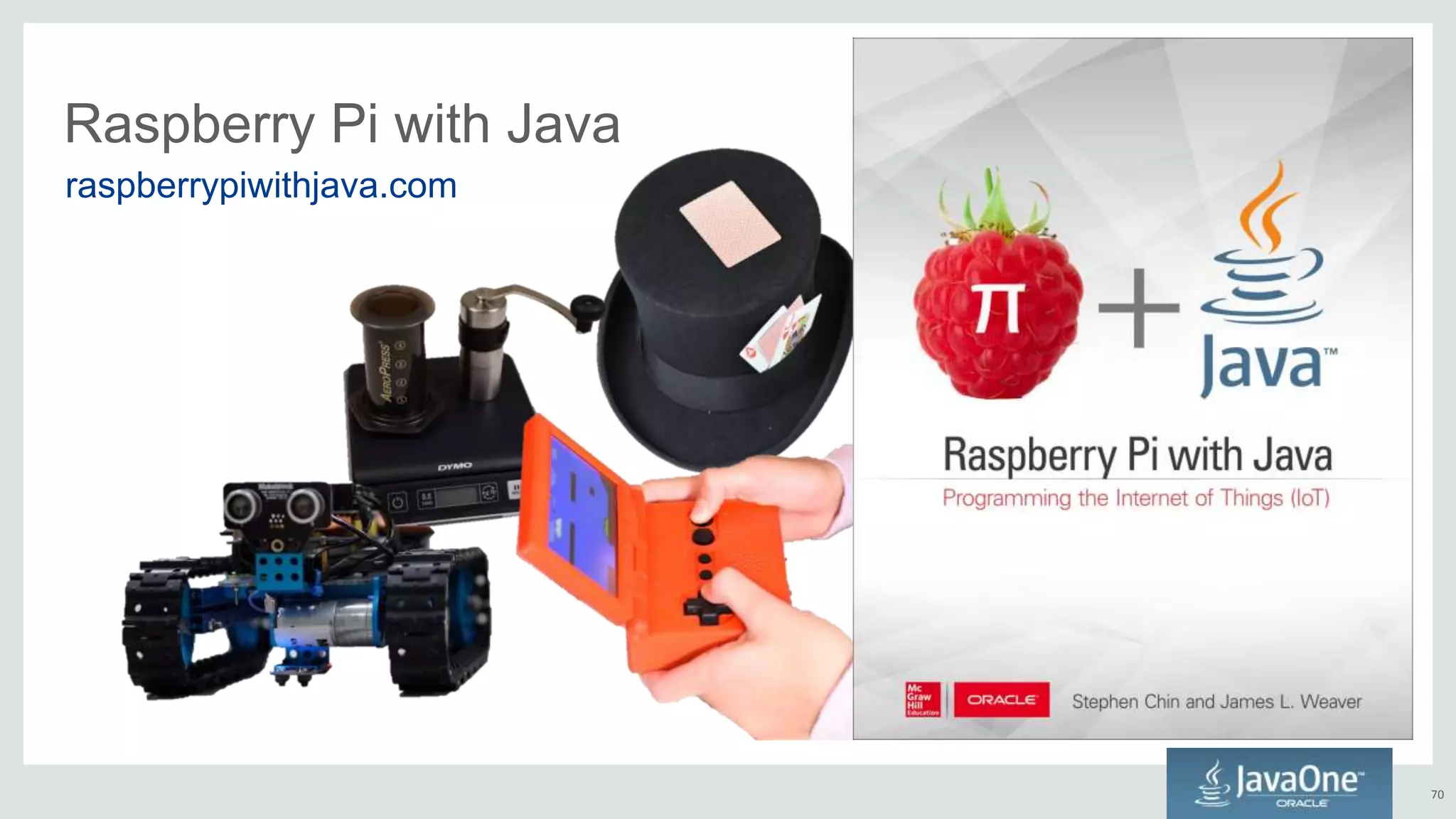

66. Raspberry Pi with Java
70
raspberrypiwithjava.com

67. Stephen Chin
tweet: @steveonjava
blog: http://steveonjava.com
nighthacking.com
Real Geeks
Live Hacking
NightHacking Tour

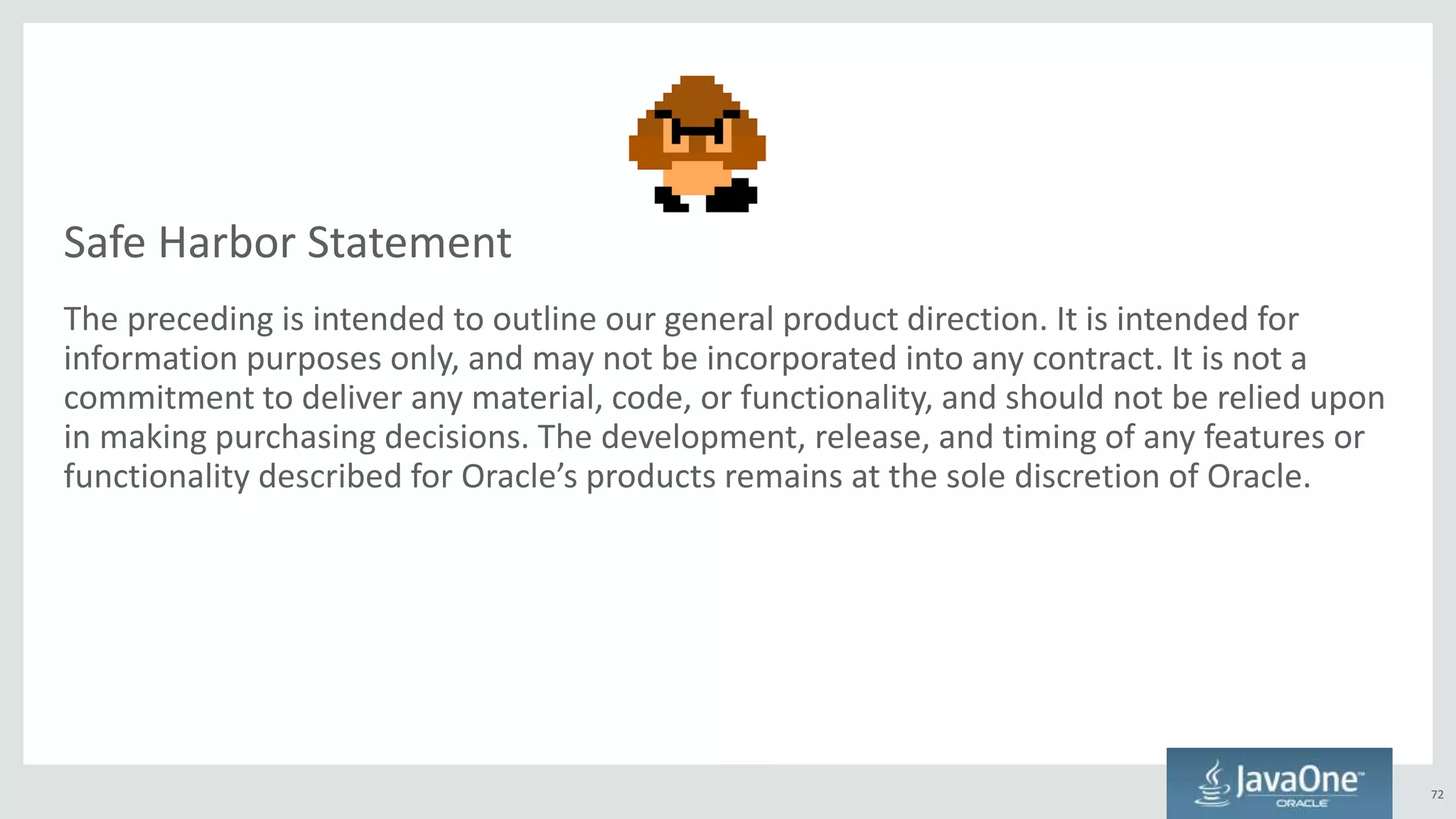

68. Safe Harbor Statement
