Objectiver is a requirements engineering tool that uses structured modeling to identify project requirements and generate documentation. It includes goal, responsibility, object, and operation models to define goals, assign responsibilities, identify domain objects, and describe required behaviors. A demonstration of the tool modeling a user login process showed defining high-level security goals, assigning the user and system as responsible agents, and specifying operations like requesting and verifying login details. Resources provided a link to download a free trial of Objectiver along with installation and licensing instructions.

1. Requirements Tool Objectiver

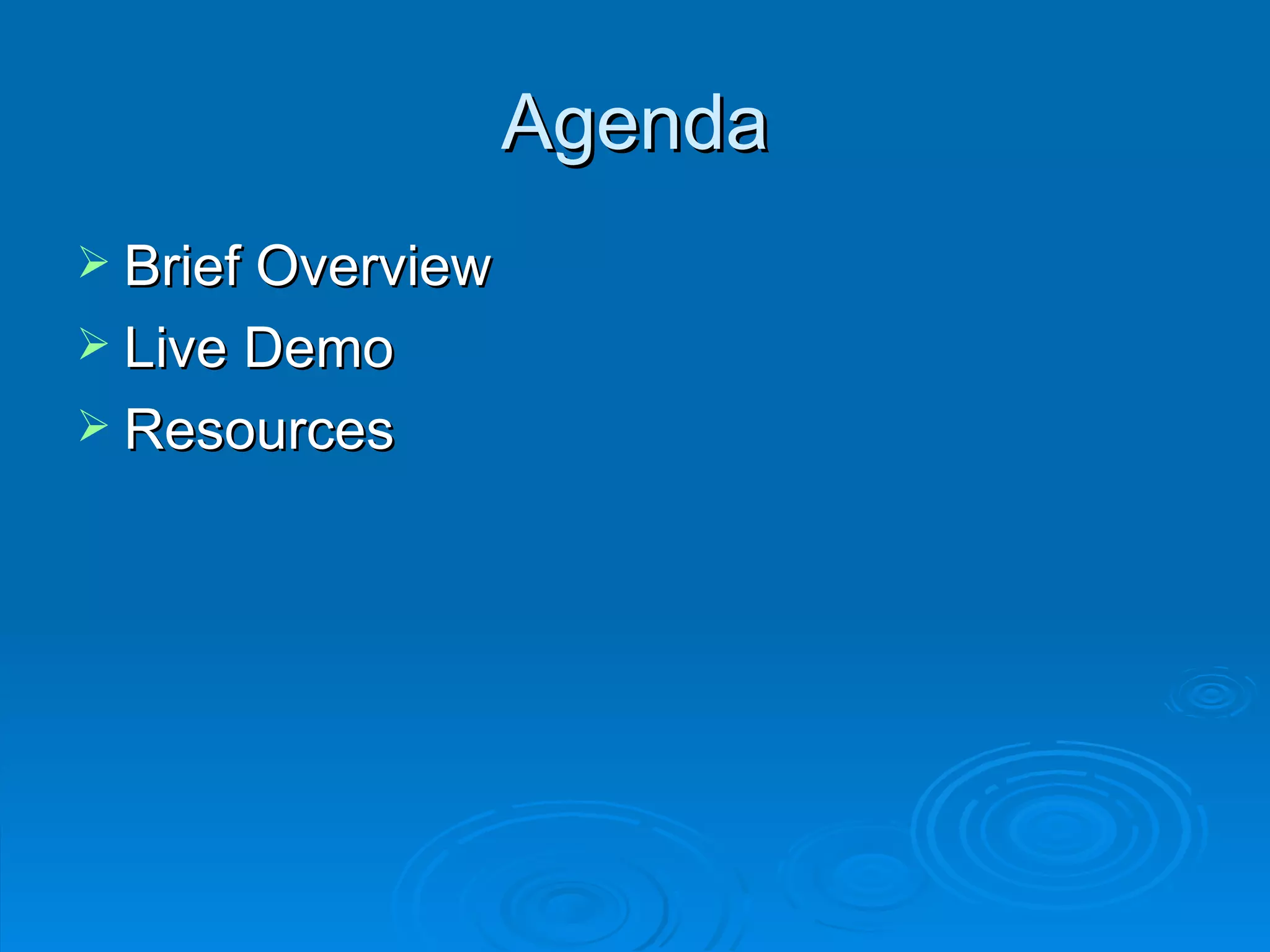

2. Agenda Brief Overview Live Demo Resources

3. Overview Tool Name: Objectiver Objectiver is a requirements engineering tool To identify the project requirements using a structured modeling approach To create model that takes user agent into account Generate structured requirements document Models available Goal Model Responsibility Model Object Model Operation Model

4. Notations Agent Entity Event Operation Goals, requirements, expectations

5. Models -- Goal Model Identifies all the goals pursued by the project stakeholders and all involved people Define how goals can be achieved Answers the questions HOW and WHY Example Login using the proper authentication Account info secured Access limited to authorized users Password kept secret by customer

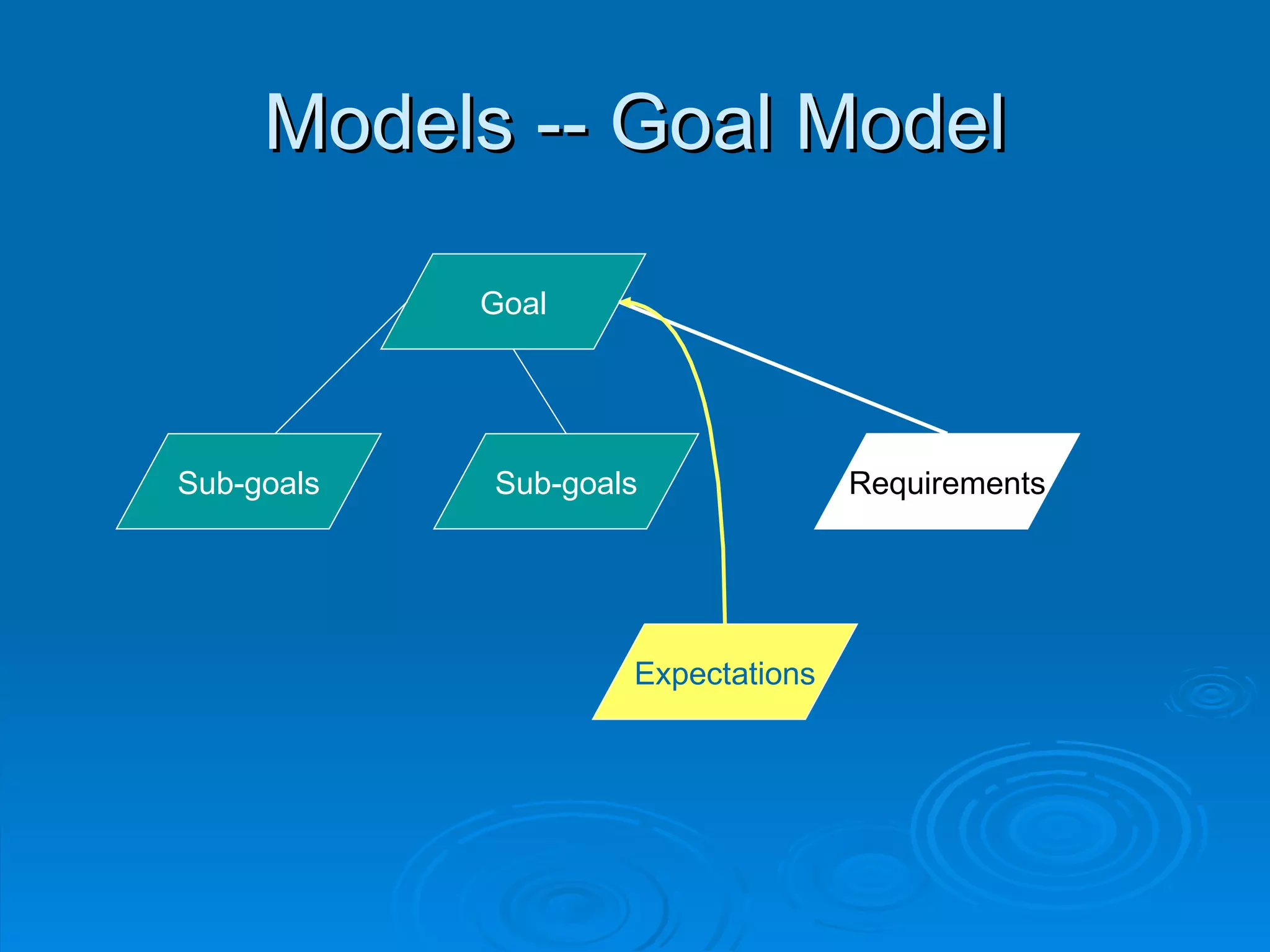

6. Models -- Goal Model Goal Sub-goals Sub-goals Requirements Expectations

7. Models – responsibility model Identify agents Assign them responsible for the expectations and requirements identified in the goal model Answers the question WHO Example Agent – human, device Requirements Agent

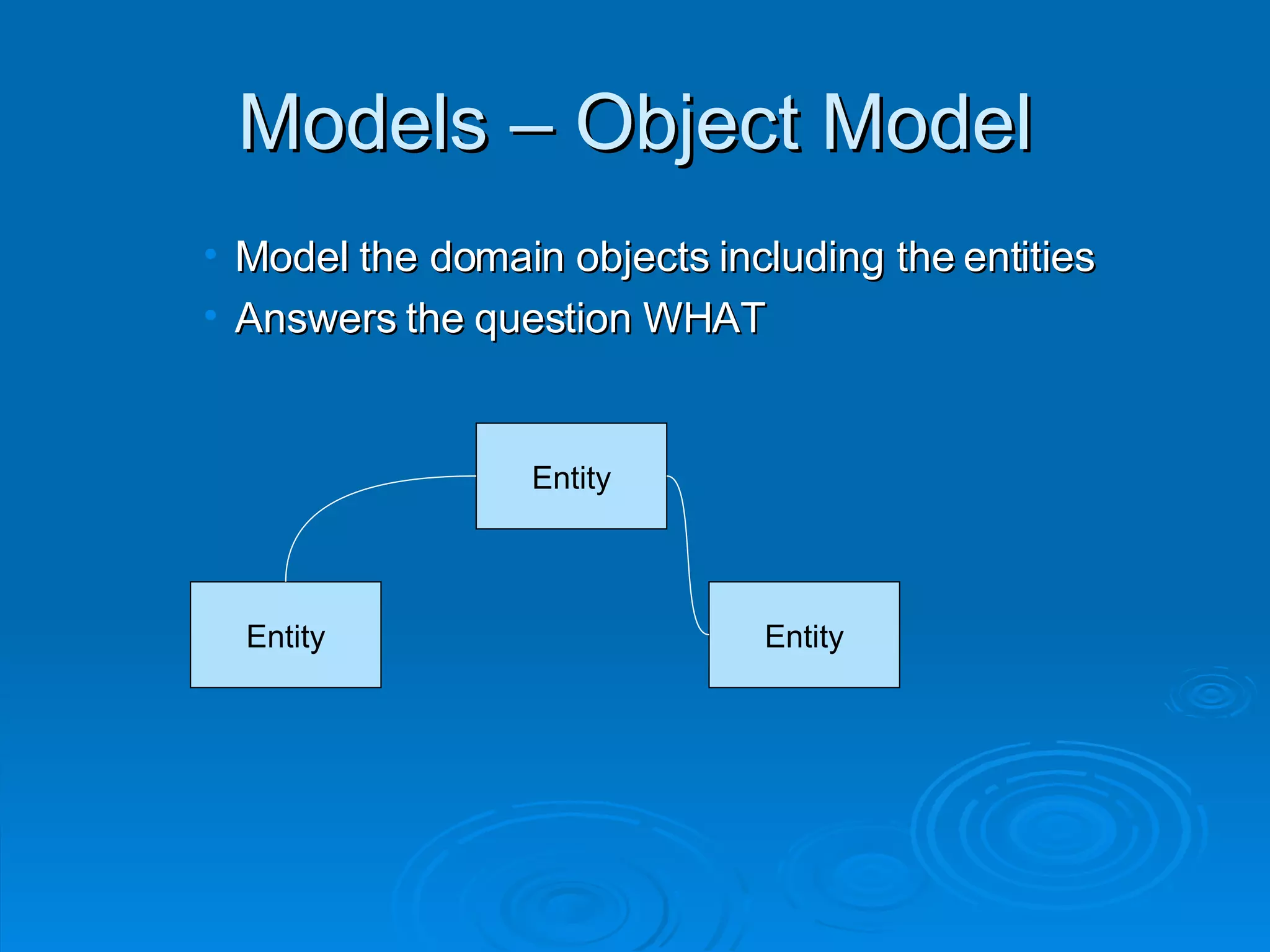

8. Models – Object Model Model the domain objects including the entities Answers the question WHAT Entity Entity Entity

9. Models – operation model Behavior that has to be adopted to meet a requirement Answers the question WHEN Event Operation

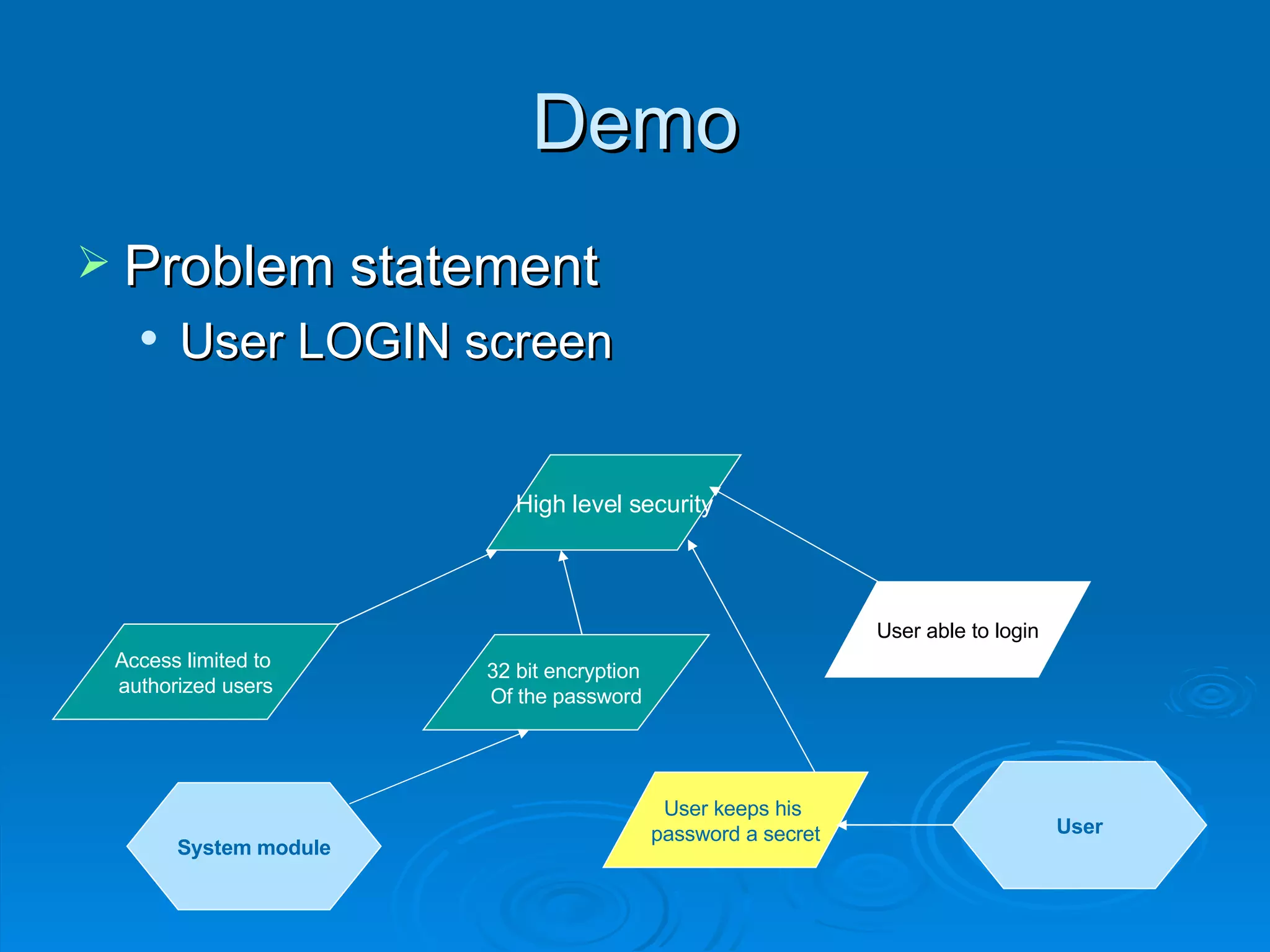

10. Demo Problem statement User LOGIN screen High level security Access limited to authorized users 32 bit encryption Of the password User able to login User keeps his password a secret System module User

11. Demo User logging in Request login details User login details Verify credentials Credentials verified Access denied Access granted User Info Login ID Logging into the account User

12. Resources http://www.objectiver.com/ Download free trial version and install it. Step 1 : download software after subscribing with the user details Step 2: Install it Step 3: Get the license key to the mail id. NOTE: while opening the application and it asks for the login, company name and license key.
