1. Dagfinn Reiersøl, ABC Startsiden 1
Reliable acceptance testing

2. Dagfinn Reiersøl, ABC Startsiden 2

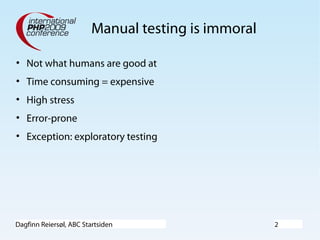

Manual testing is immoral
• Not what humans are good at
• Time consuming = expensive
• High stress
• Error-prone
• Exception: exploratory testing

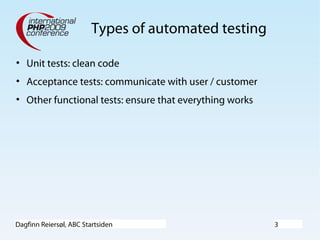

3. Dagfinn Reiersøl, ABC Startsiden 3
Types of automated testing
• Unit tests: clean code
• Acceptance tests: communicate with user / customer
• Other functional tests: ensure that everything works

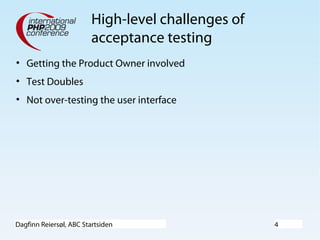

4. Dagfinn Reiersøl, ABC Startsiden 4
High-level challenges of
acceptance testing
• Getting the Product Owner involved
• Test Doubles
• Not over-testing the user interface

5. Dagfinn Reiersøl, ABC Startsiden 5

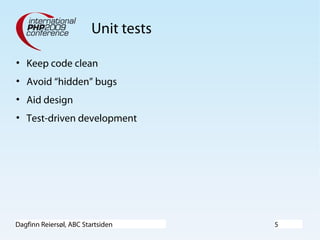

Unit tests
• Keep code clean
• Avoid “hidden” bugs
• Aid design
• Test-driven development

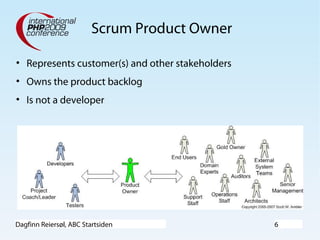

6. Dagfinn Reiersøl, ABC Startsiden 6
Scrum Product Owner
• Represents customer(s) and other stakeholders
• Owns the product backlog
• Is not a developer

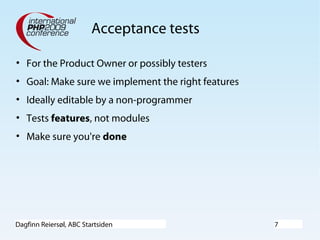

7. Dagfinn Reiersøl, ABC Startsiden 7
Acceptance tests
• For the Product Owner or possibly testers
• Goal: Make sure we implement the right features
• Ideally editable by a non-programmer
• Tests features, not modules
• Make sure you're done

8. Dagfinn Reiersøl, ABC Startsiden 8
Other functional tests
• Goal: Make sure the implementation works
• Could be testing the same thing as acceptance tests, but
• need not be business-readable

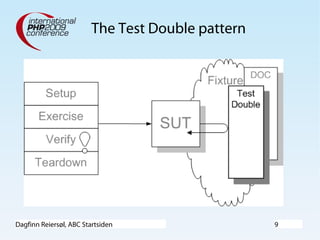

9. Dagfinn Reiersøl, ABC Startsiden 9
The Test Double pattern

10. Dagfinn Reiersøl, ABC Startsiden 10
Surrounded by “Test Doubles”

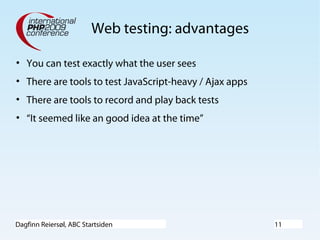

11. Dagfinn Reiersøl, ABC Startsiden 11
Web testing: advantages
• You can test exactly what the user sees
• There are tools to test JavaScript-heavy / Ajax apps
• There are tools to record and play back tests
• “It seemed like an good idea at the time”

12. Dagfinn Reiersøl, ABC Startsiden 12
Web testing: disadvantages
• Fragile: Small UI changes break tests
• Fragile: External services break tests
• Slow
• Harder to replace external services with fakes

13. Dagfinn Reiersøl, ABC Startsiden 13
Strategies for robustness
• Test Bus
• Test patterns
• Test refactoring
• Making tests unnecessary

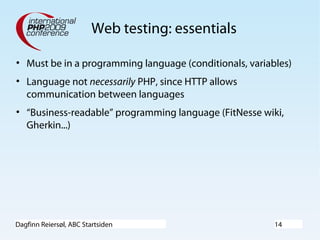

14. Dagfinn Reiersøl, ABC Startsiden 14
Web testing: essentials
• Must be in a programming language (conditionals, variables)
• Language not necessarily PHP, since HTTP allows
communication between languages
• “Business-readable” programming language (FitNesse wiki,
Gherkin...)

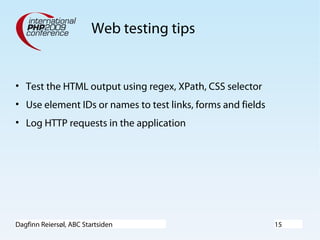

15. Dagfinn Reiersøl, ABC Startsiden 15
Web testing tips
• Test the HTML output using regex, XPath, CSS selector
• Use element IDs or names to test links, forms and fields
• Log HTTP requests in the application

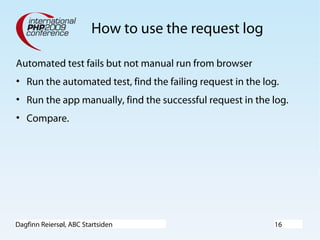

16. Dagfinn Reiersøl, ABC Startsiden 16
How to use the request log
Automated test fails but not manual run from browser
• Run the automated test, find the failing request in the log.
• Run the app manually, find the successful request in the log.
• Compare.

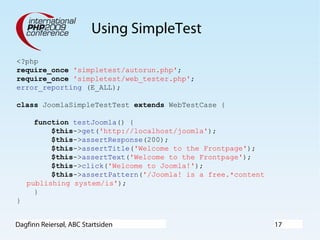

17. Dagfinn Reiersøl, ABC Startsiden 17
Using SimpleTest
<?php
require_once 'simpletest/autorun.php';
require_once 'simpletest/web_tester.php';
error_reporting (E_ALL);
class JoomlaSimpleTestTest extends WebTestCase {
function testJoomla() {
$this->get('http://localhost/joomla');
$this->assertResponse(200);
$this->assertTitle('Welcome to the Frontpage');
$this->assertText('Welcome to the Frontpage');
$this->click('Welcome to Joomla!');
$this->assertPattern('/Joomla! is a free.*content
publishing system/is');
}
}

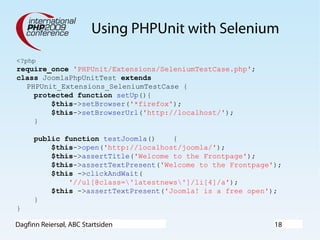

18. Dagfinn Reiersøl, ABC Startsiden 18
Using PHPUnit with Selenium
<?php
require_once 'PHPUnit/Extensions/SeleniumTestCase.php';
class JoomlaPhpUnitTest extends
PHPUnit_Extensions_SeleniumTestCase {
protected function setUp(){
$this->setBrowser('*firefox');
$this->setBrowserUrl('http://localhost/');
}
public function testJoomla() {
$this->open('http://localhost/joomla/');
$this->assertTitle('Welcome to the Frontpage');
$this->assertTextPresent('Welcome to the Frontpage');
$this ->clickAndWait(
'//ul[@class='latestnews']/li[4]/a');
$this ->assertTextPresent('Joomla! is a free open');
}
}

19. Dagfinn Reiersøl, ABC Startsiden 19
SimpleTest vs. PHPUnit /
Selenium
Simpletest:
– Faster
– Easier to use
PHPUnit with Selenium
– Heavier but more advanced
– Can test JavaScript-heavy / Ajax apps
– Can test cross-browser compatibility

20. Dagfinn Reiersøl, ABC Startsiden 20
Don't overdo Selenium
“He ate a lot of brazil nuts which is a big deal because they
contain selenium, which in high doses causes fatigue,
vomiting, skin irritation, discharge from the fingernail beds and
hair loss.”
- House, M.D.

21. Dagfinn Reiersøl, ABC Startsiden 21

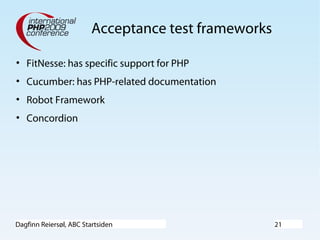

Acceptance test frameworks
• FitNesse: has specific support for PHP
• Cucumber: has PHP-related documentation
• Robot Framework
• Concordion

22. Dagfinn Reiersøl, ABC Startsiden 22

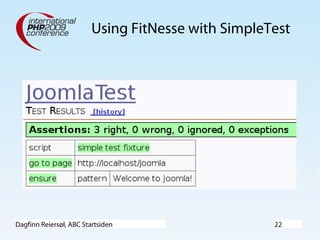

Using FitNesse with SimpleTest

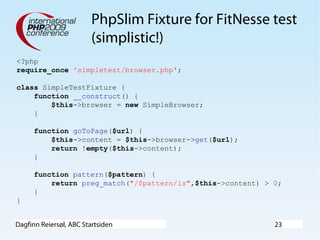

23. Dagfinn Reiersøl, ABC Startsiden 23
PhpSlim Fixture for FitNesse test
(simplistic!)
<?php
require_once 'simpletest/browser.php';
class SimpleTestFixture {
function __construct() {
$this->browser = new SimpleBrowser;
}
function goToPage($url) {
$this->content = $this->browser->get($url);
return !empty($this->content);
}
function pattern($pattern) {
return preg_match("/$pattern/is",$this->content) > 0;
}
}

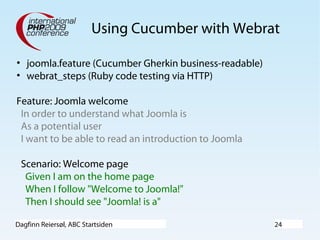

24. Dagfinn Reiersøl, ABC Startsiden 24
Using Cucumber with Webrat
• joomla.feature (Cucumber Gherkin business-readable)
• webrat_steps (Ruby code testing via HTTP)
Feature: Joomla welcome
In order to understand what Joomla is
As a potential user
I want to be able to read an introduction to Joomla
Scenario: Welcome page
Given I am on the home page
When I follow "Welcome to Joomla!"
Then I should see "Joomla! is a"

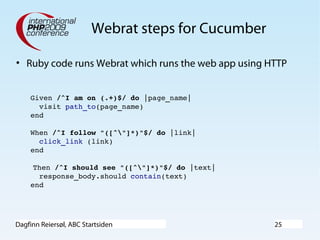

25. Dagfinn Reiersøl, ABC Startsiden 25
Webrat steps for Cucumber
• Ruby code runs Webrat which runs the web app using HTTP
Given /^I am on (.+)$/ do |page_name|
visit path_to(page_name)
end
When /^I follow "([^"]*)"$/ do |link|
click_link (link)
end
Then /^I should see "([^"]*)"$/ do |text|
response_body.should contain(text)
end

26. Dagfinn Reiersøl, ABC Startsiden 26

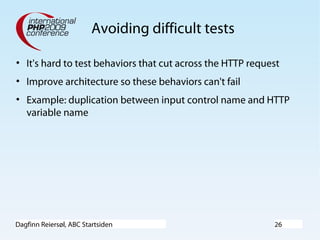

Avoiding difficult tests
• It's hard to test behaviors that cut across the HTTP request
• Improve architecture so these behaviors can't fail
• Example: duplication between input control name and HTTP
variable name

27. Dagfinn Reiersøl, ABC Startsiden 27
Hard to test: name duplication
<input type="text" name="address1"
value="<?= $address1 ?>">
// Oops...
echo $_POST['address_1'];

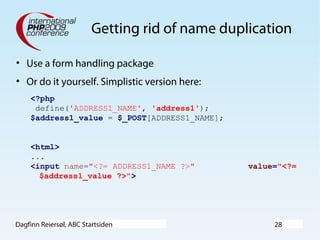

28. Dagfinn Reiersøl, ABC Startsiden 28
Getting rid of name duplication
• Use a form handling package
• Or do it yourself. Simplistic version here:
<?php
define('ADDRESS1_NAME', 'address1');
$address1_value = $_POST[ADDRESS1_NAME];
<html>
...
<input name="<?= ADDRESS1_NAME ?>" value="<?=
$address1_value ?>">

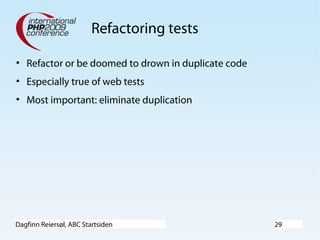

29. Dagfinn Reiersøl, ABC Startsiden 29
Refactoring tests
• Refactor or be doomed to drown in duplicate code
• Especially true of web tests
• Most important: eliminate duplication

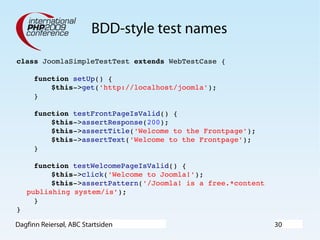

30. Dagfinn Reiersøl, ABC Startsiden 30
BDD-style test names
class JoomlaSimpleTestTest extends WebTestCase {
function setUp() {
$this­>get('http://localhost/joomla');
}
function testFrontPageIsValid() {
$this­>assertResponse(200);
$this­>assertTitle('Welcome to the Frontpage');
$this­>assertText('Welcome to the Frontpage');
}
function testWelcomePageIsValid() {
$this­>click('Welcome to Joomla!');
$this­>assertPattern('/Joomla! is a free.*content
publishing system/is');
}
}

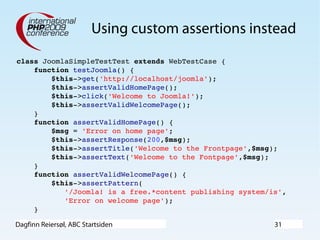

31. Dagfinn Reiersøl, ABC Startsiden 31
Using custom assertions instead
class JoomlaSimpleTestTest extends WebTestCase {
function testJoomla() {
$this­>get('http://localhost/joomla');
$this­>assertValidHomePage();
$this­>click('Welcome to Joomla!');
$this­>assertValidWelcomePage();
}
function assertValidHomePage() {
$msg = 'Error on home page';
$this­>assertResponse(200,$msg);
$this­>assertTitle('Welcome to the Frontpage',$msg);
$this­>assertText('Welcome to the Fontpage',$msg);
}
function assertValidWelcomePage() {
$this­>assertPattern(
'/Joomla! is a free.*content publishing system/is',
'Error on welcome page');
}

32. Dagfinn Reiersøl, ABC Startsiden 32
ComposedRegex
http://martinfowler.com/bliki/ComposedRegex.html
• This regex tolerates markup (or anything else) between the
content items
• Yes, I know the email regex is simplistic
$email = '.*w+@w+.w+.*';
$firstname = '.*w.*';
$lastname = '.*w.*';
$date = '.*20dd­dd­dd( |&nbsp;|T)dd:dd.*';
$regex = 'Email address:'. $email .
'Name: ' . $firstname . $lastname .
'Date:' . $date;

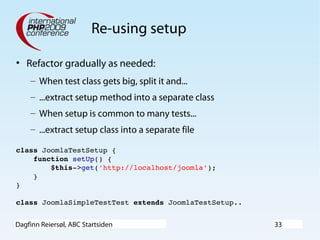

33. Dagfinn Reiersøl, ABC Startsiden 33
Re-using setup
• Refactor gradually as needed:
– When test class gets big, split it and...
– ...extract setup method into a separate class
– When setup is common to many tests...
– ...extract setup class into a separate file
class JoomlaTestSetup {
function setUp() {
$this­>get('http://localhost/joomla');
}
}
class JoomlaSimpleTestTest extends JoomlaTestSetup..

34. Dagfinn Reiersøl, ABC Startsiden 34

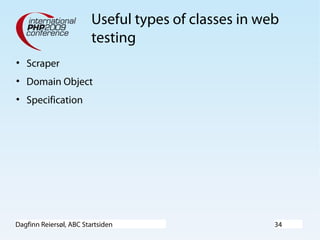

Useful types of classes in web
testing
• Scraper
• Domain Object
• Specification

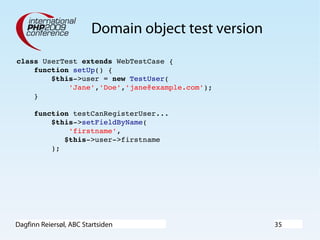

35. Dagfinn Reiersøl, ABC Startsiden 35
Domain object test version
class UserTest extends WebTestCase {
function setUp() {
$this­>user = new TestUser(
'Jane','Doe','jane@example.com');
}
function testCanRegisterUser...
$this­>setFieldByName(
'firstname',
$this­>user­>firstname
);

36. Dagfinn Reiersøl, ABC Startsiden 36

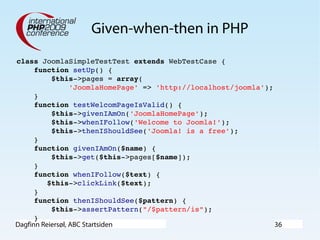

Given-when-then in PHP
class JoomlaSimpleTestTest extends WebTestCase {
function setUp() {
$this­>pages = array(
'JoomlaHomePage' => 'http://localhost/joomla');
}
function testWelcomPageIsValid() {
$this­>givenIAmOn('JoomlaHomePage');
$this­>whenIFollow('Welcome to Joomla!');
$this­>thenIShouldSee('Joomla! is a free');
}
function givenIAmOn($name) {
$this­>get($this­>pages[$name]);
}
function whenIFollow($text) {
$this­>clickLink($text);
}
function thenIShouldSee($pattern) {
$this­>assertPattern("/$pattern/is");
}

37. Dagfinn Reiersøl, ABC Startsiden 37

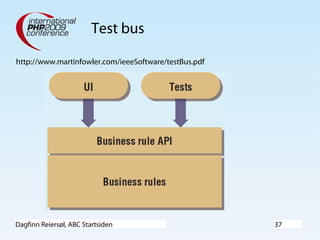

Test bus
http://www.martinfowler.com/ieeeSoftware/testBus.pdf

38. Dagfinn Reiersøl, ABC Startsiden 38
Recommendations from Uncle
Bob
• Test the features through the test bus
• Test the user interface separately in isolation
• Run a few end-to-end tests to test the “plumbing”

39. Dagfinn Reiersøl, ABC Startsiden 39

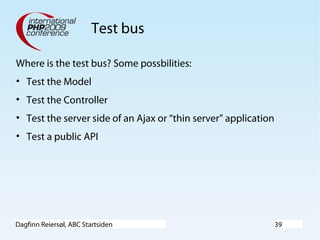

Test bus
Where is the test bus? Some possbilities:
• Test the Model
• Test the Controller
• Test the server side of an Ajax or “thin server” application
• Test a public API

40. Dagfinn Reiersøl, ABC Startsiden 40
Test bus with presentation tests

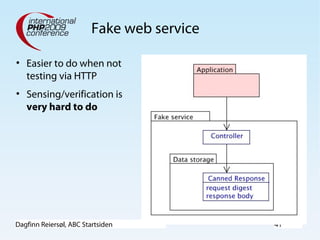

41. Dagfinn Reiersøl, ABC Startsiden 41
Fake web service
• Easier to do when not
testing via HTTP
• Sensing/verification is
very hard to do

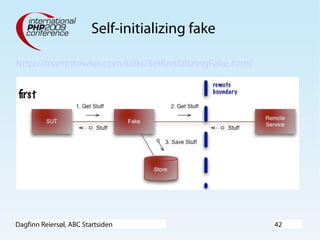

42. Dagfinn Reiersøl, ABC Startsiden 42
Self-initializing fake
http://martinfowler.com/bliki/SelfInitializingFake.html

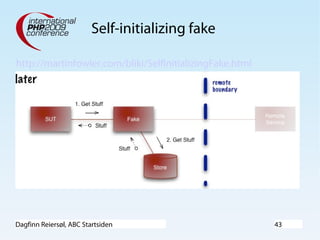

43. Dagfinn Reiersøl, ABC Startsiden 43
Self-initializing fake
http://martinfowler.com/bliki/SelfInitializingFake.html
