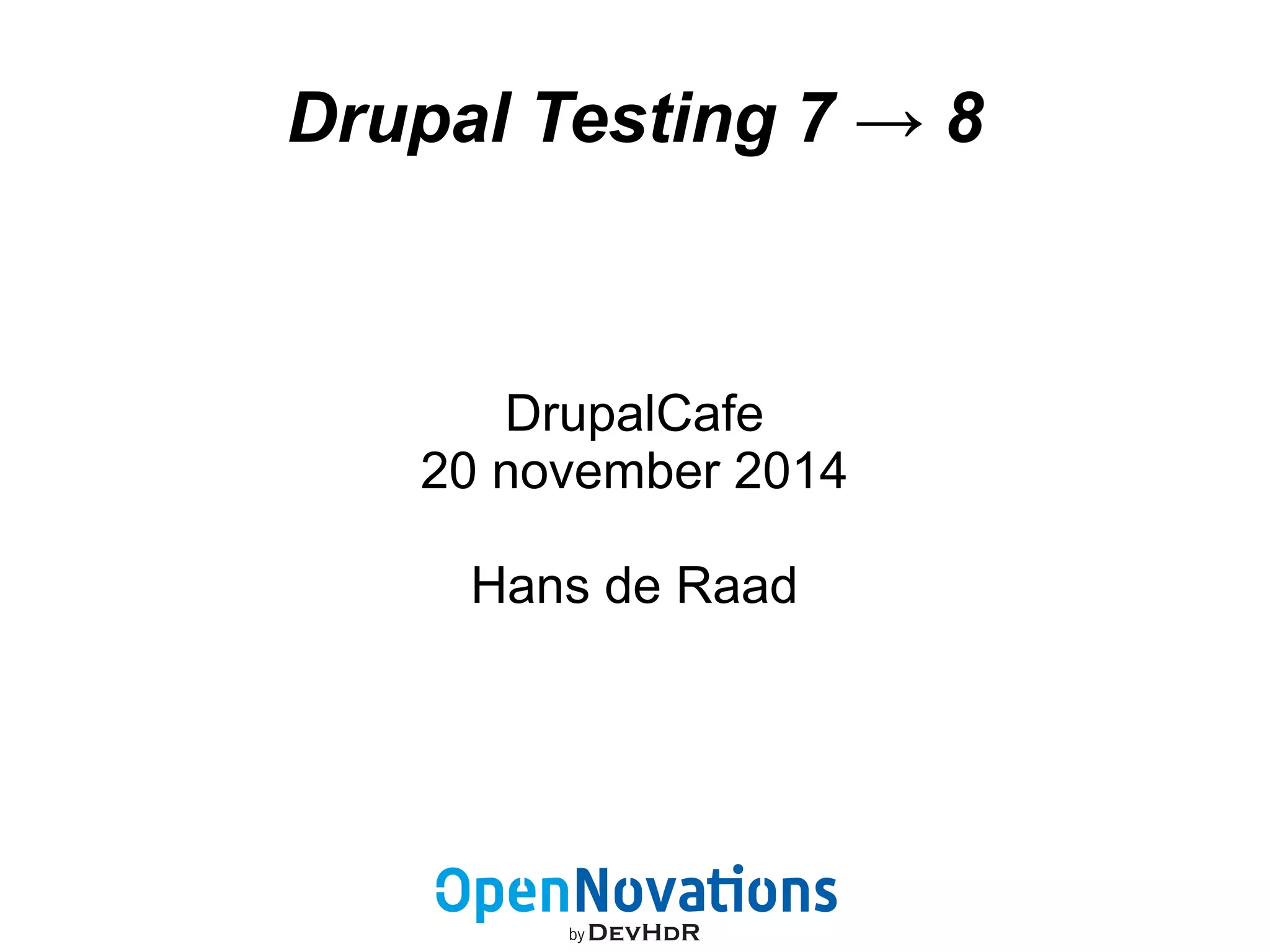

1. Drupal Testing 7 → 8
DrupalCafe
20 november 2014
Hans de Raad

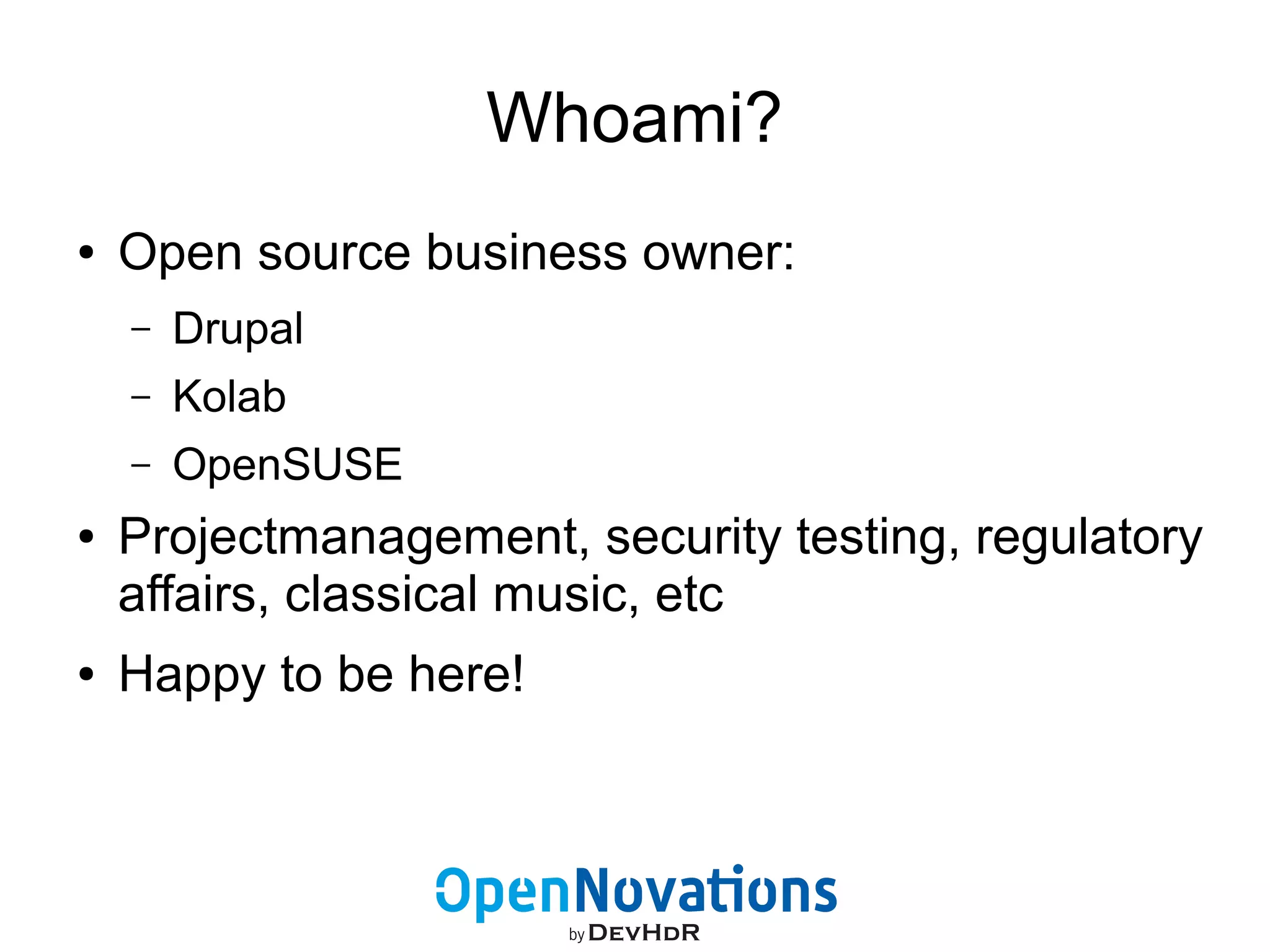

2. Whoami?
● Open source business owner:
– Drupal
– Kolab
– OpenSUSE
● Projectmanagement, security testing, regulatory
affairs, classical music, etc
● Happy to be here!

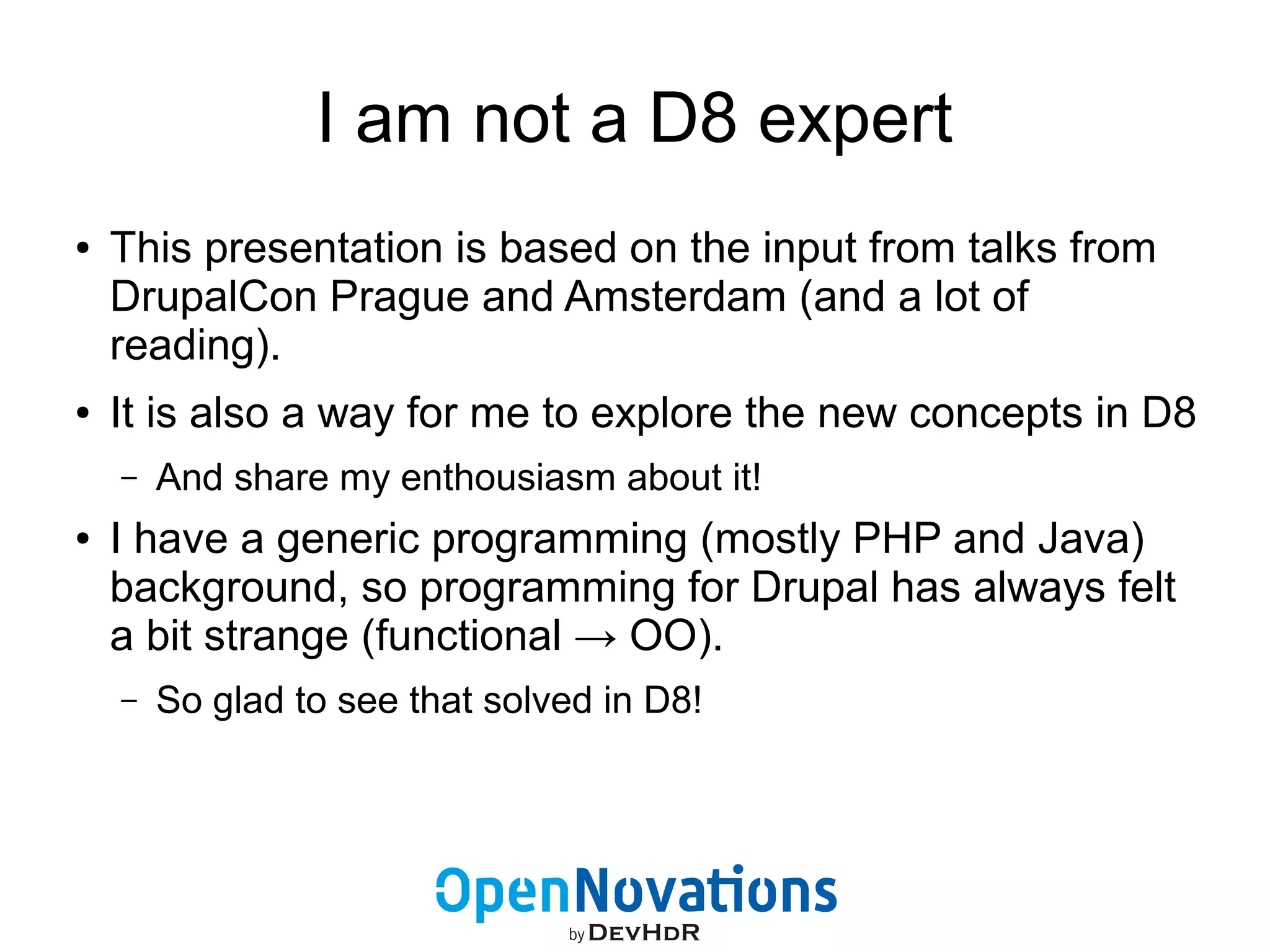

3. I am not a D8 expert
● This presentation is based on the input from talks from
DrupalCon Prague and Amsterdam (and a lot of
reading).
● It is also a way for me to explore the new concepts in D8
– And share my enthousiasm about it!
● I have a generic programming (mostly PHP and Java)
background, so programming for Drupal has always felt
a bit strange (functional → OO).
– So glad to see that solved in D8!

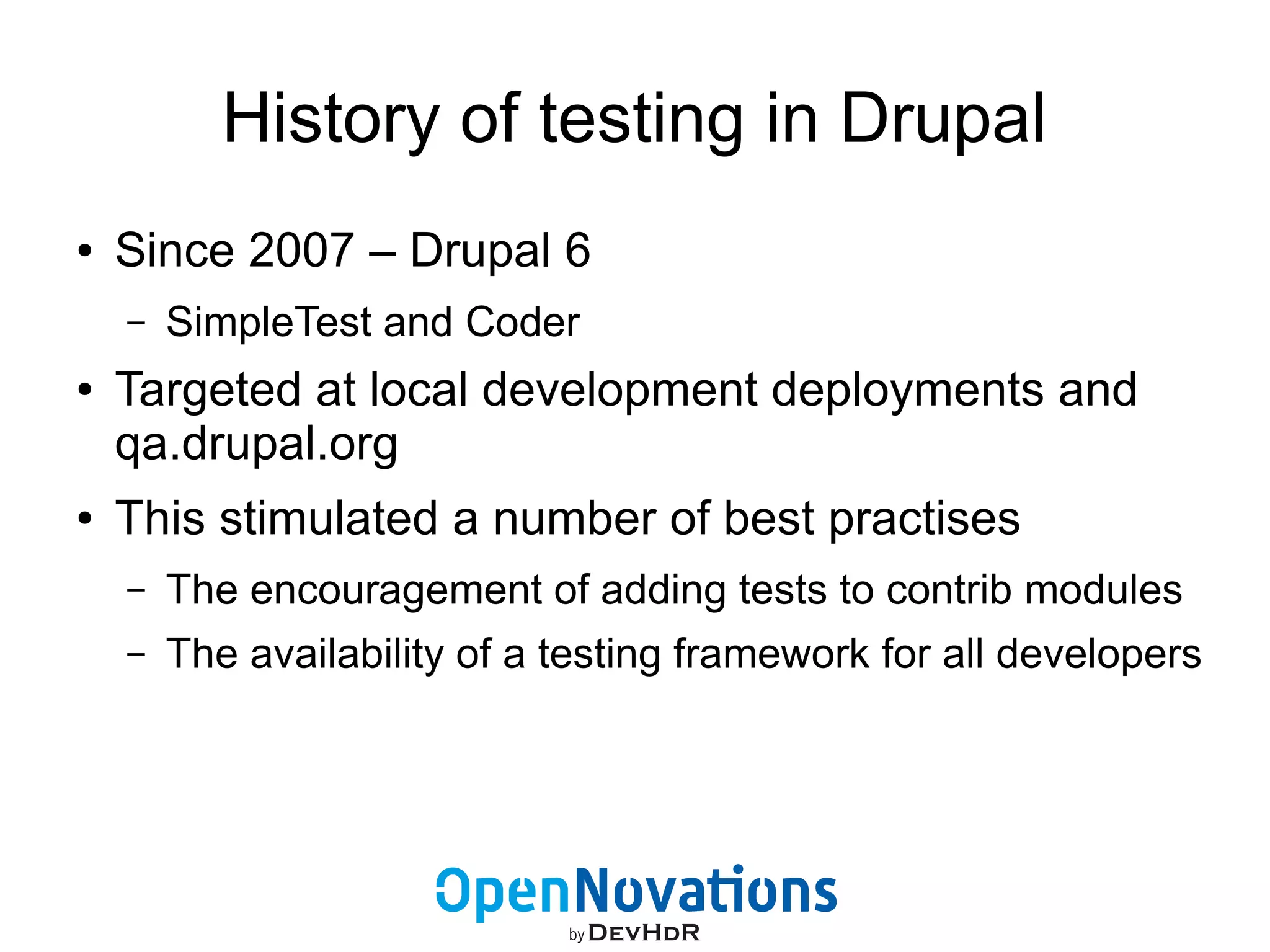

4. History of testing in Drupal
● Since 2007 – Drupal 6
– SimpleTest and Coder
● Targeted at local development deployments and
qa.drupal.org
● This stimulated a number of best practises
– The encouragement of adding tests to contrib modules
– The availability of a testing framework for all developers

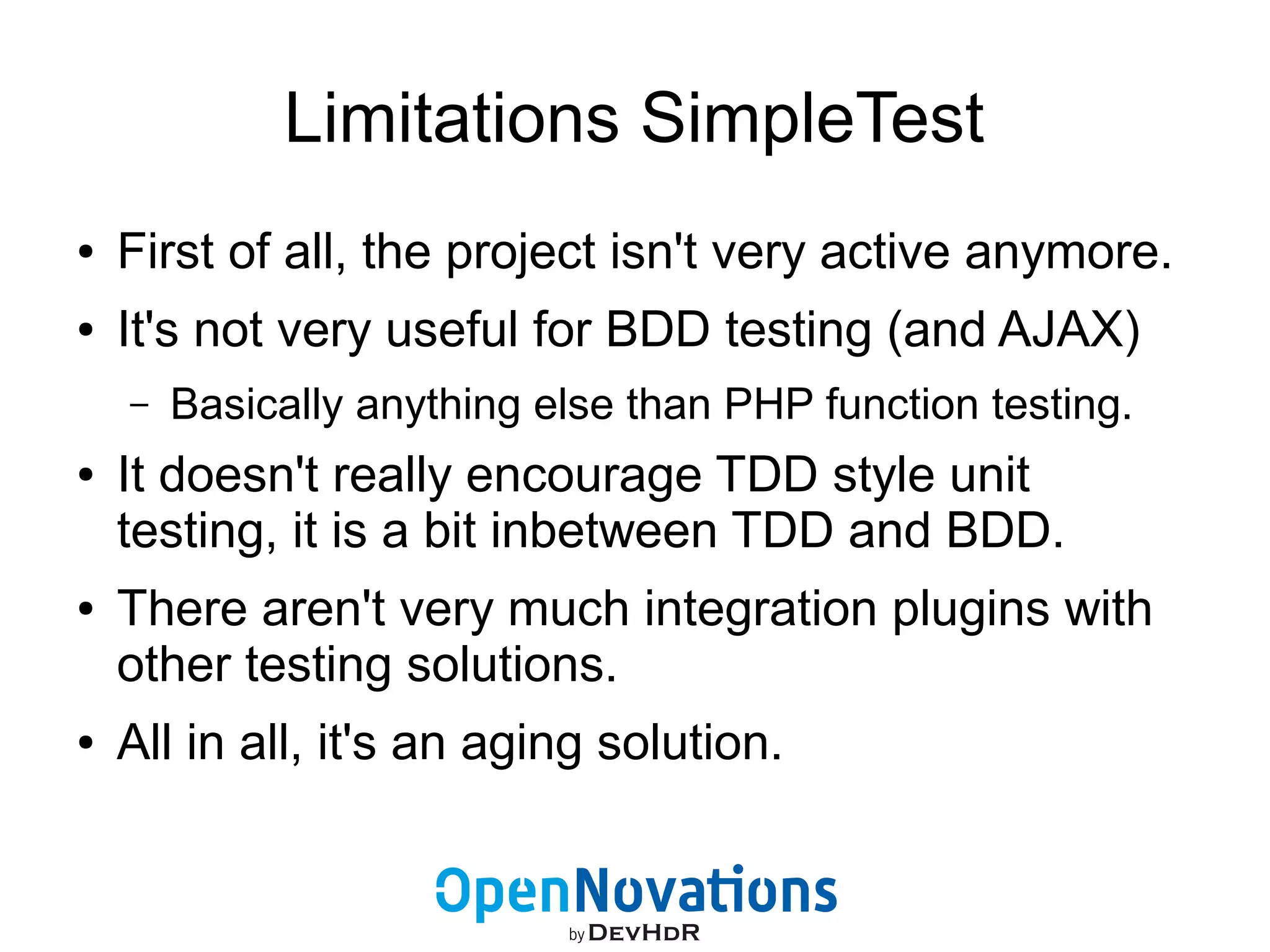

5. Limitations SimpleTest
● First of all, the project isn't very active anymore.
● It's not very useful for BDD testing (and AJAX)
– Basically anything else than PHP function testing.
● It doesn't really encourage TDD style unit
testing, it is a bit inbetween TDD and BDD.
● There aren't very much integration plugins with
other testing solutions.
● All in all, it's an aging solution.

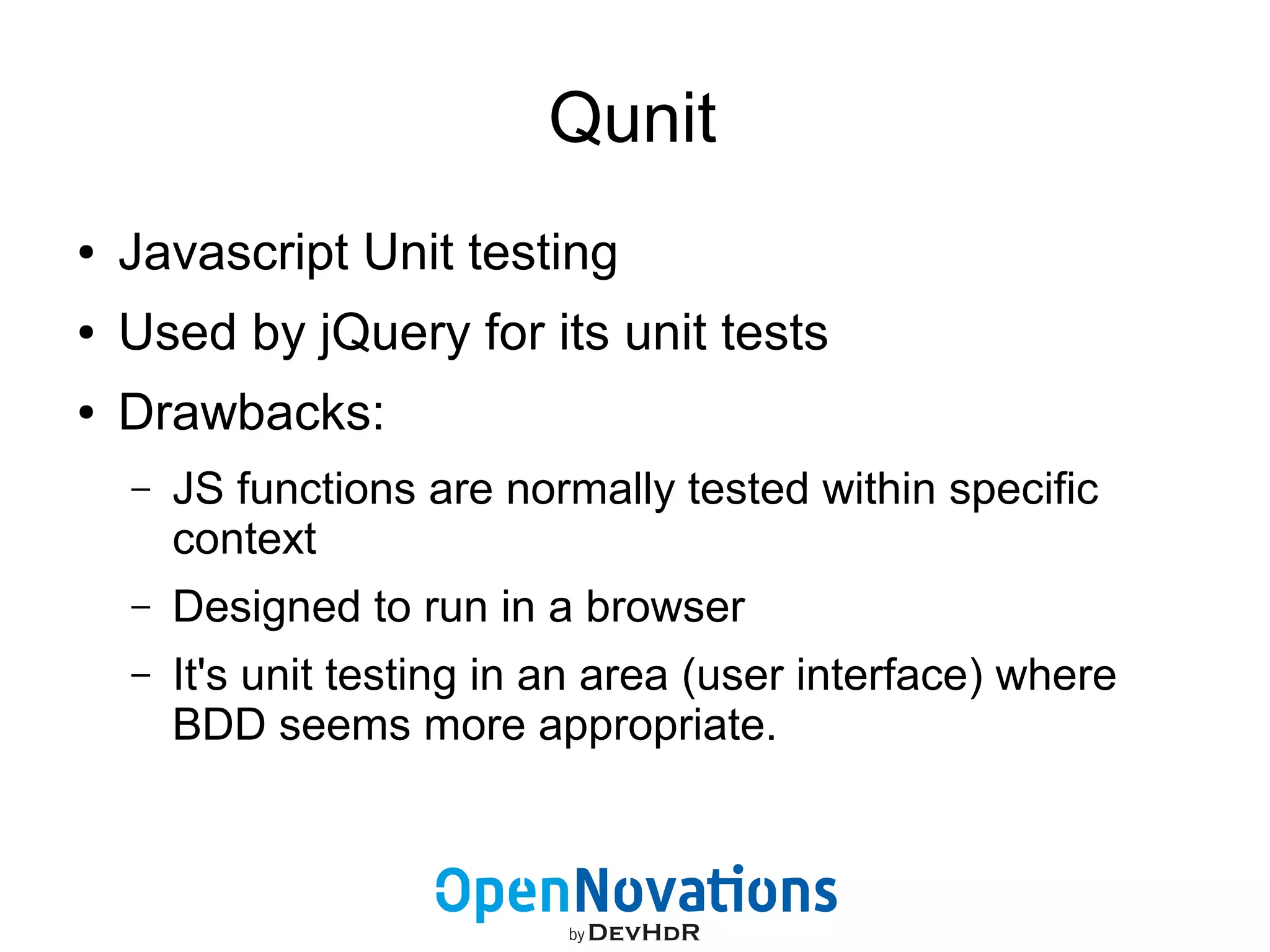

6. Qunit
● Javascript Unit testing
● Used by jQuery for its unit tests
● Drawbacks:
– JS functions are normally tested within specific
context
– Designed to run in a browser
– It's unit testing in an area (user interface) where
BDD seems more appropriate.

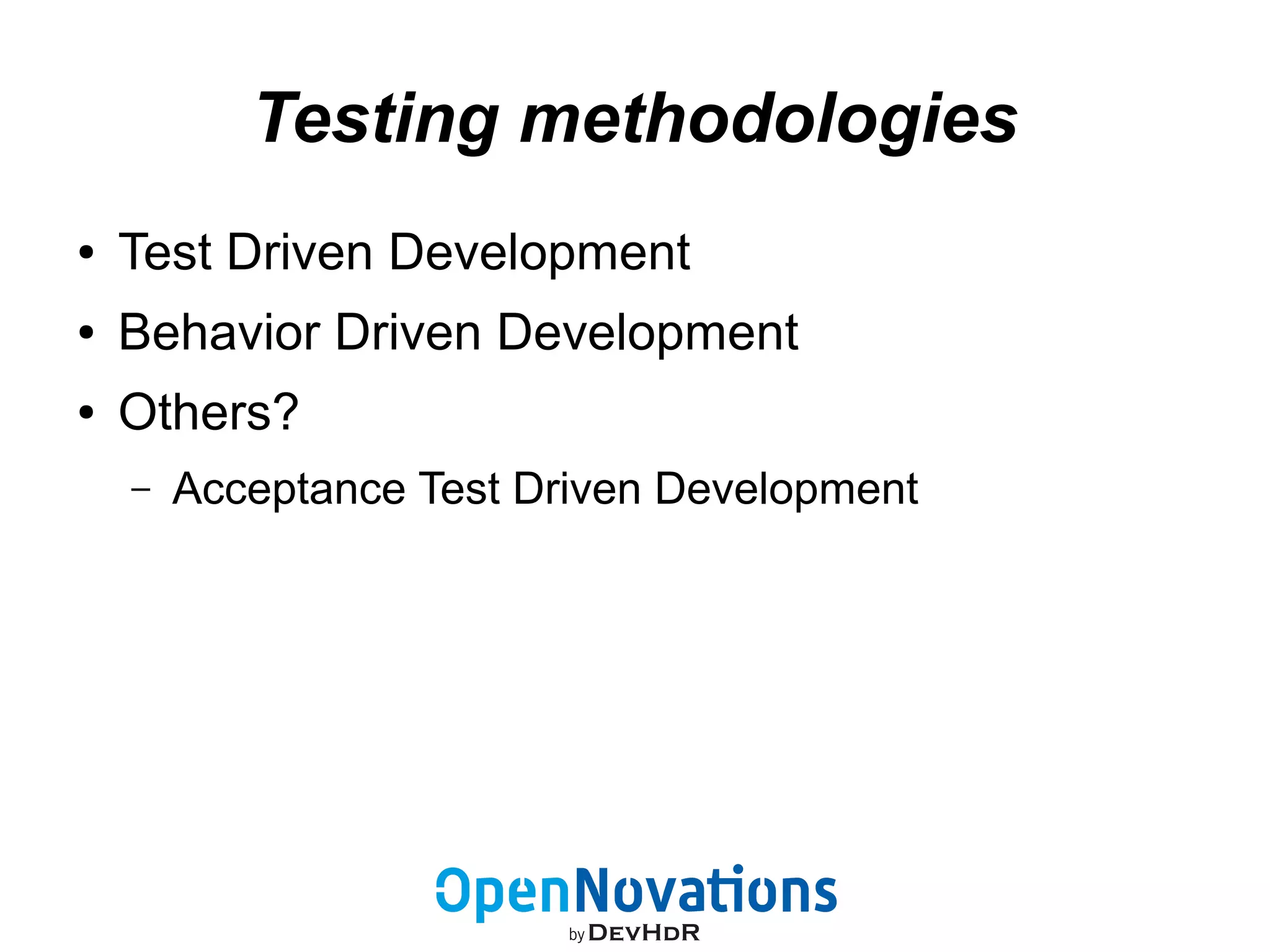

7. Testing methodologies
● Test Driven Development
● Behavior Driven Development
● Others?
– Acceptance Test Driven Development

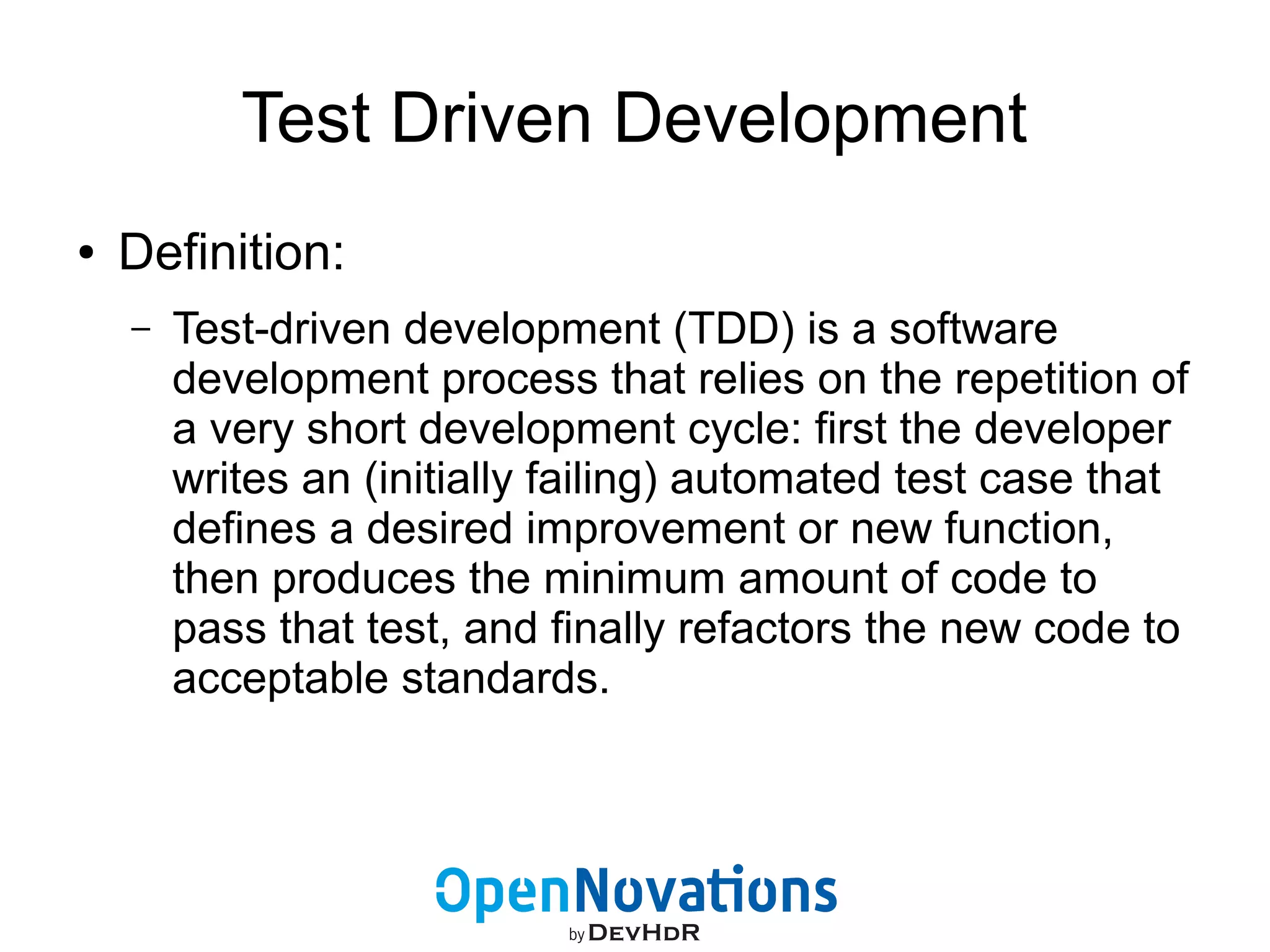

8. Test Driven Development
● Definition:
– Test-driven development (TDD) is a software
development process that relies on the repetition of
a very short development cycle: first the developer
writes an (initially failing) automated test case that
defines a desired improvement or new function,
then produces the minimum amount of code to
pass that test, and finally refactors the new code to
acceptable standards.

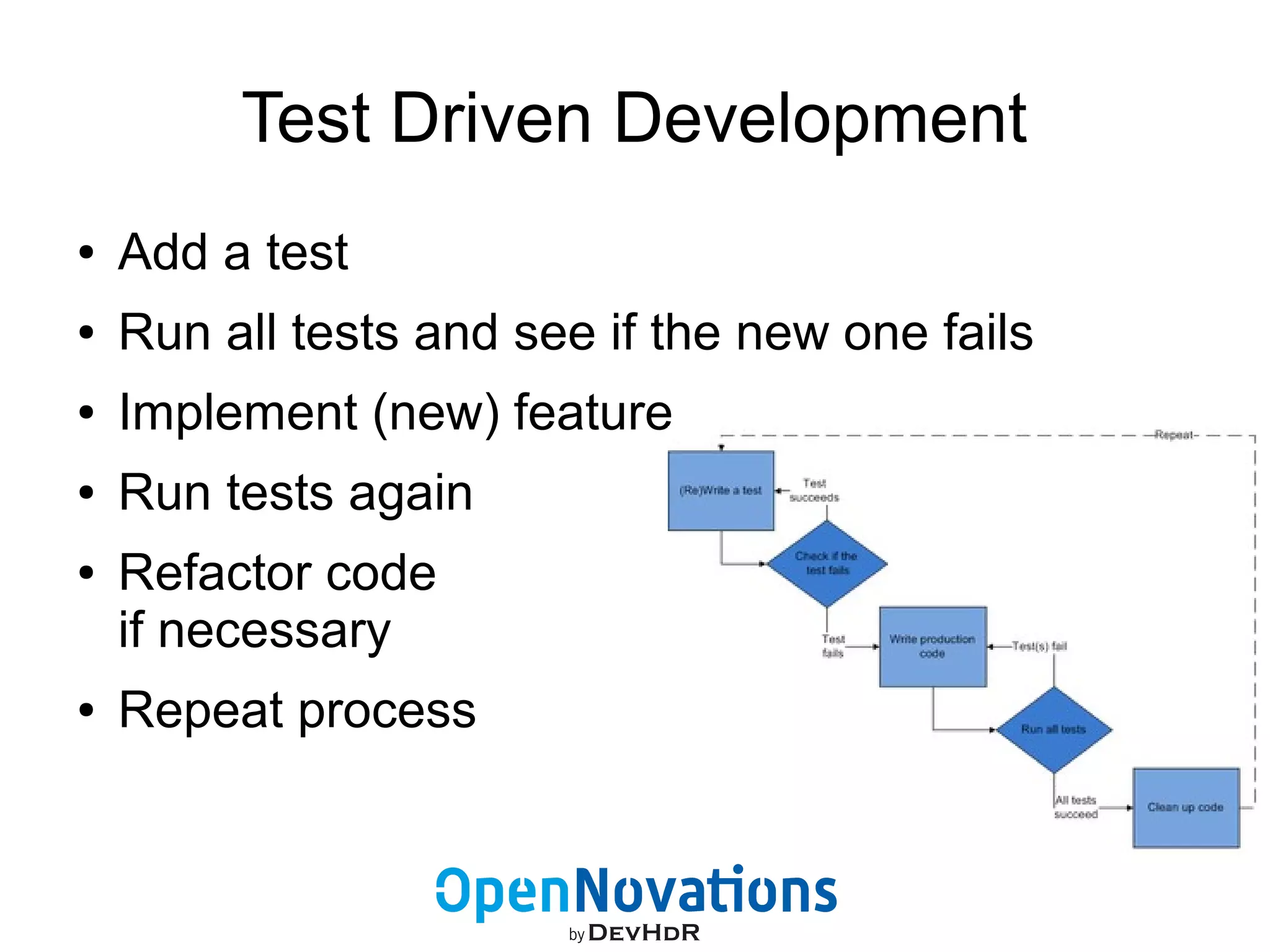

9. Test Driven Development
● Add a test
● Run all tests and see if the new one fails
● Implement (new) feature
● Run tests again
● Refactor code
if necessary
● Repeat process

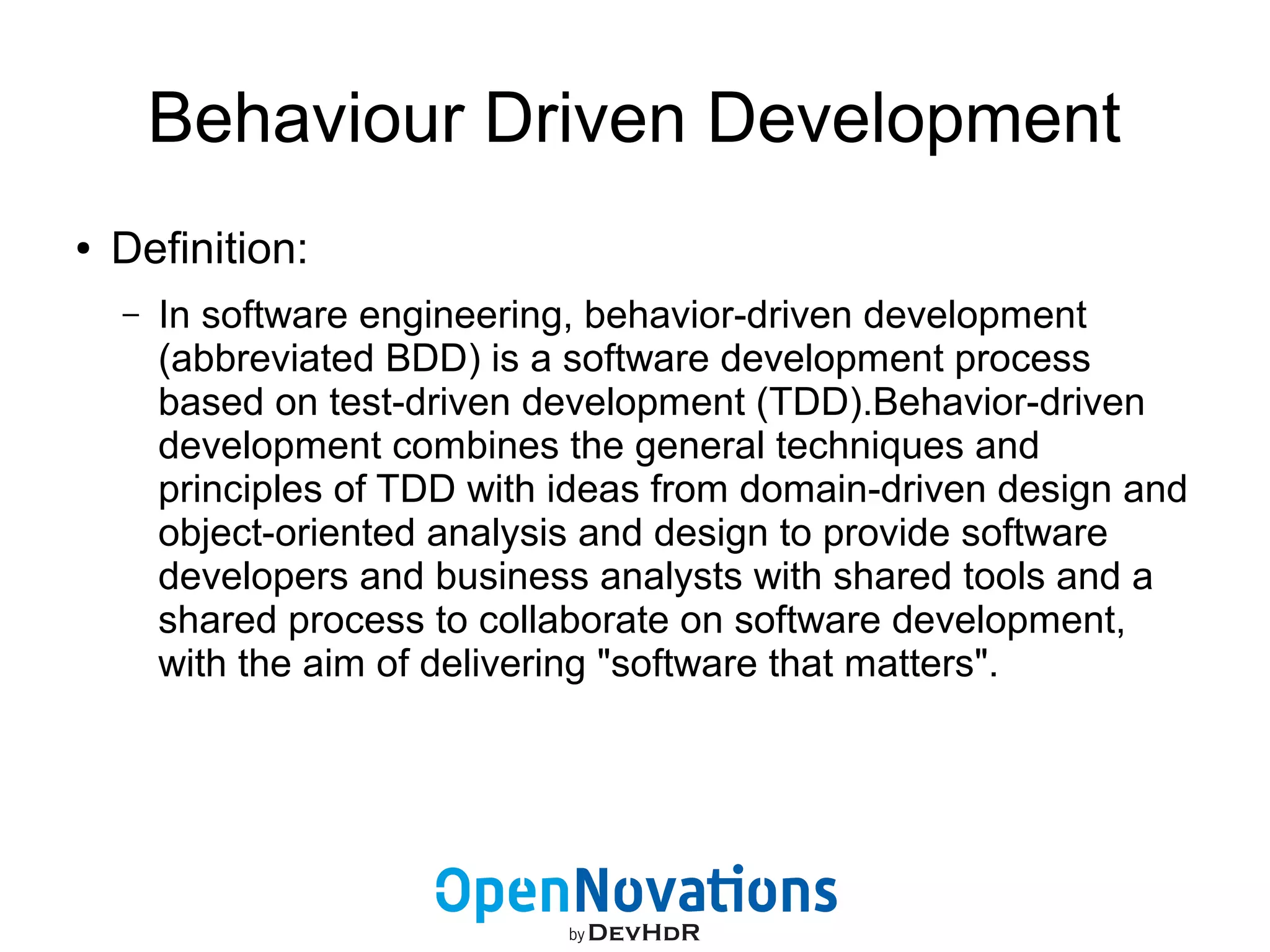

10. Behaviour Driven Development
● Definition:
– In software engineering, behavior-driven development
(abbreviated BDD) is a software development process
based on test-driven development (TDD).Behavior-driven
development combines the general techniques and
principles of TDD with ideas from domain-driven design and
object-oriented analysis and design to provide software
developers and business analysts with shared tools and a
shared process to collaborate on software development,
with the aim of delivering "software that matters".

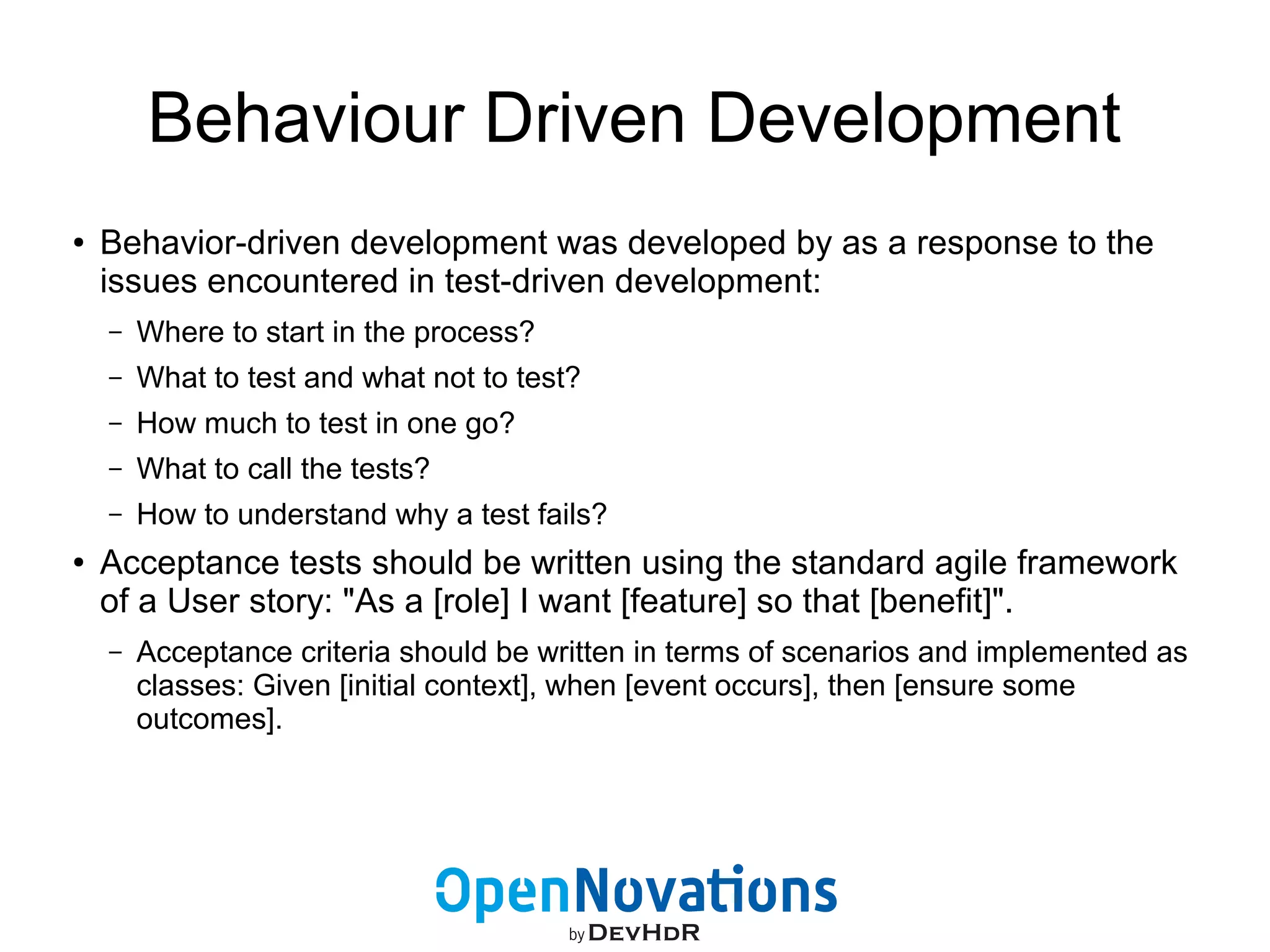

11. Behaviour Driven Development
● Behavior-driven development was developed by as a response to the
issues encountered in test-driven development:
– Where to start in the process?
– What to test and what not to test?
– How much to test in one go?
– What to call the tests?
– How to understand why a test fails?
● Acceptance tests should be written using the standard agile framework
of a User story: "As a [role] I want [feature] so that [benefit]".
– Acceptance criteria should be written in terms of scenarios and implemented as
classes: Given [initial context], when [event occurs], then [ensure some
outcomes].

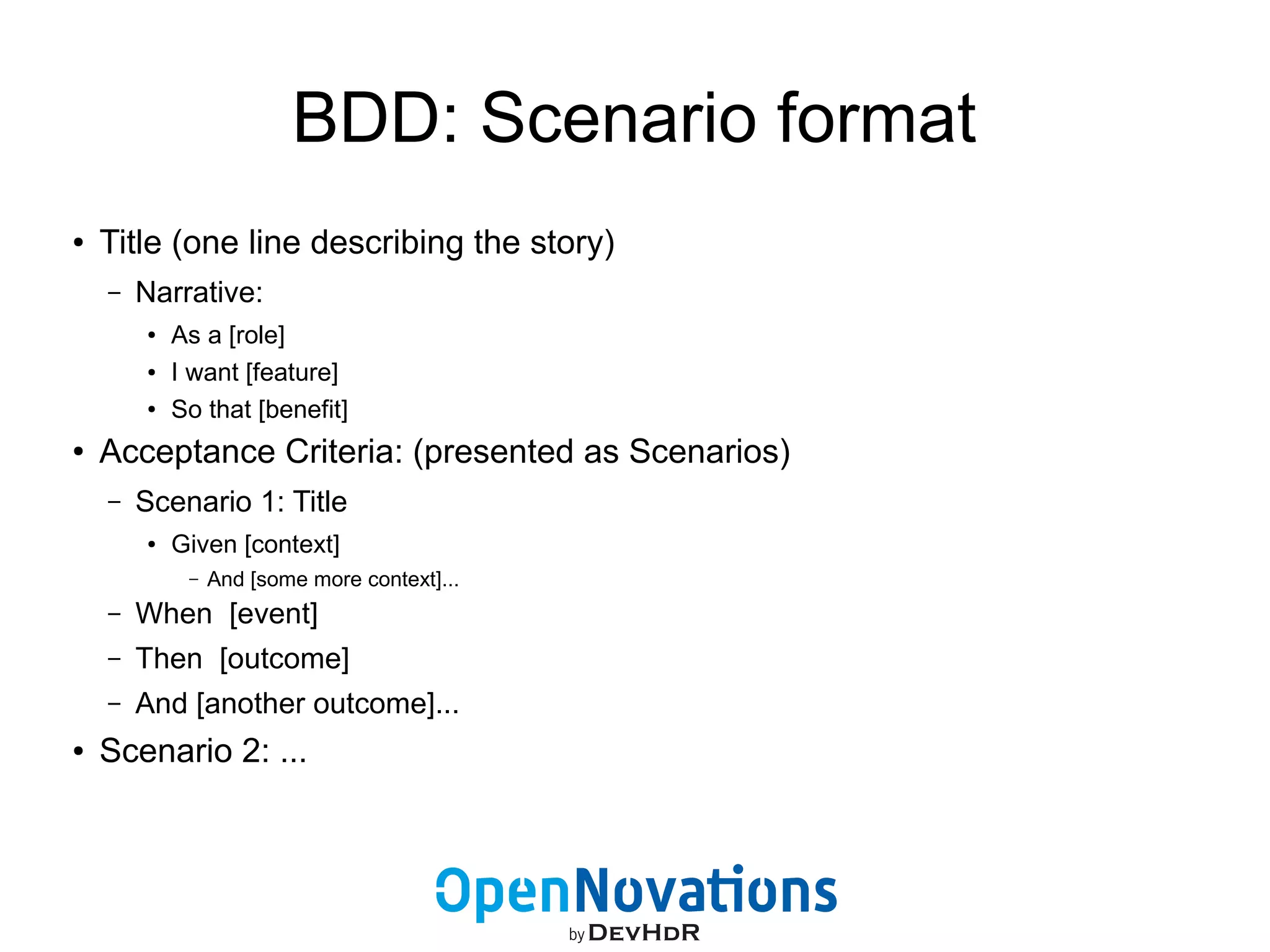

12. BDD: Scenario format
● Title (one line describing the story)
– Narrative:
● As a [role]
● I want [feature]
● So that [benefit]
● Acceptance Criteria: (presented as Scenarios)
– Scenario 1: Title
● Given [context]
– And [some more context]...
– When [event]
– Then [outcome]
– And [another outcome]...
● Scenario 2: ...

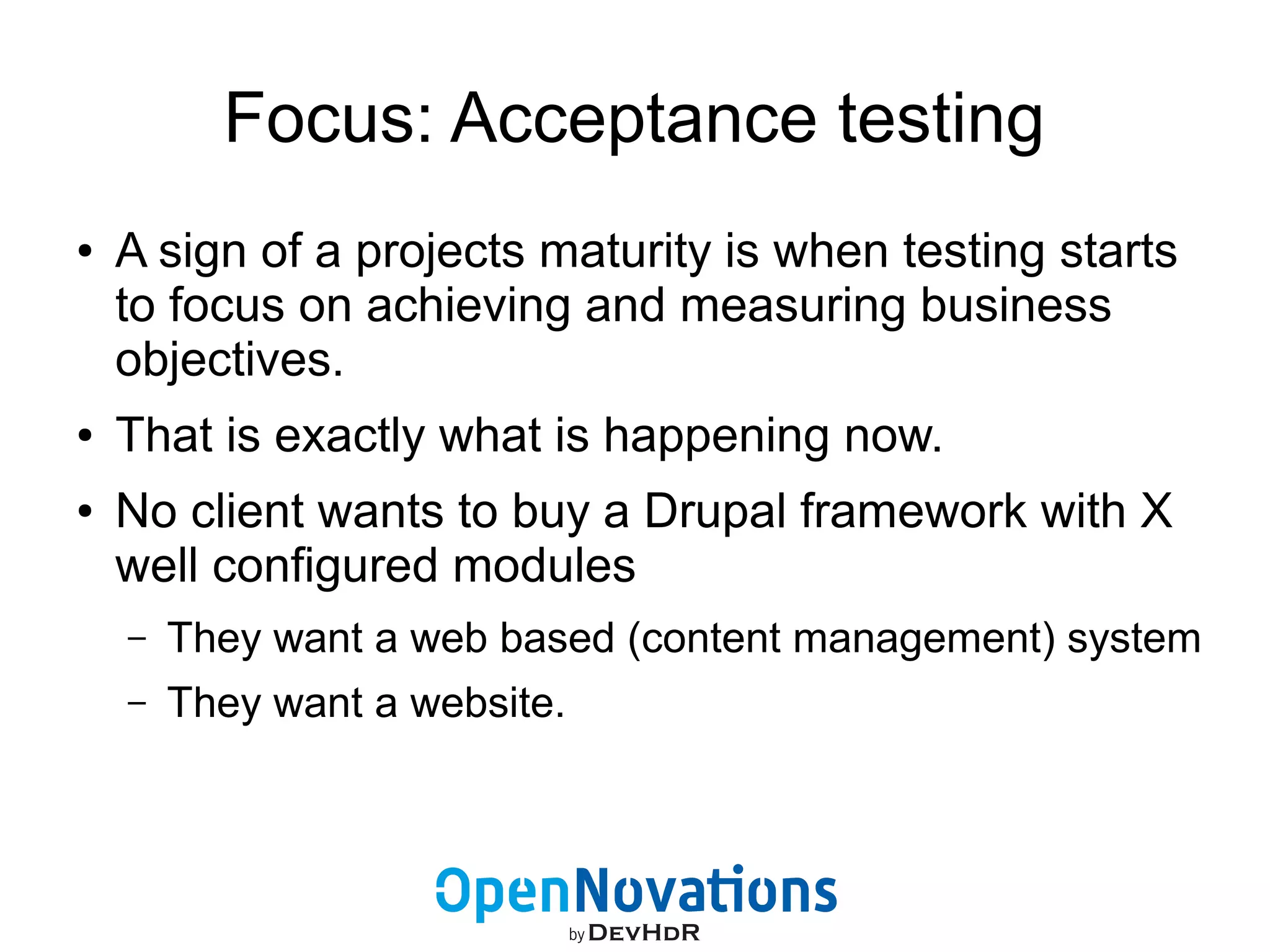

13. Focus: Acceptance testing
● A sign of a projects maturity is when testing starts
to focus on achieving and measuring business
objectives.
● That is exactly what is happening now.
● No client wants to buy a Drupal framework with X
well configured modules
– They want a web based (content management) system
– They want a website.

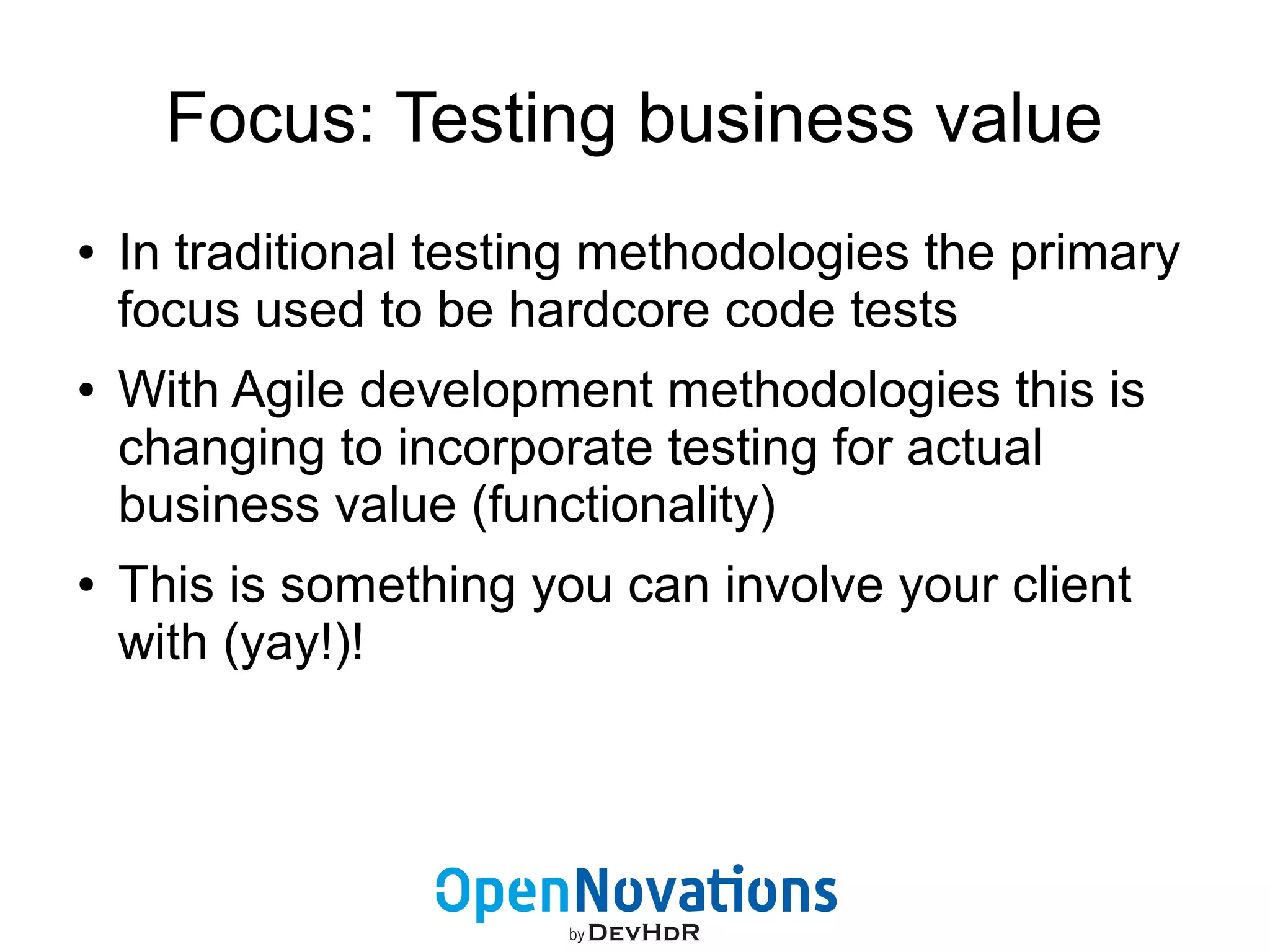

14. Focus: Testing business value
● In traditional testing methodologies the primary
focus used to be hardcore code tests
● With Agile development methodologies this is
changing to incorporate testing for actual
business value (functionality)
● This is something you can involve your client
with (yay!)!

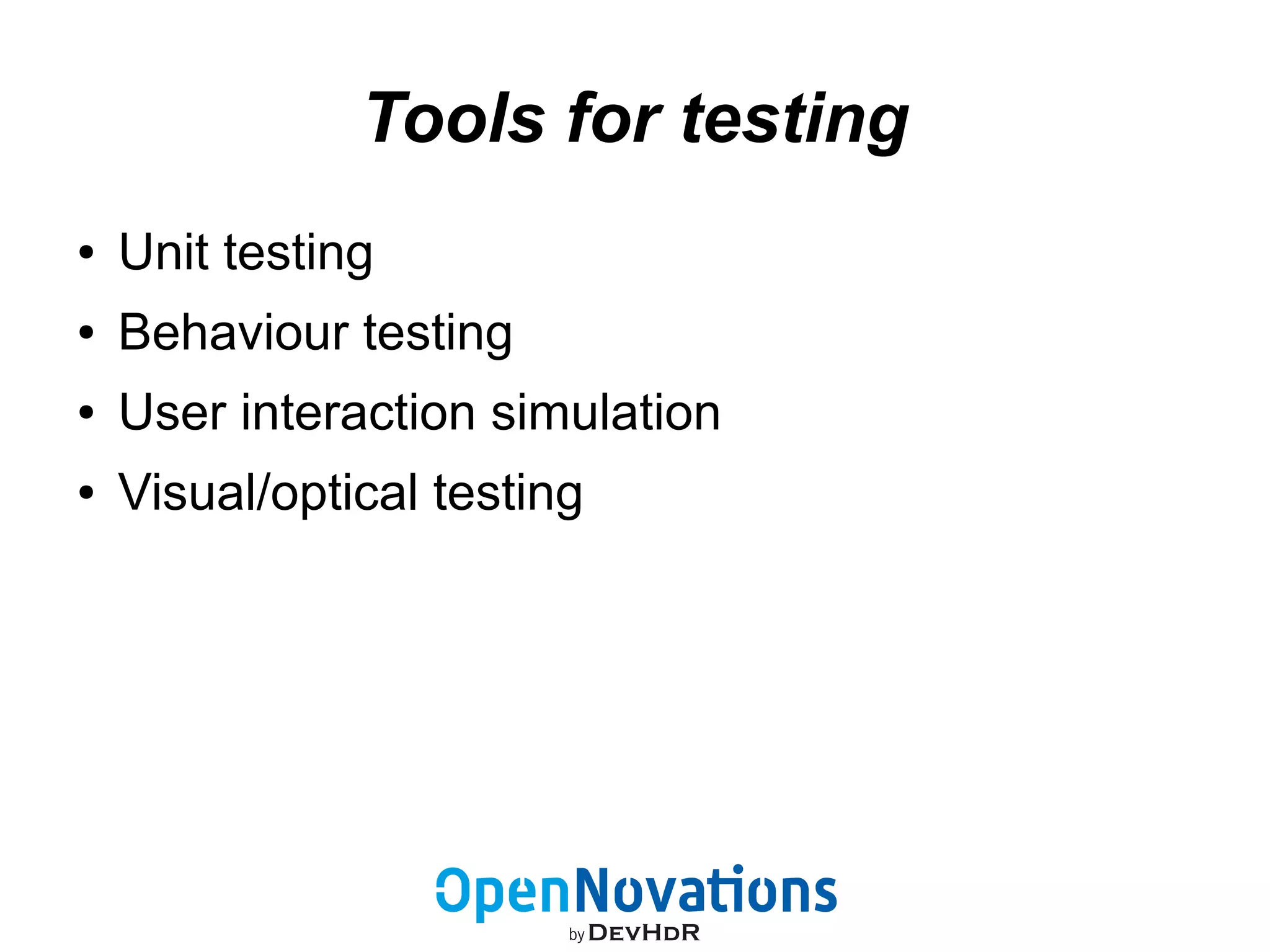

15. Tools for testing
● Unit testing
● Behaviour testing
● User interaction simulation
● Visual/optical testing

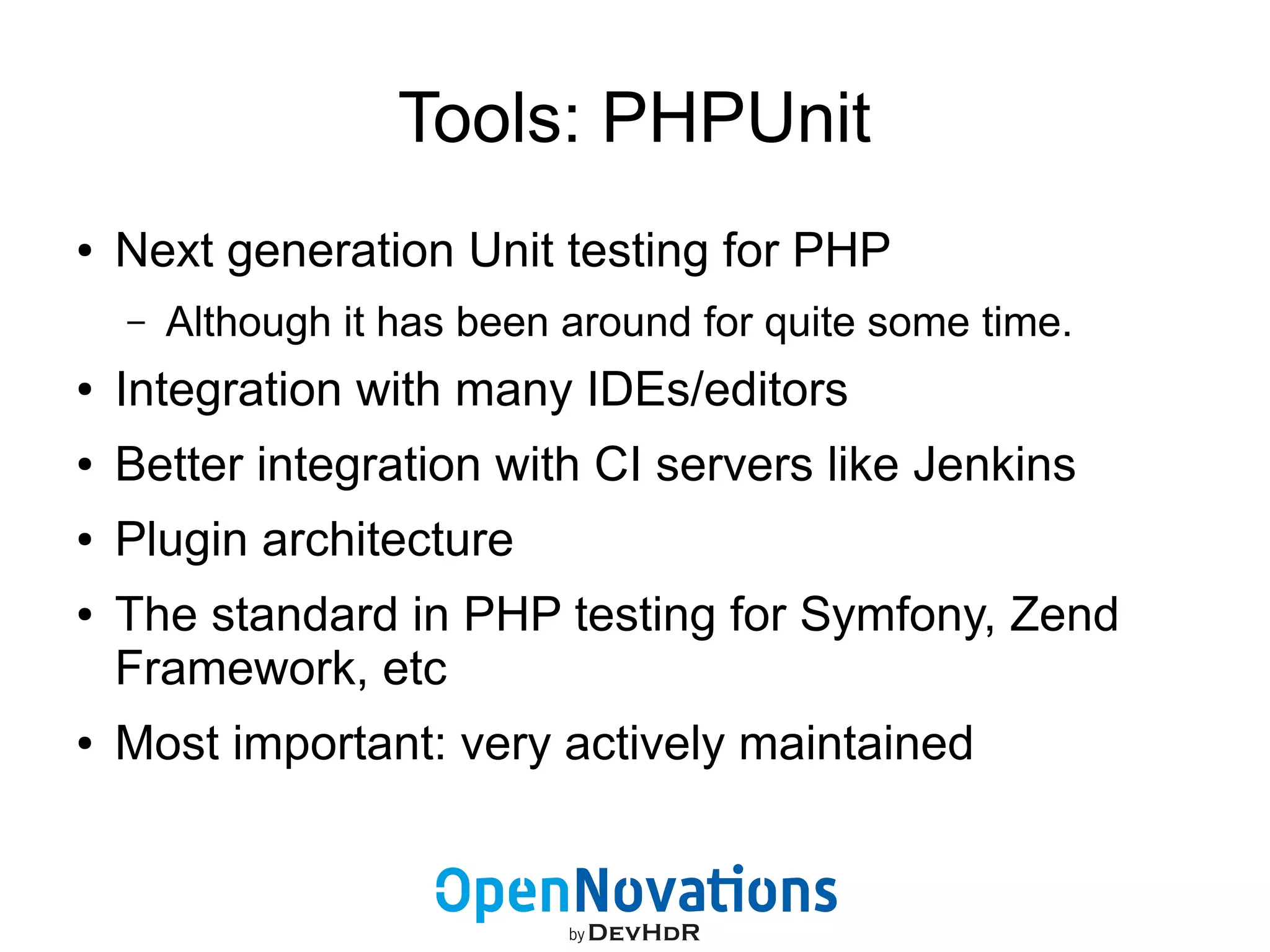

16. Tools: PHPUnit
● Next generation Unit testing for PHP
– Although it has been around for quite some time.
● Integration with many IDEs/editors
● Better integration with CI servers like Jenkins
● Plugin architecture
● The standard in PHP testing for Symfony, Zend
Framework, etc
● Most important: very actively maintained

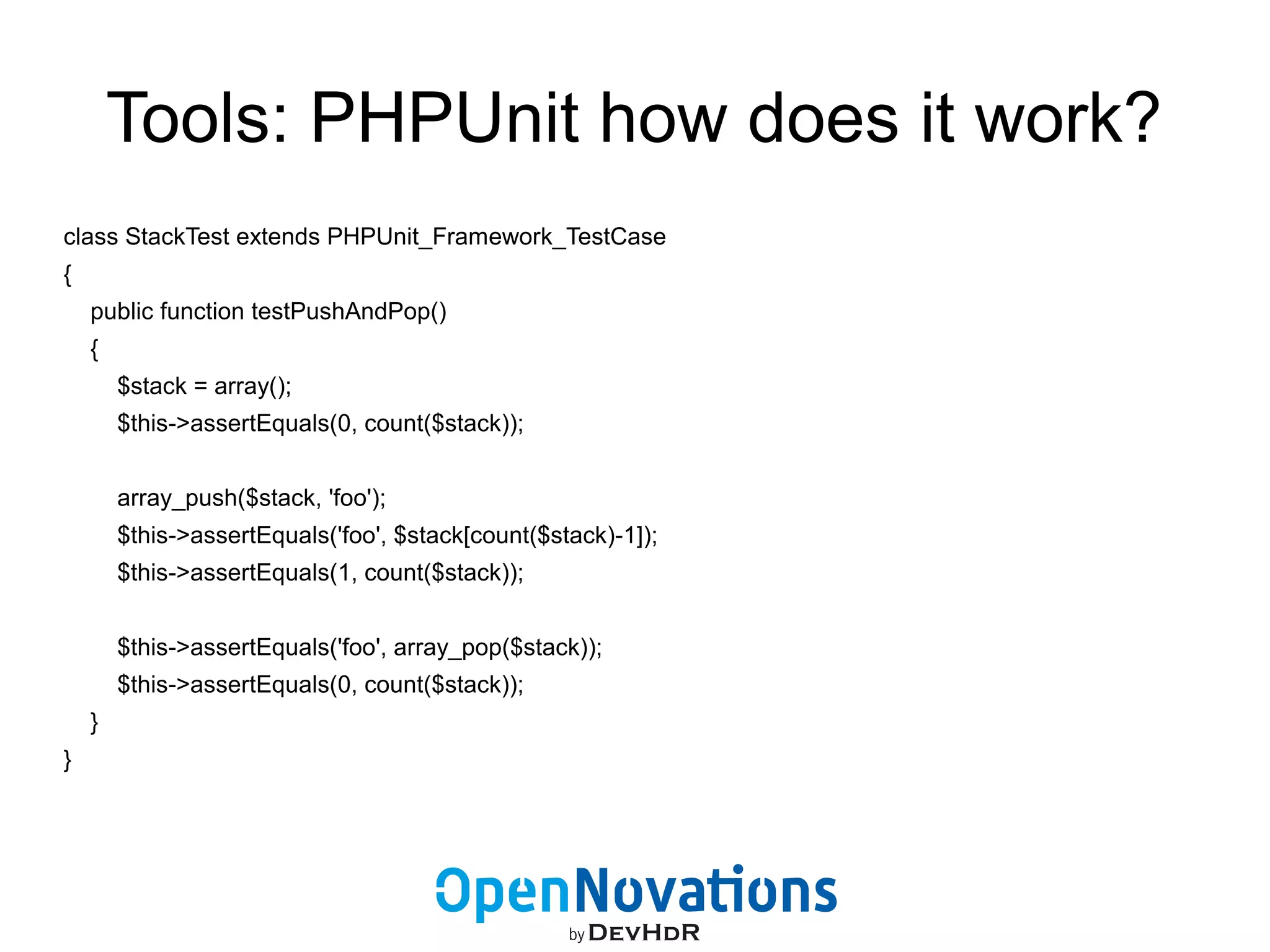

17. Tools: PHPUnit how does it work?
class StackTest extends PHPUnit_Framework_TestCase
{
public function testPushAndPop()
{
$stack = array();
$this->assertEquals(0, count($stack));
array_push($stack, 'foo');
$this->assertEquals('foo', $stack[count($stack)-1]);
$this->assertEquals(1, count($stack));
$this->assertEquals('foo', array_pop($stack));
$this->assertEquals(0, count($stack));
}
}

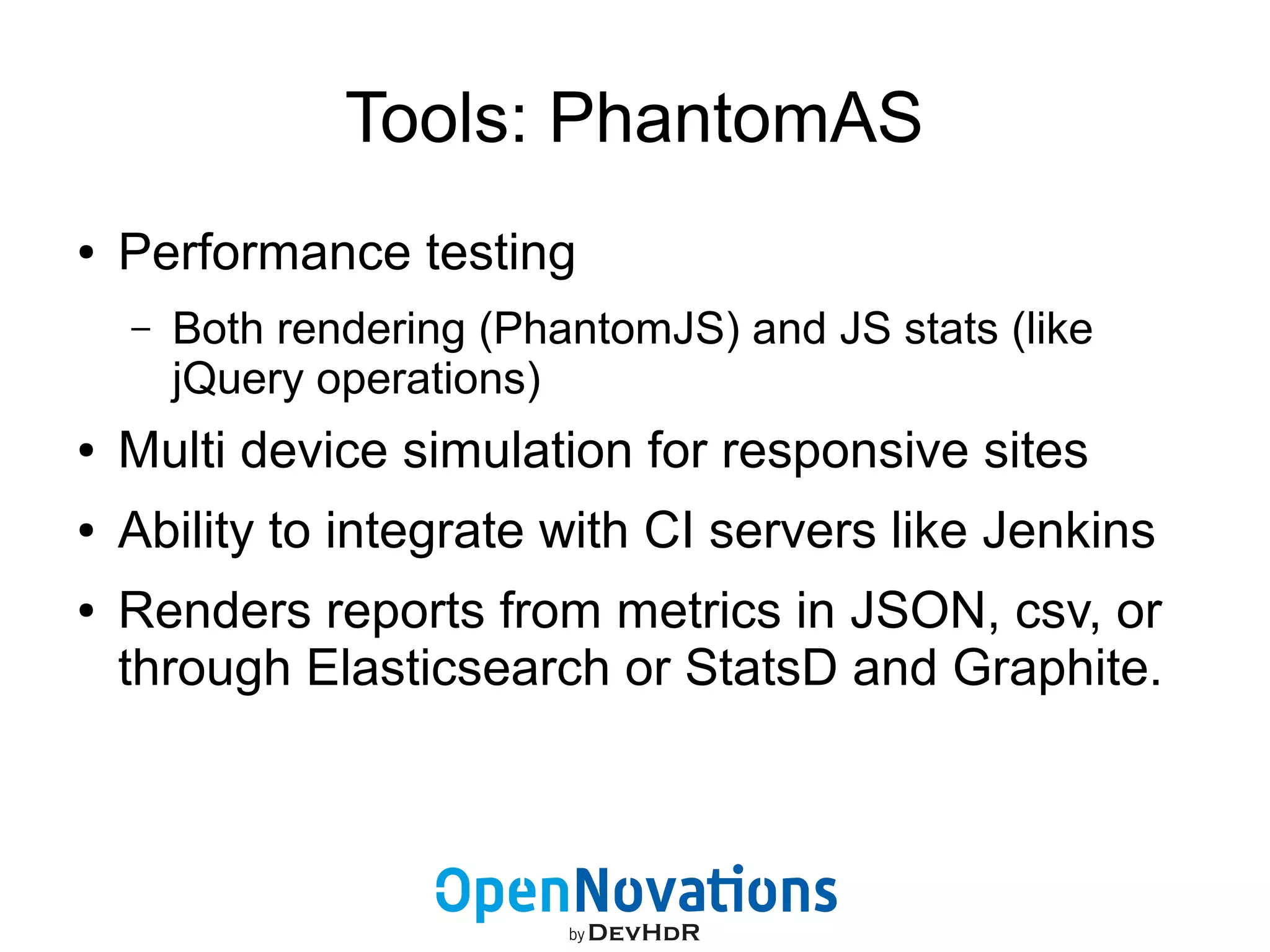

18. Tools: PhantomAS
● Performance testing
– Both rendering (PhantomJS) and JS stats (like
jQuery operations)
● Multi device simulation for responsive sites
● Ability to integrate with CI servers like Jenkins
● Renders reports from metrics in JSON, csv, or
through Elasticsearch or StatsD and Graphite.

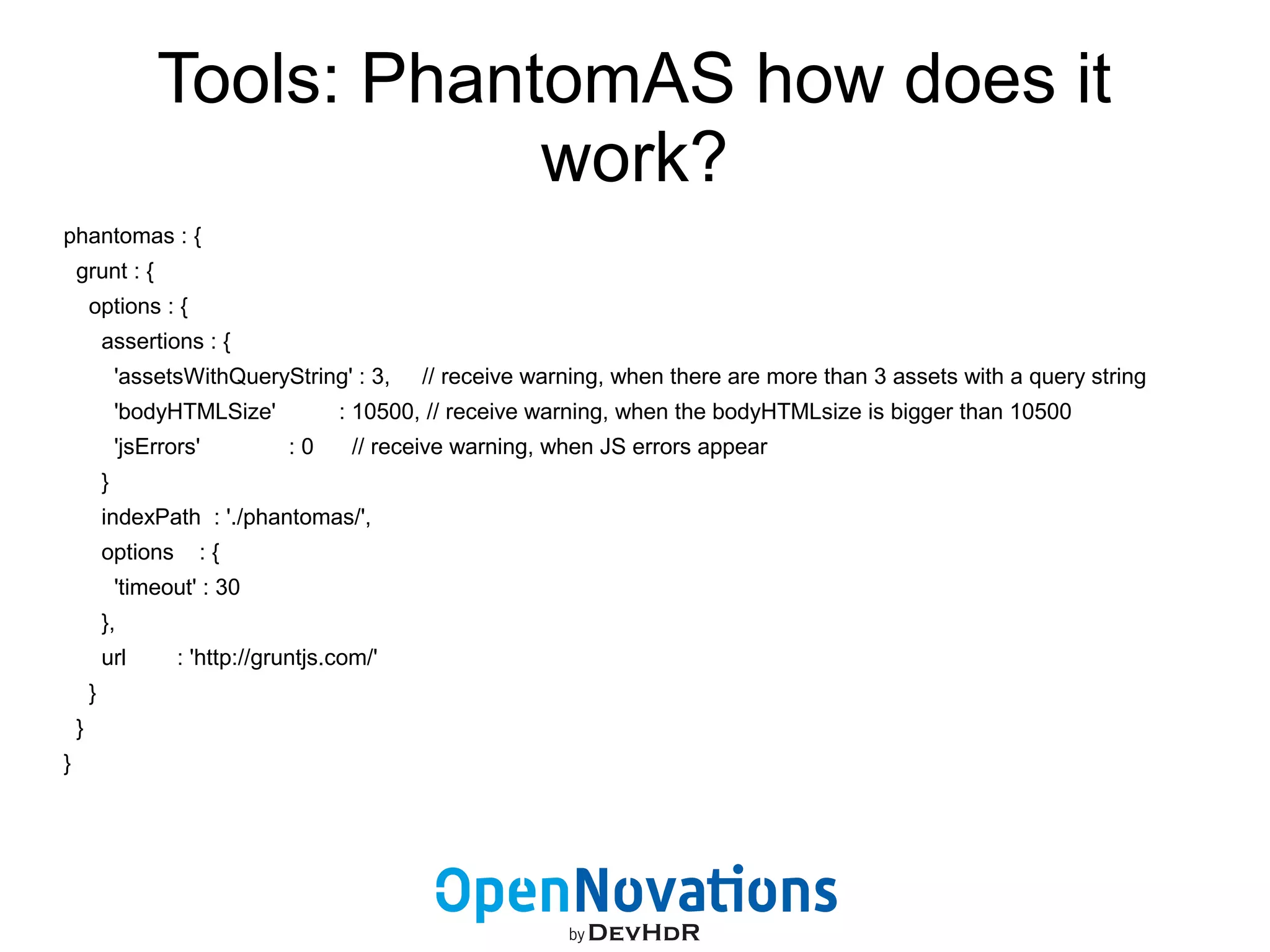

19. Tools: PhantomAS how does it
work?
phantomas : {
grunt : {
options : {
assertions : {
'assetsWithQueryString' : 3, // receive warning, when there are more than 3 assets with a query string
'bodyHTMLSize' : 10500, // receive warning, when the bodyHTMLsize is bigger than 10500
'jsErrors' : 0 // receive warning, when JS errors appear
}
indexPath : './phantomas/',
options : {
'timeout' : 30
},
url : 'http://gruntjs.com/'
}
}
}

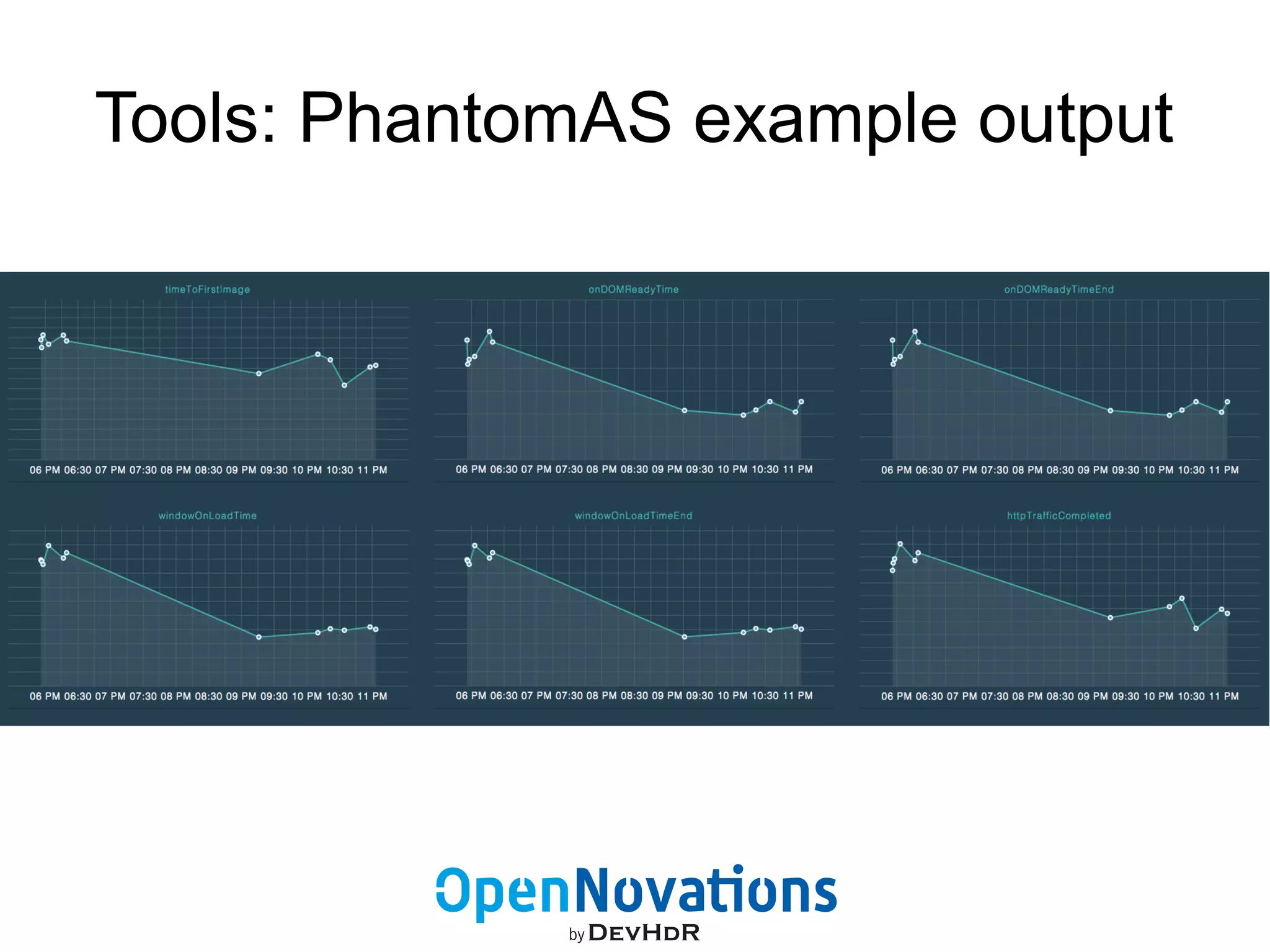

20. Tools: PhantomAS example output

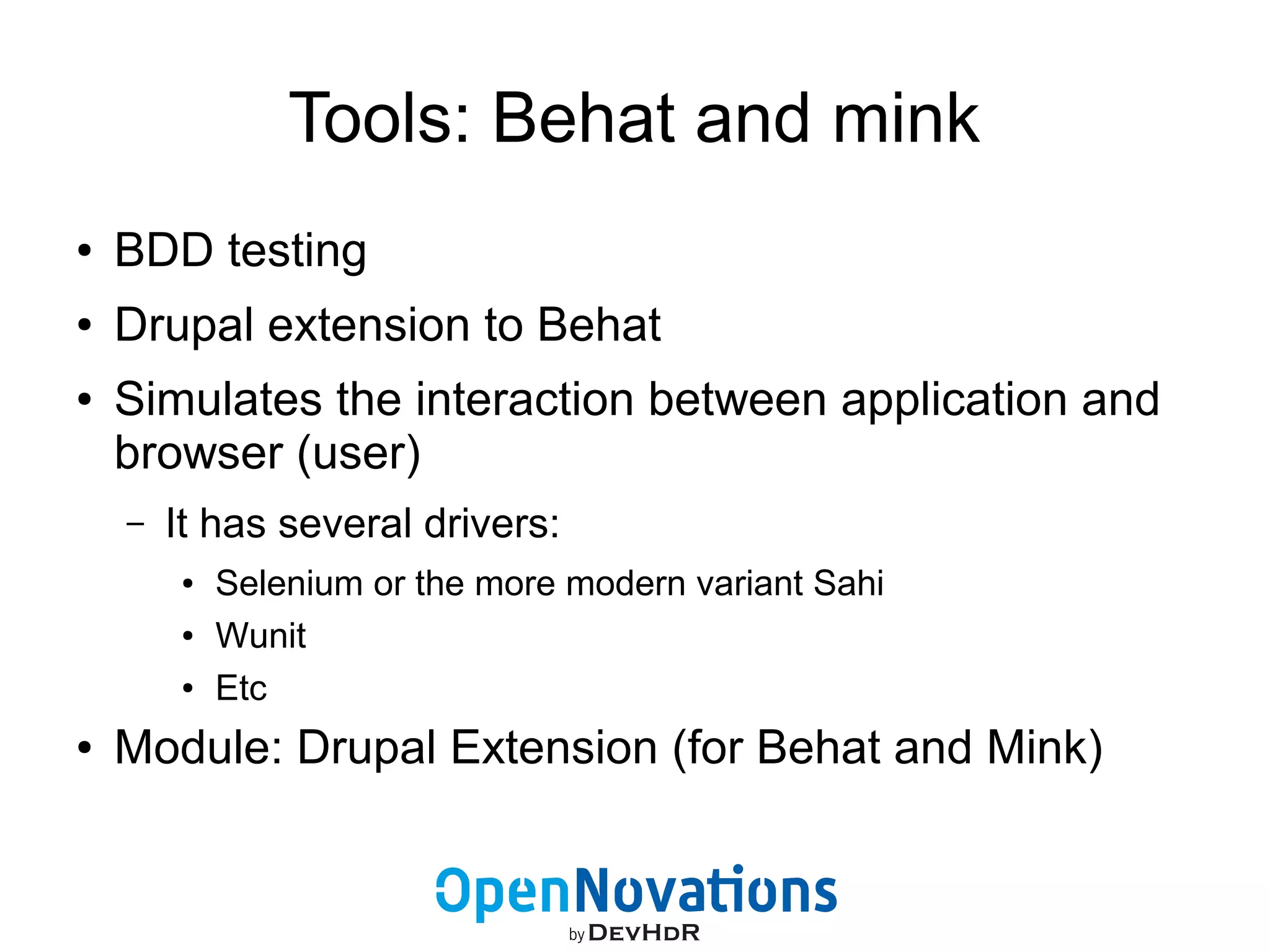

21. Tools: Behat and mink
● BDD testing
● Drupal extension to Behat
● Simulates the interaction between application and
browser (user)
– It has several drivers:
● Selenium or the more modern variant Sahi
● Wunit
● Etc
● Module: Drupal Extension (for Behat and Mink)

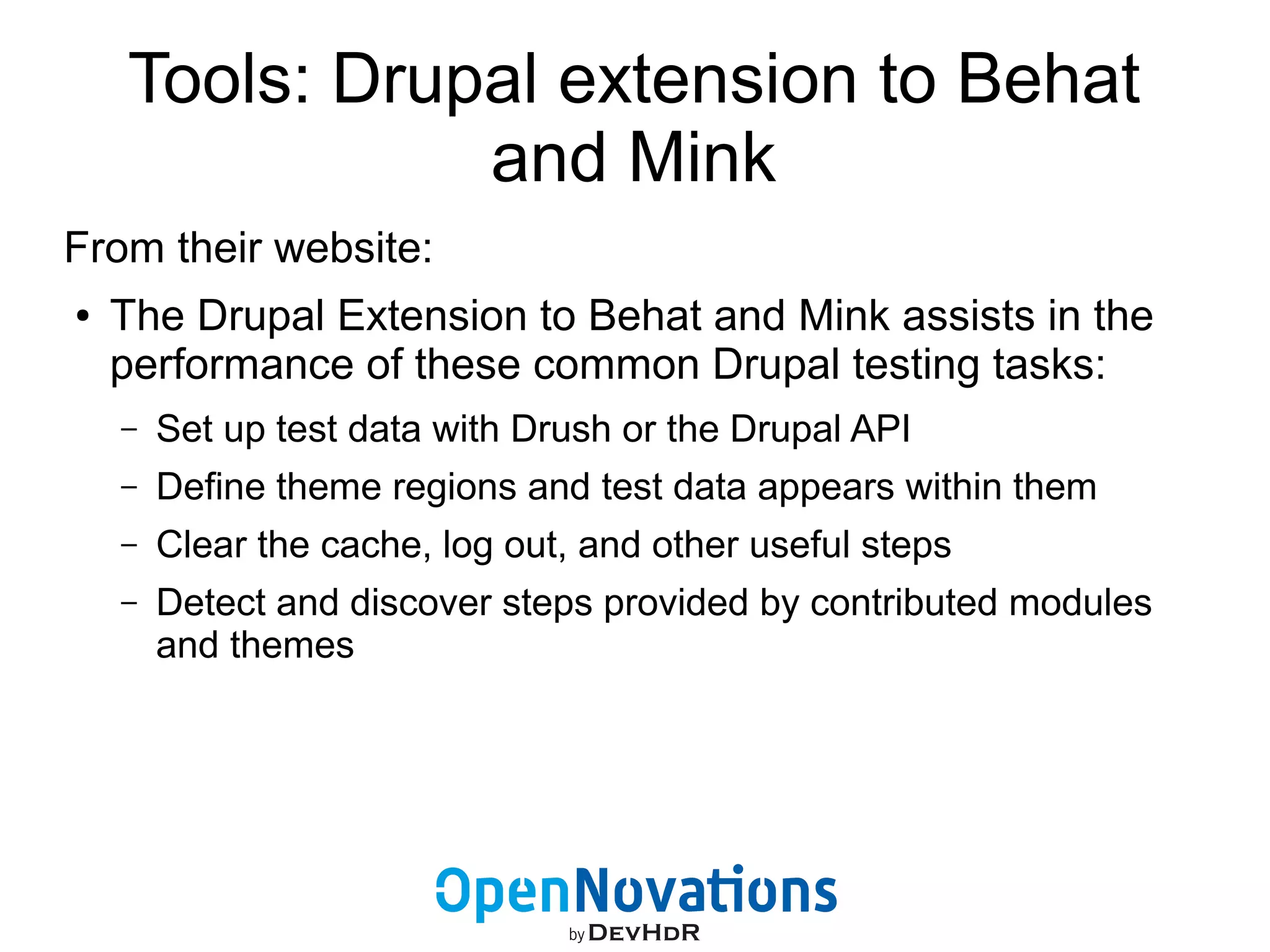

22. Tools: Drupal extension to Behat
and Mink
From their website:
● The Drupal Extension to Behat and Mink assists in the
performance of these common Drupal testing tasks:
– Set up test data with Drush or the Drupal API
– Define theme regions and test data appears within them
– Clear the cache, log out, and other useful steps
– Detect and discover steps provided by contributed modules
and themes

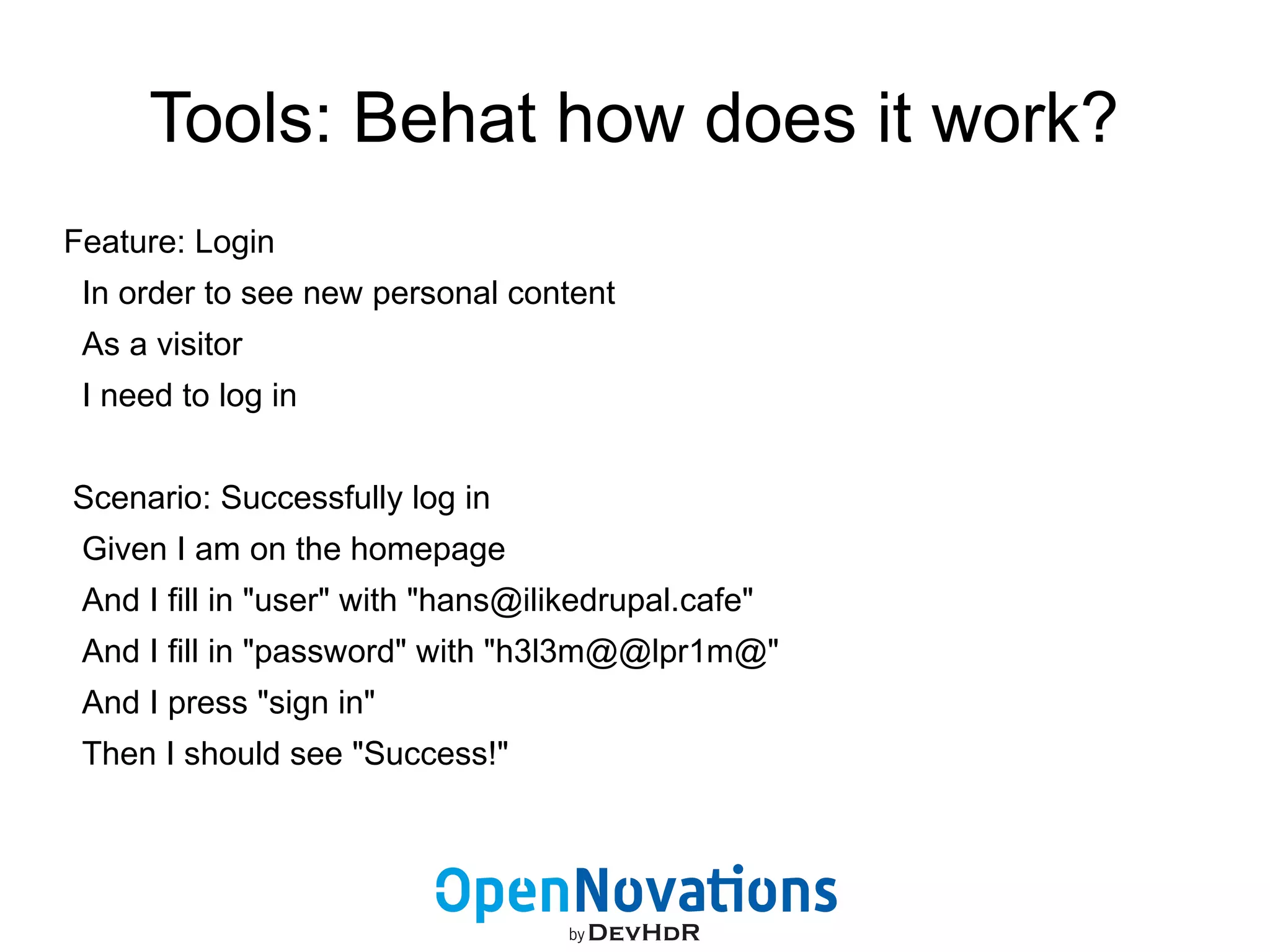

23. Tools: Behat how does it work?
Feature: Login
In order to see new personal content
As a visitor
I need to log in
Scenario: Successfully log in
Given I am on the homepage
And I fill in "user" with "hans@ilikedrupal.cafe"
And I fill in "password" with "h3l3m@@lpr1m@"
And I press "sign in"
Then I should see "Success!"

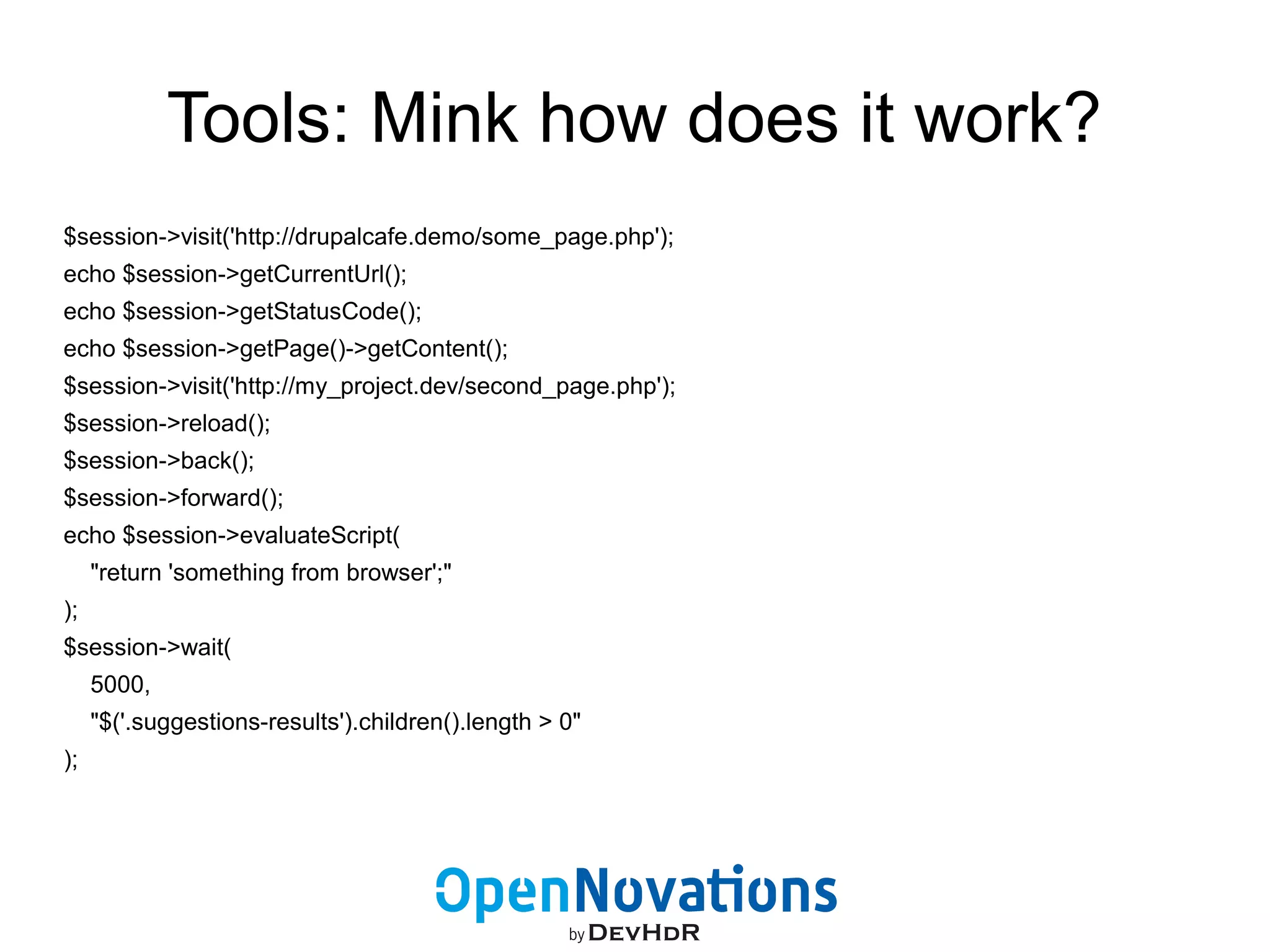

24. Tools: Mink how does it work?
$session->visit('http://drupalcafe.demo/some_page.php');
echo $session->getCurrentUrl();
echo $session->getStatusCode();
echo $session->getPage()->getContent();
$session->visit('http://my_project.dev/second_page.php');
$session->reload();
$session->back();
$session->forward();
echo $session->evaluateScript(
"return 'something from browser';"
);
$session->wait(
5000,
"$('.suggestions-results').children().length > 0"
);

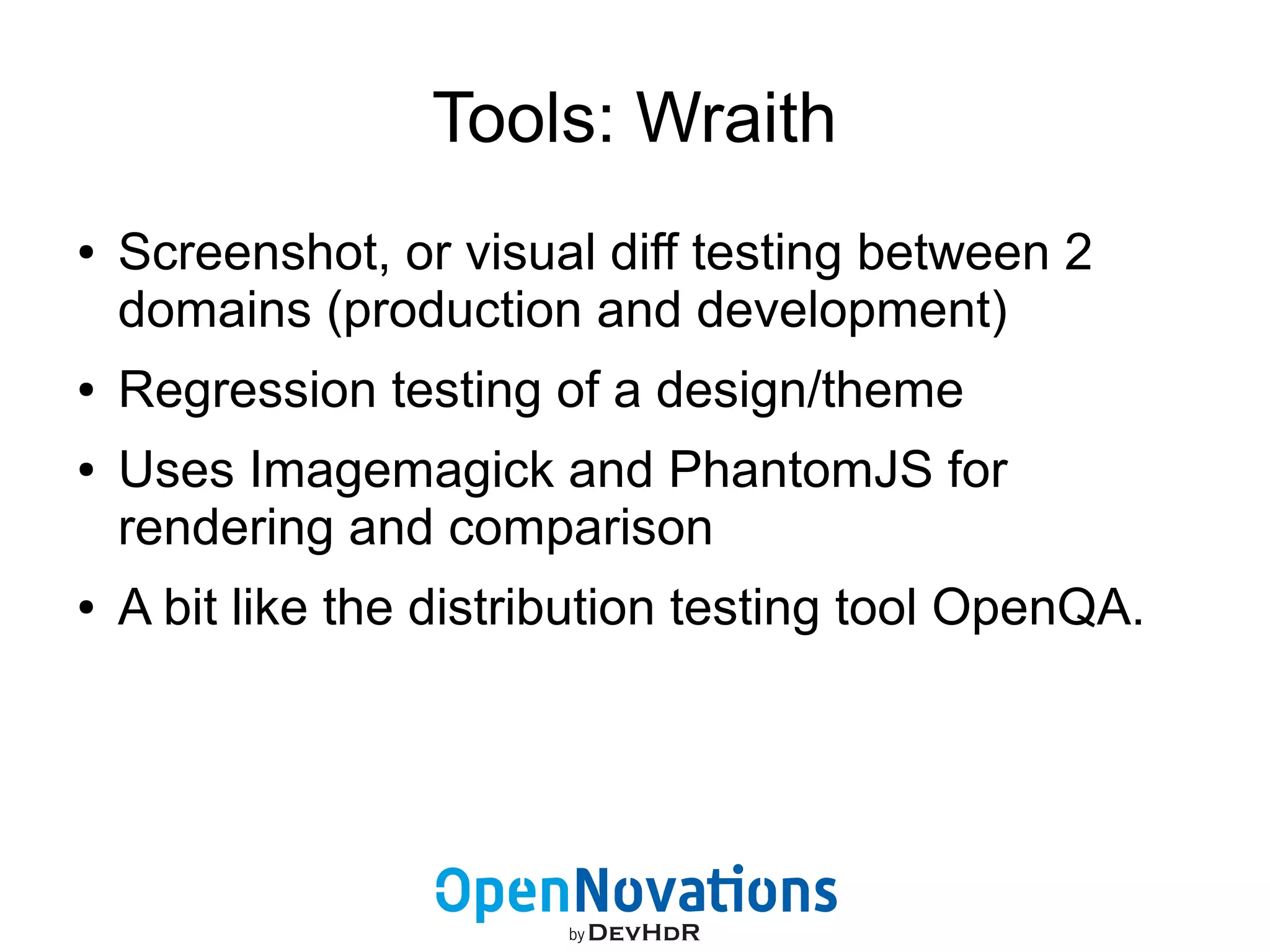

25. Tools: Wraith
● Screenshot, or visual diff testing between 2
domains (production and development)
● Regression testing of a design/theme
● Uses Imagemagick and PhantomJS for
rendering and comparison
● A bit like the distribution testing tool OpenQA.

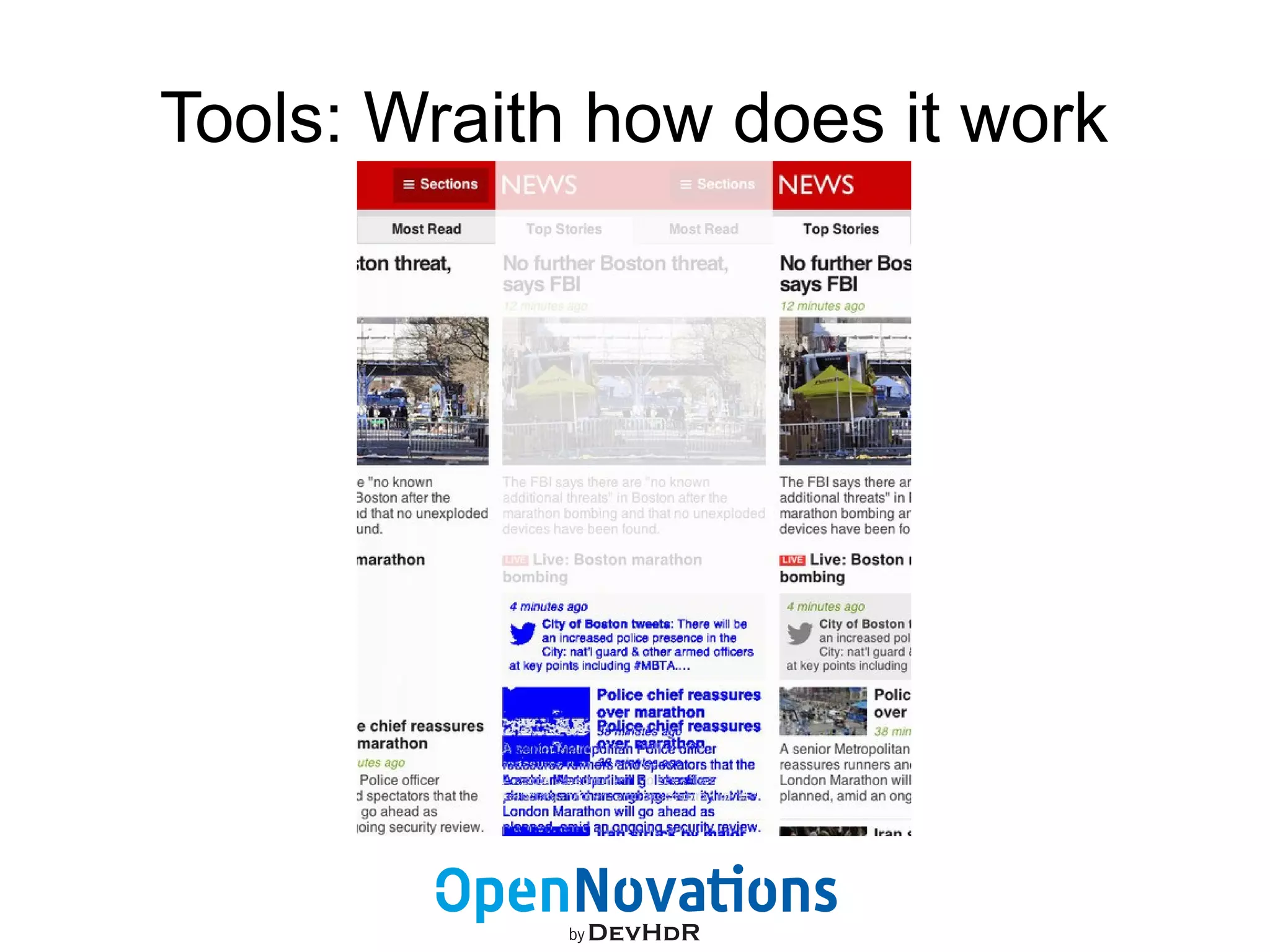

26. Tools: Wraith how does it work

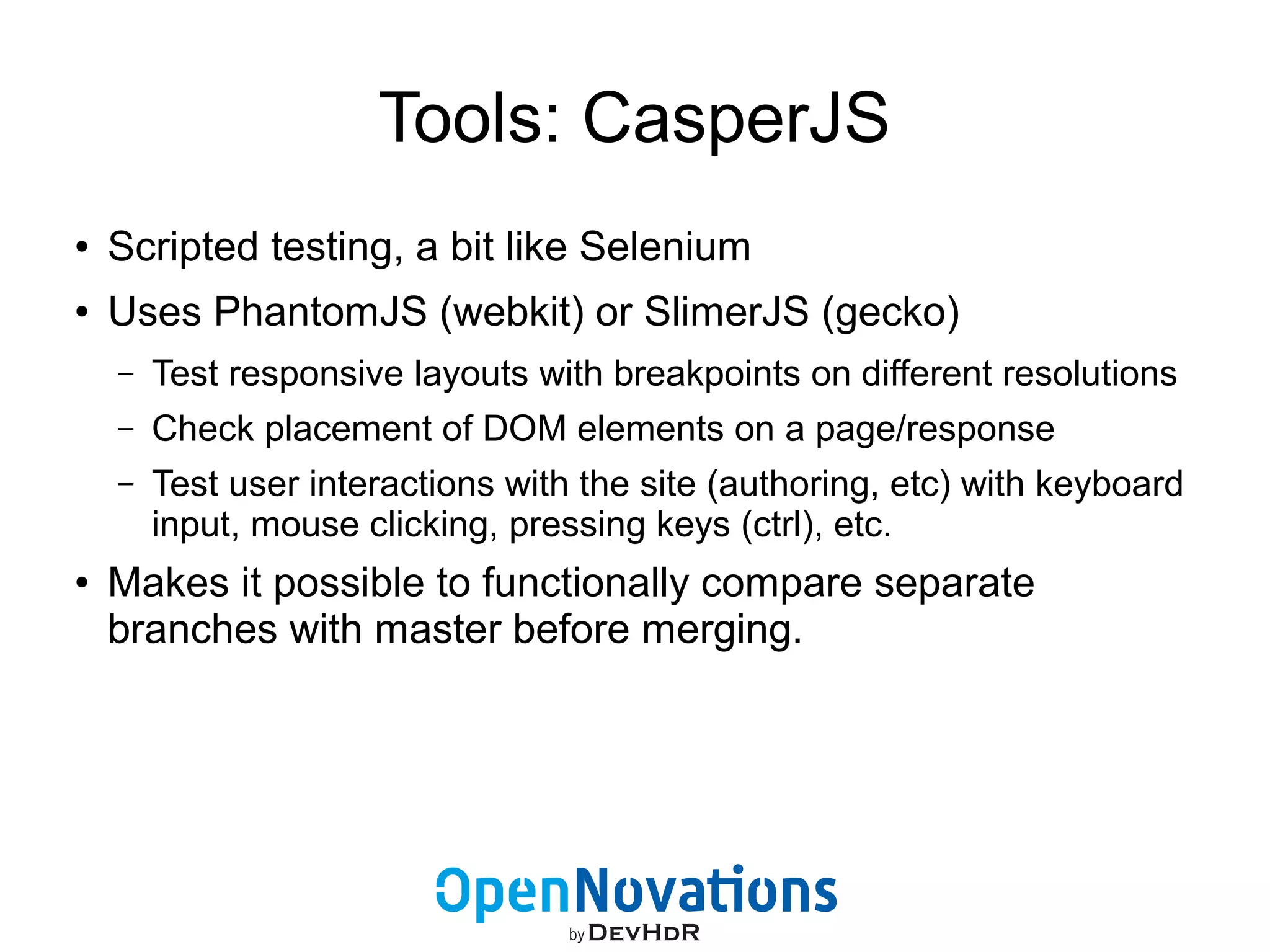

27. Tools: CasperJS
● Scripted testing, a bit like Selenium
● Uses PhantomJS (webkit) or SlimerJS (gecko)
– Test responsive layouts with breakpoints on different resolutions
– Check placement of DOM elements on a page/response
– Test user interactions with the site (authoring, etc) with keyboard
input, mouse clicking, pressing keys (ctrl), etc.
● Makes it possible to functionally compare separate
branches with master before merging.

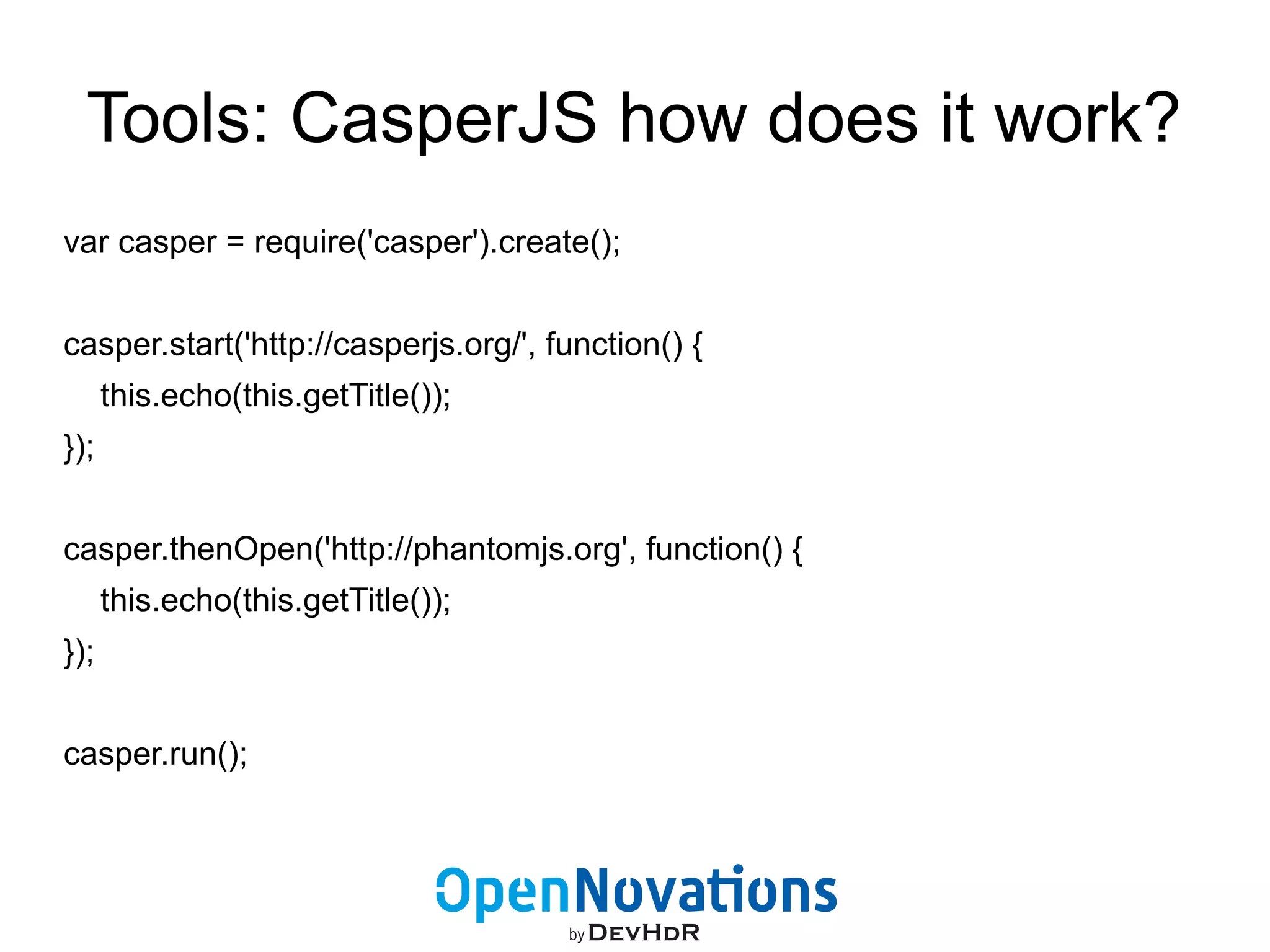

28. Tools: CasperJS how does it work?
var casper = require('casper').create();
casper.start('http://casperjs.org/', function() {
this.echo(this.getTitle());
});
casper.thenOpen('http://phantomjs.org', function() {
this.echo(this.getTitle());
});
casper.run();

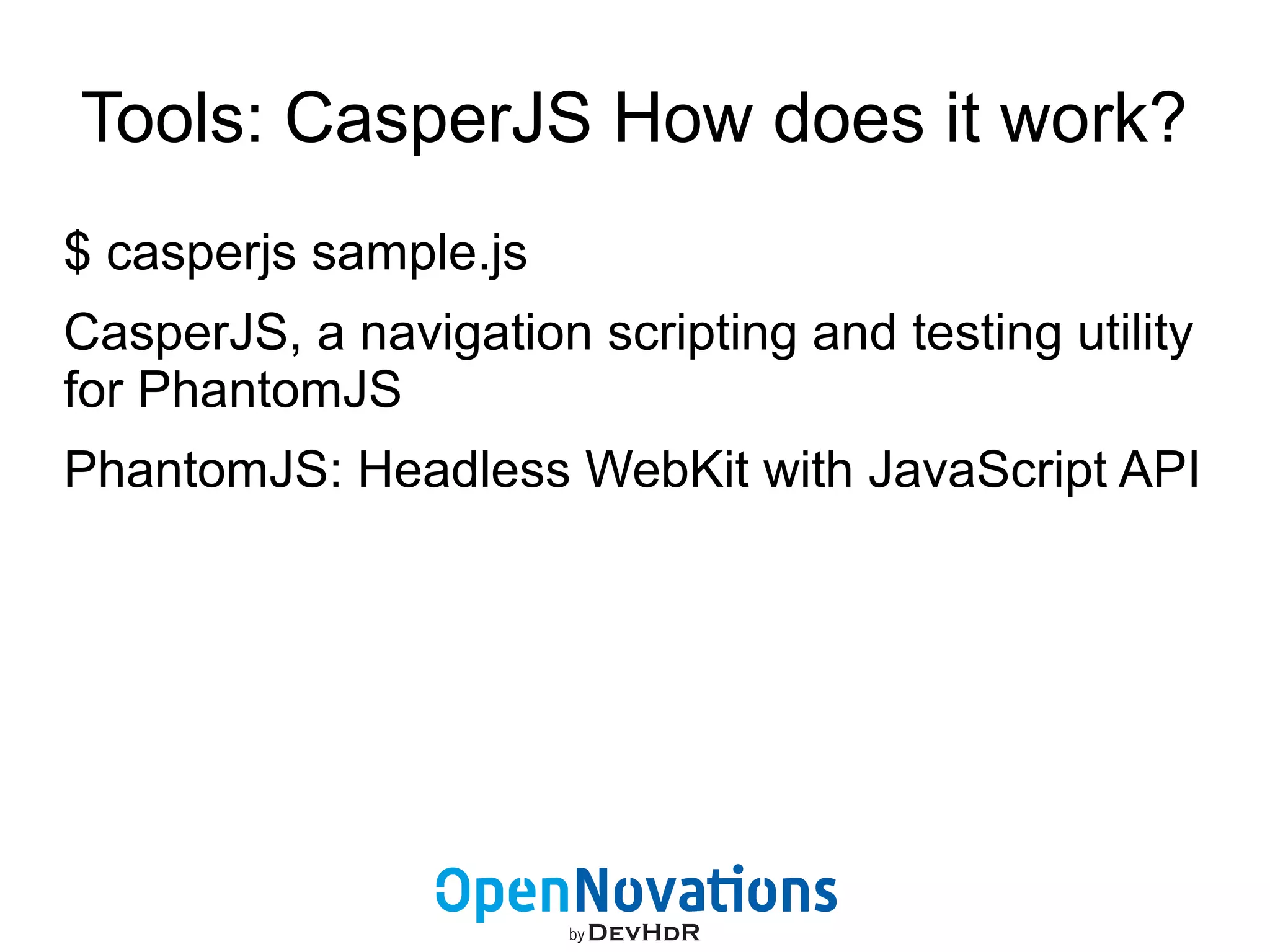

29. Tools: CasperJS How does it work?
$ casperjs sample.js
CasperJS, a navigation scripting and testing utility
for PhantomJS
PhantomJS: Headless WebKit with JavaScript API

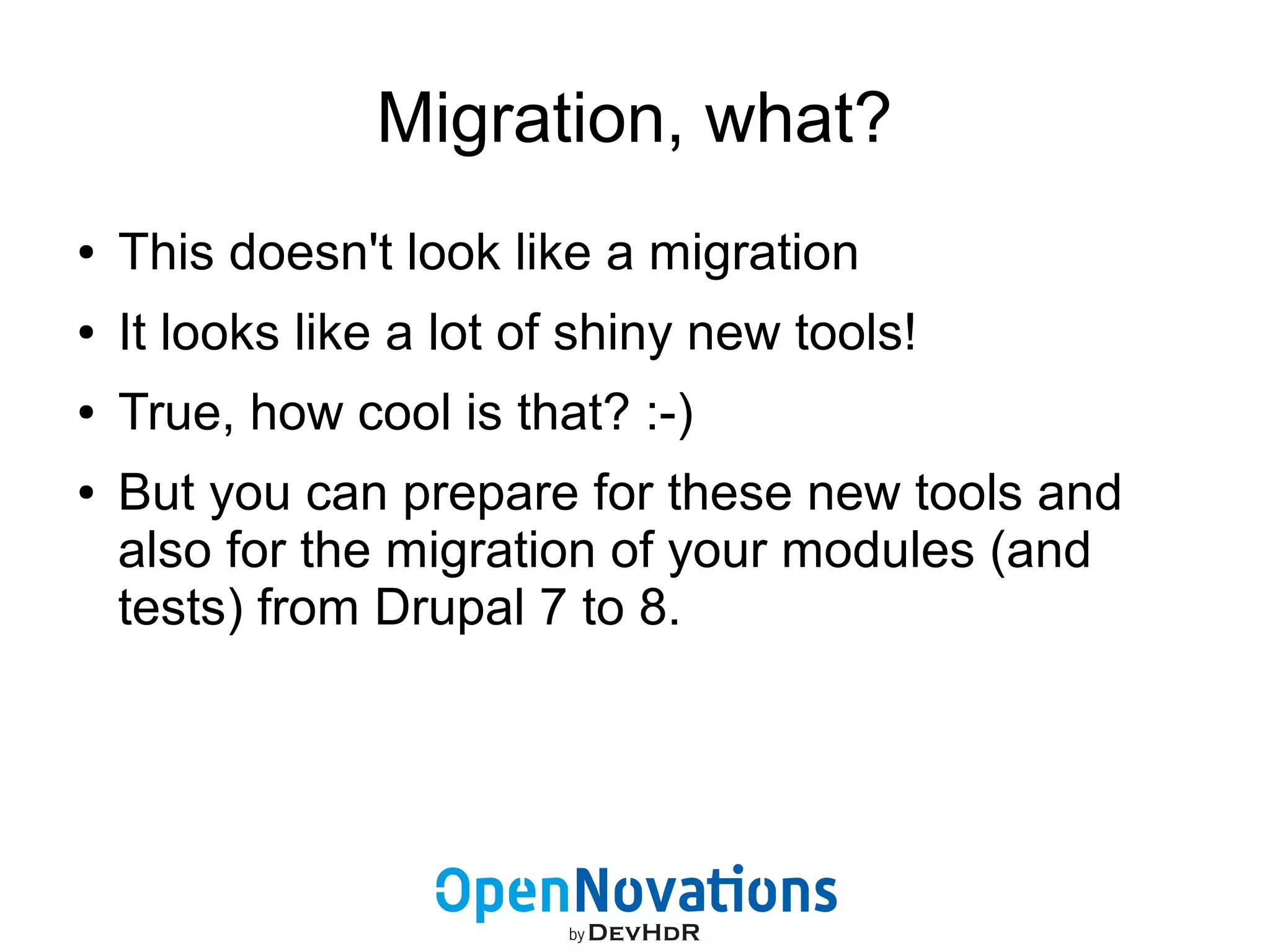

30. Migration, what?
● This doesn't look like a migration
● It looks like a lot of shiny new tools!
● True, how cool is that? :-)
● But you can prepare for these new tools and
also for the migration of your modules (and
tests) from Drupal 7 to 8.

31. CI integration (mostly Jenkins)
● Already possible with D7, but the 3rd party libs
in D8 (Symfony) already have a lot of
tools/scripts for this.
● Phing Drush Task
● Composer
● Dependency Injection (see Symfony docs for
the concept) for better staging management.

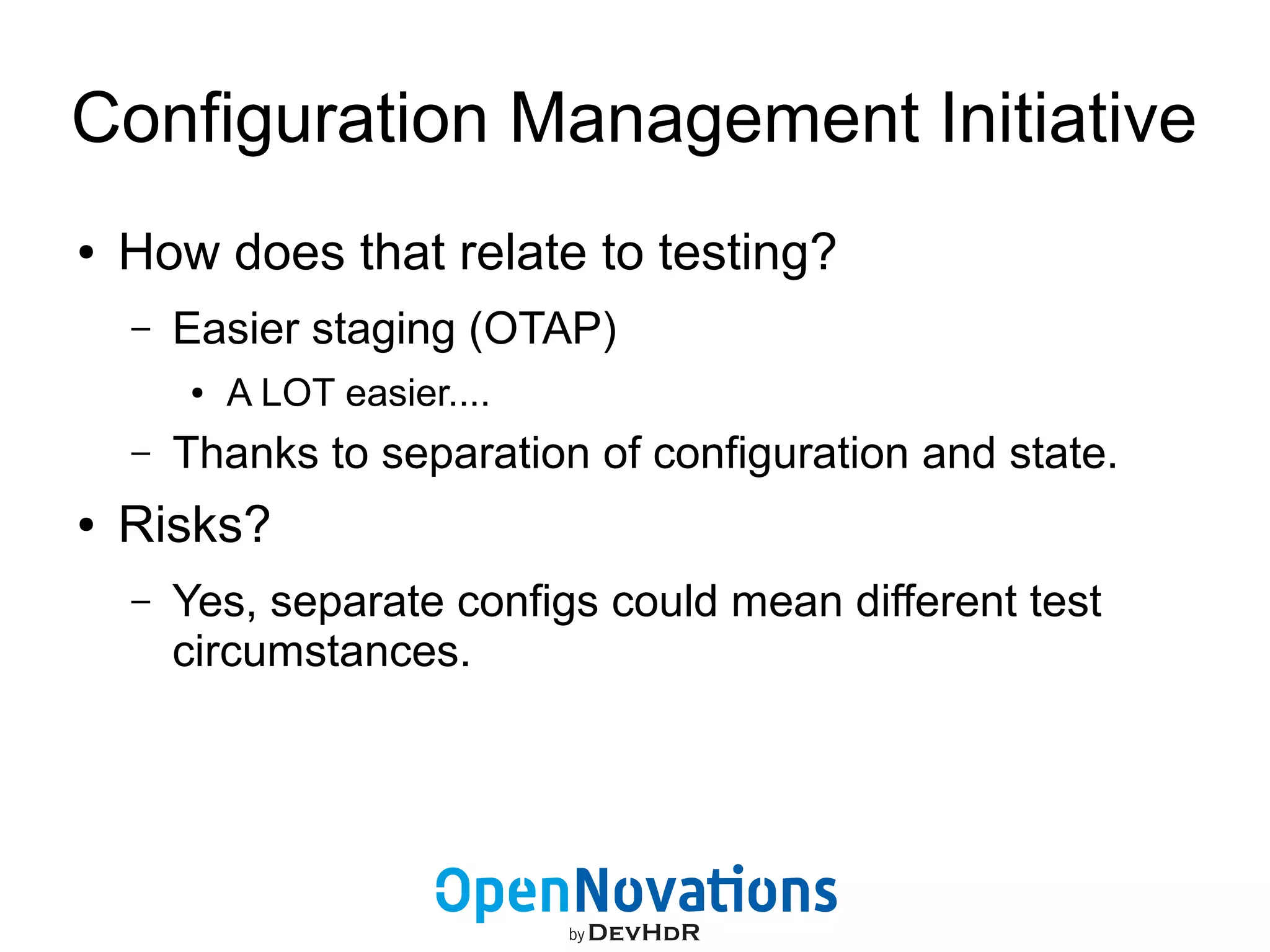

32. Configuration Management Initiative
● How does that relate to testing?
– Easier staging (OTAP)
● A LOT easier....
– Thanks to separation of configuration and state.
● Risks?
– Yes, separate configs could mean different test
circumstances.

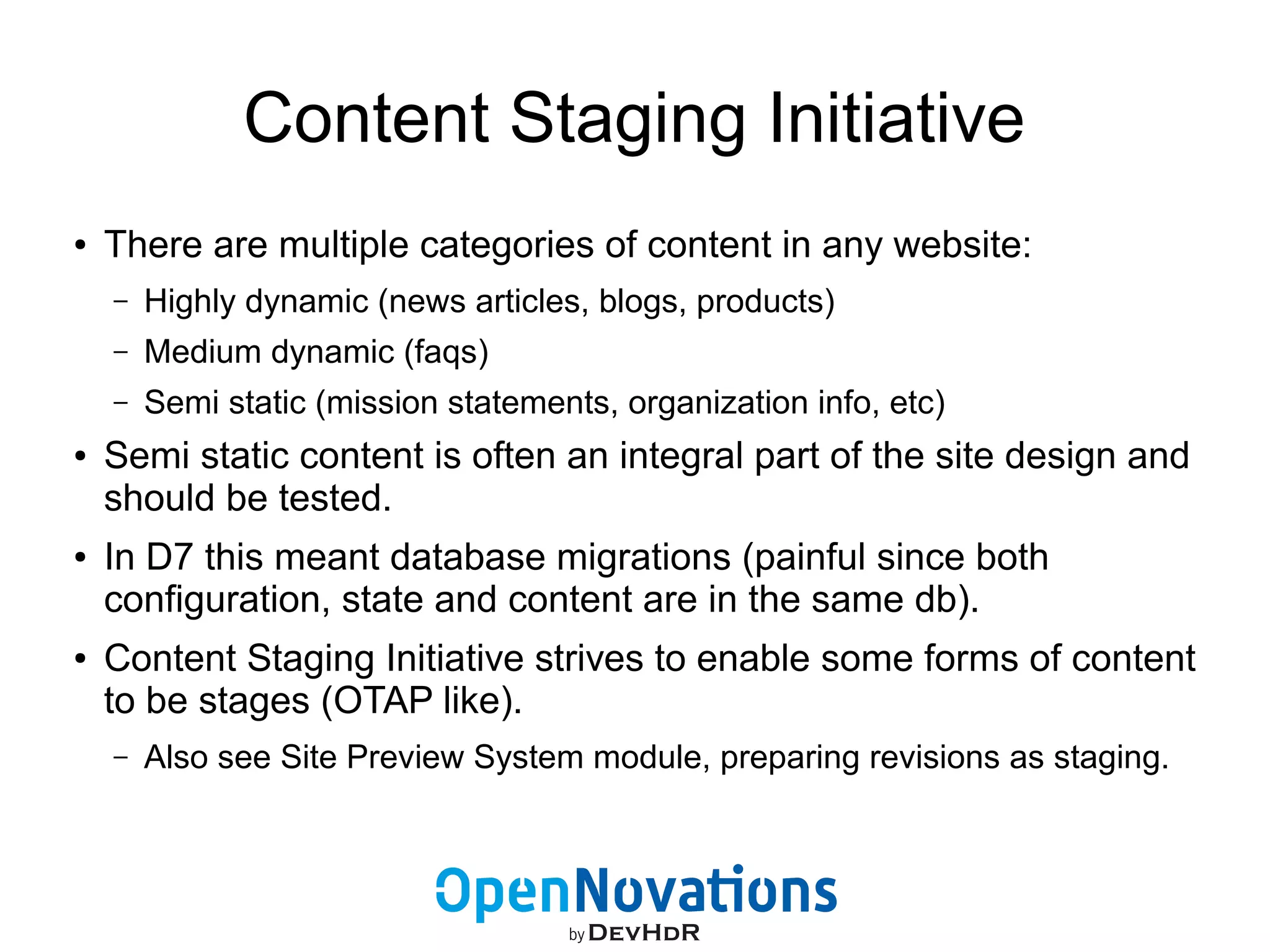

33. Content Staging Initiative
● There are multiple categories of content in any website:
– Highly dynamic (news articles, blogs, products)
– Medium dynamic (faqs)
– Semi static (mission statements, organization info, etc)
● Semi static content is often an integral part of the site design and
should be tested.
● In D7 this meant database migrations (painful since both
configuration, state and content are in the same db).
● Content Staging Initiative strives to enable some forms of content
to be stages (OTAP like).
– Also see Site Preview System module, preparing revisions as staging.

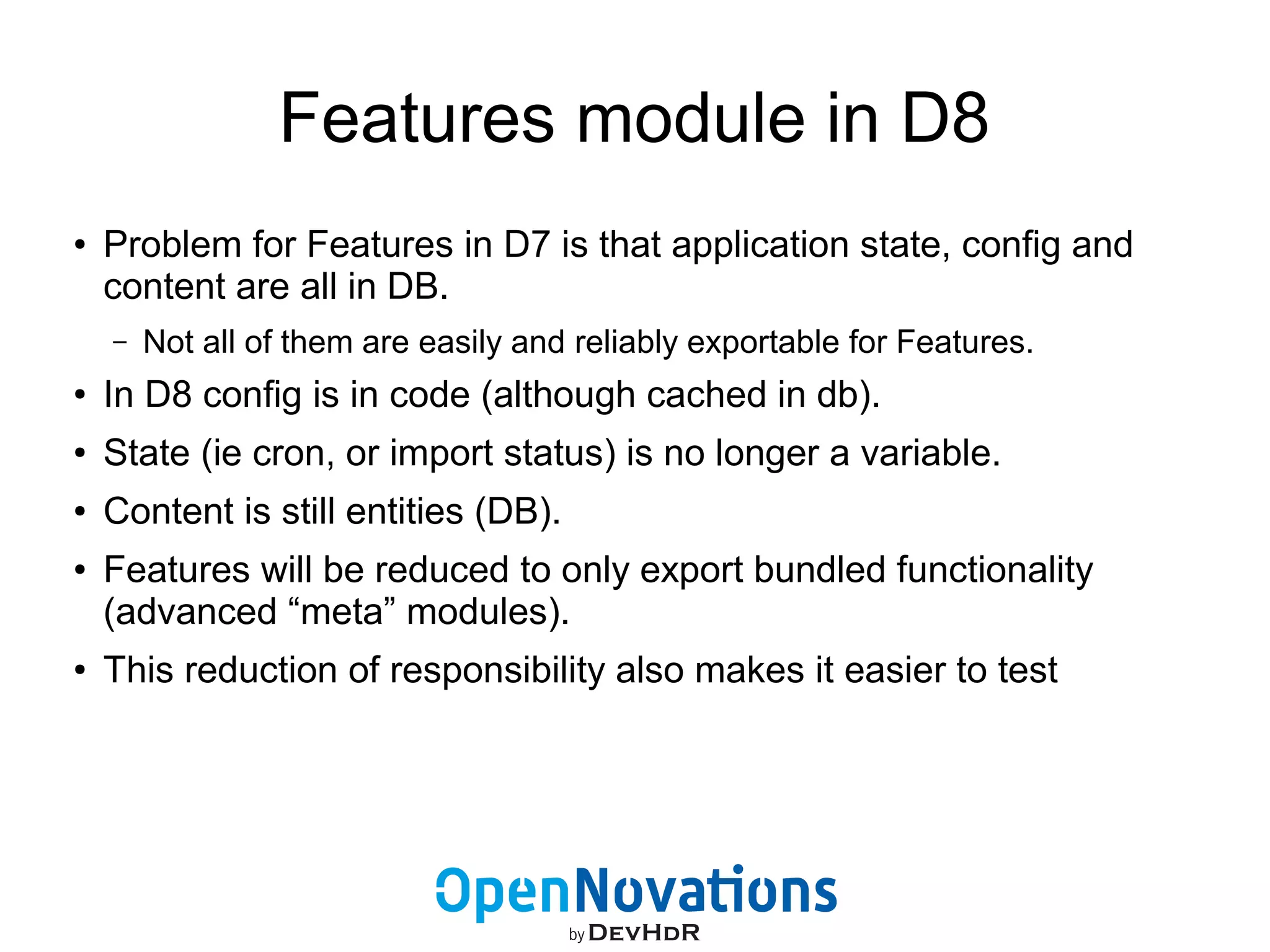

34. Features module in D8
● Problem for Features in D7 is that application state, config and
content are all in DB.
– Not all of them are easily and reliably exportable for Features.
● In D8 config is in code (although cached in db).
● State (ie cron, or import status) is no longer a variable.
● Content is still entities (DB).
● Features will be reduced to only export bundled functionality
(advanced “meta” modules).
● This reduction of responsibility also makes it easier to test

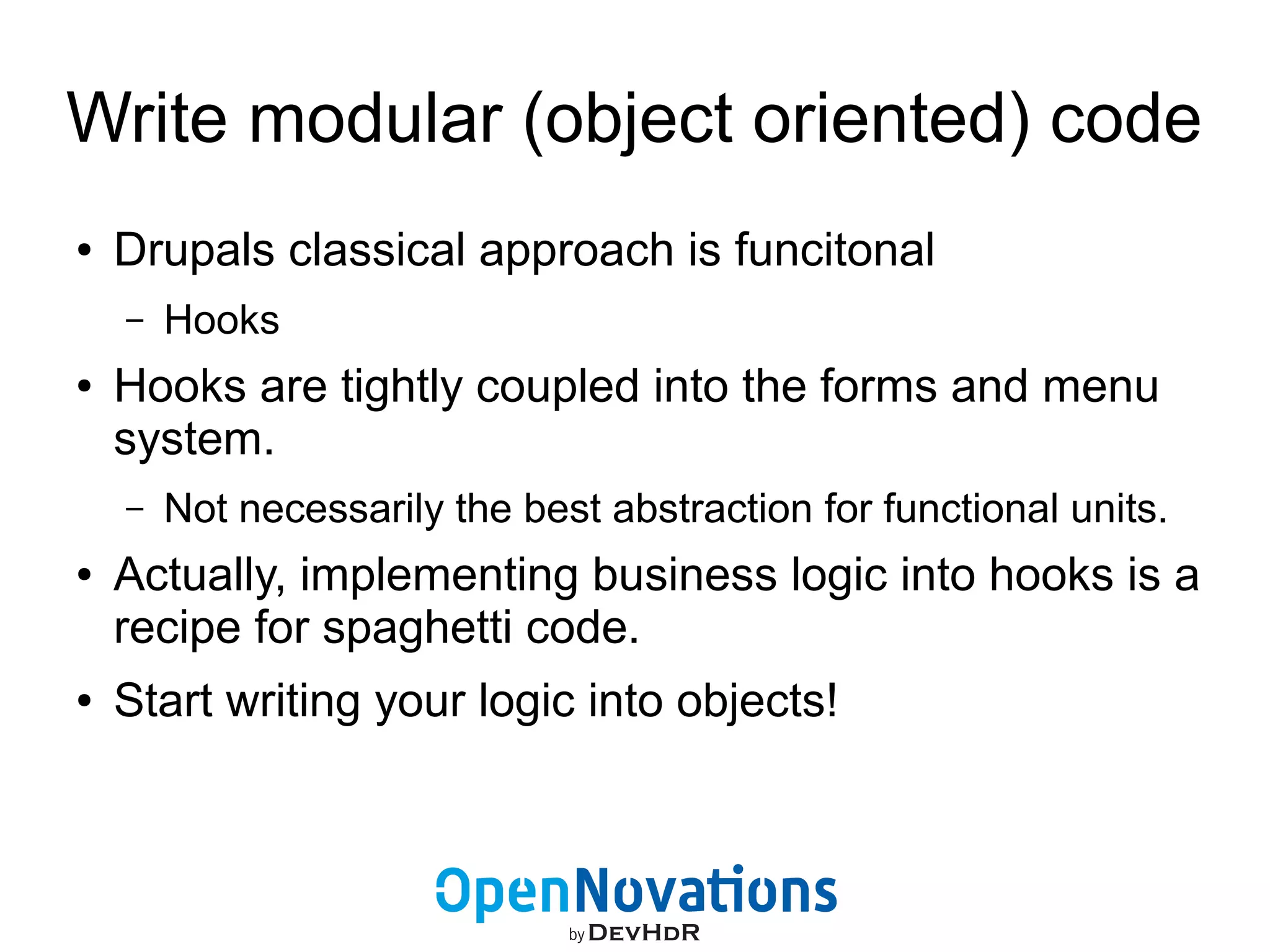

35. Write modular (object oriented) code
● Drupals classical approach is funcitonal
– Hooks
● Hooks are tightly coupled into the forms and menu
system.
– Not necessarily the best abstraction for functional units.
● Actually, implementing business logic into hooks is a
recipe for spaghetti code.
● Start writing your logic into objects!

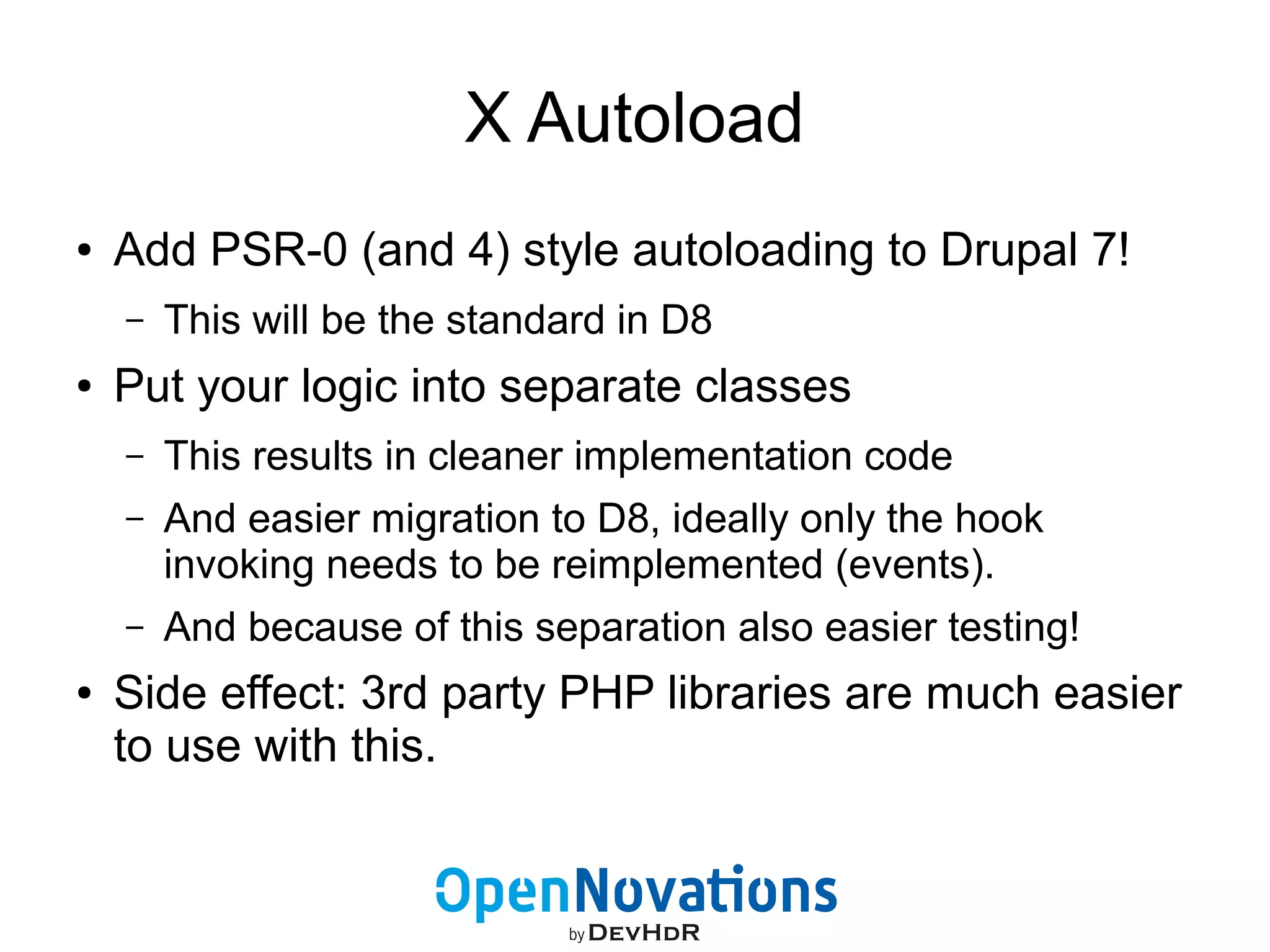

36. X Autoload
● Add PSR-0 (and 4) style autoloading to Drupal 7!
– This will be the standard in D8
● Put your logic into separate classes
– This results in cleaner implementation code
– And easier migration to D8, ideally only the hook
invoking needs to be reimplemented (events).
– And because of this separation also easier testing!
● Side effect: 3rd party PHP libraries are much easier
to use with this.

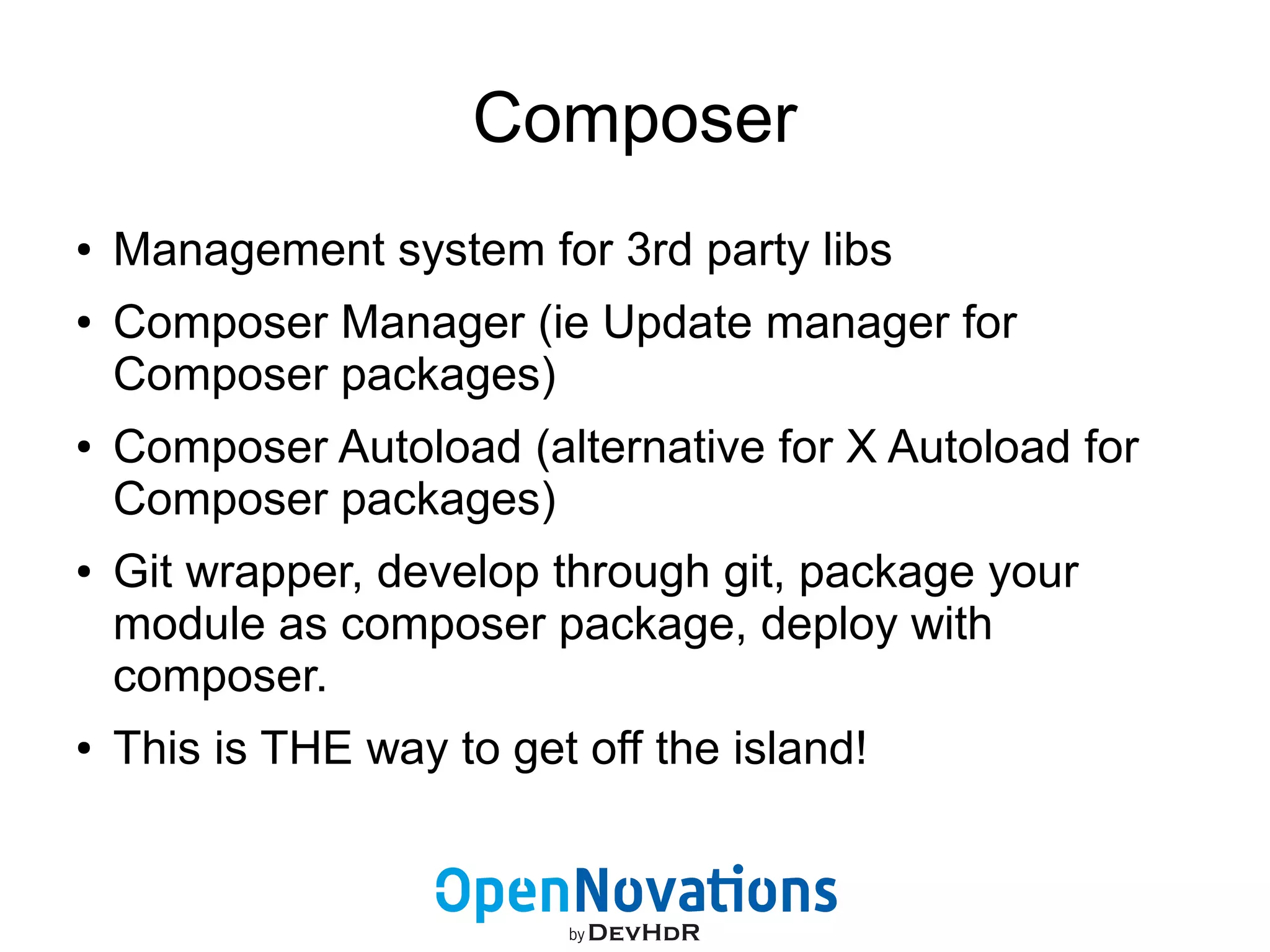

37. Composer
● Management system for 3rd party libs
● Composer Manager (ie Update manager for
Composer packages)
● Composer Autoload (alternative for X Autoload for
Composer packages)
● Git wrapper, develop through git, package your
module as composer package, deploy with
composer.
● This is THE way to get off the island!

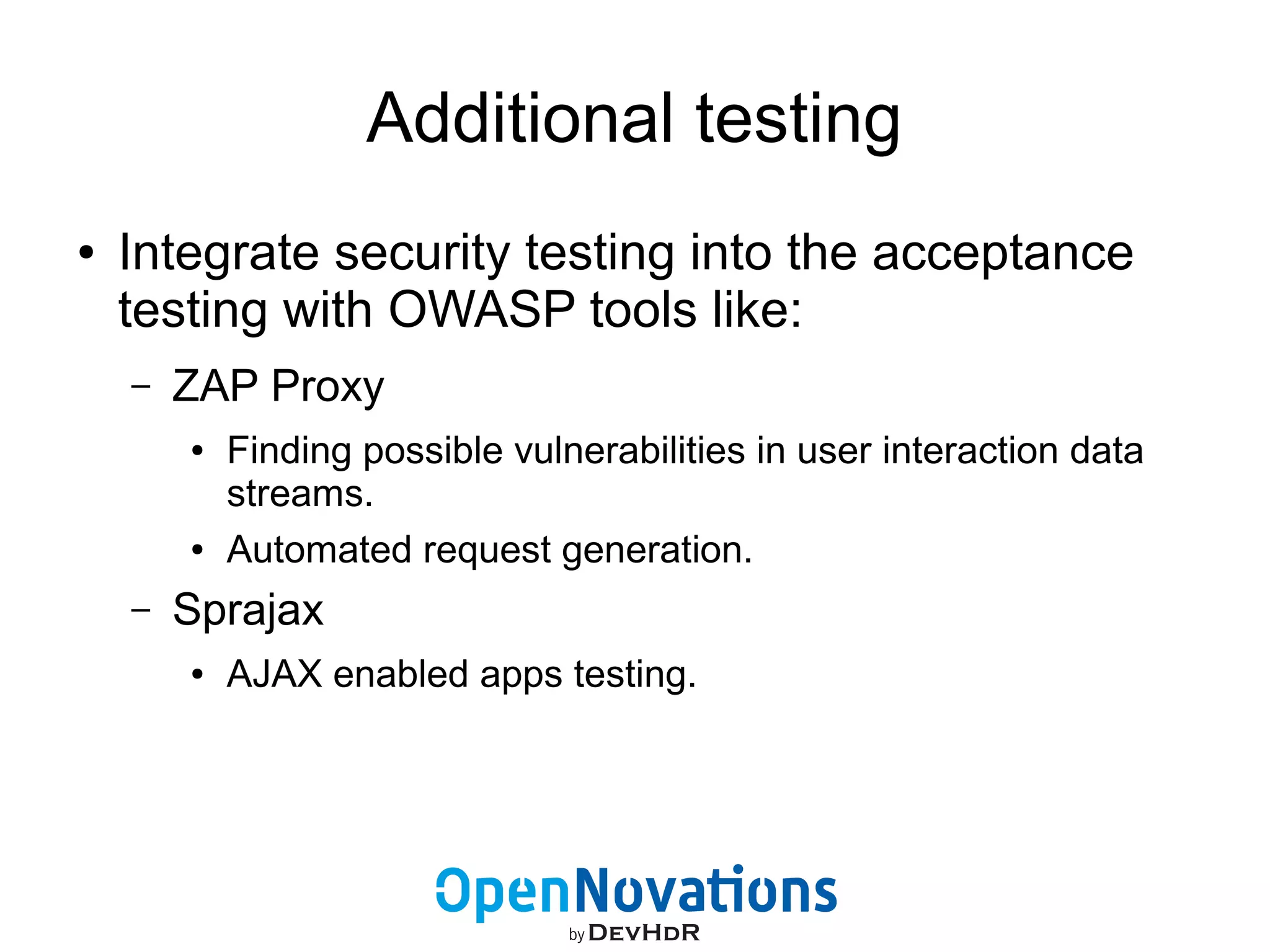

38. Additional testing
● Integrate security testing into the acceptance
testing with OWASP tools like:
– ZAP Proxy
● Finding possible vulnerabilities in user interaction data
streams.
● Automated request generation.
– Sprajax
● AJAX enabled apps testing.

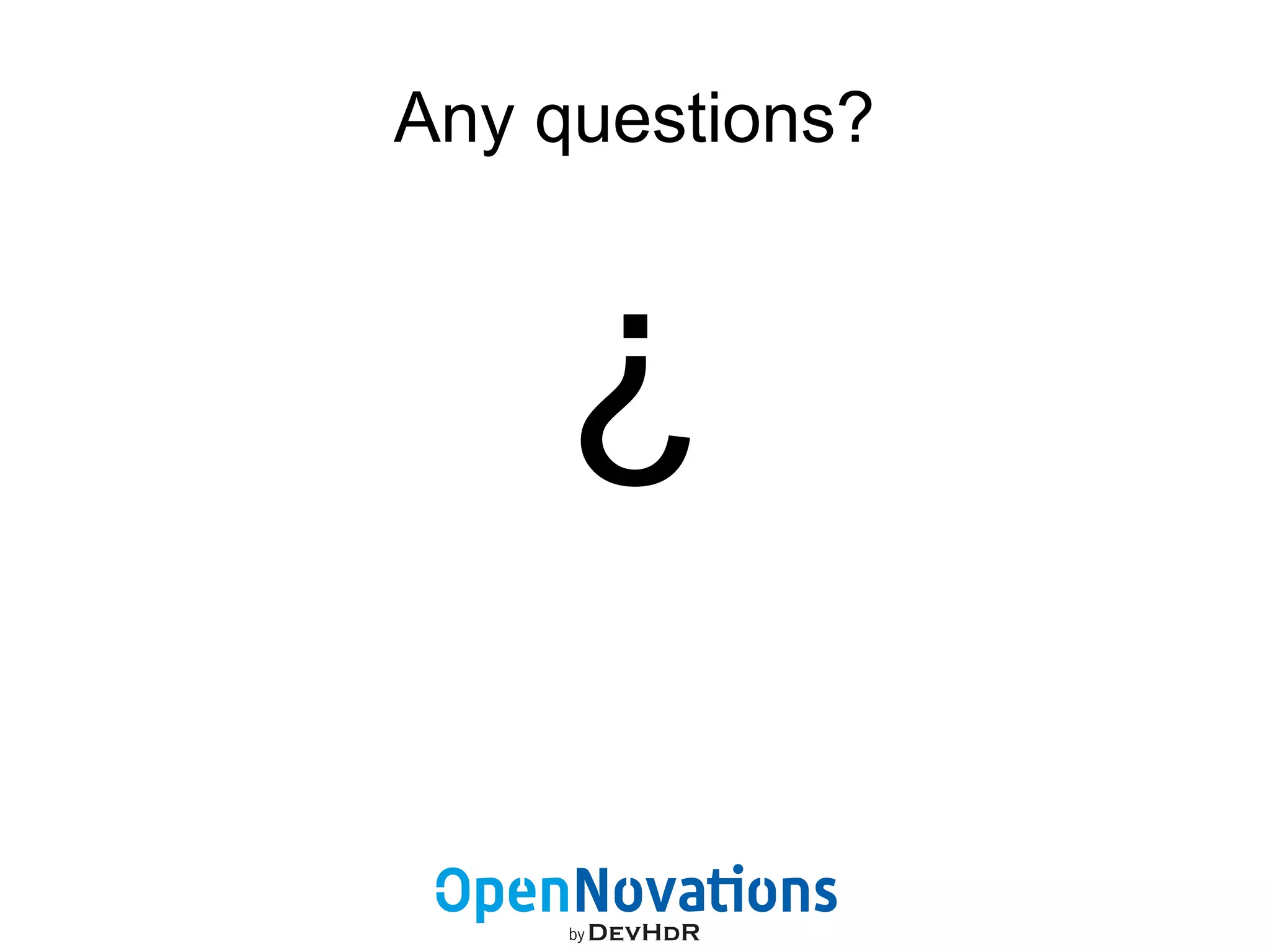

39. Any questions?
¿
