REIL

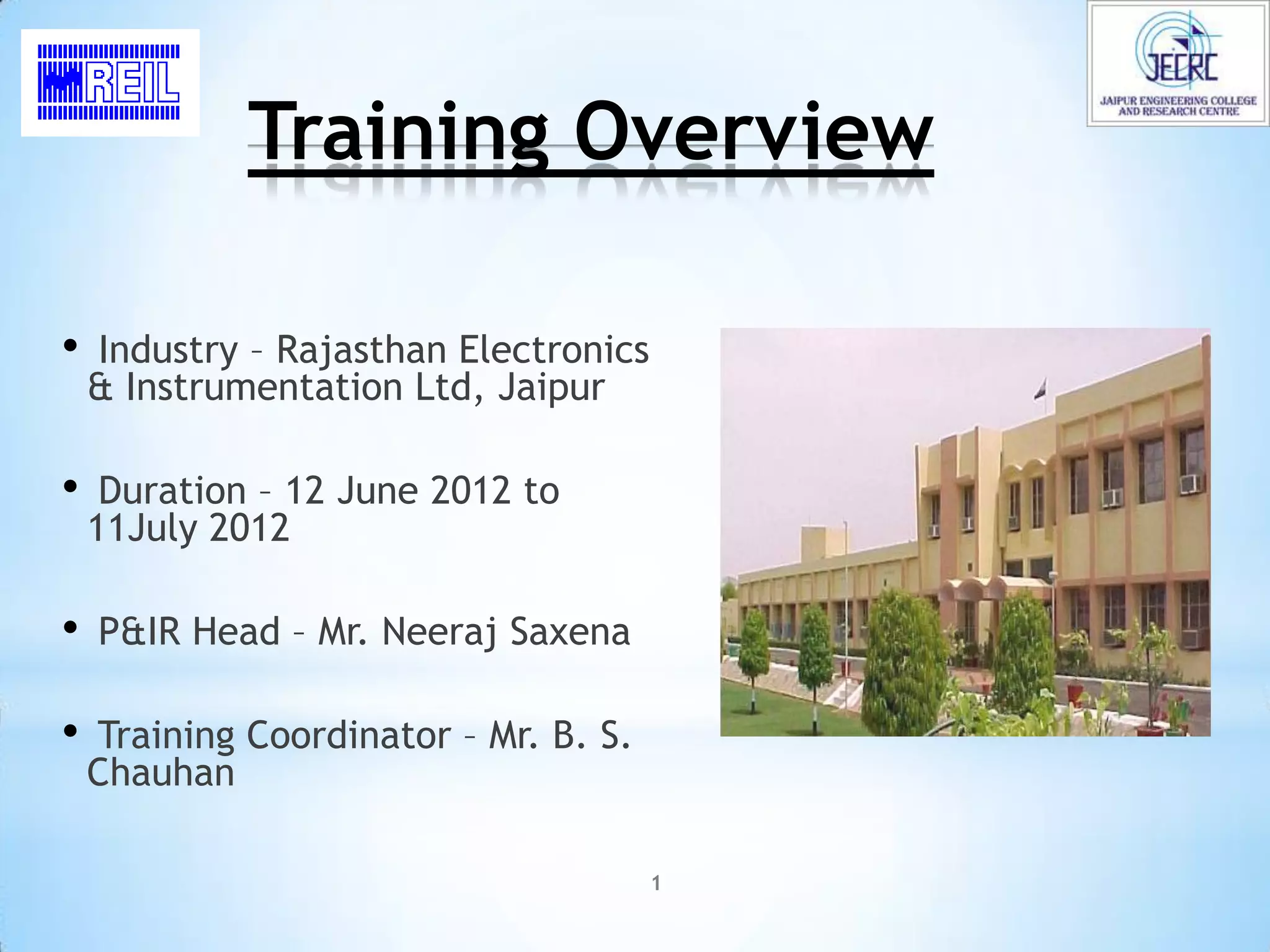

- 1. Training Overview • Industry – Rajasthan Electronics & Instrumentation Ltd, Jaipur • Duration – 12 June 2012 to 11July 2012 • P&IR Head – Mr. Neeraj Saxena • Training Coordinator – Mr. B. S. Chauhan 1
- 2. • REIL has a prominent place among the electronic industry of Rajasthan • REIL has more practical environment for learning technology • Apart from technological learning it is a place to get a knowledge of industrial management also. 2
- 3. • Company profile • Departments • Company Products • Solar photo voltaic module • Electronic milk tester • Other key departments • conclusion 3
- 4. 4
- 5. • Established in 1981 • Joint venture between the GOI & GOR • MINIRATNA PSU • ISO 9001 Certified 5
- 6. 6
- 7. 7
- 8. 4 major departments 8
- 9. • Electronic Milk Tester (EMT) • Automatic Milk Collection Station (AMCS) • Data Processor-Electronic Milk Tester (DPEMT) • Milco Scan • Solar Photo Voltaic Modules (SPVM) • Radio Frequency Identification (RFID) • Spot Billing Machine (SBM) • 3-phase Static Energy Meter • Automatic Teller Machine (ATM) • Solar &Wind Hybrid System (SWHS) • Pulse Oxymeter 9
- 10. SPV Modules • Convert solar energy into electricity • Made up of array of different solar • A solar cell generates approximately 0.5 volts 10
- 11. Working Principle Based on Photovoltaic effect 11
- 12. Working 12
- 13. Row Making A row of cells is made by connecting positive surfaces of one cell to the negative surface of another cell 13
- 14. Tabbing Process This is the process of making terminals of a bare cell by soldering copper strips to the bus bar 14
- 15. Stinging In this process, rows of SPV cells are connected in series to get desired power rating 15
- 16. Manufacturing of SPV Modules 16
- 17. Applications of SPV System • Water pumping • Street lighting • Communications • BSF Camps • Household appliances 17
- 18. • Instrument used to measure various parameters in milk like fats, protein casein etc. • Quick and accurate • Several thousand small and large dairies and Village Milk Collection Centers are being benefited with its use • Revolutionized dairy industry. 18
- 19. 19
- 20. WORKING PRINCIPLE Photometric measurement of light Procedure – 1. Dilution 2. Mixing 3. Homogenization 4. Photometric measurement
- 21. TECHNICAL SPECIFICATION Performance Data:- Measuring range : 0-13% fat Capacity : 120-130 samples/hour Accuracy (Sd) : 0.06% for 0-5% fat 0.10% for 5-8% fat 0.20% for 8-13% fat Sample volume : 0.5 ml/test Diluent volume : 6.5 ml/test 21
- 22. 22
- 23. Quality assurance • Tests & checks carried out at various stages. • Gives ability to the product to stand in harsh environmental conditions. 23
- 24. Marketing • Full fledged Marketing Department. • Provide on-site support even at the remote villages 24
- 25. • Made me learn the practical aspects of engineering. • Gave me experience of working in a professional environment. • Learnt adjusting myself to the hectic schedule and workload. 25
- 26. • Journals news related to EMT • Company booklet and manual • www.reiljp.com 26
- 27. 27
