Red Tacton is a groundbreaking technology developed by NTT in 2005, enabling high-speed data transmission through the human body using weak electric fields, with speeds reaching up to 10 Mbps. This innovative method allows devices to communicate through physical touch and various human movements, potentially replacing existing technologies like Wi-Fi and Bluetooth. With applications ranging from advertising to security and medical devices, Red Tacton signifies a significant advancement in network communication technology.

1. by Bh.Phanindra Kumar

2. TECHNOLOGY is Making Things EASIER Day-By-Day . Our Concept is a Standing Example of the Same. RED TACTON Implies a Form of “GREENER TECHNOLOGY” being a source for FUTURE HEALTHY ECOSYSTEM. RED TACTON

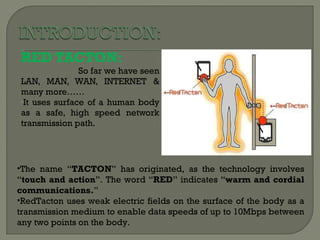

3. RED TACTON: So far we have seen LAN, MAN, WAN, INTERNET & many more…… It uses surface of a human body as a safe, high speed network transmission path. The name “ TACTON ” has originated, as the technology involves “ touch and action ”. The word “ RED ” indicates “ warm and cordial communications. ” RedTacton uses weak electric fields on the surface of the body as a transmission medium to enable data speeds of up to 10Mbps between any two points on the body.

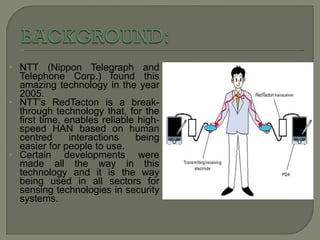

4. NTT (Nippon Telegraph and Telephone Corp.) found this amazing technology in the year 2005. NTT’s RedTacton is a break-through technology that, for the first time, enables reliable high-speed HAN based on human centred interactions being easier for people to use. Certain developments were made all the way in this technology and it is the way being used in all sectors for sensing technologies in security systems.

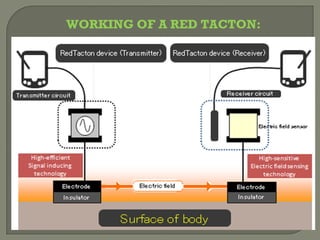

5. WORKING OF A RED TACTON:

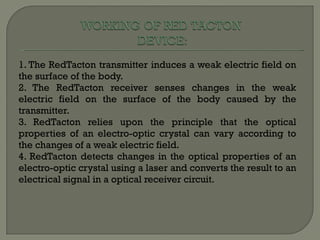

6. 1. The RedTacton transmitter induces a weak electric field on the surface of the body. 2. The RedTacton receiver senses changes in the weak electric field on the surface of the body caused by the transmitter. 3. RedTacton relies upon the principle that the optical properties of an electro-optic crystal can vary according to the changes of a weak electric field. 4. RedTacton detects changes in the optical properties of an electro-optic crystal using a laser and converts the result to an electrical signal in a optical receiver circuit.

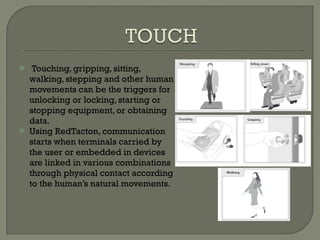

8. Touching, gripping, sitting, walking, stepping and other human movements can be the triggers for unlocking or locking, starting or stopping equipment, or obtaining data. Using RedTacton, communication starts when terminals carried by the user or embedded in devices are linked in various combinations through physical contact according to the human’s natural movements.

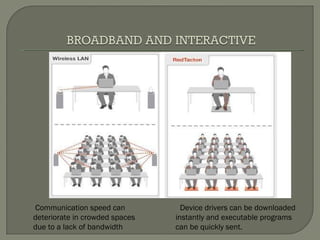

9. Communication speed can Device drivers can be downloaded deteriorate in crowded spaces instantly and executable programs due to a lack of bandwidth can be quickly sent.

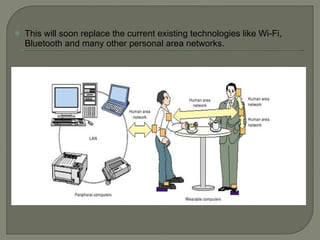

10. This will soon replace the current existing technologies like Wi-Fi, Bluetooth and many other personal area networks.

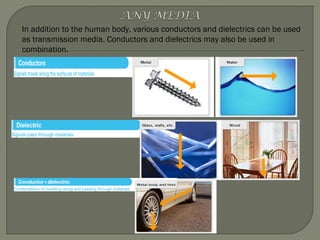

11. In addition to the human body, various conductors and dielectrics can be used as transmission media. Conductors and dielectrics may also be used in combination.

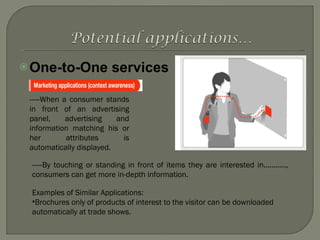

12. One-to-One services -----When a consumer stands in front of an advertising panel, advertising and information matching his or her attributes is automatically displayed. -----By touching or standing in front of items they are interested in..........., consumers can get more in-depth information. Examples of Similar Applications: Brochures only of products of interest to the visitor can be downloaded automatically at trade shows.

13. Intuitive operations: Examples of Similar Applications: Transfer songs to portable music players from notebook PCs with just a touch ----Print out where you want just by touching the desired printer with one hand and a PC or digital camera with the other hand to make the link. ----Complicated configurations are reduced by downloading device drivers "at first touch".

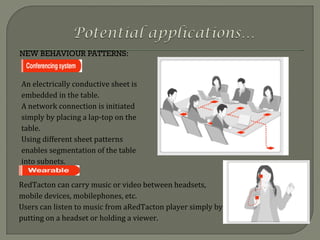

14. NEW BEHAVIOUR PATTERNS: An electrically conductive sheet is embedded in the table. A network connection is initiated simply by placing a lap-top on the table. Using different sheet patterns enables segmentation of the table into subnets. RedTacton can carry music or video between headsets, mobile devices, mobilephones, etc. Users can listen to music from aRedTacton player simply by putting on a headset or holding a viewer.

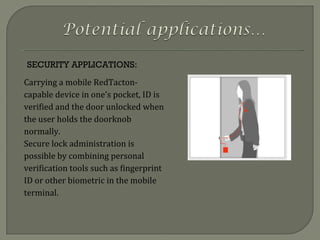

15. SECURITY APPLICATIONS: Carrying a mobile RedTacton-capable device in one's pocket, ID is verified and the door unlocked when the user holds the doorknob normally. Secure lock administration is possible by combining personal verification tools such as fingerprint ID or other biometric in the mobile terminal.

16. ---- Potential for use as communication method in outer space and under water ---- Potential for use as communication method with devices inside the human body COMMUNICATIONS IN NEW DOMAINS

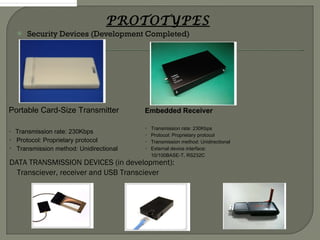

17. PROTOTYPES Security Devices (Development Completed) Transciever, receiver and USB Transciever DATA TRANSMISSION DEVICES (in development): Portable Card-Size Transmitter ・ Transmission rate: 230Kbps ・ Protocol: Proprietary protocol ・ Transmission method: Unidirectional Embedded Receiver ・ Transmission rate: 230Kbps ・ Protocol: Proprietary protocol ・ Transmission method: Unidirectional ・ External device interface: 10/100BASE-T, RS232C

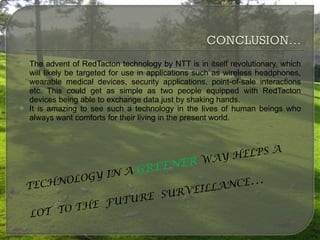

18. The advent of RedTacton technology by NTT is in itself revolutionary, which will likely be targeted for use in applications such as wireless headphones, wearable medical devices, security applications, point-of-sale interactions etc. This could get as simple as two people equipped with RedTacton devices being able to exchange data just by shaking hands. It is amazing to see such a technology in the lives of human beings who always want comforts for their living in the present world. TECHNOLOGY IN A GREENER WAY HELPS A LOT TO THE FUTURE SURVEILLANCE …

19. QUERIES ?? ...
