Red Hat JBoss BRMS and BPMS
Workbench and Rich Client Technology
UF UberFire

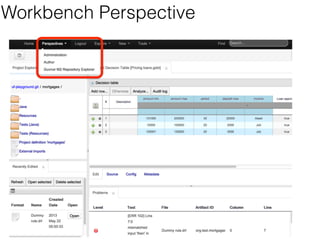

General Workbench

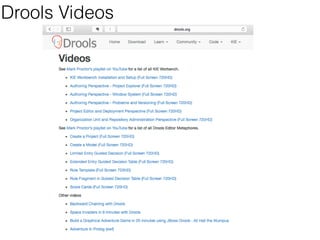

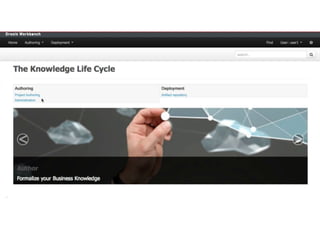

Drools Videos

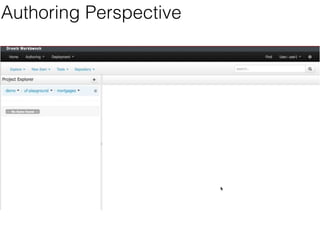

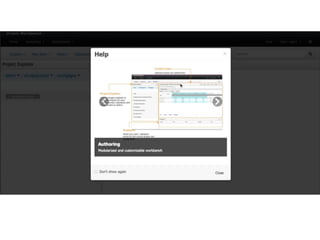

Authoring Perspective

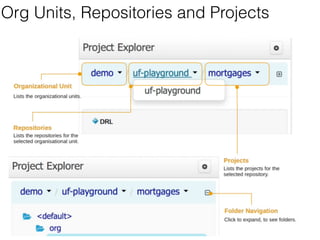

Org Units, Repositories and Projects

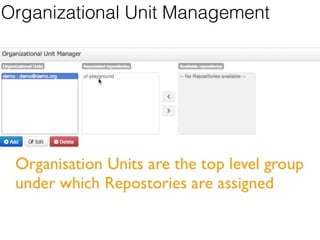

Organizational Unit Management

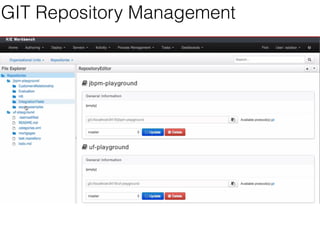

GIT Repository Management

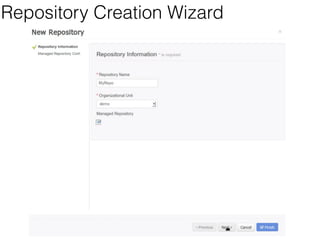

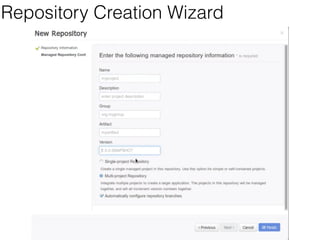

Repository Creation Wizard
Repository Creation Wizard

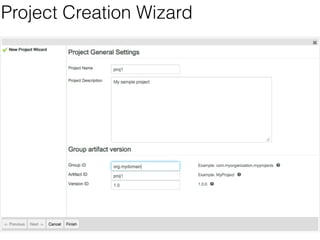

Project Creation Wizard

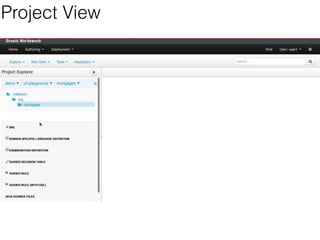

Project View

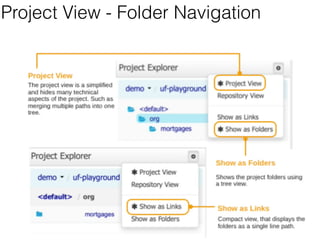

Project View - Folder Navigation

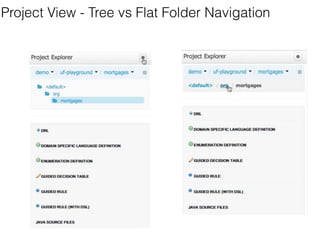

Project View - Tree vs Flat Folder Navigation

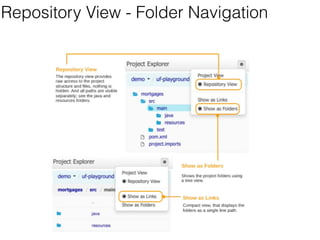

Repository View - Folder Navigation

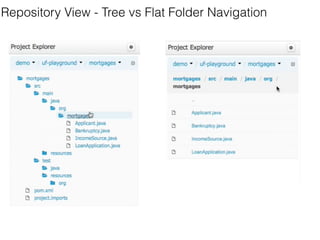

Repository View - Tree vs Flat Folder Navigation

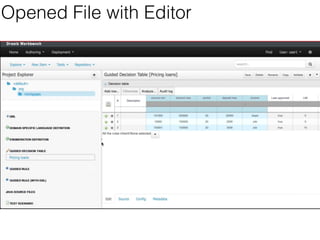

Opened File with Editor

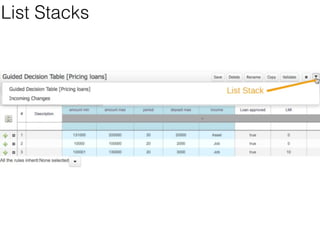

List Stacks

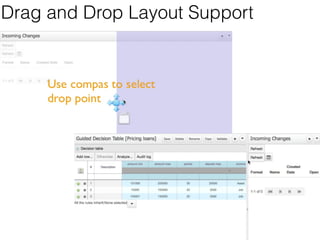

Drag and Drop Layout Support
Drag and Drop Layout Support Side
Drag and Drop to Side by

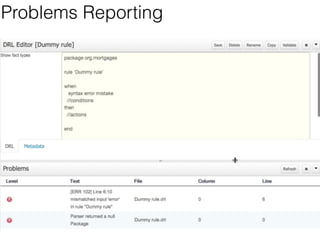

Problems Reporting

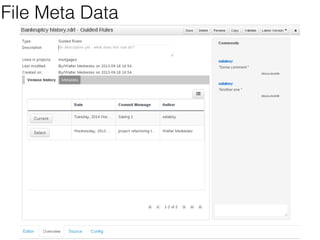

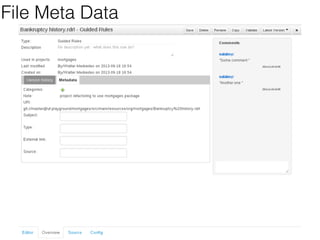

File Meta Data
File Meta Data

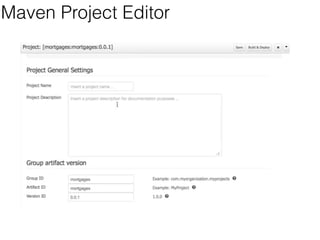

Maven Project Editor
Maven Project Editor

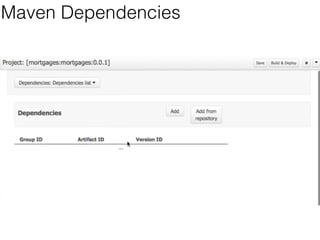

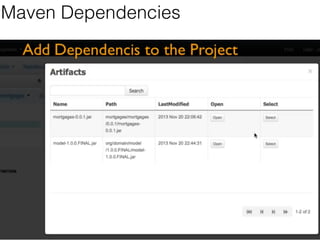

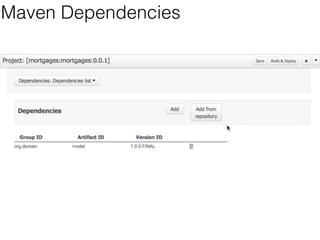

Maven Dependencies
Maven Dependencies
Maven Dependencies

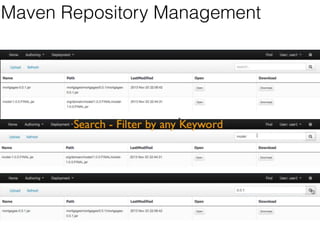

Maven Repository Management
Design Time Editors

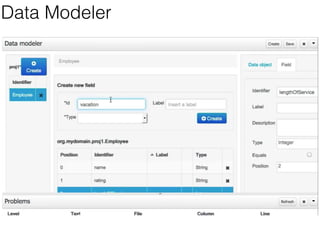

Data Modeler

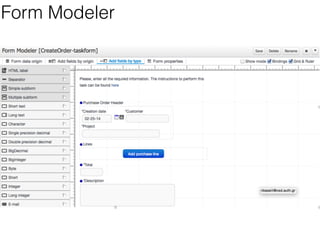

Form Modeler

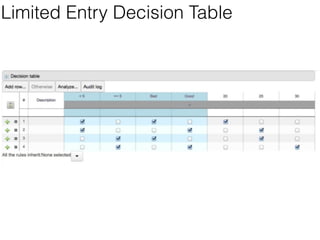

Limited Entry Decision Table
Extended Entry Decision Table

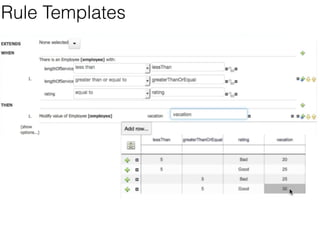

Rule Templates

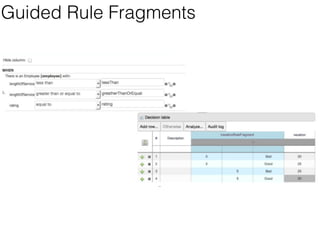

Guided Rule Fragments

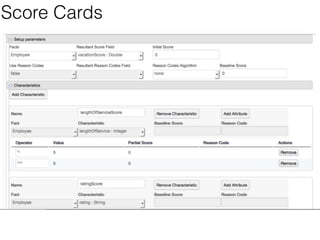

Score Cards
Design Time Management
Asset Promotion
Start Asset Promotion
• Video of early version, lots of UI improvements since
https://vimeo.com/105965931
Start Asset Promotion

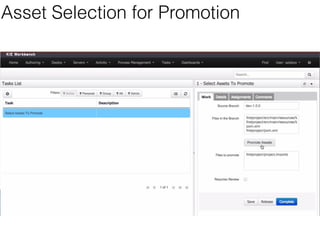

Asset Selection for Promotion

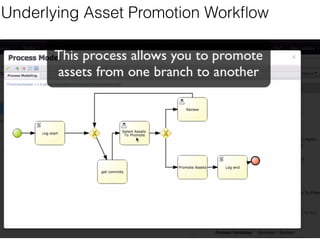

Underlying Asset Promotion Workflow
User Profiles
Contributor Reporting
Social Activity

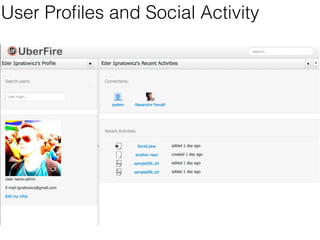

User Profiles and Social Activity
Activity Collector
• http://blog.athico.com/2014/07/kie-uberfire-social-activities.
html

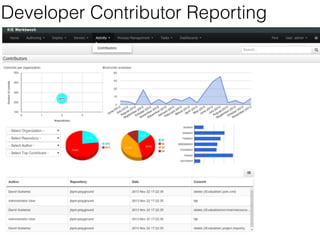

Developer Contributor Reporting

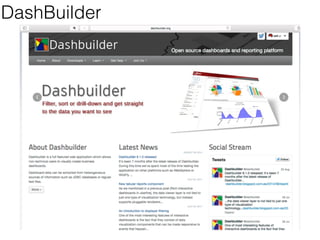

DashBuilder
Runtime Execution
and Management

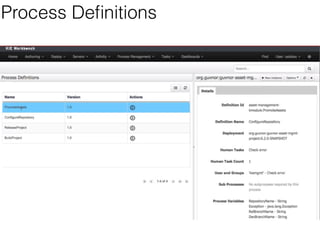

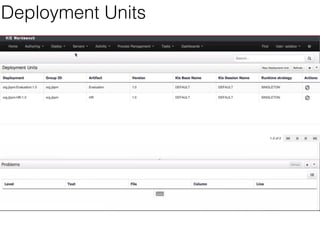

Process Definitions
Deployment Units

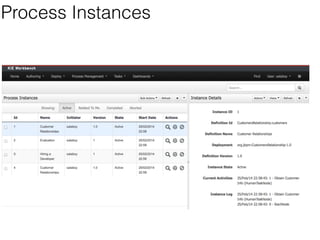

Process Instances

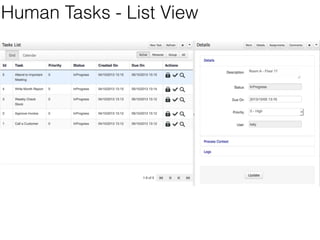

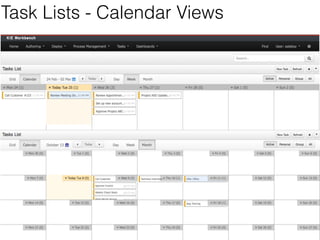

Human Tasks - List View
Task Lists - Calendar Views
Apps

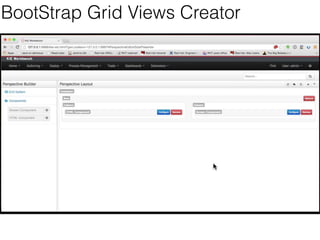

BootStrap Grid Views Creator
Sales Perspective using DashBuilder

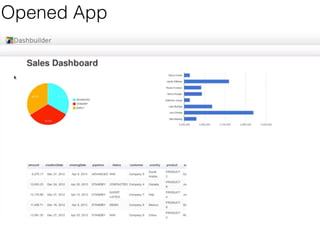

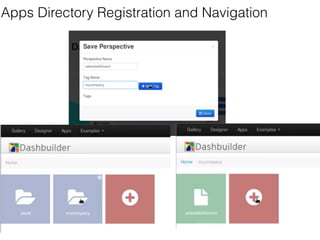

Apps Directory Registration and Navigation
Opened App

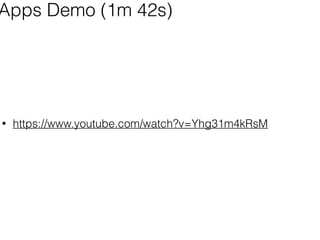

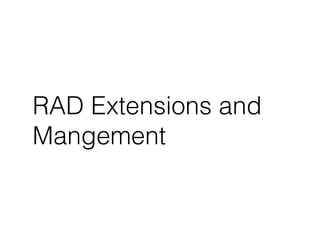

Apps Demo (1m 42s)
• https://www.youtube.com/watch?v=Yhg31m4kRsM
RAD Extensions and
Mangement

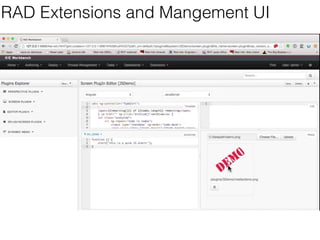

RAD Extensions and Mangement UI

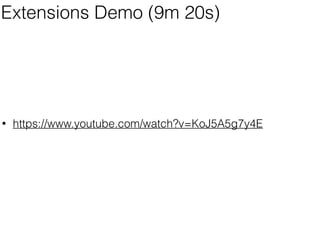

Extensions Demo (9m 20s)
• https://www.youtube.com/watch?v=KoJ5A5g7y4E
UberFire

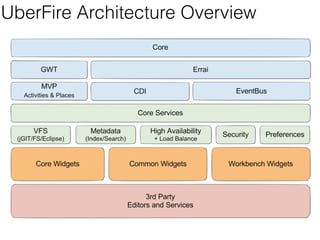

UberFire Architecture Overview

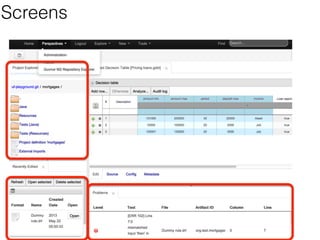

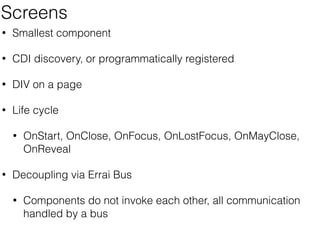

Screens
Screens
• Smallest component
• CDI discovery, or programmatically registered
• DIV on a page
• Life cycle
• OnStart, OnClose, OnFocus, OnLostFocus, OnMayClose,
OnReveal
• Decoupling via Errai Bus
• Components do not invoke each other, all communication
handled by a bus
Screen Plugin with GWT

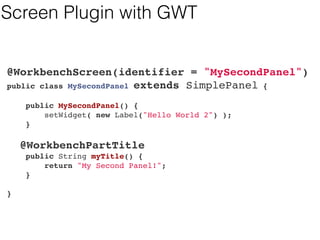

@WorkbenchScreen(identifier = "MySecondPanel")
public class MySecondPanel extends SimplePanel {
public MySecondPanel() {
setWidget( new Label("Hello World 2") );
}
@WorkbenchPartTitle
public String myTitle() {
return "My Second Panel!";
}
}

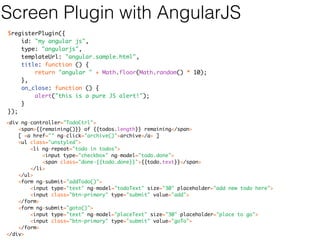

Screen Plugin with AngularJS
$registerPlugin({
id: "my angular js",
type: "angularjs",
templateUrl: "angular.sample.html",
title: function () {
return "angular " + Math.floor(Math.random() * 10);
},
on_close: function () {
alert("this is a pure JS alert!");
}
});
<div ng-controller="TodoCtrl">
<span>{{remaining()}} of {{todos.length}} remaining</span>
[ <a href="" ng-click="archive()">archive</a> ]
<ul class="unstyled">
<li ng-repeat="todo in todos">
<input type="checkbox" ng-model="todo.done">
<span class="done-{{todo.done}}">{{todo.text}}</span>
</li>
</ul>
<form ng-submit="addTodo()">
<input type="text" ng-model="todoText" size="30" placeholder="add new todo here">
<input class="btn-primary" type="submit" value="add">
</form>
<form ng-submit="goto()">
<input type="text" ng-model="placeText" size="30" placeholder="place to go">
<input class="btn-primary" type="submit" value="goTo">
</form>
</div>

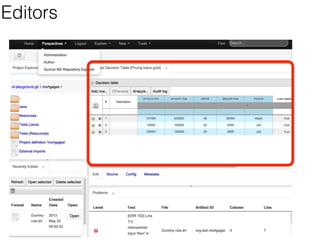

Editors

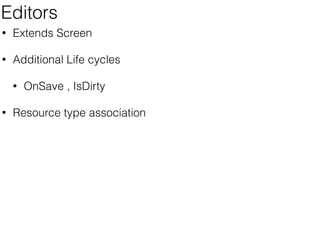

Editors
• Extends Screen
• Additional Life cycles
• OnSave , IsDirty
• Resource type association
Editor Plugin with GWT

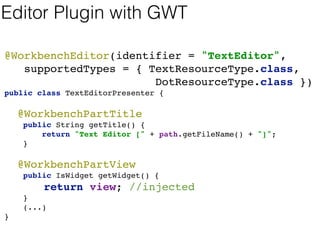

@WorkbenchEditor(identifier = "TextEditor",
supportedTypes = { TextResourceType.class,
DotResourceType.class })
public class TextEditorPresenter {
@WorkbenchPartTitle
public String getTitle() {
return "Text Editor [" + path.getFileName() + "]";
}
@WorkbenchPartView
public IsWidget getWidget() {
return view; //injected
}
(...)
}

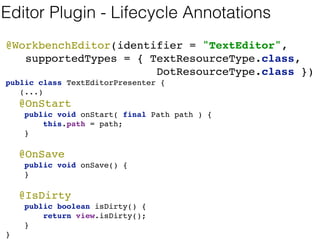

Editor Plugin - Lifecycle Annotations
@WorkbenchEditor(identifier = "TextEditor",
supportedTypes = { TextResourceType.class,
DotResourceType.class })
public class TextEditorPresenter {
(...)
@OnStart
public void onStart( final Path path ) {
this.path = path;
}
@OnSave
public void onSave() {
}
@IsDirty
public boolean isDirty() {
return view.isDirty();
}
}
Workbench Perspective

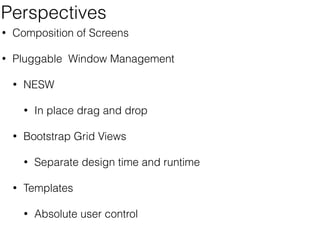

Perspectives
• Composition of Screens
• Pluggable Window Management
• NESW
• In place drag and drop
• Bootstrap Grid Views
• Separate design time and runtime
• Templates
• Absolute user control

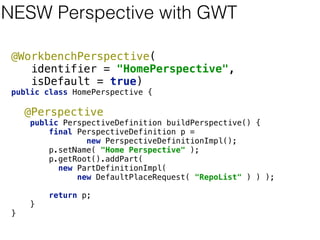

NESW Perspective with GWT
@WorkbenchPerspective(
identifier = "HomePerspective",
isDefault = true)
public class HomePerspective {
@Perspective
public PerspectiveDefinition buildPerspective() {
final PerspectiveDefinition p =
new PerspectiveDefinitionImpl();
p.setName( "Home Perspective" );
p.getRoot().addPart(
new PartDefinitionImpl(
new DefaultPlaceRequest( "RepoList" ) ) );
return p;
}
}
NESW Perspective with json
$registerPerspective({
"id": "Markdown Editor",
"view": {
"parts": [
{
"place": "MarkdownLiveViewer",
"parameters": {}
}
],
"panels": [
{
"width": 600,
"min_width": 300,
"position": "west",
"parts": [
{
"place": "MarkdownLiveEditor",
"parameters": {}
}
]
}
]
},
on_close: function () {
}
});

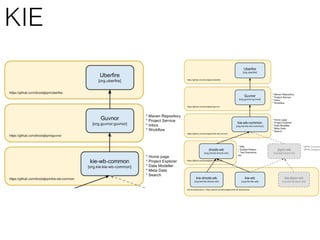

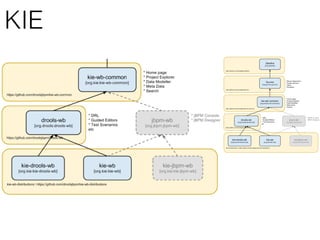

KIE
Knowledge is Everything
KIE
KIE
Web IDE
Web IDE
• BxMS is “citizen developer focused”
• 2 days to make it more developer oriented
• Expose pom.xml
• Tab stacks, instead of list stack
• Technical repository explorer only
• Intellij style side bars (will go back into main BxMS)
• Directly exposes Maven
• Also demonstrates
• ACE editor integration (part of BxMS now)
• Live Fabric8 provisioning and management
• Live deployment of spring Pet Clinic WAR Spring app.

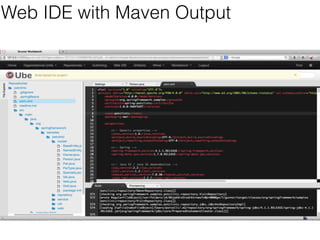

Web IDE with Maven Output

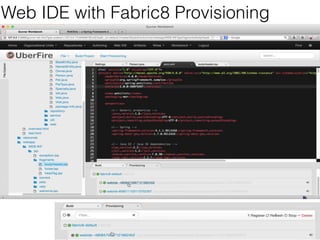

Web IDE with Fabric8 Provisioning

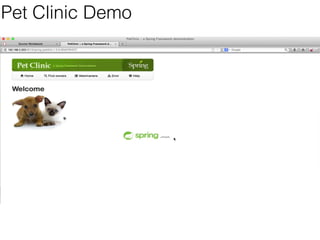

Pet Clinic Demo
Web IDE Demo (8m9s)
• https://www.youtube.com/watch?v=UG4pqk2r70Q
Road Map

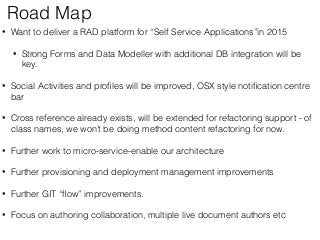

Road Map
• Want to deliver a RAD platform for “Self Service Applications”in 2015
• Strong Forms and Data Modeller with additional DB integration will be
key.
• Social Activities and profiles will be improved, OSX style notification centre
bar
• Cross reference already exists, will be extended for refactoring support - of
class names, we won’t be doing method content refactoring for now.
• Further work to micro-service-enable our architecture
• Further provisioning and deployment management improvements
• Further GIT “flow” improvements.
• Focus on authoring collaboration, multiple live document authors etc

Red Hat JBoss BRMS and BPMS Workbench and Rich Client Technology
