RuleML2015 : Hybrid Relational and Graph Reasoning

Building A Hybrid
Reactive Rule Engine
For
Relational And Graph
Reasoning
Mark Proctor, Mario Fusco, István Ráth, Davide Sottara

Student Plans
String name
Plan plan
Student
String code
Student owner
List<Exam> exams
Plan
Plan plan
String course
String code
List<Grade> exams
Exam
Exam exam
int attempt
String value
Grade
1
1
1
0..1
1 0..1

Student Plans
public class Student { 
private String name; 
 
private Plan plan;
}
public class Plan { 
private String code; 
private Student owner;
 
private List<Exam> exams; 
}
public class Exam {
private String code;
private String course;
 
private Plan plan;
 
private List<Grade> grades;
}
public class Grade { 
private String value;
 
private int attempt;
private Exam exam;
}

Student Plans

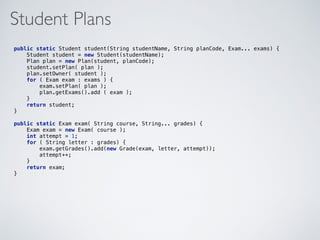

public static Student student(String studentName, String planCode, Exam... exams) { 
Student student = new Student(studentName); 
Plan plan = new Plan(student, planCode); 
student.setPlan( plan ); 
plan.setOwner( student ); 
for ( Exam exam : exams ) { 
exam.setPlan( plan ); 
plan.getExams().add ( exam ); 
} 
return student; 
} 
 
public static Exam exam( String course, String... grades) { 
Exam exam = new Exam( course ); 
int attempt = 1; 
for ( String letter : grades) { 
exam.getGrades().add(new Grade(exam, letter, attempt)); 
attempt++; 
} 
return exam; 
}

Courses
•Communication
•Creed -The Jedi Code
•Force
•Jedi Studies
•Meditation
•Personal
•Situational Awareness
•Spirituality - Jedi Mythology
•Warrior

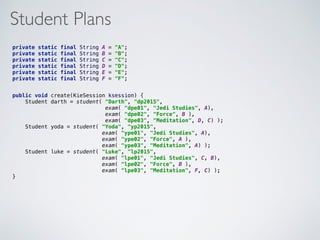

Student Plans

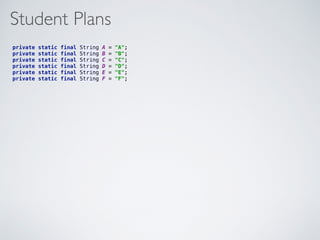

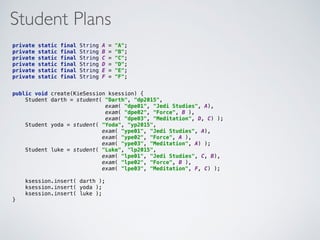

private static final String A = "A"; 
private static final String B = "B"; 
private static final String C = "C"; 
private static final String D = "D"; 
private static final String E = "E"; 
private static final String F = "F";

Student Plans
public void create(KieSession ksession) { 
Student darth = student( "Darth", "dp2015", 
exam( "dpe01", "Jedi Studies", A), 
exam( "dpe02", "Force", B ), 
exam( "dpe03", "Meditation", D, C) ); 
Student yoda = student( "Yoda", "yp2015", 
exam( "ype01", "Jedi Studies", A), 
exam( "ype02", "Force", A ), 
exam( "ype03", "Meditation", A) ); 
Student luke = student( "Luke", "lp2015", 
exam( "lpe01", "Jedi Studies", C, B), 
exam( "lpe02", "Force", B ), 
exam( "lpe03", "Meditation", F, C) ); 
}

Student Plans
public void create(KieSession ksession) { 
Student darth = student( "Darth", "dp2015", 
exam( "dpe01", "Jedi Studies", A), 
exam( "dpe02", "Force", B ), 
exam( "dpe03", "Meditation", D, C) ); 
Student yoda = student( "Yoda", "yp2015", 
exam( "ype01", "Jedi Studies", A), 
exam( "ype02", "Force", A ), 
exam( "ype03", "Meditation", A) ); 
Student luke = student( "Luke", "lp2015", 
exam( "lpe01", "Jedi Studies", C, B), 
exam( "lpe02", "Force", B ), 
exam( "lpe03", "Meditation", F, C) ); 
 
ksession.insert( darth ); 
ksession.insert( yoda ); 
ksession.insert( luke ); 
}

Student Plans

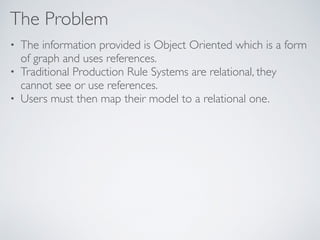

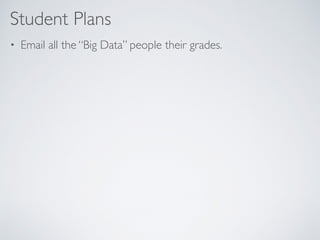

• Email all the “Big Data” people their grades.

The Problem
• The information provided is Object Oriented which is a form
of graph and uses references.
• Traditional Production Rule Systems are relational, they
cannot see or use references.
• Users must then map their model to a relational one.

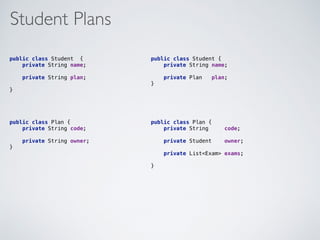

Student Plans

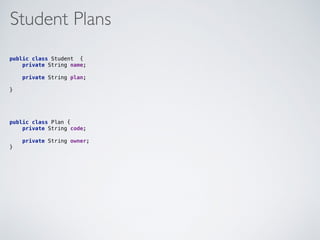

private String name;
 
private String plan; 
}
private String owner;
}

Student Plans
 
private String plan; 
}
private String owner;
}
private String name; 
 
private Plan plan;
}
private String code; 
private Student owner;
 
private List<Exam> exams; 
}

Student Plans
 
private String exam;
}

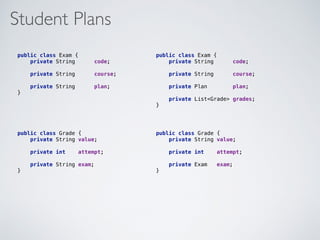

public class Exam {
private String course; 
private String plan;
}

Student Plans
 

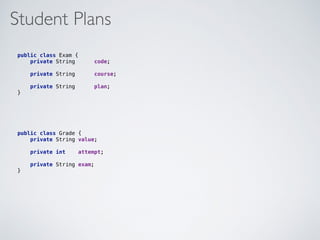

private String exam;
}
public class Exam {
private String course; 
private String plan;
}
public class Exam {
private String course;
 
private Plan plan;
 
private List<Grade> grades;
}
 
private Exam exam;
}

Student Plans

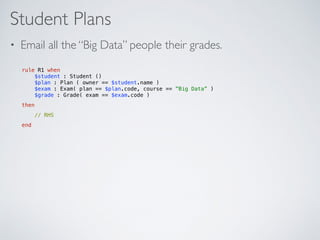

• Email all the “Big Data” people their grades.
rule R1 when 
$student : Student () 
$plan : Plan ( owner == $student.name ) 
$exam : Exam( plan == $plan.code, course == ”Big Data” )  
$grade : Grade( exam == $exam.code )
then
// RHS
end

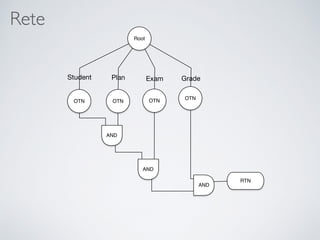

Rete
AND
AND
OTN OTN OTN OTN
Root
GradeExamPlanStudent
AND
RTN

Rete

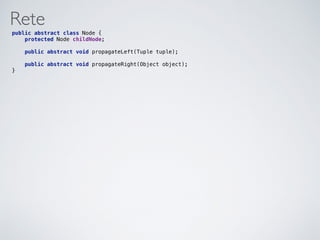

public abstract class Node { 
protected Node childNode; 
 
public abstract void propagateLeft(Tuple tuple); 
 
public abstract void propagateRight(Object object); 
}

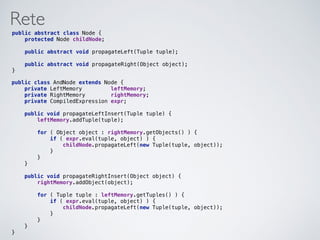

Rete
public abstract class Node { 
protected Node childNode; 
 
public abstract void propagateLeft(Tuple tuple); 
 
public abstract void propagateRight(Object object); 
}
public class AndNode extends Node { 
private LeftMemory leftMemory; 
private RightMemory rightMemory; 
private CompiledExpression expr; 
 
public void propagateLeftInsert(Tuple tuple) { 
leftMemory.addTuple(tuple); 
 
for ( Object object : rightMemory.getObjects() ) { 
if ( expr.eval(tuple, object) ) { 
childNode.propagateLeft(new Tuple(tuple, object)); 
} 
} 
} 
 
public void propagateRightInsert(Object object) { 
rightMemory.addObject(object); 
 
for ( Tuple tuple : leftMemory.getTuples() ) { 
} 
} 
} 
}

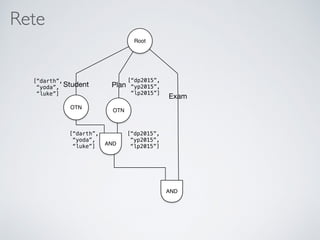

Rete
AND
OTN
Root
Student
[“dp2015”,
“yp2015”,
“lp2015”]
[“darth”,
“yoda”,
“luke”]
[“darth”,
“yoda”,
“luke”]
OTN
Plan
[“dp2015”,
“yp2015”,
“lp2015”]
AND
Exam

Rete
AND
OTN
Root
Student
[“dp2015”,
“yp2015”,
“lp2015”]
[“darth”,
“yoda”,
“luke”]
[“darth”,
“yoda”,
“luke”]
OTN
Plan
[“dp2015”,
“yp2015”,
“lp2015”]

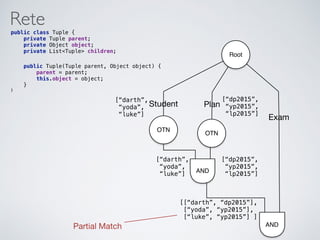

ANDPartial Match
[[“darth”, “dp2015”],
[“yoda”, “yp2015”],
[“luke”, “yp2015”] ]
Exam
public class Tuple { 
private Tuple parent; 
private Object object;
private List<Tuple> children;
 
 
public Tuple(Tuple parent, Object object) { 
parent = parent; 
this.object = object; 
} 
}

Rete
AND
OTN
Root
Student
[“dp2015”,
“yp2015”,
“lp2015”]
[“darth”,
“yoda”,
“luke”]
[“darth”,
“yoda”,
“luke”]
OTN
Plan
[“dp2015”,
“yp2015”,
“lp2015”]
ANDPartial Match
[[“darth”, “dp2015”],
[“yoda”, “yp2015”],
[“luke”, “yp2015”] ]
OTN
Exam
[“dpe01”, “dpe02”, “dpe03”,
“ype01”, “ype02”, “ype03”,
“lpe01”, “lpe02”, “lpe03” ]
 
 
parent = parent; 
} 
}

Rete
AND
OTN
Root
Student
[“dp2015”,
“yp2015”,
“lp2015”]
[“darth”,
“yoda”,
“luke”]
[“darth”,
“yoda”,
“luke”]
OTN
Plan
[“dp2015”,
“yp2015”,
“lp2015”]
AND

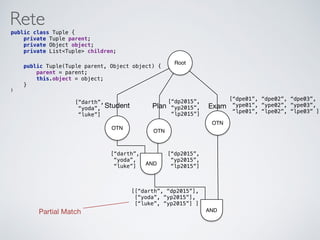

[[“darth”, “dp2015”, “dpe01”], [“darth”, “dp2015”,“dpe02”],[“darth”, “dp2015”,“dpe03”],
[“yoda”, “yp2015”, “ype01”], [“yoda”, “yp2015”, “ype02”], [“yoda”, “yp2015”, “ype03”],
[“luke”, “lp2015”, “ype01”], [“luke”, “lp2015”, “ype02”], [“luke”, “lp2015”, “ype03”]]
Partial Match
[[“darth”, “dp2015”],
[“yoda”, “yp2015”],
[“luke”, “yp2015”] ]
OTN
Exam
[“dpe01”, “dpe02”, “dpe03”,
“ype01”, “ype02”, “ype03”,
“lpe01”, “lpe02”, “lpe03” ]
 
 
parent = parent; 
} 
}

Rete
[[“darth”, “dp2015”, “dpe01”], [“darth”, “dp2015”,“dpe02”],[“darth”, “dp2015”,“dpe03”],
[“yoda”, “yp2015”, “ype01”], [“yoda”, “yp2015”, “ype02”], [“yoda”, “yp2015”, “ype03”],
[“luke”, “lp2015”, “ype01”], [“luke”, “lp2015”, “ype02”], [“luke”, “lp2015”, “ype03”]]

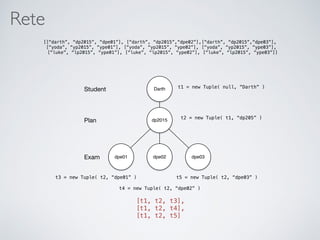

Darth
dp2015
dpe01 dpe02 dpe03
t1 = new Tuple( null, “Darth” )
t2 = new Tuple( t1, “dp205” )
t3 = new Tuple( t2, “dpe01” )
Exam
Plan
Student
[t1, t2, t3],
[t1, t2, t4],
[t1, t2, t5]

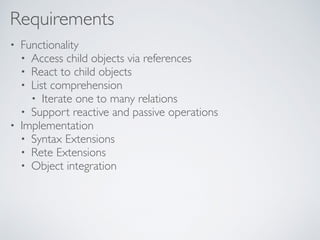

Requirements
• Functionality
• Access child objects via references
• React to child objects
• List comprehension
• Iterate one to many relations
• Support reactive and passive operations
• Implementation
• Syntax Extensions
• Rete Extensions
• Object integration

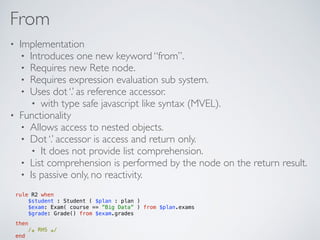

From
• Implementation
• Introduces one new keyword “from”.
• Requires new Rete node.
• Requires expression evaluation sub system.
• Uses dot ‘.’ as reference accessor.
• with type safe javascript like syntax (MVEL).
• Functionality
• Allows access to nested objects.
• Dot ‘.’ accessor is access and return only.
• It does not provide list comprehension.
• List comprehension is performed by the node on the return result.
• Is passive only, no reactivity.
rule R2 when 
$student : Student ( $plan : plan ) 
$exam: Exam( course == ”Big Data” ) from $plan.exams  
$grade: Grade() from $exam.grades
then 
/∗ RHS ∗/  
end

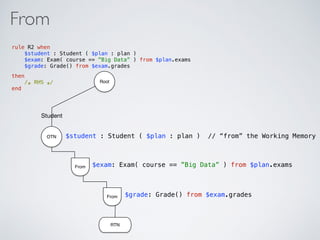

From
rule R2 when 
then 
/∗ RHS ∗/  
end
From
From
OTN
Root
Student
RTN
$student : Student ( $plan : plan ) // “from” the Working Memory
$exam: Exam( course == ”Big Data” ) from $plan.exams

From

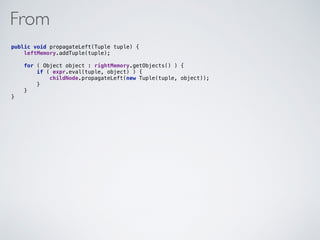

public void propagateLeft(Tuple tuple) { 
} 
} 
}

From
 
Object result = expr.equals( tuple.get(index)); 
 
if ( result instanceof Collection) { 
for ( Object o : ((Collection)result)) { 
propagateLeftIfAllowed(tuple, o); 
} 
} else { 
propagateLeftIfAllowed(tuple, result); 
} 
} 
 
private void propagateLeftIfAllowed(Tuple tuple, Object o) { 
if ( isAllowed( tuple, o ) ) { 
childNode.propagateLeftInsert(new Tuple(tuple, o)); 
} 
}
} 
} 
}

From

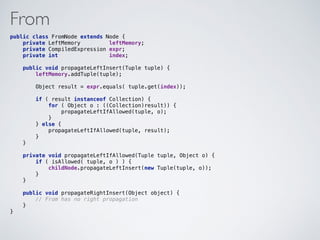

public class FromNode extends Node { 
private int index; 
 
 
Object result = expr.equals( tuple.get(index)); 
 
if ( result instanceof Collection) { 
for ( Object o : ((Collection)result)) { 
} 
} else { 
} 
} 
 
private void propagateLeftIfAllowed(Tuple tuple, Object o) { 
} 
}
 
public void propagateRightInsert(Object object) { 
// From has no right propagation  
} 
}

Passive OOPath

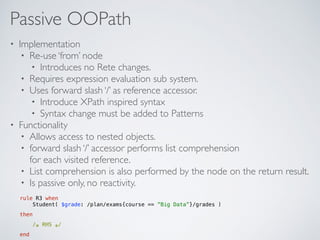

• Implementation
• Re-use ‘from’ node
• Introduces no Rete changes.
• Requires expression evaluation sub system.
• Uses forward slash ‘/’ as reference accessor.
• Introduce XPath inspired syntax
• Syntax change must be added to Patterns
• Functionality
• Allows access to nested objects.
• forward slash ‘/’ accessor performs list comprehension 
for each visited reference.
• List comprehension is also performed by the node on the return result.
• Is passive only, no reactivity.

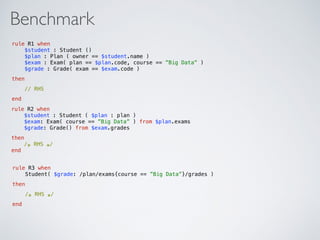

rule R3 when 
Student( $grade: /plan/exams{course == ”Big Data”}/grades )
then
/∗ RHS ∗/
end

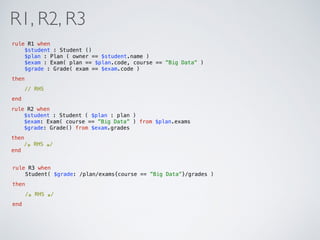

R1, R2, R3
rule R1 when 
then
// RHS
end
rule R2 when 
then 
/∗ RHS ∗/  
end
rule R3 when 
then
/∗ RHS ∗/
end

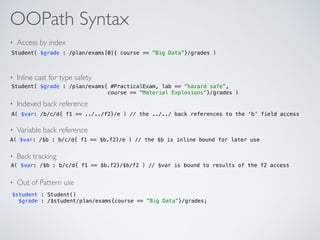

OOPath Syntax
• Access by index
• Inline cast for type safety
• Indexed back reference
• Variable back reference
• Back tracking
• Out of Pattern use
Student( $grade : /plan/exams[0]{ course == ”Big Data”}/grades )
Student( $grade : /plan/exams{ #PracticalExam, lab == ”hazard safe”,  
course == ”Material Explosions”}/grades )
A( $var: /b/c/d{ f1 == ../../f2}/e ) // the ../../ back references to the ‘b’ field access
A( $var: /$b : b/c/d{ f1 == $b.f2}/e ) // the $b is inline bound for later use
A( $var: /$b : b/c/d{ f1 == $b.f2}/$b/f2 ) // $var is bound to results of the f2 access
$student : Student() 
$grade : /$student/plan/exams{course == ”Big Data”}/grades;

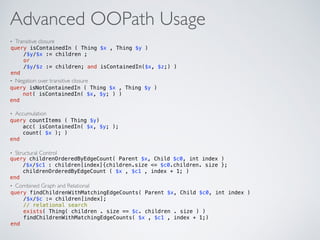

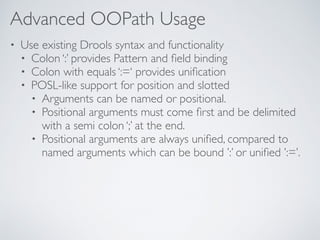

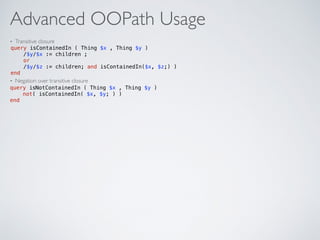

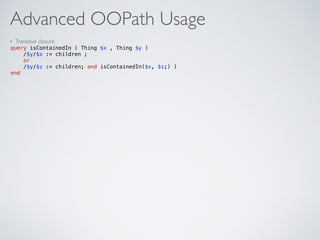

Advanced OOPath Usage
• Use existing Drools syntax and functionality
• Colon ‘:’ provides Pattern and field binding
• Colon with equals ‘:=‘ provides unification
• POSL-like support for position and slotted
• Arguments can be named or positional.
• Positional arguments must come first and be delimited
with a semi colon ‘;’ at the end.
• Positional arguments are always unified, compared to
named arguments which can be bound ’:’ or unified ’:=’.

• Transitive closure

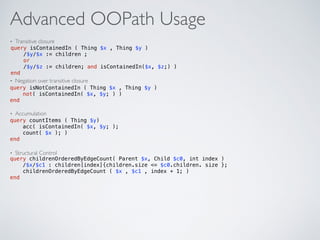

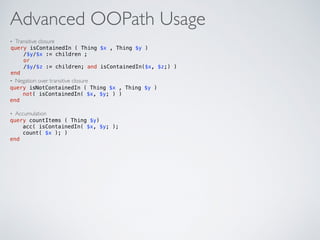

query isContainedIn ( Thing $x , Thing $y ) 
/$y/$x := children ; 
or 
/$y/$z := children; and isContainedIn($x, $z;) )  
end

• Negation over transitive closure
or 
end
query isNotContainedIn ( Thing $x , Thing $y )  
not( isContainedIn( $x, $y; ) )  
end

• Accumulation
or 
end
end
query countItems ( Thing $y) 
acc( isContainedIn( $x, $y; );  
count( $x ); )  
end

• Accumulation
• Structural Control
or 
end
end
count( $x ); )  
end
query childrenOrderedByEdgeCount( Parent $x, Child $c0, int index )  
/$x/$c1 : children[index]{children.size <= $c0.children. size };  
childrenOrderedByEdgeCount ( $x , $c1 , index + 1; )  
end

• Accumulation
• Structural Control
• Combined Graph and Relational
or 
end
end
count( $x ); )  
end
query childrenOrderedByEdgeCount( Parent $x, Child $c0, int index )  
/$x/$c1 : children[index]{children.size <= $c0.children. size };  
childrenOrderedByEdgeCount ( $x , $c1 , index + 1; )  
end
query findChildrenWithMatchingEdgeCounts( Parent $x, Child $c0, int index ) 
/$x/$c := children[index]; 
// relational search 
exists( Thing( children . size == $c. children . size ) )  
findChildrenWithMatchingEdgeCounts( $x , $c1 , index + 1;)  
end

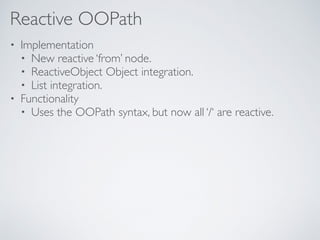

Reactive OOPath
• Implementation
• New reactive ‘from’ node.
• ReactiveObject Object integration.
• List integration.
• Functionality
• Uses the OOPath syntax, but now all ‘/‘ are reactive.

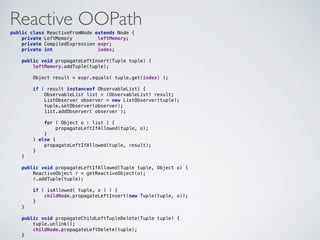

Reactive OOPathpublic class ReactiveFromNode extends Node { 
private int index; 
 
 
Object result = expr.equals( tuple.get(index) ); 
 
if ( result instanceof ObservableList) { 
ObservableList list = (ObservableList) result; 
ListObserver observer = new ListObserver(tuple); 
tuple.setObserver(observer); 
list.addObserver( observer ); 
 
for ( Object o : list ) { 
} 
} else { 
} 
} 
 
public void propagateLeftIfAllowed(Tuple tuple, Object o) { 
ReactiveObject r = getReactiveObject(o); 
r.addTuple(tuple); 
 
} 
} 
 
public void propagateChildLeftTupleDelete(Tuple tuple) { 
tuple.unlink(); 
childNode.propagateLeftDelete(tuple); 
}

ReactiveObject

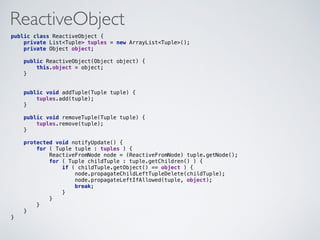

public class ReactiveObject { 
private List<Tuple> tuples = new ArrayList<Tuple>(); 
private Object object; 
 
public ReactiveObject(Object object) { 
} 
 
 
public void addTuple(Tuple tuple) { 
tuples.add(tuple); 
} 
 
public void removeTuple(Tuple tuple) { 
tuples.remove(tuple); 
} 
 
protected void notifyUpdate() { 
for ( Tuple tuple : tuples ) { 
ReactiveFromNode node = (ReactiveFromNode) tuple.getNode(); 
for ( Tuple childTuple : tuple.getChildren() ) { 
if ( childTuple.getObject() == object ) { 
node.propagateChildLeftTupleDelete(childTuple); 
node.propagateLeftIfAllowed(tuple, object); 
break; 
} 
} 
} 
} 
}

ReactiveObject

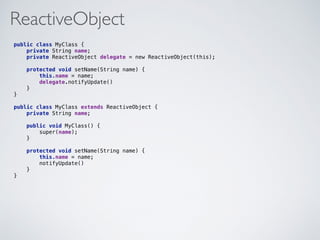

public class MyClass { 
private ReactiveObject delegate = new ReactiveObject(this); 
 
protected void setName(String name) {
this.name = name;
delegate.notifyUpdate() 
} 
}
public class MyClass extends ReactiveObject { 
public void MyClass() {
super(name); 
}
 
protected void setName(String name) {
this.name = name;
notifyUpdate() 
} 
}

Benchmark
rule R1 when 
then
// RHS
end
rule R2 when 
then 
/∗ RHS ∗/  
end
rule R3 when 
then
/∗ RHS ∗/
end

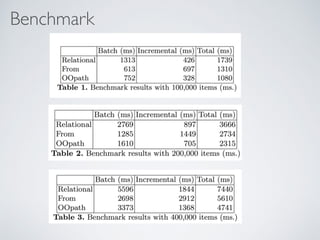

Benchmark
• Visiting a tree with a relational strategy
• Visiting a tree with an Object-Oriented strategy
query findNodesWithValue( Node $from, int $value , List list )  
Edge( $n : to, $v : to.value ) from $from.outEdges 
eval( $v != $value || ( $v == $value && list .add( $n ) ) )  
findNodesWithValue ( $n , $value , list; )  
end
query findNodesWithValue( int $id , int $value , List list ) $n: Node( id == $id, $v : value )  
eval( $v != $value || ( $v == $value && list .add( $n ) ) )  
Edge( fromId == $id , $toId : toId ) 
findNodesWithValue ( $toId , $value , list; )  
end

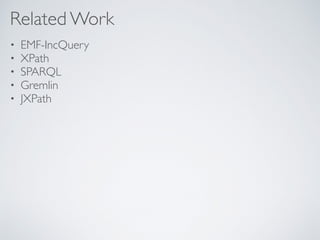

Related Work
• EMF-IncQuery
• XPath
• SPARQL
• Gremlin
• JXPath

Conclusion and Future Work
• Integrated bytecode weavers for ReactiveObject
• Externalise ReactiveObject
• Use PropertyChangeListener
• Make work with PropertyReactive

RuleML2015 : Hybrid Relational and Graph Reasoning

More Related Content

What's hot

Viewers also liked

Similar to RuleML2015 : Hybrid Relational and Graph Reasoning

More from Mark Proctor

Recently uploaded

RuleML2015 : Hybrid Relational and Graph Reasoning
