The document discusses reactive programming in iOS development, emphasizing its paradigms, libraries such as RxSwift and ReactiveCocoa, and the benefits of using reactive approaches like bindings and composability. It provides practical examples of creating and observing observables, along with handling data flow and error management. The document also touches on caveats such as debugging, unsubscription, and coupling projects to specific libraries.

1. REACTIVE THINKING IN IOS
DEVELOPMENT@PEPIBUMUR / @SAKY

2. WHO?
@pepibumur
iOS Developer at SoundCloud
GitHub: pepibumur
Twitter: pepibumur
@saky
iOS Developer at Letgo
GitHub: isaacroldan
Twitter: saky

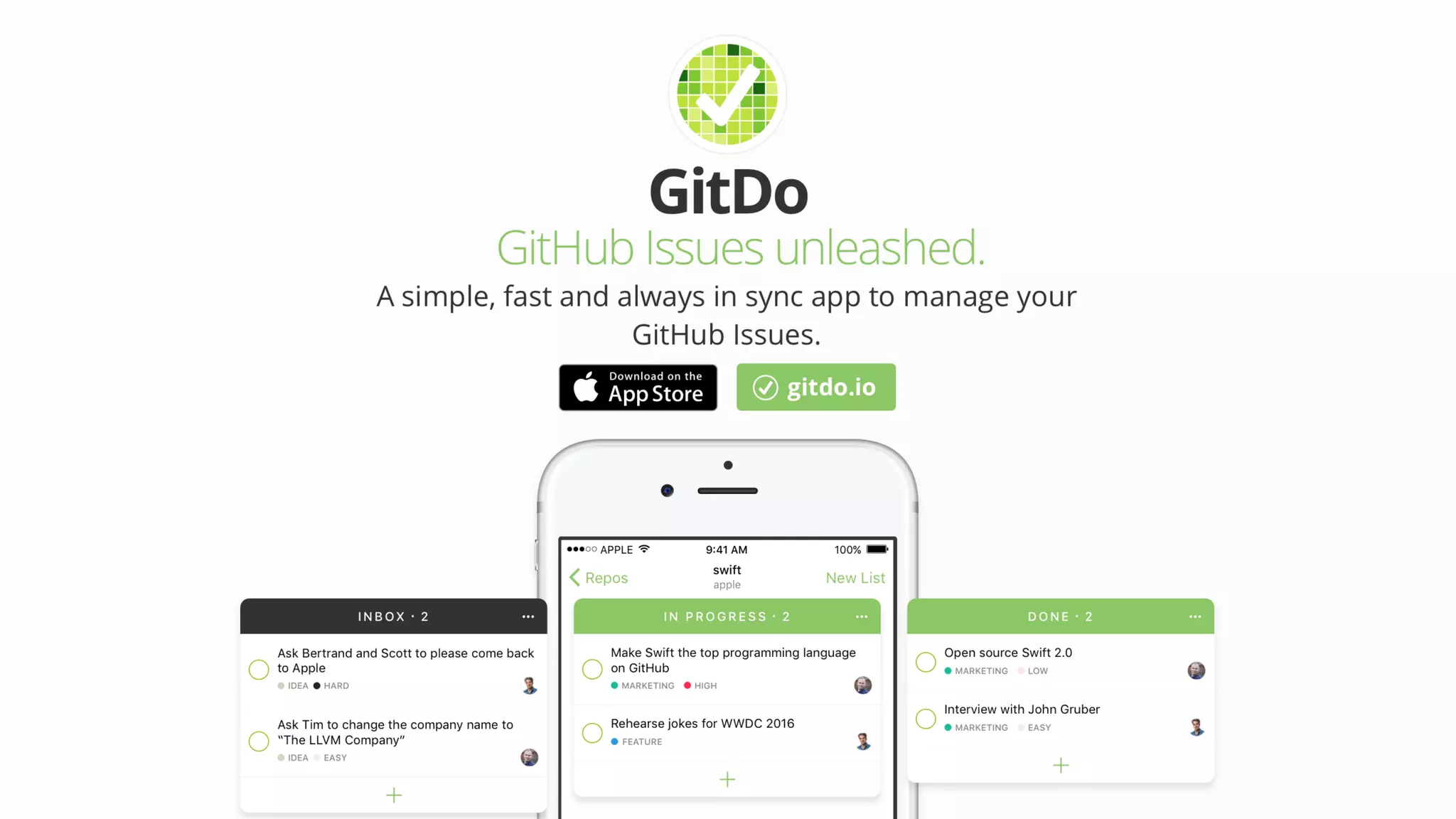

GitDo.io our spare time project

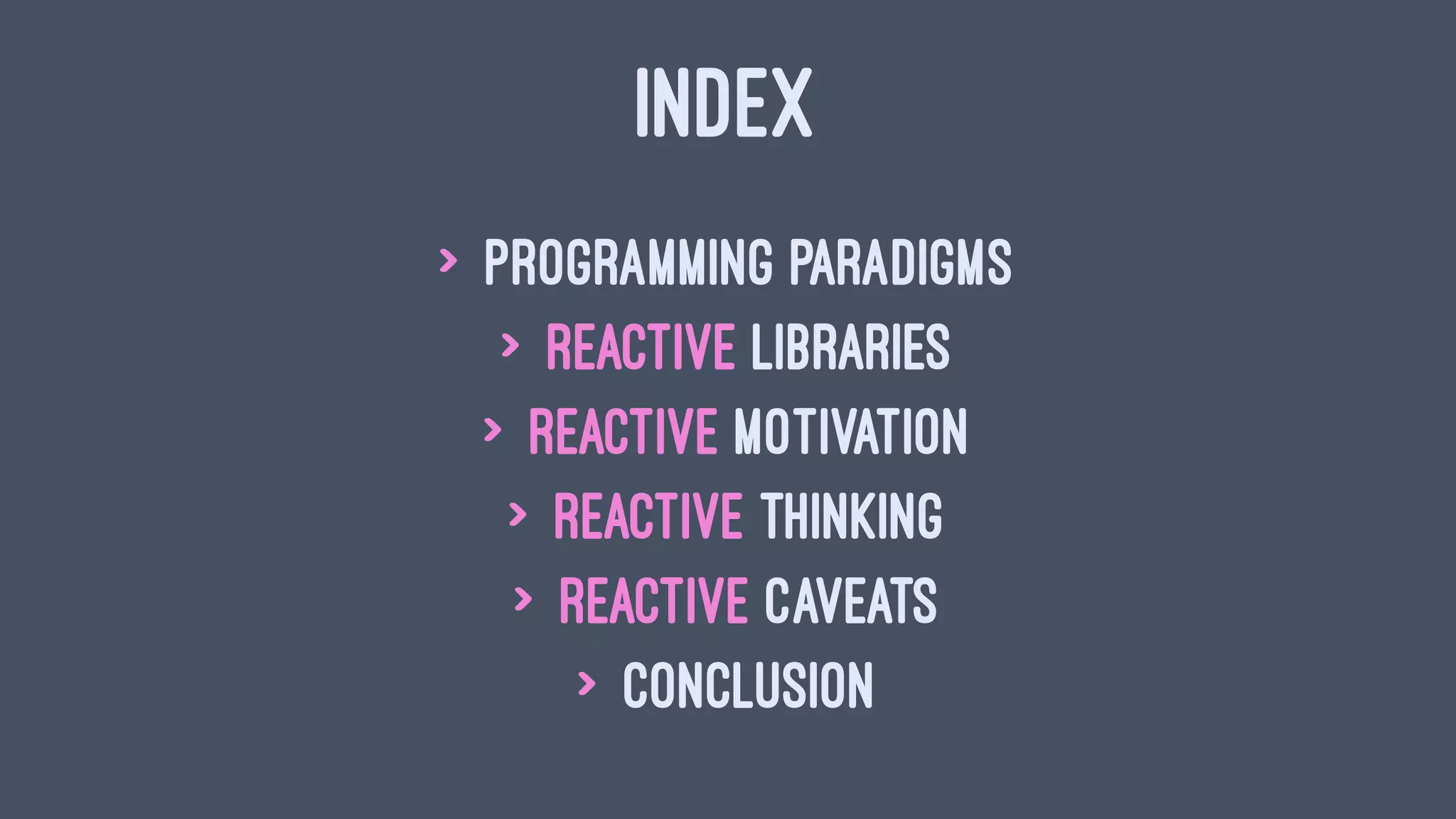

3. INDEX
> Programming Paradigms
> Reactive Libraries
> Reactive Motivation
> Reactive Thinking
> Reactive Caveats
> Conclusion

4. PARADIGMS !WAYS OF SEEING THE WORLD WHEN IT COMES TO PROGRAMMING

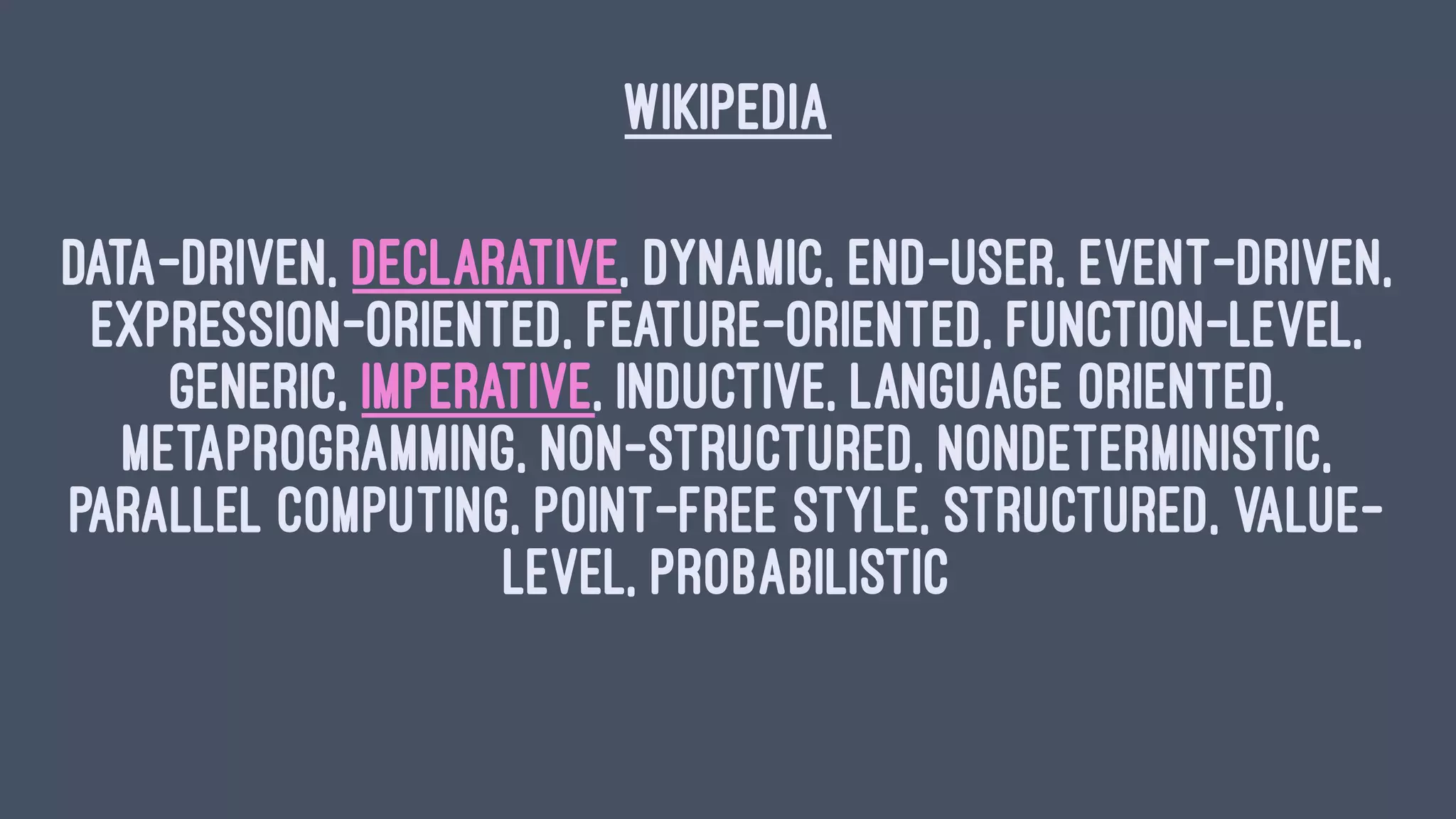

5. WIKIPEDIA
Data-Driven, Declarative, Dynamic, End-User, Event-Driven,
Expression-Oriented, Feature-Oriented, Function-level,
Generic, Imperative, Inductive, Language Oriented,
Metaprogramming, Non-Structured, Nondeterministic,
Parallel computing, Point-free Style, Structured, Value-
Level, Probabilistic

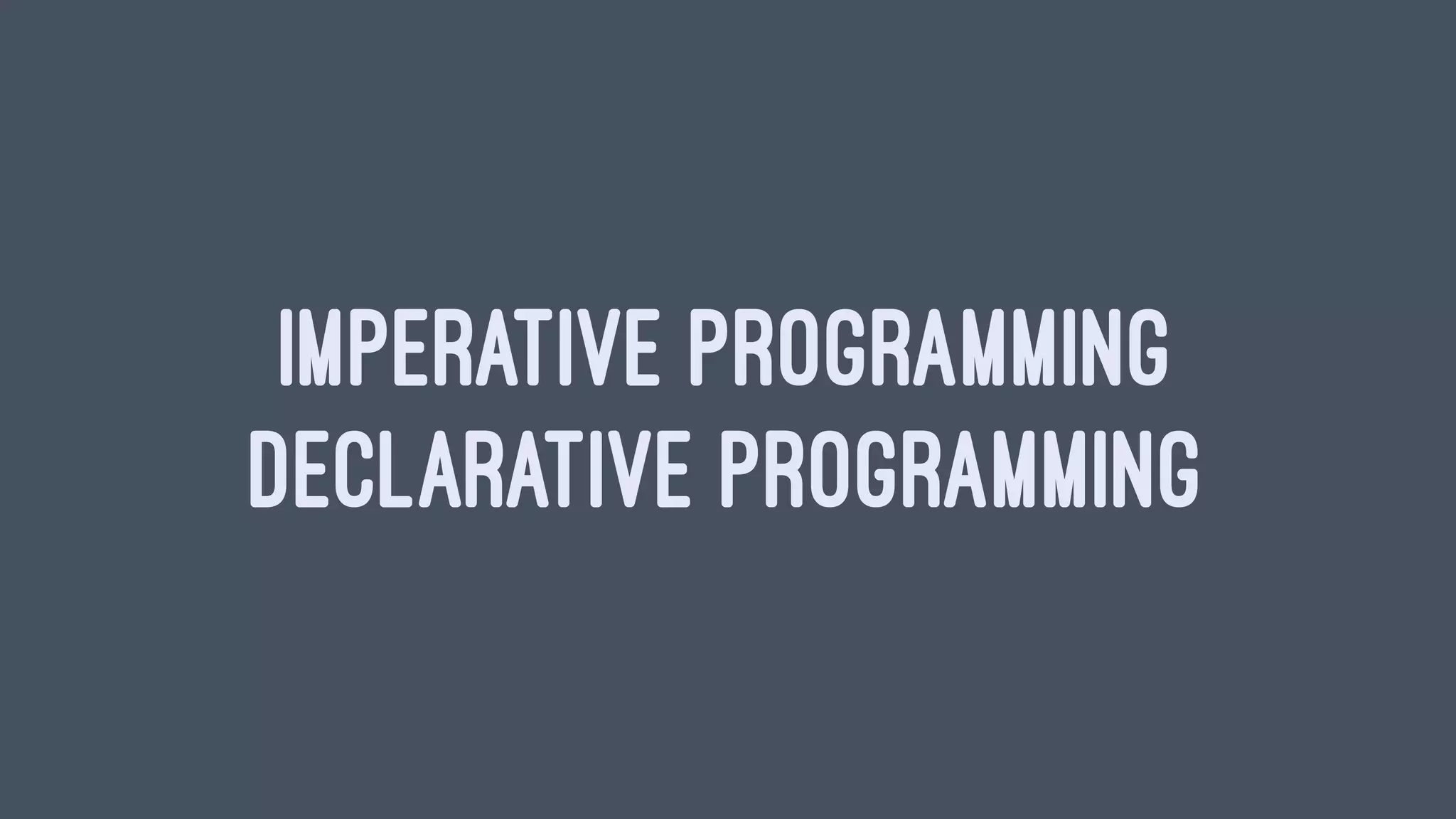

6. IMPERATIVE PROGRAMMING
DECLARATIVE PROGRAMMING

7. IMPERATIVE PROGRAMMING
DECLARATIVE PROGRAMMING

8. HOW
SEQUENCE OF STEPS
THAT HAPPEN IN ORDER

9. NATURAL WAY TO
PROGRAM

10. EXECUTION STATE(AKA SIDE EFFECT)

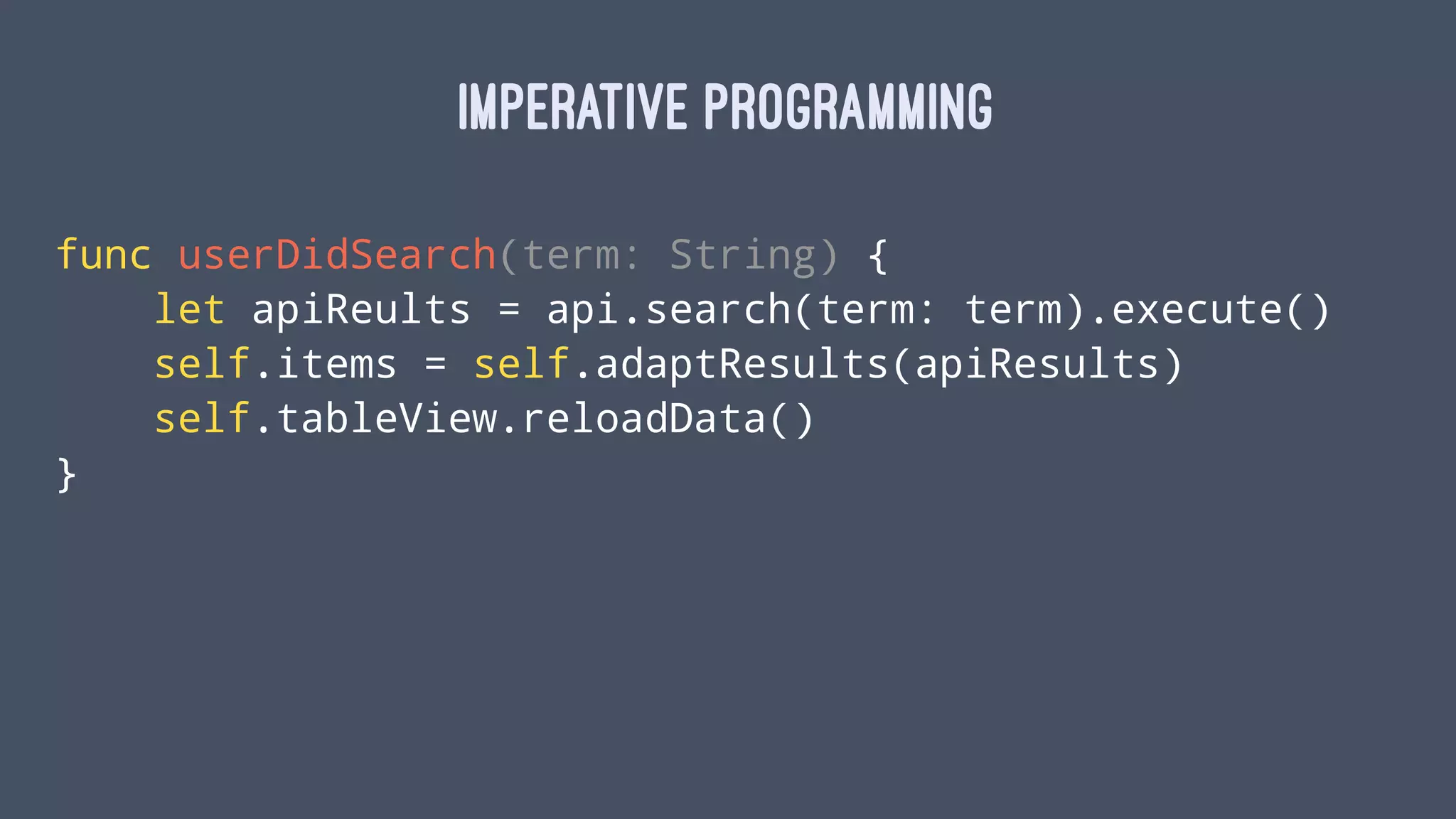

11. IMPERATIVE PROGRAMMING
func userDidSearch(term: String) {
let apiReults = api.search(term: term).execute()
self.items = self.adaptResults(apiResults)
self.tableView.reloadData()
}

12. IMPERATIVE PROGRAMMING
DECLARATIVE PROGRAMMING

13. WHAT
IT DOESN'T DESCRIBE THE
CONTROL FLOW

14. HTML

15. HTML
SQL

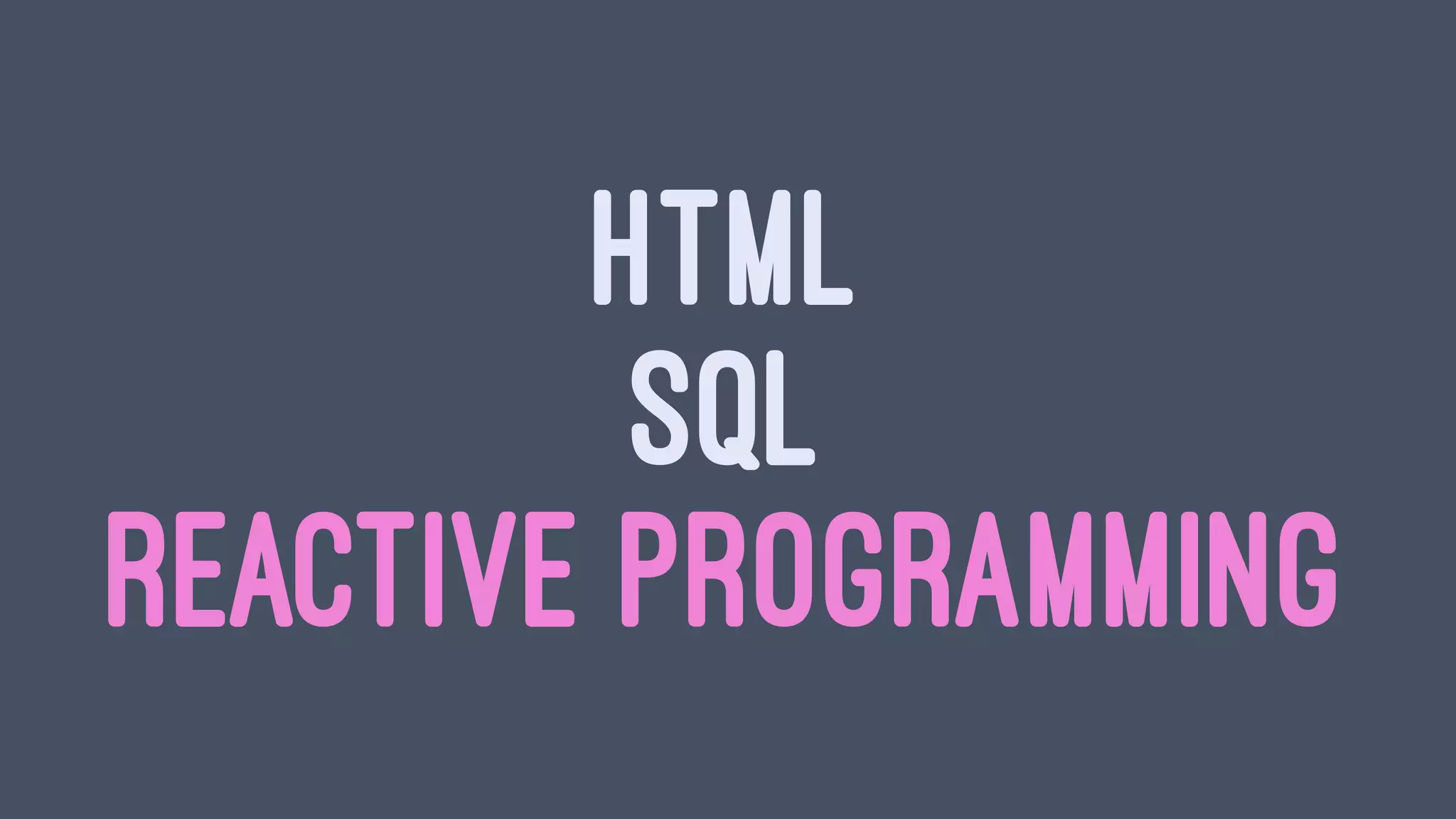

16. HTML
SQL
REACTIVE PROGRAMMING

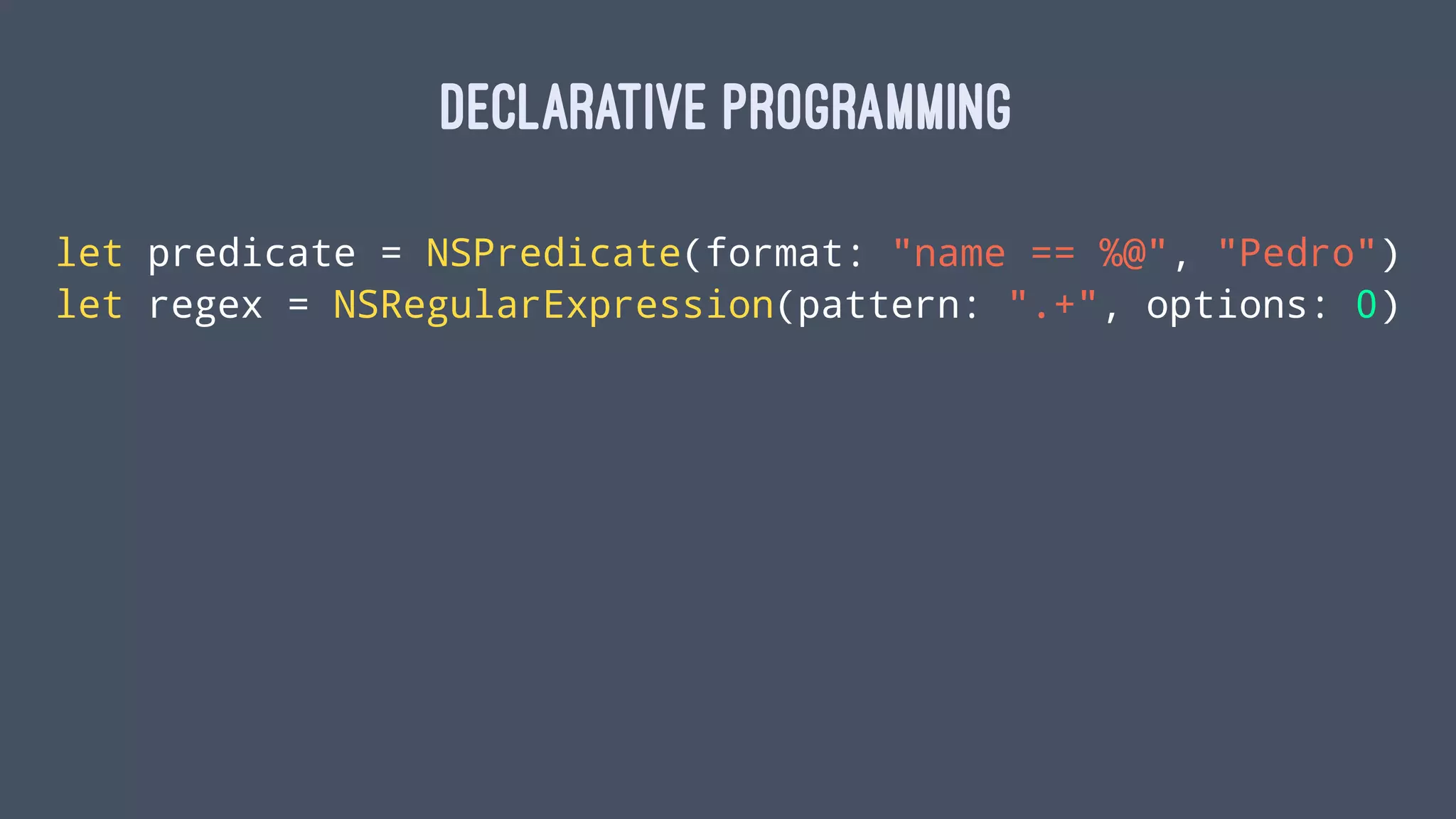

17. DECLARATIVE PROGRAMMING
let predicate = NSPredicate(format: "name == %@", "Pedro")
let regex = NSRegularExpression(pattern: ".+", options: 0)

18. REACTIVE PROGRAMMING
DATA-FLOW PROGRAMMING
(DESCRIBES THE STATE PROPAGATION)
# THE INTRODUCTION TO REACTIVE PROGRAMMING THAT YOU'VE BEEN MISSING

19. FUNCTIONAL REACTIVE
PROGRAMMING
(AKA FRP)

20. REACTIVE LIBRARIES
> RxSwift (ReactiveX)
> ReactiveCocoa
> BrightFutures
> ReactKit
> Bond
> More and more... PromiseKit, Bolts...

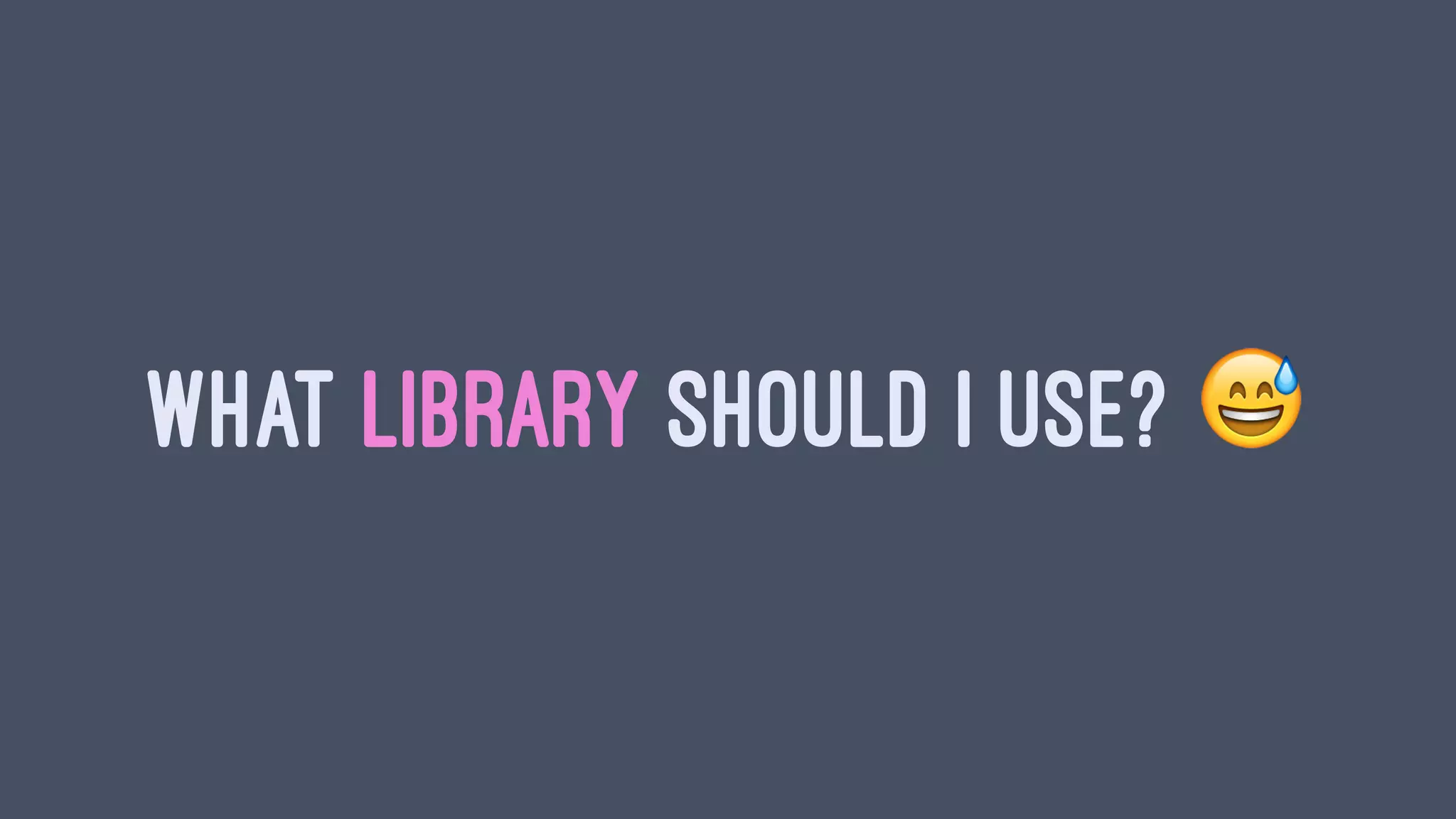

21. WHAT LIBRARY SHOULD I USE? !

22. WHAT LIBRARY SHOULD I USE? !
DO I NEED A LIBRARY FOR THIS? !

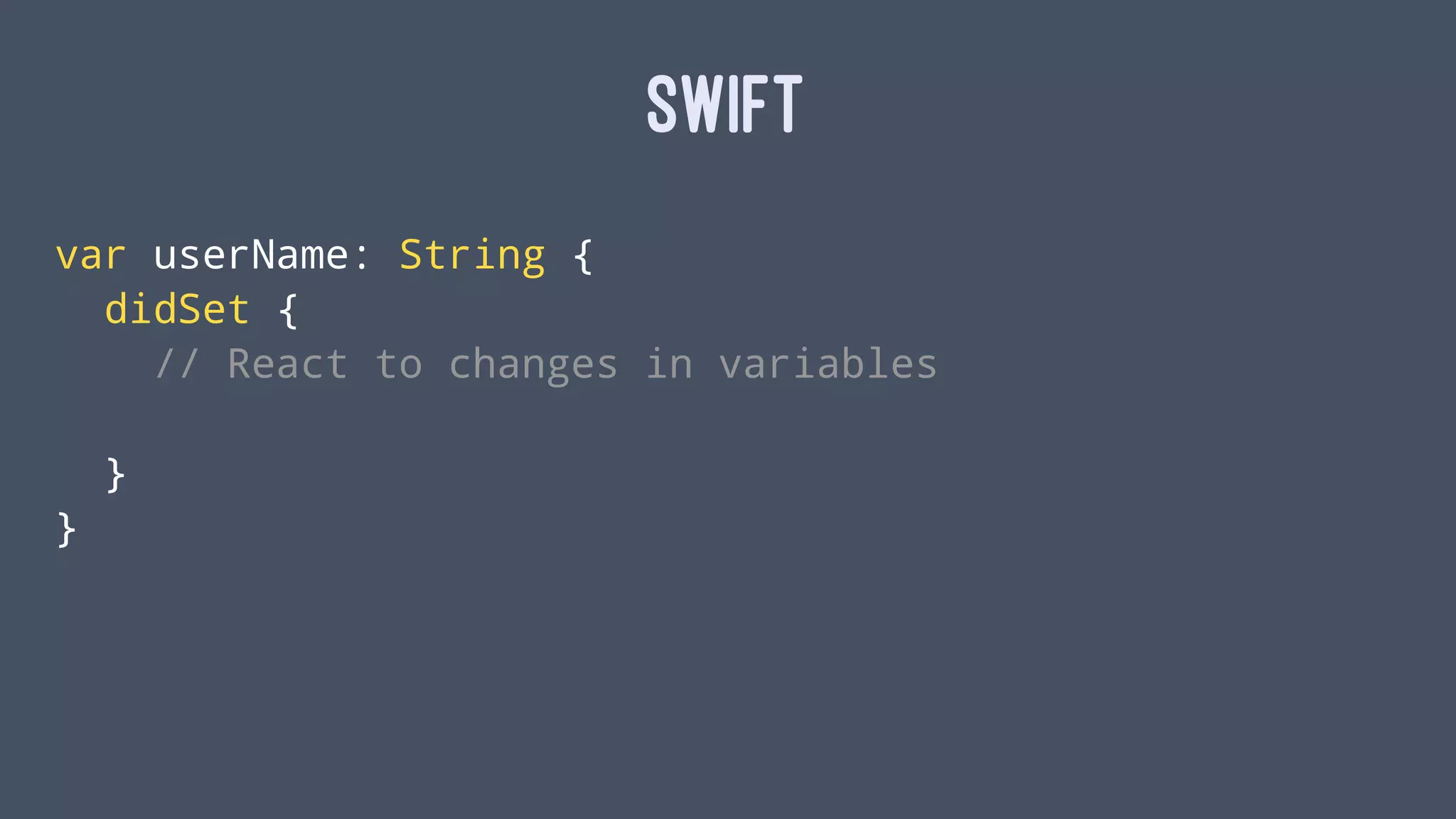

23. SWIFT
var userName: String {
didSet {
// React to changes in variables
}
}

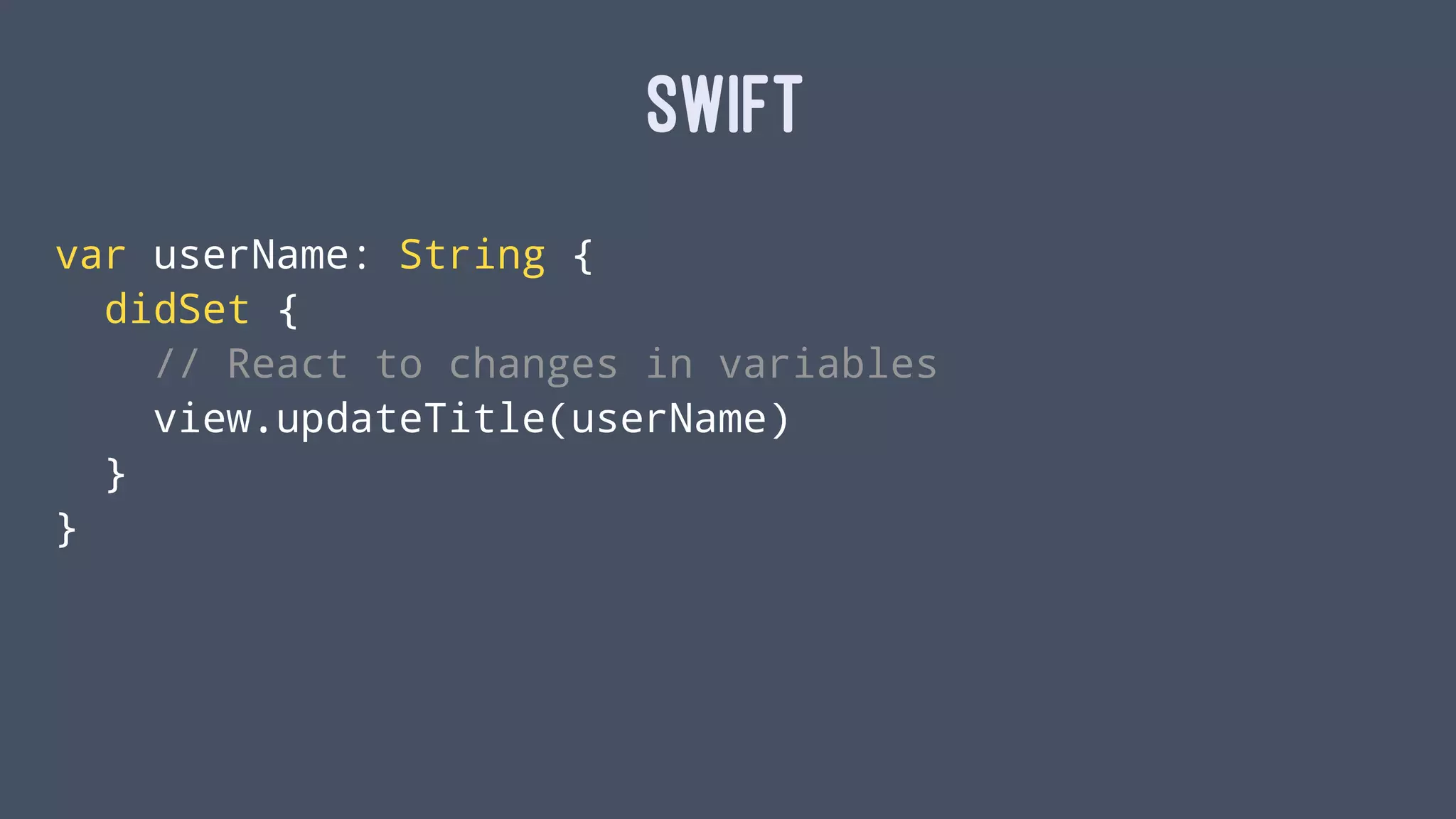

24. SWIFT
var userName: String {
didSet {
// React to changes in variables
view.updateTitle(userName)
}
}

25. MOTIVATION !WHY SHOULD I STICK TO REACTIVE PROGRAMMING?

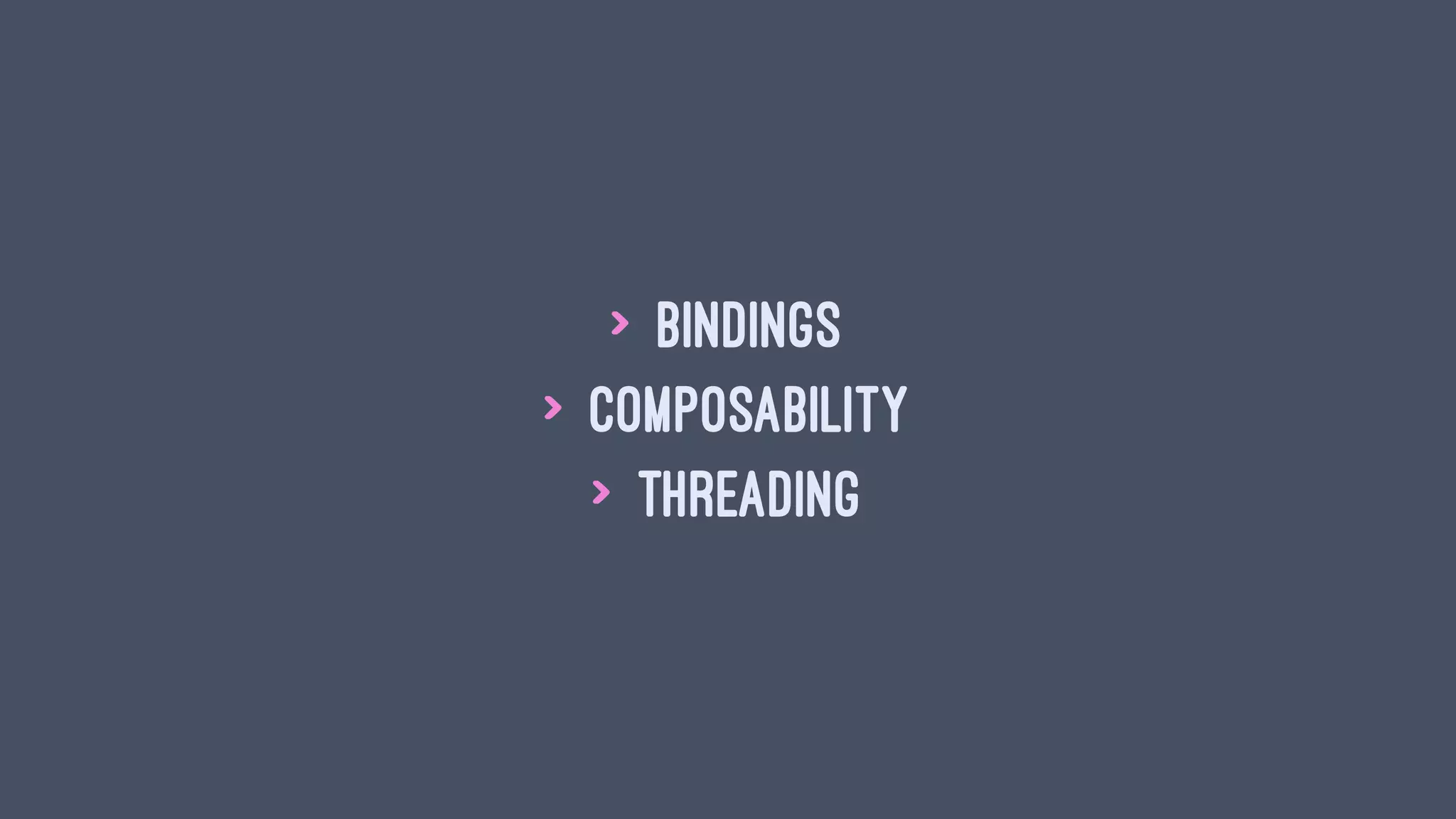

26. > Bindings
> Composability
> Threading

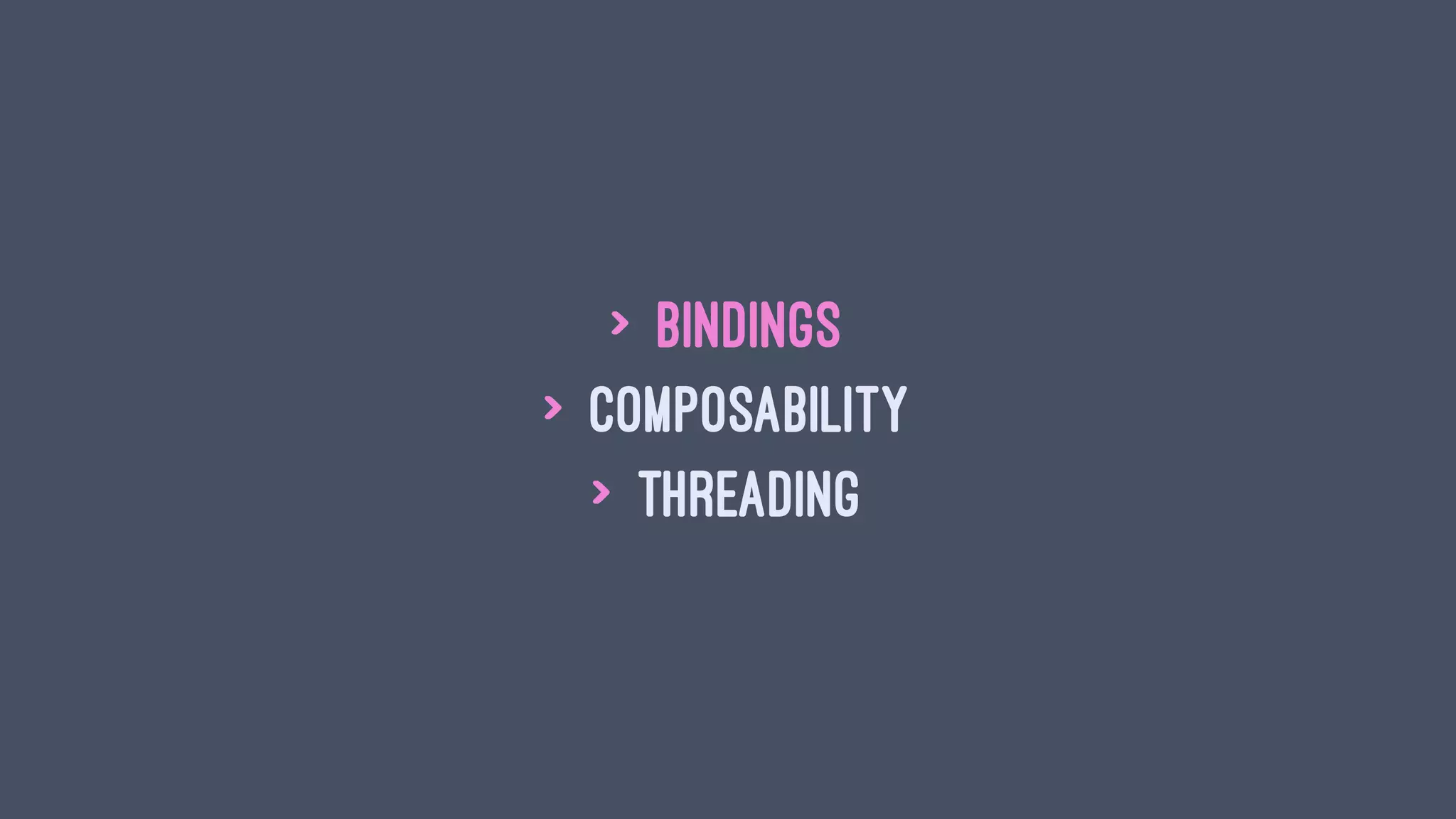

27. > Bindings
> Composability
> Threading

28. BINDING

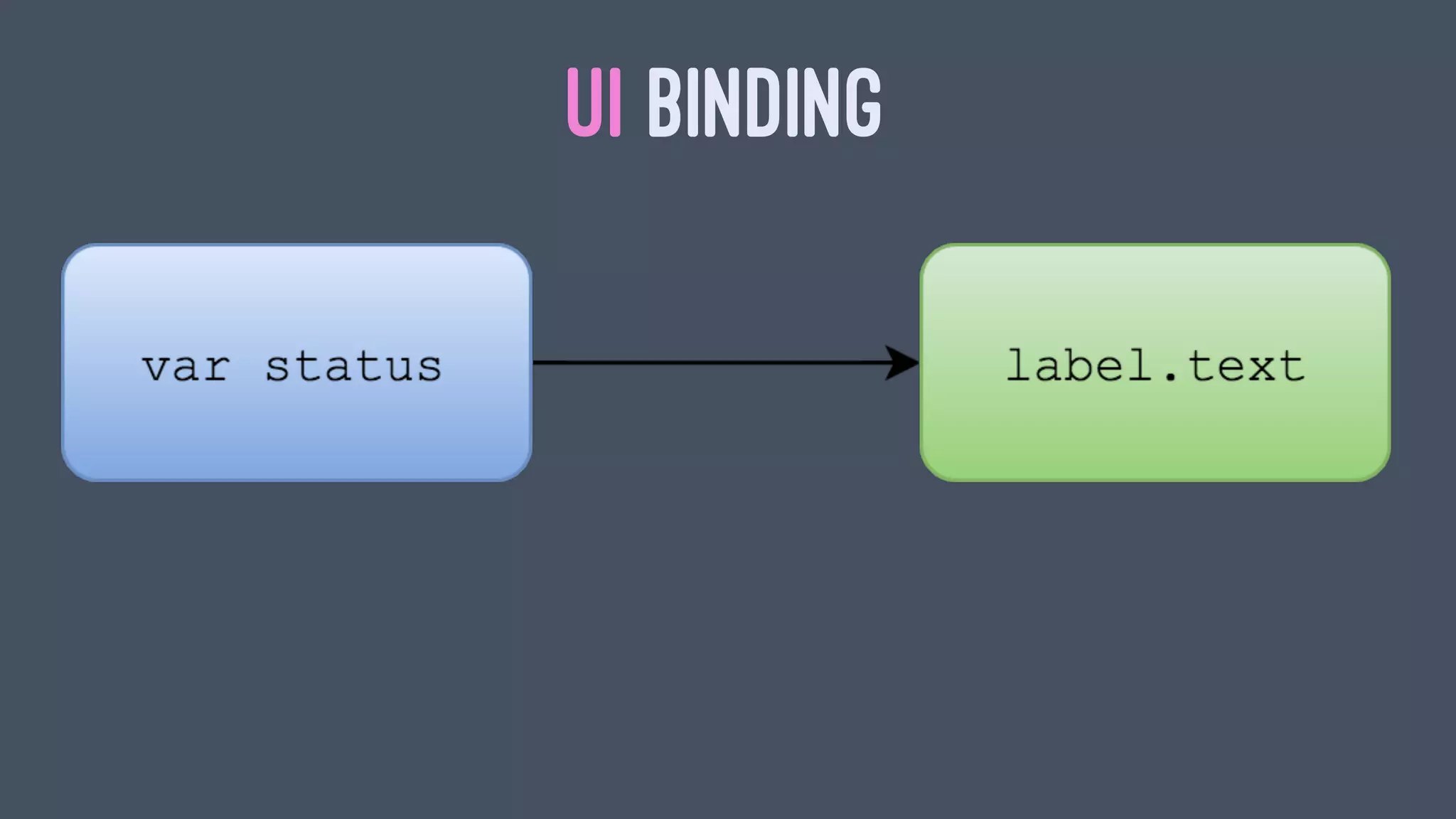

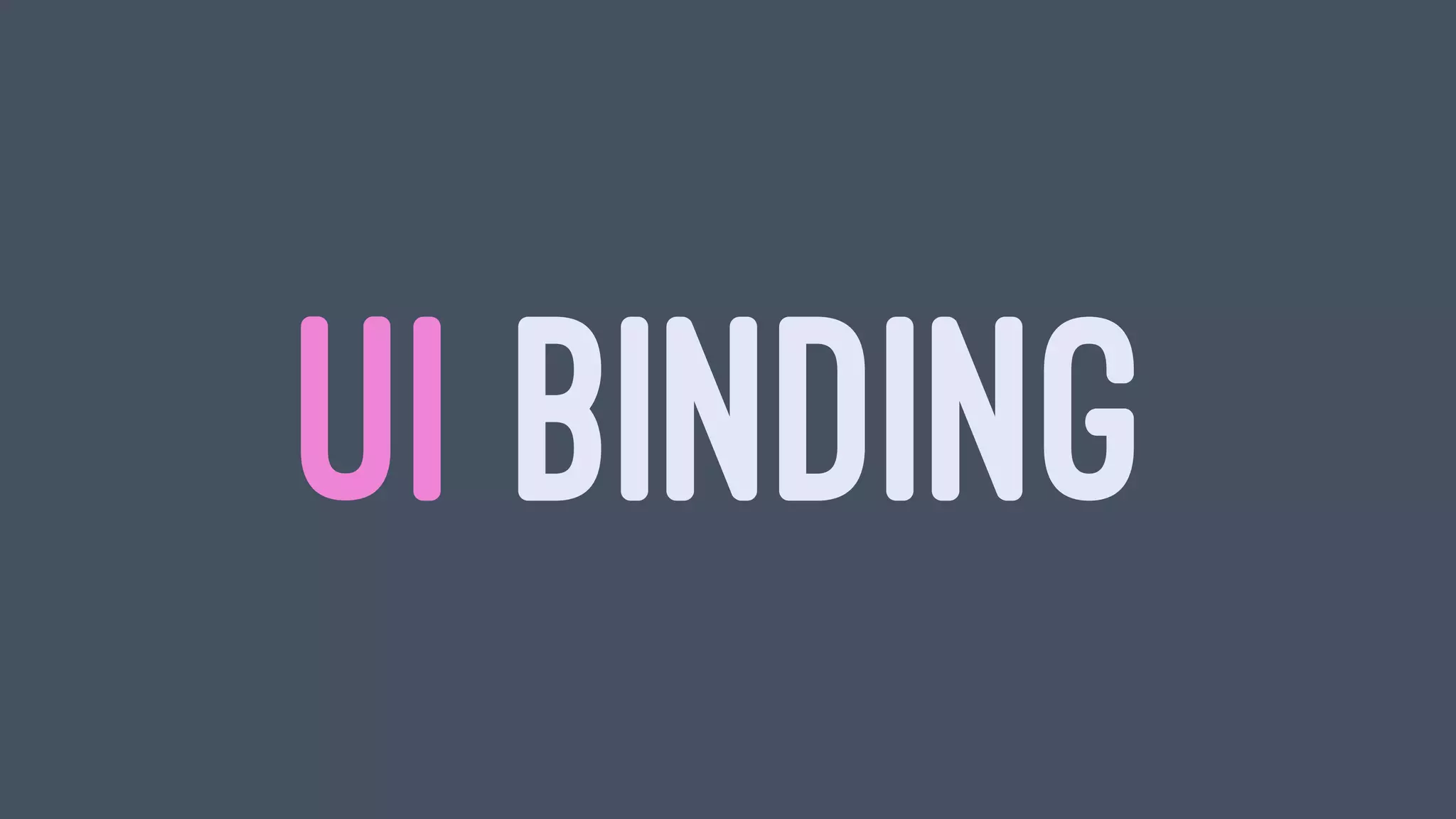

29. UI BINDING

30. UI BINDING

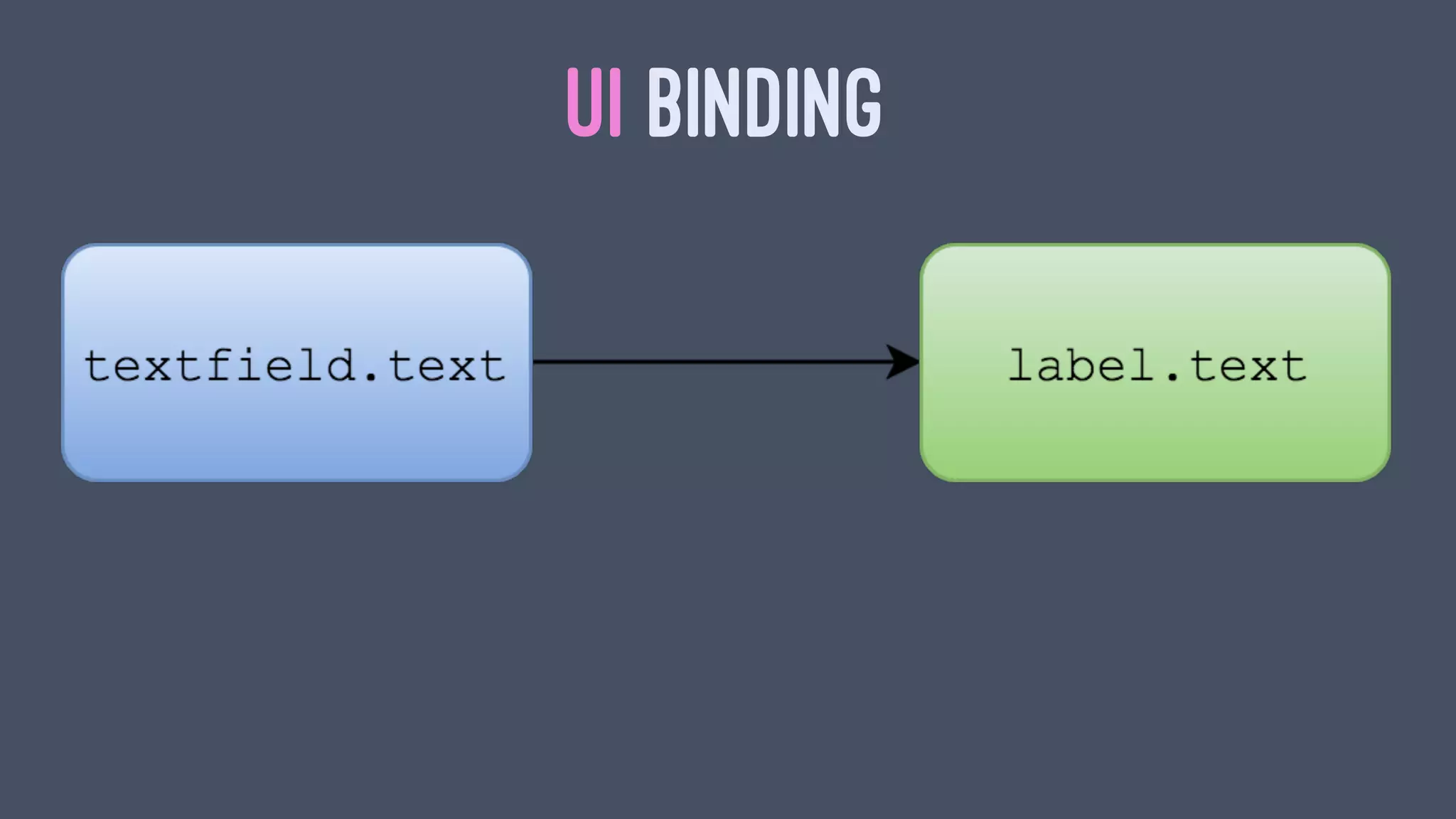

31. UI BINDING

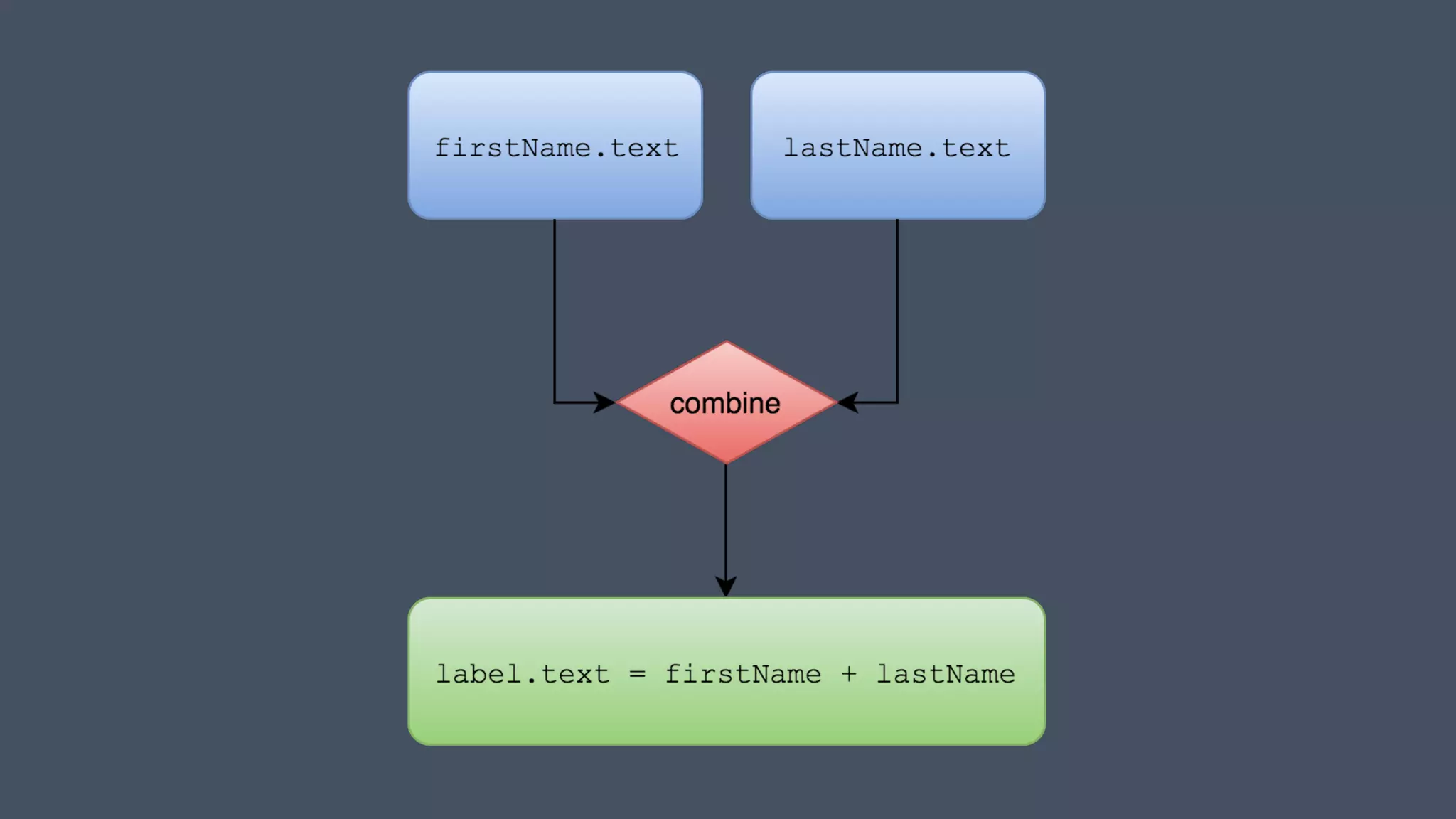

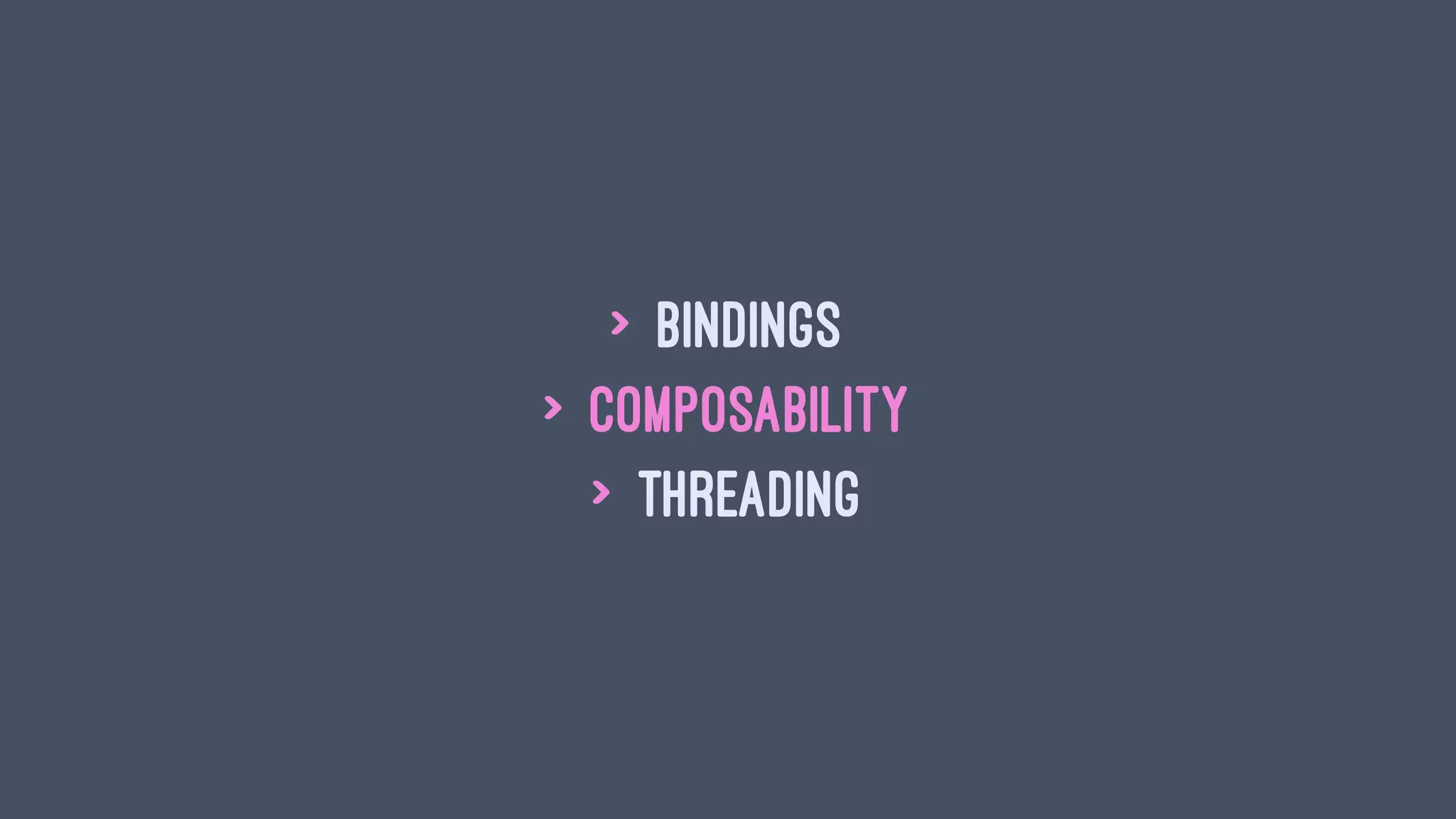

32. > Bindings
> Composability
> Threading

35. > Bindings
> Composability
> Threading

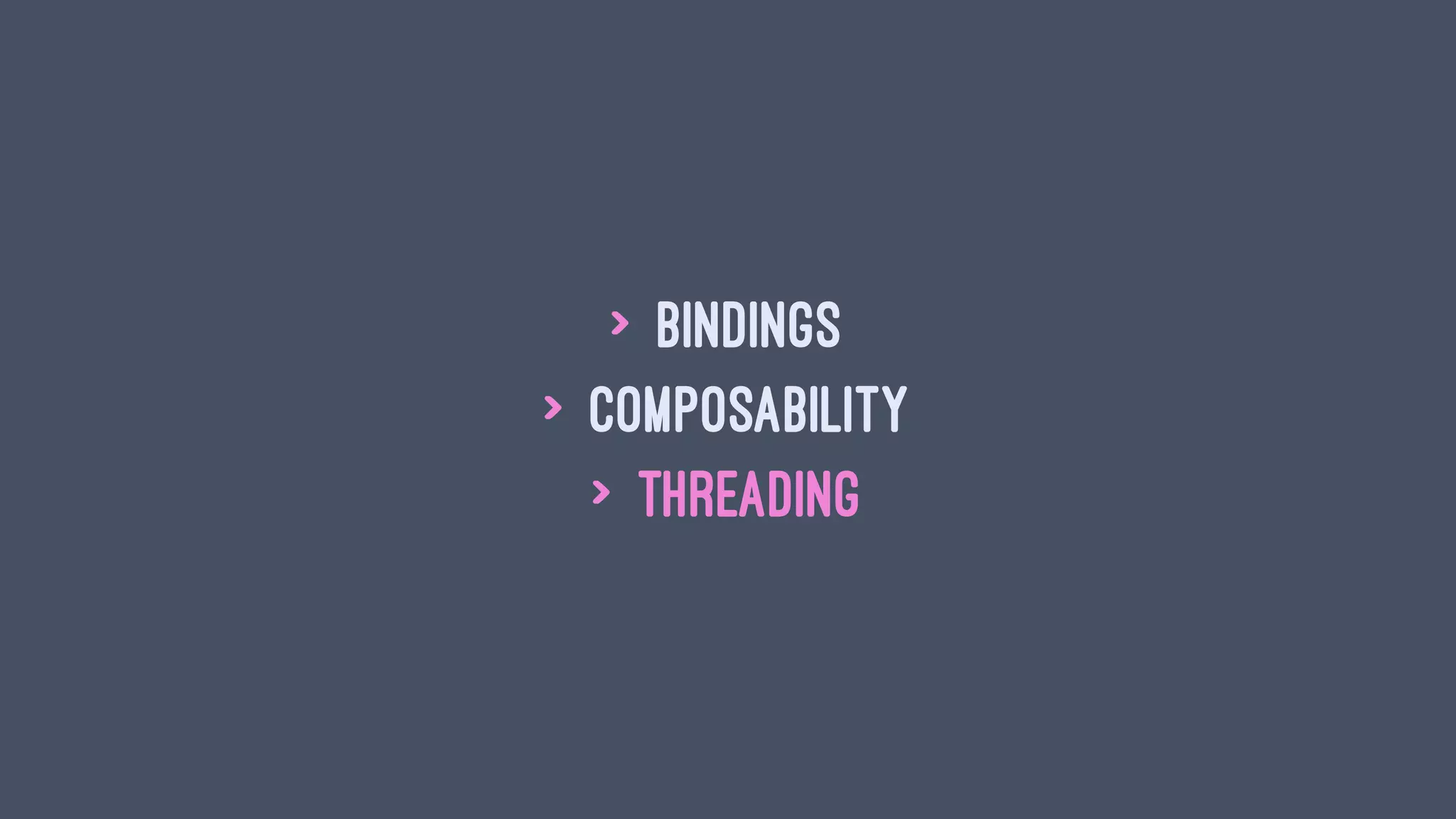

36. > Bindings
> Composability
> Threading (observer and execution)

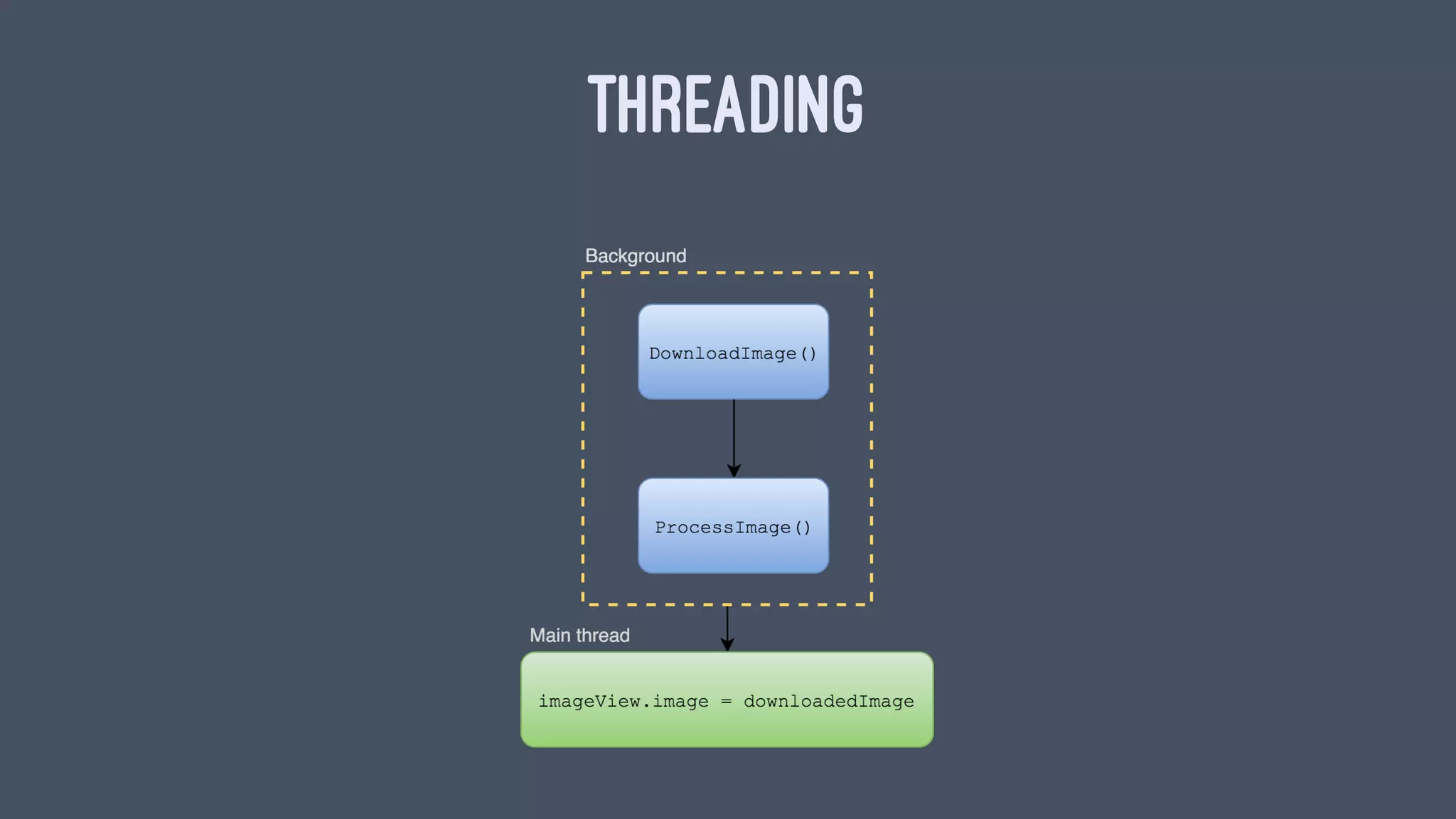

37. THREADING

38. REACTIVE THINKING !

39. THINKING IN TERMS OF
OBSERVABLESOR SIGNALS/PRODUCERS IN REACTIVECOCOA

40. ACTIONS CAN BE
OBSERVEDHOW? !

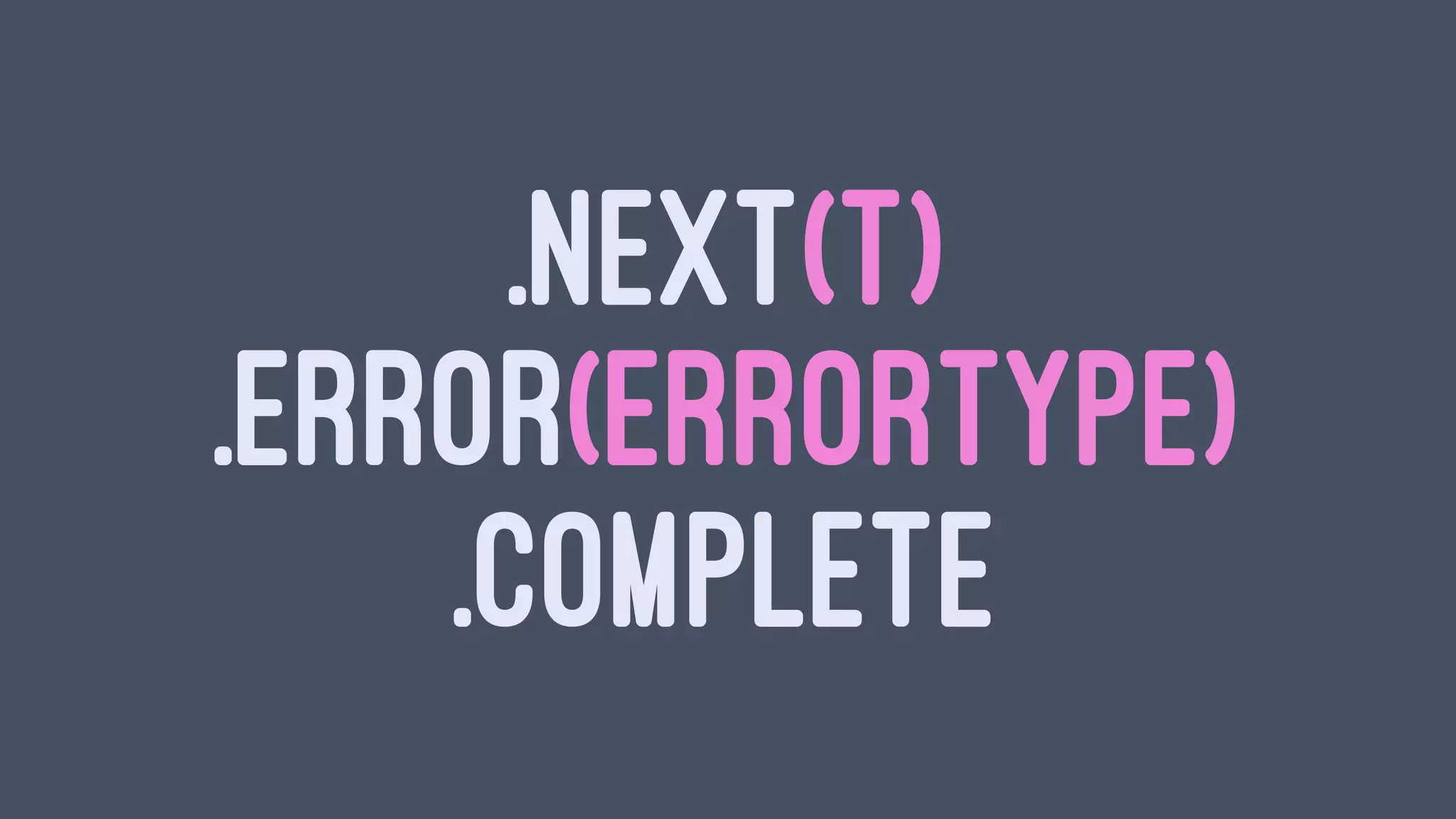

41. .NEXT(T)
.ERROR(ERRORTYPE)
.COMPLETE

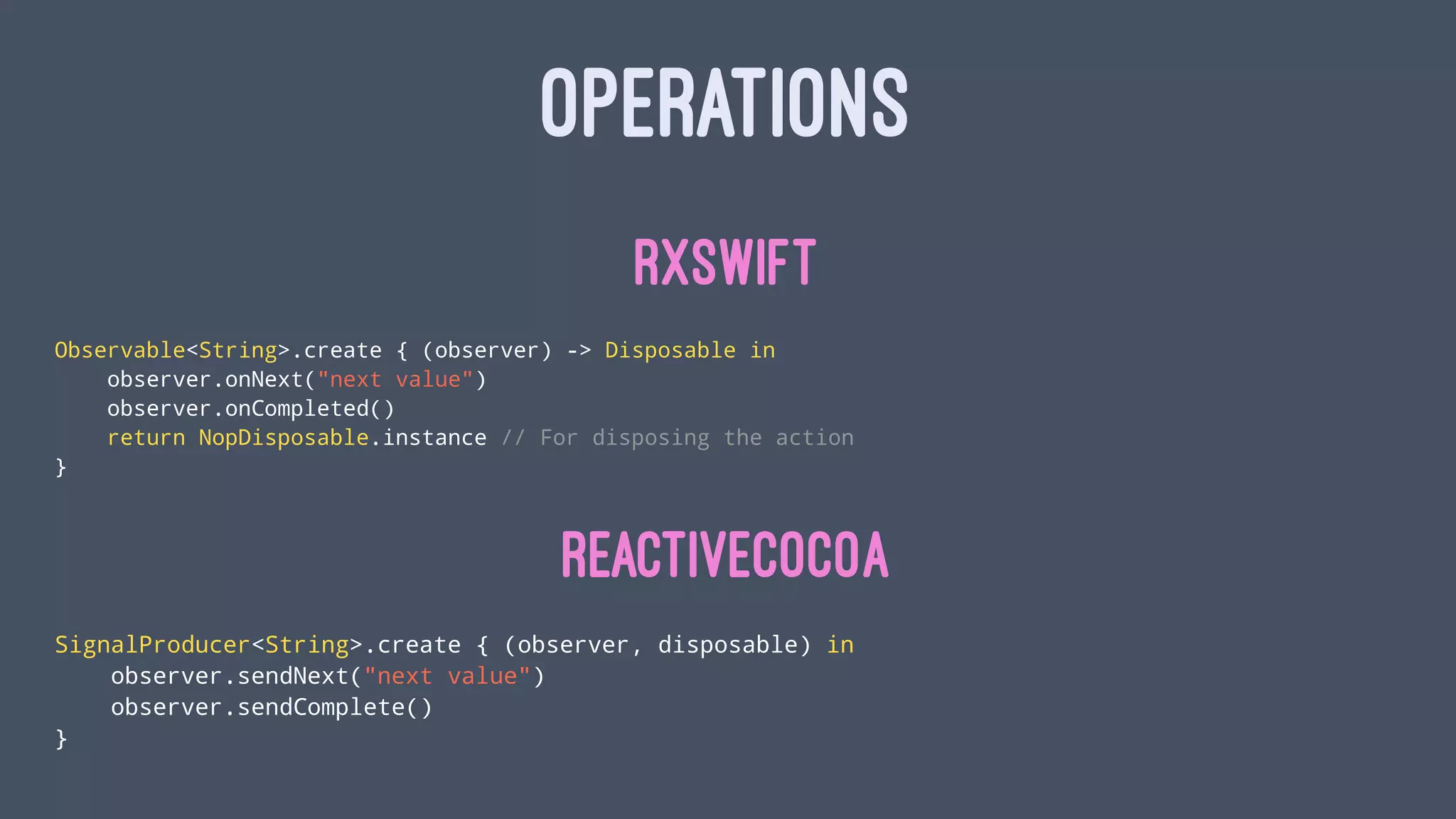

42. OPERATIONS
RxSwift
Observable<String>.create { (observer) -> Disposable in
observer.onNext("next value")
observer.onCompleted()
return NopDisposable.instance // For disposing the action
}
ReactiveCocoa
SignalProducer<String>.create { (observer, disposable) in
observer.sendNext("next value")
observer.sendComplete()
}

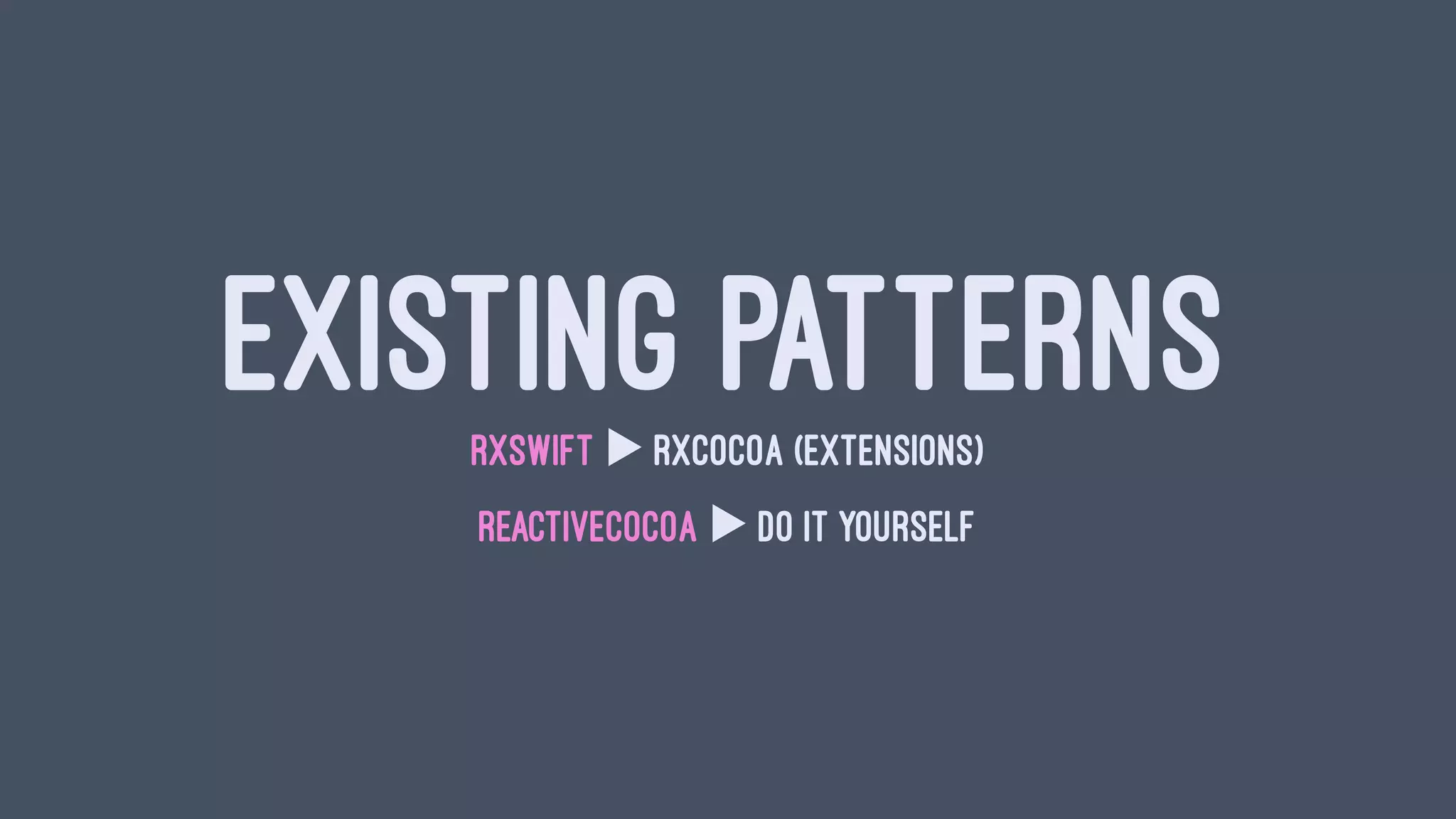

43. EXISTING PATTERNSRXSWIFT ▶︎ RXCOCOA (EXTENSIONS)
REACTIVECOCOA ▶︎ DO IT YOURSELF

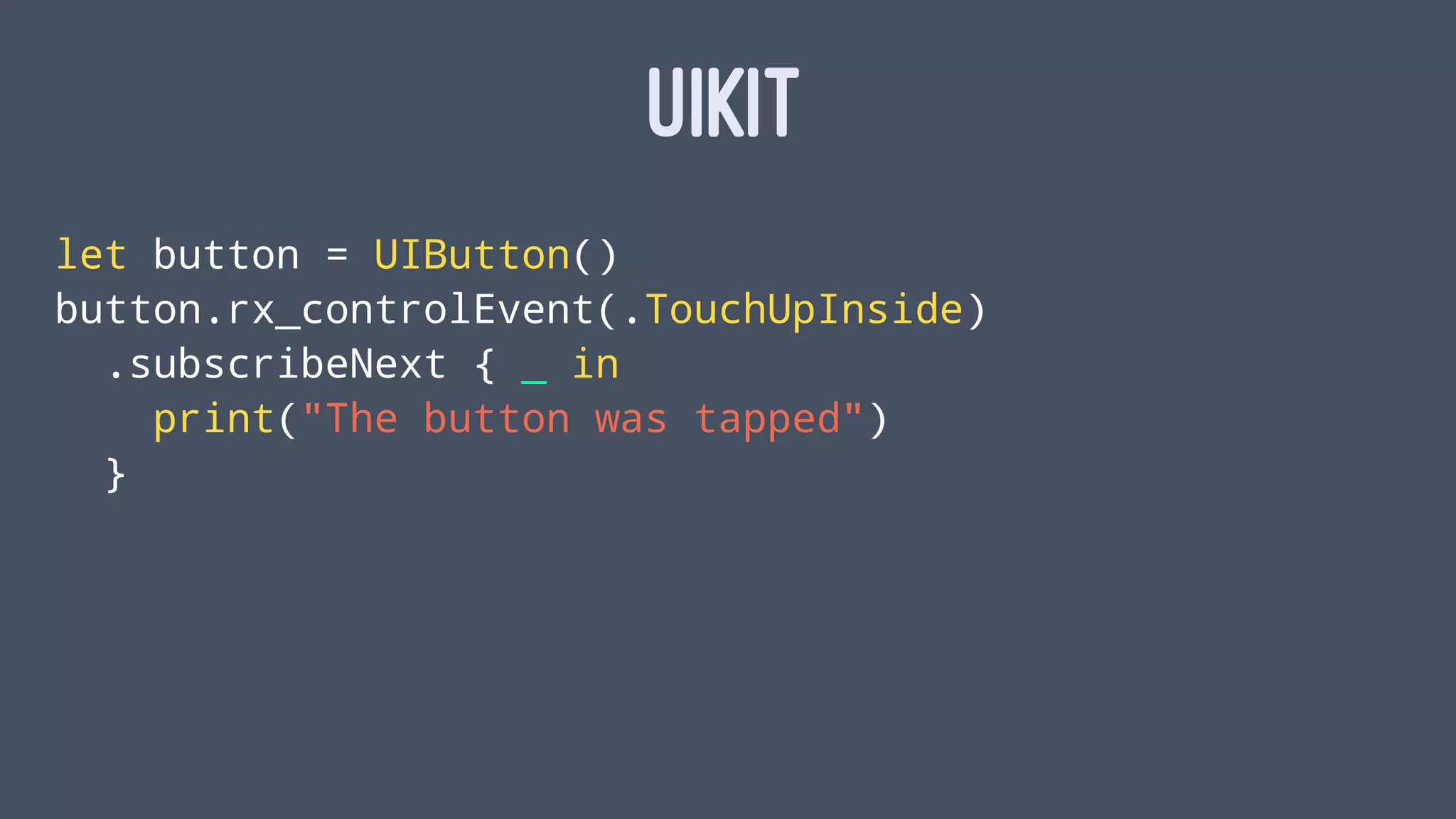

44. UIKIT
let button = UIButton()
button.rx_controlEvent(.TouchUpInside)
.subscribeNext { _ in
print("The button was tapped")
}

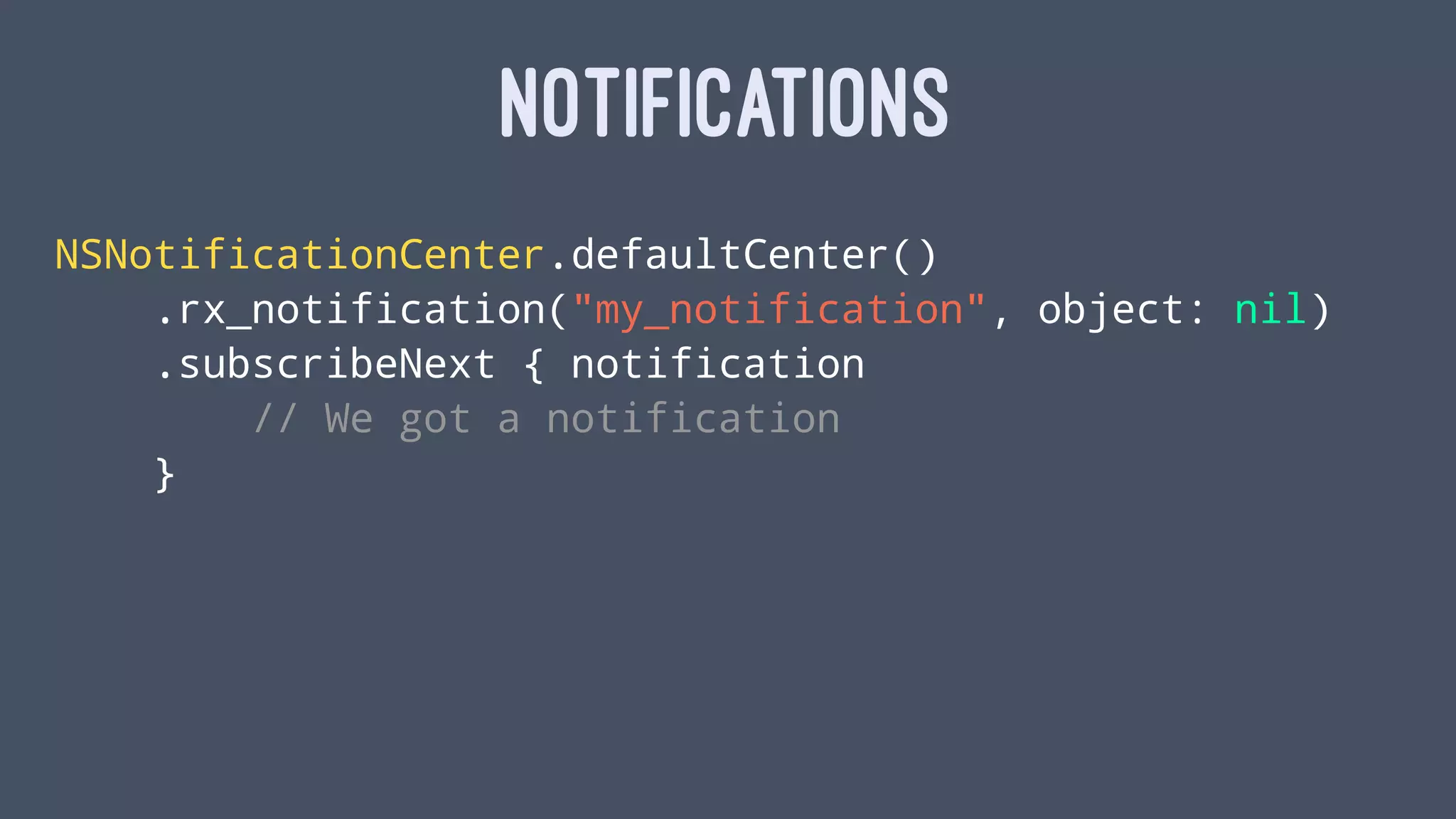

45. NOTIFICATIONS
NSNotificationCenter.defaultCenter()
.rx_notification("my_notification", object: nil)
.subscribeNext { notification
// We got a notification
}

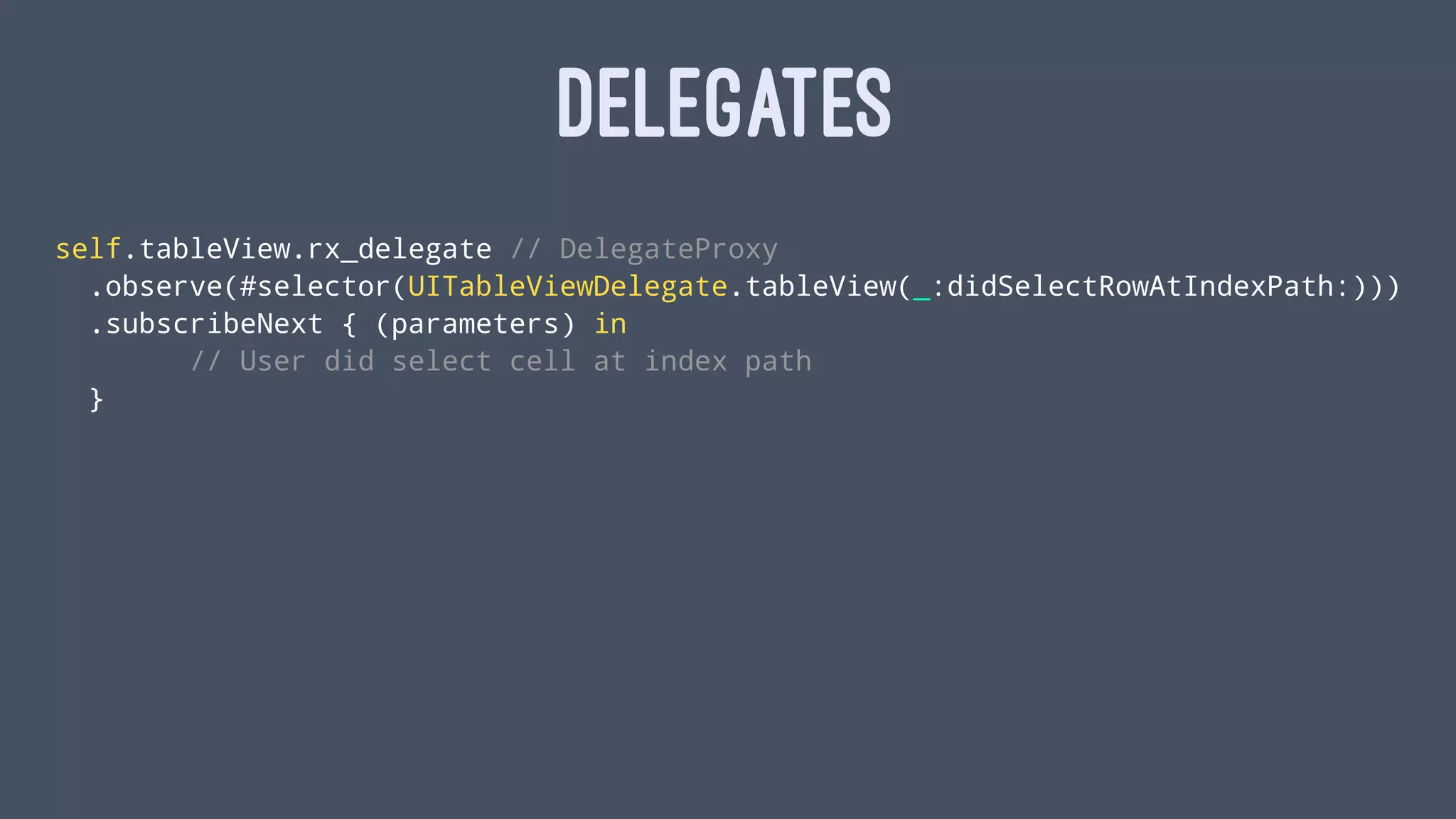

46. DELEGATES
self.tableView.rx_delegate // DelegateProxy
.observe(#selector(UITableViewDelegate.tableView(_:didSelectRowAtIndexPath:)))
.subscribeNext { (parameters) in
// User did select cell at index path
}

47. PLAYING !WITH OBSERVABLES

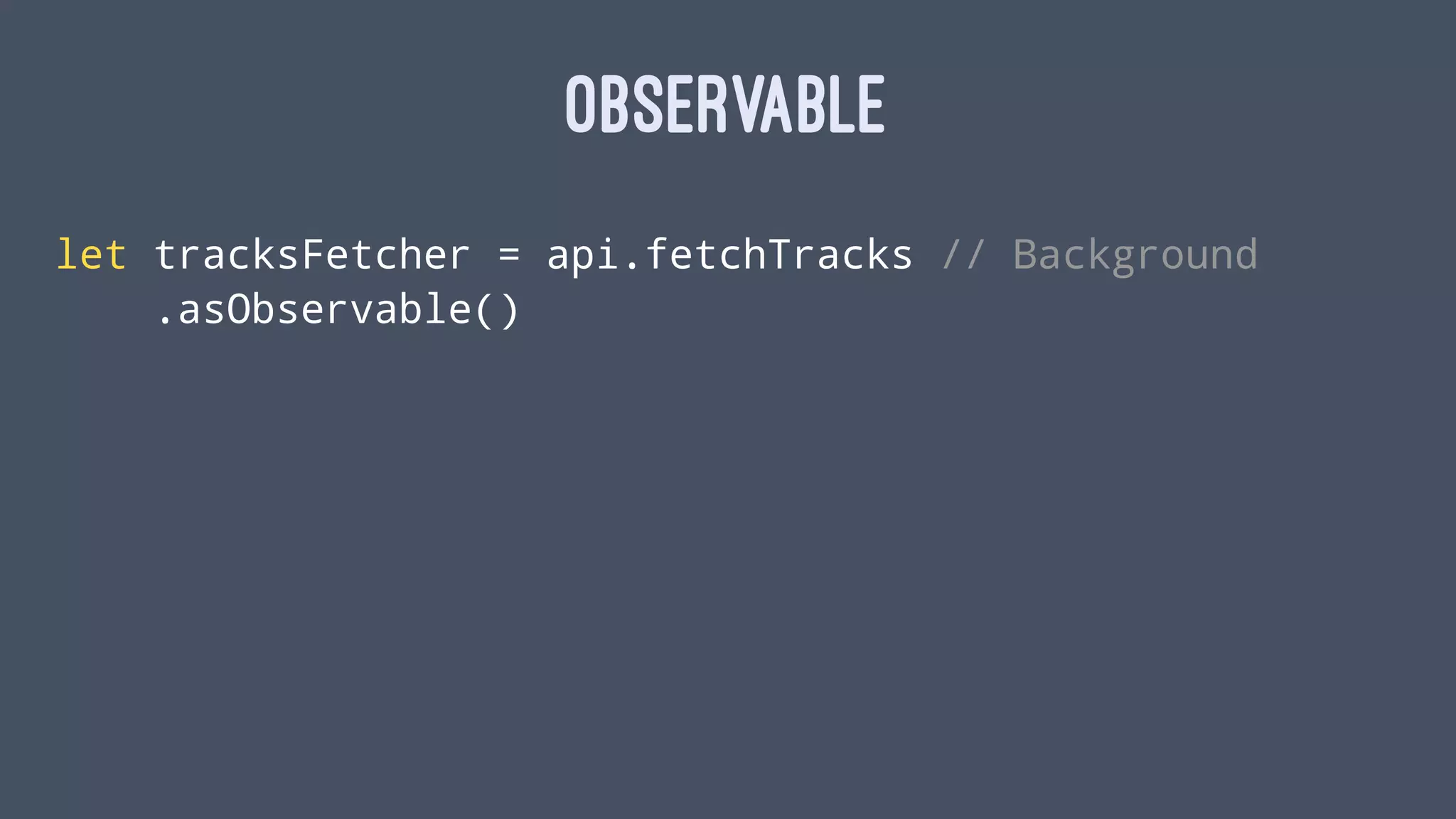

48. OBSERVABLE
let tracksFetcher = api.fetchTracks // Background
.asObservable()

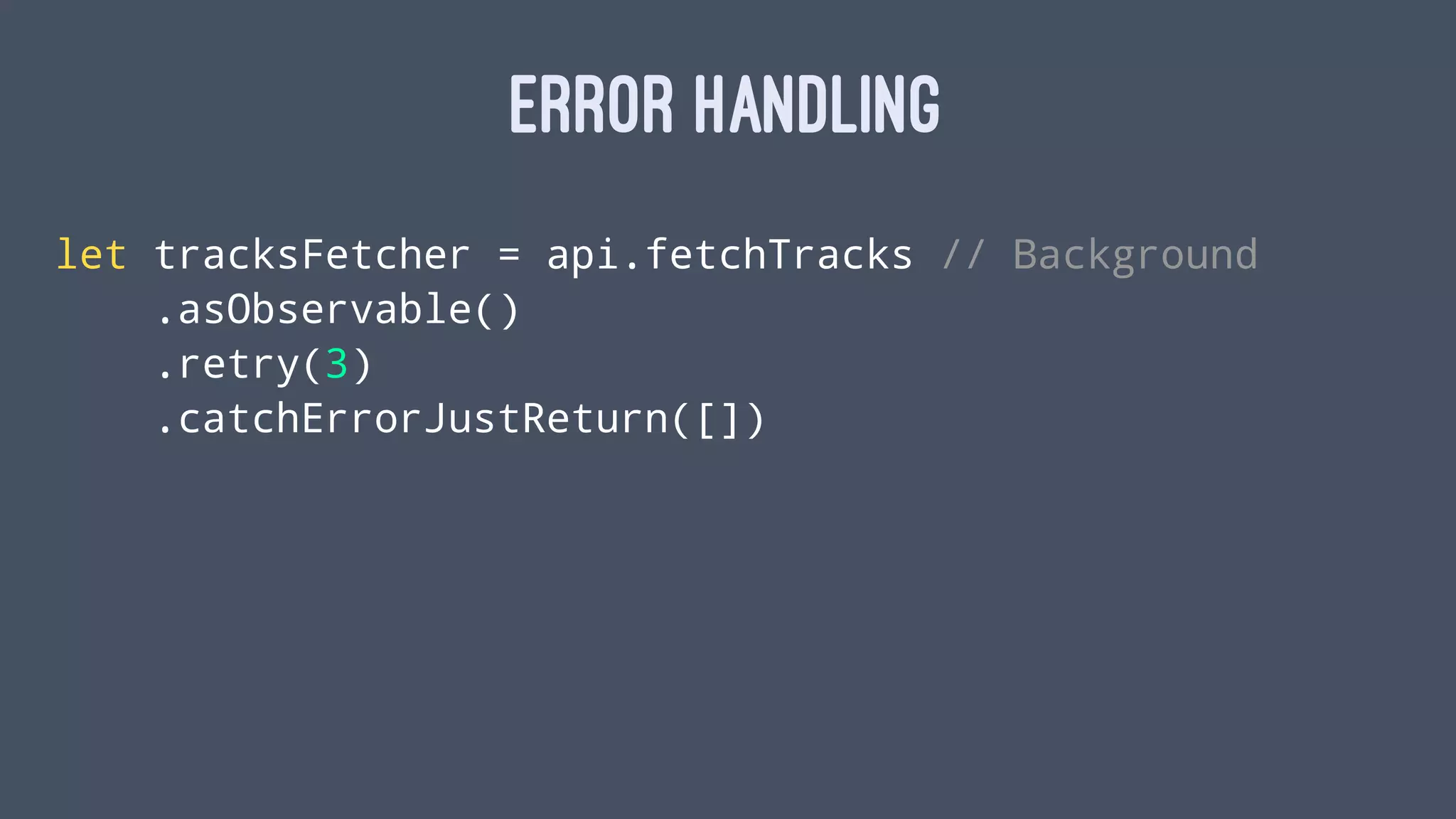

49. ERROR HANDLING
let tracksFetcher = api.fetchTracks // Background
.asObservable()
.retry(3)
.catchErrorJustReturn([])

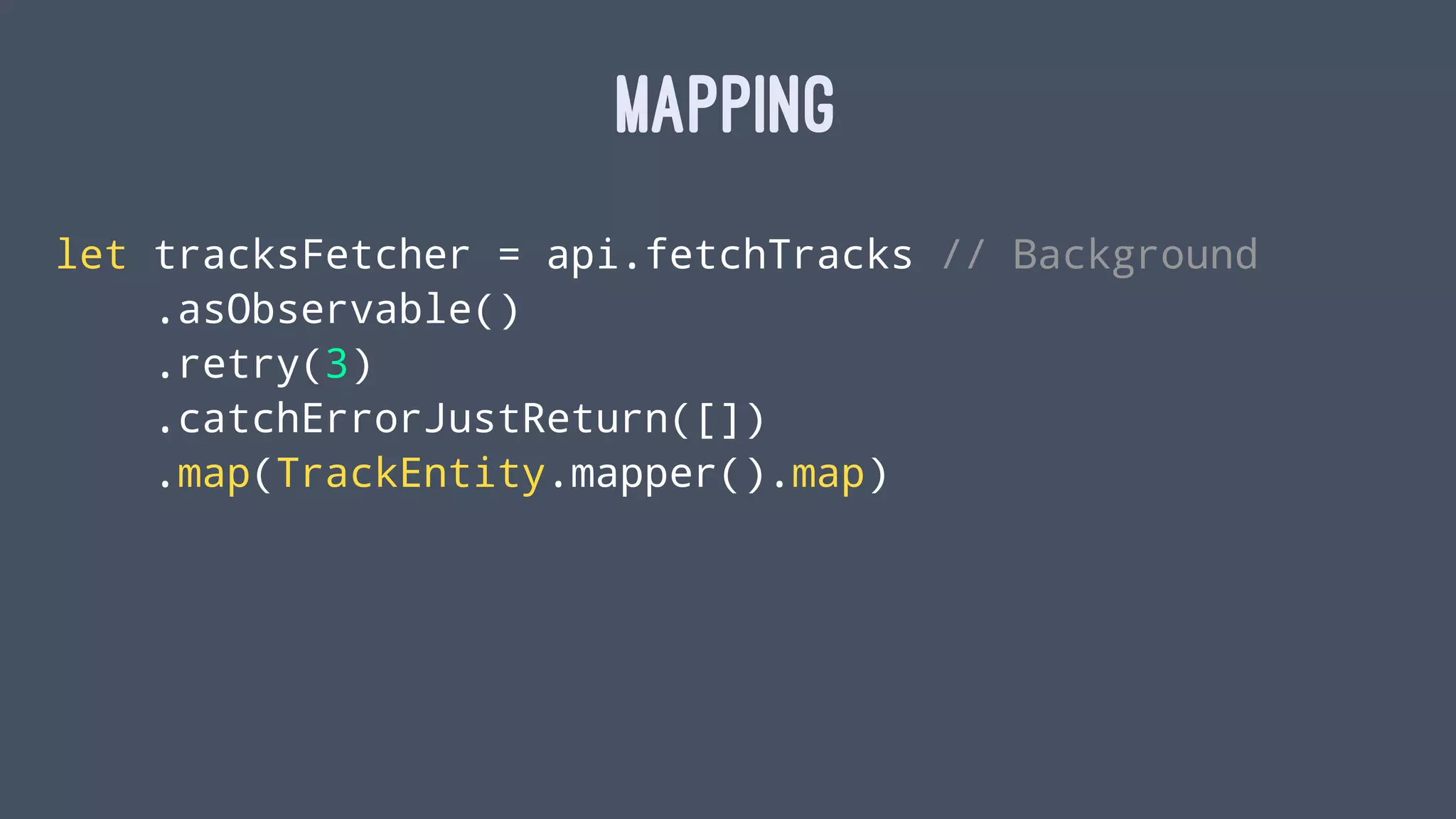

50. MAPPING
let tracksFetcher = api.fetchTracks // Background
.asObservable()
.retry(3)
.catchErrorJustReturn([])
.map(TrackEntity.mapper().map)

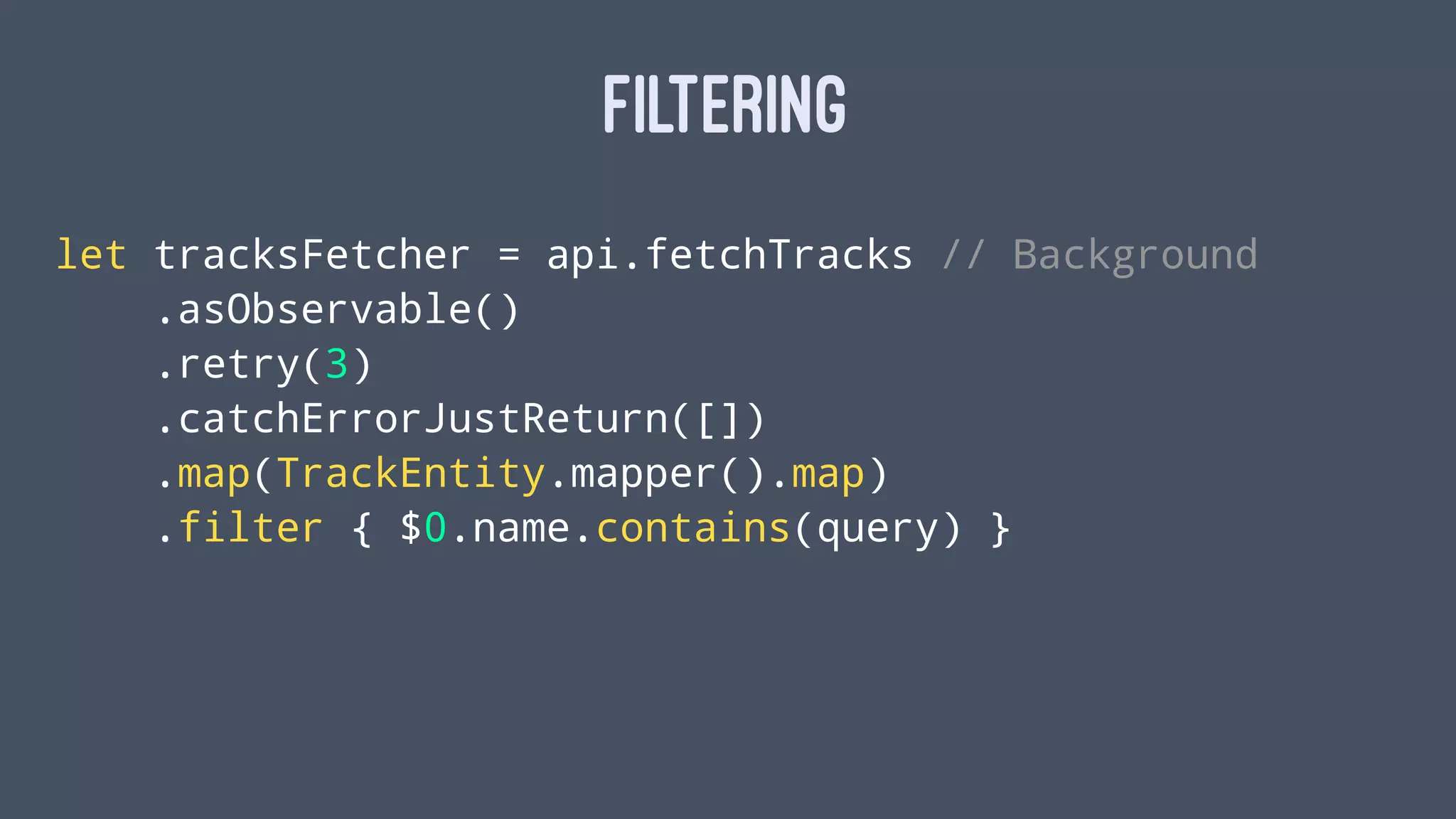

51. FILTERING
let tracksFetcher = api.fetchTracks // Background
.asObservable()
.retry(3)
.catchErrorJustReturn([])
.map(TrackEntity.mapper().map)
.filter { $0.name.contains(query) }

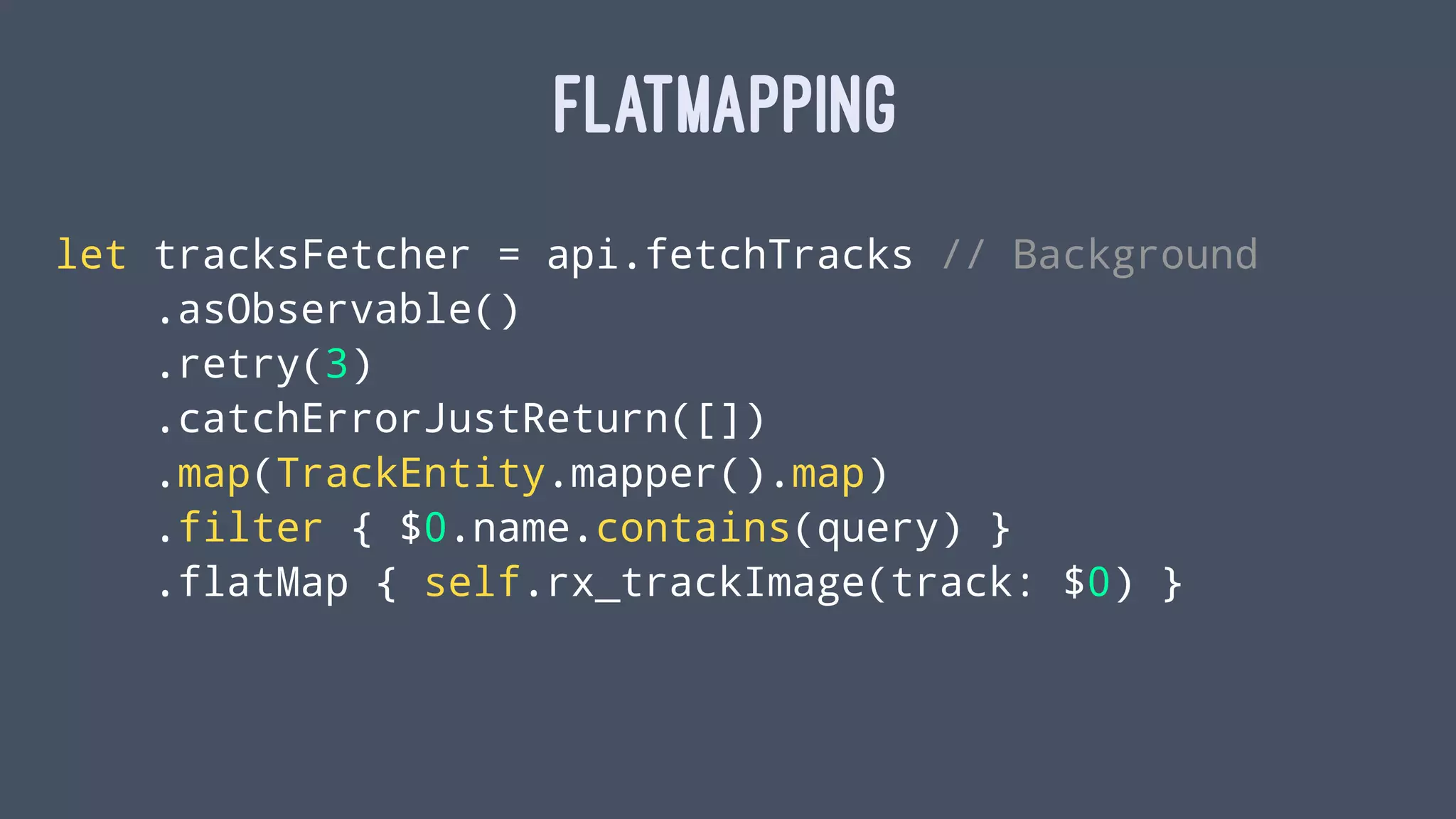

52. FLATMAPPING
let tracksFetcher = api.fetchTracks // Background
.asObservable()
.retry(3)
.catchErrorJustReturn([])
.map(TrackEntity.mapper().map)
.filter { $0.name.contains(query) }
.flatMap { self.rx_trackImage(track: $0) }

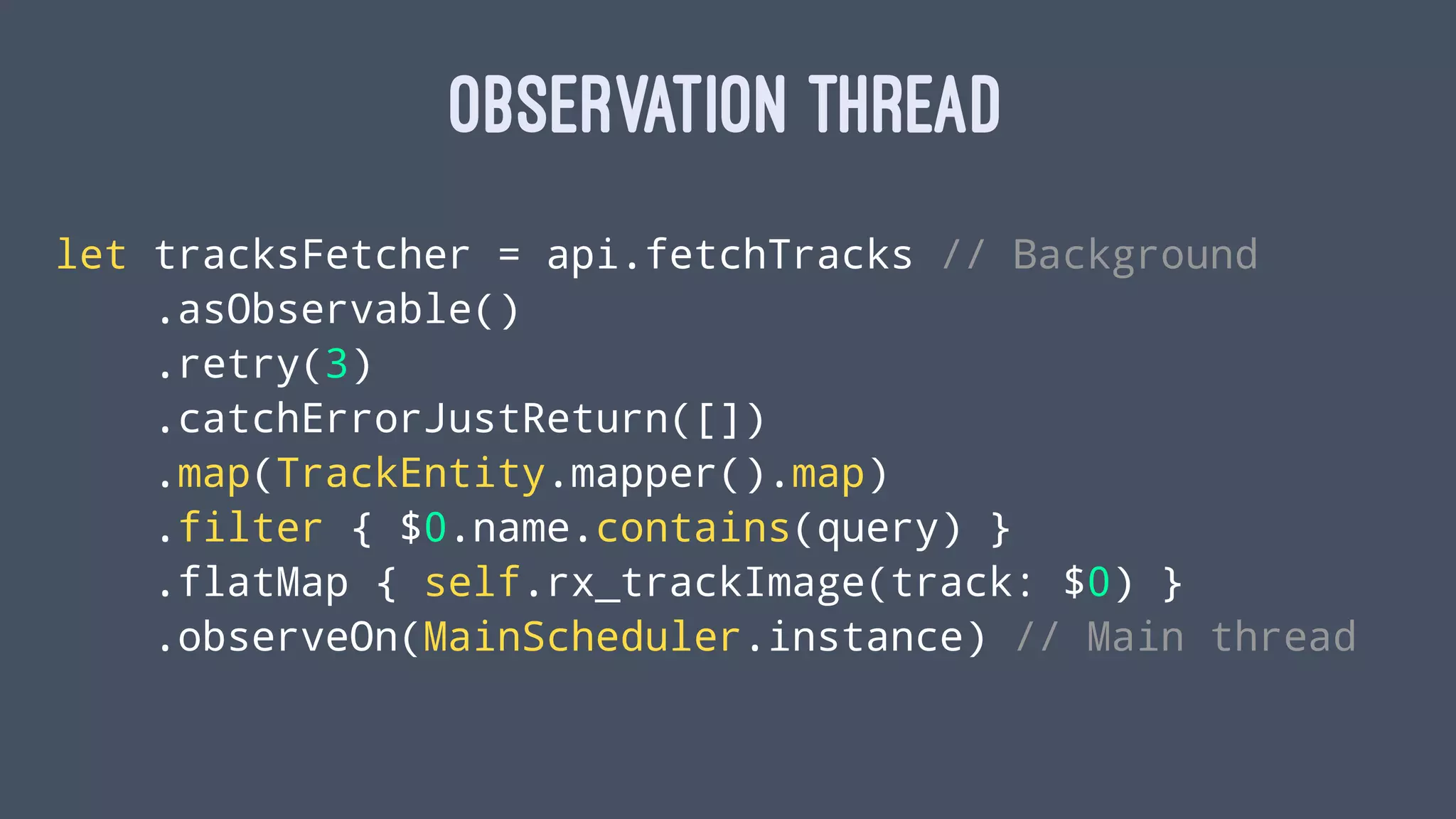

53. OBSERVATION THREAD
let tracksFetcher = api.fetchTracks // Background
.asObservable()
.retry(3)
.catchErrorJustReturn([])
.map(TrackEntity.mapper().map)
.filter { $0.name.contains(query) }
.flatMap { self.rx_trackImage(track: $0) }
.observeOn(MainScheduler.instance) // Main thread

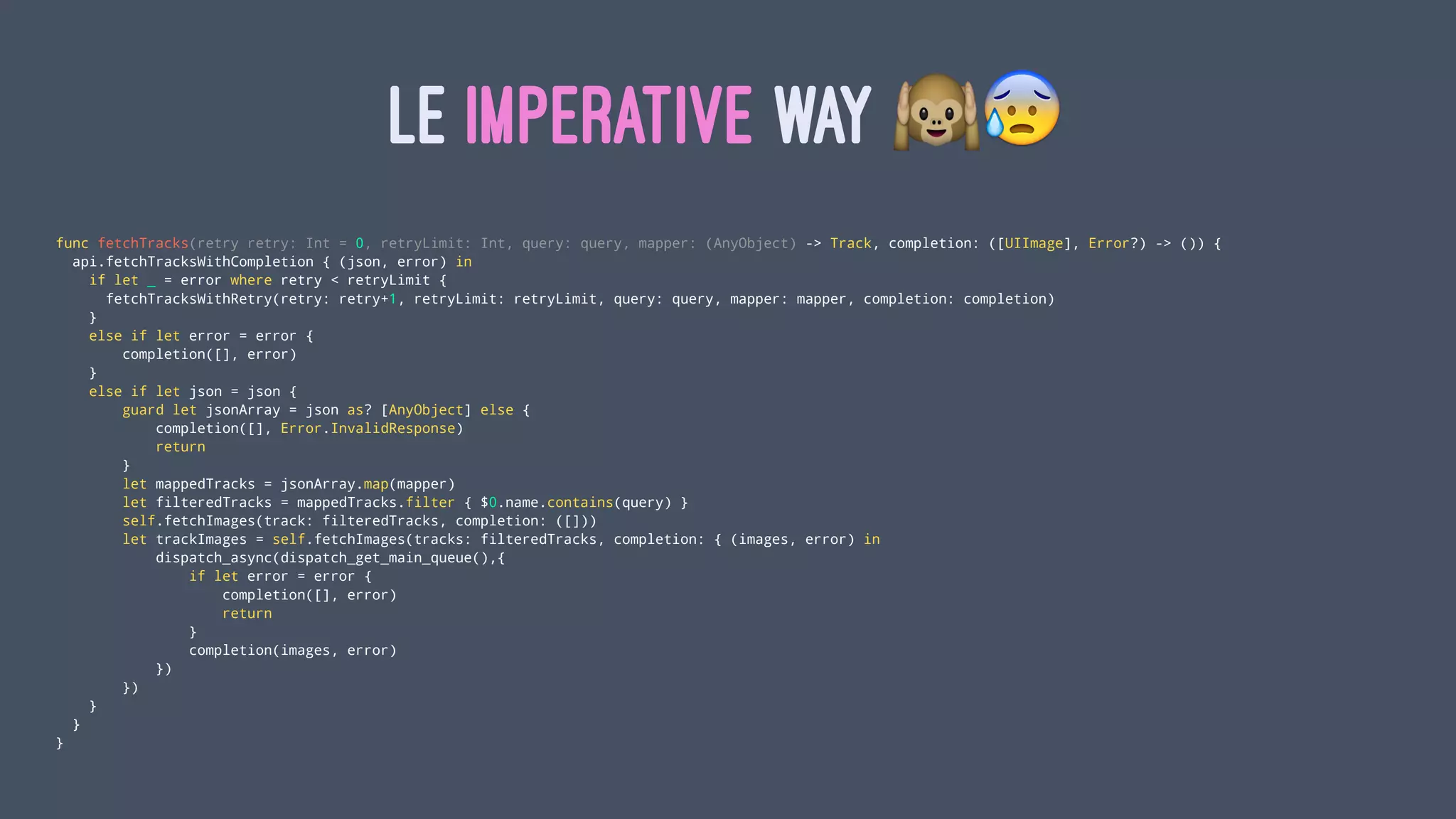

54. LE IMPERATIVE WAY !"
func fetchTracks(retry retry: Int = 0, retryLimit: Int, query: query, mapper: (AnyObject) -> Track, completion: ([UIImage], Error?) -> ()) {
api.fetchTracksWithCompletion { (json, error) in
if let _ = error where retry < retryLimit {
fetchTracksWithRetry(retry: retry+1, retryLimit: retryLimit, query: query, mapper: mapper, completion: completion)
}
else if let error = error {
completion([], error)
}
else if let json = json {
guard let jsonArray = json as? [AnyObject] else {
completion([], Error.InvalidResponse)
return
}
let mappedTracks = jsonArray.map(mapper)
let filteredTracks = mappedTracks.filter { $0.name.contains(query) }
self.fetchImages(track: filteredTracks, completion: ([]))
let trackImages = self.fetchImages(tracks: filteredTracks, completion: { (images, error) in
dispatch_async(dispatch_get_main_queue(),{
if let error = error {
completion([], error)
return
}
completion(images, error)
})
})
}
}
}

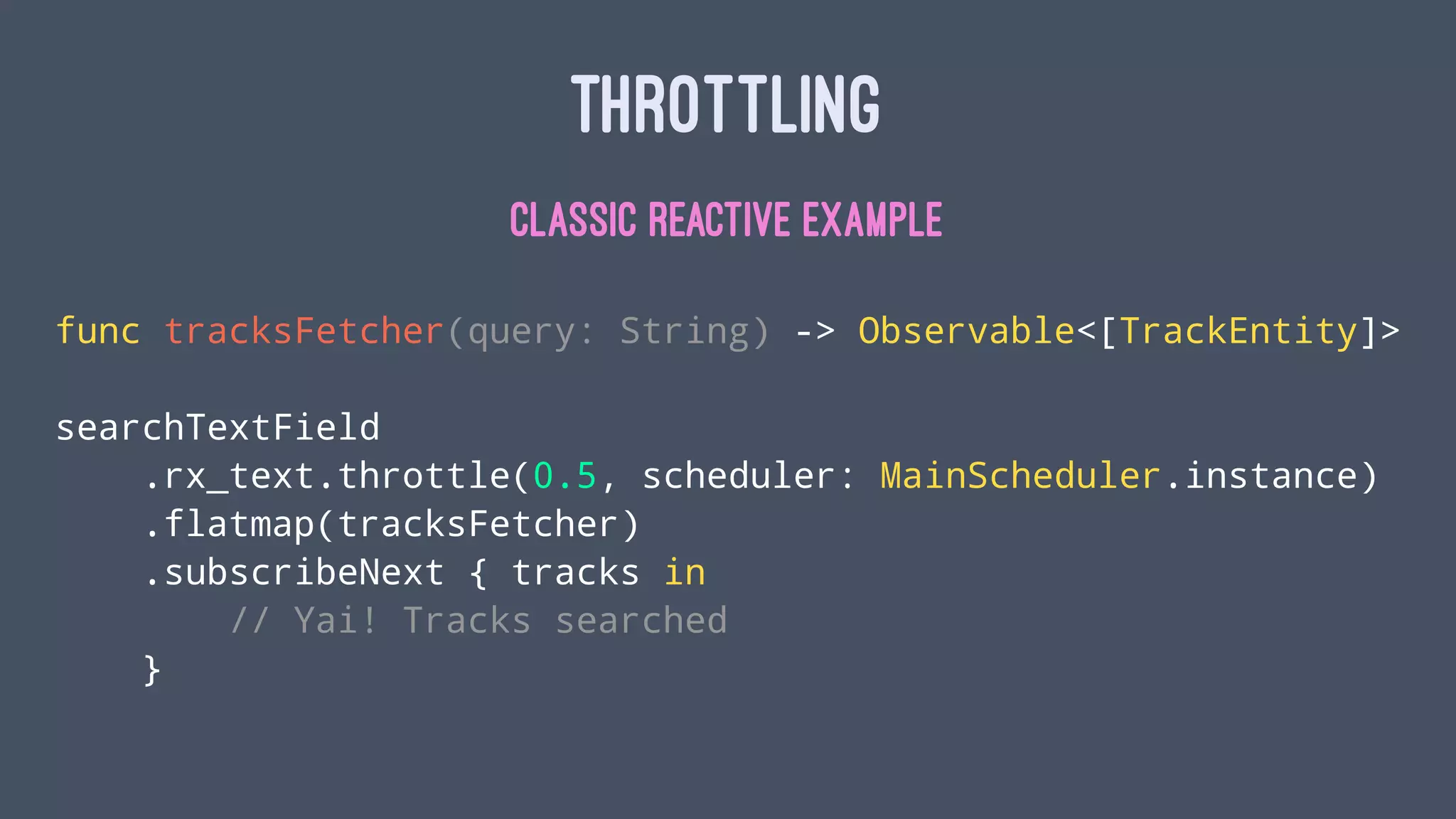

55. THROTTLING
CLASSIC REACTIVE EXAMPLE
func tracksFetcher(query: String) -> Observable<[TrackEntity]>
searchTextField
.rx_text.throttle(0.5, scheduler: MainScheduler.instance)
.flatmap(tracksFetcher)
.subscribeNext { tracks in
// Yai! Tracks searched
}

56. OTHER OPERATORS
Combining / Skipping Values / Deferring / Concatenation /
Take some values / Zipping

57. OBSERVING !EVENTS

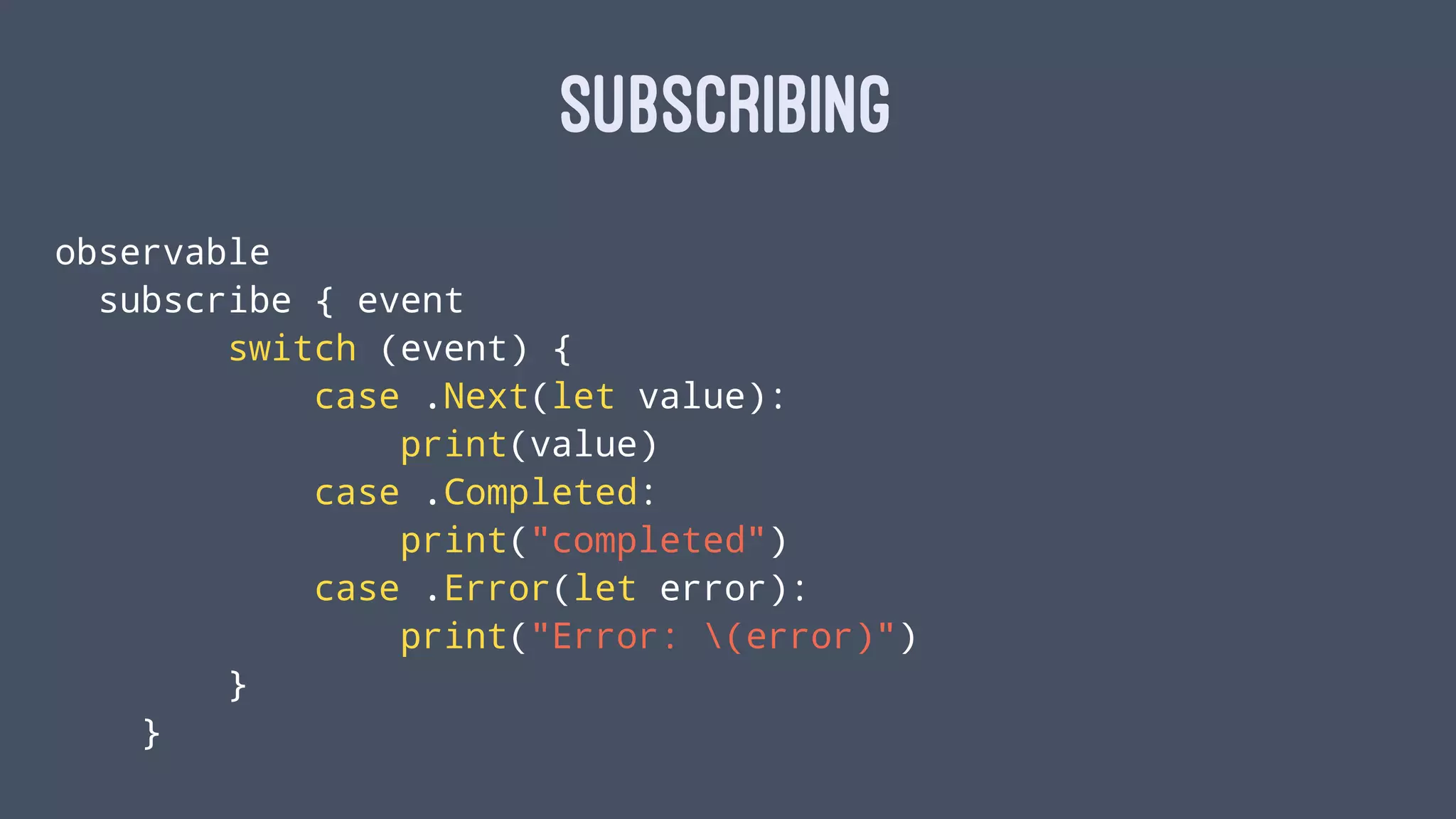

58. SUBSCRIBING
observable
subscribe { event
switch (event) {
case .Next(let value):
print(value)
case .Completed:
print("completed")
case .Error(let error):
print("Error: (error)")
}
}

59. BIND CHANGES OVER THE
TIME TO AN OBSERVABLEOBSERVABLE ▶ BINDING ▶ OBSERVER

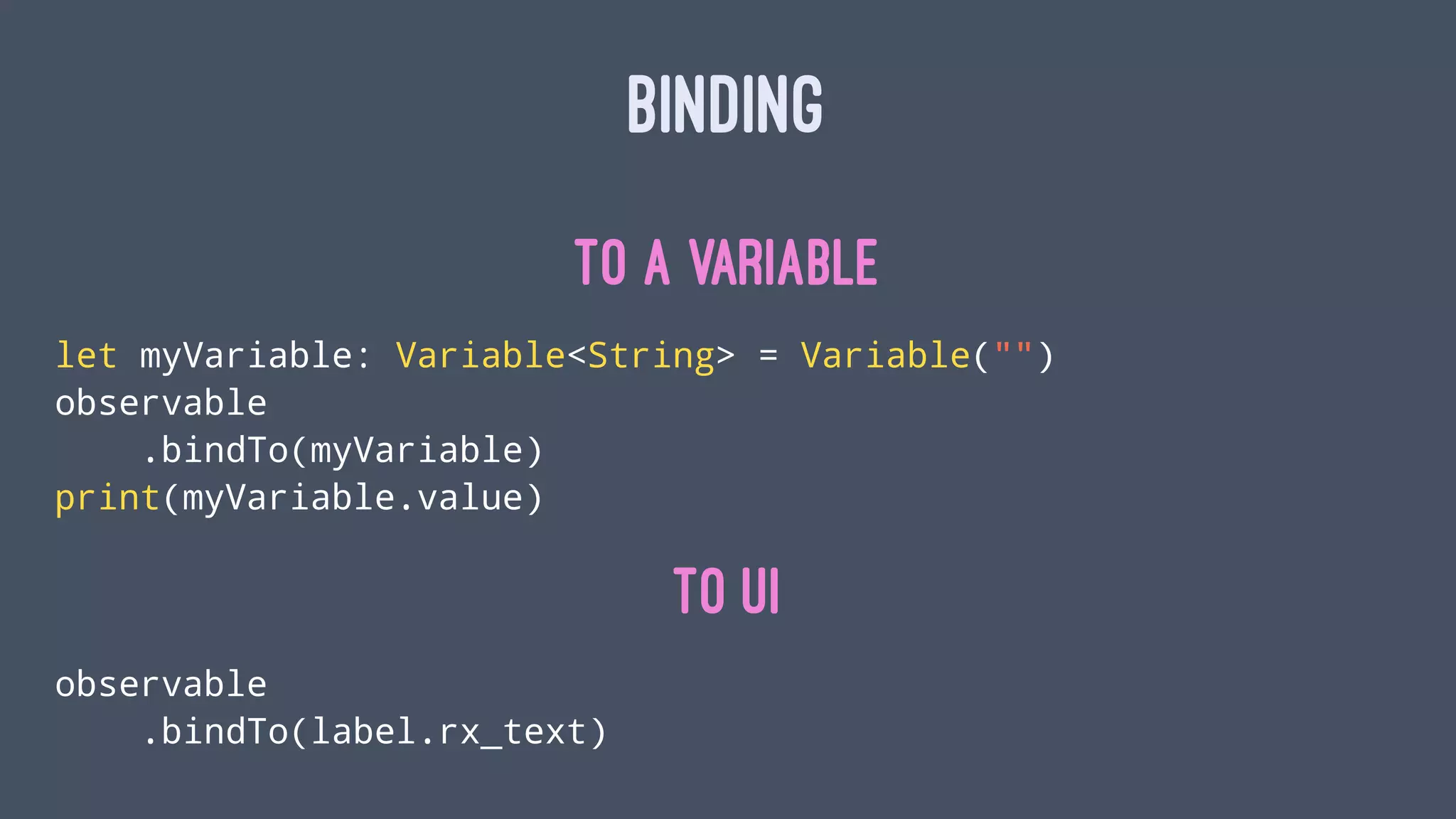

60. BINDING
To a Variable
let myVariable: Variable<String> = Variable("")
observable
.bindTo(myVariable)
print(myVariable.value)
To UI
observable
.bindTo(label.rx_text)

62. ! CAVEATSBECAUSE YES...
IT COULDN'T BE PERFECT

63. DEBUGGINGDEBUG OPERATOR IN RXSWIFT

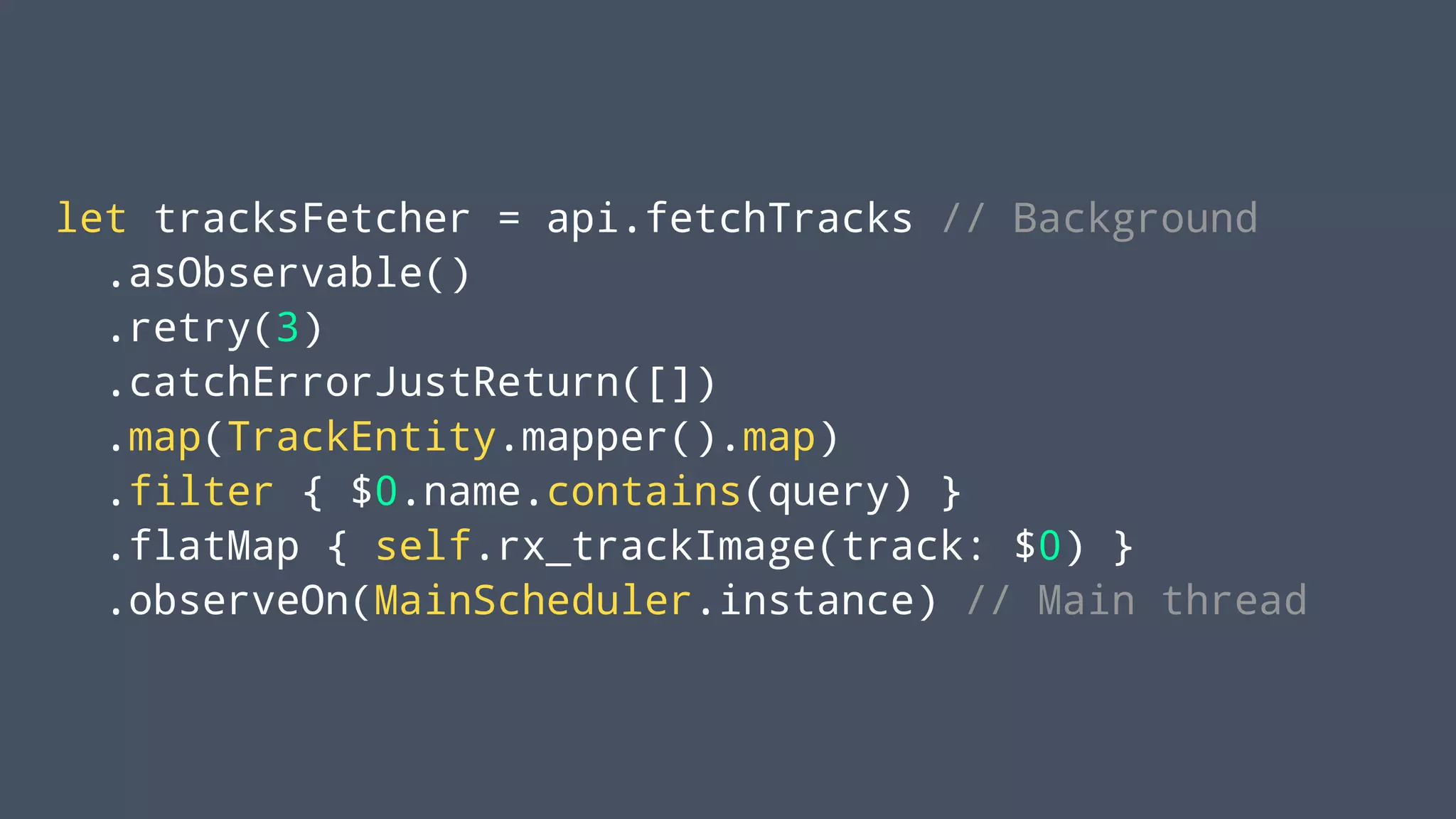

64. let tracksFetcher = api.fetchTracks // Background
.asObservable()
.retry(3)
.catchErrorJustReturn([])
.map(TrackEntity.mapper().map)
.filter { $0.name.contains(query) }
.flatMap { self.rx_trackImage(track: $0) }
.observeOn(MainScheduler.instance) // Main thread

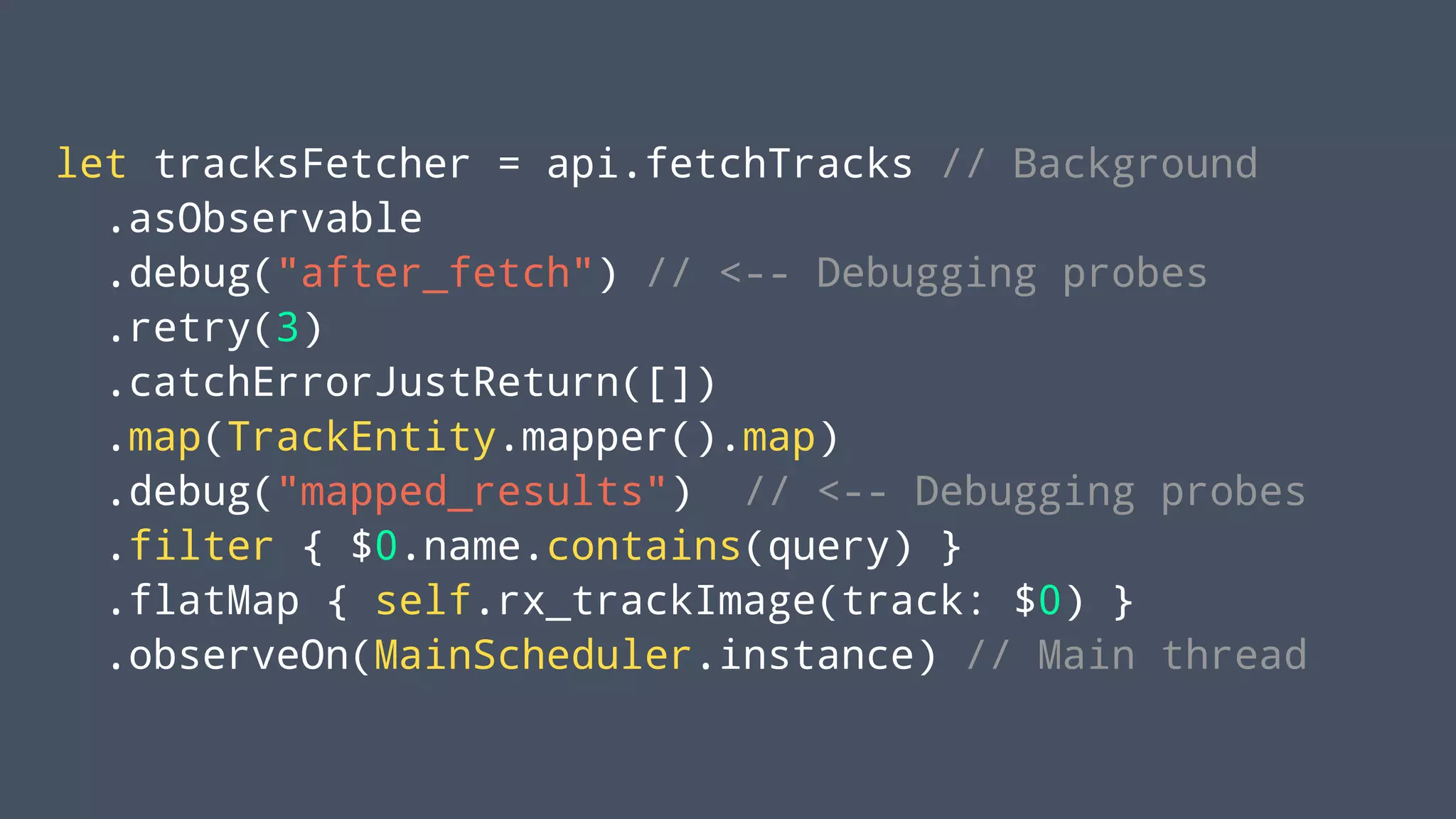

65. let tracksFetcher = api.fetchTracks // Background
.asObservable
.debug("after_fetch") // <-- Debugging probes
.retry(3)
.catchErrorJustReturn([])
.map(TrackEntity.mapper().map)
.debug("mapped_results") // <-- Debugging probes
.filter { $0.name.contains(query) }
.flatMap { self.rx_trackImage(track: $0) }
.observeOn(MainScheduler.instance) // Main thread

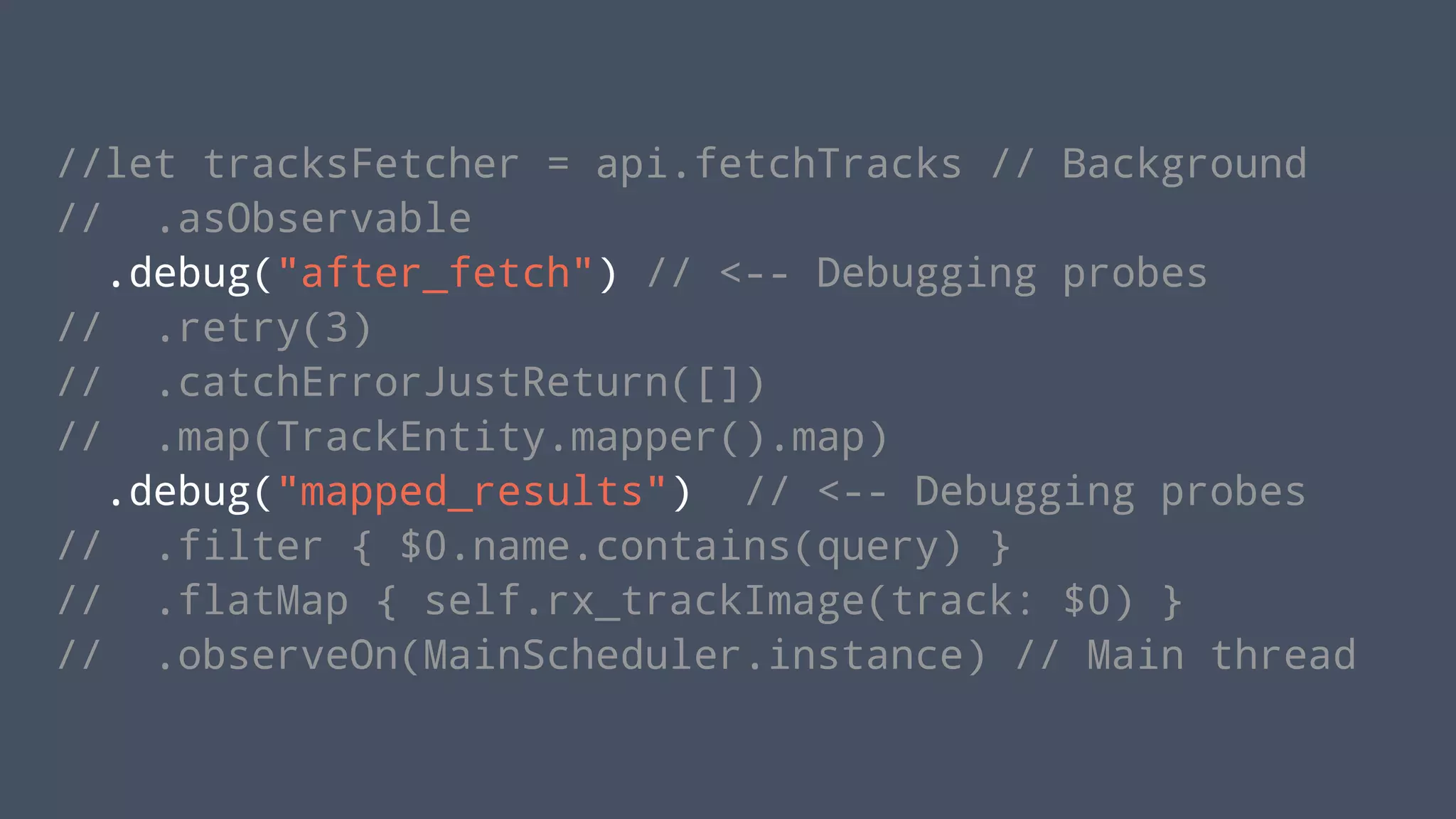

66. //let tracksFetcher = api.fetchTracks // Background
// .asObservable
.debug("after_fetch") // <-- Debugging probes
// .retry(3)
// .catchErrorJustReturn([])
// .map(TrackEntity.mapper().map)
.debug("mapped_results") // <-- Debugging probes
// .filter { $0.name.contains(query) }
// .flatMap { self.rx_trackImage(track: $0) }
// .observeOn(MainScheduler.instance) // Main thread

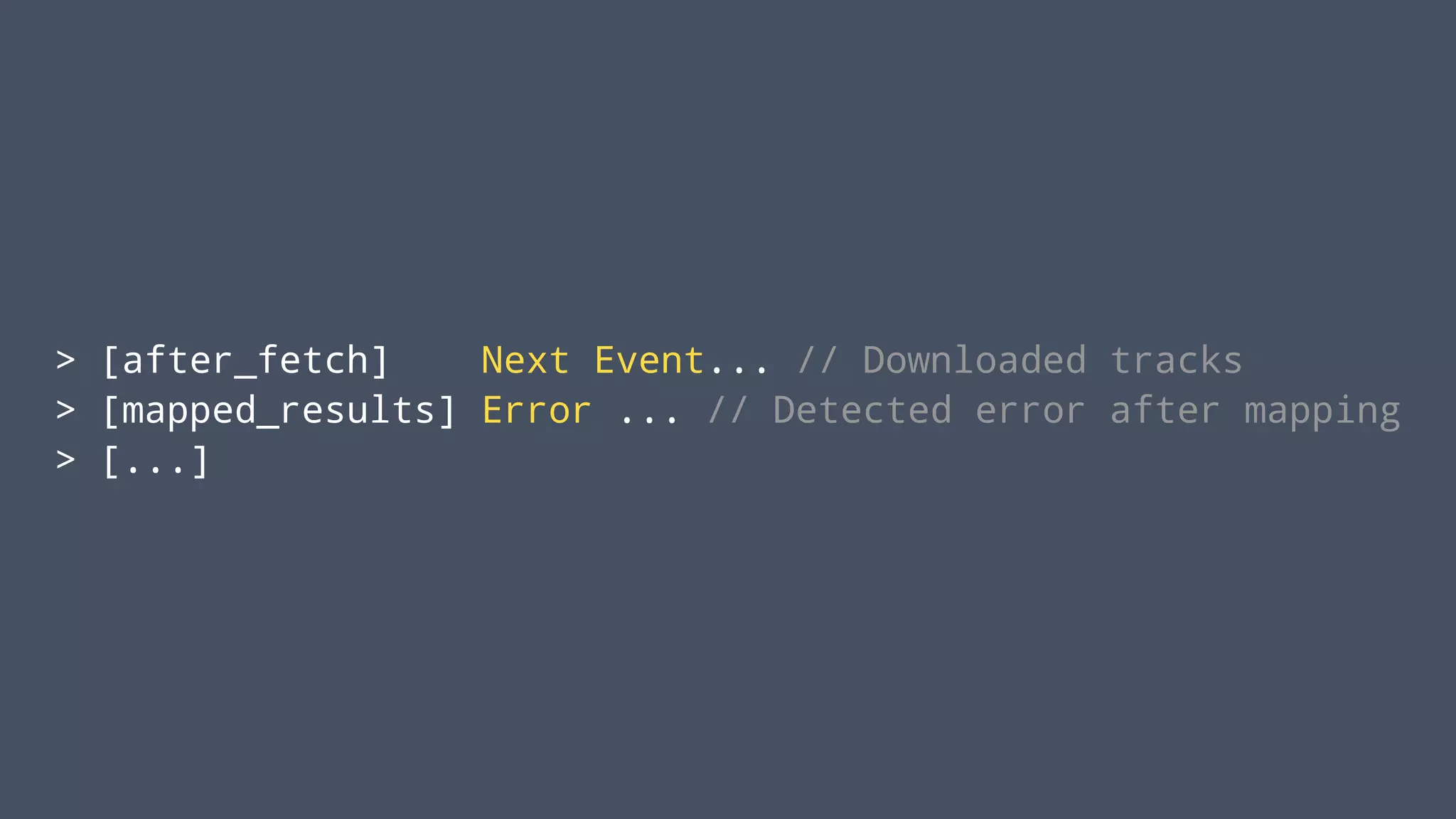

67. > [after_fetch] Next Event... // Downloaded tracks
> [mapped_results] Error ... // Detected error after mapping
> [...]

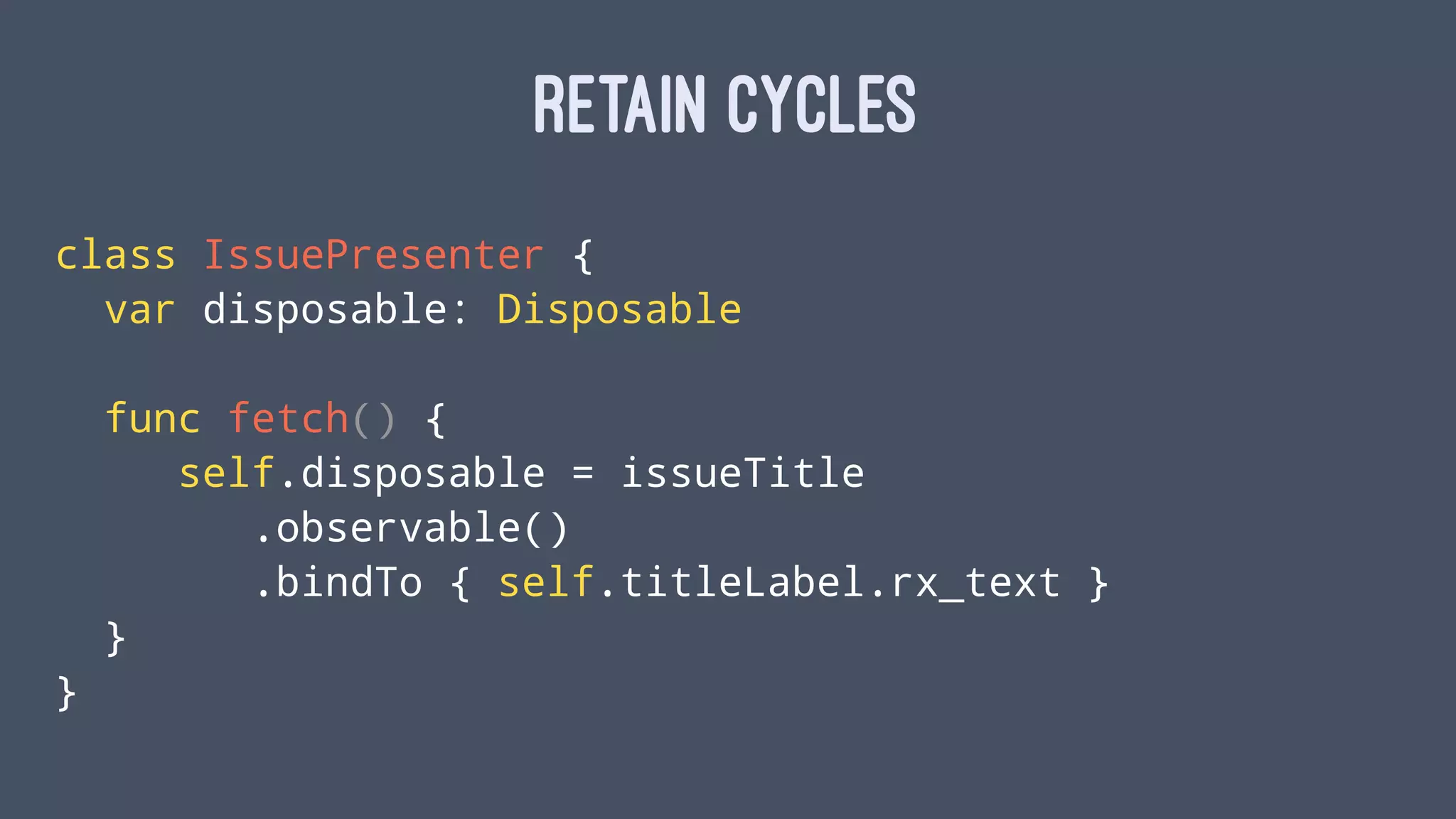

68. RETAIN CYCLES
class IssuePresenter {
var disposable: Disposable
func fetch() {
self.disposable = issueTitle
.observable()
.bindTo { self.titleLabel.rx_text }
}
}

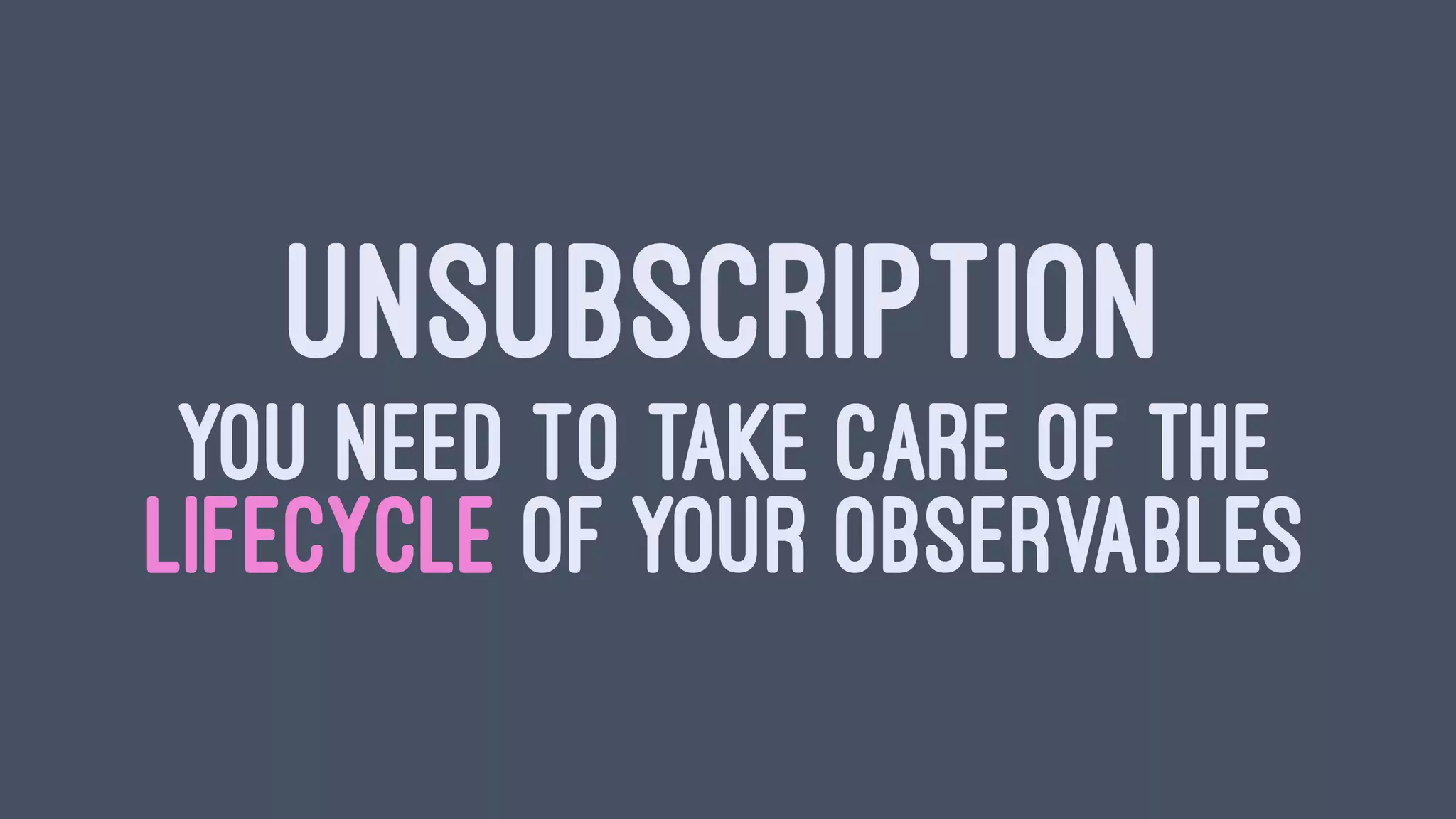

69. UNSUBSCRIPTION
YOU NEED TO TAKE CARE OF THE
LIFECYCLE OF YOUR OBSERVABLES

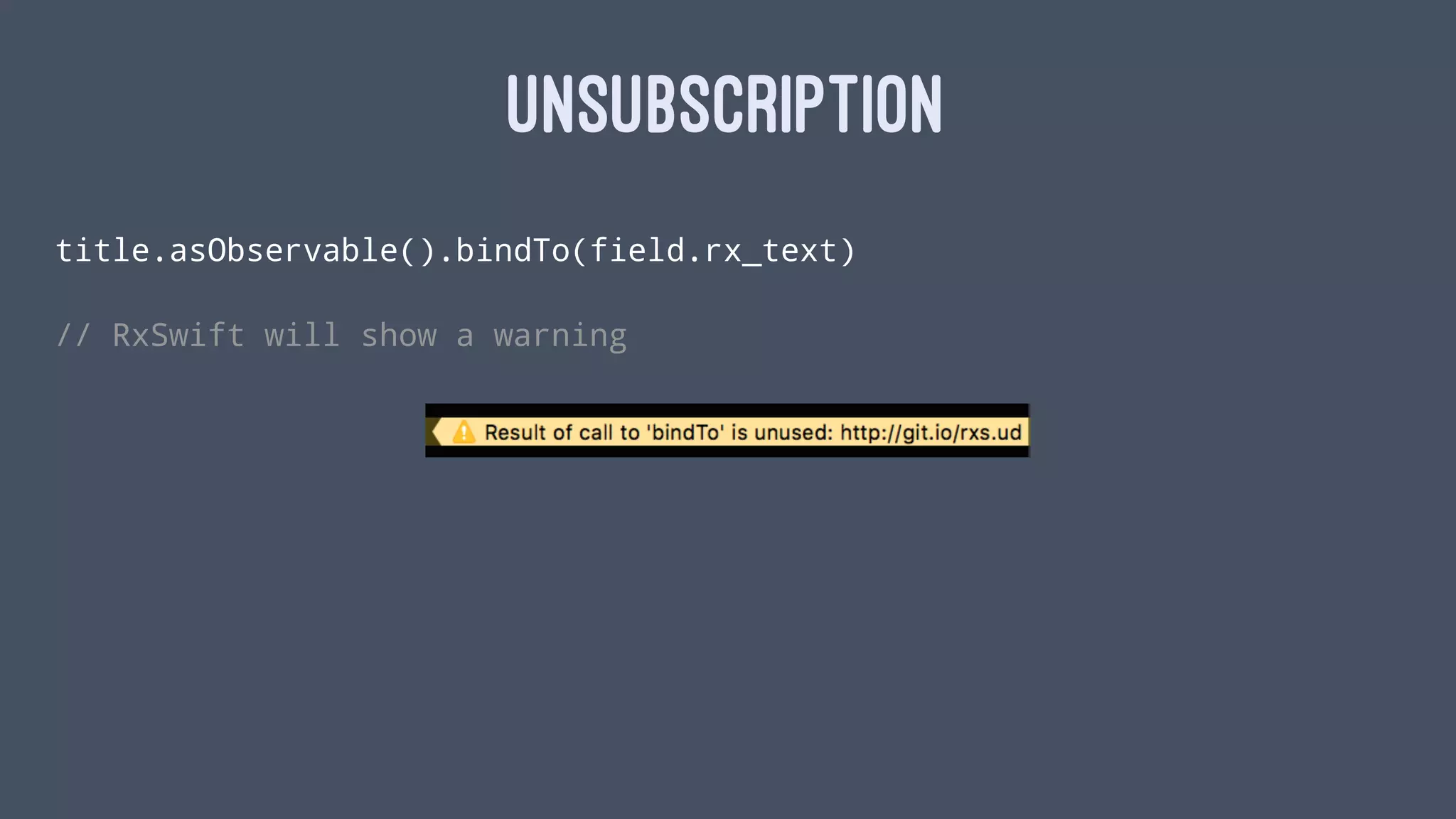

70. UNSUBSCRIPTION
title.asObservable().bindTo(field.rx_text)
// RxSwift will show a warning

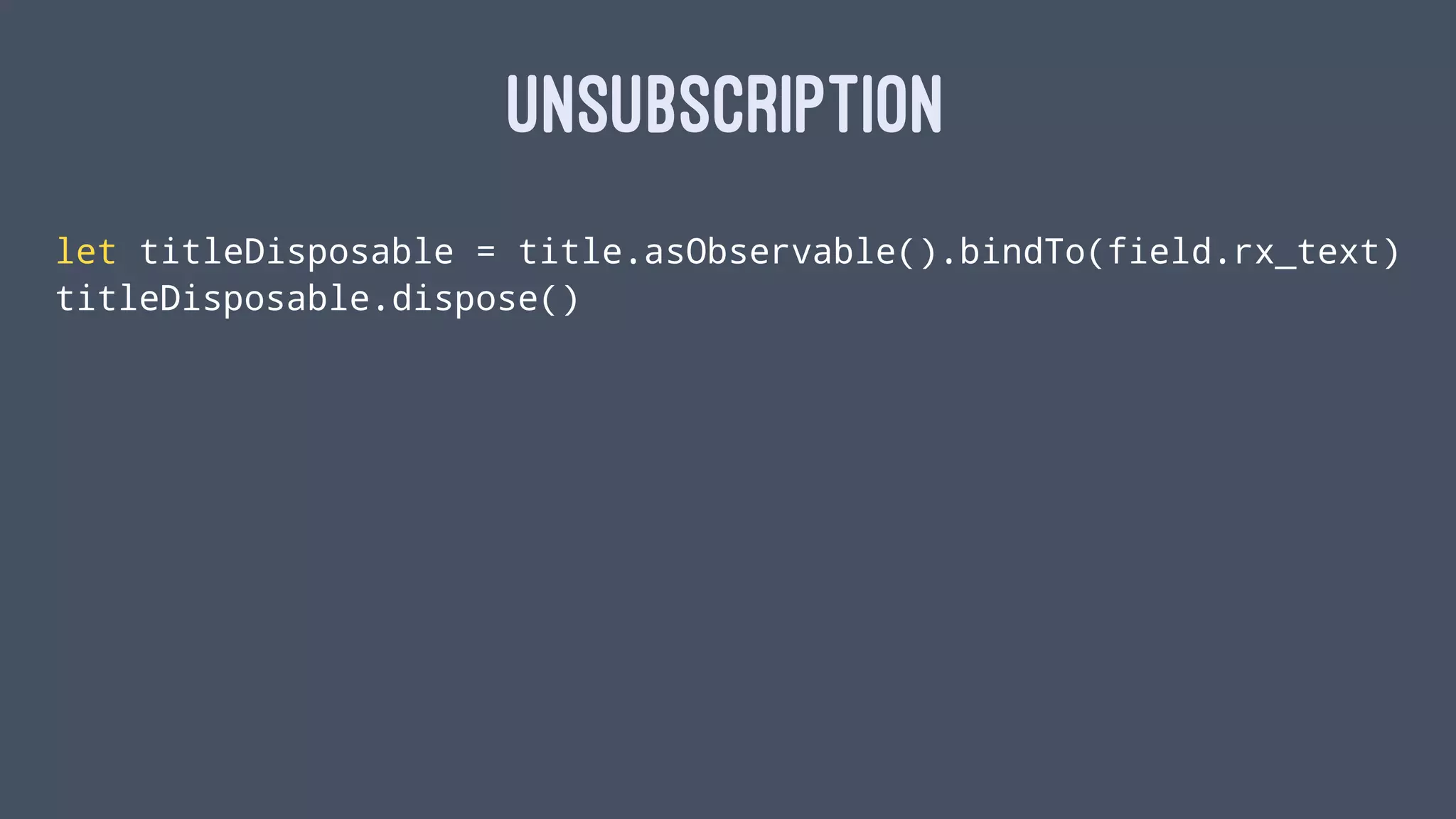

71. UNSUBSCRIPTION
let titleDisposable = title.asObservable().bindTo(field.rx_text)
titleDisposable.dispose()

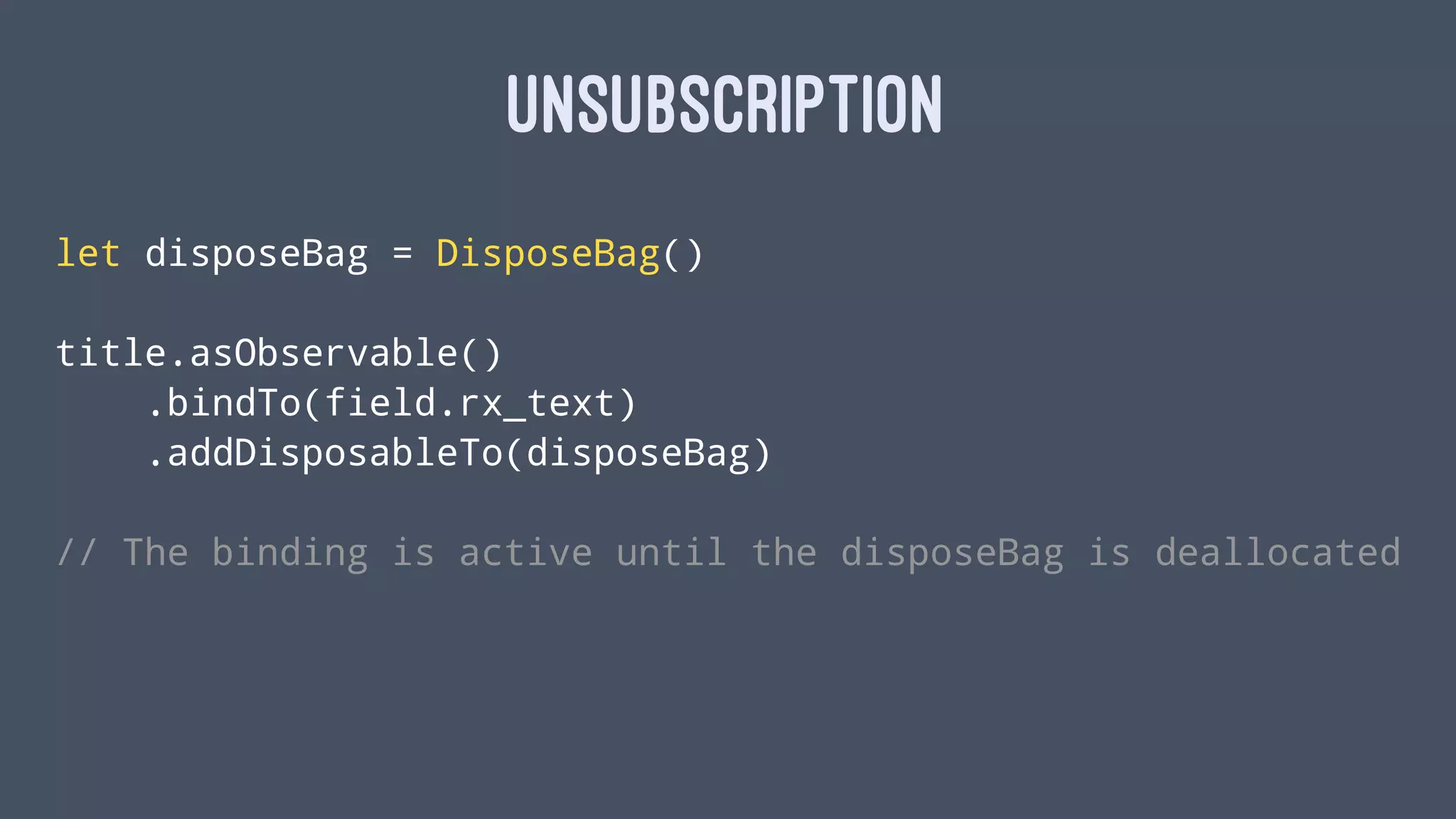

72. UNSUBSCRIPTION
let disposeBag = DisposeBag()
title.asObservable()
.bindTo(field.rx_text)
.addDisposableTo(disposeBag)
// The binding is active until the disposeBag is deallocated

73. CONCLUSIONS

74. PREVENTS STATEFUL
CODE

75. DATA FLOW MANIPULATION
BECOMES EASIER

76. BUT... !

77. YOU COUPLE YOUR
PROJECT TO A LIBRARY
!

78. REACTIVE CODE SPREADS
LIKE A VIRUS !OVERREACTIVE ⚠

79. DEFINE REACTIVE DESIGN
GUIDELINES AND STICK TO
THEM

80. HAVE REACTIVE FUN !

81. REFERENCES
> rxmarbles.com
> RxSwift Community
> RxSwift Repository
> ReactiveCocoa

82. WE ARE HIRINGPEPI@SOUNDCLOUD.COM - ISAAC@LETGO.COM
❄ BERLIN - BARCELONA !

84. THANKSQUESTIONS?
SLIDES HTTP://BIT.LY/1RFWLCI
@SAKY - @PEPIBUMUR
