![3434

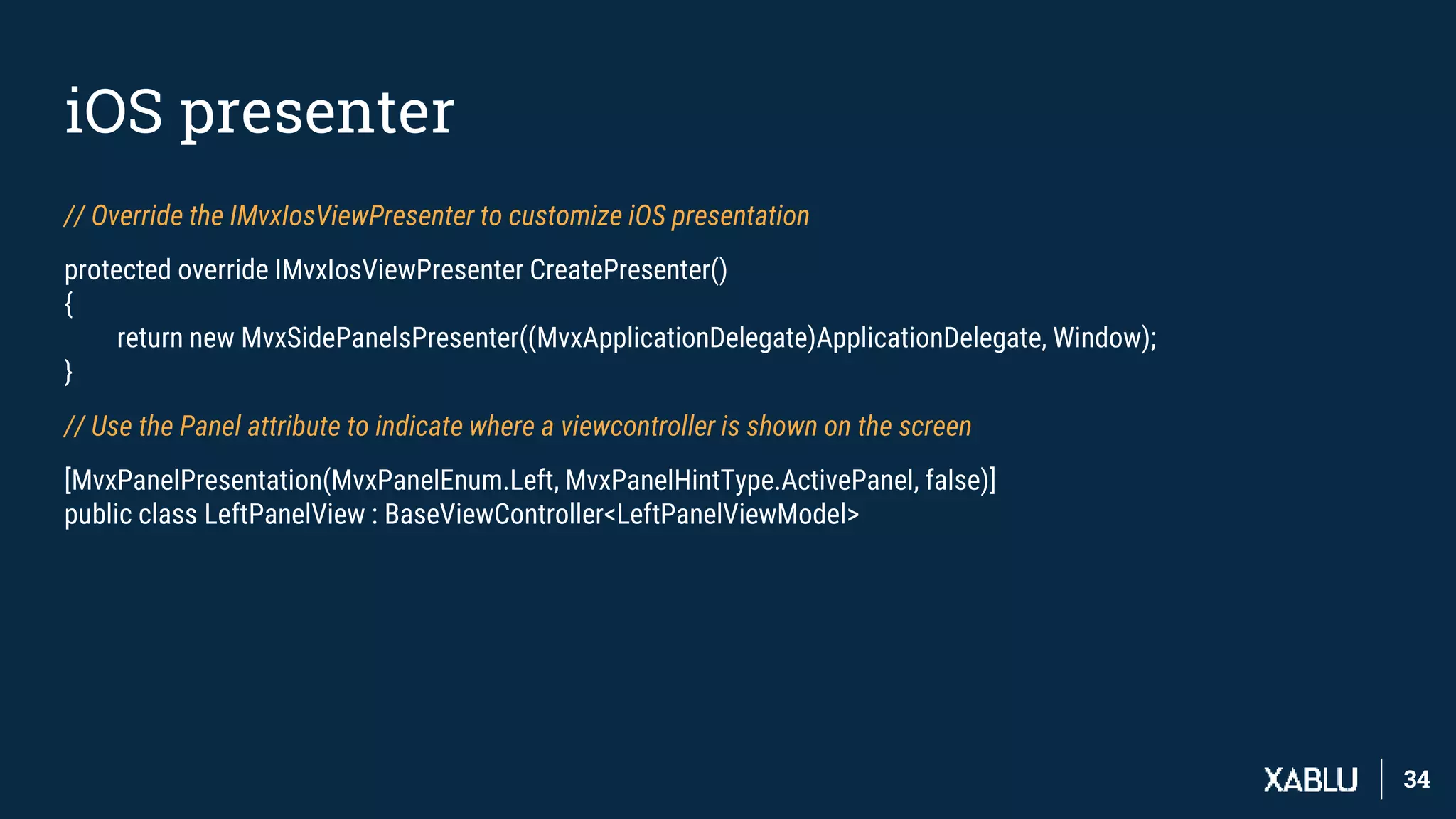

iOS presenter
// Override the IMvxIosViewPresenter to customize iOS presentation
protected override IMvxIosViewPresenter CreatePresenter()
{
return new MvxSidePanelsPresenter((MvxApplicationDelegate)ApplicationDelegate, Window);
}
// Use the Panel attribute to indicate where a viewcontroller is shown on the screen
[MvxPanelPresentation(MvxPanelEnum.Left, MvxPanelHintType.ActivePanel, false)]
public class LeftPanelView : BaseViewController<LeftPanelViewModel>](https://image.slidesharecdn.com/k8yaa2ajti6g6m5rv4zq-signature-a4f4fbf0c2b01c84984ec0c3258ba2a466e0981784cb650fbd8cfea919e1c928-poli-161129133341/75/Cross-platform-Apps-using-Xamarin-and-MvvmCross-Martijn-van-Dijk-Codemotion-Milan-2016-34-2048.jpg)
![3636

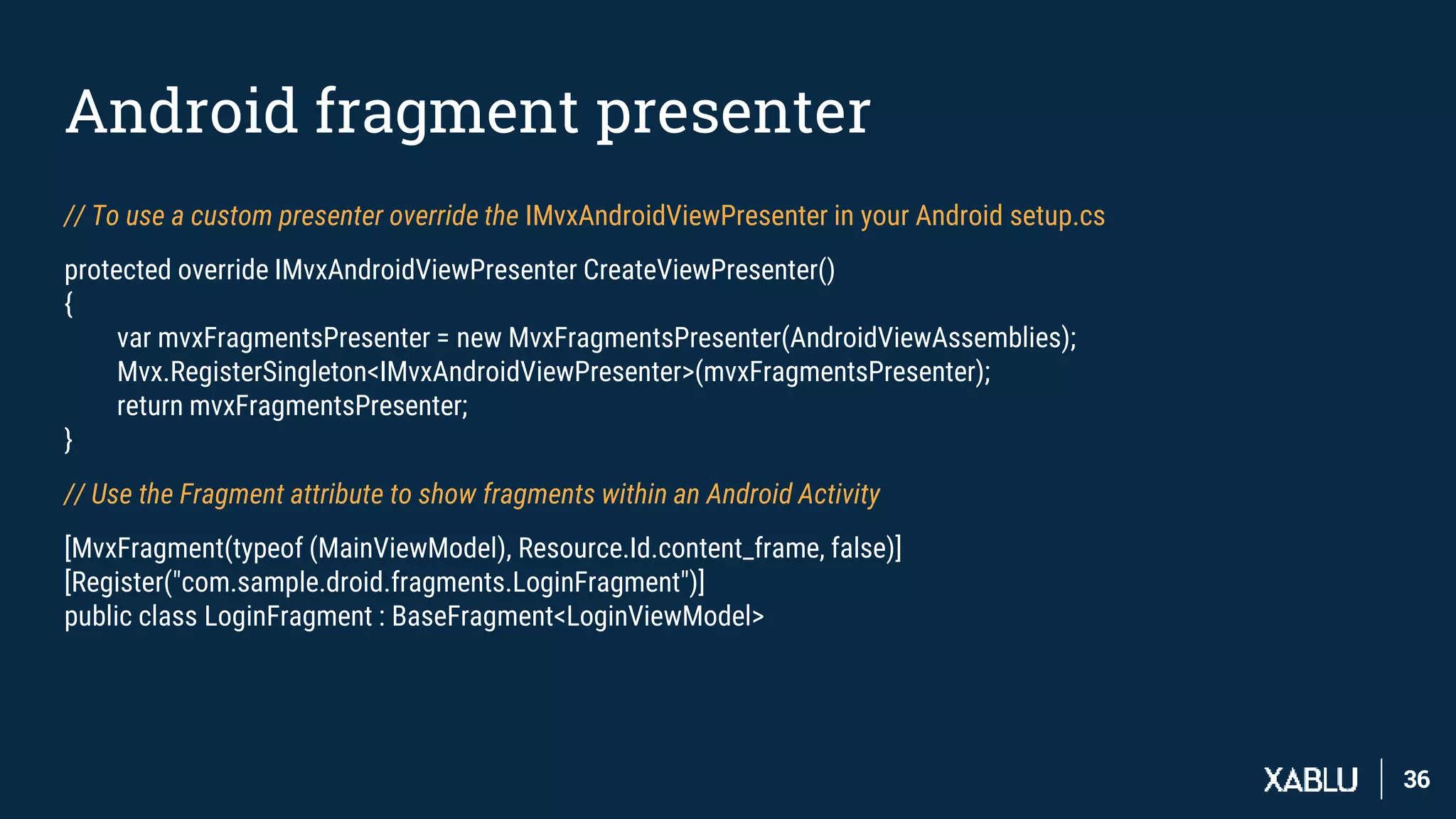

Android fragment presenter
// To use a custom presenter override the IMvxAndroidViewPresenter in your Android setup.cs
protected override IMvxAndroidViewPresenter CreateViewPresenter()
{
var mvxFragmentsPresenter = new MvxFragmentsPresenter(AndroidViewAssemblies);
Mvx.RegisterSingleton<IMvxAndroidViewPresenter>(mvxFragmentsPresenter);
return mvxFragmentsPresenter;
}
// Use the Fragment attribute to show fragments within an Android Activity
[MvxFragment(typeof (MainViewModel), Resource.Id.content_frame, false)]
[Register("com.sample.droid.fragments.LoginFragment")]
public class LoginFragment : BaseFragment<LoginViewModel>](https://image.slidesharecdn.com/k8yaa2ajti6g6m5rv4zq-signature-a4f4fbf0c2b01c84984ec0c3258ba2a466e0981784cb650fbd8cfea919e1c928-poli-161129133341/75/Cross-platform-Apps-using-Xamarin-and-MvvmCross-Martijn-van-Dijk-Codemotion-Milan-2016-36-2048.jpg)
![4747

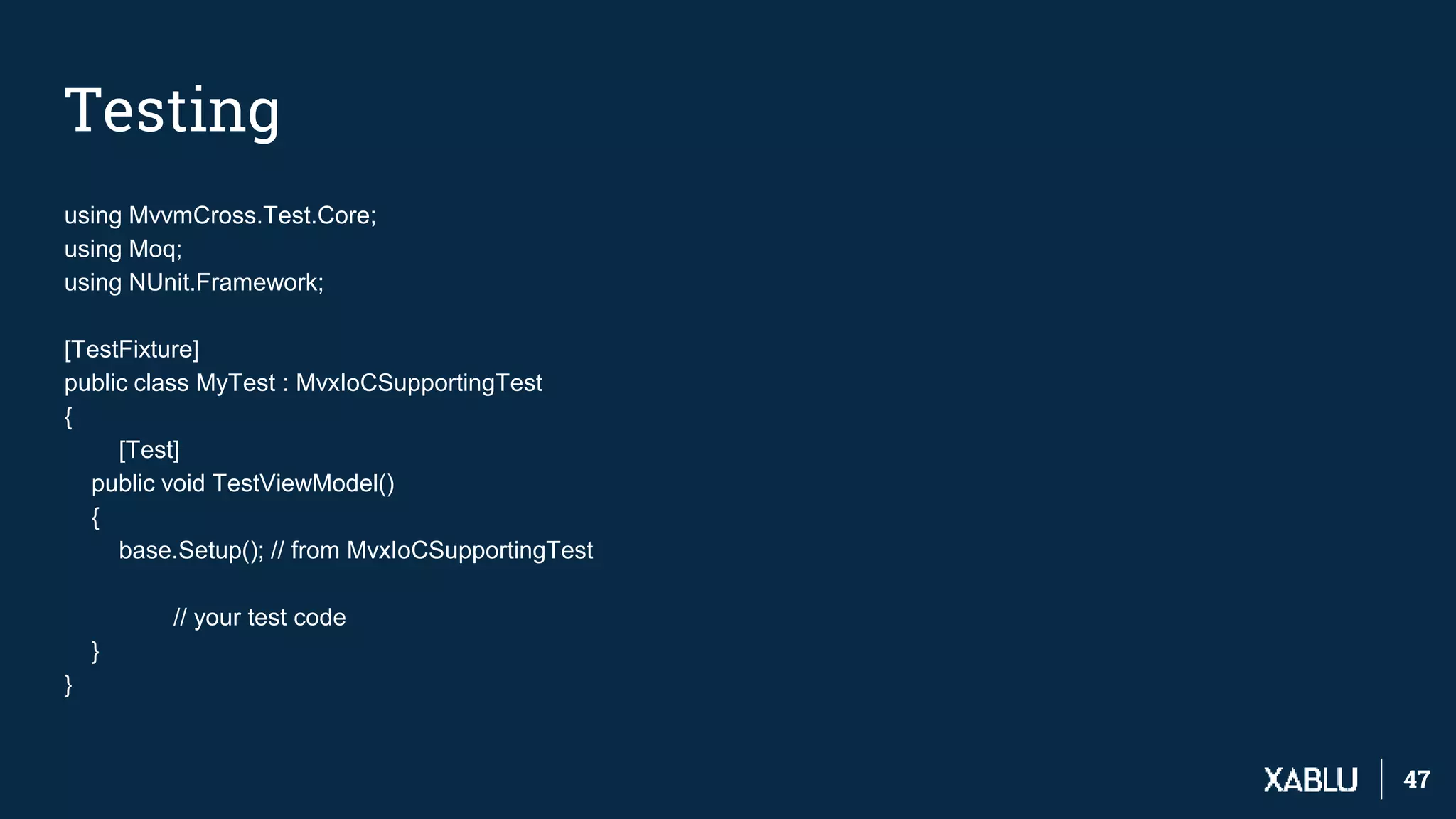

Testing
using MvvmCross.Test.Core;
using Moq;
using NUnit.Framework;
[TestFixture]
public class MyTest : MvxIoCSupportingTest
{
[Test]
public void TestViewModel()
{
base.Setup(); // from MvxIoCSupportingTest
// your test code
}
}](https://image.slidesharecdn.com/k8yaa2ajti6g6m5rv4zq-signature-a4f4fbf0c2b01c84984ec0c3258ba2a466e0981784cb650fbd8cfea919e1c928-poli-161129133341/75/Cross-platform-Apps-using-Xamarin-and-MvvmCross-Martijn-van-Dijk-Codemotion-Milan-2016-47-2048.jpg)
Uploaded byCodemotion
Cross-platform Apps using Xamarin and MvvmCross - Martijn van Dijk - Codemotion Milan 2016
The document outlines strategies for building cross-platform apps using Xamarin and MVVMCross, highlighting shared codebases and native API access as key benefits. It discusses architectural patterns, notably the MVVM pattern, as well as the evolution of MVVMCross and its community support. Various features and plugins are also introduced, alongside best practices for project setup and testing.
More Related Content
![[Cordova] Empezando con Ionic](https://cdn.slidesharecdn.com/ss_thumbnails/cordovaempezandoconionic-160713033101-thumbnail.jpg?width=640&height=640&fit=bounds)
Similar to Cross-platform Apps using Xamarin and MvvmCross - Martijn van Dijk - Codemotion Milan 2016
![Coded Agents – with UiPath SDK + LangGraph [Virtual Hands-on Workshop]](https://cdn.slidesharecdn.com/ss_thumbnails/codedagentsdeck-251215155422-5497c599-thumbnail.jpg?width=640&height=640&fit=bounds)
![Vibe Coding vs. Spec-Driven Development [Free Meetup]](https://cdn.slidesharecdn.com/ss_thumbnails/vibecodingvsspecdrivendevelopment-251209105622-43f455e7-thumbnail.jpg?width=640&height=640&fit=bounds)
Cross-platform Apps using Xamarin and MvvmCross - Martijn van Dijk - Codemotion Milan 2016
- 1. Cross-platform Apps usingXamarin and MvvmCross Martijn van Dijk MILAN 25-26 NOVEMBER 2016 github.com/martijn00 speakerdeck.com/martijn00 @mhvdijk mhvdijk@gmail.com
- 2. 2 Progress is teamwork Corporateintroduction Helping you solve mobile challenges
- 3. 3 Stay currentWorks EverywhereNative 5-StarApp Integration Your priorities when building apps

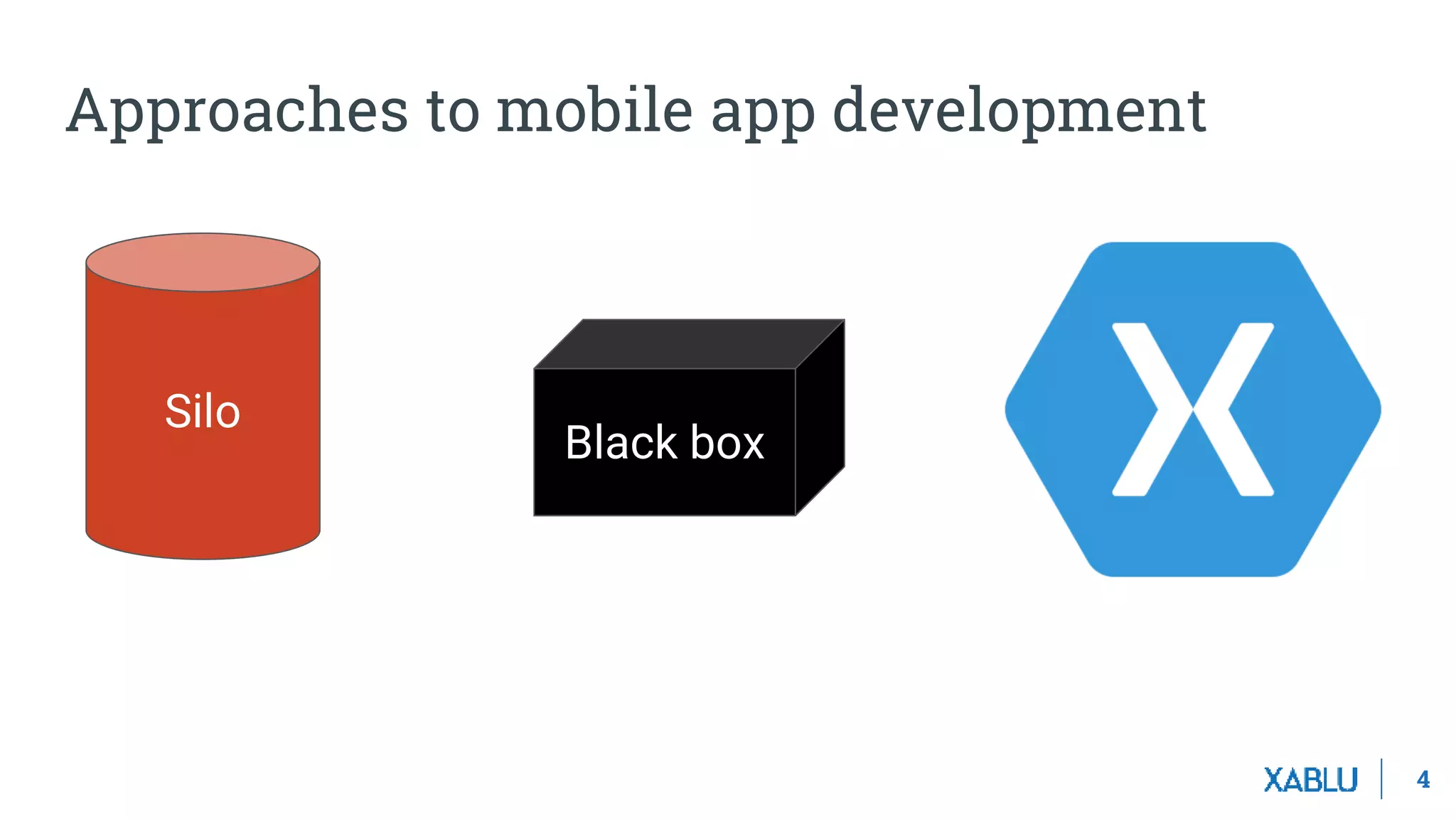

- 4. 4 Approaches to mobileapp development Silo Black box

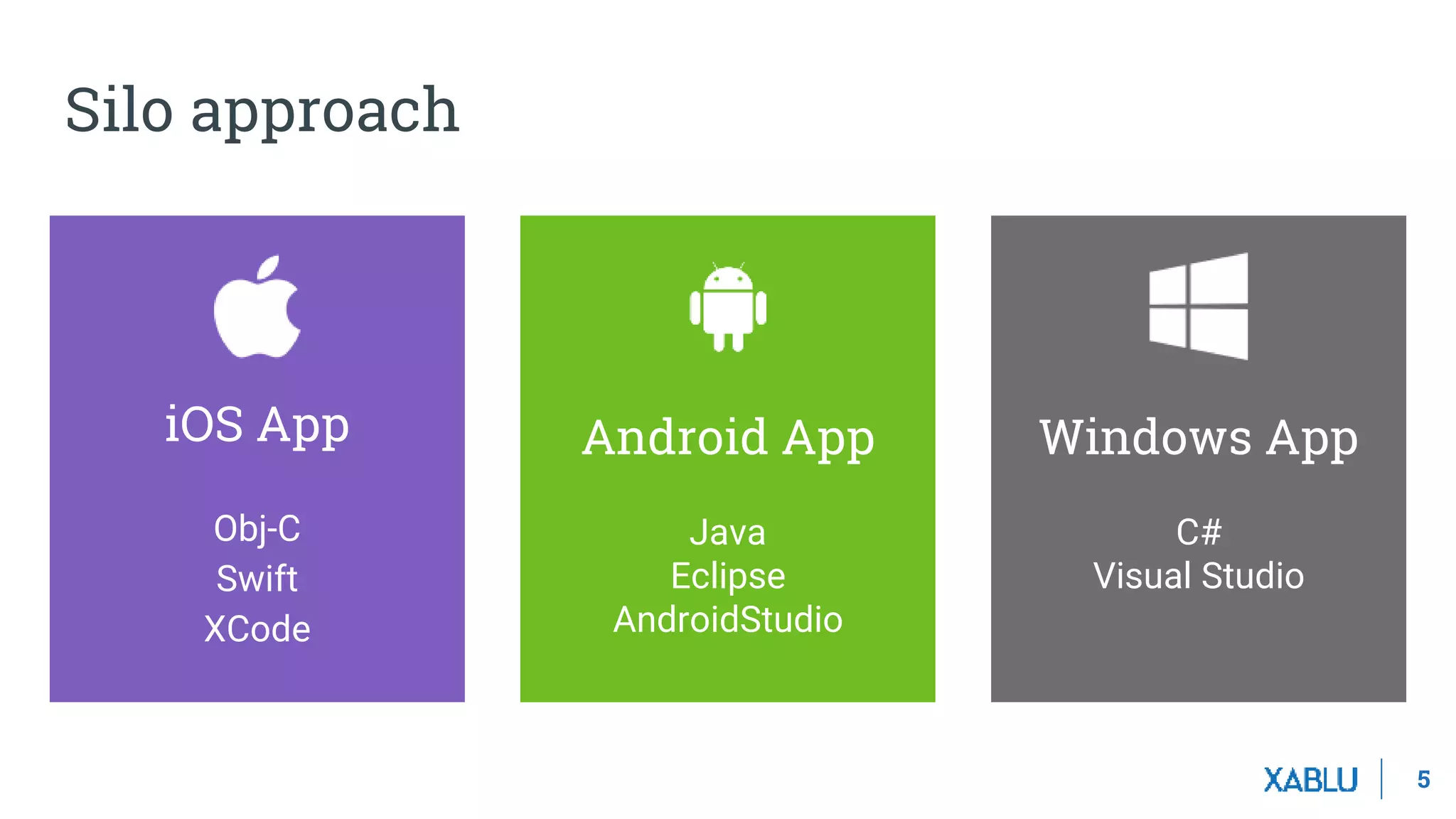

- 5. 5 Silo approach iOS App Obj-C Swift XCode AndroidApp Java Eclipse AndroidStudio Windows App C# Visual Studio

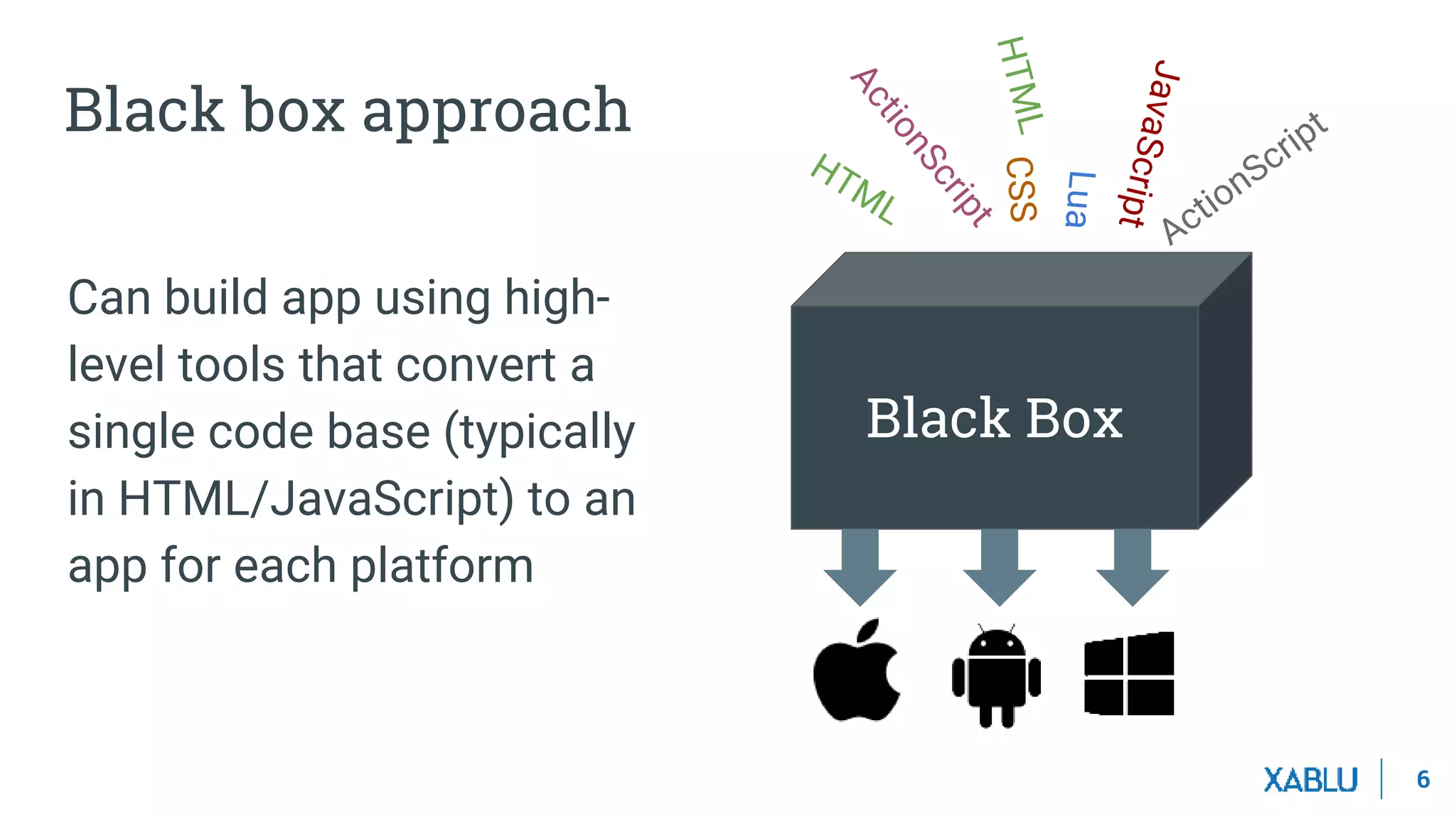

- 6. 6 Black box approach BlackBox Can build app using high- level tools that convert a single code base (typically in HTML/JavaScript) to an app for each platform
- 7. 77 Xamarin’s Mission Make itfast, easy, and fun to create great mobile apps.

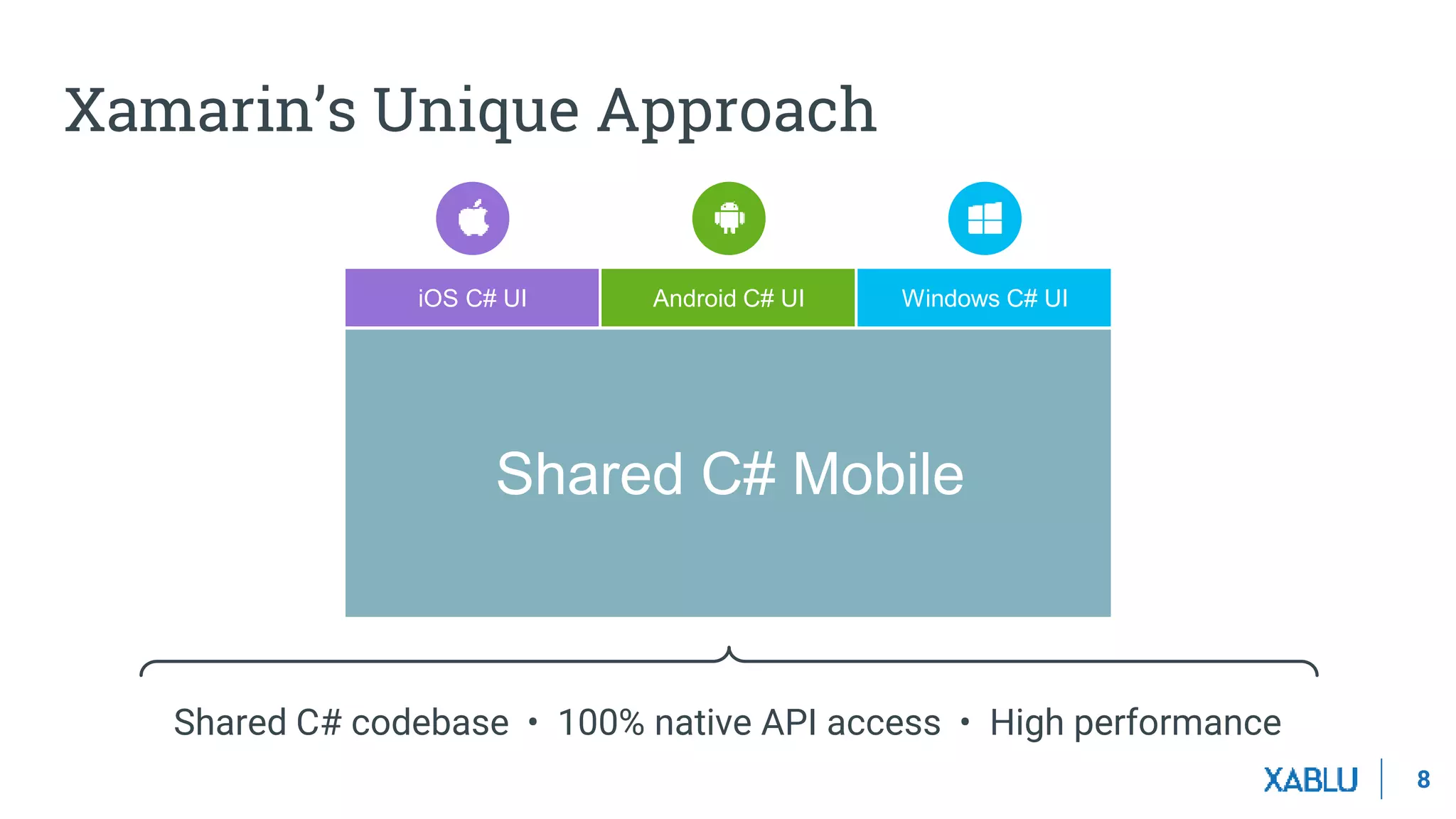

- 8. 8 Shared C# codebase• 100% native API access • High performance iOS C# UI Windows C# UIAndroid C# UI Shared C# Mobile Xamarin’s Unique Approach
- 9.

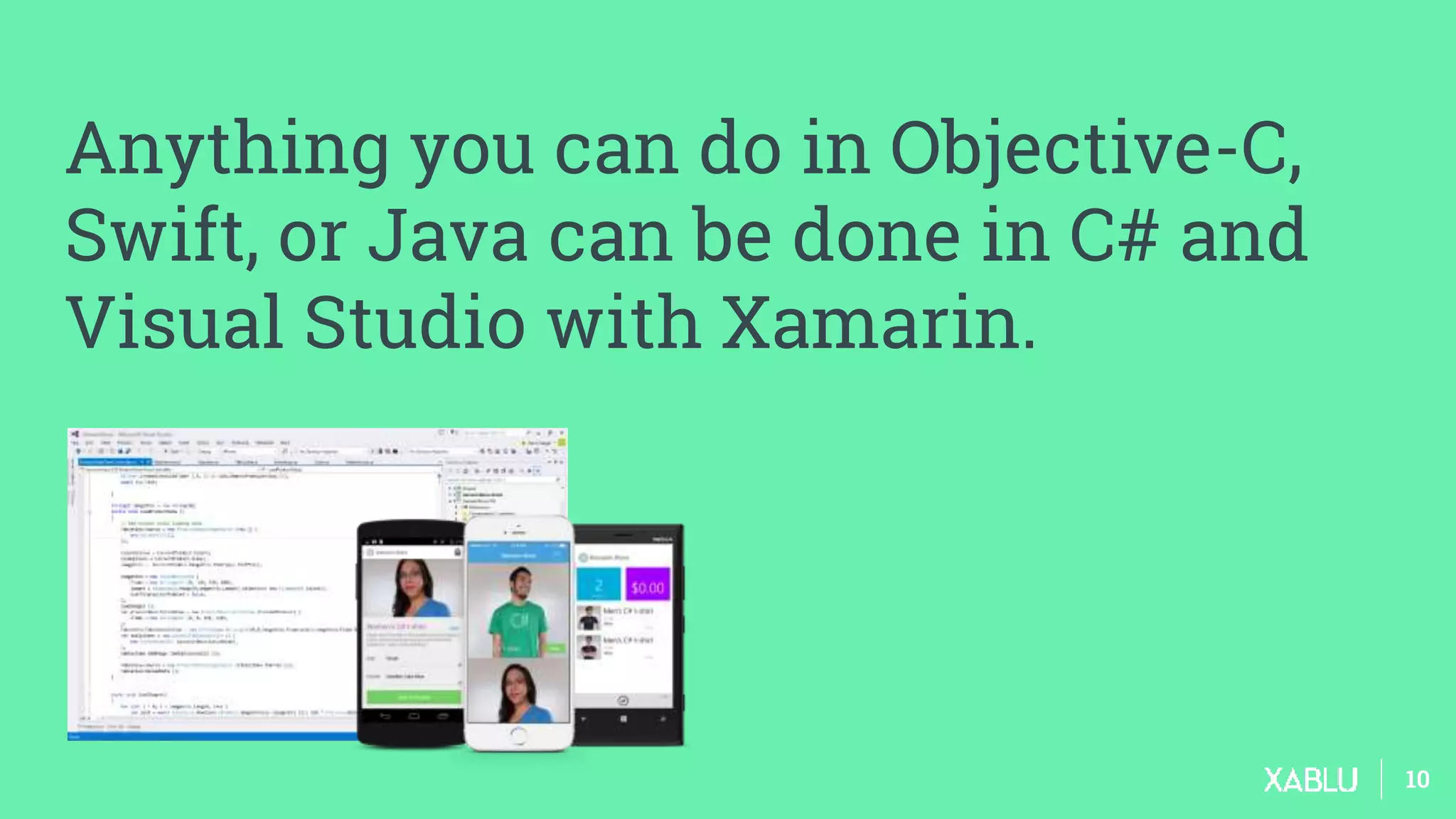

- 10. 1010 Anything you cando in Objective-C, Swift, or Java can be done in C# and Visual Studio with Xamarin.
- 11. Let’s build anapp, demo time! 11

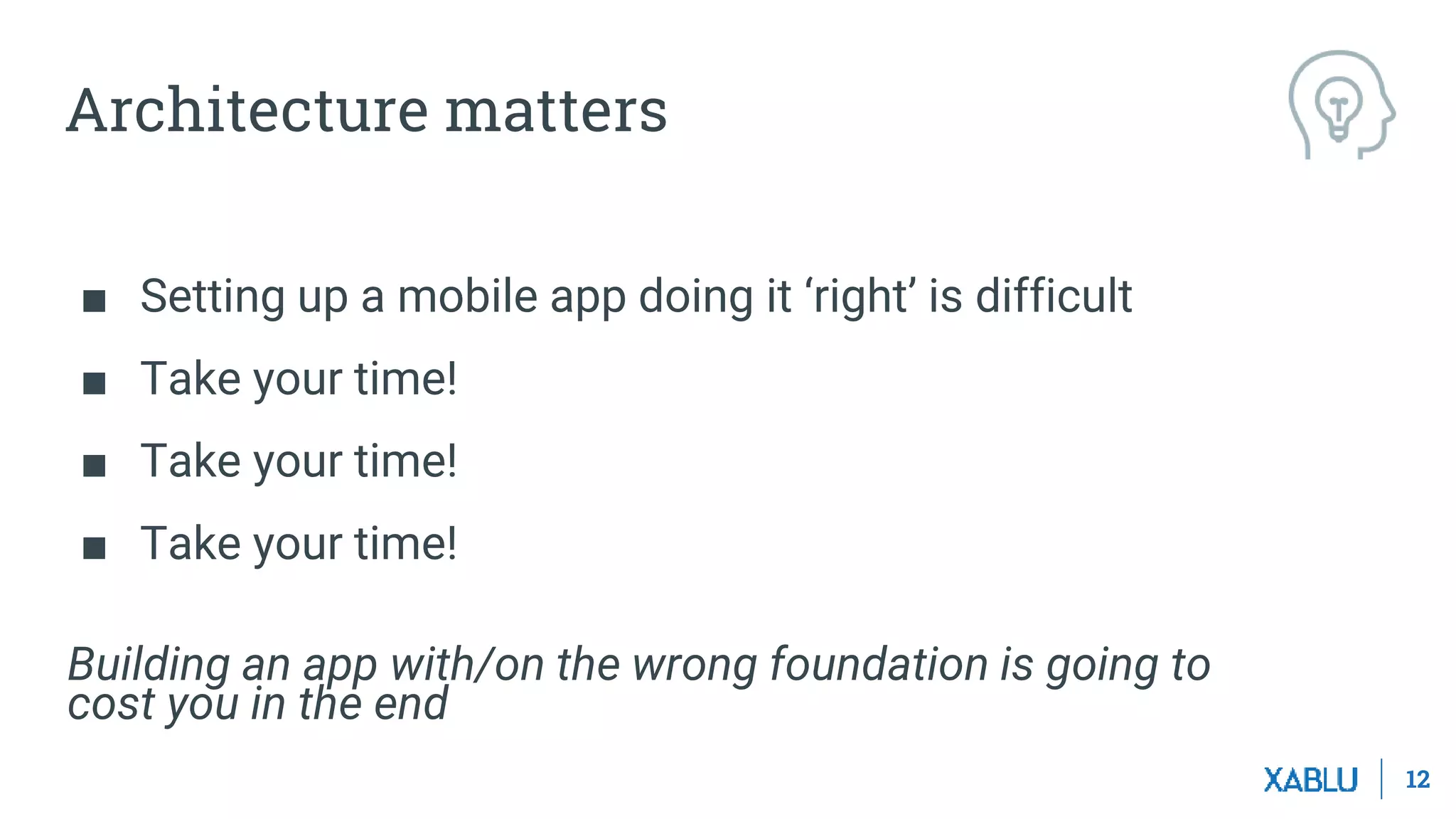

- 12. 12 Architecture matters ■ Settingup a mobile app doing it ‘right’ is difficult ■ Take your time! ■ Take your time! ■ Take your time! Building an app with/on the wrong foundation is going to cost you in the end

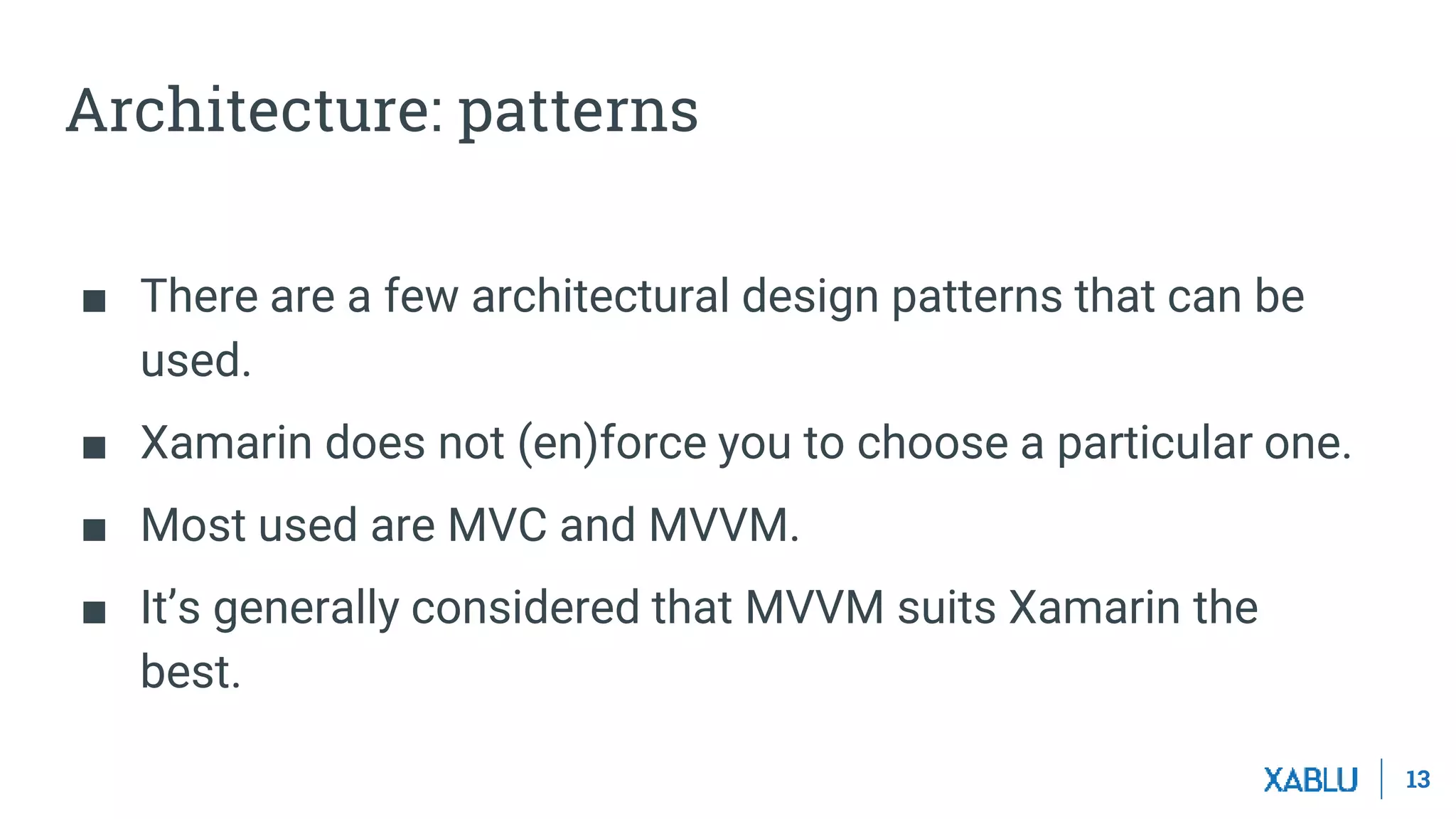

- 13. 13 Architecture: patterns ■ Thereare a few architectural design patterns that can be used. ■ Xamarin does not (en)force you to choose a particular one. ■ Most used are MVC and MVVM. ■ It’s generally considered that MVVM suits Xamarin the best.

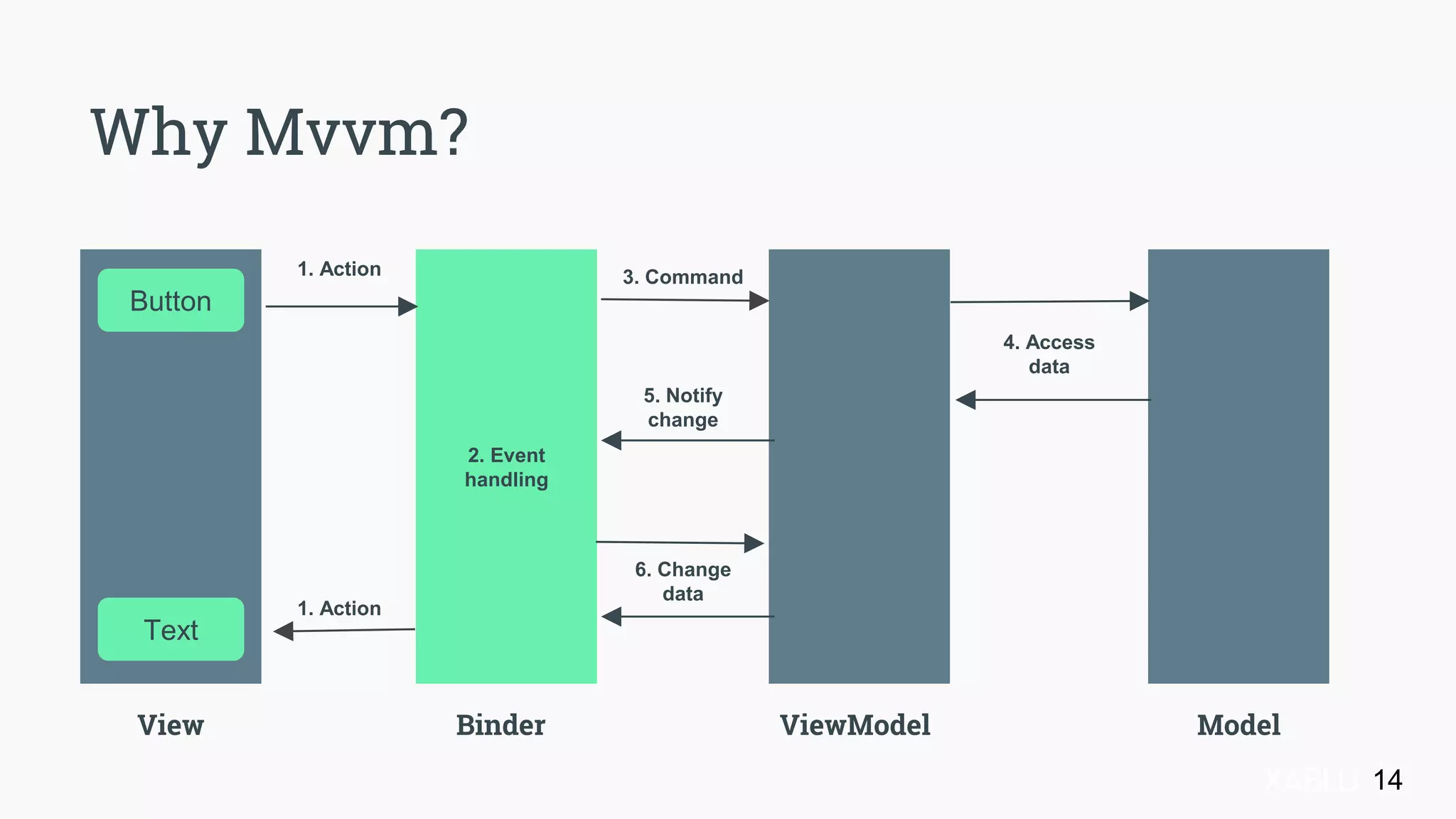

- 14. Why Mvvm? View BinderViewModel Model Button Text 1. Action 1. Action 3. Command 5. Notify change 6. Change data 4. Access data 2. Event handling 14

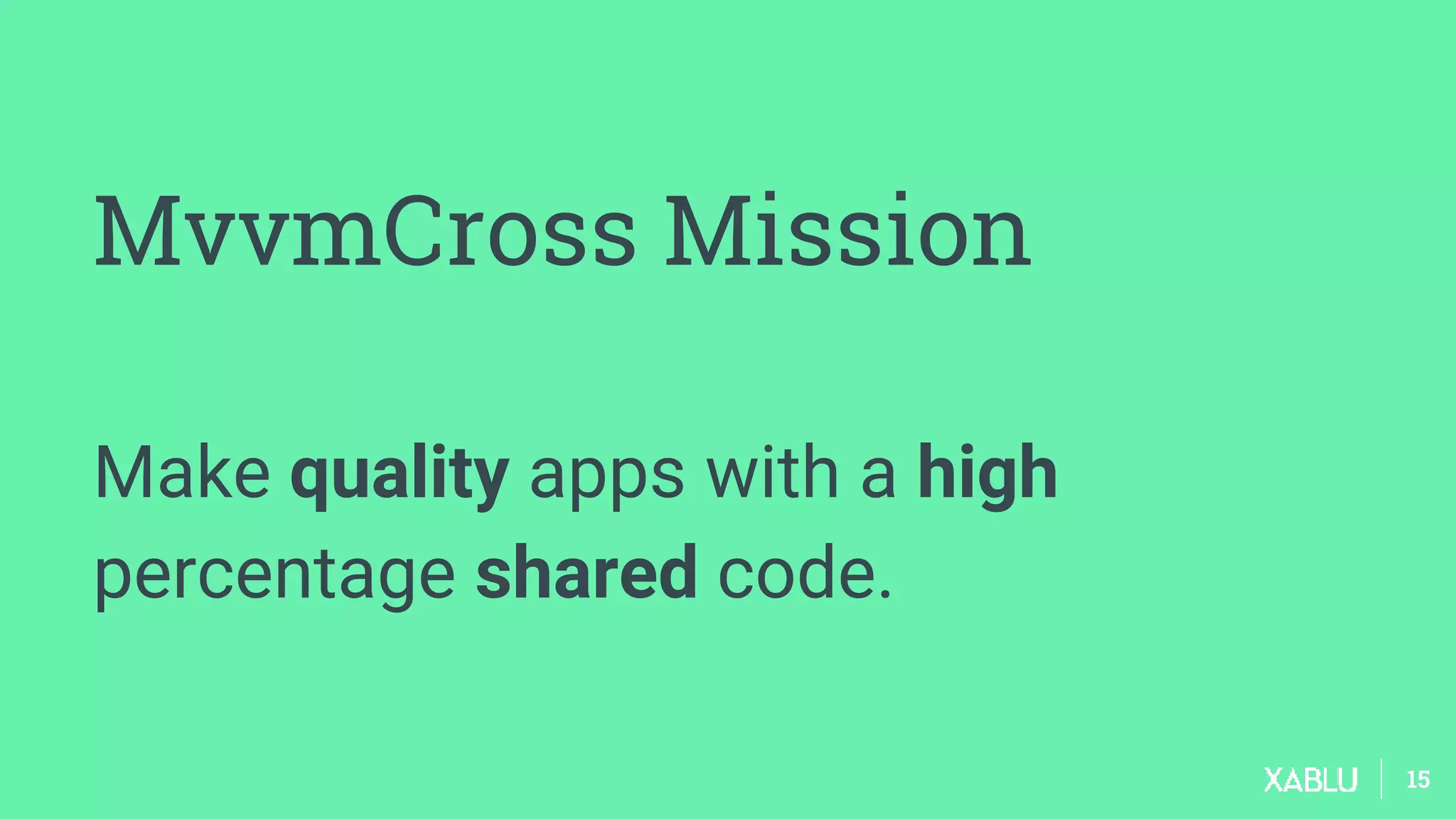

- 15. 1515 MvvmCross Mission Make qualityapps with a high percentage shared code.
- 16.

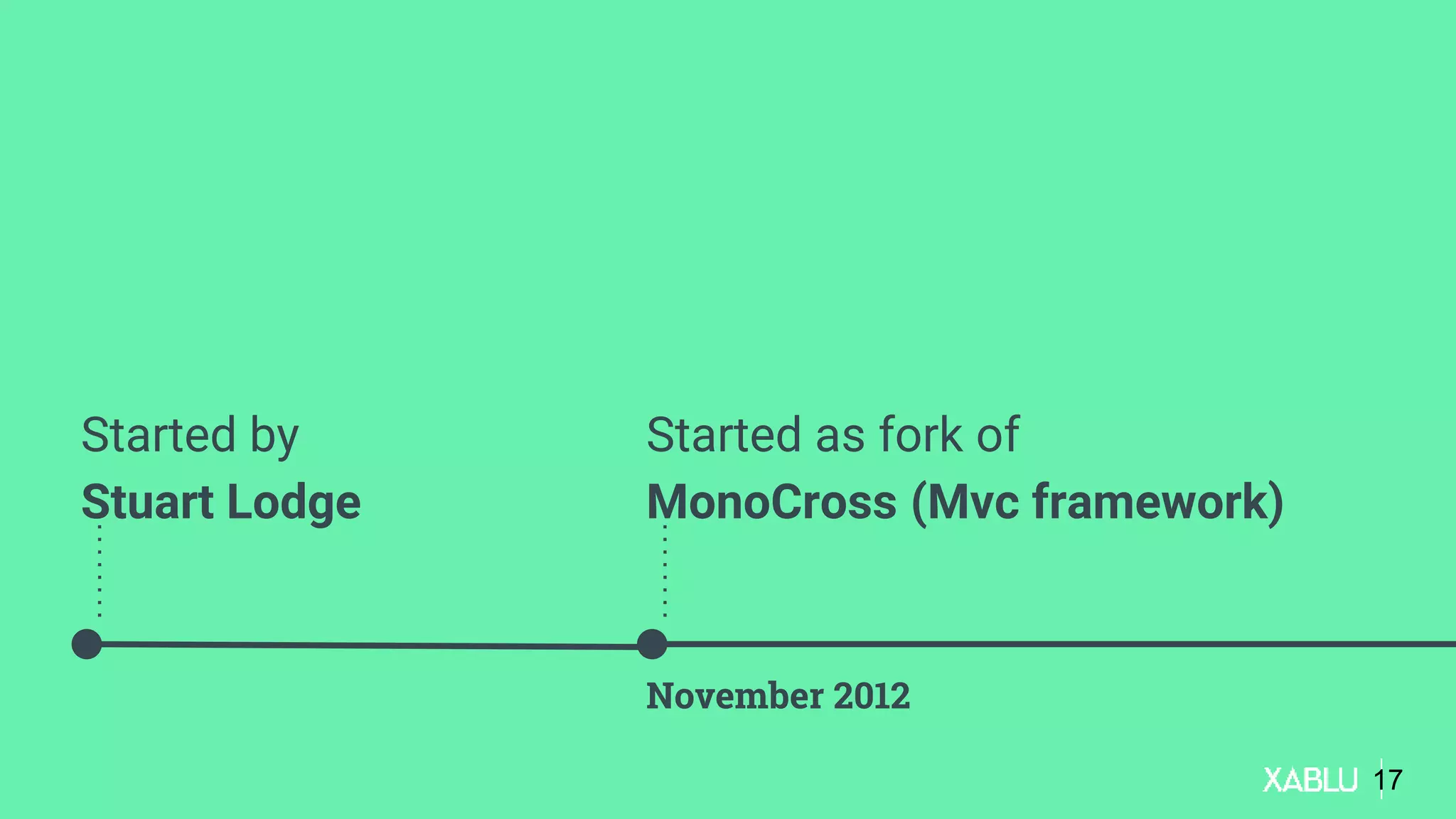

- 17. Started by Stuart Lodge Startedas fork of MonoCross (Mvc framework) November 2012 17
- 18. Evolved into MvvmCross Taken overby ● Tomasz Cielecki / Cheesebaron ● Martijn van Dijk / Martijn00 + Many others June 2013 18

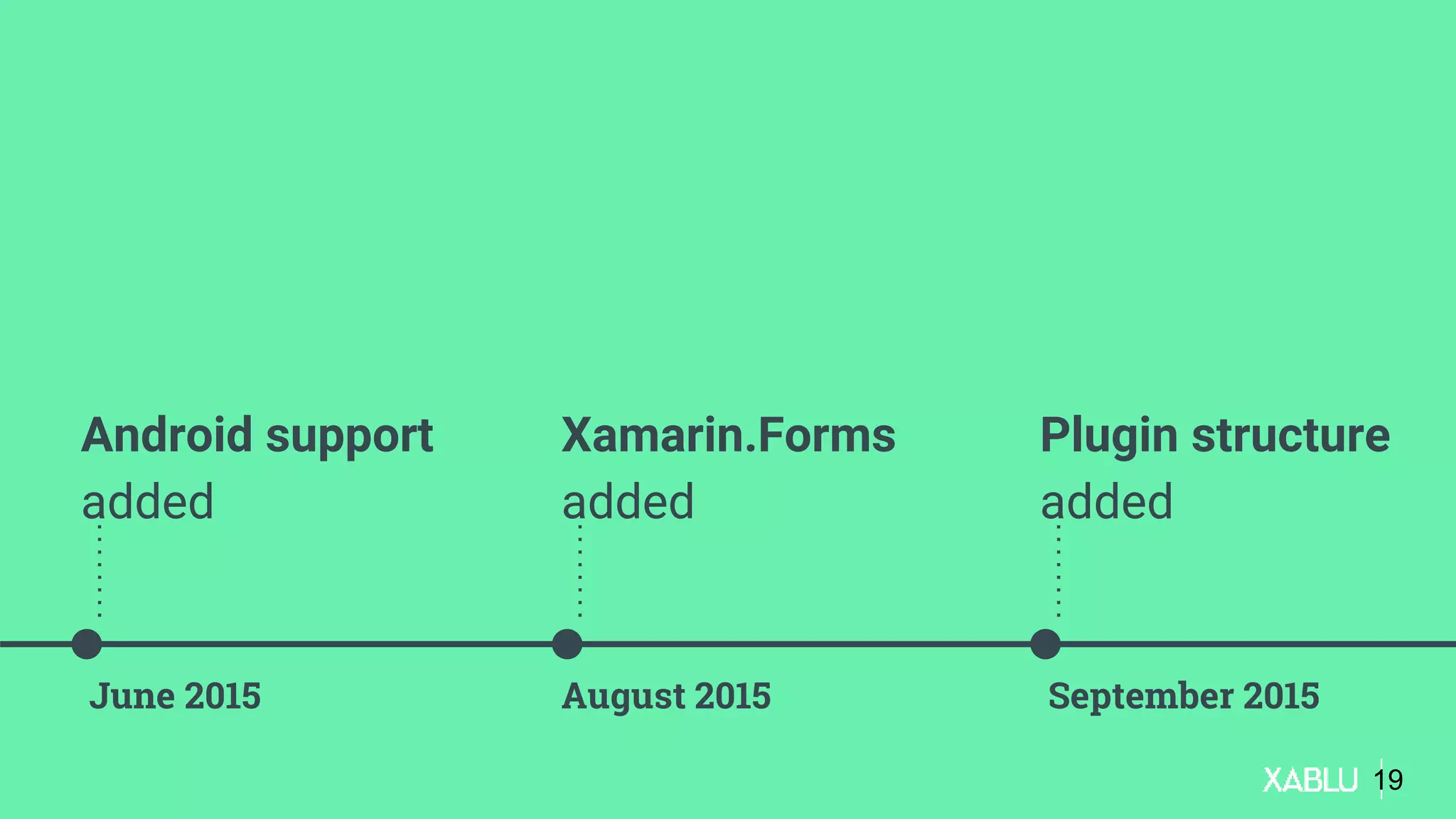

- 19. Android support added June 2015 Xamarin.Forms added August2015 Plugin structure added September 2015 19
- 20. iOS support added February 2016And more in the future! 20
- 21.
- 22. 22 Cross platform awesomeness! Support forall major platforms Most advanced Mvvm library for Xamarin and .NET cross platform

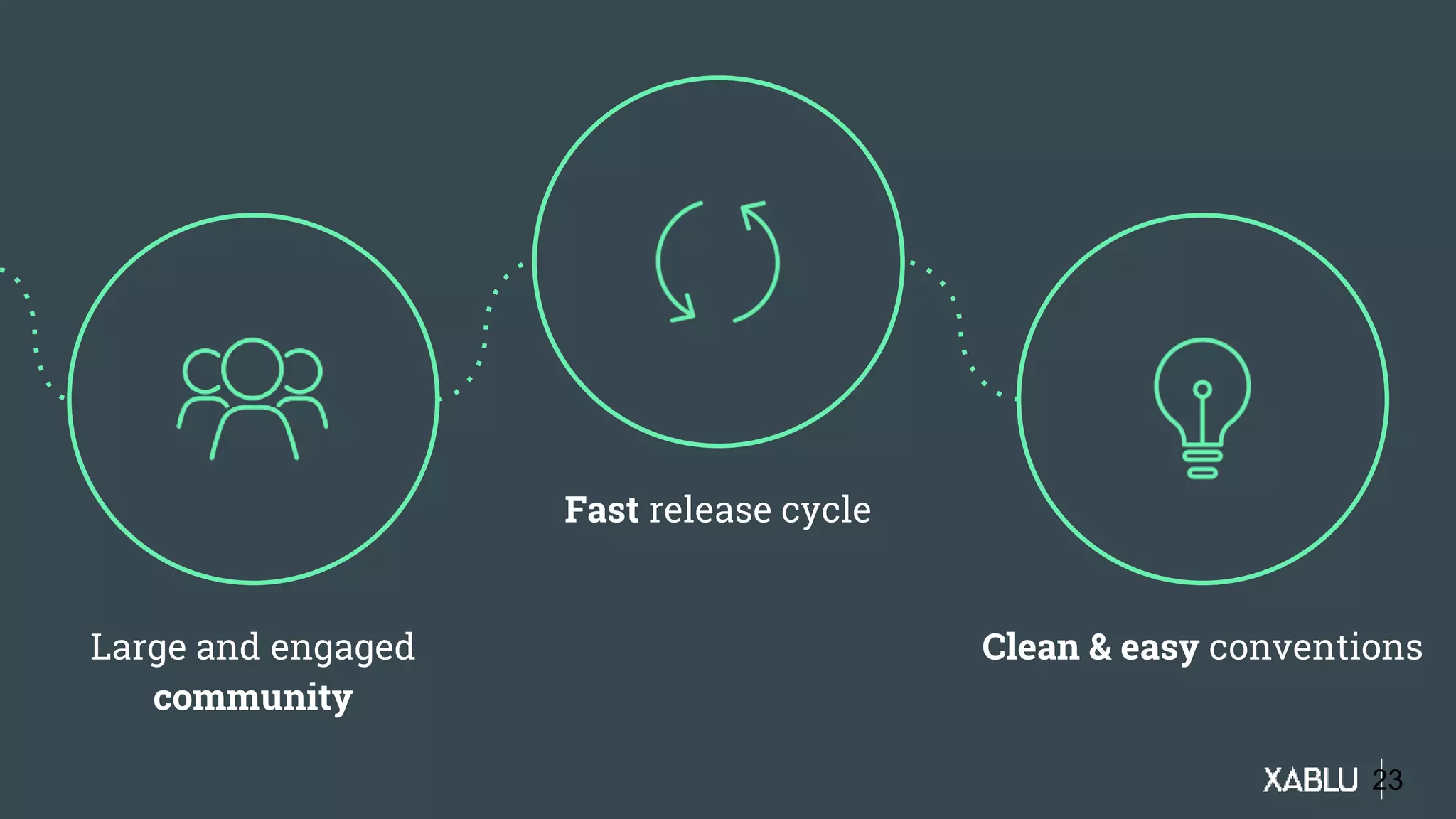

- 23. 23 Large and engaged community Fastrelease cycle Clean & easy conventions
- 24.
- 25. I love MvvmCross I amreally impressed with MvvmCross Miguel de Icaza Xamarin CTO Scott Hanselman Microsoft Developer Evangelist 25

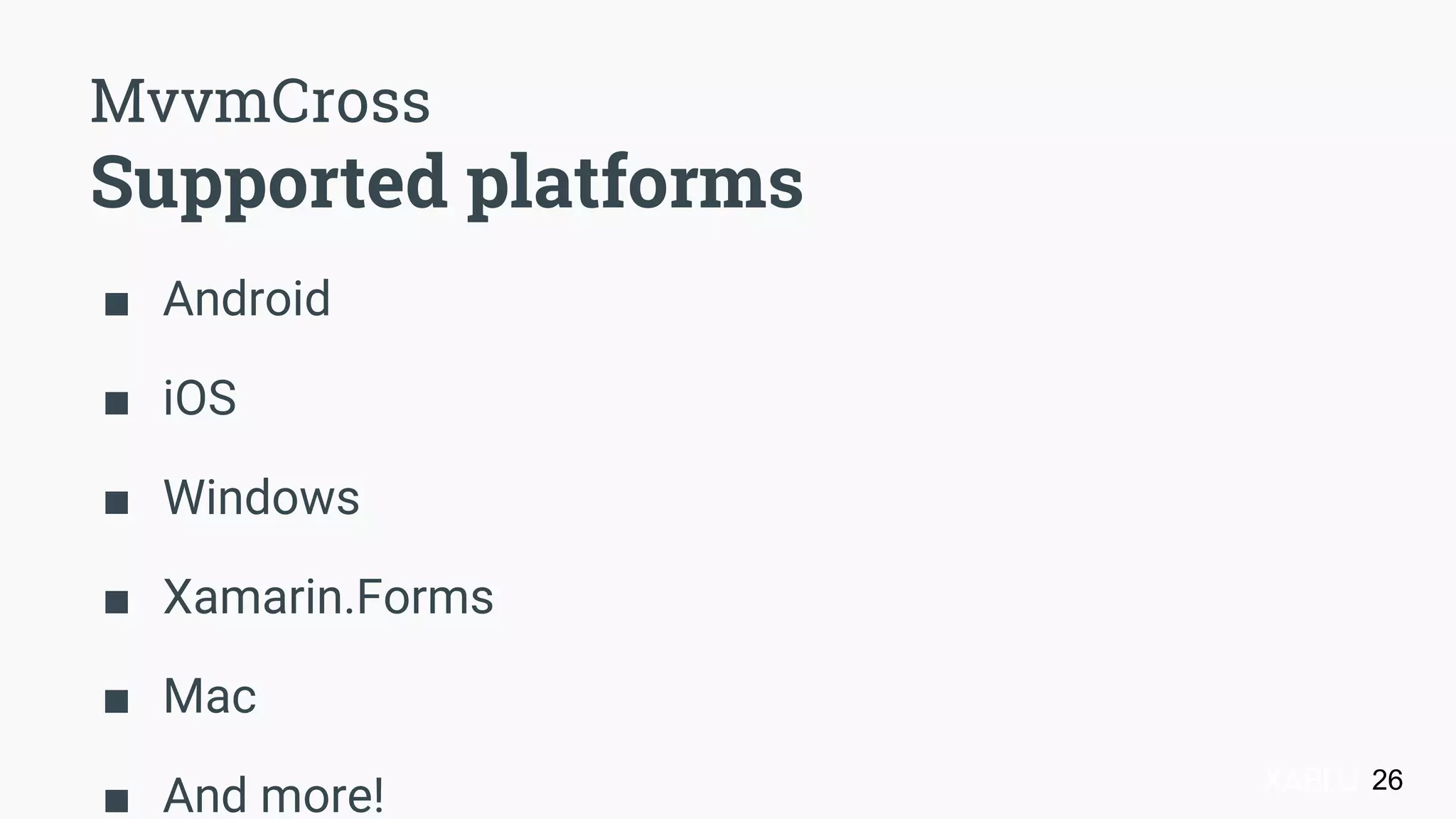

- 26. MvvmCross Supported platforms ■ Android ■iOS ■ Windows ■ Xamarin.Forms ■ Mac ■ And more! 26

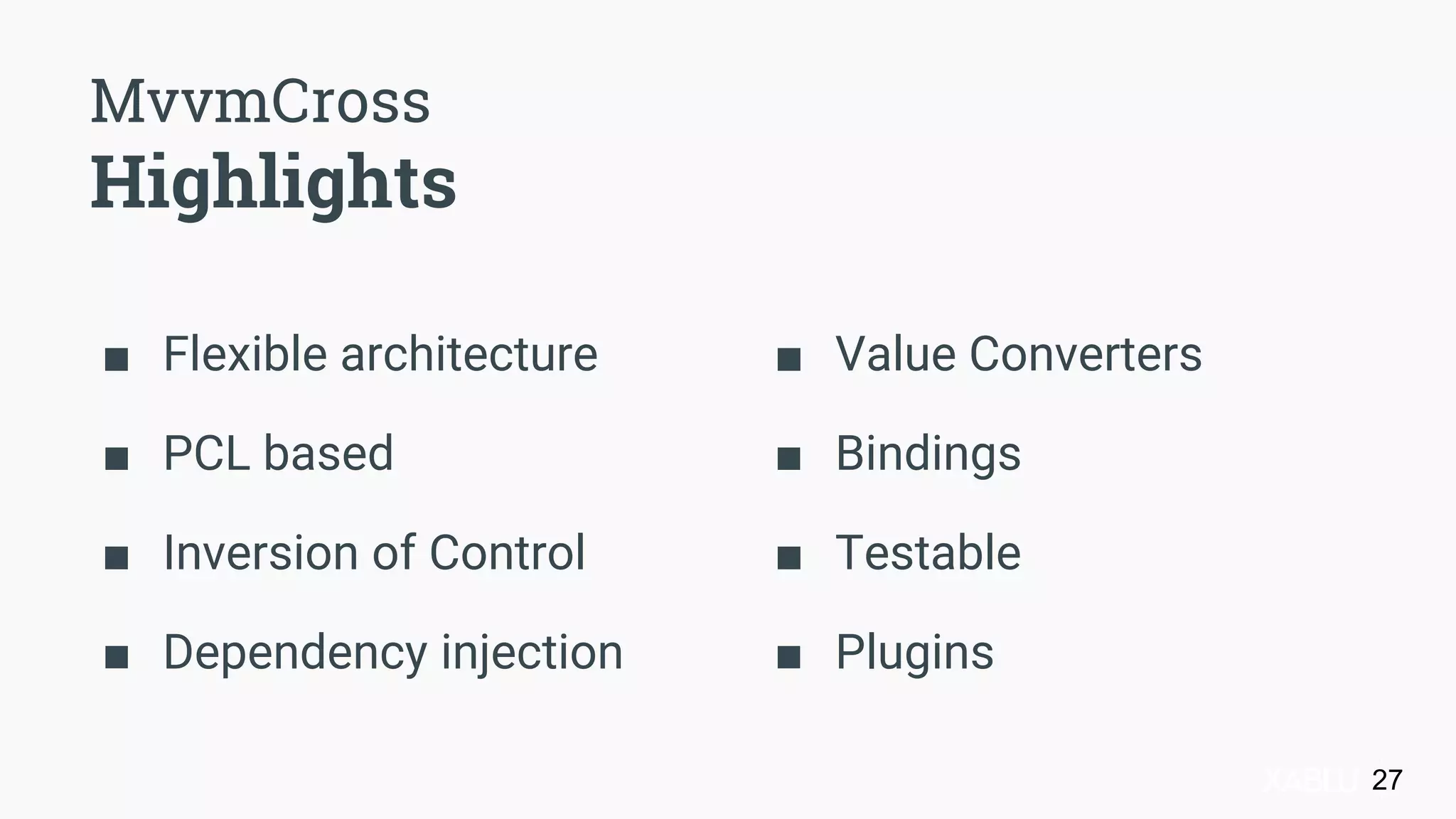

- 27. MvvmCross Highlights ■ Flexible architecture ■PCL based ■ Inversion of Control ■ Dependency injection ■ Value Converters ■ Bindings ■ Testable ■ Plugins 27
- 28. Let take alook at setting up a basic project 28

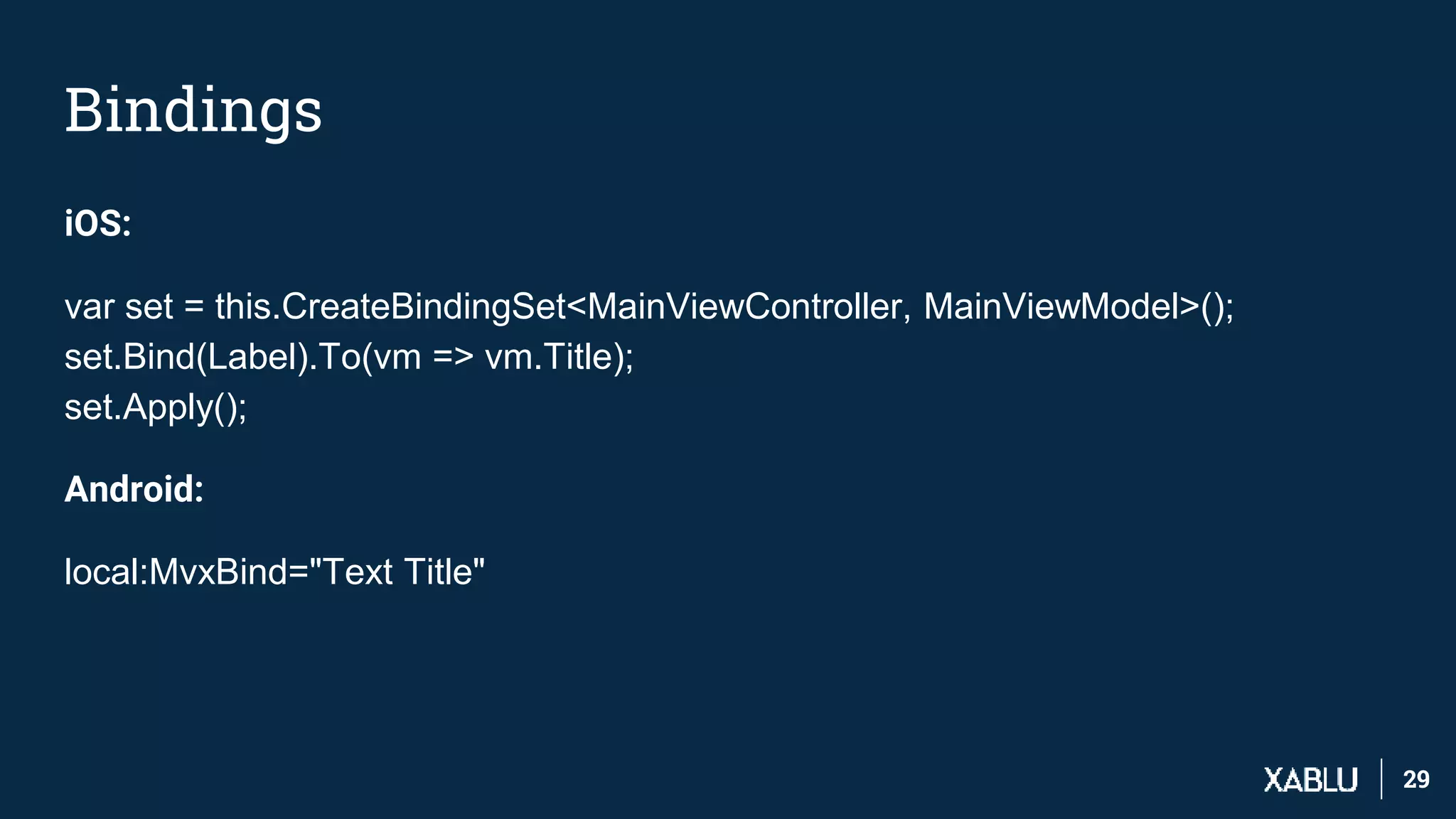

- 29. 2929 Bindings iOS: var set =this.CreateBindingSet<MainViewController, MainViewModel>(); set.Bind(Label).To(vm => vm.Title); set.Apply(); Android: local:MvxBind="Text Title"
- 30. 30 Device & platformfragmentation

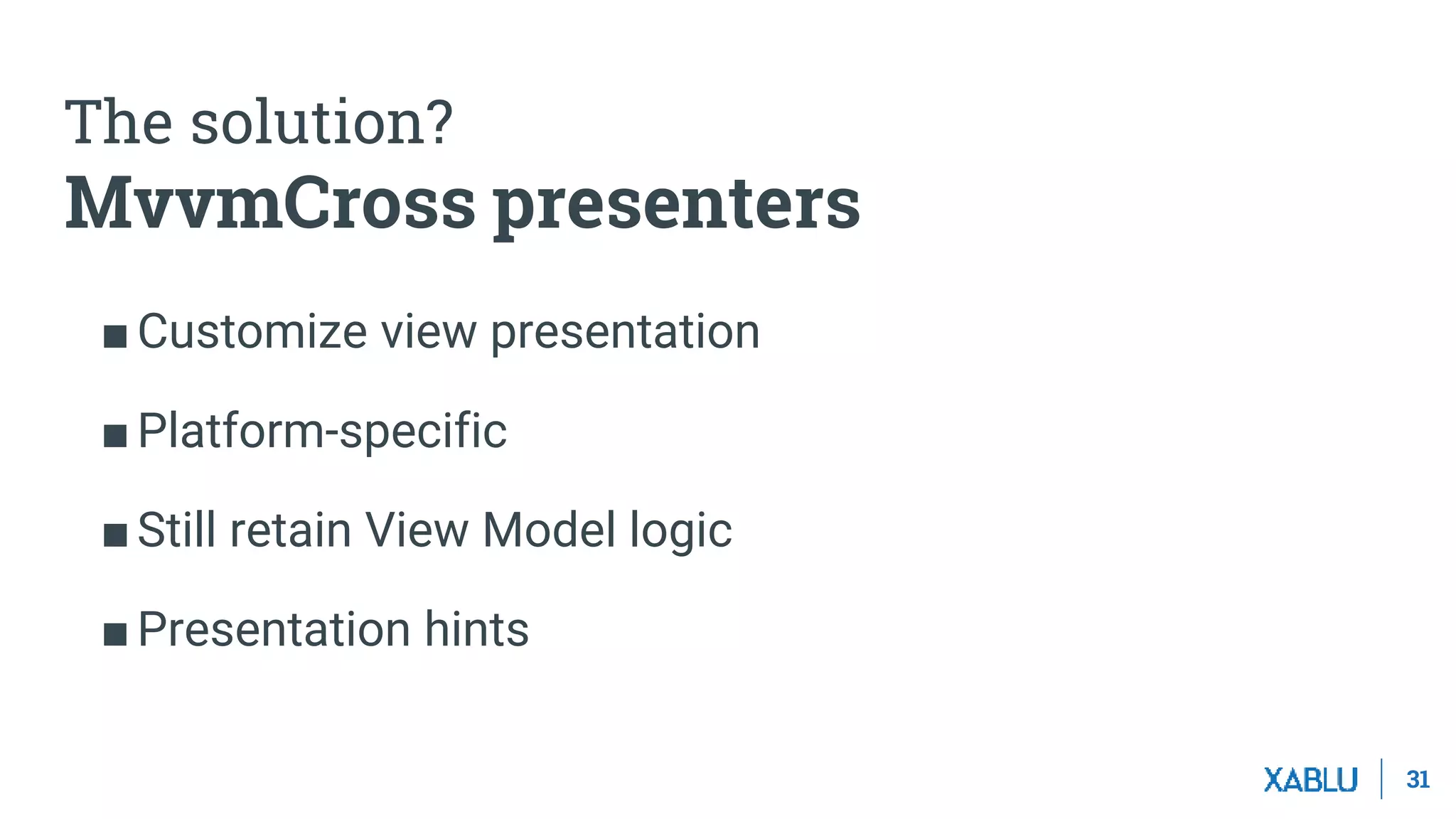

- 31. 31 ■Customize view presentation ■Platform-specific ■Stillretain View Model logic ■Presentation hints The solution? MvvmCross presenters
- 32. 3232 Let’s take alook at some samples
- 33.
- 34. 3434 iOS presenter // Overridethe IMvxIosViewPresenter to customize iOS presentation protected override IMvxIosViewPresenter CreatePresenter() { return new MvxSidePanelsPresenter((MvxApplicationDelegate)ApplicationDelegate, Window); } // Use the Panel attribute to indicate where a viewcontroller is shown on the screen [MvxPanelPresentation(MvxPanelEnum.Left, MvxPanelHintType.ActivePanel, false)] public class LeftPanelView : BaseViewController<LeftPanelViewModel>
- 35.
- 36. 3636 Android fragment presenter //To use a custom presenter override the IMvxAndroidViewPresenter in your Android setup.cs protected override IMvxAndroidViewPresenter CreateViewPresenter() { var mvxFragmentsPresenter = new MvxFragmentsPresenter(AndroidViewAssemblies); Mvx.RegisterSingleton<IMvxAndroidViewPresenter>(mvxFragmentsPresenter); return mvxFragmentsPresenter; } // Use the Fragment attribute to show fragments within an Android Activity [MvxFragment(typeof (MainViewModel), Resource.Id.content_frame, false)] [Register("com.sample.droid.fragments.LoginFragment")] public class LoginFragment : BaseFragment<LoginViewModel>

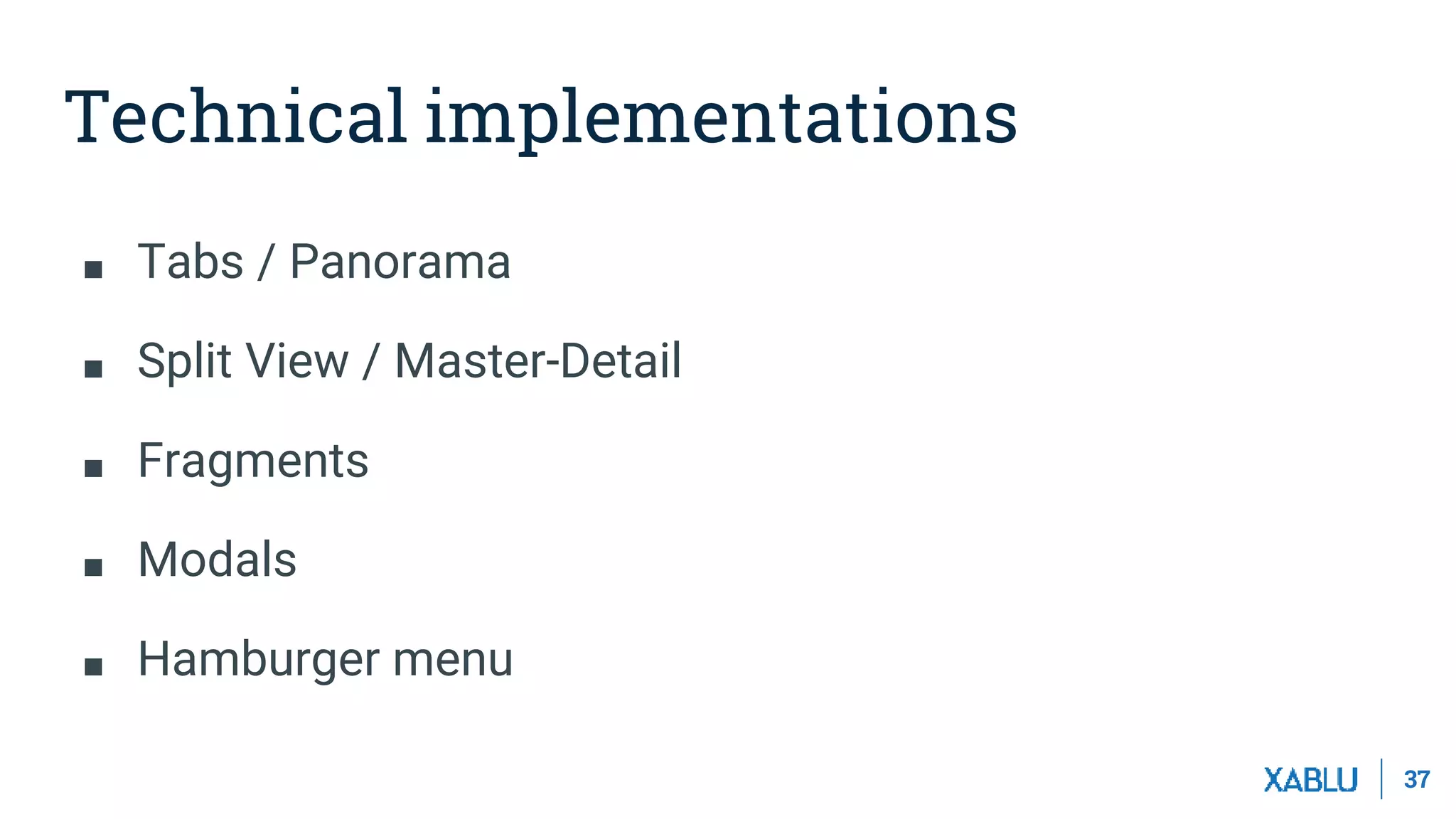

- 37. 37 ■ Tabs /Panorama ■ Split View / Master-Detail ■ Fragments ■ Modals ■ Hamburger menu Technical implementations
- 38. 3838 Enables the best NativeUI Build beautiful Native Apps using Xamarin and MvvmCross! Easy to implement custom presenters Enables you to customize the behavior of your app without making your app multiple times Most code reuse Using the presenters saves you budget because you only need to code navigation once Recap of MvvmCross presenters

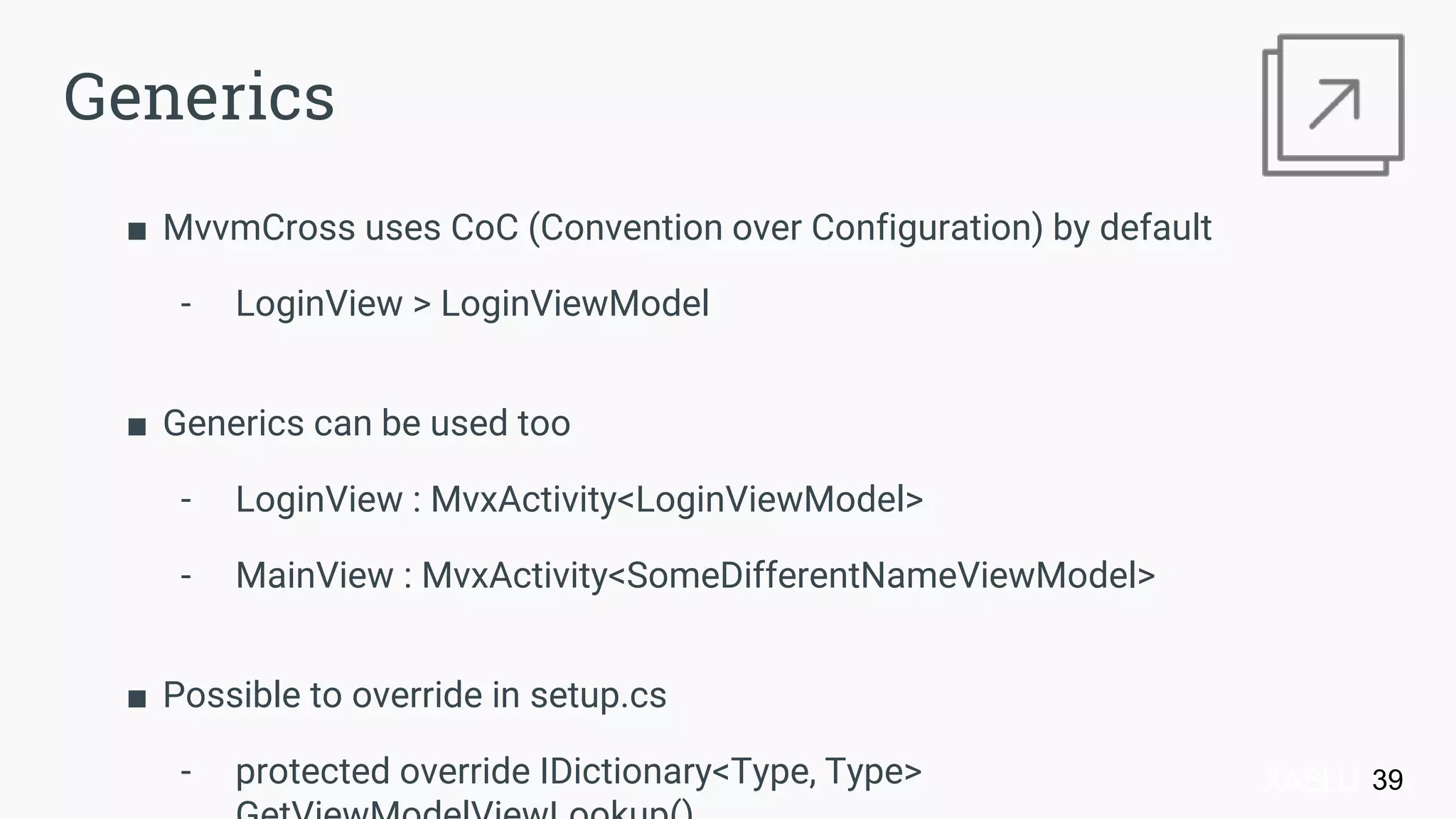

- 39. ■ MvvmCross usesCoC (Convention over Configuration) by default - LoginView > LoginViewModel ■ Generics can be used too - LoginView : MvxActivity<LoginViewModel> - MainView : MvxActivity<SomeDifferentNameViewModel> ■ Possible to override in setup.cs - protected override IDictionary<Type, Type> 39 Generics

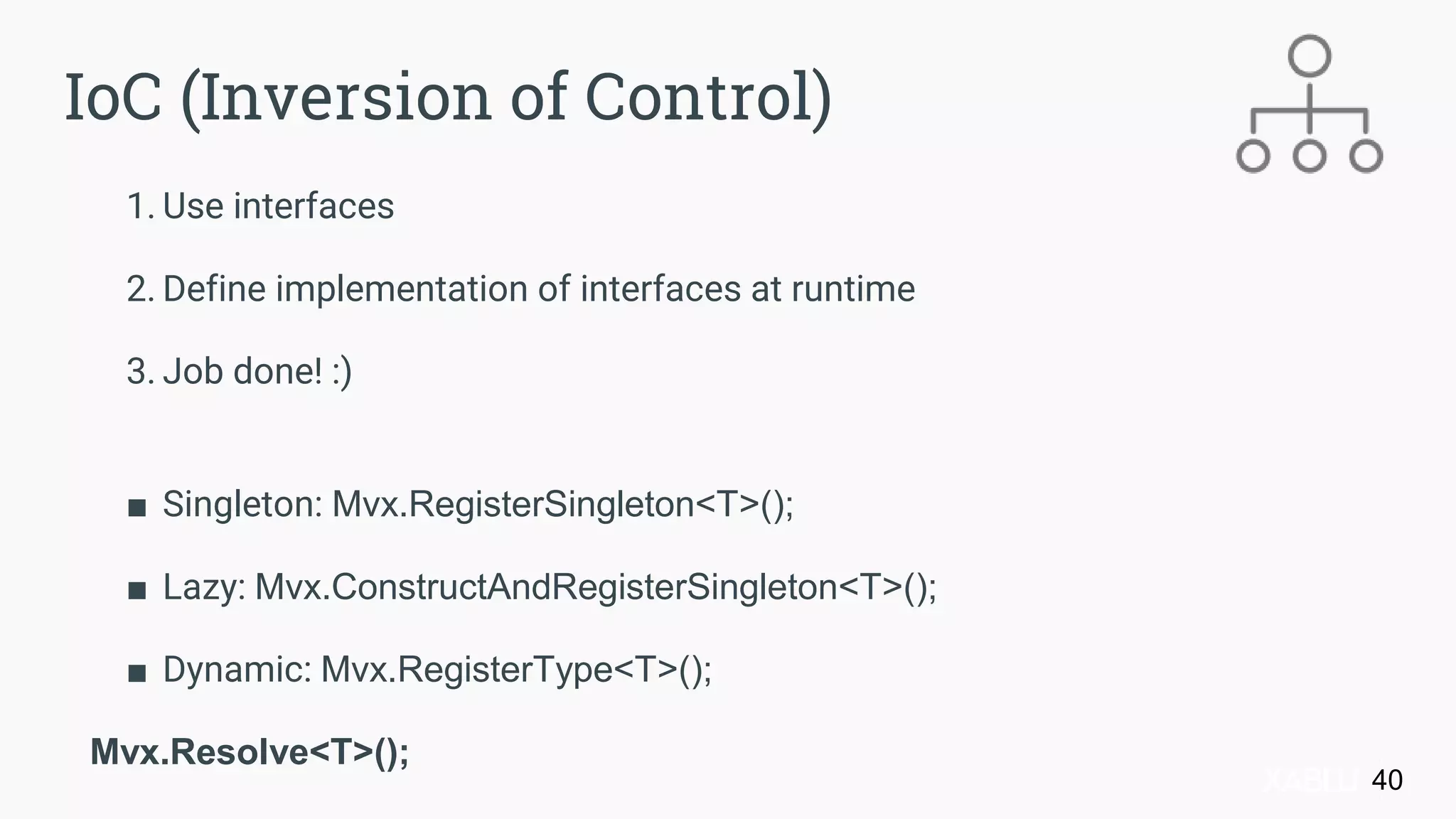

- 40. 1. Use interfaces 2.Define implementation of interfaces at runtime 3. Job done! :) ■ Singleton: Mvx.RegisterSingleton<T>(); ■ Lazy: Mvx.ConstructAndRegisterSingleton<T>(); ■ Dynamic: Mvx.RegisterType<T>(); Mvx.Resolve<T>(); 40 IoC (Inversion of Control)

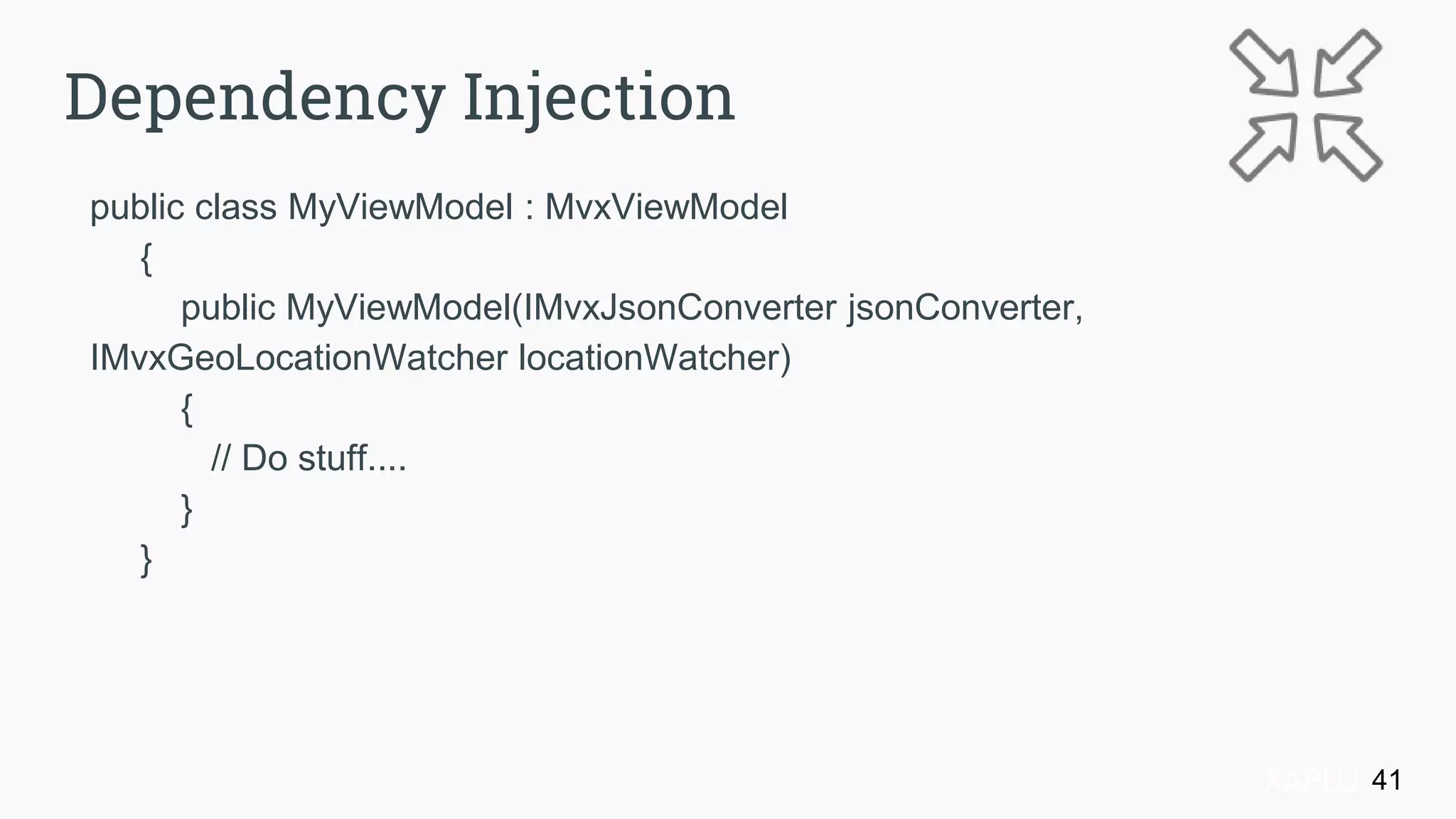

- 41. public class MyViewModel: MvxViewModel { public MyViewModel(IMvxJsonConverter jsonConverter, IMvxGeoLocationWatcher locationWatcher) { // Do stuff.... } } 41 Dependency Injection

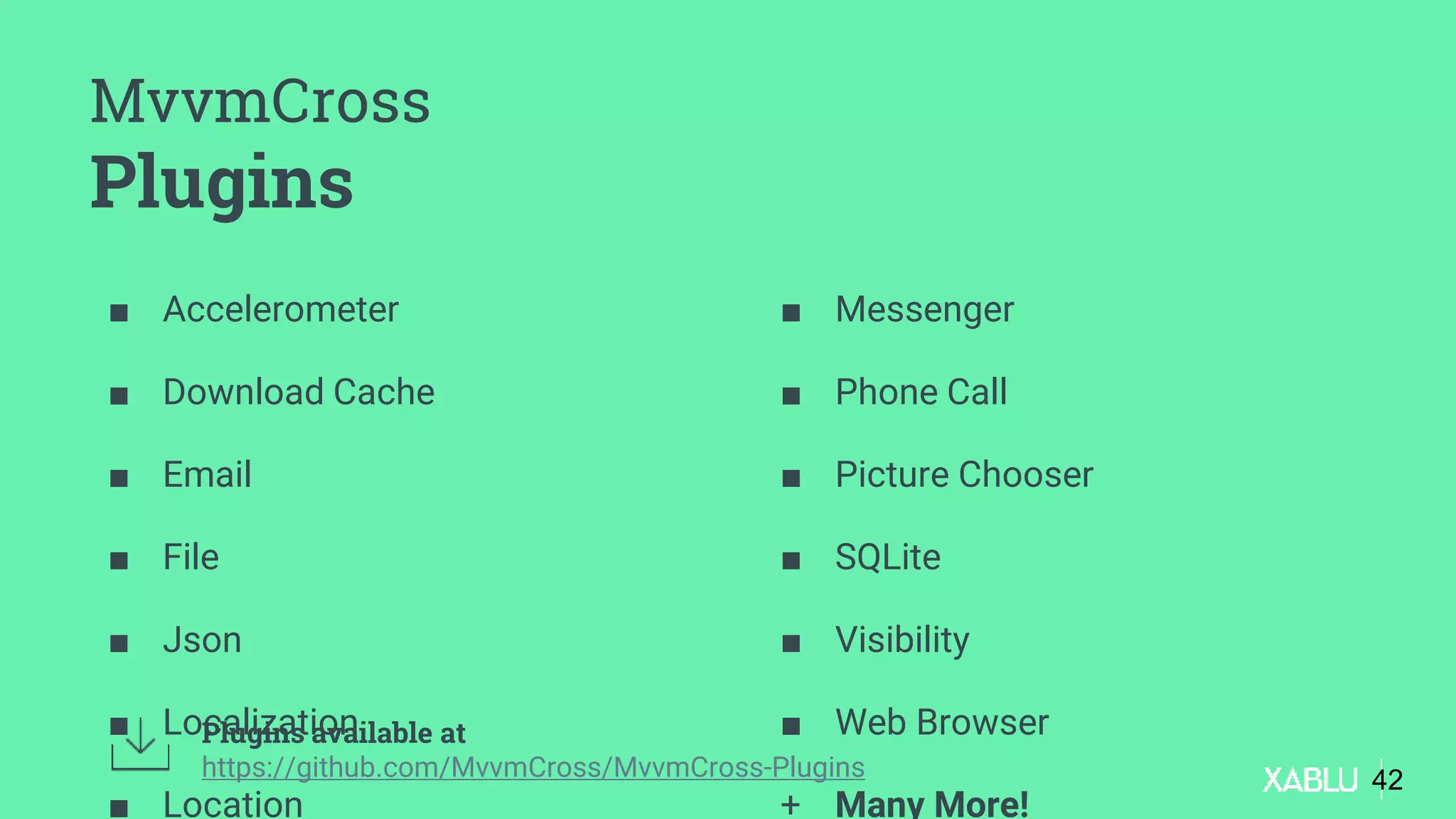

- 42. ■ Accelerometer ■ DownloadCache ■ Email ■ File ■ Json ■ Localization ■ Location Plugins available at https://github.com/MvvmCross/MvvmCross-Plugins ■ Messenger ■ Phone Call ■ Picture Chooser ■ SQLite ■ Visibility ■ Web Browser + Many More! 42 MvvmCross Plugins

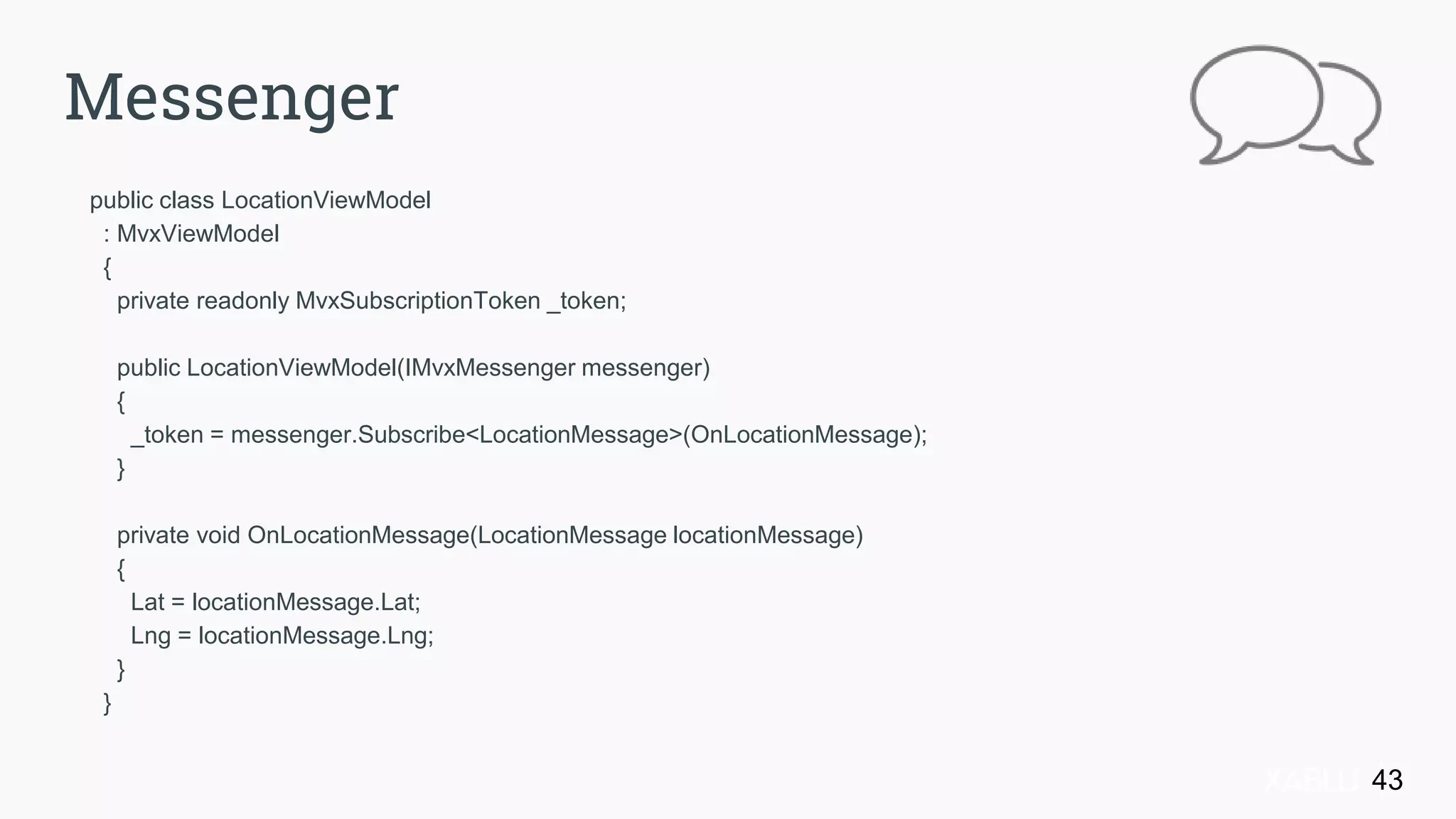

- 43. public class LocationViewModel :MvxViewModel { private readonly MvxSubscriptionToken _token; public LocationViewModel(IMvxMessenger messenger) { _token = messenger.Subscribe<LocationMessage>(OnLocationMessage); } private void OnLocationMessage(LocationMessage locationMessage) { Lat = locationMessage.Lat; Lng = locationMessage.Lng; } } 43 Messenger

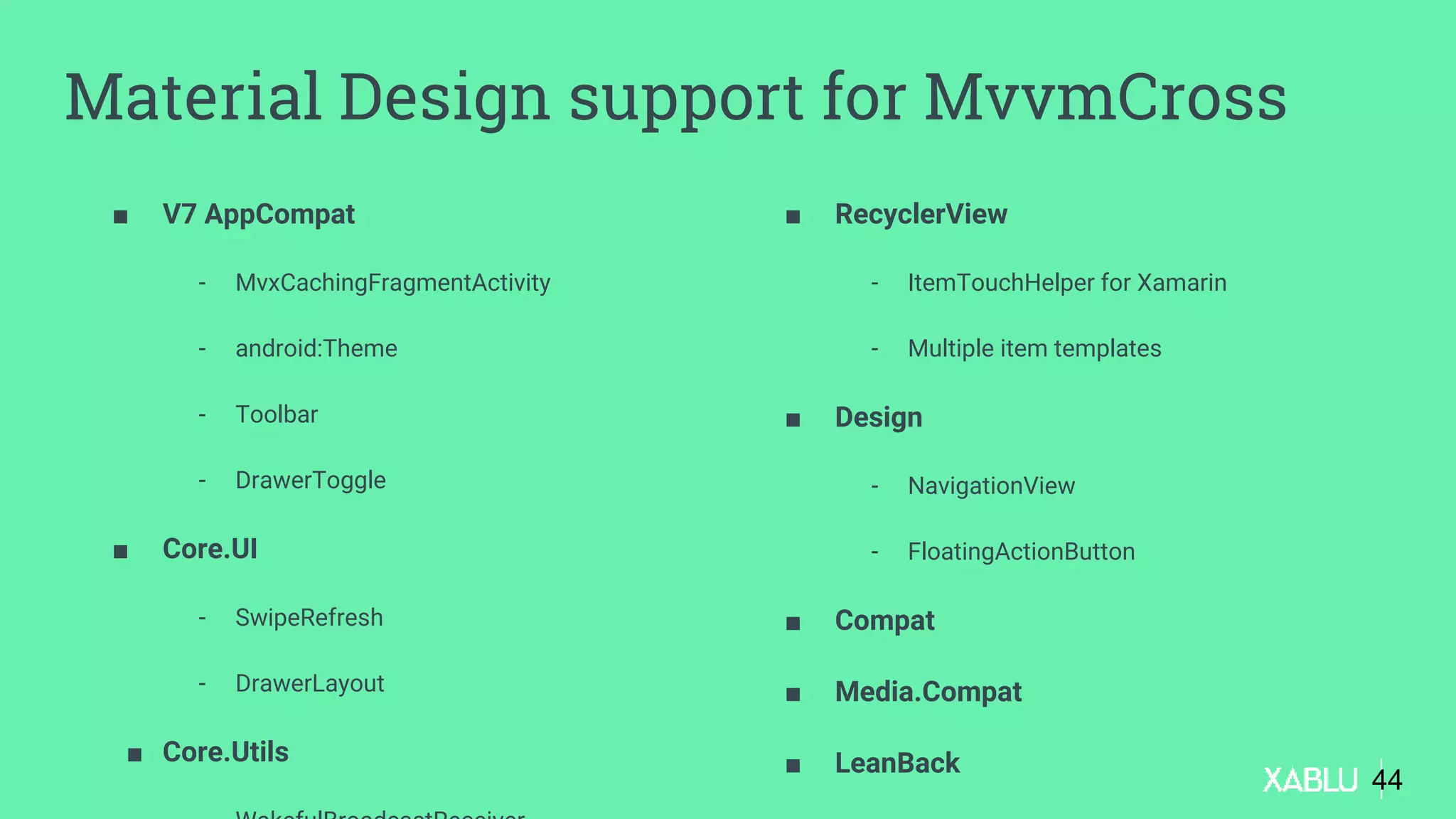

- 44. ■ V7 AppCompat -MvxCachingFragmentActivity - android:Theme - Toolbar - DrawerToggle ■ Core.UI - SwipeRefresh - DrawerLayout ■ Core.Utils ■ RecyclerView - ItemTouchHelper for Xamarin - Multiple item templates ■ Design - NavigationView - FloatingActionButton ■ Compat ■ Media.Compat ■ LeanBack 44 Material Design support for MvvmCross
- 45. See it inaction, demo time! 45

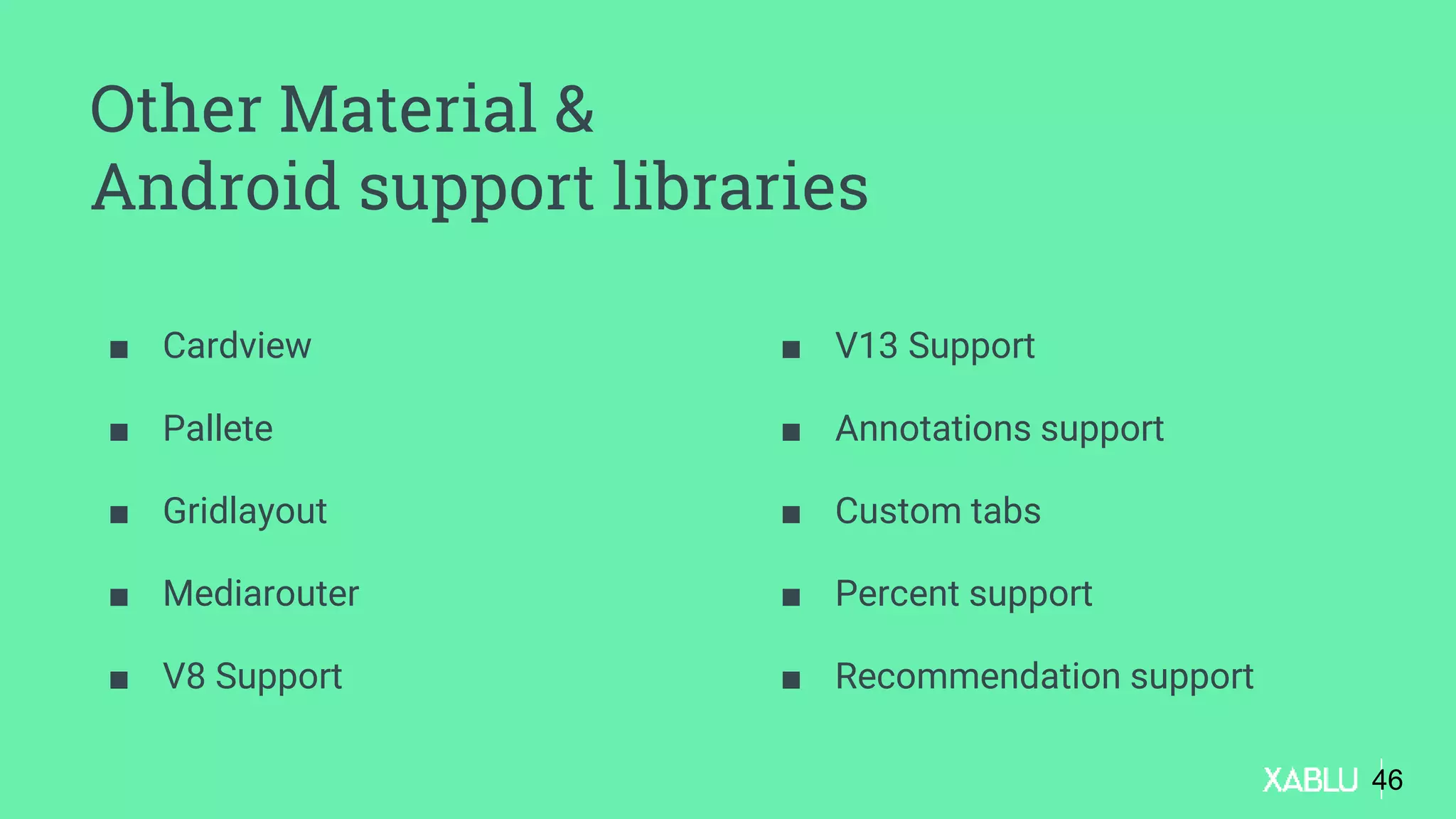

- 46. Other Material & Androidsupport libraries ■ Cardview ■ Pallete ■ Gridlayout ■ Mediarouter ■ V8 Support ■ V13 Support ■ Annotations support ■ Custom tabs ■ Percent support ■ Recommendation support 46
- 47. 4747 Testing using MvvmCross.Test.Core; using Moq; usingNUnit.Framework; [TestFixture] public class MyTest : MvxIoCSupportingTest { [Test] public void TestViewModel() { base.Setup(); // from MvxIoCSupportingTest // your test code } }

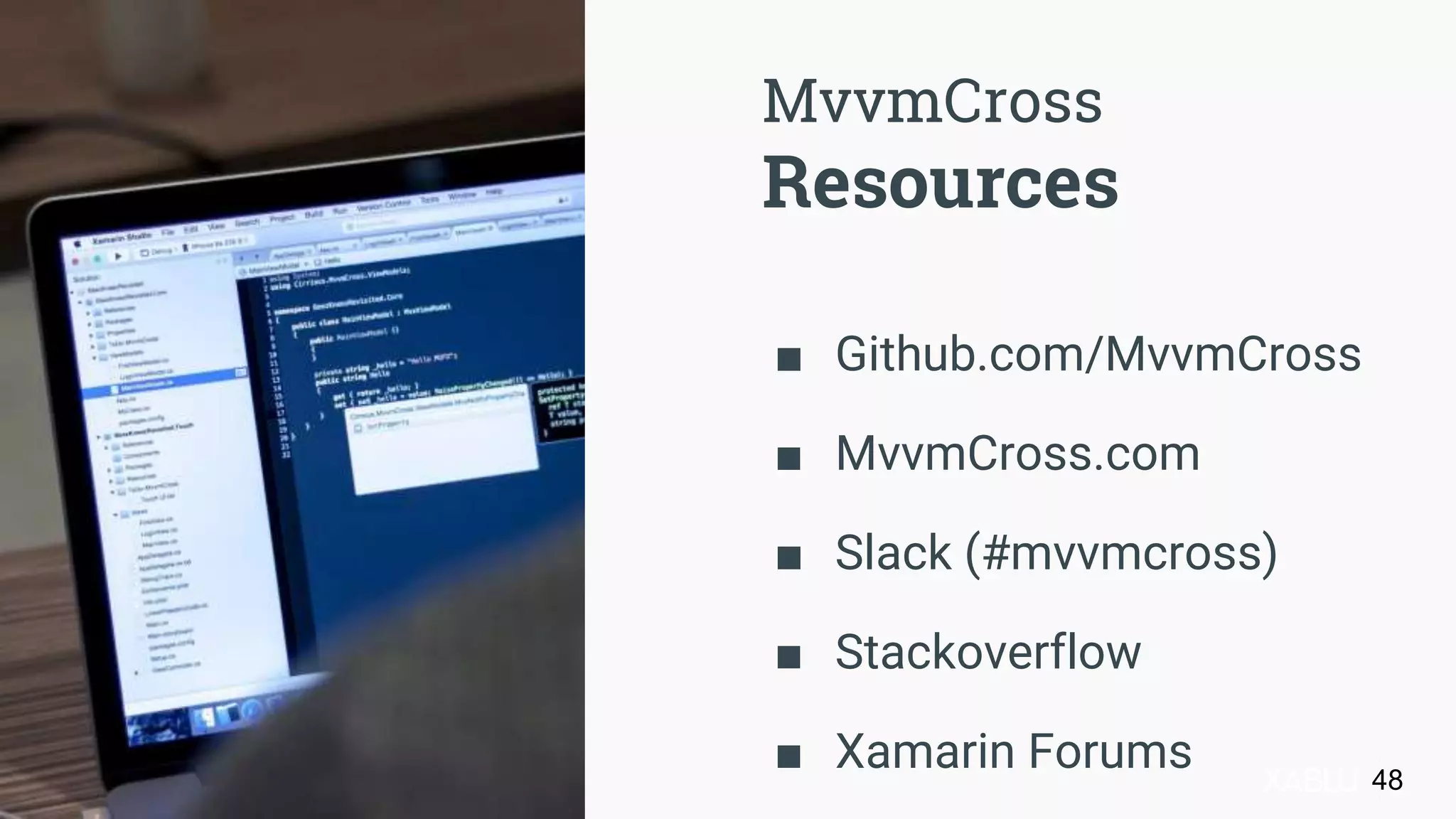

- 48. ■ Github.com/MvvmCross ■ MvvmCross.com ■Slack (#mvvmcross) ■ Stackoverflow ■ Xamarin Forums MvvmCross Resources 48

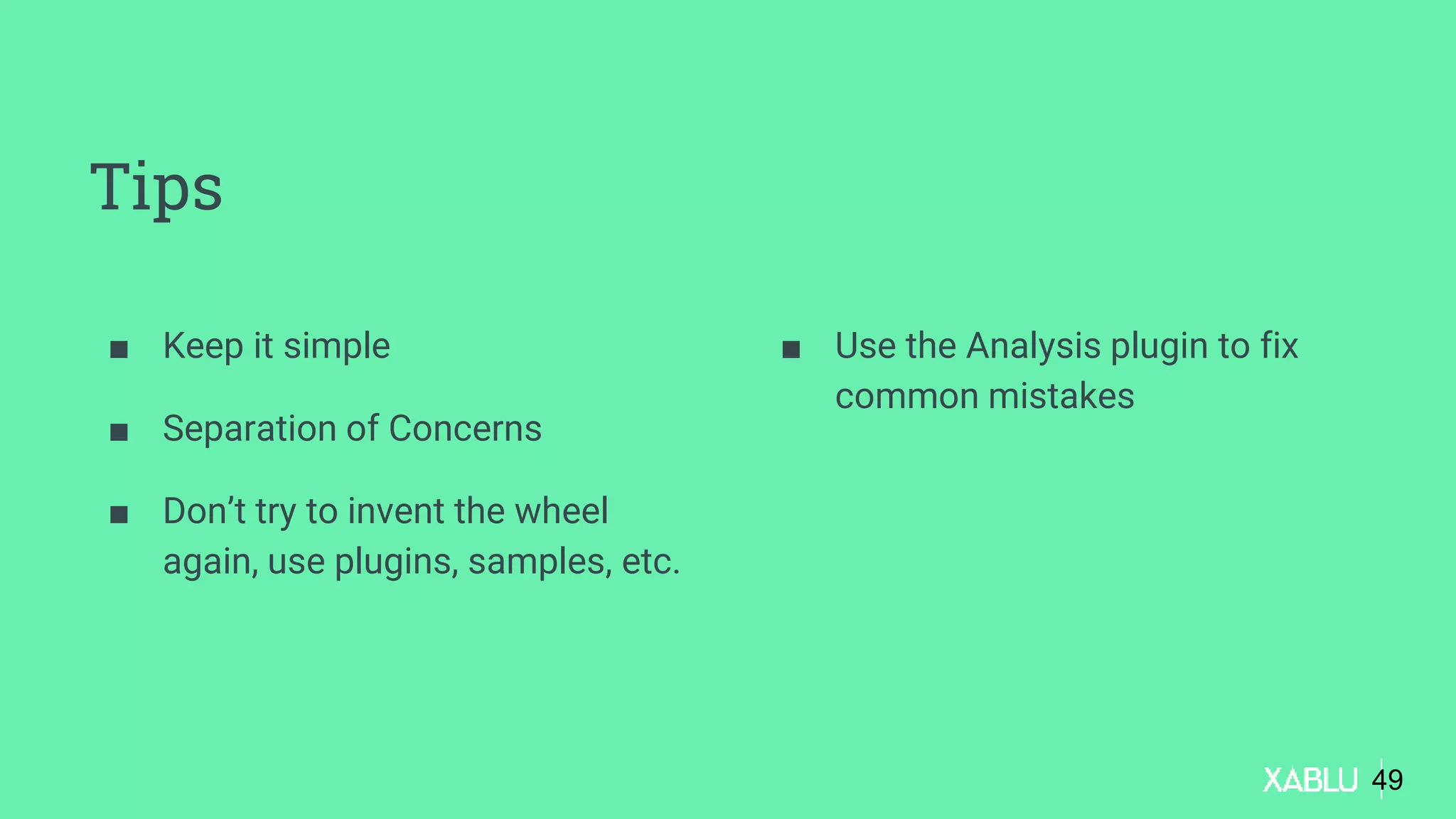

- 49. Tips ■ Keep itsimple ■ Separation of Concerns ■ Don’t try to invent the wheel again, use plugins, samples, etc. ■ Use the Analysis plugin to fix common mistakes 49

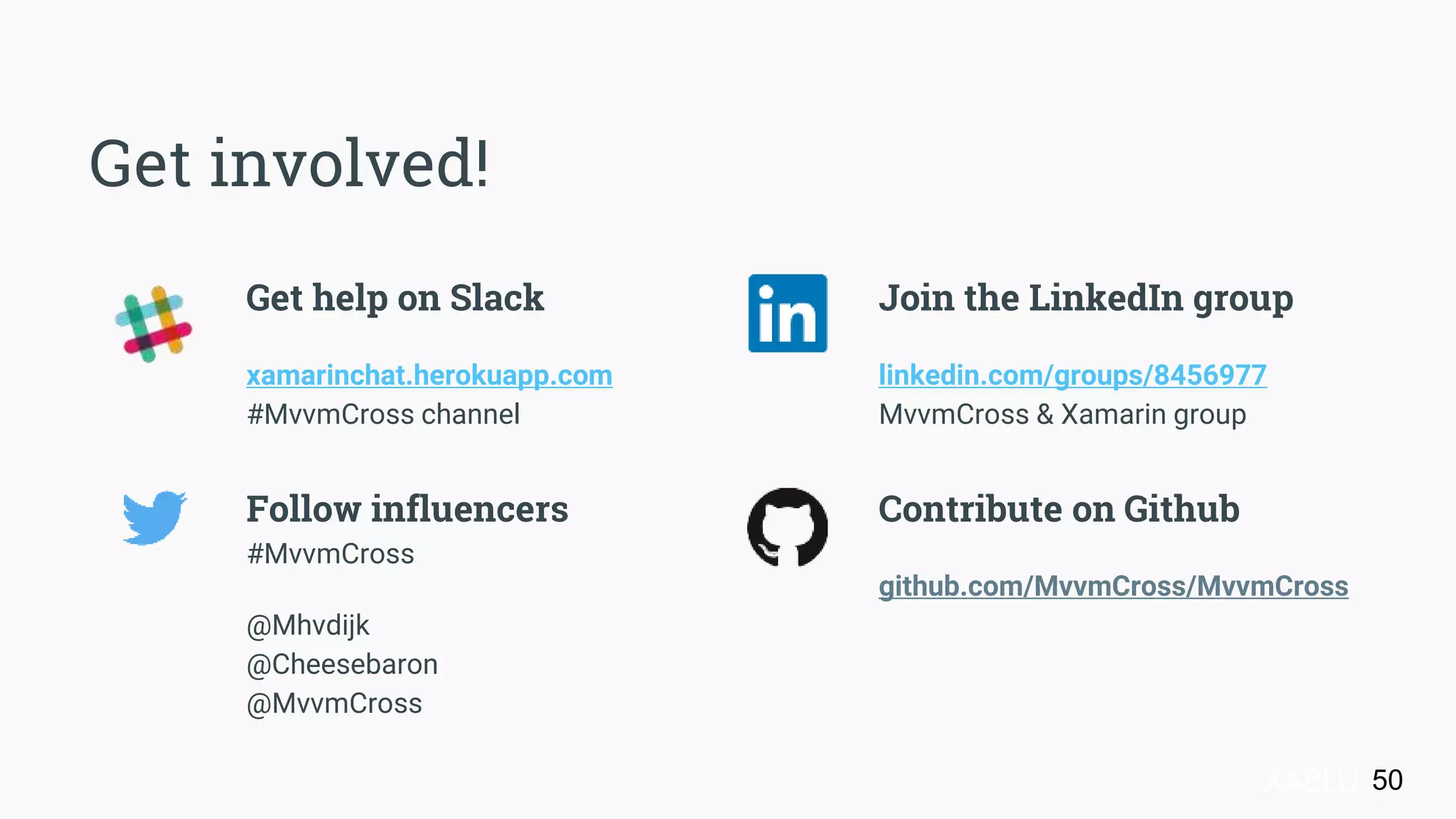

- 50. Get help onSlack xamarinchat.herokuapp.com #MvvmCross channel Follow influencers #MvvmCross @Mhvdijk @Cheesebaron @MvvmCross Join the LinkedIn group linkedin.com/groups/8456977 MvvmCross & Xamarin group Contribute on Github github.com/MvvmCross/MvvmCross 50 Get involved!
- 51.
Editor's Notes
- #6 UI build natively per platform, leveraging C# C# + XAML C# + XML C# + XIB One shared app logic code base, iOS, Android, Mac, Windows Phone, Windows Store, Windows
- #9 UI build natively per platform, leveraging C# C# + XAML C# + XML C# + XIB One shared app logic code base, iOS, Android, Mac, Windows Phone, Windows Store, Windows
- #13 These rules apply to basically all software projects, but we’ve seen that on a mobile project the cost of making the wrong decision are very high
- #15 Separated Presentation View is platform specific, all other are shared across platforms Other techniques instead of Mvvm File Linking Shared Code Projects #IF #ENDIF Portable Class Libraries
- #18 Stuart used it as a framework for some Star Wars app he made with some other guys
- #21 Extended iOS support Xamarin.Apple PCL support Bait and switch for plugins
- #23 Over 100 contributors over time
- #24 Over 100 contributors over time
- #25 Used by many enterprise companies Microsoft Xamarin inc. Dutch government Olo Nokia
- #26 Over 100 contributors over time Microsoft used it to demo UWP at Build 2015
- #27 Android Android Support libraries Windows WPF UWP (PC, Mobile, Xbox, TV, IoT) Silverlight Console Xamarin.Forms Uses MvvmCross ViewModels and helpers Uses MvvmCross presenter UI is done in Xamarin.Forms itself tvOS Google wear iWatch
- #28 Most classes can be inherited, many standard interfaces can be implemented Most methods can be overridden if needed
- #31 All form factors All OS

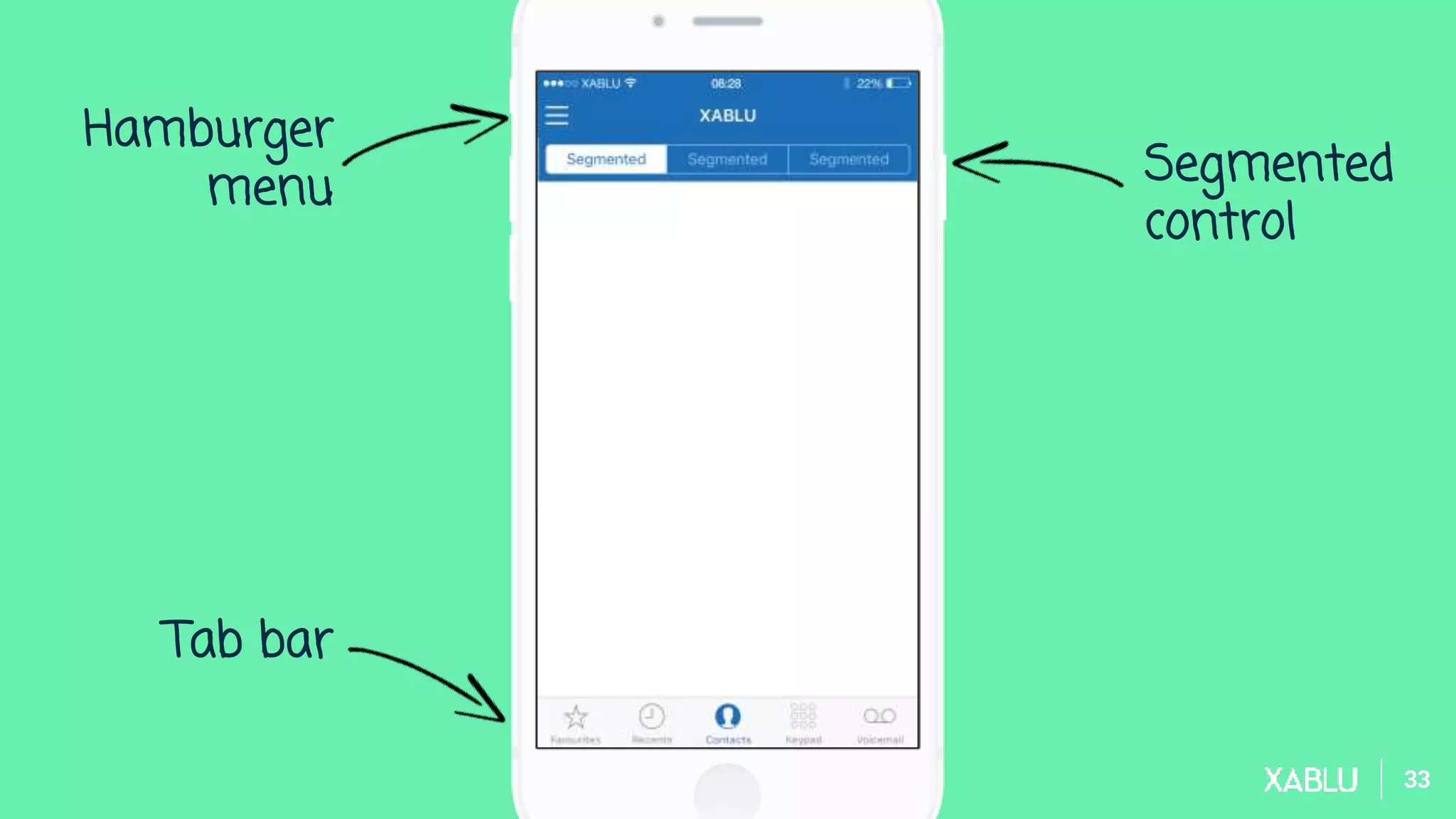

- #34 iOS Hamburger menu Tabbar Segmented control
- #36 iOS Hamburger menu Tabbar Segmented control
- #40 Advantage is that when using ViewModel in the View’s code behind all functions are known. You don’t need to cast. Don’t use it too much, otherwise the app size will increase
- #41 Crash reporting: Xamarin Insights switchen naar Google Analytics Implement per OS platform Last-registered wins Dependency Injection to resolve interfaces can be used in the constructor or as Setter Injection
- #43 Documentation available in readme of every sub folder of repo Other documentation is available in the Wiki of the main repo
- #44 The MvvmCross Messenger plugin provides an Event aggregation Messenger which is biased towards using Weak references for event subscription. The basic use of the Messenger is: define one or more Message classes for communication between components. These should inherit from MvxMessage
- #50 .NET Platform Standard has been introduced recently: https://github.com/dotnet/corefx/blob/master/Documentation/project-docs/standard-platform.md Analysis: Xamarin will introduce Roslyn support next release, which will bring source code fixes to Xamarin / the compiler
- #51 .NET Platform Standard has been introduced recently: https://github.com/dotnet/corefx/blob/master/Documentation/project-docs/standard-platform.md Analysis: Xamarin will introduce Roslyn support next release, which will bring source code fixes to Xamarin / the compiler
