1. Raspberry Pi, Arduino and
the Maker Movement
Dr. Simon Monk

2. Simon Monk
• Full-time Author - Open Source
Hardware and Electronics

3. Audience
• Who has used an Arduino?
• Who has used a Raspberry Pi?
• Who teaches Electronics?

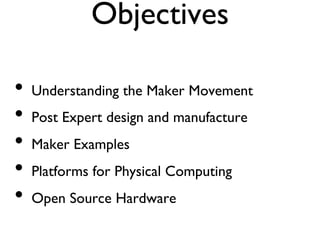

4. Objectives
• Understanding the Maker Movement
• Post Expert design and manufacture
• Maker Examples
• Platforms for Physical Computing
• Open Source Hardware

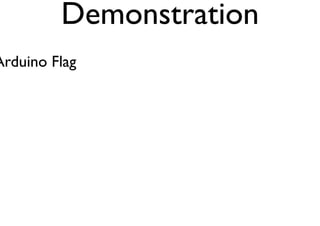

5. Demonstration
Arduino Flag

6. ‘Post-Expert’ Making
Why is this possible?
With the advent of the Internet, expert knowledge is now
freely available to all.
Open Source Hardware - designs are not secret, learn by
example and modify.
‘Expert’ amateurs create tools for ‘less expert’ Makers
(Arduino etc.)
Services - PCB fabrication, 3D printing, laser cutting
Very low cost of entry
Hackspaces and FabLabs provide shared tools and

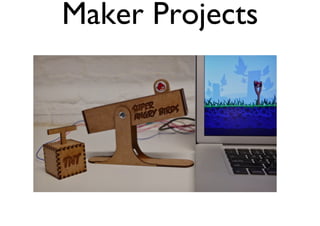

7. Maker Projects

8. Hacking

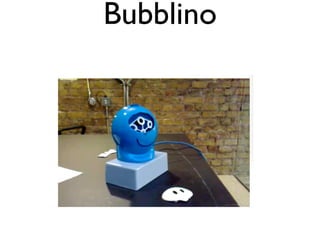

9. Bubblino

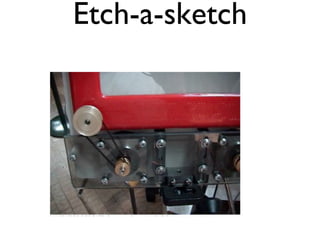

10. Etch-a-sketch

11. Global Show and Tell
• Instructables.com
• Hacknmod.com
• Youtube
• Blogs
• Books

12. Hen-House Door

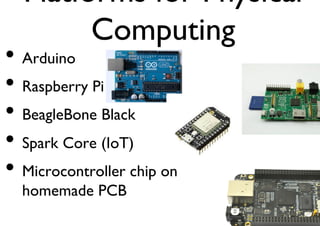

13. Platforms for Physical
Computing
• Arduino
• Raspberry Pi
• BeagleBone Black
• Spark Core (IoT)
• Microcontroller chip on
homemade PCB

14. What is an Arduino?
USB
Power
Digital Inputs / Outputs
Analog Inputs

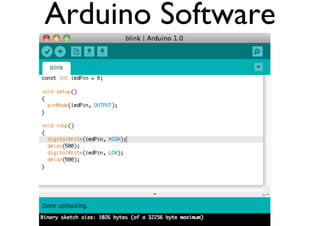

15. Arduino Software

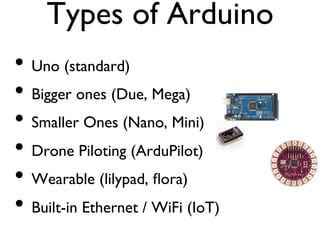

16. Types of Arduino
• Uno (standard)
• Bigger ones (Due, Mega)
• Smaller Ones (Nano, Mini)
• Drone Piloting (ArduPilot)
• Wearable (lilypad, flora)
• Built-in Ethernet / WiFi (IoT)

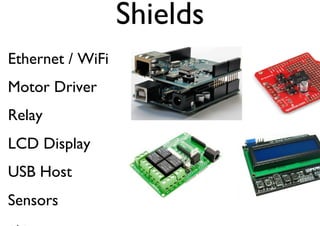

17. Shields
• Ethernet / WiFi
• Motor Driver
• Relay
• LCD Display
• USB Host
• Sensors
• etc.

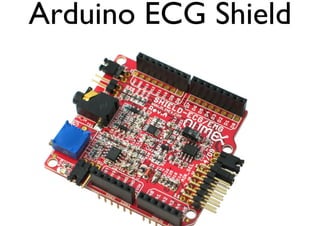

18. Arduino ECG Shield

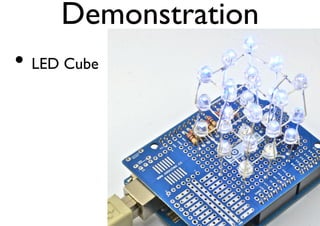

19. Demonstration
• LED Cube

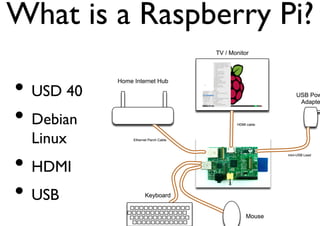

20. What is a Raspberry Pi?
• USD 40
• Debian
Linux
• HDMI
• USB

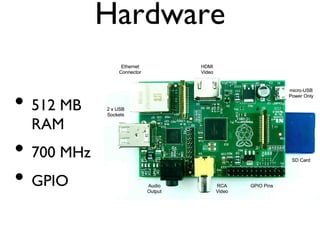

21. Hardware
• 512 MB
RAM
• 700 MHz
• GPIO

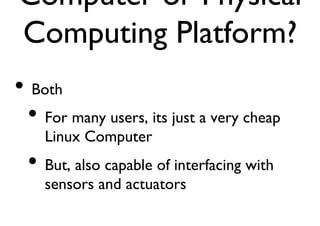

22. Computer or Physical
Computing Platform?
• Both
• For many users, its just a very cheap
Linux Computer
• But, also capable of interfacing with
sensors and actuators

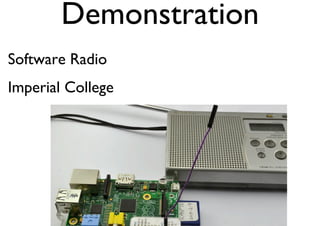

23. Demonstration
• Software Radio
• Imperial College

24. Programming Pi
• Python
• Tkinter - GUIs
• PyGame - Games
• Scratch - Visual Programming
• C, Java, Clozure CL, Squeek, LAMP (Linux,
Apache, MySQL and PHP)!

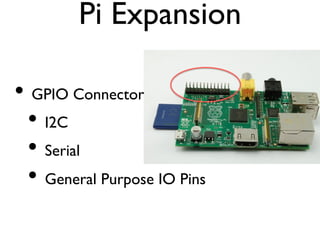

25. Pi Expansion
• GPIO Connector
• I2C
• Serial
• General Purpose IO Pins

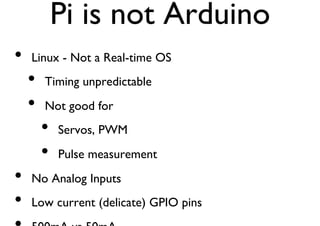

26. Pi is not Arduino
• Linux - Not a Real-time OS
• Timing unpredictable
• Not good for
• Servos, PWM
• Pulse measurement
• No Analog Inputs
• Low current (delicate) GPIO pins
• 500mA vs 50mA

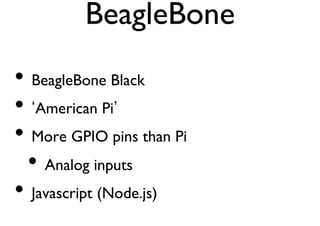

27. BeagleBone
• BeagleBone Black
• ‘American Pi’
• More GPIO pins than Pi
• Analog inputs
• Javascript (Node.js)

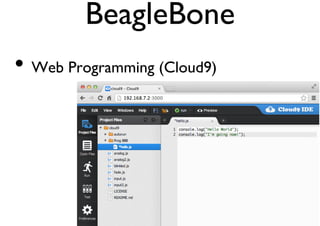

28. BeagleBone
• Web Programming (Cloud9)

29. Example
• Email Notifier

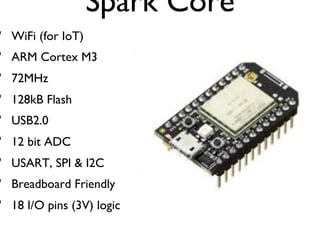

30. Spark Core
• WiFi (for IoT)
• ARM Cortex M3
• 72MHz
• 128kB Flash
• USB2.0
• 12 bit ADC
• USART, SPI & I2C
• Breadboard Friendly
• 18 I/O pins (3V) logic

31. Open Source
Hardware
OSS-type of License
Electronic Design Files
• Schematic
• PCB Layout
• Firmware OSS
Mechanical Design
• 3D models etc

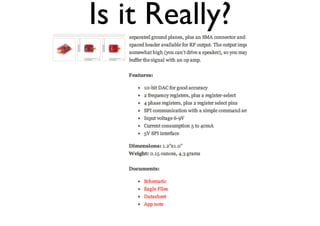

32. Is it Really?

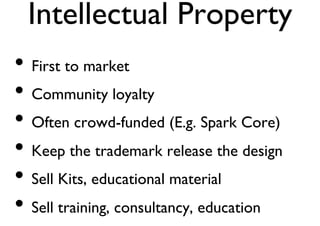

33. Intellectual Property
• First to market
• Community loyalty
• Often crowd-funded (E.g. Spark Core)
• Keep the trademark release the design
• Sell Kits, educational material
• Sell training, consultancy, education

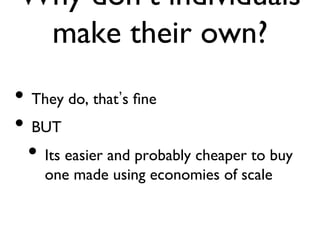

34. Why don’t individuals
make their own?
• They do, that’s fine
• BUT
• Its easier and probably cheaper to buy
one made using economies of scale

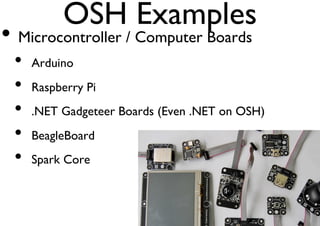

35. OSH Examples
• Microcontroller / Computer Boards
• Arduino
• Raspberry Pi
• .NET Gadgeteer Boards (Even .NET on OSH)
• BeagleBoard
• Spark Core

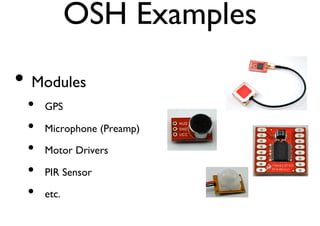

36. OSH Examples
• Modules
• GPS
• Microphone (Preamp)
• Motor Drivers
• PIR Sensor
• etc.

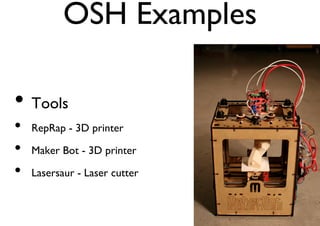

37. OSH Examples
• Tools
• RepRap - 3D printer
• Maker Bot - 3D printer
• Lasersaur - Laser cutter

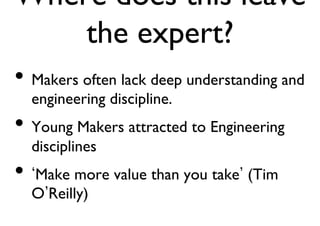

38. Where does this leave
the expert?
• Makers often lack deep understanding and
engineering discipline.
• Young Makers attracted to Engineering
disciplines
• ‘Make more value than you take’ (Tim
O’Reilly)

39. Summary
• Hobby Making moving from cakes and
woodwork into high technology
• Tools to help
• Information to help
• Communities to help

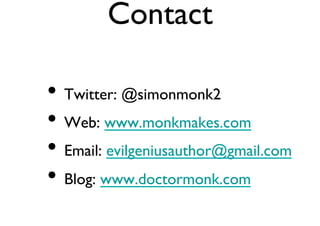

40. Contact
• Twitter: @simonmonk2
• Web: www.monkmakes.com
• Email: evilgeniusauthor@gmail.com
• Blog: www.doctormonk.com
