1. Quo Vadis
Netflix Stack?
// Baris Cubukcuoglu & Fabian Keller
Photo by Ajeet Mestry on Unsplash

2. Baris Cubukcuoglu
Software Engineer
Photographer
@bariscubuk__
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 2
Fabian Keller
Software Engineer
Woodworker
@_fabiankeller

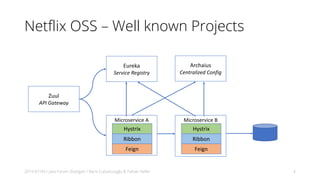

4. Netflix OSS – Well known Projects
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 4
Zuul
API Gateway
Eureka
Service Registry
Archaius
Centralized Config
Microservice A
Hystrix
Ribbon
Microservice B
Hystrix
Ribbon
Feign Feign

5. Eureka, Feign & Ribbon (with Spring Cloud)
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 5
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

6. Hystrix (with Spring Cloud)
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 6
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

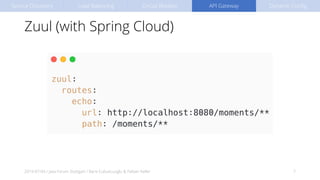

7. Zuul (with Spring Cloud)
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 7
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

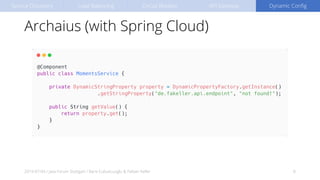

8. Archaius (with Spring Cloud)
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 8
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

9. 9
Maintenance Mode
Photo by Pandu Agus Wismoyo on Unsplash

10. Archaius
Centralized Config
Zuul
API Gateway
Eureka
Service Registry
Microservice A
Hystrix
Ribbon
Microservice B
Hystrix
Ribbon
Feign Feign

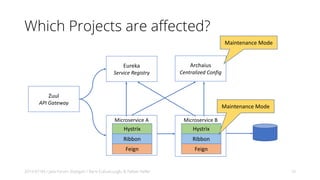

Which Projects are affected?
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 10
Maintenance Mode
Maintenance Mode

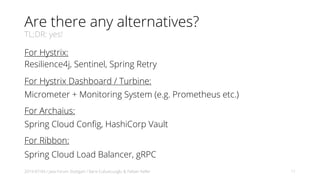

11. Are there any alternatives?
TL;DR: yes!
For Hystrix:
Resilience4j, Sentinel, Spring Retry
For Hystrix Dashboard / Turbine:
Micrometer + Monitoring System (e.g. Prometheus etc.)
For Archaius:
Spring Cloud Config, HashiCorp Vault
For Ribbon:
Spring Cloud Load Balancer, gRPC
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 11

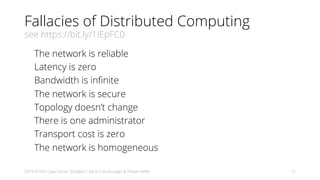

12. Fallacies of Distributed Computing
see https://bit.ly/1IEpFC0
The network is reliable
Latency is zero
Bandwidth is infinite
The network is secure
Topology doesn’t change
There is one administrator
Transport cost is zero
The network is homogeneous
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 12

13. Patterns
• Stability
• Capability
• Transparency
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 13

14. Photo by chuttersnap on Unsplash
15% Internet Traffic

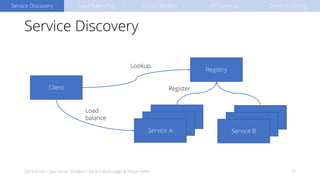

15. Service Discovery
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 15
Client
Registry
Service A
Service A
Service A
Service A
Service A
Service B
Load
balance
Register
Lookup
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

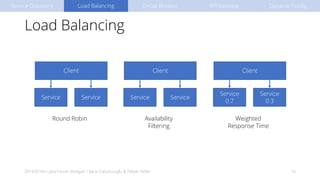

16. Load Balancing
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 16
Client
Service Service
Availability
Filtering
Client
Service Service
Round Robin
Client
Service
0.7
Service
0.3
Weighted
Response Time
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

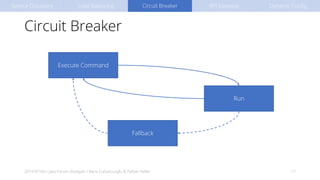

17. Circuit Breaker
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 17
Execute Command
Run
Fallback
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

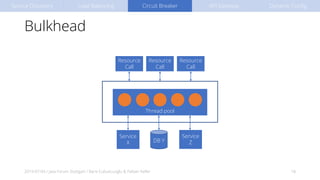

18. Bulkhead
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 18
Thread pool
Service
X
Service
Z
Resource
Call
Resource
Call
Resource
Call
DB Y
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

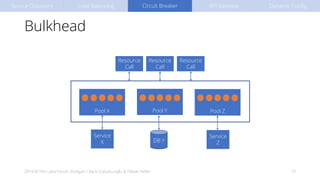

19. Bulkhead
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 19
Service
X
Service
Z
Resource
Call
Resource
Call
Resource
Call
DB Y
Pool X Pool Y Pool Z
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

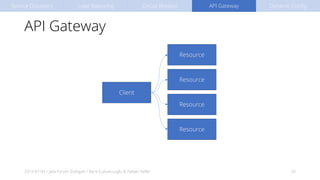

20. API Gateway
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 20
Client
Resource
Resource
Resource
Resource
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

21. API Gateway
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 21
Client
Resource
Resource
Resource
Resource
API Gateway
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

22. 2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 22
The Modern Cloud Stack
Photo by Pero Kalimero on Unsplash

23. Where do we begin with?
A homogeneous microservice landscape, yeah right…
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 23
Netflix
OSS
Netflix
OSS
Netflix
OSS
Netflix
OSS
Netflix
OSS
Netflix
OSS
Netflix
OSS
Netflix
OSS
?!

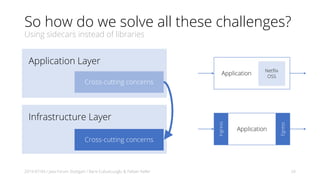

24. So how do we solve all these challenges?
Using sidecars instead of libraries
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 24
Application Layer
Cross-cutting concerns
Infrastructure Layer
Cross-cutting concerns
Application
Netflix
OSS
Application
Egress
Ingress

25. Egress
Ingress
Egress
Ingress
Egress
Ingress
Egress
Ingress
Egress
Ingress
Egress
Ingress
Egress
Ingress
Egress
Ingress

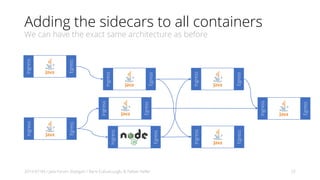

Adding the sidecars to all containers
We can have the exact same architecture as before
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 25

26. 2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 26
Photo by Erdenebayar Bayansan on Pixabay

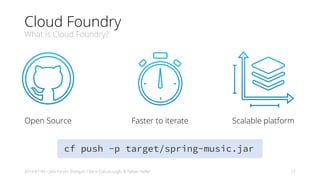

27. Cloud Foundry
What is Cloud Foundry?
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 27
Open Source Faster to iterate Scalable platform
cf push -p target/spring-music.jar

28. Container Network
Cloud Foundry Service Discovery
a.k.a. Container Networking. Also enables client-side load balancing via DNS
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 28
moments.apps.internal
10.254.40.156
media.apps.internal
10.254.40.148
media.apps.internal
10.254.40.123
media.apps.internal
10.254.40.42
myapp.com
10.254.40.156
moments.apps.internal
10.254.40.148
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config
DNS? moments.apps.internal
A 10.254.40.148
A 10.254.40.156

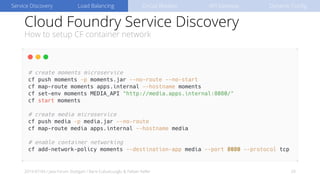

29. Cloud Foundry Service Discovery
How to setup CF container network
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 29
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

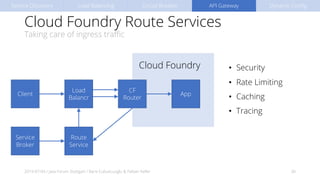

30. Cloud Foundry Route Services
Taking care of ingress traffic
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 30
Cloud Foundry
CF
Router
App
Load
Balancr
Client
Route
Service
Service
Broker
• Security
• Rate Limiting
• Caching
• Tracing
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

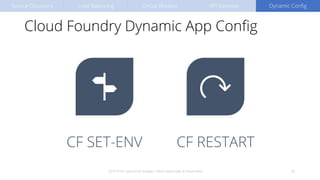

31. Cloud Foundry Dynamic App Config
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 31
CF SET-ENV CF RESTART
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

32. 2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 32
Kubernetes Istio
Photo by Bobby Burch on Unsplash

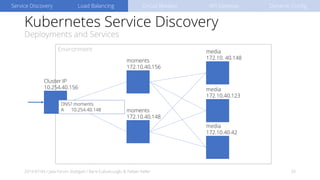

33. Kubernetes Service Discovery
Deployments and Services
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 33
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config
Environment
moments
172.10.40.156
media
172.10. 40.148
media
172.10.40.123
media
172.10.40.42
Cluster IP
10.254.40.156
moments
172.10.40.148
DNS? moments
A 10.254.40.148

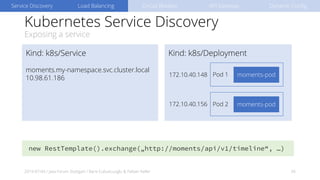

34. Kind: k8s/DeploymentKind: k8s/Service
moments.my-namespace.svc.cluster.local
10.98.61.186
Kubernetes Service Discovery
Exposing a service
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 34
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config
new RestTemplate().exchange(„http://moments/api/v1/timeline“, …)
Pod 1 moments-pod172.10.40.148
Pod 2 moments-pod172.10.40.156

35. Istio Architecture
Control Plane and Data Plane
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 35
Control Plane
Data Plane
Pilot Citadel Mixer
Pod 1
Envoy
App 1
Pod 2
Envoy
App 2

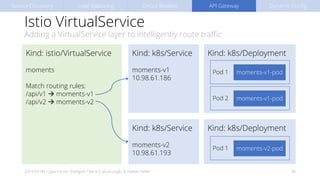

36. Istio VirtualService
Adding a VirtualService layer to intelligently route traffic
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 36
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config
Kind: k8s/DeploymentKind: k8s/Service
moments-v1
10.98.61.186
Pod 1 moments-v1-pod
Pod 2 moments-v1-pod
Kind: istio/VirtualService
moments
Match routing rules:
/api/v1 à moments-v1
/api/v2 à moments-v2
Kind: k8s/Deployment
Pod 1 moments-v2-pod
Kind: k8s/Service
moments-v2
10.98.61.193

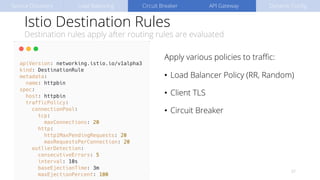

37. Istio Destination Rules
Destination rules apply after routing rules are evaluated
Apply various policies to traffic:
• Load Balancer Policy (RR, Random)
• Client TLS
• Circuit Breaker
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 37
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

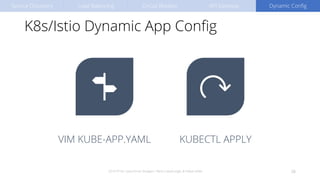

38. K8s/Istio Dynamic App Config
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 38
VIM KUBE-APP.YAML KUBECTL APPLY
Service Discovery Load Balancing Circuit Breaker API Gateway Dynamic Config

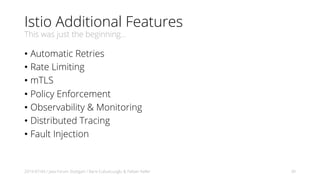

39. Istio Additional Features
This was just the beginning…
• Automatic Retries
• Rate Limiting
• mTLS
• Policy Enforcement
• Observability & Monitoring
• Distributed Tracing
• Fault Injection
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 39

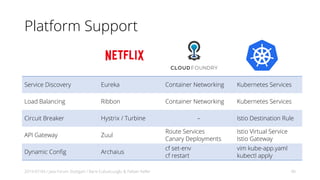

40. Platform Support
Service Discovery Eureka Container Networking Kubernetes Services
Load Balancing Ribbon Container Networking Kubernetes Services
Circuit Breaker Hystrix / Turbine – Istio Destination Rule
API Gateway Zuul
Route Services
Canary Deployments
Istio Virtual Service
Istio Gateway
Dynamic Config Archaius
cf set-env
cf restart
vim kube-app.yaml
kubectl apply
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 40

41. Limitations
There is always a flipside
• We‘re now hiring for a full-time YAML engineer
• Sometimes infrastructure shouldn‘t take care (e.g. retries)
• Yet another markup language stack to learn
• People will start to write microservices in other languages
2019-07-04 / Java Forum Stuttgart / Baris Cubukcuoglu & Fabian Keller 41

42. Thanks!
kubectl apply –f questions.yaml
