The document discusses Netflix's use of serverless computing via its own Function as a Service (FaaS) platform. Some key points: - Netflix built its own FaaS platform called Titus that runs functions at scale using containers for portability and efficiency. - The platform handles operations concerns so developers can focus on business logic. It provides a full runtime API and handles updates, metrics, and management automatically. - Netflix developed tools like NEWT to improve the developer experience with one-click setup, local development and debugging, testing, and CI/CD integration for fast and reliable software development.

1. 130 million customers
in over 190 countries
streaming 140 million hrs/day

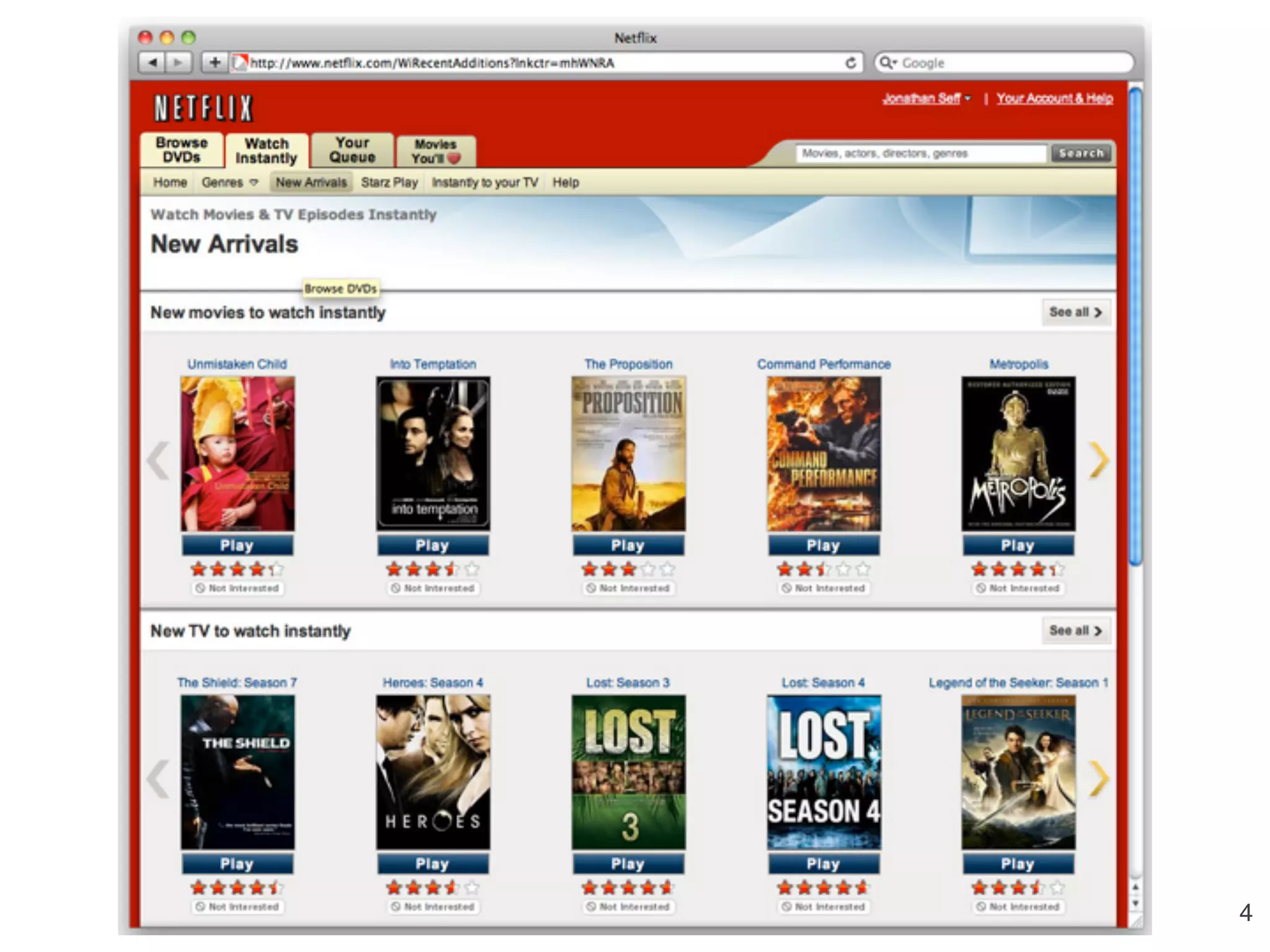

4. 4

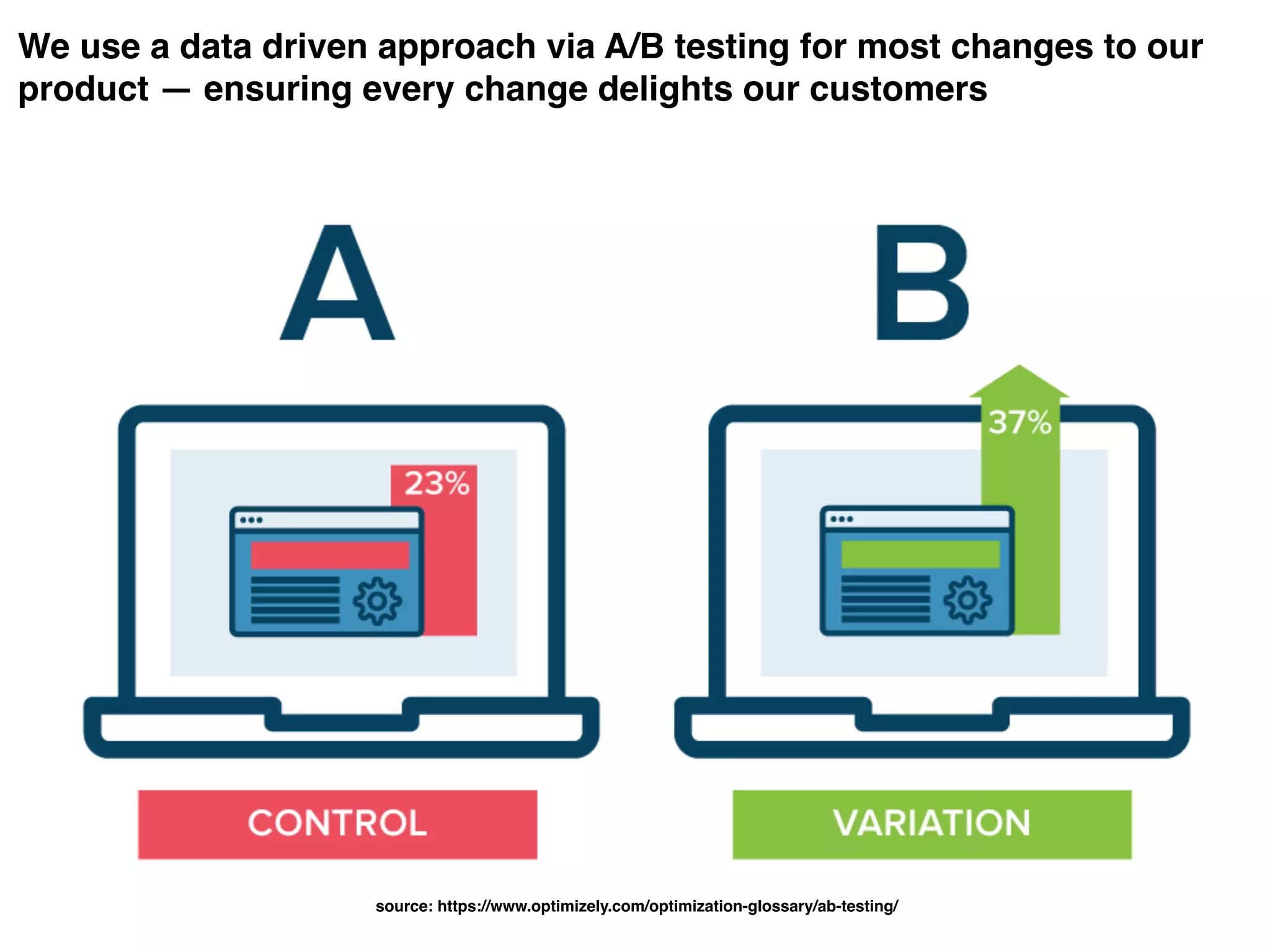

6. We use a data driven approach via A/B testing for most changes to our
product — ensuring every change delights our customers
source: https://www.optimizely.com/optimization-glossary/ab-testing/

7. 1000s of A/B tests a year

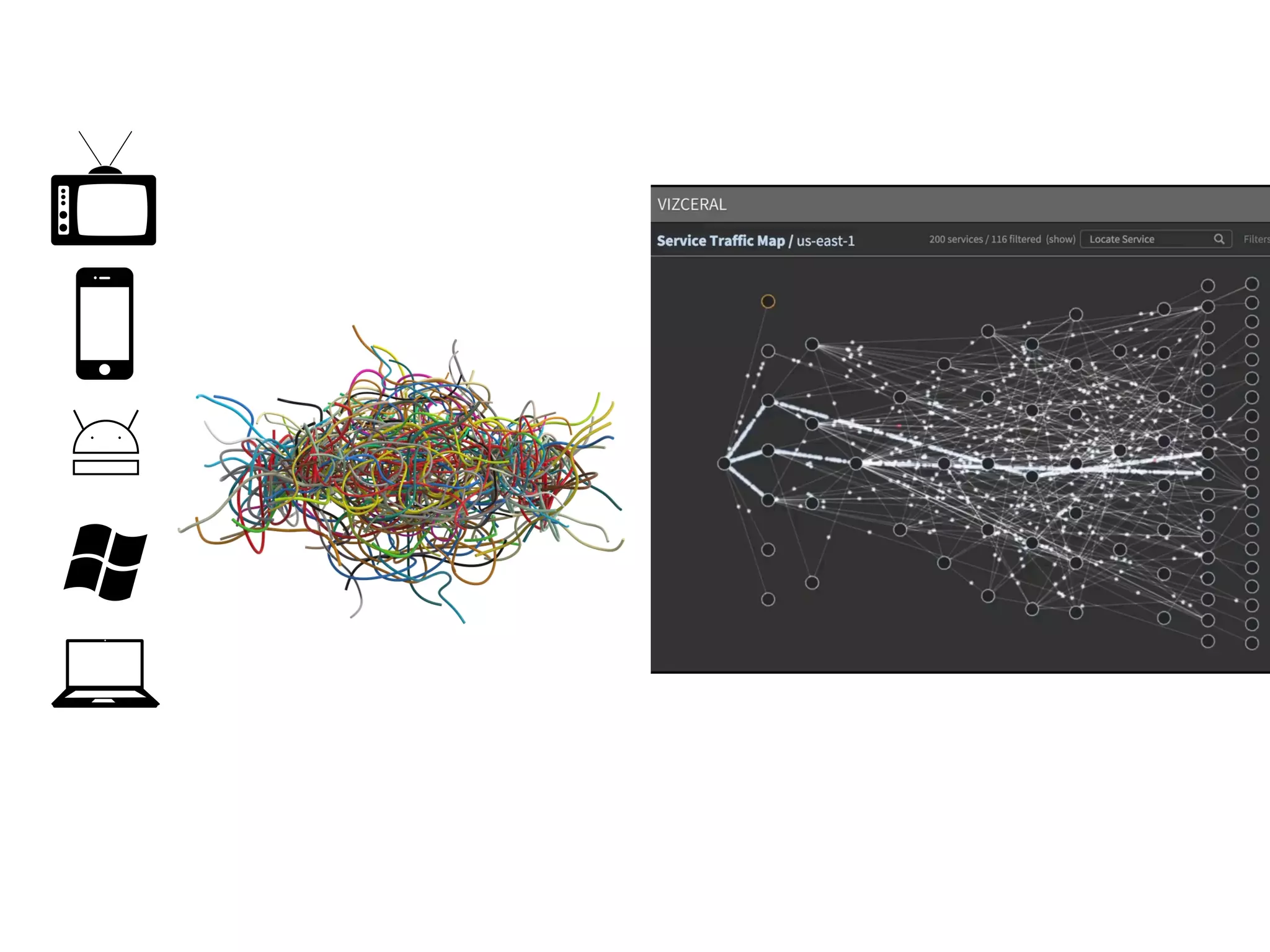

11. Netflix API
http://api.netflix.com

12. TV
iOS
Android
Windows
Browsers
Remote
Service
Layer
Search
MAP
GPS
Playback
…
Clients Client API Edge API Backend Services

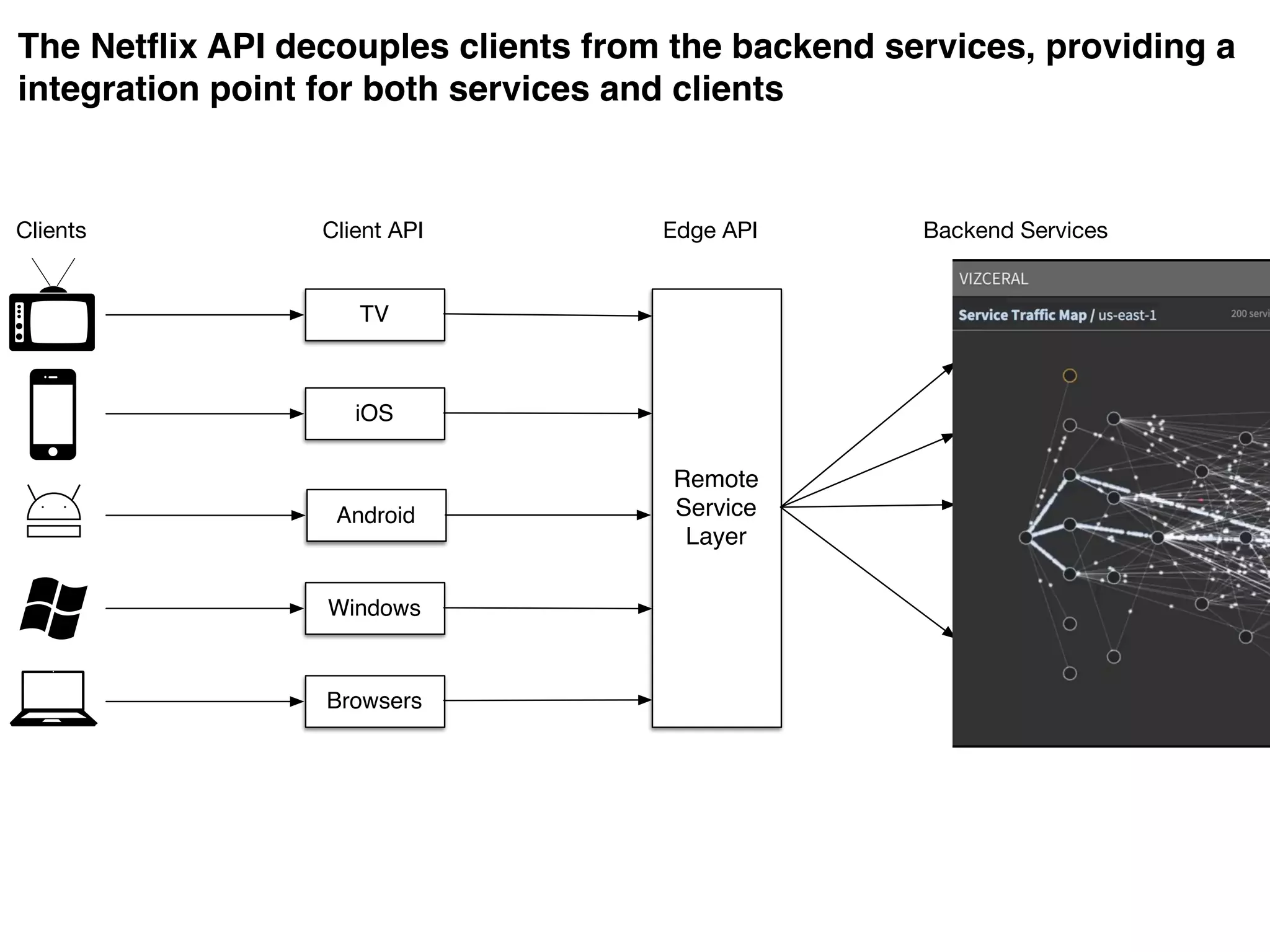

The Netflix API decouples clients from the backend services, providing a
integration point for both services and clients

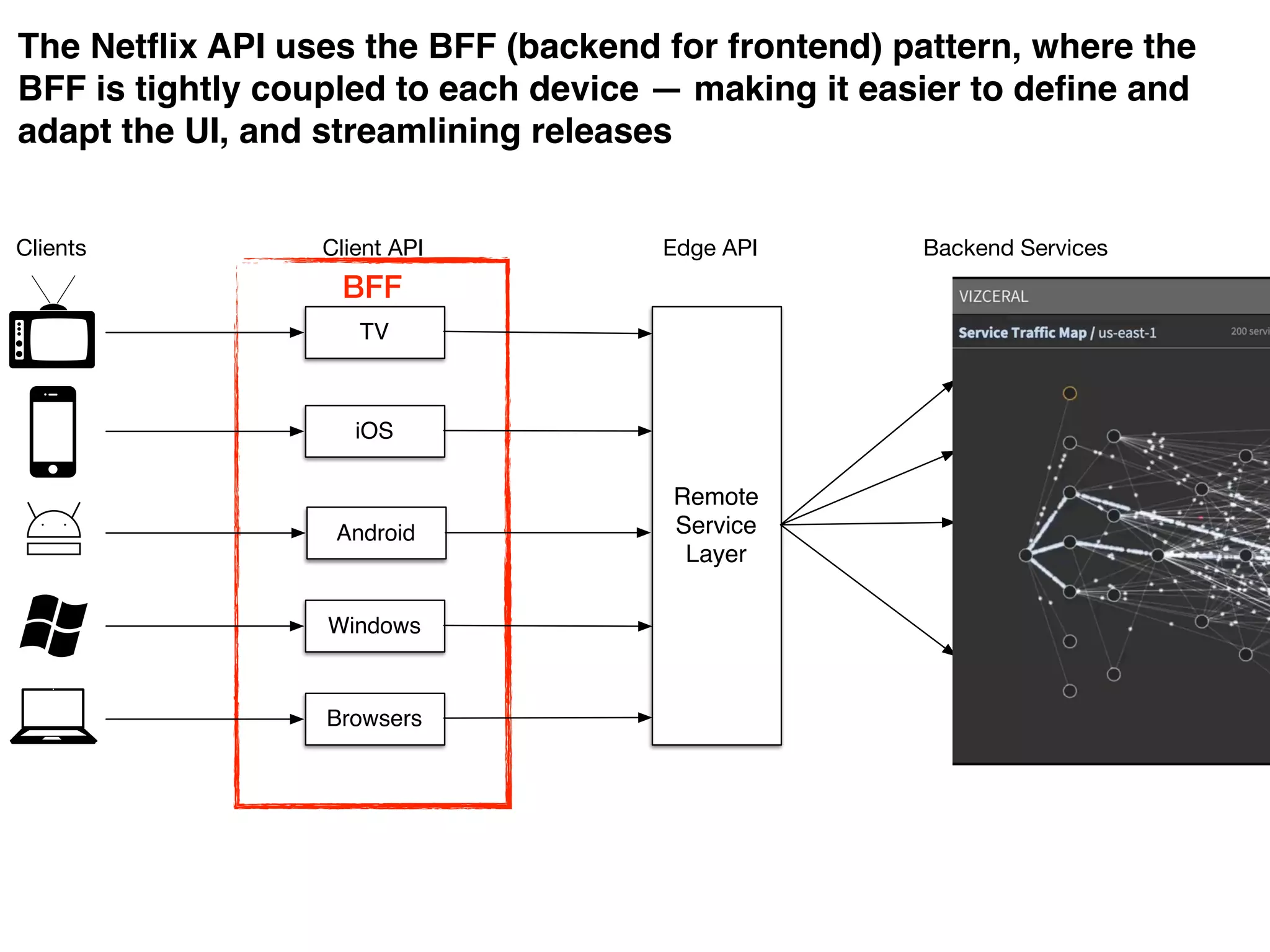

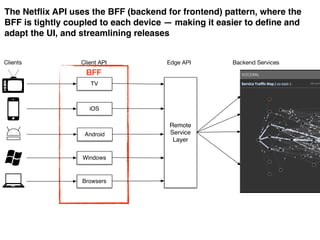

13. BFF
The Netflix API uses the BFF (backend for frontend) pattern, where the
BFF is tightly coupled to each device — making it easier to define and
adapt the UI, and streamlining releases
TV
iOS
Android
Windows
Browsers
Remote
Service
Layer
Search
MAP
GPS
Playback
…
Clients Client API Edge API Backend Services

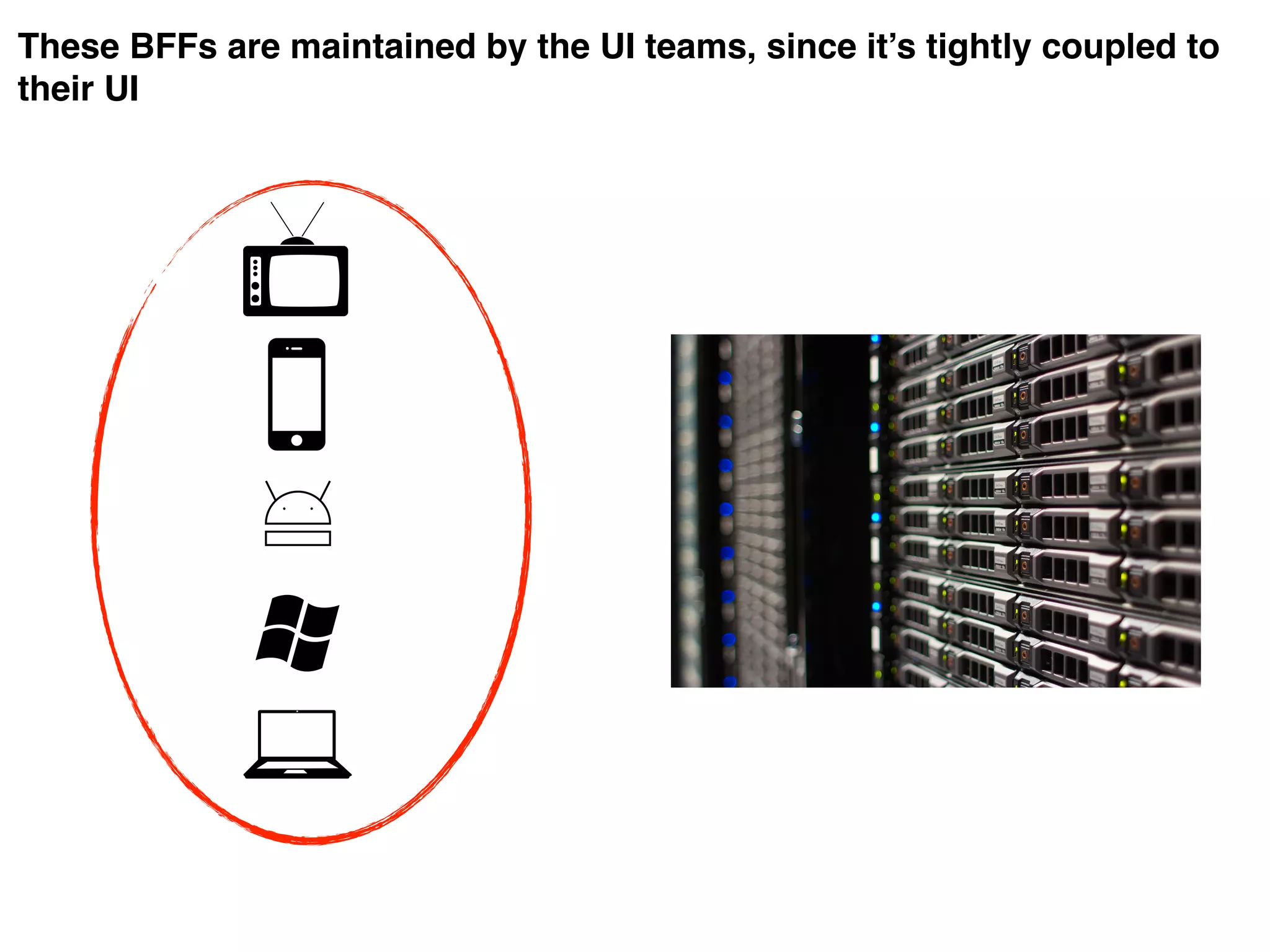

14. These BFFs are maintained by the UI teams, since it’s tightly coupled to
their UI

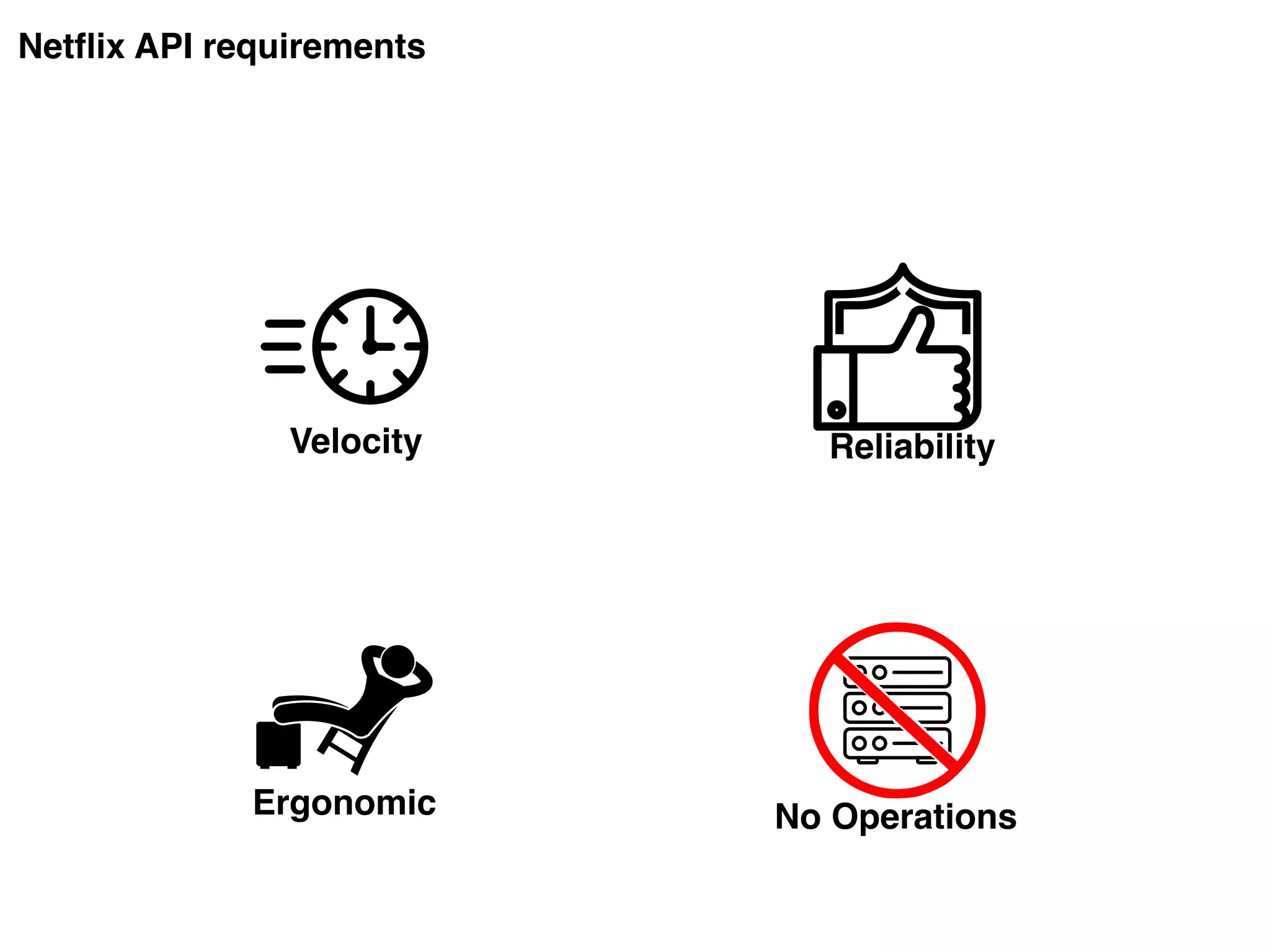

15. Netflix API requirements
Velocity Reliability
Ergonomic No Operations

16. Going FaaSter: Function as a Service at
Netflix
@
Yunong Xiao,
Principal Software Engineer, Netflix

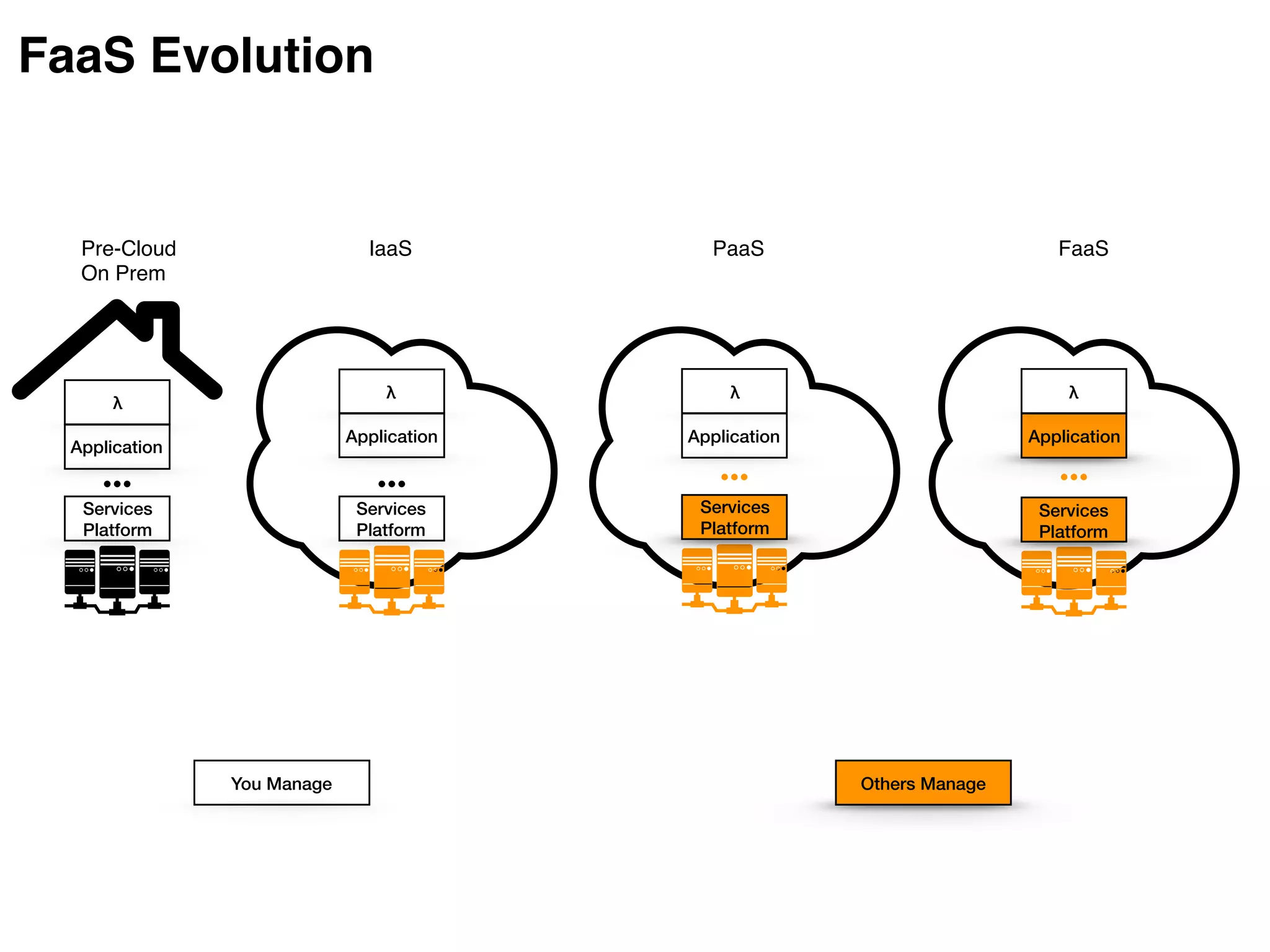

17. FaaS Evolution
Others ManageYou Manage
Services
Platform
Application
λ
Pre-Cloud
On Prem
Application
λ
Services
Platform
FaaS
Application
λ
Services
Platform
IaaS
λ
Services
Platform
Application
PaaS

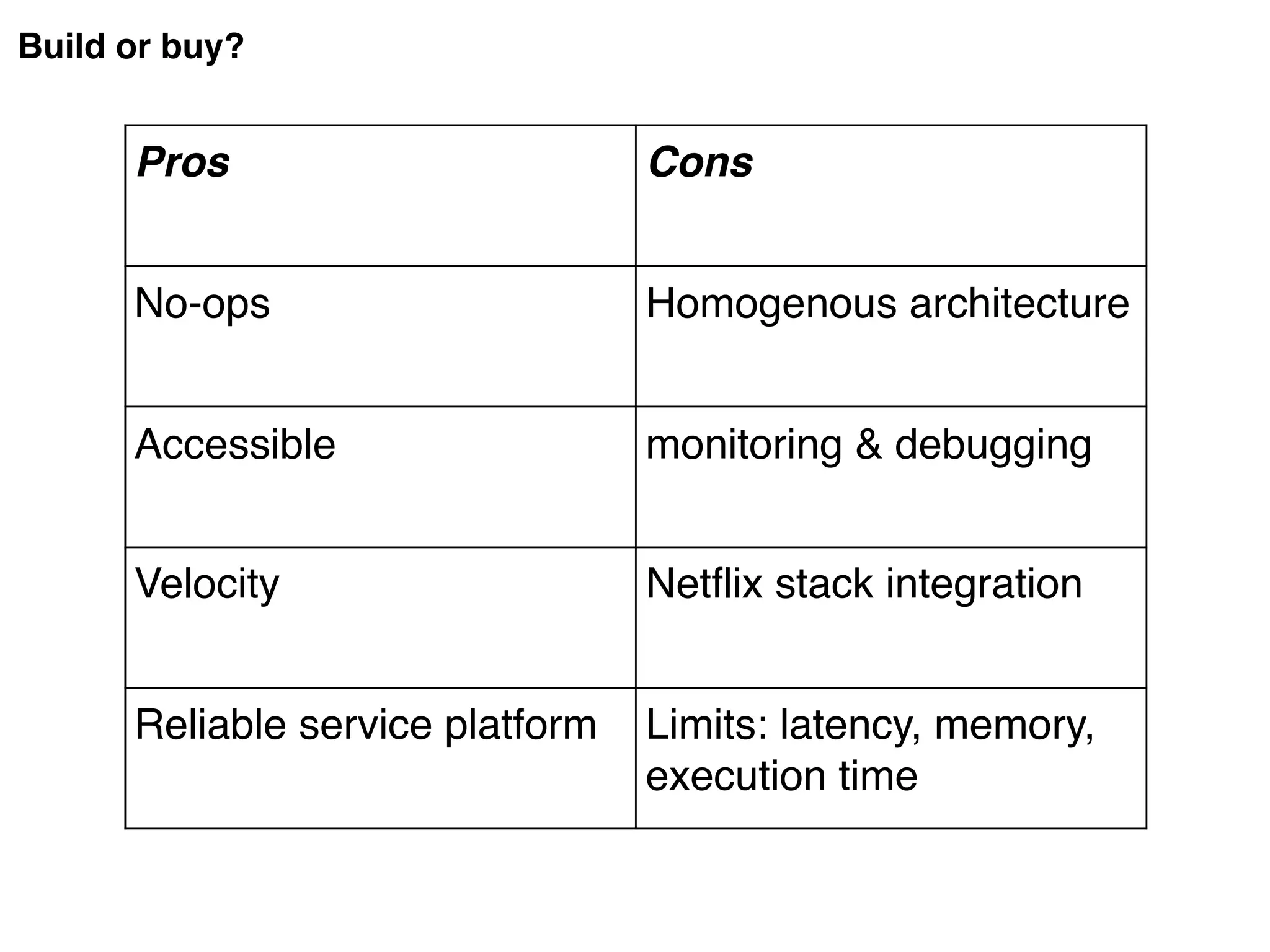

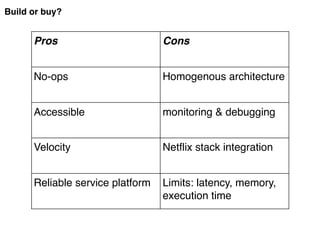

18. Pros Cons
No-ops Homogenous architecture
Accessible monitoring & debugging
Velocity Netflix stack integration
Reliable service platform Limits: latency, memory,
execution time
Build or buy?

19. We’ll cover:
Runtime platform
architecture
Developer
experience
Management &
operations

20. Others ManageYou Manage
Services
Platform
Application
λ
Pre-Cloud
On Prem
Application
λ
Services
Platform
FaaS
Application
λ
Services
Platform
IaaS
λ
Services
Platform
Application
PaaS

21. We are almost completely hosted in the cloud using AWS

22. EC2 makes up the foundation of infrastructure at Netflix

23. VMs or Containers?

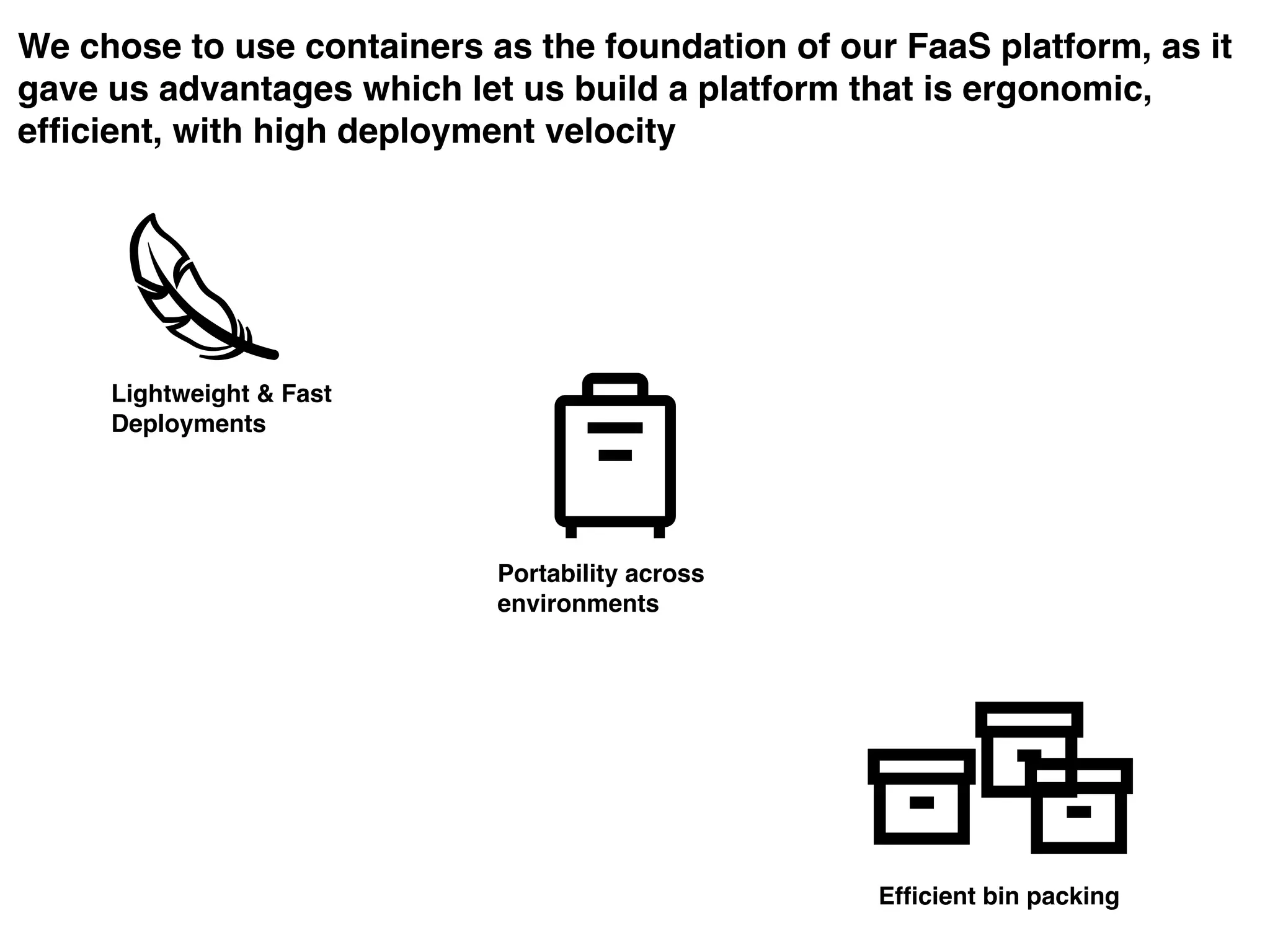

24. We chose to use containers as the foundation of our FaaS platform, as it
gave us advantages which let us build a platform that is ergonomic,
efficient, with high deployment velocity
Lightweight & Fast
Deployments
Portability across
environments
Efficient bin packing

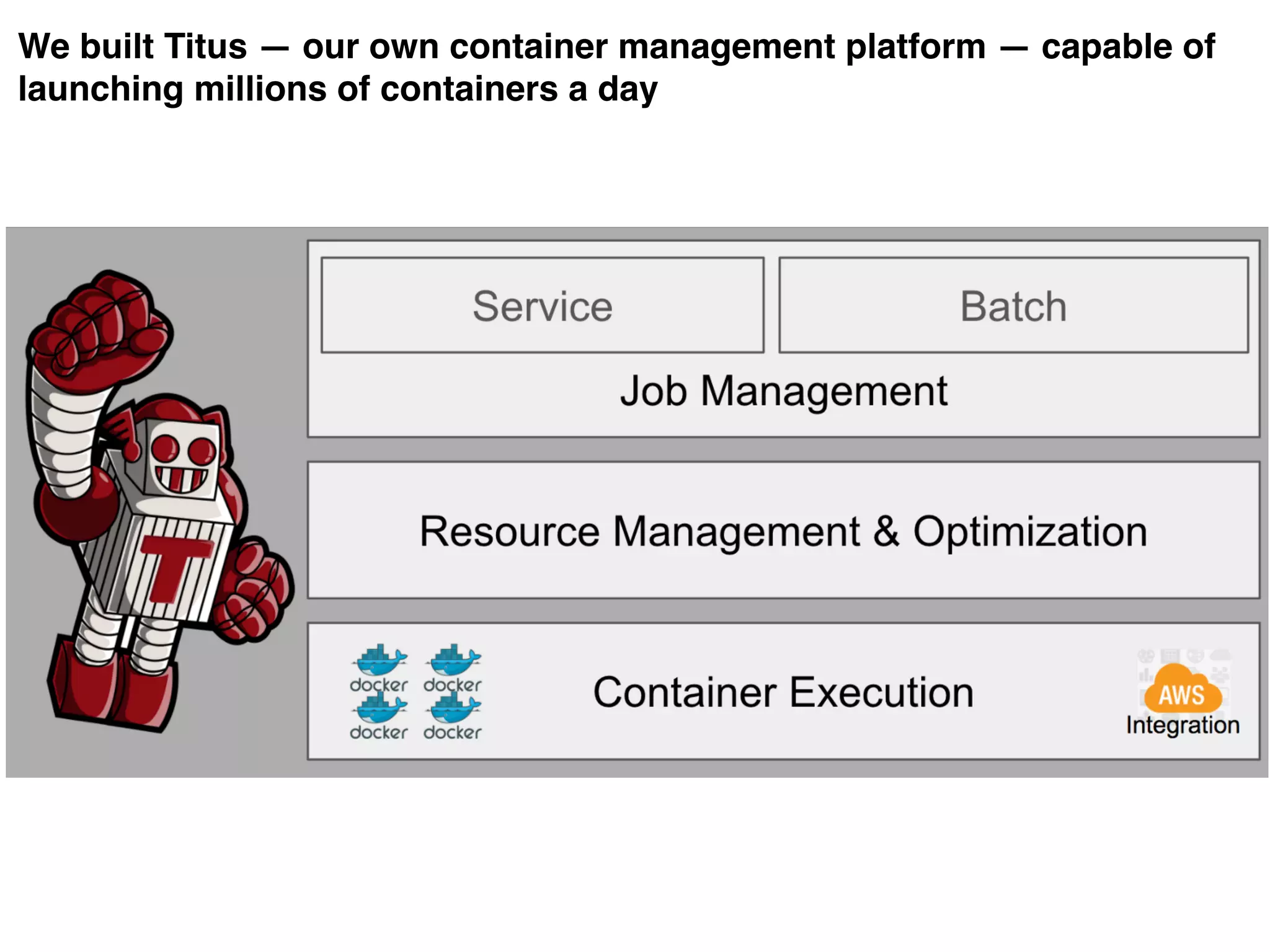

25. We built Titus — our own container management platform — capable of
launching millions of containers a day

26. Others ManageYou Manage
Services
Platform
Application
λ
Pre-Cloud
On Prem
Application
λ
Services
Platform
FaaS
Application
λ
Services
Platform
IaaS
λ
Services
Platform
Application
PaaS

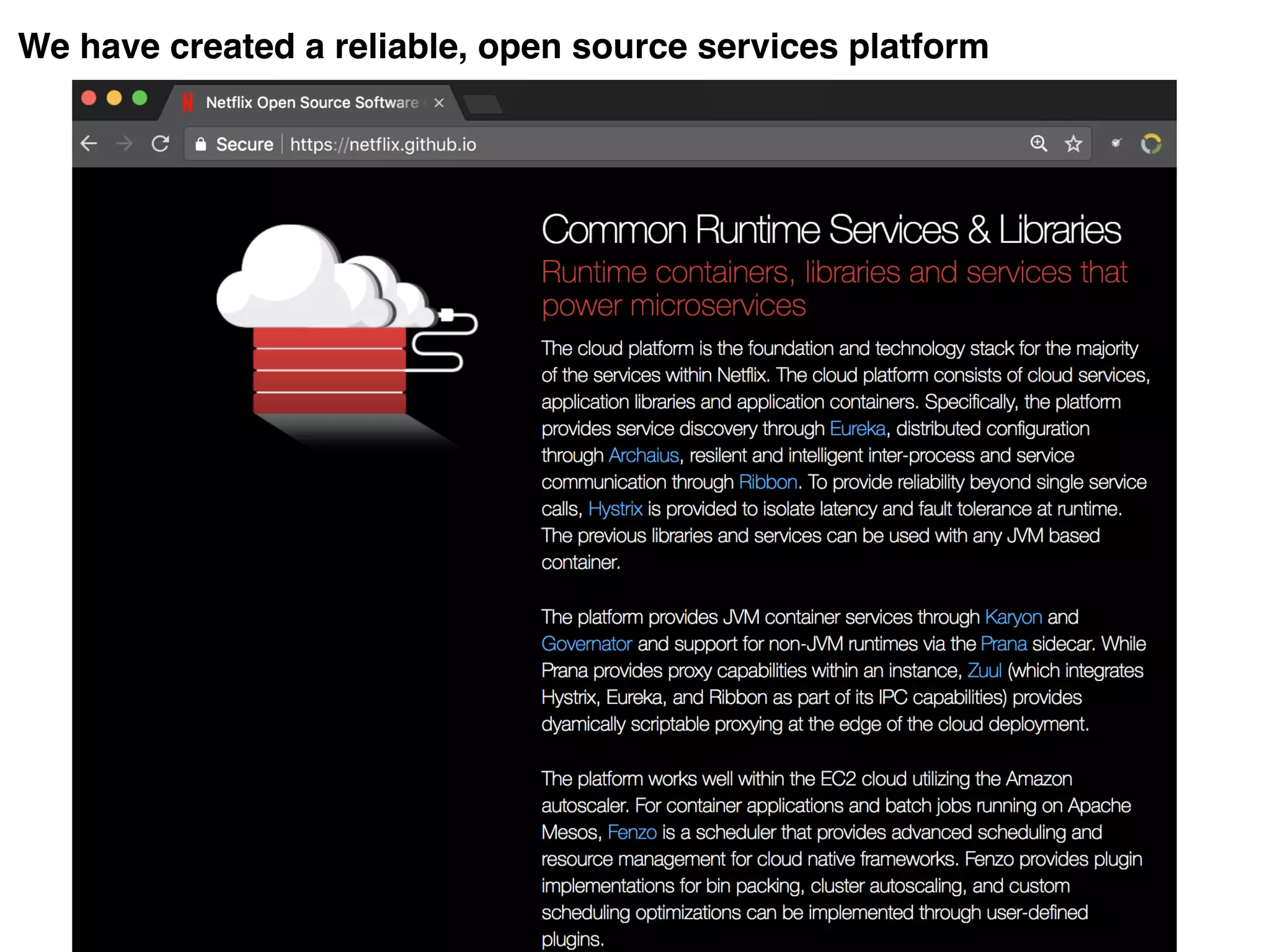

27. We have created a reliable, open source services platform

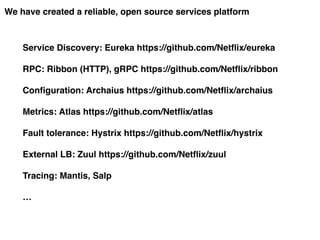

28. We have created a reliable, open source services platform
Service Discovery: Eureka https://github.com/Netflix/eureka
RPC: Ribbon (HTTP), gRPC https://github.com/Netflix/ribbon
Configuration: Archaius https://github.com/Netflix/archaius
Metrics: Atlas https://github.com/Netflix/atlas
Fault tolerance: Hystrix https://github.com/Netflix/hystrix
External LB: Zuul https://github.com/Netflix/zuul
Tracing: Mantis, Salp
…

29. Assembling these components yourself is time consuming, difficult, and
error prone

30. Assembling these components yourself is time consuming, difficult, and
error prone

31. You always have to keep components updated to the latest versions
yourself

32. You have to ensure that metrics and dashboards are created for your
service

33. You’re on the hook for managing and operating the infrastructure

34. 34
You shouldn’t have to set everything up from scratch every time when all
you care about is the business logic

35. Others ManageYou Manage
Services
Platform
Application
λ
Pre-Cloud
On Prem
Application
λ
Services
Platform
FaaS
Application
λ
Services
Platform
IaaS
λ
Services
Platform
Application
PaaS

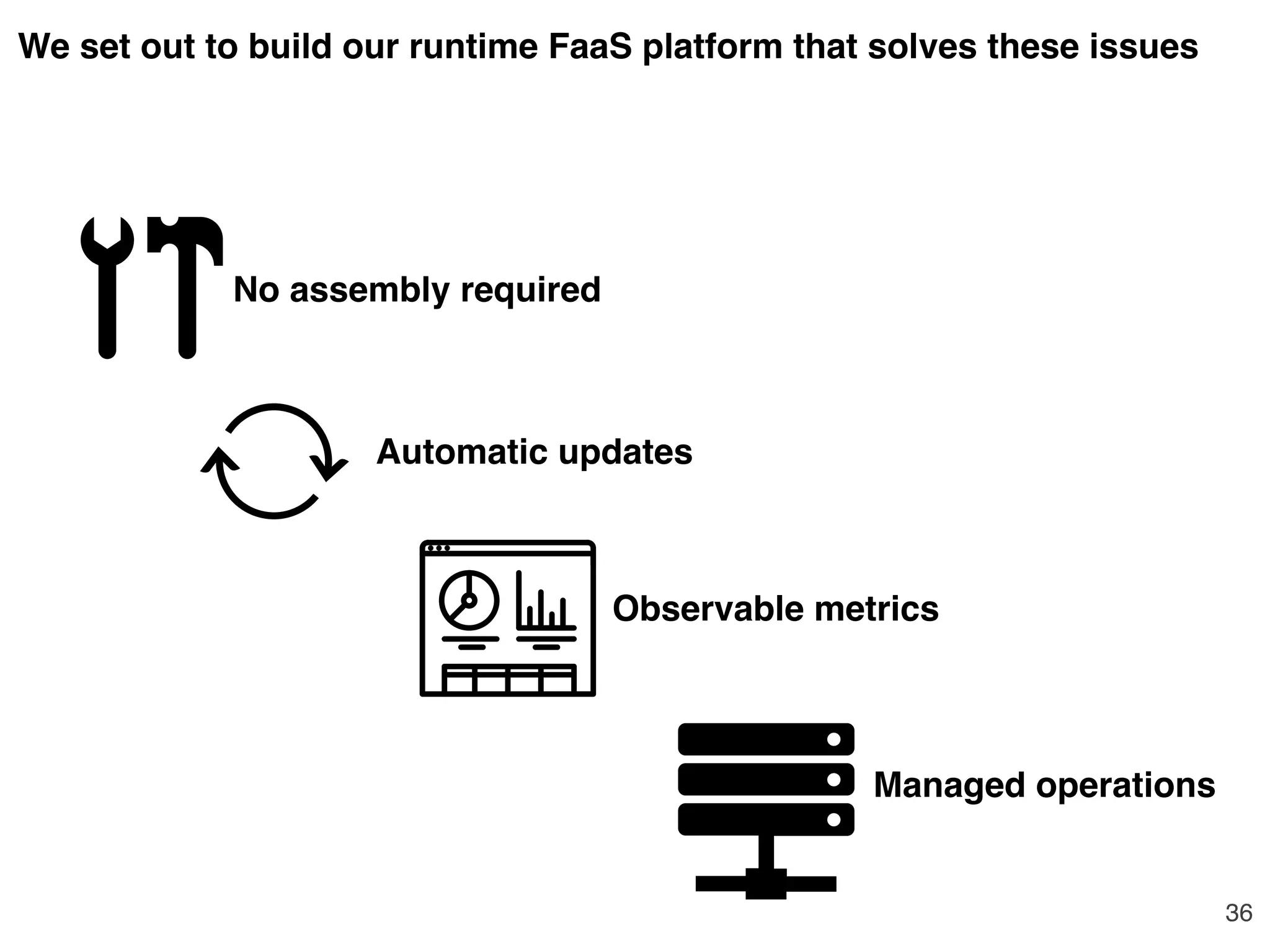

36. 36
We set out to build our runtime FaaS platform that solves these issues
No assembly required
Automatic updates
Observable metrics
Managed operations

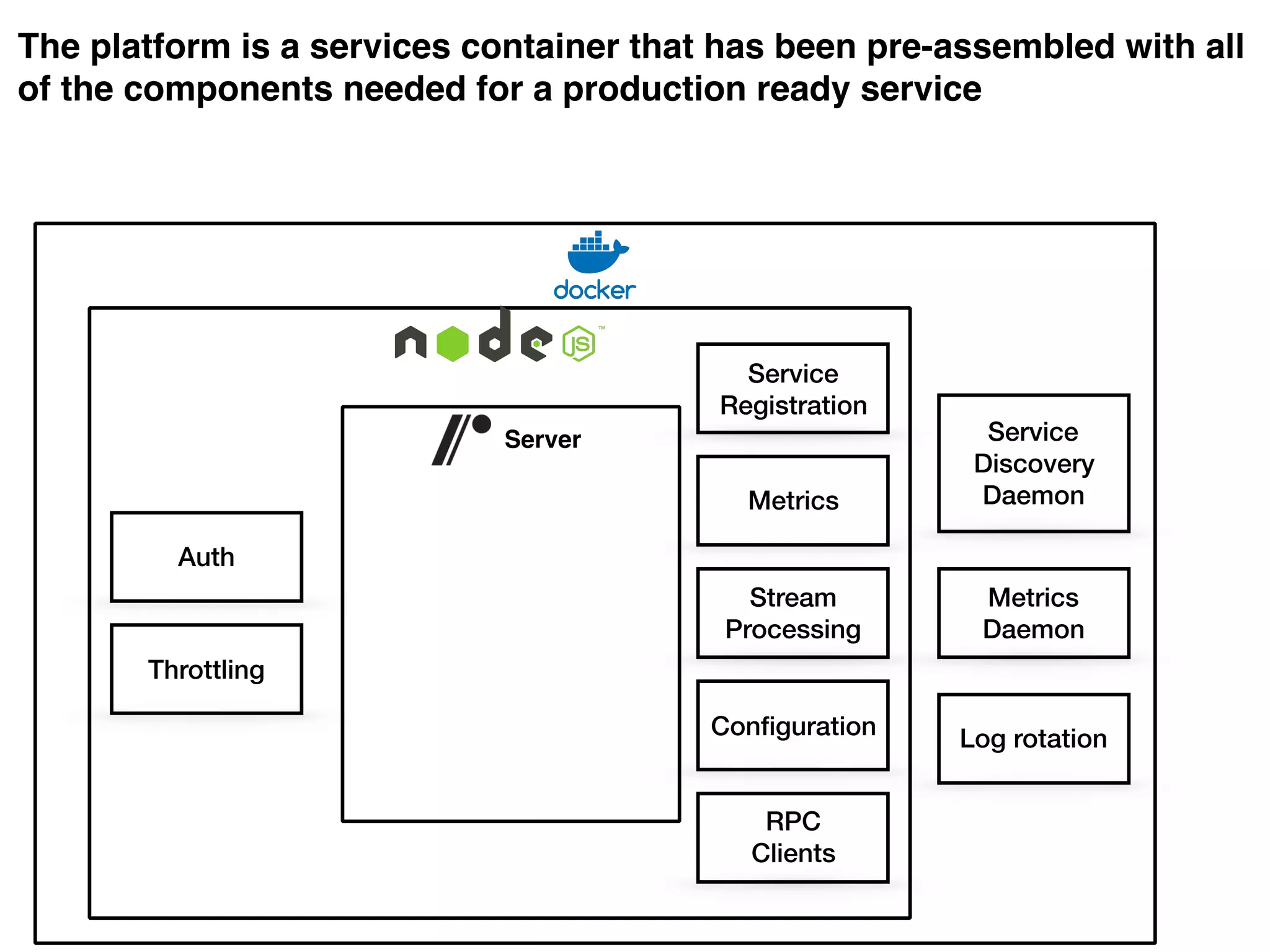

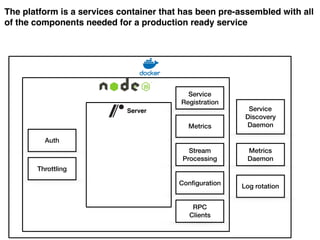

37. The platform is a services container that has been pre-assembled with all
of the components needed for a production ready service
Server Service
Discovery
Daemon
Metrics
Daemon
Log rotation
Service
Registration
Configuration
Metrics
Stream
Processing
RPC
Clients
Auth
Throttling

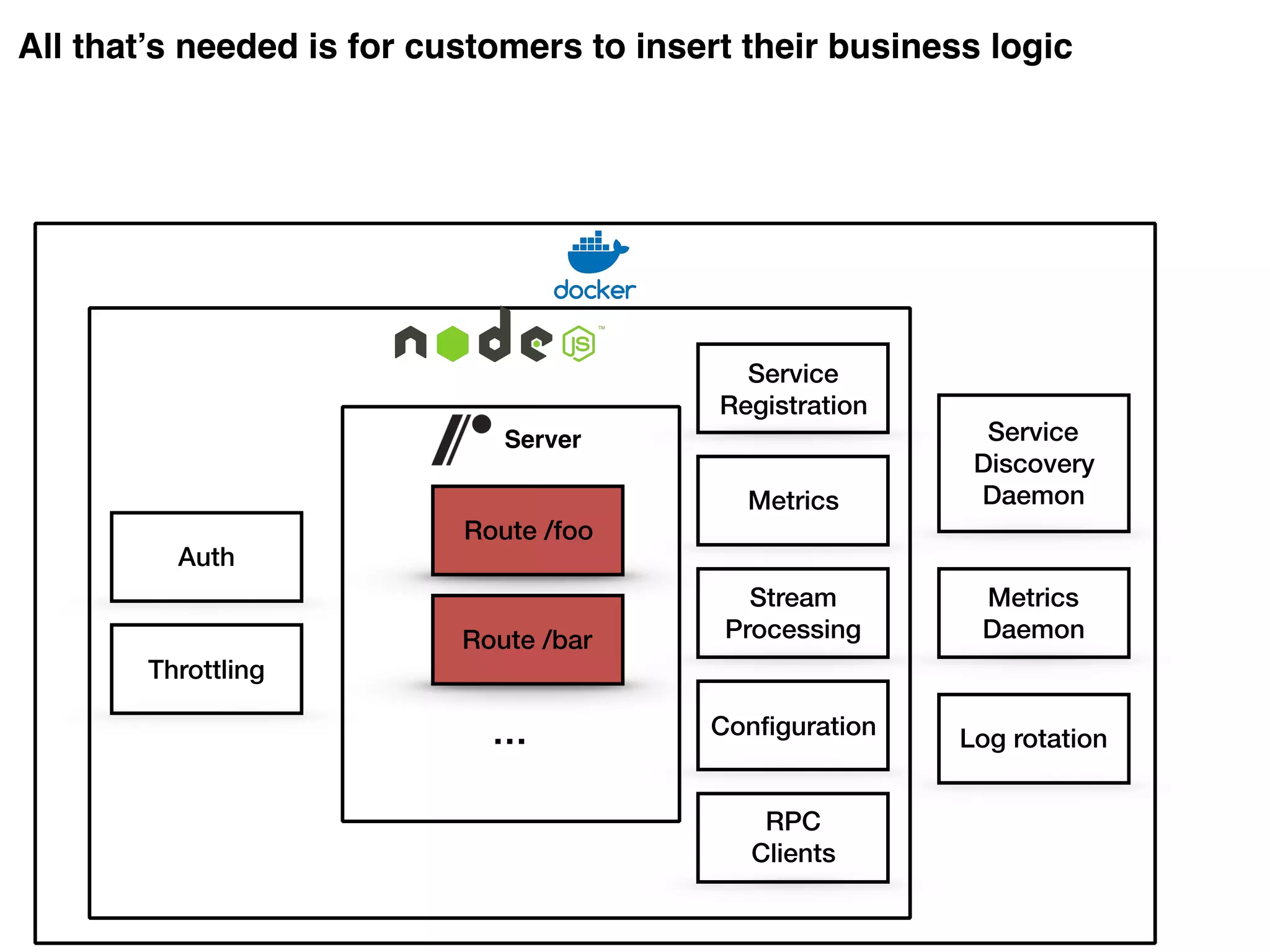

38. All that’s needed is for customers to insert their business logic
Server
Service
Registration
Configuration
Metrics
Stream
Processing
Service
Discovery
Daemon
Metrics
Daemon
Log rotation
RPC
Clients
Auth
Throttling
Route /foo
Route /bar
…

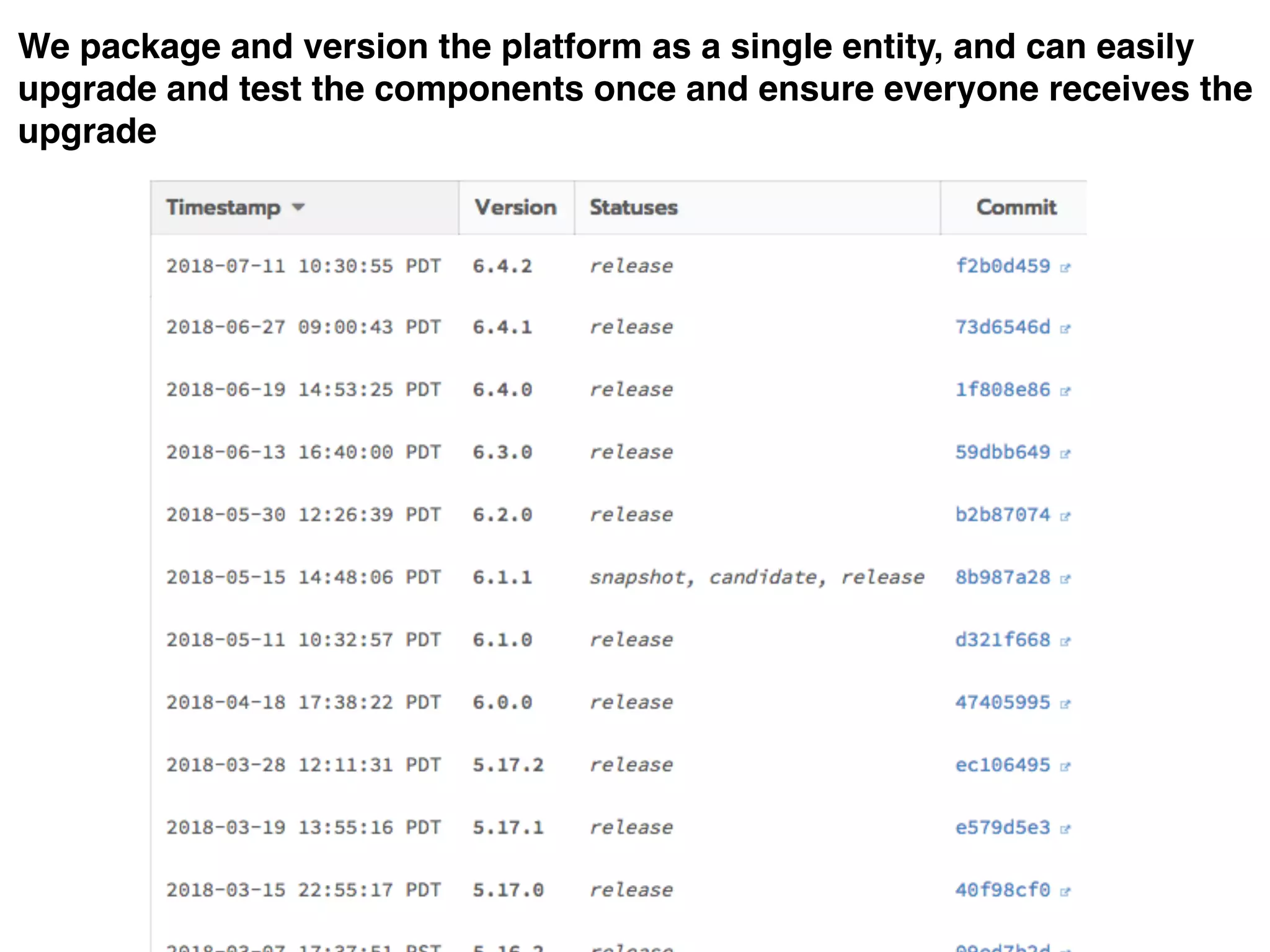

39. We package and version the platform as a single entity, and can easily
upgrade and test the components once and ensure everyone receives the
upgrade

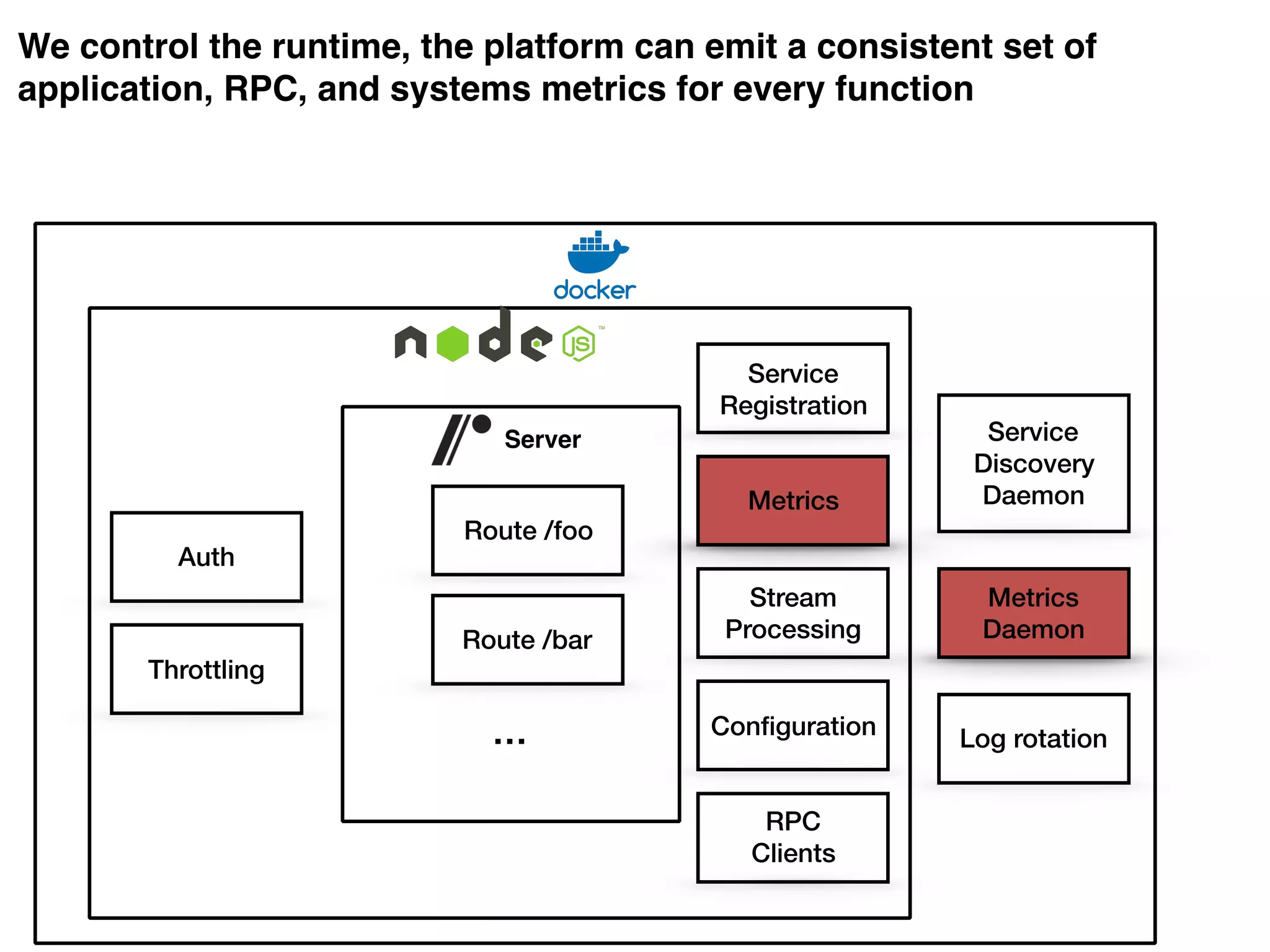

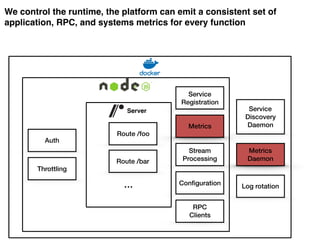

40. We control the runtime, the platform can emit a consistent set of
application, RPC, and systems metrics for every function
Server
Service
Registration
Configuration
Metrics
Stream
Processing
Service
Discovery
Daemon
Metrics
Daemon
Log rotation
RPC
Clients
Auth
Throttling
Route /foo
Route /bar
…

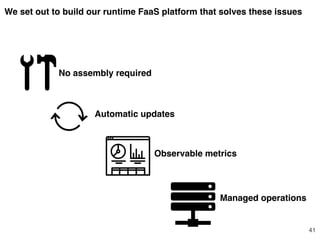

41. 41
We set out to build our runtime FaaS platform that solves these issues
No assembly required
Automatic updates
Observable metrics
Managed operations

42. We’ll cover:
Runtime platform
architecture
Developer
experience
Management &
operations

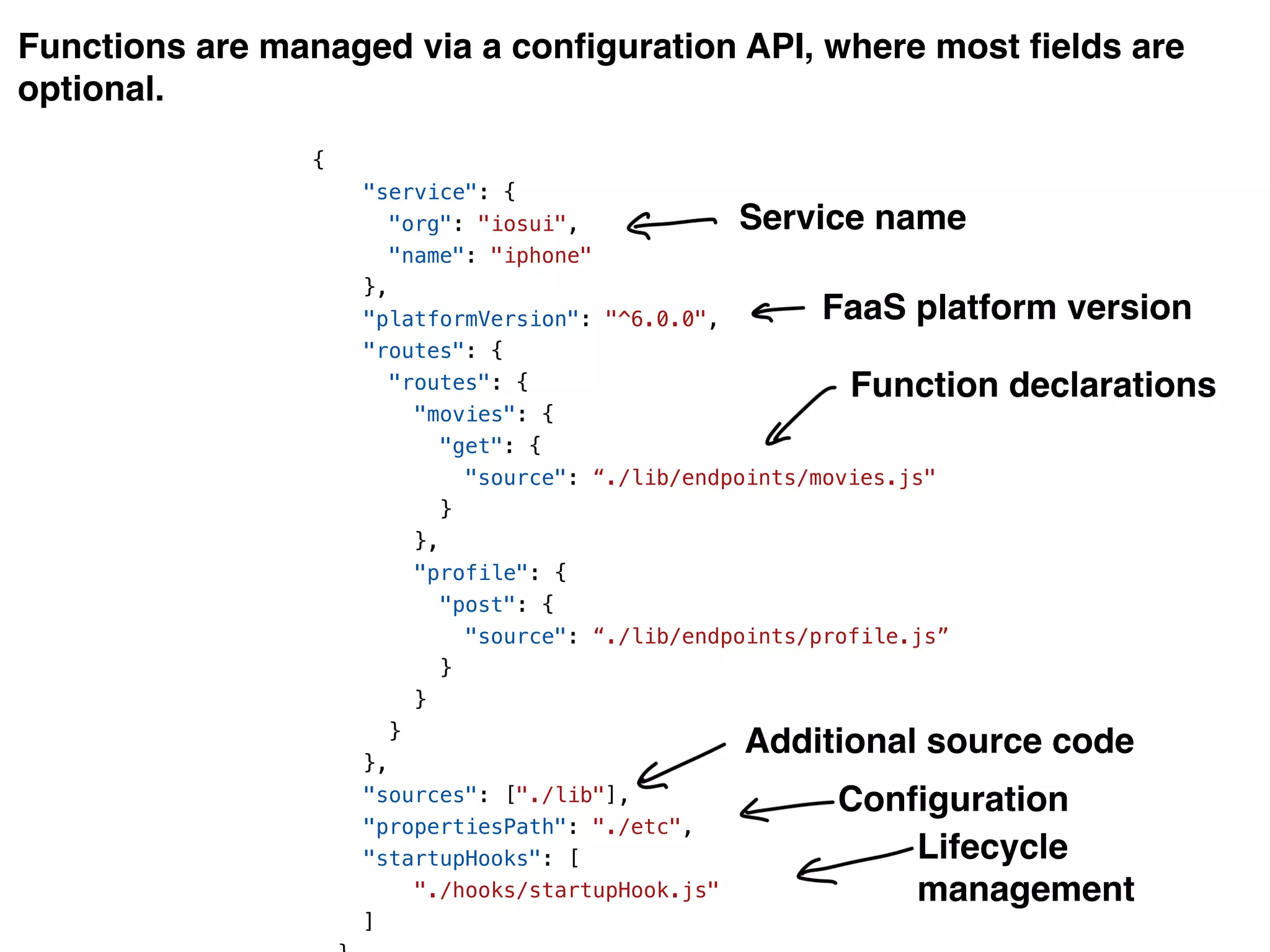

44. {
"service": {
"org": "iosui",
"name": "iphone"
},
"platformVersion": "^6.0.0",
"routes": {
"routes": {
"movies": {
"get": {
"source": “./lib/endpoints/movies.js"
}
},
"profile": {
"post": {
"source": “./lib/endpoints/profile.js”
}
}
}
},
"sources": ["./lib"],
"propertiesPath": "./etc",
"startupHooks": [
"./hooks/startupHook.js"
]
Functions are managed via a configuration API, where most fields are
optional.
Service name
FaaS platform version
Function declarations
Additional source code
Configuration
Lifecycle
management

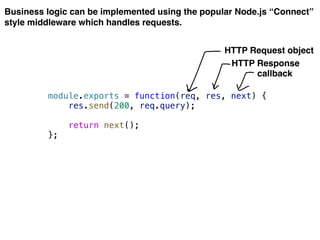

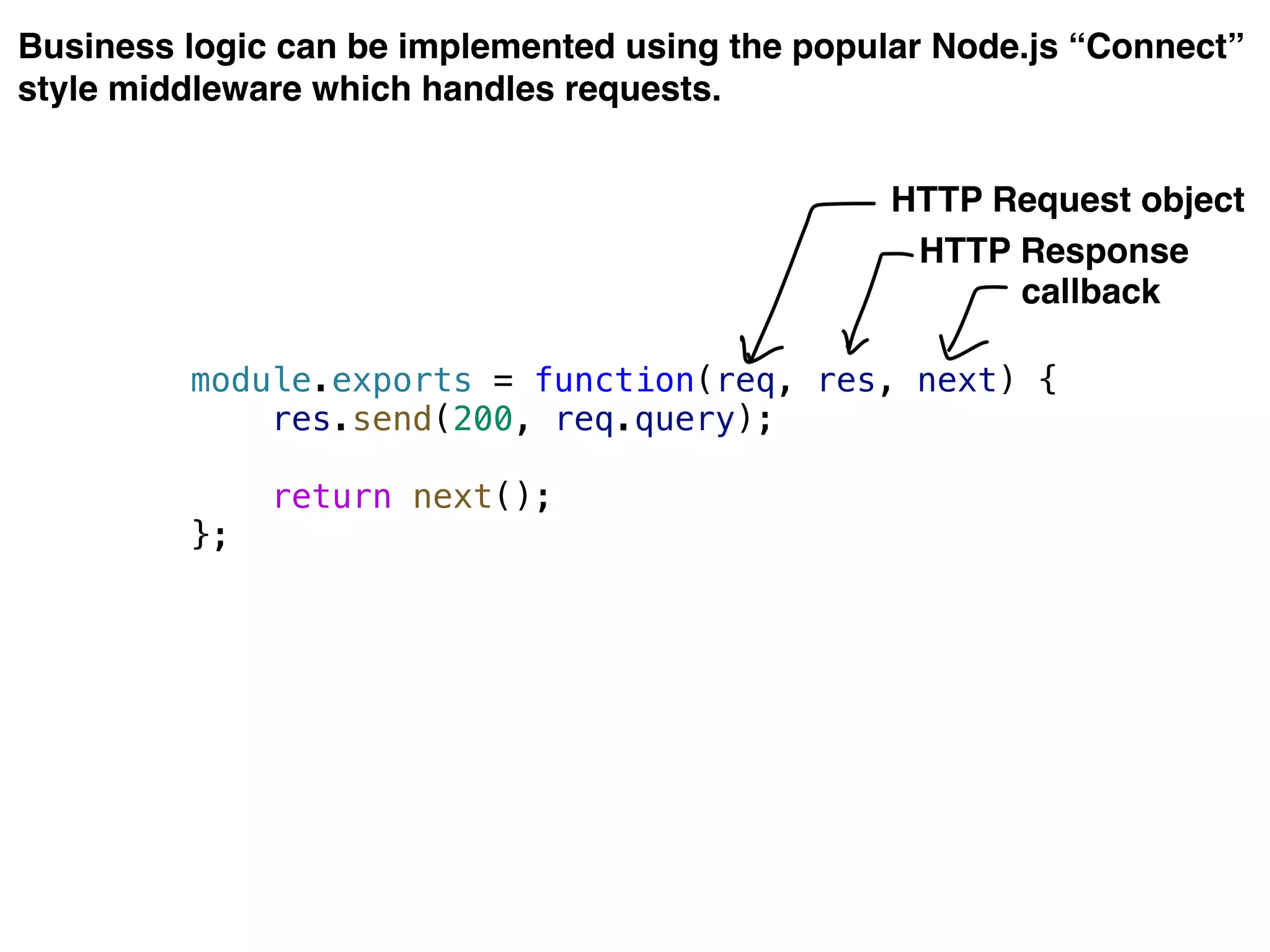

45. Business logic can be implemented using the popular Node.js “Connect”
style middleware which handles requests.
module.exports = function(req, res, next) {
res.send(200, req.query);
return next();
};
HTTP Request object
HTTP Response
callback

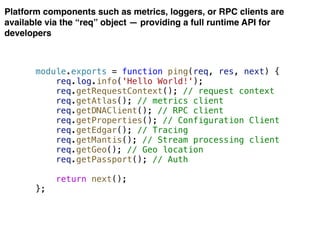

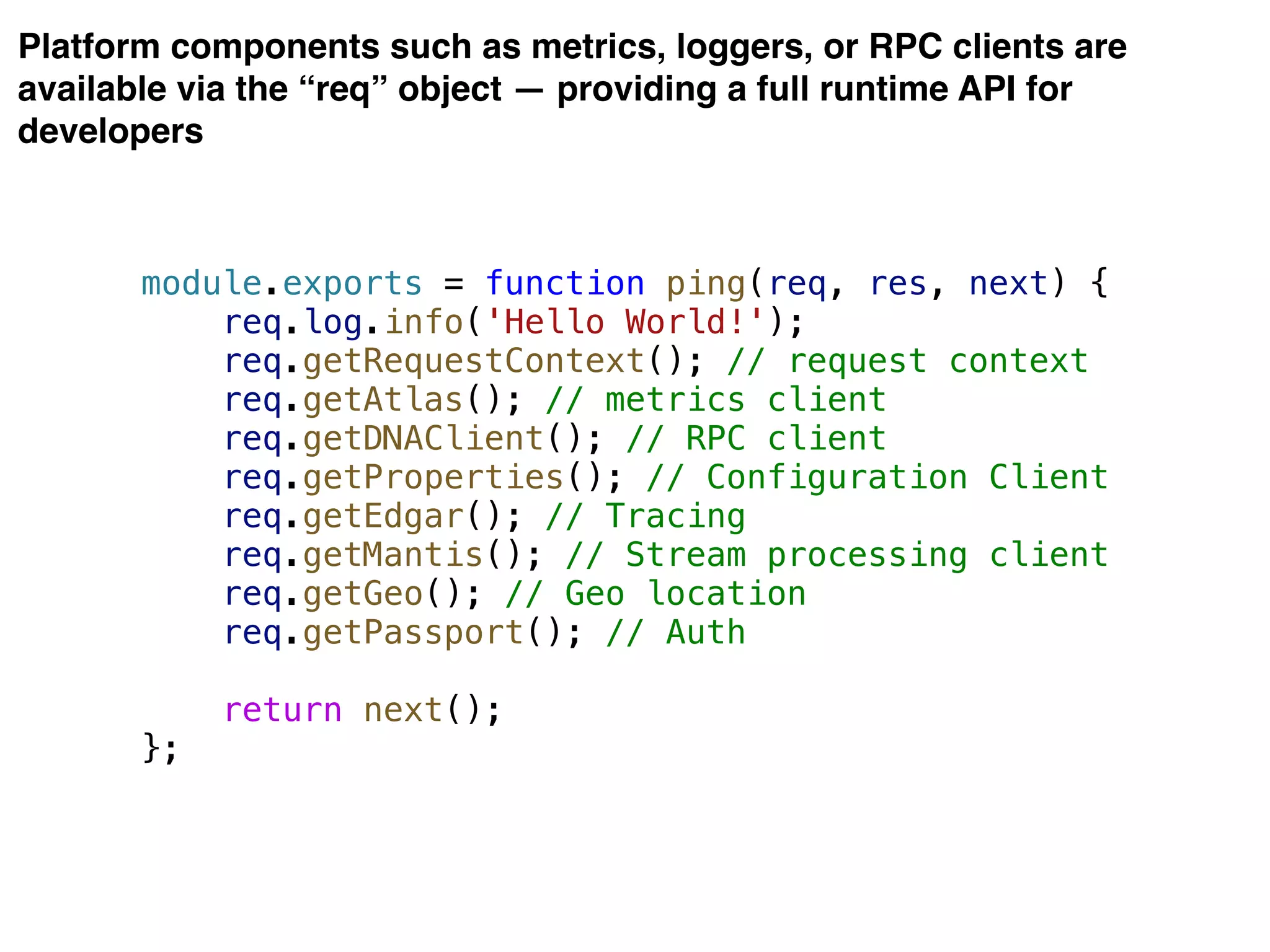

46. Platform components such as metrics, loggers, or RPC clients are
available via the “req” object — providing a full runtime API for
developers
module.exports = function ping(req, res, next) {
req.log.info('Hello World!');
req.getRequestContext(); // request context
req.getAtlas(); // metrics client
req.getDNAClient(); // RPC client
req.getProperties(); // Configuration Client
req.getEdgar(); // Tracing
req.getMantis(); // Stream processing client
req.getGeo(); // Geo location
req.getPassport(); // Auth
return next();
};

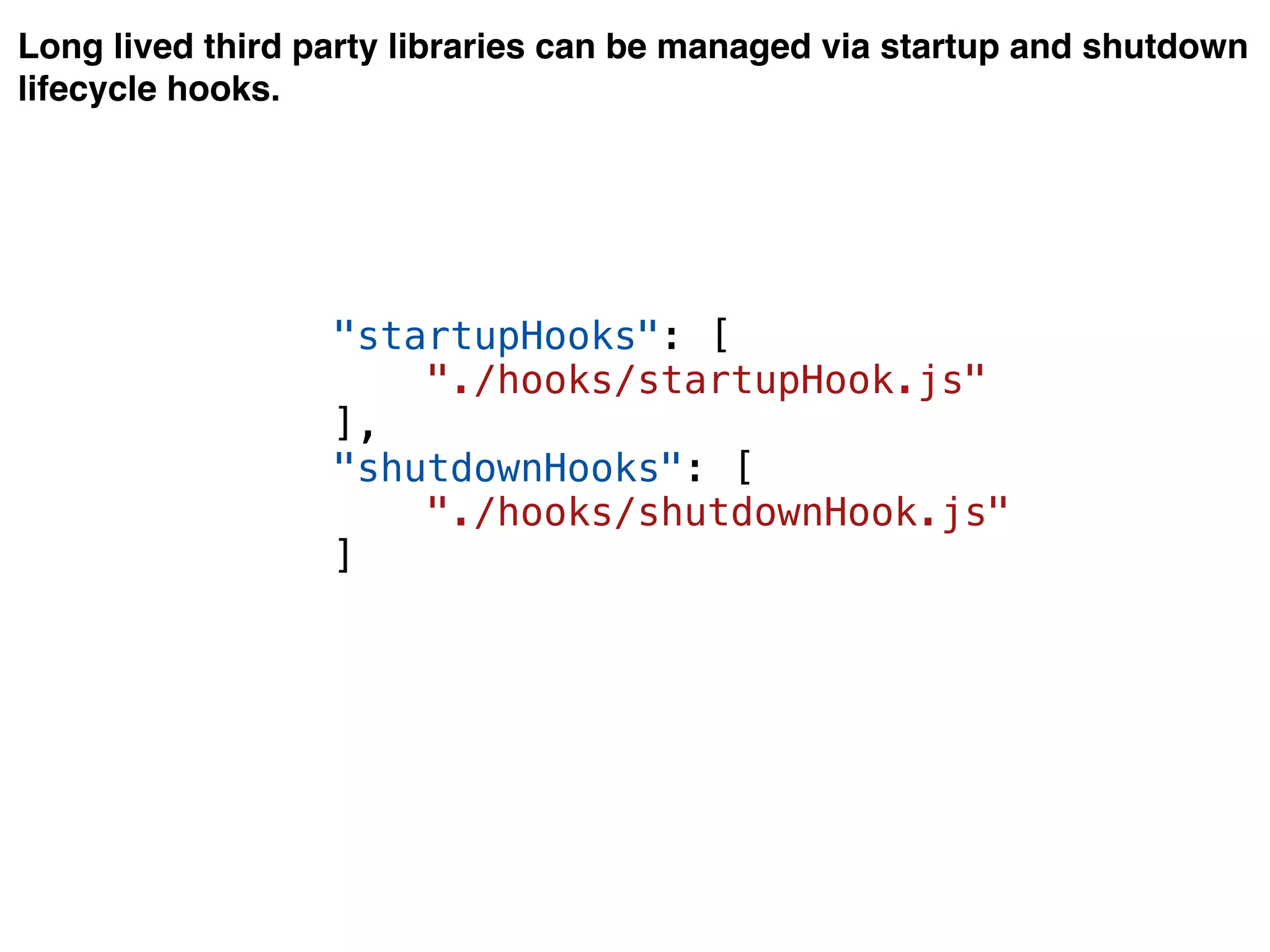

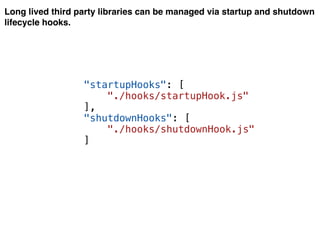

47. Long lived third party libraries can be managed via startup and shutdown
lifecycle hooks.
"startupHooks": [
"./hooks/startupHook.js"
],
"shutdownHooks": [
"./hooks/shutdownHook.js"
]

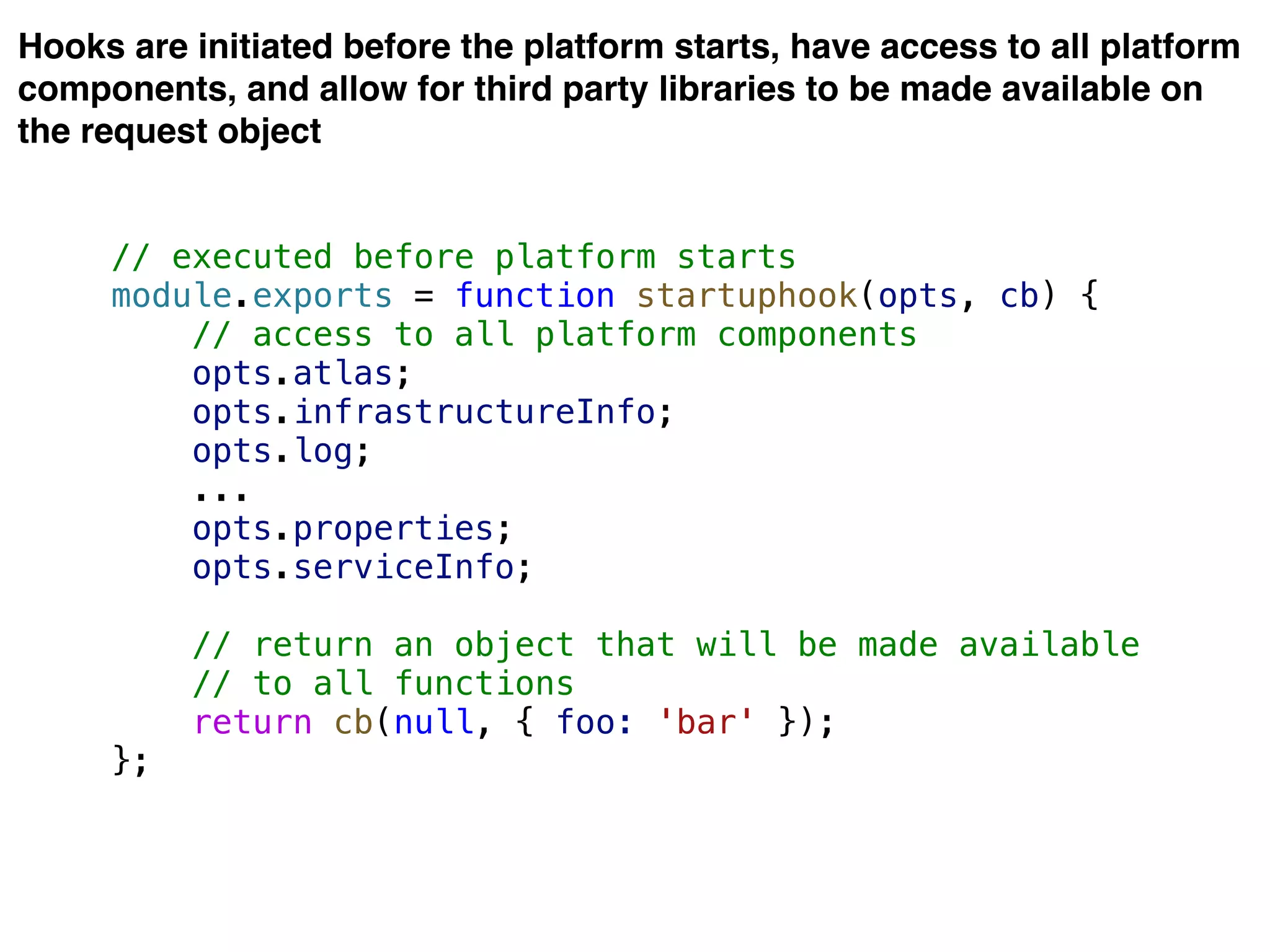

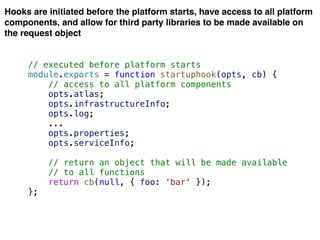

48. Hooks are initiated before the platform starts, have access to all platform
components, and allow for third party libraries to be made available on
the request object
// executed before platform starts
module.exports = function startuphook(opts, cb) {
// access to all platform components
opts.atlas;
opts.infrastructureInfo;
opts.log;
...
opts.properties;
opts.serviceInfo;
// return an object that will be made available
// to all functions
return cb(null, { foo: 'bar' });
};

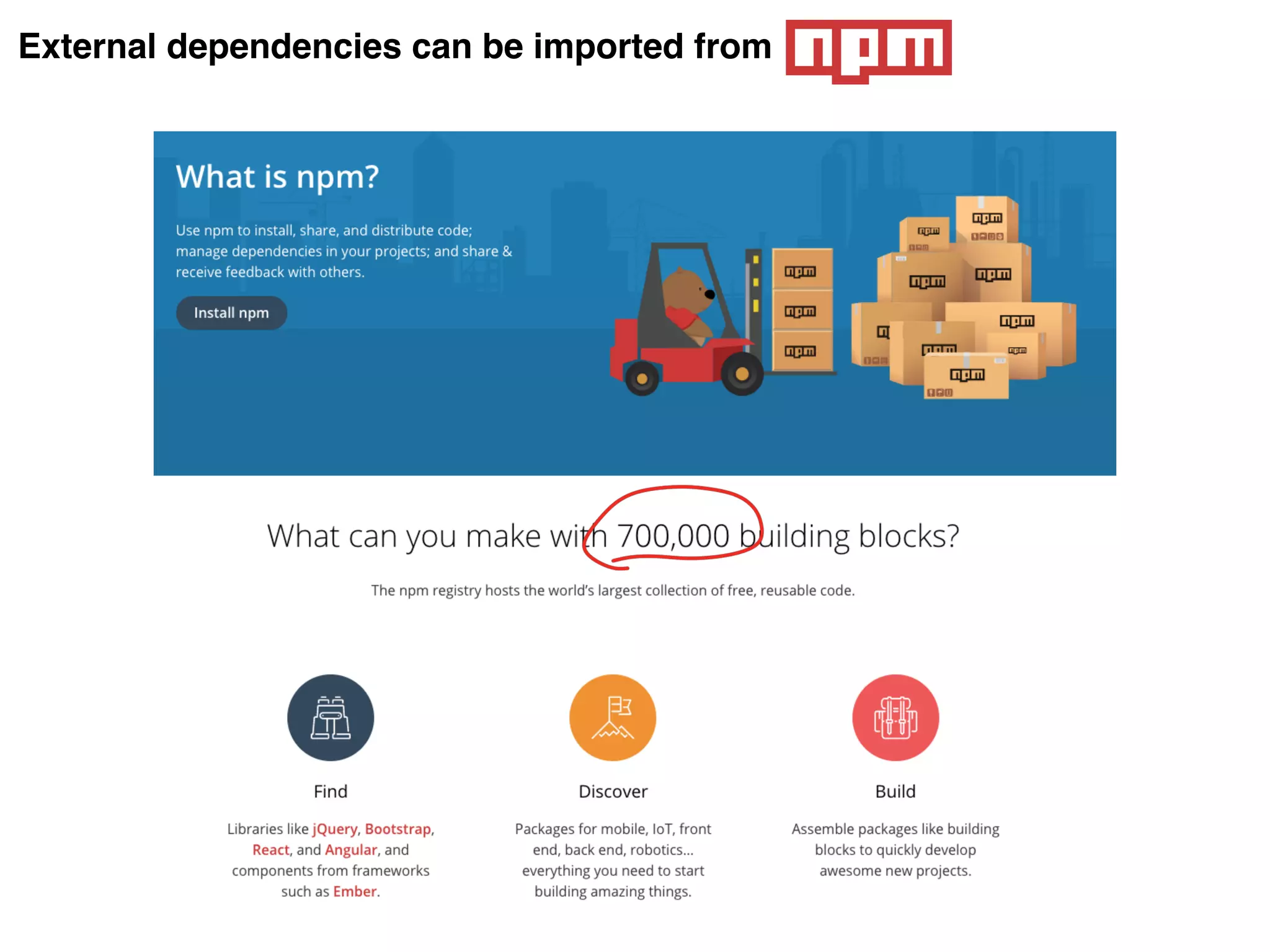

49. External dependencies can be imported from

50. Our goal is to create a local function development experience that
improves the software development life cycle for developers

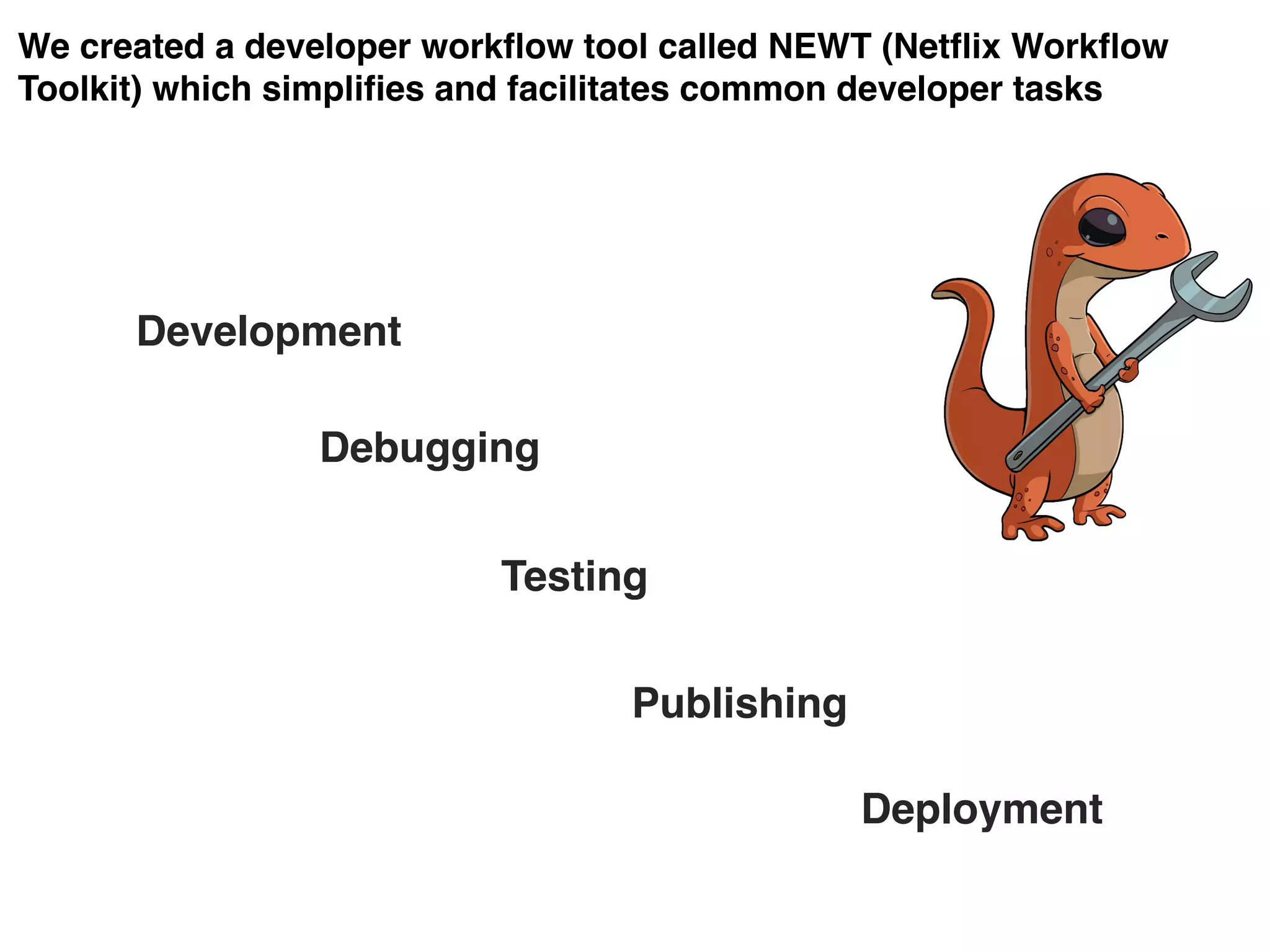

51. We created a developer workflow tool called NEWT (Netflix Workflow
Toolkit) which simplifies and facilitates common developer tasks
Development
Debugging
Testing
Publishing
Deployment

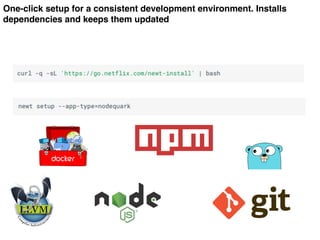

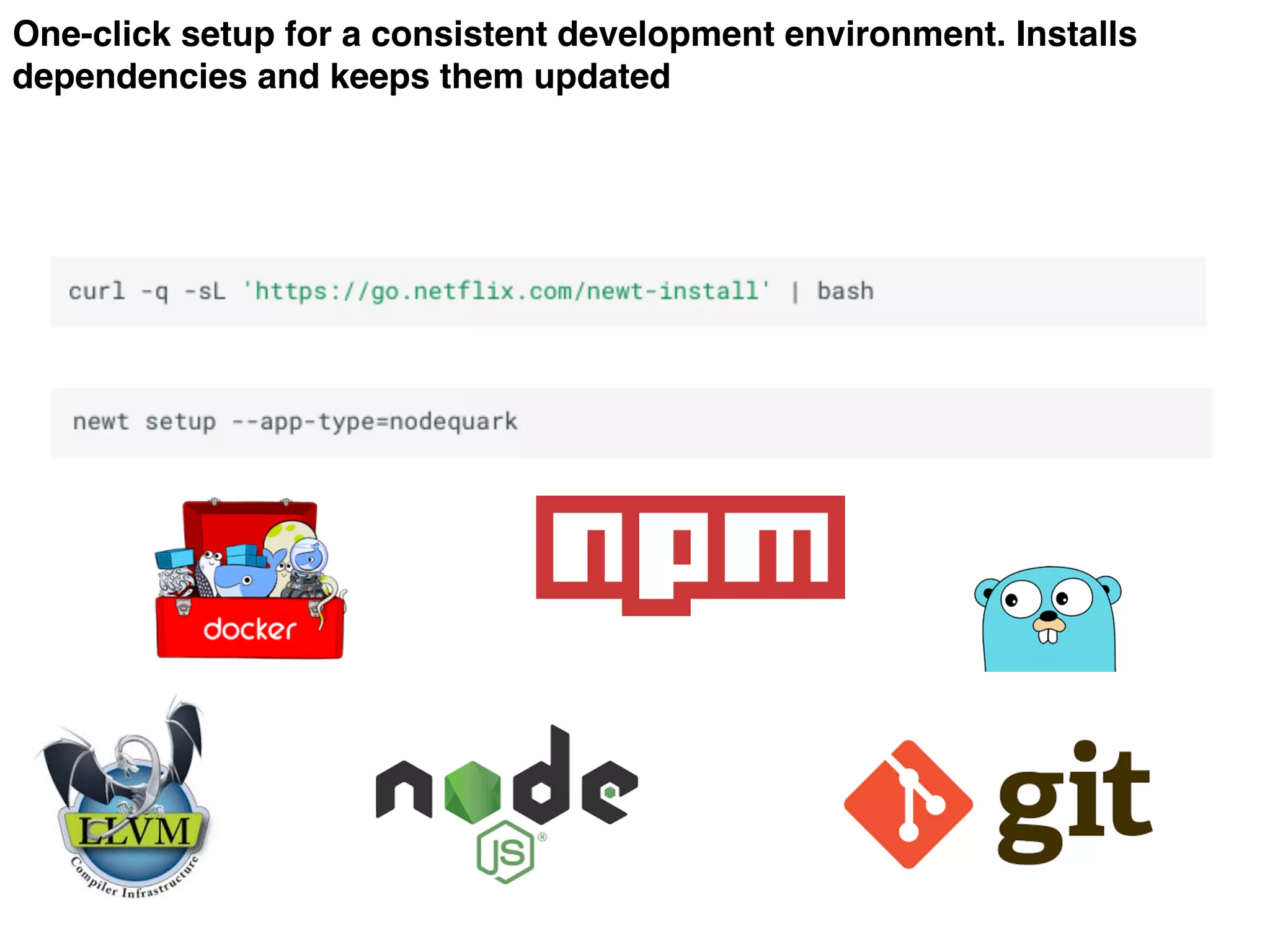

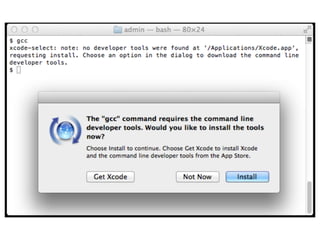

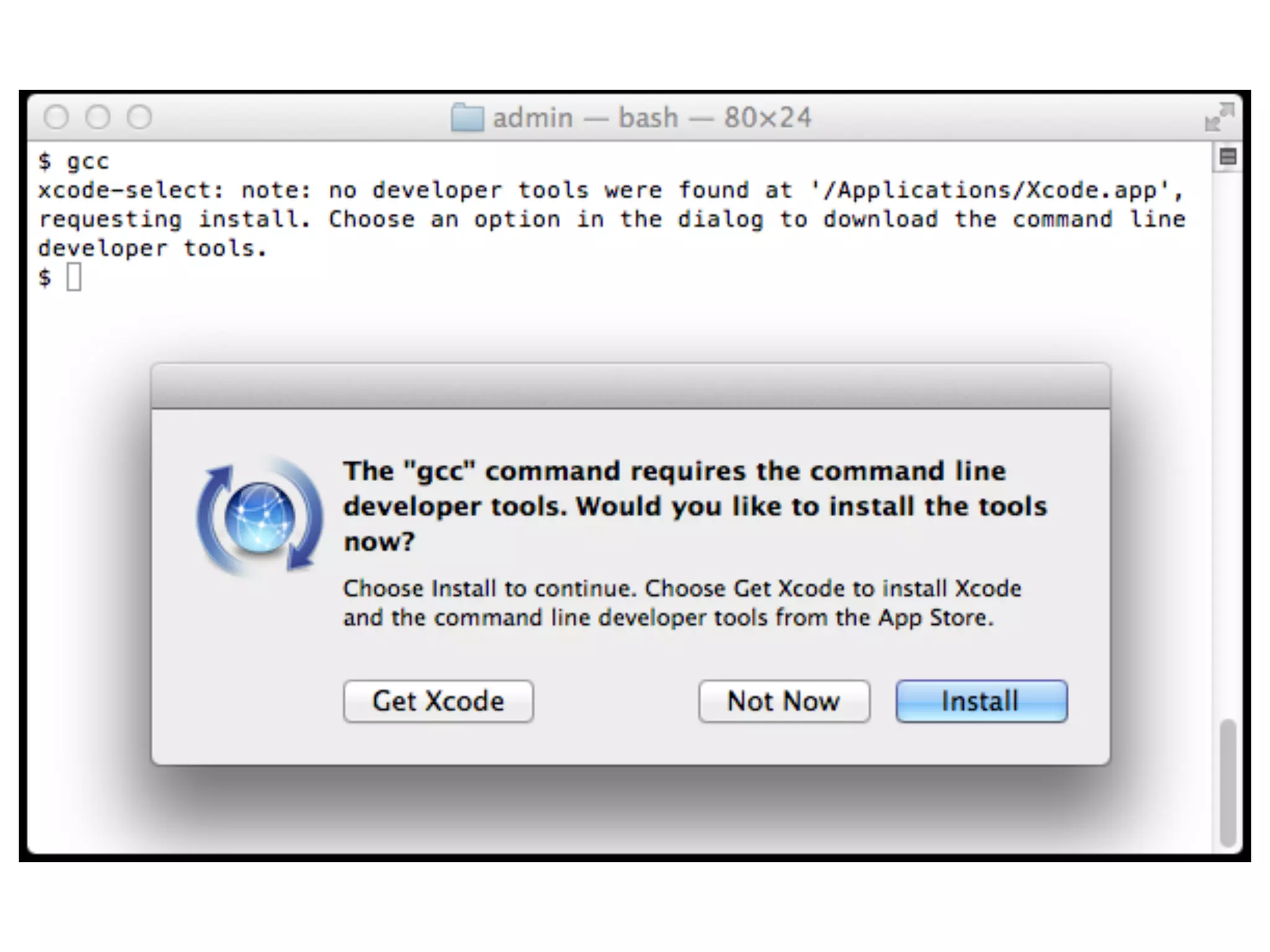

53. One-click setup for a consistent development environment. Installs
dependencies and keeps them updated

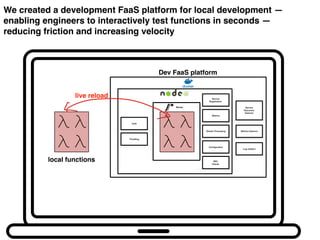

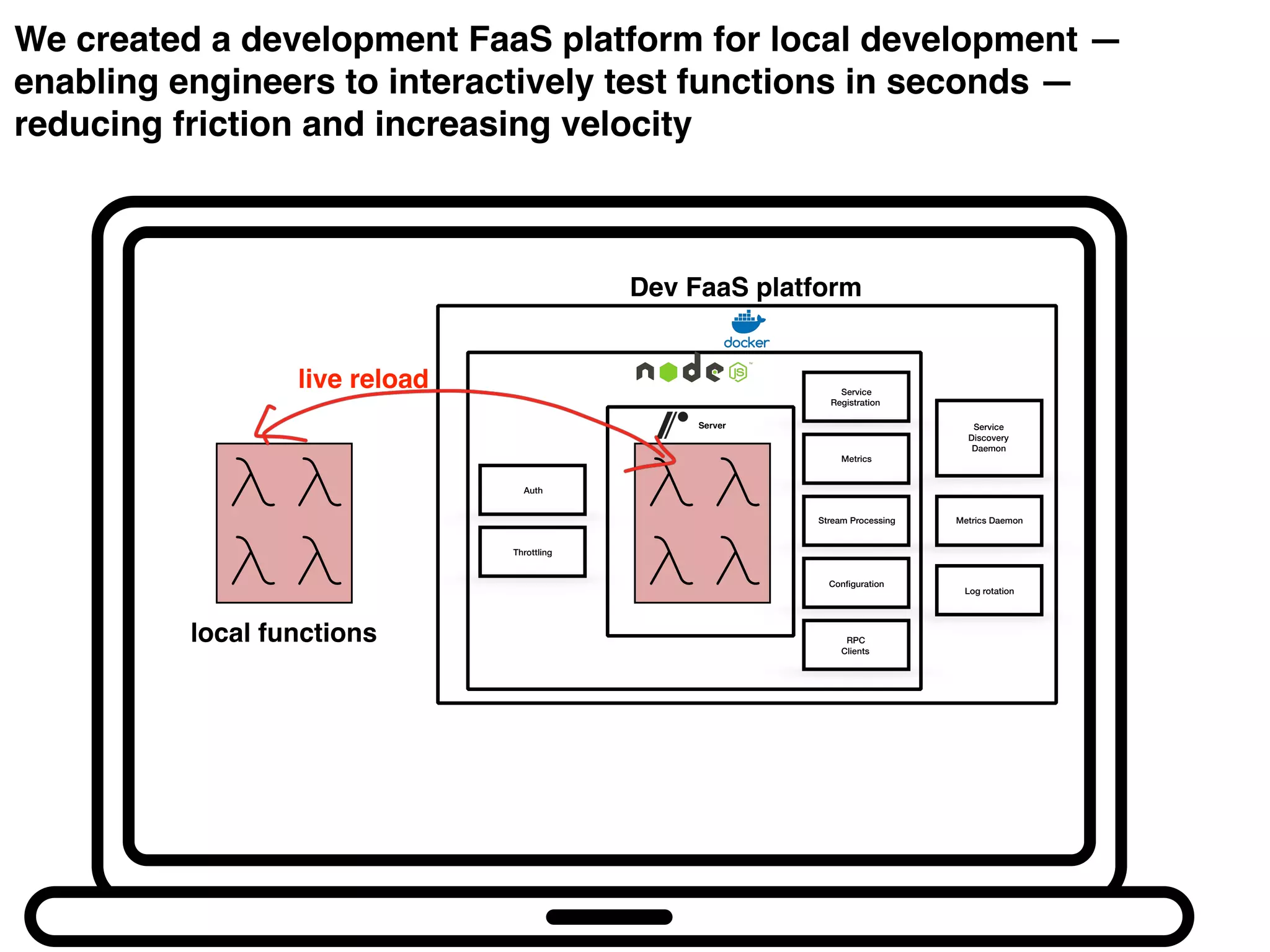

54. We created a development FaaS platform for local development —
enabling engineers to interactively test functions in seconds —
reducing friction and increasing velocity
Server
Service
Registration
Configuration
Metrics
Stream Processing
Service
Discovery
Daemon
Metrics Daemon
Log rotation
RPC
Clients
Auth
Throttling
Dev FaaS platform
local functions
live reload

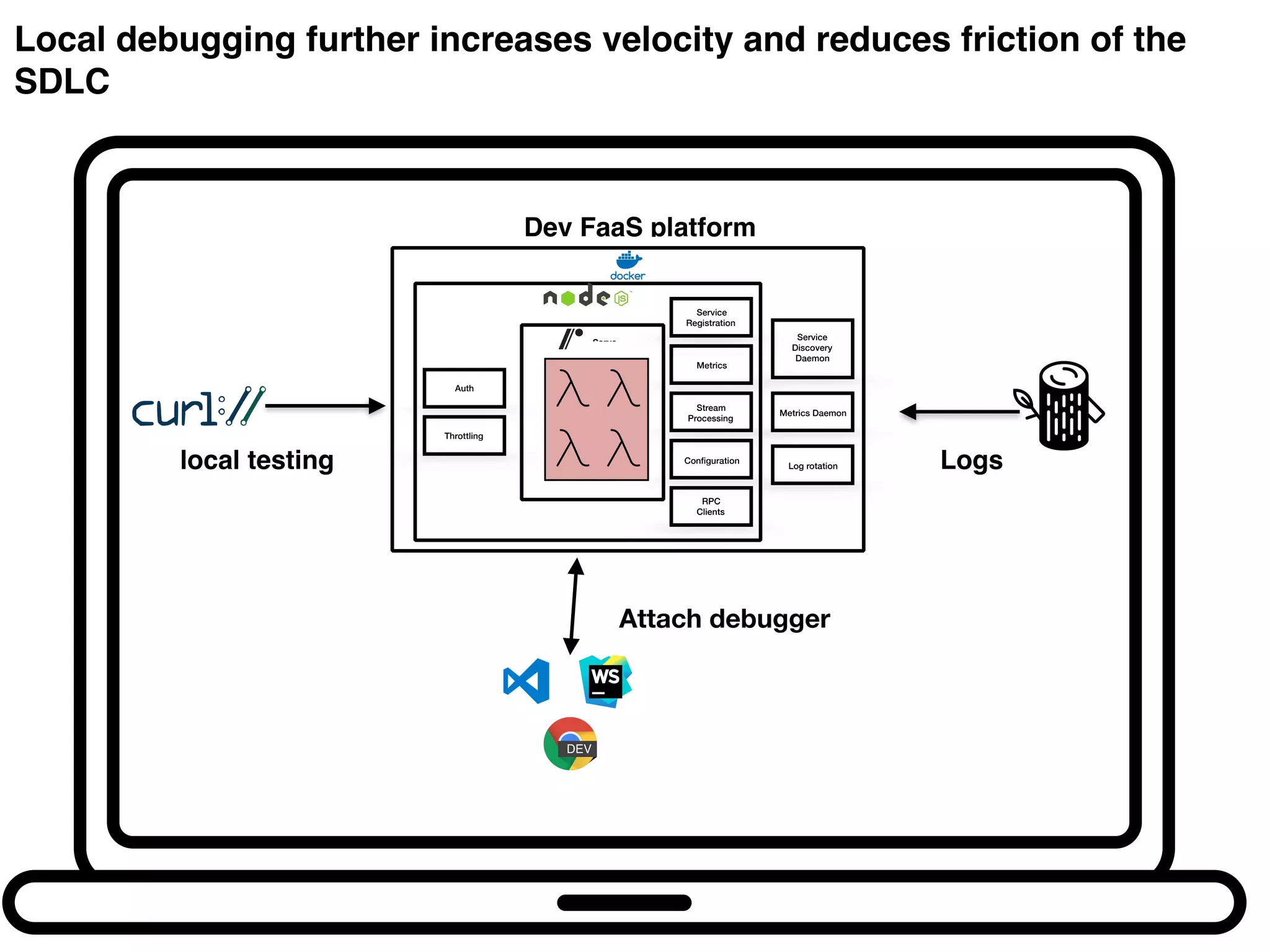

55. Local debugging further increases velocity and reduces friction of the
SDLC
Serve
Service
Registration
Configuration
Metrics
Stream
Processing
Service
Discovery
Daemon
Metrics Daemon
Log rotation
RPC
Clients
Auth
Throttling
Dev FaaS platform
Attach debugger
local testing Logs

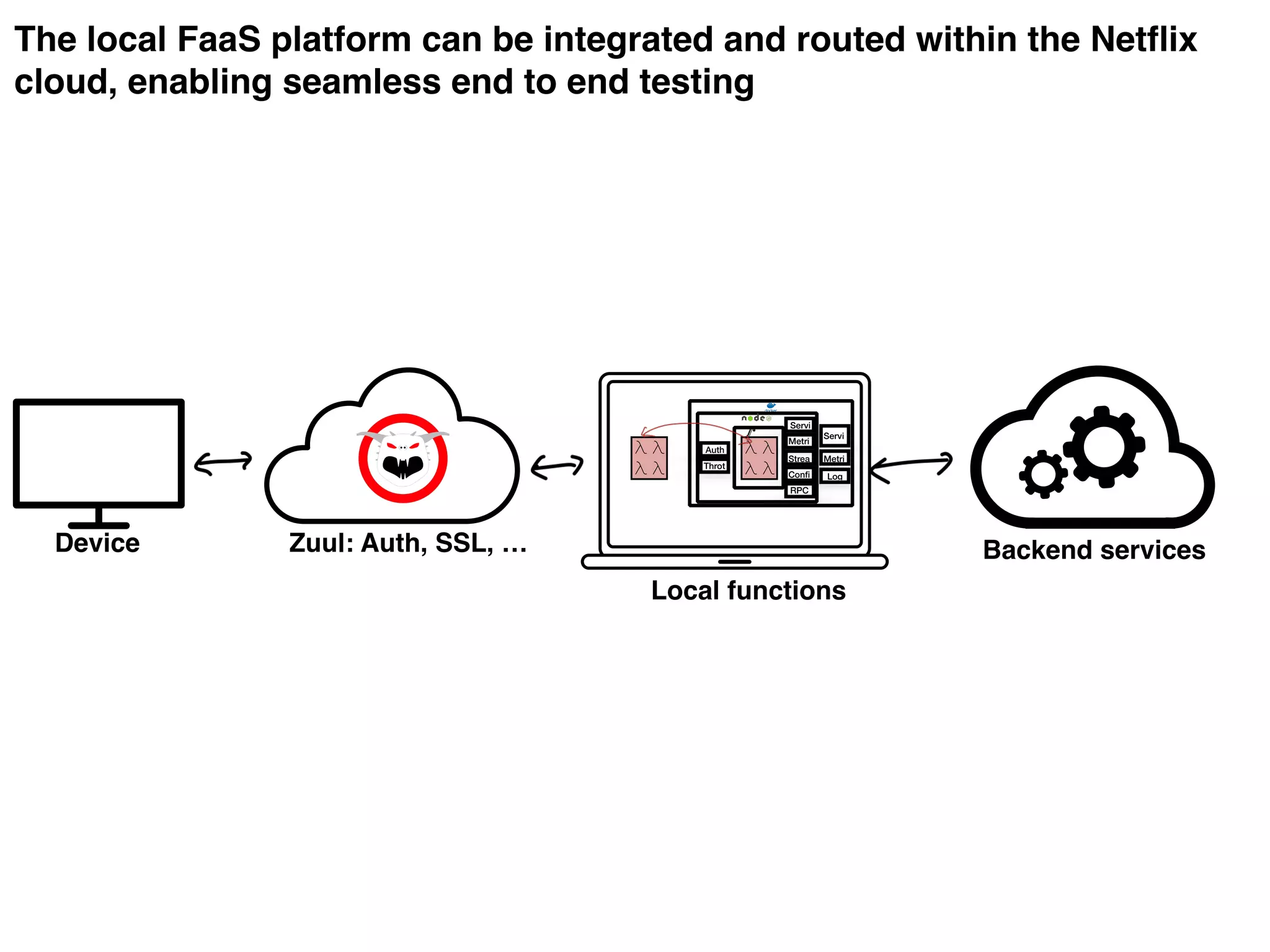

56. The local FaaS platform can be integrated and routed within the Netflix
cloud, enabling seamless end to end testing
S
Servi
Confi
Metri
Strea
Servi
Metri
Log
RPC
Auth
Throt
Zuul: Auth, SSL, … Backend servicesDevice
Local functions

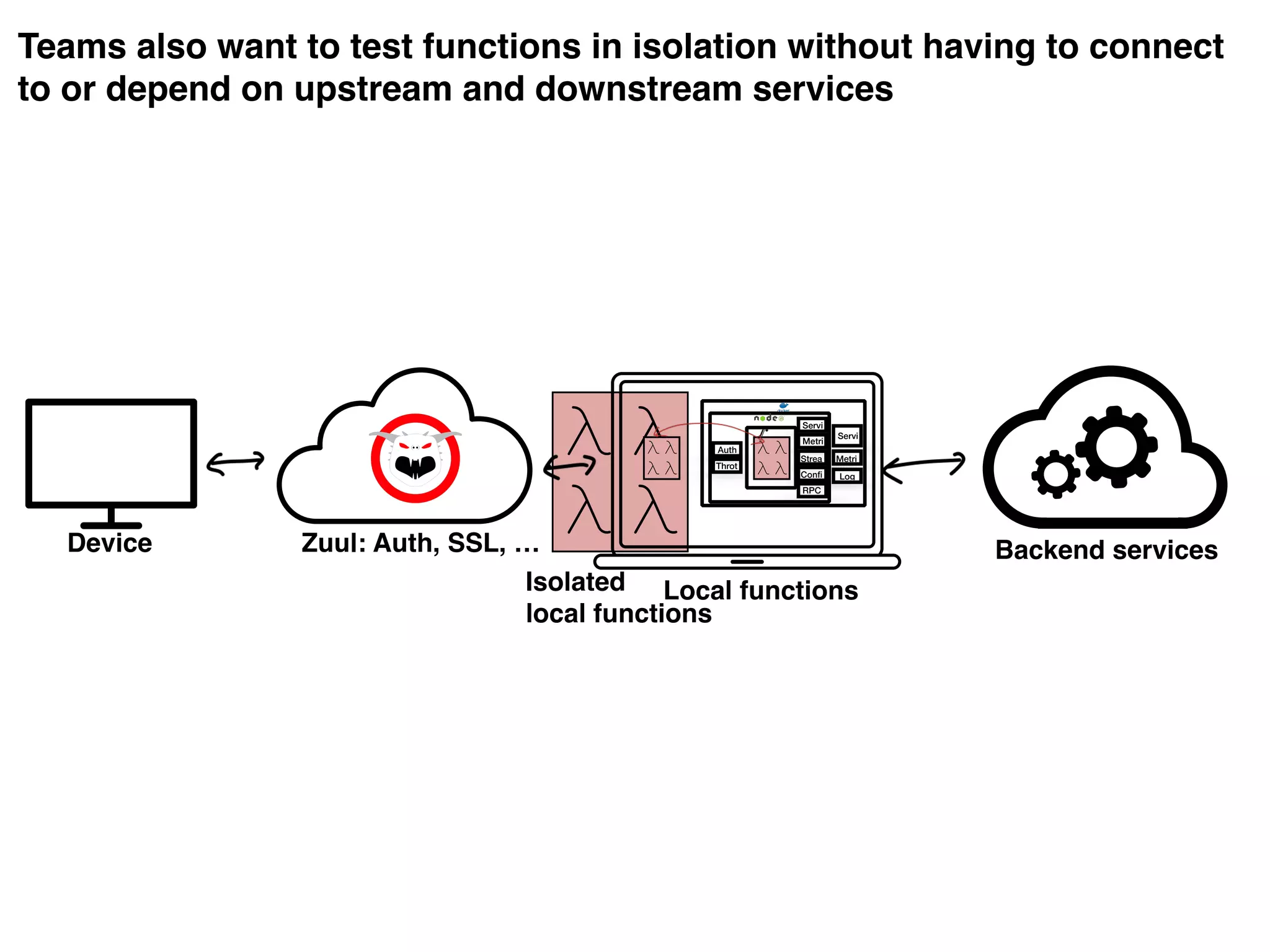

57. Teams also want to test functions in isolation without having to connect
to or depend on upstream and downstream services
Isolated
local functions
Local functions
S
Servi
Confi
Metri
Strea
Servi
Metri
Log
RPC
Auth
Throt
Zuul: Auth, SSL, … Backend servicesDevice

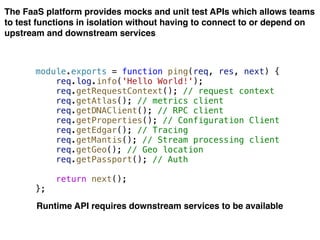

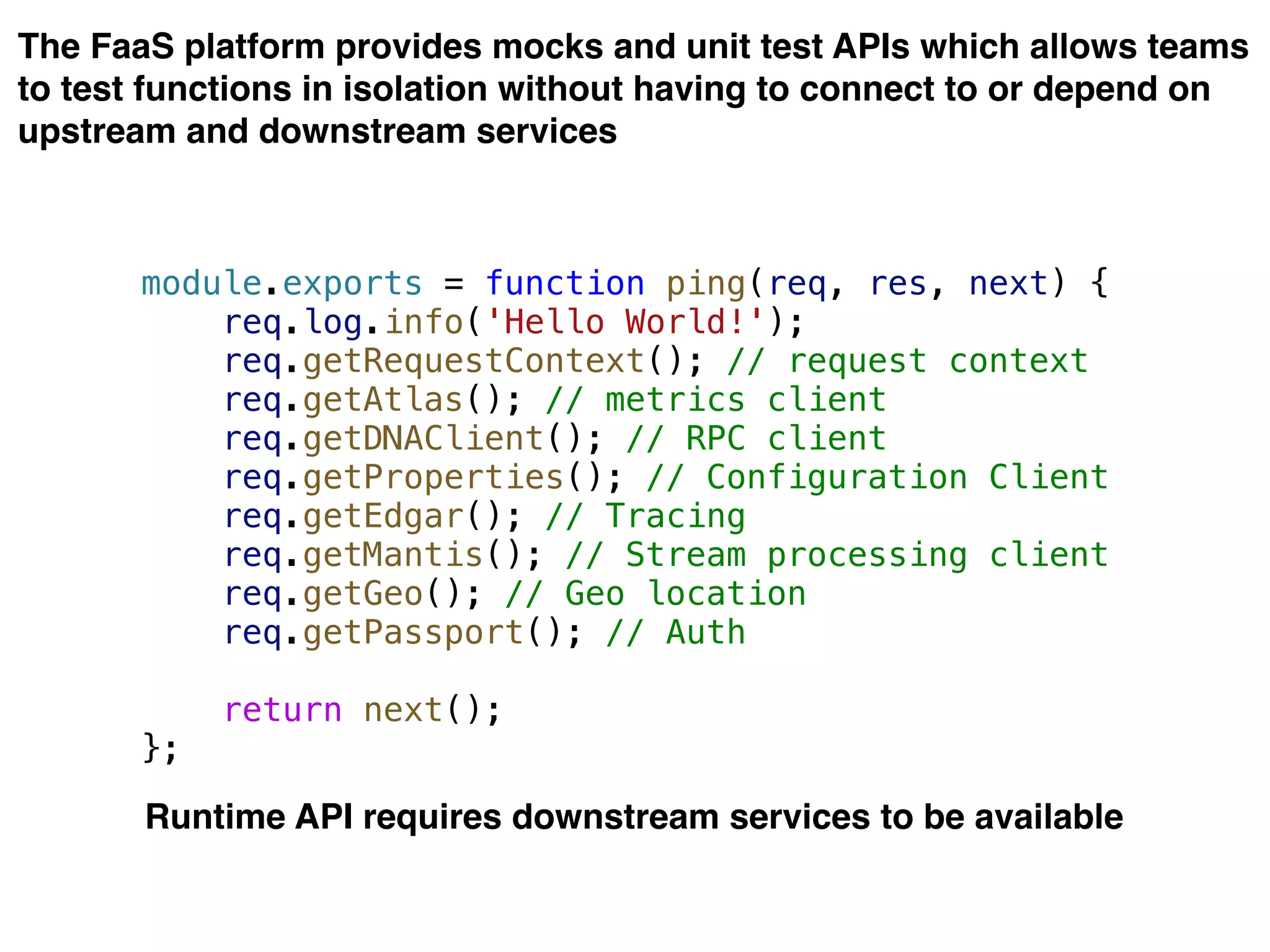

58. The FaaS platform provides mocks and unit test APIs which allows teams
to test functions in isolation without having to connect to or depend on
upstream and downstream services
module.exports = function ping(req, res, next) {
req.log.info('Hello World!');
req.getRequestContext(); // request context
req.getAtlas(); // metrics client
req.getDNAClient(); // RPC client
req.getProperties(); // Configuration Client
req.getEdgar(); // Tracing
req.getMantis(); // Stream processing client
req.getGeo(); // Geo location
req.getPassport(); // Auth
return next();
};
Runtime API requires downstream services to be available

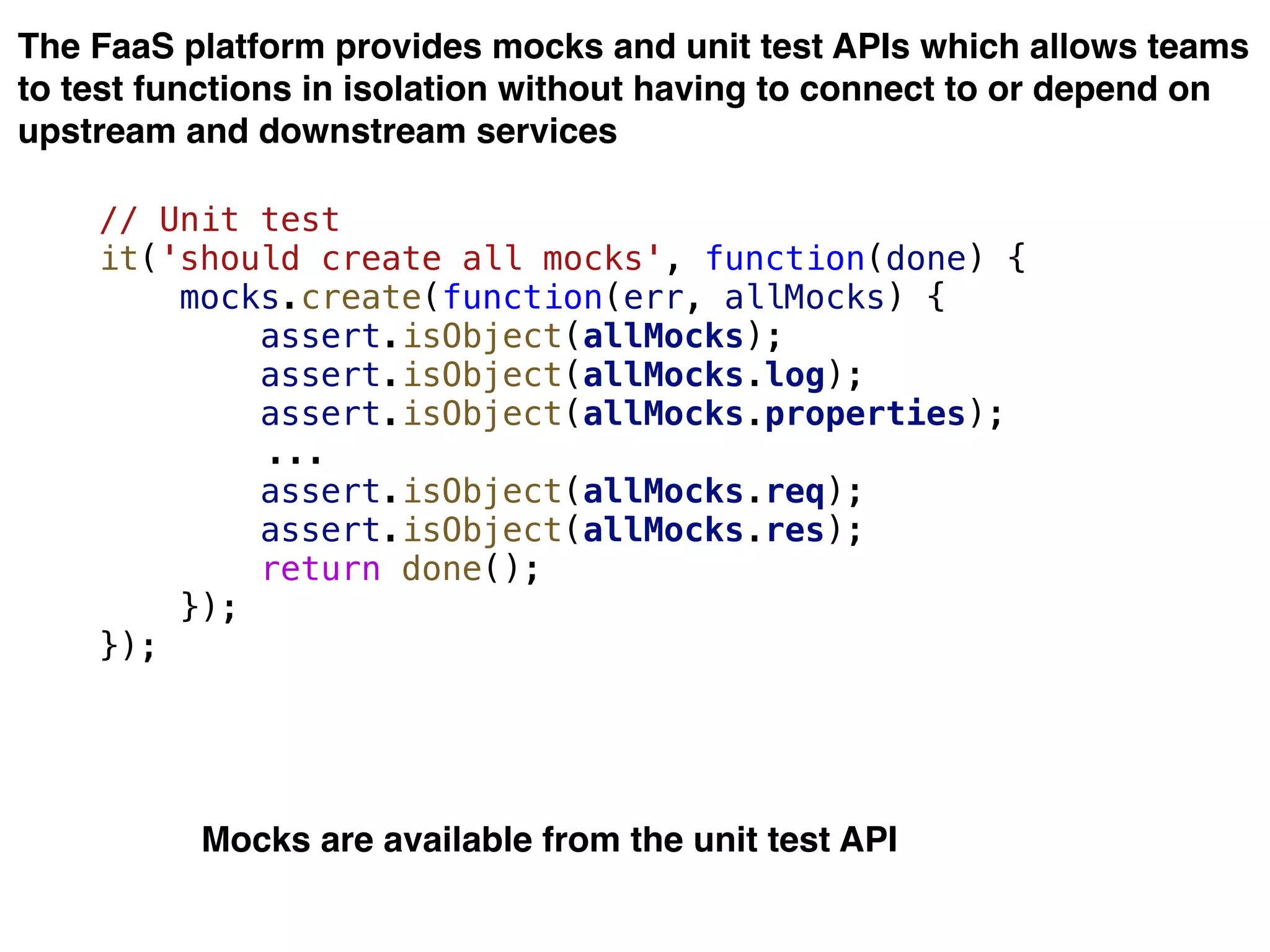

59. The FaaS platform provides mocks and unit test APIs which allows teams
to test functions in isolation without having to connect to or depend on
upstream and downstream services
// Unit test
it('should create all mocks', function(done) {
mocks.create(function(err, allMocks) {
assert.isObject(allMocks);
assert.isObject(allMocks.log);
assert.isObject(allMocks.properties);
...
assert.isObject(allMocks.req);
assert.isObject(allMocks.res);
return done();
});
});
Mocks are available from the unit test API

60. This development platform can also be easily deployed to Jenkins using
NEWT, unlocking CI/CD tests for both the FaaS platform and functions
themselves

61. We’ll cover:
Runtime platform
architecture
Developer
experience
Management &
operations

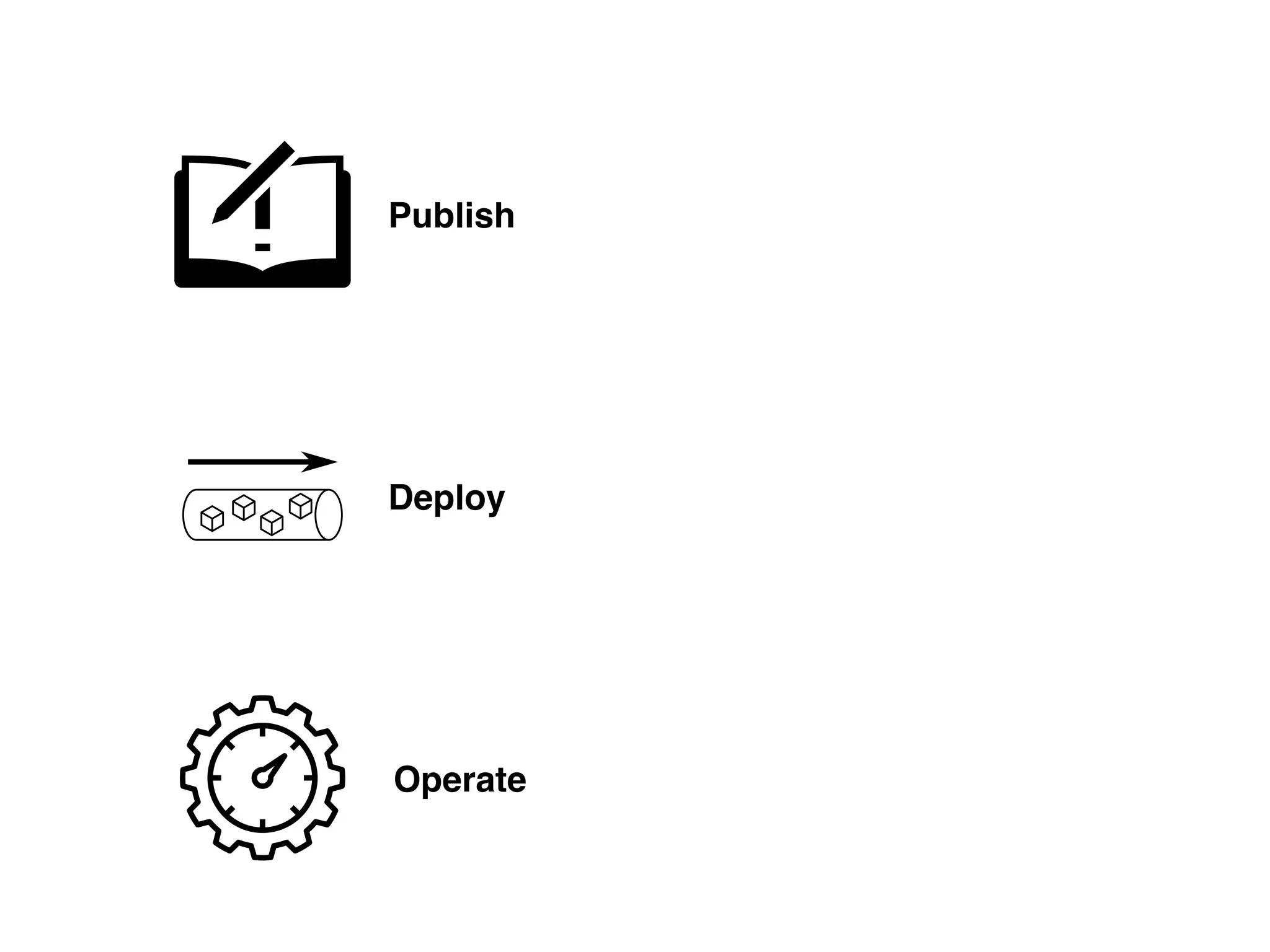

62. Publish
Deploy
Operate

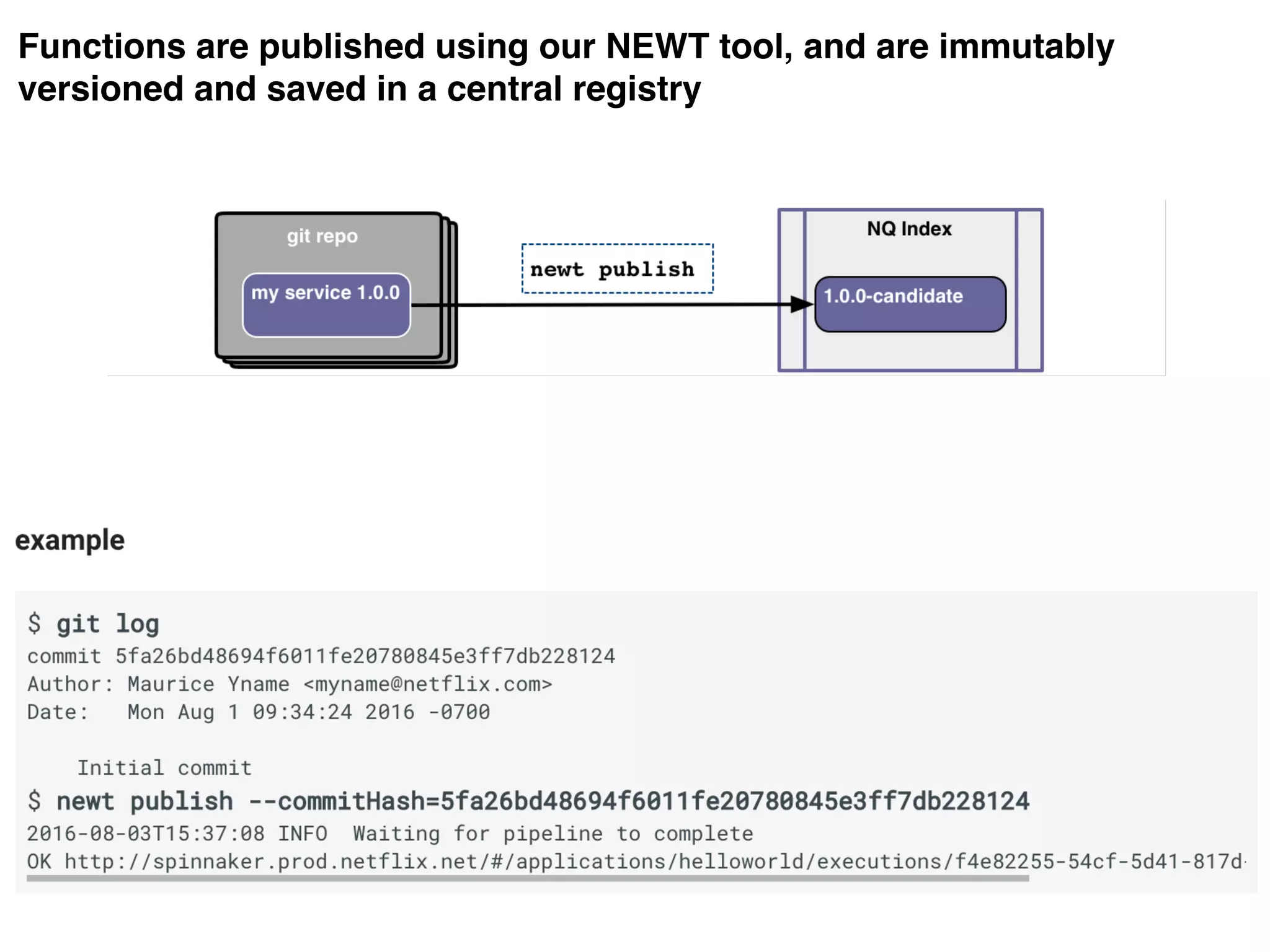

63. Functions are published using our NEWT tool, and are immutably
versioned and saved in a central registry

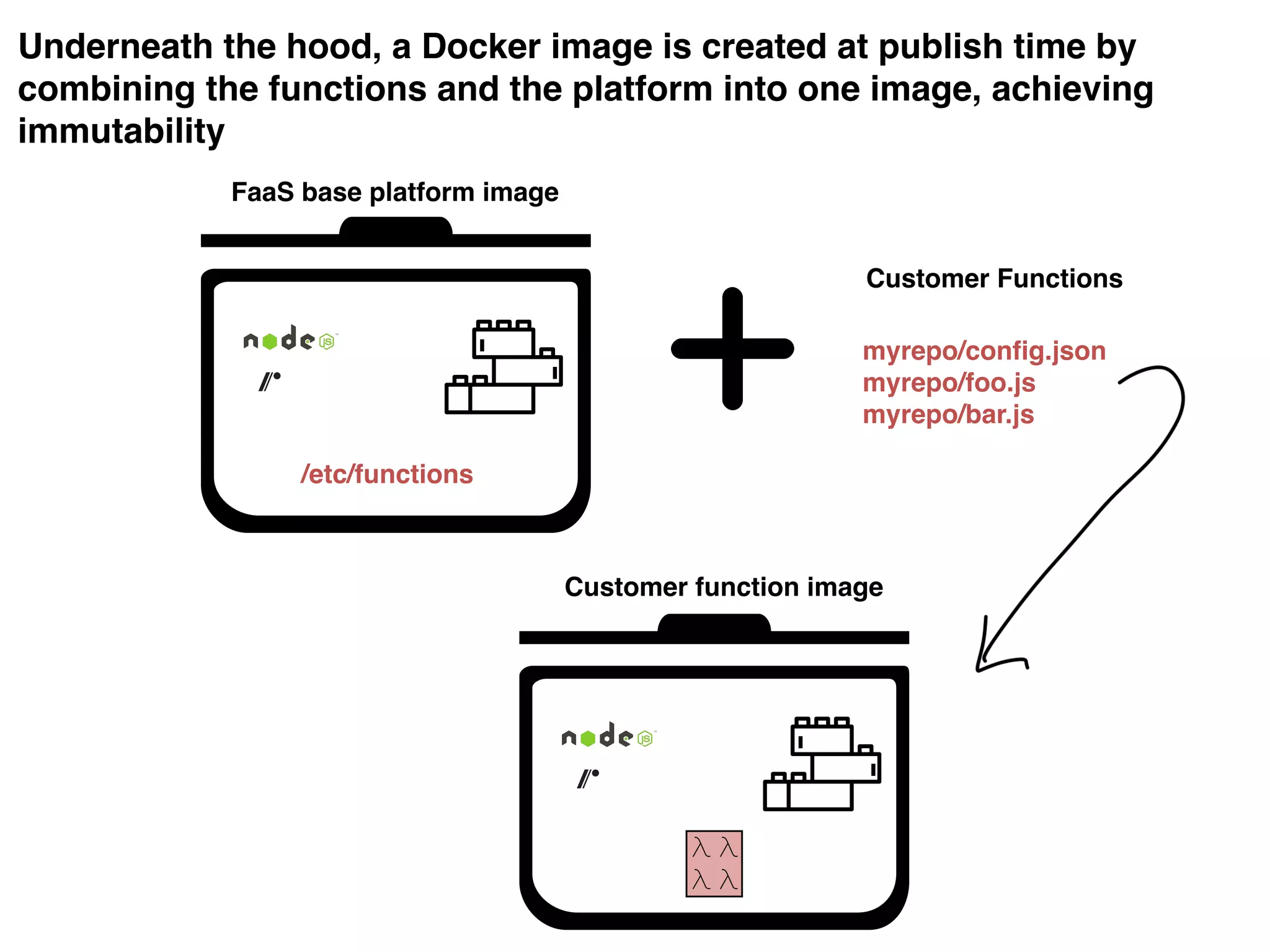

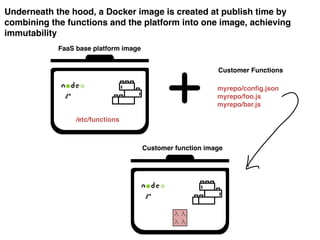

64. Underneath the hood, a Docker image is created at publish time by
combining the functions and the platform into one image, achieving
immutability
FaaS base platform image
S
/etc/functions
myrepo/config.json
myrepo/foo.js
myrepo/bar.js
Customer Functions
S
Customer function image

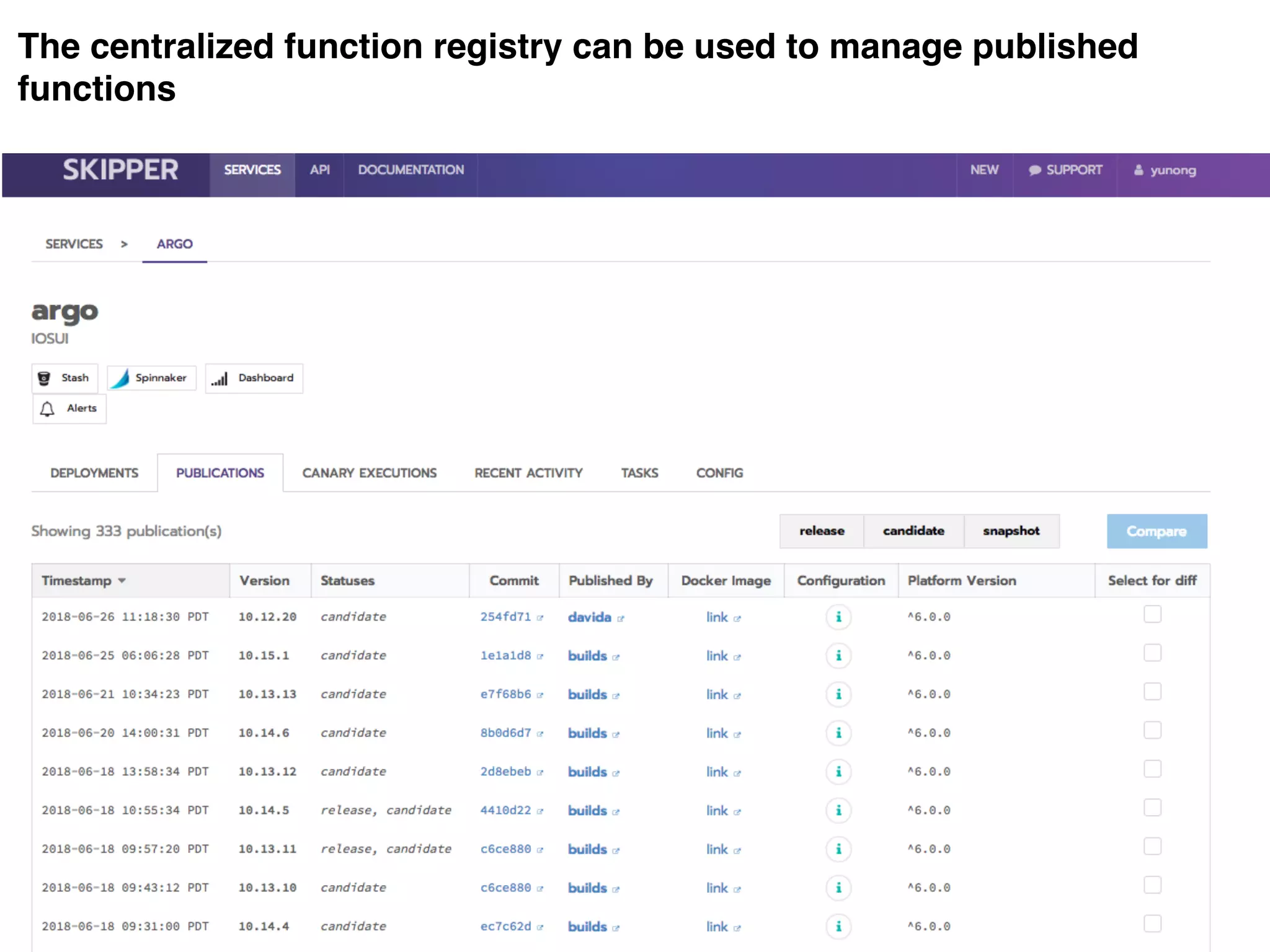

65. The centralized function registry can be used to manage published
functions

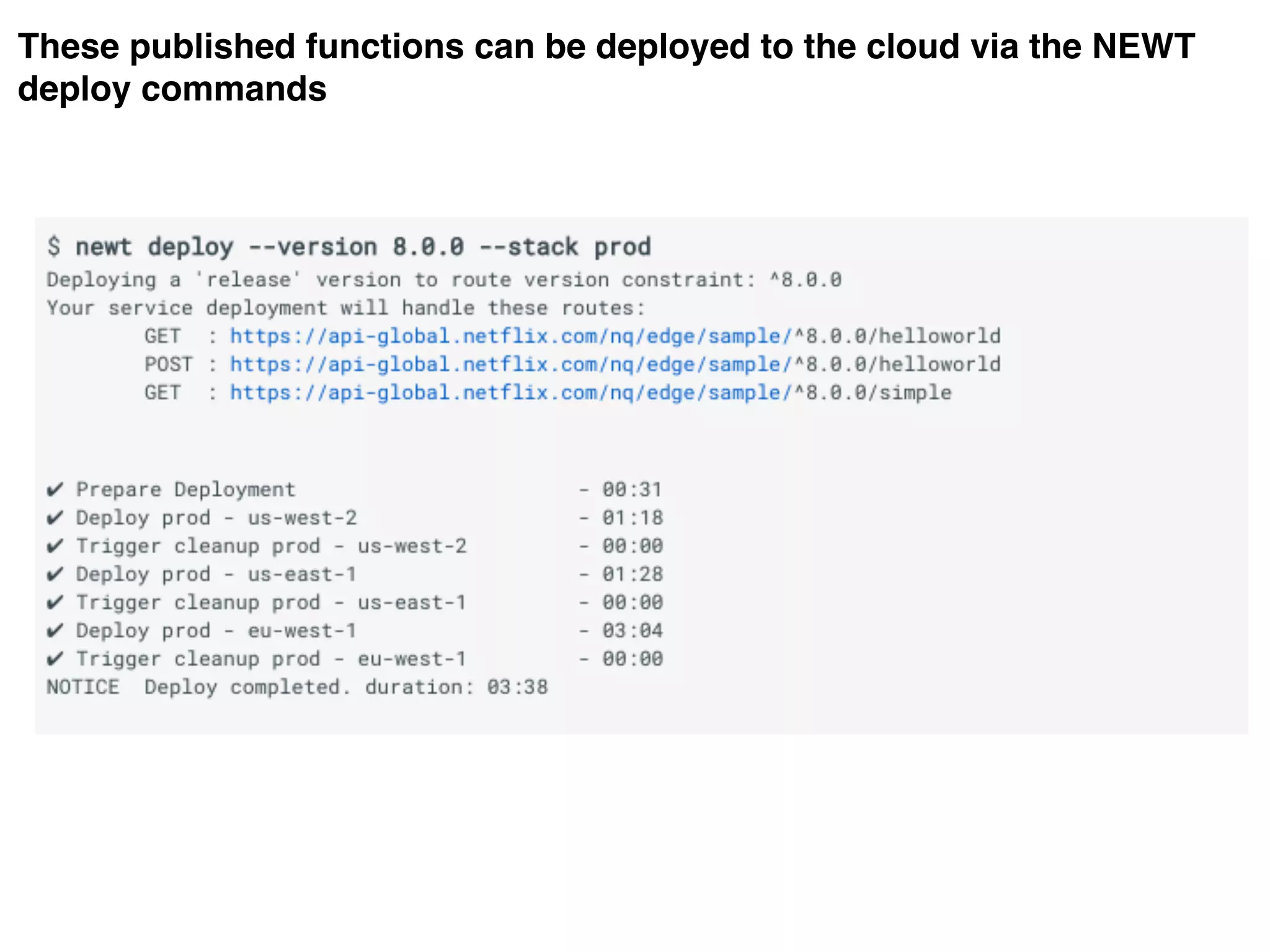

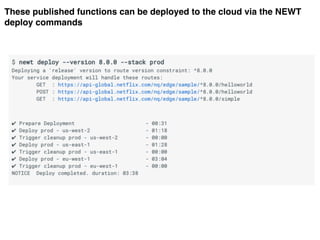

66. These published functions can be deployed to the cloud via the NEWT
deploy commands
S

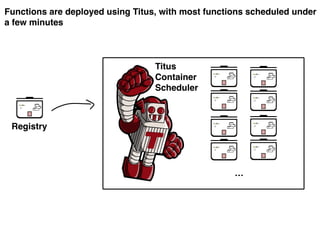

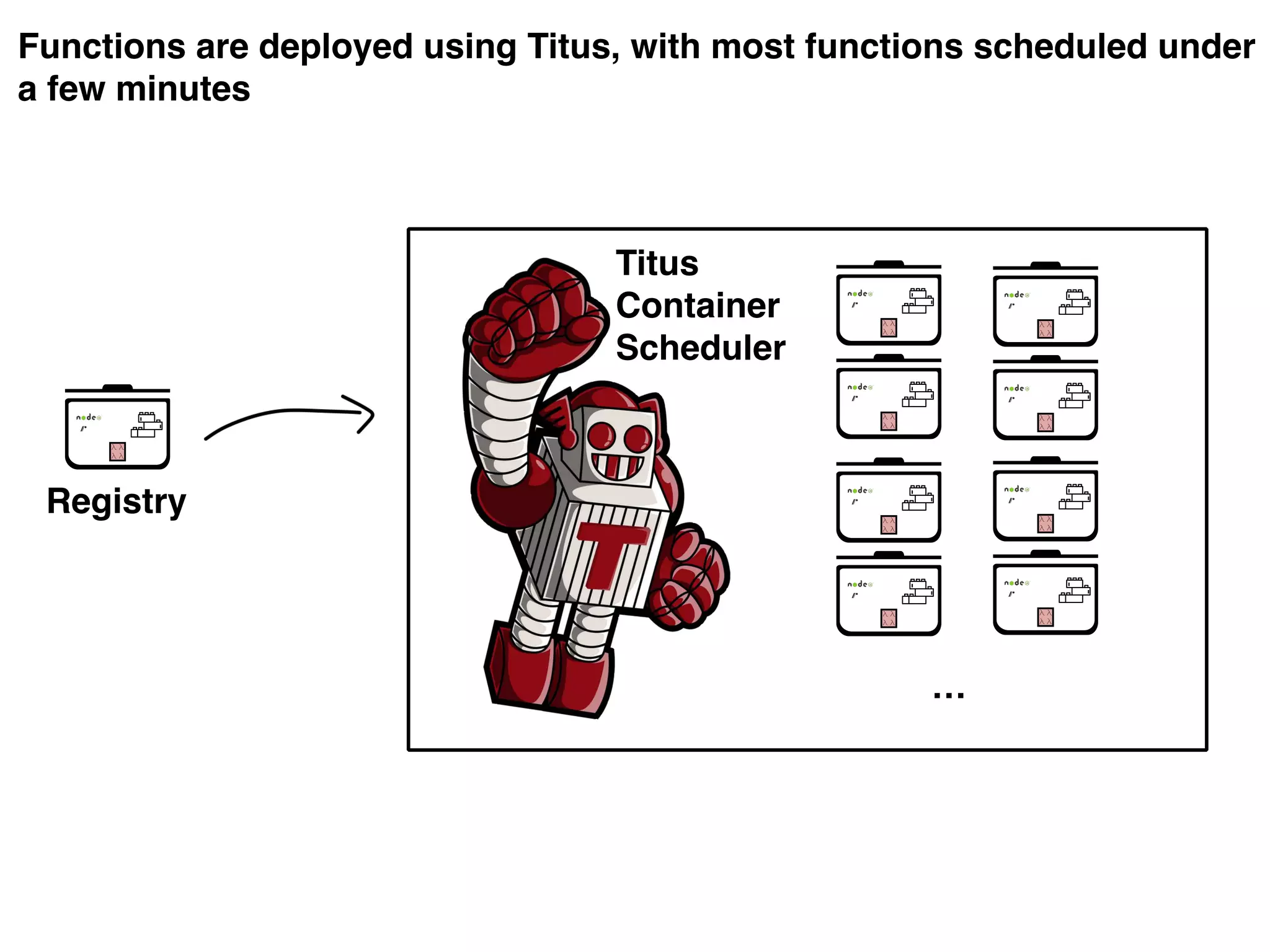

67. Functions are deployed using Titus, with most functions scheduled under
a few minutes
S
Registry
Titus
Container
Scheduler
S
S
S
S
S
S
S
S
…

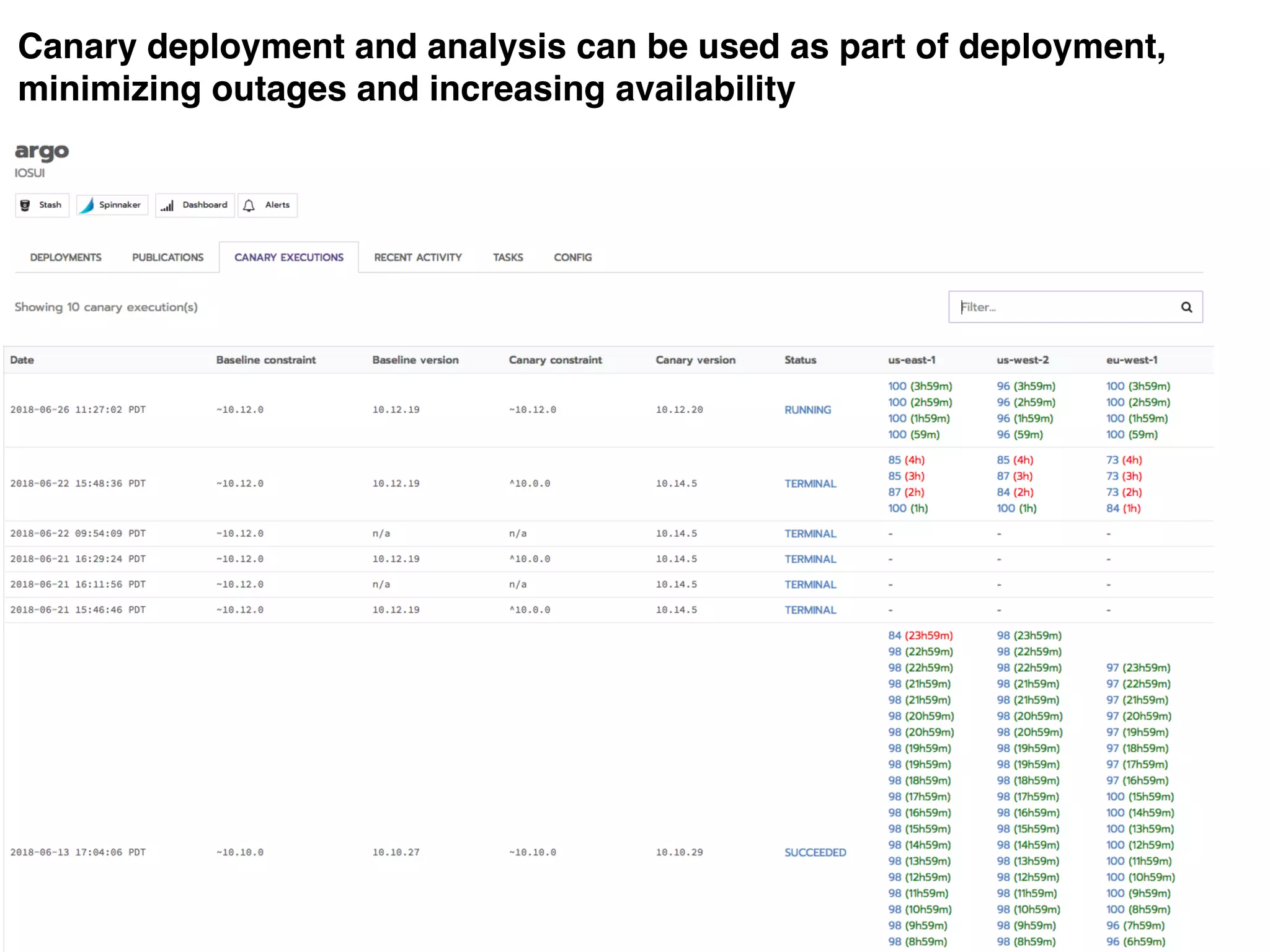

68. Canary deployment and analysis can be used as part of deployment,
minimizing outages and increasing availability

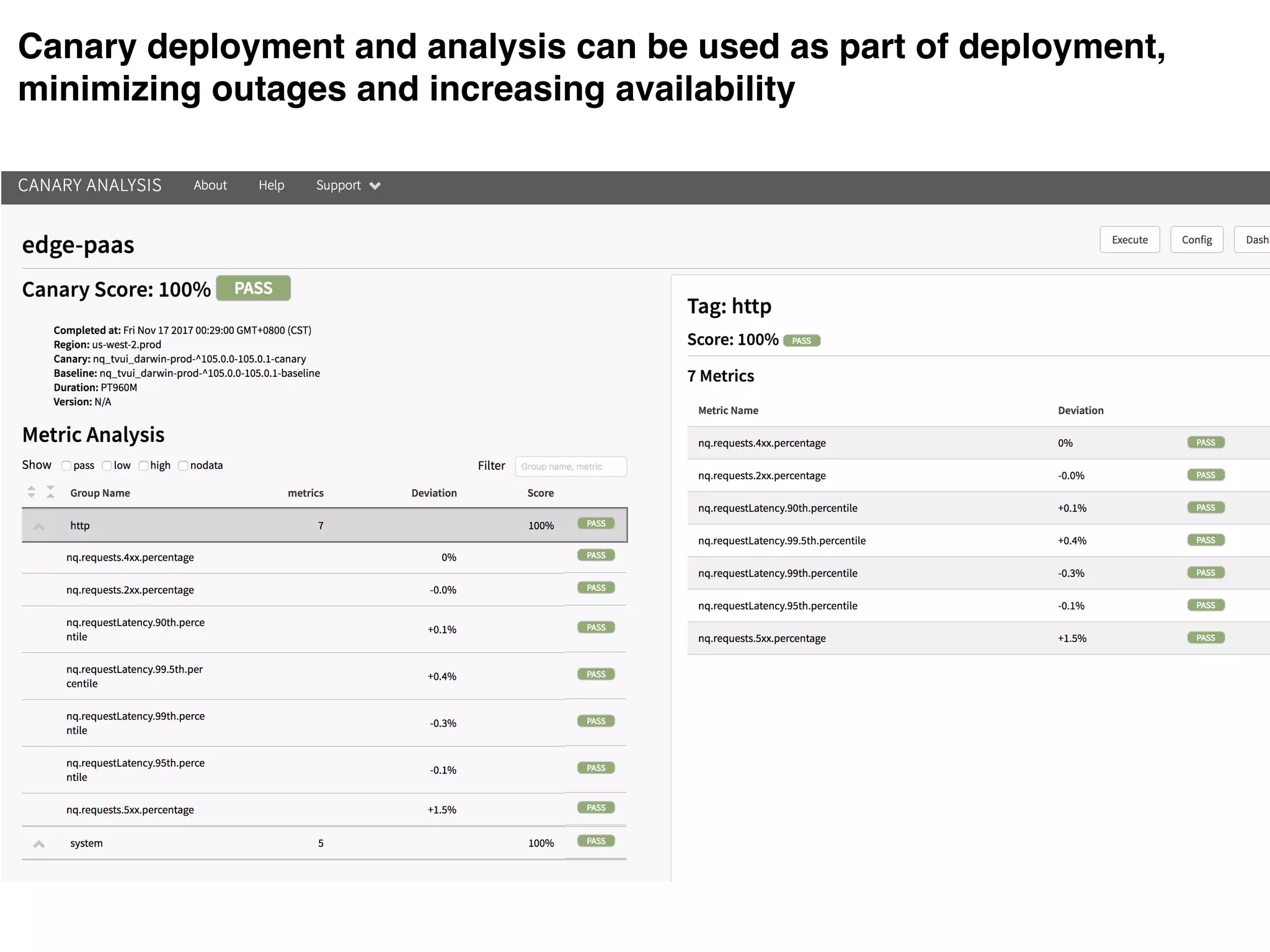

69. Canary deployment and analysis can be used as part of deployment,
minimizing outages and increasing availability

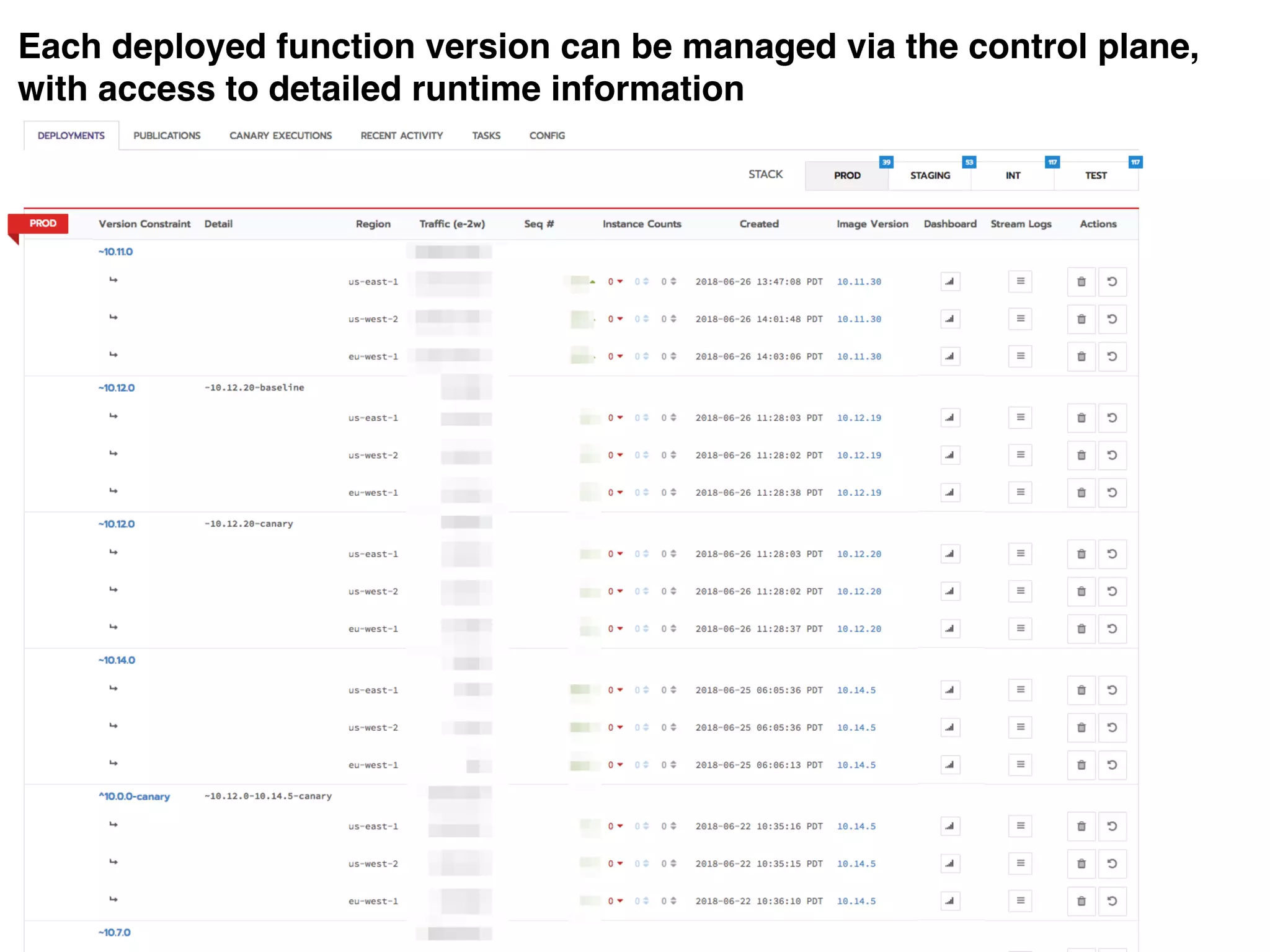

70. Each deployed function version can be managed via the control plane,
with access to detailed runtime information

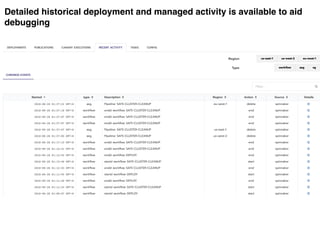

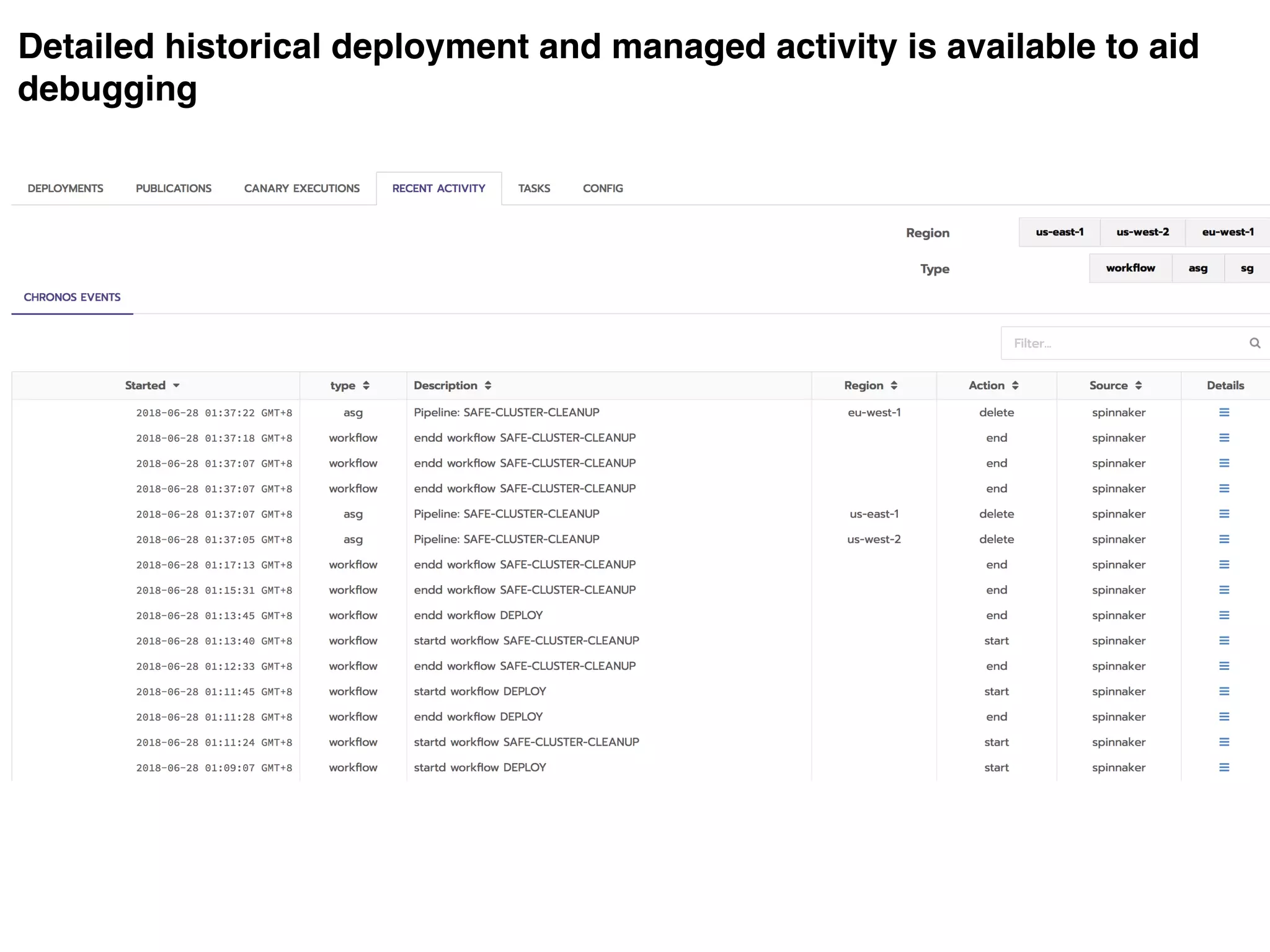

71. Detailed historical deployment and managed activity is available to aid
debugging

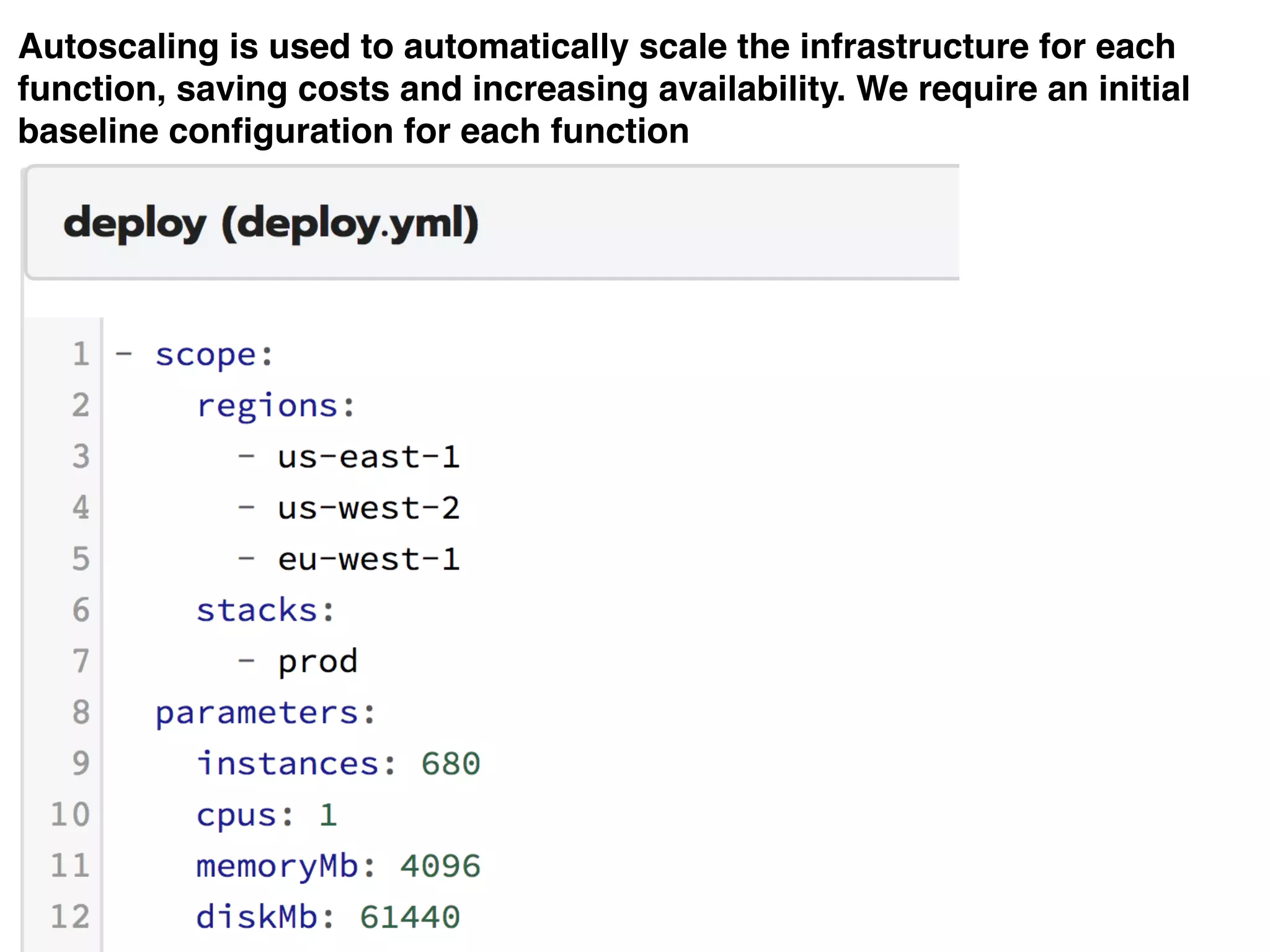

72. Autoscaling is used to automatically scale the infrastructure for each
function, saving costs and increasing availability. We require an initial
baseline configuration for each function

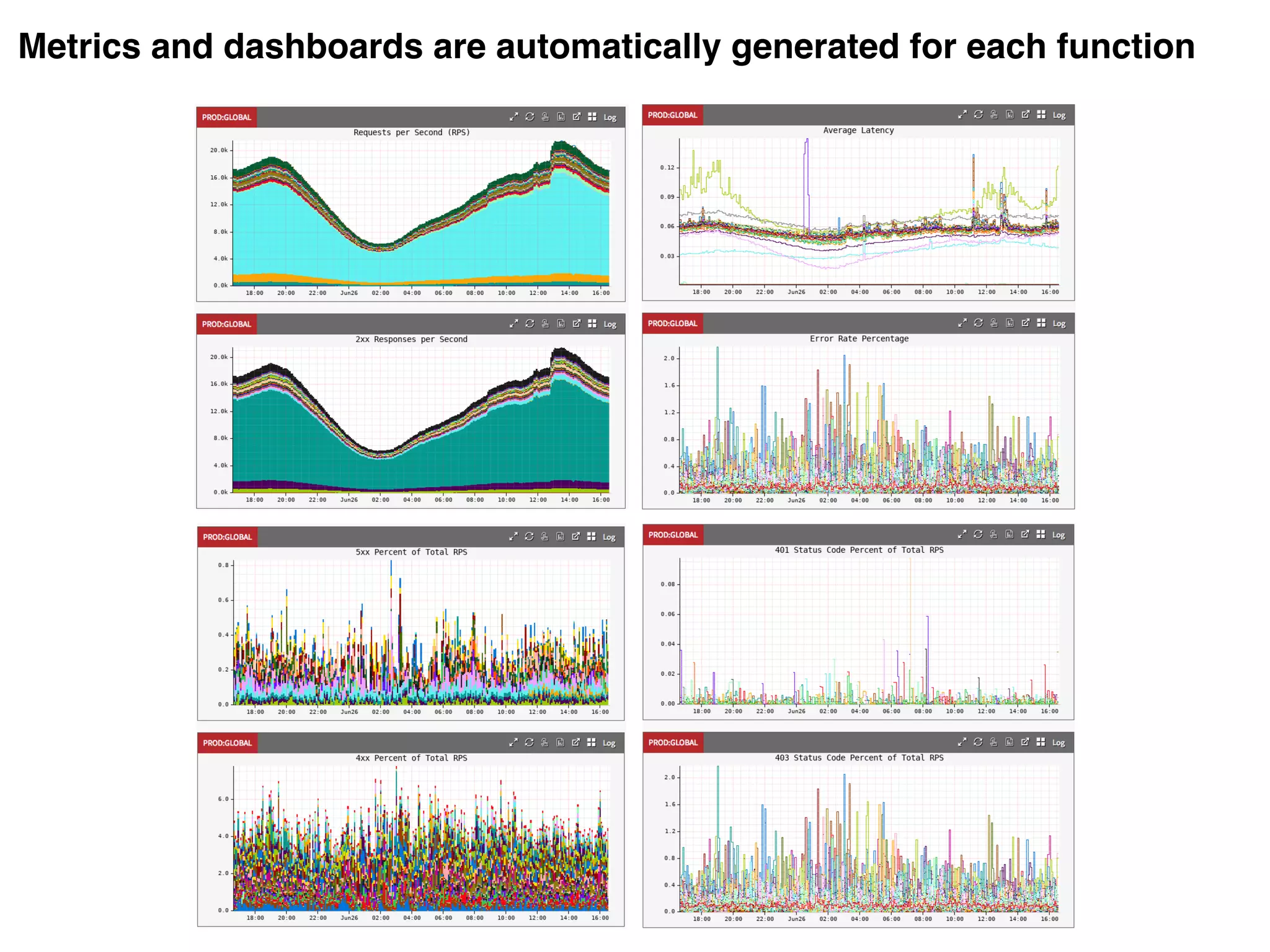

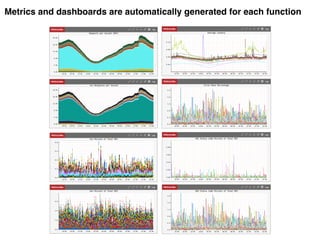

73. Metrics and dashboards are automatically generated for each function

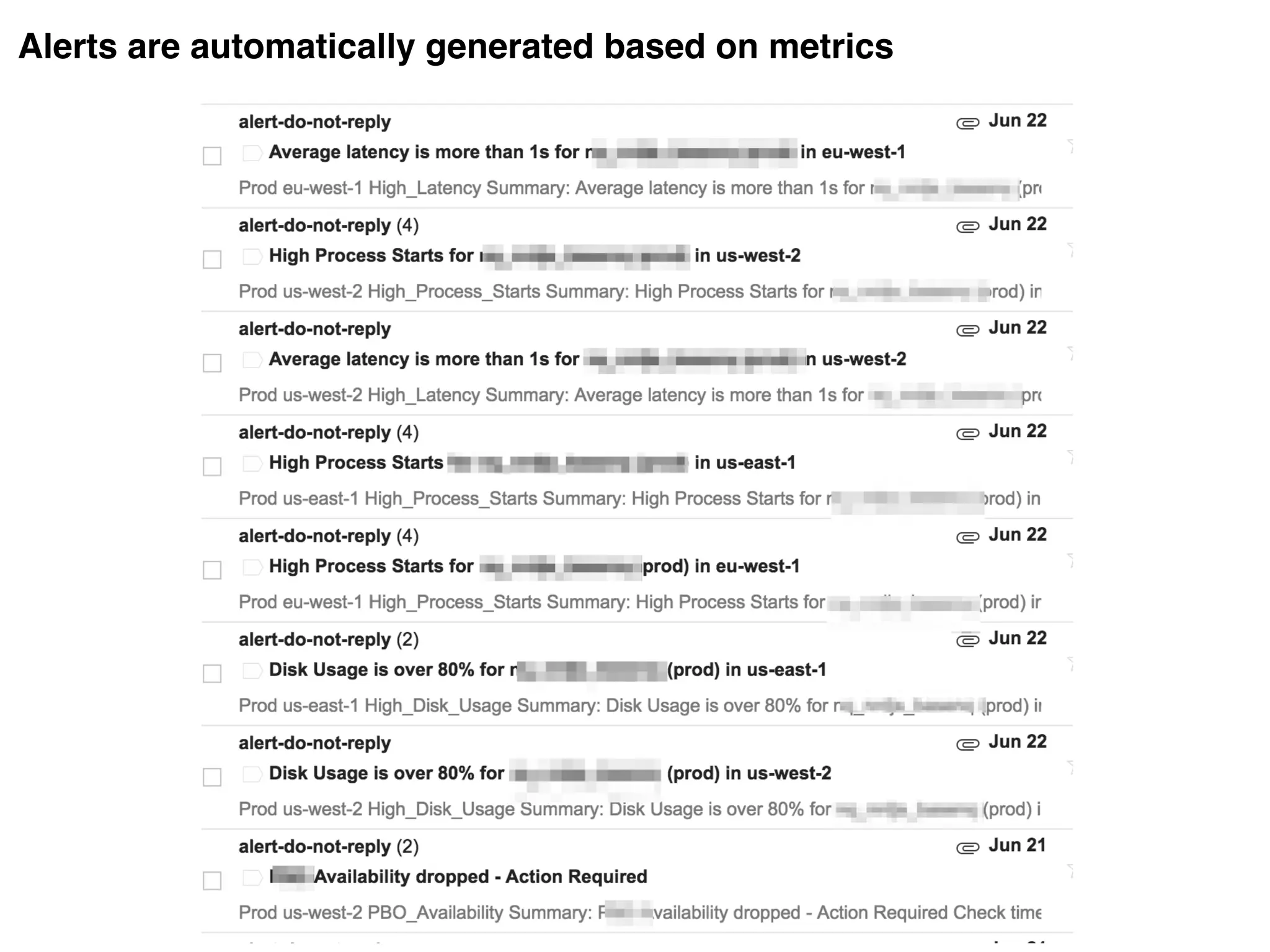

74. Alerts are automatically generated based on metrics

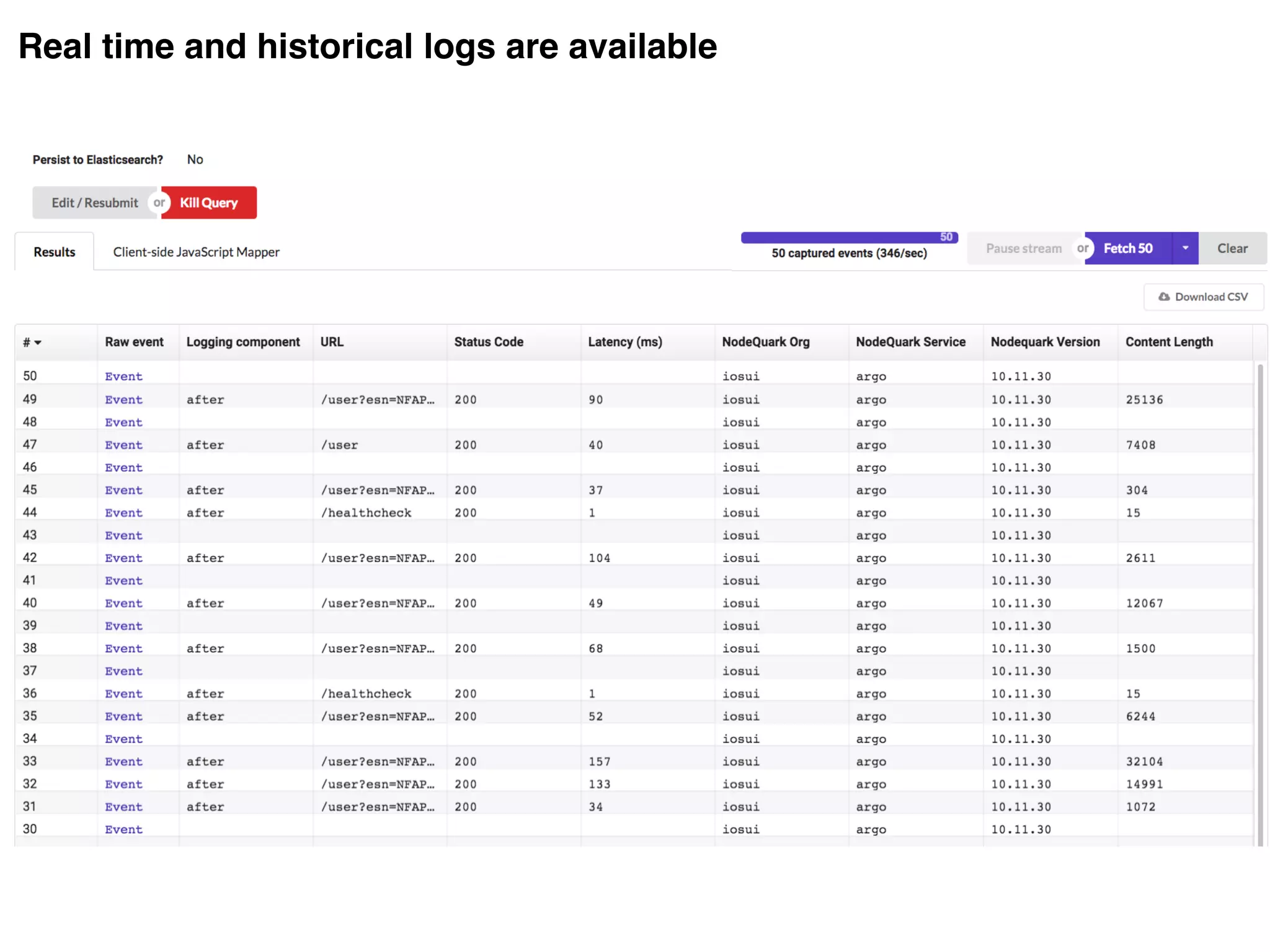

75. Real time and historical logs are available

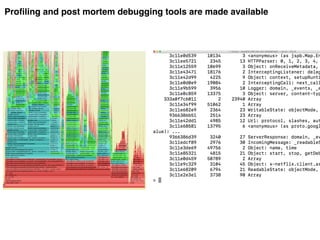

76. Profiling and post mortem debugging tools are made available

77. The infrastructure and operations of the platform and application itself is
handled by the centralized API platform team. UI teams are only
responsible for managing their individual functions

78. Netflix FaaS Platform
Runtime platform
architecture
Developer
experience
Management &
operations

80. 80

81. 81

84. 84

85. Questions?
@yunongx
yunong@netflix.com
@yunongx
linkedin.com/in/yunongxiao/
