1. Querying Hierarchical
Data with CTE
ALEXANDER ALDEV
DBaaS Architect
MariaDB Corporation

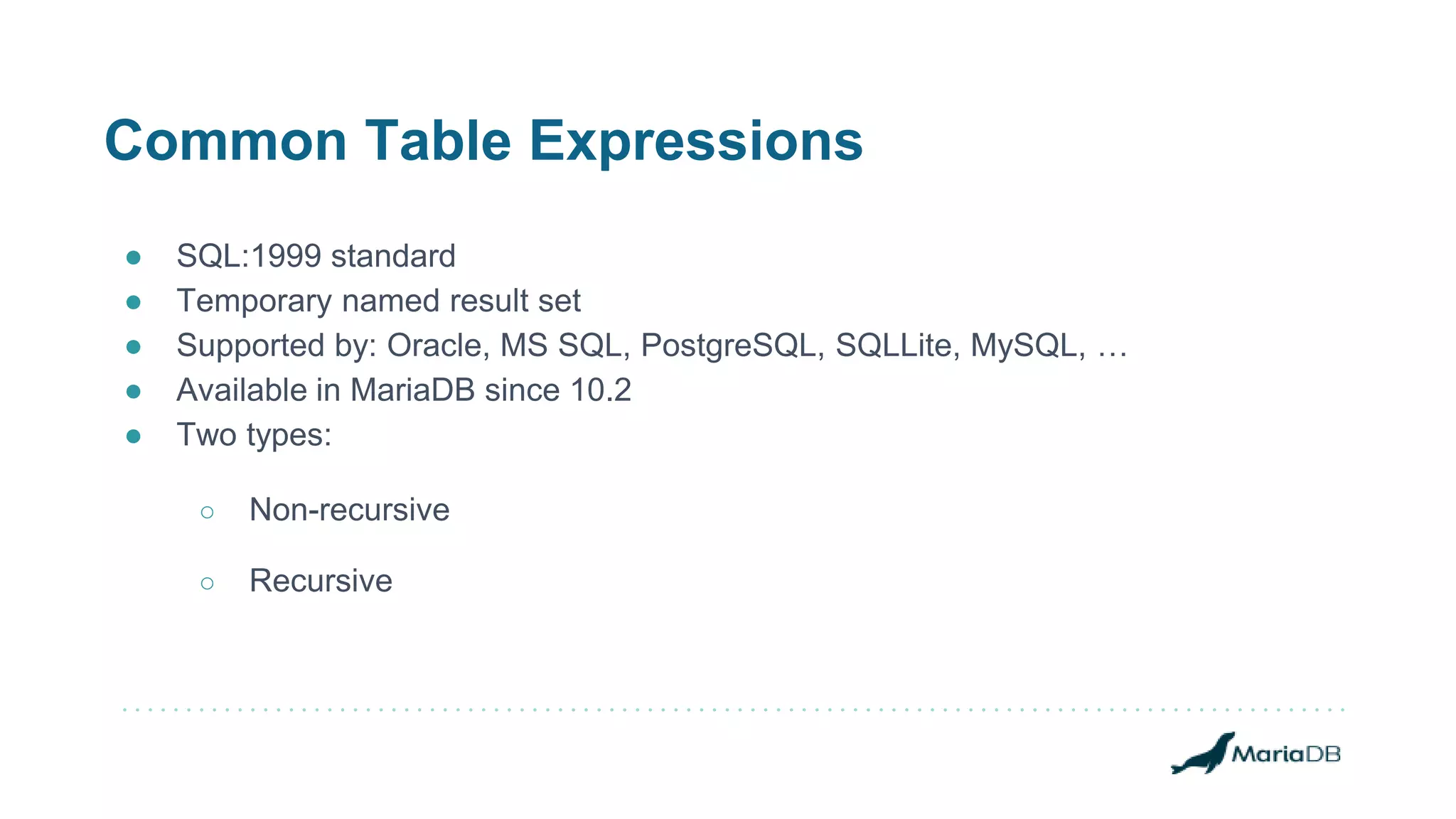

2. Common Table Expressions
● SQL:1999 standard
● Temporary named result set
● Supported by: Oracle, MS SQL, PostgreSQL, SQLLite, MySQL, …
● Available in MariaDB since 10.2
● Two types:
○ Non-recursive
○ Recursive

3. CTE Syntax
WITH engineers AS (
SELECT *
FROM employees
WHERE dept = ‘engineering’
)
SELECT * FROM engineers ...
CTE nameWITH keyword
CTE body
use in query

4. Similar to Derived Queries
WITH engineers AS (
SELECT *
FROM employees
WHERE dept =
‘engineering’
)
SELECT * FROM engineers ...
SELECT * FROM (
SELECT *
FROM employees
WHERE dept =
‘engineering’
) engineers
...

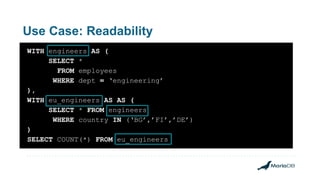

5. Use Case: Readability
WITH engineers AS (
SELECT *
FROM employees
WHERE dept = ‘engineering’
),
WITH eu_engineers AS AS (
SELECT * FROM engineers
WHERE country IN (‘BG’,’FI’,’DE’)
)
SELECT COUNT(*) FROM eu_engineers

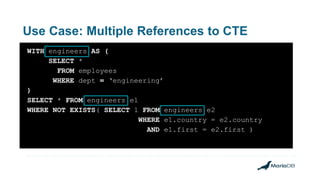

6. Use Case: Multiple References to CTE
WITH engineers AS (
SELECT *
FROM employees
WHERE dept = ‘engineering’
)
SELECT * FROM engineers e1
WHERE NOT EXISTS( SELECT 1 FROM engineers e2
WHERE e1.country = e2.country
AND e1.first = e2.first )

7. Use Case: Year-over-Year comparison
WITH annual_sales AS (
SELECT product, YEAR(invoice_date) AS year,
SUM( amount ) AS total
FROM invoices
GROUP BY 1, 2
)
SELECT y1.year, y1.product, y1.total, y2.total last_yr_total
FROM annual_sales y1
JOIN annual_sales y2
ON y1.year = y2.year + 1
AND y1.product = y2.product

8. Recursive CTE
● SQL does not handle hierarchical data well
● Trees in format (parent_id, child_id)
● Graphs in format (point 1, point 2)
● Recursive CTEs allow for hierarchical data to be handled
● Also useful for search algorithms where next iteration depends on previous

9. Recursive CTE Syntax
WITH RECURSIVE ancestors AS (
SELECT * FROM family
WHERE name = ‘Alex’
UNION ALL
SELECT f.* FROM family f, ancestors
WHERE f.parent_id = ancestors.id
) SELECT * FROM ancestors;
SELECT * FROM engineers ...
RECURSIVE keyword
CTE anchor
recursive use

10. How CTEs work?
● Base execution strategy is to materialize
● Optimizations possible for non-recursive CTE
● Recursive CTEs use this flow:
1. Evaluate anchor expression
2. Evaluate recursive expression -> new data
3. Append new data to result
4. If new data is not-empty goto 2

11. Example:
Sudoku Solver

12. Example:
ETL Job Scheduler

13. THANK YOU!
