This document presents a quantitative approach for evaluating design patterns based on their ability to improve quality attributes. It defines key elements of design patterns and introduces the Quality Model for Object-Oriented Design (QMOOD) for measuring quality attributes. The approach evaluates a design pattern by (1) defining its functional and non-functional intents, (2) designing pattern structures, (3) defining transformations, and (4) validating patterns can improve targeted quality attributes. It applies this approach to the Mediator pattern and finds it decreases coupling. The approach aims to help developers evaluate if patterns are well-designed and quantify their effectiveness in improving quality.

1. A quantitative approach for evaluating
the quality of design patterns
Nieh-Lin Hsheh, Peng-Hua Chu, William Chu
The Journal of Systems and Software 81 (2008)
1430 – 1439
M9837205 鄭聰賢

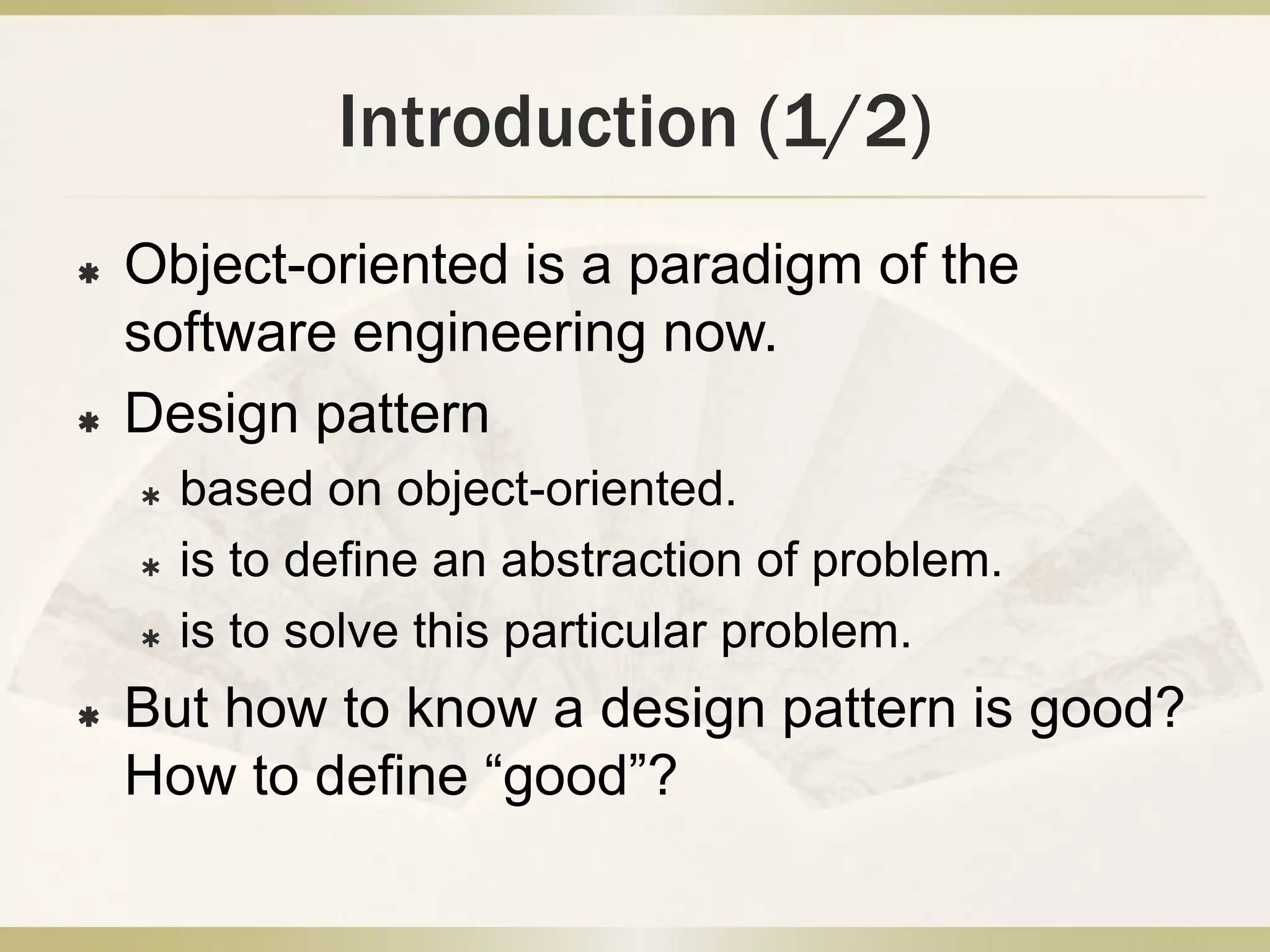

2. Introduction (1/2)
 Object-oriented is a paradigm of the
software engineering now.
 Design pattern
 based on object-oriented.
 is to define an abstraction of problem.
 is to solve this particular problem.
 But how to know a design pattern is good?
How to define “good”?

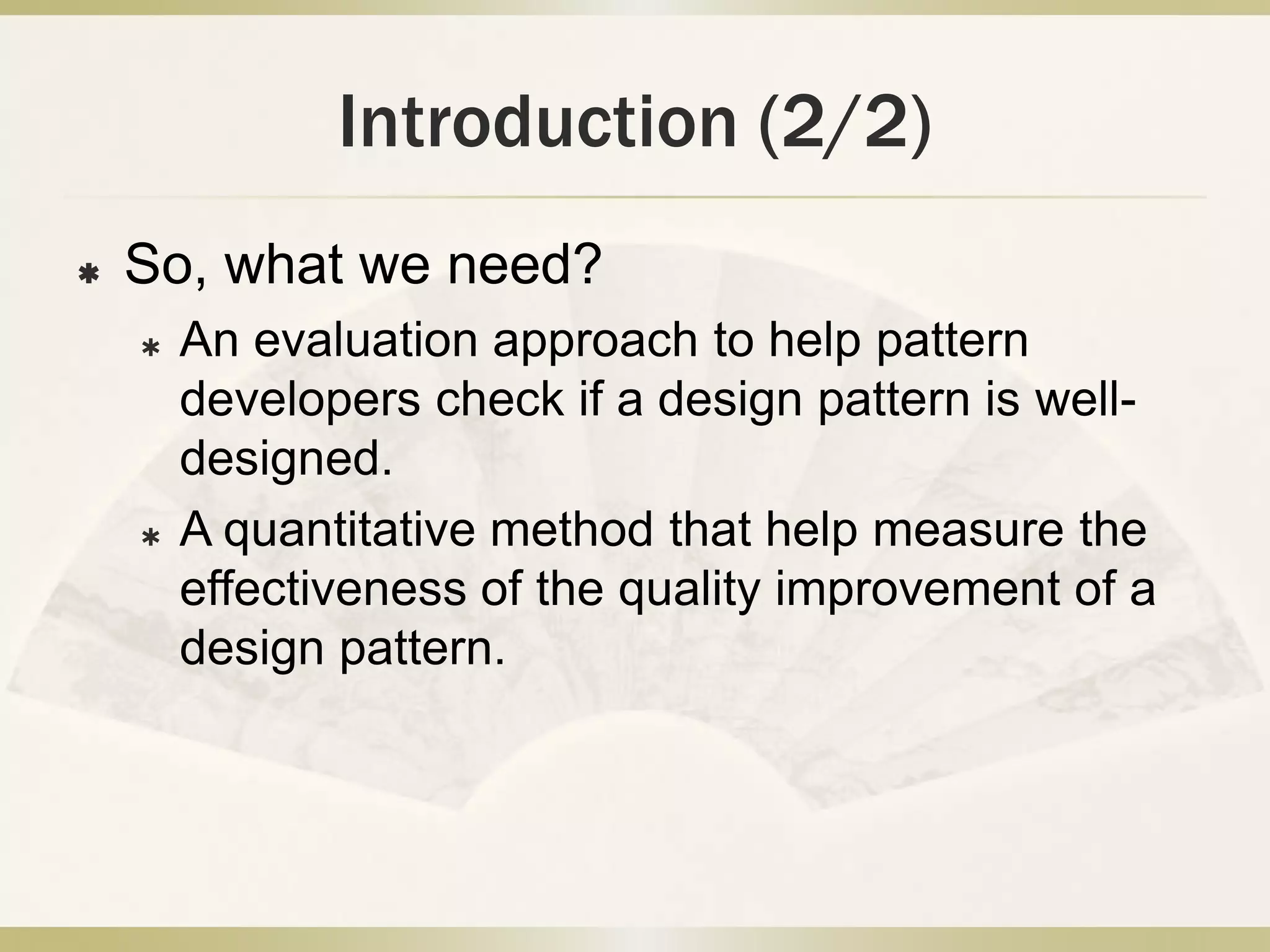

3. Introduction (2/2)
 So, what we need?
 An evaluation approach to help pattern
developers check if a design pattern is well-
designed.
 A quantitative method that help measure the
effectiveness of the quality improvement of a
design pattern.

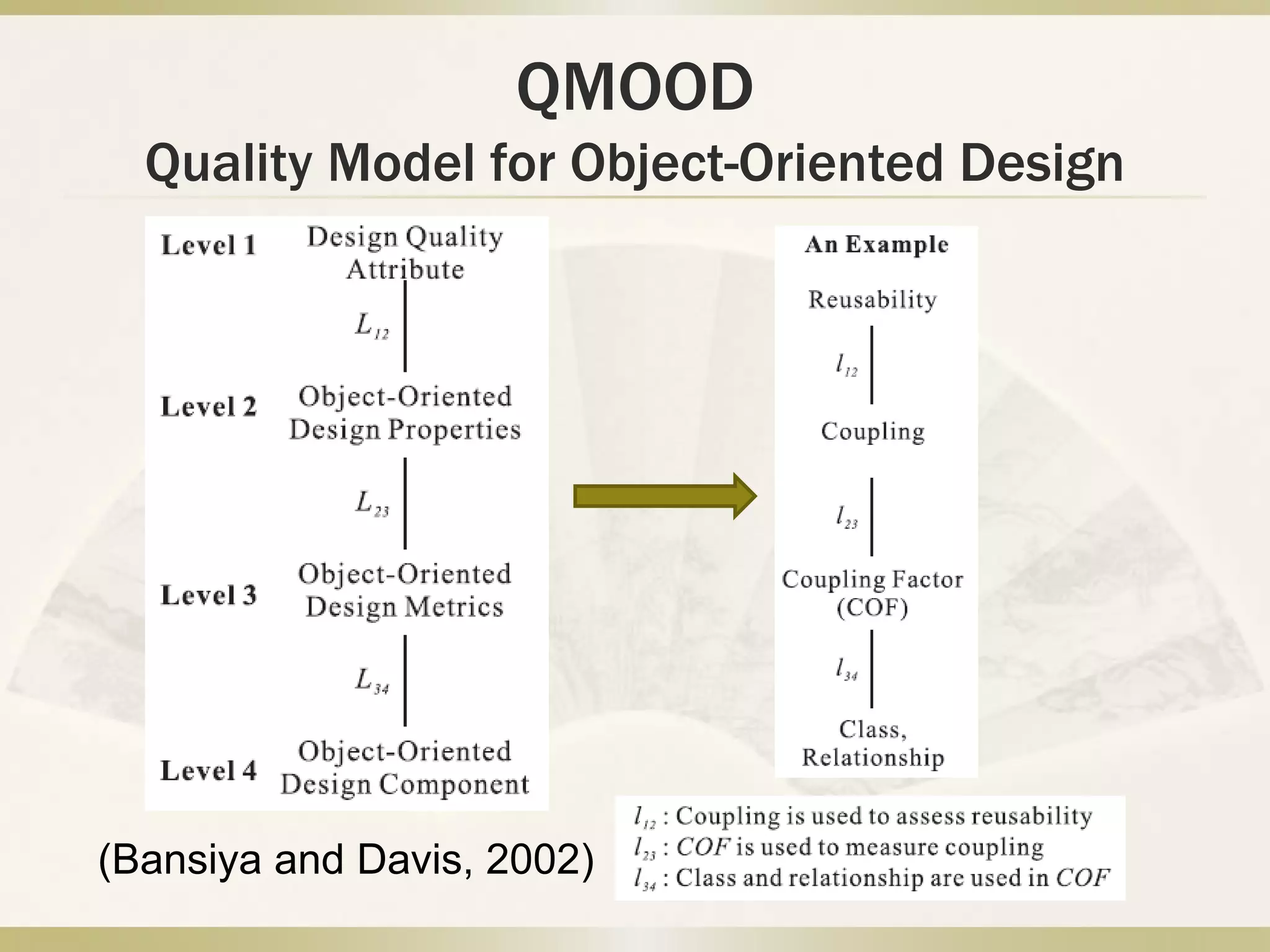

4. QMOOD
Quality Model for Object-Oriented Design
(Bansiya and Davis, 2002)

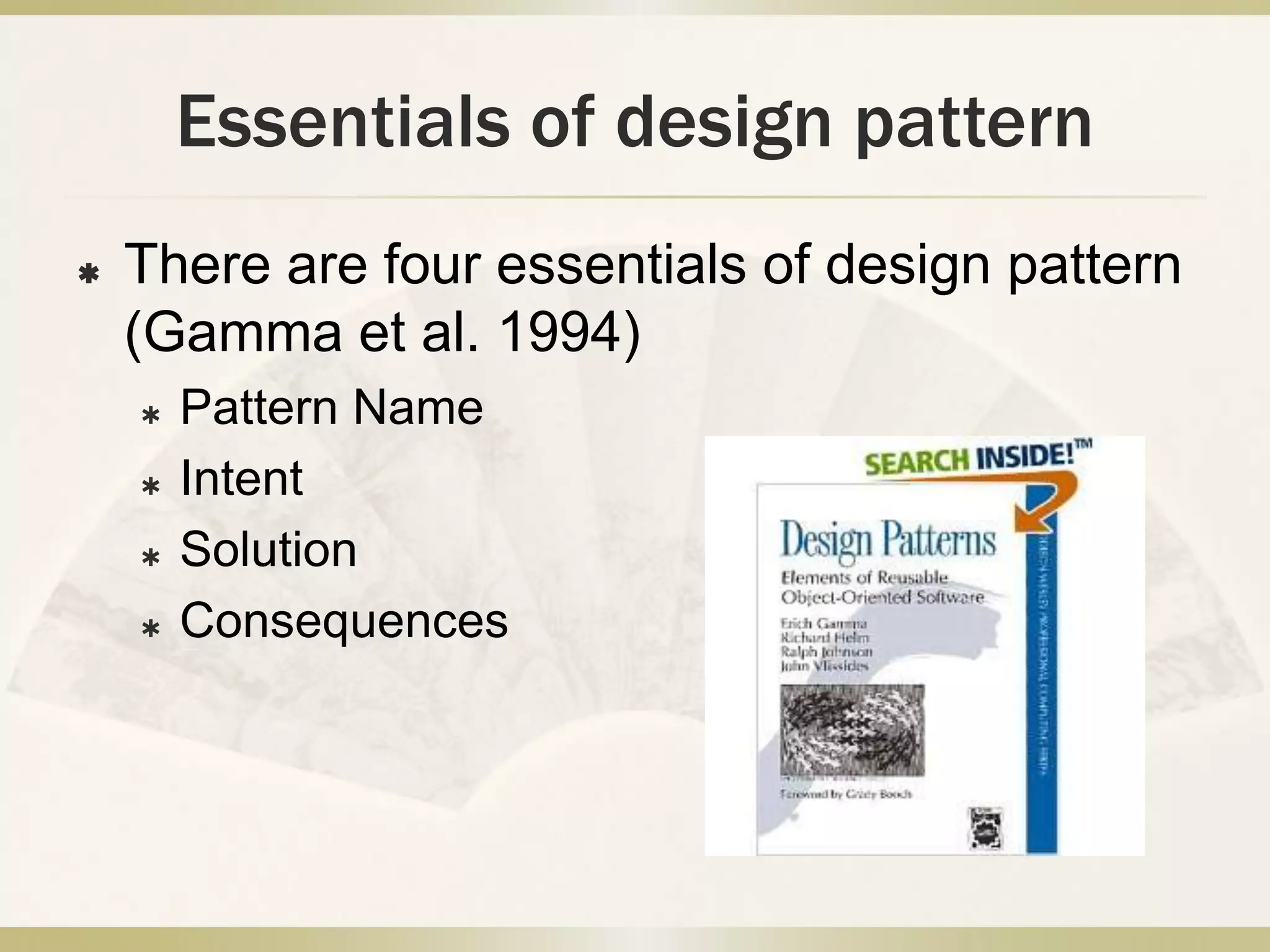

5. Essentials of design pattern
 There are four essentials of design pattern
(Gamma et al. 1994)
 Pattern Name
 Intent
 Solution
 Consequences

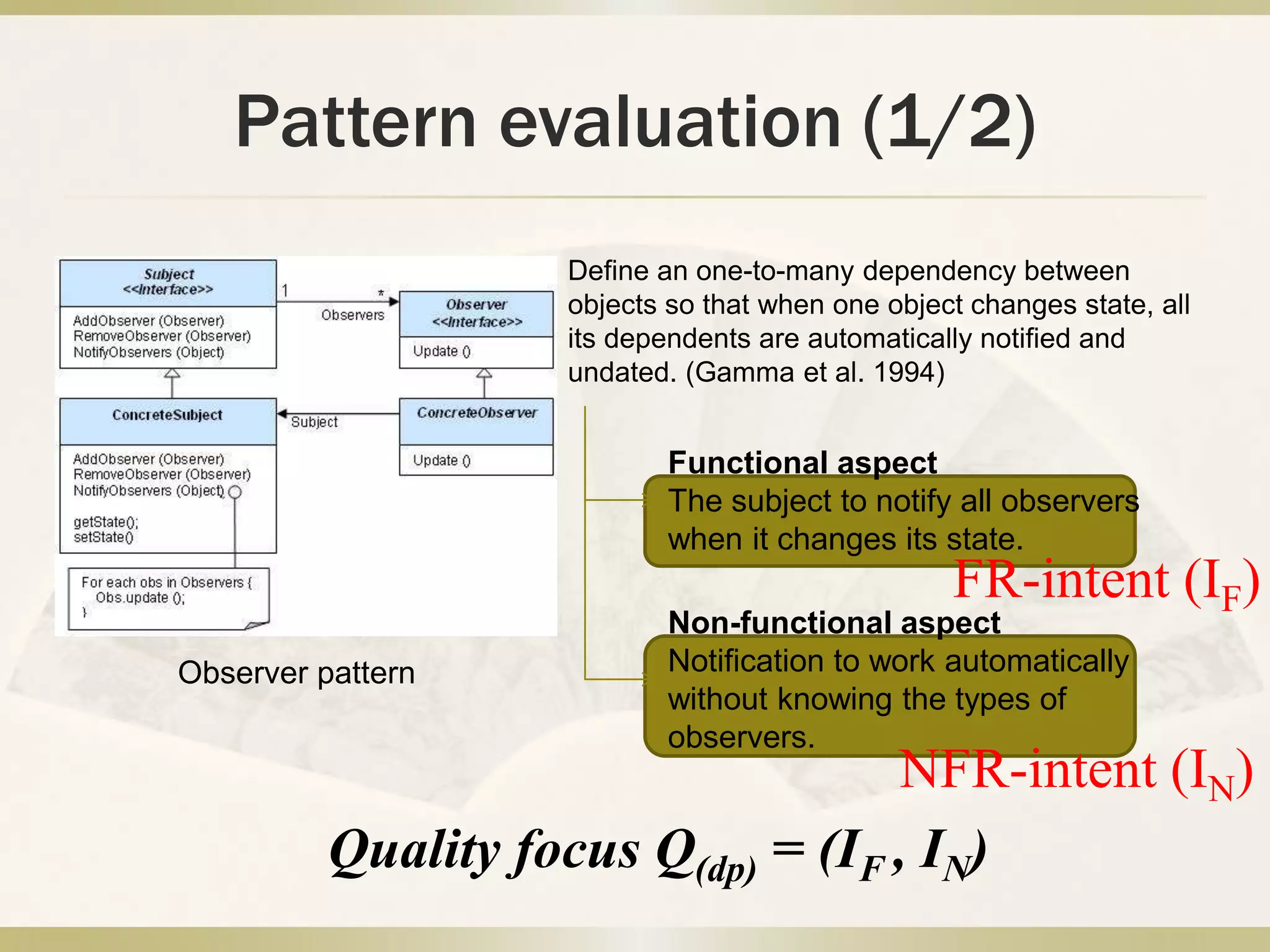

6. Pattern evaluation (1/2)
Observer pattern
Define an one-to-many dependency between
objects so that when one object changes state, all
its dependents are automatically notified and
undated. (Gamma et al. 1994)
Functional aspect
The subject to notify all observers
when it changes its state.
Non-functional aspect
Notification to work automatically
without knowing the types of
observers.
FR-intent (IF)
NFR-intent (IN)
Quality focus Q(dp) = (IF , IN)

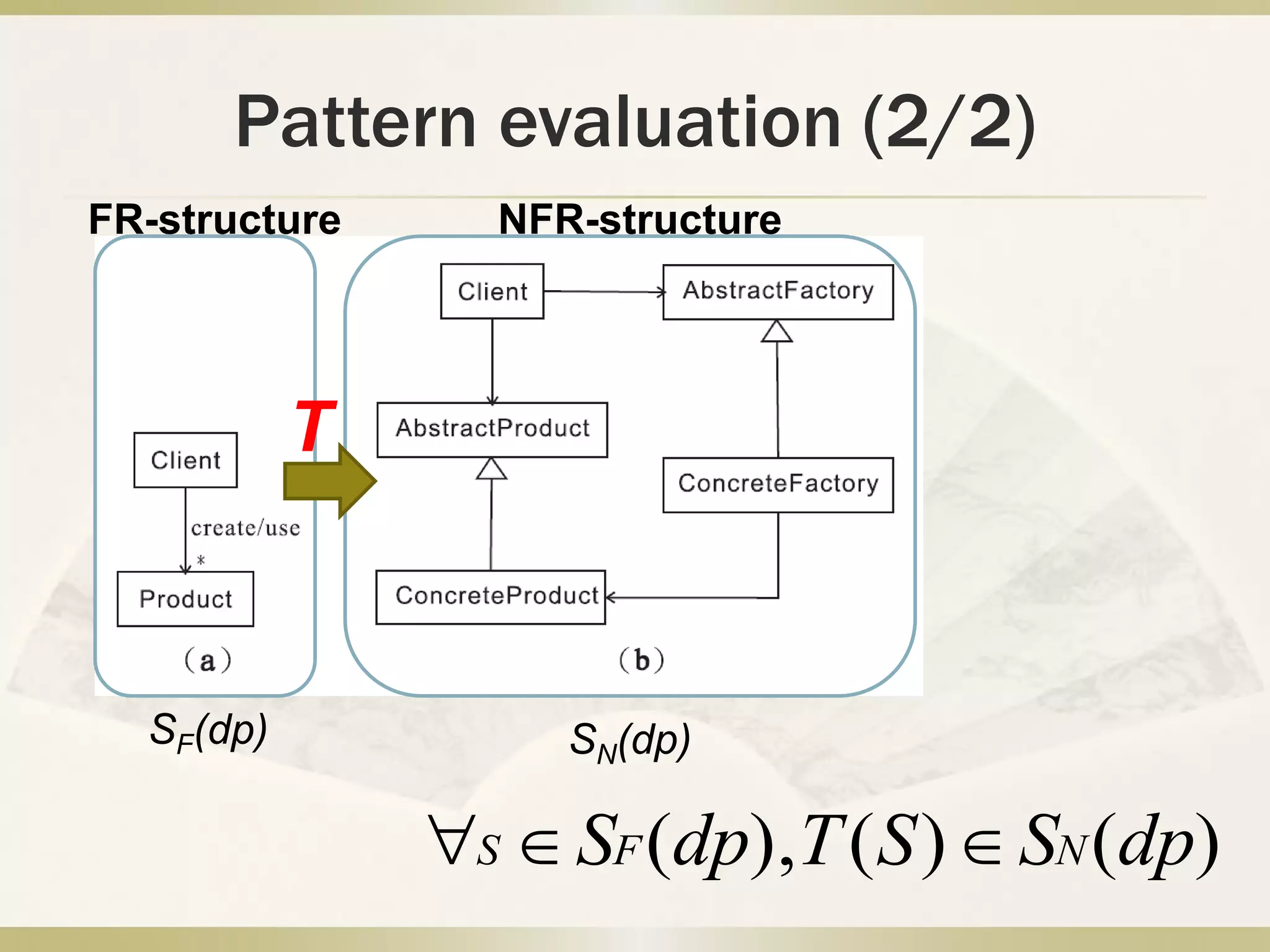

7. Pattern evaluation (2/2)
FR-structure NFR-structure
SF(dp) SN(dp)
T
)()(),( dpSSTdpS NFS 

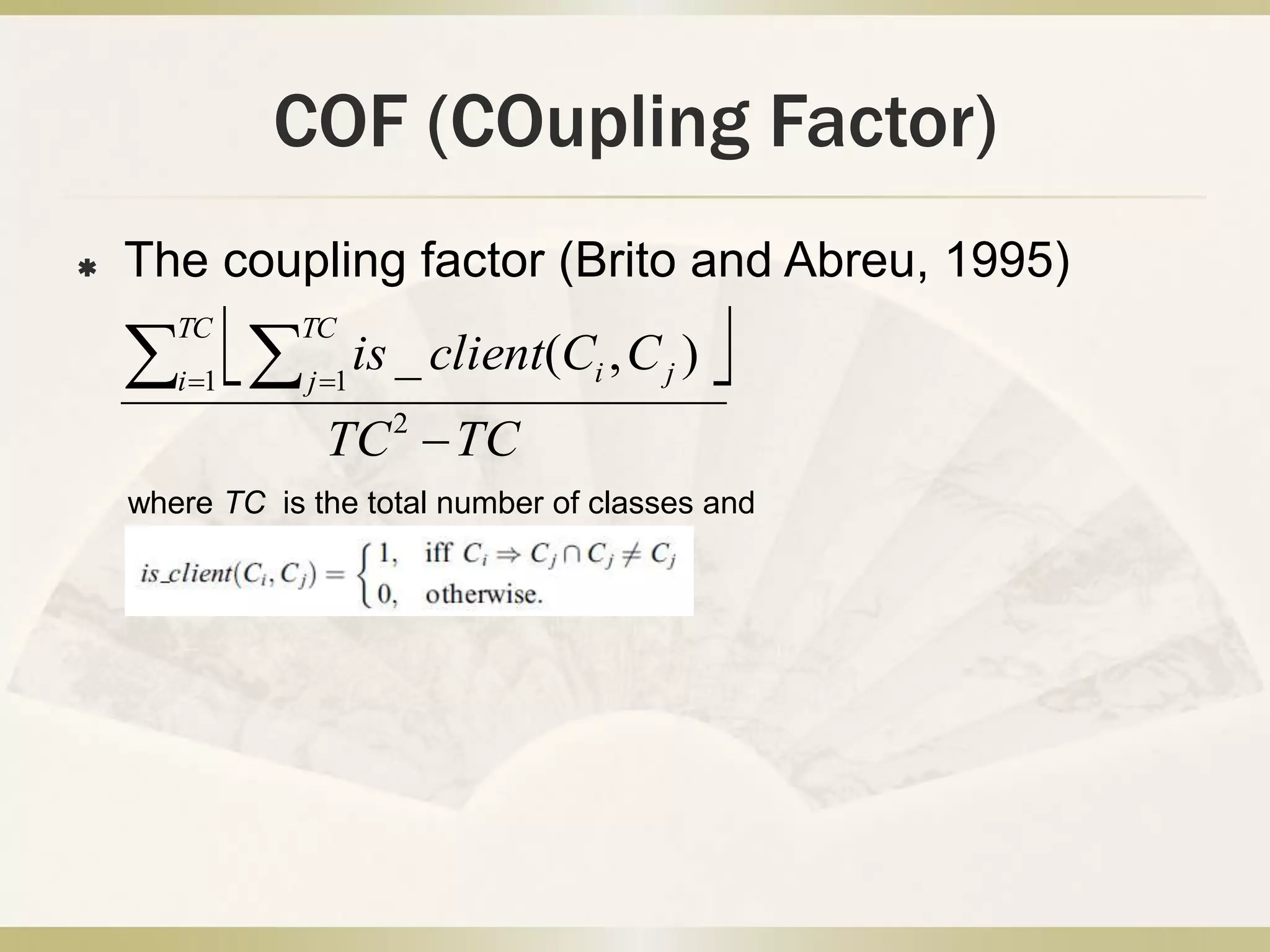

8. COF (COupling Factor)
 The coupling factor (Brito and Abreu, 1995)
 
TCTC
CCclientis
TC
i
TC
j ji

  
2
1 1
),(_
where TC is the total number of classes and

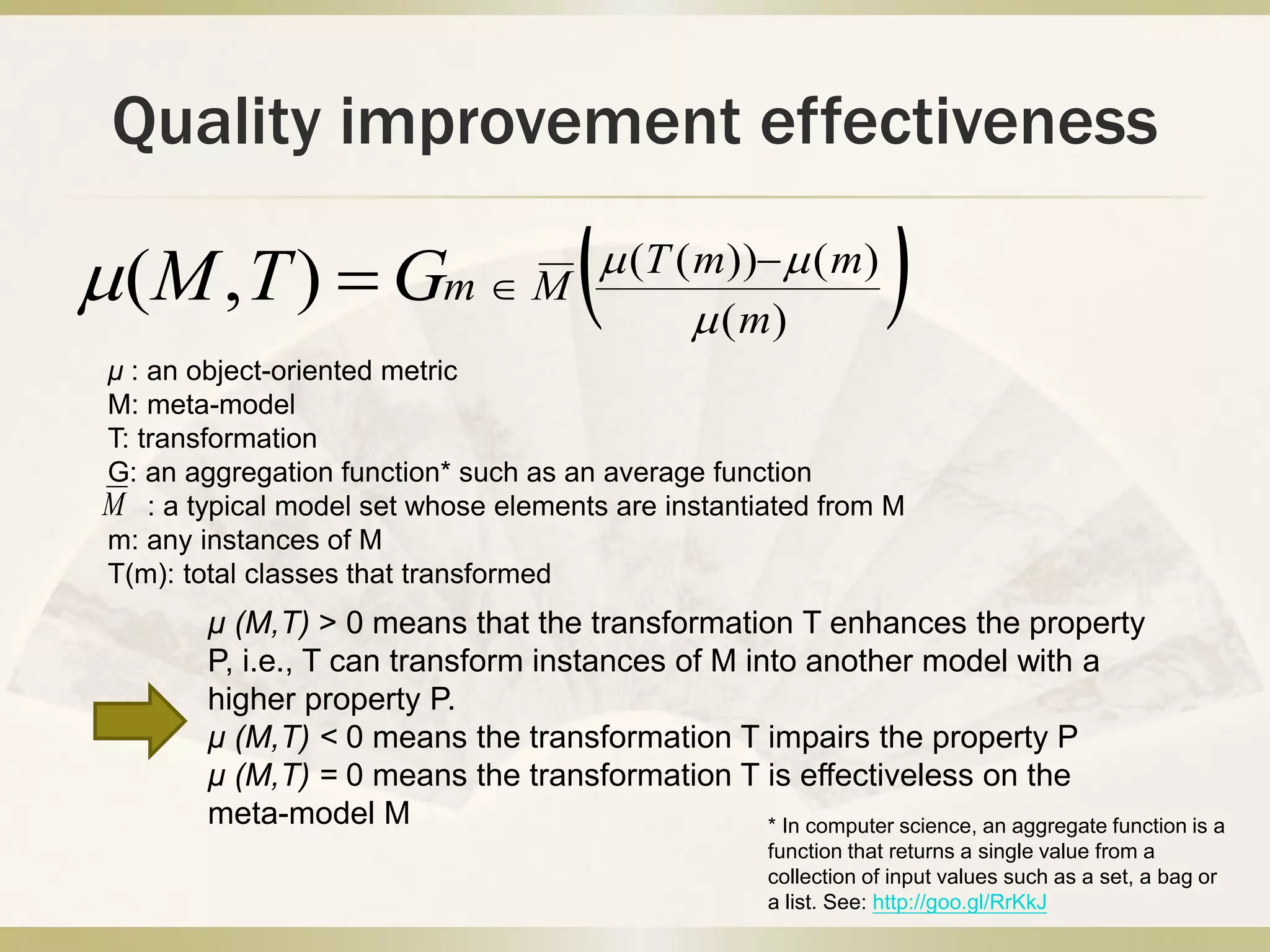

9. Quality improvement effectiveness
 )(
)())((
),( m
mmT
MmGTM 

 

μ : an object-oriented metric
M: meta-model
T: transformation
G: an aggregation function* such as an average function
: a typical model set whose elements are instantiated from M
m: any instances of M
T(m): total classes that transformed
* In computer science, an aggregate function is a
function that returns a single value from a
collection of input values such as a set, a bag or
a list. See: http://goo.gl/RrKkJ
M
μ (M,T) > 0 means that the transformation T enhances the property
P, i.e., T can transform instances of M into another model with a
higher property P.
μ (M,T) < 0 means the transformation T impairs the property P
μ (M,T) = 0 means the transformation T is effectiveless on the
meta-model M

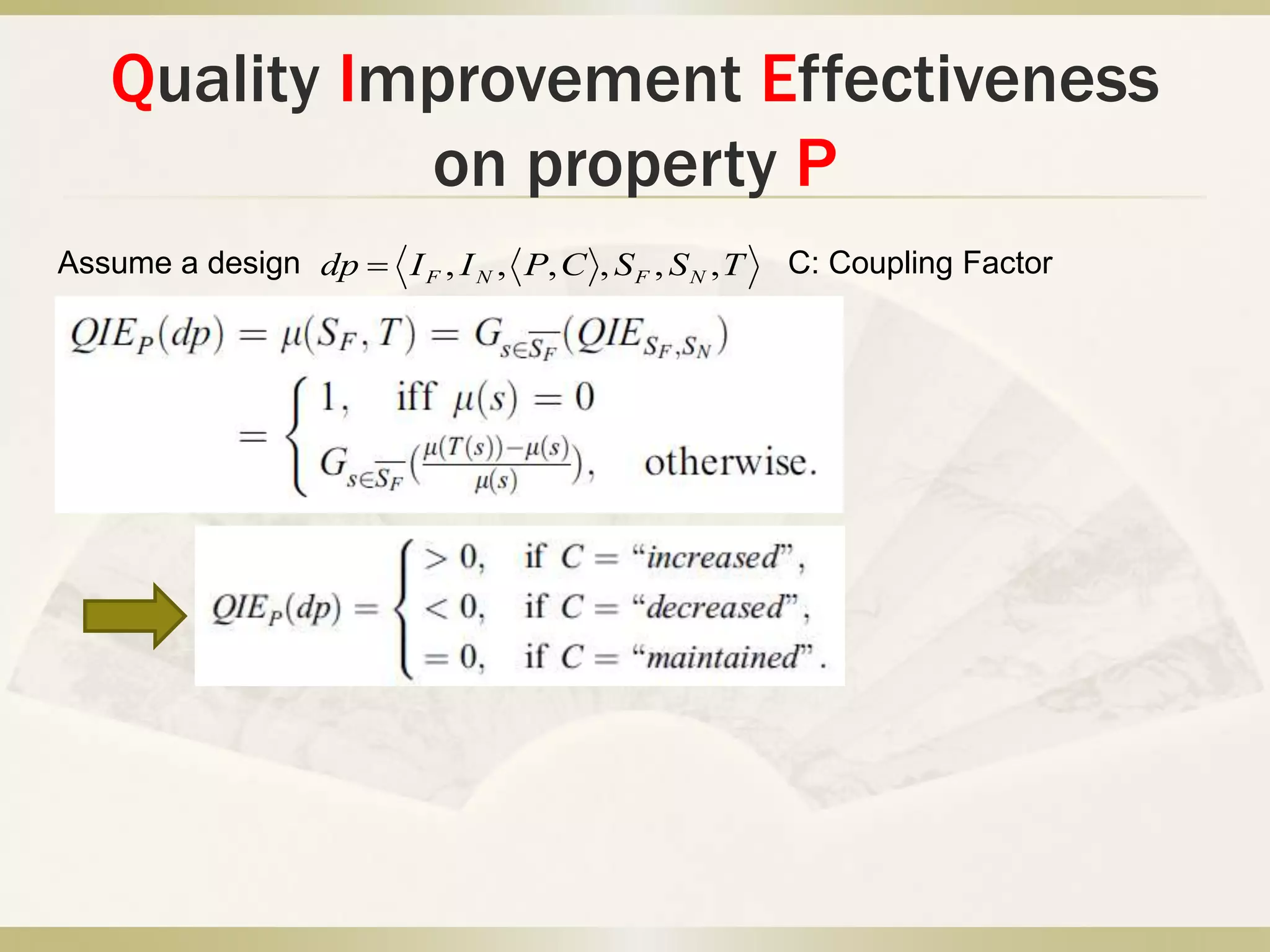

10. Quality Improvement Effectiveness
on property P
Assume a design TSSCPIIdp NFNF ,,,,,, C: Coupling Factor

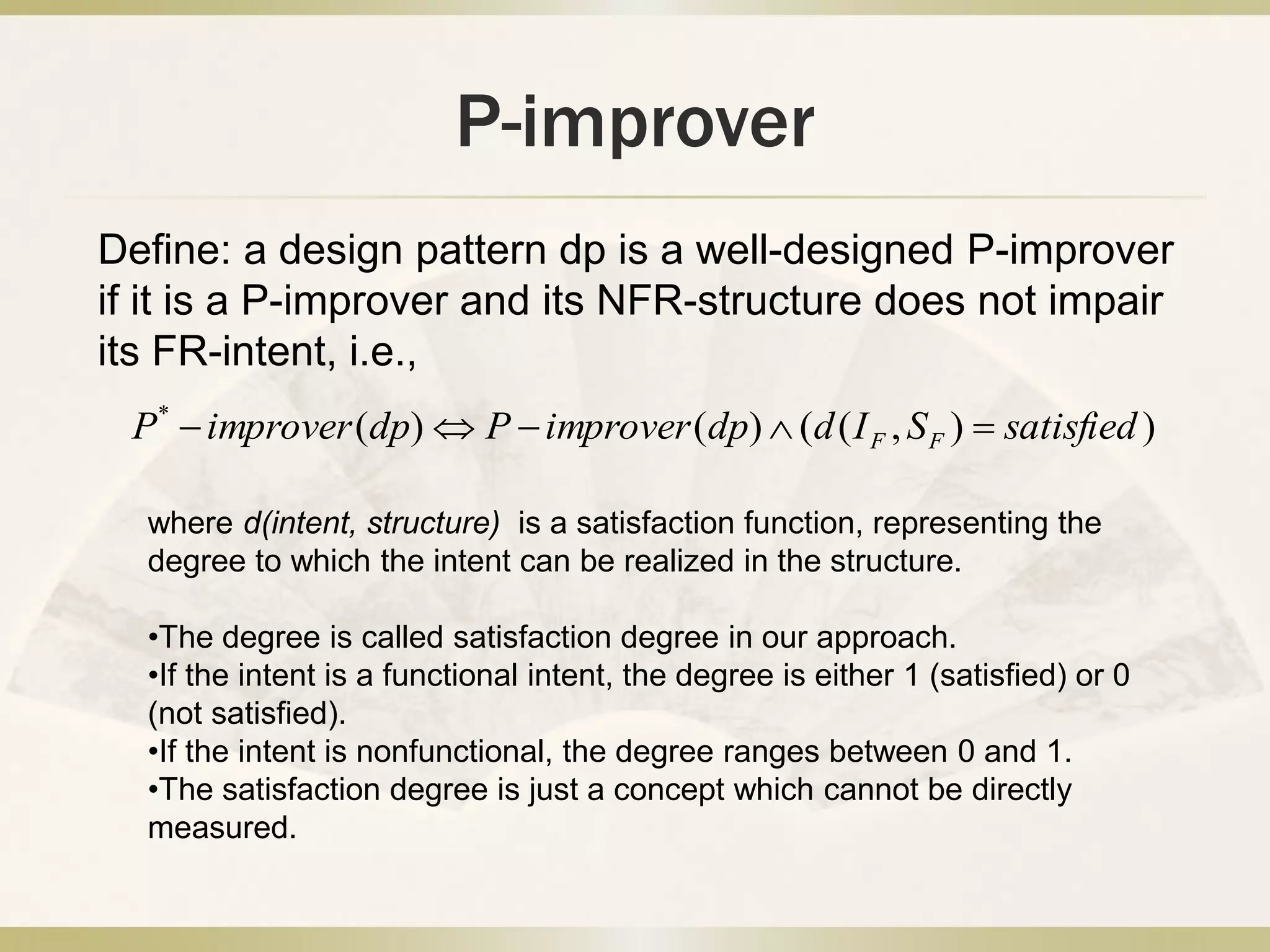

11. P-improver
)),(()()(*
satisfiedSIddpimproverPdpimproverP FF 
Define: a design pattern dp is a well-designed P-improver
if it is a P-improver and its NFR-structure does not impair
its FR-intent, i.e.,
where d(intent, structure) is a satisfaction function, representing the
degree to which the intent can be realized in the structure.
•The degree is called satisfaction degree in our approach.
•If the intent is a functional intent, the degree is either 1 (satisfied) or 0
(not satisfied).
•If the intent is nonfunctional, the degree ranges between 0 and 1.
•The satisfaction degree is just a concept which cannot be directly
measured.

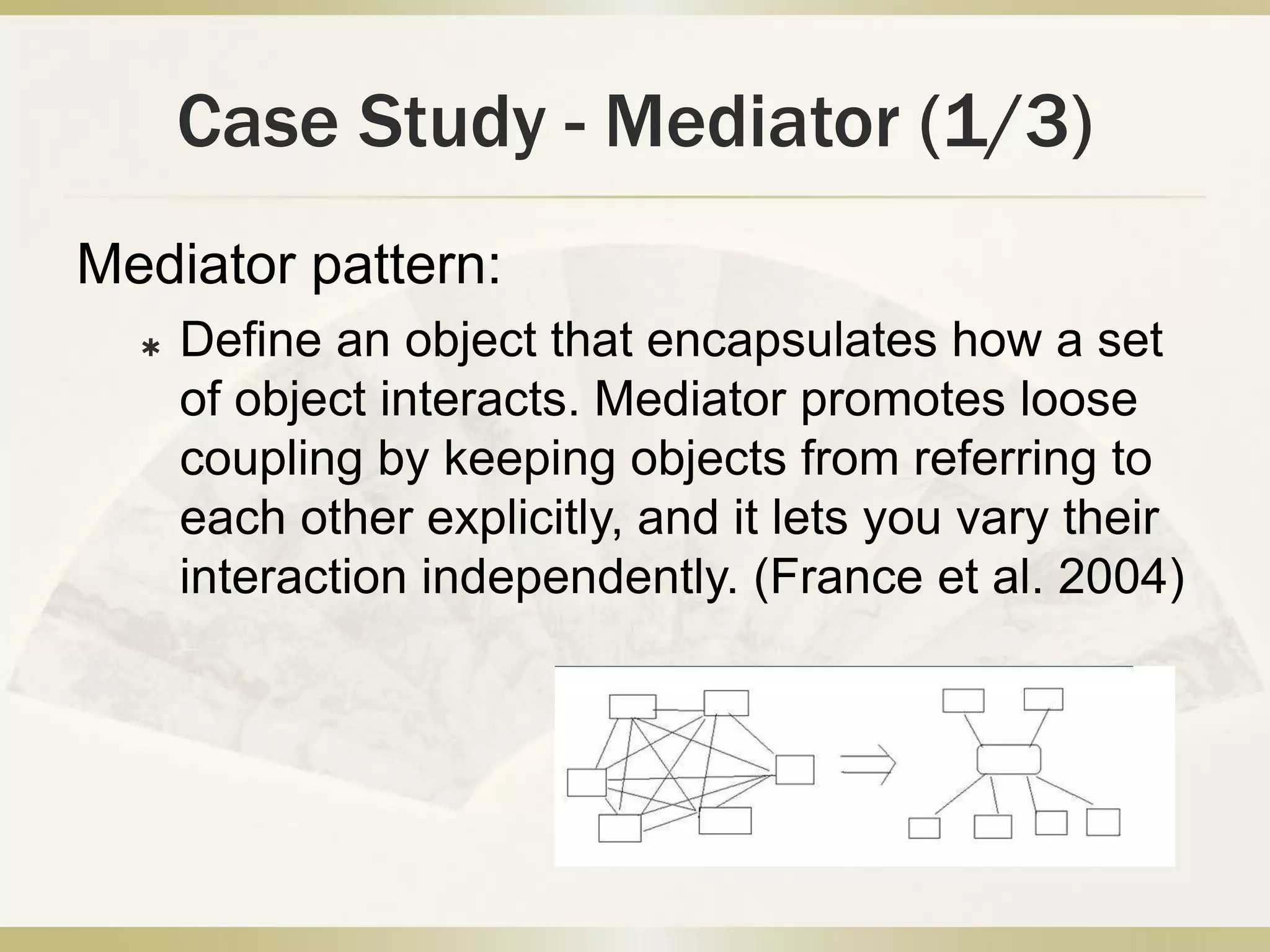

12. Case Study - Mediator (1/3)
Mediator pattern:
 Define an object that encapsulates how a set
of object interacts. Mediator promotes loose
coupling by keeping objects from referring to
each other explicitly, and it lets you vary their
interaction independently. (France et al. 2004)

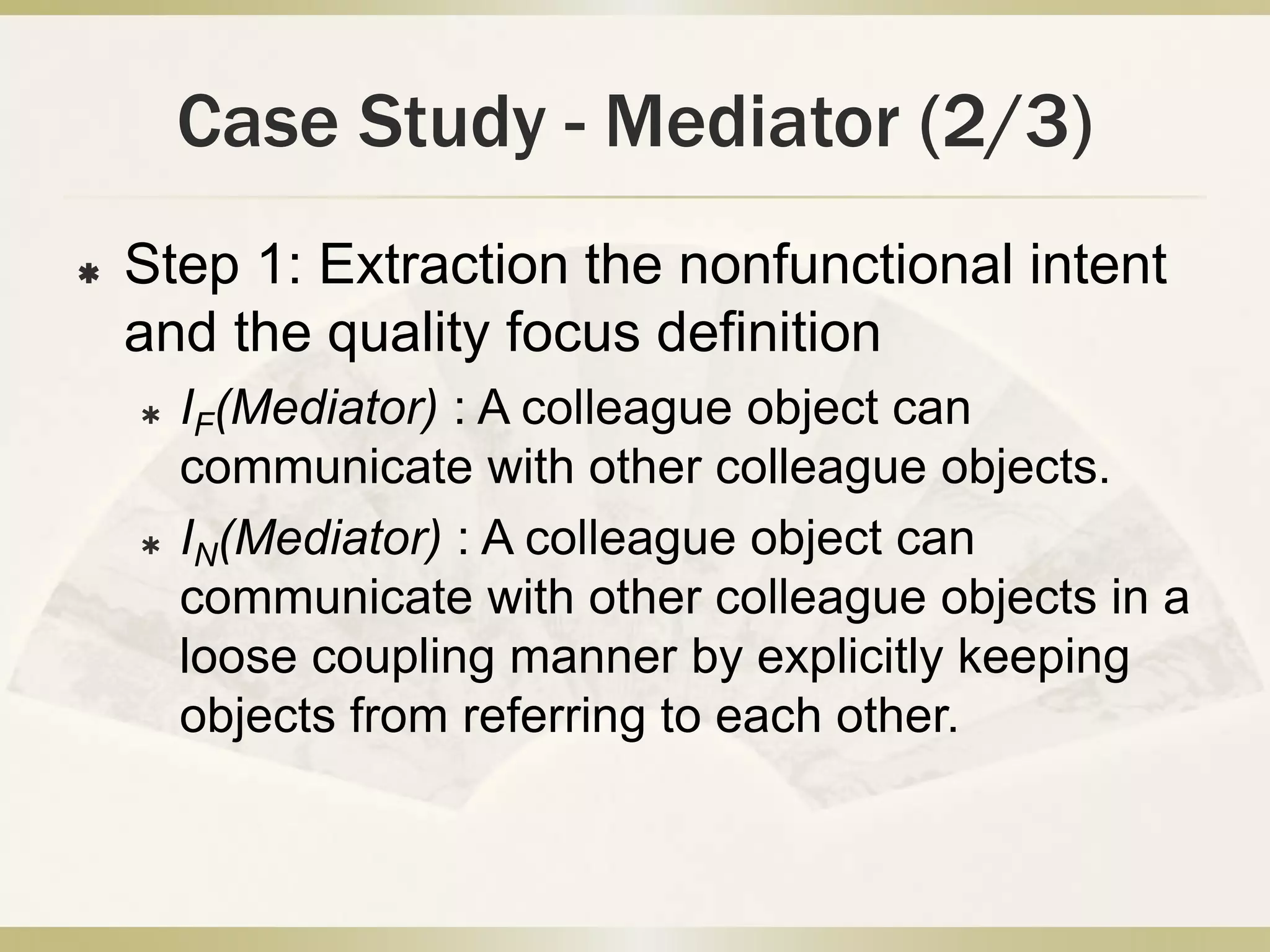

13. Case Study - Mediator (2/3)
 Step 1: Extraction the nonfunctional intent
and the quality focus definition
 IF(Mediator) : A colleague object can
communicate with other colleague objects.
 IN(Mediator) : A colleague object can
communicate with other colleague objects in a
loose coupling manner by explicitly keeping
objects from referring to each other.

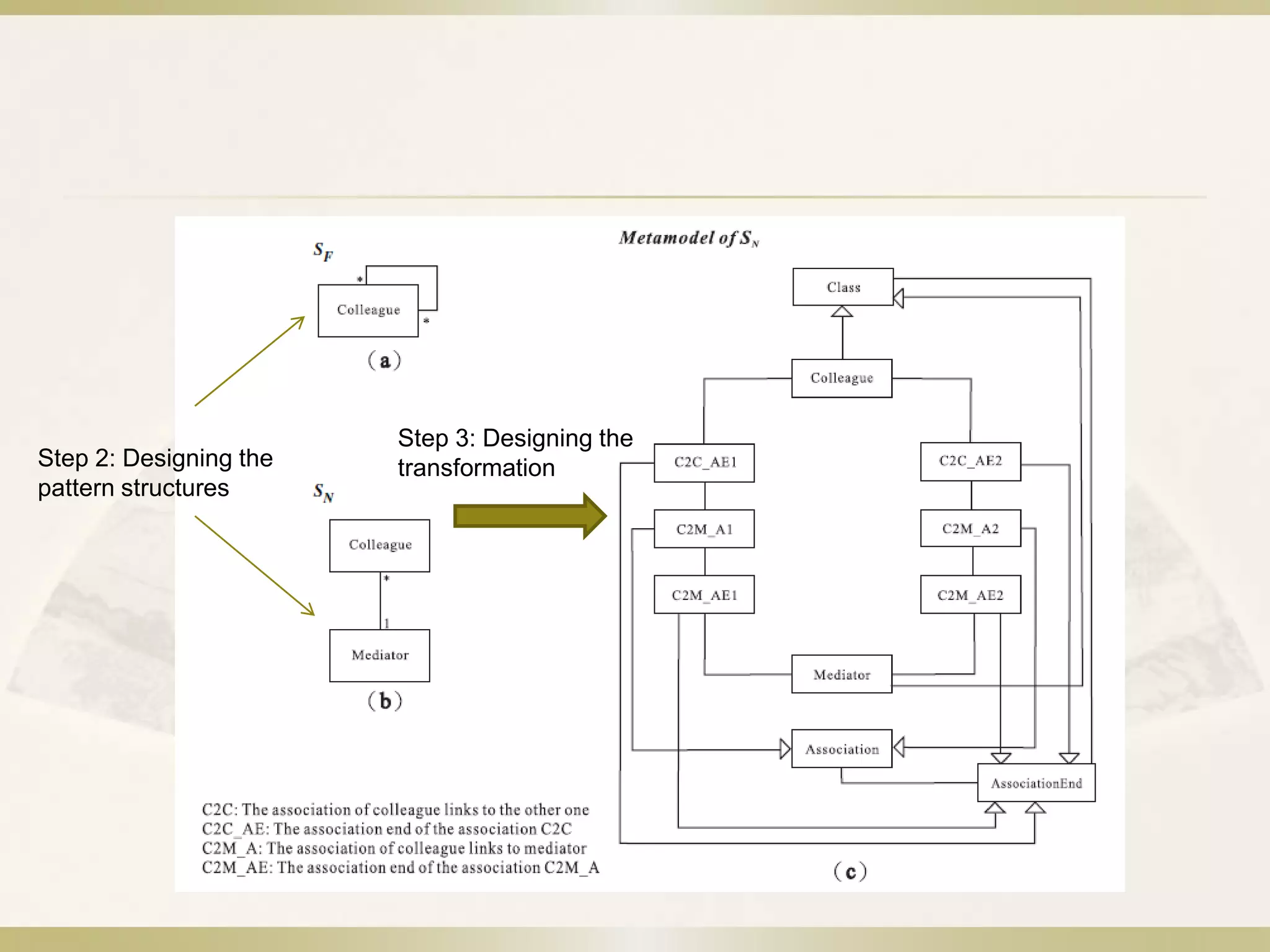

14. Step 2: Designing the
pattern structures
Step 3: Designing the
transformation

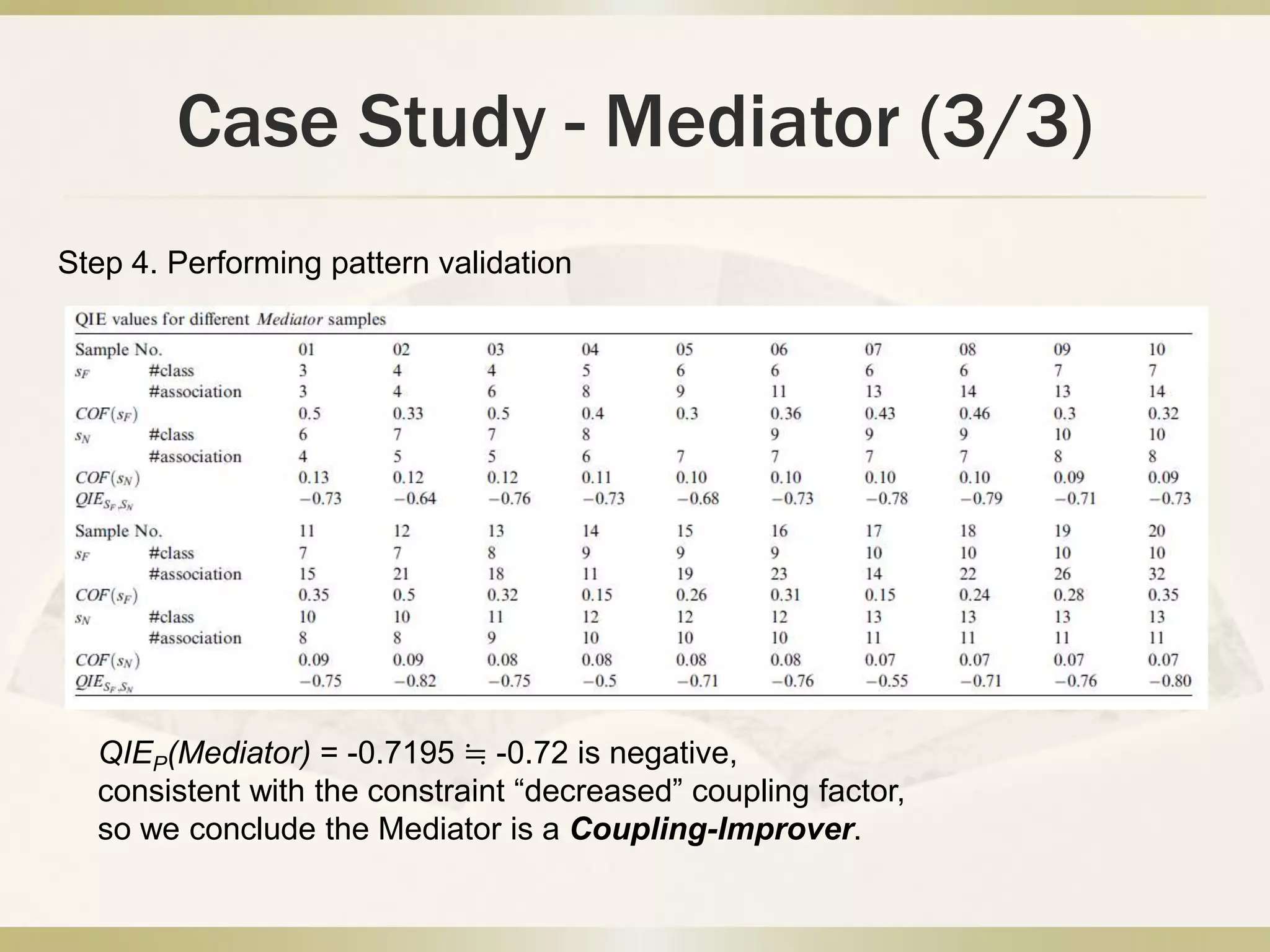

15. Case Study - Mediator (3/3)
QIEP(Mediator) = -0.7195 ≒ -0.72 is negative,
consistent with the constraint “decreased” coupling factor,
so we conclude the Mediator is a Coupling-Improver.
Step 4. Performing pattern validation

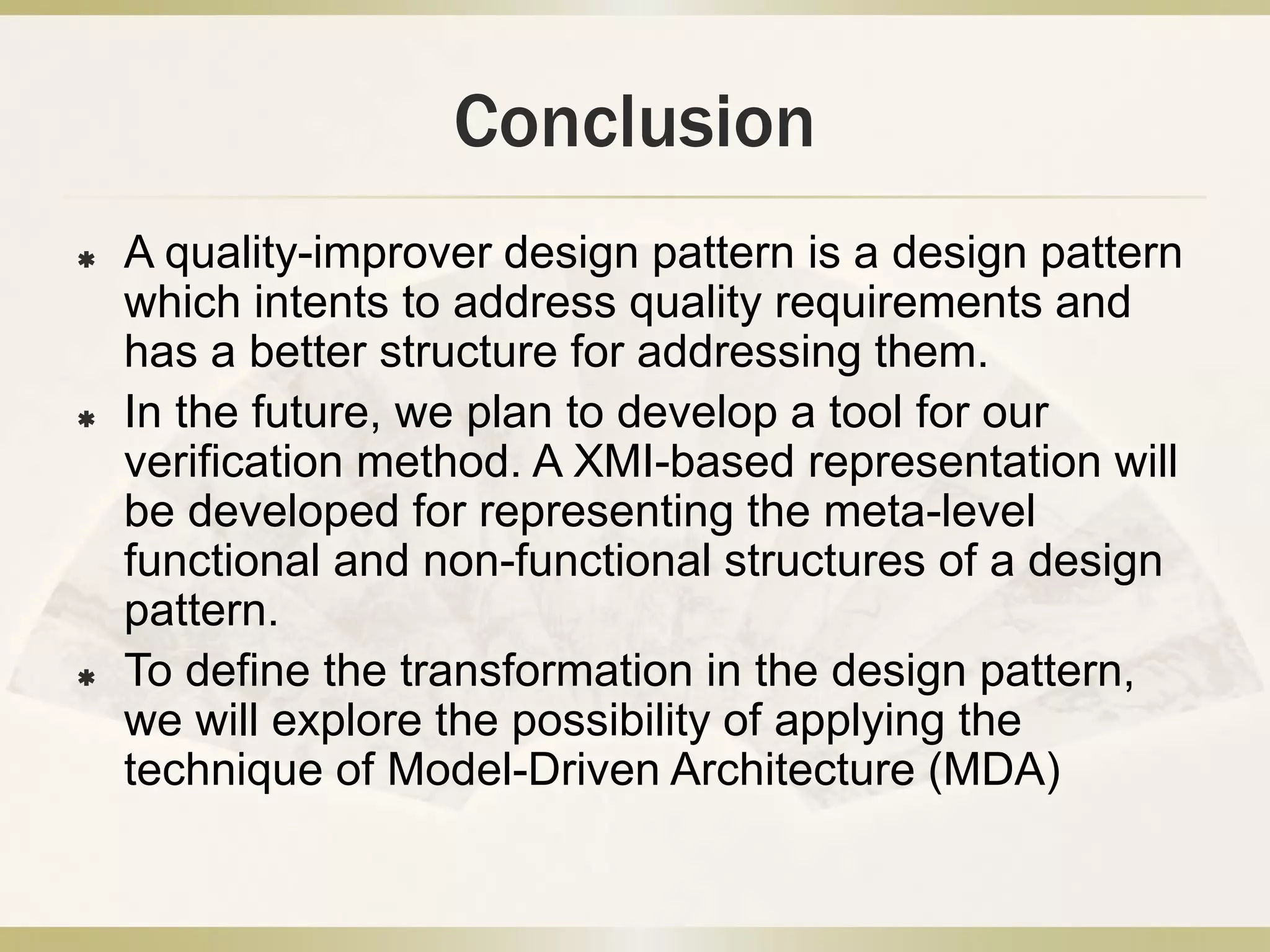

16. Conclusion
 A quality-improver design pattern is a design pattern
which intents to address quality requirements and
has a better structure for addressing them.
 In the future, we plan to develop a tool for our
verification method. A XMI-based representation will
be developed for representing the meta-level
functional and non-functional structures of a design
pattern.
 To define the transformation in the design pattern,
we will explore the possibility of applying the
technique of Model-Driven Architecture (MDA)
