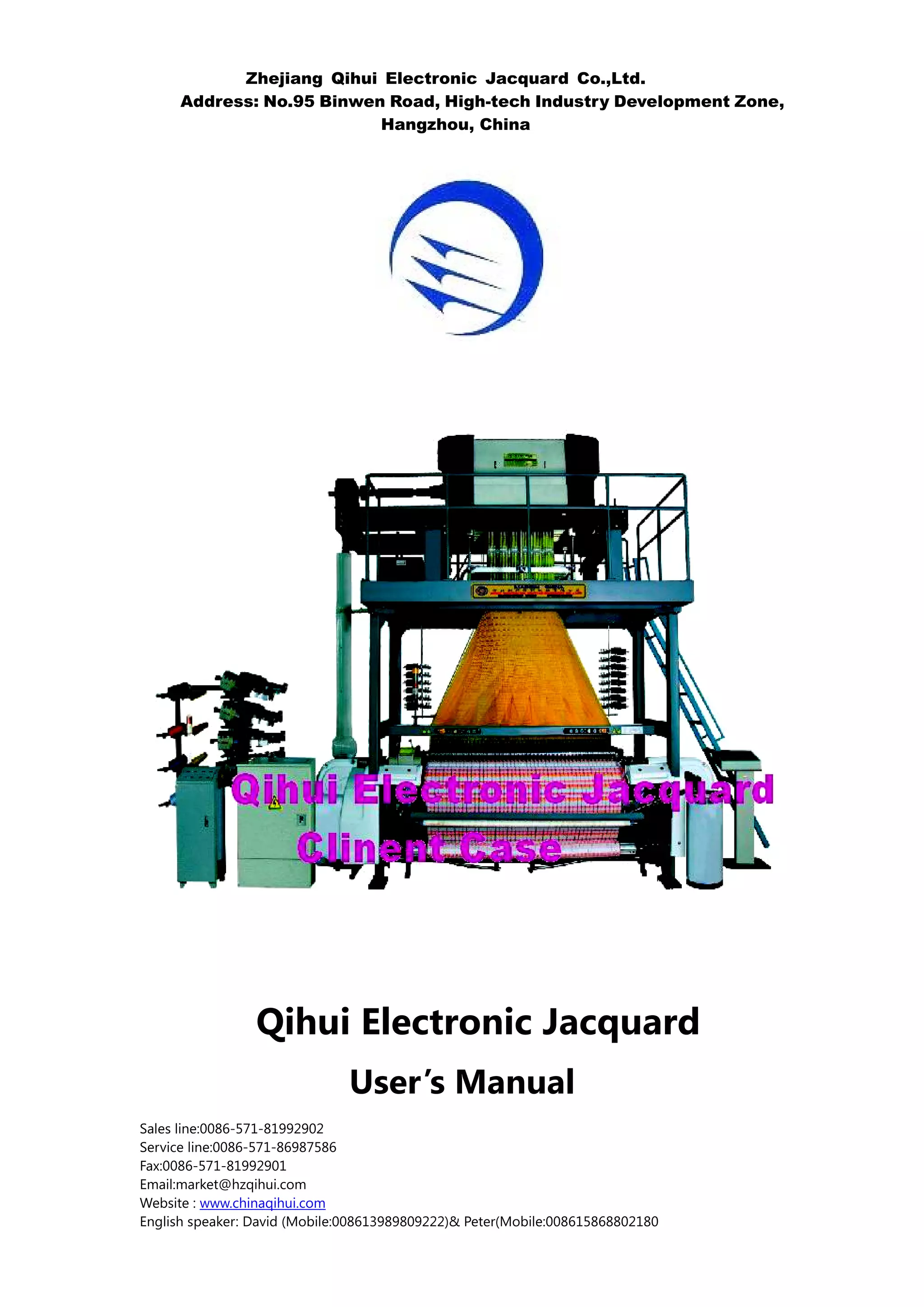

1. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
Qihui Electronic Jacquard
User’s Manual
Sales line:0086-571-81992902
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
2. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

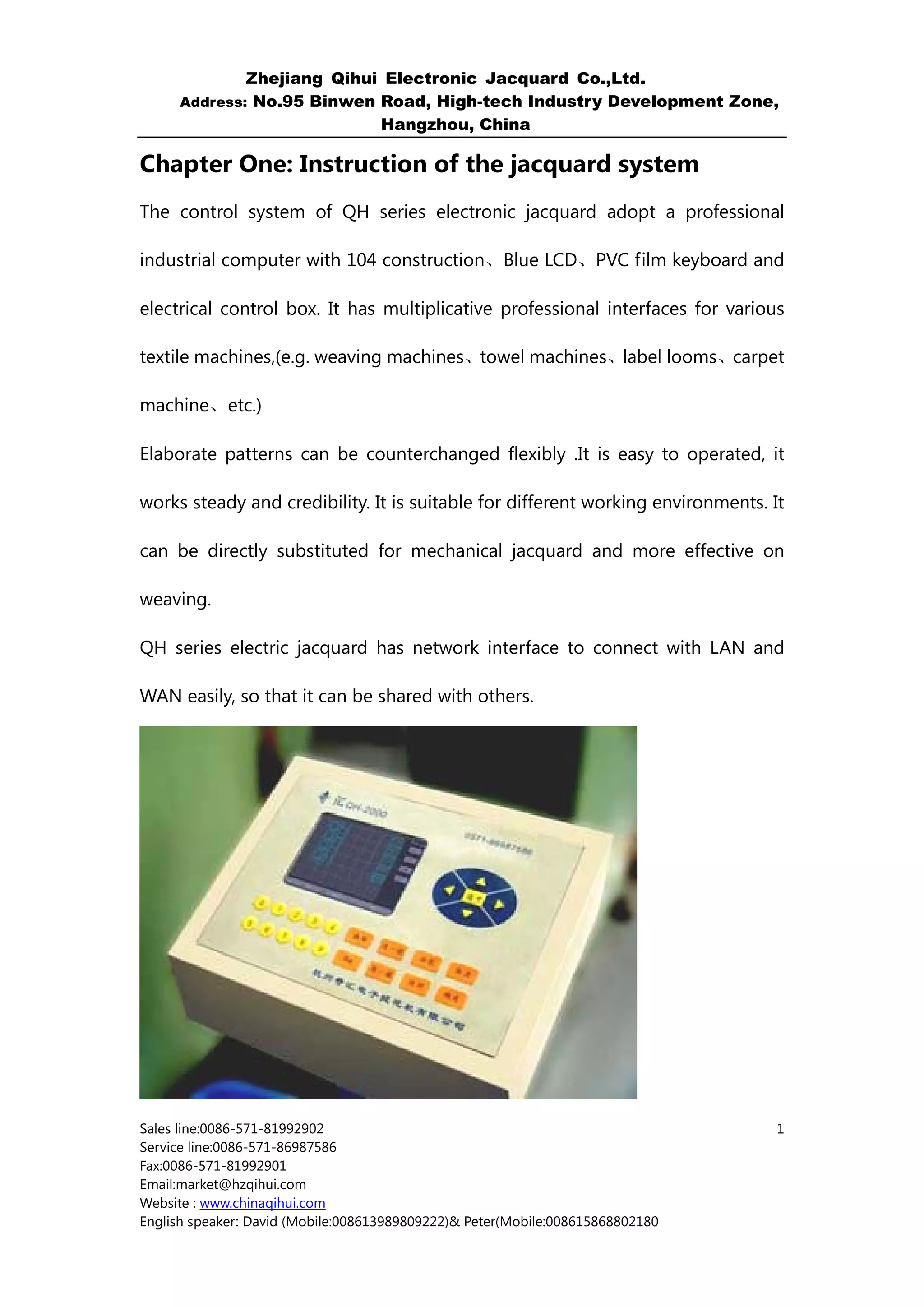

Chapter One: Instruction of the jacquard system
The control system of QH series electronic jacquard adopt a professional
industrial computer with 104 construction、Blue LCD、PVC film keyboard and
electrical control box. It has multiplicative professional interfaces for various
textile machines,(e.g. weaving machines、towel machines、label looms、carpet
machine、etc.)
Elaborate patterns can be counterchanged flexibly .It is easy to operated, it
works steady and credibility. It is suitable for different working environments. It
can be directly substituted for mechanical jacquard and more effective on
weaving.
QH series electric jacquard has network interface to connect with LAN and
WAN easily, so that it can be shared with others.
Sales line:0086-571-81992902 1
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
3. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

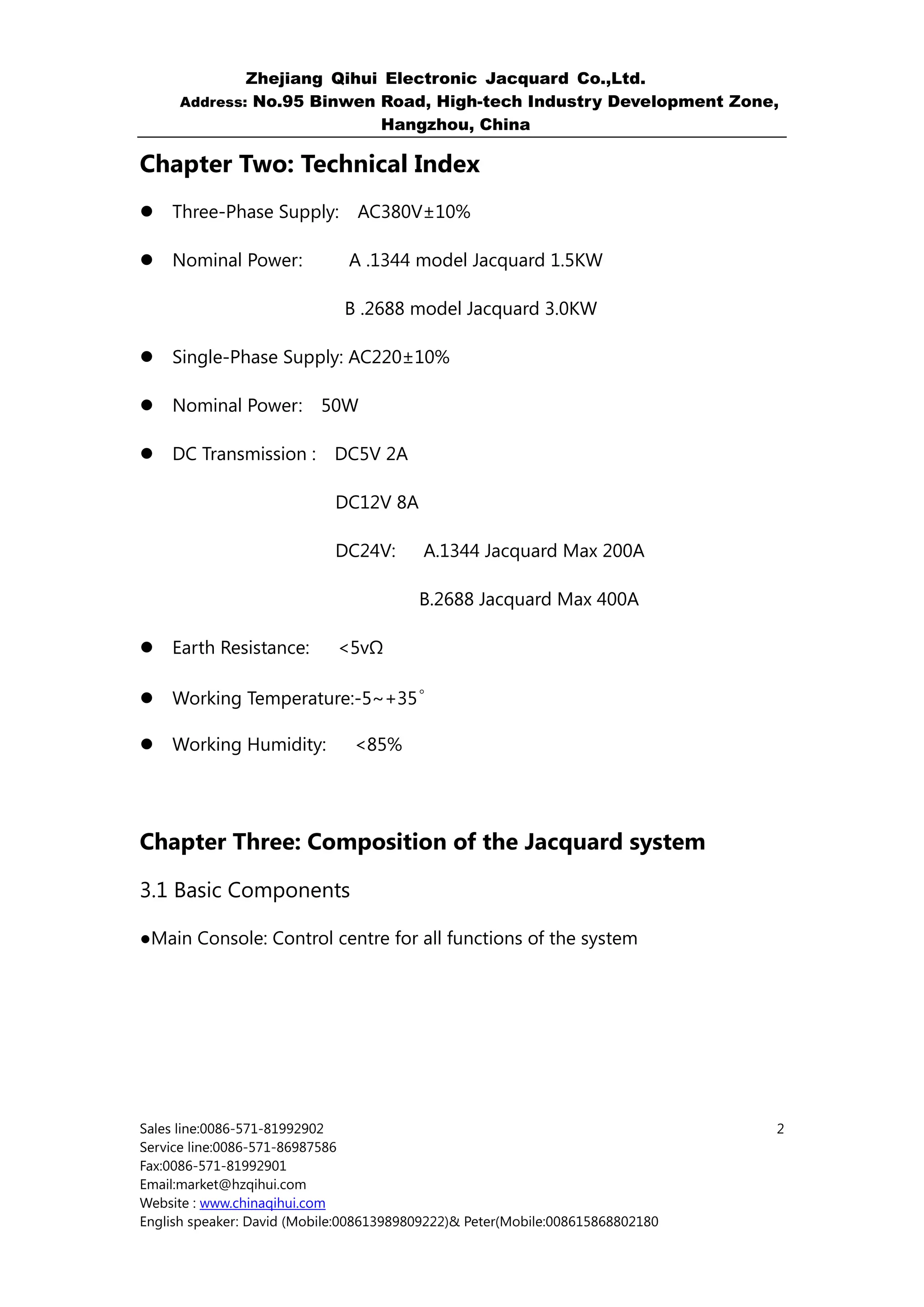

Chapter Two: Technical Index
Three-Phase Supply: AC380V±10%
Nominal Power: A .1344 model Jacquard 1.5KW
B .2688 model Jacquard 3.0KW
Single-Phase Supply: AC220±10%
Nominal Power: 50W
DC Transmission : DC5V 2A
DC12V 8A
DC24V: A.1344 Jacquard Max 200A
B.2688 Jacquard Max 400A
Earth Resistance: <5vΩ
。
Working Temperature:-5~+35
Working Humidity: <85%
Chapter Three: Composition of the Jacquard system
3.1 Basic Components
●Main Console: Control centre for all functions of the system
Sales line:0086-571-81992902 2
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
4. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
.

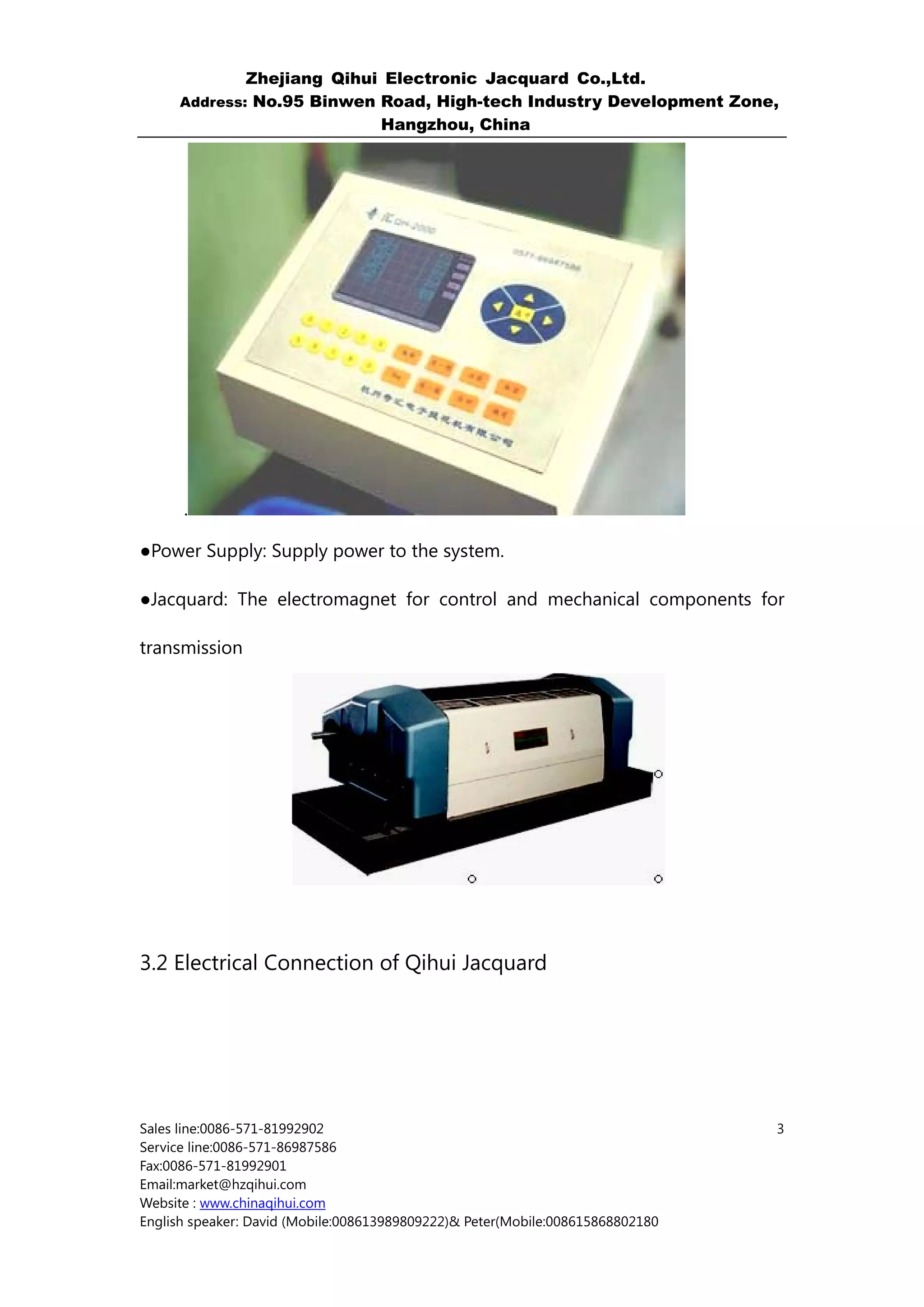

●Power Supply: Supply power to the system.
●Jacquard: The electromagnet for control and mechanical components for
transmission
3.2 Electrical Connection of Qihui Jacquard
Sales line:0086-571-81992902 3
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
5. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
Chapter Four: Details of Components
4.1 Main Console
Main console consists of: Industrial computer、interface Circuit board(No.5)、
Color selection circuit board、power source of switch、floppy drive、LCD、Key
board and Connectors, etc.
Sales line:0086-571-81992902 4
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
6. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
4.1.1 Industrial computer
COM2 FDD
AMD
C M
O 1
CHIPS 486DX
LED 65545 CPU
LT
P
CRT LOGIC
K YB A D
CHIP
E OR
HDD
SOCKET
Figure 3.1.1
Sales line:0086-571-81992902 5
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
7. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
The system adopts industrial computer. It has a 32 bit CPU which is a new
industrial generation of SCM/SUPERDXTM type and function high powered and
high speed, it has high-capacity memory and integrated many standard
interfaces such as the interface for key board and series-parallel. Even more,
the system adopts high-reliable solid state Disk (SSD) and some embedded
control technology such as softdog.
4.1.2 Interface Circuit board
The circuit board has integrated three units control circuits by using CPLD
technology, adopted 3TIA/EIA-485 network interface circuit and
Sales line:0086-571-81992902 6
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
8. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

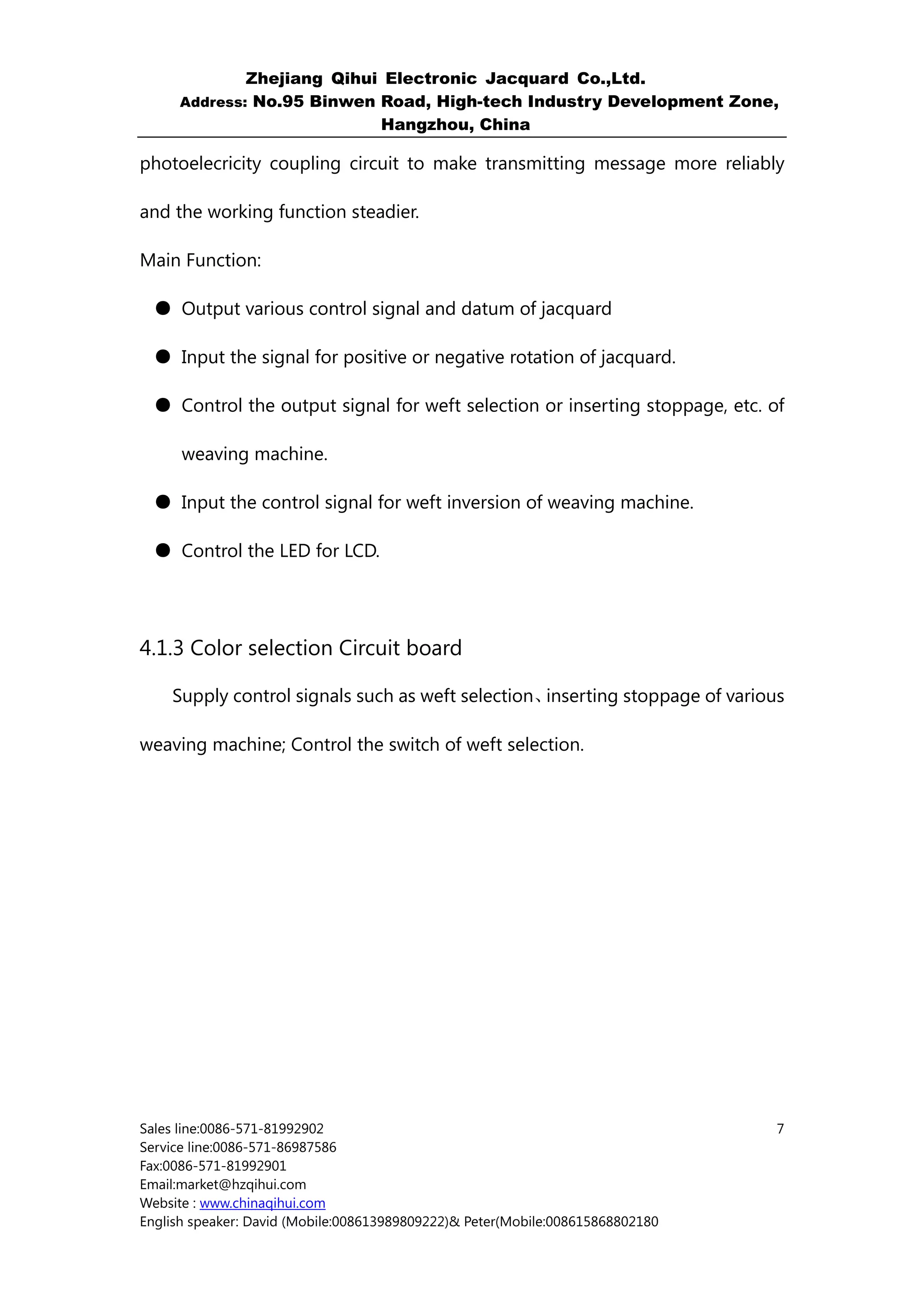

photoelecricity coupling circuit to make transmitting message more reliably
and the working function steadier.
Main Function:
● Output various control signal and datum of jacquard
● Input the signal for positive or negative rotation of jacquard.
● Control the output signal for weft selection or inserting stoppage, etc. of
weaving machine.
● Input the control signal for weft inversion of weaving machine.
● Control the LED for LCD.
4.1.3 Color selection Circuit board
Supply control signals such as weft selection、inserting stoppage of various
weaving machine; Control the switch of weft selection.
Sales line:0086-571-81992902 7
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
9. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

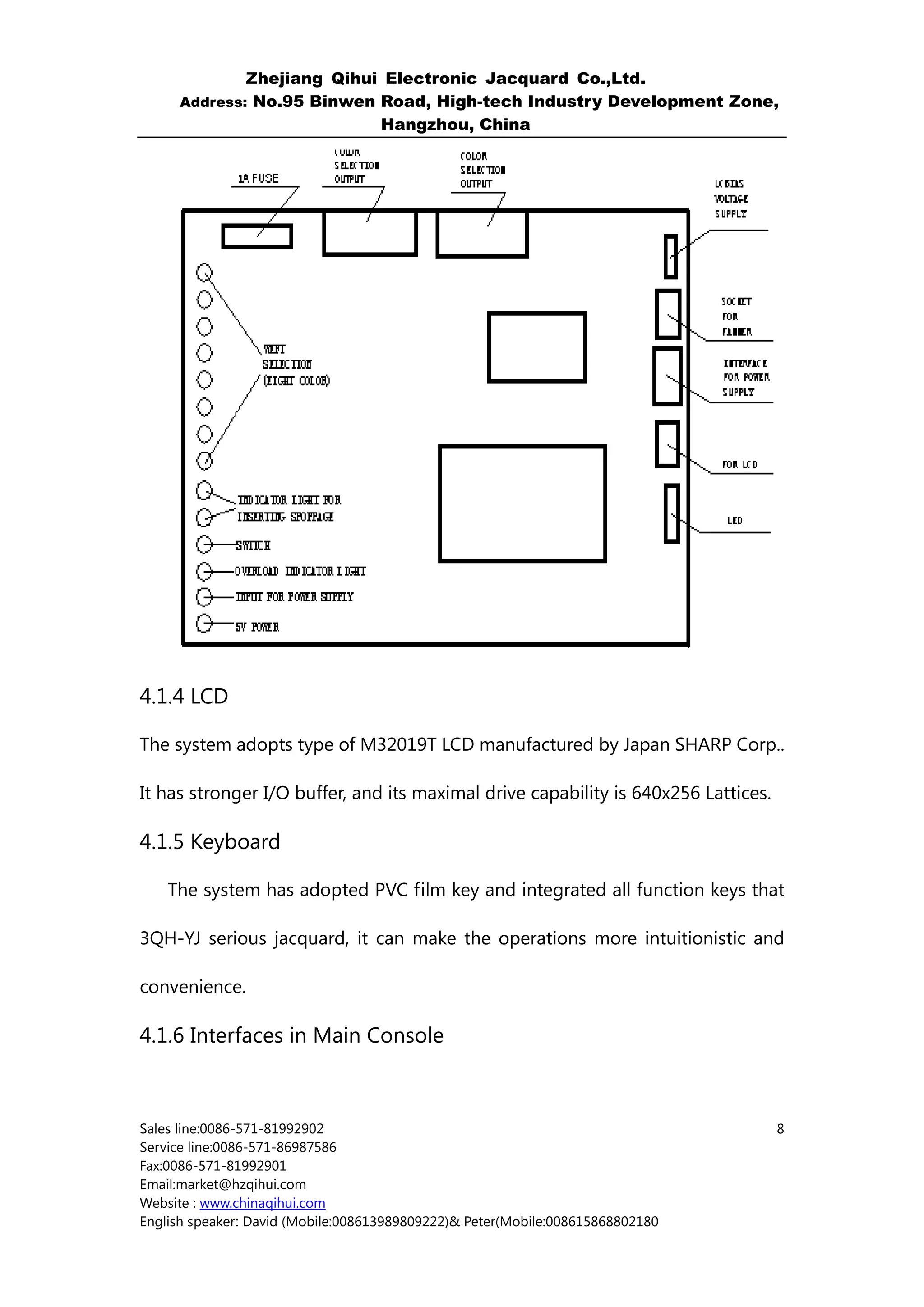

4.1.4 LCD
The system adopts type of M32019T LCD manufactured by Japan SHARP Corp..
It has stronger I/O buffer, and its maximal drive capability is 640x256 Lattices.
4.1.5 Keyboard
The system has adopted PVC film key and integrated all function keys that
3QH-YJ serious jacquard, it can make the operations more intuitionistic and
convenience.
4.1.6 Interfaces in Main Console
Sales line:0086-571-81992902 8
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
10. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

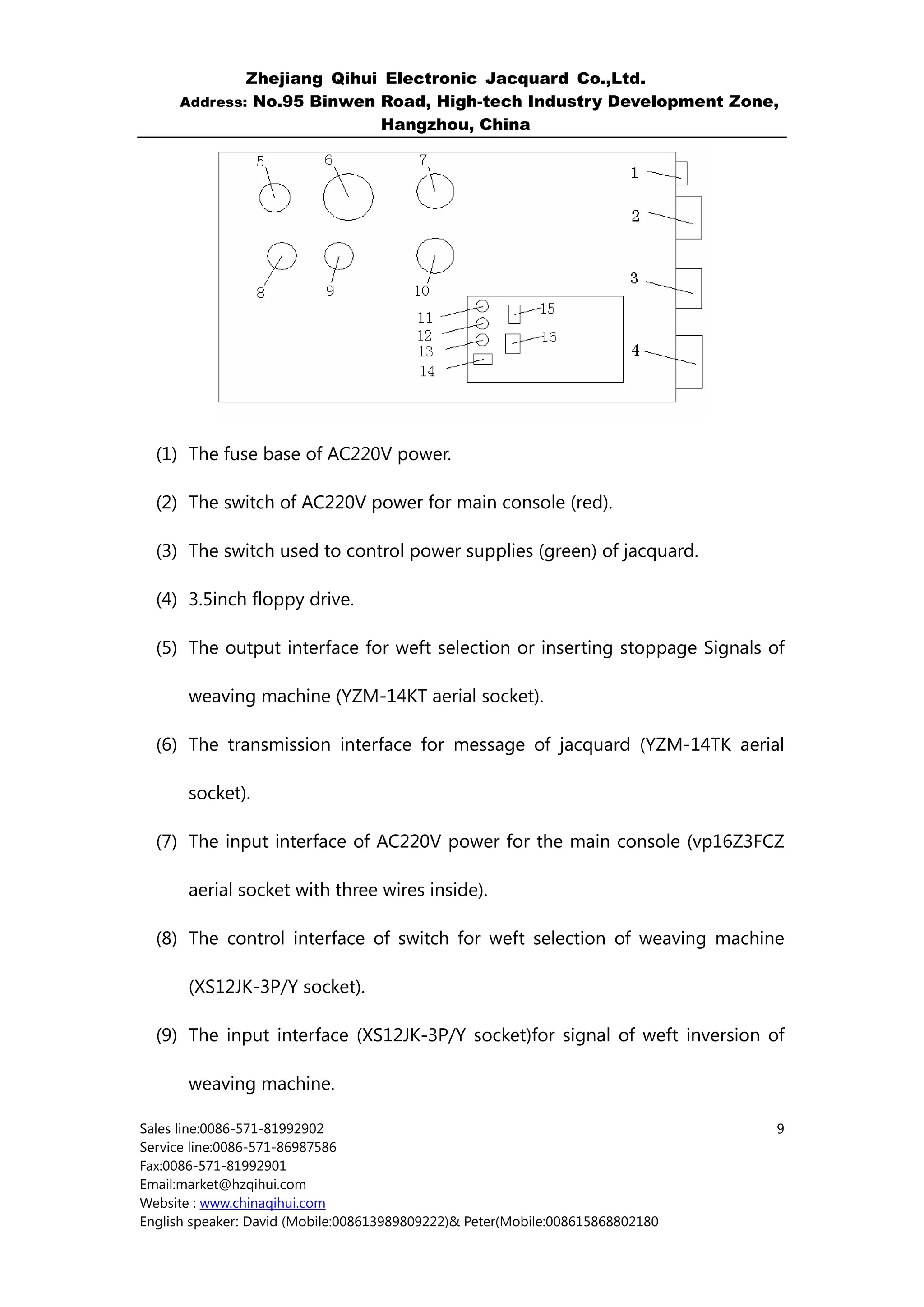

(1) The fuse base of AC220V power.
(2) The switch of AC220V power for main console (red).
(3) The switch used to control power supplies (green) of jacquard.
(4) 3.5inch floppy drive.
(5) The output interface for weft selection or inserting stoppage Signals of
weaving machine (YZM-14KT aerial socket).
(6) The transmission interface for message of jacquard (YZM-14TK aerial
socket).
(7) The input interface of AC220V power for the main console (vp16Z3FCZ
aerial socket with three wires inside).
(8) The control interface of switch for weft selection of weaving machine
(XS12JK-3P/Y socket).
(9) The input interface (XS12JK-3P/Y socket)for signal of weft inversion of
weaving machine.
Sales line:0086-571-81992902 9
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
11. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

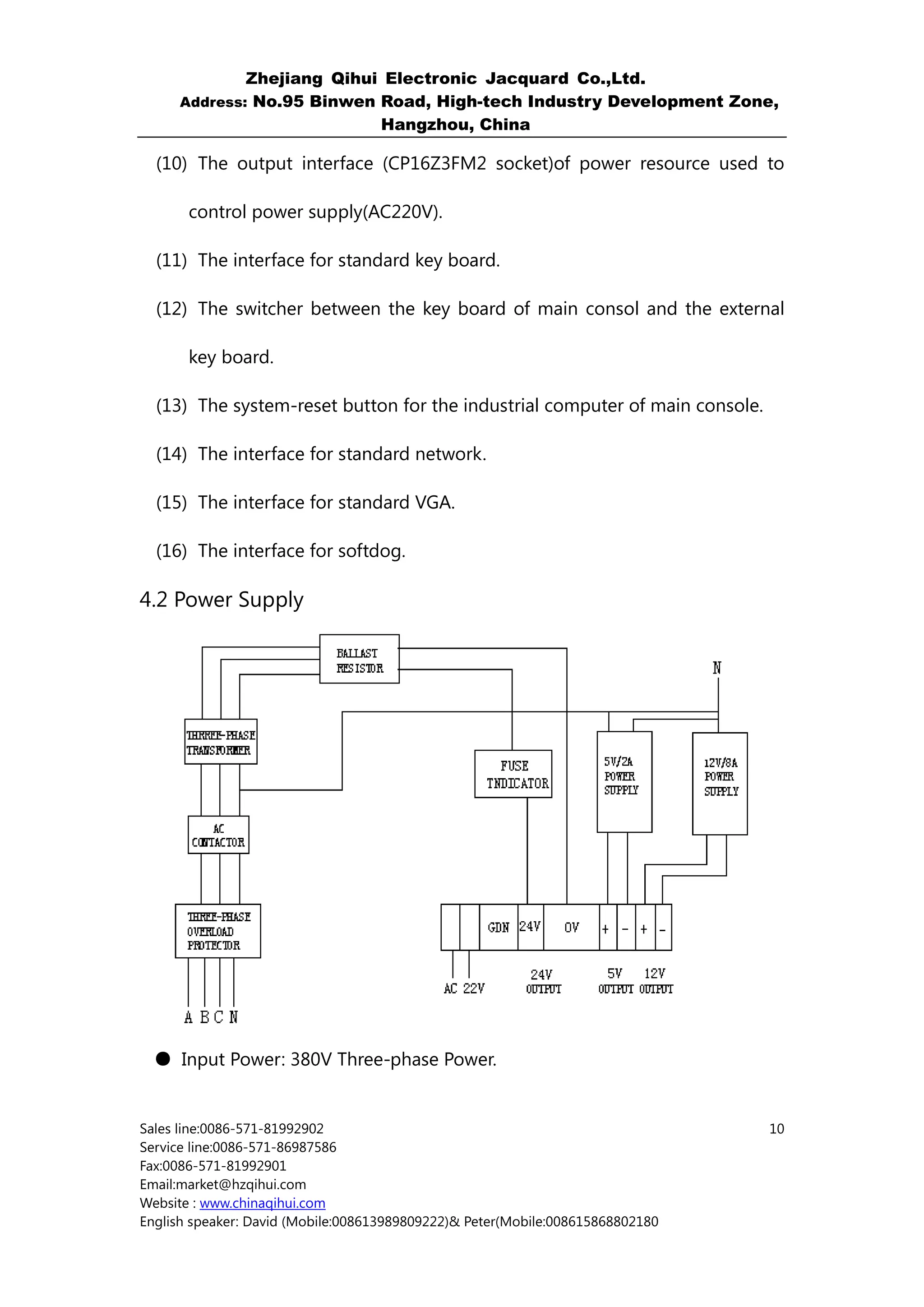

(10) The output interface (CP16Z3FM2 socket)of power resource used to
control power supply(AC220V).
(11) The interface for standard key board.
(12) The switcher between the key board of main consol and the external
key board.
(13) The system-reset button for the industrial computer of main console.
(14) The interface for standard network.
(15) The interface for standard VGA.
(16) The interface for softdog.
4.2 Power Supply
● Input Power: 380V Three-phase Power.
Sales line:0086-571-81992902 10
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
12. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

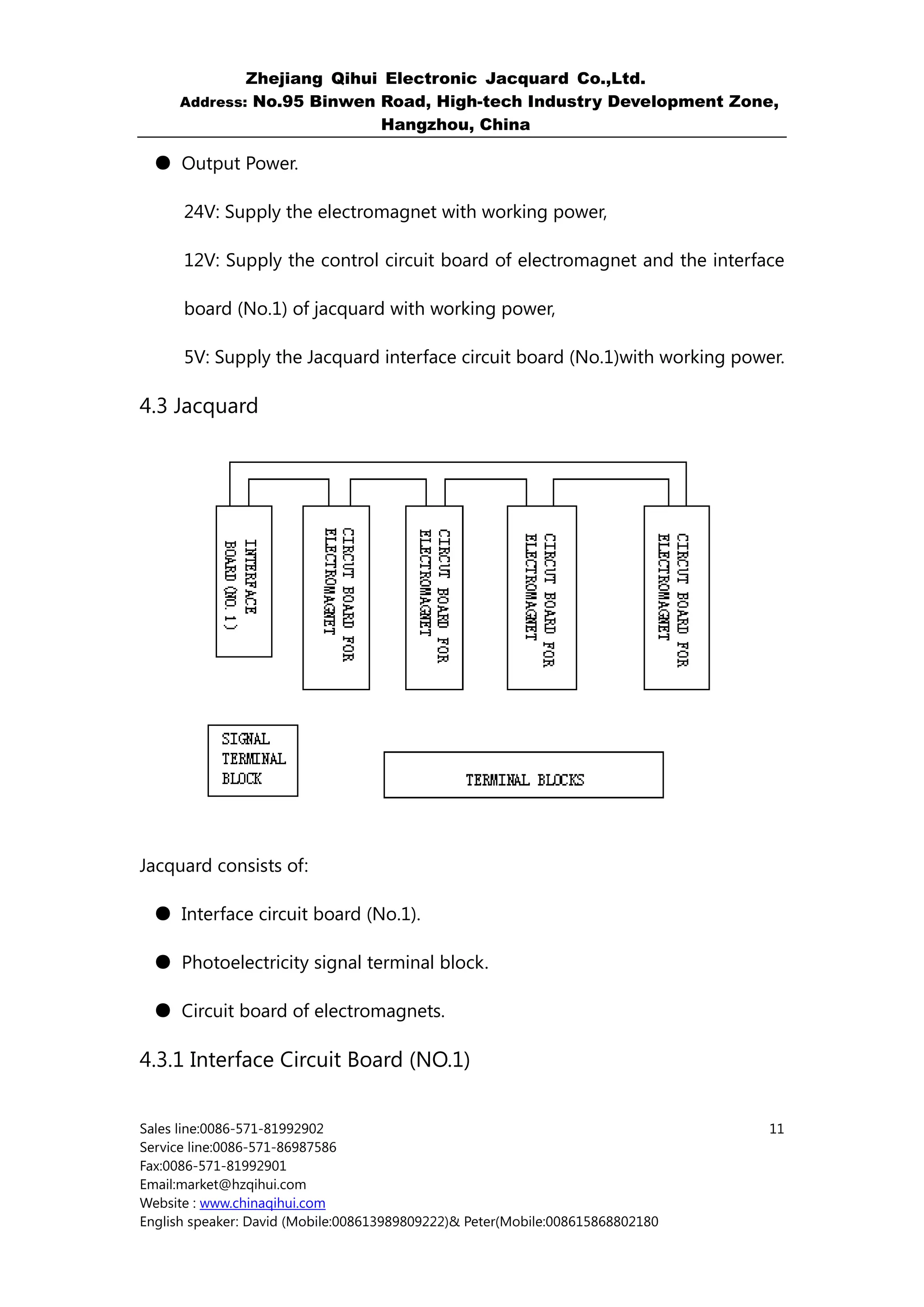

● Output Power.
24V: Supply the electromagnet with working power,
12V: Supply the control circuit board of electromagnet and the interface
board (No.1) of jacquard with working power,
5V: Supply the Jacquard interface circuit board (No.1)with working power.
4.3 Jacquard
Jacquard consists of:
● Interface circuit board (No.1).
● Photoelectricity signal terminal block.
● Circuit board of electromagnets.
4.3.1 Interface Circuit Board (NO.1)
Sales line:0086-571-81992902 11
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
13. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

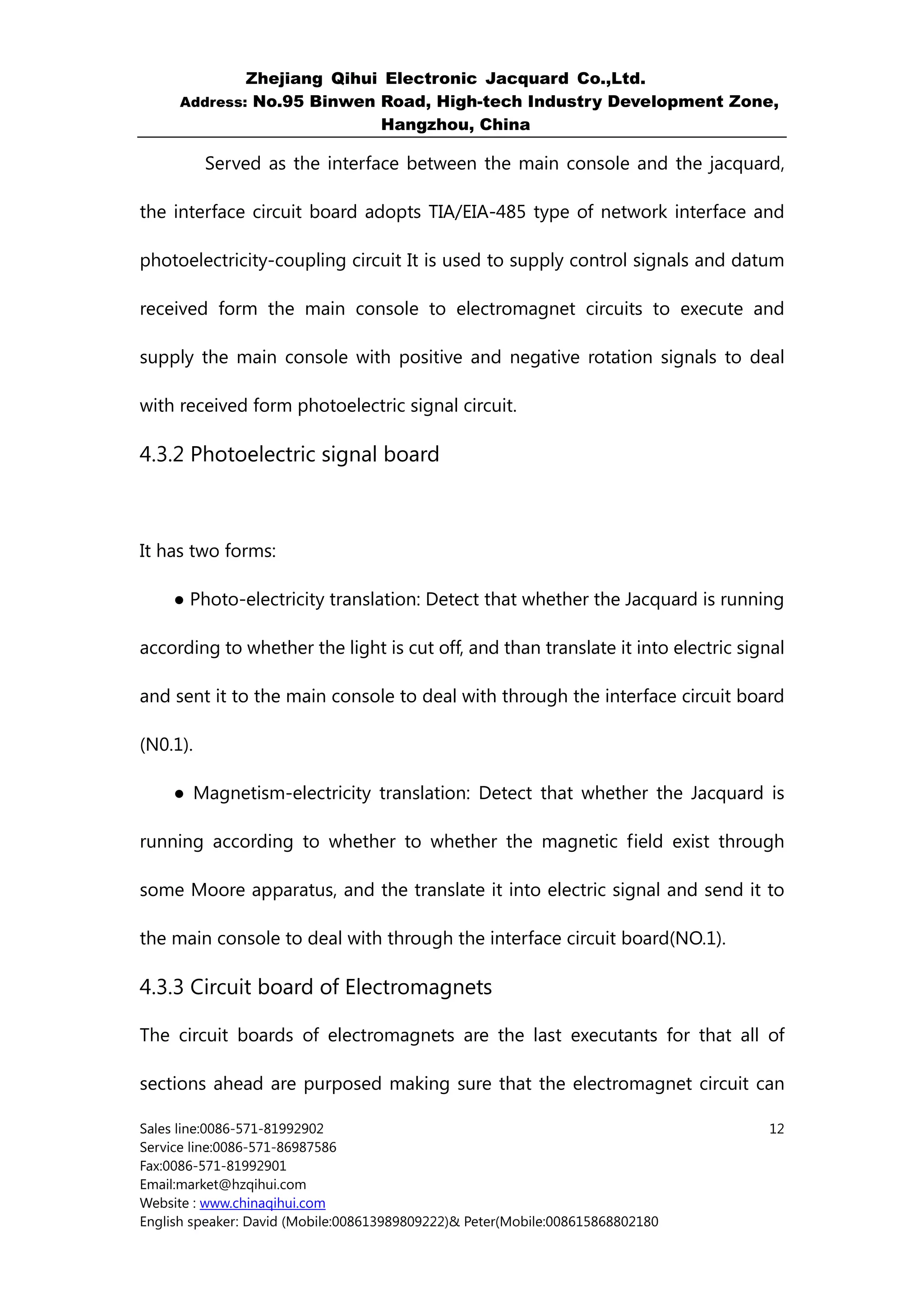

Served as the interface between the main console and the jacquard,
the interface circuit board adopts TIA/EIA-485 type of network interface and
photoelectricity-coupling circuit It is used to supply control signals and datum
received form the main console to electromagnet circuits to execute and
supply the main console with positive and negative rotation signals to deal
with received form photoelectric signal circuit.
4.3.2 Photoelectric signal board
It has two forms:
● Photo-electricity translation: Detect that whether the Jacquard is running
according to whether the light is cut off, and than translate it into electric signal
and sent it to the main console to deal with through the interface circuit board
(N0.1).
● Magnetism-electricity translation: Detect that whether the Jacquard is
running according to whether to whether the magnetic field exist through
some Moore apparatus, and the translate it into electric signal and send it to
the main console to deal with through the interface circuit board(NO.1).
4.3.3 Circuit board of Electromagnets
The circuit boards of electromagnets are the last executants for that all of
sections ahead are purposed making sure that the electromagnet circuit can
Sales line:0086-571-81992902 12
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
14. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
function normally. It consists of a block of electromagnet and a circuit board
used to control electromagnet. It is used to control the motion of machine and
then realize the weaving aim finally through the principle of
electricity-magnetism translation.

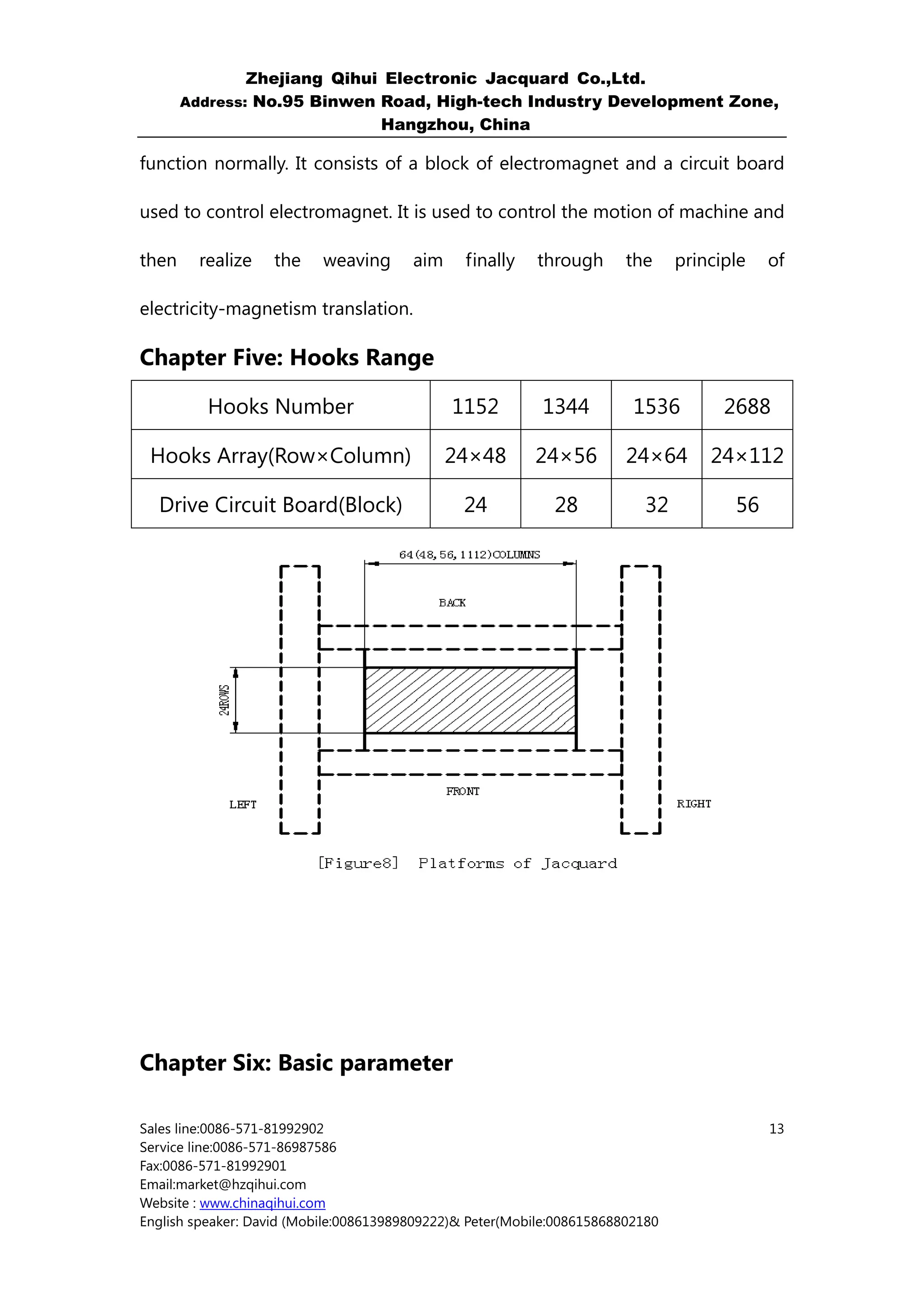

Chapter Five: Hooks Range
Hooks Number 1152 1344 1536 2688
Hooks Array(Row×Column) 24×48 24×56 24×64 24×112
Drive Circuit Board(Block) 24 28 32 56
Chapter Six: Basic parameter
Sales line:0086-571-81992902 13
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
15. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

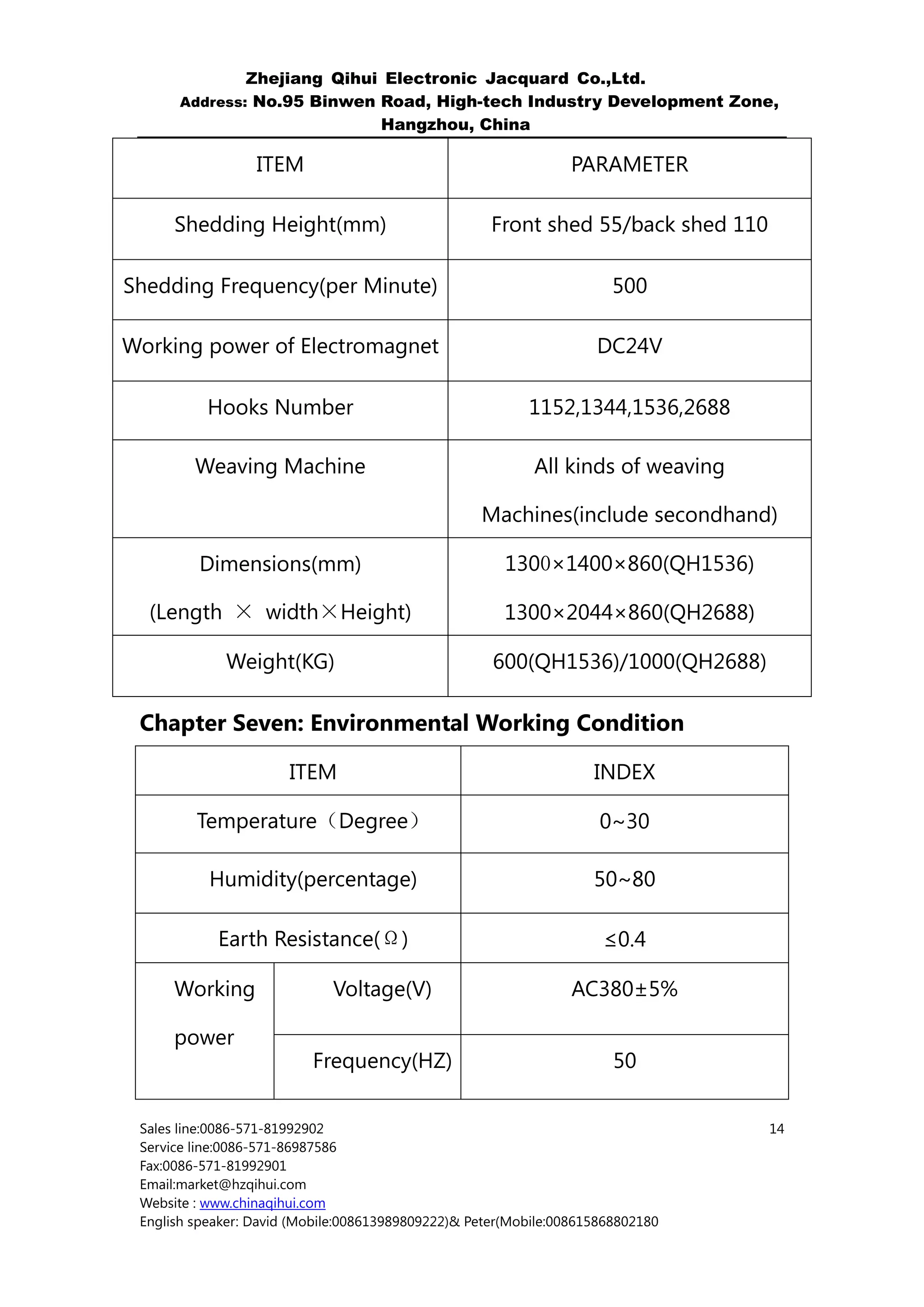

ITEM PARAMETER
Shedding Height(mm) Front shed 55/back shed 110
Shedding Frequency(per Minute) 500
Working power of Electromagnet DC24V
Hooks Number 1152,1344,1536,2688
Weaving Machine All kinds of weaving
Machines(include secondhand)
Dimensions(mm) 1300×1400×860(QH1536)
(Length × width×Height) 1300×2044×860(QH2688)
Weight(KG) 600(QH1536)/1000(QH2688)
Chapter Seven: Environmental Working Condition
ITEM INDEX
Temperature(Degree) 0~30
Humidity(percentage) 50~80
Earth Resistance(Ω) ≤0.4
Working Voltage(V) AC380±5%
power
Frequency(HZ) 50
Sales line:0086-571-81992902 14
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
16. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

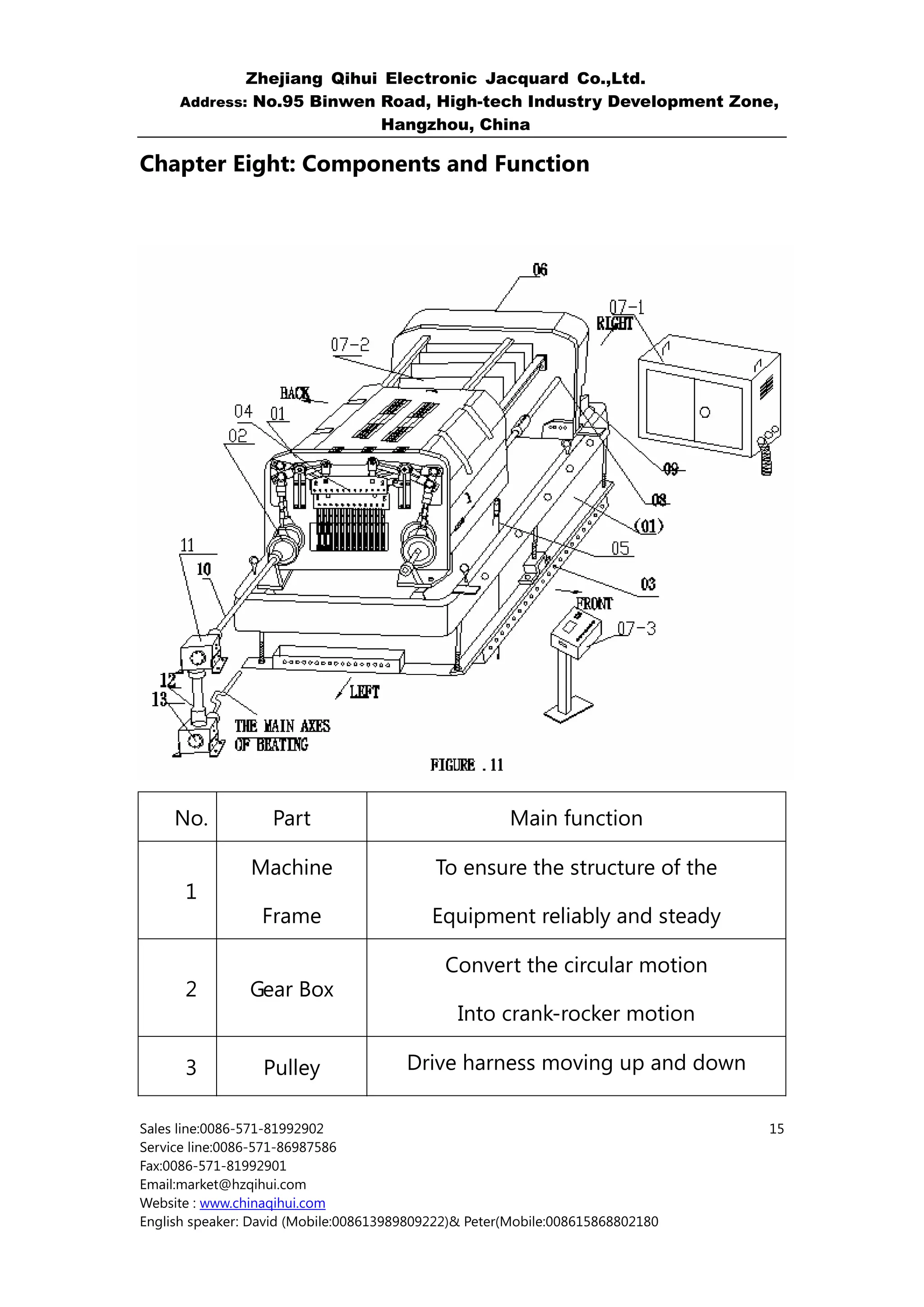

Chapter Eight: Components and Function
No. Part Main function
Machine To ensure the structure of the
1
Frame Equipment reliably and steady
Convert the circular motion
2 Gear Box
Into crank-rocker motion
3 Pulley Drive harness moving up and down
Sales line:0086-571-81992902 15
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
17. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

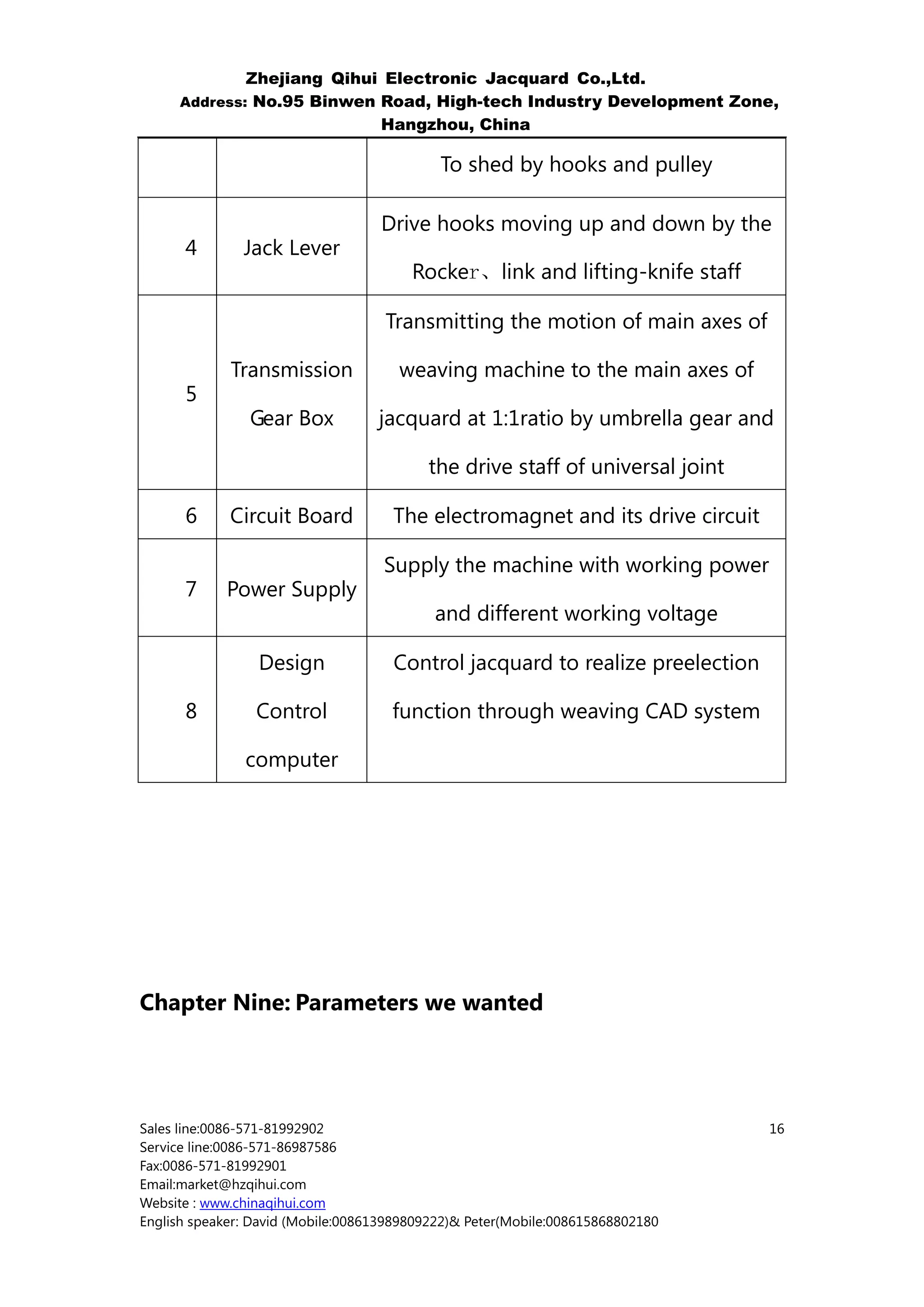

To shed by hooks and pulley
Drive hooks moving up and down by the
4 Jack Lever
Rocker、link and lifting-knife staff
Transmitting the motion of main axes of
Transmission weaving machine to the main axes of
5
Gear Box jacquard at 1:1ratio by umbrella gear and
the drive staff of universal joint
6 Circuit Board The electromagnet and its drive circuit
Supply the machine with working power
7 Power Supply
and different working voltage
Design Control jacquard to realize preelection
8 Control function through weaving CAD system
computer
Chapter Nine: Parameters we wanted
Sales line:0086-571-81992902 16
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
18. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China

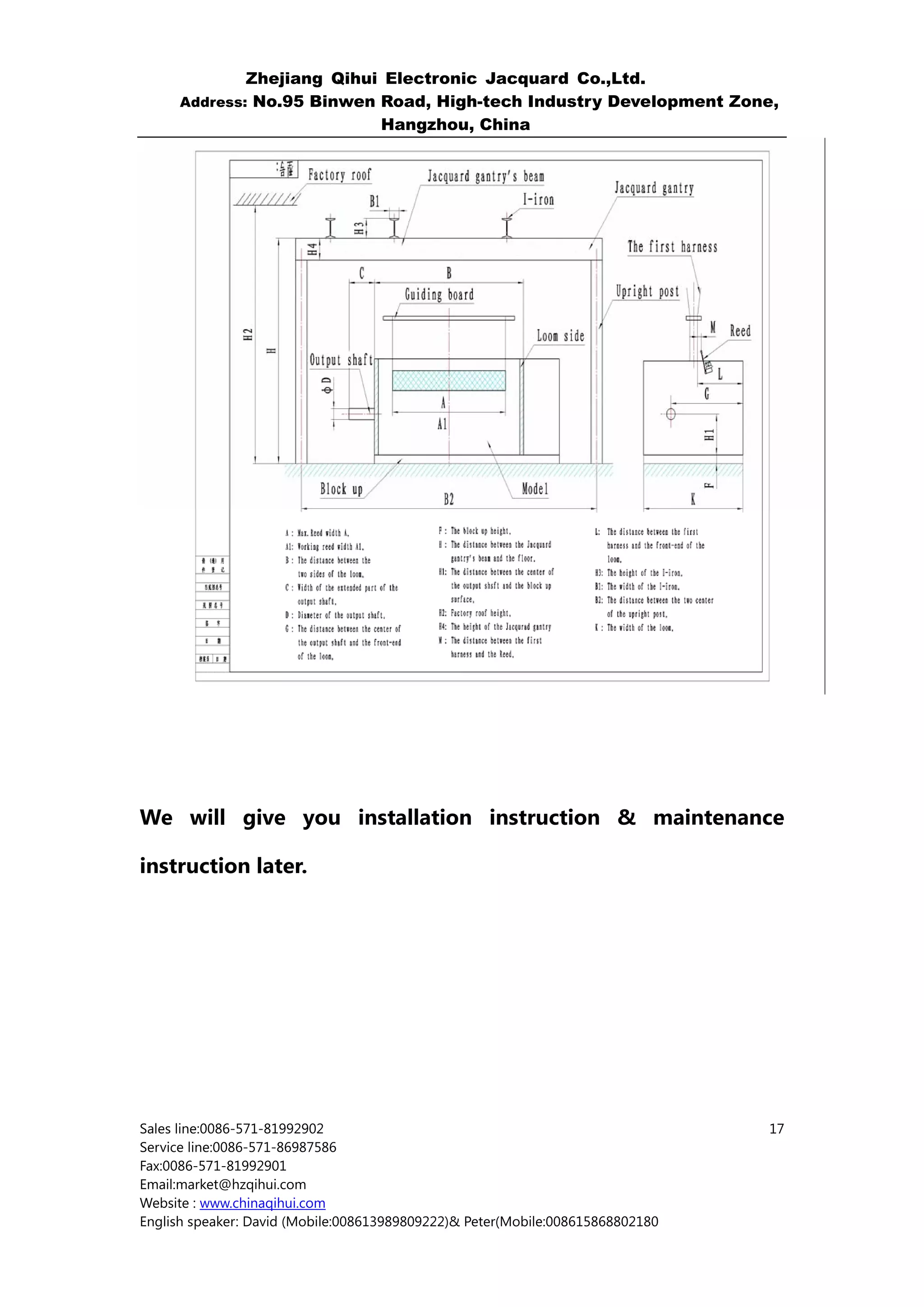

We will give you installation instruction & maintenance
instruction later.
Sales line:0086-571-81992902 17
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
19. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
Sales line:0086-571-81992902 18
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
20. Zhejiang Qihui Electronic Jacquard Co.,Ltd.
Address: No.95 Binwen Road, High-tech Industry Development Zone,
Hangzhou, China
Sales line:0086-571-81992902 19
Service line:0086-571-86987586
Fax:0086-571-81992901
Email:market@hzqihui.com
Website : www.chinaqihui.com
English speaker: David (Mobile:008613989809222)& Peter(Mobile:008615868802180
