QUALITY BY DESIGN (QBD)
IN API
DR ANTHONY CRASTO
1
THE QUALITY MANTRA
“Quality can not be tested
into products; it has to be
built in by design”
Joseph M Juran
WHAT IS QUALITY BY DESIGN?
“You can’t test quality into drug
products” has been heard for decades
– so what’s new?
It’s a culture - incorporates quality principles as well as
strong compliance function
Incorporates risk assessment and management
Refocuses attention and resources on what’s important
to the customer, i.e. the patients, health professionals,
payors and distribution chain
QUALITY BY DESIGN
Continuous improvement is a hallmark of
quality by design
G. Taguchi on Robust Design: design changes during
manufacture can result in the last product produced
being different from the first product
In pharmaceutical manufacturing, we
don’t want this – patients and
physicians must count on each batch
of drug working just like the batches
that came before
QUALITY BY DESIGN

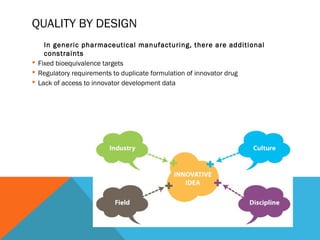

In generic pharmaceutical manufacturing, there are additional
constraints
 Fixed bioequivalence targets
 Regulatory requirements to duplicate formulation of innovator drug
 Lack of access to innovator development data

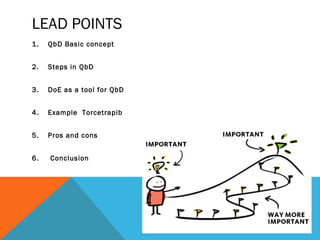

LEAD POINTS
1. QbD Basic concept
2. Steps in QbD
3. DoE as a tool for QbD
4. Example Torcetrapib
5. Pros and cons
6. Conclusion

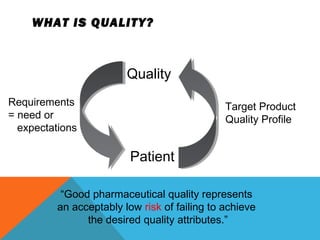

WHAT IS QUALITY?
Quality
Patient
Target Product
Quality Profile
Requirements
= need or
expectations
“Good pharmaceutical quality represents
an acceptably low risk of failing to achieve
the desired quality attributes.”

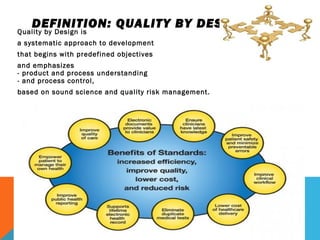

DEFINITION: QUALITY BY DESIGN
Quality by Design is
a systematic approach to development
that begins with predefined objectives
and emphasizes
- product and process understanding
- and process control,
based on sound science and quality risk management.

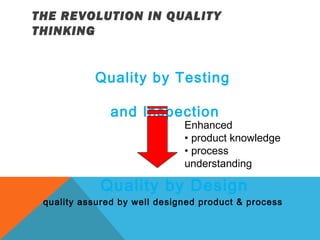

THE REVOLUTION IN QUALITY
THINKING
Quality by Testing
and Inspection
Enhanced
• product knowledge
• process
understanding
Quality by Design
quality assured by well designed product & process
INTRODUCED BY FDA IN 2002
ICH Q8 + ICH Q9 + ICHQ10
Pharmaceutical Quality Risk Quality
Development Management Management
=
Quality by
Design
Quality by Design – GMP for the 21st
Century
Merck & Co’s Januvia (2006) : first FDA
approved product
QUALITY BY DESIGN (QBD)
Myth : An expensive development tool !
Fact : A tool that makes product development and
commercial scale manufacturing simple !
Actually saves money !
How ?

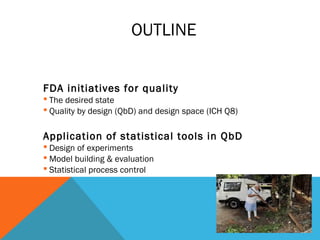

OUTLINE
FDA initiatives for quality
 The desired state
 Quality by design (QbD) and design space (ICH Q8)
Application of statistical tools in QbD
 Design of experiments
 Model building & evaluation
 Statistical process control
FDA’S INITIATIVE ON QUALITY BY
DESIGN

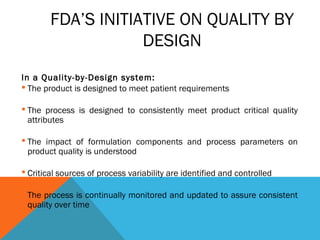

In a Quality-by-Design system:
 The product is designed to meet patient requirements
 The process is designed to consistently meet product critical quality
attributes
 The impact of formulation components and process parameters on
product quality is understood
 Critical sources of process variability are identified and controlled
 The process is continually monitored and updated to assure consistent
quality over time
Quality
by
Design
Pros and Cons
• Scientific understanding
• Holistic approach
• Less data to manage
• Meaningful data
• Fewer non conformances
• Lean processes – more cost
efficient
• Better control of process
• Continuous improvement
• Managed based on risk
• Patient first approach
• Up to 30% savings*
• New concept – hard to get
buy in
• Just starting to be
recognised by authorities
• Culture change
• Investment up front
• Time to get to know
process and product
• Difficult to apply
retrospectively

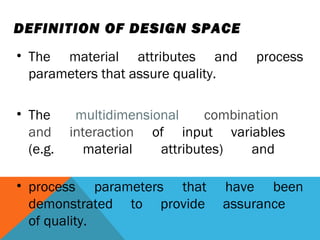

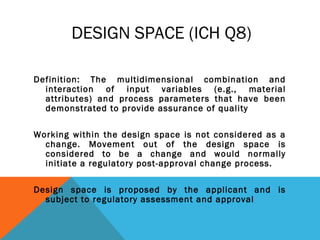

DESIGN SPACE (ICH Q8)
Definition: The multidimensional combination and
interaction of input variables (e.g., material
attributes) and process parameters that have been
demonstrated to provide assurance of quality
Working within the design space is not considered as a
change. Movement out of the design space is
considered to be a change and would normally
initiate a regulatory post-approval change process.
Design space is proposed by the applicant and is
subject to regulatory assessment and approval

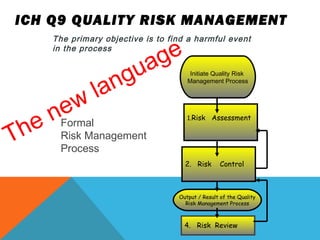

ICH Q9 QUALITY RISK MANAGEMENT
The primary objective is to find a harmful event
in the process
Initiate Quality Risk
Management Process
The new language
1.Risk Assessment
2. Risk Control
Output / Result of the Quality
Risk Management Process
4. Risk Review
Formal
Risk Management
Process

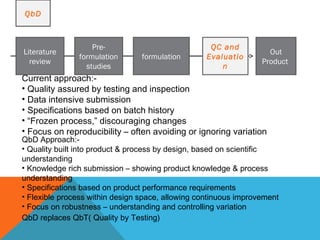

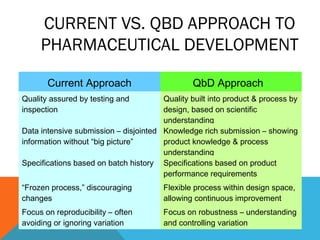

CURRENT VS. QBD APPROACH TO
PHARMACEUTICAL DEVELOPMENT
Current Approach QbD Approach
Quality assured by testing and
inspection
Quality built into product & process by
design, based on scientific
understanding
Data intensive submission – disjointed
information without “big picture”
Knowledge rich submission – showing
product knowledge & process
understanding
Specifications based on batch history Specifications based on product
performance requirements
“Frozen process,” discouraging
changes
Flexible process within design space,
allowing continuous improvement
Focus on reproducibility – often
avoiding or ignoring variation
Focus on robustness – understanding
and controlling variation

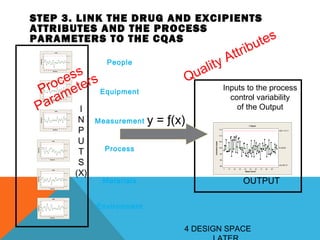

MAPPING THE LINKAGE
Input Output
M1
M2
Material Attributes
P1
P2
P3
CQA1
CQA2
CQA3
Relationships:
CQA1 = function (M1)
CQA2 = function (P1, P3)
CQA3 = function (M1, M2, P1)
P2 might not be needed in the
establishment of design space
Process
Parameters
Critical
Quality
Attributes
PHARMACEUTICAL DEVELOPMENT
& PRODUCT LIFECYCLE
Product Design & Development
Candidate
Selection
Process Design & Development
Manufacturing Development
Continuous Improvement
Product
Approval

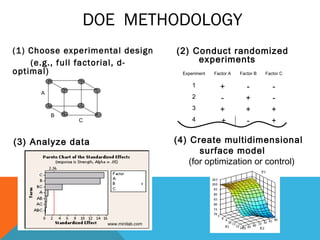

Design of
Experiments
(DOE)

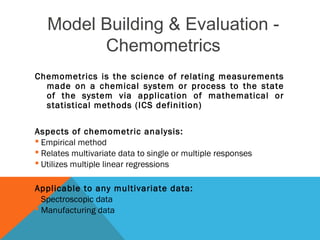

Model Building
And Evaluation
Process Design & Development:
Initial Scoping
Process Characterization
Process Optimization
Process Robustness
Statistical Tool
Product Design & Development:
Initial Scoping
Product Characterization
Product Optimization
Manufacturing Development
and Continuous Improvement:
Develop Control Systems
Scale-up Prediction
Tracking and trending
Statistical
Process Control
Pharmaceutical Development
& Product Lifecycle

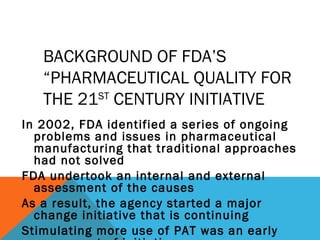

BACKGROUND OF FDA’S
“PHARMACEUTICAL QUALITY FOR
THE 21ST CENTURY INITIATIVE
In 2002, FDA identified a series of ongoing
problems and issues in pharmaceutical
manufacturing that traditional approaches
had not solved
FDA undertook an internal and external
assessment of the causes
As a result, the agency started a major
change initiative that is continuing
Stimulating more use of PAT was an early
component of initiative
STATE OF REGULATION CIRCA 2002
Pharmaceutical manufacturing HIGHLY regulated (e.g., compared to
foods, fine chemicals)
Cost of cGMP compliance very high
Despite this: process efficiency and effectiveness low (high wastage
and rework); and level of technology not comparable to other
industries

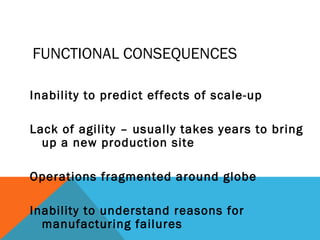

FUNCTIONAL CONSEQUENCES
Inability to predict effects of scale-up
Lack of agility – usually takes years to bring
up a new production site
Operations fragmented around globe
Inability to understand reasons for
manufacturing failures
RESULT: FOR REGULATORS
Extensive oversight of manufacturing resource-intensive (in era of cost
reductions and increased mandates)
Expensive and time-consuming litigation and legal actions in cGMP area
Need to deal with recalls and shortages of medically necessary drugs

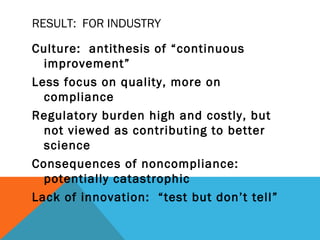

RESULT: FOR INDUSTRY
Culture: antithesis of “continuous
improvement”
Less focus on quality, more on
compliance
Regulatory burden high and costly, but
not viewed as contributing to better
science
Consequences of noncompliance:
potentially catastrophic
Lack of innovation: “test but don’t tell”

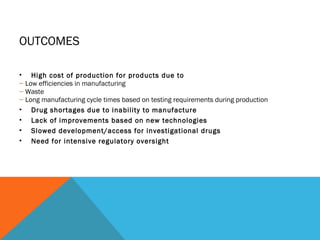

OUTCOMES
• High cost of production for products due to
– Low efficiencies in manufacturing
– Waste
– Long manufacturing cycle times based on testing requirements during production
• Drug shortages due to inability to manufacture
• Lack of improvements based on new technologies
• Slowed development/access for investigational drugs
• Need for intensive regulatory oversight

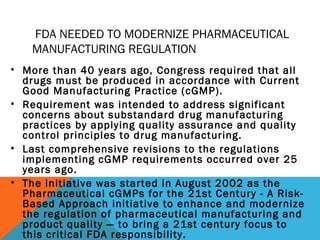

FDA NEEDED TO MODERNIZE PHARMACEUTICAL
MANUFACTURING REGULATION
• More than 40 years ago, Congress required that all
drugs must be produced in accordance with Current
Good Manufacturing Practice (cGMP).
• Requirement was intended to address significant
concerns about substandard drug manufacturing
practices by applying quality assurance and quality
control principles to drug manufacturing.
• Last comprehensive revisions to the regulations
implementing cGMP requirements occurred over 25
years ago.
• The initiative was started in August 2002 as the
Pharmaceutical cGMPs for the 21st Century - A Risk-
Based Approach initiative to enhance and modernize
the regulation of pharmaceutical manufacturing and
product quality — to bring a 21st century focus to
this critical FDA responsibility.
THE DESIRED STATE: A MUTUAL GOAL OF INDUSTRY,
SOCIETY AND THE REGULATORS
A maximally efficient, agile, flexible pharmaceutical manufacturing
sector that reliably produces high quality drug products without
extensive regulatory oversight
Qbd on cleaning
GUIDANCE FOR INDUSTRY: QUALITY SYSTEMS
APPROACH TO PHARMACEUTICAL CGMP REGULATIONS
Help manufacturers bridge between 1978 regulations
and modern quality systems and risk management
approaches
Extends beyond CGMP expectations; however, does not
create requirements on manufacturers.
Implementation of this model should ensure
compliance and encourage use of science, risk
management and other principles of the 21st Century
Initiative.
“When fully developed and effectively managed, a quality system will
Describes lead a to comprehensive consistent, predictable quality processes system that ensure model that
and
how CGMP regulations link to QS elements
pharmaceuticals are safe, effective, and available for the consumer.”

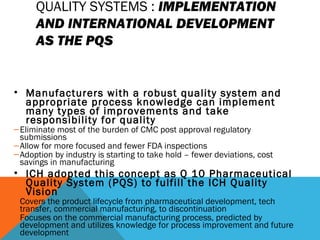

QUALITY SYSTEMS : IMPLEMENTATION
AND INTERNATIONAL DEVELOPMENT
AS THE PQS
• Manufacturers with a robust quality system and
appropriate process knowledge can implement
many types of improvements and take
responsibility for quality
–Eliminate most of the burden of CMC post approval regulatory
submissions
–Allow for more focused and fewer FDA inspections
–Adoption by industry is starting to take hold – fewer deviations, cost
savings in manufacturing
• ICH adopted this concept as Q 10 Pharmaceutical
Quality System (PQS) to fulfill the ICH Quality
Vision
–Covers the product lifecycle from pharmaceutical development, tech
transfer, commercial manufacturing, to discontinuation
–Focuses on the commercial manufacturing process, predicted by
development and utilizes knowledge for process improvement and future
development
INTERNATIONAL HARMONIZATION
In addition to Q10, Quality Systems:
Q8 Pharmaceutical Development
Q9 Quality Risk Management

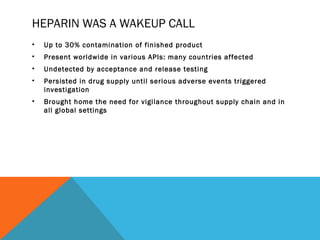

HEPARIN WAS A WAKEUP CALL
• Up to 30% contamination of finished product
• Present worldwide in various APIs: many countries affected
• Undetected by acceptance and release testing
• Persisted in drug supply until serious adverse events triggered
investigation
• Brought home the need for vigilance throughout supply chain and in
all global settings

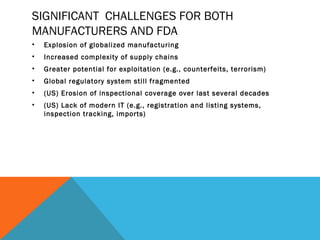

SIGNIFICANT CHALLENGES FOR BOTH
MANUFACTURERS AND FDA
• Explosion of globalized manufacturing
• Increased complexity of supply chains
• Greater potential for exploitation (e.g., counterfeits, terrorism)
• Global regulatory system still fragmented
• (US) Erosion of inspectional coverage over last several decades
• (US) Lack of modern IT (e.g., registration and listing systems,
inspection tracking, imports)

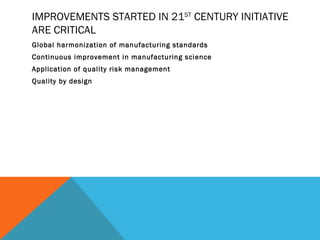

IMPROVEMENTS STARTED IN 21ST CENTURY INITIATIVE
ARE CRITICAL
Global harmonization of manufacturing standards
Continuous improvement in manufacturing science
Application of quality risk management
Quality by design
ROLE OF THIS PAT WORKSHOP
Gathering of academics, pharmaceutical industry, FDA, PAT equipment
manufacturers
Goal: update on use of the technology, present case studies,
understand barriers to more widespread adoption
Understanding of how PAT fits into the future of quality by design

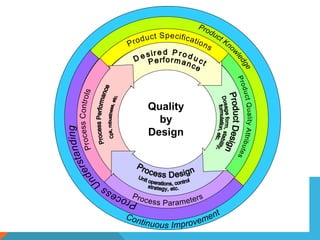

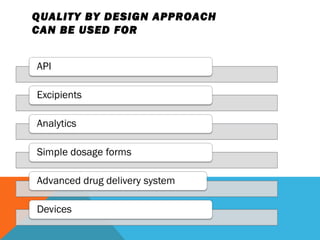

QUALITY BY DESIGN APPROACH
CAN BE USED FOR

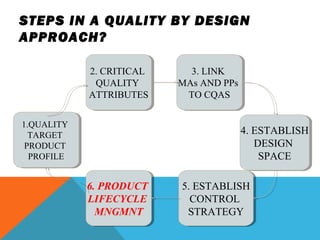

STEPS IN A QUALITY BY DESIGN
APPROACH?
1.QUALITY
TARGET
PRODUCT
PROFILE
1.QUALITY
TARGET
PRODUCT
PROFILE
2. CRITICAL
QUALITY
ATTRIBUTES
2. CRITICAL
QUALITY
ATTRIBUTES
6. PRODUCT
LIFECYCLE
MNGMNT
6. PRODUCT
LIFECYCLE
MNGMNT
3. LINK
3. LINK
MAs AND PPs
TO CQAS
MAs AND PPs
TO CQAS
4. ESTABLISH
DESIGN
4. ESTABLISH
DESIGN
5. ESTABLISH
CONTROL
STRATEGY
5. ESTABLISH
CONTROL
STRATEGY
SPACE
SPACE

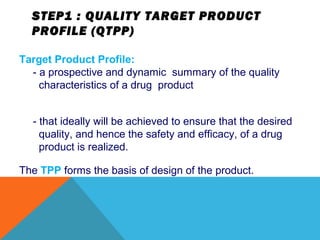

STEP1 : QUALITY TARGET PRODUCT
PROFILE (QTPP)
Target Product Profile:
- a prospective and dynamic summary of the quality
characteristics of a drug product
- that ideally will be achieved to ensure that the desired
quality, and hence the safety and efficacy, of a drug
product is realized.
The TPP forms the basis of design of the product.

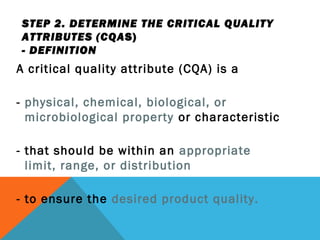

STEP 2. DETERMINE THE CRITICAL QUALITY
ATTRIBUTES (CQAS)
- DEFINITION
A critical quality attribute (CQA) is a
- physical, chemical, biological, or
microbiological property or characteristic
- that should be within an appropriate
limit, range, or distribution
- to ensure the desired product quality.
STEP 2. DETERMINE THE CRITICAL QUALITY
ATTRIBUTES (CQAS)
Drug product CQAs are used to guide the
product and process development.
 SOLID ORAL DOSAGE
FORMS:
 Particle size
 Polymorphic form
 Water content
 Residual solvent
 Organic and inorganic
impurities
 OTHER DELIVERY
SYSTEMS:
 Include more product specific
aspects, such as
 Sterility for Parenteral,
 Adhesive force for
transdermal patches.
STEP 3. LINK THE DRUG AND EXCIPIENTS
ATTRIBUTES AND THE PROCESS
PARAMETERS TO THE CQAS
People
I Chart
Process
Parameters
Equipment
Measurement
Process
Materials
Environment
INPUTS
(X)
Quality Attributes
y = ƒ(x)
Inputs to the process
control variability
of the Output
y
UCL=114.17
OUTPUT
Observat ion
Observat ion
Observat ion
Observat ion
Individual Value
20 22 24 26 28 30 32 34 36 38 40
120
115
110
105
100
95
90
UCL=111.55
UCL=112.65
UCL=112.65
UCL=116.68
_
X=102.37
LCL=88.05
I Chart
Individual Value
40 42 44 46 48 50 52 54 56 58 60
115
110
105
100
95
90
85
80
_
X=97.94
LCL=83.23
I Chart
Observat ion
Individual Value
60 62 64 66 68 70 72 74 76 78 80
115
110
105
100
95
90
UCL=111.55
_
X=99.63
LCL=87.71
I Chart
Observat ion
Individual Value
80 82 84 86 88 90 92 94 96 98 100
110
105
100
95
90
85
UCL=111.17
_
X=98.76
LCL=86.35
I Chart
Individual Value
40 42 44 46 48 50 52 54 56 58 60
115
110
105
100
95
90
85
80
_
X=97.94
LCL=83.23
I Chart
Individual Value
60 62 64 66 68 70 72 74 76 78 80
115
110
105
100
95
90
_
X=99.63
LCL=87.71
Observat ion
Indiv idual Value
1 11 21 31 41 51 61 71 81 91
115
110
105
100
95
90
85
_
X=99.95
LCL=85.72
I Char t
4 DESIGN SPACE
………..LATER
STEP 5. CONTROL STRATEGY
Elements of a control strategy can include, but are not limited
to, the following:
• Control of input material attributes based on an
understanding of their impact on process ability or product
quality
• Product specification(s)
• Controls for unit operations that have an impact on
downstream processing or end-product quality
• In-process or real-time release in lieu of end-product testing

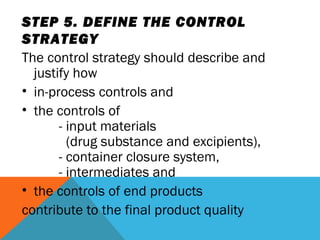

STEP 5. DEFINE THE CONTROL
STRATEGY
The control strategy should describe and
justify how
• in-process controls and
• the controls of
- input materials
(drug substance and excipients),
- container closure system,
- intermediates and
• the controls of end products
contribute to the final product quality

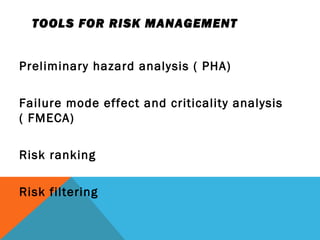

TOOLS FOR RISK MANAGEMENT
Preliminary hazard analysis ( PHA)
Failure mode effect and criticality analysis
( FMECA)
Risk ranking
Risk filtering

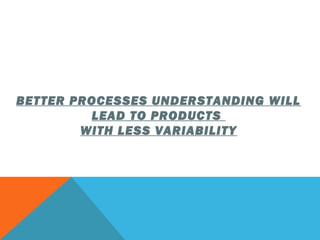

BETTER PROCESSES UNDERSTANDING WILL
LEAD TO PRODUCTS
WITH LESS VARIABILITY

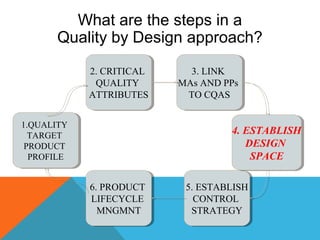

What are the steps in a
Quality by Design approach?
1.QUALITY
TARGET
PRODUCT
PROFILE
1.QUALITY
TARGET
PRODUCT
PROFILE
2. CRITICAL
QUALITY
ATTRIBUTES
2. CRITICAL
QUALITY
ATTRIBUTES
6. PRODUCT
LIFECYCLE
MNGMNT
6. PRODUCT
LIFECYCLE
MNGMNT
3. LINK
3. LINK
MAs AND PPs
TO CQAS
MAs AND PPs
TO CQAS
4. ESTABLISH
DESIGN
4. ESTABLISH
DESIGN
5. ESTABLISH
CONTROL
STRATEGY
SPACE
5. ESTABLISH
CONTROL
STRATEGY
SPACE
DEFINITION OF DESIGN SPACE
• The material attributes and process
parameters that assure quality.
• The multidimensional combination
and interaction of input variables
(e.g. material attributes) and
• process parameters that have been
demonstrated to provide assurance
of quality.
STEPS IN A QUALITY BY DESIGN
APPROACH?
1.QUALITY
TARGET
PRODUCT
PROFILE
1.QUALITY
TARGET
PRODUCT
PROFILE
2. CRITICAL
QUALITY
ATTRIBUTES
2. CRITICAL
QUALITY
ATTRIBUTES
6. PRODUCT
LIFECYCLE
MNGMNT
6. PRODUCT
LIFECYCLE
MNGMNT
3. LINK
3. LINK
MAs AND PPs
TO CQAS
MAs AND PPs
TO CQAS
4. ESTABLISH
DESIGN
4. ESTABLISH
DESIGN
5. ESTABLISH
CONTROL
STRATEGY
5. ESTABLISH
CONTROL
STRATEGY
SPACE
SPACE
Knowledge
Space
Design Space
Control Space
CONTROL SPACE
DESIGN OF EXPERIMENTS (DOE)
Structured, organized method for determining the
relationship between factors affecting a process and the
response of that process
Application of DOEs:
 Scope out initial formulation or process design
 Optimize product or process
 Determine design space, including multivariate relationships
DOE METHODOLOGY
(1) Choose experimental design
(e.g., full factorial, d-optimal)
(2) Conduct randomized
experiments
(4) Create multidimensional
surface model
(for optimization or control)
(3) Analyze data
Experiment Factor A Factor B Factor C
1 + - -
2 - + -
3 + + +
4 + - +
A
B
C
www.minitab.com
A DOE IS USEFUL TO
Identify important factors
Establish process stability
Find best operating conditions

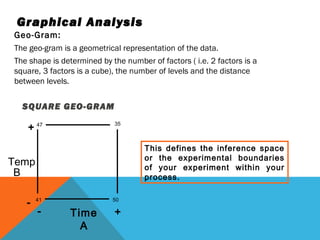

Graphical Analysis
Geo-Gram:
The geo-gram is a geometrical representation of the data.
The shape is determined by the number of factors ( i.e. 2 factors is a
square, 3 factors is a cube), the number of levels and the distance
between levels.
SQUARE GEO-GRAM
35
47
41 50
+
Temp
B
- +
Time
A
-
This defines the inference space
or the experimental boundaries
of your experiment within your
process.
1a

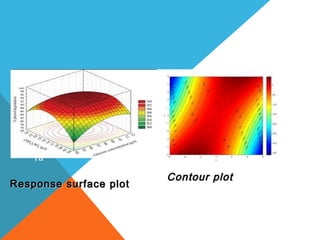

Response ssuurrffaaccee pplloott CCoonnttoouurr pplloott
Pre-formulation
studies
QbD
Literature
review formulation
QC and
Evaluatio
n
Out
Product
Current approach:-
• Quality assured by testing and inspection
• Data intensive submission
• Specifications based on batch history
• “Frozen process,” discouraging changes
• Focus on reproducibility – often avoiding or ignoring variation
QbD Approach:-
• Quality built into product & process by design, based on scientific
understanding
• Knowledge rich submission – showing product knowledge & process
understanding
• Specifications based on product performance requirements
• Flexible process within design space, allowing continuous improvement
• Focus on robustness – understanding and controlling variation
QbD replaces QbT( Quality by Testing)
Experimental Approach for
Identifying Parameters
Design of Experiments (DOE) is an efficient method to
determine relevant parameters and interactions

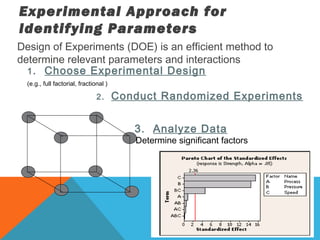

1. Choose Experimental Design
(e.g., full factorial, fractional )
2. Conduct Randomized Experiments
3. Analyze Data
Determine significant factors
MODEL BUILDING & EVALUATION -
EXAMPLES
Models for process development
 Kinetic models – rates of reaction or degradation
 Transport models – movement and mixing of mass or heat
Models for manufacturing development
 Computational fluid dynamics
 Scale-up correlations
Models for process monitoring or control
 Chemometric models
 Control models
All models require verification through statistical
analysis
Model Building & Evaluation -
Chemometrics
Chemometrics is the science of relating measurements
made on a chemical system or process to the state
of the system via application of mathematical or
statistical methods (ICS definition)
Aspects of chemometric analysis:
 Empirical method
 Relates multivariate data to single or multiple responses
 Utilizes multiple linear regressions
Applicable to any multivariate data:
 Spectroscopic data
 Manufacturing data

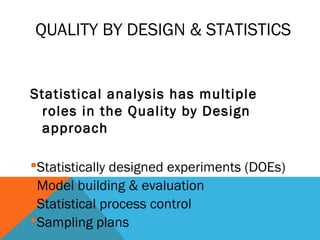

QUALITY BY DESIGN & STATISTICS
Statistical analysis has multiple
roles in the Quality by Design
approach
Statistically designed experiments (DOEs)
Model building & evaluation
Statistical process control
Sampling plans

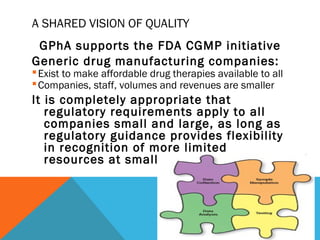

A SHARED VISION OF QUALITY
GPhA supports the FDA CGMP initiative
Generic drug manufacturing companies:
Exist to make affordable drug therapies available to all
Companies, staff, volumes and revenues are smaller
It is completely appropriate that
regulatory requirements apply to all
companies small and large, as long as
regulatory guidance provides flexibility
in recognition of more limited
resources at smaller firms

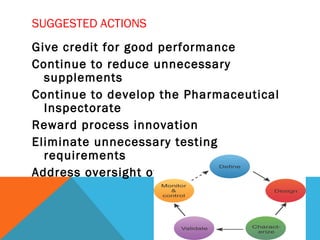

SUGGESTED ACTIONS
Give credit for good performance
Continue to reduce unnecessary
supplements
Continue to develop the Pharmaceutical
Inspectorate
Reward process innovation
Eliminate unnecessary testing
requirements
Address oversight of overseas API mfrs

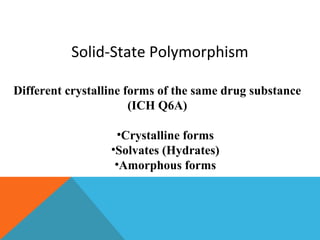

Solid-State Polymorphism
Different crystalline forms of the same drug substance
(ICH Q6A)
•Crystalline forms
•Solvates (Hydrates)
•Amorphous forms

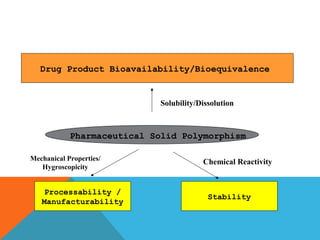

Drug Product Bioavailability/Bioequivalence
Solubility/Dissolution
Pharmaceutical Solid Polymorphism
Mechanical Properties/
Hygroscopicity
Processability /
Manufacturability
Chemical Reactivity
Stability

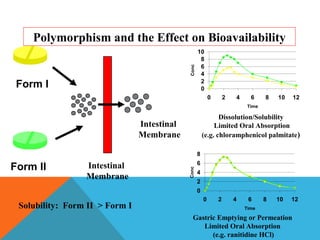

Polymorphism and the Effect on Bioavailability
10
0 2 4 6 8
0 2 4 6 8 10 12
Time
Conc
Dissolution/Solubility
Limited Oral Absorption
(e.g. chloramphenicol palmitate)
8
6
4
2
0
0 2 4 6 8 10 12
Time
Conc
Gastric Emptying or Permeation
Limited Oral Absorption
(e.g. ranitidine HCl)
Form I
Form II Intestinal
Membrane
Solubility: Form II > Form I
Intestinal
Membrane

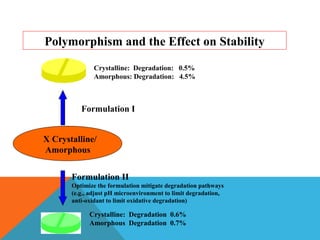

Polymorphism and the Effect on Stability
Crystalline: Degradation: 0.5%
Amorphous: Degradation: 4.5%
Formulation I
X Crystalline/
Amorphous
Formulation II
Optimize the formulation mitigate degradation pathways
(e.g., adjust pH microenvironment to limit degradation,
anti-oxidant to limit oxidative degradation)
Crystalline: Degradation 0.6%
Amorphous Degradation 0.7%

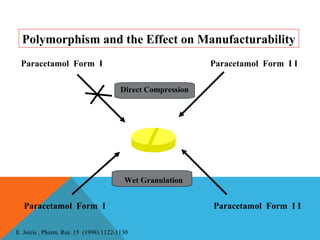

Polymorphism and the Effect on Manufacturability
Paracetamol Form I Paracetamol Form I I
Direct Compression
Wet Granulation
Paracetamol Form I Paracetamol Form I I
E. Joiris , Pharm. Res. 15 (1998) 1122-1130

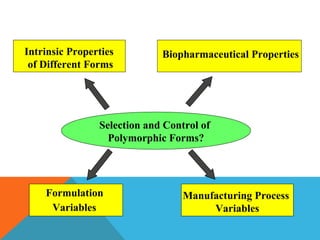

Selection and Control of
Polymorphic Forms?
Formulation
Variables
Biopharmaceutical Properties
Manufacturing Process
Variables
Intrinsic Properties
of Different Forms
N O 2
N
H
S
C H 3
C
N
“
”
Regulatory Considerations:
Can One Consider Polymorphs to be the Same Active?
Materials Science
J. Am. Chem. Soc. 122 (2000) 585-591
8
6
4
2
0
0 2 4 6 8 10 12
Time
Conc
Form I Form II
Drug Product
Safety/Effectiveness

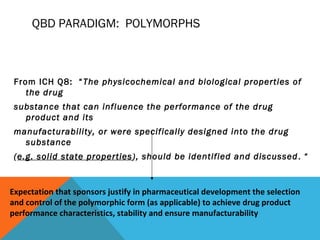

QBD PARADIGM: POLYMORPHS
From ICH Q8: “The physicochemical and biological properties of
the drug
substance that can influence the performance of the drug
product and its
manufacturability, or were specifically designed into the drug
substance
(e.g. solid state properties), should be identified and discussed. “
Expectation that sponsors justify in pharmaceutical development the selection
and control of the polymorphic form (as applicable) to achieve drug product
performance characteristics, stability and ensure manufacturability

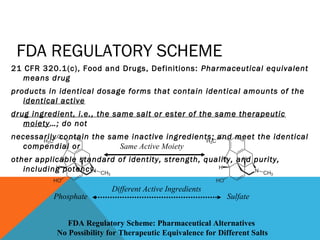

FDA REGULATORY SCHEME
21 CFR 320.1(c), Food and Drugs, Definitions: Pharmaceutical equivalent
means drug
products in identical dosage forms that contain identical amounts of the
identical active
drug ingredient, i.e., the same salt or ester of the same therapeutic
moiety…; do not
necessarily contain the same inactive ingredients; and meet the identical
compendial or
Same Active Moiety
other applicable standard of identity, strength, quality, and purity,
including potency.
Different Active Ingredients
Phosphate Sulfate
FDA Regulatory Scheme: Pharmaceutical Alternatives
No Possibility for Therapeutic Equivalence for Different Salts
Co-Crystals
A
A
A
A
A
A
A
A
A
A
A
A A
A
A
A A A
A A A
A A A A A
A
A
A
A A
A A
A A A A
G
A
A
A
G
A A
A
A A
G
G
G
G G
A
A
A
G
G
A
G
A+ A+
A+
C- C- C-C-
C-A+
A+
C- C- C-A+
A+
A+ A+
Salts Co-crystals
Polymorphs

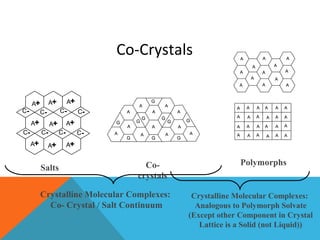

Crystalline Molecular Complexes:
Co- Crystal / Salt Continuum
Crystalline Molecular Complexes:
Analogous to Polymorph Solvate
(Except other Component in Crystal
Lattice is a Solid (not Liquid))
Where Do Co-Crystals Fit in Our Regulatory Scheme?
A
A
A
A
A
A
A
A
A
A
A
A A
A
A
A A A
A A A
A A A A A
A
A
A
A A
A A
A A A A
G
A
A
A
G
A A
A
A A
G
G
G
G G
A
A
A
G
G
A
G
A+ A+
A+
C- C- C-C-
C-A+
A+
C- C- C-A+
A+
A+ A+
Salts
Co-crystals??
Polymorphs
Same Active Moiety Same API
Different API
Where Do Co-Crystals Fit?
Is a New Regulatory
Class of Solids Needed?

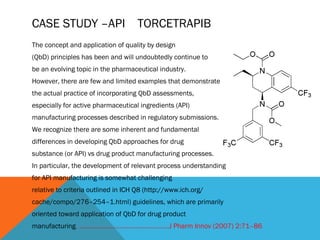

CASE STUDY –API TORCETRAPIB
The concept and application of quality by design
(QbD) principles has been and will undoubtedly continue to
be an evolving topic in the pharmaceutical industry.
However, there are few and limited examples that demonstrate
the actual practice of incorporating QbD assessments,
especially for active pharmaceutical ingredients (API)
manufacturing processes described in regulatory submissions.
We recognize there are some inherent and fundamental
differences in developing QbD approaches for drug
substance (or API) vs drug product manufacturing processes.
In particular, the development of relevant process understanding
for API manufacturing is somewhat challenging
relative to criteria outlined in ICH Q8 (http://www.ich.org/
cache/compo/276–254–1.html) guidelines, which are primarily
oriented toward application of QbD for drug product
manufacturing. ……………………………………………J Pharm Innov (2007) 2:71–86

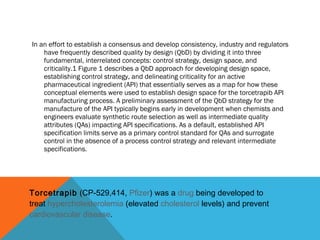

In an effort to establish a consensus and develop consistency, industry and regulators
have frequently described quality by design (QbD) by dividing it into three
fundamental, interrelated concepts: control strategy, design space, and

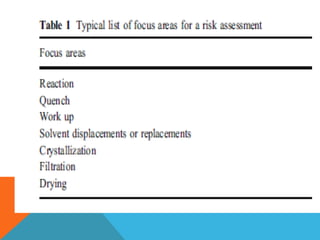

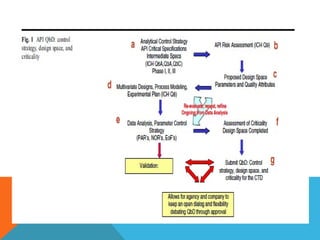

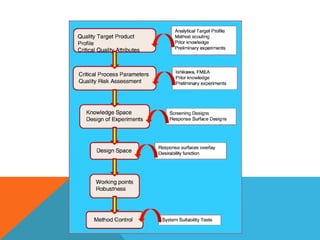

criticality.1 Figure 1 describes a QbD approach for developing design space,
establishing control strategy, and delineating criticality for an active
pharmaceutical ingredient (API) that essentially serves as a map for how these
conceptual elements were used to establish design space for the torcetrapib API
manufacturing process. A preliminary assessment of the QbD strategy for the
manufacture of the API typically begins early in development when chemists and
engineers evaluate synthetic route selection as well as intermediate quality
attributes (QAs) impacting API specifications. As a default, established API
specification limits serve as a primary control standard for QAs and surrogate
control in the absence of a process control strategy and relevant intermediate
specifications.
Torcetrapib (CP-529,414, Pfizer) was a drug being developed to
treat hypercholesterolemia (elevated cholesterol levels) and prevent
cardiovascular disease.

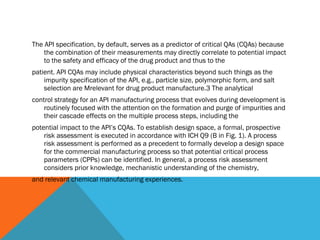

The API specification, by default, serves as a predictor of critical QAs (CQAs) because
the combination of their measurements may directly correlate to potential impact
to the safety and efficacy of the drug product and thus to the
patient. API CQAs may include physical characteristics beyond such things as the
impurity specification of the API, e.g., particle size, polymorphic form, and salt
selection are Mrelevant for drug product manufacture.3 The analytical
control strategy for an API manufacturing process that evolves during development is
routinely focused with the attention on the formation and purge of impurities and
their cascade effects on the multiple process steps, including the
potential impact to the API’s CQAs. To establish design space, a formal, prospective
risk assessment is executed in accordance with ICH Q9 (B in Fig. 1). A process
risk assessment is performed as a precedent to formally develop a design space
for the commercial manufacturing process so that potential critical process

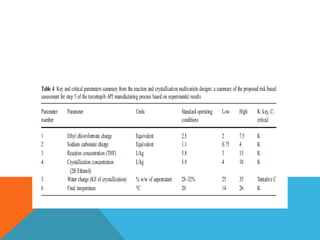

parameters (CPPs) can be identified. In general, a process risk assessment
considers prior knowledge, mechanistic understanding of the chemistry,
and relevant chemical manufacturing experiences.

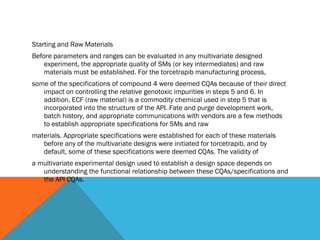

Starting and Raw Materials
Before parameters and ranges can be evaluated in any multivariate designed
experiment, the appropriate quality of SMs (or key intermediates) and raw

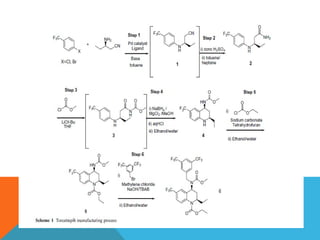

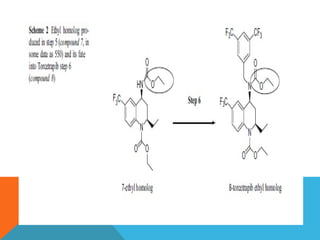

materials must be established. For the torcetrapib manufacturing process,
some of the specifications of compound 4 were deemed CQAs because of their direct
impact on controlling the relative genotoxic impurities in steps 5 and 6. In
addition, ECF (raw material) is a commodity chemical used in step 5 that is
incorporated into the structure of the API. Fate and purge development work,
batch history, and appropriate communications with vendors are a few methods
to establish appropriate specifications for SMs and raw
materials. Appropriate specifications were established for each of these materials
before any of the multivariate designs were initiated for torcetrapib, and by
default, some of these specifications were deemed CQAs. The validity of

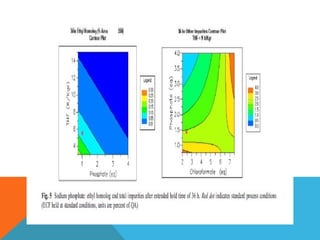

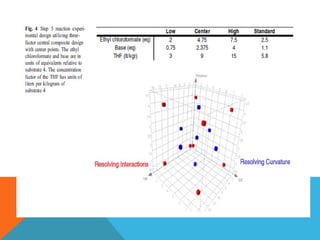

a multivariate experimental design used to establish a design space depends on
understanding the functional relationship between these CQAs/specifications and
the API CQAs.

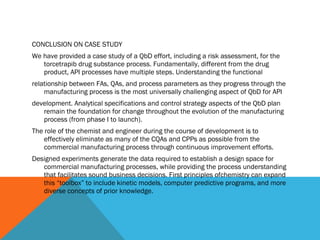

CONCLUSION ON CASE STUDY
We have provided a case study of a QbD effort, including a risk assessment, for the
torcetrapib drug substance process. Fundamentally, different from the drug

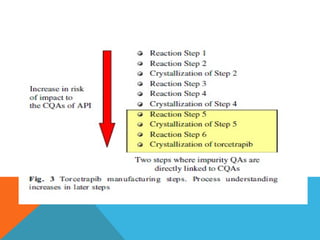

product, API processes have multiple steps. Understanding the functional
relationship between FAs, QAs, and process parameters as they progress through the
manufacturing process is the most universally challenging aspect of QbD for API
development. Analytical specifications and control strategy aspects of the QbD plan
remain the foundation for change throughout the evolution of the manufacturing
process (from phase I to launch).
The role of the chemist and engineer during the course of development is to
effectively eliminate as many of the CQAs and CPPs as possible from the
commercial manufacturing process through continuous improvement efforts.

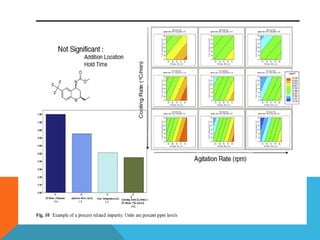

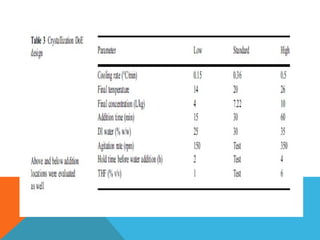

Designed experiments generate the data required to establish a design space for
commercial manufacturing processes, while providing the process understanding
that facilitates sound business decisions. First principles ofchemistry can expand
this “toolbox” to include kinetic models, computer predictive programs, and more
diverse concepts of prior knowledge.

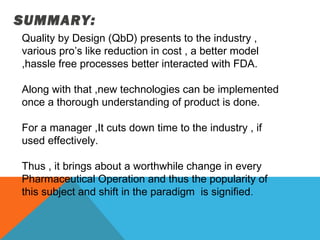

SUMMARY:
Quality by Design (QbD) presents to the industry ,
various pro’s like reduction in cost , a better model
,hassle free processes better interacted with FDA.
Along with that ,new technologies can be implemented
once a thorough understanding of product is done.
For a manager ,It cuts down time to the industry , if
used effectively.
Thus , it brings about a worthwhile change in every
Pharmaceutical Operation and thus the popularity of
this subject and shift in the paradigm is signified.

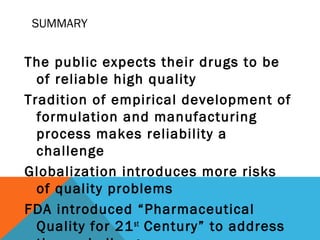

SUMMARY
The public expects their drugs to be
of reliable high quality
Tradition of empirical development of
formulation and manufacturing
process makes reliability a
challenge
Globalization introduces more risks
of quality problems
FDA introduced “Pharmaceutical
Quality for 21st Century” to address
these challenges

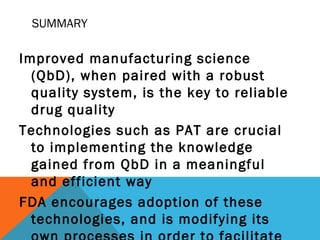

SUMMARY
Improved manufacturing science
(QbD), when paired with a robust
quality system, is the key to reliable
drug quality
Technologies such as PAT are crucial
to implementing the knowledge
gained from QbD in a meaningful
and efficient way
FDA encourages adoption of these
technologies, and is modifying its
own processes in order to facilitate

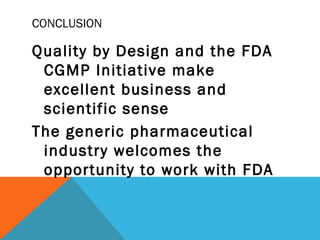

CONCLUSION
Quality by Design and the FDA
CGMP Initiative make
excellent business and
scientific sense
The generic pharmaceutical
industry welcomes the
opportunity to work with FDA
•Jun Huan et al, Quality by design case study: An integrated multivariate approach to drug product and
process development, International Journal of Pharmaceutics, 382 (2009) 23–32
•Chi –Wan Chen, Christine Moore ,Role of Statistics in Pharmaceutical Development Using Quality-by-
Design Approach – an FDA Perspective, September 27 -29, 2006.
• Lindsay I Smith A tutorial on Principal Components Analysis February 26, 2002
•Quality Risk Management (ICH Q9) EMA/INS/GMP/79766/2011.
•Http://www.ceruleanllc.com/resources/published-articles-case-studies/#qbd
• Spaceamit Mukharya et al, Quality risk management of top spray fluidized bed process for
antihypertensive drug formulation with control strategy engendered by Box-behnken experimental
design Int J Pharm Investig. 2013 Jan-Mar; 3(1): 15–28.
•Http://www.ngpharma.com/article/PAT-and-qbd-in-pharmaceutical-development/
•Http://www.drugregulations.org/2012/08/qbd-for-beginners-design-space.html?Q=qbd, qbd for
beginners part 4 , uday shetty
•Glodek, M et al., Pharm. Eng 2006, 26, 1-11.
•Rath, T, Strong, D.O., Rath & Strong's Six Sigma Pocket Guide. Lexington, AON Consulting
Worldwide, MA 2002.
•International Conference on Harmonization (ICH) of Technical Requirements for Registration of
Pharmaceuticals for human use, topicq2 (R1): Validation of Analytical Procedures: Text and
methodology, ICH, Geneva, Switzerland, 2005.
• Juran, J.M. (1992) Juran on Quality by design – The New Steps for Planning Quality into Goods and
Services,thefreepress
• Pharmaceutical development - annex ICH harmonized tripartite guideline
• Dr C. V. S. Subramanian, Quality by Design - Principles “, 29th Jan, 2013.
• Http://en.wikipedia.org/wiki/Quality_by_Design
• PAT—A Framework for Innovative Pharmaceutical Development, Manufacturing, and quality
assurance, September 2004, http://www.fda.gov/cder/guidance/6419fnl.pdf.
• Guidance for industry Q8(R2),pharmaceutical development , November 2009,ICH revision 2
• Innovation and continuous improvement in pharmaceutical manufacturing pharmaceutical cGMP for
the 21st Century, U.S. Food and Drug Administration, 2004 September, Available from:
URL:http://www.fda.gov/cder/gmp/gmp2004/manufsciwp.pdf.
• Ashwini Gawade1 et al , Pharmaceutical Quality by Design: A New Approach in Product Development.,
ISSN: 2320-1215 Research and Reviews: Journal of Pharmacy and Pharmaceutical Sciences
• International Conference on Harmonization (ICH) of Technical Requirements for Registration of
Pharmaceuticals for Human Use, topicq9: Quality Risk Management, ICH, Geneva, Switzerland, 2005.
• Purohit, k. V. Shah, Quality by design (QbD): new parameter for quality improvement & pharmaceutical
drug development vol - 4, issue - 3, supl -1 apr-jul 2013 ISSN: 0976-7908
• Yubing Tang , Quality by Design Approaches to Analytical Methods FDA Perspective, October 25,
2011, FDA/CDER/ONDQAAAPS, Washington DC
• R.Somma, “ Development Knowledge Can Increase Manufacturing Capacity and Facilitate Quality
by Design” J.Pharm.Innov. 2, 87-92 (2007)
• Naseem A et al, Quality by design approach for formulation development: A case study of dispersible
tablets, International Journal of Pharmaceutics, December 2011.
• Jun Huang, et al , Quality by design case study: An integrated multivariate approach to drug product and
process development, International Journal of Pharmaceutics, 382 (2009) 23–32
• Jessy Shaji and Shital Lodha Response Surface Methodology for the Optimization of Celecoxib Self-microemulsifying
Drug delivery System , Indian J Pharm Sci. 2008 Sep-Oct; 70(5): 585–590
10.4103/0250-474X.45395PMCID: PMC3038281
THANKYOU
DR ANTHONY CRASTO
amcrasto@gmail.com
http://newdrugapprovals.org/

More Related Content

What's hot

EU Variations & Renewals
EU Variations & RenewalsEU Variations & Renewals
EU Variations & Renewals
Sachin Chede

Gmp & c gmp considerations training questionary
Gmp & c gmp considerations training questionaryGmp & c gmp considerations training questionary
Gmp & c gmp considerations training questionary
MANEESH KUMAR SINGH


What's hot (20)

ICH- Q3 Impurity
ICH- Q3 ImpurityICH- Q3 Impurity
ICH- Q3 Impurity

EU Variations & Renewals
EU Variations & RenewalsEU Variations & Renewals
EU Variations & Renewals

Pharmaceutical Quality System
Pharmaceutical Quality System Pharmaceutical Quality System
Pharmaceutical Quality System

21 CFR Part 58 & Data integrity
21 CFR Part 58 & Data integrity21 CFR Part 58 & Data integrity
21 CFR Part 58 & Data integrity

Product Registration Guidlines
Product Registration GuidlinesProduct Registration Guidlines
Product Registration Guidlines

Ich q3 d elemental impurities
Ich q3 d elemental impuritiesIch q3 d elemental impurities
Ich q3 d elemental impurities

Good distribution practices for API's
Good distribution practices for API'sGood distribution practices for API's
Good distribution practices for API's

ICH Guideline – Q9
ICH Guideline – Q9ICH Guideline – Q9
ICH Guideline – Q9

Gmp & c gmp considerations training questionary
Gmp & c gmp considerations training questionaryGmp & c gmp considerations training questionary
Gmp & c gmp considerations training questionary

Case study on Out of Specification (OOS).
Case study on Out of Specification (OOS).Case study on Out of Specification (OOS).
Case study on Out of Specification (OOS).

Good lab practices (GLP)
Good lab practices (GLP)Good lab practices (GLP)
Good lab practices (GLP)

CDER
CDERCDER
CDER

Therapeutic goods adminstration
Therapeutic goods adminstration   Therapeutic goods adminstration
Therapeutic goods adminstration

Good Automated Laboratory Practices
Good Automated Laboratory PracticesGood Automated Laboratory Practices
Good Automated Laboratory Practices

USFDA guidelines on process validation a life cycle approach
USFDA guidelines on process validation a life cycle approachUSFDA guidelines on process validation a life cycle approach
USFDA guidelines on process validation a life cycle approach

regulatory aspects of pharma
regulatory aspects of pharmaregulatory aspects of pharma
regulatory aspects of pharma

GOOD MANUFACTURING PRACTICE
GOOD MANUFACTURING PRACTICEGOOD MANUFACTURING PRACTICE
GOOD MANUFACTURING PRACTICE

GLP 21 CFR part 58
GLP 21 CFR part 58GLP 21 CFR part 58
GLP 21 CFR part 58

ICH Q10 guideline.pptx
ICH Q10 guideline.pptxICH Q10 guideline.pptx
ICH Q10 guideline.pptx

FDA 483 observations in the lab
FDA 483 observations in the labFDA 483 observations in the lab
FDA 483 observations in the lab


Viewers also liked

Quality by-Design (QbD) by Mr. Nitin Kadam.
Quality by-Design (QbD) by Mr. Nitin Kadam.Quality by-Design (QbD) by Mr. Nitin Kadam.
Quality by-Design (QbD) by Mr. Nitin Kadam.
Nitin Kadam


Viewers also liked (20)

Quality by-Design (QbD) by Mr. Nitin Kadam.
Quality by-Design (QbD) by Mr. Nitin Kadam.Quality by-Design (QbD) by Mr. Nitin Kadam.
Quality by-Design (QbD) by Mr. Nitin Kadam.

Quality by Design
Quality by DesignQuality by Design
Quality by Design

QbD and PAT Presentation
QbD and PAT PresentationQbD and PAT Presentation
QbD and PAT Presentation

Quality by Design : Control strategy
Quality by Design : Control strategyQuality by Design : Control strategy
Quality by Design : Control strategy

Quality by Design : Design of experiments
Quality by Design : Design of experimentsQuality by Design : Design of experiments
Quality by Design : Design of experiments

Quality by Design : Quality Target Product Profile & Critical Quality Attrib...
Quality by Design : Quality Target Product  Profile & Critical Quality Attrib...Quality by Design : Quality Target Product  Profile & Critical Quality Attrib...
Quality by Design : Quality Target Product Profile & Critical Quality Attrib...

Quality by Design : Critical Material attributes ,Process parameters and its ...
Quality by Design : Critical Material attributes ,Process parameters and its ...Quality by Design : Critical Material attributes ,Process parameters and its ...
Quality by Design : Critical Material attributes ,Process parameters and its ...

Pharmaceutical Quality by Design: Review of Progress and Challenges
Pharmaceutical Quality by Design: Review of Progress and ChallengesPharmaceutical Quality by Design: Review of Progress and Challenges
Pharmaceutical Quality by Design: Review of Progress and Challenges

Quality by design ( QbD)
Quality by design ( QbD)Quality by design ( QbD)
Quality by design ( QbD)

Quality by design for Pharmaceutical Industries: An introduction
Quality by design for Pharmaceutical Industries: An introductionQuality by design for Pharmaceutical Industries: An introduction
Quality by design for Pharmaceutical Industries: An introduction

Quality by design
Quality by design Quality by design
Quality by design

Quality by Design
Quality by DesignQuality by Design
Quality by Design

Quality by Design : Design Space
Quality by Design :  Design SpaceQuality by Design :  Design Space
Quality by Design : Design Space

Accelerating Generic Approvals by Dr Anthony Crasto
Accelerating Generic Approvals by Dr Anthony CrastoAccelerating Generic Approvals by Dr Anthony Crasto
Accelerating Generic Approvals by Dr Anthony Crasto

Quality By Design
Quality By DesignQuality By Design
Quality By Design

Quality-by-Design by chattar
Quality-by-Design by chattarQuality-by-Design by chattar
Quality-by-Design by chattar

Sreeni Labs Profile
Sreeni Labs ProfileSreeni Labs Profile
Sreeni Labs Profile

Quality by design
Quality by designQuality by design
Quality by design

ICH GUIDELINES
ICH GUIDELINESICH GUIDELINES
ICH GUIDELINES

Optimizing Developer Efficiency Through API Design
Optimizing Developer Efficiency Through API DesignOptimizing Developer Efficiency Through API Design
Optimizing Developer Efficiency Through API Design


Similar to Qbd by Anthony Melvin Crasto for API

PharmaceuticalQuality by Design (QbD) An Introduction Process Development a...
PharmaceuticalQuality by Design (QbD)   An Introduction Process Development a...PharmaceuticalQuality by Design (QbD)   An Introduction Process Development a...
PharmaceuticalQuality by Design (QbD) An Introduction Process Development a...
Bachu Sreekanth

New approach to Process Validation 4
New approach to Process Validation 4New approach to Process Validation 4
New approach to Process Validation 4
Santosh Singh

Quality by Design - Novelty in pharmaceuticals
Quality by Design - Novelty in pharmaceuticals Quality by Design - Novelty in pharmaceuticals
Quality by Design - Novelty in pharmaceuticals
Vignan University


Similar to Qbd by Anthony Melvin Crasto for API (20)

Quality by design
Quality by design Quality by design
Quality by design

QUALITY BY DESIGN PPT BY GIRIJA
QUALITY BY DESIGN PPT BY GIRIJAQUALITY BY DESIGN PPT BY GIRIJA
QUALITY BY DESIGN PPT BY GIRIJA

Pharmaceutical Quality by Design (QBD)
Pharmaceutical Quality by Design (QBD)Pharmaceutical Quality by Design (QBD)
Pharmaceutical Quality by Design (QBD)

Quality by Design
Quality by DesignQuality by Design
Quality by Design

PharmaceuticalQuality by Design (QbD) An Introduction Process Development a...
PharmaceuticalQuality by Design (QbD)   An Introduction Process Development a...PharmaceuticalQuality by Design (QbD)   An Introduction Process Development a...
PharmaceuticalQuality by Design (QbD) An Introduction Process Development a...

Quality by design
Quality by designQuality by design
Quality by design

New approach to Process Validation 4
New approach to Process Validation 4New approach to Process Validation 4
New approach to Process Validation 4

Quality by Design in Pharmaceutical Development
Quality by Design in Pharmaceutical DevelopmentQuality by Design in Pharmaceutical Development
Quality by Design in Pharmaceutical Development

Quality by design (qbd)
Quality by design (qbd)Quality by design (qbd)
Quality by design (qbd)

Qb D Akhilesh Dwivedi
Qb D Akhilesh DwivediQb D Akhilesh Dwivedi
Qb D Akhilesh Dwivedi

presentation
presentationpresentation
presentation

QUALITY BY DESIGN
QUALITY BY DESIGNQUALITY BY DESIGN
QUALITY BY DESIGN

Quality by Design - Novelty in pharmaceuticals
Quality by Design - Novelty in pharmaceuticals Quality by Design - Novelty in pharmaceuticals
Quality by Design - Novelty in pharmaceuticals

Pharmaceutical Quality by Design (QbD)
Pharmaceutical Quality by Design (QbD)Pharmaceutical Quality by Design (QbD)
Pharmaceutical Quality by Design (QbD)

“LET US KNOW ABOUT QUALITY BY DESIGN IN PHARMACEUTICAL INDUSTRY”
“LET US KNOW ABOUT QUALITY BY DESIGN IN PHARMACEUTICAL INDUSTRY”“LET US KNOW ABOUT QUALITY BY DESIGN IN PHARMACEUTICAL INDUSTRY”
“LET US KNOW ABOUT QUALITY BY DESIGN IN PHARMACEUTICAL INDUSTRY”

Quality by Design.pptx
Quality by Design.pptxQuality by Design.pptx
Quality by Design.pptx

Quality by design (qb d).
Quality by design (qb d).Quality by design (qb d).
Quality by design (qb d).

Quality by design (QbD)
Quality by design (QbD)Quality by design (QbD)
Quality by design (QbD)

REGULATORY AND INDUSTRY VIEWS ON QbD (1).pptx
REGULATORY AND INDUSTRY VIEWS ON QbD (1).pptxREGULATORY AND INDUSTRY VIEWS ON QbD (1).pptx
REGULATORY AND INDUSTRY VIEWS ON QbD (1).pptx

Regulatory and industrial view on Quality by design ..CADD
Regulatory and industrial view on Quality by design ..CADDRegulatory and industrial view on Quality by design ..CADD
Regulatory and industrial view on Quality by design ..CADD


More from Anthony Melvin Crasto Ph.D

More from Anthony Melvin Crasto Ph.D (20)

What are Supergenerics
What are SupergenericsWhat are Supergenerics
What are Supergenerics

C-C Cross Coupling Reactions in Organic chemistry by Anthony crasto
C-C Cross Coupling Reactions in Organic chemistry by Anthony crastoC-C Cross Coupling Reactions in Organic chemistry by Anthony crasto
C-C Cross Coupling Reactions in Organic chemistry by Anthony crasto

13 C NMR Spectroscopy with examples by Dr Anthony Crasto
13 C NMR Spectroscopy with examples by Dr Anthony Crasto13 C NMR Spectroscopy with examples by Dr Anthony Crasto
13 C NMR Spectroscopy with examples by Dr Anthony Crasto

13 C NMR Spectroscopy by Dr Anthony Melvin Crasto
13 C NMR Spectroscopy by Dr Anthony Melvin Crasto13 C NMR Spectroscopy by Dr Anthony Melvin Crasto
13 C NMR Spectroscopy by Dr Anthony Melvin Crasto

Drug discovery hit to lead
Drug discovery hit to leadDrug discovery hit to lead
Drug discovery hit to lead

2D NMR ORGANIC SPECTROSCOPY by DR ANTHONY CRASTO
2D NMR ORGANIC SPECTROSCOPY by DR ANTHONY CRASTO2D NMR ORGANIC SPECTROSCOPY by DR ANTHONY CRASTO
2D NMR ORGANIC SPECTROSCOPY by DR ANTHONY CRASTO

What is IP, Patents in Pharma Industry
What is IP, Patents in Pharma IndustryWhat is IP, Patents in Pharma Industry
What is IP, Patents in Pharma Industry

DR ANTHONY MELVIN CRASTO
DR ANTHONY MELVIN CRASTODR ANTHONY MELVIN CRASTO
DR ANTHONY MELVIN CRASTO

NDA ANDA IND by Anthony Crasto
NDA ANDA IND by Anthony CrastoNDA ANDA IND by Anthony Crasto
NDA ANDA IND by Anthony Crasto

ABBREVIATED NEW DRUG APPLICATION (ANDA) by Anthony crasto
ABBREVIATED NEW DRUG APPLICATION (ANDA) by Anthony crastoABBREVIATED NEW DRUG APPLICATION (ANDA) by Anthony crasto
ABBREVIATED NEW DRUG APPLICATION (ANDA) by Anthony crasto

Anti viral-drug synthesis by Dr Anthony Crasto
Anti viral-drug synthesis by Dr Anthony CrastoAnti viral-drug synthesis by Dr Anthony Crasto
Anti viral-drug synthesis by Dr Anthony Crasto

DMF by Anthony Crasto
DMF by Anthony CrastoDMF by Anthony Crasto
DMF by Anthony Crasto

FDA’s drug review process
FDA’s drug review processFDA’s drug review process
FDA’s drug review process

The magic of cubane
The magic of cubaneThe magic of cubane
The magic of cubane

Nanoputians
NanoputiansNanoputians
Nanoputians

How to handle drug polymorphs... case study of trelagliptin succinate
How to handle drug polymorphs... case study of trelagliptin succinateHow to handle drug polymorphs... case study of trelagliptin succinate
How to handle drug polymorphs... case study of trelagliptin succinate

Benazepril Synthesis by Dr Anthony Crasto
Benazepril Synthesis  by Dr Anthony CrastoBenazepril Synthesis  by Dr Anthony Crasto
Benazepril Synthesis by Dr Anthony Crasto

Drug discovery anthony crasto
Drug discovery  anthony crastoDrug discovery  anthony crasto
Drug discovery anthony crasto

Sildenafil by Anthony Crasto
Sildenafil by Anthony CrastoSildenafil by Anthony Crasto
Sildenafil by Anthony Crasto

Anthony crasto flavors and fragrances
Anthony crasto  flavors and fragrancesAnthony crasto  flavors and fragrances
Anthony crasto flavors and fragrances


Recently uploaded

Recently uploaded (20)

TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...
TEST BANK For Lewis's Medical Surgical Nursing in Canada, 4th Edition by Jane...

SURGICAL ANATOMY OF ORAL IMPLANTOLOGY.pptx
SURGICAL ANATOMY OF ORAL IMPLANTOLOGY.pptxSURGICAL ANATOMY OF ORAL IMPLANTOLOGY.pptx
SURGICAL ANATOMY OF ORAL IMPLANTOLOGY.pptx

Is Rheumatoid Arthritis a Metabolic Disorder.pptx
Is Rheumatoid Arthritis a Metabolic Disorder.pptxIs Rheumatoid Arthritis a Metabolic Disorder.pptx
Is Rheumatoid Arthritis a Metabolic Disorder.pptx

PT MANAGEMENT OF URINARY INCONTINENCE.pptx
PT MANAGEMENT OF URINARY INCONTINENCE.pptxPT MANAGEMENT OF URINARY INCONTINENCE.pptx
PT MANAGEMENT OF URINARY INCONTINENCE.pptx

Why invest into infodemic management in health emergencies
Why invest into infodemic management in health emergenciesWhy invest into infodemic management in health emergencies
Why invest into infodemic management in health emergencies

Compare home pulse pressure components collected directly from home
Compare home pulse pressure components collected directly from homeCompare home pulse pressure components collected directly from home
Compare home pulse pressure components collected directly from home

TUBERCULINUM-2.BHMS.MATERIA MEDICA.HOMOEOPATHY
TUBERCULINUM-2.BHMS.MATERIA MEDICA.HOMOEOPATHYTUBERCULINUM-2.BHMS.MATERIA MEDICA.HOMOEOPATHY
TUBERCULINUM-2.BHMS.MATERIA MEDICA.HOMOEOPATHY

Multiple sclerosis diet.230524.ppt3.pptx
Multiple sclerosis diet.230524.ppt3.pptxMultiple sclerosis diet.230524.ppt3.pptx
Multiple sclerosis diet.230524.ppt3.pptx

Scientificity and feasibility study of non-invasive central arterial pressure...
Scientificity and feasibility study of non-invasive central arterial pressure...Scientificity and feasibility study of non-invasive central arterial pressure...
Scientificity and feasibility study of non-invasive central arterial pressure...

5CL-ADB powder supplier 5cl adb 5cladba 5cl raw materials vendor on sale now
5CL-ADB powder supplier 5cl adb 5cladba 5cl raw materials vendor on sale now5CL-ADB powder supplier 5cl adb 5cladba 5cl raw materials vendor on sale now
5CL-ADB powder supplier 5cl adb 5cladba 5cl raw materials vendor on sale now

DIGITAL RADIOGRAPHY-SABBU KHATOON .pptx
DIGITAL RADIOGRAPHY-SABBU KHATOON  .pptxDIGITAL RADIOGRAPHY-SABBU KHATOON  .pptx
DIGITAL RADIOGRAPHY-SABBU KHATOON .pptx

The Orbit & its contents by Dr. Rabia I. Gandapore.pptx
The Orbit & its contents by Dr. Rabia I. Gandapore.pptxThe Orbit & its contents by Dr. Rabia I. Gandapore.pptx
The Orbit & its contents by Dr. Rabia I. Gandapore.pptx

Hemodialysis: Chapter 1, Physiological Principles of Hemodialysis - Dr.Gawad
Hemodialysis: Chapter 1, Physiological Principles of Hemodialysis - Dr.GawadHemodialysis: Chapter 1, Physiological Principles of Hemodialysis - Dr.Gawad
Hemodialysis: Chapter 1, Physiological Principles of Hemodialysis - Dr.Gawad

Cas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best suppler
Cas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best supplerCas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best suppler
Cas 28578-16-7 PMK ethyl glycidate ( new PMK powder) best suppler

Book Trailer: PGMEE in a Nutshell (CEE MD/MS PG Entrance Examination)
Book Trailer: PGMEE in a Nutshell (CEE MD/MS PG Entrance Examination)Book Trailer: PGMEE in a Nutshell (CEE MD/MS PG Entrance Examination)
Book Trailer: PGMEE in a Nutshell (CEE MD/MS PG Entrance Examination)

Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالةGallbladder Double-Diverticular: A Case Report  المرارة مزدوجة التج: تقرير حالة
Gallbladder Double-Diverticular: A Case Report المرارة مزدوجة التج: تقرير حالة

TEST BANK for The Nursing Assistant Acute, Subacute, and Long-Term Care, 6th ...
TEST BANK for The Nursing Assistant Acute, Subacute, and Long-Term Care, 6th ...TEST BANK for The Nursing Assistant Acute, Subacute, and Long-Term Care, 6th ...
TEST BANK for The Nursing Assistant Acute, Subacute, and Long-Term Care, 6th ...

In-service education (Nursing Mangement)
In-service education (Nursing Mangement)In-service education (Nursing Mangement)
In-service education (Nursing Mangement)

PREPARATION FOR EXAMINATION FON II .pptx
PREPARATION FOR EXAMINATION FON II .pptxPREPARATION FOR EXAMINATION FON II .pptx
PREPARATION FOR EXAMINATION FON II .pptx

linearity concept of significance, standard deviation, chi square test, stude...
linearity concept of significance, standard deviation, chi square test, stude...linearity concept of significance, standard deviation, chi square test, stude...
linearity concept of significance, standard deviation, chi square test, stude...


Qbd by Anthony Melvin Crasto for API

  • 1. QUALITY BY DESIGN (QBD) IN API DR ANTHONY CRASTO 1
  • 2. THE QUALITY MANTRA “Quality can not be tested into products; it has to be built in by design” Joseph M Juran
  • 3. WHAT IS QUALITY BY DESIGN? “You can’t test quality into drug products” has been heard for decades – so what’s new? It’s a culture - incorporates quality principles as well as strong compliance function Incorporates risk assessment and management Refocuses attention and resources on what’s important to the customer, i.e. the patients, health professionals, payors and distribution chain
  • 4. QUALITY BY DESIGN Continuous improvement is a hallmark of quality by design G. Taguchi on Robust Design: design changes during manufacture can result in the last product produced being different from the first product In pharmaceutical manufacturing, we don’t want this – patients and physicians must count on each batch of drug working just like the batches that came before
  • 5. QUALITY BY DESIGN In generic pharmaceutical manufacturing, there are additional constraints  Fixed bioequivalence targets  Regulatory requirements to duplicate formulation of innovator drug  Lack of access to innovator development data
  • 6. LEAD POINTS 1. QbD Basic concept 2. Steps in QbD 3. DoE as a tool for QbD 4. Example Torcetrapib 5. Pros and cons 6. Conclusion
  • 7. WHAT IS QUALITY? Quality Patient Target Product Quality Profile Requirements = need or expectations “Good pharmaceutical quality represents an acceptably low risk of failing to achieve the desired quality attributes.”
  • 8. DEFINITION: QUALITY BY DESIGN Quality by Design is a systematic approach to development that begins with predefined objectives and emphasizes - product and process understanding - and process control, based on sound science and quality risk management.
  • 9. THE REVOLUTION IN QUALITY THINKING Quality by Testing and Inspection Enhanced • product knowledge • process understanding Quality by Design quality assured by well designed product & process
  • 10. INTRODUCED BY FDA IN 2002 ICH Q8 + ICH Q9 + ICHQ10 Pharmaceutical Quality Risk Quality Development Management Management = Quality by Design Quality by Design – GMP for the 21st Century Merck & Co’s Januvia (2006) : first FDA approved product
  • 11. QUALITY BY DESIGN (QBD) Myth : An expensive development tool ! Fact : A tool that makes product development and commercial scale manufacturing simple ! Actually saves money ! How ?
  • 12. OUTLINE FDA initiatives for quality  The desired state  Quality by design (QbD) and design space (ICH Q8) Application of statistical tools in QbD  Design of experiments  Model building & evaluation  Statistical process control
  • 13. FDA’S INITIATIVE ON QUALITY BY DESIGN In a Quality-by-Design system:  The product is designed to meet patient requirements  The process is designed to consistently meet product critical quality attributes  The impact of formulation components and process parameters on product quality is understood  Critical sources of process variability are identified and controlled  The process is continually monitored and updated to assure consistent quality over time
  • 15.
  • 16. Pros and Cons • Scientific understanding • Holistic approach • Less data to manage • Meaningful data • Fewer non conformances • Lean processes – more cost efficient • Better control of process • Continuous improvement • Managed based on risk • Patient first approach • Up to 30% savings* • New concept – hard to get buy in • Just starting to be recognised by authorities • Culture change • Investment up front • Time to get to know process and product • Difficult to apply retrospectively
  • 17. DESIGN SPACE (ICH Q8) Definition: The multidimensional combination and interaction of input variables (e.g., material attributes) and process parameters that have been demonstrated to provide assurance of quality Working within the design space is not considered as a change. Movement out of the design space is considered to be a change and would normally initiate a regulatory post-approval change process. Design space is proposed by the applicant and is subject to regulatory assessment and approval
  • 18. ICH Q9 QUALITY RISK MANAGEMENT The primary objective is to find a harmful event in the process Initiate Quality Risk Management Process The new language 1.Risk Assessment 2. Risk Control Output / Result of the Quality Risk Management Process 4. Risk Review Formal Risk Management Process
  • 19. CURRENT VS. QBD APPROACH TO PHARMACEUTICAL DEVELOPMENT Current Approach QbD Approach Quality assured by testing and inspection Quality built into product & process by design, based on scientific understanding Data intensive submission – disjointed information without “big picture” Knowledge rich submission – showing product knowledge & process understanding Specifications based on batch history Specifications based on product performance requirements “Frozen process,” discouraging changes Flexible process within design space, allowing continuous improvement Focus on reproducibility – often avoiding or ignoring variation Focus on robustness – understanding and controlling variation
  • 20. MAPPING THE LINKAGE Input Output M1 M2 Material Attributes P1 P2 P3 CQA1 CQA2 CQA3 Relationships: CQA1 = function (M1) CQA2 = function (P1, P3) CQA3 = function (M1, M2, P1) P2 might not be needed in the establishment of design space Process Parameters Critical Quality Attributes
  • 21. PHARMACEUTICAL DEVELOPMENT & PRODUCT LIFECYCLE Product Design & Development Candidate Selection Process Design & Development Manufacturing Development Continuous Improvement Product Approval
  • 22.
  • 23. Design of Experiments (DOE) Model Building And Evaluation Process Design & Development: Initial Scoping Process Characterization Process Optimization Process Robustness Statistical Tool Product Design & Development: Initial Scoping Product Characterization Product Optimization Manufacturing Development and Continuous Improvement: Develop Control Systems Scale-up Prediction Tracking and trending Statistical Process Control Pharmaceutical Development & Product Lifecycle
  • 24. BACKGROUND OF FDA’S “PHARMACEUTICAL QUALITY FOR THE 21ST CENTURY INITIATIVE In 2002, FDA identified a series of ongoing problems and issues in pharmaceutical manufacturing that traditional approaches had not solved FDA undertook an internal and external assessment of the causes As a result, the agency started a major change initiative that is continuing Stimulating more use of PAT was an early component of initiative
  • 25. STATE OF REGULATION CIRCA 2002 Pharmaceutical manufacturing HIGHLY regulated (e.g., compared to foods, fine chemicals) Cost of cGMP compliance very high Despite this: process efficiency and effectiveness low (high wastage and rework); and level of technology not comparable to other industries
  • 26. FUNCTIONAL CONSEQUENCES Inability to predict effects of scale-up Lack of agility – usually takes years to bring up a new production site Operations fragmented around globe Inability to understand reasons for manufacturing failures
  • 27. RESULT: FOR REGULATORS Extensive oversight of manufacturing resource-intensive (in era of cost reductions and increased mandates) Expensive and time-consuming litigation and legal actions in cGMP area Need to deal with recalls and shortages of medically necessary drugs
  • 28. RESULT: FOR INDUSTRY Culture: antithesis of “continuous improvement” Less focus on quality, more on compliance Regulatory burden high and costly, but not viewed as contributing to better science Consequences of noncompliance: potentially catastrophic Lack of innovation: “test but don’t tell”
  • 29. OUTCOMES • High cost of production for products due to – Low efficiencies in manufacturing – Waste – Long manufacturing cycle times based on testing requirements during production • Drug shortages due to inability to manufacture • Lack of improvements based on new technologies • Slowed development/access for investigational drugs • Need for intensive regulatory oversight
  • 30. FDA NEEDED TO MODERNIZE PHARMACEUTICAL MANUFACTURING REGULATION • More than 40 years ago, Congress required that all drugs must be produced in accordance with Current Good Manufacturing Practice (cGMP). • Requirement was intended to address significant concerns about substandard drug manufacturing practices by applying quality assurance and quality control principles to drug manufacturing. • Last comprehensive revisions to the regulations implementing cGMP requirements occurred over 25 years ago. • The initiative was started in August 2002 as the Pharmaceutical cGMPs for the 21st Century - A Risk- Based Approach initiative to enhance and modernize the regulation of pharmaceutical manufacturing and product quality — to bring a 21st century focus to this critical FDA responsibility.
  • 31. THE DESIRED STATE: A MUTUAL GOAL OF INDUSTRY, SOCIETY AND THE REGULATORS A maximally efficient, agile, flexible pharmaceutical manufacturing sector that reliably produces high quality drug products without extensive regulatory oversight Qbd on cleaning
  • 32. GUIDANCE FOR INDUSTRY: QUALITY SYSTEMS APPROACH TO PHARMACEUTICAL CGMP REGULATIONS Help manufacturers bridge between 1978 regulations and modern quality systems and risk management approaches Extends beyond CGMP expectations; however, does not create requirements on manufacturers. Implementation of this model should ensure compliance and encourage use of science, risk management and other principles of the 21st Century Initiative. “When fully developed and effectively managed, a quality system will Describes lead a to comprehensive consistent, predictable quality processes system that ensure model that and how CGMP regulations link to QS elements pharmaceuticals are safe, effective, and available for the consumer.”
  • 33. QUALITY SYSTEMS : IMPLEMENTATION AND INTERNATIONAL DEVELOPMENT AS THE PQS • Manufacturers with a robust quality system and appropriate process knowledge can implement many types of improvements and take responsibility for quality –Eliminate most of the burden of CMC post approval regulatory submissions –Allow for more focused and fewer FDA inspections –Adoption by industry is starting to take hold – fewer deviations, cost savings in manufacturing • ICH adopted this concept as Q 10 Pharmaceutical Quality System (PQS) to fulfill the ICH Quality Vision –Covers the product lifecycle from pharmaceutical development, tech transfer, commercial manufacturing, to discontinuation –Focuses on the commercial manufacturing process, predicted by development and utilizes knowledge for process improvement and future development
  • 34. INTERNATIONAL HARMONIZATION In addition to Q10, Quality Systems: Q8 Pharmaceutical Development Q9 Quality Risk Management
  • 35. HEPARIN WAS A WAKEUP CALL • Up to 30% contamination of finished product • Present worldwide in various APIs: many countries affected • Undetected by acceptance and release testing • Persisted in drug supply until serious adverse events triggered investigation • Brought home the need for vigilance throughout supply chain and in all global settings
  • 36. SIGNIFICANT CHALLENGES FOR BOTH MANUFACTURERS AND FDA • Explosion of globalized manufacturing • Increased complexity of supply chains • Greater potential for exploitation (e.g., counterfeits, terrorism) • Global regulatory system still fragmented • (US) Erosion of inspectional coverage over last several decades • (US) Lack of modern IT (e.g., registration and listing systems, inspection tracking, imports)
  • 37. IMPROVEMENTS STARTED IN 21ST CENTURY INITIATIVE ARE CRITICAL Global harmonization of manufacturing standards Continuous improvement in manufacturing science Application of quality risk management Quality by design
  • 38. ROLE OF THIS PAT WORKSHOP Gathering of academics, pharmaceutical industry, FDA, PAT equipment manufacturers Goal: update on use of the technology, present case studies, understand barriers to more widespread adoption Understanding of how PAT fits into the future of quality by design
  • 39. QUALITY BY DESIGN APPROACH CAN BE USED FOR
  • 40. STEPS IN A QUALITY BY DESIGN APPROACH? 1.QUALITY TARGET PRODUCT PROFILE 1.QUALITY TARGET PRODUCT PROFILE 2. CRITICAL QUALITY ATTRIBUTES 2. CRITICAL QUALITY ATTRIBUTES 6. PRODUCT LIFECYCLE MNGMNT 6. PRODUCT LIFECYCLE MNGMNT 3. LINK 3. LINK MAs AND PPs TO CQAS MAs AND PPs TO CQAS 4. ESTABLISH DESIGN 4. ESTABLISH DESIGN 5. ESTABLISH CONTROL STRATEGY 5. ESTABLISH CONTROL STRATEGY SPACE SPACE
  • 41. STEP1 : QUALITY TARGET PRODUCT PROFILE (QTPP) Target Product Profile: - a prospective and dynamic summary of the quality characteristics of a drug product - that ideally will be achieved to ensure that the desired quality, and hence the safety and efficacy, of a drug product is realized. The TPP forms the basis of design of the product.
  • 42. STEP 2. DETERMINE THE CRITICAL QUALITY ATTRIBUTES (CQAS) - DEFINITION A critical quality attribute (CQA) is a - physical, chemical, biological, or microbiological property or characteristic - that should be within an appropriate limit, range, or distribution - to ensure the desired product quality.
  • 43. STEP 2. DETERMINE THE CRITICAL QUALITY ATTRIBUTES (CQAS) Drug product CQAs are used to guide the product and process development.  SOLID ORAL DOSAGE FORMS:  Particle size  Polymorphic form  Water content  Residual solvent  Organic and inorganic impurities  OTHER DELIVERY SYSTEMS:  Include more product specific aspects, such as  Sterility for Parenteral,  Adhesive force for transdermal patches.
  • 44. STEP 3. LINK THE DRUG AND EXCIPIENTS ATTRIBUTES AND THE PROCESS PARAMETERS TO THE CQAS People I Chart Process Parameters Equipment Measurement Process Materials Environment INPUTS (X) Quality Attributes y = ƒ(x) Inputs to the process control variability of the Output y UCL=114.17 OUTPUT Observat ion Observat ion Observat ion Observat ion Individual Value 20 22 24 26 28 30 32 34 36 38 40 120 115 110 105 100 95 90 UCL=111.55 UCL=112.65 UCL=112.65 UCL=116.68 _ X=102.37 LCL=88.05 I Chart Individual Value 40 42 44 46 48 50 52 54 56 58 60 115 110 105 100 95 90 85 80 _ X=97.94 LCL=83.23 I Chart Observat ion Individual Value 60 62 64 66 68 70 72 74 76 78 80 115 110 105 100 95 90 UCL=111.55 _ X=99.63 LCL=87.71 I Chart Observat ion Individual Value 80 82 84 86 88 90 92 94 96 98 100 110 105 100 95 90 85 UCL=111.17 _ X=98.76 LCL=86.35 I Chart Individual Value 40 42 44 46 48 50 52 54 56 58 60 115 110 105 100 95 90 85 80 _ X=97.94 LCL=83.23 I Chart Individual Value 60 62 64 66 68 70 72 74 76 78 80 115 110 105 100 95 90 _ X=99.63 LCL=87.71 Observat ion Indiv idual Value 1 11 21 31 41 51 61 71 81 91 115 110 105 100 95 90 85 _ X=99.95 LCL=85.72 I Char t 4 DESIGN SPACE ………..LATER
  • 45. STEP 5. CONTROL STRATEGY Elements of a control strategy can include, but are not limited to, the following: • Control of input material attributes based on an understanding of their impact on process ability or product quality • Product specification(s) • Controls for unit operations that have an impact on downstream processing or end-product quality • In-process or real-time release in lieu of end-product testing
  • 46. STEP 5. DEFINE THE CONTROL STRATEGY The control strategy should describe and justify how • in-process controls and • the controls of - input materials (drug substance and excipients), - container closure system, - intermediates and • the controls of end products contribute to the final product quality
  • 47. TOOLS FOR RISK MANAGEMENT Preliminary hazard analysis ( PHA) Failure mode effect and criticality analysis ( FMECA) Risk ranking Risk filtering
  • 48. BETTER PROCESSES UNDERSTANDING WILL LEAD TO PRODUCTS WITH LESS VARIABILITY
  • 49. What are the steps in a Quality by Design approach? 1.QUALITY TARGET PRODUCT PROFILE 1.QUALITY TARGET PRODUCT PROFILE 2. CRITICAL QUALITY ATTRIBUTES 2. CRITICAL QUALITY ATTRIBUTES 6. PRODUCT LIFECYCLE MNGMNT 6. PRODUCT LIFECYCLE MNGMNT 3. LINK 3. LINK MAs AND PPs TO CQAS MAs AND PPs TO CQAS 4. ESTABLISH DESIGN 4. ESTABLISH DESIGN 5. ESTABLISH CONTROL STRATEGY SPACE 5. ESTABLISH CONTROL STRATEGY SPACE
  • 50. DEFINITION OF DESIGN SPACE • The material attributes and process parameters that assure quality. • The multidimensional combination and interaction of input variables (e.g. material attributes) and • process parameters that have been demonstrated to provide assurance of quality.
  • 51.
  • 52. STEPS IN A QUALITY BY DESIGN APPROACH? 1.QUALITY TARGET PRODUCT PROFILE 1.QUALITY TARGET PRODUCT PROFILE 2. CRITICAL QUALITY ATTRIBUTES 2. CRITICAL QUALITY ATTRIBUTES 6. PRODUCT LIFECYCLE MNGMNT 6. PRODUCT LIFECYCLE MNGMNT 3. LINK 3. LINK MAs AND PPs TO CQAS MAs AND PPs TO CQAS 4. ESTABLISH DESIGN 4. ESTABLISH DESIGN 5. ESTABLISH CONTROL STRATEGY 5. ESTABLISH CONTROL STRATEGY SPACE SPACE
  • 53. Knowledge Space Design Space Control Space CONTROL SPACE
  • 54. DESIGN OF EXPERIMENTS (DOE) Structured, organized method for determining the relationship between factors affecting a process and the response of that process Application of DOEs:  Scope out initial formulation or process design  Optimize product or process  Determine design space, including multivariate relationships
  • 55. DOE METHODOLOGY (1) Choose experimental design (e.g., full factorial, d-optimal) (2) Conduct randomized experiments (4) Create multidimensional surface model (for optimization or control) (3) Analyze data Experiment Factor A Factor B Factor C 1 + - - 2 - + - 3 + + + 4 + - + A B C www.minitab.com
  • 56. A DOE IS USEFUL TO Identify important factors Establish process stability Find best operating conditions
  • 57. Graphical Analysis Geo-Gram: The geo-gram is a geometrical representation of the data. The shape is determined by the number of factors ( i.e. 2 factors is a square, 3 factors is a cube), the number of levels and the distance between levels. SQUARE GEO-GRAM 35 47 41 50 + Temp B - + Time A - This defines the inference space or the experimental boundaries of your experiment within your process.
  • 58. 1a Response ssuurrffaaccee pplloott CCoonnttoouurr pplloott
  • 59. Pre-formulation studies QbD Literature review formulation QC and Evaluatio n Out Product Current approach:- • Quality assured by testing and inspection • Data intensive submission • Specifications based on batch history • “Frozen process,” discouraging changes • Focus on reproducibility – often avoiding or ignoring variation QbD Approach:- • Quality built into product & process by design, based on scientific understanding • Knowledge rich submission – showing product knowledge & process understanding • Specifications based on product performance requirements • Flexible process within design space, allowing continuous improvement • Focus on robustness – understanding and controlling variation QbD replaces QbT( Quality by Testing)
  • 60. Experimental Approach for Identifying Parameters Design of Experiments (DOE) is an efficient method to determine relevant parameters and interactions 1. Choose Experimental Design (e.g., full factorial, fractional ) 2. Conduct Randomized Experiments 3. Analyze Data Determine significant factors
  • 61. MODEL BUILDING & EVALUATION - EXAMPLES Models for process development  Kinetic models – rates of reaction or degradation  Transport models – movement and mixing of mass or heat Models for manufacturing development  Computational fluid dynamics  Scale-up correlations Models for process monitoring or control  Chemometric models  Control models All models require verification through statistical analysis
  • 62. Model Building & Evaluation - Chemometrics Chemometrics is the science of relating measurements made on a chemical system or process to the state of the system via application of mathematical or statistical methods (ICS definition) Aspects of chemometric analysis:  Empirical method  Relates multivariate data to single or multiple responses  Utilizes multiple linear regressions Applicable to any multivariate data:  Spectroscopic data  Manufacturing data
  • 63. QUALITY BY DESIGN & STATISTICS Statistical analysis has multiple roles in the Quality by Design approach Statistically designed experiments (DOEs) Model building & evaluation Statistical process control Sampling plans
  • 64. A SHARED VISION OF QUALITY GPhA supports the FDA CGMP initiative Generic drug manufacturing companies: Exist to make affordable drug therapies available to all Companies, staff, volumes and revenues are smaller It is completely appropriate that regulatory requirements apply to all companies small and large, as long as regulatory guidance provides flexibility in recognition of more limited resources at smaller firms
  • 65. SUGGESTED ACTIONS Give credit for good performance Continue to reduce unnecessary supplements Continue to develop the Pharmaceutical Inspectorate Reward process innovation Eliminate unnecessary testing requirements Address oversight of overseas API mfrs
  • 66. Solid-State Polymorphism Different crystalline forms of the same drug substance (ICH Q6A) •Crystalline forms •Solvates (Hydrates) •Amorphous forms
  • 67. Drug Product Bioavailability/Bioequivalence Solubility/Dissolution Pharmaceutical Solid Polymorphism Mechanical Properties/ Hygroscopicity Processability / Manufacturability Chemical Reactivity Stability
  • 68. Polymorphism and the Effect on Bioavailability 10 0 2 4 6 8 0 2 4 6 8 10 12 Time Conc Dissolution/Solubility Limited Oral Absorption (e.g. chloramphenicol palmitate) 8 6 4 2 0 0 2 4 6 8 10 12 Time Conc Gastric Emptying or Permeation Limited Oral Absorption (e.g. ranitidine HCl) Form I Form II Intestinal Membrane Solubility: Form II > Form I Intestinal Membrane
  • 69. Polymorphism and the Effect on Stability Crystalline: Degradation: 0.5% Amorphous: Degradation: 4.5% Formulation I X Crystalline/ Amorphous Formulation II Optimize the formulation mitigate degradation pathways (e.g., adjust pH microenvironment to limit degradation, anti-oxidant to limit oxidative degradation) Crystalline: Degradation 0.6% Amorphous Degradation 0.7%
  • 70. Polymorphism and the Effect on Manufacturability Paracetamol Form I Paracetamol Form I I Direct Compression Wet Granulation Paracetamol Form I Paracetamol Form I I E. Joiris , Pharm. Res. 15 (1998) 1122-1130
  • 71. Selection and Control of Polymorphic Forms? Formulation Variables Biopharmaceutical Properties Manufacturing Process Variables Intrinsic Properties of Different Forms
  • 72. N O 2 N H S C H 3 C N “ ” Regulatory Considerations: Can One Consider Polymorphs to be the Same Active? Materials Science J. Am. Chem. Soc. 122 (2000) 585-591 8 6 4 2 0 0 2 4 6 8 10 12 Time Conc Form I Form II Drug Product Safety/Effectiveness
  • 73. QBD PARADIGM: POLYMORPHS From ICH Q8: “The physicochemical and biological properties of the drug substance that can influence the performance of the drug product and its manufacturability, or were specifically designed into the drug substance (e.g. solid state properties), should be identified and discussed. “ Expectation that sponsors justify in pharmaceutical development the selection and control of the polymorphic form (as applicable) to achieve drug product performance characteristics, stability and ensure manufacturability
  • 74. FDA REGULATORY SCHEME 21 CFR 320.1(c), Food and Drugs, Definitions: Pharmaceutical equivalent means drug products in identical dosage forms that contain identical amounts of the identical active drug ingredient, i.e., the same salt or ester of the same therapeutic moiety…; do not necessarily contain the same inactive ingredients; and meet the identical compendial or Same Active Moiety other applicable standard of identity, strength, quality, and purity, including potency. Different Active Ingredients Phosphate Sulfate FDA Regulatory Scheme: Pharmaceutical Alternatives No Possibility for Therapeutic Equivalence for Different Salts
  • 75. Co-Crystals A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A G A A A G A A A A A G G G G G A A A G G A G A+ A+ A+ C- C- C-C- C-A+ A+ C- C- C-A+ A+ A+ A+ Salts Co-crystals Polymorphs Crystalline Molecular Complexes: Co- Crystal / Salt Continuum Crystalline Molecular Complexes: Analogous to Polymorph Solvate (Except other Component in Crystal Lattice is a Solid (not Liquid))
  • 76. Where Do Co-Crystals Fit in Our Regulatory Scheme? A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A A G A A A G A A A A A G G G G G A A A G G A G A+ A+ A+ C- C- C-C- C-A+ A+ C- C- C-A+ A+ A+ A+ Salts Co-crystals?? Polymorphs Same Active Moiety Same API Different API Where Do Co-Crystals Fit? Is a New Regulatory Class of Solids Needed?
  • 77. CASE STUDY –API TORCETRAPIB The concept and application of quality by design (QbD) principles has been and will undoubtedly continue to be an evolving topic in the pharmaceutical industry. However, there are few and limited examples that demonstrate the actual practice of incorporating QbD assessments, especially for active pharmaceutical ingredients (API) manufacturing processes described in regulatory submissions. We recognize there are some inherent and fundamental differences in developing QbD approaches for drug substance (or API) vs drug product manufacturing processes. In particular, the development of relevant process understanding for API manufacturing is somewhat challenging relative to criteria outlined in ICH Q8 (http://www.ich.org/ cache/compo/276–254–1.html) guidelines, which are primarily oriented toward application of QbD for drug product manufacturing. ……………………………………………J Pharm Innov (2007) 2:71–86
  • 78. In an effort to establish a consensus and develop consistency, industry and regulators have frequently described quality by design (QbD) by dividing it into three fundamental, interrelated concepts: control strategy, design space, and criticality.1 Figure 1 describes a QbD approach for developing design space, establishing control strategy, and delineating criticality for an active pharmaceutical ingredient (API) that essentially serves as a map for how these conceptual elements were used to establish design space for the torcetrapib API manufacturing process. A preliminary assessment of the QbD strategy for the manufacture of the API typically begins early in development when chemists and engineers evaluate synthetic route selection as well as intermediate quality attributes (QAs) impacting API specifications. As a default, established API specification limits serve as a primary control standard for QAs and surrogate control in the absence of a process control strategy and relevant intermediate specifications. Torcetrapib (CP-529,414, Pfizer) was a drug being developed to treat hypercholesterolemia (elevated cholesterol levels) and prevent cardiovascular disease.
  • 79.
  • 80. The API specification, by default, serves as a predictor of critical QAs (CQAs) because the combination of their measurements may directly correlate to potential impact to the safety and efficacy of the drug product and thus to the patient. API CQAs may include physical characteristics beyond such things as the impurity specification of the API, e.g., particle size, polymorphic form, and salt selection are Mrelevant for drug product manufacture.3 The analytical control strategy for an API manufacturing process that evolves during development is routinely focused with the attention on the formation and purge of impurities and their cascade effects on the multiple process steps, including the potential impact to the API’s CQAs. To establish design space, a formal, prospective risk assessment is executed in accordance with ICH Q9 (B in Fig. 1). A process risk assessment is performed as a precedent to formally develop a design space for the commercial manufacturing process so that potential critical process parameters (CPPs) can be identified. In general, a process risk assessment considers prior knowledge, mechanistic understanding of the chemistry, and relevant chemical manufacturing experiences.
  • 81.
  • 82.
  • 83.
  • 84.
  • 85.
  • 86.
  • 87.
  • 88.
  • 89.
  • 90.
  • 91.
  • 92. Starting and Raw Materials Before parameters and ranges can be evaluated in any multivariate designed experiment, the appropriate quality of SMs (or key intermediates) and raw materials must be established. For the torcetrapib manufacturing process, some of the specifications of compound 4 were deemed CQAs because of their direct impact on controlling the relative genotoxic impurities in steps 5 and 6. In addition, ECF (raw material) is a commodity chemical used in step 5 that is incorporated into the structure of the API. Fate and purge development work, batch history, and appropriate communications with vendors are a few methods to establish appropriate specifications for SMs and raw materials. Appropriate specifications were established for each of these materials before any of the multivariate designs were initiated for torcetrapib, and by default, some of these specifications were deemed CQAs. The validity of a multivariate experimental design used to establish a design space depends on understanding the functional relationship between these CQAs/specifications and the API CQAs.
  • 93.
  • 94. CONCLUSION ON CASE STUDY We have provided a case study of a QbD effort, including a risk assessment, for the torcetrapib drug substance process. Fundamentally, different from the drug product, API processes have multiple steps. Understanding the functional relationship between FAs, QAs, and process parameters as they progress through the manufacturing process is the most universally challenging aspect of QbD for API development. Analytical specifications and control strategy aspects of the QbD plan remain the foundation for change throughout the evolution of the manufacturing process (from phase I to launch). The role of the chemist and engineer during the course of development is to effectively eliminate as many of the CQAs and CPPs as possible from the commercial manufacturing process through continuous improvement efforts. Designed experiments generate the data required to establish a design space for commercial manufacturing processes, while providing the process understanding that facilitates sound business decisions. First principles ofchemistry can expand this “toolbox” to include kinetic models, computer predictive programs, and more diverse concepts of prior knowledge.
  • 95. SUMMARY: Quality by Design (QbD) presents to the industry , various pro’s like reduction in cost , a better model ,hassle free processes better interacted with FDA. Along with that ,new technologies can be implemented once a thorough understanding of product is done. For a manager ,It cuts down time to the industry , if used effectively. Thus , it brings about a worthwhile change in every Pharmaceutical Operation and thus the popularity of this subject and shift in the paradigm is signified.
  • 96. SUMMARY The public expects their drugs to be of reliable high quality Tradition of empirical development of formulation and manufacturing process makes reliability a challenge Globalization introduces more risks of quality problems FDA introduced “Pharmaceutical Quality for 21st Century” to address these challenges
  • 97. SUMMARY Improved manufacturing science (QbD), when paired with a robust quality system, is the key to reliable drug quality Technologies such as PAT are crucial to implementing the knowledge gained from QbD in a meaningful and efficient way FDA encourages adoption of these technologies, and is modifying its own processes in order to facilitate
  • 98. CONCLUSION Quality by Design and the FDA CGMP Initiative make excellent business and scientific sense The generic pharmaceutical industry welcomes the opportunity to work with FDA
  • 99. •Jun Huan et al, Quality by design case study: An integrated multivariate approach to drug product and process development, International Journal of Pharmaceutics, 382 (2009) 23–32 •Chi –Wan Chen, Christine Moore ,Role of Statistics in Pharmaceutical Development Using Quality-by- Design Approach – an FDA Perspective, September 27 -29, 2006. • Lindsay I Smith A tutorial on Principal Components Analysis February 26, 2002 •Quality Risk Management (ICH Q9) EMA/INS/GMP/79766/2011. •Http://www.ceruleanllc.com/resources/published-articles-case-studies/#qbd • Spaceamit Mukharya et al, Quality risk management of top spray fluidized bed process for antihypertensive drug formulation with control strategy engendered by Box-behnken experimental design Int J Pharm Investig. 2013 Jan-Mar; 3(1): 15–28. •Http://www.ngpharma.com/article/PAT-and-qbd-in-pharmaceutical-development/ •Http://www.drugregulations.org/2012/08/qbd-for-beginners-design-space.html?Q=qbd, qbd for beginners part 4 , uday shetty •Glodek, M et al., Pharm. Eng 2006, 26, 1-11. •Rath, T, Strong, D.O., Rath & Strong's Six Sigma Pocket Guide. Lexington, AON Consulting Worldwide, MA 2002. •International Conference on Harmonization (ICH) of Technical Requirements for Registration of Pharmaceuticals for human use, topicq2 (R1): Validation of Analytical Procedures: Text and methodology, ICH, Geneva, Switzerland, 2005.
  • 100. • Juran, J.M. (1992) Juran on Quality by design – The New Steps for Planning Quality into Goods and Services,thefreepress • Pharmaceutical development - annex ICH harmonized tripartite guideline • Dr C. V. S. Subramanian, Quality by Design - Principles “, 29th Jan, 2013. • Http://en.wikipedia.org/wiki/Quality_by_Design • PAT—A Framework for Innovative Pharmaceutical Development, Manufacturing, and quality assurance, September 2004, http://www.fda.gov/cder/guidance/6419fnl.pdf. • Guidance for industry Q8(R2),pharmaceutical development , November 2009,ICH revision 2 • Innovation and continuous improvement in pharmaceutical manufacturing pharmaceutical cGMP for the 21st Century, U.S. Food and Drug Administration, 2004 September, Available from: URL:http://www.fda.gov/cder/gmp/gmp2004/manufsciwp.pdf. • Ashwini Gawade1 et al , Pharmaceutical Quality by Design: A New Approach in Product Development., ISSN: 2320-1215 Research and Reviews: Journal of Pharmacy and Pharmaceutical Sciences • International Conference on Harmonization (ICH) of Technical Requirements for Registration of Pharmaceuticals for Human Use, topicq9: Quality Risk Management, ICH, Geneva, Switzerland, 2005. • Purohit, k. V. Shah, Quality by design (QbD): new parameter for quality improvement & pharmaceutical drug development vol - 4, issue - 3, supl -1 apr-jul 2013 ISSN: 0976-7908 • Yubing Tang , Quality by Design Approaches to Analytical Methods FDA Perspective, October 25, 2011, FDA/CDER/ONDQAAAPS, Washington DC • R.Somma, “ Development Knowledge Can Increase Manufacturing Capacity and Facilitate Quality by Design” J.Pharm.Innov. 2, 87-92 (2007) • Naseem A et al, Quality by design approach for formulation development: A case study of dispersible tablets, International Journal of Pharmaceutics, December 2011. • Jun Huang, et al , Quality by design case study: An integrated multivariate approach to drug product and process development, International Journal of Pharmaceutics, 382 (2009) 23–32 • Jessy Shaji and Shital Lodha Response Surface Methodology for the Optimization of Celecoxib Self-microemulsifying Drug delivery System , Indian J Pharm Sci. 2008 Sep-Oct; 70(5): 585–590 10.4103/0250-474X.45395PMCID: PMC3038281
  • 101. THANKYOU DR ANTHONY CRASTO amcrasto@gmail.com http://newdrugapprovals.org/

Editor's Notes

  1. 30 years after implementation of 210, 211… “This guidance describes a comprehensive quality systems model, which, if implemented, will allow manufacturers to support and sustain robust, modern quality systems that are consistent with CGMP regulations.“ Quality professionals are aware that good intentions alone will not ensure good products.
