PyTorch is an open-source machine learning library that supports two execution modes: eager mode for immediate execution of operations, and graph mode for building efficient computation graphs. Torch FX is a tool within PyTorch for graph mode execution that enables code transformation and optimization. The document also includes examples of using Torch FX and torch.compile for creating optimized kernels.

1. PYTORCH FX

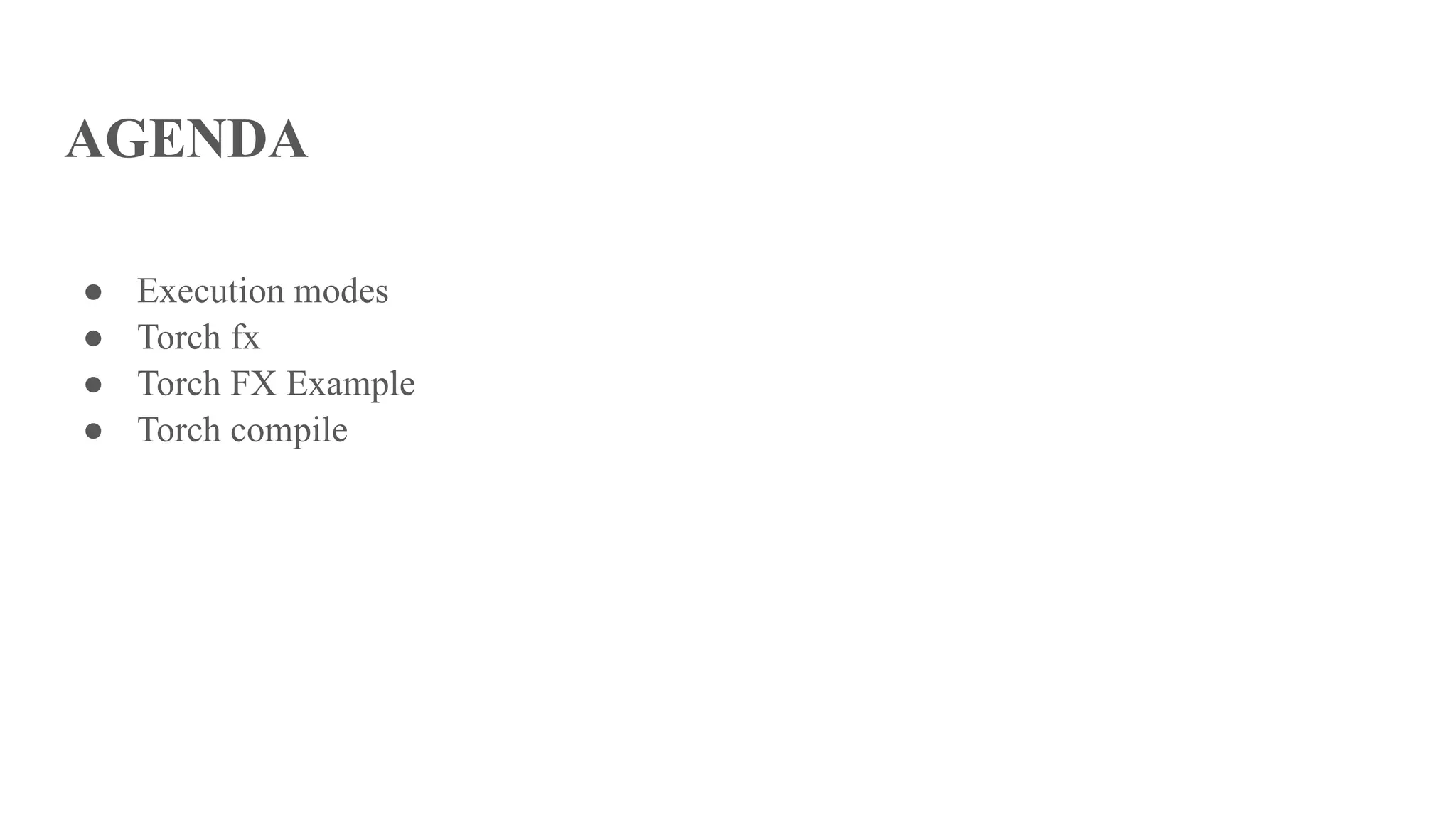

2. AGENDA
● Execution modes
● Torch fx
● Torch FX Example
● Torch compile

3. EXECUTION MODES
PyTorch is an open-source machine learning library developed using Torch library for
python programs.
PyTorch supports two execution modes
1.Eager Mode
2.Graph Mode

4. EAGER MODE
● Eager mode (which is called as define-by-run), operators in a model are immediately
executed as they are encountered.
● That means you do not execute a pre-constructed graph with Session.
GRAPH MODE
● Graph execution (which is called as define and run) extracts tensor computations
from Python and builds an efficient graph before evaluation.
● Graph mode enables operator fusion, wherein one operator is merged with another to
reduce/localize memory reads.

5. TORCH FX
● Torch.FX is available toolkit as part of the PyTorch package that supports graph
mode execution.
● It can make DAG representation of pytorch pgms.
● Allows to transform/optimize pytorch code using algorithms.
● Helps build torch.compile

6. TORCH FX EXAMPLE
import torch
import torch.fx
from torch.fx import Graph
def add_eg(x,y):
# import pdb
# pdb.set_trace()
a = torch.sin(x)**2;
b = torch.cos(y)**2;
return torch.add(a,b)
traced = torch.fx.symbolic_trace(add_eg)
print(traced.graph)
traced.graph.print_tabular()
print(traced.code)

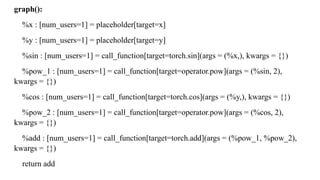

7. graph():
%x : [num_users=1] = placeholder[target=x]
%y : [num_users=1] = placeholder[target=y]
%sin : [num_users=1] = call_function[target=torch.sin](args = (%x,), kwargs = {})
%pow_1 : [num_users=1] = call_function[target=operator.pow](args = (%sin, 2),
kwargs = {})
%cos : [num_users=1] = call_function[target=torch.cos](args = (%y,), kwargs = {})
%pow_2 : [num_users=1] = call_function[target=operator.pow](args = (%cos, 2),
kwargs = {})
%add : [num_users=1] = call_function[target=torch.add](args = (%pow_1, %pow_2),
kwargs = {})
return add

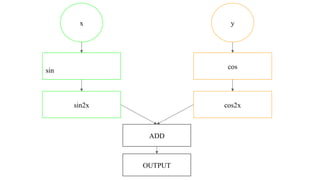

8. x
sin
sin2x
y
cos
cos2x
ADD
OUTPUT

9. TORCH COMPILE
torch.compile is a method to JIT-compile PyTorch code into
optimized kernels.
EXAMPLE
def foo(x, y):
a = torch.sin(x)
b = torch.cos(y)
return a + b
opt_foo1 = torch.compile(foo)
print(opt_foo1(torch.randn(10, 10), torch.randn(10, 10)))

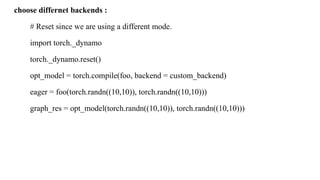

10. choose differnet backends :
# Reset since we are using a different mode.
import torch._dynamo
torch._dynamo.reset()
opt_model = torch.compile(foo, backend = custom_backend)
eager = foo(torch.randn((10,10)), torch.randn((10,10)))
graph_res = opt_model(torch.randn((10,10)), torch.randn((10,10)))
