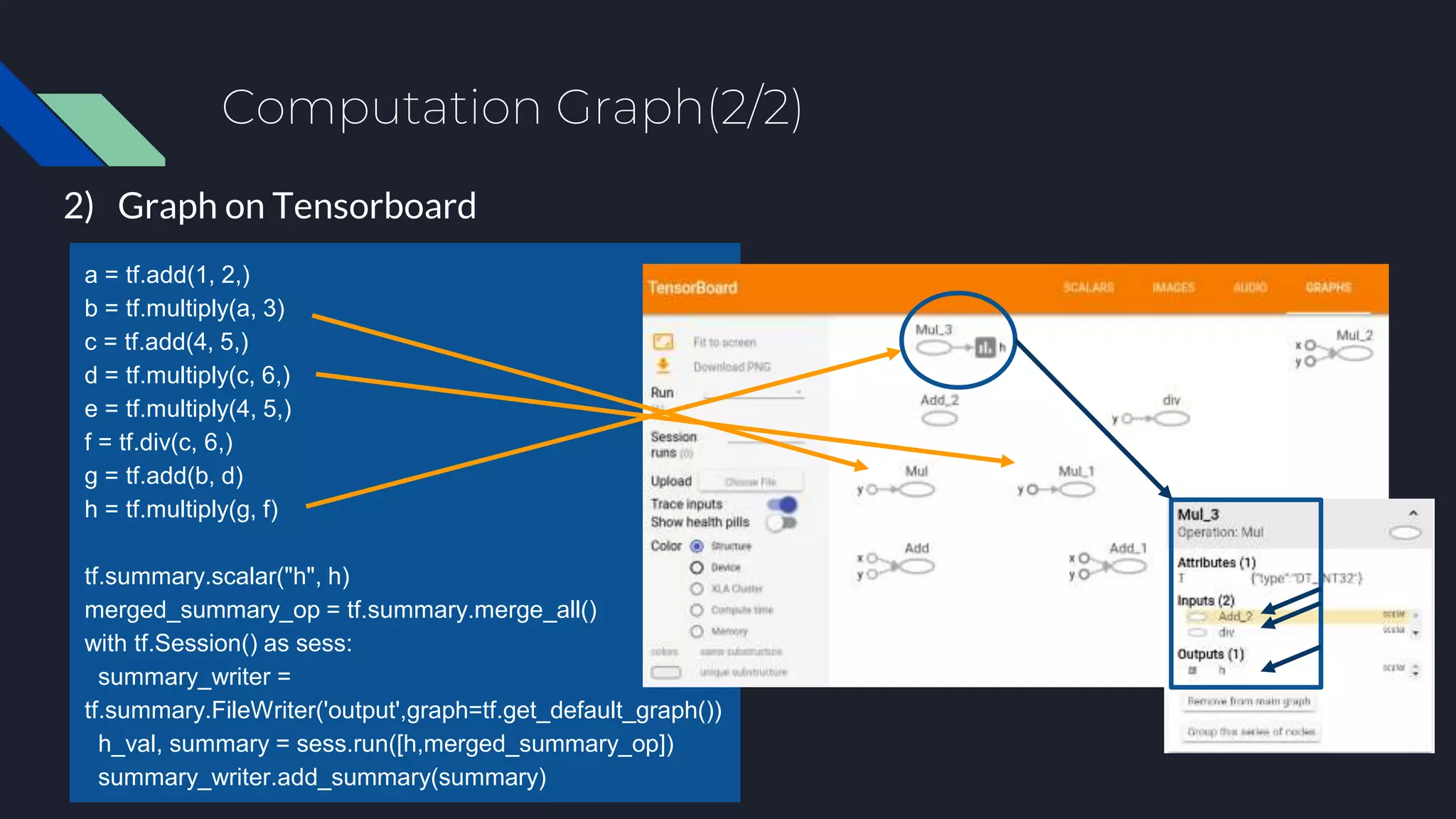

![Computation Graph(2/2)
2) Graph on Tensorboard
a = tf.add(1, 2,)
b = tf.multiply(a, 3)
c = tf.add(4, 5,)
d = tf.multiply(c, 6,)
e = tf.multiply(4, 5,)
f = tf.div(c, 6,)
g = tf.add(b, d)
h = tf.multiply(g, f)
tf.summary.scalar("h", h)
merged_summary_op = tf.summary.merge_all()
with tf.Session() as sess:
summary_writer =
tf.summary.FileWriter('output',graph=tf.get_default_graph())
h_val, summary = sess.run([h,merged_summary_op])
summary_writer.add_summary(summary)](https://image.slidesharecdn.com/tensorflowinpractice-180916161753/75/Tensorflow-in-practice-by-Engineer-donghwi-cha-9-2048.jpg)

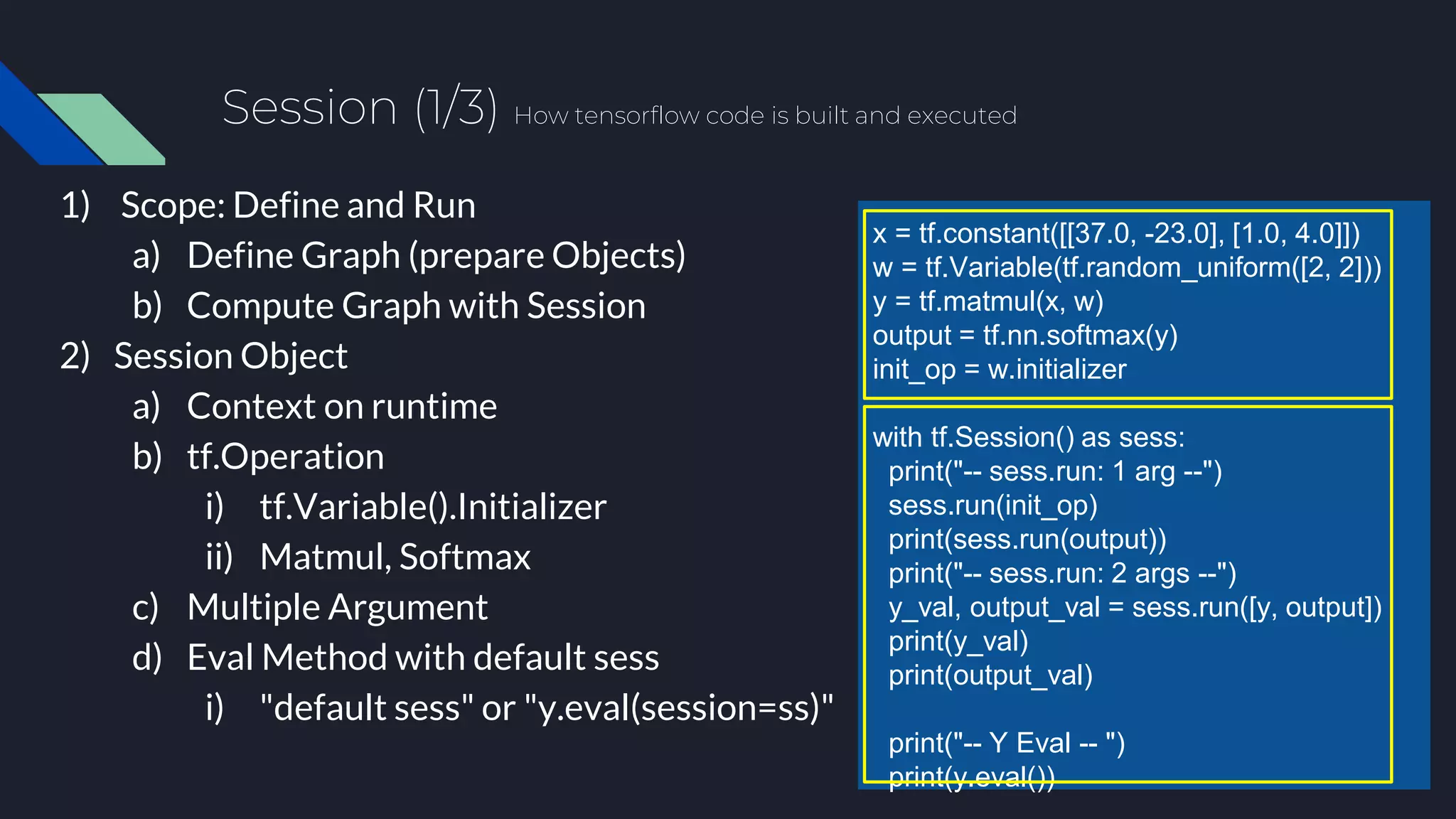

![Session (1/3) How tensorflow code is built and executed
1) Scope: Define and Run
a) Define Graph (prepare Objects)
b) Compute Graph with Session
2) Session Object
a) Context on runtime
b) tf.Operation
i) tf.Variable().Initializer
ii) Matmul, Softmax
c) Multiple Argument
d) Eval Method with default sess
i) "default sess" or "y.eval(session=ss)"
x = tf.constant([[37.0, -23.0], [1.0, 4.0]])
w = tf.Variable(tf.random_uniform([2, 2]))
y = tf.matmul(x, w)
output = tf.nn.softmax(y)
init_op = w.initializer
with tf.Session() as sess:
print("-- sess.run: 1 arg --")
sess.run(init_op)
print(sess.run(output))
print("-- sess.run: 2 args --")
y_val, output_val = sess.run([y, output])
print(y_val)
print(output_val)
print("-- Y Eval -- ")
print(y.eval())](https://image.slidesharecdn.com/tensorflowinpractice-180916161753/75/Tensorflow-in-practice-by-Engineer-donghwi-cha-15-2048.jpg)

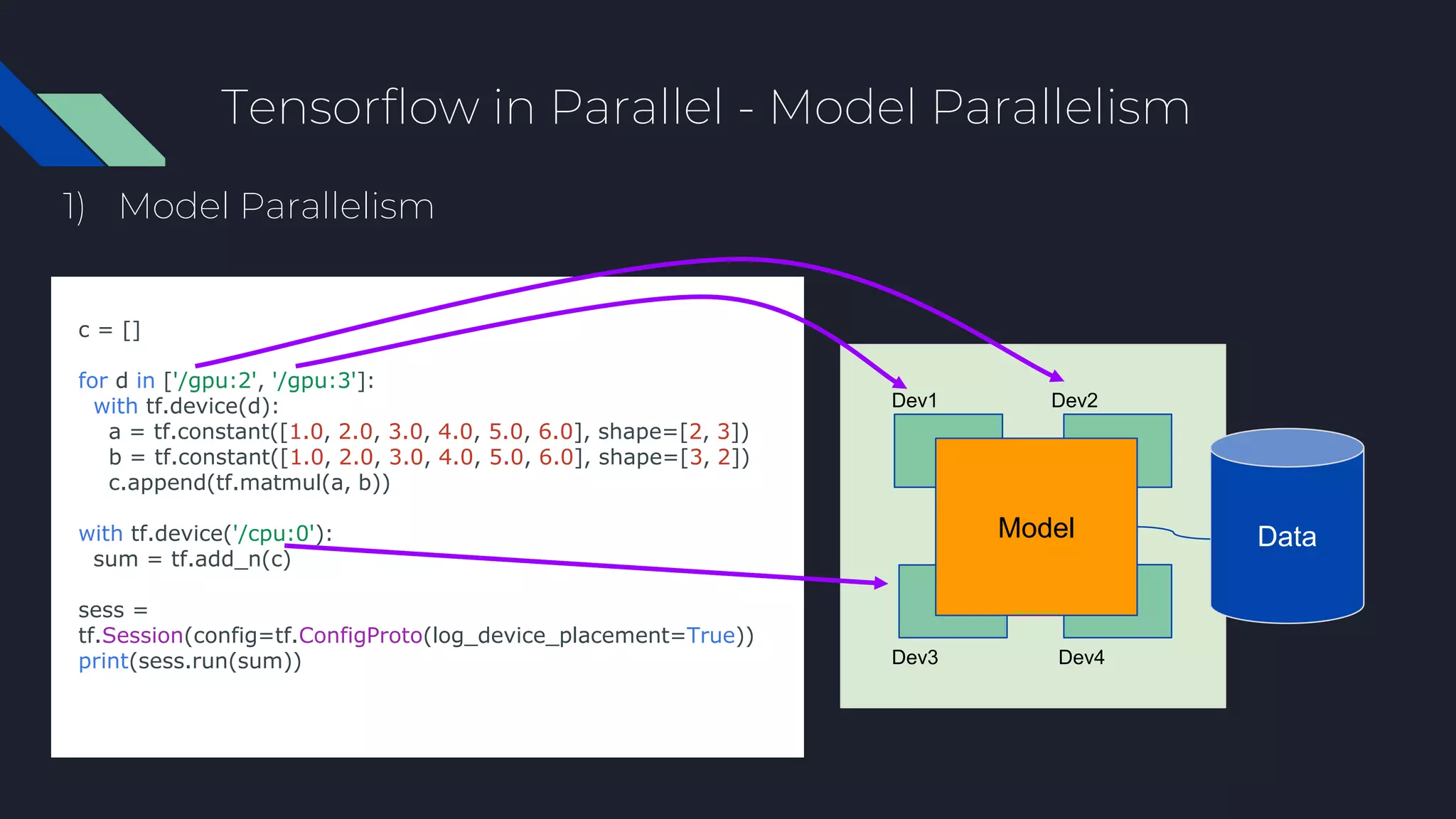

![Tensorflow in Parallel - Model Parallelism
1) Model Parallelism
Data
Dev1 Dev2
Dev3 Dev4
Model
c = []
for d in ['/gpu:2', '/gpu:3']:
with tf.device(d):
a = tf.constant([1.0, 2.0, 3.0, 4.0, 5.0, 6.0], shape=[2, 3])
b = tf.constant([1.0, 2.0, 3.0, 4.0, 5.0, 6.0], shape=[3, 2])
c.append(tf.matmul(a, b))
with tf.device('/cpu:0'):
sum = tf.add_n(c)
sess =
tf.Session(config=tf.ConfigProto(log_device_placement=True))
print(sess.run(sum))](https://image.slidesharecdn.com/tensorflowinpractice-180916161753/75/Tensorflow-in-practice-by-Engineer-donghwi-cha-35-2048.jpg)

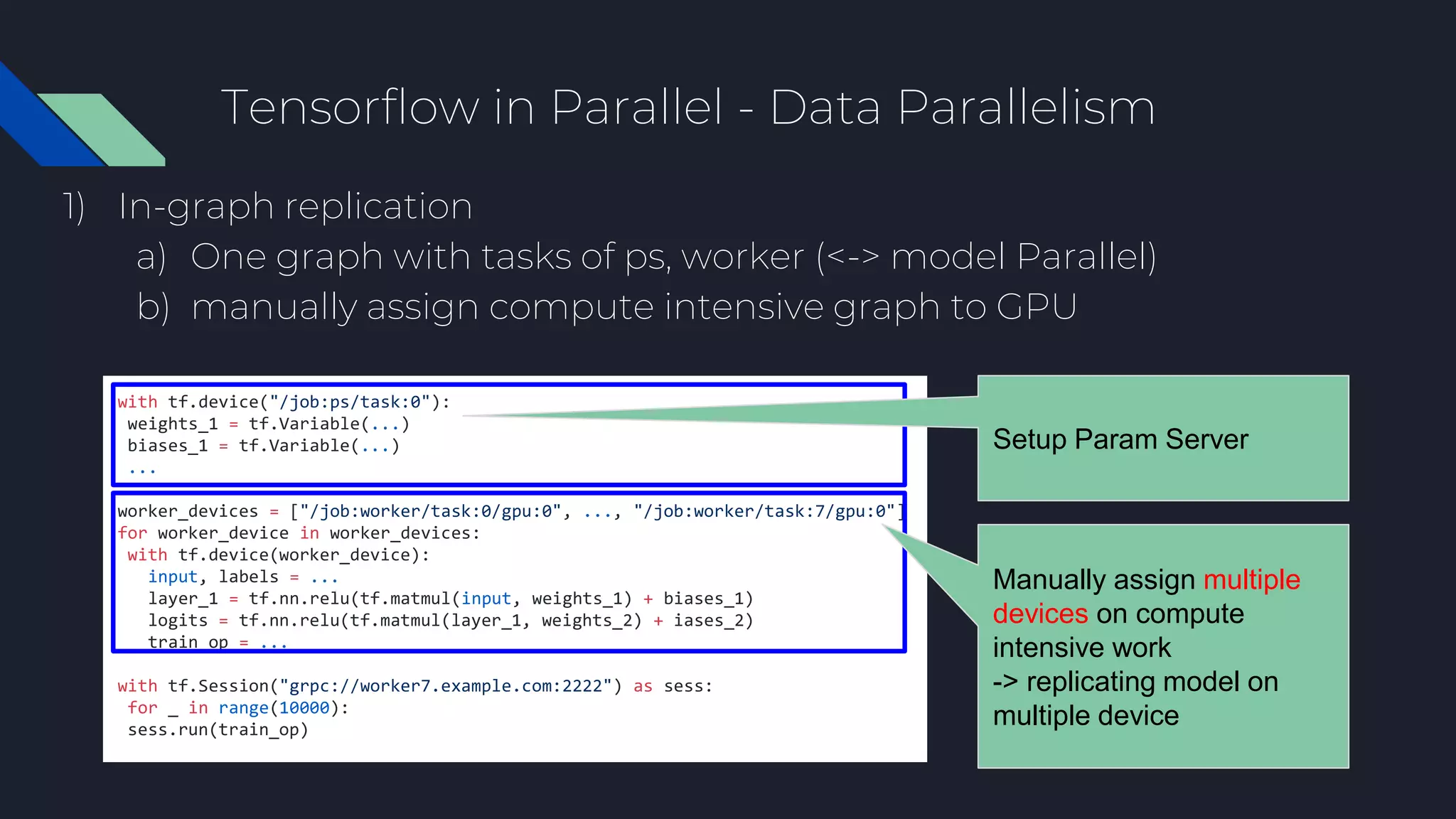

![Tensorflow in Parallel - Data Parallelism
1) In-graph replication
a) One graph with tasks of ps, worker (<-> model Parallel)
b) manually assign compute intensive graph to GPU
with tf.device("/job:ps/task:0"):
weights_1 = tf.Variable(...)
biases_1 = tf.Variable(...)
...
worker_devices = ["/job:worker/task:0/gpu:0", ..., "/job:worker/task:7/gpu:0"]
for worker_device in worker_devices:
with tf.device(worker_device):
input, labels = ...
layer_1 = tf.nn.relu(tf.matmul(input, weights_1) + biases_1)
logits = tf.nn.relu(tf.matmul(layer_1, weights_2) + iases_2)
train_op = ...
with tf.Session("grpc://worker7.example.com:2222") as sess:
for _ in range(10000):
sess.run(train_op)
Manually assign multiple
devices on compute
intensive work
-> replicating model on
multiple device
Setup Param Server](https://image.slidesharecdn.com/tensorflowinpractice-180916161753/75/Tensorflow-in-practice-by-Engineer-donghwi-cha-38-2048.jpg)
More Related Content
Similar to Tensorflow in practice by Engineer - donghwi cha
Tensorflow in practice by Engineer - donghwi cha
- 1. Tensorflow In Practice By DonghwiCha with the help of engineering

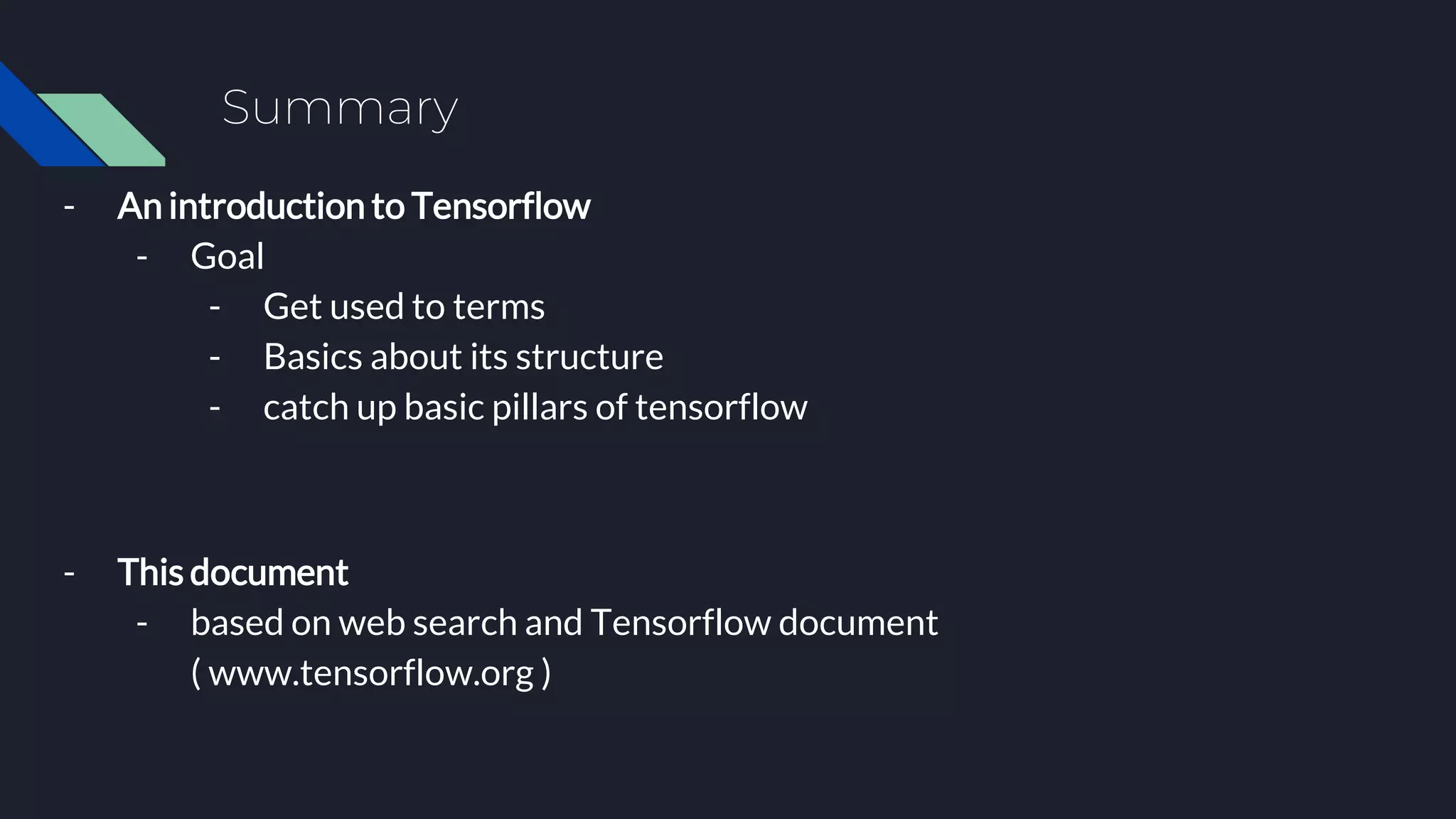

- 2. Summary - An introductionto Tensorflow - Goal - Get used to terms - Basics about its structure - catch up basic pillars of tensorflow - This document - based on web search and Tensorflow document ( www.tensorflow.org )

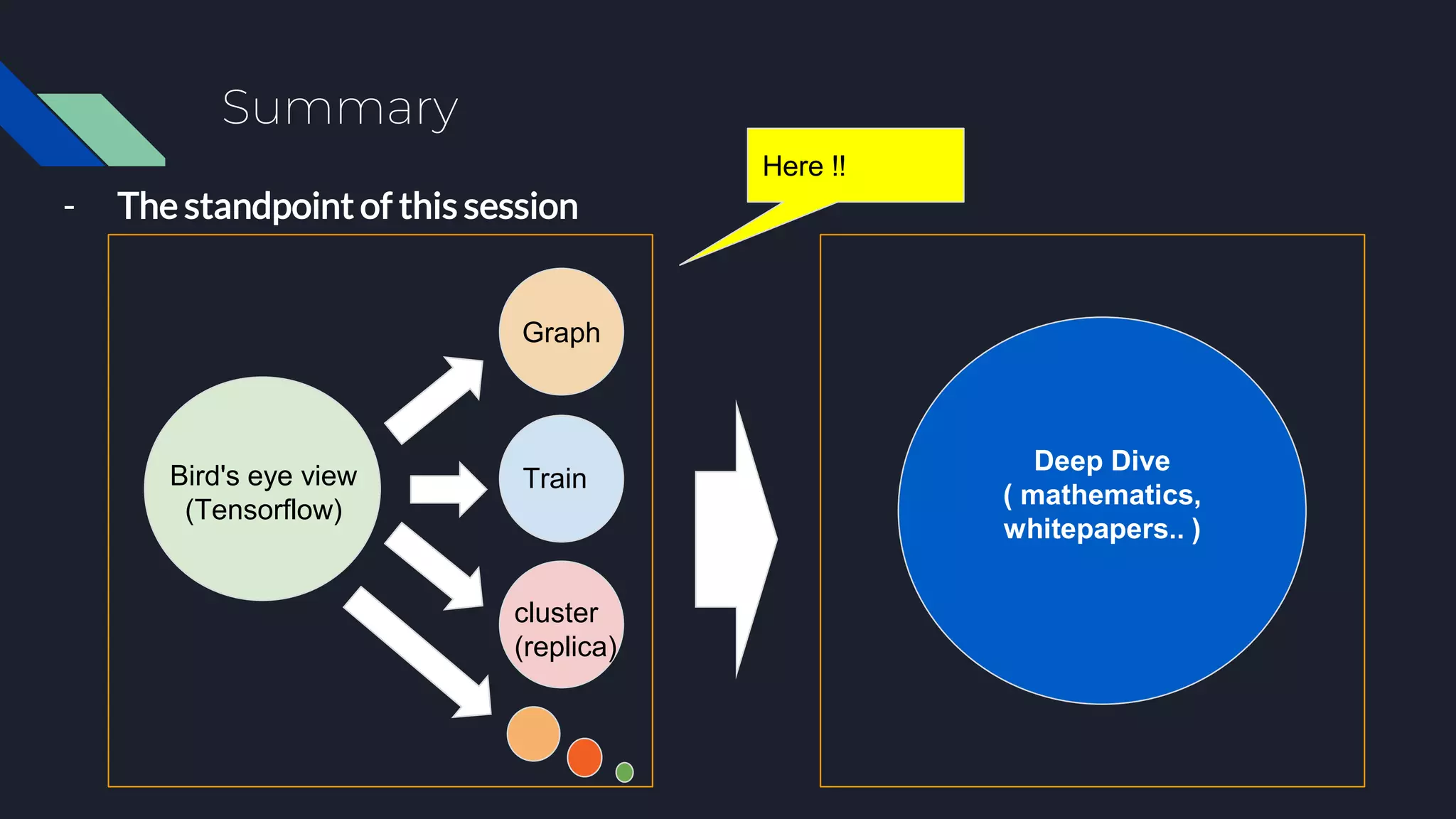

- 3. Summary - The standpointof this session Graph Train cluster (replica) Bird's eye view (Tensorflow) Deep Dive ( mathematics, whitepapers.. ) Here !!
- 4.

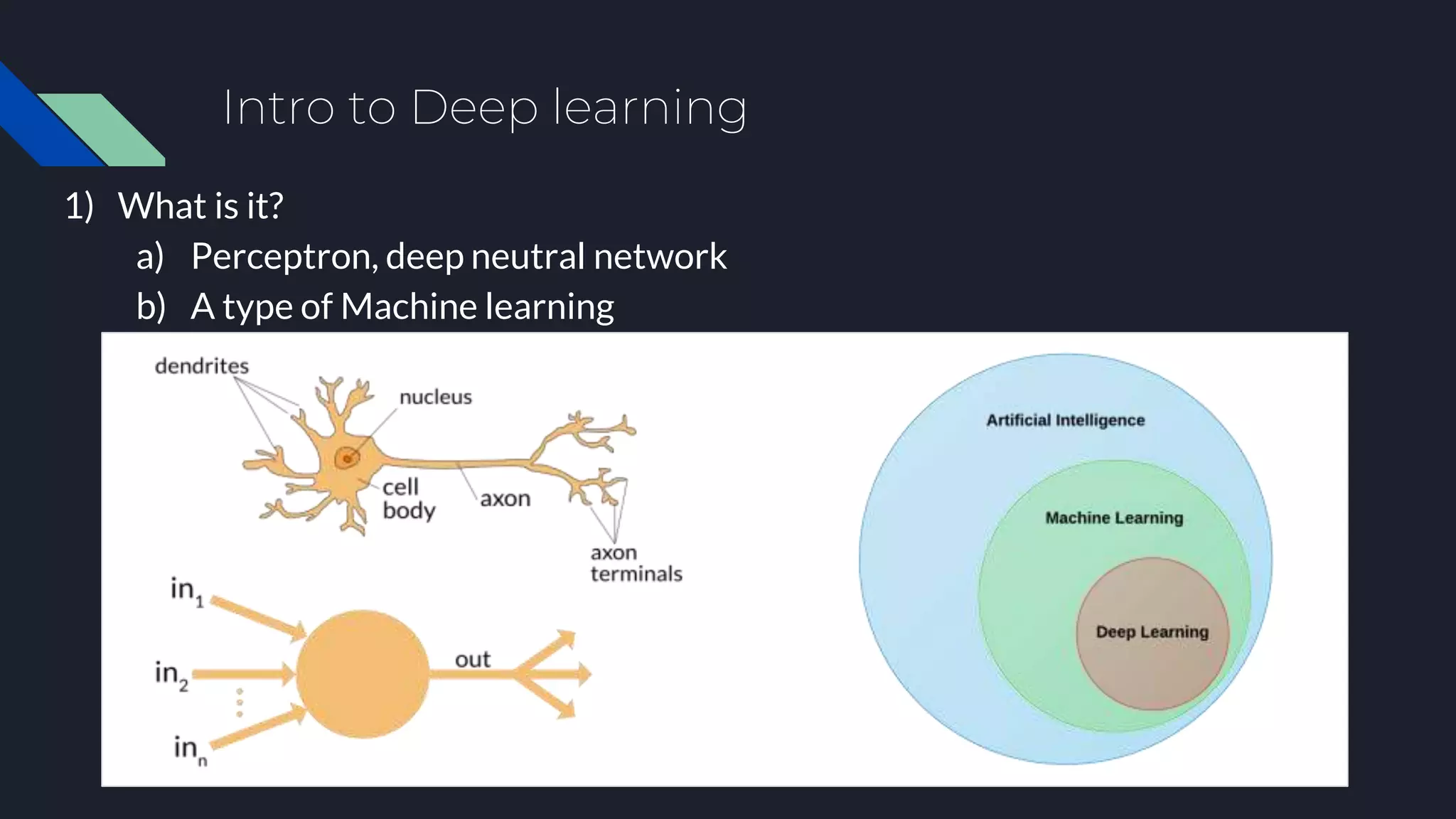

- 5. Intro to Deeplearning 1) What is it? a) Perceptron, deep neutral network b) A type of Machine learning

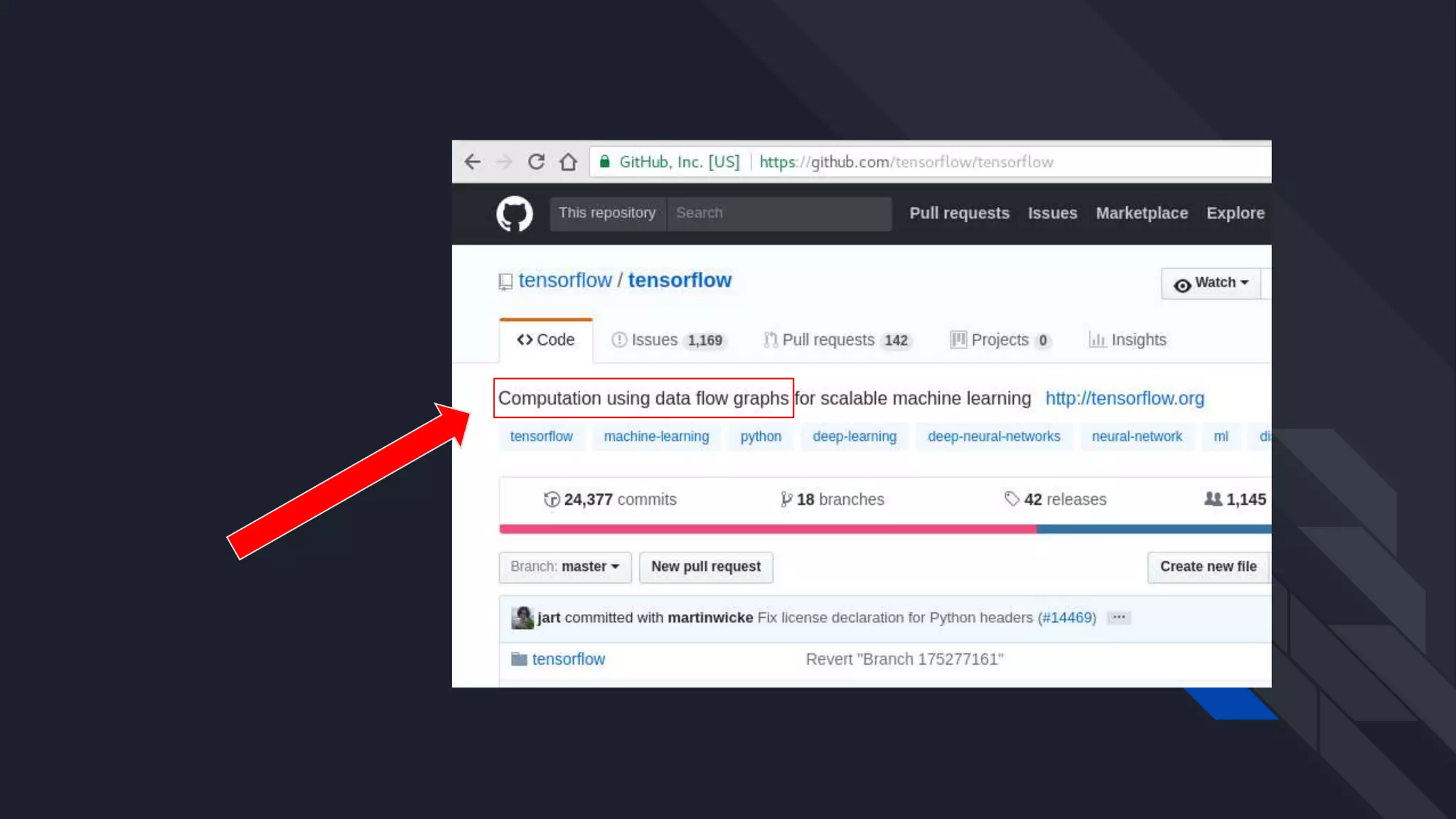

- 6. Tensorflow, as a Computationgraph engine

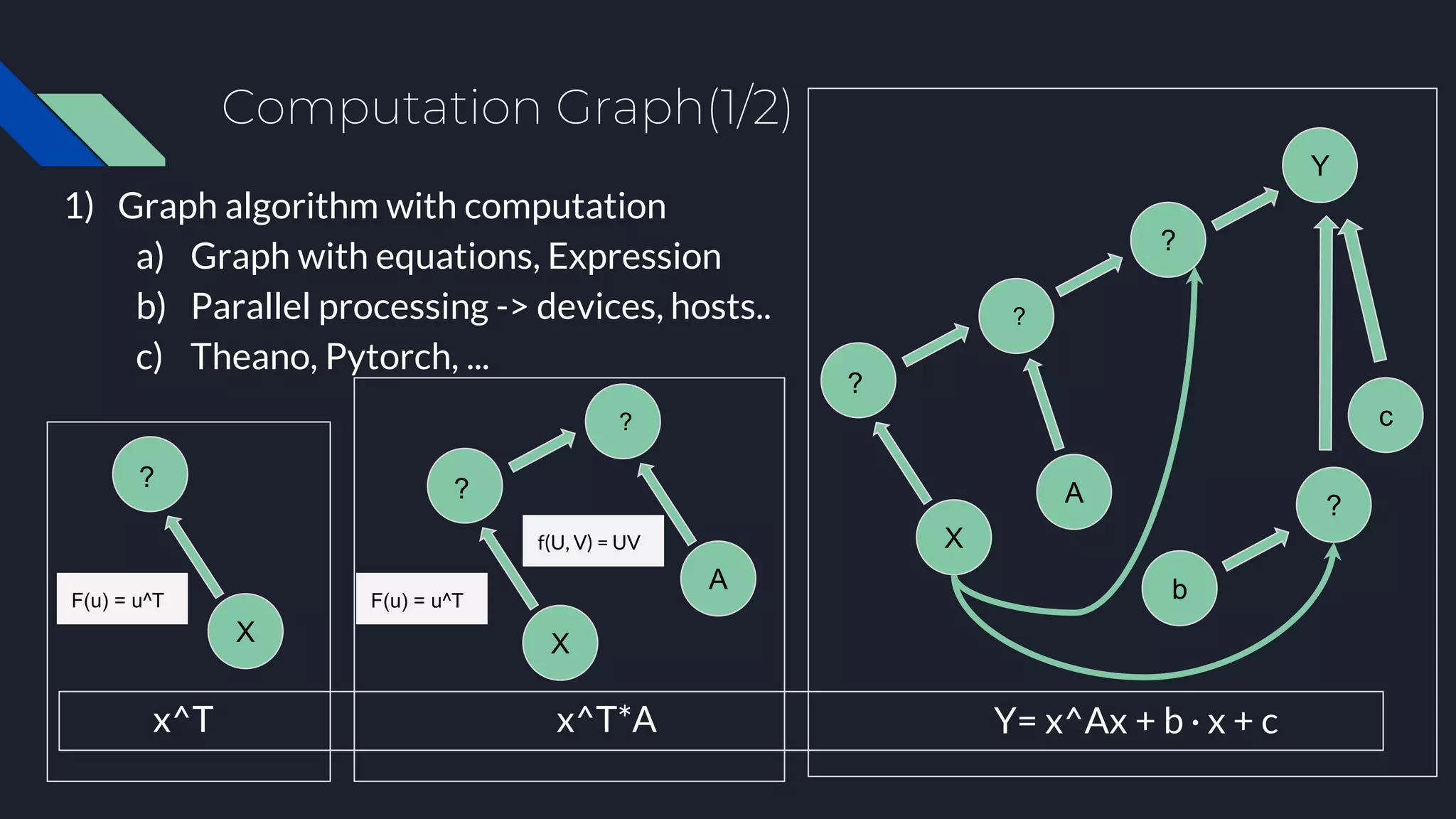

- 8. Computation Graph(1/2) 1) Graphalgorithm with computation a) Graph with equations, Expression b) Parallel processing -> devices, hosts.. c) Theano, Pytorch, ... X F(u) = u^T ? X F(u) = u^T ? A ? f(U, V) = UV x^T x^T*A X ? A ? ? Y b ? c Y= x^Ax + b · x + c
- 9. Computation Graph(2/2) 2) Graphon Tensorboard a = tf.add(1, 2,) b = tf.multiply(a, 3) c = tf.add(4, 5,) d = tf.multiply(c, 6,) e = tf.multiply(4, 5,) f = tf.div(c, 6,) g = tf.add(b, d) h = tf.multiply(g, f) tf.summary.scalar("h", h) merged_summary_op = tf.summary.merge_all() with tf.Session() as sess: summary_writer = tf.summary.FileWriter('output',graph=tf.get_default_graph()) h_val, summary = sess.run([h,merged_summary_op]) summary_writer.add_summary(summary)

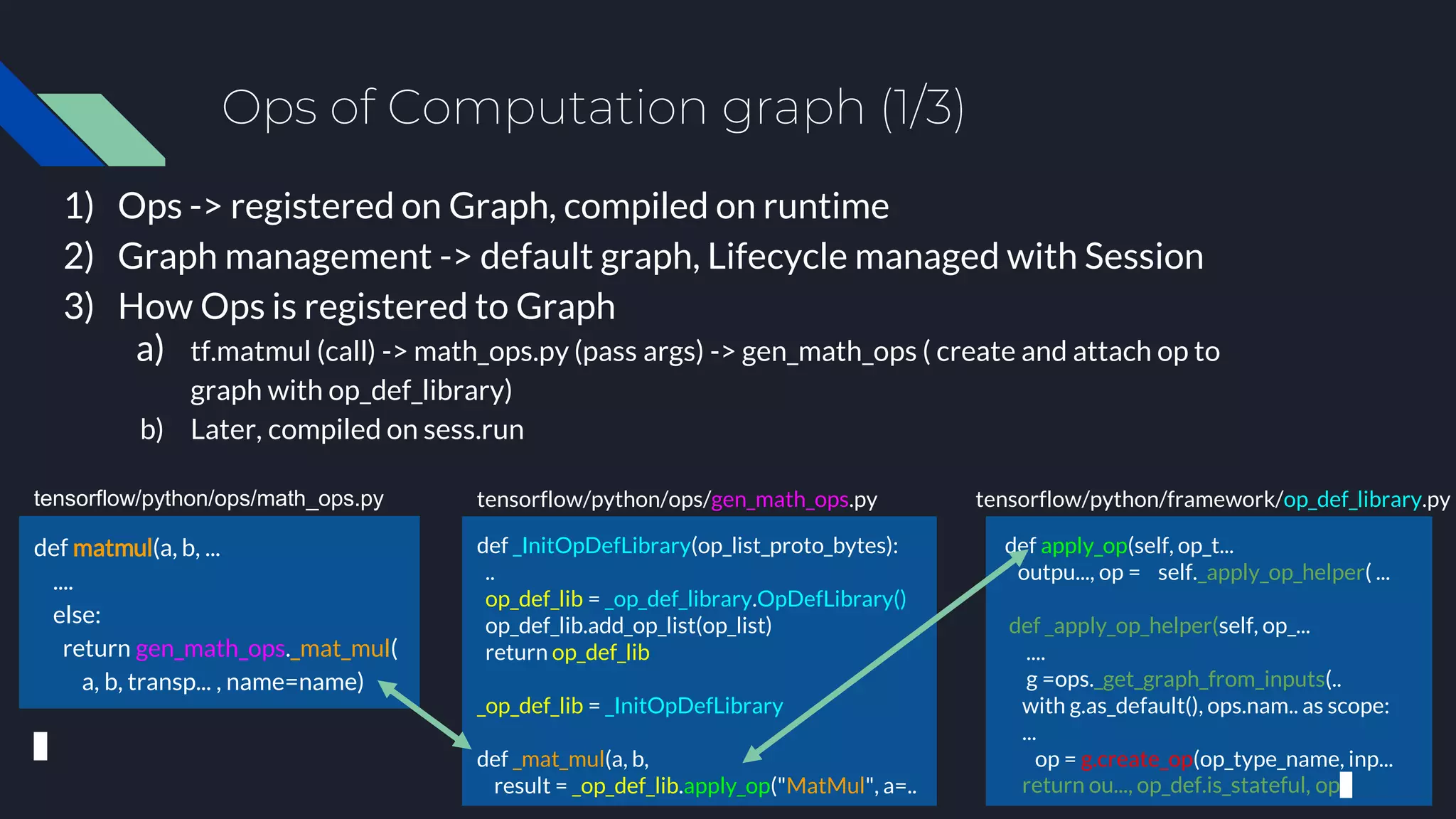

- 10. Ops of Computationgraph (1/3) 1) Ops -> registered on Graph, compiled on runtime 2) Graph management -> default graph, Lifecycle managed with Session 3) How Ops is registered to Graph a) tf.matmul (call) -> math_ops.py (pass args) -> gen_math_ops ( create and attach op to graph with op_def_library) b) Later, compiled on sess.run tensorflow/python/ops/math_ops.py def matmul(a, b, ... .... else: return gen_math_ops._mat_mul( a, b, transp... , name=name) tensorflow/python/ops/gen_math_ops.py def _InitOpDefLibrary(op_list_proto_bytes): .. op_def_lib = _op_def_library.OpDefLibrary() op_def_lib.add_op_list(op_list) return op_def_lib _op_def_lib = _InitOpDefLibrary def _mat_mul(a, b, result = _op_def_lib.apply_op("MatMul", a=.. tensorflow/python/framework/op_def_library.py def apply_op(self, op_t... outpu..., op = self._apply_op_helper( ... def _apply_op_helper(self, op_... .... g =ops._get_graph_from_inputs(.. with g.as_default(), ops.nam.. as scope: ... op = g.create_op(op_type_name, inp... return ou..., op_def.is_stateful, op

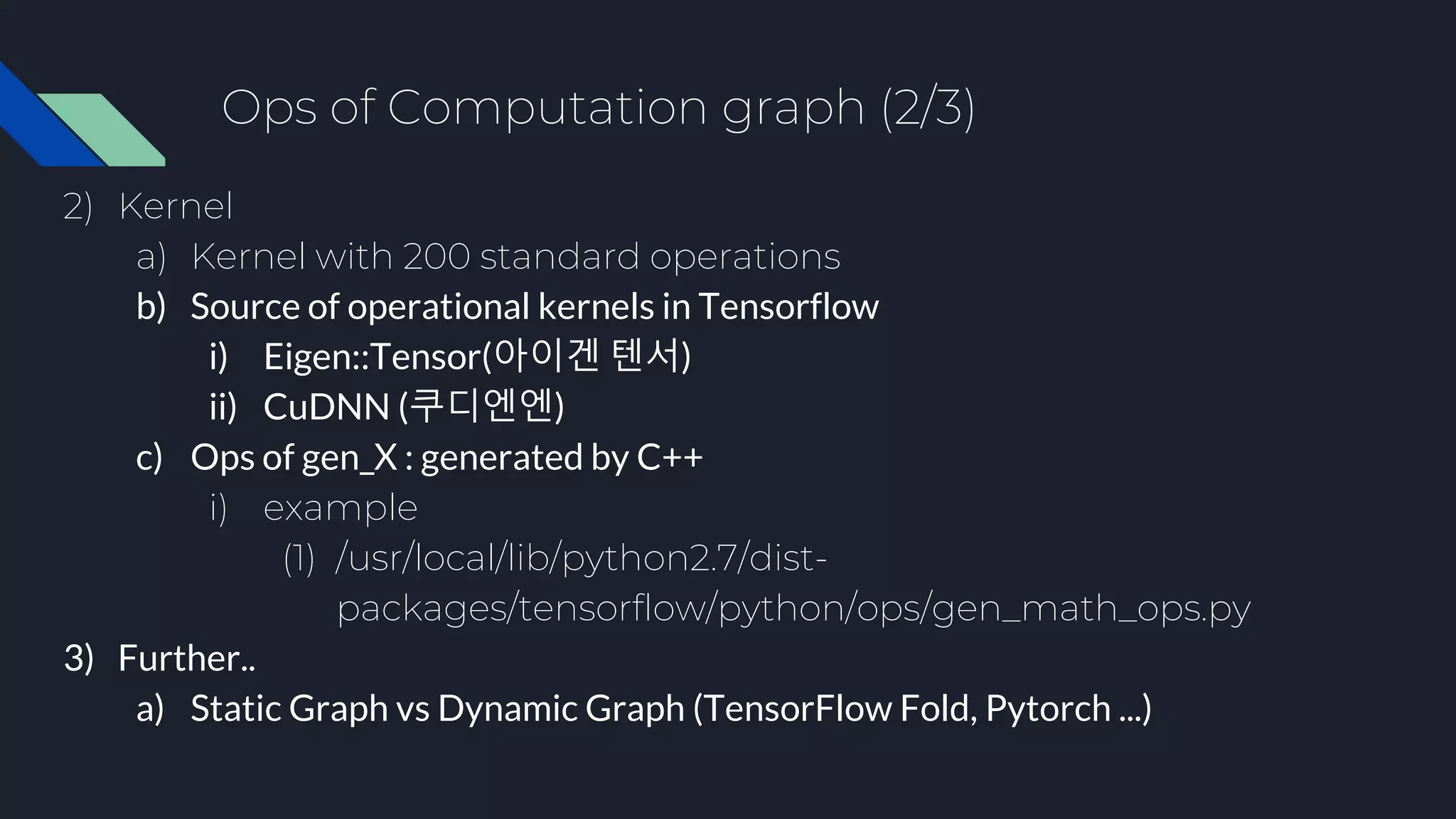

- 11. Ops of Computationgraph (2/3) 2) Kernel a) Kernel with 200 standard operations b) Source of operational kernels in Tensorflow i) Eigen::Tensor(아이겐 텐서) ii) CuDNN (쿠디엔엔) c) Ops of gen_X : generated by C++ i) example (1) /usr/local/lib/python2.7/dist- packages/tensorflow/python/ops/gen_math_ops.py 3) Further.. a) Static Graph vs Dynamic Graph (TensorFlow Fold, Pytorch ...)

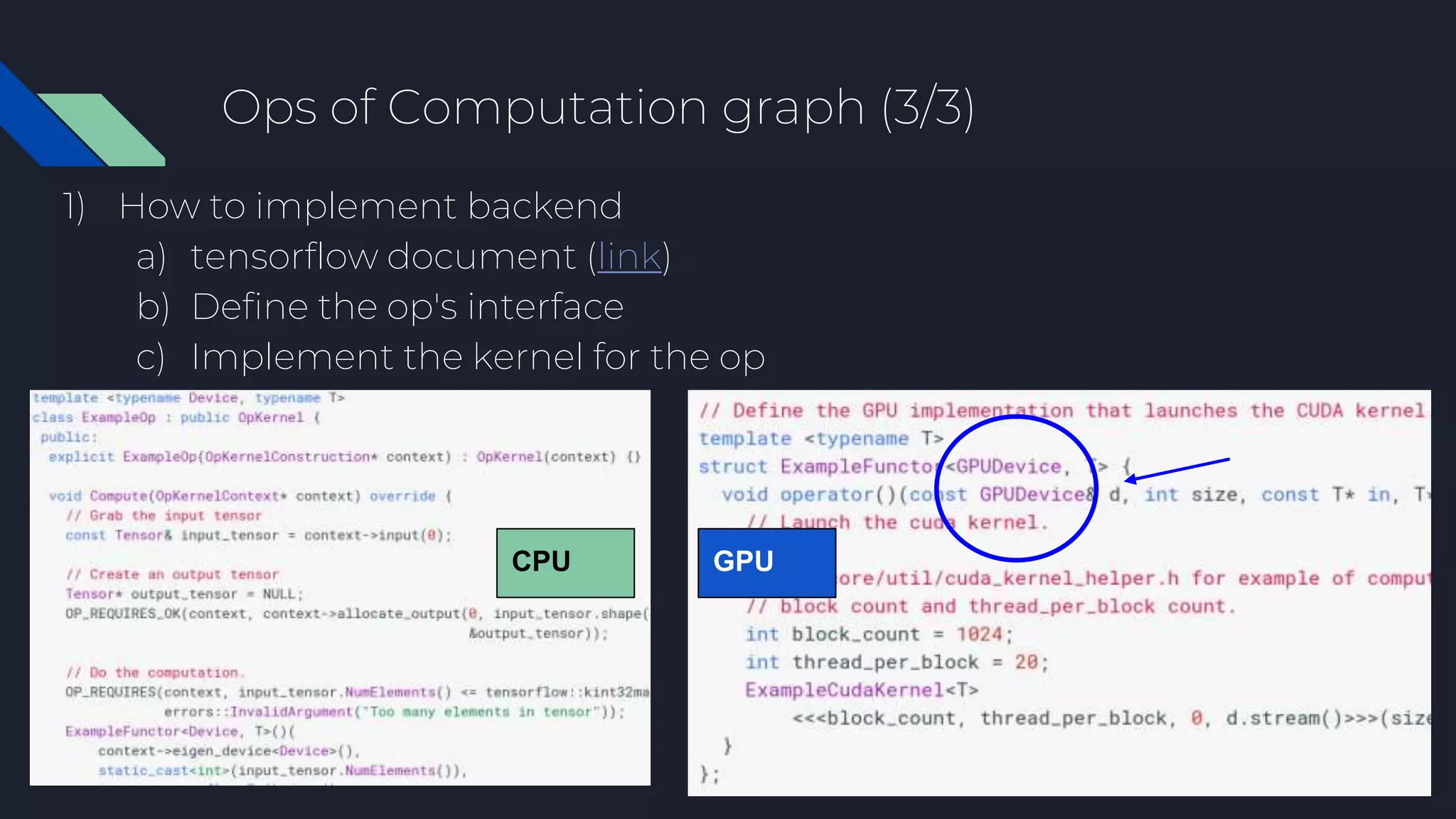

- 12. Ops of Computationgraph (3/3) 1) How to implement backend a) tensorflow document (link) b) Define the op's interface c) Implement the kernel for the op CPU GPU

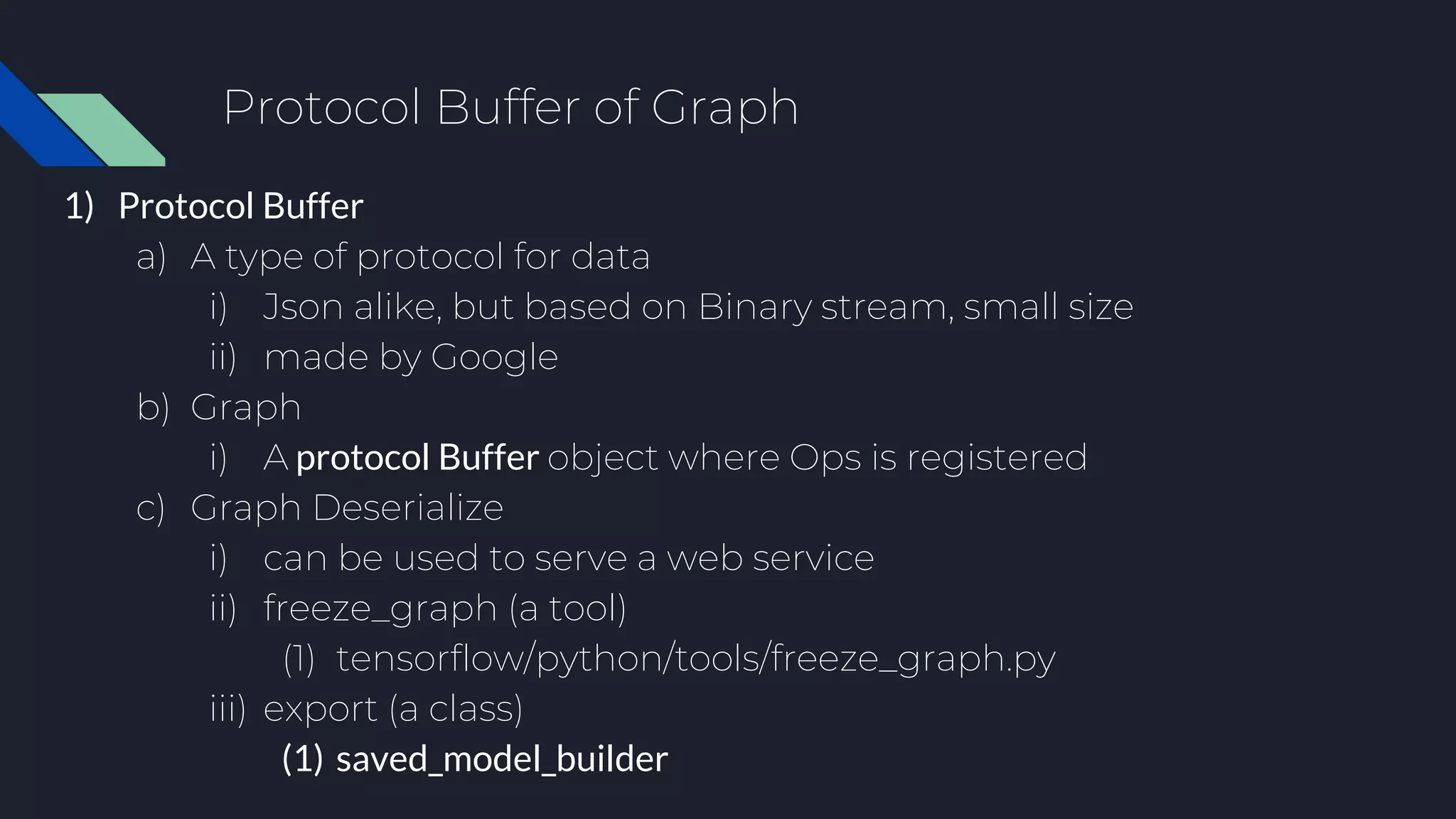

- 13. Protocol Buffer ofGraph 1) Protocol Buffer a) A type of protocol for data i) Json alike, but based on Binary stream, small size ii) made by Google b) Graph i) A protocol Buffer object where Ops is registered c) Graph Deserialize i) can be used to serve a web service ii) freeze_graph (a tool) (1) tensorflow/python/tools/freeze_graph.py iii) export (a class) (1) saved_model_builder

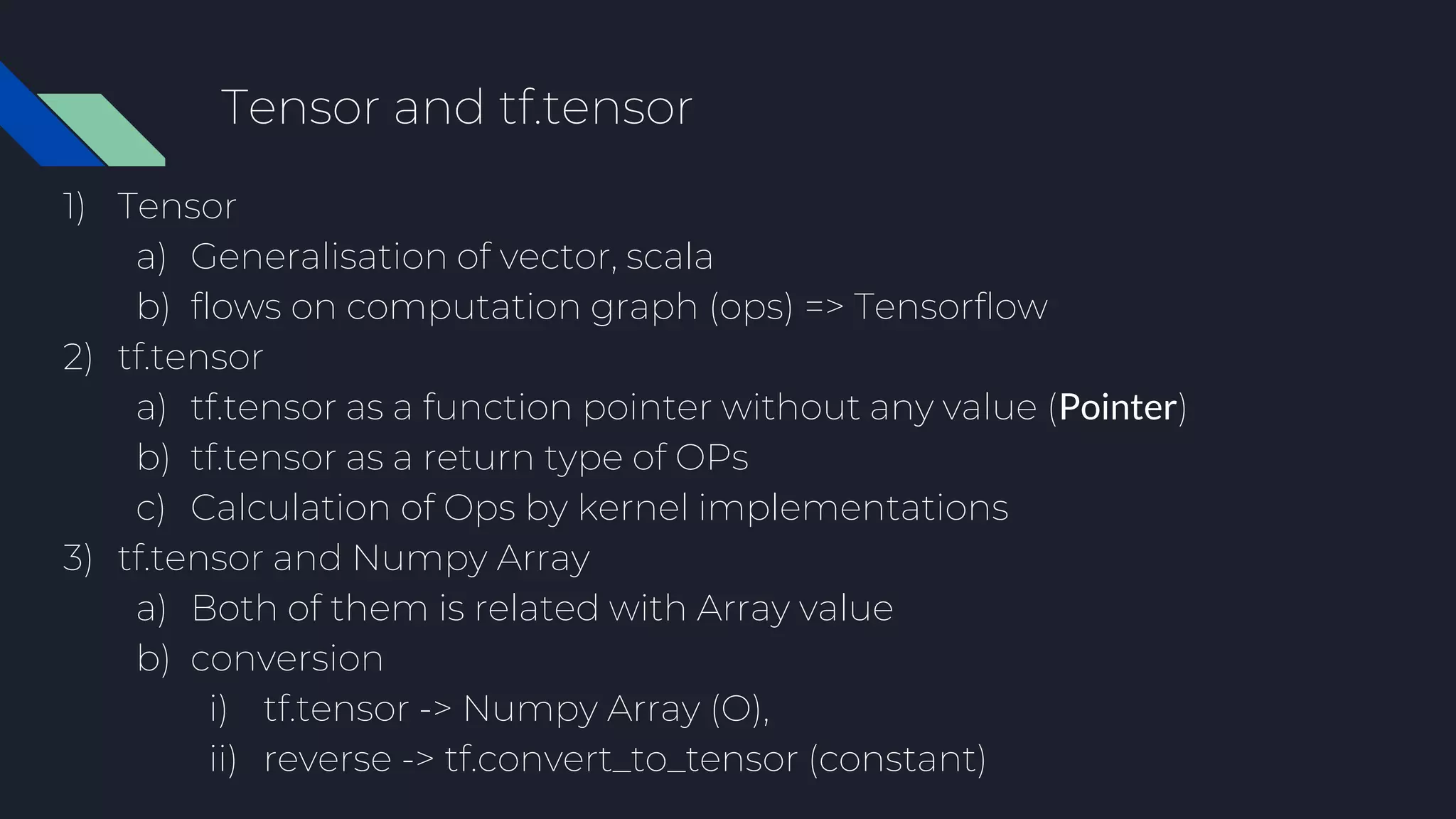

- 14. Tensor and tf.tensor 1)Tensor a) Generalisation of vector, scala b) flows on computation graph (ops) => Tensorflow 2) tf.tensor a) tf.tensor as a function pointer without any value (Pointer) b) tf.tensor as a return type of OPs c) Calculation of Ops by kernel implementations 3) tf.tensor and Numpy Array a) Both of them is related with Array value b) conversion i) tf.tensor -> Numpy Array (O), ii) reverse -> tf.convert_to_tensor (constant)
- 15. Session (1/3) Howtensorflow code is built and executed 1) Scope: Define and Run a) Define Graph (prepare Objects) b) Compute Graph with Session 2) Session Object a) Context on runtime b) tf.Operation i) tf.Variable().Initializer ii) Matmul, Softmax c) Multiple Argument d) Eval Method with default sess i) "default sess" or "y.eval(session=ss)" x = tf.constant([[37.0, -23.0], [1.0, 4.0]]) w = tf.Variable(tf.random_uniform([2, 2])) y = tf.matmul(x, w) output = tf.nn.softmax(y) init_op = w.initializer with tf.Session() as sess: print("-- sess.run: 1 arg --") sess.run(init_op) print(sess.run(output)) print("-- sess.run: 2 args --") y_val, output_val = sess.run([y, output]) print(y_val) print(output_val) print("-- Y Eval -- ") print(y.eval())

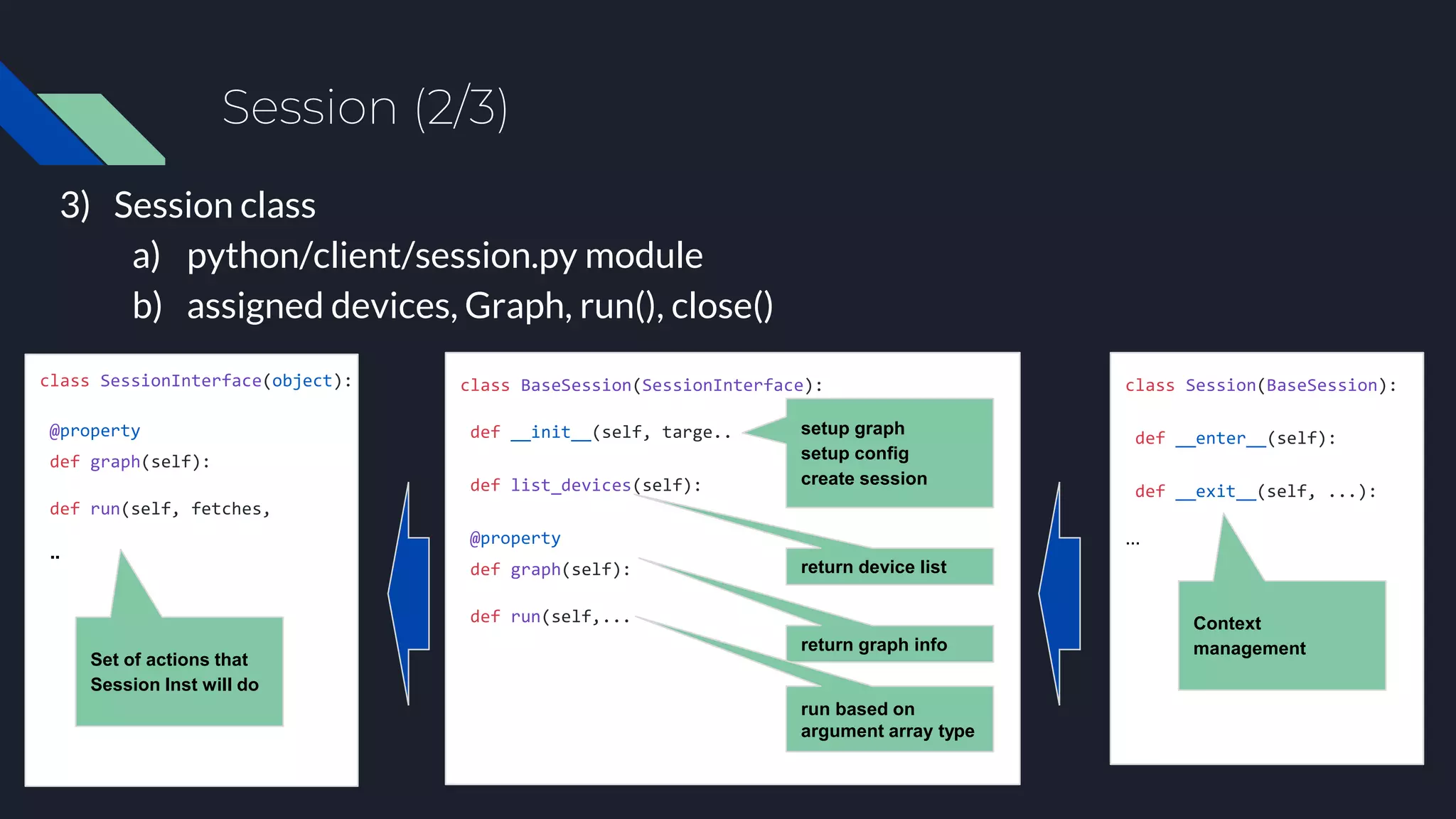

- 16. Session (2/3) 3) Sessionclass a) python/client/session.py module b) assigned devices, Graph, run(), close() class SessionInterface(object): @property def graph(self): def run(self, fetches, .. class BaseSession(SessionInterface): def __init__(self, targe.. def list_devices(self): @property def graph(self): def run(self,... class Session(BaseSession): def __enter__(self): def __exit__(self, ...): ... setup graph setup config create session return device list return graph info run based on argument array type Context management Set of actions that Session Inst will do

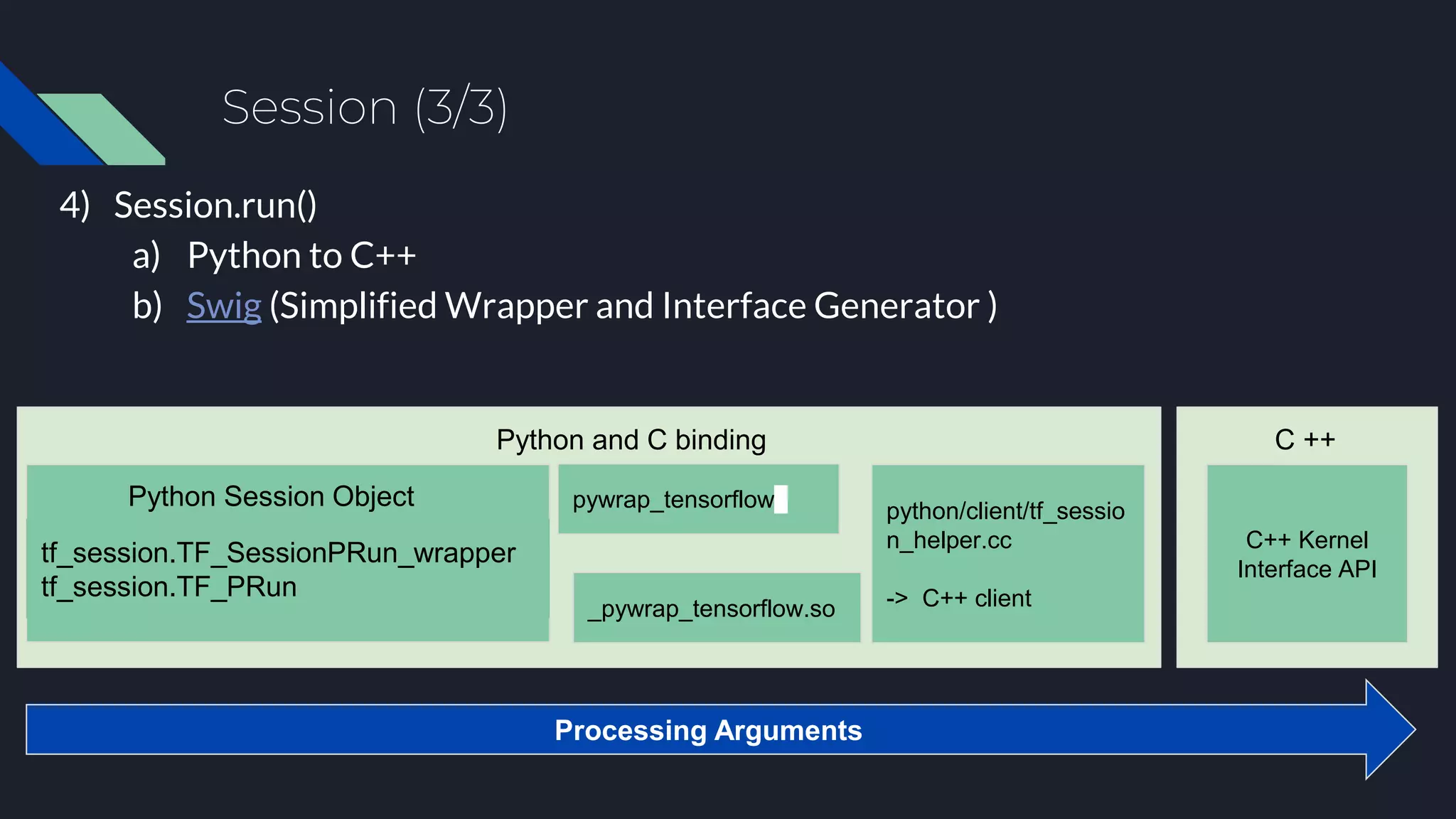

- 17. Session (3/3) 4) Session.run() a)Python to C++ b) Swig (Simplified Wrapper and Interface Generator ) tf_session.TF_SessionPRun_wrapper tf_session.TF_PRun pywrap_tensorflow _pywrap_tensorflow.so Python Session Object python/client/tf_sessio n_helper.cc -> C++ client C++ Kernel Interface API Processing Arguments Python and C binding C ++
- 18.

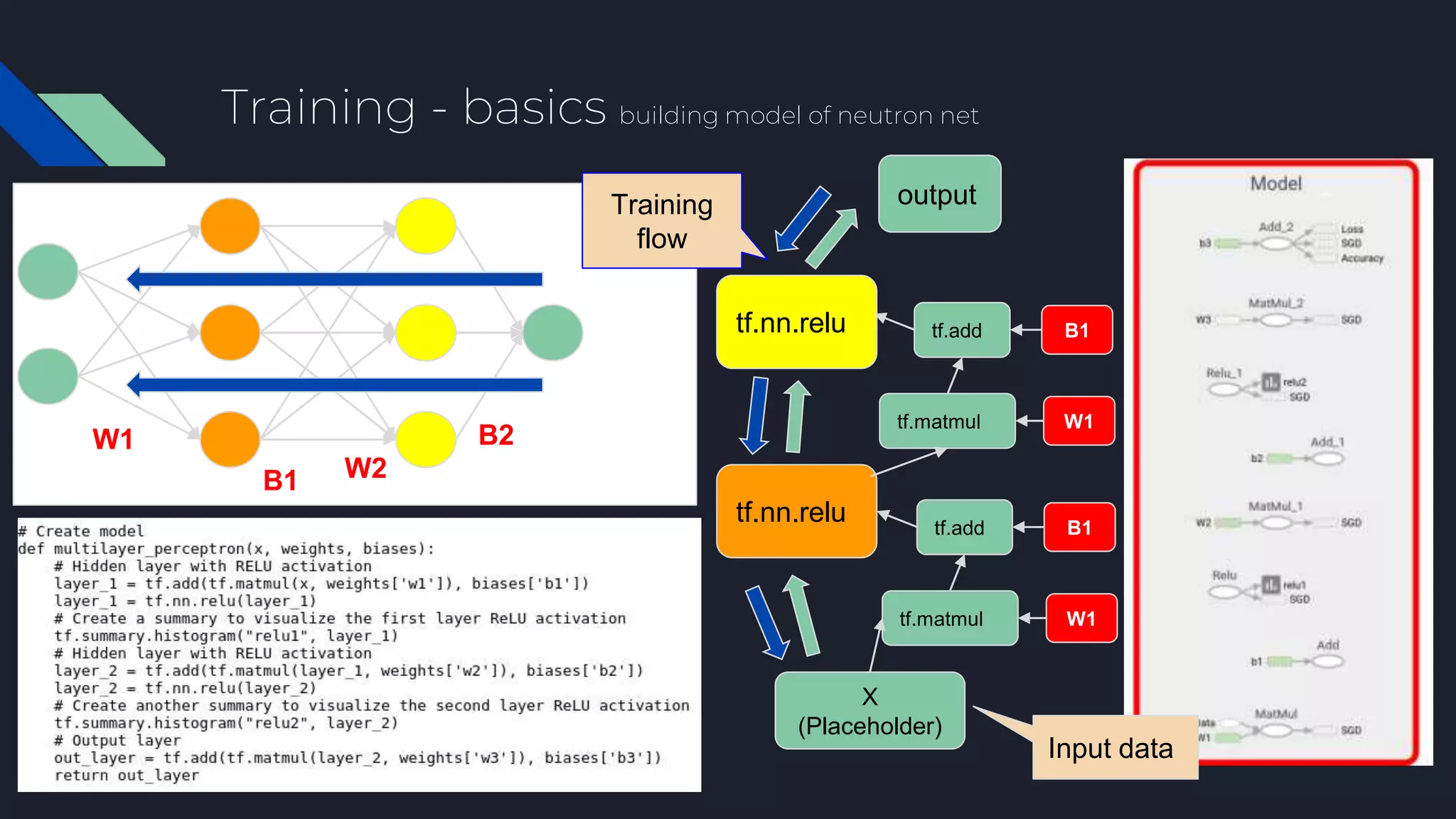

- 20. Training - basicsbuilding model of neutron net X (Placeholder) tf.nn.relu tf.nn.relu output tf.matmul B1 W1 tf.add tf.matmul B1 W1 tf.add W1 W2B1 B2 Training flow Input data

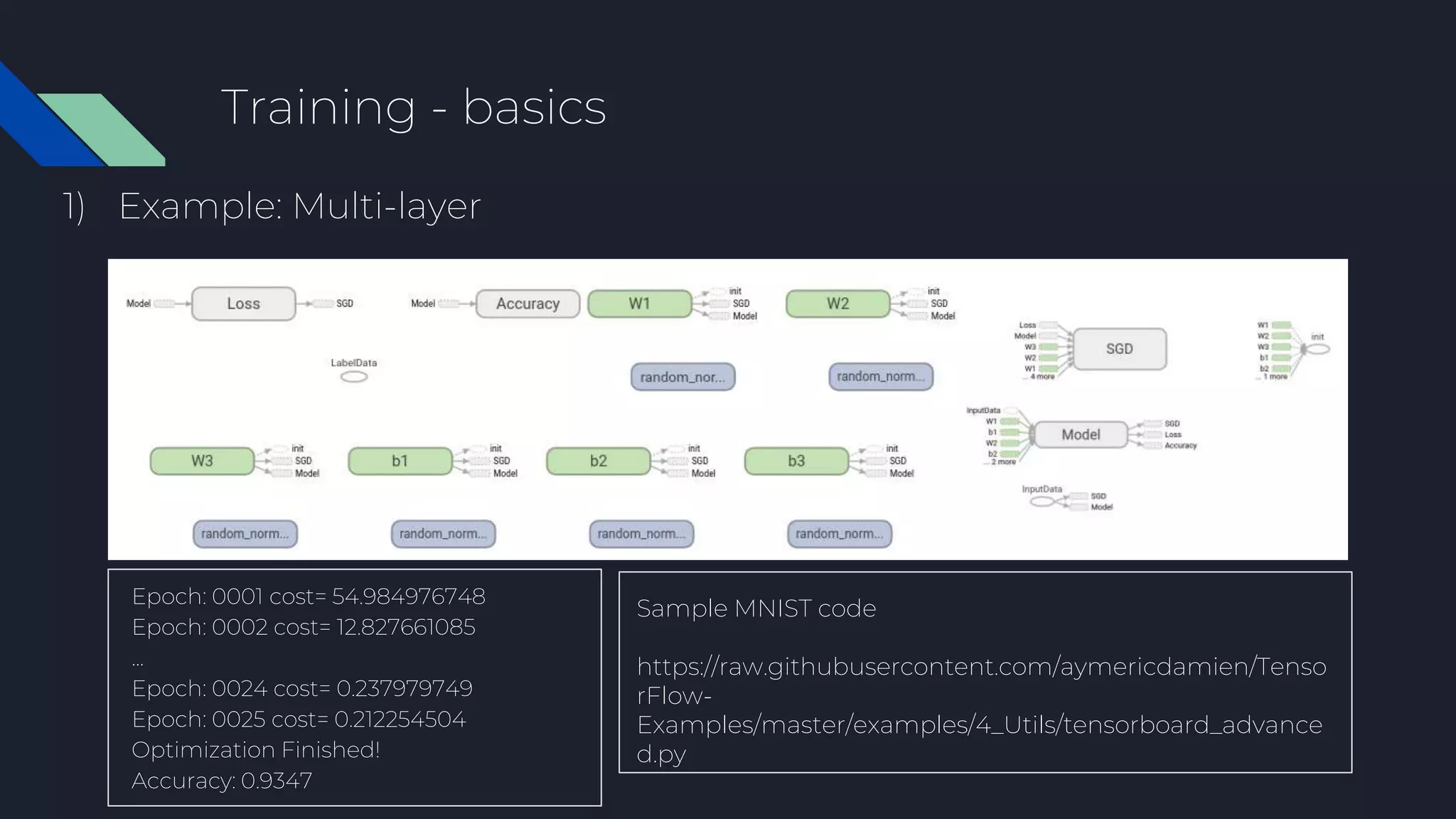

- 21. Training - basics 1)Example: Multi-layer Epoch: 0001 cost= 54.984976748 Epoch: 0002 cost= 12.827661085 ... Epoch: 0024 cost= 0.237979749 Epoch: 0025 cost= 0.212254504 Optimization Finished! Accuracy: 0.9347 Sample MNIST code https://raw.githubusercontent.com/aymericdamien/Tenso rFlow- Examples/master/examples/4_Utils/tensorboard_advance d.py

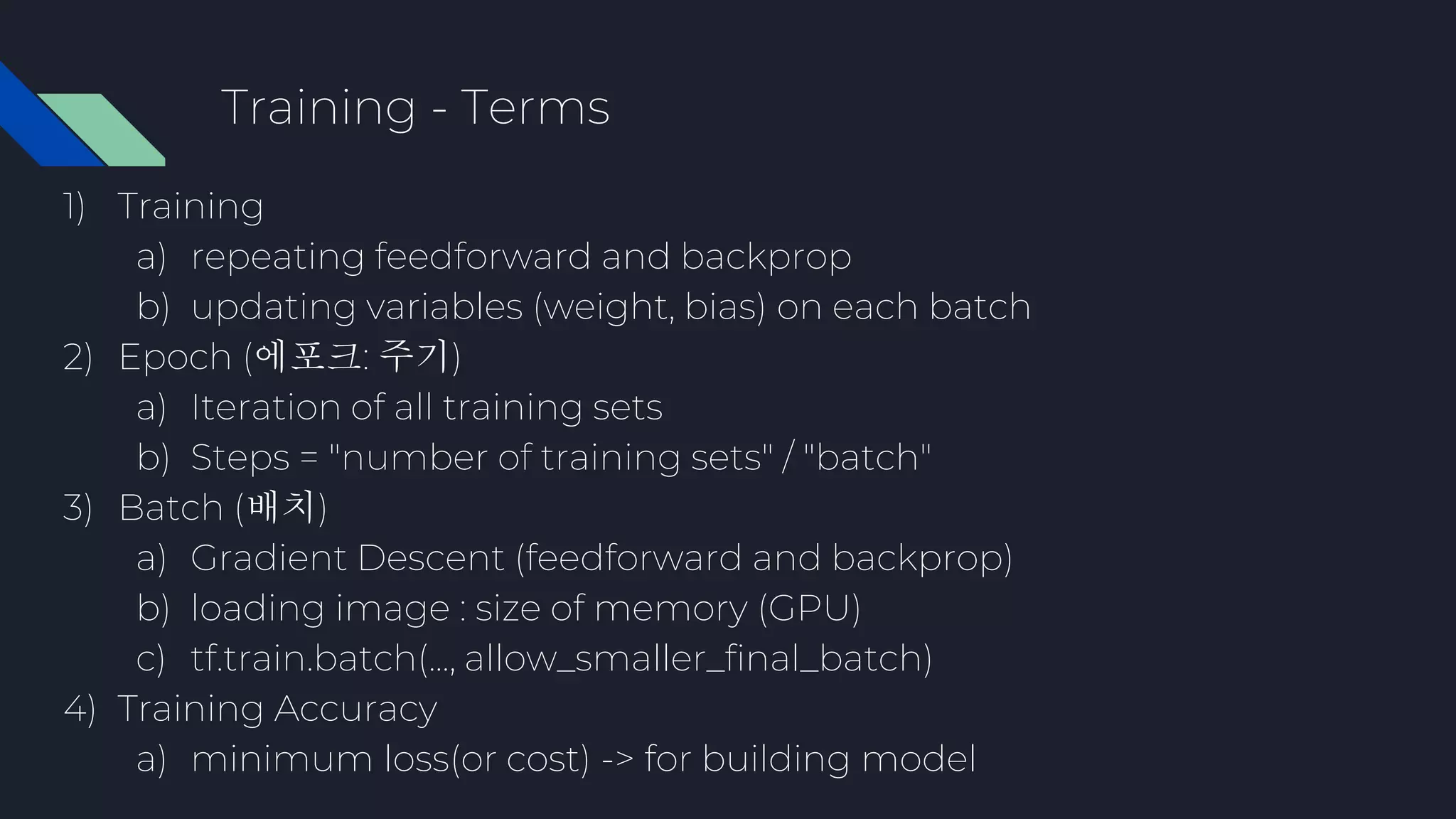

- 22. Training - Terms 1)Training a) repeating feedforward and backprop b) updating variables (weight, bias) on each batch 2) Epoch (에포크: 주기) a) Iteration of all training sets b) Steps = "number of training sets" / "batch" 3) Batch (배치) a) Gradient Descent (feedforward and backprop) b) loading image : size of memory (GPU) c) tf.train.batch(..., allow_smaller_final_batch) 4) Training Accuracy a) minimum loss(or cost) -> for building model

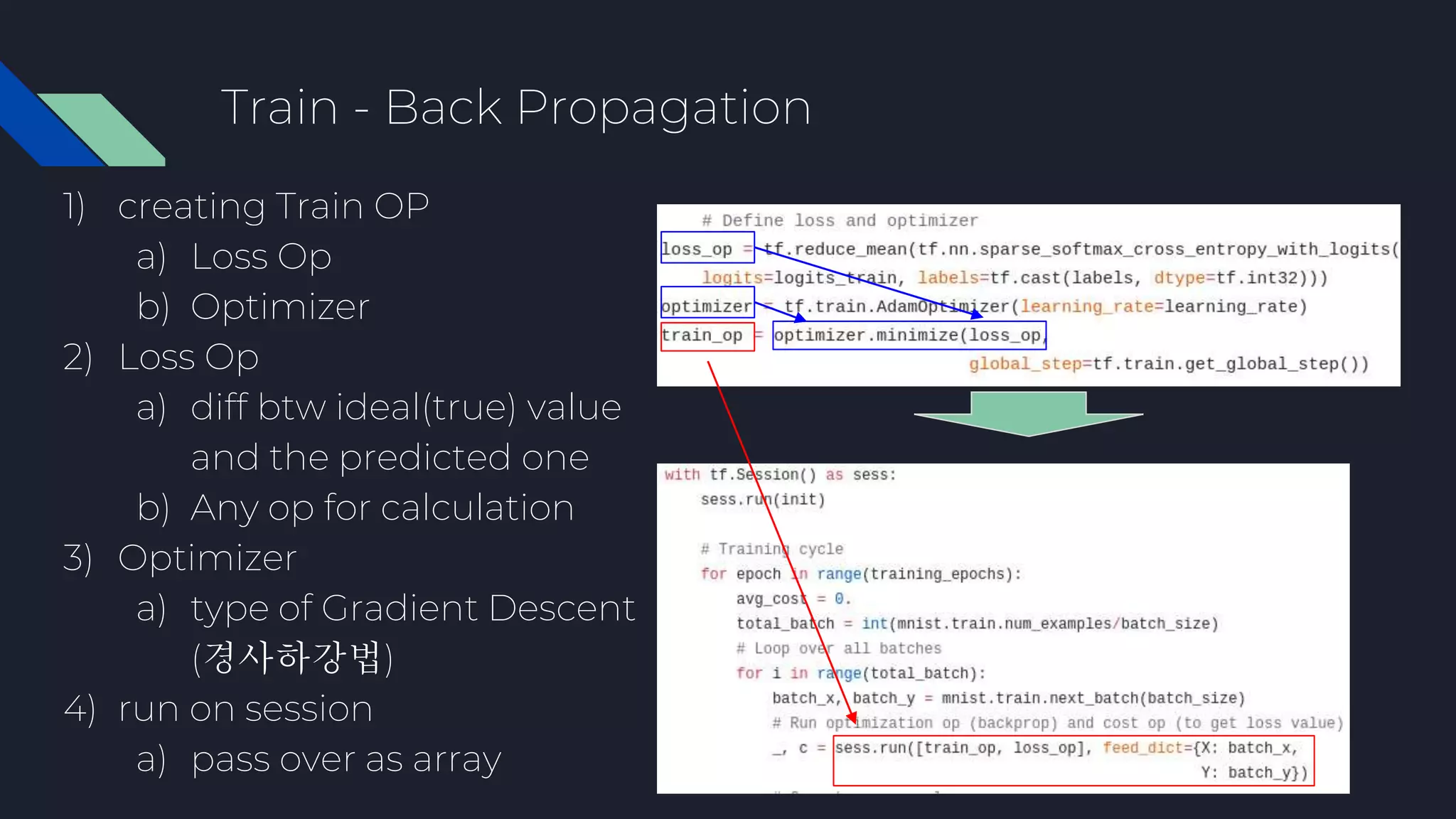

- 23. Train - BackPropagation 1) creating Train OP a) Loss Op b) Optimizer 2) Loss Op a) diff btw ideal(true) value and the predicted one b) Any op for calculation 3) Optimizer a) type of Gradient Descent (경사하강법) 4) run on session a) pass over as array

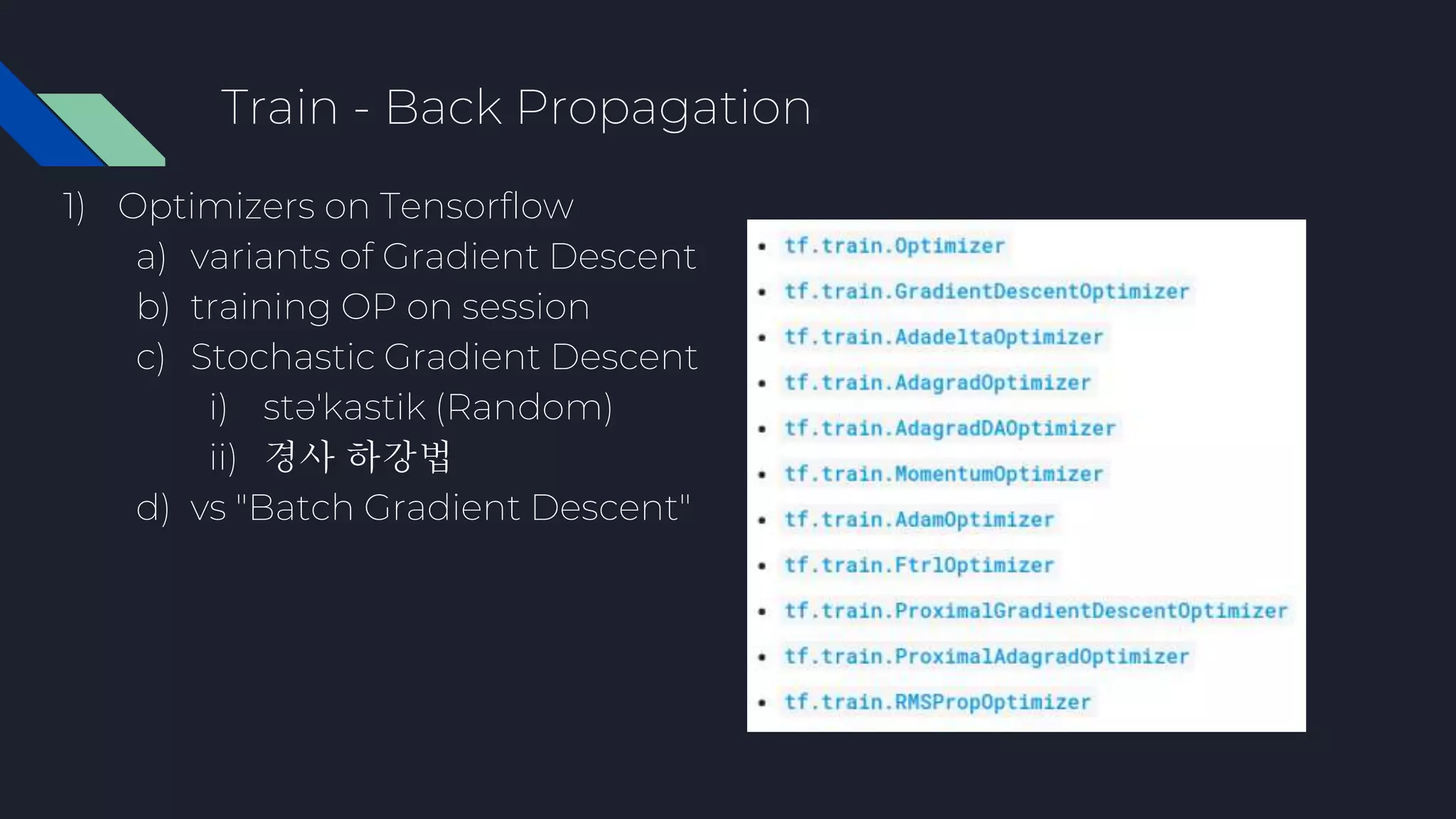

- 24. Train - BackPropagation 1) Optimizers on Tensorflow a) variants of Gradient Descent b) training OP on session c) Stochastic Gradient Descent i) stəˈkastik (Random) ii) 경사 하강법 d) vs "Batch Gradient Descent"

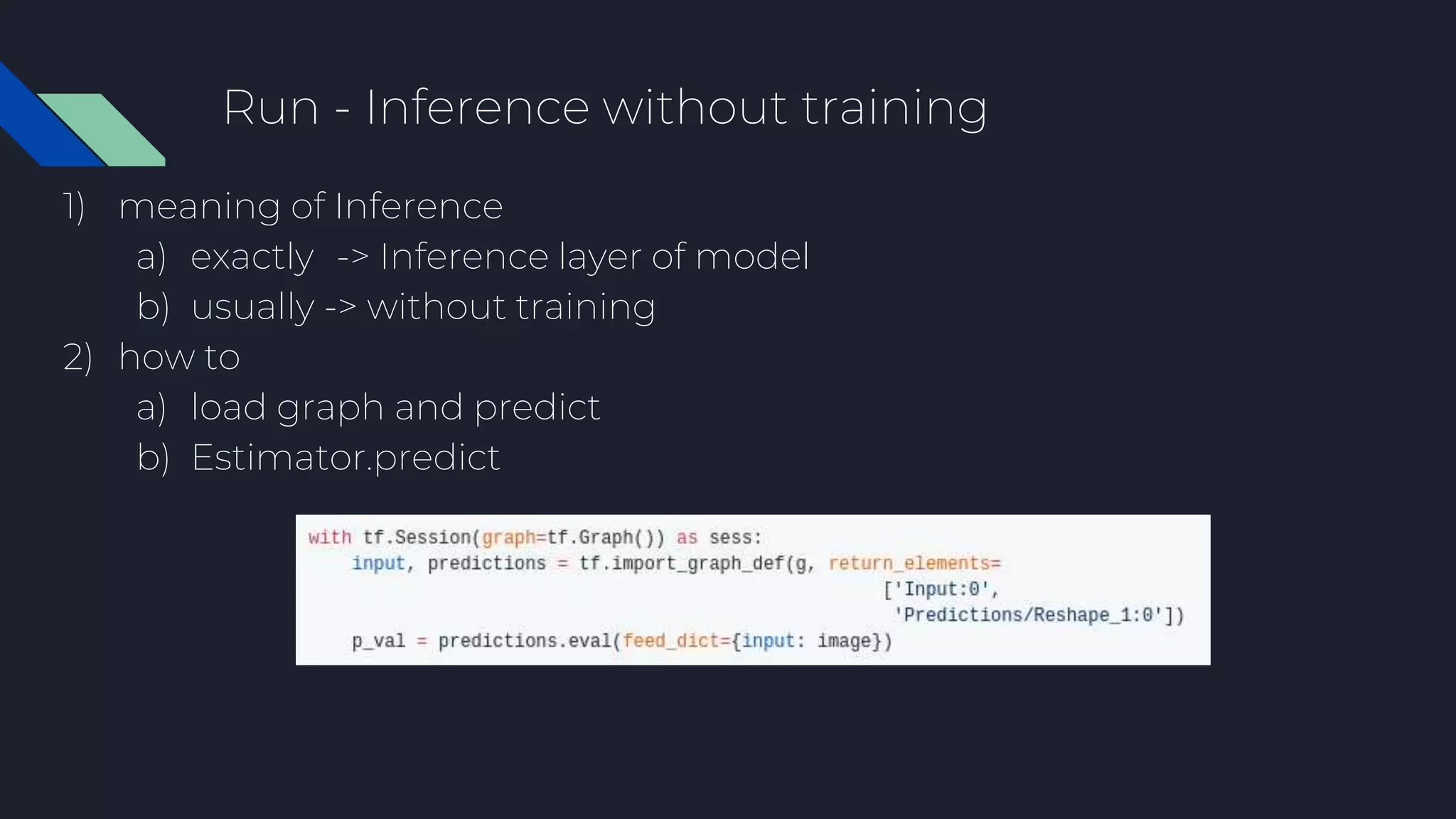

- 25. Run - Inferencewithout training 1) meaning of Inference a) exactly -> Inference layer of model b) usually -> without training 2) how to a) load graph and predict b) Estimator.predict

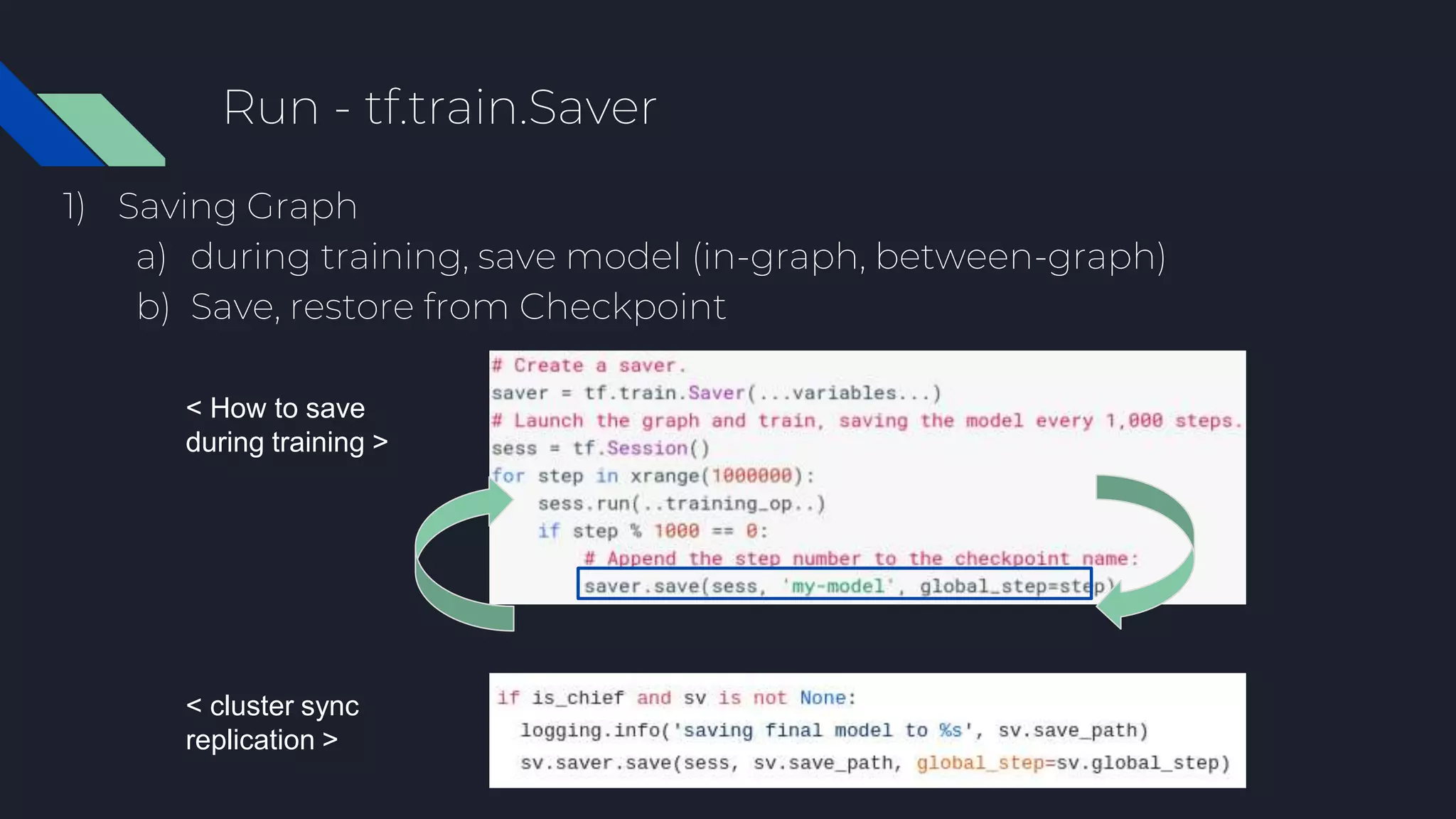

- 26. Run - tf.train.Saver 1)Saving Graph a) during training, save model (in-graph, between-graph) b) Save, restore from Checkpoint < cluster sync replication > < How to save during training >
- 27.

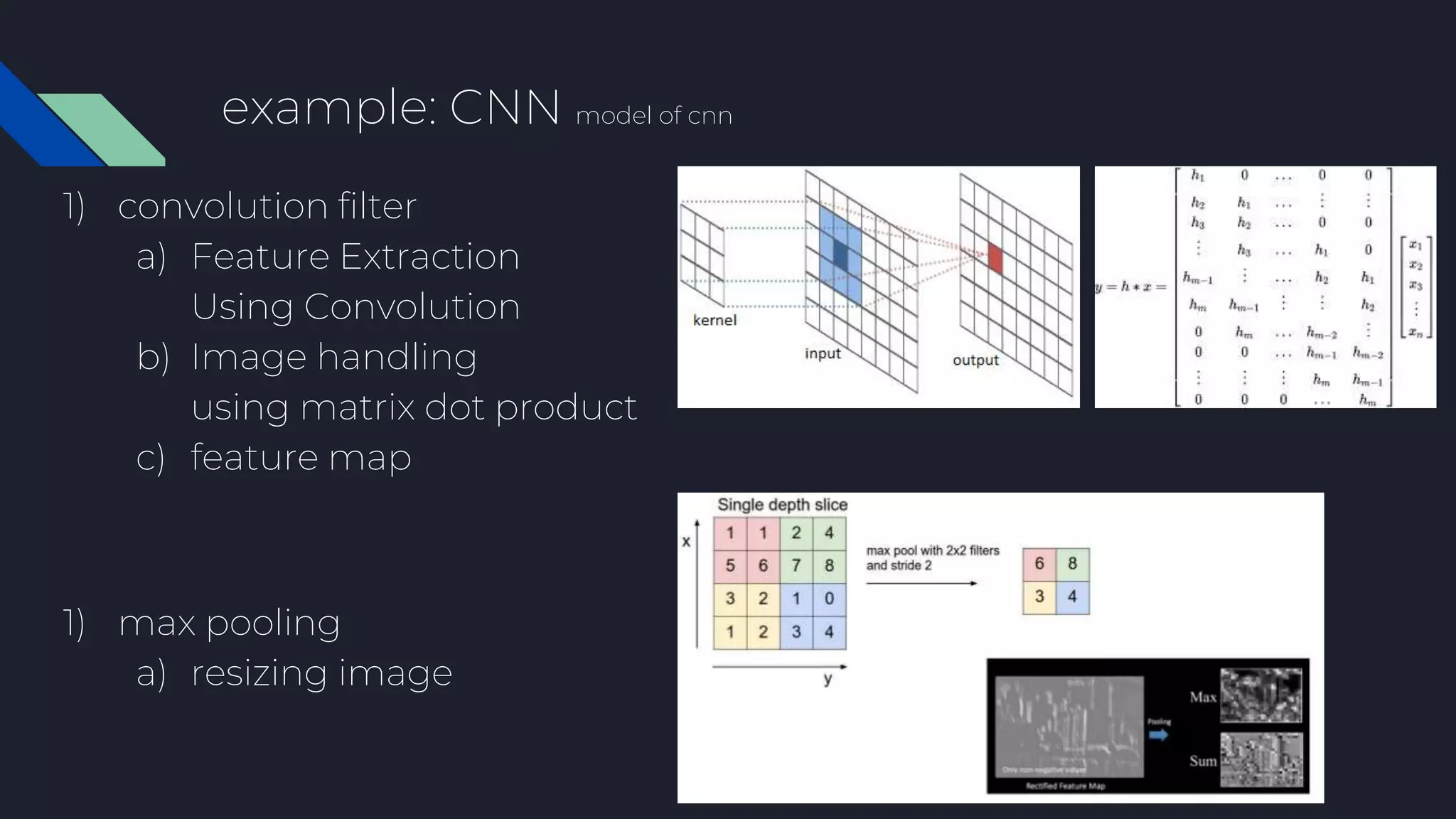

- 28. example: CNN modelof cnn 1) convolution filter a) Feature Extraction Using Convolution b) Image handling using matrix dot product c) feature map 1) max pooling a) resizing image

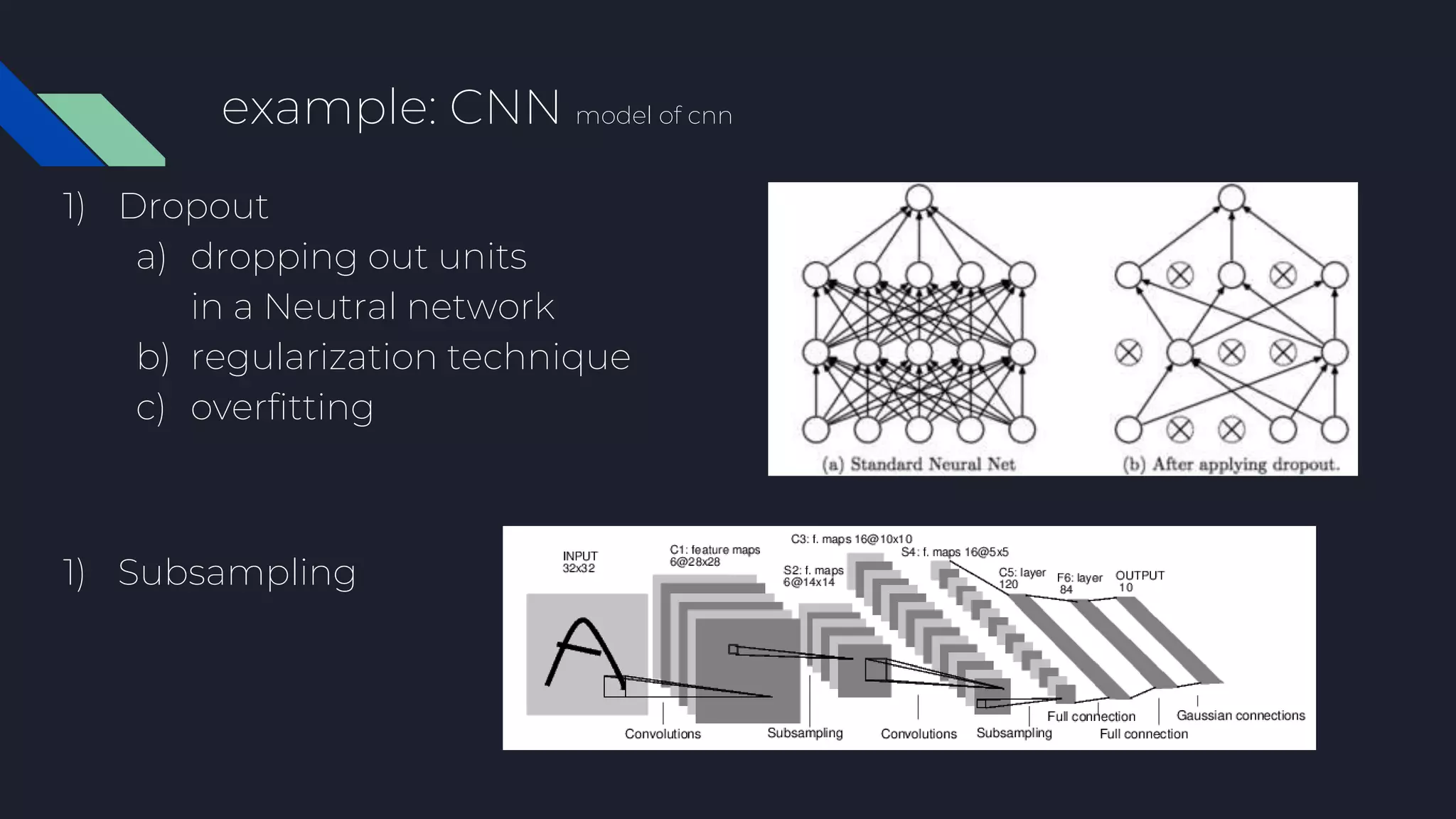

- 29. example: CNN modelof cnn 1) Dropout a) dropping out units in a Neutral network b) regularization technique c) overfitting 1) Subsampling

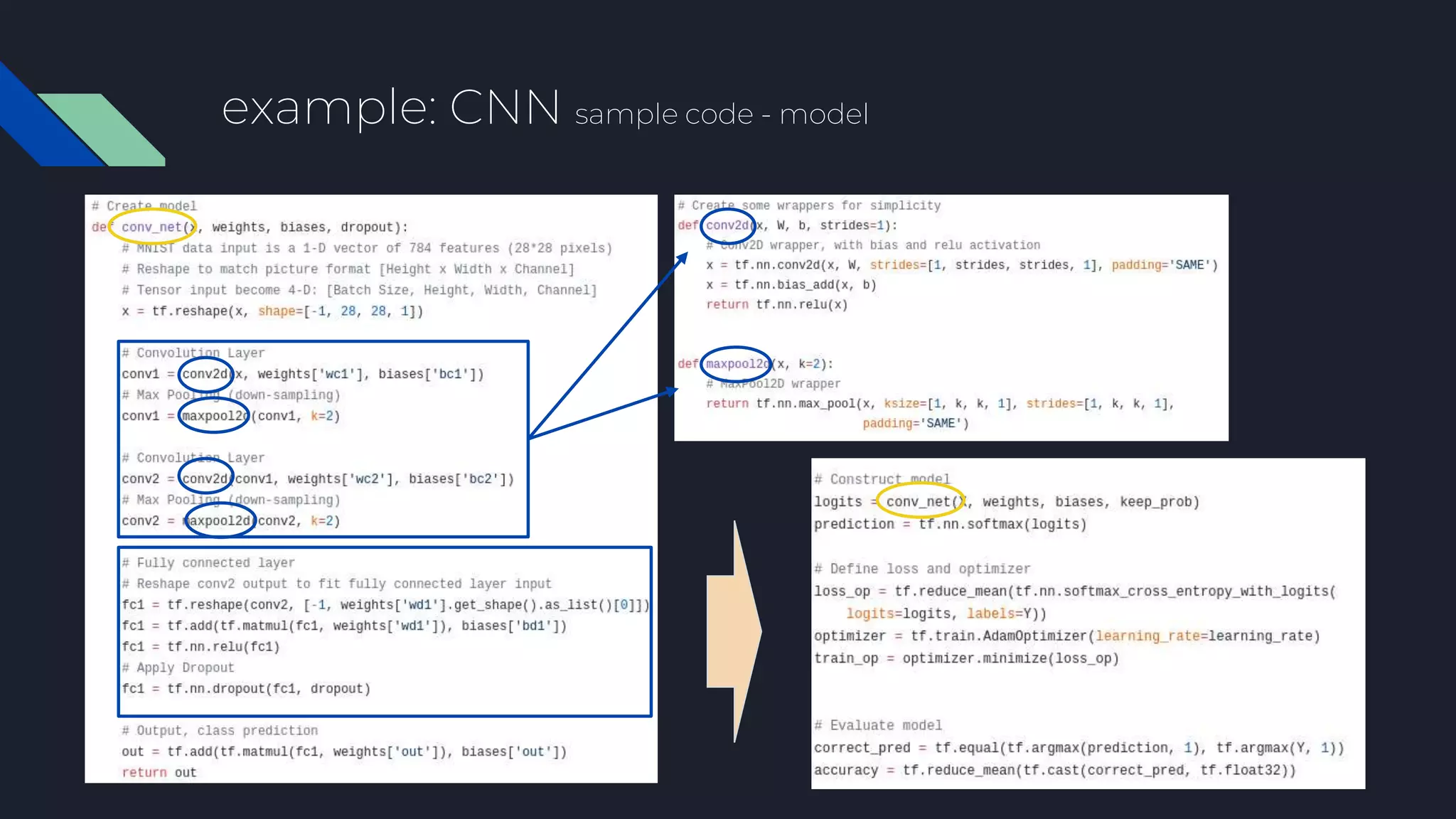

- 30. example: CNN samplecode - model

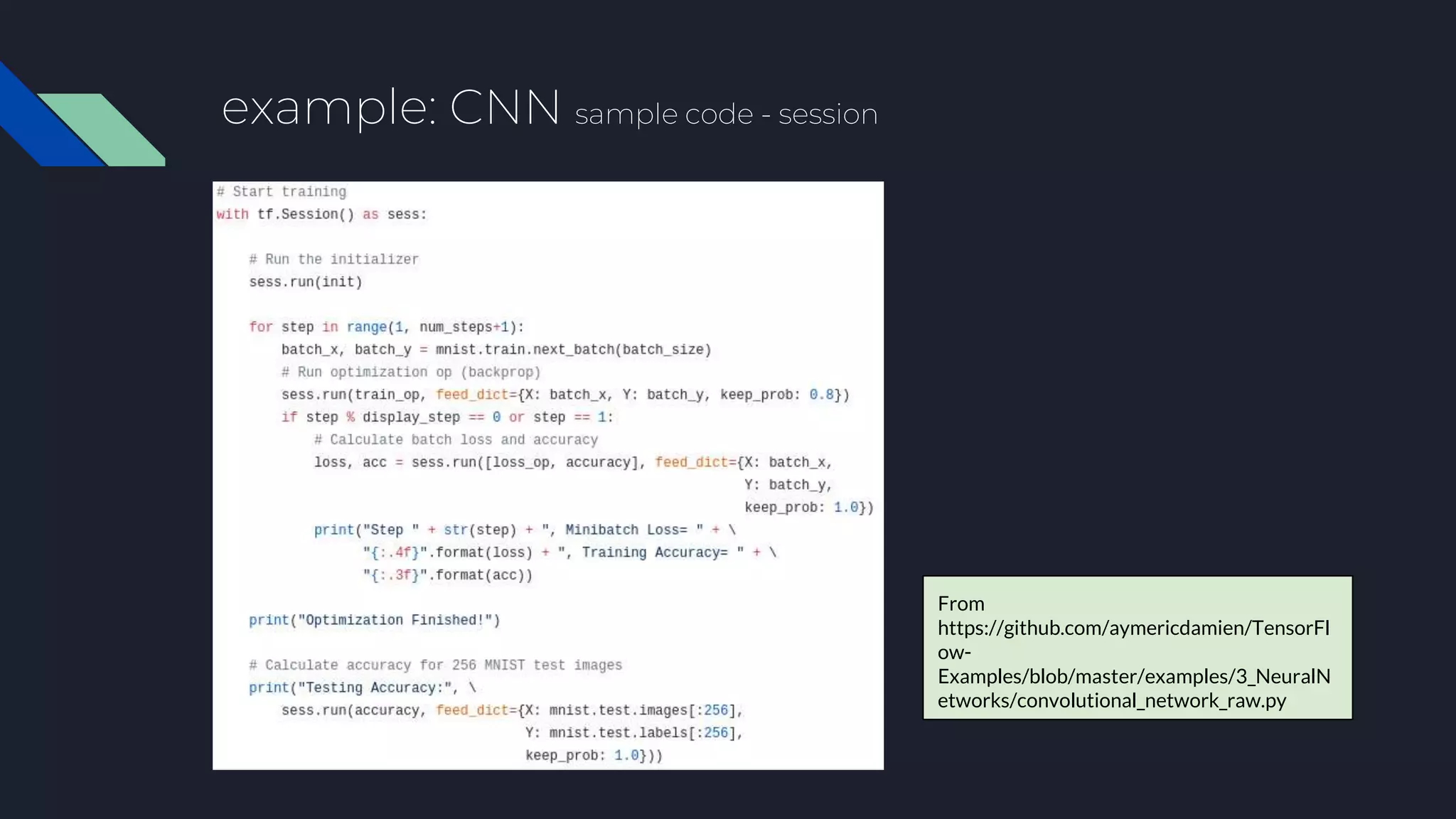

- 31. example: CNN samplecode - session From https://github.com/aymericdamien/TensorFl ow- Examples/blob/master/examples/3_NeuralN etworks/convolutional_network_raw.py
- 32.

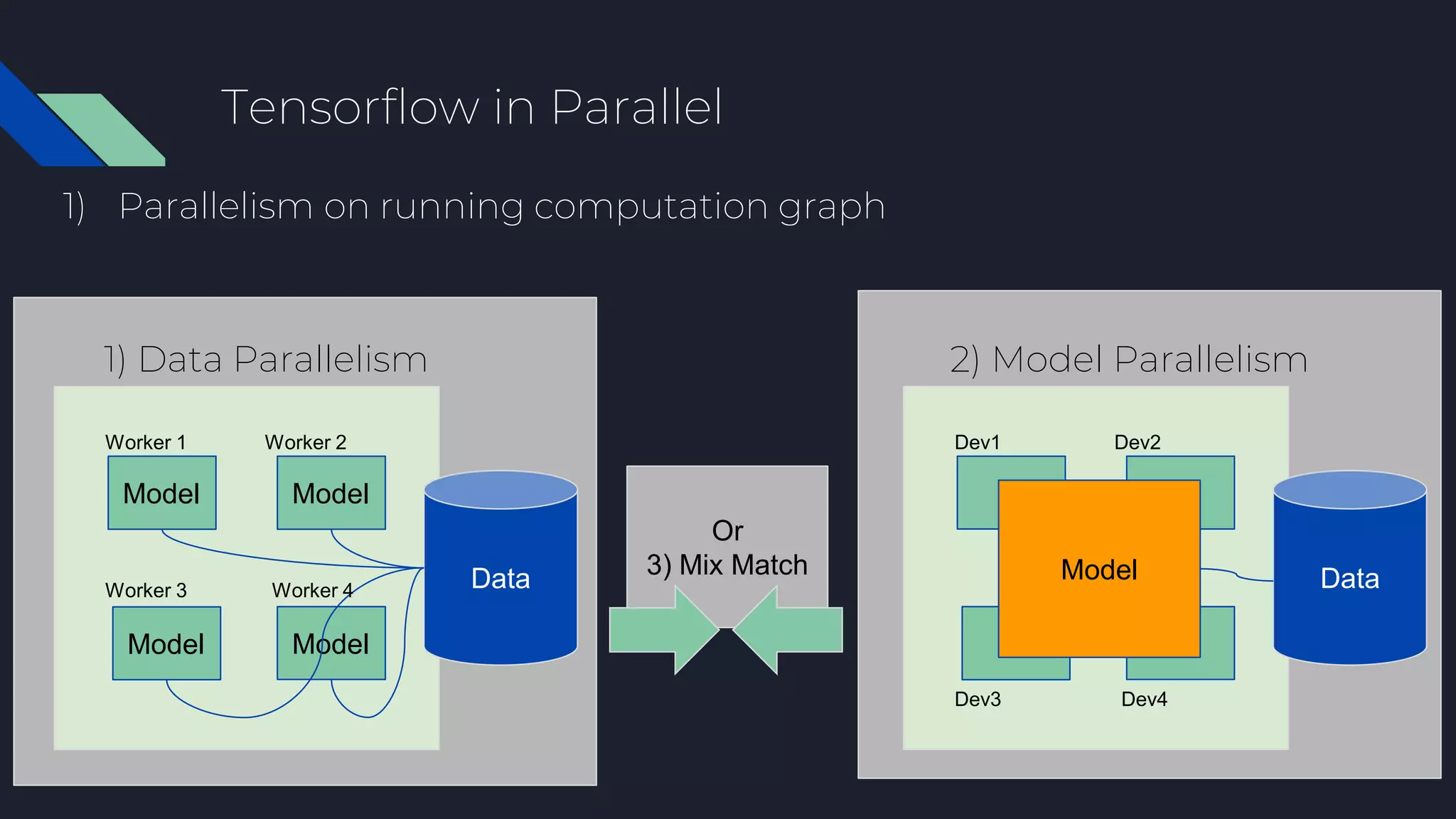

- 34. Tensorflow in Parallel 1)Parallelism on running computation graph Model Model Model Model Data Worker 1 Worker 2 Worker 3 Worker 4 1) Data Parallelism Data Dev1 Dev2 Dev3 Dev4 Model 2) Model Parallelism Or 3) Mix Match
- 35. Tensorflow in Parallel- Model Parallelism 1) Model Parallelism Data Dev1 Dev2 Dev3 Dev4 Model c = [] for d in ['/gpu:2', '/gpu:3']: with tf.device(d): a = tf.constant([1.0, 2.0, 3.0, 4.0, 5.0, 6.0], shape=[2, 3]) b = tf.constant([1.0, 2.0, 3.0, 4.0, 5.0, 6.0], shape=[3, 2]) c.append(tf.matmul(a, b)) with tf.device('/cpu:0'): sum = tf.add_n(c) sess = tf.Session(config=tf.ConfigProto(log_device_placement=True)) print(sess.run(sum))

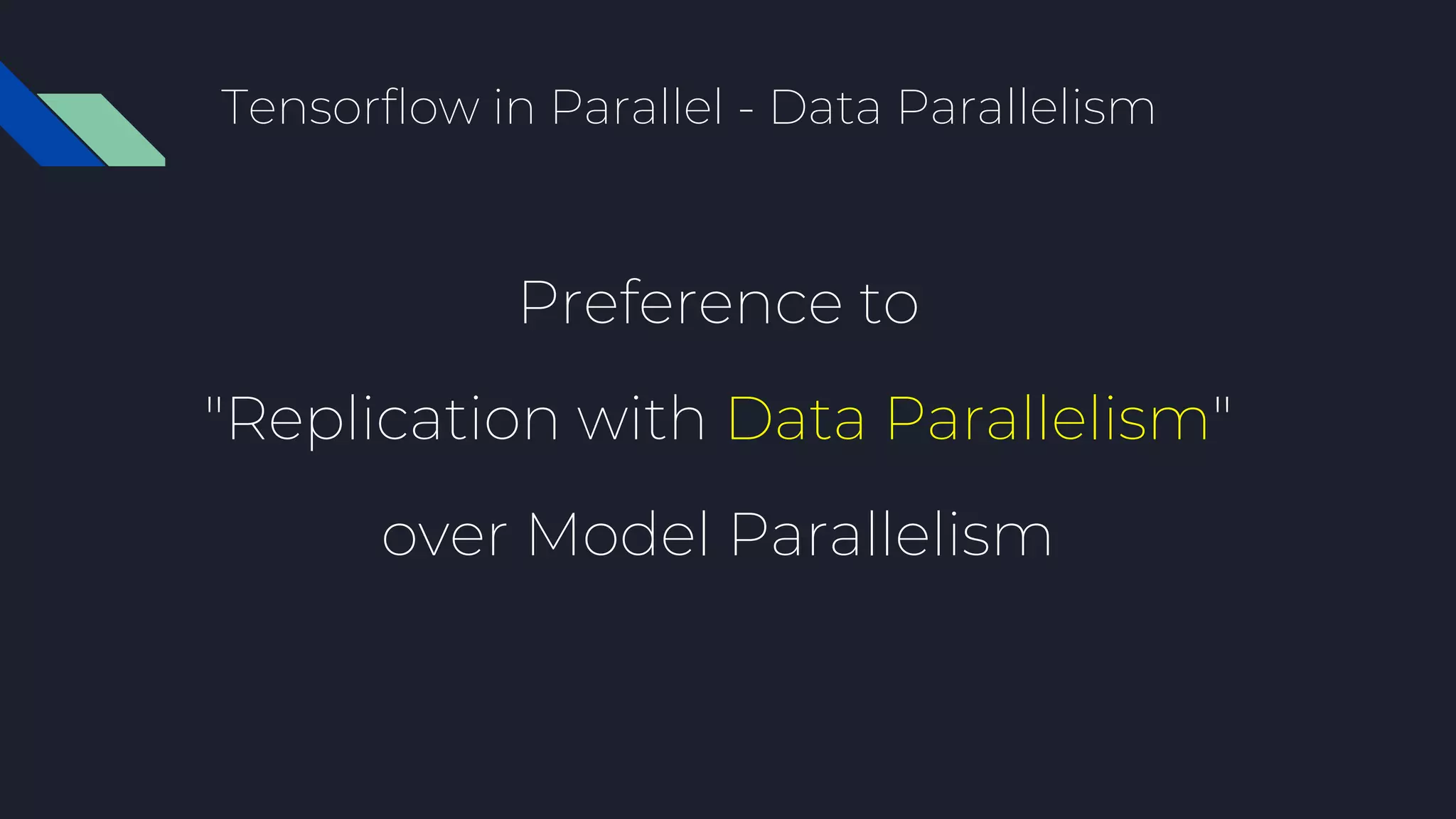

- 36. Tensorflow in Parallel- Data Parallelism Preference to "Replication with Data Parallelism" over Model Parallelism

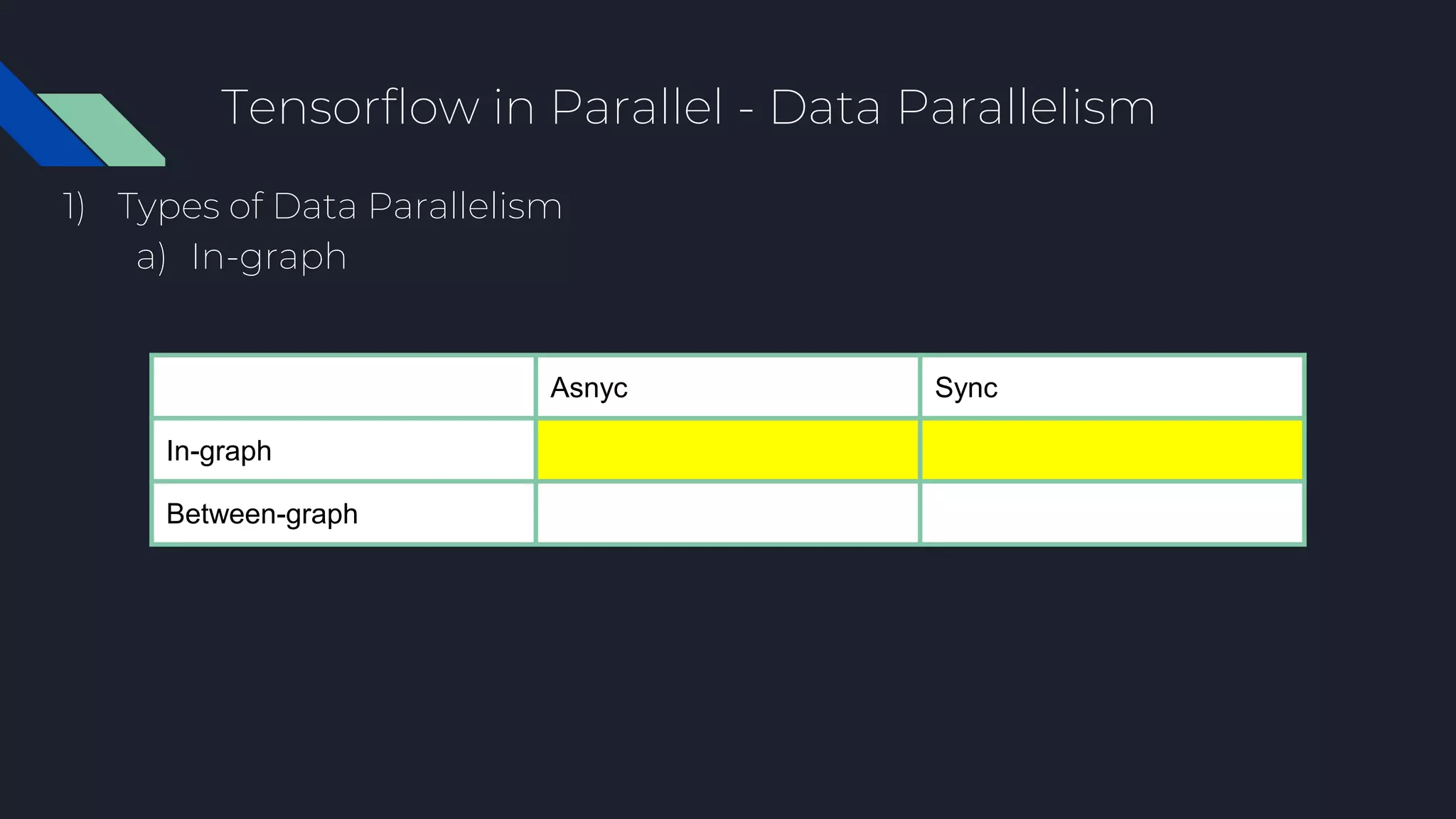

- 37. Tensorflow in Parallel- Data Parallelism 1) Types of Data Parallelism a) In-graph Asnyc Sync In-graph Between-graph
- 38. Tensorflow in Parallel- Data Parallelism 1) In-graph replication a) One graph with tasks of ps, worker (<-> model Parallel) b) manually assign compute intensive graph to GPU with tf.device("/job:ps/task:0"): weights_1 = tf.Variable(...) biases_1 = tf.Variable(...) ... worker_devices = ["/job:worker/task:0/gpu:0", ..., "/job:worker/task:7/gpu:0"] for worker_device in worker_devices: with tf.device(worker_device): input, labels = ... layer_1 = tf.nn.relu(tf.matmul(input, weights_1) + biases_1) logits = tf.nn.relu(tf.matmul(layer_1, weights_2) + iases_2) train_op = ... with tf.Session("grpc://worker7.example.com:2222") as sess: for _ in range(10000): sess.run(train_op) Manually assign multiple devices on compute intensive work -> replicating model on multiple device Setup Param Server

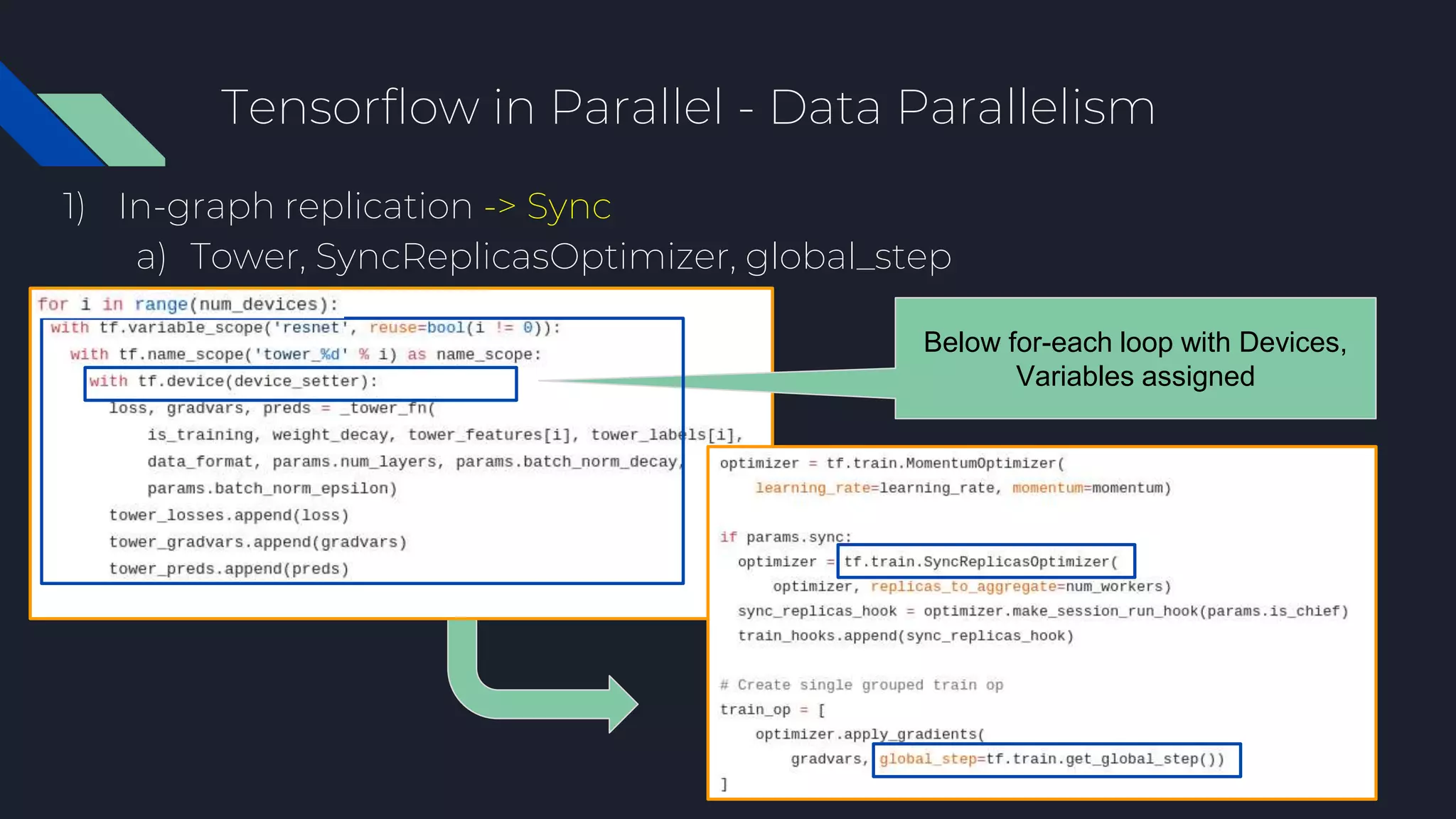

- 39. Tensorflow in Parallel- Data Parallelism 1) In-graph replication -> Sync a) Tower, SyncReplicasOptimizer, global_step Below for-each loop with Devices, Variables assigned

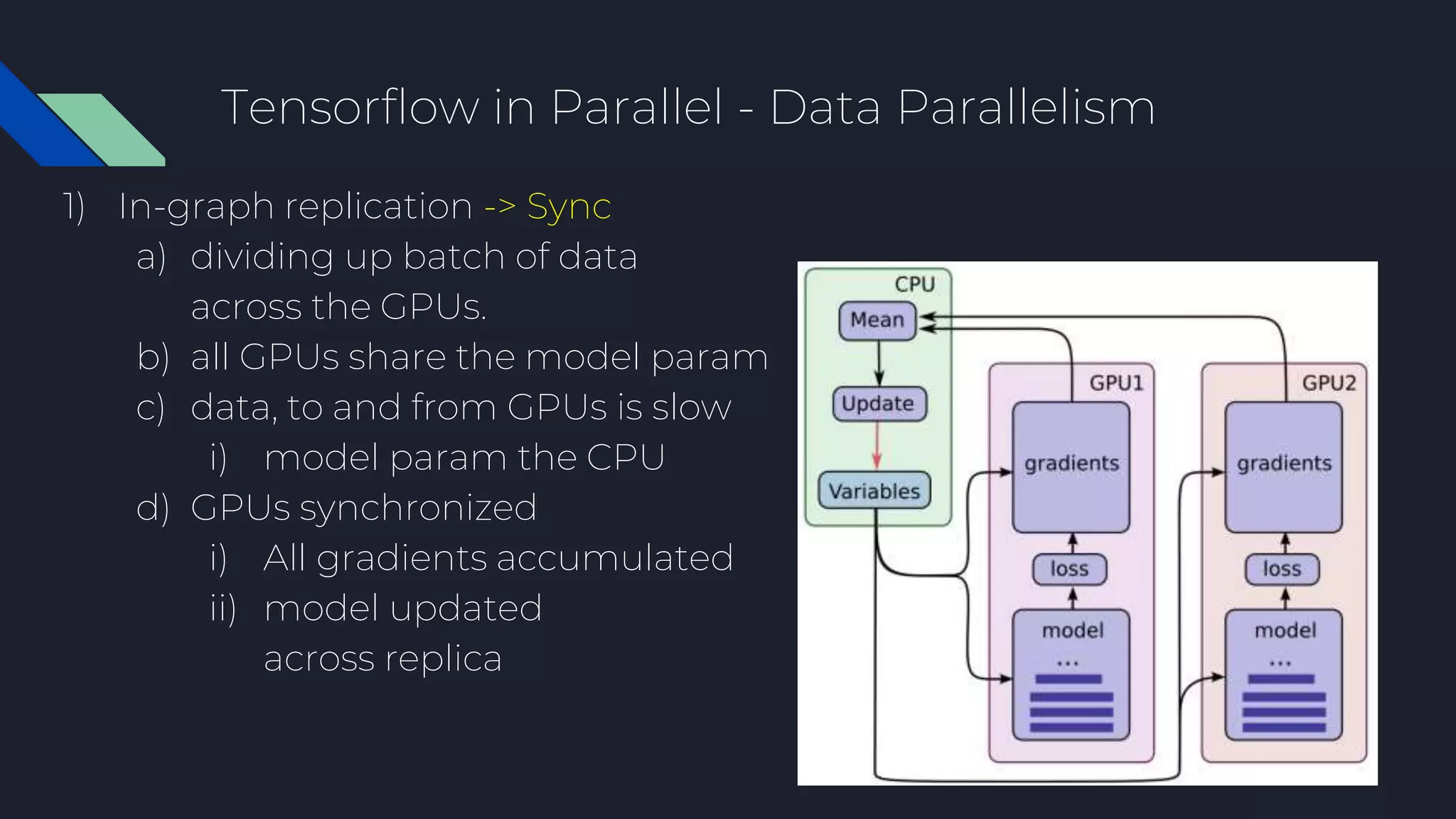

- 40. Tensorflow in Parallel- Data Parallelism 1) In-graph replication -> Sync a) dividing up batch of data across the GPUs. b) all GPUs share the model param c) data, to and from GPUs is slow i) model param the CPU d) GPUs synchronized i) All gradients accumulated ii) model updated across replica

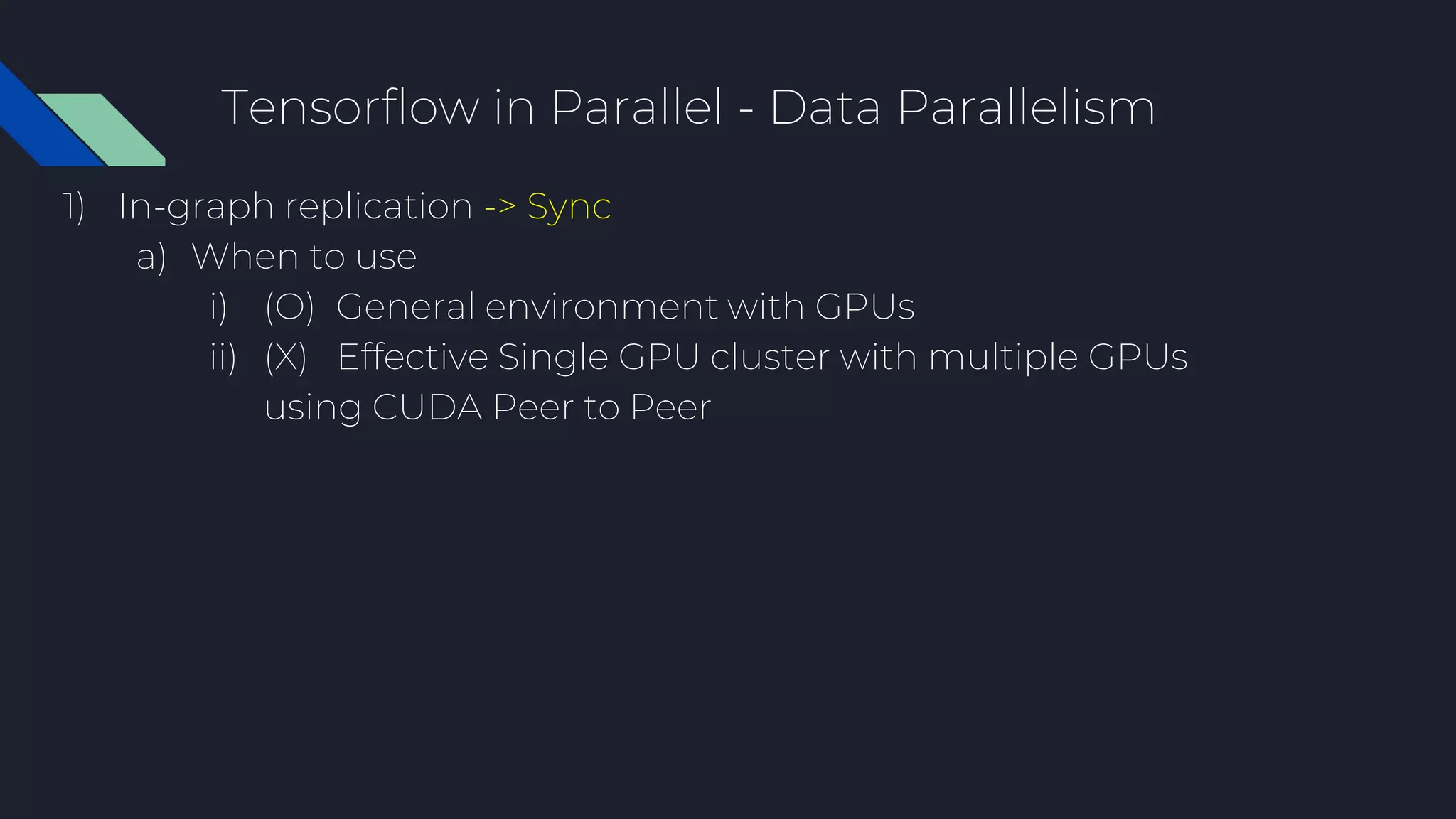

- 41. Tensorflow in Parallel- Data Parallelism 1) In-graph replication -> Sync a) When to use i) (O) General environment with GPUs ii) (X) Effective Single GPU cluster with multiple GPUs using CUDA Peer to Peer

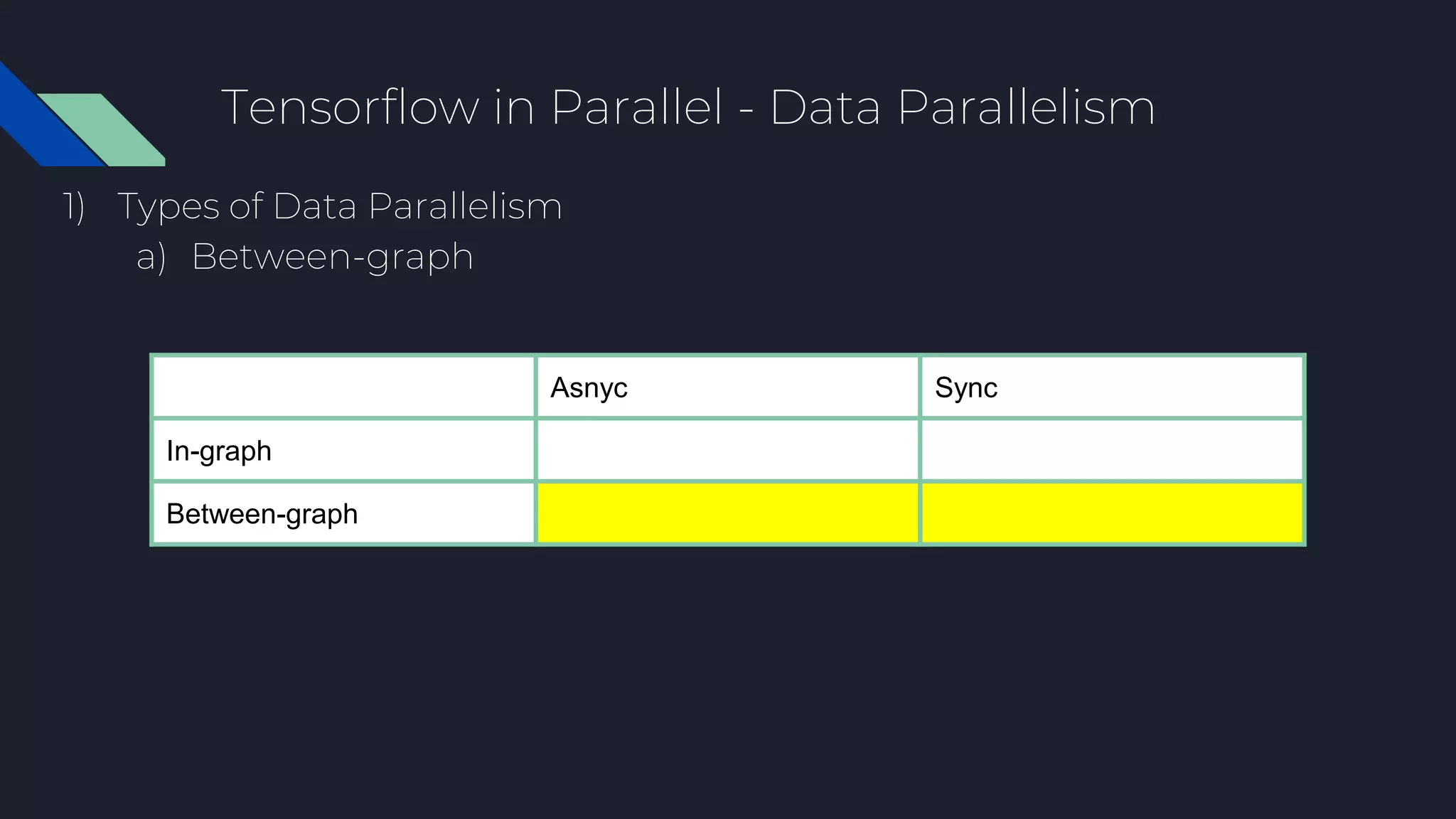

- 42. Tensorflow in Parallel- Data Parallelism 1) Types of Data Parallelism a) Between-graph Asnyc Sync In-graph Between-graph

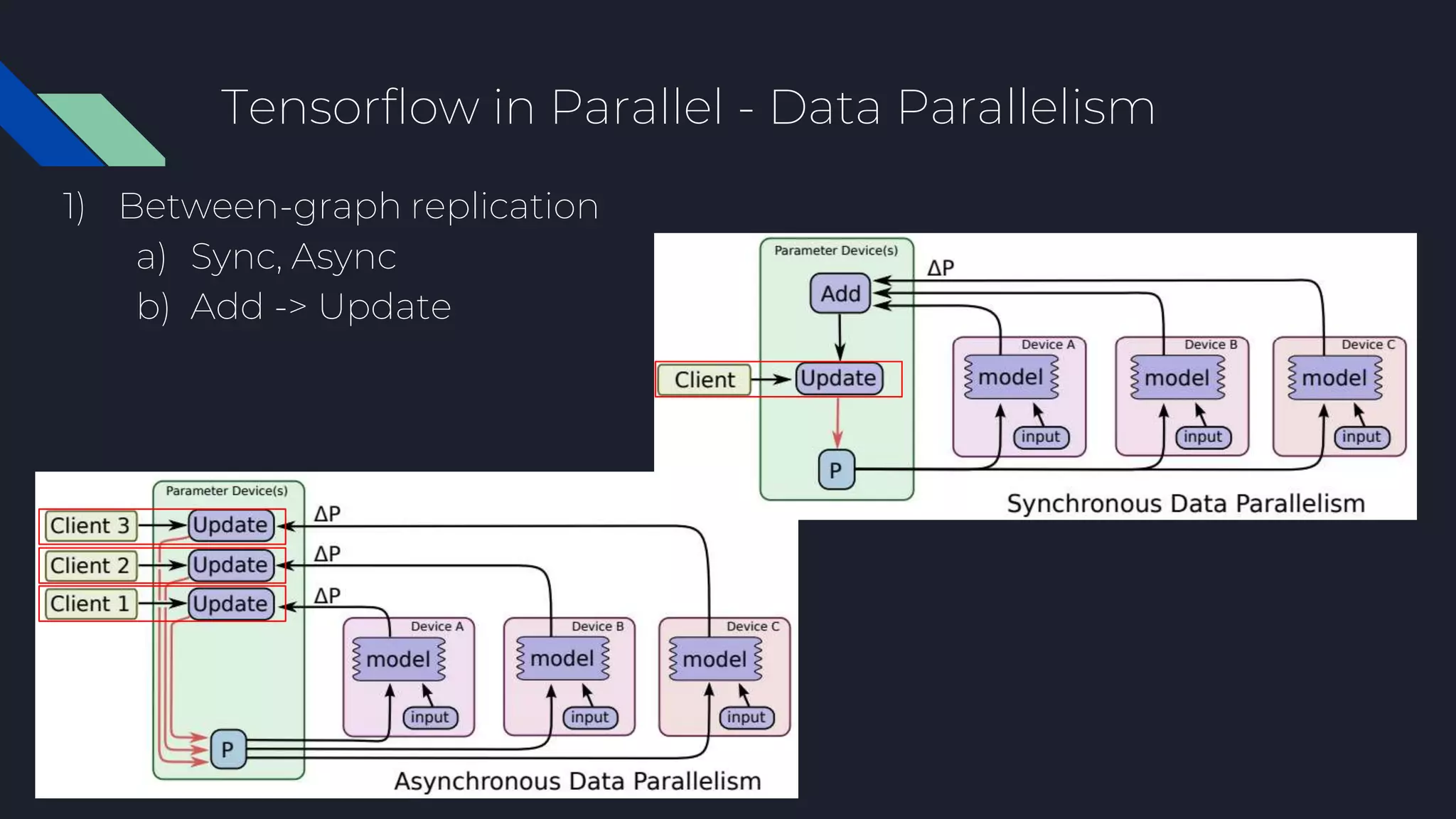

- 43. Tensorflow in Parallel- Data Parallelism 1) Between-graph replication a) Sync, Async b) Add -> Update

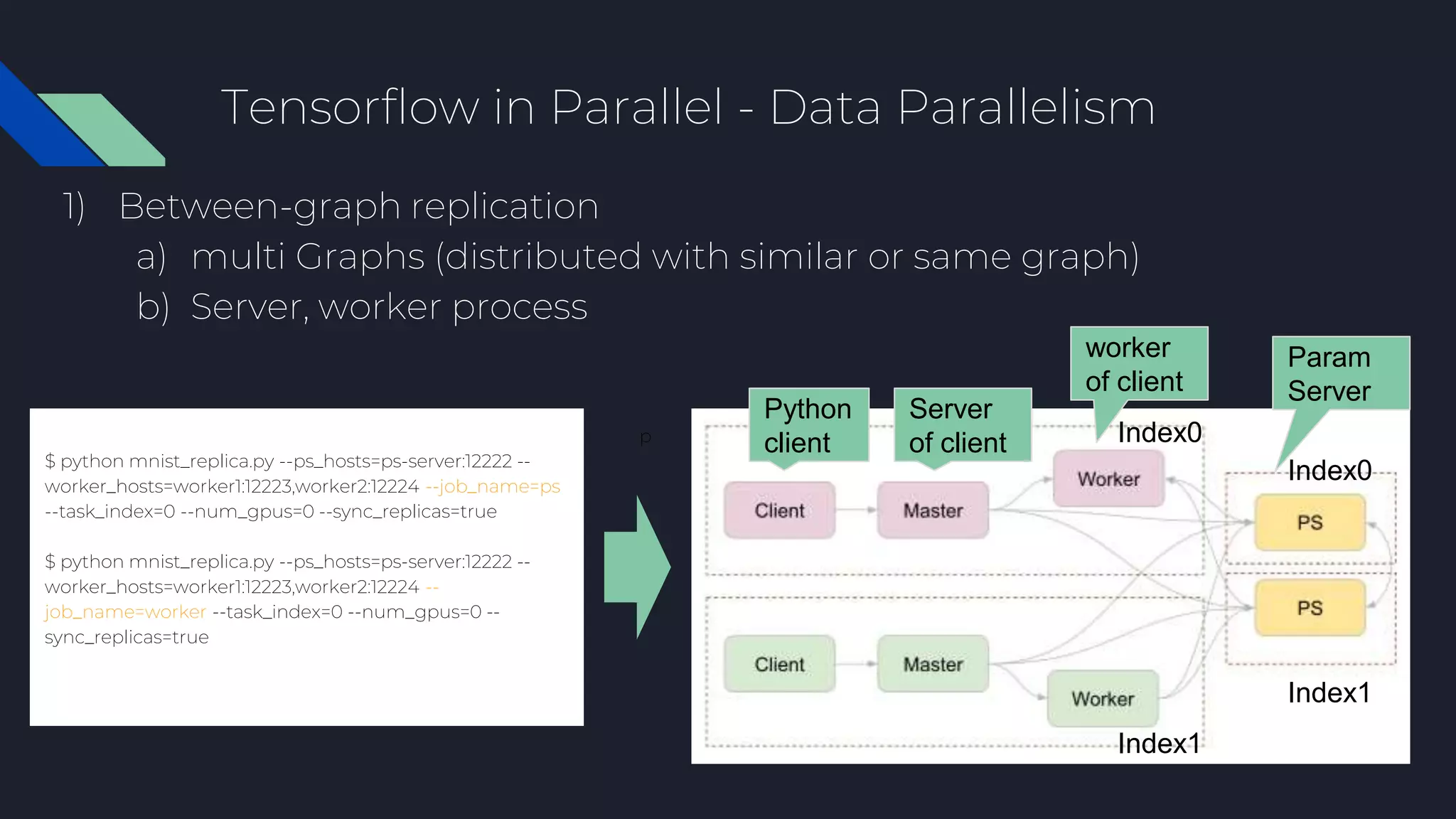

- 44. Tensorflow in Parallel- Data Parallelism 1) Between-graph replication a) multi Graphs (distributed with similar or same graph) b) Server, worker process p $ python mnist_replica.py --ps_hosts=ps-server:12222 -- worker_hosts=worker1:12223,worker2:12224 --job_name=ps --task_index=0 --num_gpus=0 --sync_replicas=true $ python mnist_replica.py --ps_hosts=ps-server:12222 -- worker_hosts=worker1:12223,worker2:12224 -- job_name=worker --task_index=0 --num_gpus=0 -- sync_replicas=true Index0 Index1 Index0 Index1 Python client Server of client worker of client Param Server

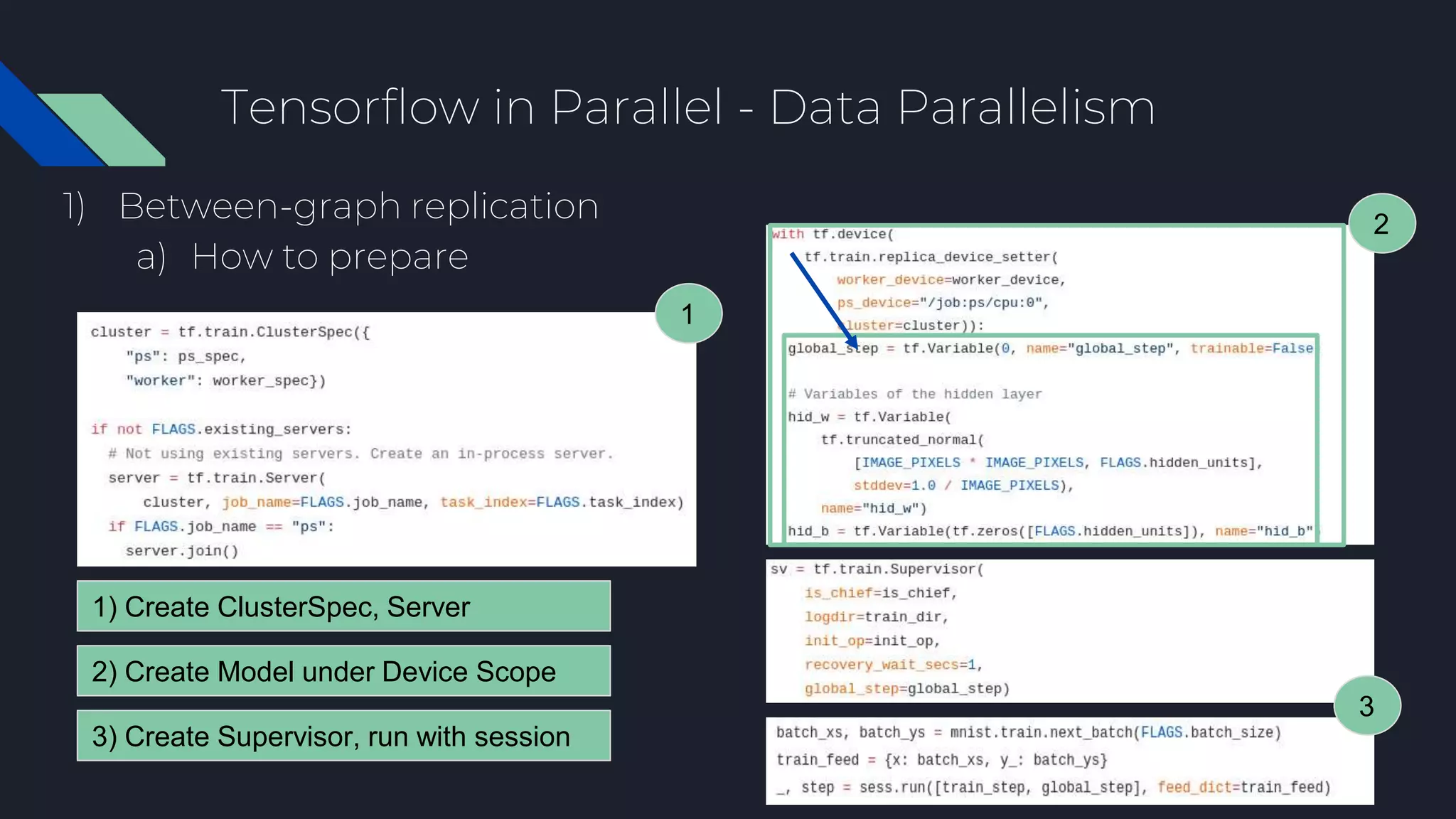

- 45. Tensorflow in Parallel- Data Parallelism 1) Between-graph replication a) How to prepare 1) Create ClusterSpec, Server 2) Create Model under Device Scope 3) Create Supervisor, run with session 1 2 3

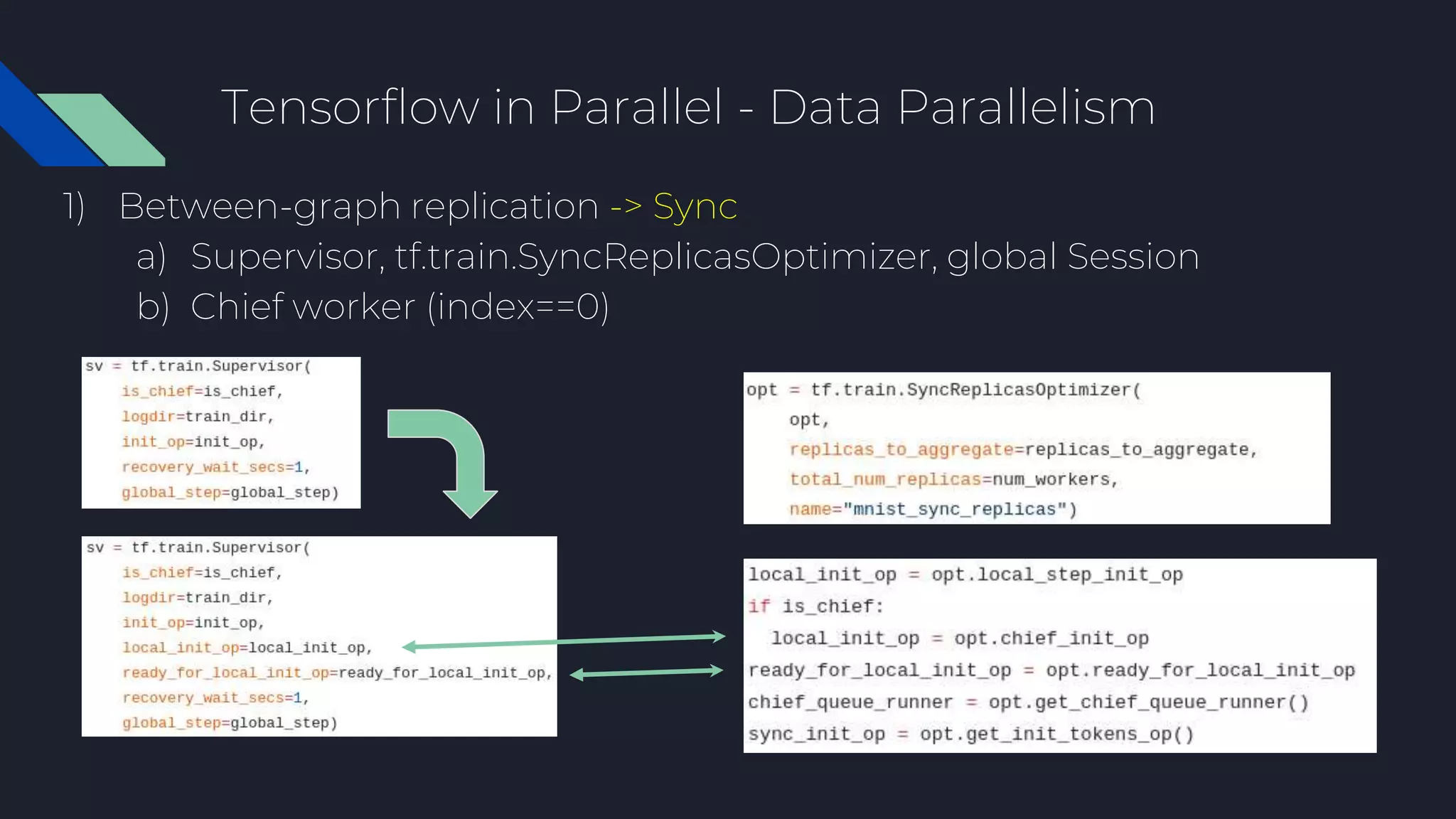

- 46. Tensorflow in Parallel- Data Parallelism 1) Between-graph replication -> Sync a) Supervisor, tf.train.SyncReplicasOptimizer, global Session b) Chief worker (index==0)

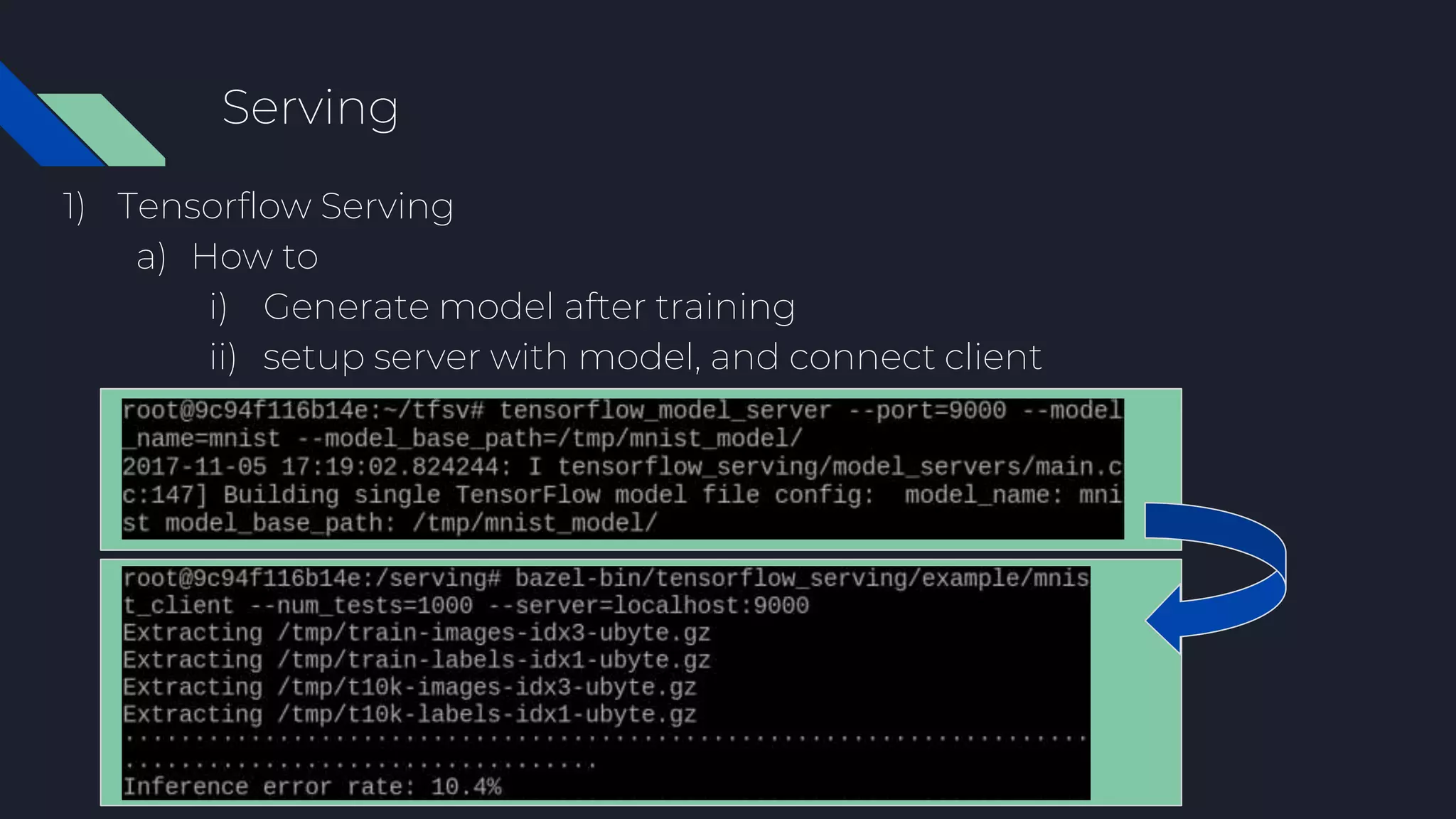

- 47. Serving 1) Tensorflow Serving a)How to i) Generate model after training ii) setup server with model, and connect client

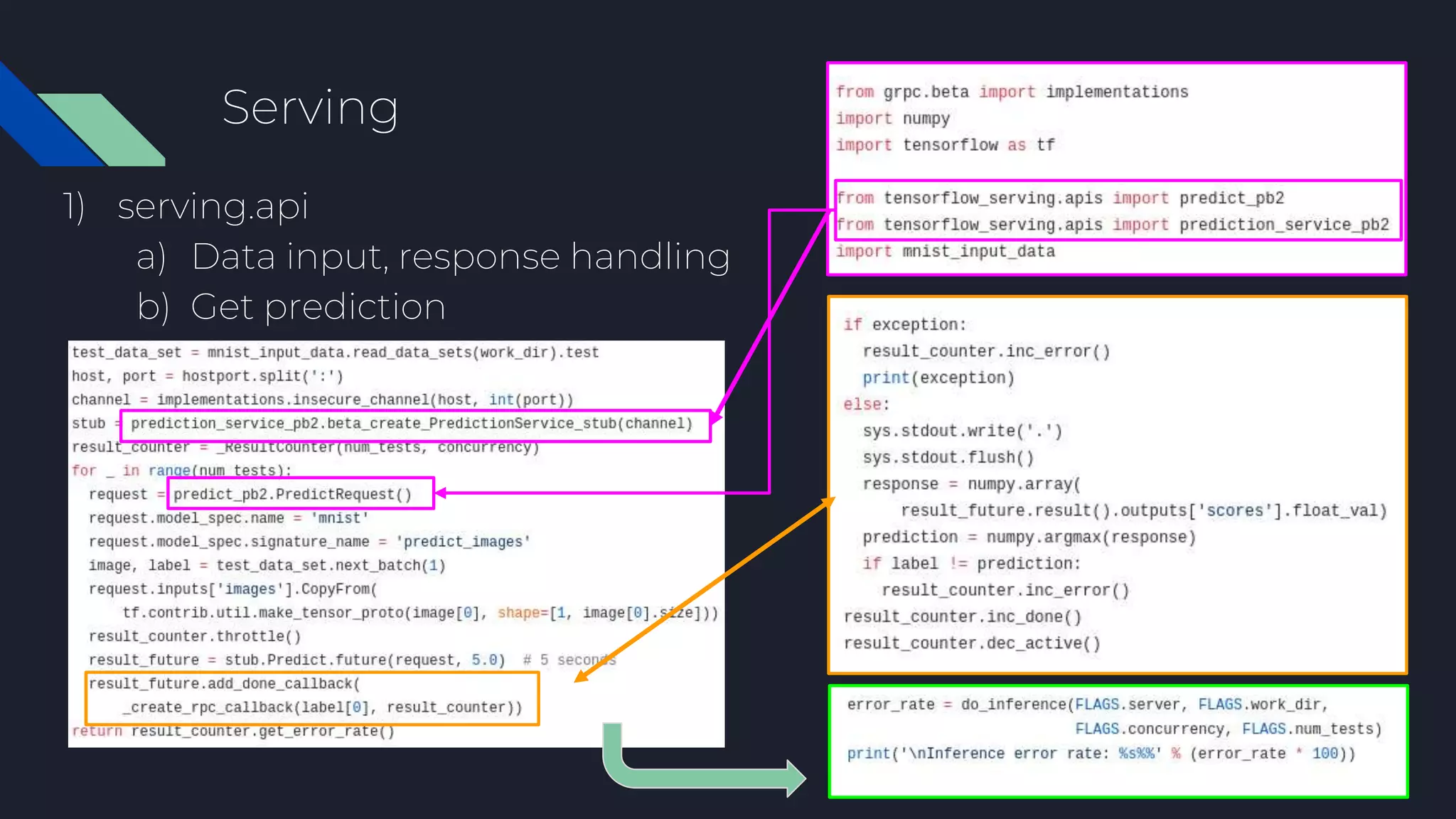

- 48. Serving 1) serving.api a) Datainput, response handling b) Get prediction

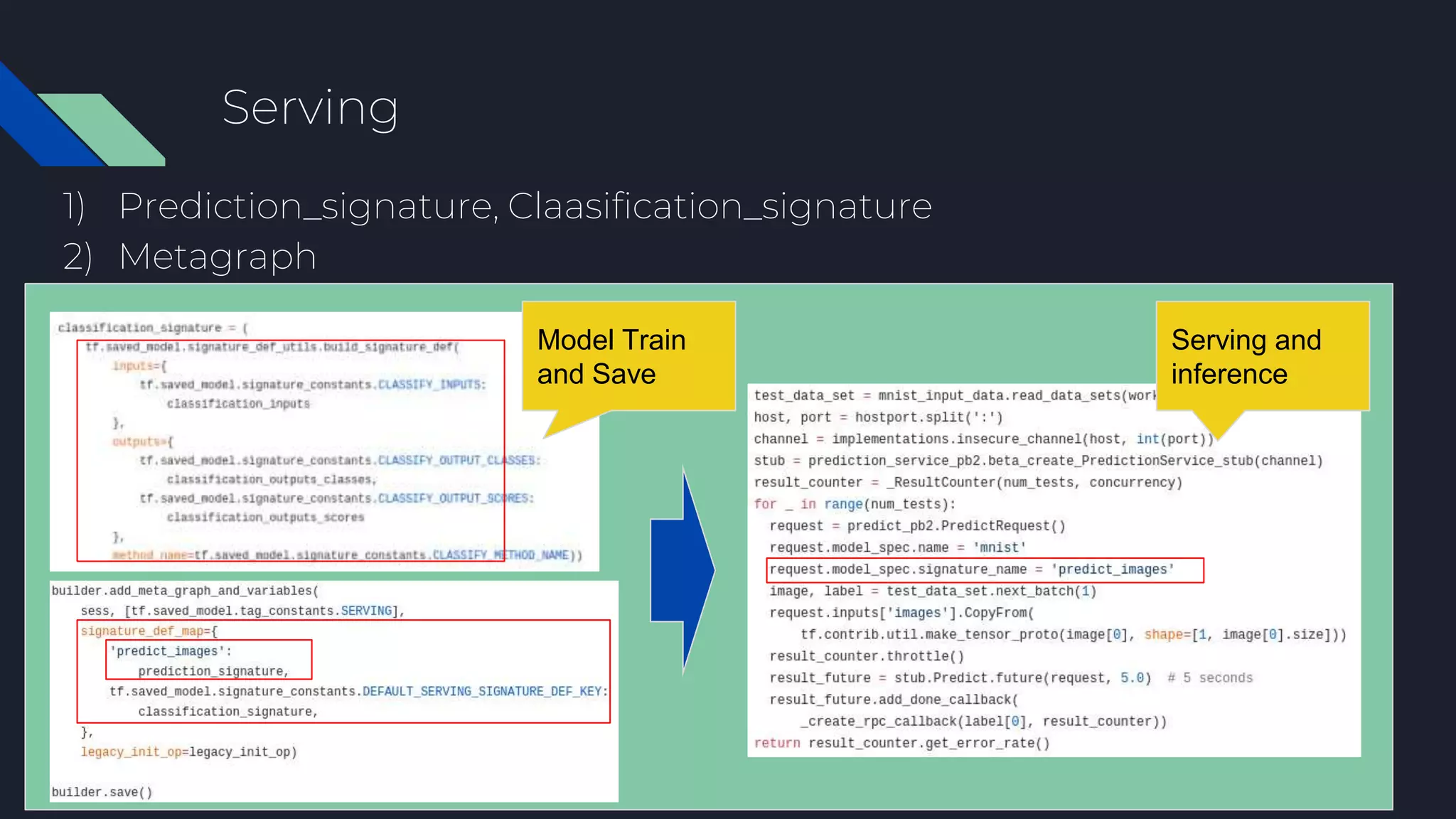

- 49. Serving 1) Prediction_signature, Claasification_signature 2)Metagraph Model Train and Save Serving and inference
- 50.
- 51.
- 52.
- 53.

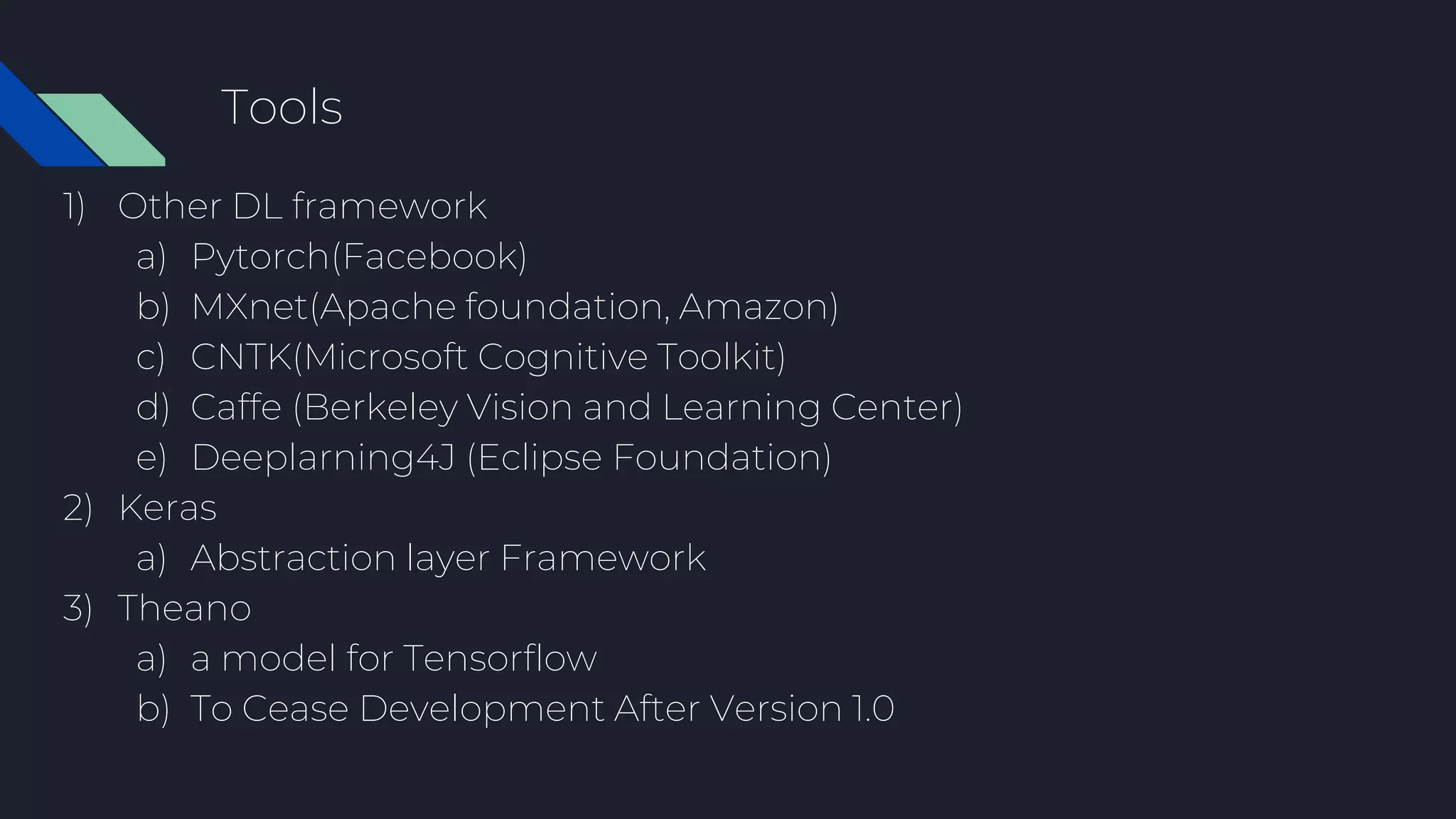

- 54. Tools 1) Other DLframework a) Pytorch(Facebook) b) MXnet(Apache foundation, Amazon) c) CNTK(Microsoft Cognitive Toolkit) d) Caffe (Berkeley Vision and Learning Center) e) Deeplarning4J (Eclipse Foundation) 2) Keras a) Abstraction layer Framework 3) Theano a) a model for Tensorflow b) To Cease Development After Version 1.0

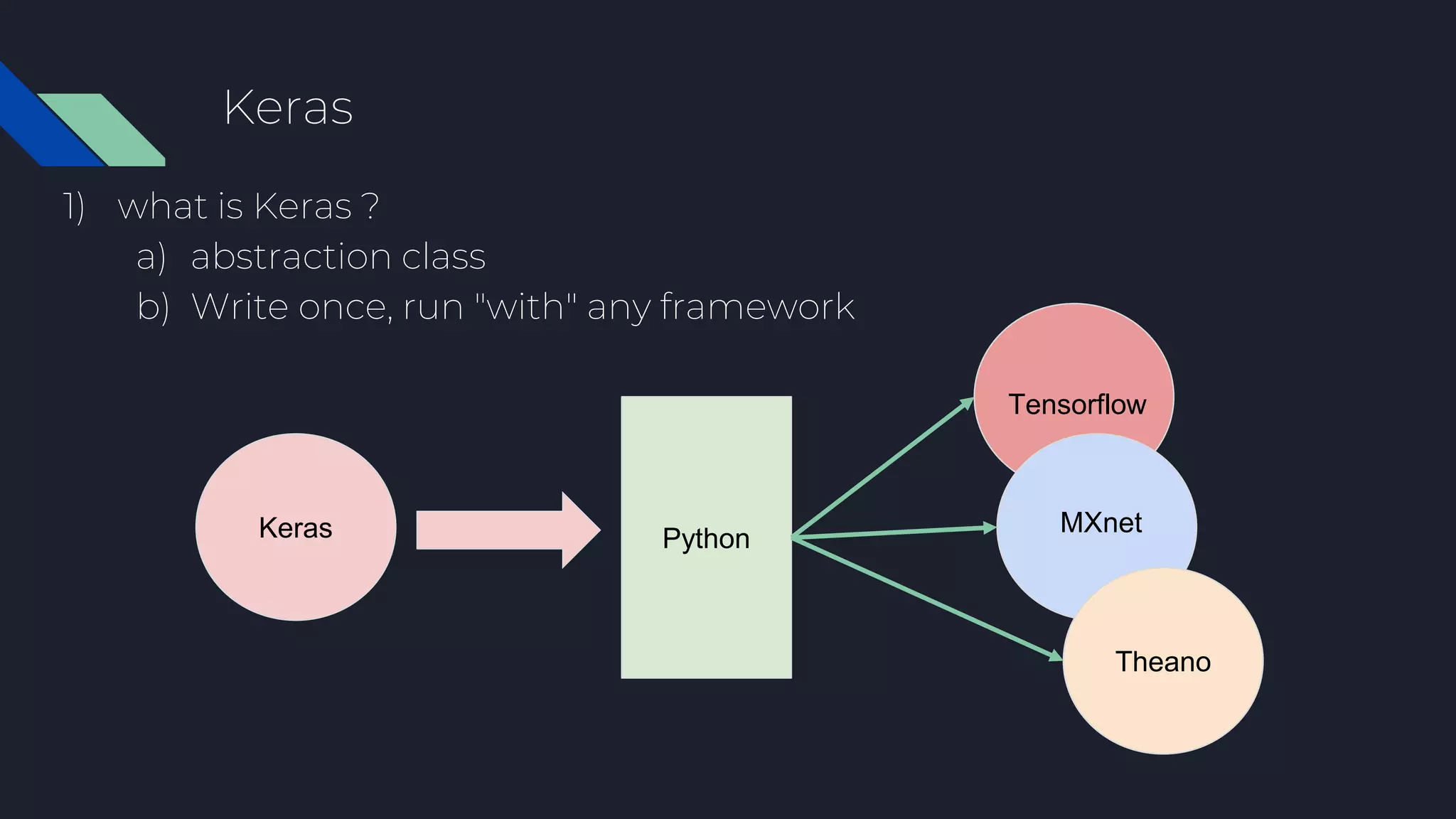

- 55. Keras 1) what isKeras ? a) abstraction class b) Write once, run "with" any framework Keras Python Theano Tensorflow MXnet

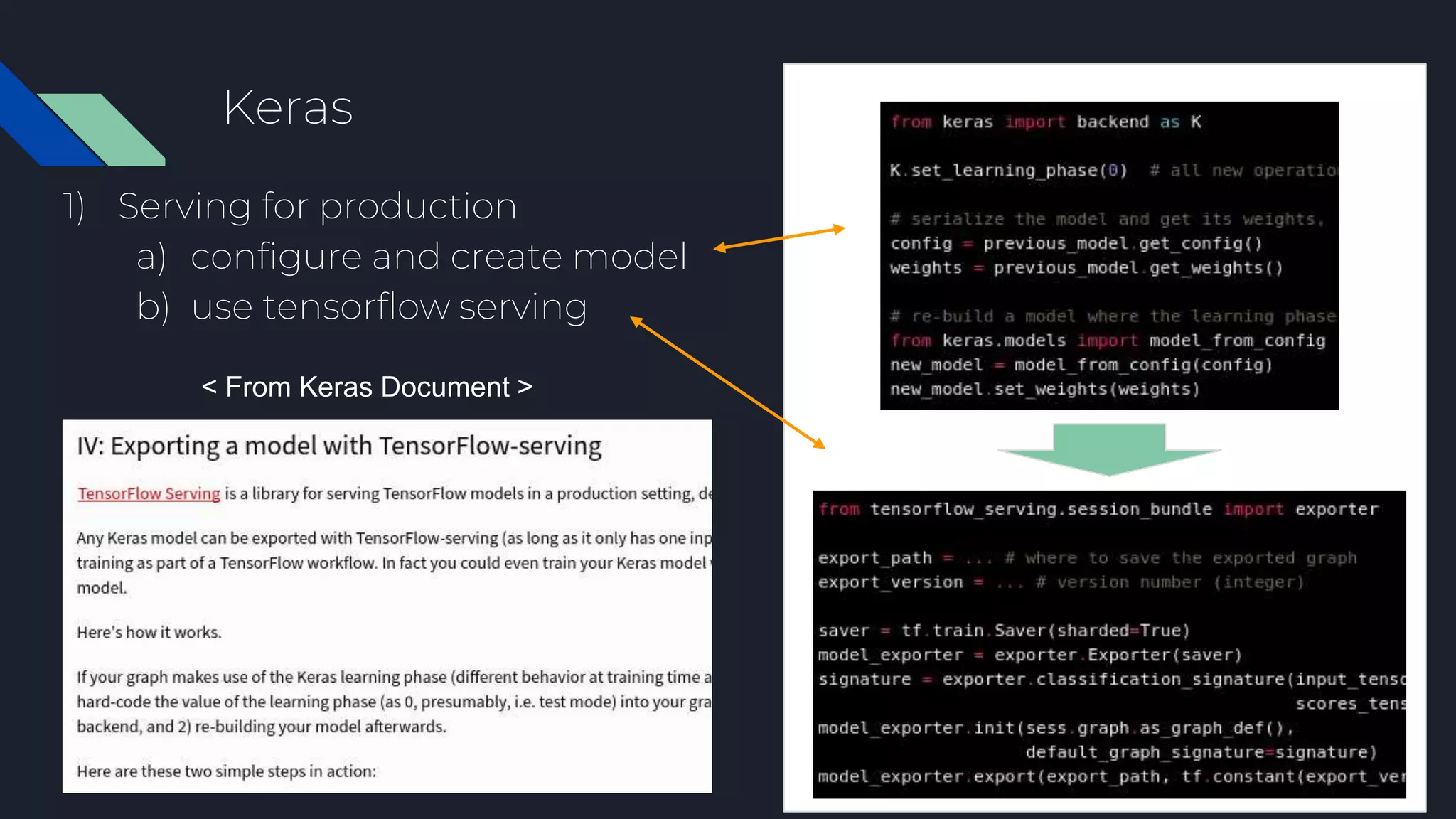

- 56. Keras 1) Serving forproduction a) configure and create model b) use tensorflow serving < From Keras Document >

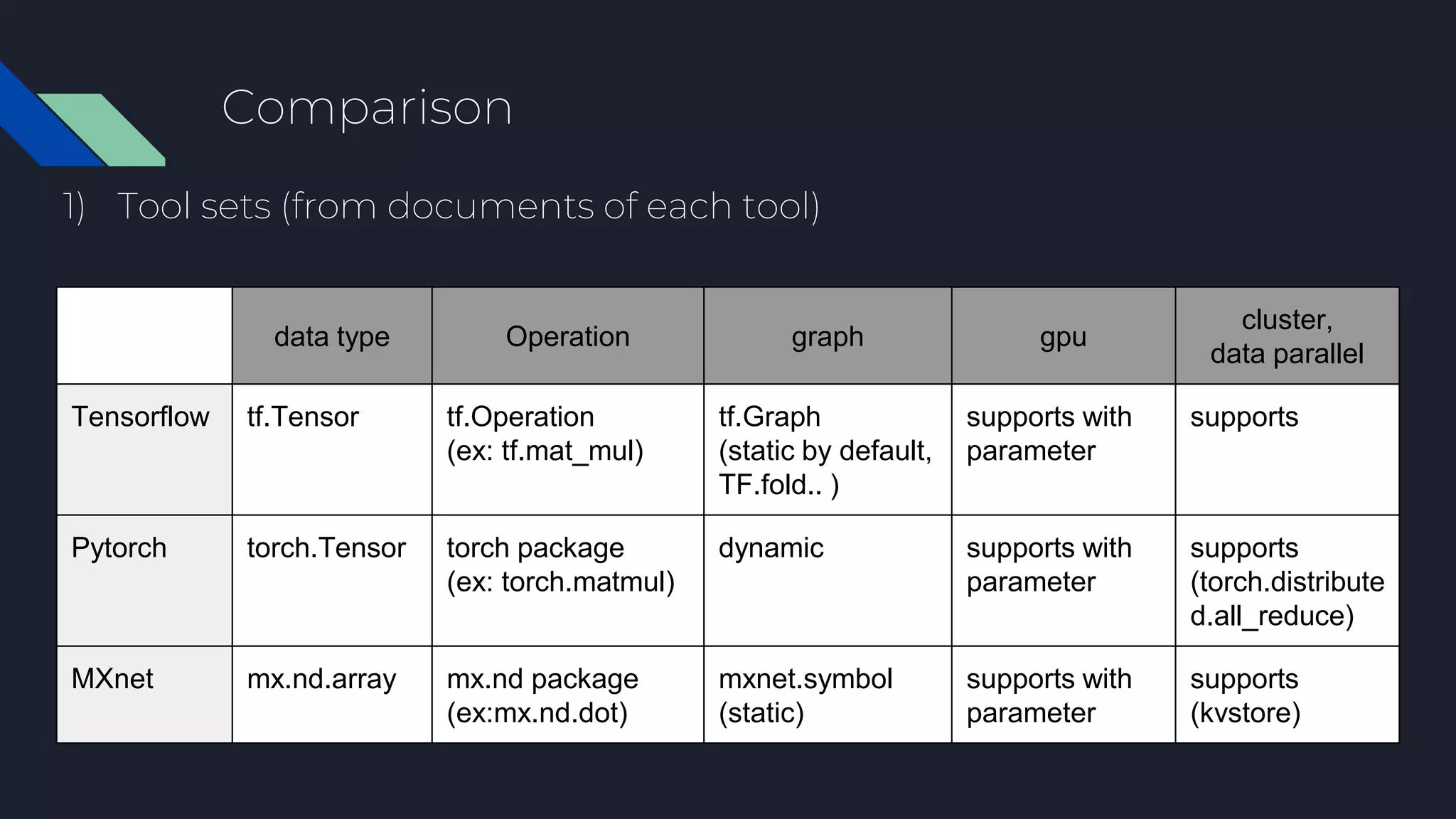

- 57. Comparison 1) Tool sets(from documents of each tool) data type Operation graph gpu cluster, data parallel Tensorflow tf.Tensor tf.Operation (ex: tf.mat_mul) tf.Graph (static by default, TF.fold.. ) supports with parameter supports Pytorch torch.Tensor torch package (ex: torch.matmul) dynamic supports with parameter supports (torch.distribute d.all_reduce) MXnet mx.nd.array mx.nd package (ex:mx.nd.dot) mxnet.symbol (static) supports with parameter supports (kvstore)
