TensorFlow is a machine learning library for building and training neural networks. It can handle everything from low-level graph construction using tensors and operations, to high-level neural network models. Key steps in using TensorFlow include defining the network architecture, preprocessing data, training the model to minimize a loss function, and deploying the trained model. Hello world examples demonstrate building simple graphs to multiply and add placeholders and constants.

1. TensorFlow 101
Ashish Bansal, Snr Dir, Data Science @ Capital One
@ash_bans | linkedin.com/in/bansalashish

2. 1

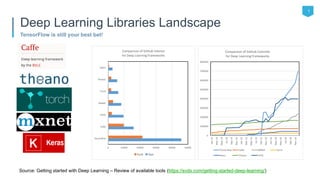

TensorFlow is still your best bet!
Deep Learning Libraries Landscape
Source: Getting started with Deep Learning – Review of available tools (https://svds.com/getting-started-deep-learning/)

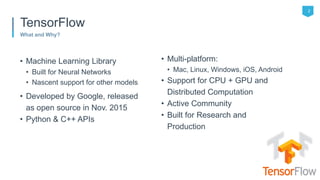

3. 2
What and Why?
• Machine Learning Library
• Built for Neural Networks
• Nascent support for other models
• Developed by Google, released
as open source in Nov. 2015
• Python & C++ APIs
• Multi-platform:
• Mac, Linux, Windows, iOS, Android
• Support for CPU + GPU and
Distributed Computation
• Active Community
• Built for Research and
Production
TensorFlow

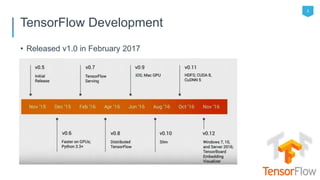

4. 3
• Released v1.0 in February 2017
TensorFlow Development

5. 4
Low Level APIs
TensorFlow Structure

6. 5
High Level APIs
TensorFlow Structure
Coming Soon!

7. 6
Key Steps
Step 1: Data pre-processing
- Missing value imputation
- Mean scaling and
normalization
- Preparation for mini-batches
Step 2: Define the network
architecture
- Type of NN
- Layers, sizes
- Activation and output
functions
Step 3: Train the network
- Loss function
- Optimization function
- Train/CV/Test sets
Step 4: Model serving
- Store the trained network
- Run!
TensorFlow Application

8. 7

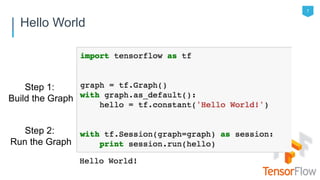

Hello World
Step 1:
Build the Graph
Step 2:
Run the Graph

9. Step 1: Build the Graph
TensorFlow 101

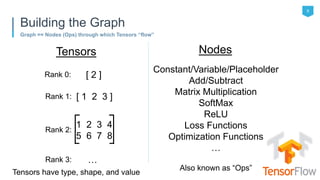

10. 9
Graph == Nodes (Ops) through which Tensors “flow”
Building the Graph
[ 1 2 3 ]Rank 1:
Rank 2:
1 2 3 4
5 6 7 8
Rank 3: …
Rank 0: [ 2 ]
Tensors Nodes
Constant/Variable/Placeholder
Add/Subtract
Matrix Multiplication
SoftMax
ReLU
Loss Functions
Optimization Functions
…
Tensors have type, shape, and value
Also known as “Ops”

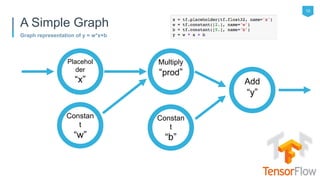

11. 10
Graph representation of y = w*x+b
A Simple Graph
Add
“y”
Placehol
der
“x”
Constan
t
“w”
Constan
t
“b”
Multiply
“prod”

12. 11

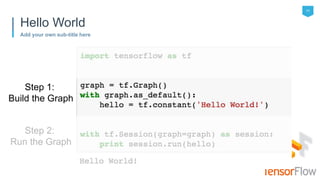

Add your own sub-title here
Hello World
Step 1:
Build the Graph
Step 2:
Run the Graph

13. Step 2: Run the Graph
TensorFlow 101

14. • Session.run([y]) will return the Tensor output of node “y” after
evaluating all other nodes in this graph
13
Sessions are used to evaluate node outputs
Running the Graph
Add
“y”
Placehol
der
“x”
Constan
t
“w”
Constan
t
“b”
Multiply
“prod”

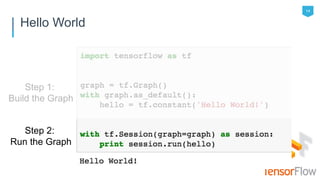

15. 14
Hello World
Step 1:
Build the Graph
Step 2:
Run the Graph

16. 15

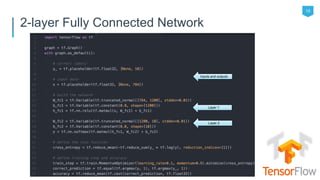

2-layer Fully Connected Network
Inputs and outputs
Layer 1
Layer 2

17. Thank you!
Ashish Bansal, Snr Dir, Data Science @ Capital One
@ash_bans | linkedin.com/in/bansalashish

18. TensorFlow APIs
TensorFlow 101

19. • tf.constant
• Evaluates to a constant tensor
• Tensor must be specified during graph construction
• tf.Variable
• Evaluates to a Tensor of fixed type and shape with variable values
• Initial values must be specified before evaluation
• “Trainable” by default
• tf.placeholder
• Creates a node to allow a Tensor to be passed at runtime
• e.g. Used for feeding new data into a graph
17
Feeding data
Inputs and model parameters

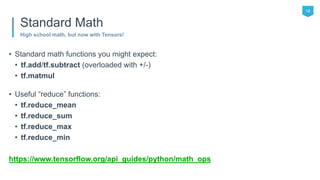

20. • Standard math functions you might expect:
• tf.add/tf.subtract (overloaded with +/-)
• tf.matmul
• Useful “reduce” functions:
• tf.reduce_mean
• tf.reduce_sum
• tf.reduce_max
• tf.reduce_min
https://www.tensorflow.org/api_guides/python/math_ops
18
High school math, but now with Tensors!
Standard Math

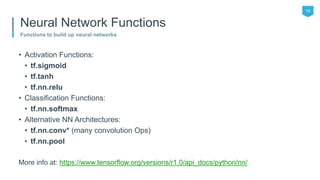

21. • Activation Functions:
• tf.sigmoid
• tf.tanh
• tf.nn.relu
• Classification Functions:
• tf.nn.softmax
• Alternative NN Architectures:
• tf.nn.conv* (many convolution Ops)
• tf.nn.pool
More info at: https://www.tensorflow.org/versions/r1.0/api_docs/python/nn/
19
Functions to build up neural networks
Neural Network Functions

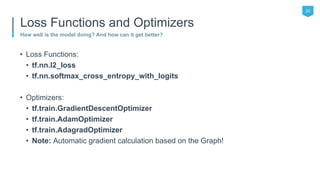

22. • Loss Functions:
• tf.nn.l2_loss
• tf.nn.softmax_cross_entropy_with_logits
• Optimizers:
• tf.train.GradientDescentOptimizer
• tf.train.AdamOptimizer
• tf.train.AdagradOptimizer
• Note: Automatic gradient calculation based on the Graph!
20
How well is the model doing? And how can it get better?
Loss Functions and Optimizers
