1. Messaging Patterns with ZeroMQ
In Python
“It’s time to think distributedly”
By Victor Lin

2. The Age of Distribution

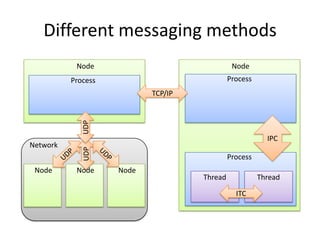

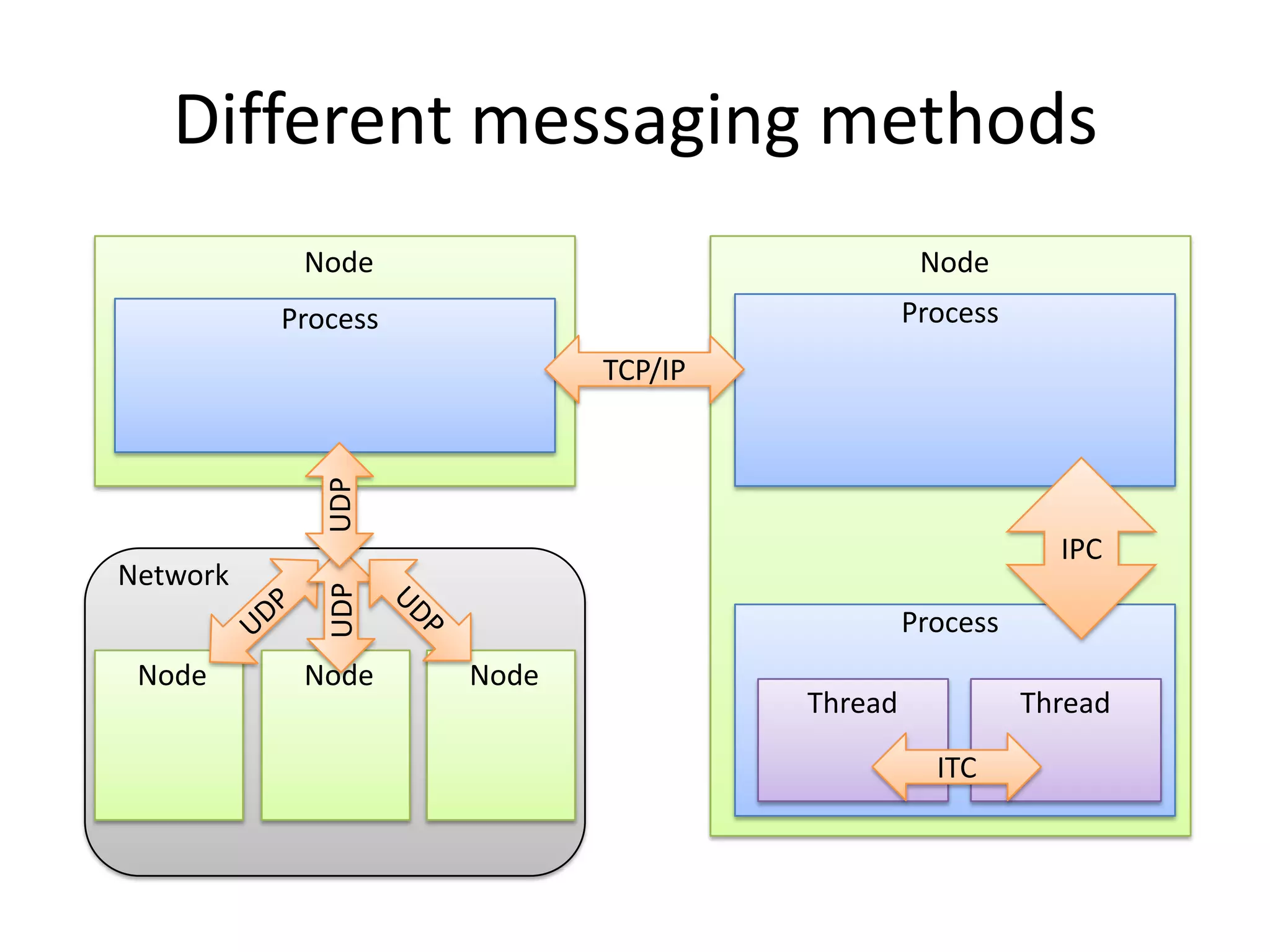

3. Different messaging methods
Node Node
Process Process
TCP/IP
UDP
IPC
Network
UDP
Process
Node Node Node
Thread Thread
ITC

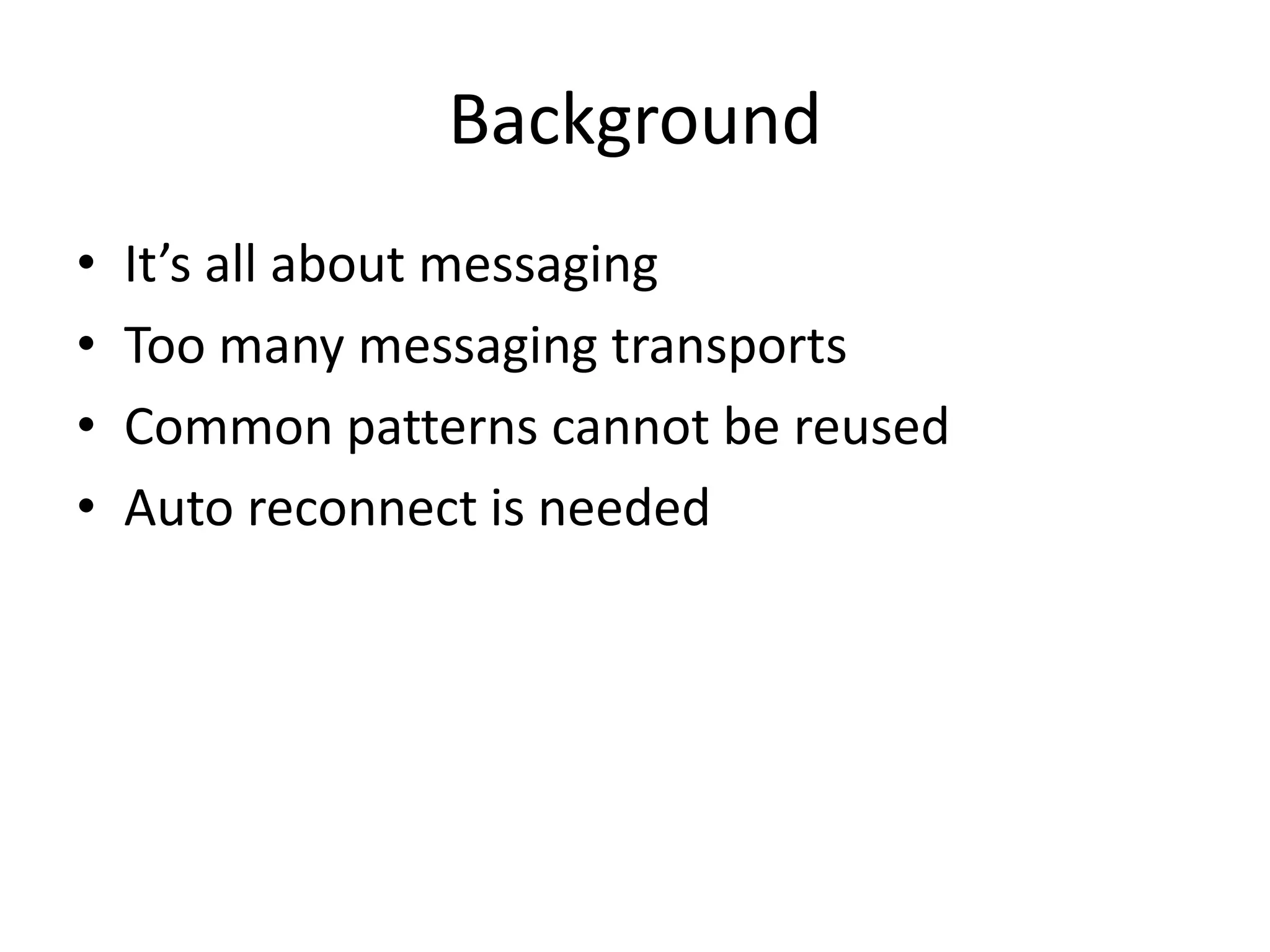

4. Background
• It’s all about messaging
• Too many messaging transports
• Common patterns cannot be reused
• Auto reconnect is needed

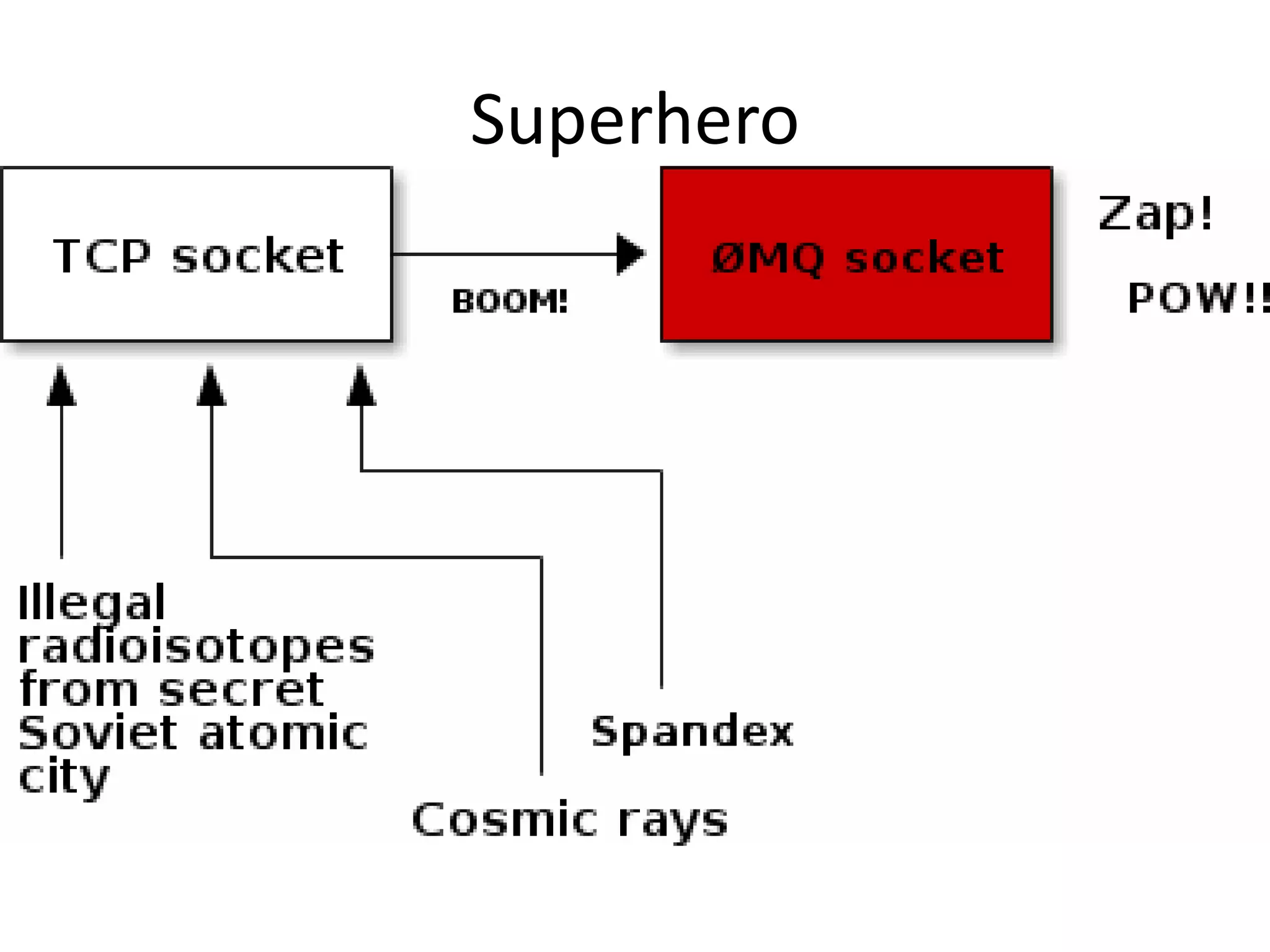

5. Superhero

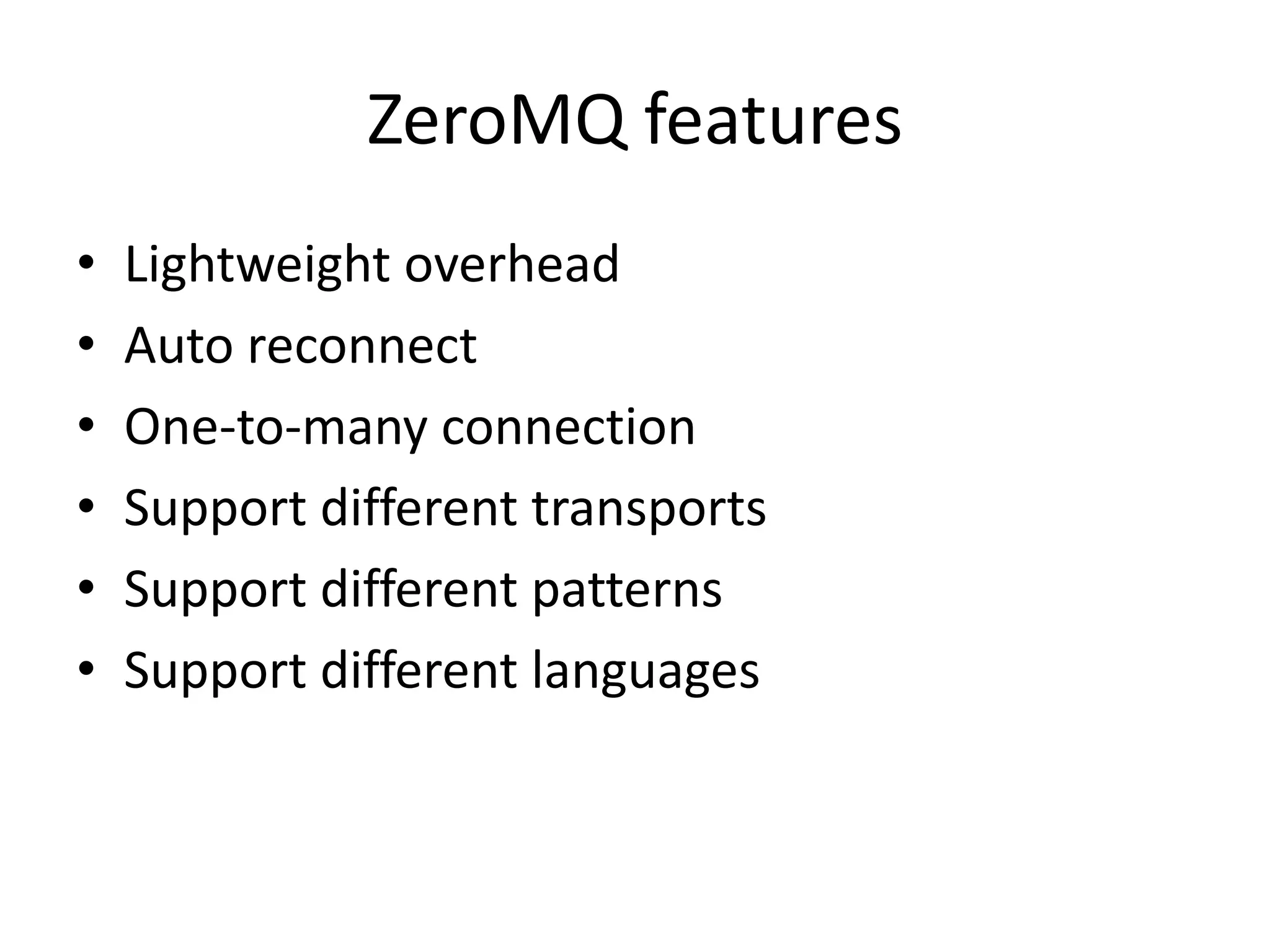

6. ZeroMQ features
• Lightweight overhead
• Auto reconnect
• One-to-many connection
• Support different transports
• Support different patterns
• Support different languages

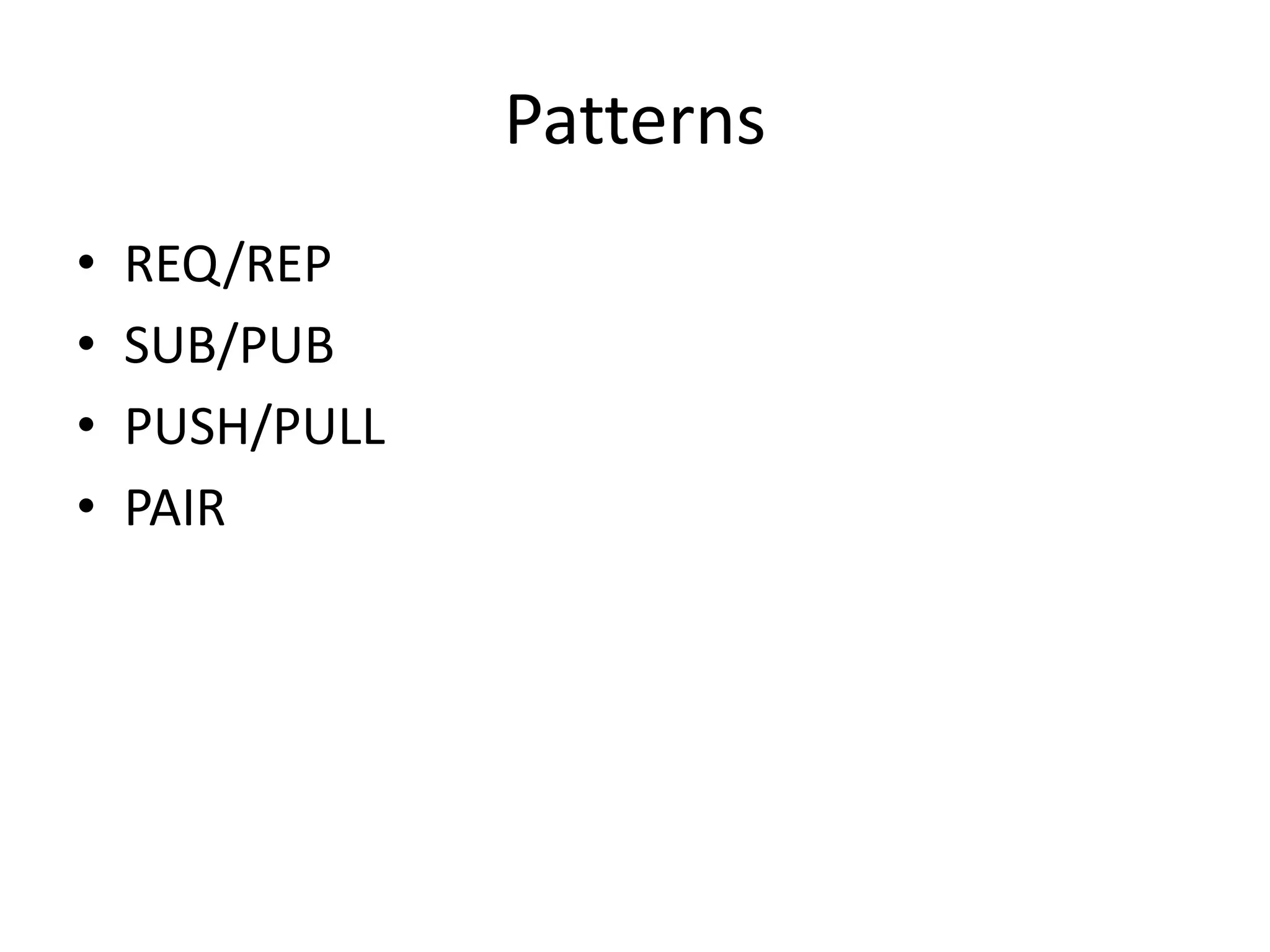

7. Patterns
• REQ/REP
• SUB/PUB
• PUSH/PULL
• PAIR

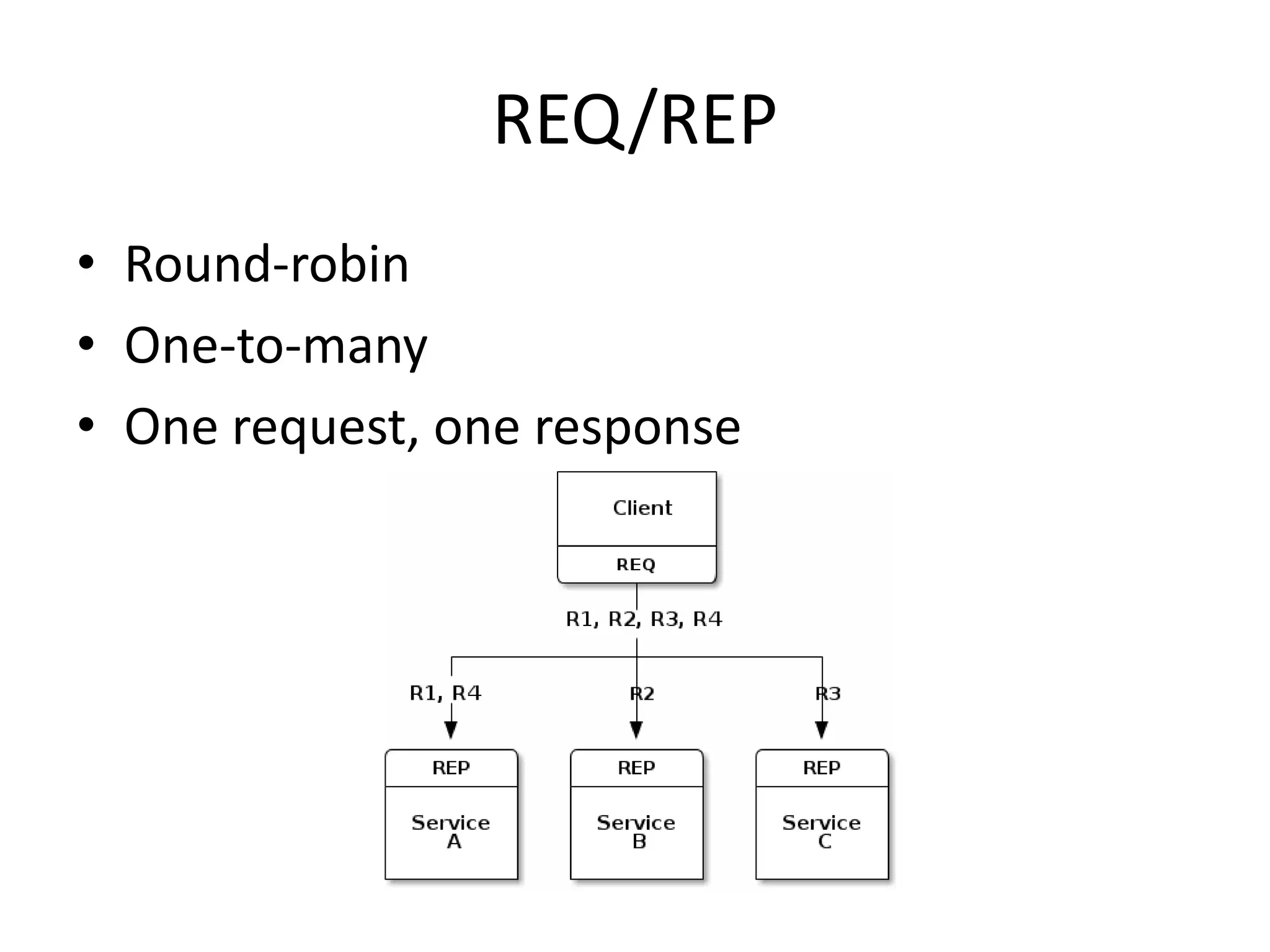

8. REQ/REP
• Round-robin
• One-to-many
• One request, one response

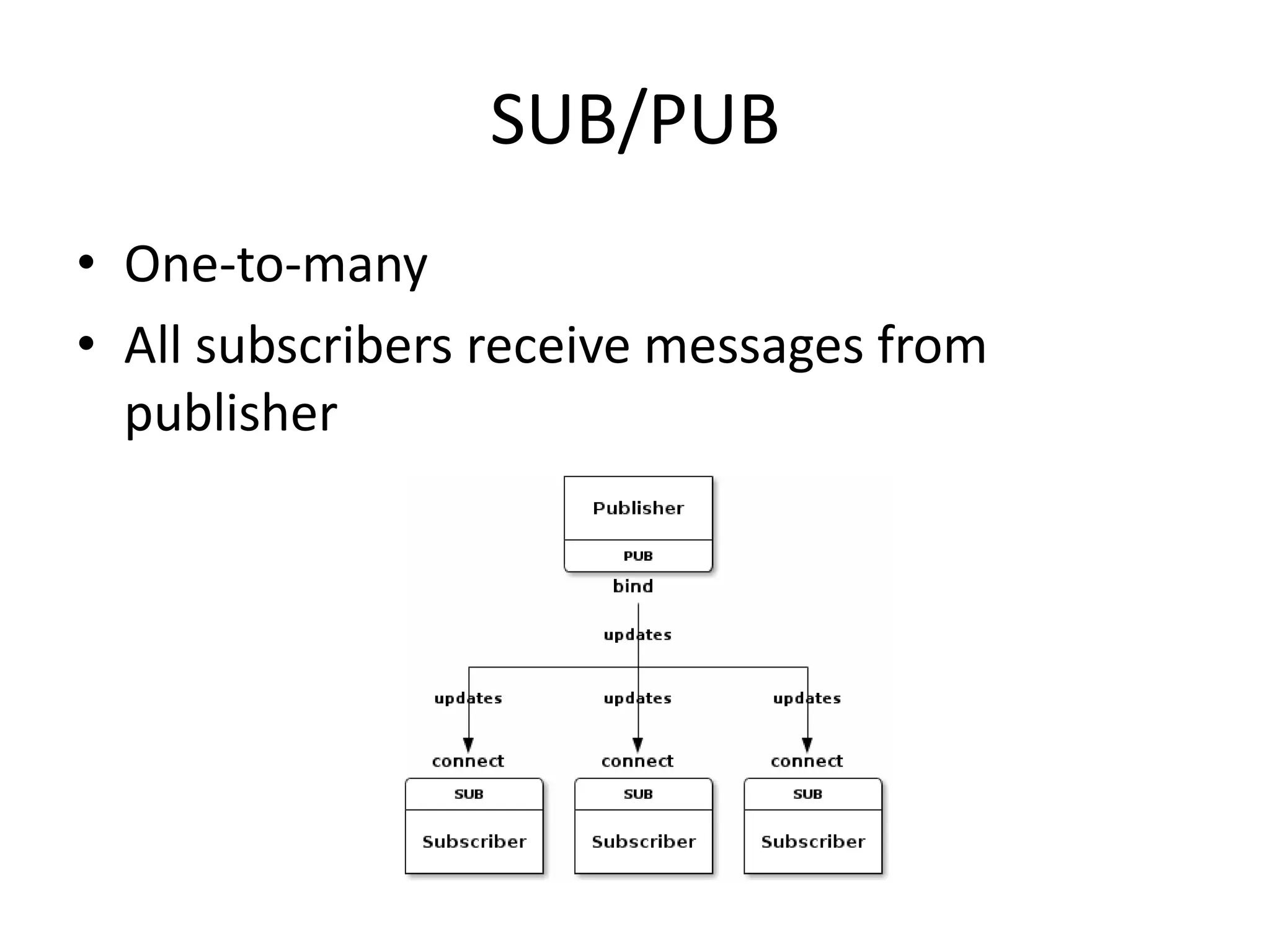

9. SUB/PUB
• One-to-many
• All subscribers receive messages from
publisher

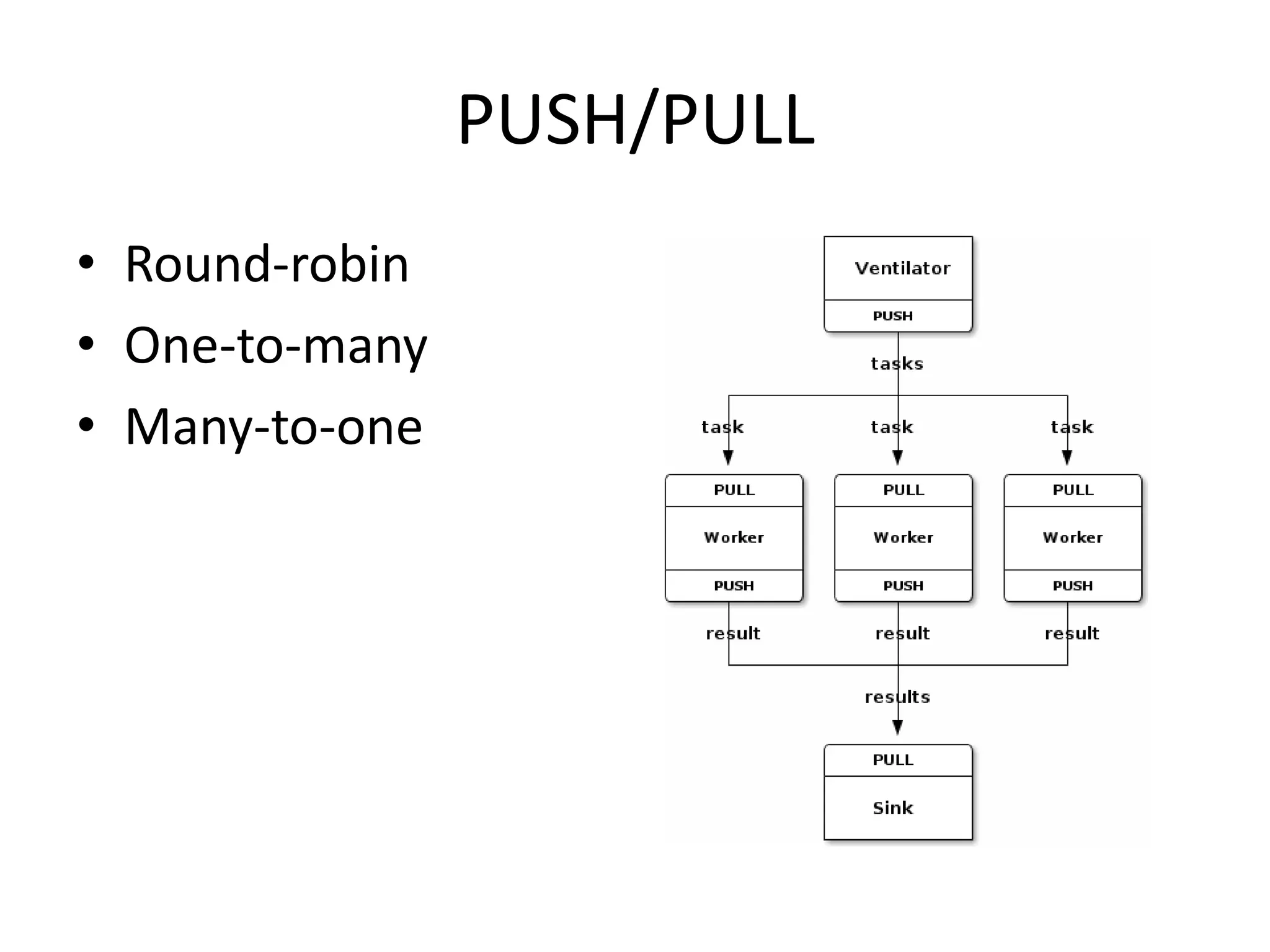

10. PUSH/PULL
• Round-robin
• One-to-many
• Many-to-one

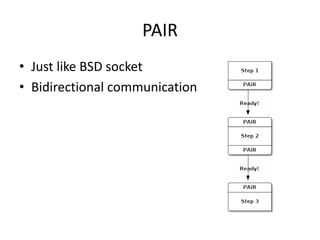

11. PAIR
• Just like BSD socket
• Bidirectional communication

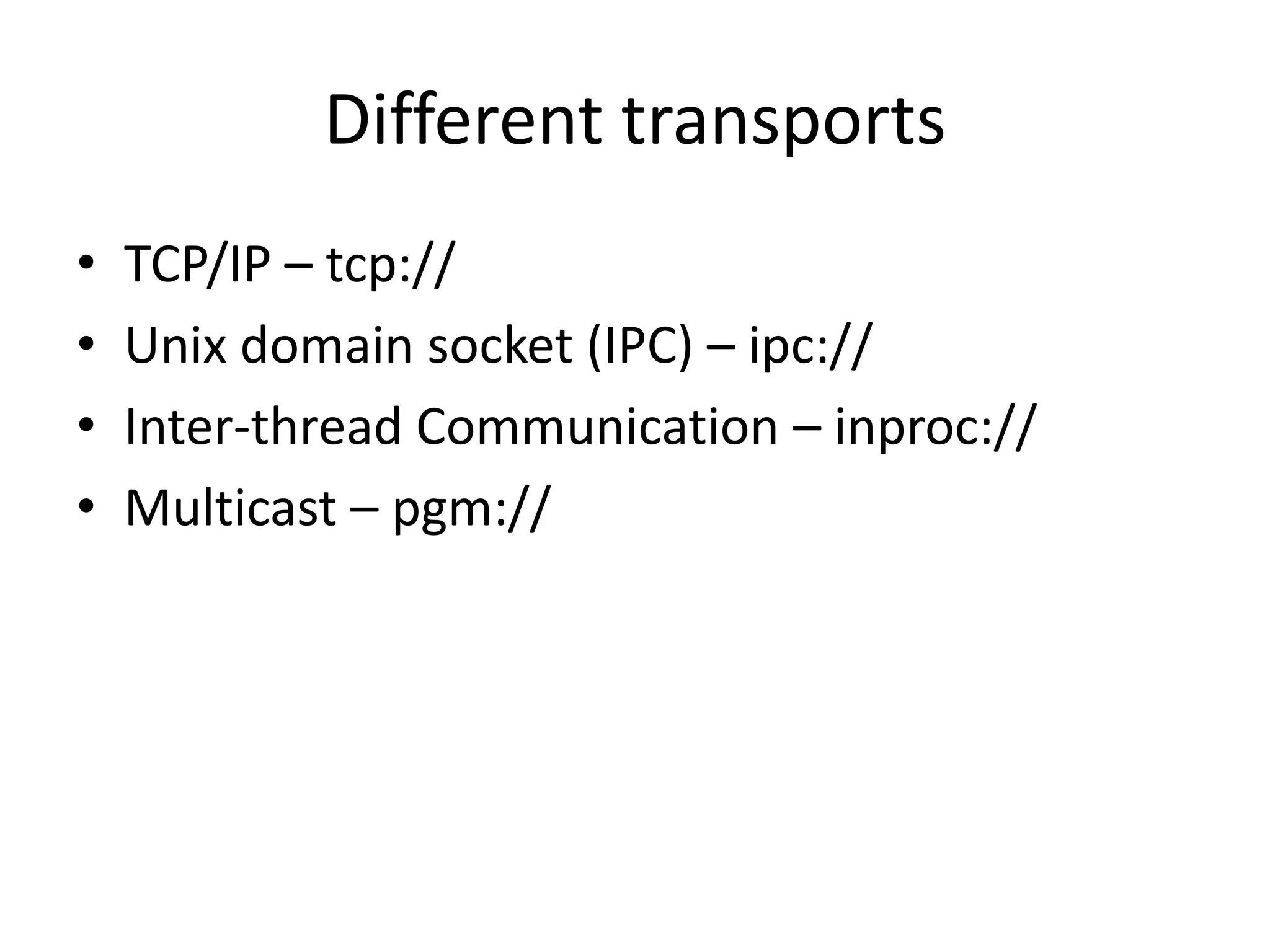

12. Different transports
• TCP/IP – tcp://
• Unix domain socket (IPC) – ipc://
• Inter-thread Communication – inproc://
• Multicast – pgm://

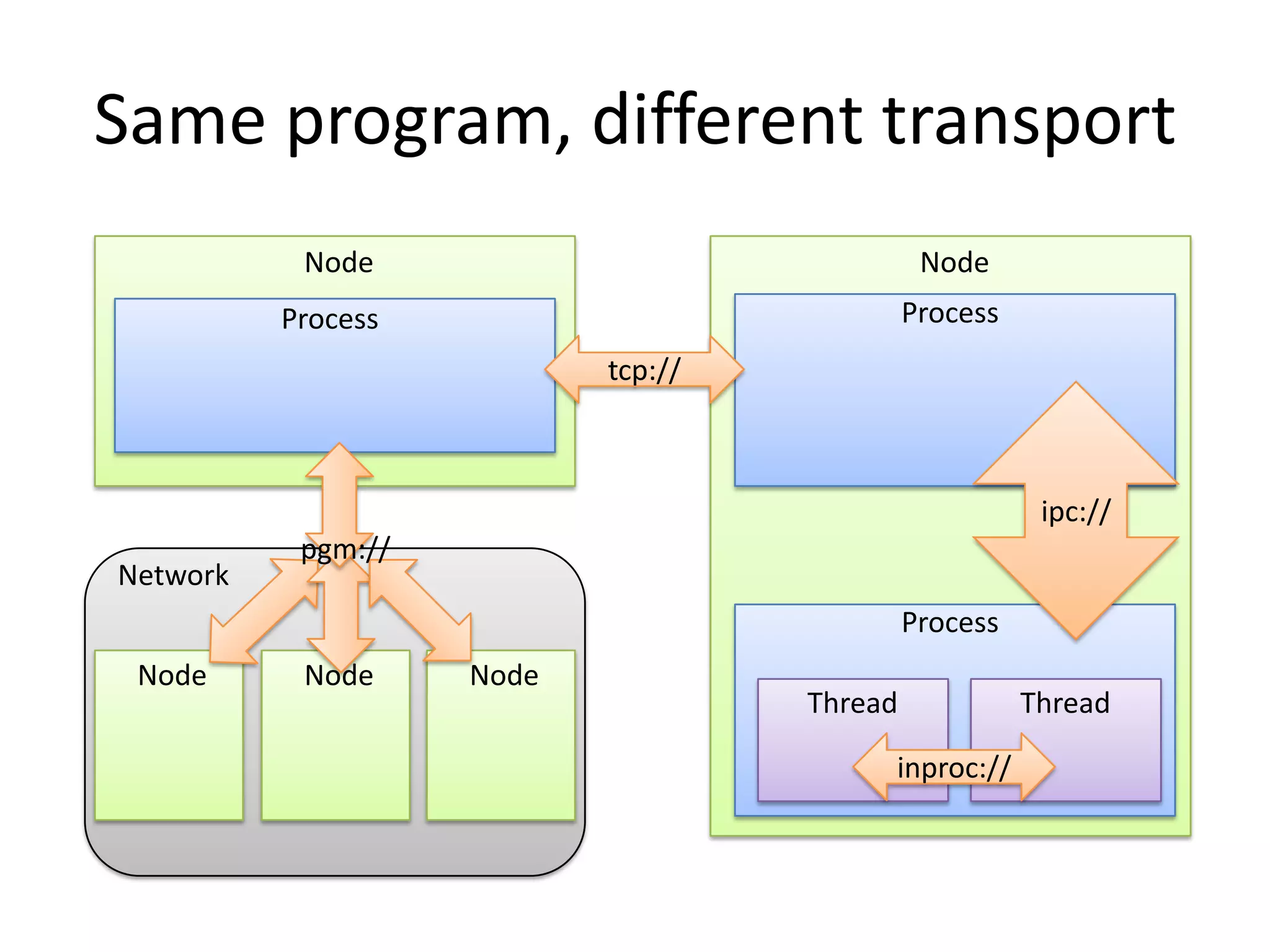

13. Same program, different transport
Node Node
Process Process
tcp://
ipc://
pgm://
Network
Process
Node Node Node
Thread Thread
inproc://

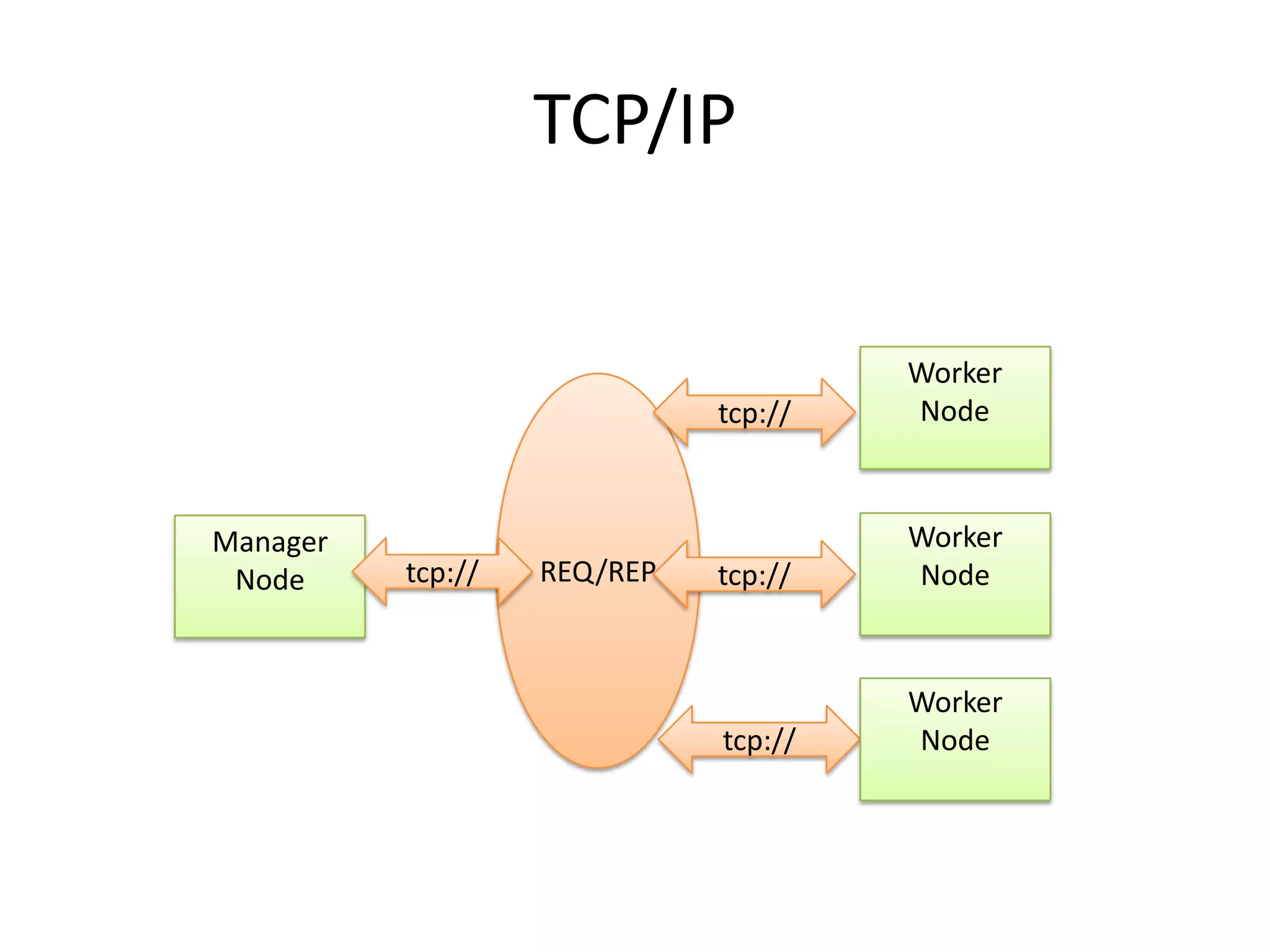

14. TCP/IP
Worker
tcp:// Node
Manager Worker
Node tcp:// REQ/REP tcp:// Node
Worker
tcp:// Node

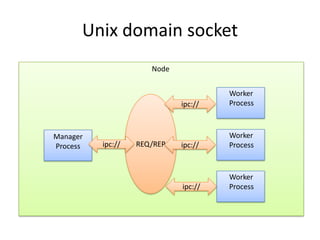

15. Unix domain socket
Node
Worker
ipc:// Process
Manager Worker
Process ipc:// REQ/REP ipc:// Process
Worker
ipc:// Process

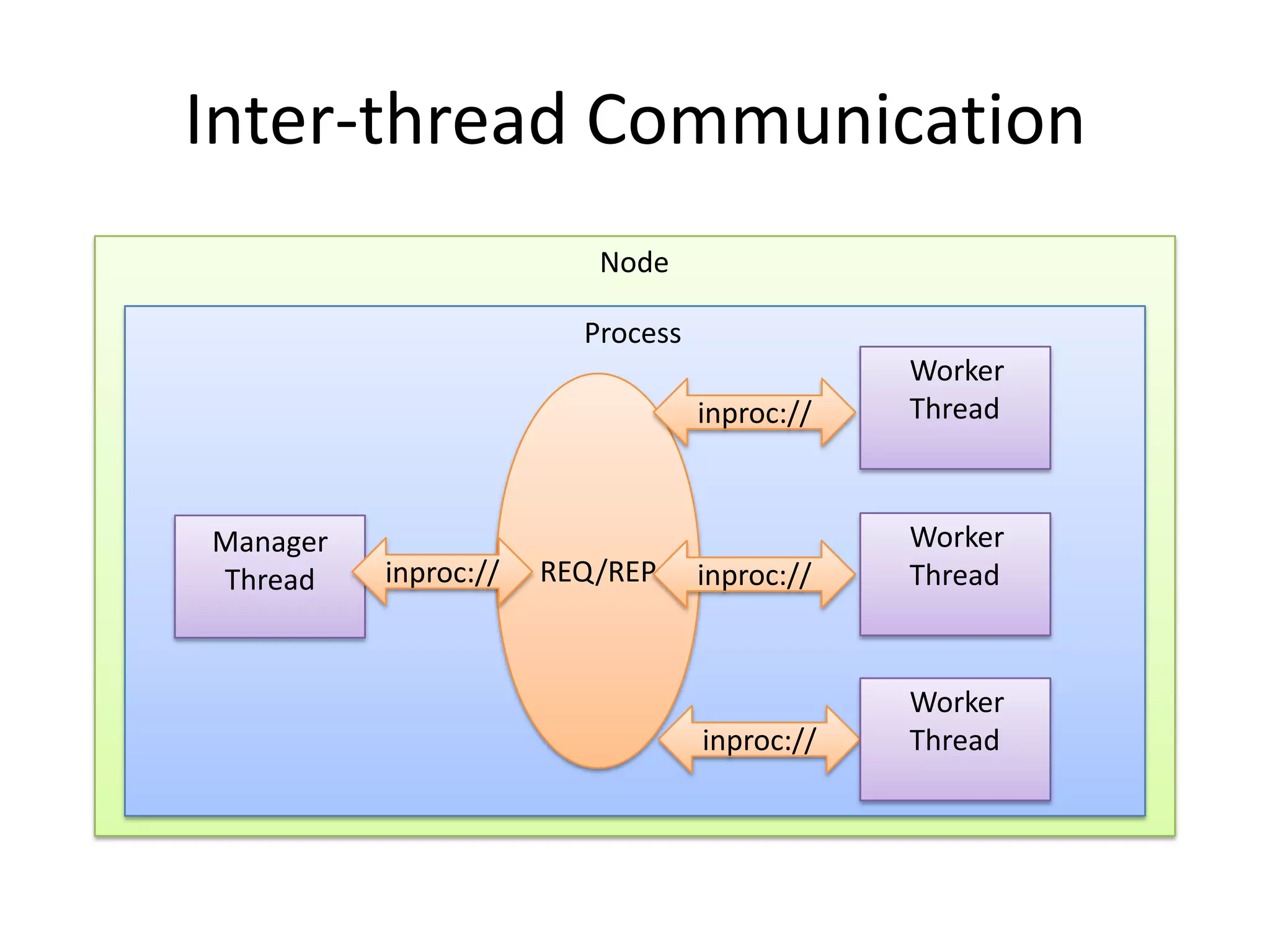

16. Inter-thread Communication
Node
Process
Worker
inproc:// Thread
Manager Worker
Thread inproc:// REQ/REP inproc:// Thread
Worker
inproc:// Thread

17. Different languages
• Python
• C/C++
• Java
• .Net
• Ruby
• Go
• PHP
• Perl
• …

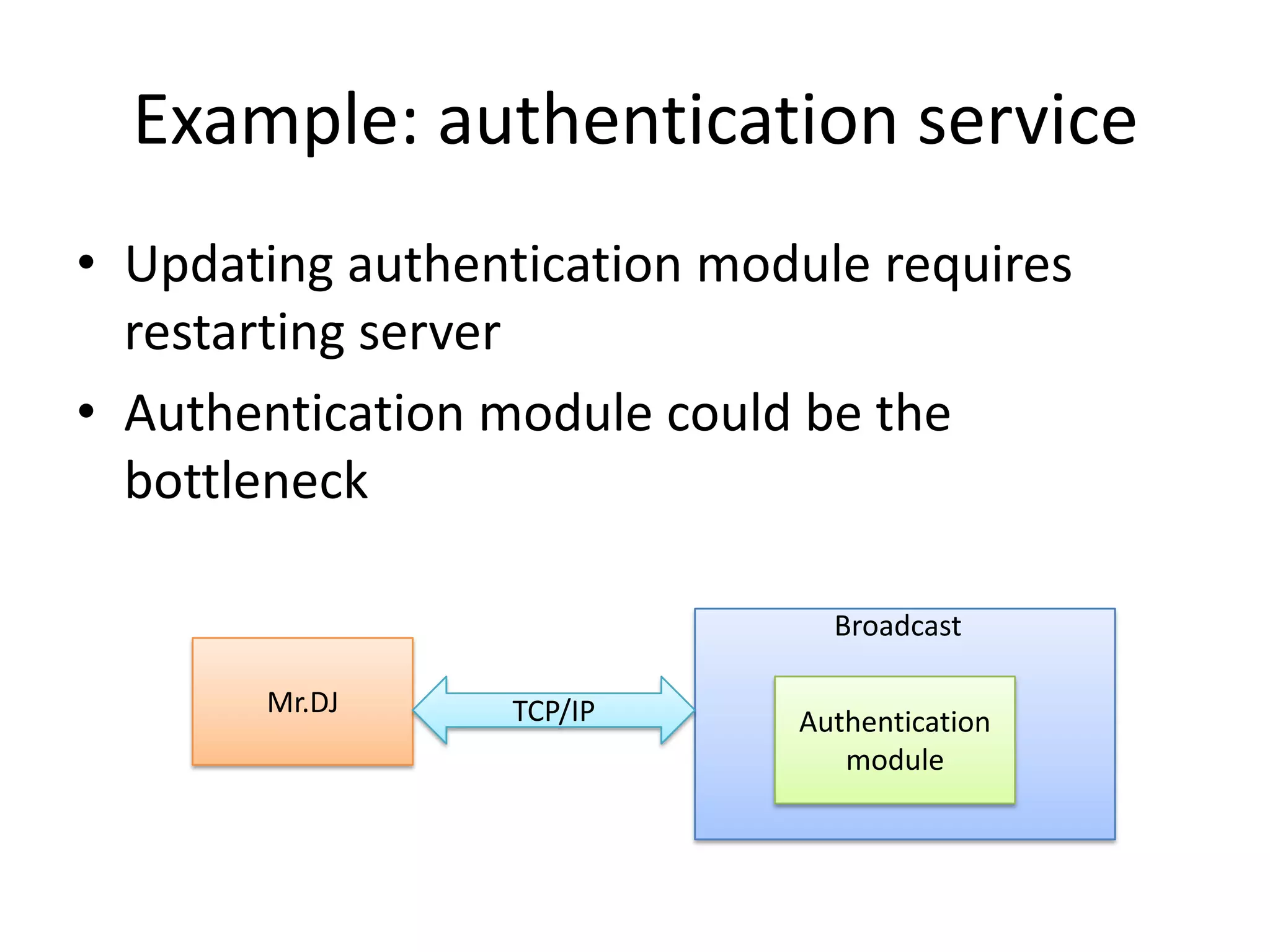

18. Example: authentication service
• Updating authentication module requires
restarting server
• Authentication module could be the
bottleneck
Broadcast
Mr.DJ TCP/IP Authentication
module

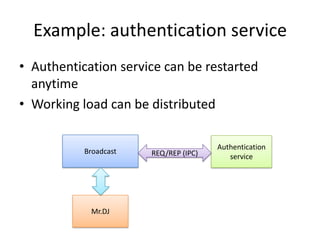

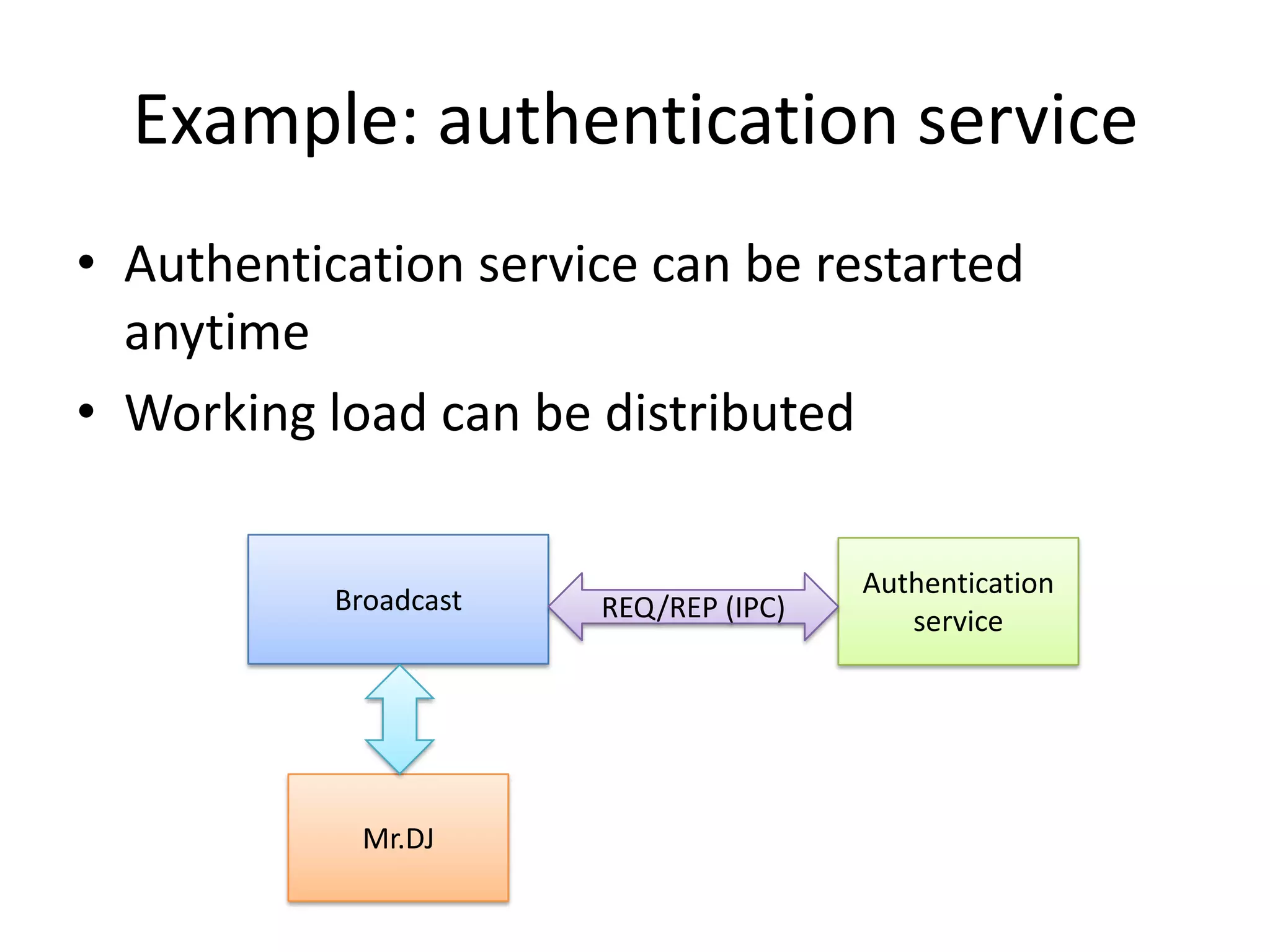

19. Example: authentication service
• Authentication service can be restarted
anytime
• Working load can be distributed
Authentication
Broadcast REQ/REP (IPC) service
Mr.DJ

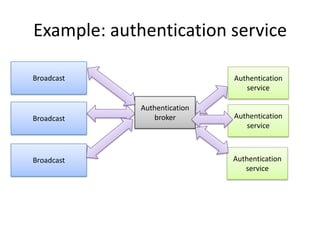

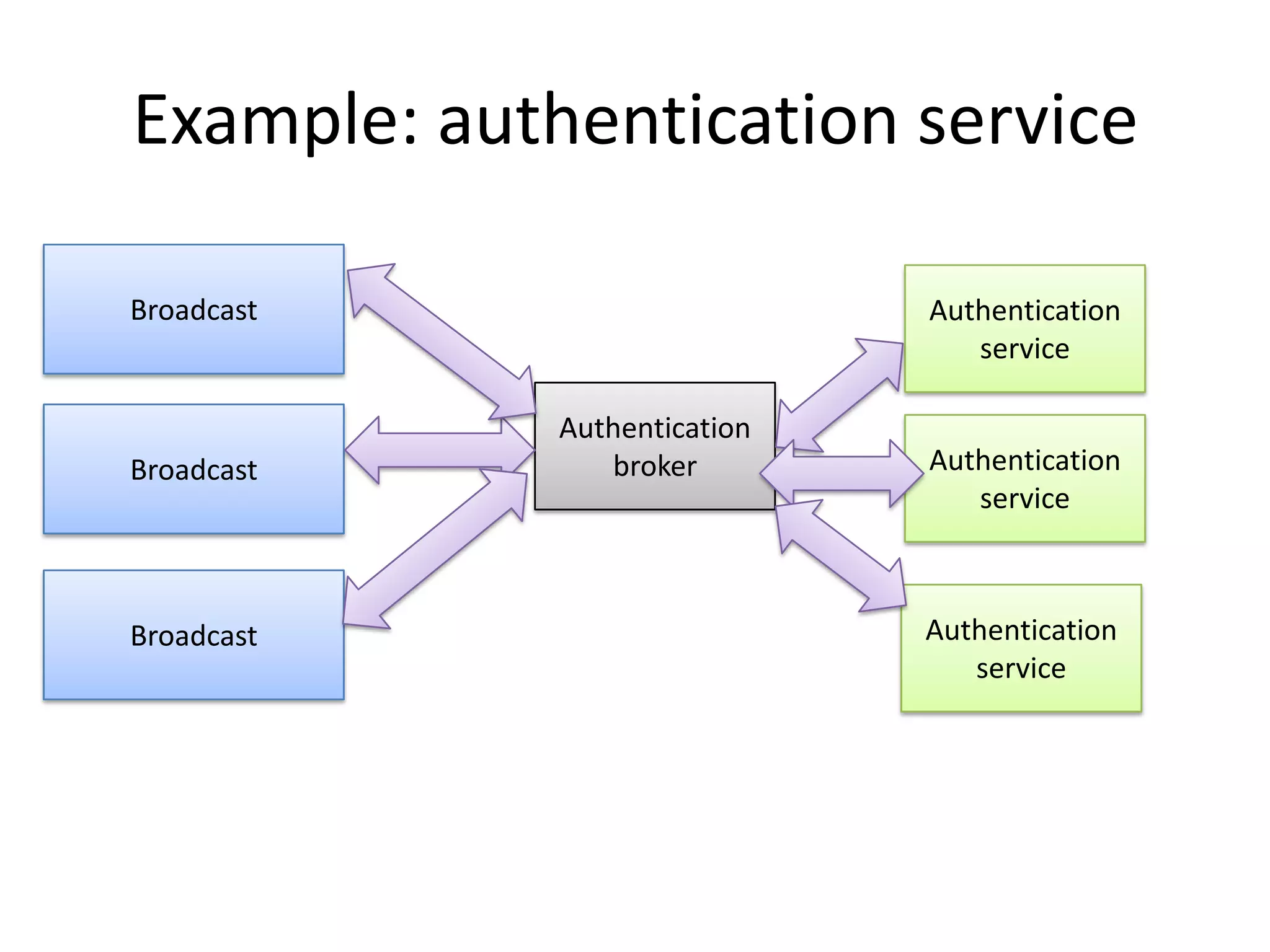

20. Example: authentication service
Broadcast Authentication
service
Authentication
Broadcast broker Authentication
service
Broadcast Authentication
service

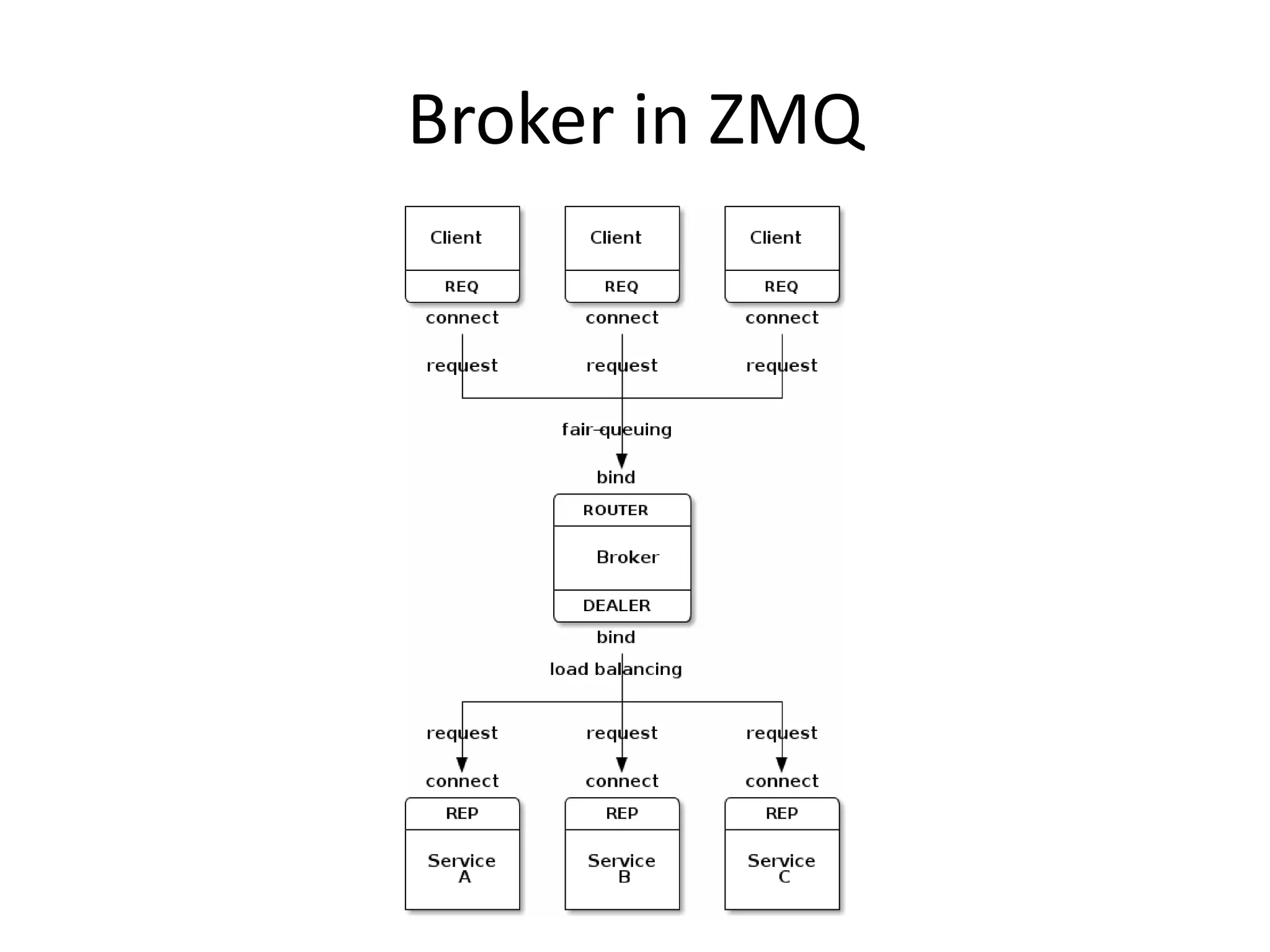

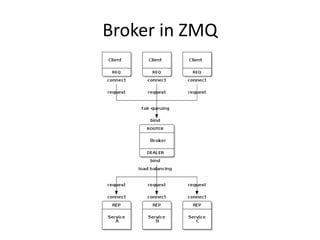

21. Broker in ZMQ

22. Example: recording service
• Record audio when broadcasting
• Upload file chunks to Amazon S3
• Must be reliable

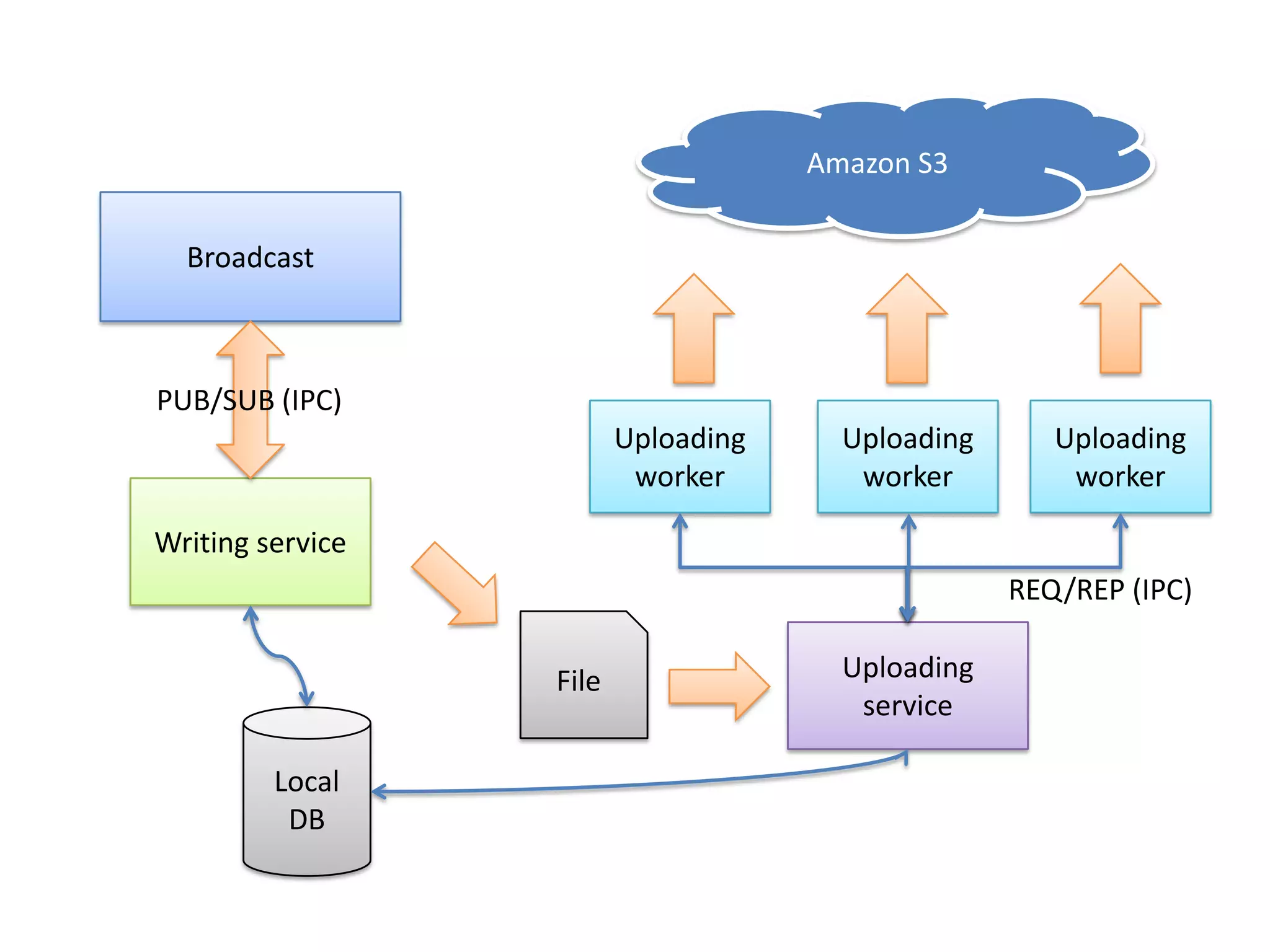

23. Amazon S3
Broadcast
PUB/SUB (IPC)
Uploading Uploading Uploading
worker worker worker
Writing service
REQ/REP (IPC)
File Uploading
service
Local
DB

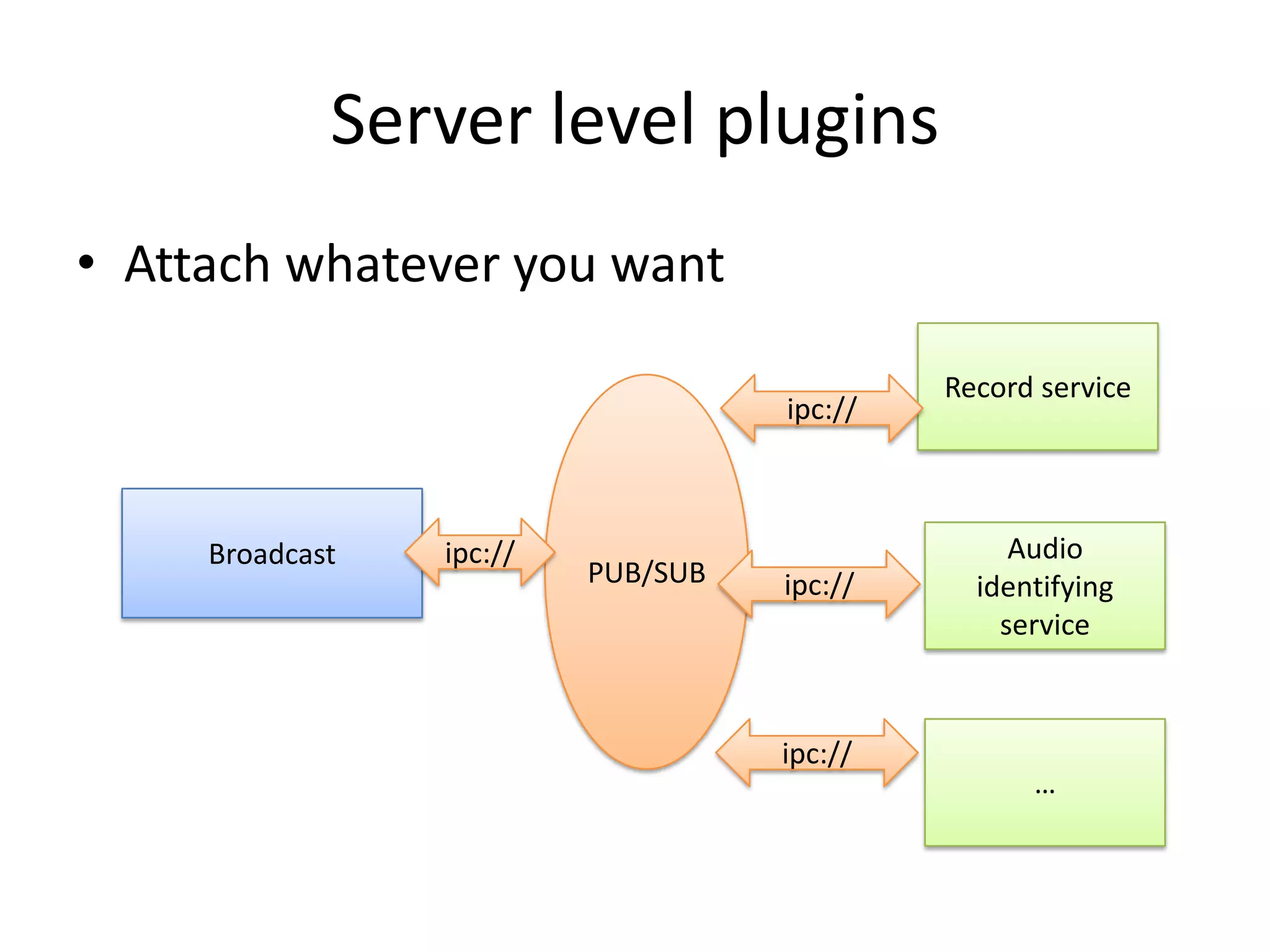

24. Server level plugins
• Attach whatever you want
Record service
ipc://
Broadcast ipc:// Audio
PUB/SUB ipc:// identifying
service
ipc://
…

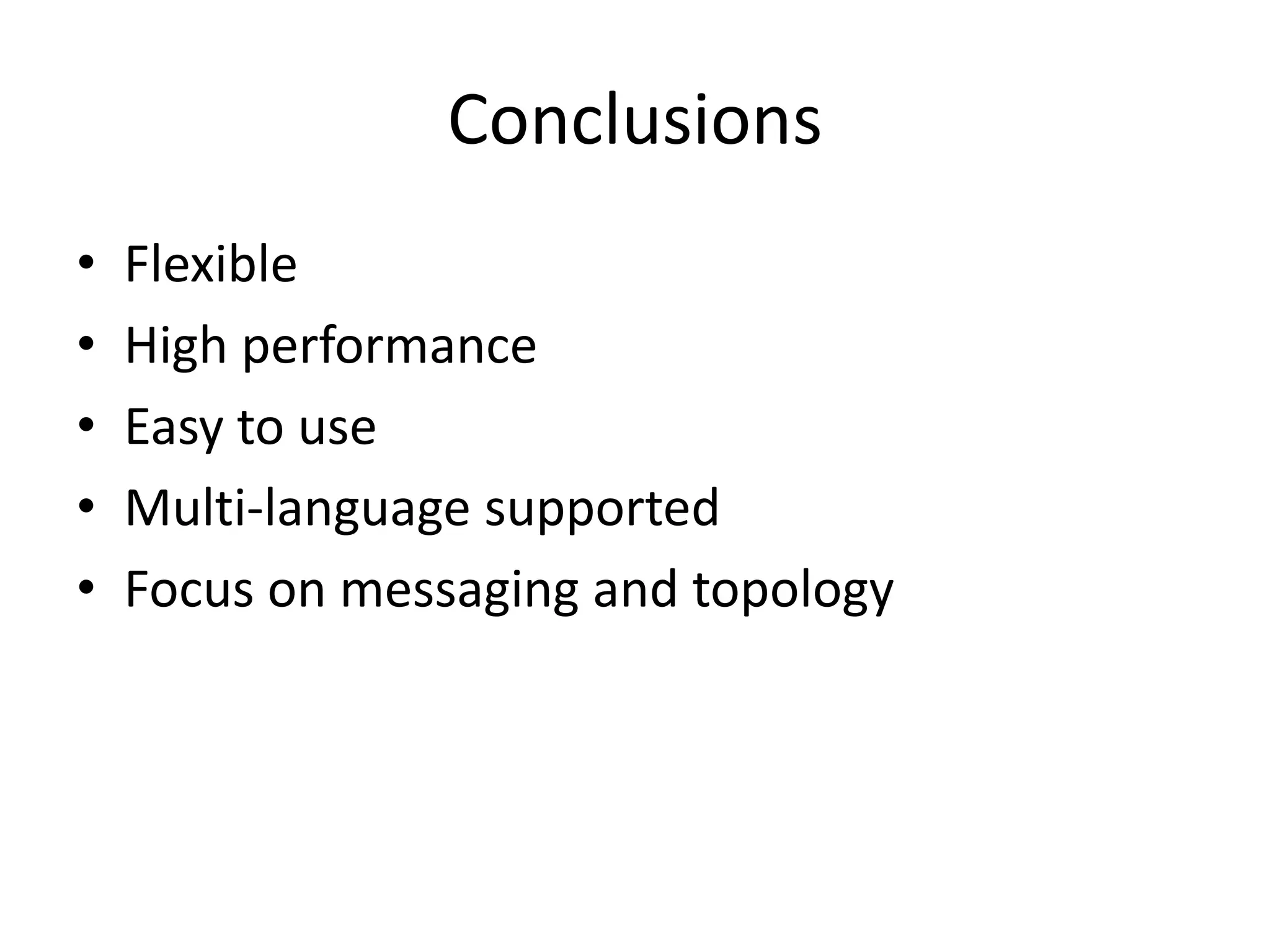

25. Conclusions
• Flexible
• High performance
• Easy to use
• Multi-language supported
• Focus on messaging and topology

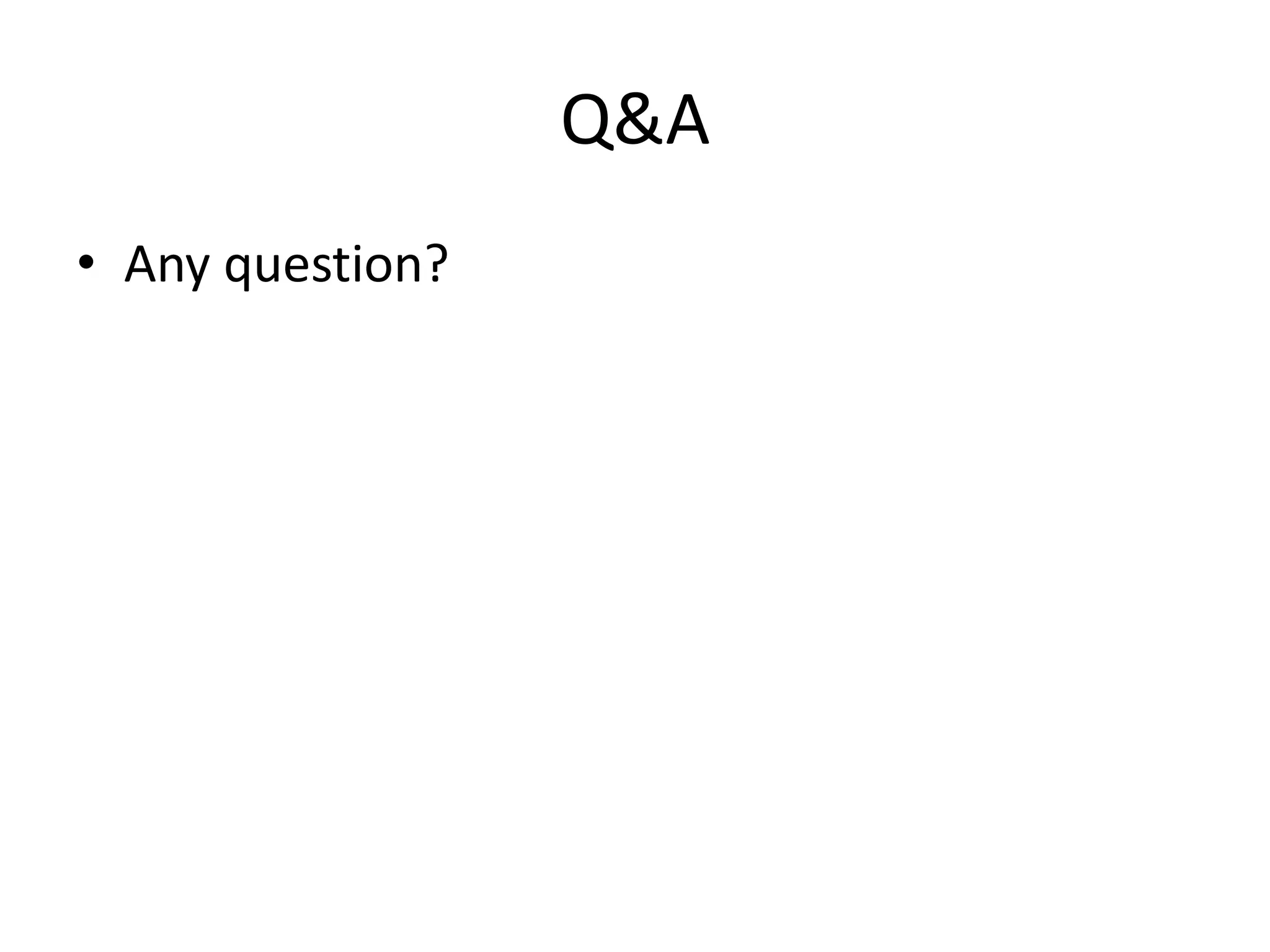

26. Q&A
• Any question?
