The document discusses the transformation of a single tenant application into a multitenant and scalable system using Docker. It outlines various approaches for dockerizing both applications and infrastructure while detailing best practices, lessons learned, and challenges encountered during the process. Key points include the advantages of different container configurations and the implications of using Docker in a dynamic infrastructure environment.

1. BUTTER BEI DIE FISCHE
Ein Jahr Entwicklung und Produktion mit Docker
Johannes Unterstein und Patrick Busch

2. AGENDA
How can we make a single tenant system suitable
for multitenancy and scalable without changing the
whole system?

3. AGENDA
• Introduction
• Dockerizing the Application
• Dockerizing the Infrastructure
• Best Practices
• Lessons Learned

4. INTRODUCTION
• One existing application
• Have it available for several different legal entities
• No way to implement multitenancy the existing
application

5. INTRODUCTION
SOAP
SQL
STORED
PROCEDURES
NO CACHING
flens/web
flens/burg
flens/db

6. INTRODUCTION
SOAP
SQL
STORED
PROCEDURES
NO CACHING
SOAP
SQL
STORED
PROCEDURES
NO CACHING
SOAP
SQL
STORED
PROCEDURES
NO CACHING
etc.
PROXY
A B C

7. DOCKERIZINGTHE
APPLICATION

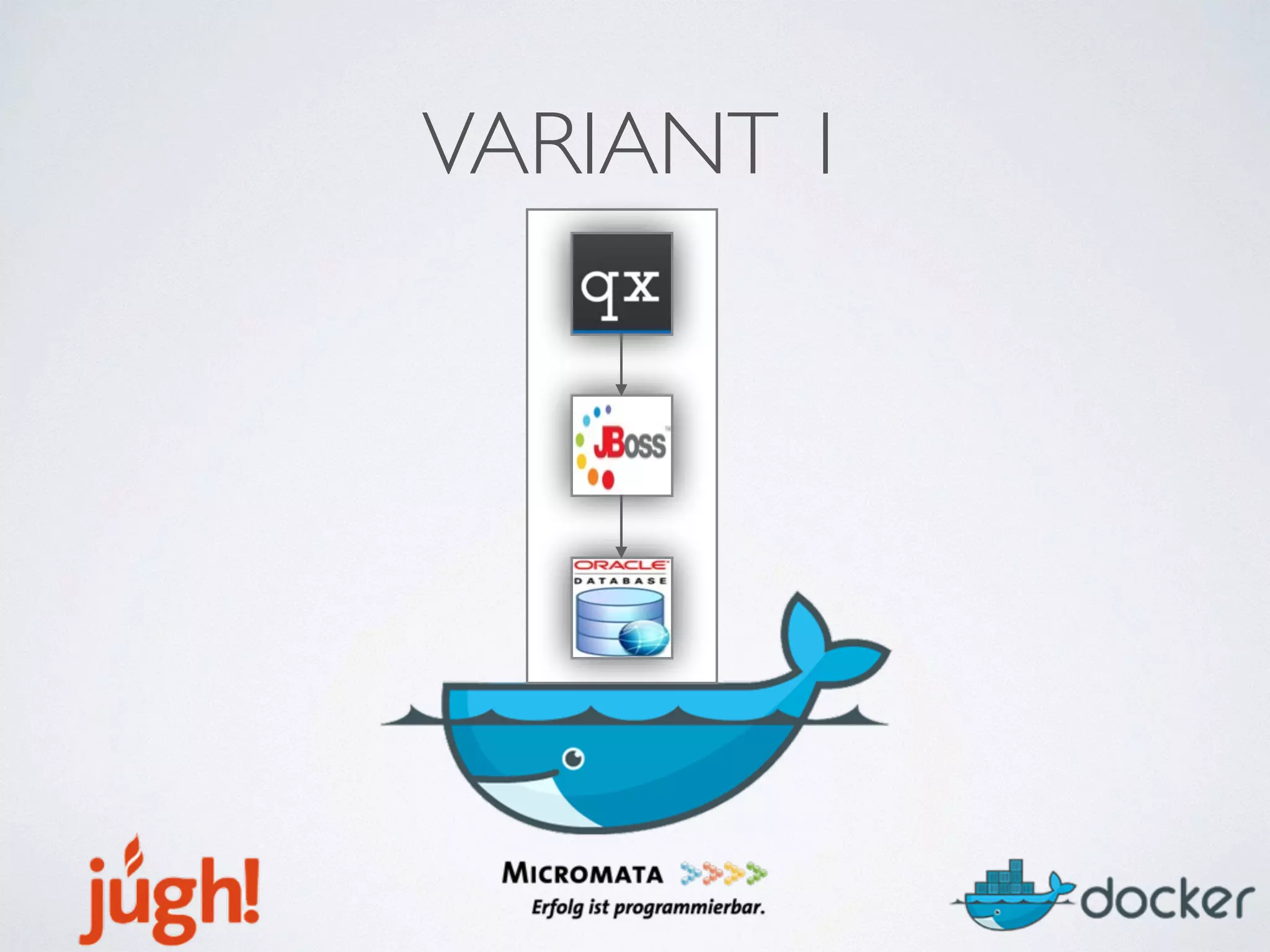

8. VARIANT 1

9. VARIANT 1
• Pros
• Easy to understand/build/run/host
• Cons
• Separation
• Scalability
• Updates

10. VARIANT 2

11. VARIANT 2
• Pros
• Scalability
• Separation
• Updates
• Cons
• Advanced connection between containers needed

12. VARIANT 2
• Connection between containers
• Not via docker linkage
• Via /etc/host entry and environment variable
• Interpreting startup shell script in container

13. VARIANT 2
docker run -dP --env
flensburgHost=someHost --env
flensburgPort=1234 flens/web:1.23

14. DOCKERIZINGTHE
INFRASTRUCTURE

15. VARIANT A

16. VARIANT A
FRONTEND
MW/MANAGER
REGISTRY
EXECUTOR

17. VARIANT A
FRONTEND
MW/MANAGER
REGISTRY
EXECUTOR
builds the image
stores the image
runs the container

18. VARIANT A
• Classic approach
• Running applications on the metal
• Physical servers, each needs to be configured for the
application
• One server that runs the application containers

19. VARIANT B

20. VARIANT B
• More flexibility
• Every physical server is basically the same
• Installation done via script in a few minutes each
• Containers can then be run on any server
• Images contain all the needed configuration

21. VARIANT C

22. VARIANT C
*n

23. VARIANT C
• Multiple servers for the application containers
• Better load distribution
• Improved security

24. VARIANT D
PROXY
*n
PROXY
PROXY ?
FIREWALL
FIREWALL
FIREWALL

25. VARIANT D
• Configure containers to point to proxies
• Proxies manage certificates
• Proxies pass through containers
• Allows multiple containers per system to run in
parallel while they can be addressed on their own

26. FULL SCALE
*n
BUILD
IMAGES
PROXY
PROXYFIREWALL
FIREWALL
FIREWALL

27. FULL SCALE
*n
BUILD
IMAGES
STORE
IMAGES
PUSH
PROXY
PROXYFIREWALL
FIREWALL
FIREWALL

28. RUN
CONTAINERS
FULL SCALE
*n
BUILD
IMAGES
STORE
IMAGES
PUSH
PULL
*n
*n
*n
PROXY
PROXYFIREWALL
FIREWALL
FIREWALL

29. ADDED BENEFITS
• Self Service
• Flexibility
• Scalability
• Security
• A/B-Switching

30. STAGING
*n
PUSH
PULL
*n
PUSH
PULL
PRODUCTION STAGE

31. STAGING
*n
PUSH
PULL
*n
PUSH
PULL
PRODUCTION STAGE
SHARED REGISTRY FOR
INFRASTRUCTURE IMAGES

32. STAGING
• Easily duplicated environment
• Use docker registry for infrastructure images
• Release versioned images
• Script checks that versions cannot be overwritten
• Stage first approach

33. BEST PRACTICES

34. COMMON BASE IMAGES
• Common stuff in common base image
• As much as possible in base image
• Define versions of tools explicitly
• Lowers registry size

35. GROUP COMMANDS
• Try to combine commands with „&&“
• Less intermediate containers
• Increases build performance
• Lowers registry size

36. GROUP COMMANDS
RUN chmod u+x /home/app/start.sh
RUN chown app:app /home/app/start.sh

37. GROUP COMMANDS
RUN chmod u+x /home/app/start.sh &&
chown app:app /home/app/start.sh

38. ORDER COMMANDS
• Stable commands as early as possible
• ADD commands as late as possible
• Caching increases build performance
• Lowers registry size

39. USE SCRIPTS
docker run -d
--read-only
-p 127.0.0.1:30022:22
-p 127.0.0.1:38080:8080
-v /docker/data/nginx:/var/lib/nginx
-v /docker/logs/nginx:/var/log/nginx
-v /docker/tmp:/tmp
-v /docker/run:/var/run
--name flens_web
repository_host_name:8888/flens/web:1.0

40. USE SCRIPTS
flens web run 1.0

41. USE SCRIPTS
• Running containers can be complicated on the
console
• Scripts can improve readability and memorability
• Improved speed and less failures
• Reusability

42. BUILD CONTINUOUS
• Use scripts in continuous integration server as well
• We use „Execute shell command“ jobs
• e.g.: flens web build && flens web rerun

43. USE PROXIES
• Proxy on the physical machines (e.g. nginx)
• Containers listen only to localhost device
• Nginx handles incoming requests and passes on
• Nginx handles security
• More than one container of a given type
• By symlinking nginx config files you can switch from one slot to another

44. USEVOLUMES
• Volumes are directories mounted from the
physical host
• Files in a volume are visible from inside the
container (and writeable)
• Useful for logging, syncing data, etc…

45. READ-ONLY CONTAINERS
• A read only container cannot write to its own file system
• Can only write to volumes
• Perfectly immutable containers are easily interchangable!
• Build and distribute containers even more freely
• No unexpected states, defined income -> defined outcome

46. MAKEYOUR CONTAINERS
FLEXIBLE
• Use /etc/hosts defined hostnames instead of IP
addresses
• Use environment variables at startup (--env)

47. LESSONS LEARNED

48. QUIRKS OF DOCKERFILES
• COPY vs ADD
• ADD can be a URL,ADD extracts tar.gz files automatically
• ENTRYPOINT vs CMD
• CMD can be overwritten at startup, ENTRYPOINT cannot
• Both are possible in a single Dockerfile
• ENTRYPOINT/CMD syntax
• determines if the executable is started directly or in a shell

49. QUIRKS OF DOCKERFILES
• COPY vs ADD
• ADD can be a URL,ADD extracts tar.gz files automatically
• ENTRYPOINT vs CMD
• CMD can be overwritten at startup, ENTRYPOINT cannot
• Both are possible in a single Dockerfile - this combines them!
• ENTRYPOINT/CMD syntax
• determines if the executable is started directly or in a shell

50. CMD AND ENTRYPOINT
CMD ping localhost
=> /bin/sh -c ‘ping localhost’
CMD[“ping”,”localhost”]
=> ping localhost
ENTRYPOINT[“ping”]
CMD [“localhost”]
=> ping localhost
$ docker run container_name www.flens.de
=> ping www.flens.de

51. TRUSTYOUR OWN SKILLS
• Young technology, many tutorials, everybody else
knows it better
• Linking is fine, but not for us
• Configuring /etc/hosts at startup works wonders
• Try to use your own solution

52. DON’T USE LINKAGE
• Not possible over real machine boundaries
• Often leads to problems during startup
• Use /etc/hosts and environment parameters

53. DOCKER IN DOCKER
• Our infrastructure builds docker images
dynamically
• Our infrastructure is dockerized
• Do we need „docker in docker?“

54. DOCKER IN DOCKER
•Docker in docker is possible
• docker run -- privileged flens/mw:1.23
•Container runs inside flens/mw
•Problems during update of outer app

55. DOCKER IN DOCKER
•We used client/server docker communication
•Client = flens/mw
•Server = Docker of host system
•Similar to boot2docker
•All container runs on host system

56. IT’S CHEAPER
• We can use off the shelf servers
• We can use virtualized servers
• We can distribute easily over different server
providers
• Easily scalable

57. IT’S BETTER
• Release on touch of a button
• Deployment on touch of a button
• Transparent versioning of all apps
• Transparency of OS environment running the apps
• Environment is now part of dev process and versionable

58. THANKS
Cheers
