1. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 1
Health Information Model Standards
Johns Hopkins School of Medicine
Division of Health Sciences Informatics
Course 600.708 - Health Information
Systems Standards and Interoperability
Information Model Standards Session
Jason Siegel, MD
Chief Medical Informaticist
Public Health Division
Atlas Development Corporation

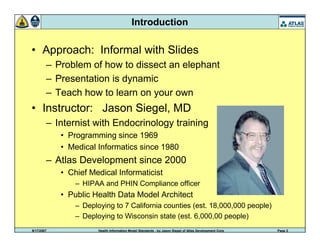

2. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 2
Introduction
• Approach: Informal with Slides
– Problem of how to dissect an elephant
– Presentation is dynamic
– Teach how to learn on your own
• Instructor: Jason Siegel, MD
– Internist with Endocrinology training
• Programming since 1969
• Medical Informatics since 1980
– Atlas Development since 2000
• Chief Medical Informaticist
– HIPAA and PHIN Compliance officer
• Public Health Data Model Architect
– Deploying to 7 California counties (est. 18,000,000 people)
– Deploying to Wisconsin state (est. 6,000,00 people)

3. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 3

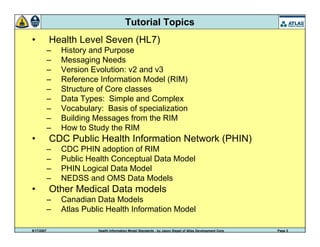

Tutorial Topics
• Health Level Seven (HL7)
– History and Purpose
– Messaging Needs
– Version Evolution: v2 and v3
– Reference Information Model (RIM)
– Structure of Core classes
– Data Types: Simple and Complex
– Vocabulary: Basis of specialization
– Building Messages from the RIM
– How to Study the RIM
• CDC Public Health Information Network (PHIN)
– CDC PHIN adoption of RIM
– Public Health Conceptual Data Model
– PHIN Logical Data Model
– NEDSS and OMS Data Models
• Other Medical Data models

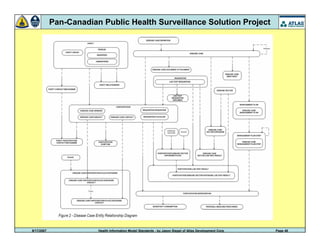

– Canadian Data Models
– Atlas Public Health Information Model

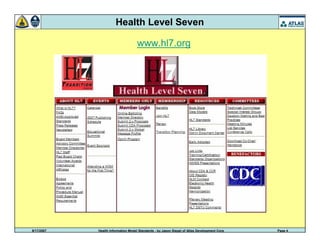

4. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 4
Health Level Seven
www.hl7.org

5. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 5

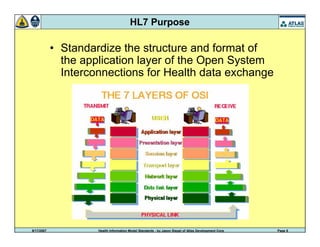

HL7 Purpose
• Standardize the structure and format of
the application layer of the Open System
Interconnections for Health data exchange

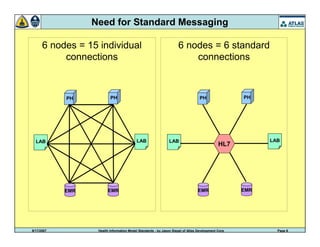

6. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 6
Need for Standard Messaging
6 nodes = 15 individual
connections
EMR EMR
PH PH
LAB LAB
EMR EMR
PH PH
LAB LAB
HL7
6 nodes = 6 standard
connections

7. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 7
HL7 Version 2.x Message
• Defined Message Structure
– Delimited fields
– Standardized term sets
• Adopted widely
– Laboratories and Hospital systems
– Basis of current CDC messages
• Limits
– Not based on general conceptual model
– Difficult to represent hierarchical concepts
MSH|^~&||QUEST DIAGNOSTICS-LOS ANGELES (METRO)^05D0642827^CLIA|NPHSS|54-LA
CNTY|200507081018||ORU^R01|200507041000|P|2.3|||||||
PID||8527292^^^^^L.A JAIL TWIN TOWERS_____|0002255^^^^^QUEST DIAGNOSTICS-LOS ANGELES
(METRO)&05D0642827&CLIA||SKYWALKER^ANAKIN||19650115|M||U|^^^^^^^^^||^^^^^^|||||||||U
OBR|1||WD223962R|^^^7500074554^CULTURE,
MYCOBACT^L|||20050530|||||||20050530|^^&&&&SPUTUM&L|^PILE^|^^^^^213^8935658||||||||F||||
ZLR||L.A JAIL TWIN TOWERS_____|450 BAUCHET ST FL 2,^^LOS ANGELES^CA^90012-
2907|^^^^^213^8935658|^40^Y|||||||||||||||
OBX|1|CE|^^^75407123^MYCOBACTERIUM CULTURE ID^L|1|^^^MTBC^MYCOBACTERIUM TUBERCULOSIS
COMPLEX^L||||||F|||200507010858|05D0642827^^CLIA

8. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 8

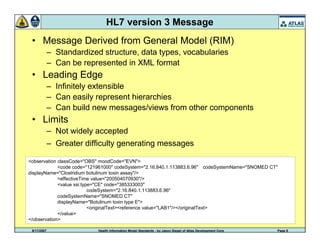

HL7 version 3 Message
• Message Derived from General Model (RIM)
– Standardized structure, data types, vocabularies
– Can be represented in XML format
• Leading Edge
– Infinitely extensible
– Can easily represent hierarchies
– Can build new messages/views from other components
• Limits
– Not widely accepted
– Greater difficulty generating messages
<observation classCode="OBS" moodCode="EVN">
<code code="121961000" codeSystem="2.16.840.1.113883.6.96" codeSystemName="SNOMED CT"
displayName="Clostridium botulinum toxin assay"/>
<effectiveTime value="200504070930"/>
<value xsi:type="CE" code="385333003"
codeSystem="2.16.840.1.113883.6.96"
codeSystemName="SNOMED CT"
displayName="Botulinum toxin type E">
<originalText><reference value="LAB1"/></originalText>
</value>
</observation>

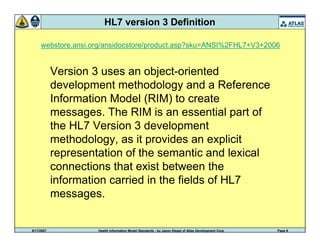

9. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 9
HL7 version 3 Definition
Version 3 uses an object-oriented
development methodology and a Reference
Information Model (RIM) to create
messages. The RIM is an essential part of
the HL7 Version 3 development
methodology, as it provides an explicit
representation of the semantic and lexical
connections that exist between the
information carried in the fields of HL7
messages.
webstore.ansi.org/ansidocstore/product.asp?sku=ANSI%2FHL7+V3+2006

10. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 10

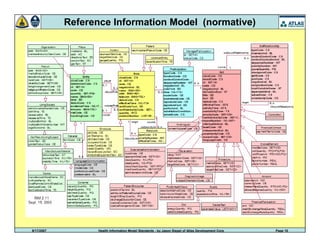

Reference Information Model (normative)

11. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 11

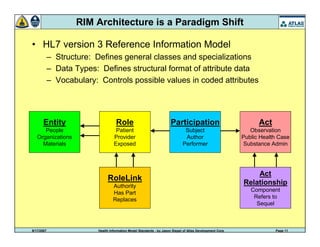

RIM Architecture is a Paradigm Shift
• HL7 version 3 Reference Information Model
– Structure: Defines general classes and specializations
– Data Types: Defines structural format of attribute data
– Vocabulary: Controls possible values in coded attributes
Entity
People
Organizations
Materials
Role
Patient
Provider
Exposed
Participation
Subject
Author
Performer
Act
Observation
Public Health Case
Substance Admin
RoleLink
Authority
Has Part
Replaces
Act
Relationship
Component
Refers to
Sequel

12. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 12

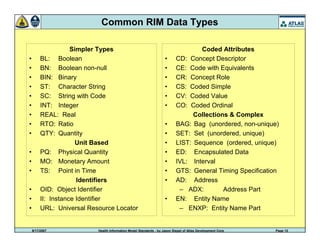

Common RIM Data Types
Simpler Types
• BL: Boolean
• BN: Boolean non-null
• BIN: Binary
• ST: Character String
• SC: String with Code
• INT: Integer
• REAL: Real
• RTO: Ratio
• QTY: Quantity
Unit Based
• PQ: Physical Quantity
• MO: Monetary Amount
• TS: Point in Time
Identifiers
• OID: Object Identifier
• II: Instance Identifier
• URL: Universal Resource Locator
Coded Attributes
• CD: Concept Descriptor
• CE: Code with Equivalents
• CR: Concept Role
• CS: Coded Simple
• CV: Coded Value
• CO: Coded Ordinal
Collections & Complex
• BAG: Bag (unordered, non-unique)
• SET: Set (unordered, unique)
• LIST: Sequence (ordered, unique)
• ED: Encapsulated Data
• IVL: Interval
• GTS: General Timing Specification
• AD: Address
– ADX: Address Part
• EN: Entity Name
– ENXP: Entity Name Part

13. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 13

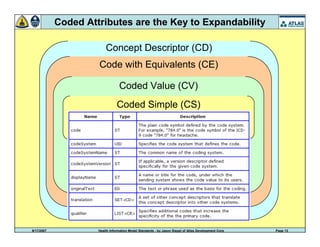

Coded Attributes are the Key to Expandability
Concept Descriptor (CD)
Code with Equivalents (CE)
Coded Value (CV)
Coded Simple (CS)

14. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 14

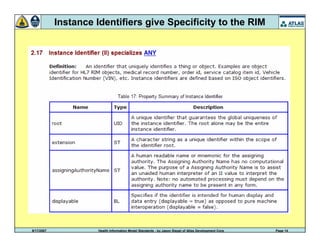

Instance Identifiers give Specificity to the RIM

15. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 15

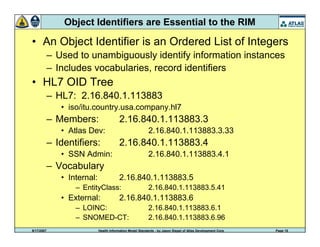

Object Identifiers are Essential to the RIM
• An Object Identifier is an Ordered List of Integers
– Used to unambiguously identify information instances
– Includes vocabularies, record identifiers
• HL7 OID Tree
– HL7: 2.16.840.1.113883
• iso/itu.country.usa.company.hl7
– Members: 2.16.840.1.113883.3
• Atlas Dev: 2.16.840.1.113883.3.33
– Identifiers: 2.16.840.1.113883.4
• SSN Admin: 2.16.840.1.113883.4.1
– Vocabulary
• Internal: 2.16.840.1.113883.5
– EntityClass: 2.16.840.1.113883.5.41
• External: 2.16.840.1.113883.6
– LOINC: 2.16.840.1.113883.6.1
– SNOMED-CT: 2.16.840.1.113883.6.96

16. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 16
Object Identifier Examples
• Person is a LivingSubject is an Entity
– administrativeGender attribute : CE data type
• code = M
• codeSystem = 2.16.840.1.113883.5.1
• codeSystemName = HL7
• codeSystemVersion = 2.11
• displayName = male
• originalText = man
– id attribute : II data type (Instance Identifier)
• root = 2.16.840.1.113883.4.1 {Social Security Admin}
• extension = 123-45-6780 {SSN}
• assigningAuthorityName = SS Administration
• displayable = True

17. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 17

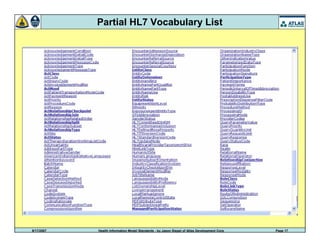

Partial HL7 Vocabulary List

18. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 18

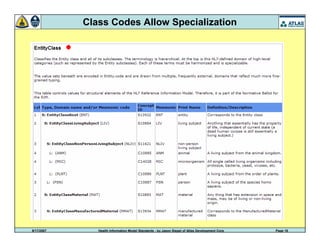

Class Codes Allow Specialization

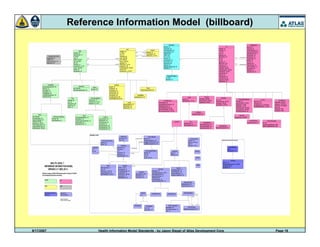

19. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 19
Reference Information Model (billboard)

20. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 20

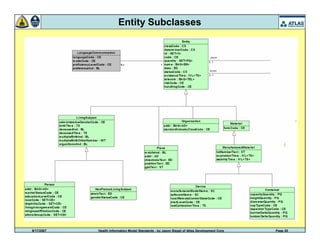

Entity Subclasses

21. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 21

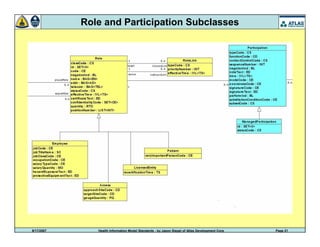

Role and Participation Subclasses

22. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 22

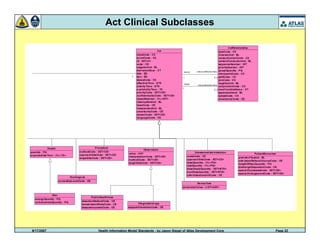

Act Clinical Subclasses

23. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 23

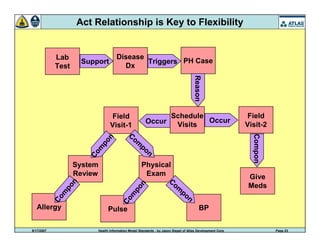

Act Relationship is Key to Flexibility
PH Case
Schedule
Visits
Lab
Test
Give
Meds
Triggers
Field
Visit-1
Disease
Dx
Support
Occur
Reason
Compon
Physical
Exam
System
Review
Pulse BP
Field
Visit-2
Occur
Com
pon
Com
pon
Com
pon
Com
pon
Allergy
Com
pon

24. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 24

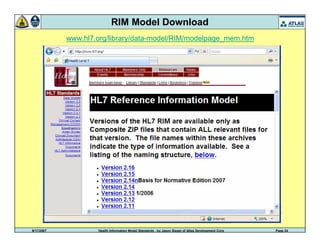

RIM Model Download
www.hl7.org/library/data-model/RIM/modelpage_mem.htm

25. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 25

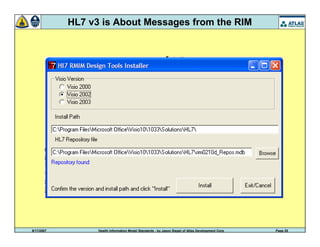

HL7 v3 is About Messages from the RIM

26. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 26

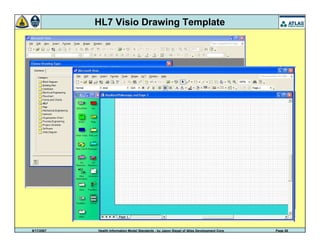

HL7 Visio Drawing Template

27. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 27

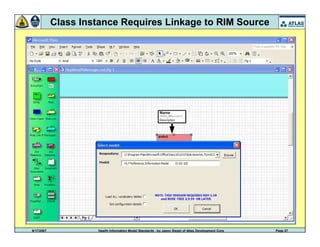

Class Instance Requires Linkage to RIM Source

28. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 28

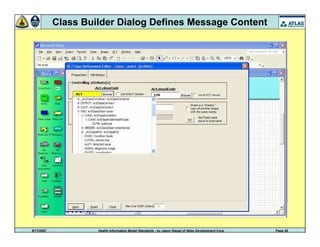

Class Builder Dialog Defines Message Content

29. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 29

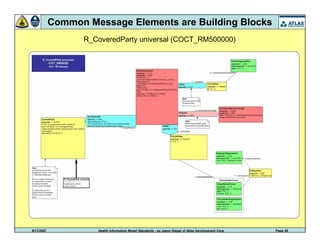

Common Message Elements are Building Blocks
R_CoveredParty universal (COCT_RM500000)

30. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 30
Domain Information Model Defines Entire Scope
Public Health Reporting Domain Information Model (PORR_DM100001UV01)

31. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 31

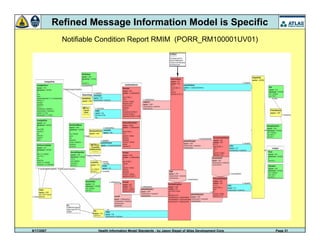

Refined Message Information Model is Specific
Notifiable Condition Report RMIM (PORR_RM100001UV01)

32. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 32

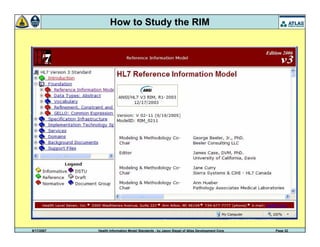

How to Study the RIM

33. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 33

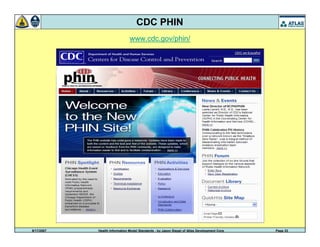

CDC PHIN
www.cdc.gov/phin/

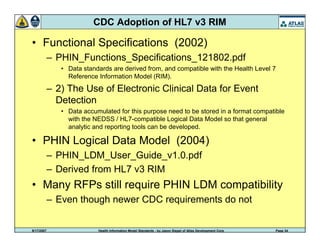

34. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 34
CDC Adoption of HL7 v3 RIM
• Functional Specifications (2002)
– PHIN_Functions_Specifications_121802.pdf
• Data standards are derived from, and compatible with the Health Level 7
Reference Information Model (RIM).
– 2) The Use of Electronic Clinical Data for Event
Detection
• Data accumulated for this purpose need to be stored in a format compatible
with the NEDSS / HL7-compatible Logical Data Model so that general
analytic and reporting tools can be developed.
• PHIN Logical Data Model (2004)
– PHIN_LDM_User_Guide_v1.0.pdf
– Derived from HL7 v3 RIM
• Many RFPs still require PHIN LDM compatibility
– Even though newer CDC requirements do not

35. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 35

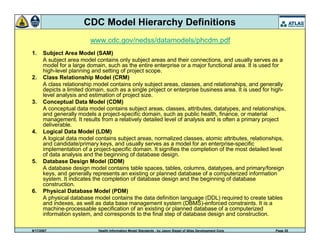

CDC Model Hierarchy Definitions
1. Subject Area Model (SAM)
A subject area model contains only subject areas and their connections, and usually serves as a
model for a large domain, such as the entire enterprise or a major functional area. It is used for
high-level planning and setting of project scope.
2. Class Relationship Model (CRM)
A class relationship model contains only subject areas, classes, and relationships, and generally
depicts a limited domain, such as a single project or enterprise business area. It is used for high-
level analysis and estimation of project size.
3. Conceptual Data Model (CDM)
A conceptual data model contains subject areas, classes, attributes, datatypes, and relationships,
and generally models a project-specific domain, such as public health, finance, or material
management. It results from a relatively detailed level of analysis and is often a primary project
deliverable.
4. Logical Data Model (LDM)
A logical data model contains subject areas, normalized classes, atomic attributes, relationships,
and candidate/primary keys, and usually serves as a model for an enterprise-specific
implementation of a project-specific domain. It signifies the completion of the most detailed level
of data analysis and the beginning of database design.
5. Database Design Model (DDM)
A database design model contains table spaces, tables, columns, datatypes, and primary/foreign
keys, and generally represents an existing or planned database of a computerized information
system. It indicates the completion of database design and the beginning of database
construction.
6. Physical Database Model (PDM)
A physical database model contains the data definition language (DDL) required to create tables
and indexes, as well as data base management system (DBMS)-enforced constraints. It is a
machine-processable specification of an existing or planned database of a computerized
information system, and corresponds to the final step of database design and construction.
www.cdc.gov/nedss/datamodels/phcdm.pdf

36. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 36

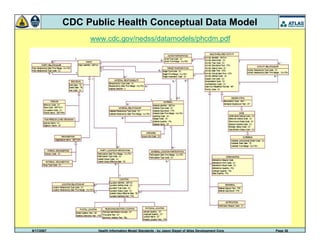

CDC Public Health Conceptual Data Model
www.cdc.gov/nedss/datamodels/phcdm.pdf

37. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 37
CDC PHIN Logical Data Model
www.cdc.gov/phin/library/documents/pdf/PHIN_LDM_User_Guide_v1.0.pdf

38. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 38

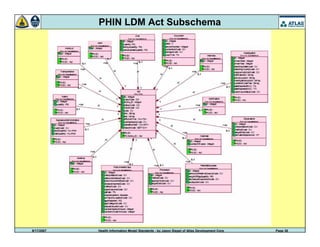

PHIN LDM Act Subschema

39. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 39

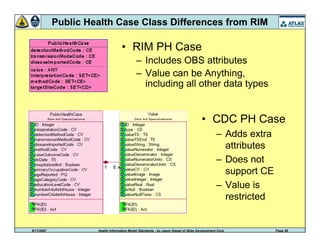

Public Health Case Class Differences from RIM
• RIM PH Case
– Includes OBS attributes
– Value can be Anything,
including all other data types
• CDC PH Case
– Adds extra
attributes
– Does not
support CE
– Value is
restricted

40. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 40

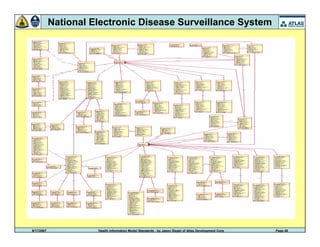

National Electronic Disease Surveillance System

41. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 41

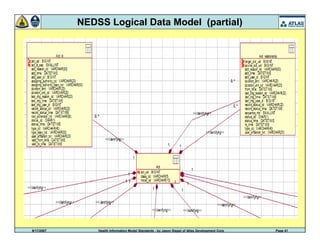

NEDSS Logical Data Model (partial)

42. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 42

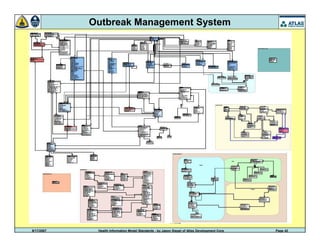

Outbreak Management System

43. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 43

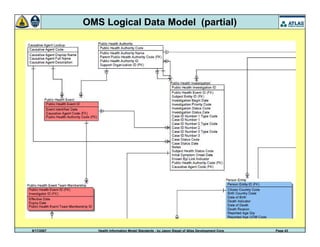

OMS Logical Data Model (partial)

44. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 44
Other Health Data Models

45. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 45

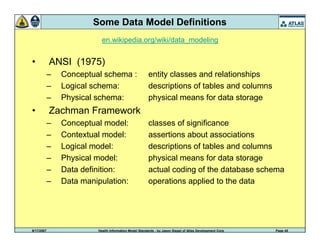

Some Data Model Definitions
• ANSI (1975)
– Conceptual schema : entity classes and relationships
– Logical schema: descriptions of tables and columns
– Physical schema: physical means for data storage
• Zachman Framework
– Conceptual model: classes of significance
– Contextual model: assertions about associations
– Logical model: descriptions of tables and columns
– Physical model: physical means for data storage
– Data definition: actual coding of the database schema
– Data manipulation: operations applied to the data
en.wikipedia.org/wiki/data_modeling

46. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 46

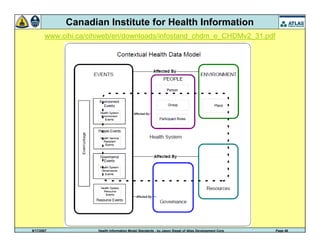

Canadian Institute for Health Information
www.cihi.ca/cihiweb/en/downloads/infostand_chdm_e_CHDMv2_31.pdf

47. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 47

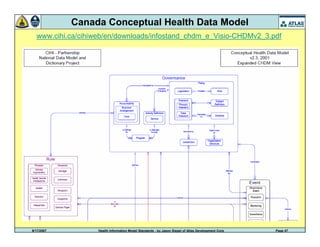

Canada Conceptual Health Data Model
www.cihi.ca/cihiweb/en/downloads/infostand_chdm_e_Visio-CHDMv2_3.pdf

48. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 48
Pan-Canadian Public Health Surveillance Solution Project

49. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 49
Atlas Public Health Information Model (APHIM)

50. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 50

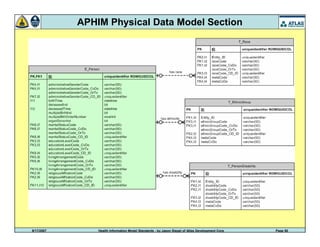

APHIM Physical Data Model Section

51. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 51
APHIM Data Definition Language

52. 9/17/2007 Health Information Model Standards - by Jason Siegel of Atlas Development Corp Page 52

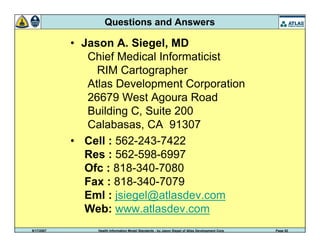

Questions and Answers
• Jason A. Siegel, MD
Chief Medical Informaticist
RIM Cartographer
Atlas Development Corporation
26679 West Agoura Road
Building C, Suite 200
Calabasas, CA 91307
• Cell : 562-243-7422
Res : 562-598-6997
Ofc : 818-340-7080
Fax : 818-340-7079
Eml : jsiegel@atlasdev.com
Web: www.atlasdev.com
