This document proposes a virtual machine project for Eureka Design Co. It discusses establishing VR/MR technology to improve productivity, reduce customer validation time, and increase customer satisfaction. A short term plan within 1-1.5 years includes setting up an initial VR system for visualizing machine designs. A long term plan within 1.5-3 years expands the system with additional functionality, a dedicated visualization room, and integration with other departments. Potential system providers are identified that offer complete hardware and software solutions or individual tracking and navigation components. The proposal seeks budget approval to begin the project.

1. Proposal for Virtual Machine Project
Prepared By:
Kiran Thapa
Mechanical Design Support
Eureka Design Co., Ltd
Thailand
July 2012
Prepared by: Kiran Thapa 1

2. Background:
According to the 3 year strategic plan of Eureka Design co., ltd. for the year 2013 to
2015, Virtual machine and operation excellent was already being included as one of the
important area for development and investment by Eureka company. This virtual
machine prototyping technology will help to increase our productivity, reduces our
customer validation time, increase customer satisfaction, add value to our product and
give Eureka edge over its competitor. As a newly established “Mechanical Design
Support“ department and its responsible focus area of new R&D and special project for
Eureka product, this department would like to request for the approval of this project
and budget allocation via this report. This report will cover more detail about this
technology, its short term and long term benefits, existing technologies and solution
providers in market and recommend possible direction to go ahead to start this project.
Introduction:
Virtual machine or virtual reality (VR) is relatively a new technology.VR is a computer
simulation that used 3D graphics and devices to provide an interactive visual
experience. It can simulate physical presence in places in the real world, as well as in
imaginary worlds. VR is often used to describe a wide variety of applications commonly
associated with immersive, highly visual, 3D environments. With the development of
CAD software, graphics hardware acceleration, head mounted displays, database
gloves, and miniaturization have helped popularize this technology. Potential field of
application of virtual are automobile industry, design, manufacturing, entertainment,
game etc.
Automobile Industry Design
Prepared by: Kiran Thapa 2

3. Industrial Manufacturing Military Field
Entertainment Medical
Gaming Research and Education
Different between Virtual reality and mixed reality:
Most of the time virtual reality and mixed (augmented) reality (MR) is used as synonyms
but there is different between these two technology. In virtual reality we see only the
Prepared by: Kiran Thapa 3

4. virtual thing. But in mixed reality we can still see the real world and virtual word mixed
together and coexisting together. Hence mixed reality gives us actual information but
doesn't replace the real world we are experiencing. Mixed reality can be considered as
advancement in virtual reality.

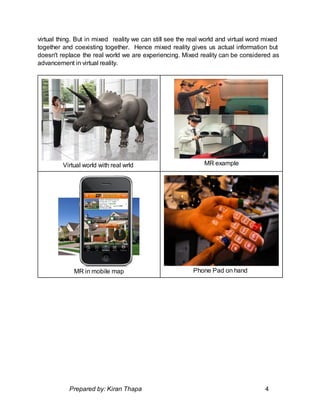

Virtual world with real wrld MR example
MR in mobile map Phone Pad on hand
Prepared by: Kiran Thapa 4

5. Google Glass for MR Canon MR technology
Advantages of VR/MR technology:
Although the technology is quite new and under R&D phase there are already a lot of
interest and promising areas where it is being implemented and trusted. Game industry
and entertainment industry is considered as high customer density area for this product.
Another most important area is manufacturing and automobile industry where this
technology can take place of rapid prototyping and product development. The term
being used is virtual prototyping. This shorten the product verifying and testing time, as
3D CAD model can directly being realized virtually before moving into any kind of actual
development. Some of its advantages are listed below
● Increase productivity
● Increase display resolution
● Accelerate the validation process
● Tools to add support for decision-making
● Reduce the decision cycles with your customers
● Improve collaborative process
Types of Display Options:
1. Head Mount system (HMD):
Prepared by: Kiran Thapa 5

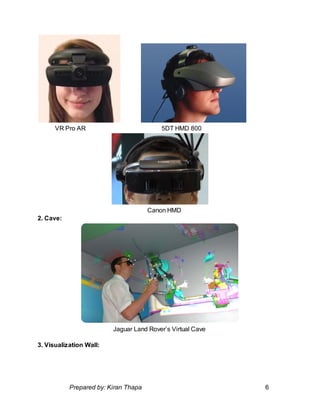

6. VR Pro AR 5DT HMD 800
Canon HMD
2. Cave:
Jaguar Land Rover’s Virtual Cave
3. Visualization Wall:
Prepared by: Kiran Thapa 6

7. COVISE - Visualization wall
4. Workbench:
Polhemus - Workbench
5. VR Dome:
Prepared by: Kiran Thapa 7

8. Vision station- VR Dome
Types of Navigation Options:
1. SpaceMouse
ART- Flystick3
2. PC joystick
ART- Flystick2
3. Data globe
Prepared by: Kiran Thapa 8

9. 5DT Data Glove MRI
4. Haptic
Types of Tracking Options:
1. Inertial / Magnetic / Optical
InterSense- inertial sensor Wintracker Magnetic sensor
Prepared by: Kiran Thapa 9

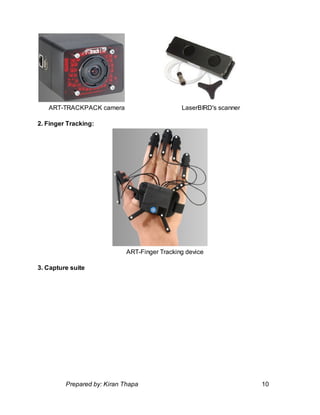

10. ART-TRACKPACK camera LaserBIRD's scanner
2. Finger Tracking:
ART-Finger Tracking device
3. Capture suite
Prepared by: Kiran Thapa 10

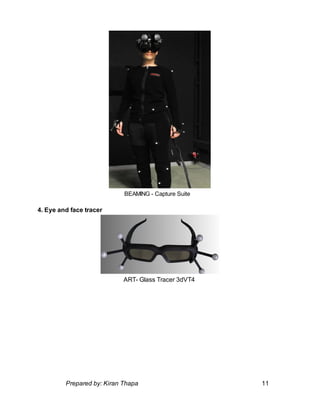

11. BEAMING - Capture Suite
4. Eye and face tracer
ART- Glass Tracer 3dVT4
Prepared by: Kiran Thapa 11

12. VR/MR Technology for Eureka Design
Why Eureka Need VR/MR Technology?
Customer satisfaction is very important aspect of Eureka business as we work closely
with customer in every steps by understanding their needs and during the whole
process of machine design, development, verification and system installation. Hence a
smart and quick mechanism to reduce the customer interaction while increasing the
increasing a satisfaction level and increasing our productivity is needed. VR/ MR
technology can be a most suitable option for this.
● Using this technology we will be able to demonstrate and discuss about our
design with customer in more realistic environment.
● Quickly and more efficient validation process in VR/MR with customer save time.
● Enables the user to validate the ergonomic factors for various human tasks, such
as the study of reach analysis or to see the collisions between the human body
and the 3D model.
● Additional function like Virtual Assembly product enables the user to select and
interactively move a part of the 3D model, to view collisions with the model and
record an animation that can be reloaded for further studies.
● Helps in gaining customer trust and add value to our product.
● Video record of the discussion process with customer in during validation process
of virtual prototype can serve as record for future reference.
● As a latest technology and trend in market, having this technology give Eureka
edge over its competitor.
Advantages for individual departments of Eureka:
After successful implementation of this project not only mechanical department but all
other departments like sales, system integration, assembly, drawing, QA etc can equally
benefit from it.
Prepared by: Kiran Thapa 12

13. Plans:
Plan for this project is to start with some basic functionality and go on increasing and
upgrading the system every year depending upon our productivity improvements and
customer satisfaction feedback. This is just a tentative plan so some of our long term
plan can be implemented in beginning of the project as the technology is already there.
This depend upon our budget allocation and further discussion with in company and
system provider.
1. Short term (1- 1.5 years)
Prepared by: Kiran Thapa 13

14. Initial study of technology, market research, information collection and supplier
contact process is already been started for VR/ MR system.
Eureka basic requirements:
1. Virtual visualization system of machine designed in Solid works in 1:1 ratio.
2. Head mounted display and tracking system for customer and operator so that both
of them can see and discuss about the product and navigate around it in real time.
3. Some interaction devices for pointing and selection specific components.
4. Shape and size of the visualized virtual product should be same as that of the real
product so that customer can check for its ergonomics and user friendliness.
5. System to record the comments (video) of customer for future references.
6. Start with some basic functionality and go on increasing and upgrading the system
every year depending upon our productivity improvements and customer
satisfaction.
With in the beginning of the year 2013 VR/MR system will be setup and run in
Eureka company. Below chart shows tentative short term plans for 2012-2013.
Prepared by: Kiran Thapa 14

15. 2. Long term Plan ( 1.5 - 3 years)
After successful test and run of the VR/MR system for the first year there will be
feedback and evaluation of the benefit of this system to Eureka. According to the
feedback and suggestion from inside company and our system provider system will be
upgrade. Following can be some additional improvements
1. Fully equipped separate visualization room .
2. 1 full time operator with following responsibilities
- Operate and maintain the System.
- Create backup of all the 3D model of old and new machine designed by eureka
- Design and upgrade machine designed by mechanical department with
additional function to make it look realistic (SolidWorks Real View).
- Assist and help customer and external visitors and internal visitors in showing
Eureka machine during their visit to our company.
- Suggest company about new development in this field.
3. Add more functionalities such as
- virtual assembly
Prepared by: Kiran Thapa 15

16. - advanced projector system
- advanced tracking system
- digital review (measurements, manipulate clipping planes, take snapshots,
select and hide parts or add annotations directly on the model.)
- force feedback and haptic device
- more realistic mixed reality options
- portable options for on-site virtual machine visualization
4. Integrate addon such as
- Machine configuration and e-commerce
- modular design and modular process into VR system
- Simulation/ emulation of the machine operations
Prepared by: Kiran Thapa 16

17. Possible System Providers in Market:
1. Complete system provider(Hardware+Software)
i. Techviz
Contact Headquarter Offices
63 boulevard Masséna
75013 Paris, France
Tel : +33 (0)1 55 03 00 66
Fax : +33 (0)1 45 86 52 74
http://www.techviz.net
Contact person Julie Berthonneau
International Account Manager
63, bld Massena 75013 Paris FRANCE
Tel : +33 1 55 03 00 80
Skype: julieTechviz
jberthonneau@techviz.net
Company info. - established: 2004
- provide advanced visualization solutions
for 3D applications
- Support Solidworks
- CAA Development Partnership with
Dassault Systèmes
- partner with leading navigation and
tracking system providers in world
- already provide solution to leading
Automotive, manufacturing, Aeronautical,
architecture, petroleum companies
through our world.
Price *Software(basic)+Hardware(HMD+Trackin
g system 4 camera)= 114,700€
(4,530,650 THB)
*Software= 66,904€ (2,642,708 THB)
*for more detail see Appendix-1
ii. WIN DIRECTION
Prepared by: Kiran Thapa 17

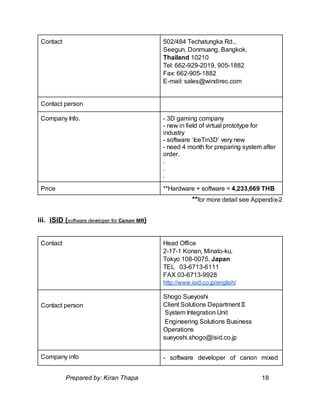

18. Contact 502/484 Techatungka Rd.,
Seegun, Donmuang, Bangkok,
Thailand 10210
Tel: 662-929-2019, 905-1882
Fax: 662-905-1882
E-mail: sales@windirec.com
Contact person
Company Info. - 3D gaming company
- new in field of virtual prototype for
industry
- software ‘IceTin3D’ very new
- need 4 month for preparing system after
order.
.
.
.
Price **Hardware + software = 4,233,669 THB
**for more detail see Appendix-2
iii. iSiD (software developer for Canon MR)
Contact Head Office
2-17-1 Konan, Minato-ku,
Tokyo 108-0075, Japan
TEL 03-6713-6111
FAX 03-6713-9928
http://www.isid.co.jp/english/
Contact person
Shogo Sueyoshi
Client Solutions DepartmentⅡ
System Integration Unit
Engineering Solutions Business
Operations
sueyoshi.shogo@isid.co.jp
Company info - software developer of canon mixed
Prepared by: Kiran Thapa 18

19. reality system developer
- canon will lunch MR technology in end
of July 2012 only in Japan
- iSiD under consideration to do business
in thailand this year
.
.
.
Price ***Hardware+software = 20,000,000 Yen
(8,140,000 THB)
*** for more detail see Appendix-2

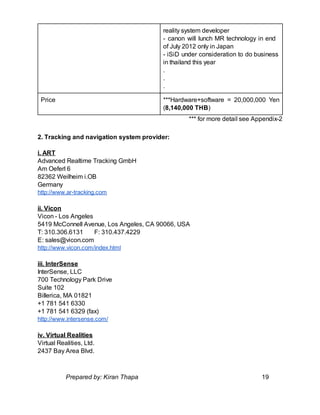

2. Tracking and navigation system provider:
i. ART
Advanced Realtime Tracking GmbH
Am Oeferl 6
82362 Weilheim i.OB
Germany
http://www.ar-tracking.com
ii. Vicon
Vicon - Los Angeles
5419 McConnell Avenue, Los Angeles, CA 90066, USA
T: 310.306.6131 F: 310.437.4229
E: sales@vicon.com
http://www.vicon.com/index.html
iii. InterSense
InterSense, LLC
700 Technology Park Drive
Suite 102
Billerica, MA 01821
+1 781 541 6330
+1 781 541 6329 (fax)
http://www.intersense.com/
iv. Virtual Realities
Virtual Realities, Ltd.
2437 Bay Area Blvd.
Prepared by: Kiran Thapa 19

20. Suite 264
Houston, Texas 77058
Phone: (800)683-2917 / (409)599-7863
Fax: (409)515-0838
E-mail: sales@vrealities.com
http://www.vrealities.com
Prepared by: Kiran Thapa 20
