This document discusses containers and Amazon ECS. It provides an overview of containers and their benefits like portability and efficiency. It then describes Amazon ECS as a highly scalable and performant container management service that supports Docker containers. It discusses how ECS runs applications on a managed cluster of EC2 instances using tasks, services, and scheduling. It also outlines some key benefits of ECS like being fully managed, integration with other AWS services, and application load balancing. Finally, it provides examples of commands to create an ECS cluster, register a task definition, and create a service to run tasks.

1. © 2016, Amazon Web Services, Inc. or its Affiliates. All rights reserved.
Gavin Adams, Solutions Architect
August 17, 2017
Getting Started with Docker on AWS

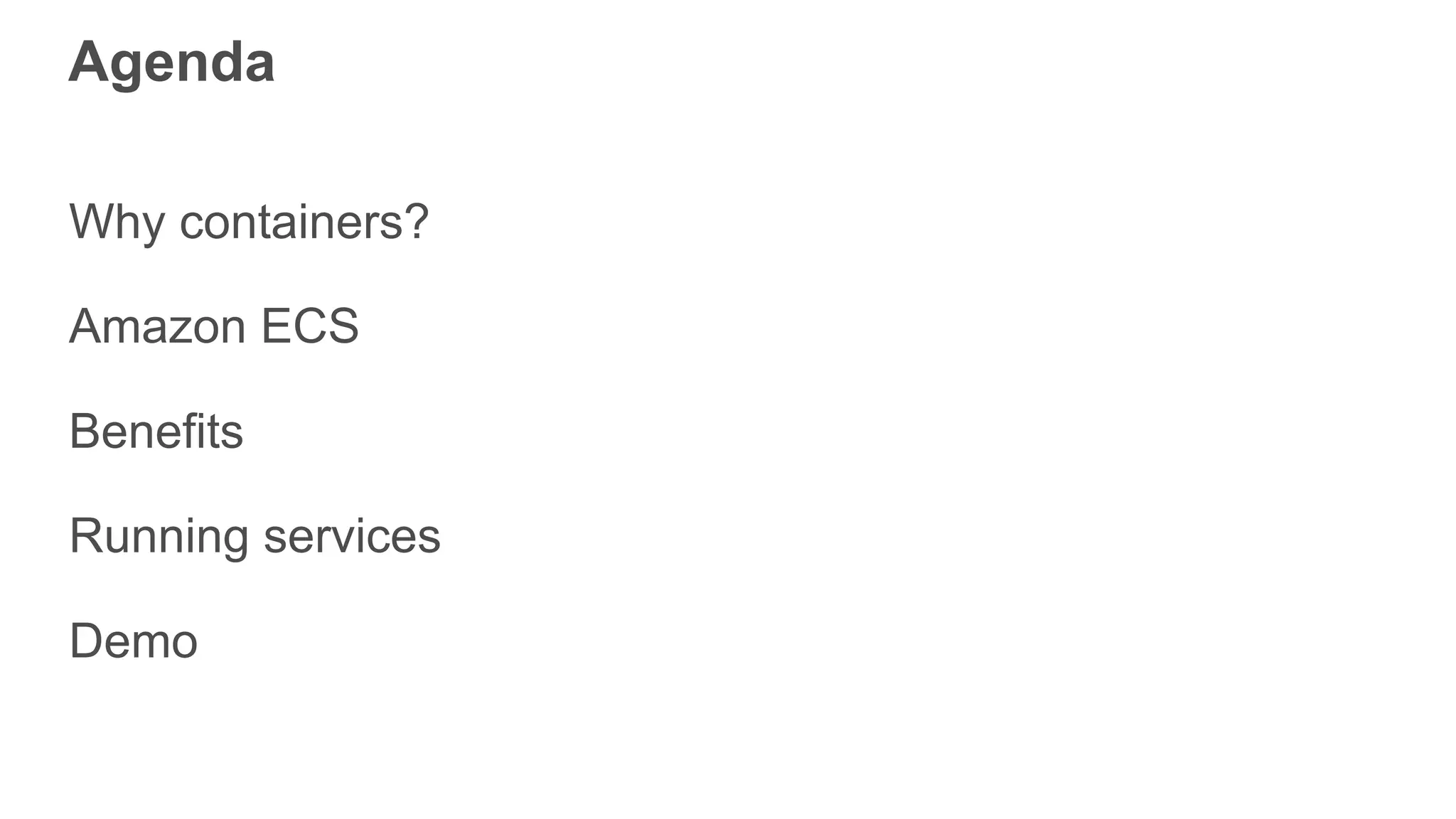

2. Agenda
Why containers?
Amazon ECS
Benefits
Running services
Demo

3. Why containers?

4. Agility

5. What are containers?
OS virtualization
Process isolation
Images
AutomationServer
Guest OS
Bins/Libs Bins/Libs
App2App1

6. Container advantages
Portable
Flexible
Fast
EfficientServer
Guest OS
Bins/Libs Bins/Libs
App2App1

7. Monolithic vs. Microservices
webserver
.package
Order UI
Order Service
Inventory
Service
Shipping
Service
OrderUI
Inventory
Service
Order
Service
Shipping
Service

8. Containers are natural for microservices
Simple to model
Any app, any language
Image is the version
Test and deploy same artifact
Stateless servers decrease change risk

9. Server
Guest OS
Bins/Libs
Bins/Lib
s
App2App1
Going from this…

10. Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
Server
Guest OS
.. to this - is hard!

11. Amazon ECS

12. Amazon EC2 Container Service (ECS) is a highly
scalable, high performance container management
service that supports Docker containers and allows you
to easily run applications on a managed cluster of
Amazon EC2 instances.

13. Amazon ECS
EC2 INSTANCES
LOAD
BALANCER
Internet
ECS
AGENT
TASK
Container
TASK
Container
ECS
AGENT
TASK
Container
TASK
Container
AGENT COMMUNICATION
SERVICE
Amazon
ECS
API
CLUSTER MANAGEMENT
ENGINE
KEY/VALUE STORE
ECS
AGENT
TASK
Container
TASK
Container
LOAD
BALANCER

14. Amazon ECS - Cluster
EC2 INSTANCES
LOAD
BALANCER
Internet
ECS
AGENT
TASK
Container
TASK
Container
ECS
AGENT
TASK
Container
TASK
Container
AGENT COMMUNICATION
SERVICE
Amazon
ECS
API
CLUSTER MANAGEMENT
ENGINE
KEY/VALUE STORE
ECS
AGENT
TASK
Container
TASK
Container
LOAD
BALANCER

15. Amazon ECS - Task
EC2 INSTANCES
LOAD
BALANCER
Internet
ECS
AGENT
TASK
Container
TASK
Container
ECS
AGENT
TASK
Container
TASK
Container
AGENT COMMUNICATION
SERVICE
Amazon
ECS
API
CLUSTER MANAGEMENT
ENGINE
KEY/VALUE STORE
ECS
AGENT
TASK
Container
TASK
Container
LOAD
BALANCER

16. Amazon ECS - Service
EC2 INSTANCES
LOAD
BALANCER
Internet
ECS
AGENT
TASK
Container
TASK
Container
ECS
AGENT
TASK
Container
TASK
Container
AGENT COMMUNICATION
SERVICE
Amazon
ECS
API
CLUSTER MANAGEMENT
ENGINE
KEY/VALUE STORE
ECS
AGENT
TASK
Container
TASK
Container
LOAD
BALANCER

17. Amazon ECS - Scheduling

18. Amazon ECS - Scheduling

19. Amazon ECS - Scheduling

20. Amazon ECS - Scheduling

21. Benefits

22. Amazon ECS benefits
• Fully managed elastic service – You don’t
need to run anything, and the service scales as
your microservices architecture grows
• Shared state optimistic scheduling
• Deep Integration With Other AWS Services
• Application Load Balancing
• Amazon Elastic Block Store
• Amazon Virtual Private Cloud
• Amazon CloudWatch
• AWS Identify and Access Management
• AWS CloudTrail

23. Routing via Application Load Balancer
Path-based routing
Allows you to define rules that route traffic to different target groups based on the path of a URL.
e.g example.com/test , example.com/test/test1
Dynamic Port Mapping
Provides the ability to load-balance across multiple ports on the same Amazon EC2 instance. This functionality
specifically targets the use of containers and is integrated into Amazon ECS.
HTTP/2
WebSockets
Detailed Logging

24. Deploying Containers on ECS – Choose a
Scheduler
Batch Jobs
ECS task scheduler
Run tasks once
Batch jobs
RunTask (random)
StartTask (placed)
Long-Running Apps
ECS service scheduler
Health management
Scale-up and scale-down
AZ aware
Grouped containers

25. Running services

26. Create cluster
$ aws ecs create-cluster --cluster-name "my_cluster"

27. Register task definition
$ aws ecs register-task-definition --cli-input-json
file://task-defintion.json

28. Task definition
{
"taskDefinition": {
"status": "INACTIVE",
"family": "curler",
"volumes": [],
"taskDefinitionArn": "arn:aws:ecs:us-west-2:<aws_account_id>:task-definition/curler:1",
"containerDefinitions": [
{
"environment": [],
"name": "curler",
"mountPoints": [],
"image": "curl:latest",
"cpu": 100,
"portMappings": [],
"entryPoint": [],
"memory": 256,
"command": [
"curl -v http://example.com/"
],
"essential": true,
"volumesFrom": []
}
],
"revision": 1
}
}

29. Create service
$ aws ecs create-service --service-name ecs-simple-
service --task-definition ecs-demo --desired-count 10

30. Demo
