![Polymorphism Inspired by Interface, cont’d
08.11.20
36
-module(animal).
start_link(Mod) ->
Mod:start_link(?MODULE).
bark() ->
gen_server:call(?MODULE, bark).
-module(dog).
-behaviour(gen_server).
start_link(ServerName) ->
gen_server:start_link({local, ServerName}, ?MODULE, [], []).
handle_call(bark, _From, State) ->
bark(State).
bark(State) ->
io:format(“Bow wow~n”),
{reply, ok, State}.
Some required callbacks are omitted.](https://image.slidesharecdn.com/20081120kai-1227196328258311-8/85/Process-Design-and-Polymorphism-Lessons-Learnt-from-Development-of-Kai-36-320.jpg)
![Polymorphism Inspired by Abstract Class,
cont’d
08.11.20
40
-module(animal).
-behaviour(gen_sever).
behaviour_info(callbacks) -> [{yap, 0}]; % abstract void yap();
behaviour_info(_Other) -> undefined.
start_link(Mod) ->
gen_server:start_link({local, ?MODULE}, ?MODULE, [Mod], []).
init(_Args = [Mod]) ->
{ok, _State = {Mod}}.
bark(_State = {Mod}) ->
io:format("~s~n", [Mod:yap()]),
{reply, ok, Mod}.
handle_call(bark, _From, State) ->
bark(State).
bark() ->
gen_server:call(?MODULE, bark).
Some required callbacks are omitted.](https://image.slidesharecdn.com/20081120kai-1227196328258311-8/85/Process-Design-and-Polymorphism-Lessons-Learnt-from-Development-of-Kai-40-320.jpg)
Uploaded byTakeru INOUE
Process Design and Polymorphism: Lessons Learnt from Development of Kai
This document discusses process design and polymorphism based on lessons learned from developing Kai, an open source implementation of Amazon's Dynamo key-value store in Erlang. It outlines rules for process design including assigning concurrent activities to separate processes and not spawning stateless processes. It also describes two approaches to implementing polymorphism in the actor model inspired by interfaces and abstract classes in Java. Concrete examples from Kai's implementation are provided.
More Related Content
Similar to Process Design and Polymorphism: Lessons Learnt from Development of Kai
Process Design and Polymorphism: Lessons Learnt from Development of Kai
- 1. Process Design andPolymorphism: Lessons Learnt from Development of Kai takemaru 08.11.20 1

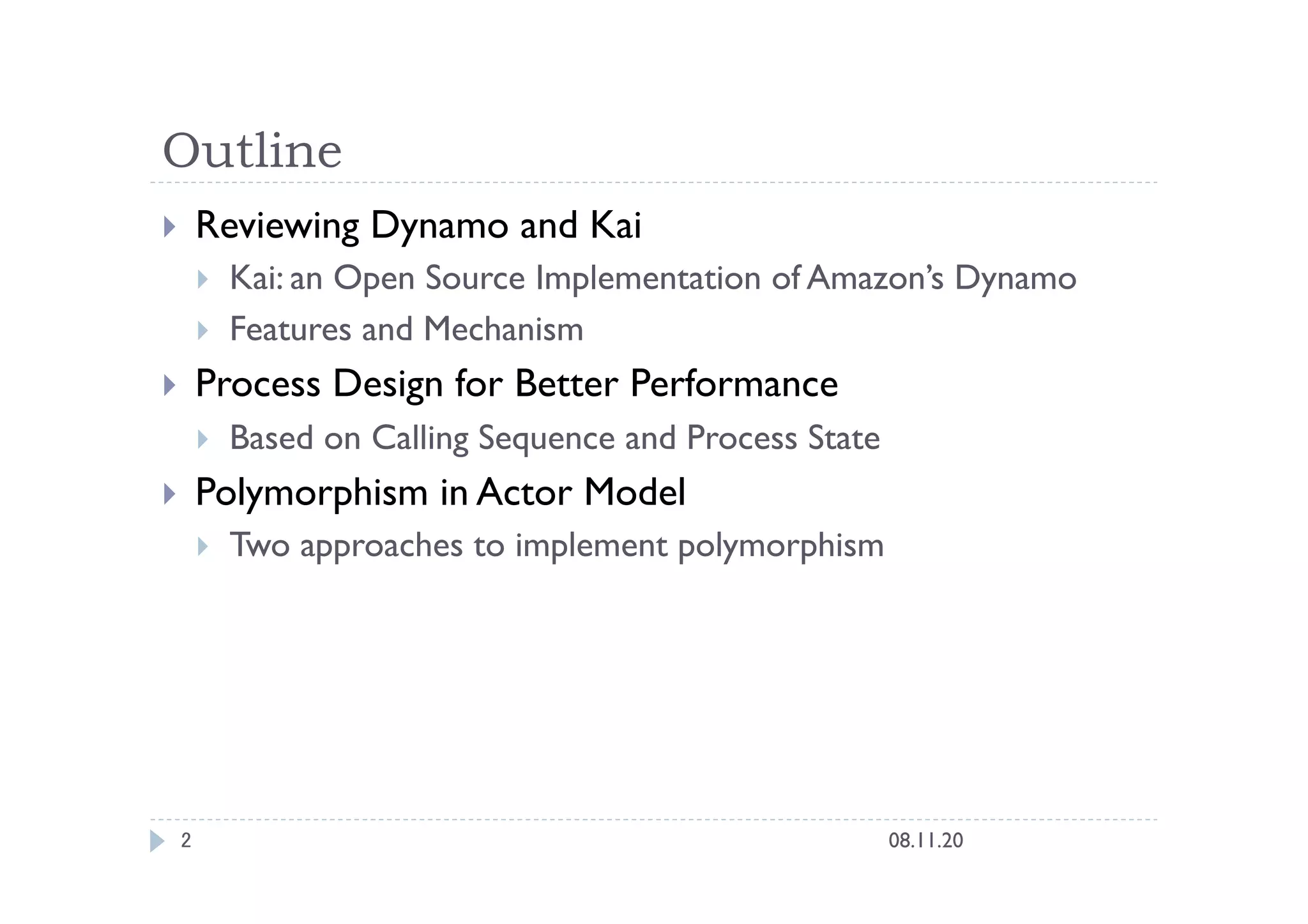

- 2. Outline Reviewing Dynamoand Kai Kai: an Open Source Implementation of Amazon’s Dynamo Features and Mechanism Process Design for Better Performance Based on Calling Sequence and Process State Polymorphism in Actor Model Two approaches to implement polymorphism 08.11.20 2

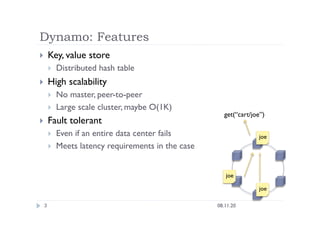

- 3. Dynamo: Features 3 Key,value store Distributed hash table High scalability No master, peer-to-peer Large scale cluster, maybe O(1K) Fault tolerant Even if an entire data center fails Meets latency requirements in the case 08.11.20 get(“cart/joe”) joe joe joe

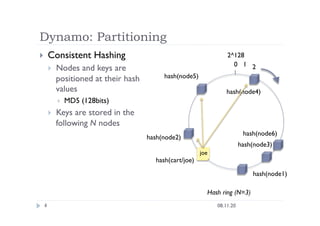

- 4. Dynamo: Partitioning 08.11.20 4 ConsistentHashing Nodes and keys are positioned at their hash values MD5 (128bits) Keys are stored in the following N nodes joe Hash ring (N=3) 2^128 0 1 2 hash(node3) hash(node1) hash(node2) hash(node5) hash(node4) hash(cart/joe) hash(node6)

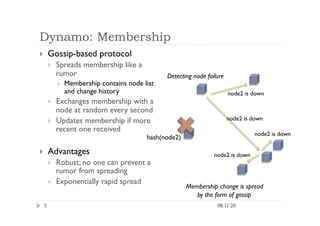

- 5. Dynamo: Membership 08.11.20 5 Gossip-basedprotocol Spreads membership like a rumor Membership contains node list and change history Exchanges membership with a node at random every second Updates membership if more recent one received Advantages Robust; no one can prevent a rumor from spreading Exponentially rapid spread Membership change is spread by the form of gossip Detecting node failure hash(node2) node2 is down node2 is down node2 is down node2 is down
- 6. Dynamo: get/put Operations 08.11.20 6 Client 1. Sends a request any of Dynamo node The request is forwarded to coordinator Coordinator: one of nodes associated with the key Coordinator 1. Chooses N nodes by using consistent hashing 2. Forwards a request to N nodes 3. Waits responses from R or W nodes, or timeouts 4. Checks replica versions if get 5. Sends a response to client get/put operations for N,R,W = 3,2,2 Request Response Client Coordinator joe joe joe

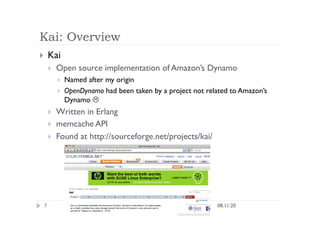

- 7. Kai: Overview 08.11.20 7 Kai Open source implementation of Amazon’s Dynamo Named after my origin OpenDynamo had been taken by a project not related to Amazon’s Dynamo Written in Erlang memcache API Found at http://sourceforge.net/projects/kai/

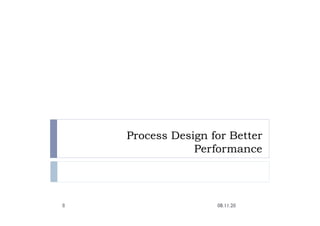

- 8. Process Design forBetter Performance 08.11.20 8

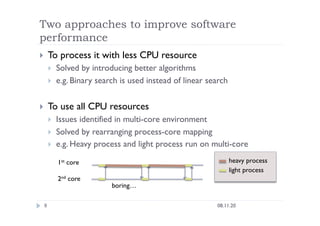

- 9. Two approaches toimprove software performance 08.11.20 9 To process it with less CPU resource Solved by introducing better algorithms e.g. Binary search is used instead of linear search To use all CPU resources Issues identified in multi-core environment Solved by rearranging process-core mapping e.g. Heavy process and light process run on multi-core 1st core 2nd core boring… heavy process light process
- 10. Two approaches toimprove software performance 08.11.20 10 To process it with less CPU resource Solved by introducing better algorithms e.g. Binary search is used instead of linear search To use all CPU resources Issues identified in multi-core environment Solved by rearranging process-core mapping e.g. Heavy process and light process run on multi-core 1st core 2nd core work! work! heavy process light process Latter case will be discussed
- 11. Diagram Convention 08.11.20 11 Proceduralprogramming Procedures are called by a process foo bar process foo -module(foo). -behaviour(gen_server). ok(State) -> {reply, bar:ok(), State}. -module(bar). ok() -> ok. process ellipse rectangle not process
- 12. Diagram Convention, cont’d 08.11.20 12 Actor model 2 processes interact with each other foo bar -module(bar). -behaviour(gen_server). ok(State) -> {reply, ok, State}. ok() -> gen_server:call(?MODULE, ok). process bar process foo process ellipse rectangle not process -module(foo). -behaviour(gen_server). ok(State) -> {reply, bar:ok(), State}.

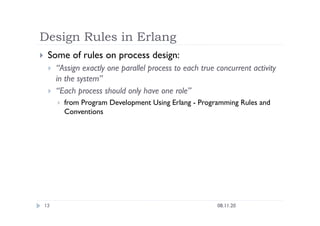

- 13. Design Rules inErlang 08.11.20 13 Some of rules on process design: “Assign exactly one parallel process to each true concurrent activity in the system” “Each process should only have one role” from Program Development Using Erlang - Programming Rules and Conventions

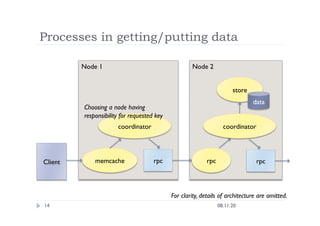

- 14. Processes in getting/puttingdata 08.11.20 14 Node 1 coordinator Node 2 Client memcache rpc rpc For clarity, details of architecture are omitted. store data coordinator rpc Choosing a node having responsibility for requested key
- 15. Node 2 Node 1 Sequencein getting/putting data 08.11.20 15 memcache coordinator rpc coordinator store Client Blocked…

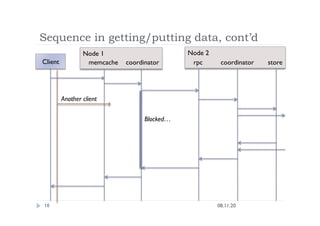

- 16. Node 2 Node 1 Sequencein getting/putting data, cont’d 08.11.20 16 memcache coordinator rpc coordinator store Client Another client Blocked…

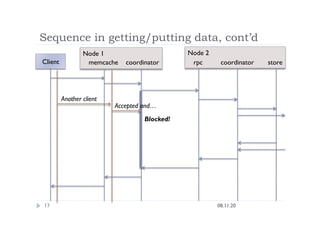

- 17. Node 2 Node 1 Sequencein getting/putting data, cont’d 08.11.20 17 memcache coordinator rpc coordinator store Client Another client Accepted and… Blocked!

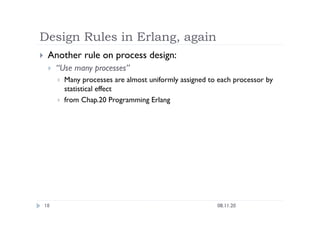

- 18. Design Rules inErlang, again 08.11.20 18 Another rule on process design: “Use many processes” Many processes are almost uniformly assigned to each processor by statistical effect from Chap.20 Programming Erlang

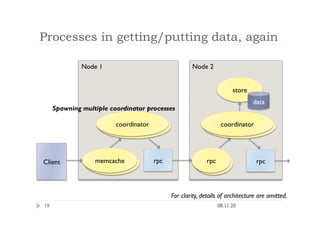

- 19. Processes in getting/puttingdata, again 08.11.20 19 Node 1 coordinator Node 2 Client rpc store data coordinator rpc memcache memcache rpc rpc coordinator coordinator For clarity, details of architecture are omitted. Spawning multiple coordinator processes

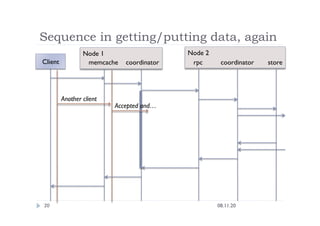

- 20. Node 2 Node 1 Sequencein getting/putting data, again 08.11.20 20 memcache coordinator rpc coordinator store Client Another client Accepted and…

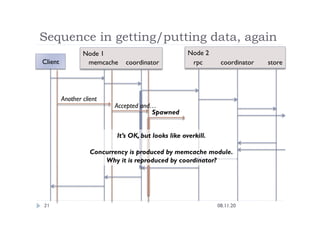

- 21. Node 2 Node 1 Sequencein getting/putting data, again 08.11.20 21 memcache coordinator rpc coordinator store Client Another client Accepted and… Spawned It’s OK, but looks like overkill. Concurrency is produced by memcache module. Why it is reproduced by coordinator?

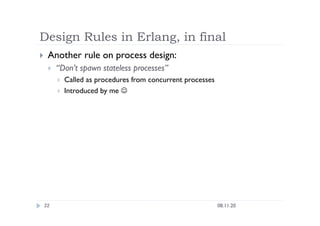

- 22. Design Rules inErlang, in final 08.11.20 22 Another rule on process design: “Don’t spawn stateless processes” Called as procedures from concurrent processes Introduced by me

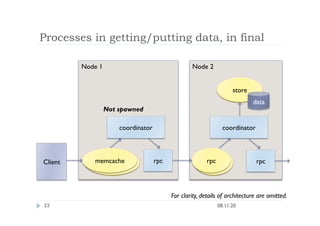

- 23. Processes in getting/puttingdata, in final 08.11.20 23 Node 1 Node 2 Client rpc store data rpc memcache memcache rpc rpc For clarity, details of architecture are omitted. Not spawned coordinator coordinator

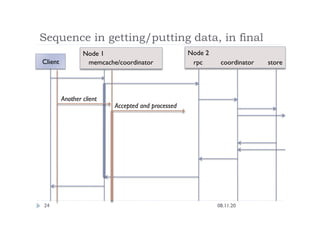

- 24. Node 2 Node 1 Sequencein getting/putting data, in final 08.11.20 24 memcache/coordinator rpc coordinator store Client Another client Accepted and processed

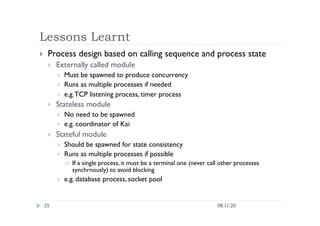

- 25. Lessons Learnt 08.11.20 25 Processdesign based on calling sequence and process state Externally called module Must be spawned to produce concurrency Runs as multiple processes if needed e.g.TCP listening process, timer process Stateless module No need to be spawned e.g. coordinator of Kai Stateful module Should be spawned for state consistency Runs as multiple processes if possible If a single process, it must be a terminal one (never call other processes synchrnously) to avoid blocking e.g. database process, socket pool

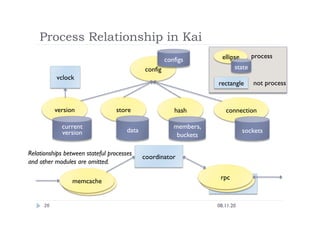

- 26. Process Relationship inKai 08.11.20 26 memcache store data memcache rpc rpc hash members, buckets connection version coordinator sockets process ellipse rectangle not process state current version vclock config configs Relationships between stateful processes and other modules are omitted.

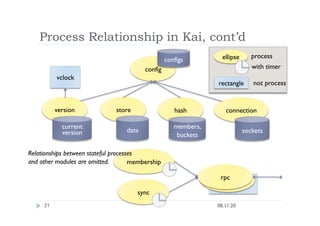

- 27. Process Relationship inKai, cont’d 08.11.20 27 store data rpc rpc hash members, buckets connection version sockets process ellipse rectangle not process membership sync with timer vclock current version config configs Relationships between stateful processes and other modules are omitted.

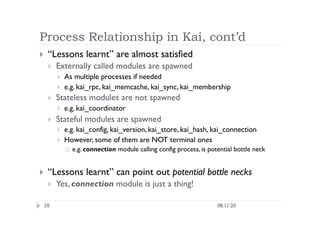

- 28. Process Relationship inKai, cont’d 08.11.20 28 “Lessons learnt” are almost satisfied Externally called modules are spawned As multiple processes if needed e.g. kai_rpc, kai_memcache, kai_sync, kai_membership Stateless modules are not spawned e.g. kai_coordinator Stateful modules are spawned e.g. kai_config, kai_version, kai_store, kai_hash, kai_connection However, some of them are NOT terminal ones e.g. connection module calling config process, is potential bottle neck “Lessons learnt” can point out potential bottle necks Yes, connection module is just a thing!

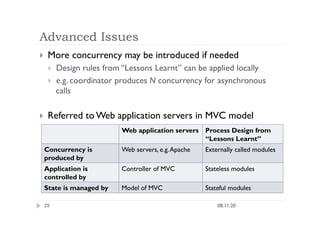

- 29. Advanced Issues 08.11.20 29 Moreconcurrency may be introduced if needed Design rules from “Lessons Learnt” can be applied locally e.g. coordinator produces N concurrency for asynchronous calls Referred to Web application servers in MVC model Web application servers Process Design from “Lessons Learnt” Concurrency is produced by Web servers, e.g.Apache Externally called modules Application is controlled by Controller of MVC Stateless modules State is managed by Model of MVC Stateful modules

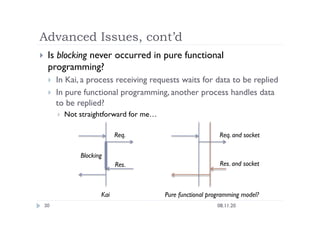

- 30. Advanced Issues, cont’d 08.11.20 30 Is blocking never occurred in pure functional programming? In Kai, a process receiving requests waits for data to be replied In pure functional programming, another process handles data to be replied? Not straightforward for me… Blocking Req. Req. and socket Res. Res. and socket Kai Pure functional programming model?

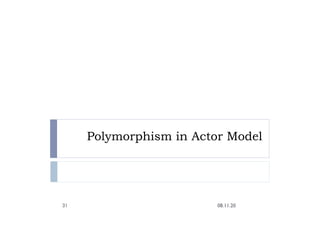

- 31. Polymorphism in ActorModel 08.11.20 31

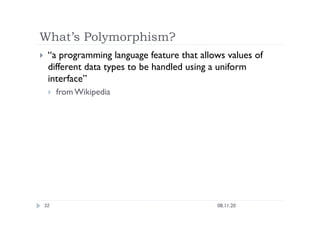

- 32. What’s Polymorphism? 08.11.20 32 “aprogramming language feature that allows values of different data types to be handled using a uniform interface” from Wikipedia

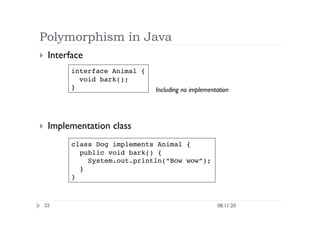

- 33. Polymorphism in Java 08.11.20 33 Interface Implementation class interface Animal { void bark(); } class Dog implements Animal { public void bark() { System.out.println(“Bow wow”); } } Including no implementation

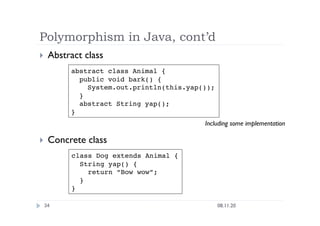

- 34. Polymorphism in Java,cont’d 08.11.20 34 Abstract class Concrete class abstract class Animal { public void bark() { System.out.println(this.yap()); } abstract String yap(); } class Dog extends Animal { String yap() { return “Bow wow”; } } Including some implementation

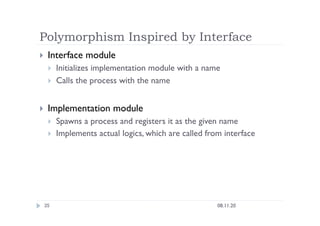

- 35. Polymorphism Inspired byInterface 08.11.20 35 Interface module Initializes implementation module with a name Calls the process with the name Implementation module Spawns a process and registers it as the given name Implements actual logics, which are called from interface

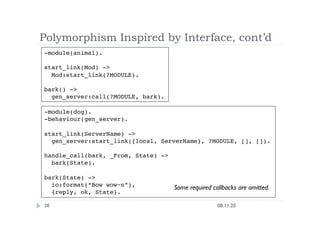

- 36. Polymorphism Inspired byInterface, cont’d 08.11.20 36 -module(animal). start_link(Mod) -> Mod:start_link(?MODULE). bark() -> gen_server:call(?MODULE, bark). -module(dog). -behaviour(gen_server). start_link(ServerName) -> gen_server:start_link({local, ServerName}, ?MODULE, [], []). handle_call(bark, _From, State) -> bark(State). bark(State) -> io:format(“Bow wow~n”), {reply, ok, State}. Some required callbacks are omitted.
- 37. Polymorphism Inspired byInterface, cont’d 08.11.20 37 How to use animal:start_link(dog), animal:bark(). % Bow wow
- 38. Polymorphism Inspired byInterface, cont’d 08.11.20 38 Example in Kai Provides two types of local storage with a single interface Interface module kai_store Implementation modules kai_store_ets, uses ets, memory storage kai_store_dets, uses dets, disk storage See actual codes in detail

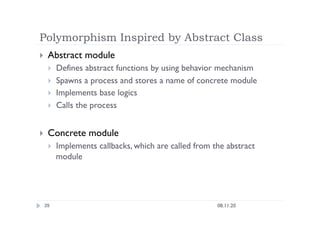

- 39. Polymorphism Inspired byAbstract Class 08.11.20 39 Abstract module Defines abstract functions by using behavior mechanism Spawns a process and stores a name of concrete module Implements base logics Calls the process Concrete module Implements callbacks, which are called from the abstract module

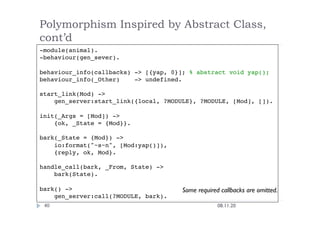

- 40. Polymorphism Inspired byAbstract Class, cont’d 08.11.20 40 -module(animal). -behaviour(gen_sever). behaviour_info(callbacks) -> [{yap, 0}]; % abstract void yap(); behaviour_info(_Other) -> undefined. start_link(Mod) -> gen_server:start_link({local, ?MODULE}, ?MODULE, [Mod], []). init(_Args = [Mod]) -> {ok, _State = {Mod}}. bark(_State = {Mod}) -> io:format("~s~n", [Mod:yap()]), {reply, ok, Mod}. handle_call(bark, _From, State) -> bark(State). bark() -> gen_server:call(?MODULE, bark). Some required callbacks are omitted.

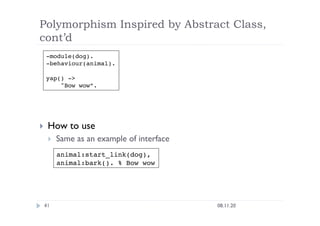

- 41. Polymorphism Inspired byAbstract Class, cont’d 08.11.20 41 How to use Same as an example of interface -module(dog). -behaviour(animal). yap() -> "Bow wow”. animal:start_link(dog), animal:bark(). % Bow wow
- 42. Polymorphism Inspired byAbstract Class, cont’d 08.11.20 42 Example in Kai Provides two types of TCP listening processes with a single interface Abstract module (behavior) kai_tcp_server Concrete modules kai_rpc, listens RPC calls from other Kai nodes kai_memcache, listens requests from memcache clients See actual codes in detail

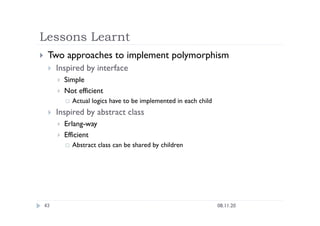

- 43. Lessons Learnt 08.11.20 43 Twoapproaches to implement polymorphism Inspired by interface Simple Not efficient Actual logics have to be implemented in each child Inspired by abstract class Erlang-way Efficient Abstract class can be shared by children
- 44.

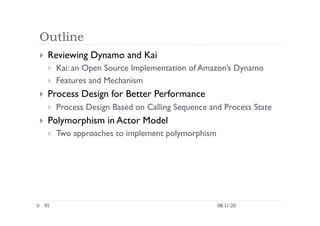

- 45. Outline Reviewing Dynamoand Kai Kai: an Open Source Implementation of Amazon’s Dynamo Features and Mechanism Process Design for Better Performance Process Design Based on Calling Sequence and Process State Polymorphism in Actor Model Two approaches to implement polymorphism 08.11.20 45

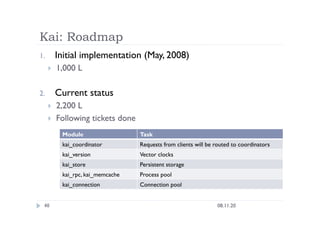

- 46. Kai: Roadmap 08.11.20 46 1. Initialimplementation (May, 2008) 1,000 L 2. Current status 2,200 L Following tickets done Module Task kai_coordinator Requests from clients will be routed to coordinators kai_version Vector clocks kai_store Persistent storage kai_rpc, kai_memcache Process pool kai_connection Connection pool
