Process Definition Management Using ISA-88 and BatchML Standards

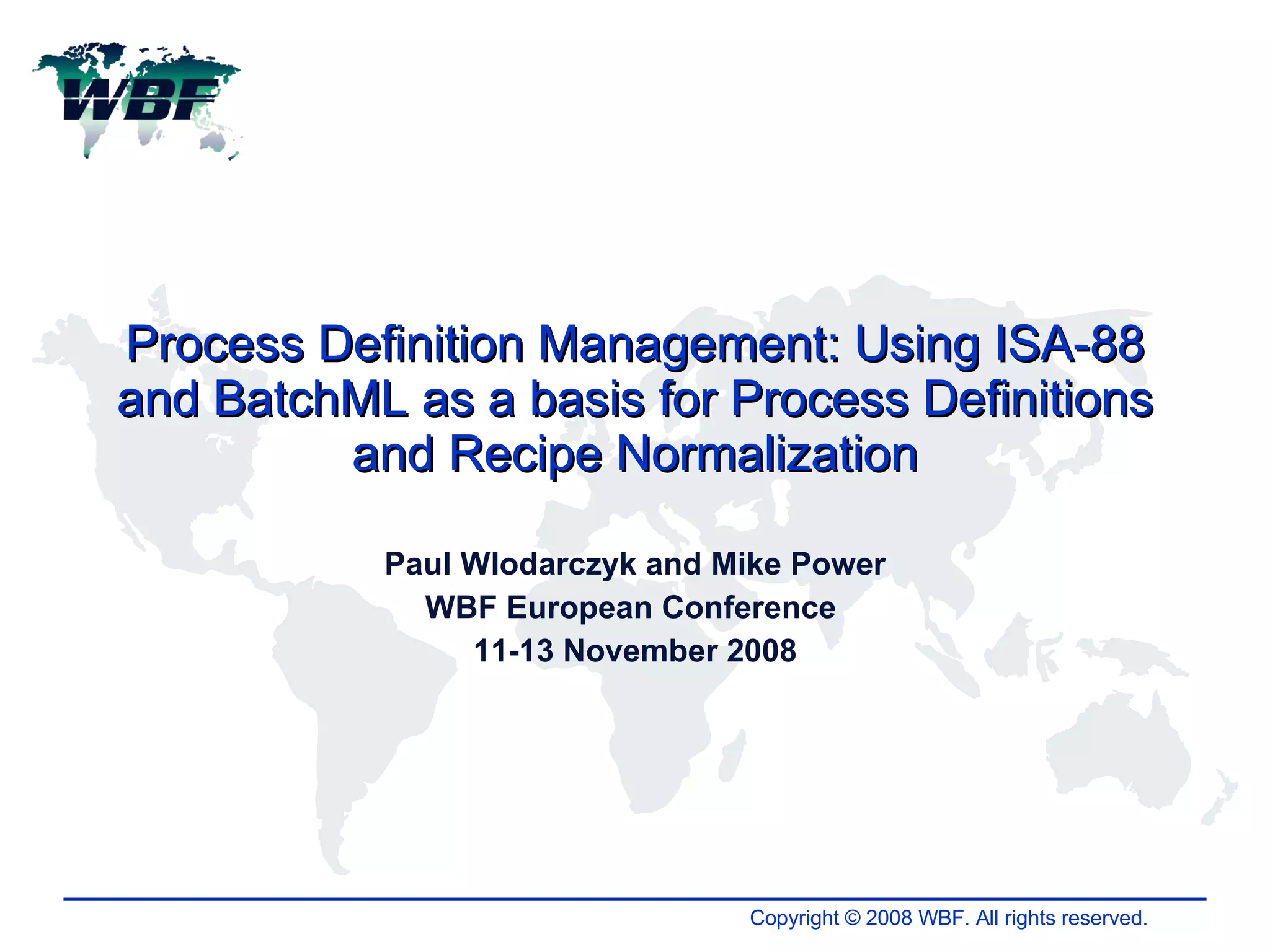

1. Process Definition Management: Using ISA-88 and BatchML as a basis for Process Definitions and Recipe Normalization Paul Wlodarczyk and Mike Power WBF European Conference 11-13 November 2008

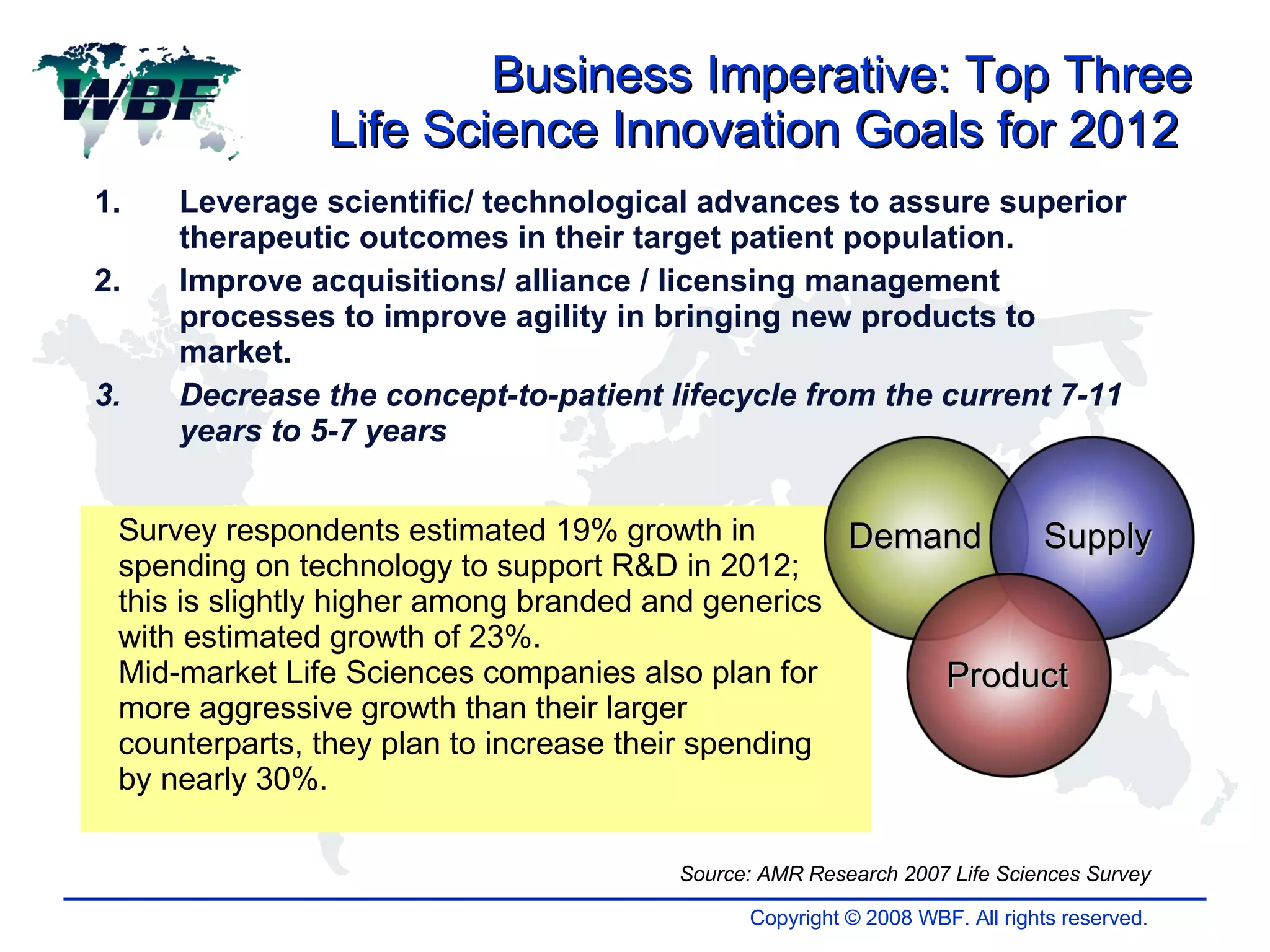

2.
3. Product Life Cycle Process Definition Pilot Scale Early Development Late Development Project Management LIMS / SDMS QMS / CAPA Lab Scale Electronic Lab Notebooks Users Project Operations Scientists Chemists Biologists Pharmacists Engineers Technicians Operators Support Analytical Quality MES ERP PLM Development Management Tech Transfer Clinical I Clinical II Clinical III Commercial Experiments Process Unit Procedures Commercial Scale Source: Mike Power, BearingPoint Product Demand Supply
4.
5.
6. “ Master Data”: Coordination Points for Manufacturing include both Product and Process Opportunity to use ISA-88 recipe as the common information model for process definitions? Supply Demand Product Design/Formulation Marketing Collateral Service Docs Data Sync E-Commerce Order Acquisition & Management Supply Chain Planning (mBOM, Routing) Sourcing & Procurement Product Package Design/ Label Claims Recipe Management Detailed Routing Bill of Equipment Bill of Process Bill of Compliance/ CoA Bill of Test Asset Maintenance Bill of Materials Process Specifications Process Engineering Maintenance Plans SOPs Asset Performance Management Opportunity to use ISA-88 recipe as the common information model for process definitions? Opportunity to use ISA-88 recipe as the common information model for process definitions? common information models
7. ISA-88 Operations Ice Cream Recipe Example The Blend Ingredients Operation - eight phases associated with blending ingredients. Note there is no rule on running only one phase at a time. In fact, it is very common for multiple phases to be running simultaneously. Recipe represented in an industry standard ISA-88 SFC (sequential function chart)
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19. The Process Definition Editor BatchML storage of recipes and recipe building blocks ISA-88 Editor for visual editing and navigation of Process Definitions Drawing palettes for ISA-88 shapes and reusable components Double-click on shapes to drill down, add process parameters
20. Product Life Cycle Process Definition Pilot Scale Early Development Late Development Project Management LIMS / SDMS QMS / CAPA Lab Scale Electronic Lab Notebooks Users Project Operations Scientists Chemists Biologists Pharmacists Engineers Technicians Operators Support Analytical Quality MES ERP PLM Development Management Tech Transfer Clinical I Clinical II Clinical III Commercial Experiments Process Unit Procedures Commercial Scale Source: Mike Power, BearingPoint Process definition tools facilitate early process development 1 Process definitions refined, tech transfer at every point of scale 2 4 Tech transfer improved through machine-readable BatchML Process definitions transformed into ISA-88 control recipes in MES or Batch Control System 5 Manufacturing knowledge transferred to development through library of reusable process actions 6 ISA-88 recipes used for Description of Manufacturing Process & Process Controls (section 3.2.S.2.2) of CTD. 3
