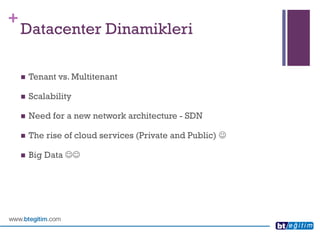

Datacenter Dinamikleri
Tenant vs. Multitenant
Scalability
Need for a new network architecture -SDN
The rise of cloud services (Private and Public) 
Big Data 

3. +

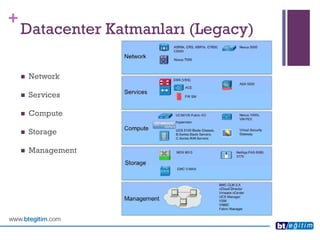

Datacenter Katmanları(Legacy)
Network
Services
Compute
Storage
Management

4. +

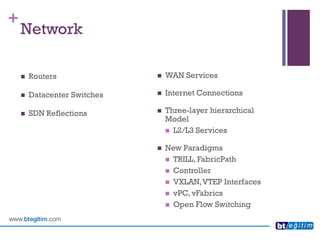

Network
Routers
Datacenter Switches
SDN Reflections
WAN Services
Internet Connections
Three-layer hierarchical Model
L2/L3 Services
New Paradigms
TRILL, FabricPath
Controller
VXLAN, VTEP Interfaces
vPC, vFabrics
Open Flow Switching

5. +

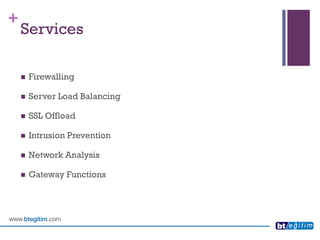

Services
Firewalling
Server Load Balancing
SSL Offload
Intrusion Prevention
Network Analysis
Gateway Functions

6. +

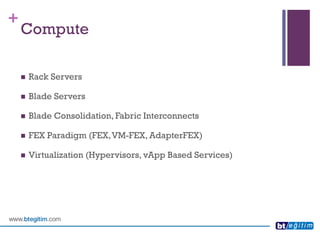

Compute
Rack Servers
Blade Servers
Blade Consolidation, Fabric Interconnects
FEX Paradigm (FEX, VM-FEX, AdapterFEX)
Virtualization (Hypervisors, vAppBased Services)

7. +

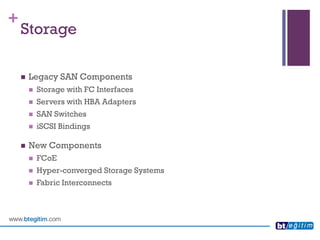

Storage
Legacy SAN Components
Storage with FC Interfaces
Servers with HBA Adapters
SAN Switches
iSCSIBindings
New Components
FCoE
Hyper-converged Storage Systems
Fabric Interconnects

8. +

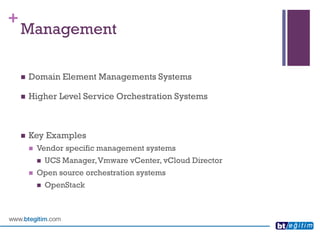

Management
Domain Element Managements Systems
Higher Level Service Orchestration Systems
Key Examples
Vendor specific management systems
UCS Manager, VmwarevCenter, vCloudDirector
Open source orchestration systems
OpenStack

9. +

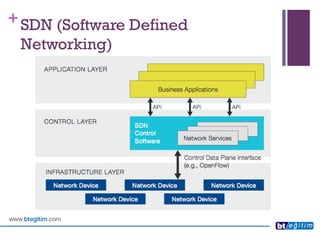

SDN (Software Defined Networking)

10. +

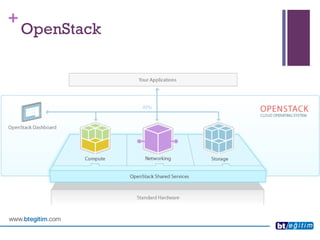

OpenStack

11. +
OpenFlowProtocol
The ONF is a non-profit industry consortium that is leading the advancement of SDN and standardizing critical elements of the SDN architecture such as the OpenFlow™ protocol, which structures communication between the control and data planes of supported network devices.
OpenFlowis the first standard interface designed specifically for SDN, providing high-performance, granular traffic control across multiple vendors’ network devices.

12. +

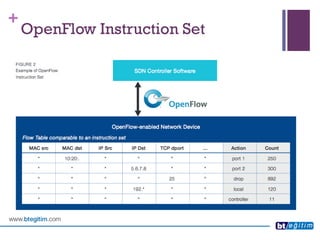

OpenFlowInstruction Set

13. +
VXLAN VTEP Interfaces

14. +

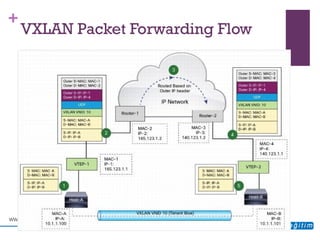

VXLAN Packet Forwarding Flow

15. +

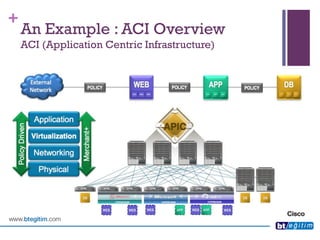

An Example : ACI OverviewACI (Application Centric Infrastructure)

16. +

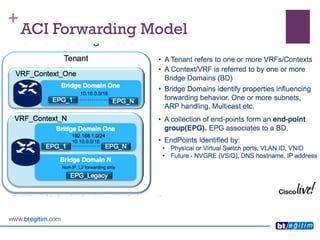

ACI Forwarding Model

17. +

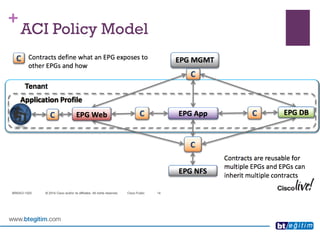

ACI Policy Model

20. +

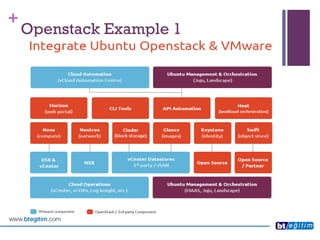

OpenstackExample 1

21. +

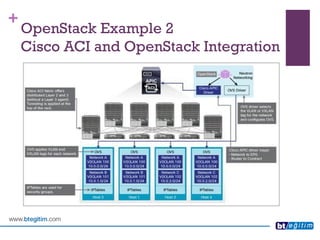

OpenStackExample 2Cisco ACI and OpenStackIntegration

22. +
Plug-in Mappings

23. +

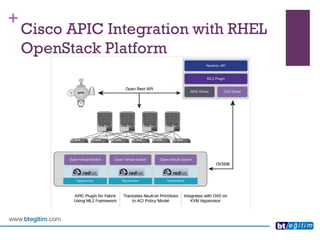

Cisco APIC Integration with RHEL OpenStackPlatform

24. +

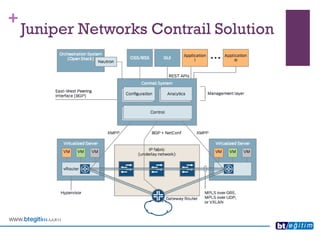

Juniper Networks Contrail Solution

25. +
