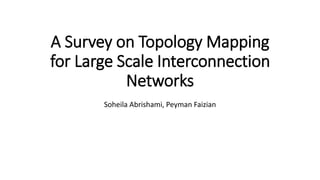

1. A Survey on Topology Mapping
for Large Scale Interconnection
Networks
Soheila Abrishami, Peyman Faizian

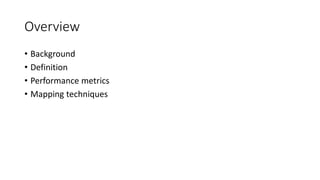

2. Overview
• Background
• Definition
• Performance metrics
• Mapping techniques

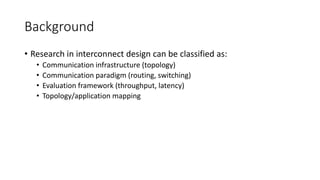

3. Background
• Research in interconnect design can be classified as:
• Communication infrastructure (topology)
• Communication paradigm (routing, switching)
• Evaluation framework (throughput, latency)
• Topology/application mapping

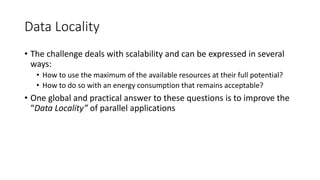

4. Data Locality
• The challenge deals with scalability and can be expressed in several
ways:
• How to use the maximum of the available resources at their full potential?
• How to do so with an energy consumption that remains acceptable?
• One global and practical answer to these questions is to improve the
“Data Locality” of parallel applications

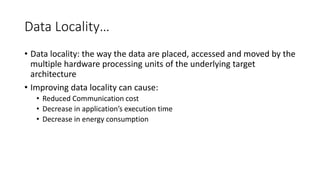

5. Data Locality…
• Data locality: the way the data are placed, accessed and moved by the
multiple hardware processing units of the underlying target
architecture
• Improving data locality can cause:
• Reduced Communication cost
• Decrease in application’s execution time
• Decrease in energy consumption

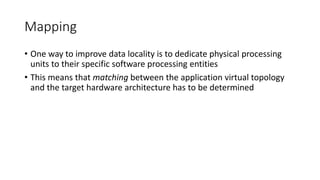

6. Mapping
• One way to improve data locality is to dedicate physical processing
units to their specific software processing entities
• This means that matching between the application virtual topology
and the target hardware architecture has to be determined

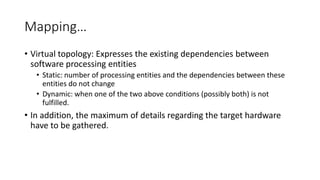

7. Mapping…
• Virtual topology: Expresses the existing dependencies between
software processing entities
• Static: number of processing entities and the dependencies between these
entities do not change
• Dynamic: when one of the two above conditions (possibly both) is not
fulfilled.
• In addition, the maximum of details regarding the target hardware
have to be gathered.

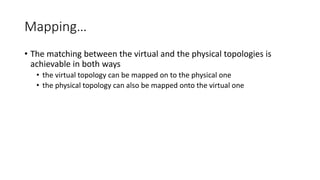

8. Mapping…
• The matching between the virtual and the physical topologies is
achievable in both ways
• the virtual topology can be mapped on to the physical one
• the physical topology can also be mapped onto the virtual one

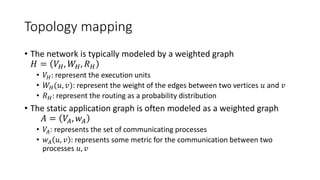

9. Topology mapping
• The network is typically modeled by a weighted graph
𝐻 = 𝑉𝐻, 𝑊𝐻, 𝑅 𝐻
• 𝑉𝐻: represent the execution units
• 𝑊𝐻(𝑢, 𝑣): represent the weight of the edges between two vertices 𝑢 and 𝑣
• 𝑅 𝐻: represent the routing as a probability distribution
• The static application graph is often modeled as a weighted graph
𝐴 = 𝑉𝐴, 𝑤 𝐴
• 𝑉𝐴: represents the set of communicating processes
• 𝑤 𝐴 𝑢, 𝑣 : represents some metric for the communication between two
processes 𝑢, 𝑣

10. Topology mapping…
• The topology mapping considers mappings 𝜎 ∶ 𝑉𝐴 → 𝑉𝐻
• Each concrete mapping 𝜎 has two metrics:
• Dilation: is defined as either the maximum or the sum of the pairwise
distances of neighbors in 𝐴 mapped to 𝐻. (correlate with the dynamic energy
consumption of the network)
• Congestion: counts how many communication pairs use a certain link.
(correlates strongly with the execution time of bulk-synchronous parallel
applications)

11. Mapping Techniques
Finding a perfect mapping (wrt to a specific metric) is NP-Complete.
• LP based algorithms
• Constructive approaches (greedy)
• Partitioning approaches
• Transformative approaches
• Graph similarity based approaches

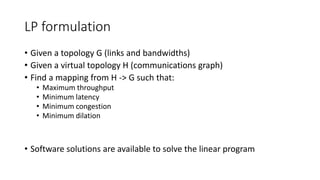

12. LP formulation
• Given a topology G (links and bandwidths)
• Given a virtual topology H (communications graph)
• Find a mapping from H -> G such that:
• Maximum throughput
• Minimum latency
• Minimum congestion
• Minimum dilation
• Software solutions are available to solve the linear program

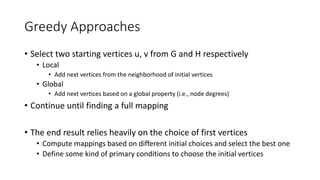

13. Greedy Approaches
• Select two starting vertices u, v from G and H respectively
• Local
• Add next vertices from the neighborhood of initial vertices
• Global
• Add next vertices based on a global property (i.e., node degrees)
• Continue until finding a full mapping
• The end result relies heavily on the choice of first vertices
• Compute mappings based on different initial choices and select the best one
• Define some kind of primary conditions to choose the initial vertices

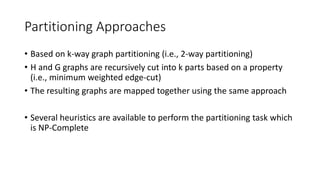

14. Partitioning Approaches
• Based on k-way graph partitioning (i.e., 2-way partitioning)
• H and G graphs are recursively cut into k parts based on a property
(i.e., minimum weighted edge-cut)
• The resulting graphs are mapped together using the same approach
• Several heuristics are available to perform the partitioning task which
is NP-Complete

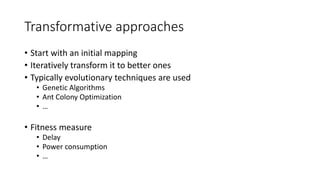

15. Transformative approaches
• Start with an initial mapping
• Iteratively transform it to better ones
• Typically evolutionary techniques are used
• Genetic Algorithms
• Ant Colony Optimization
• …
• Fitness measure
• Delay
• Power consumption
• …

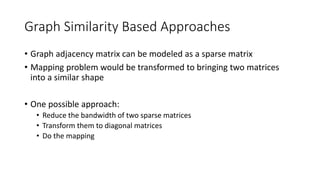

16. Graph Similarity Based Approaches
• Graph adjacency matrix can be modeled as a sparse matrix
• Mapping problem would be transformed to bringing two matrices
into a similar shape
• One possible approach:
• Reduce the bandwidth of two sparse matrices
• Transform them to diagonal matrices
• Do the mapping

17. Graph Similarity Based Approaches

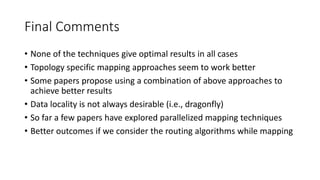

18. Final Comments
• None of the techniques give optimal results in all cases
• Topology specific mapping approaches seem to work better
• Some papers propose using a combination of above approaches to
achieve better results
• Data locality is not always desirable (i.e., dragonfly)
• So far a few papers have explored parallelized mapping techniques
• Better outcomes if we consider the routing algorithms while mapping
