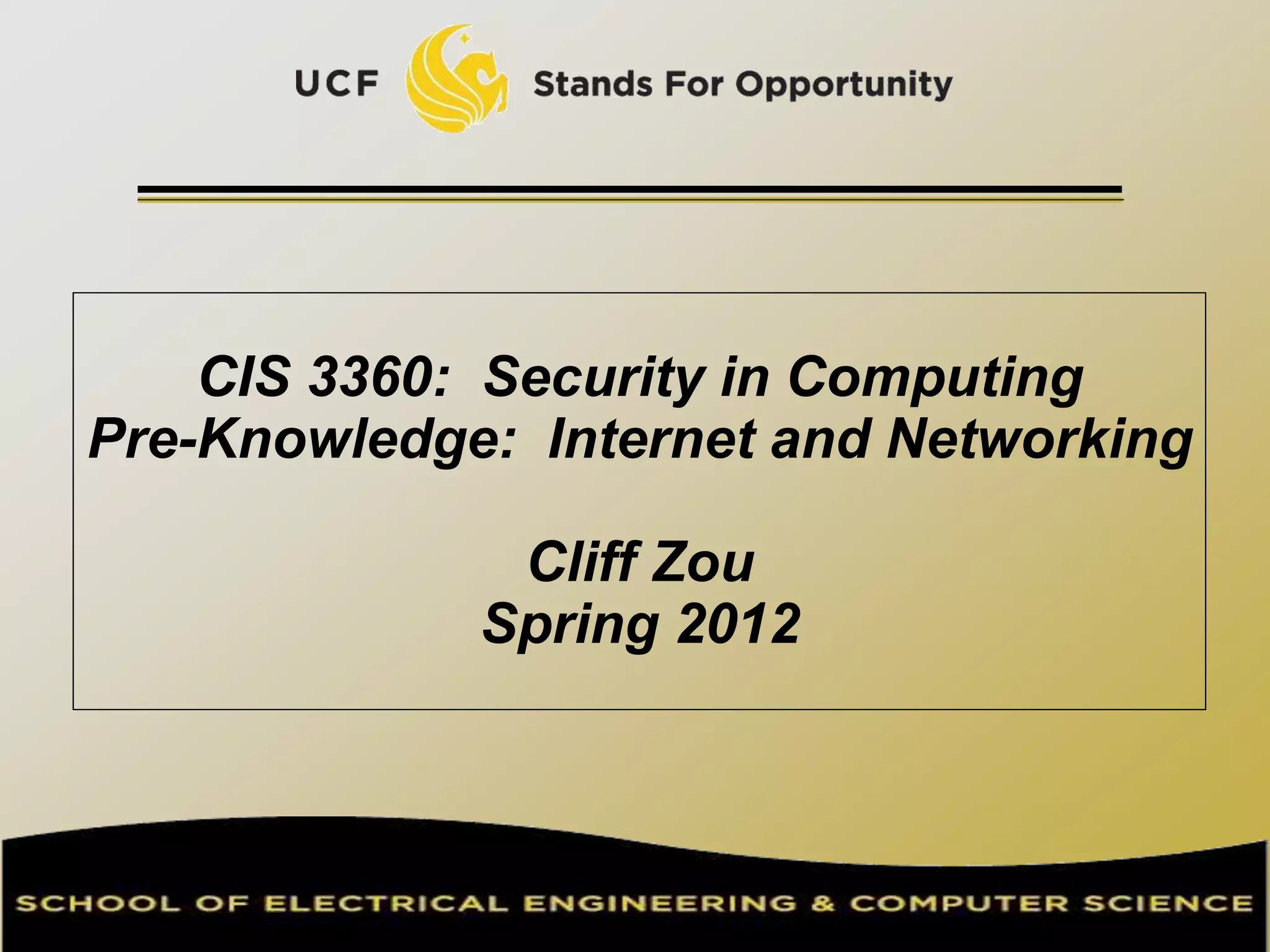

1. CIS 3360: Security in Computing
Pre-Knowledge: Internet and Networking
Cliff Zou
Spring 2012
2. 2

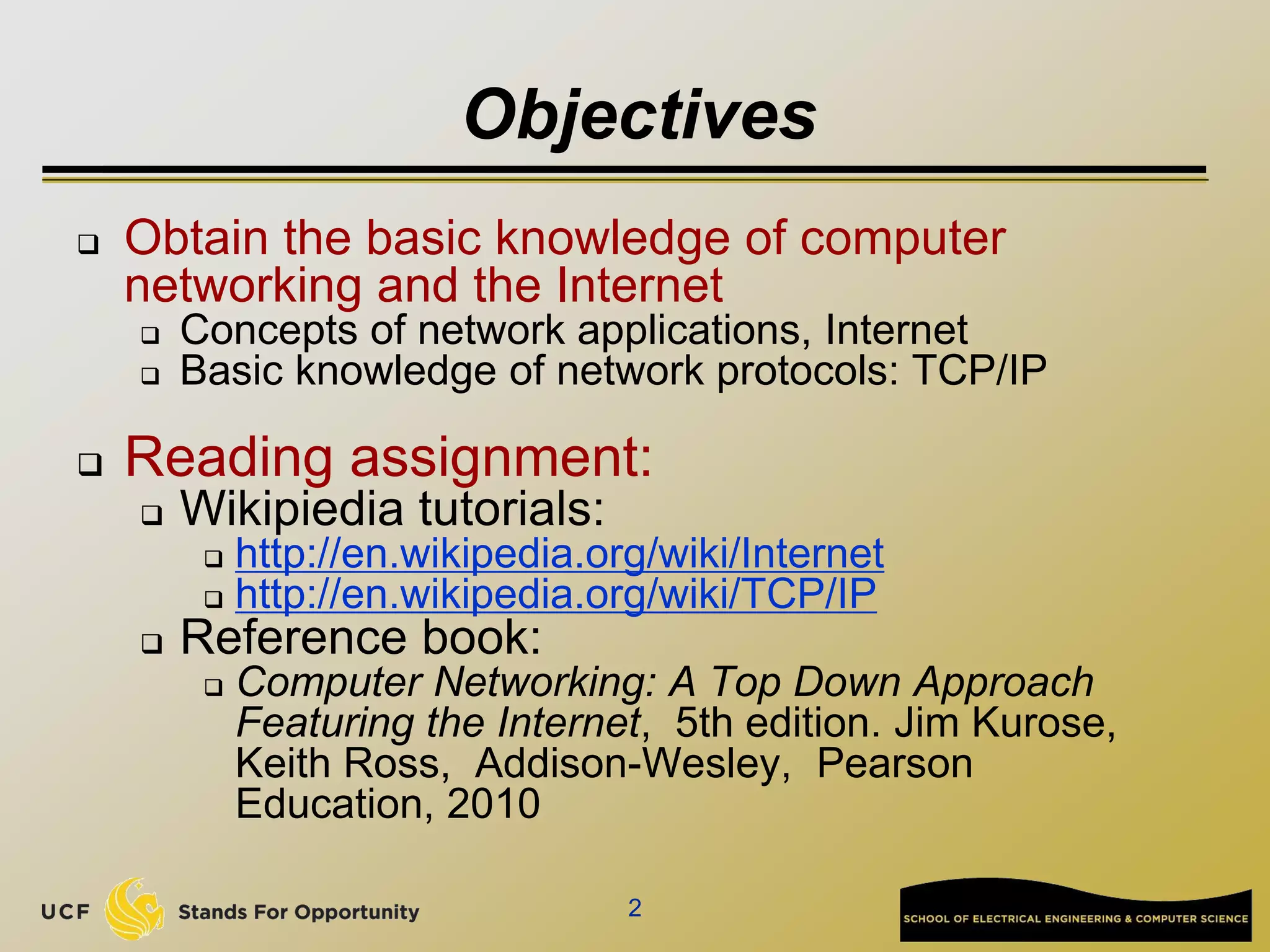

Objectives
Obtain the basic knowledge of computer
networking and the Internet
Concepts of network applications, Internet
Basic knowledge of network protocols: TCP/IP
Reading assignment:
Wikipiedia tutorials:
http://en.wikipedia.org/wiki/Internet
http://en.wikipedia.org/wiki/TCP/IP
Reference book:
Computer Networking: A Top Down Approach
Featuring the Internet, 5th edition. Jim Kurose,
Keith Ross, Addison-Wesley, Pearson
Education, 2010

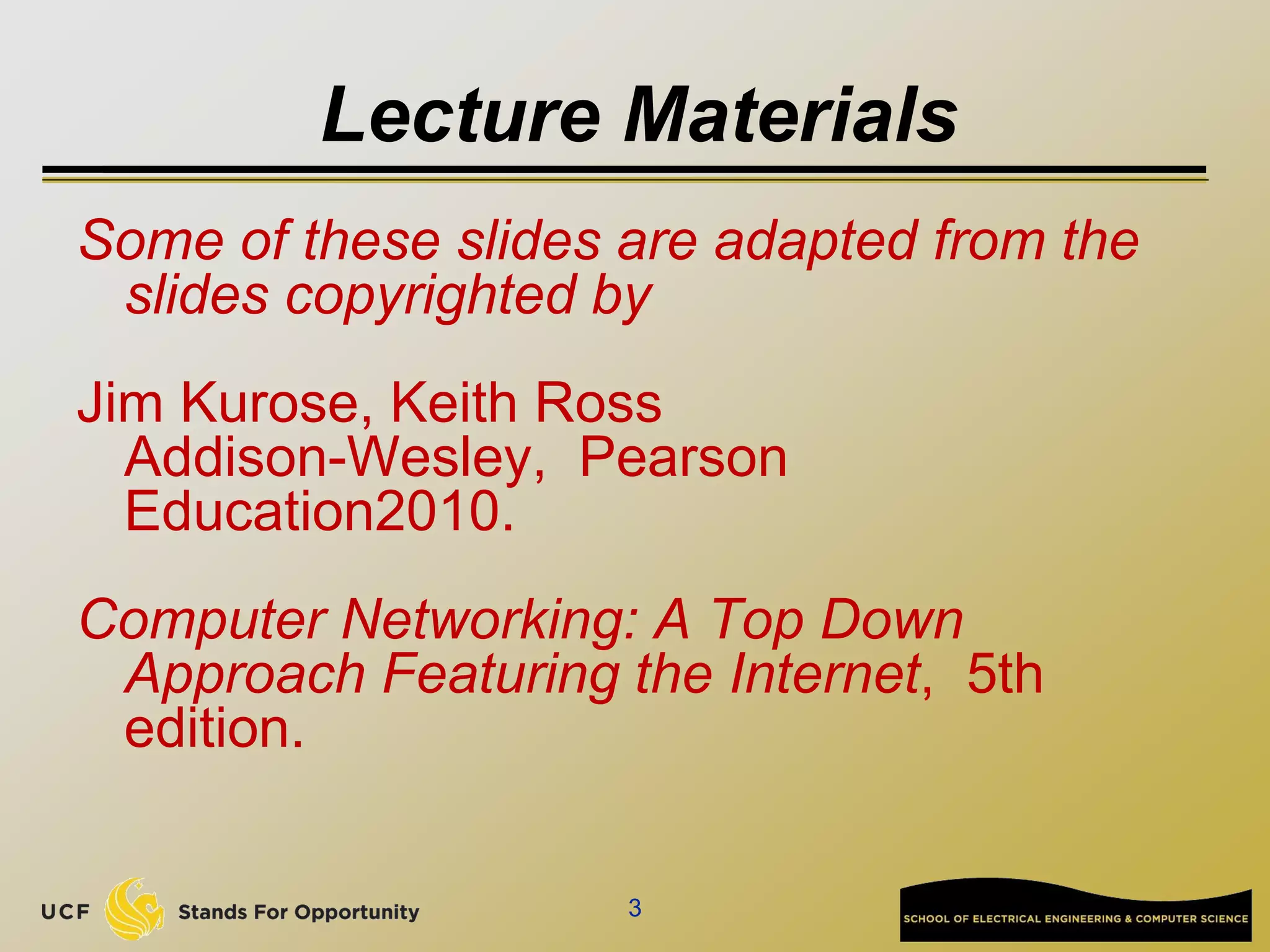

3. Lecture Materials
Some of these slides are adapted from the
slides copyrighted by
Jim Kurose, Keith Ross
Addison-Wesley, Pearson
Education2010.
Computer Networking: A Top Down
Approach Featuring the Internet, 5th
edition.
3
4. 4

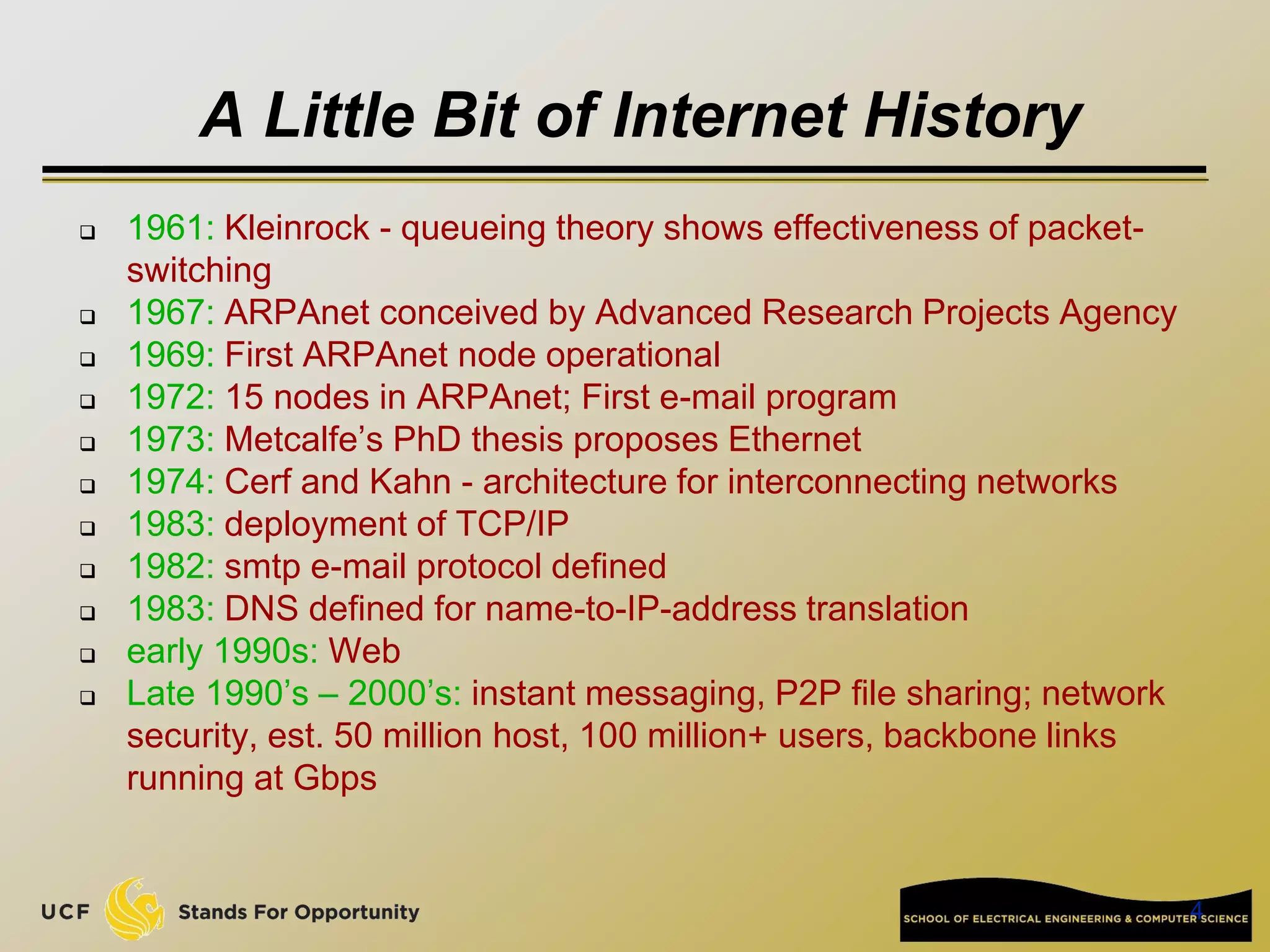

A Little Bit of Internet History
1961: Kleinrock - queueing theory shows effectiveness of packet-
switching
1967: ARPAnet conceived by Advanced Research Projects Agency
1969: First ARPAnet node operational
1972: 15 nodes in ARPAnet; First e-mail program
1973: Metcalfe’s PhD thesis proposes Ethernet
1974: Cerf and Kahn - architecture for interconnecting networks
1983: deployment of TCP/IP
1982: smtp e-mail protocol defined
1983: DNS defined for name-to-IP-address translation
early 1990s: Web
Late 1990’s – 2000’s: instant messaging, P2P file sharing; network
security, est. 50 million host, 100 million+ users, backbone links
running at Gbps
5. 5

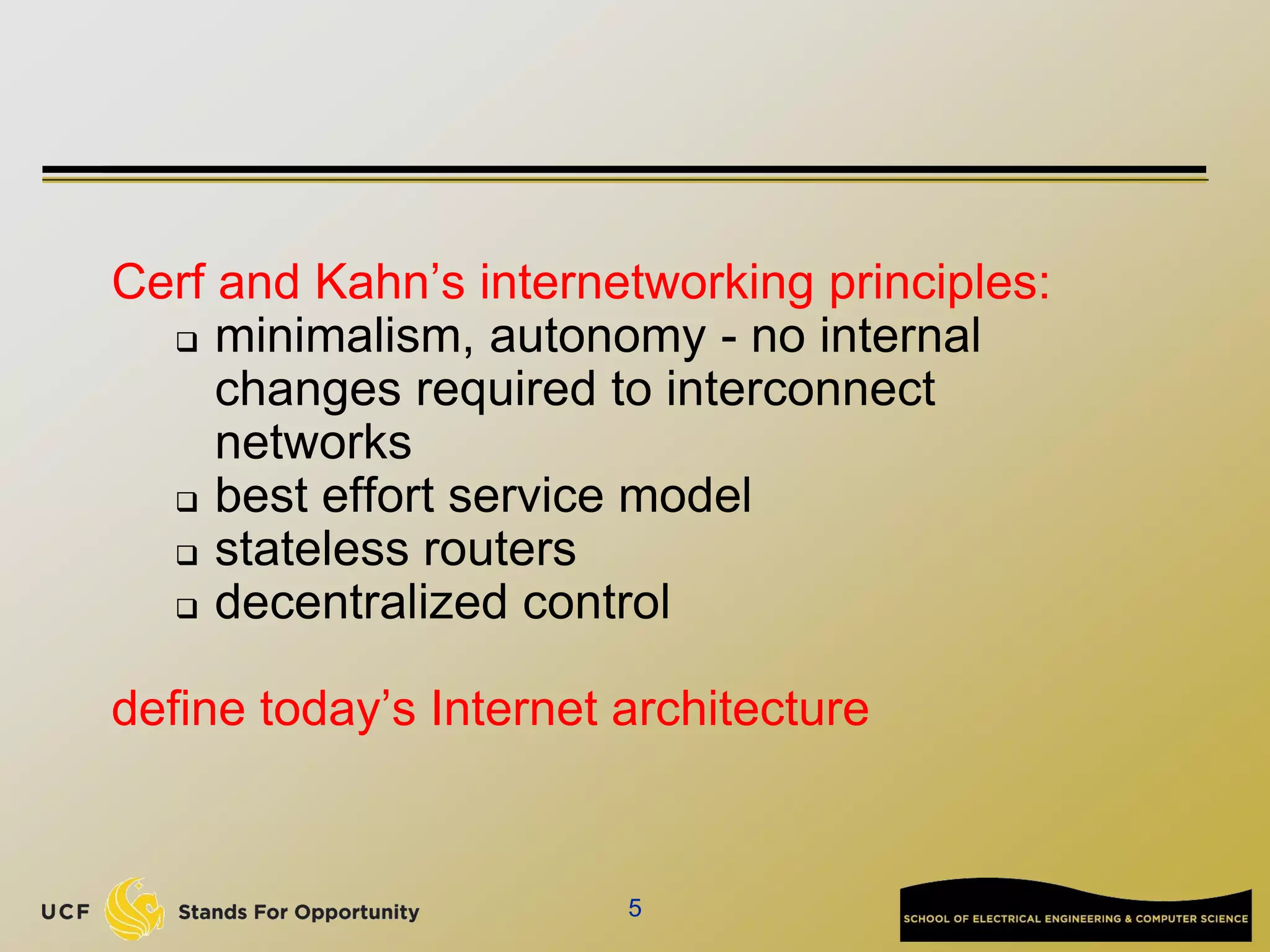

Cerf and Kahn’s internetworking principles:
minimalism, autonomy - no internal
changes required to interconnect
networks
best effort service model
stateless routers
decentralized control
define today’s Internet architecture
6. 6

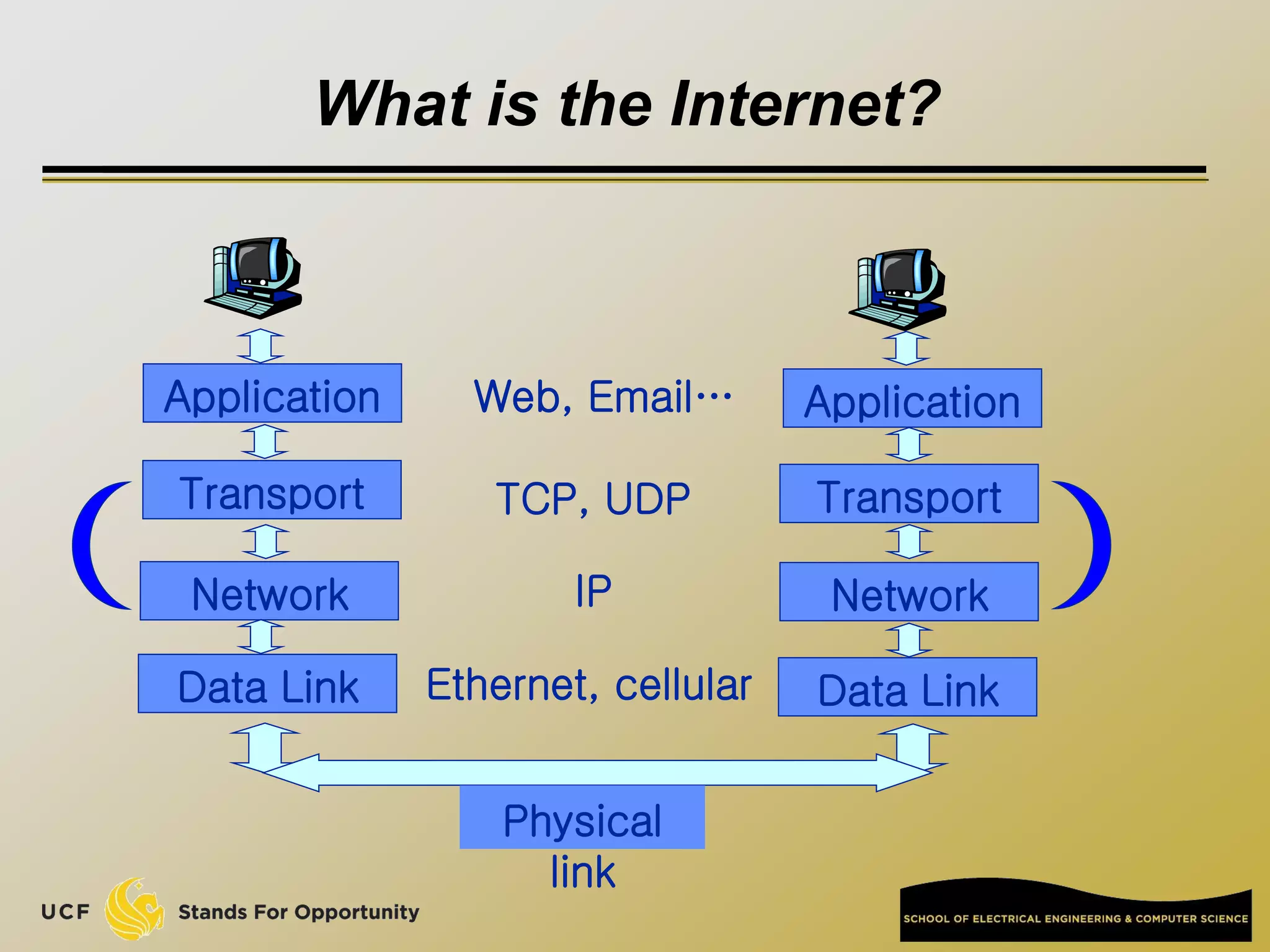

What is the Internet?
Application Application
Network Network
Data Link
Transport Transport
Data Link
Physical
link
Web, Email…
TCP, UDP
IP
Ethernet, cellular

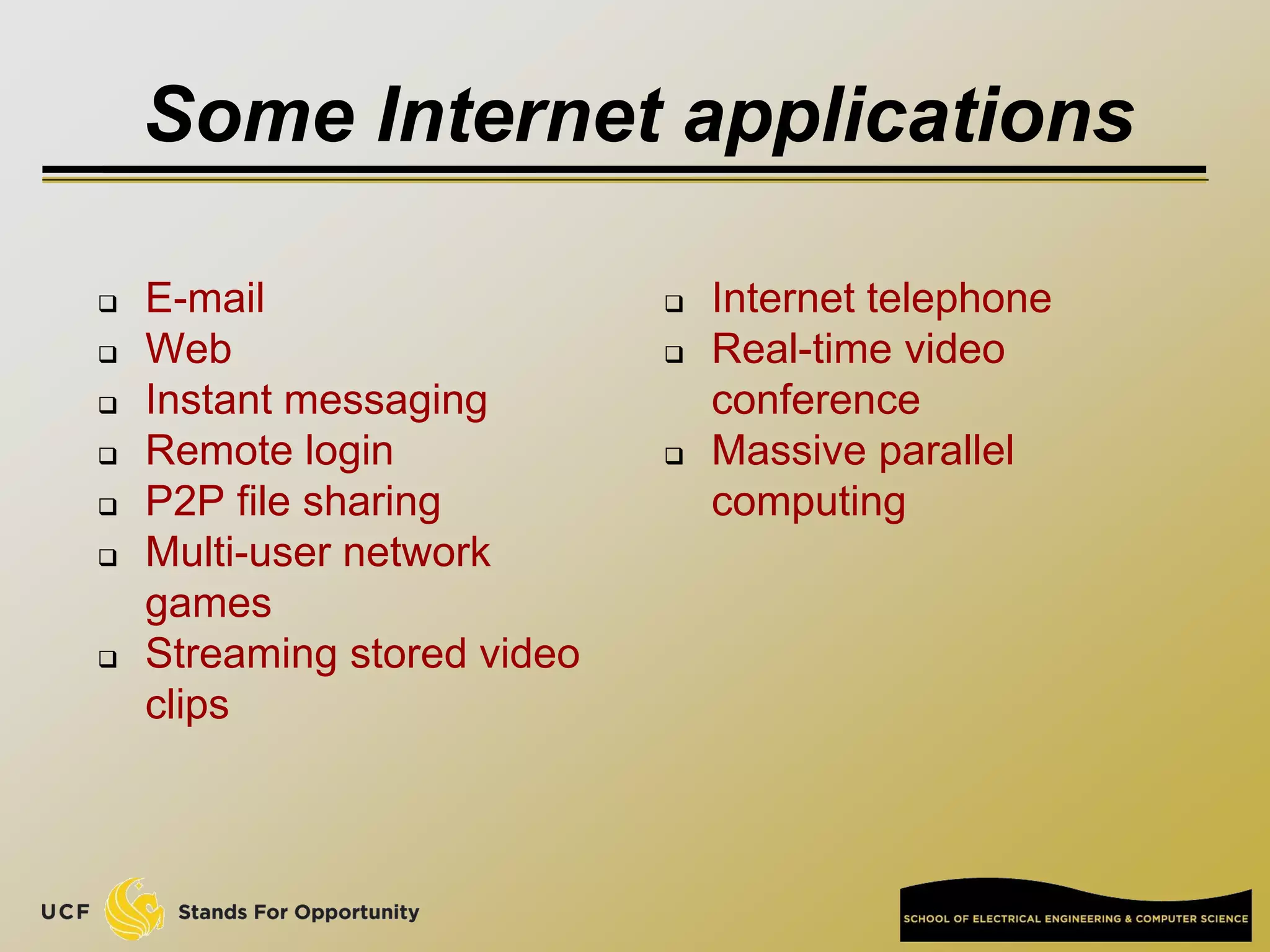

7. Some Internet applications
E-mail
Web
Instant messaging
Remote login
P2P file sharing
Multi-user network
games
Streaming stored video
clips
Internet telephone
Real-time video
conference
Massive parallel
computing

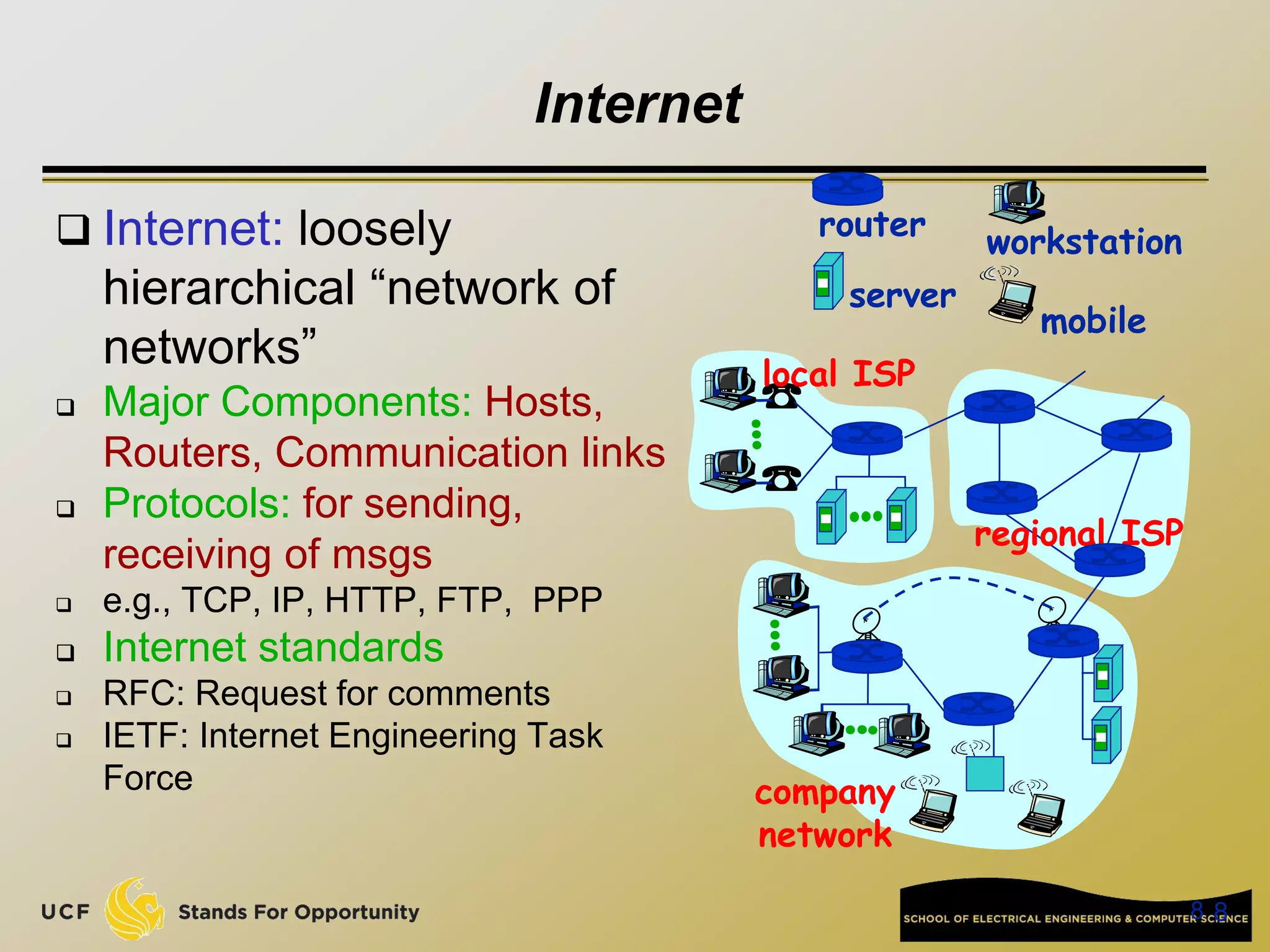

8. 8 8
Internet
Internet: loosely
hierarchical “network of
networks”
Major Components: Hosts,
Routers, Communication links
Protocols: for sending,
receiving of msgs
e.g., TCP, IP, HTTP, FTP, PPP
Internet standards
RFC: Request for comments
IETF: Internet Engineering Task
Force
local ISP
company
network
regional ISP
router workstation
server
mobile
9. 9 9

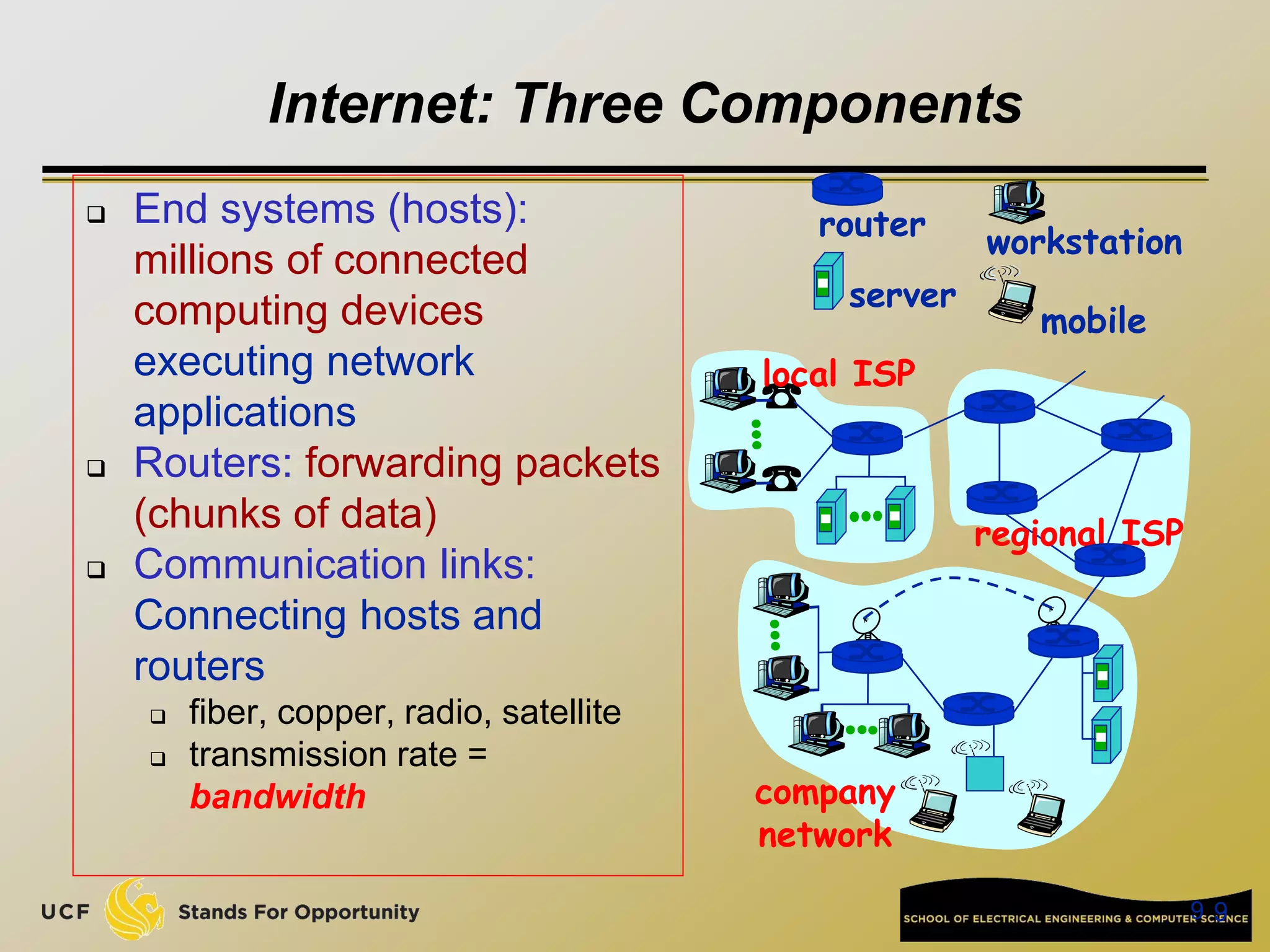

Internet: Three Components
End systems (hosts):
millions of connected
computing devices
executing network
applications
Routers: forwarding packets
(chunks of data)
Communication links:
Connecting hosts and
routers
fiber, copper, radio, satellite
transmission rate =
bandwidth
local ISP
company
network
regional ISP
router
workstation
server
mobile
10. 10
10

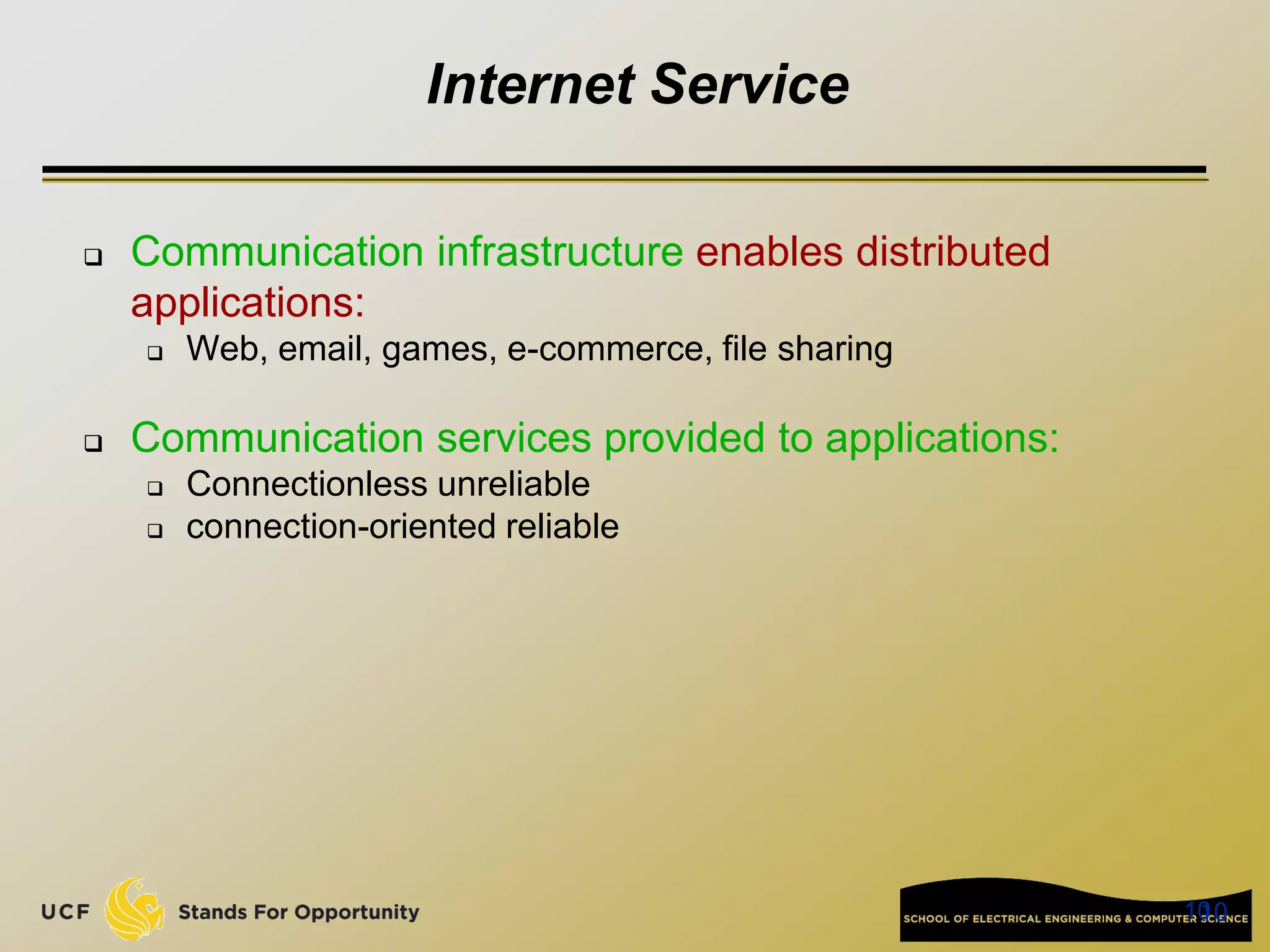

Internet Service
Communication infrastructure enables distributed
applications:
Web, email, games, e-commerce, file sharing
Communication services provided to applications:
Connectionless unreliable
connection-oriented reliable
11. 11
11

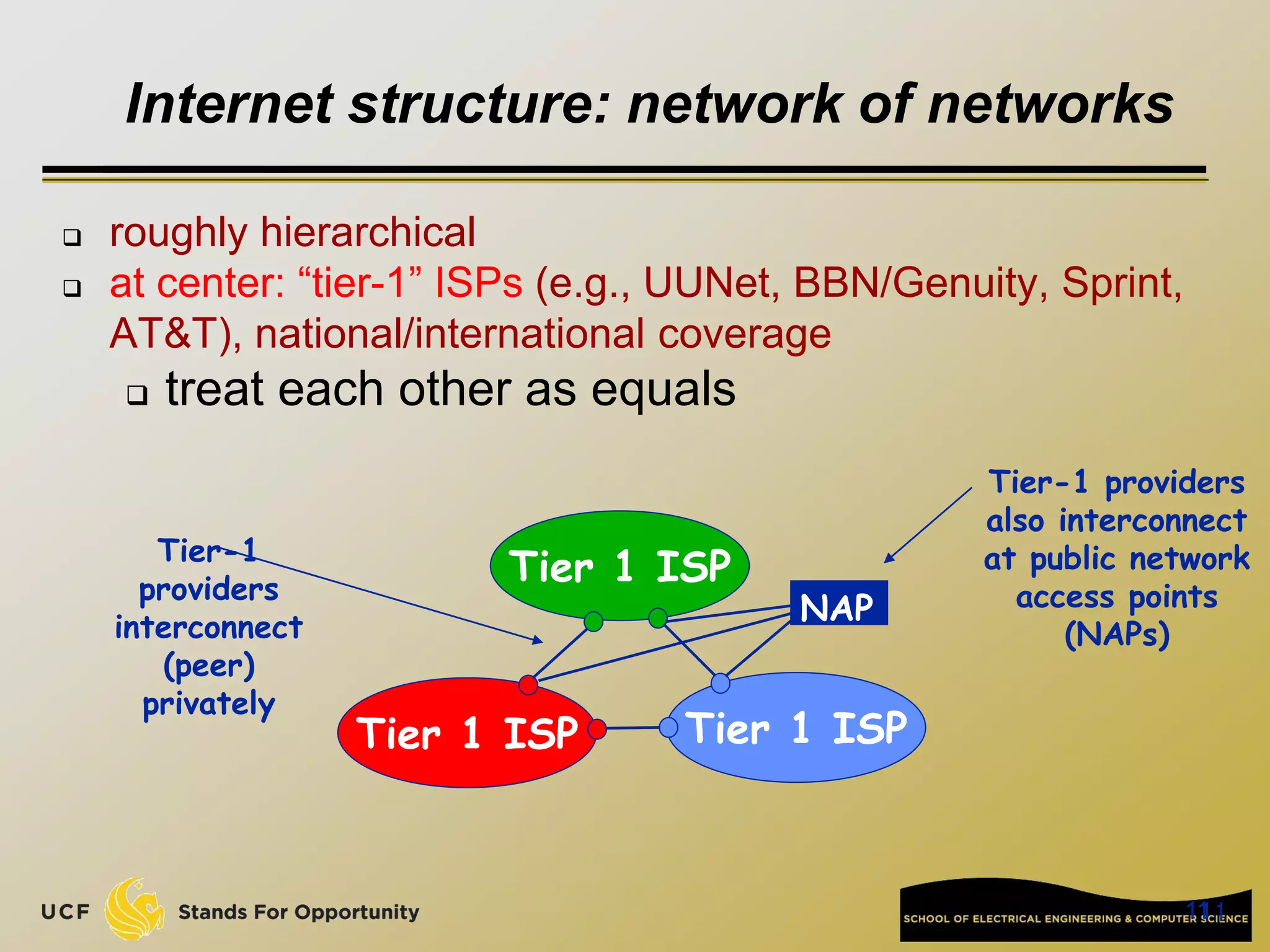

Internet structure: network of networks
roughly hierarchical
at center: “tier-1” ISPs (e.g., UUNet, BBN/Genuity, Sprint,
AT&T), national/international coverage
treat each other as equals
Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
Tier-1
providers
interconnect
(peer)
privately
NAP
Tier-1 providers
also interconnect
at public network
access points
(NAPs)
12. 12
12

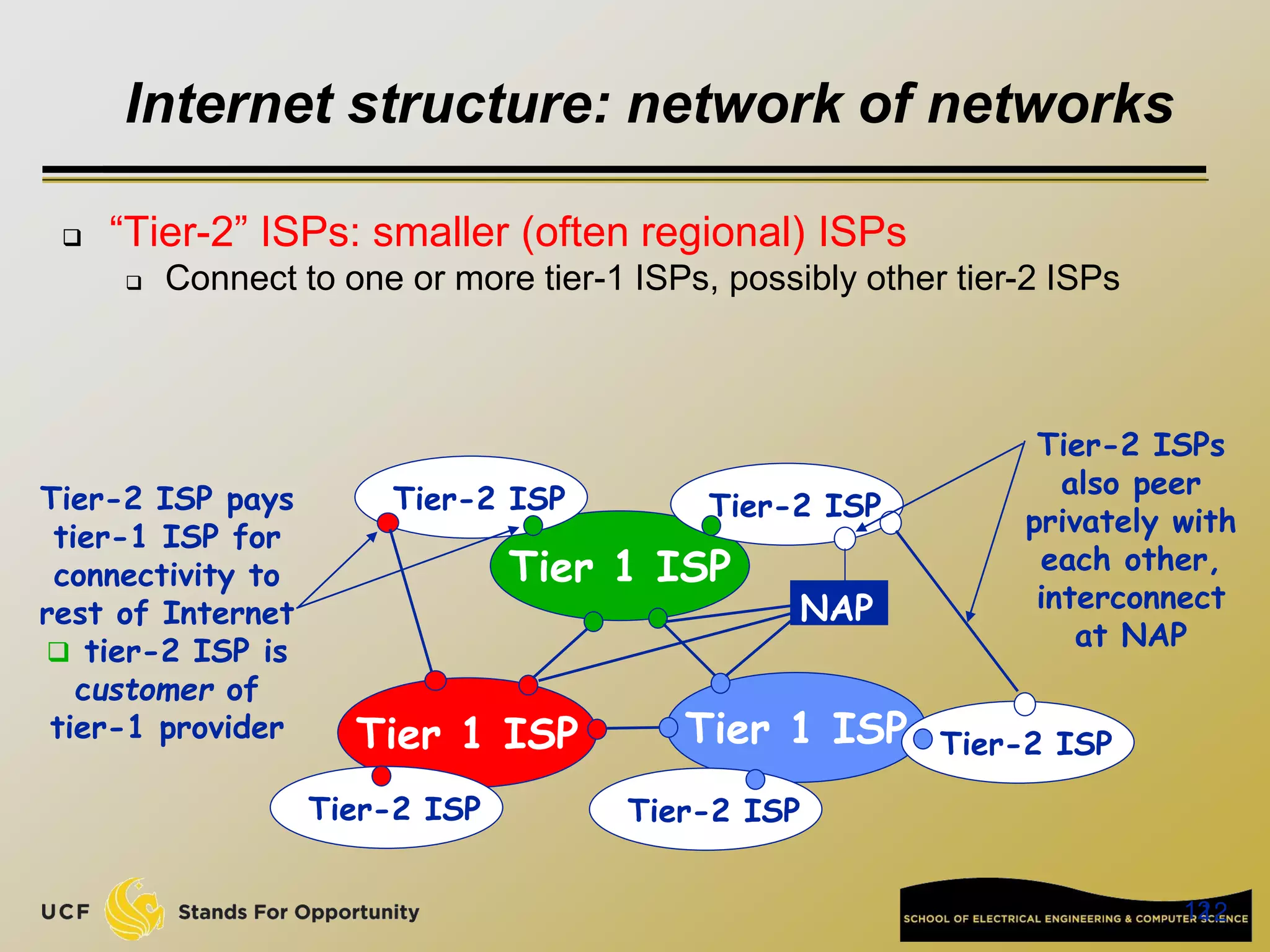

Internet structure: network of networks
“Tier-2” ISPs: smaller (often regional) ISPs
Connect to one or more tier-1 ISPs, possibly other tier-2 ISPs
Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
NAP
Tier-2 ISP
Tier-2 ISP
Tier-2 ISP Tier-2 ISP
Tier-2 ISP
Tier-2 ISP pays
tier-1 ISP for
connectivity to
rest of Internet
tier-2 ISP is
customer of
tier-1 provider
Tier-2 ISPs
also peer
privately with
each other,
interconnect
at NAP

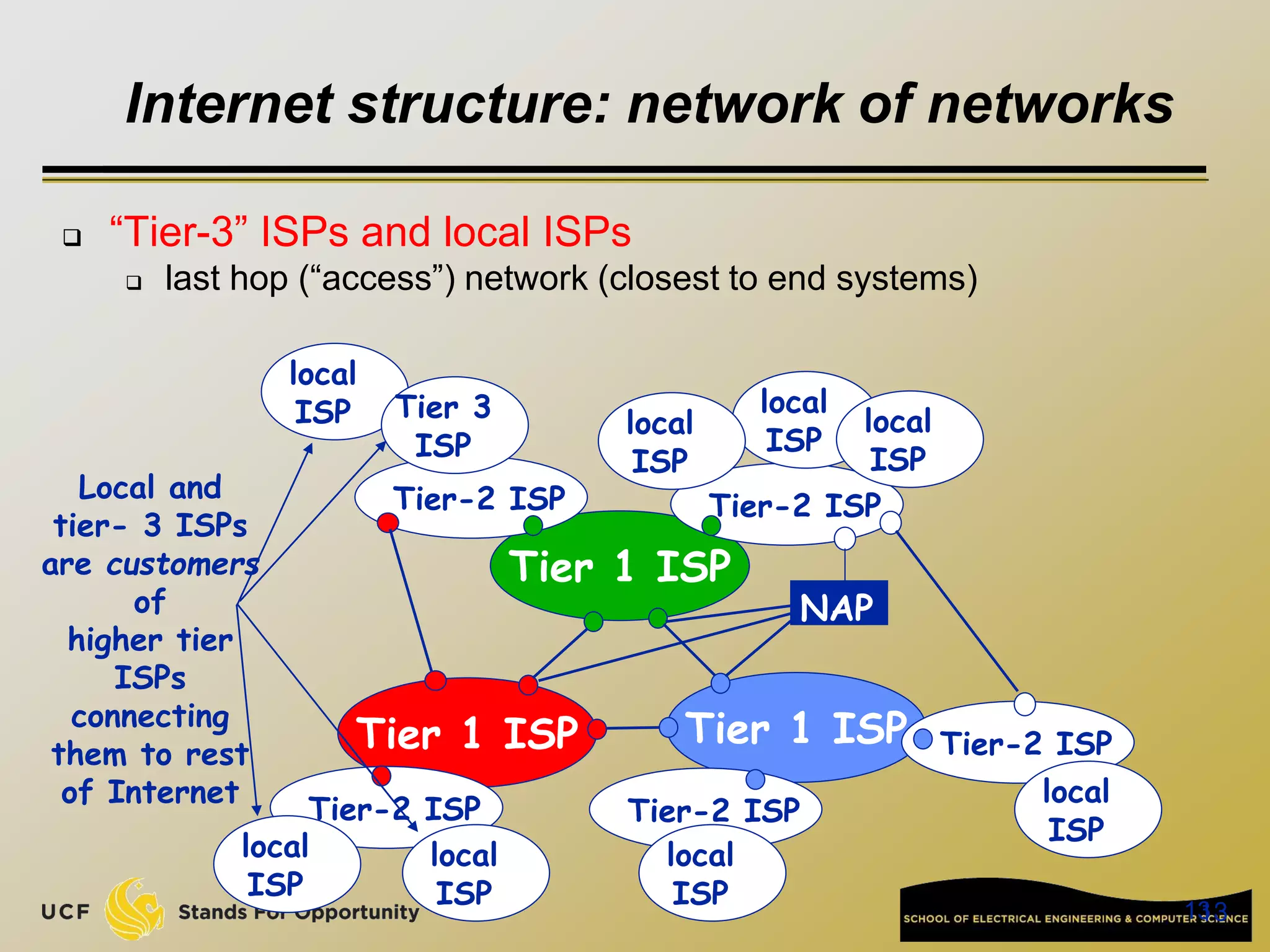

13. 13
13
Internet structure: network of networks
“Tier-3” ISPs and local ISPs
last hop (“access”) network (closest to end systems)
Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
NAP
Tier-2 ISP
Tier-2 ISP
Tier-2 ISP Tier-2 ISP
Tier-2 ISP
local
ISP
local
ISP
local
ISP
local
ISP
local
ISP Tier 3
ISP
local
ISP
local
ISP
local
ISP
Local and
tier- 3 ISPs
are customers
of
higher tier
ISPs
connecting
them to rest
of Internet
14. 14
14

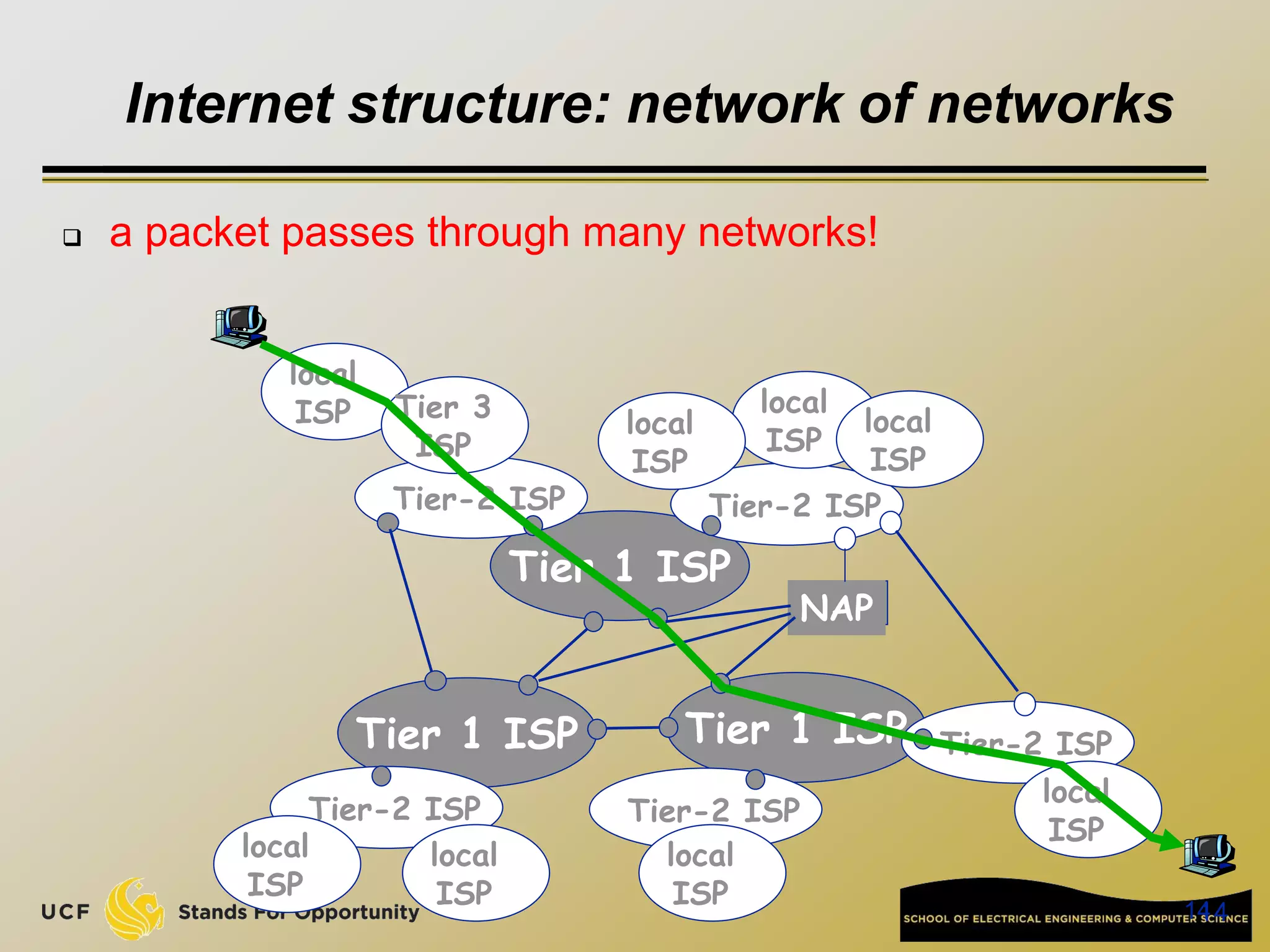

Internet structure: network of networks
a packet passes through many networks!
Tier 1 ISP
Tier 1 ISP
Tier 1 ISP
NAP
Tier-2 ISP
Tier-2 ISP
Tier-2 ISP Tier-2 ISP
Tier-2 ISP
local
ISP
local
ISP
local
ISP
local
ISP
local
ISP Tier 3
ISP
local
ISP
local
ISP
local
ISP

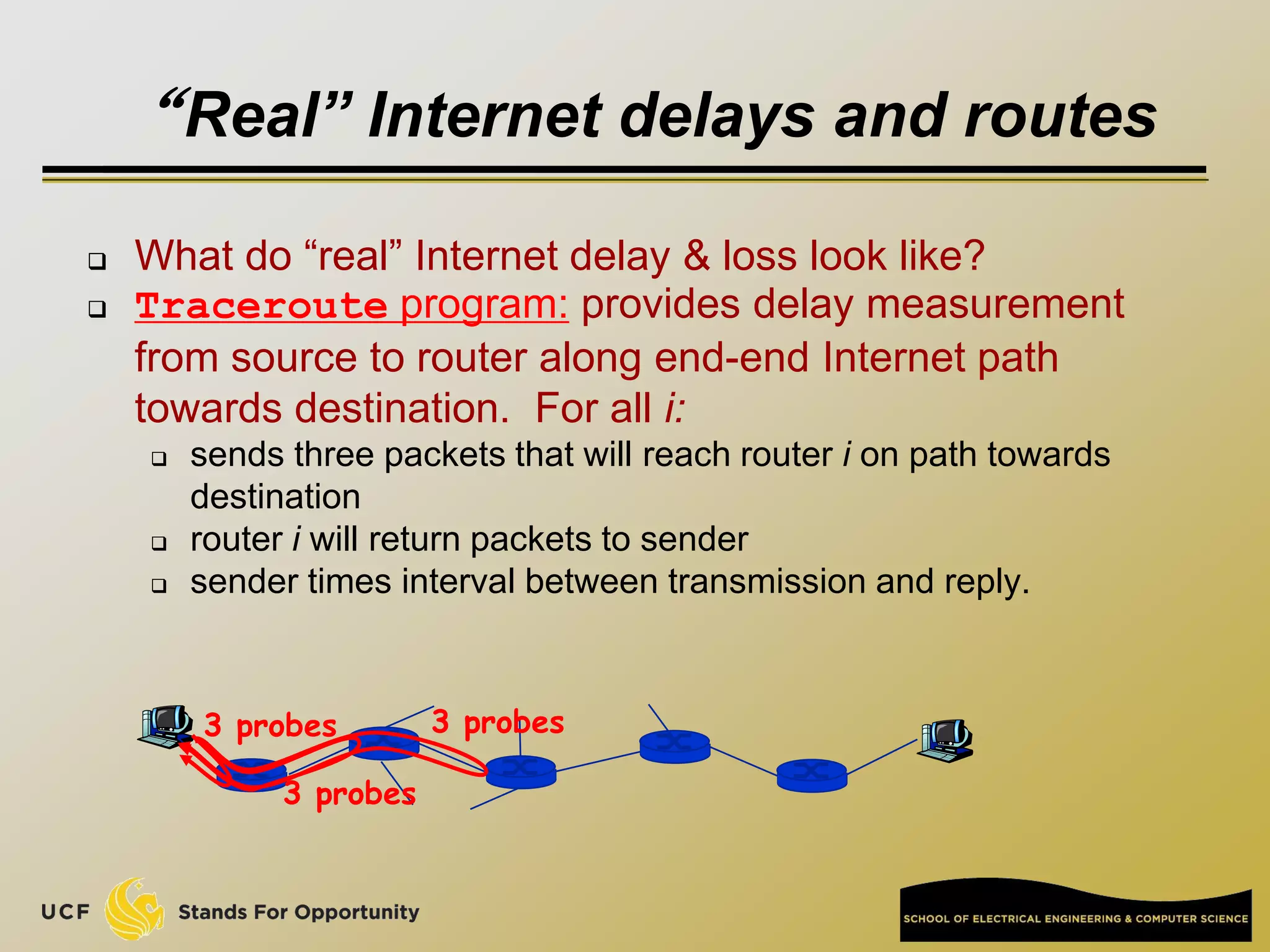

15. “Real” Internet delays and routes
What do “real” Internet delay & loss look like?
Traceroute program: provides delay measurement
from source to router along end-end Internet path
towards destination. For all i:
sends three packets that will reach router i on path towards
destination
router i will return packets to sender
sender times interval between transmission and reply.
3 probes
3 probes
3 probes

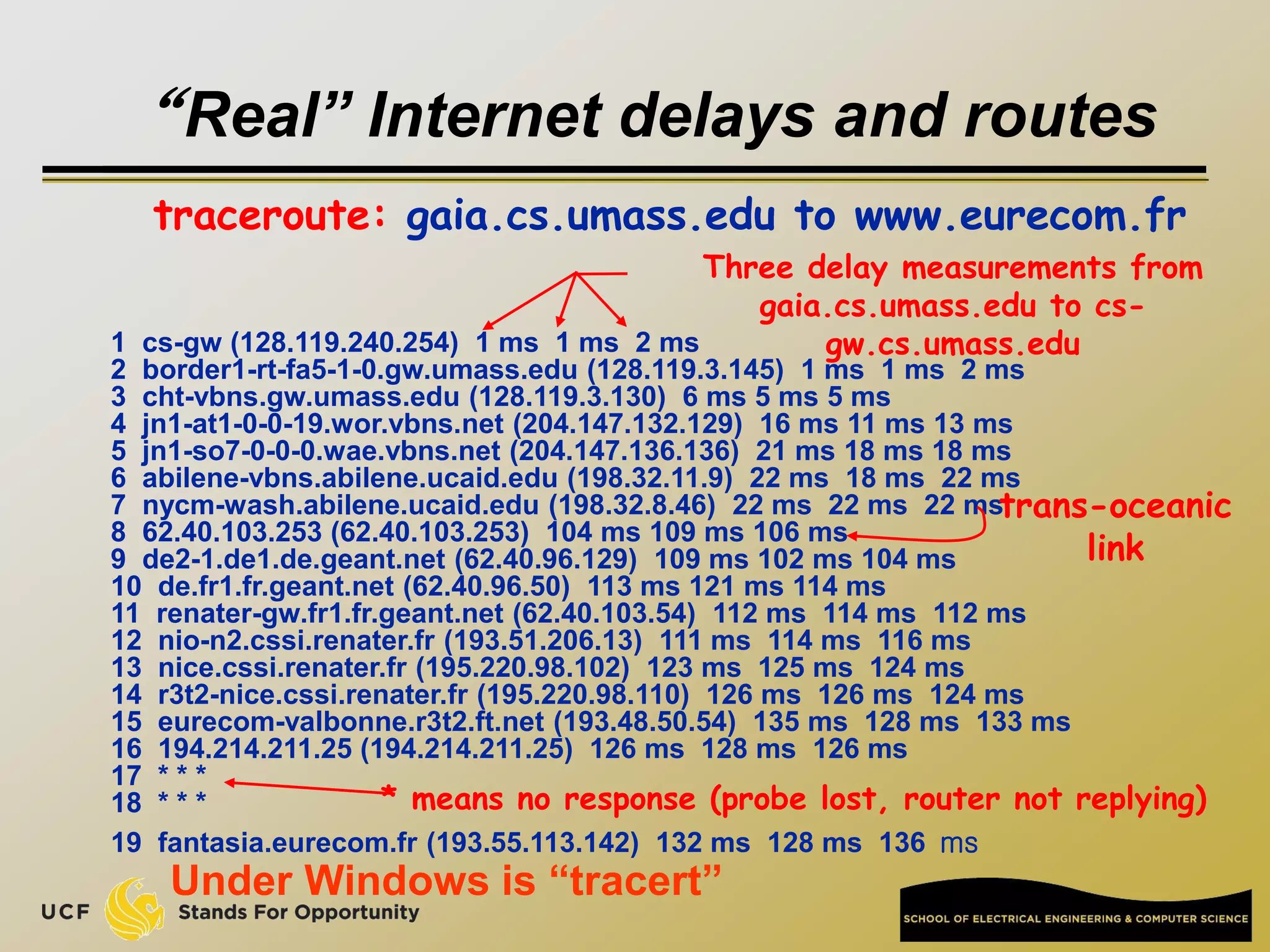

16. “Real” Internet delays and routes
1 cs-gw (128.119.240.254) 1 ms 1 ms 2 ms
2 border1-rt-fa5-1-0.gw.umass.edu (128.119.3.145) 1 ms 1 ms 2 ms
3 cht-vbns.gw.umass.edu (128.119.3.130) 6 ms 5 ms 5 ms
4 jn1-at1-0-0-19.wor.vbns.net (204.147.132.129) 16 ms 11 ms 13 ms
5 jn1-so7-0-0-0.wae.vbns.net (204.147.136.136) 21 ms 18 ms 18 ms
6 abilene-vbns.abilene.ucaid.edu (198.32.11.9) 22 ms 18 ms 22 ms
7 nycm-wash.abilene.ucaid.edu (198.32.8.46) 22 ms 22 ms 22 ms
8 62.40.103.253 (62.40.103.253) 104 ms 109 ms 106 ms
9 de2-1.de1.de.geant.net (62.40.96.129) 109 ms 102 ms 104 ms
10 de.fr1.fr.geant.net (62.40.96.50) 113 ms 121 ms 114 ms
11 renater-gw.fr1.fr.geant.net (62.40.103.54) 112 ms 114 ms 112 ms
12 nio-n2.cssi.renater.fr (193.51.206.13) 111 ms 114 ms 116 ms
13 nice.cssi.renater.fr (195.220.98.102) 123 ms 125 ms 124 ms
14 r3t2-nice.cssi.renater.fr (195.220.98.110) 126 ms 126 ms 124 ms
15 eurecom-valbonne.r3t2.ft.net (193.48.50.54) 135 ms 128 ms 133 ms
16 194.214.211.25 (194.214.211.25) 126 ms 128 ms 126 ms
17 * * *
18 * * *
19 fantasia.eurecom.fr (193.55.113.142) 132 ms 128 ms 136 ms
traceroute: gaia.cs.umass.edu to www.eurecom.fr
Three delay measurements from
gaia.cs.umass.edu to cs-
gw.cs.umass.edu
* means no response (probe lost, router not replying)
trans-oceanic
link

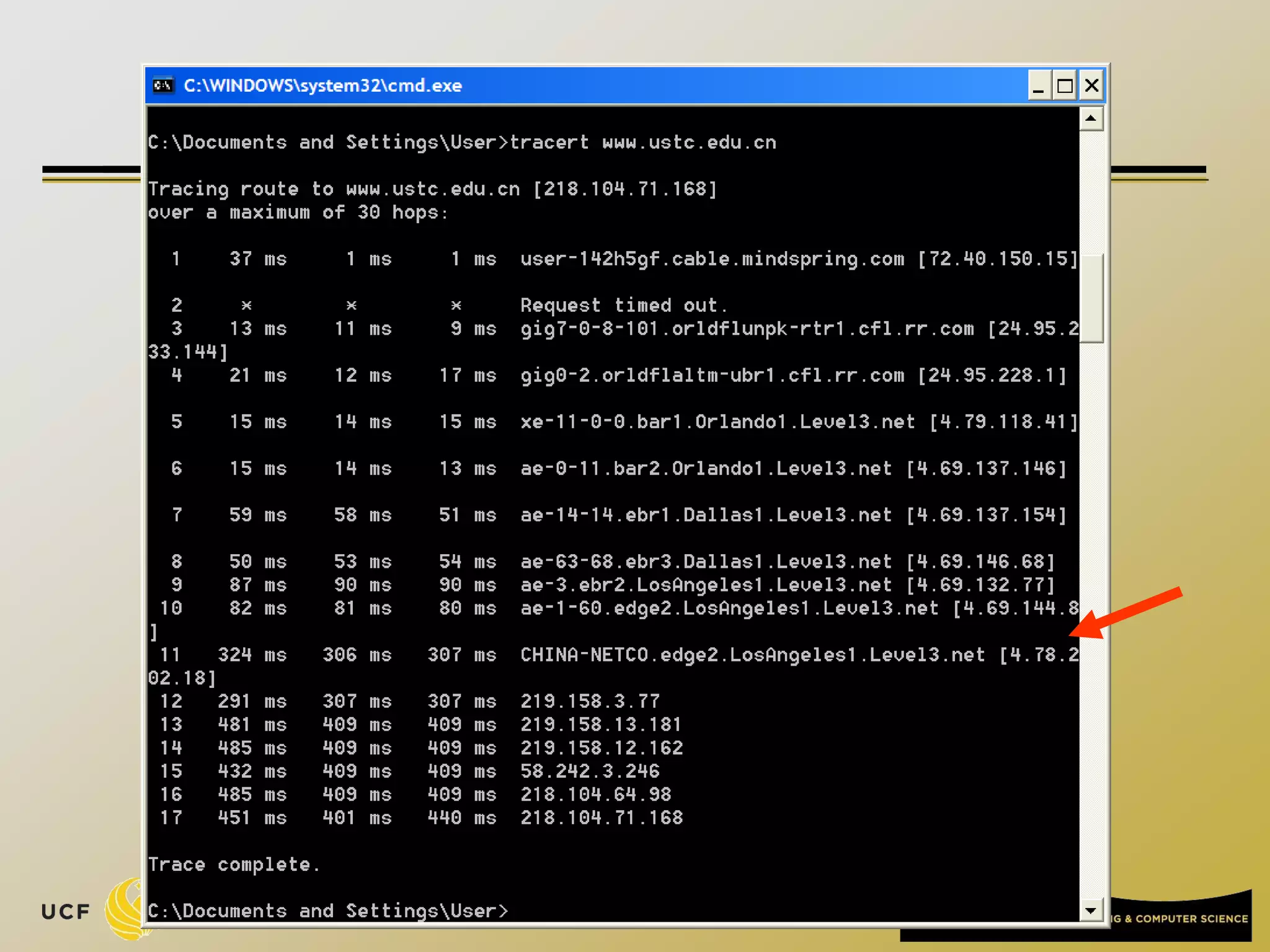

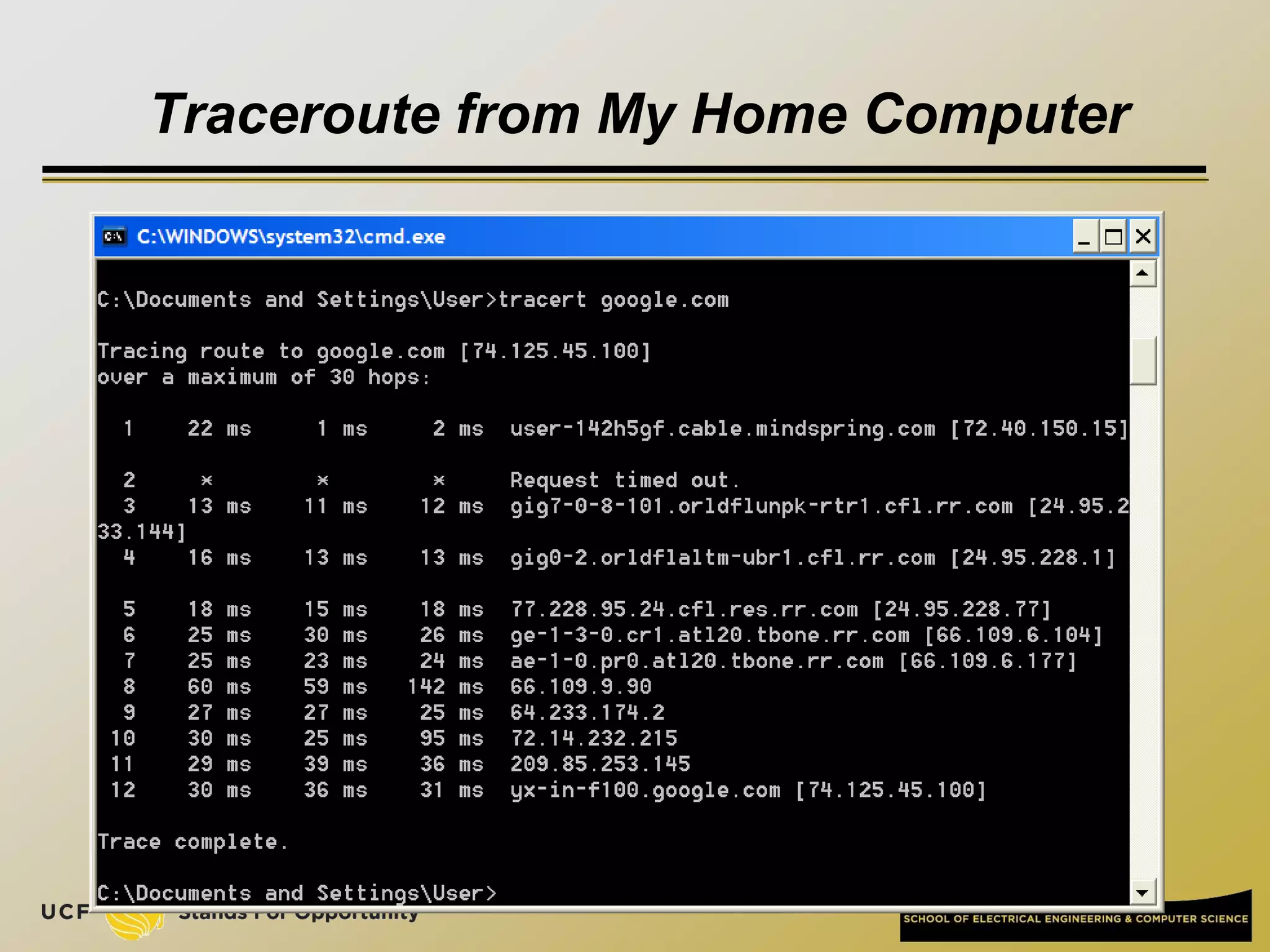

Under Windows is “tracert”

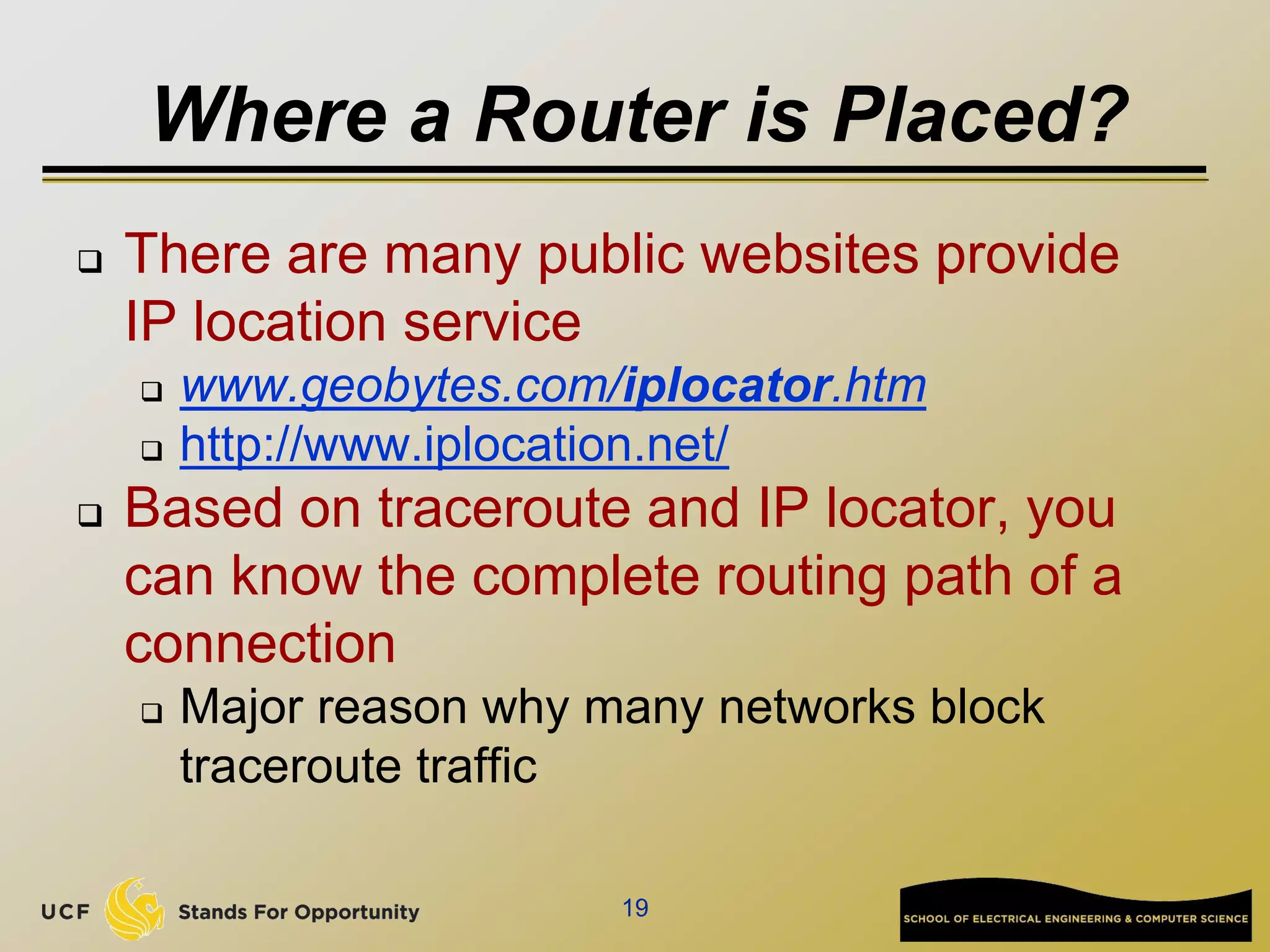

19. Where a Router is Placed?
There are many public websites provide
IP location service
www.geobytes.com/iplocator.htm
http://www.iplocation.net/
Based on traceroute and IP locator, you
can know the complete routing path of a
connection
Major reason why many networks block
traceroute traffic
19

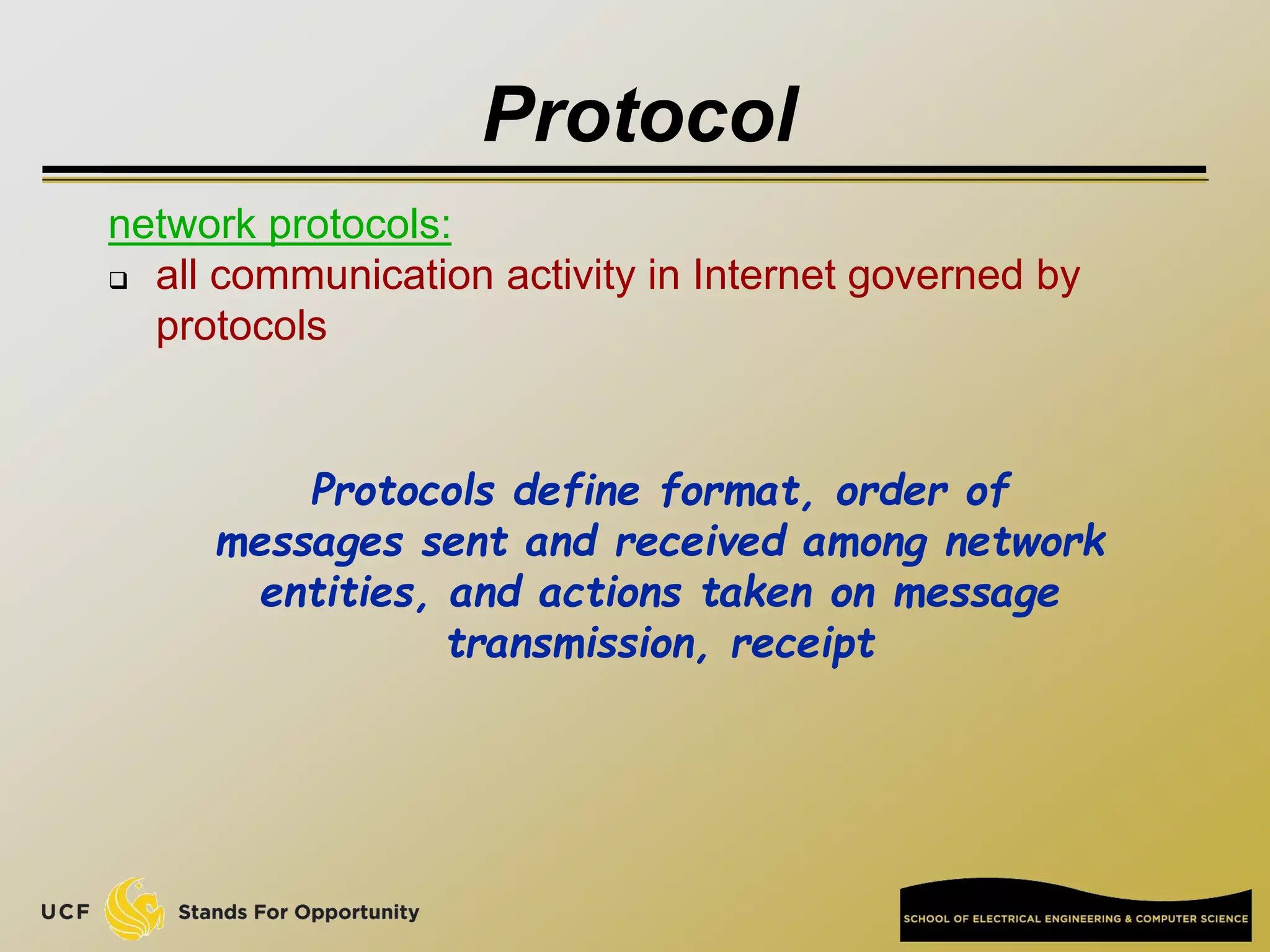

20. Protocol
network protocols:
all communication activity in Internet governed by
protocols
Protocols define format, order of
messages sent and received among network
entities, and actions taken on message
transmission, receipt

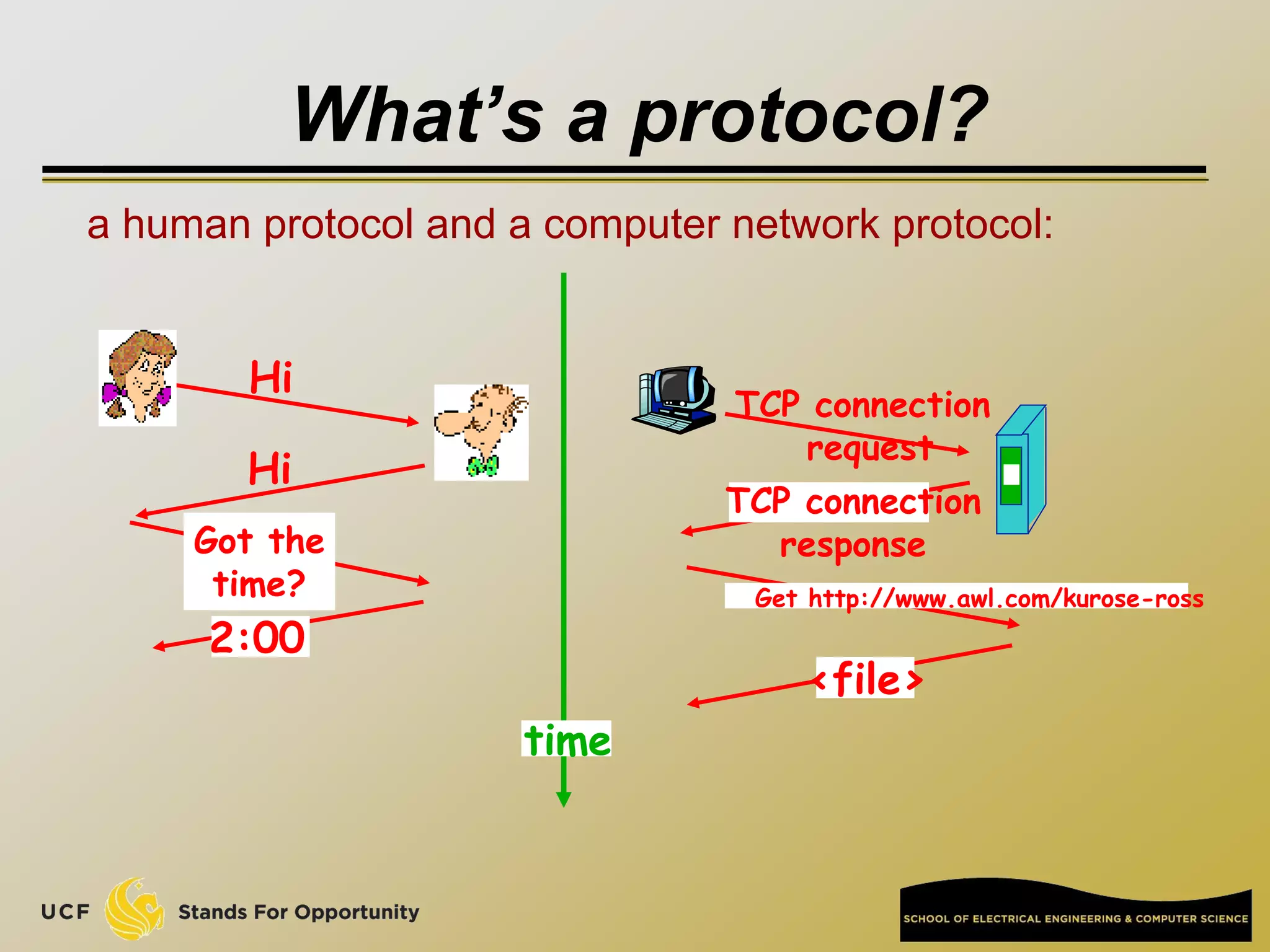

21. What’s a protocol?
a human protocol and a computer network protocol:
Hi
Hi
Got the
time?
2:00
TCP connection
request
TCP connection
response
Get http://www.awl.com/kurose-ross
<file>
time

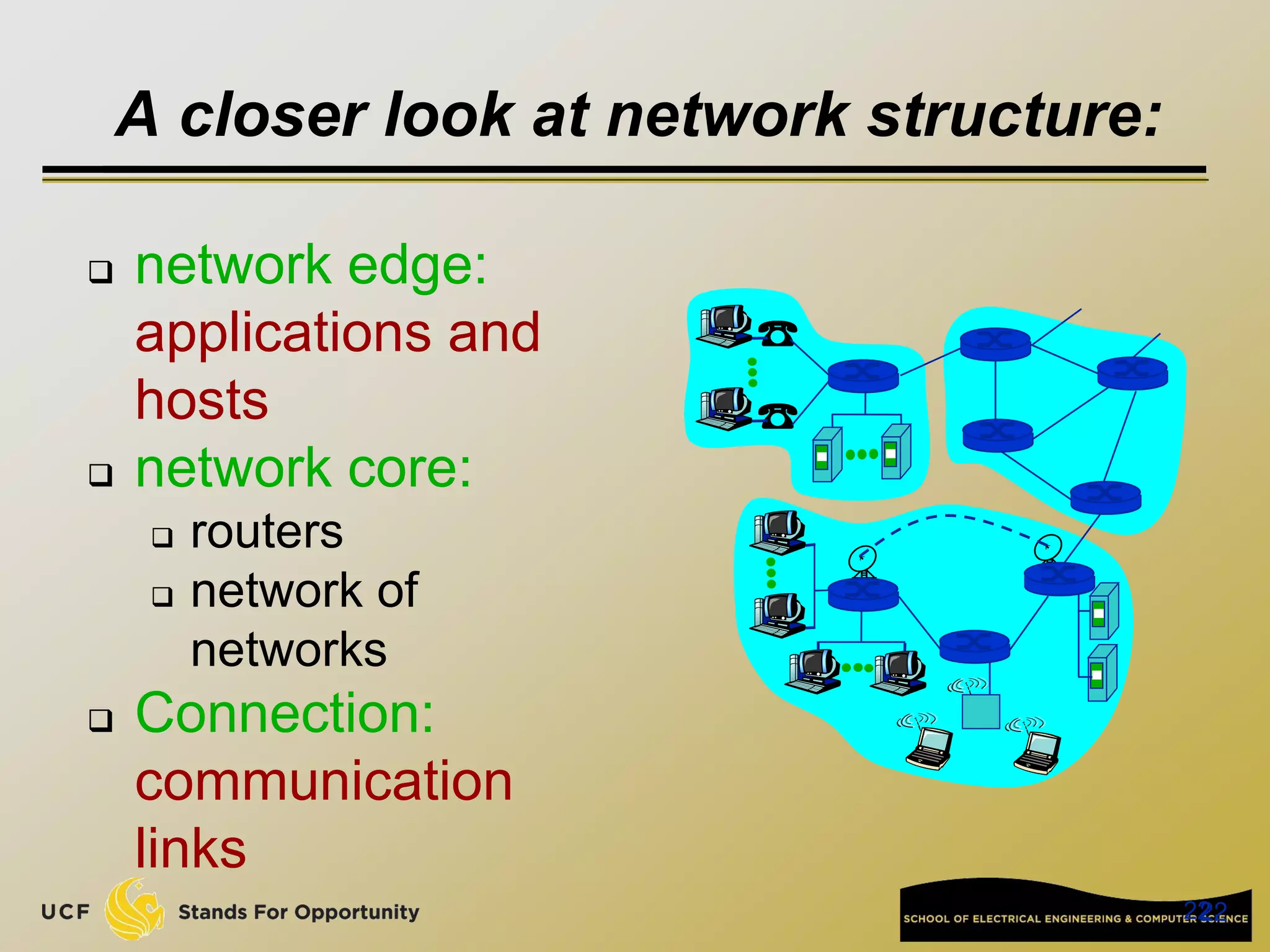

22. 22
22
A closer look at network structure:
network edge:
applications and
hosts
network core:
routers
network of
networks
Connection:
communication
links

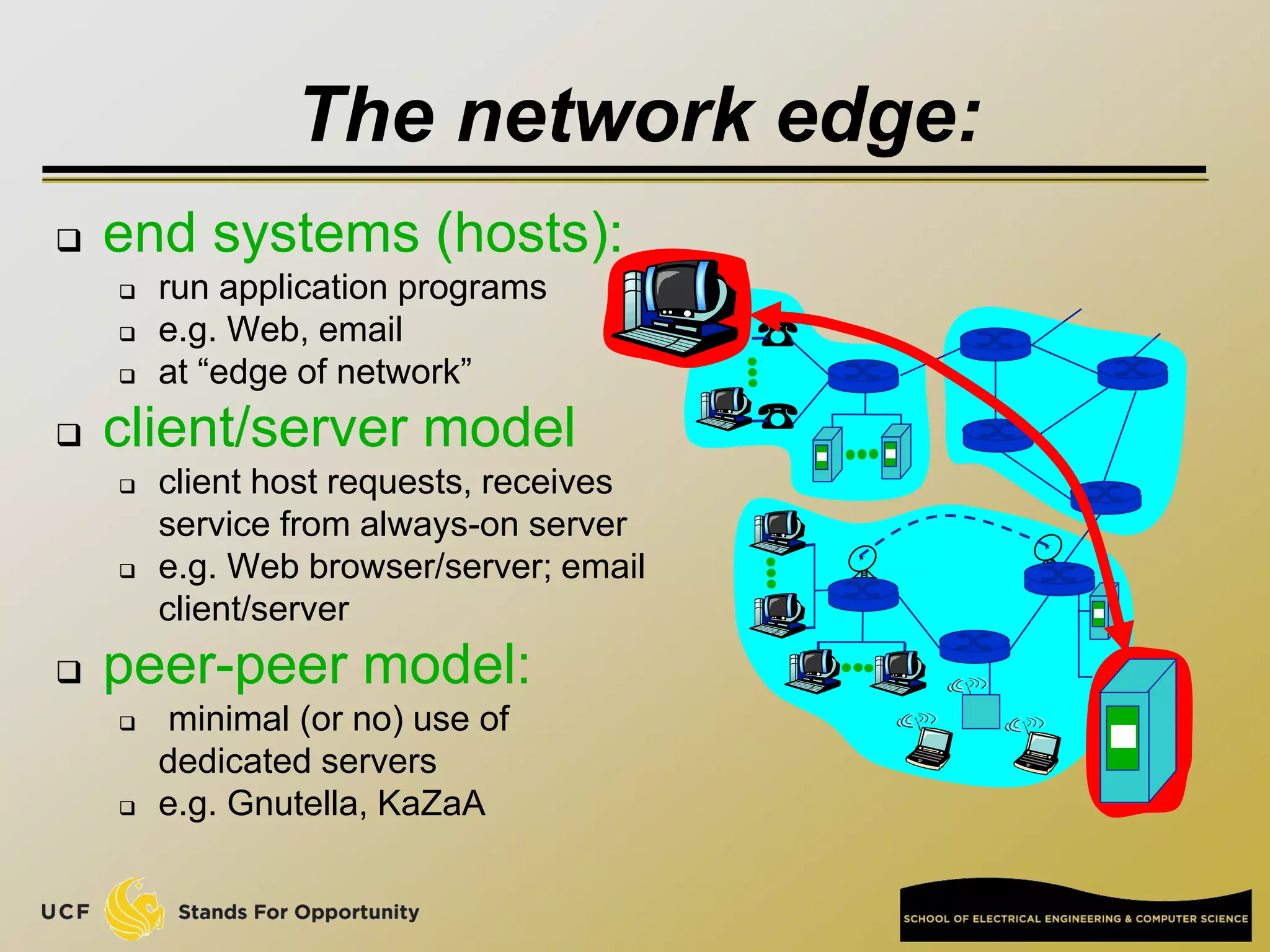

23. The network edge:
end systems (hosts):
run application programs
e.g. Web, email
at “edge of network”
client/server model
client host requests, receives
service from always-on server
e.g. Web browser/server; email
client/server
peer-peer model:
minimal (or no) use of
dedicated servers
e.g. Gnutella, KaZaA

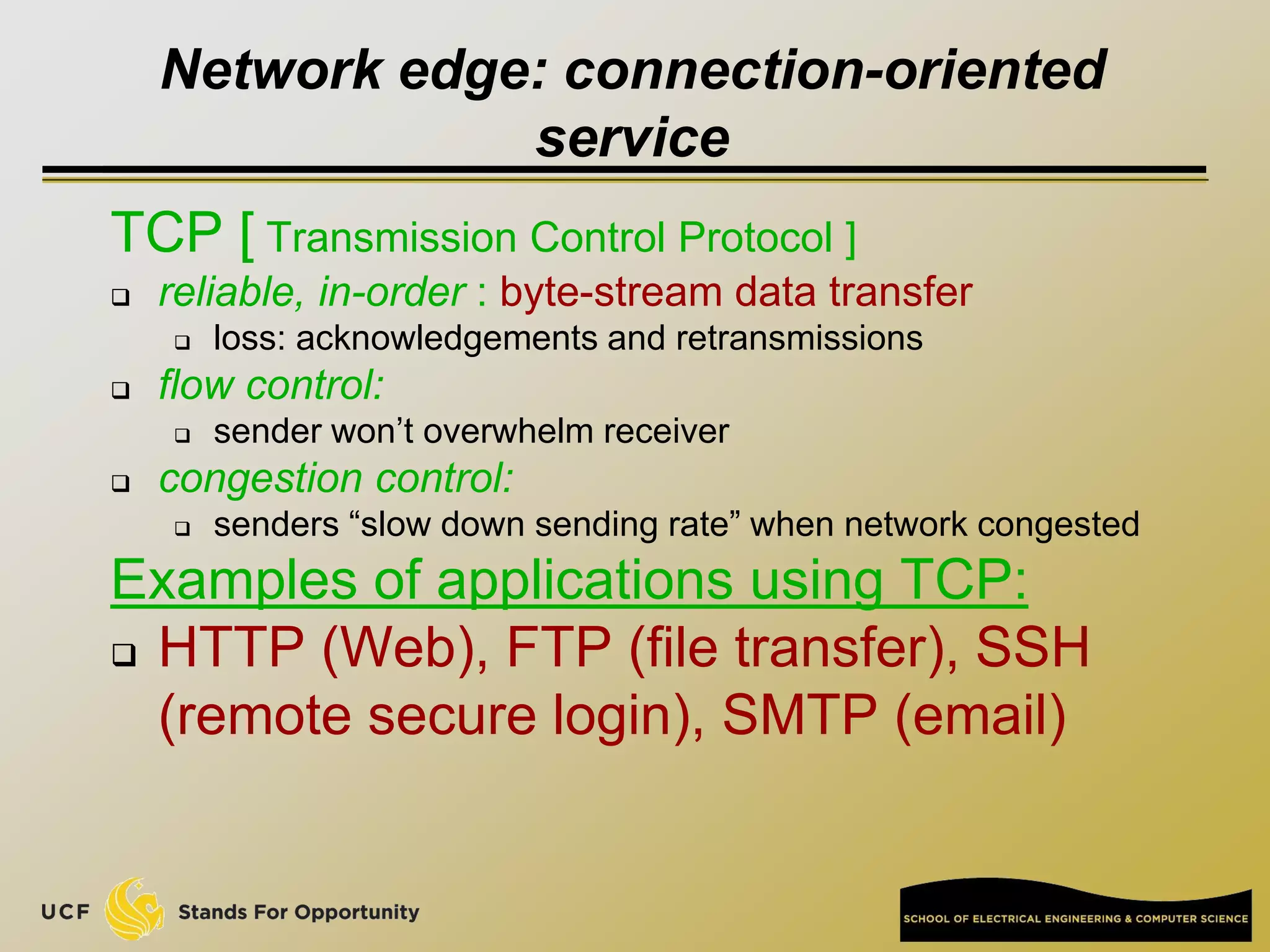

24. Network edge: connection-oriented
service
TCP [ Transmission Control Protocol ]
reliable, in-order : byte-stream data transfer
loss: acknowledgements and retransmissions
flow control:
sender won’t overwhelm receiver
congestion control:
senders “slow down sending rate” when network congested
Examples of applications using TCP:
HTTP (Web), FTP (file transfer), SSH
(remote secure login), SMTP (email)

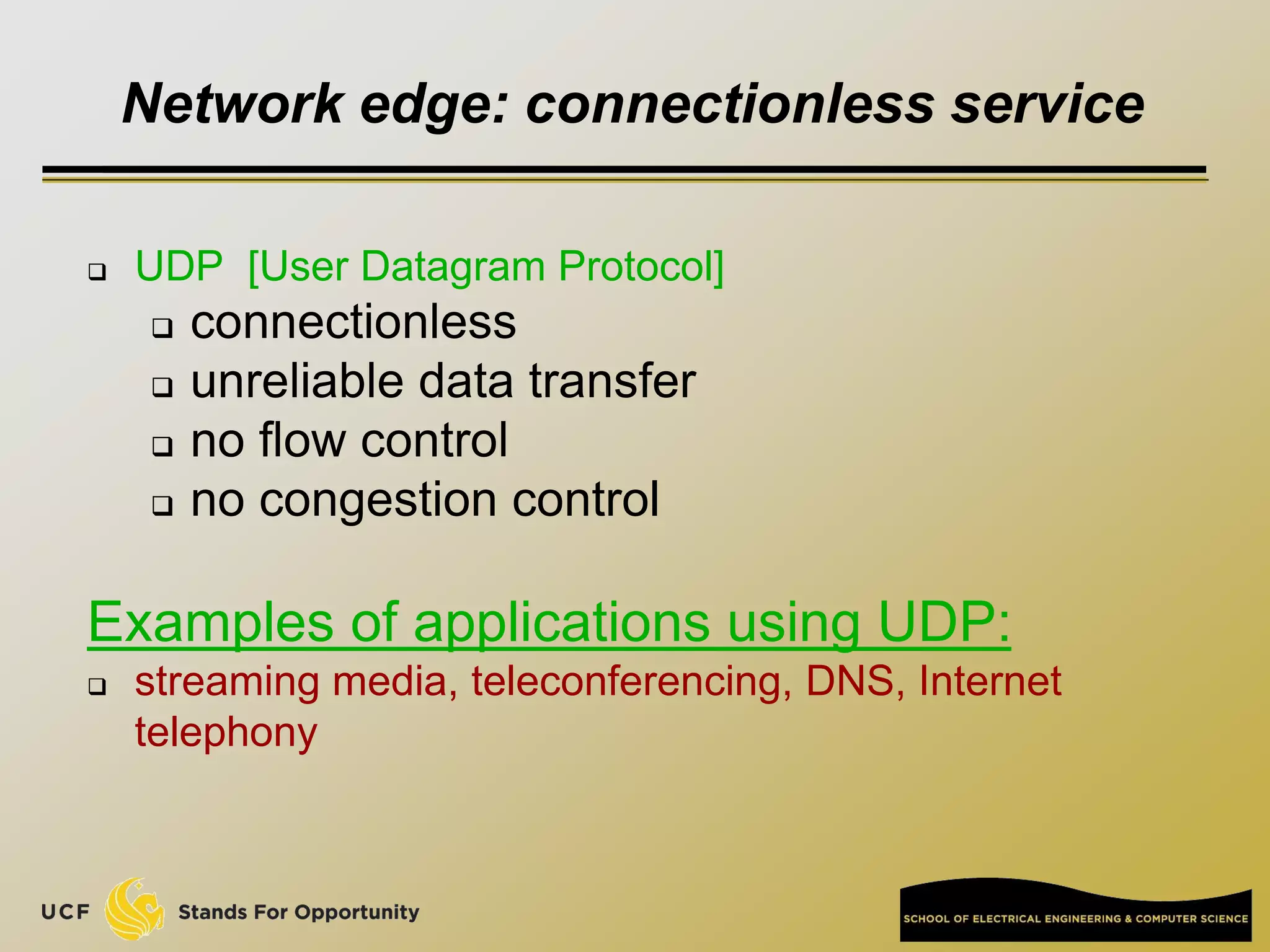

25. Network edge: connectionless service
UDP [User Datagram Protocol]
connectionless
unreliable data transfer
no flow control
no congestion control
Examples of applications using UDP:
streaming media, teleconferencing, DNS, Internet
telephony

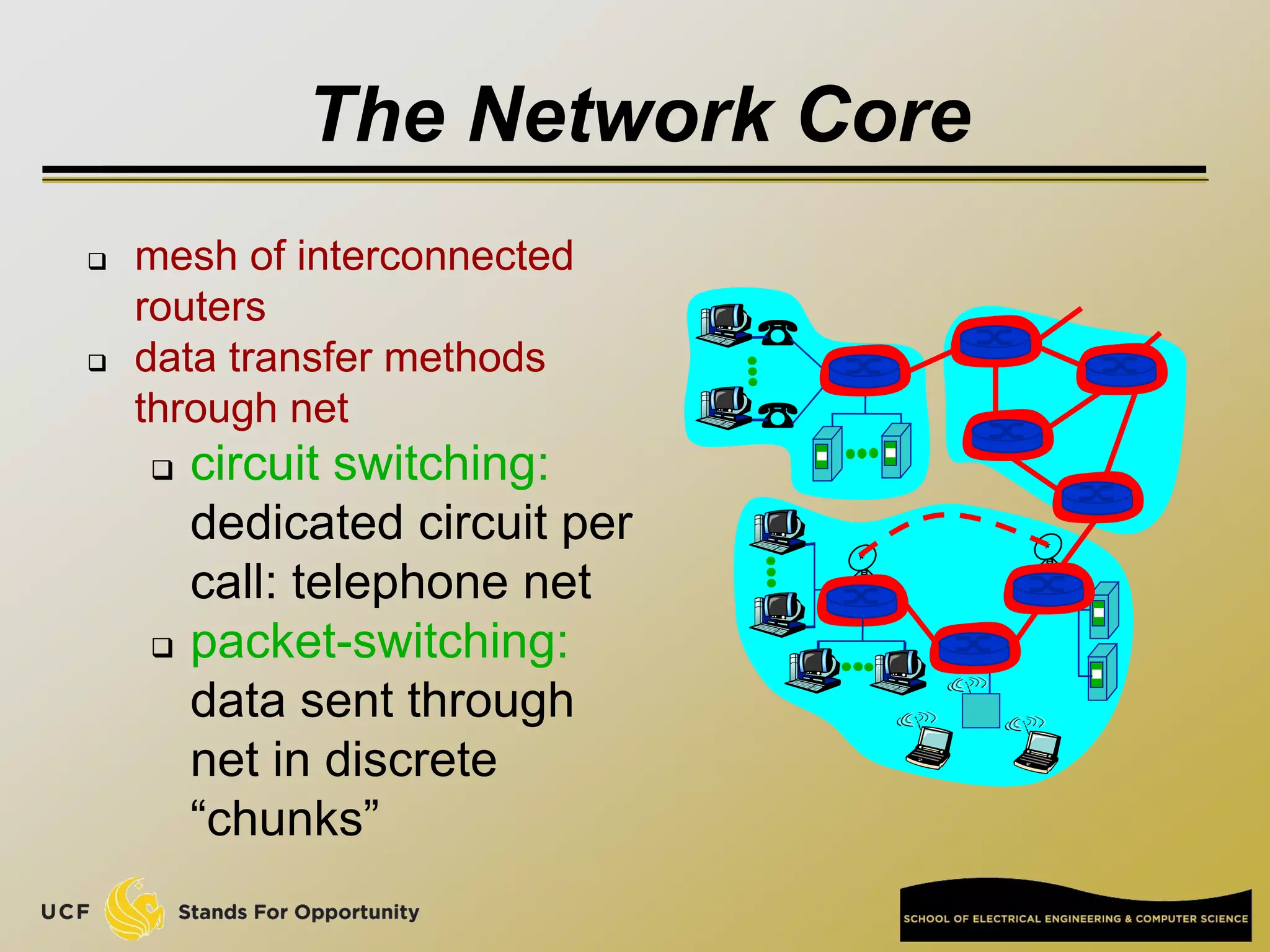

26. The Network Core
mesh of interconnected
routers
data transfer methods
through net
circuit switching:
dedicated circuit per
call: telephone net
packet-switching:
data sent through
net in discrete
“chunks”

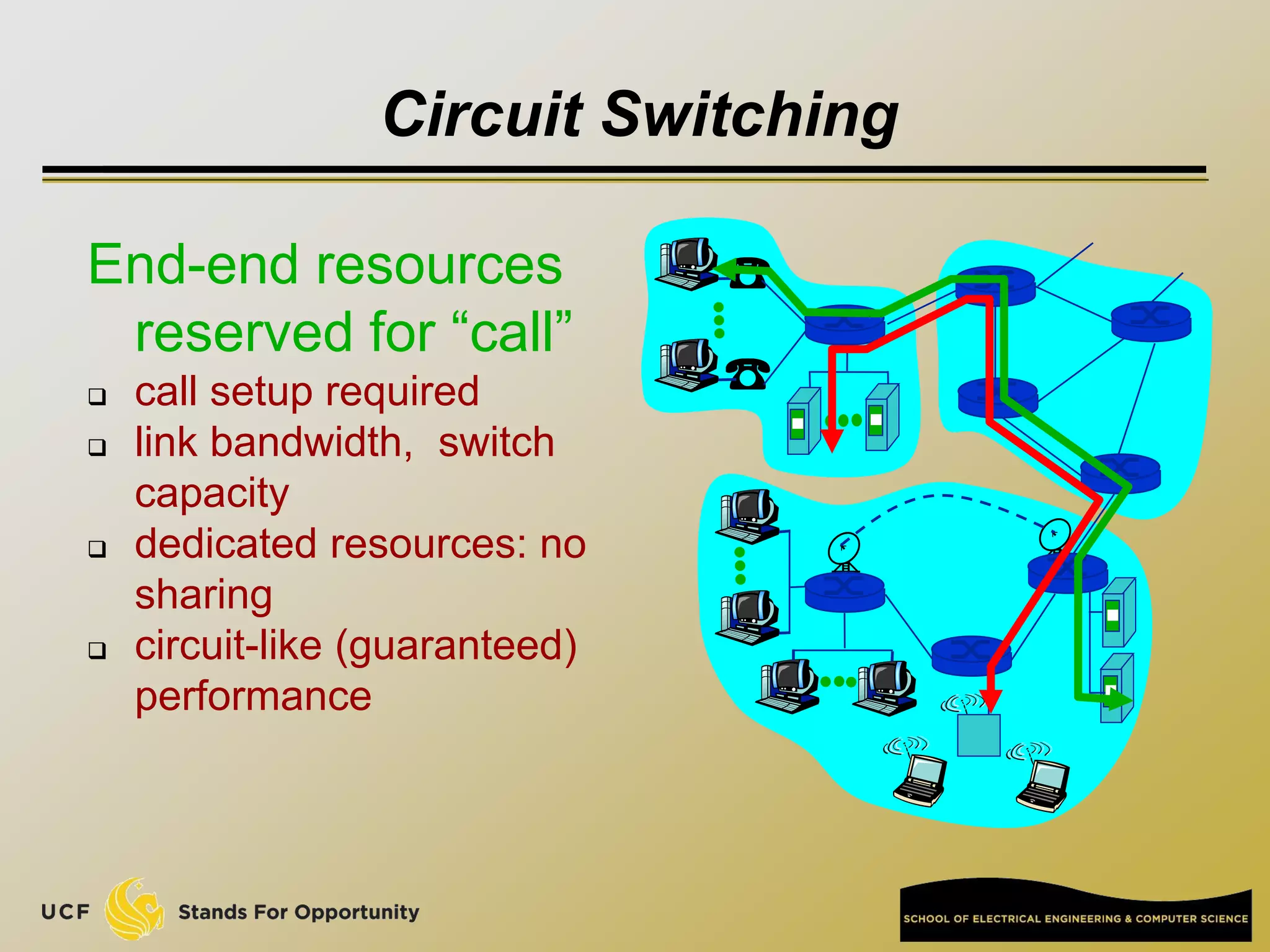

27. Circuit Switching
End-end resources
reserved for “call”
call setup required
link bandwidth, switch
capacity
dedicated resources: no
sharing
circuit-like (guaranteed)
performance

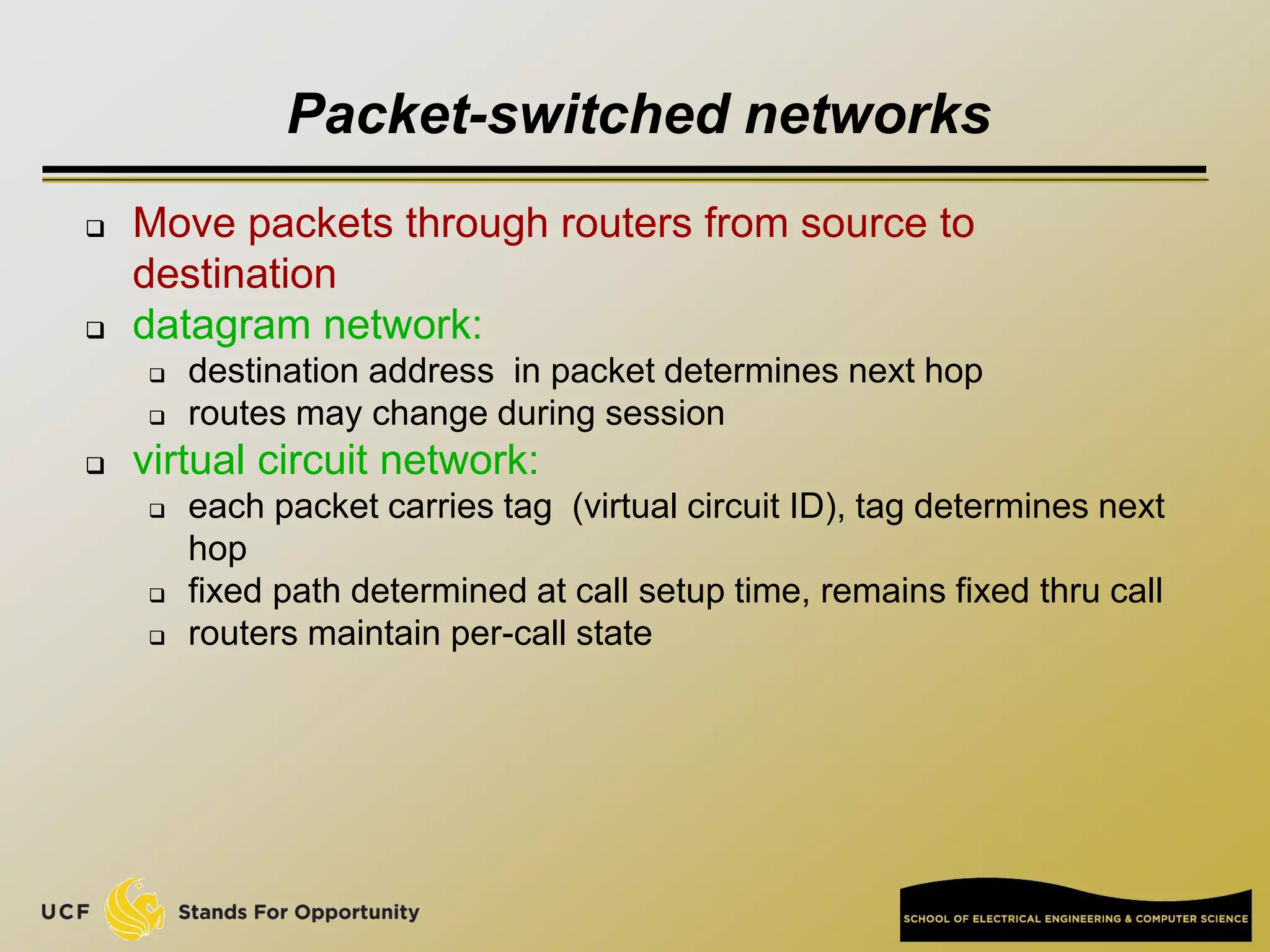

28. Packet-switched networks
Move packets through routers from source to
destination
datagram network:
destination address in packet determines next hop
routes may change during session
virtual circuit network:
each packet carries tag (virtual circuit ID), tag determines next
hop
fixed path determined at call setup time, remains fixed thru call
routers maintain per-call state

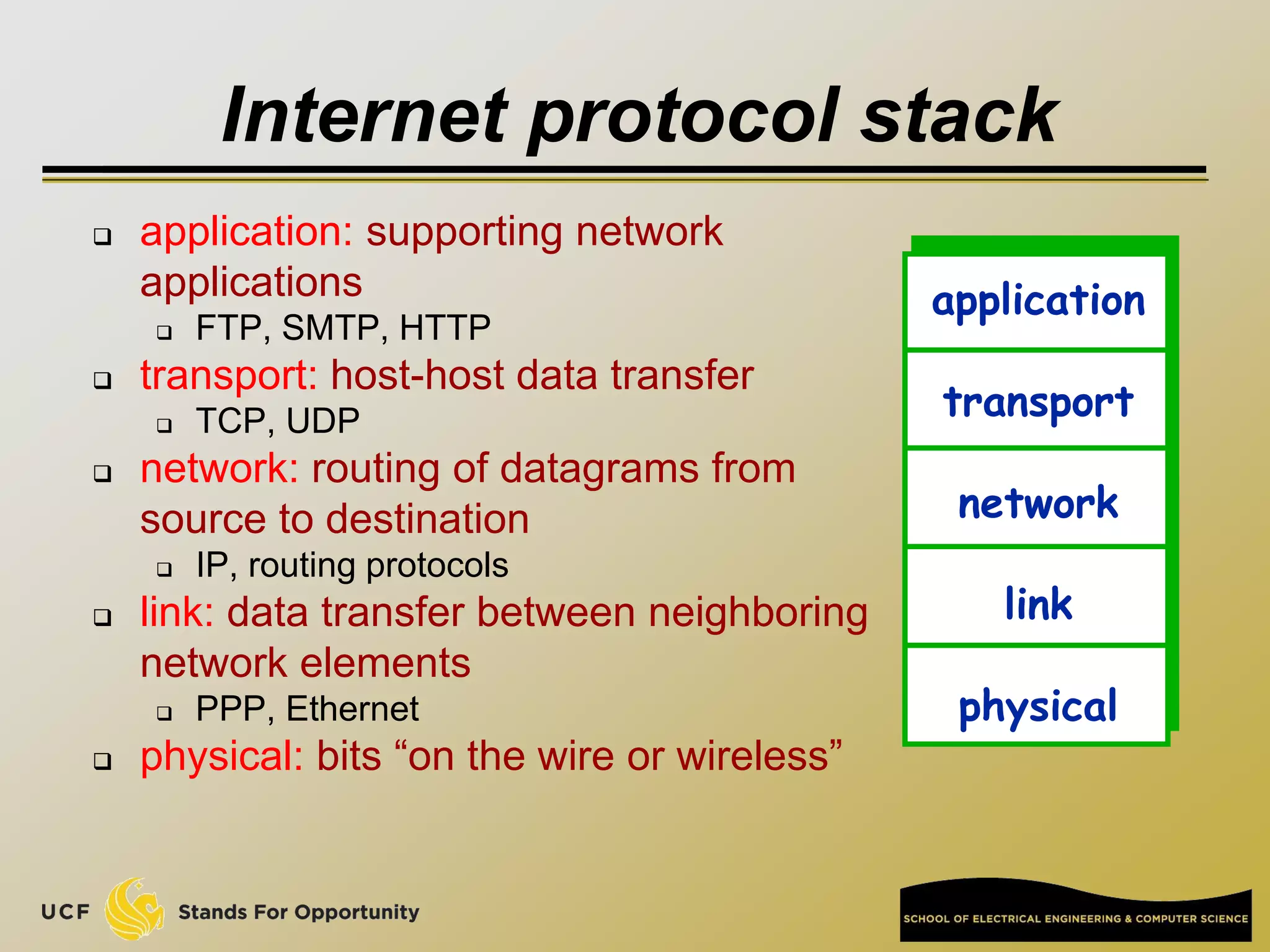

29. Internet protocol stack
application: supporting network
applications
FTP, SMTP, HTTP
transport: host-host data transfer
TCP, UDP
network: routing of datagrams from
source to destination
IP, routing protocols
link: data transfer between neighboring
network elements
PPP, Ethernet
physical: bits “on the wire or wireless”
application
transport
network
link
physical

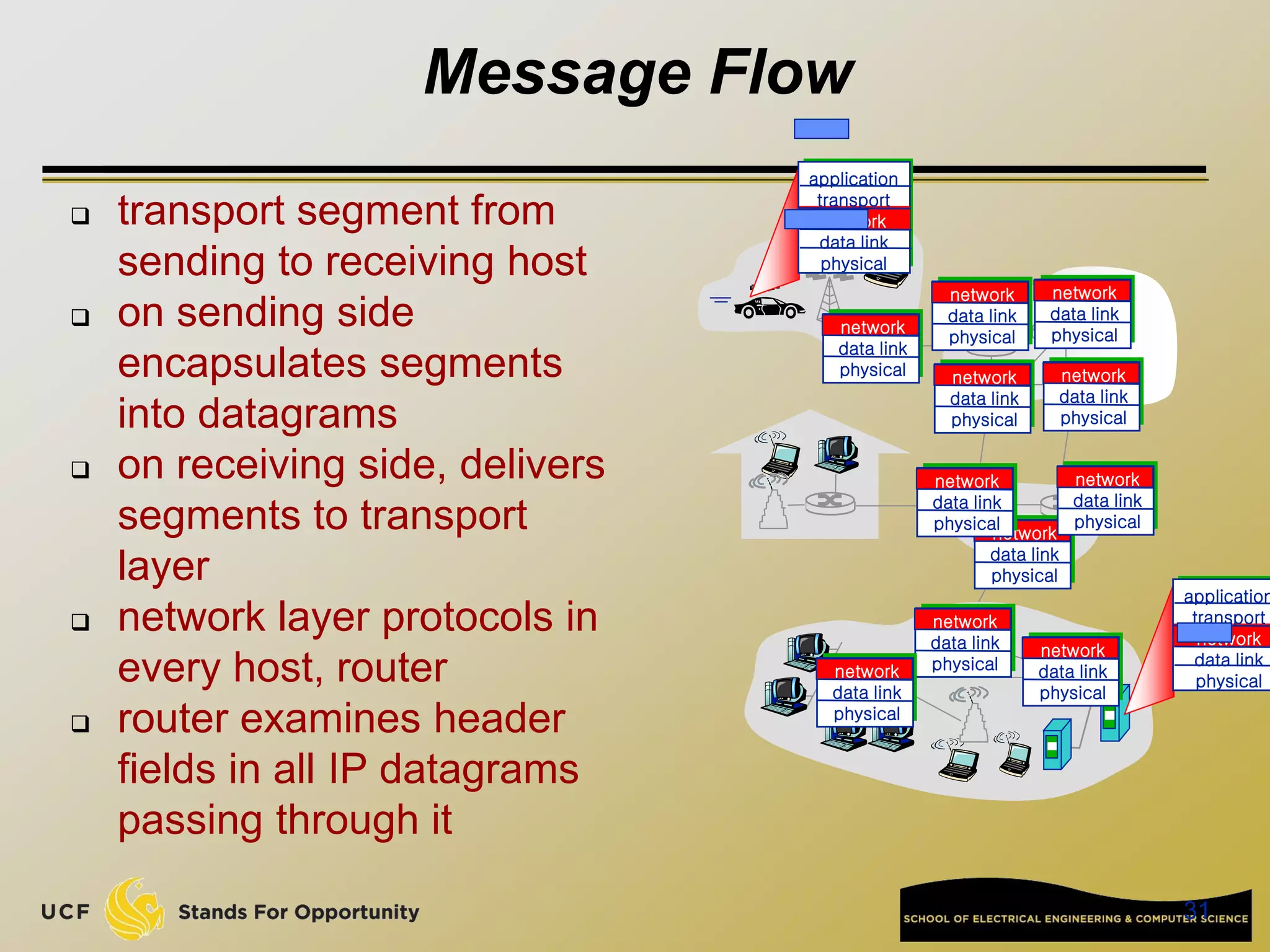

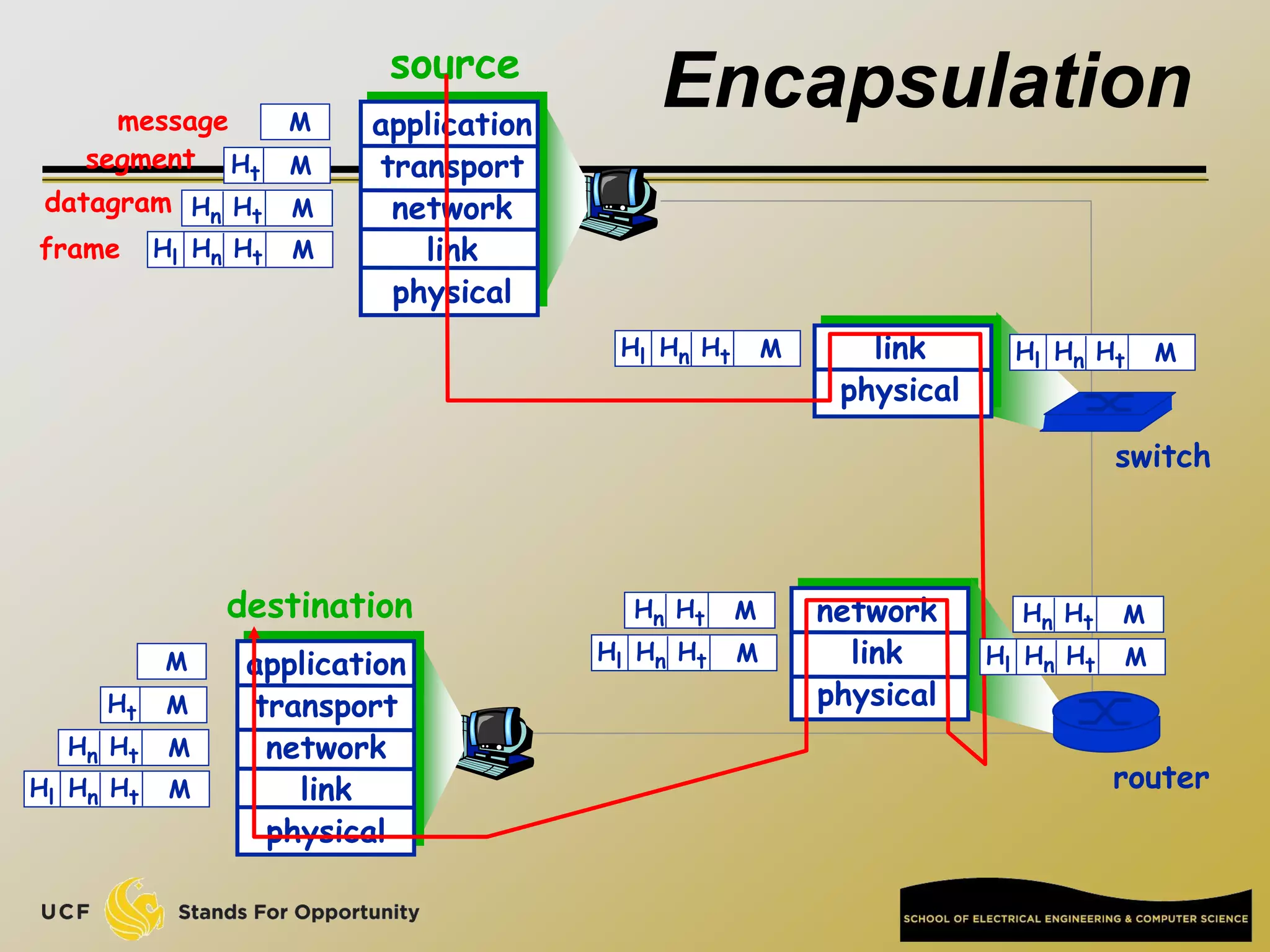

31. Message Flow
transport segment from
sending to receiving host
on sending side
encapsulates segments
into datagrams
on receiving side, delivers
segments to transport
layer
network layer protocols in
every host, router
router examines header
fields in all IP datagrams
passing through it
application
transport
network
data link
physical
application
transport
network
data link
physical
network
data link
physical network
data link
physical
network
data link
physical
network
data link
physical
network
data link
physical
network
data link
physical
network
data link
physical
network
data link
physical
network
data link
physical
network
data link
physical
network
data link
physical
31

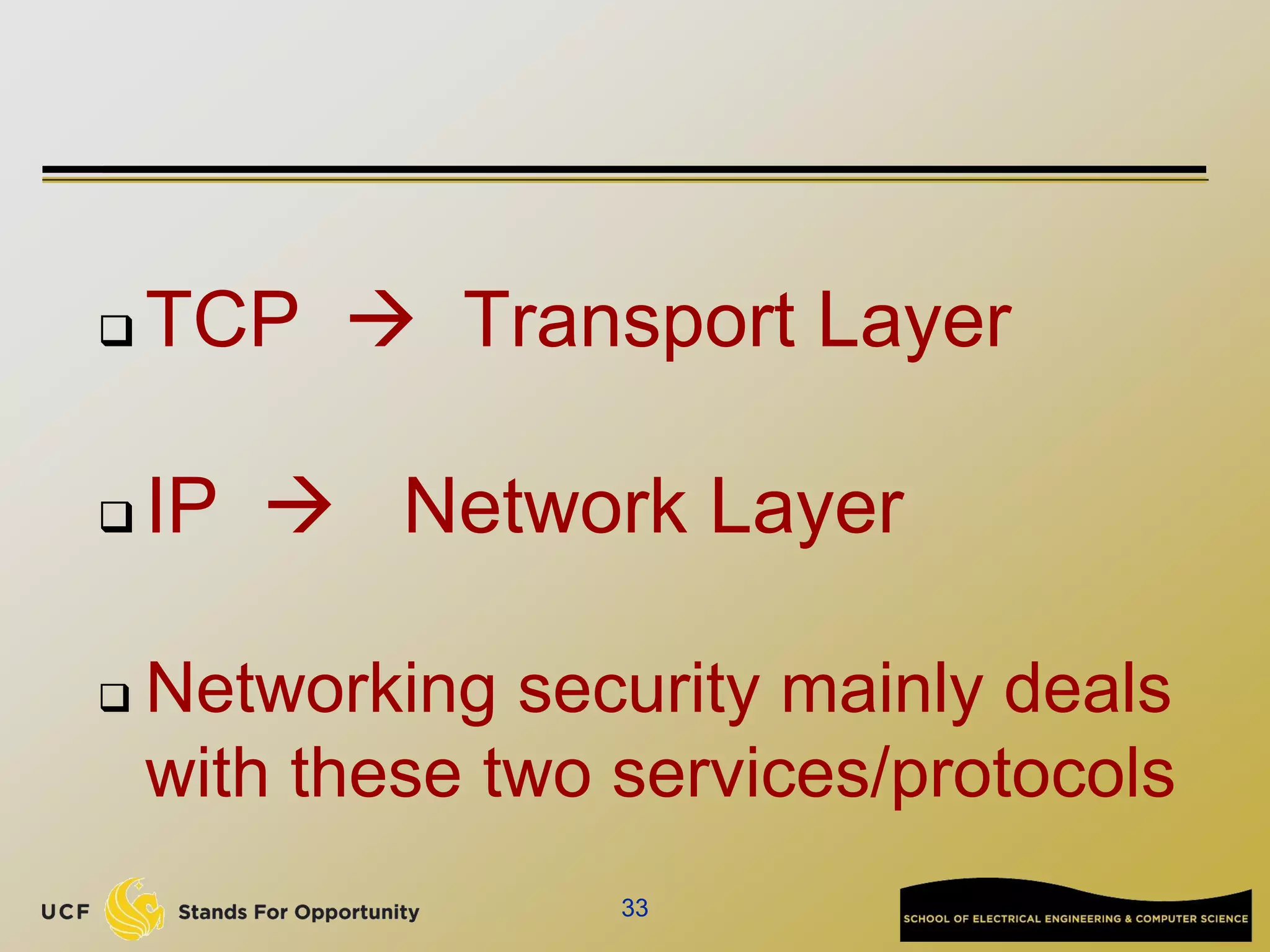

33. TCP Transport Layer
IP Network Layer
Networking security mainly deals
with these two services/protocols
33

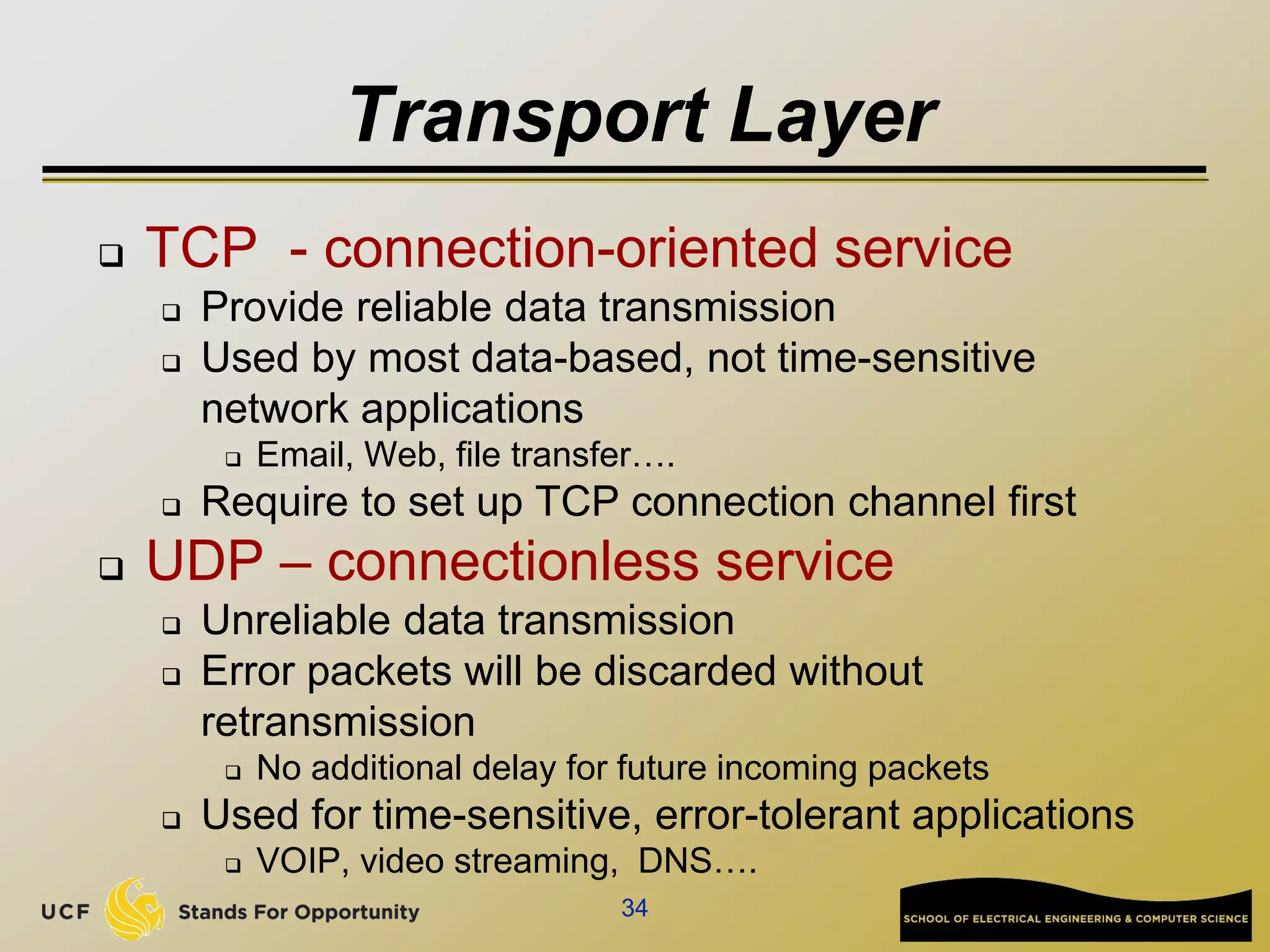

34. Transport Layer
TCP - connection-oriented service
Provide reliable data transmission
Used by most data-based, not time-sensitive
network applications
Email, Web, file transfer….
Require to set up TCP connection channel first
UDP – connectionless service
Unreliable data transmission
Error packets will be discarded without
retransmission
No additional delay for future incoming packets
Used for time-sensitive, error-tolerant applications
VOIP, video streaming, DNS….
34

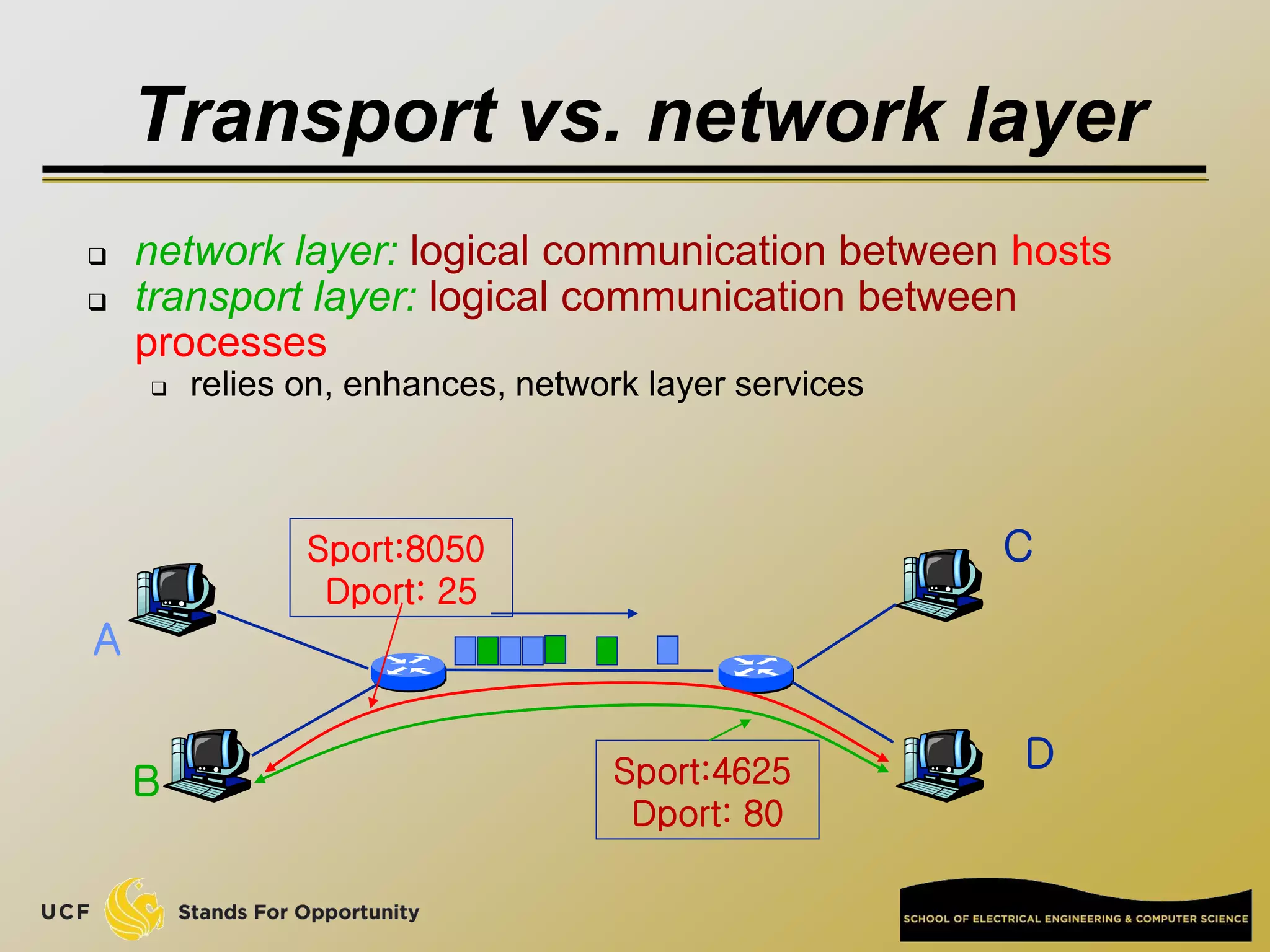

35. Transport vs. network layer
network layer: logical communication between hosts
transport layer: logical communication between
processes
relies on, enhances, network layer services
A
B
C
D
Sport:4625
Dport: 80
Sport:8050
Dport: 25

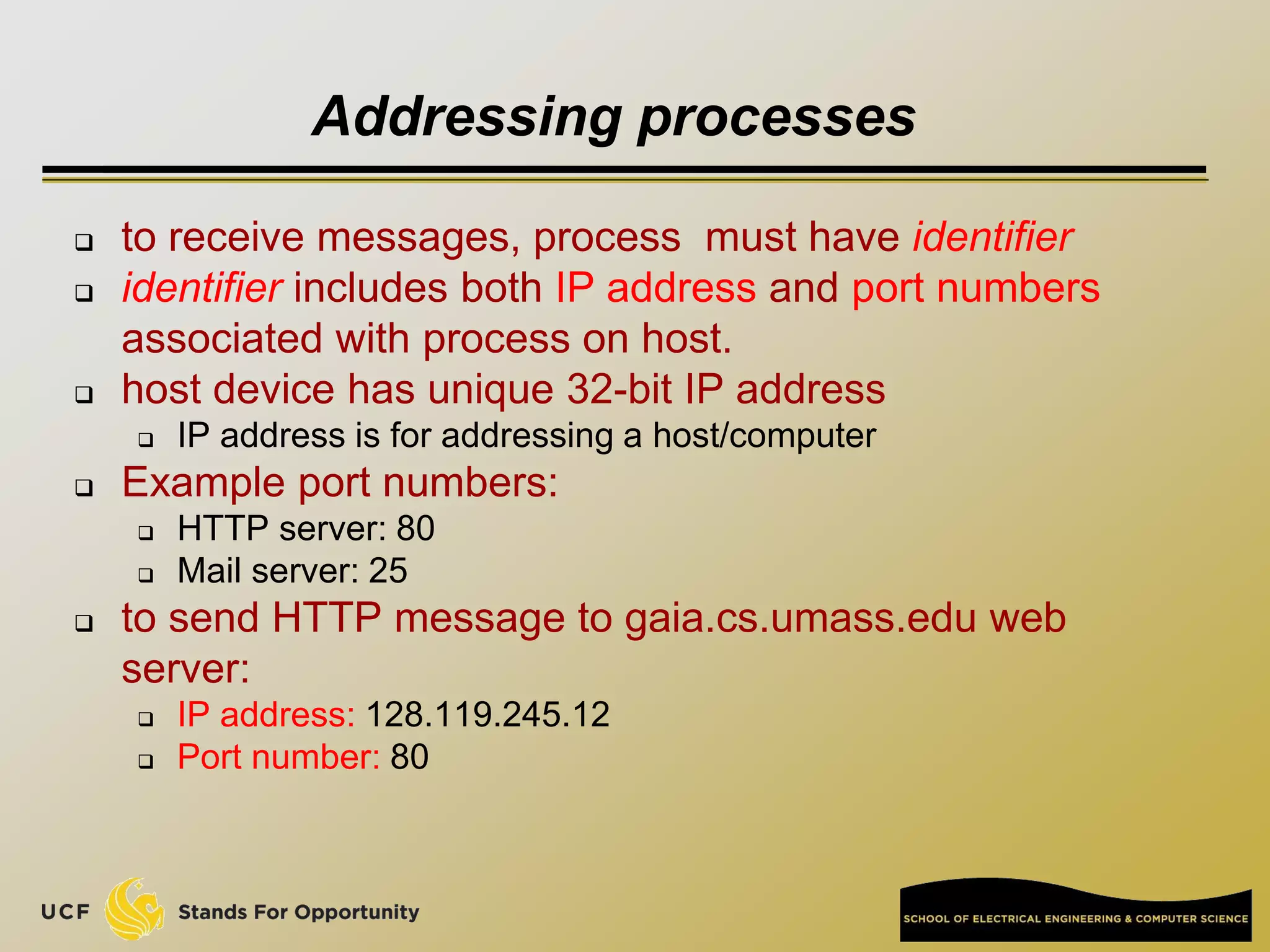

36. Addressing processes
to receive messages, process must have identifier
identifier includes both IP address and port numbers
associated with process on host.
host device has unique 32-bit IP address
IP address is for addressing a host/computer
Example port numbers:
HTTP server: 80
Mail server: 25
to send HTTP message to gaia.cs.umass.edu web
server:
IP address: 128.119.245.12
Port number: 80

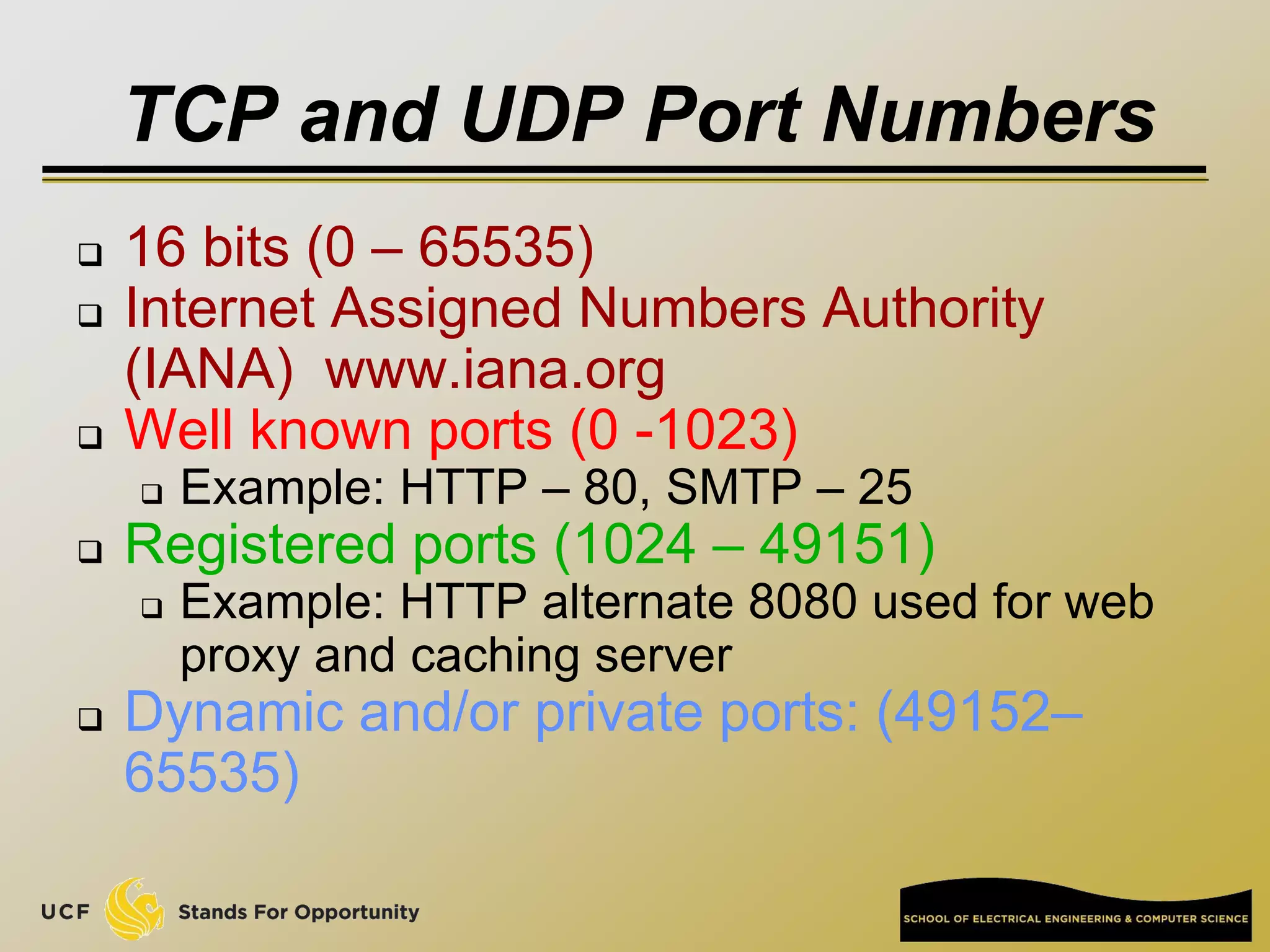

37. TCP and UDP Port Numbers
16 bits (0 – 65535)
Internet Assigned Numbers Authority
(IANA) www.iana.org
Well known ports (0 -1023)
Example: HTTP – 80, SMTP – 25
Registered ports (1024 – 49151)
Example: HTTP alternate 8080 used for web
proxy and caching server
Dynamic and/or private ports: (49152–
65535)

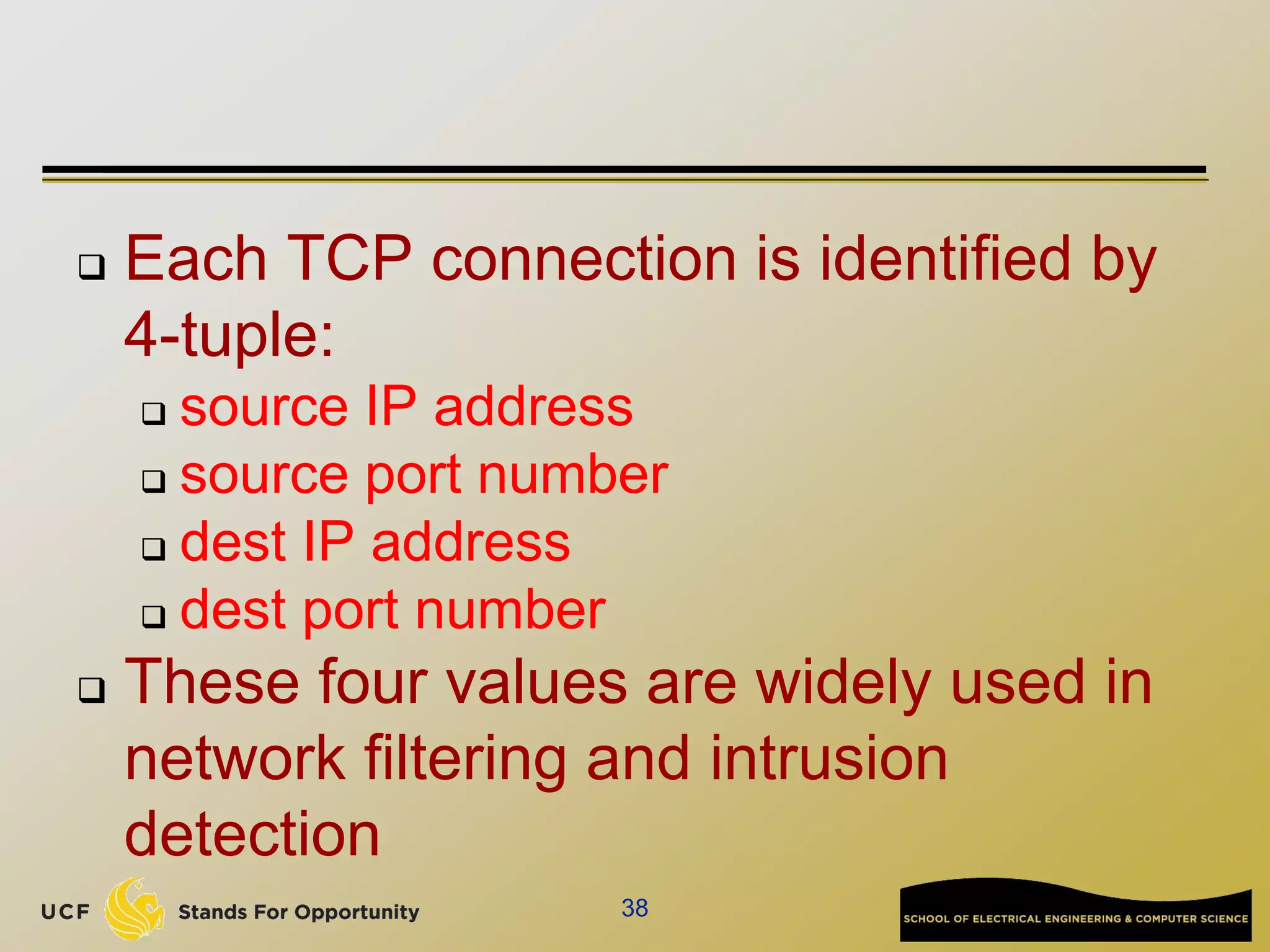

38. Each TCP connection is identified by
4-tuple:
source IP address
source port number
dest IP address
dest port number
These four values are widely used in
network filtering and intrusion
detection
38

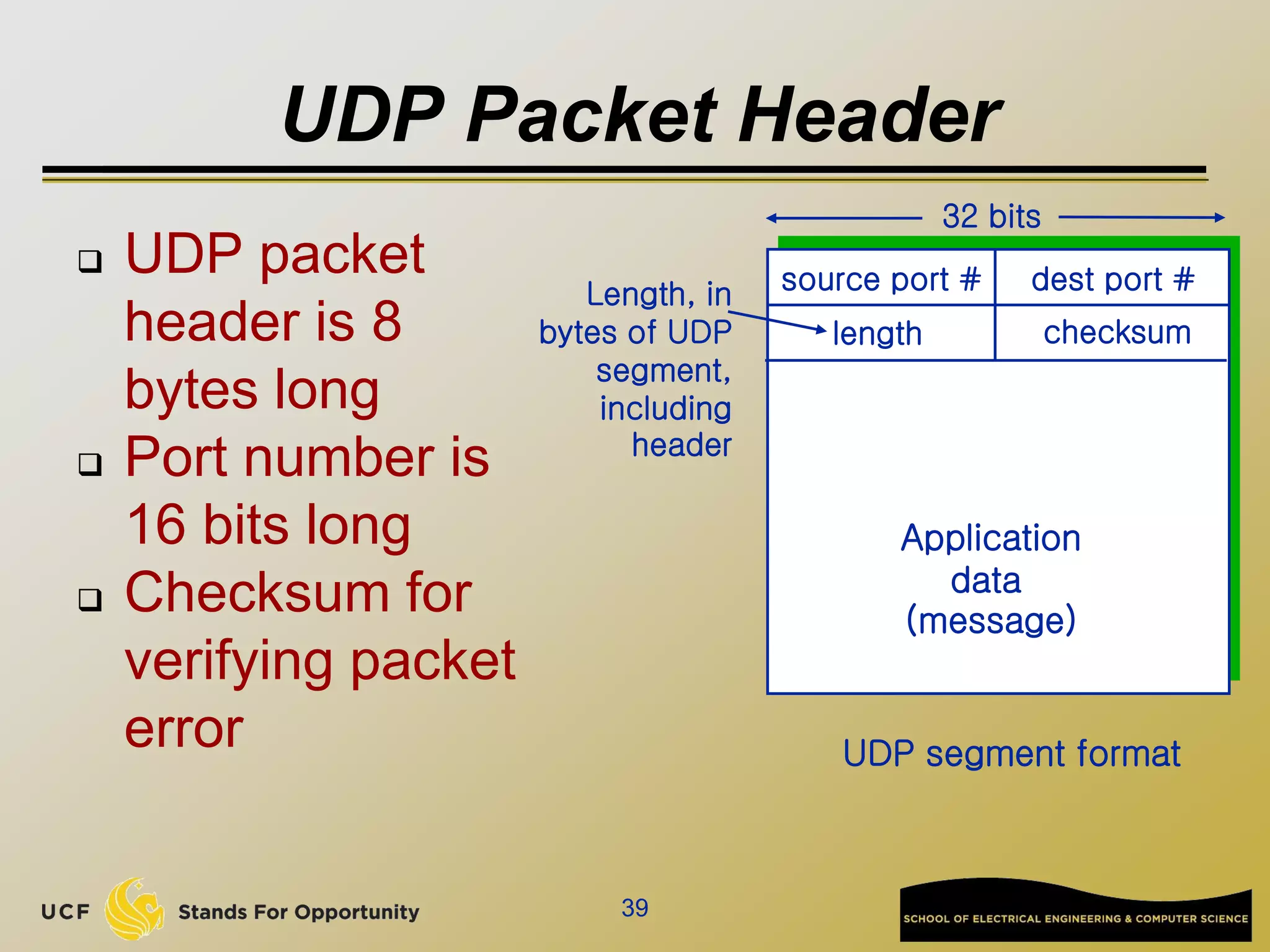

39. UDP Packet Header
UDP packet
header is 8
bytes long
Port number is
16 bits long
Checksum for
verifying packet
error
39
source port # dest port #
32 bits
Application
data
(message)
UDP segment format
length checksum
Length, in
bytes of UDP
segment,
including
header

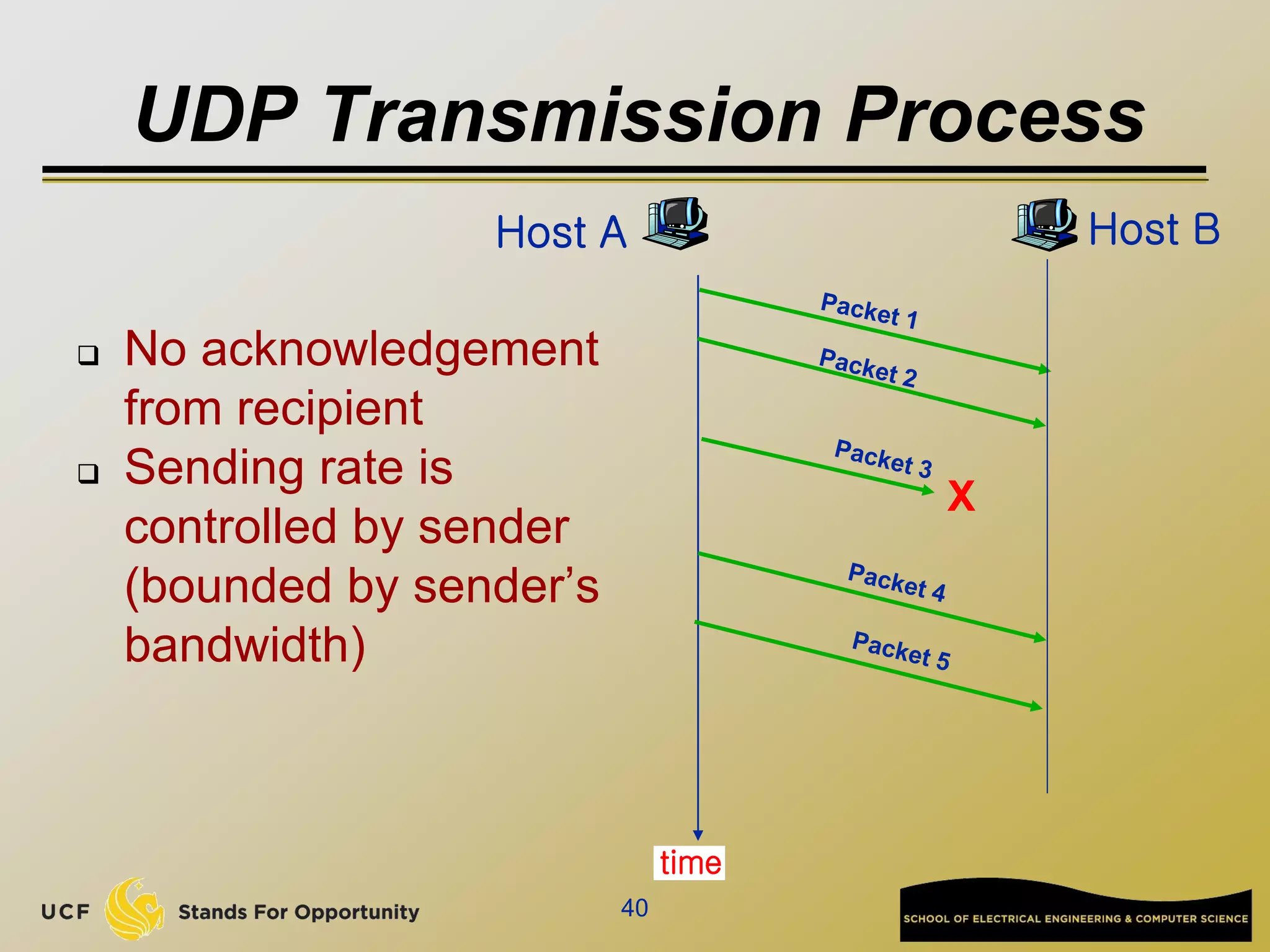

40. UDP Transmission Process
40
Host A
time
Host B
X
No acknowledgement
from recipient
Sending rate is
controlled by sender
(bounded by sender’s
bandwidth)

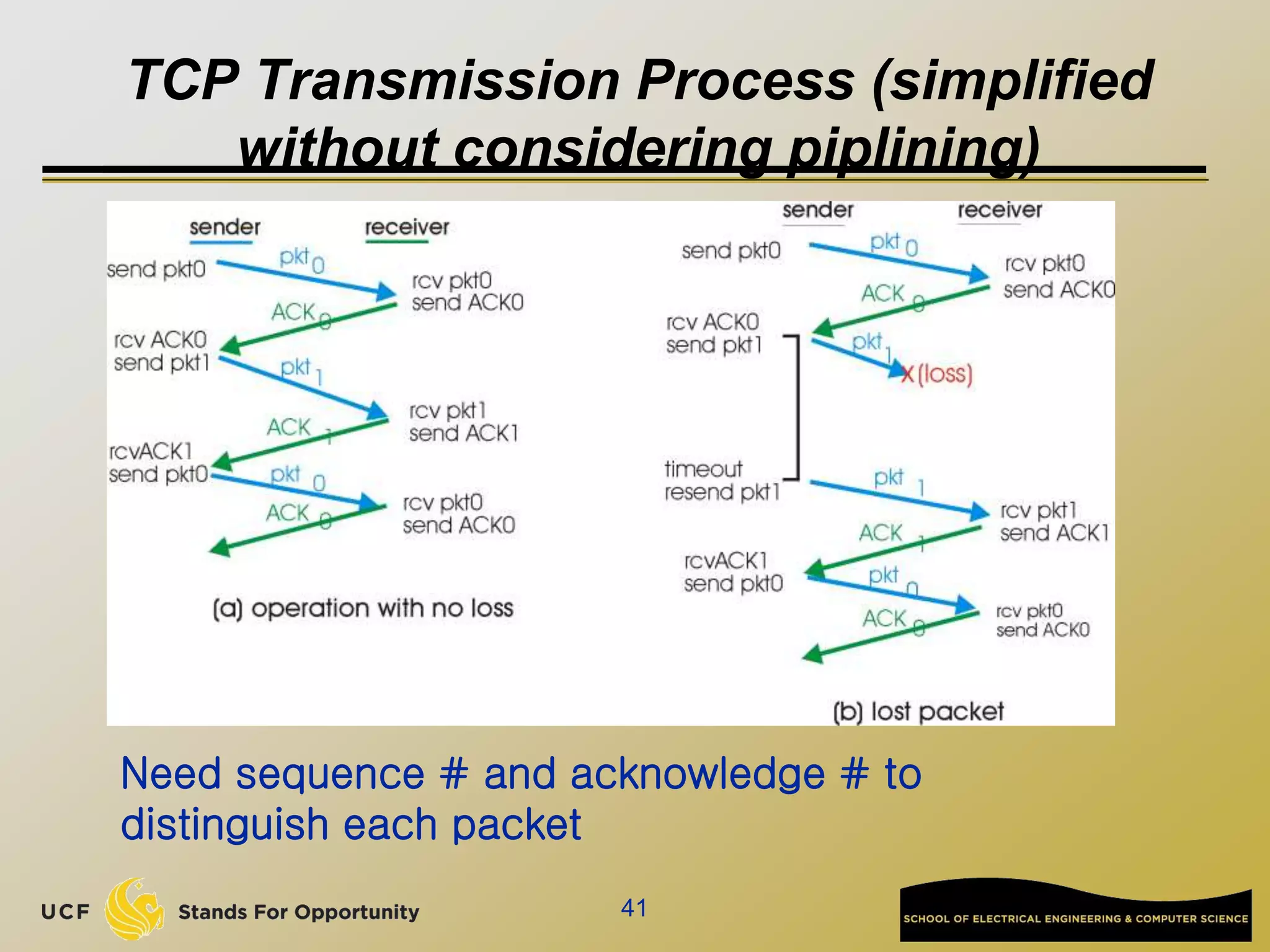

41. TCP Transmission Process (simplified
without considering piplining)
41
Need sequence # and acknowledge # to
distinguish each packet

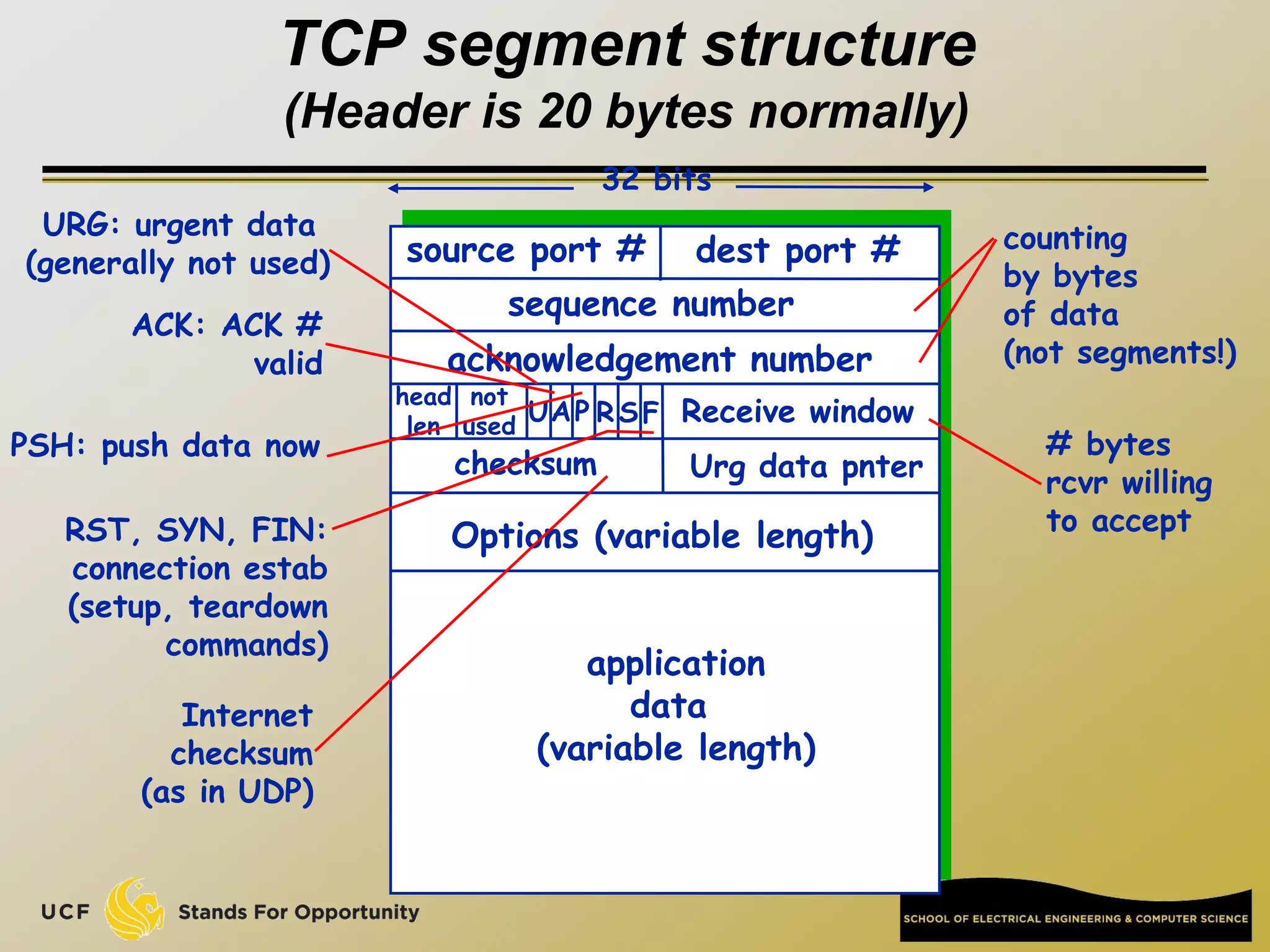

42. TCP segment structure
(Header is 20 bytes normally)
source port # dest port #
32 bits
application
data
(variable length)
sequence number
acknowledgement number
Receive window
Urg data pnter
checksum
F
S
R
P
A
U
head
len
not
used
Options (variable length)
URG: urgent data
(generally not used)
ACK: ACK #
valid
PSH: push data now
RST, SYN, FIN:
connection estab
(setup, teardown
commands)
# bytes
rcvr willing
to accept
counting
by bytes
of data
(not segments!)
Internet
checksum
(as in UDP)

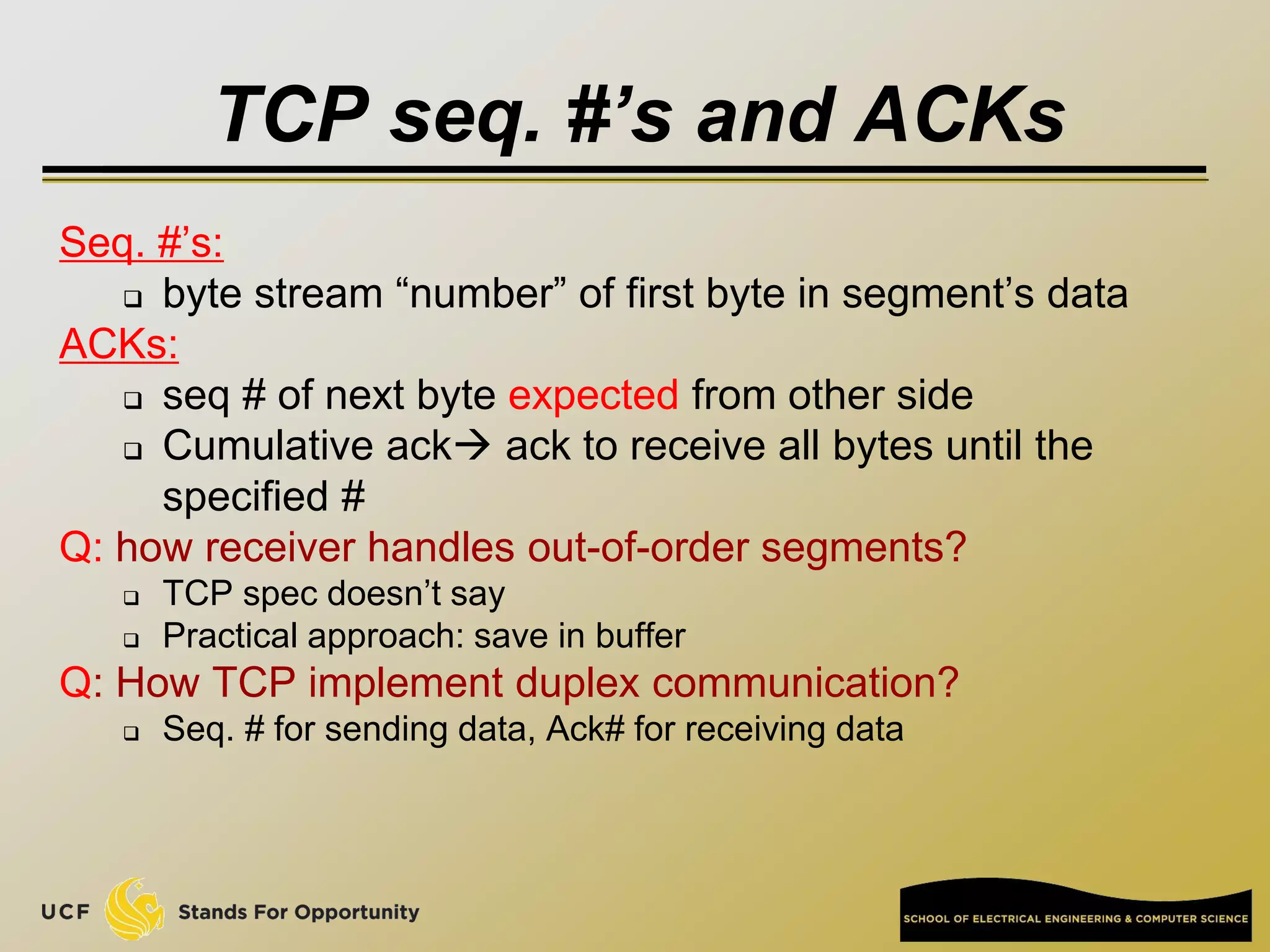

43. TCP seq. #’s and ACKs
Seq. #’s:
byte stream “number” of first byte in segment’s data
ACKs:
seq # of next byte expected from other side
Cumulative ack ack to receive all bytes until the
specified #
Q: how receiver handles out-of-order segments?
TCP spec doesn’t say
Practical approach: save in buffer
Q: How TCP implement duplex communication?
Seq. # for sending data, Ack# for receiving data

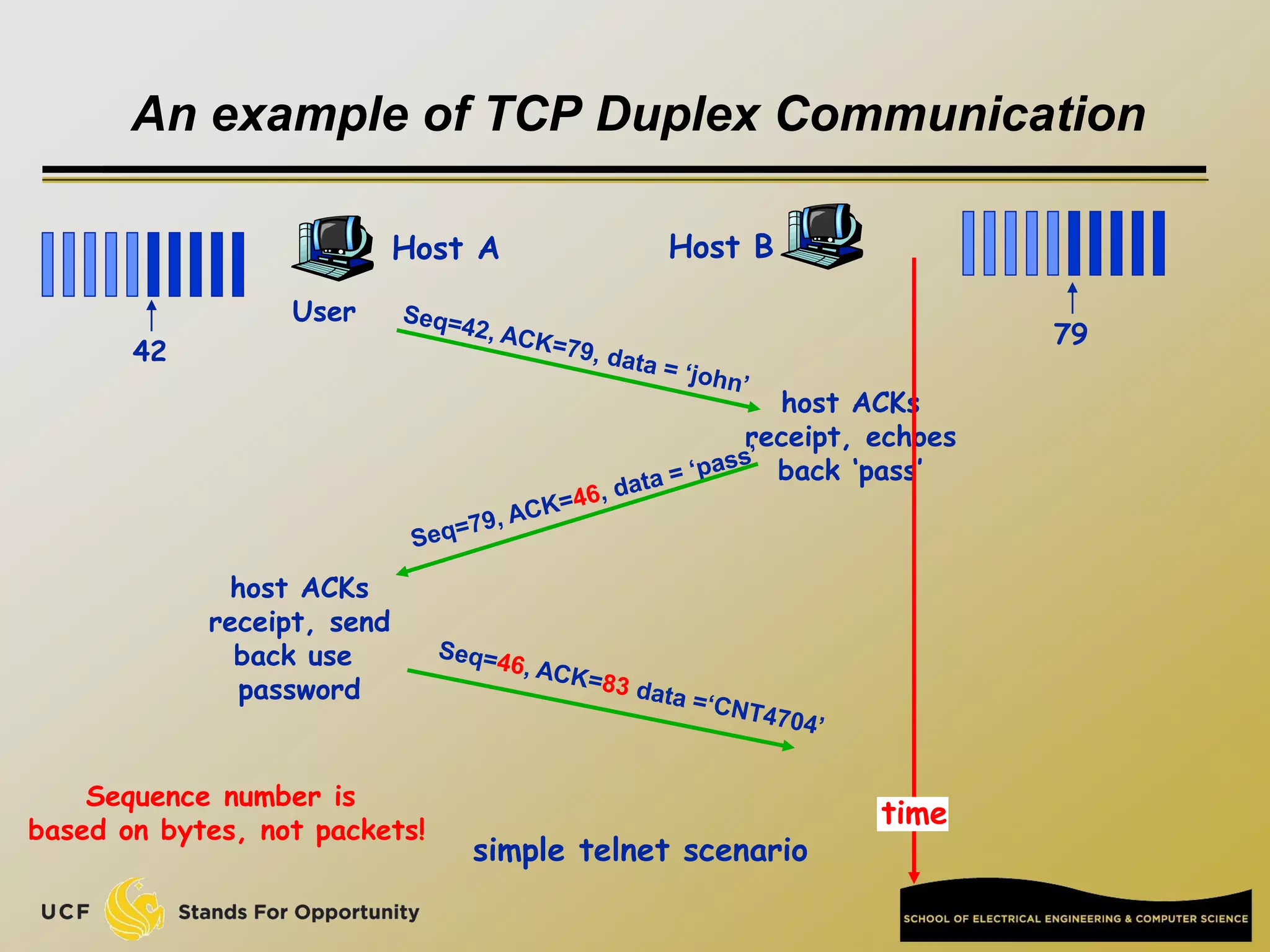

44. An example of TCP Duplex Communication
Host A Host B
User
host ACKs
receipt, send
back use
password
host ACKs
receipt, echoes
back ‘pass’
time
simple telnet scenario
42
79
Sequence number is
based on bytes, not packets!

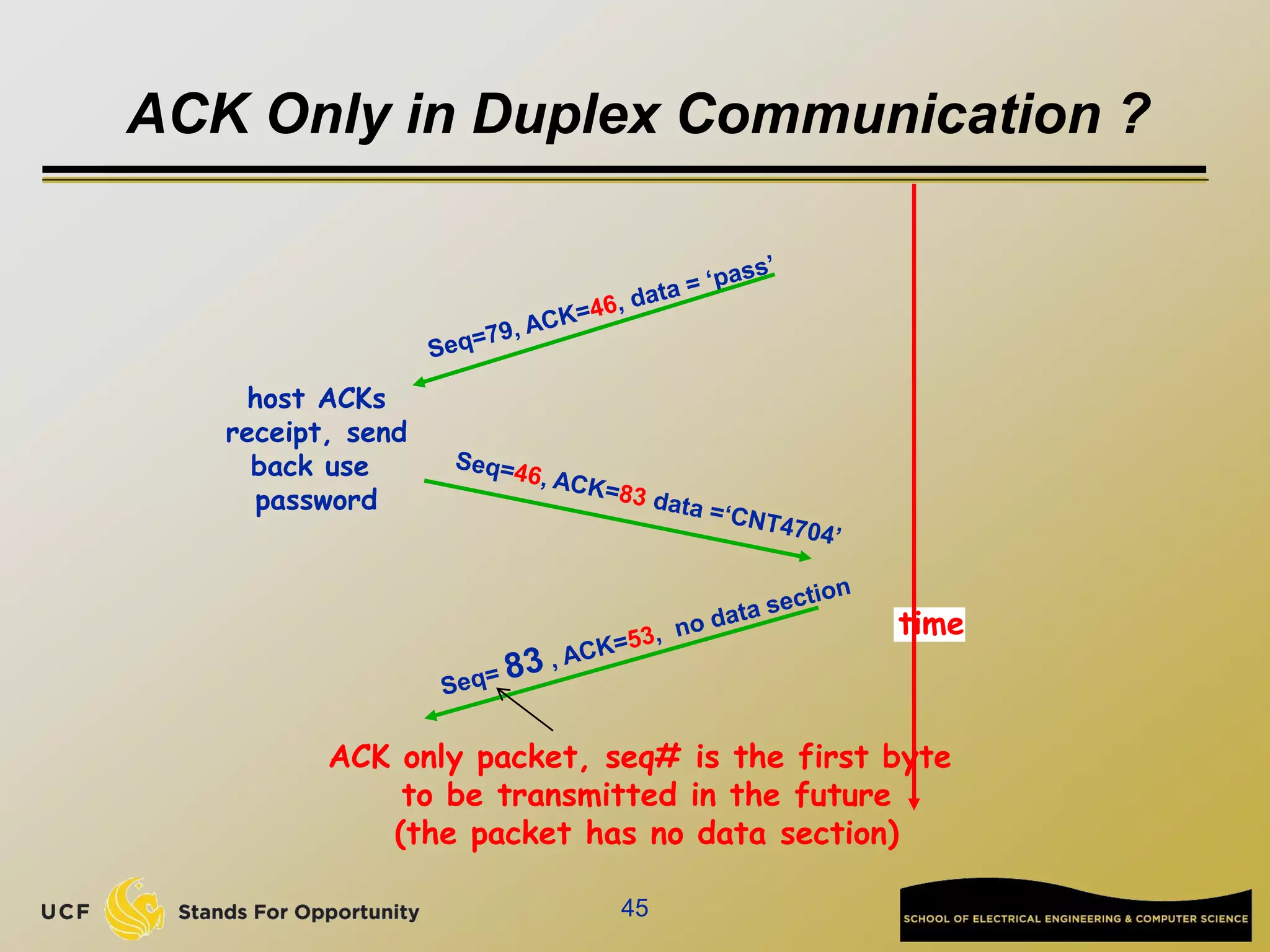

45. ACK Only in Duplex Communication ?
45
host ACKs
receipt, send
back use
password
time
ACK only packet, seq# is the first byte
to be transmitted in the future
(the packet has no data section)

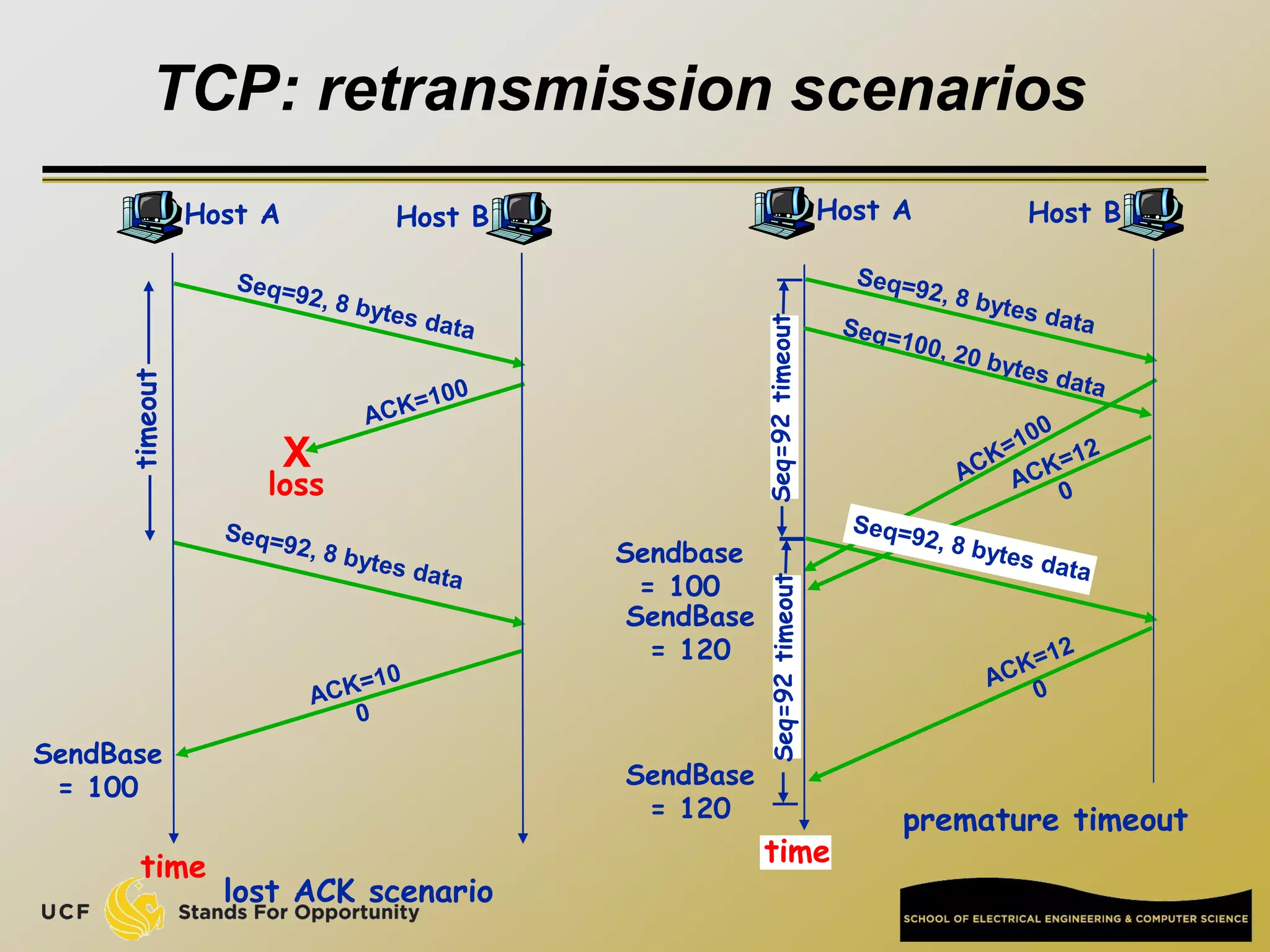

46. TCP: retransmission scenarios
Host A
time
premature timeout
Host B
Seq=92
timeout
Host A
loss
timeout
lost ACK scenario
Host B
X
time
Seq=92
timeout
SendBase
= 100
SendBase
= 120
SendBase
= 120
Sendbase
= 100

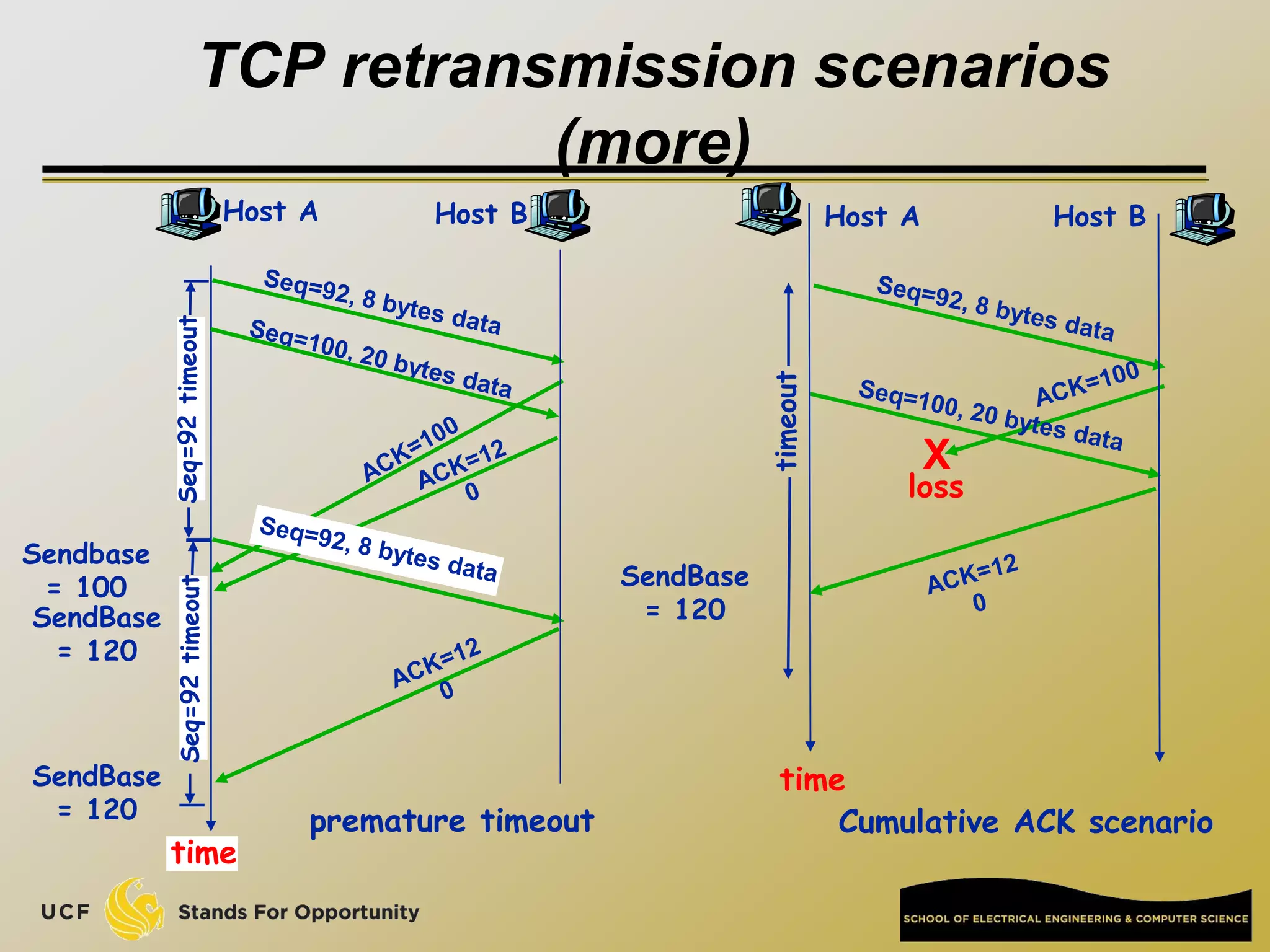

47. TCP retransmission scenarios
(more)
Host A
loss
timeout
Cumulative ACK scenario
Host B
X
time
SendBase
= 120
Host A
time
premature timeout
Host B
Seq=92
timeout
Seq=92
timeout
SendBase
= 120
SendBase
= 120
Sendbase
= 100

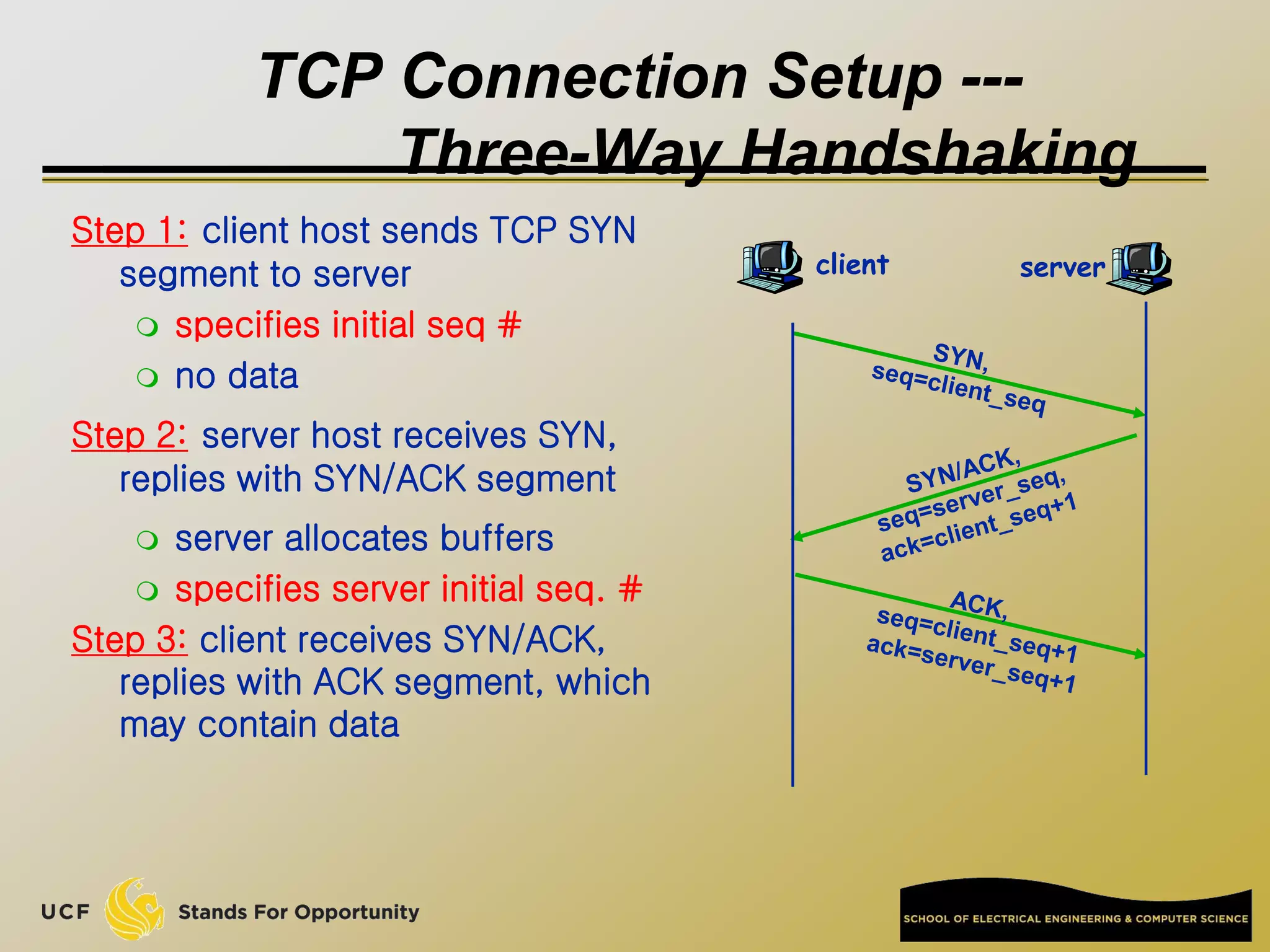

48. TCP Connection Setup ---
Three-Way Handshaking
Step 1: client host sends TCP SYN
segment to server
specifies initial seq #
no data
Step 2: server host receives SYN,
replies with SYN/ACK segment
server allocates buffers
specifies server initial seq. #
Step 3: client receives SYN/ACK,
replies with ACK segment, which
may contain data
client server

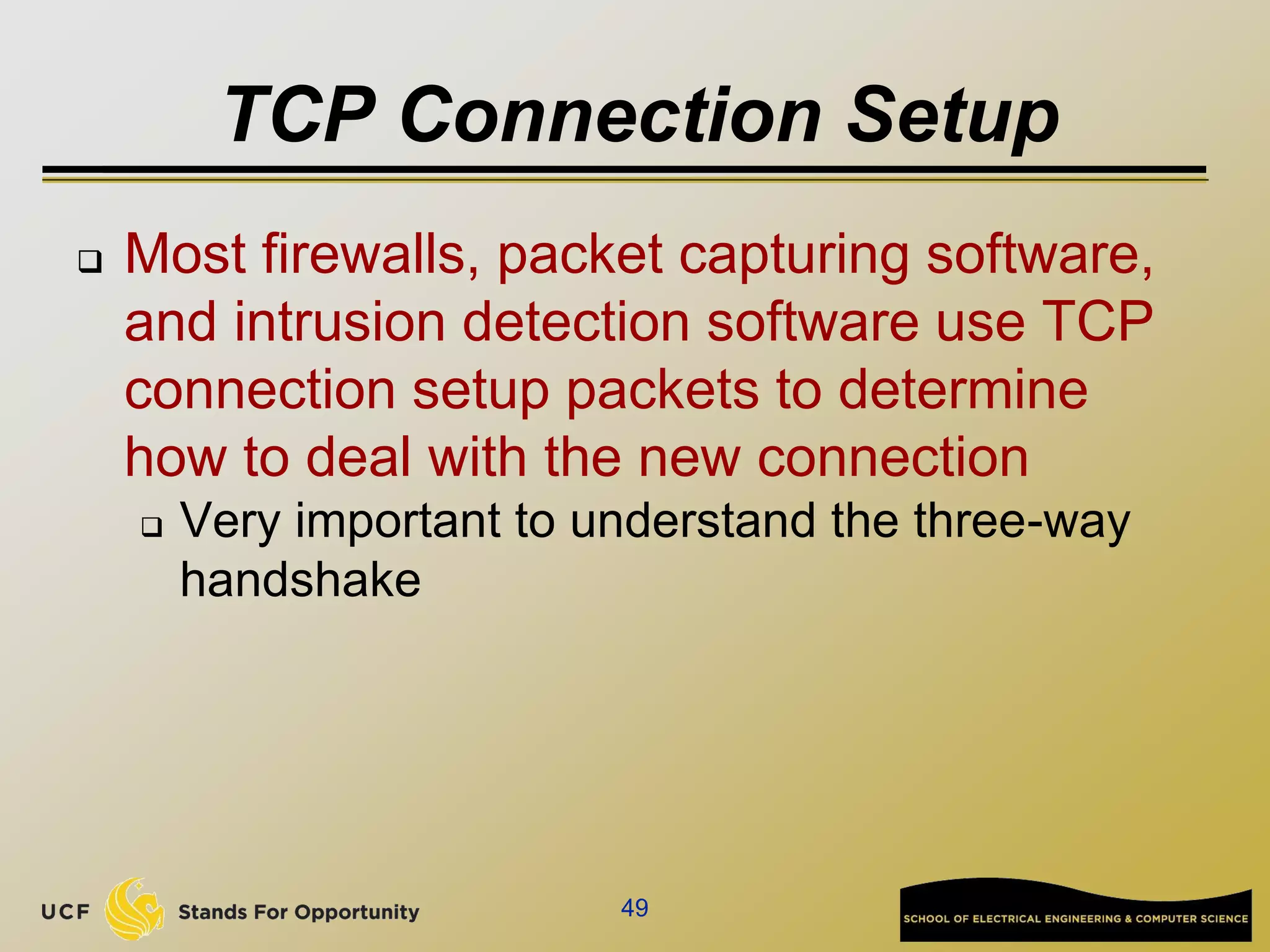

49. TCP Connection Setup
Most firewalls, packet capturing software,
and intrusion detection software use TCP
connection setup packets to determine
how to deal with the new connection
Very important to understand the three-way
handshake
49

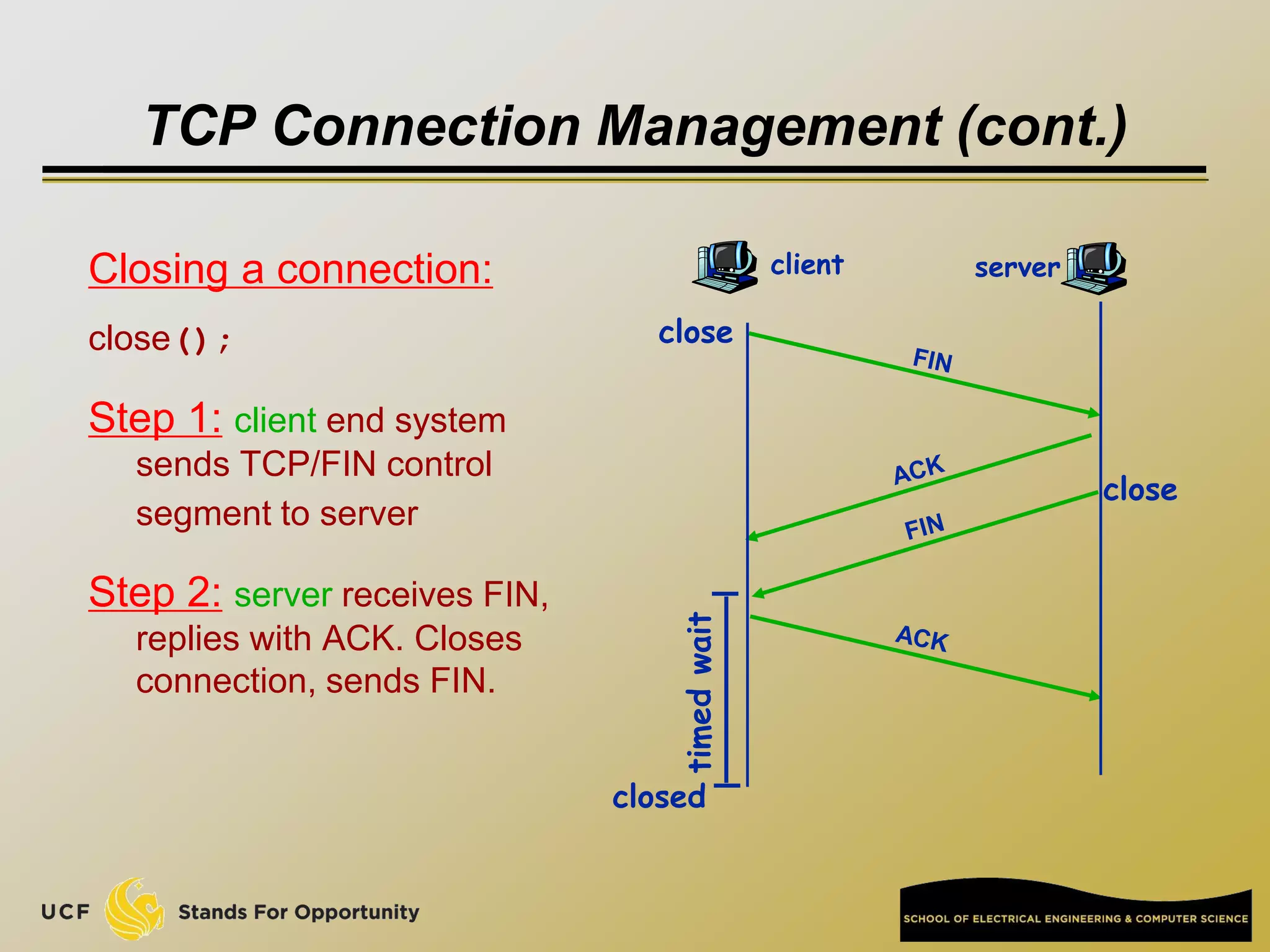

50. TCP Connection Management (cont.)
Closing a connection:
close();
Step 1: client end system
sends TCP/FIN control
segment to server
Step 2: server receives FIN,
replies with ACK. Closes
connection, sends FIN.
client server
close
close
closed
timed
wait

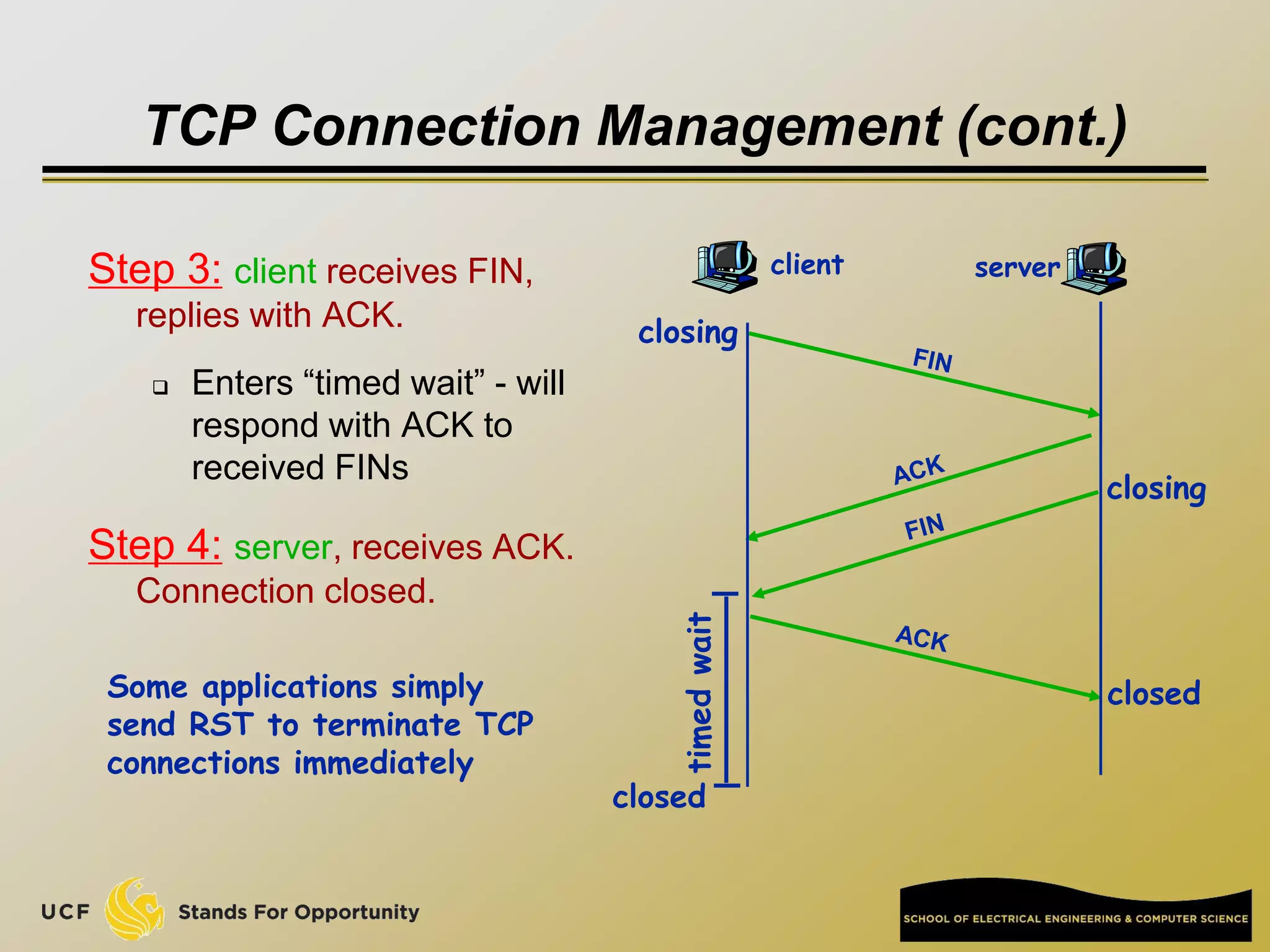

51. TCP Connection Management (cont.)
Step 3: client receives FIN,
replies with ACK.
Enters “timed wait” - will
respond with ACK to
received FINs
Step 4: server, receives ACK.
Connection closed.
client server
closing
closing
closed
timed
wait closed
Some applications simply
send RST to terminate TCP
connections immediately
