There are two main types of cooling systems: air cooling systems, which are used for small engines, and water cooling systems, which have four subtypes including hopper or water jacket systems and thermo-syphone systems. Improper functioning of cooling systems can occur due to issues like slippage or breakage of fan belts, blockage of tubes from impure water, malfunctions of the thermostat valve, or problems with the radiator cup.

1. Identification of different cooling
systems and maintenance
Practical No.06
AG 1107 - Farm Power, Energy and Mechanization

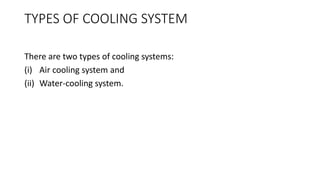

3. TYPES OF COOLING SYSTEM
There are two types of cooling systems:
(i) Air cooling system and
(ii) Water-cooling system.

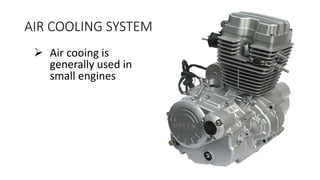

4. AIR COOLING SYSTEM
➢ Air cooing is
generally used in
small engines

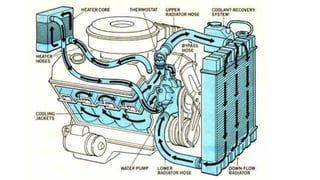

5. WATER COOLING SYSTEM
• This cooling system has four types of systems:
(i) Hopper or water jacket system
(ii) Thermo-Syphone system

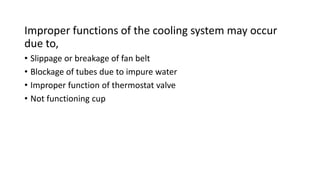

11. Improper functions of the cooling system may occur
due to,
• Slippage or breakage of fan belt
• Blockage of tubes due to impure water
• Improper function of thermostat valve
• Not functioning cup
