The document discusses new VESDA (Very Early Smoke Detection Apparatus) laser smoke detection systems from Vision Systems and Eltek F&S. It introduces the DELTA LaserPLUS and VESDA LaserPLUS detectors which replace older models and connect to the ANX-95 control panel. The detectors offer the widest sensitivity range from 0.005 to 20% obs/m, flexible programming, remote display and monitoring capabilities, and individual pipe air flow monitoring.

1. New Generation VESDA V ery E arly S moke D etection A pparatus

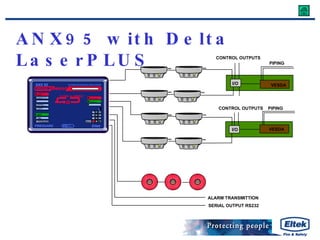

2. ANX95 with Delta LaserPLUS VESDA I/O PIPING CONTROL OUTPUTS VESDA I/O PIPING CONTROL OUTPUTS ALARM TRANSMITTION SERIAL OUTPUT RS232 MENY 3 0 7 8 4 1 2 5 9 6 FLERE ALARMER BRANN ANX 95 AUTOMATISK BRANNALARM SYSTEM FIREGUARD Eltek FG BRANN S-000/00 NETT FEIL UTKOBLING SLOKKEANLEGG AKTIVERT BRANNVENTILASJON AKTIVERT BRANNVESEN MOTTATT MELDING ALARMSTED UTKOBLET T ILBAKESTILL AVSTILL KLOKKE

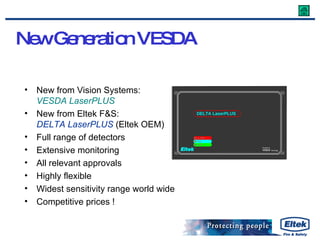

3. New Generation VESDA New from Vision Systems: VESDA LaserPLUS New from Eltek F&S: DELTA LaserPLUS (Eltek OEM) Full range of detectors Extensive monitoring All relevant approvals Highly flexible Widest sensitivity range world wide Competitive prices !

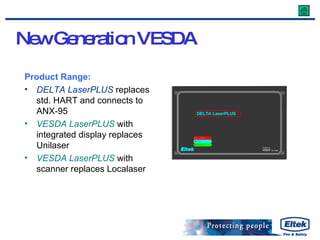

4. New Generation VESDA Product Range: DELTA LaserPLUS replaces std. HART and connects to ANX-95 VESDA LaserPLUS with integrated display replaces Unilaser VESDA LaserPLUS with scanner replaces Localaser

5. Strong Points: Fully microprocessor controlled Programming from dedicated handheld programmer or PC in non-volatile memory Widest sensitivity range ever: 0.005 to 20% obs/m in one detector Alarm levels: DELTA LaserPLUS (OEM/ANX): Pre-alarm, alarm1 and alarm2 (ZMU) VESDA LaserPLUS Alert, action, alarm1 and alarm2 Can adapt to almost any environment New Generation VESDA

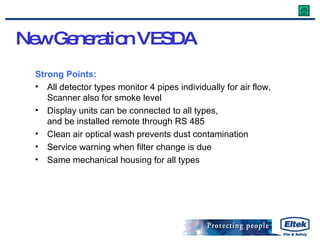

6. Strong Points: All detector types monitor 4 pipes individually for air flow, Scanner also for smoke level Display units can be connected to all types, and be installed remote through RS 485 Clean air optical wash prevents dust contamination Service warning when filter change is due Same mechanical housing for all types New Generation VESDA

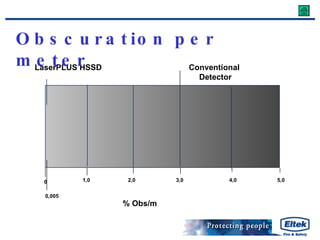

7. Obscuration per meter 0,005 0 1,0 2,0 3,0 4,0 5,0 % Obs/m LaserPLUS HSSD Conventional Detector
