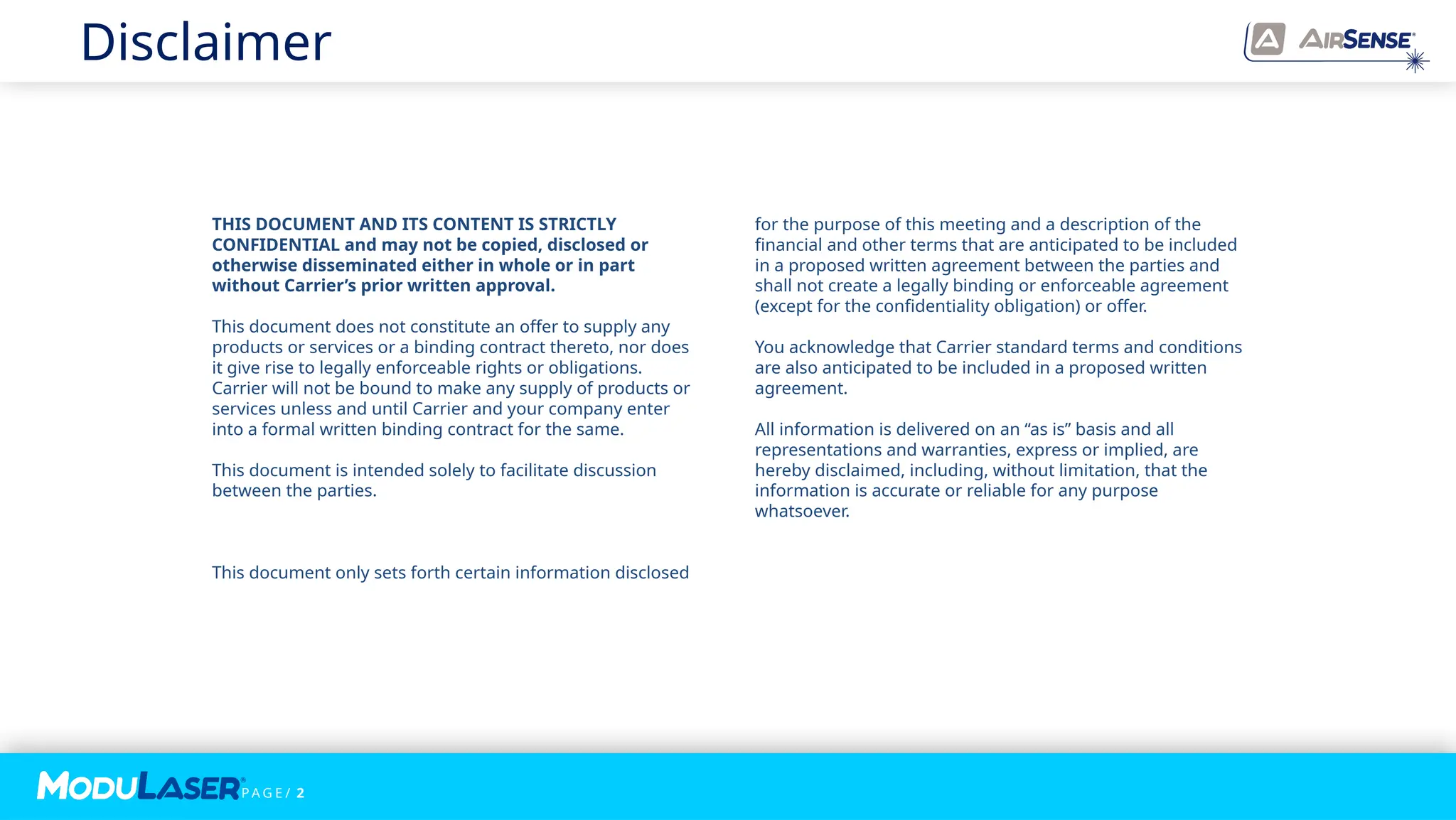

1. P A G E / 1
V1.4

2. P A G E / 2
THIS DOCUMENT AND ITS CONTENT IS STRICTLY
CONFIDENTIAL and may not be copied, disclosed or
otherwise disseminated either in whole or in part
without Carrier’s prior written approval.
This document does not constitute an offer to supply any
products or services or a binding contract thereto, nor does
it give rise to legally enforceable rights or obligations.
Carrier will not be bound to make any supply of products or
services unless and until Carrier and your company enter
into a formal written binding contract for the same.
This document is intended solely to facilitate discussion
between the parties.
This document only sets forth certain information disclosed
for the purpose of this meeting and a description of the
financial and other terms that are anticipated to be included
in a proposed written agreement between the parties and
shall not create a legally binding or enforceable agreement
(except for the confidentiality obligation) or offer.
You acknowledge that Carrier standard terms and conditions
are also anticipated to be included in a proposed written
agreement.
All information is delivered on an “as is” basis and all
representations and warranties, express or implied, are
hereby disclaimed, including, without limitation, that the
information is accurate or reliable for any purpose
whatsoever.
Disclaimer

3. P A G E / 3
P A G E / 3
Intorductie Carrier
Expert in ASD
ASD system overview
ASD key applications
What’s new in V1.4
Top 3 benefits of ModuLaser
Modules
ModuLaser System Overview
ModuLaser –
Built With The User In Mind
Key features of ModuLaser V1.4
Why ModuLaser V1.4?
Materials available
Appendix
Benefits by user
Designer
Installer
Operator
Maintenance
Engineer
Agenda

4. P A G E / 4
P A G E / 4
Introduction

5. P A G E / 5
Over 90 years experience in developing fire
protection systems
Includes some of the world’s leading fire
system brands, including:
 Kidde
 Edwards
 Aritech
Introduction to Carrier
 Ziton
 Autronica
CARRIER
FIRE & SECURITY
PRODUCTS & FIELD
$5.0B
2020 Net sales 28%
FIRE &
SECURITY
Carrier Total Sales

6. P A G E / 6
Carrier | Experts in ASD
P A G E / 6

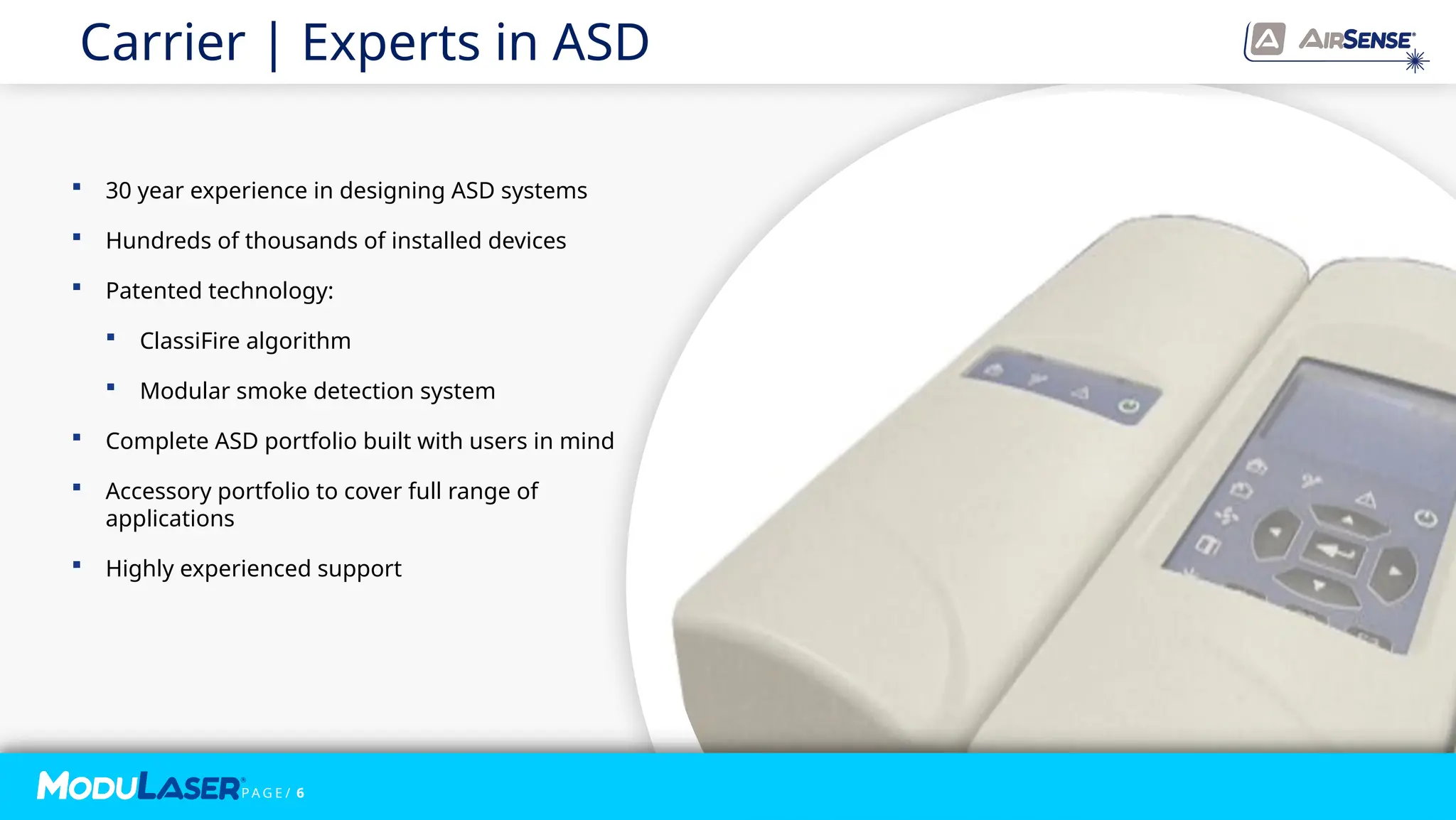

 30 year experience in designing ASD systems
 Hundreds of thousands of installed devices
 Patented technology:
 ClassiFire algorithm​
 Modular smoke detection system
 Complete ASD portfolio built with users in mind
 Accessory portfolio to cover full range of
applications
 Highly experienced support

7. P A G E / 7

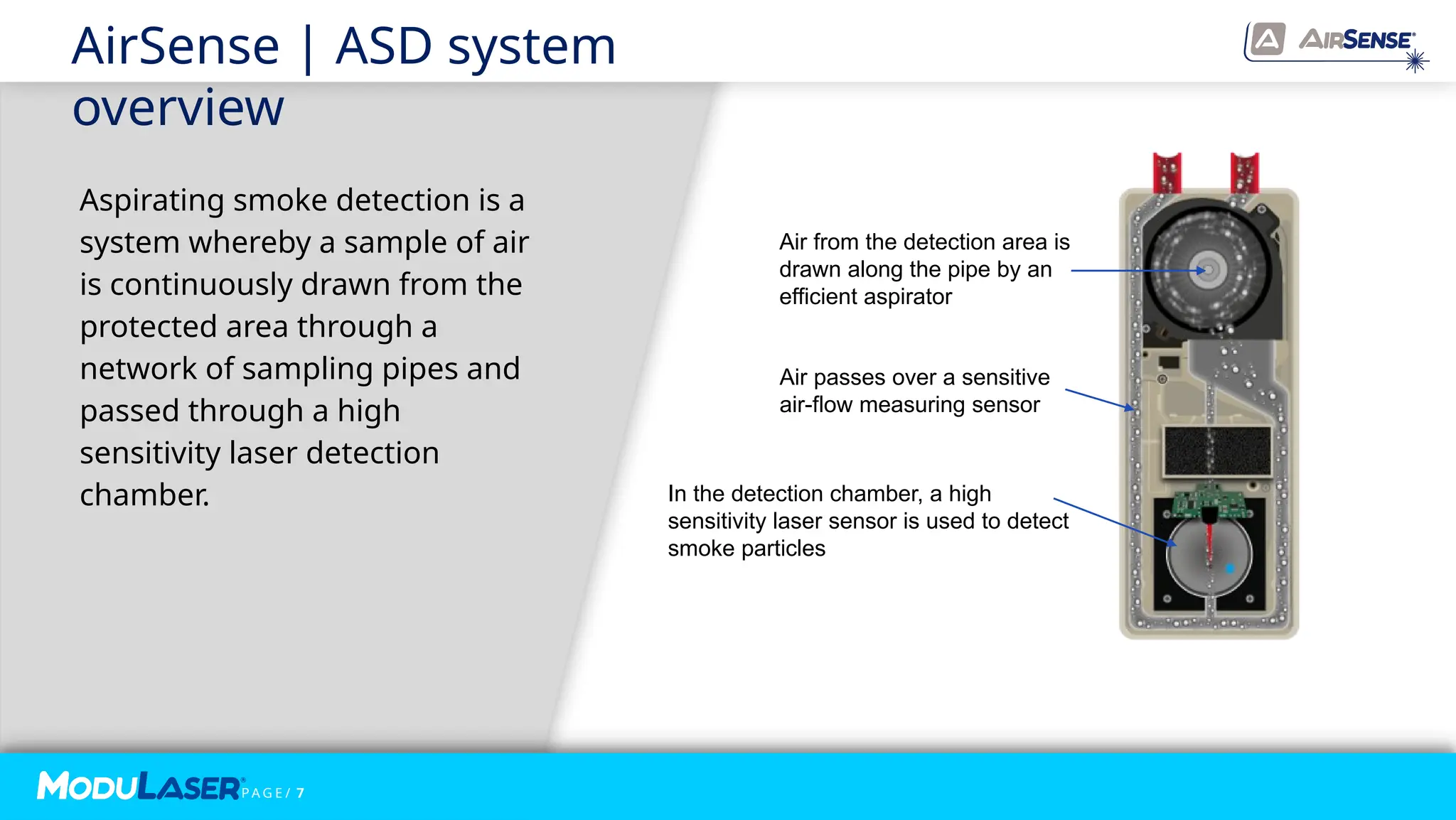

Aspirating smoke detection is a
system whereby a sample of air
is continuously drawn from the
protected area through a
network of sampling pipes and
passed through a high
sensitivity laser detection
chamber.​
AirSense | ASD system
overview
P A G E / 7
Air from the detection area is
drawn along the pipe by an
efficient aspirator
Air passes over a sensitive
air-flow measuring sensor
In the detection chamber, a high
sensitivity laser sensor is used to detect
smoke particles
​

8. P A G E / 8
Large Volume Buildings where there may be challenges
due to air stratification or the height of the space
 Atria
 Large Volume Buildings
 Power Generation
Harsh Environments where dust and icing are prevalent
 Manufacturing facilities; recycling plants,
 Cold rooms
Covert Detection where building aesthetics needs to be
preserved
• Museums
• Churches
Difficult To Access Areas for maintenance and repair
 Correctional Facilities
 Clean Rooms
 Attics
Areas Where Smoke Is Difficult To Detect
 Buildings with high airflow - Datacentres
AirSense | ASD key
applications
ATRIA CLEAN ROOMS
COLD ENVIRONMENTS HARD TO ACCESS AREAS
HIGH AIRFLOW AREAS HIGH AIRFLOW AREAS LARGE VOLUME BUILDINGS
P A G E / 8
HARSH ENVIRONMENTS COVERT DETECTION LARGE VOLUME BUILDINGS

9. P A G E / 9
P A G E / 9
Modulaser
What’s New In
V1.4 Firmware
Upgrade

10. P A G E / 10

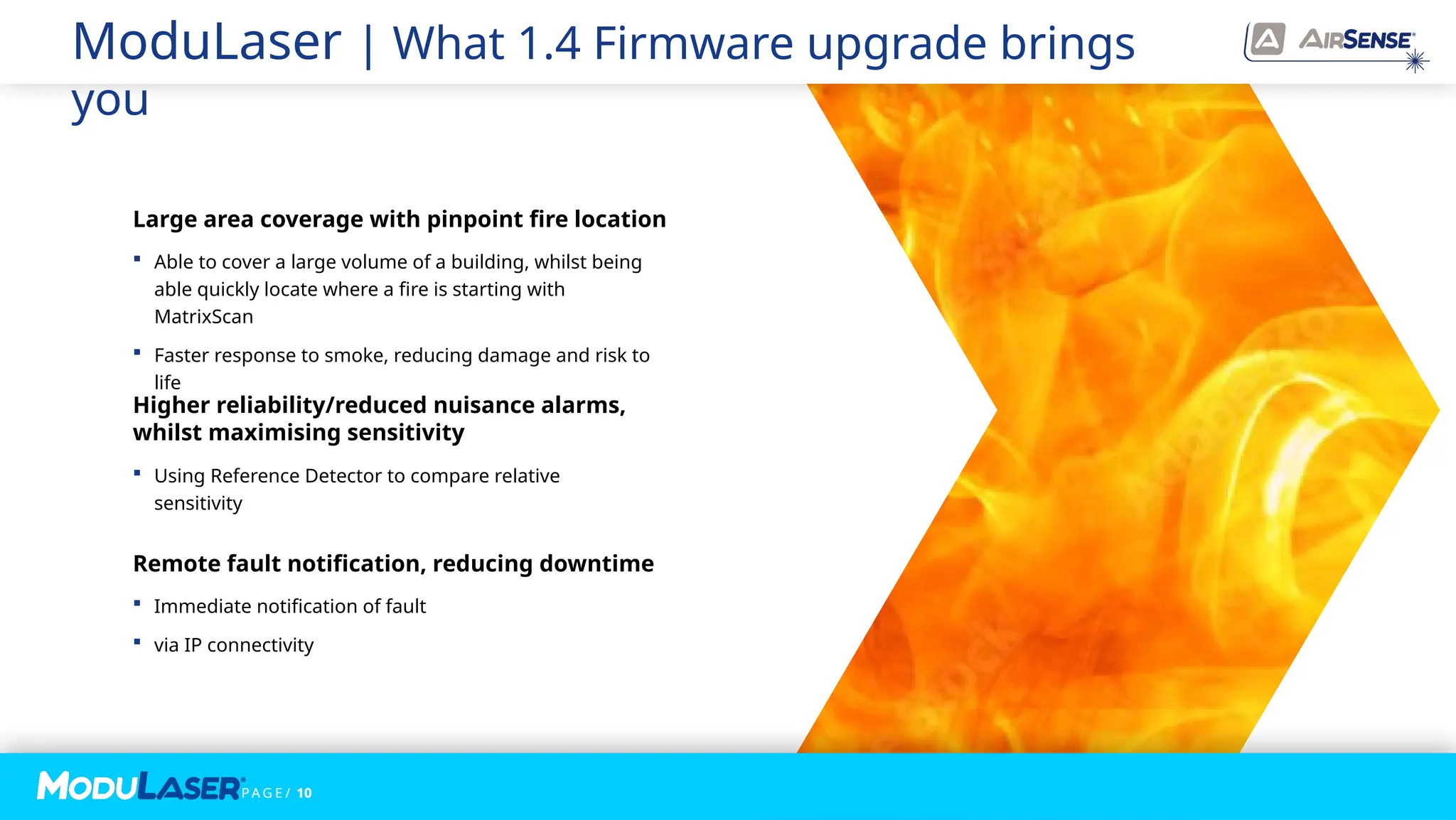

 Using Reference Detector to compare relative
sensitivity
Higher reliability/reduced nuisance alarms,
whilst maximising sensitivity
 Immediate notification of fault
 via IP connectivity
Remote fault notification, reducing downtime
 Able to cover a large volume of a building, whilst being
able quickly locate where a fire is starting with
MatrixScan
 Faster response to smoke, reducing damage and risk to
life
Large area coverage with pinpoint fire location
ModuLaser | What 1.4 Firmware upgrade brings
you
P A G E / 10

11. P A G E / 11
Carrier Confidential and Proprietary
SenseNET+
RS485
Reference detector -
enabling the
desensitization of
detectors
Approved at:
3rd party
integration
Support
blow-back
New features:
P A G E / 11
ModuLaser | bringing it all together v1.4
Filter
Maintenance
Updated
Software
LAN/WAN
via Ethernet
Graphics
integration
MatrixScan
Backward
compatibility
Reference
detection
SenseNET RS485*
Command
module
* Only supported on Command Display Module

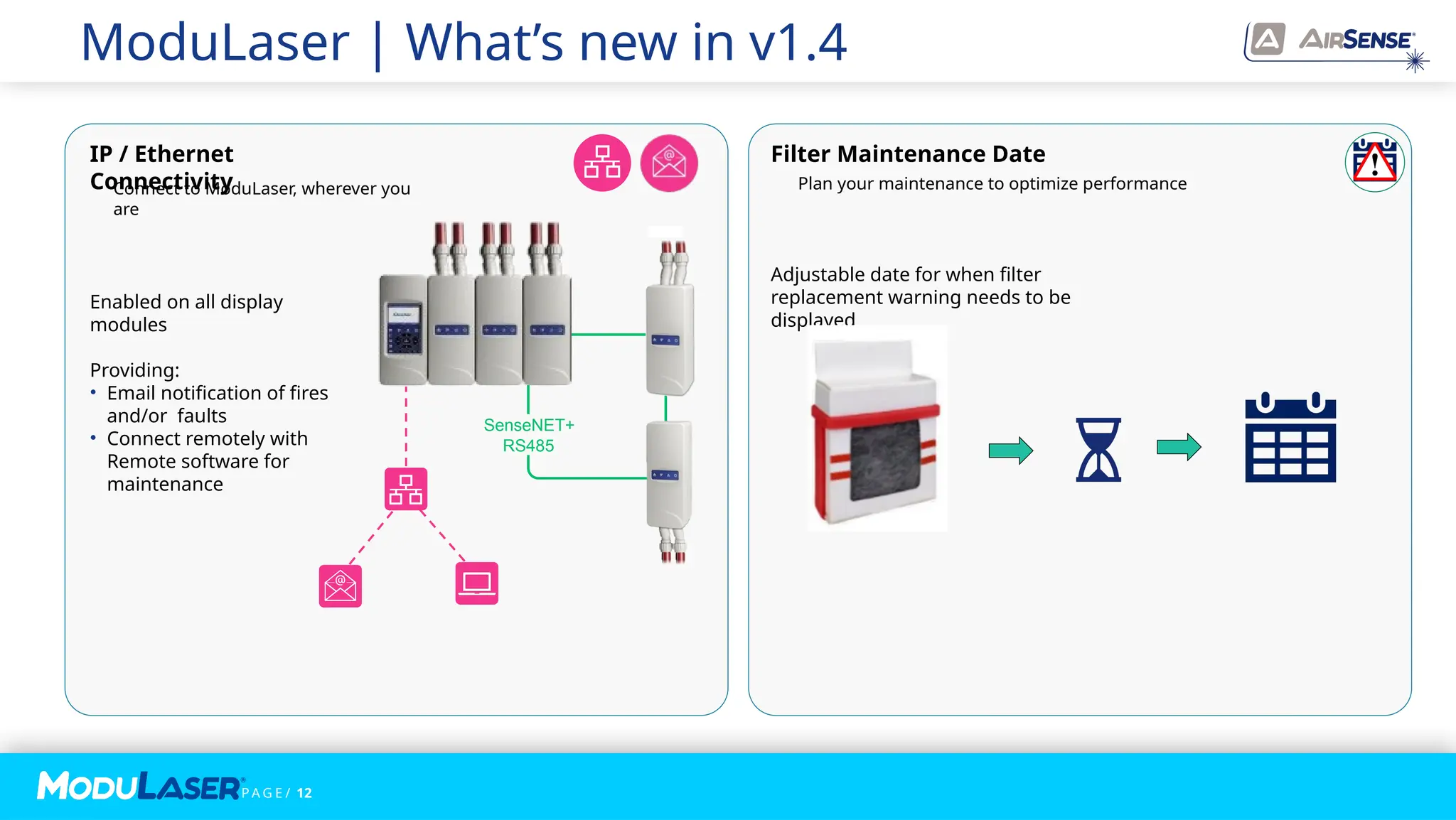

12. P A G E / 12
ModuLaser | What’s new in v1.4
Filter Maintenance Date
Adjustable date for when filter
replacement warning needs to be
displayed
IP / Ethernet
Connectivity
Enabled on all display
modules
Providing:
• Email notification of fires
and/or faults
• Connect remotely with
Remote software for
maintenance
SenseNET+
RS485
Reference detector -
enabling the
desensitization of
detectors
Connect to ModuLaser, wherever you
are
Plan your maintenance to optimize performance

13. P A G E / 13
3rd Party
Integration
Integration via Modbus
to 3rd party building
management systems
Included as standard on
ModuLaser Command
Display module
Graphics /
ATS8600
Integration via Modbus
to ATS8600 with the
use of ModuLaser
Command Display
module
Std. ATS8600 package
include 2 x ModuLaser
CM licenses
ModuLaser | What’s new in v1.4
Integrating seamlessly with other systems for more efficient
operation
Graphics integration for full system monitoring

14. P A G E / 14

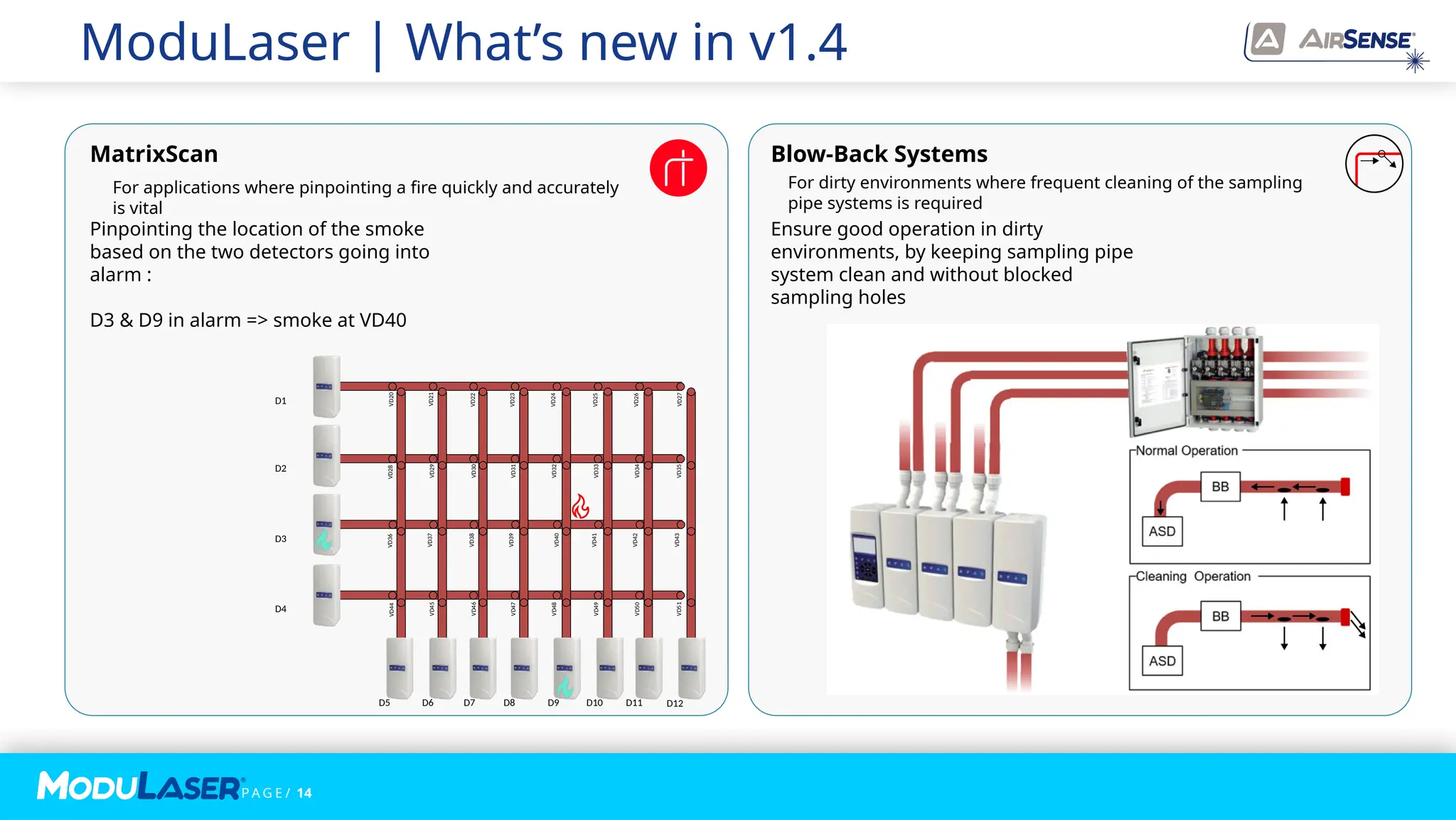

MatrixScan
Pinpointing the location of the smoke
based on the two detectors going into
alarm :
D3 & D9 in alarm => smoke at VD40
D12
D1
D2
D3
D4
D5 D6 D7 D8 D9 D10 D11
VD20
VD21
VD22
VD23
VD24
VD25
VD26
VD27
VD28
VD29
VD30
VD31
VD32
VD33
VD34
VD35
VD36
VD37
VD38
VD39
VD40
VD41
VD42
VD43
VD44
VD45
VD46
VD47
VD48
VD49
VD50
VD51
Blow-Back Systems
Ensure good operation in dirty
environments, by keeping sampling pipe
system clean and without blocked
sampling holes
ModuLaser | What’s new in v1.4
For applications where pinpointing a fire quickly and accurately
is vital
For dirty environments where frequent cleaning of the sampling
pipe systems is required

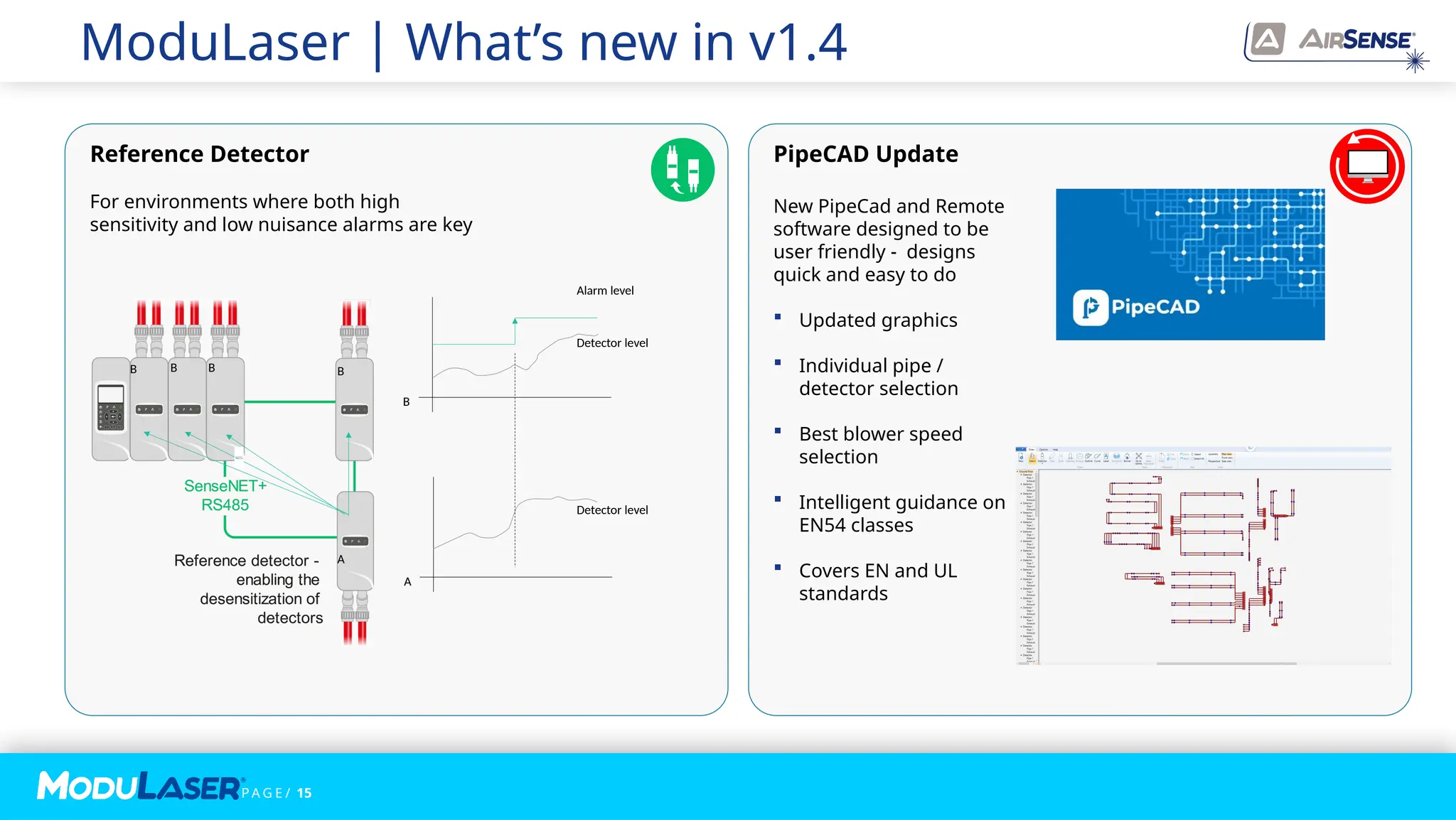

15. P A G E / 15
Alarm level
Detector level
B B B B
A
B
Detector level
A
Reference Detector
For environments where both high
sensitivity and low nuisance alarms are key
PipeCAD Update
New PipeCad and Remote
software designed to be
user friendly - designs
quick and easy to do
 Updated graphics
 Individual pipe /
detector selection
 Best blower speed
selection
 Intelligent guidance on
EN54 classes
 Covers EN and UL
standards
ModuLaser | What’s new in v1.4

16. P A G E / 16

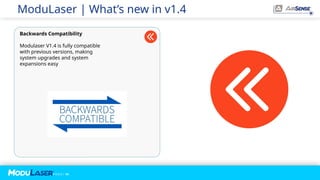

Backwards Compatibility
Modulaser V1.4 is fully compatible
with previous versions, making
system upgrades and system
expansions easy
ModuLaser | What’s new in v1.4

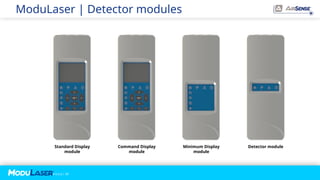

17. P A G E / 17
ModuLaser | Detector modules
Standard Display
module
Command Display
module
Minimum Display
module
Detector module

18. P A G E / 18

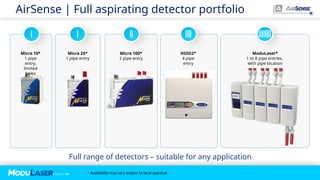

AirSense | Full aspirating detector portfolio
Micra 10*
1 pipe
entry,
limited
holes
Micra 25*
1 pipe entry
Micra 100*
2 pipe entry
HSSD2*
4 pipe
entry
ModuLaser*
1 to 8 pipe entries,
with pipe location
Full range of detectors – suitable for any application
* Availability may vary subject to local approval

19. P A G E / 19
P A G E / 19
Modulaser
Built With The
User In Mind

20. P A G E / 20

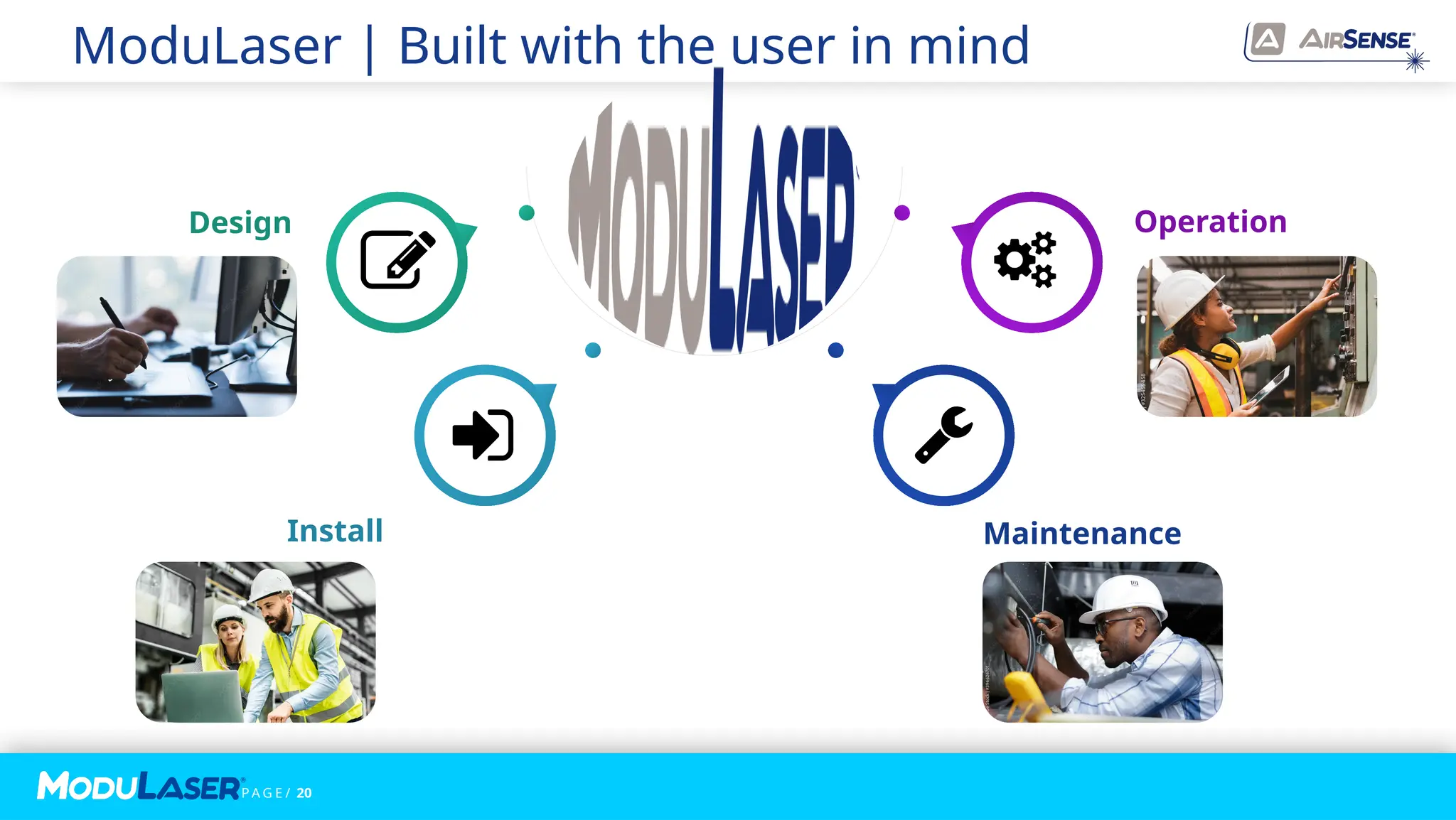

Operation
Design
Maintenance
Install

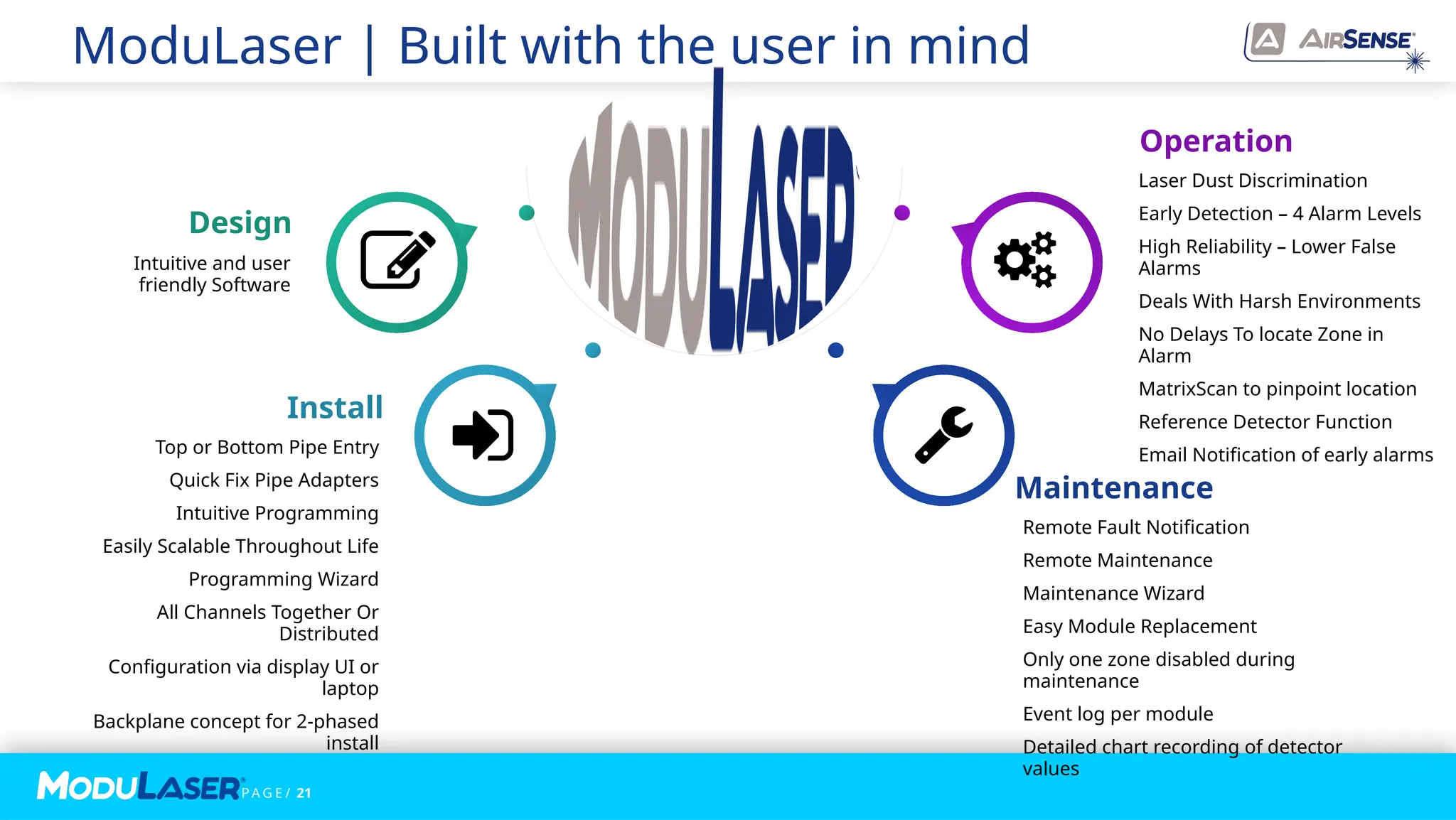

ModuLaser | Built with the user in mind

21. P A G E / 21
Operation
Laser Dust Discrimination
Early Detection – 4 Alarm Levels
High Reliability – Lower False
Alarms
Deals With Harsh Environments
No Delays To locate Zone in
Alarm
MatrixScan to pinpoint location
Reference Detector Function
Email Notification of early alarms
Design
Intuitive and user
friendly Software
Maintenance
Remote Fault Notification
Remote Maintenance
Maintenance Wizard
Easy Module Replacement
Only one zone disabled during
maintenance
Event log per module
Detailed chart recording of detector
values
Install

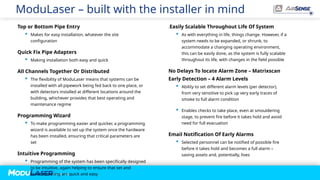

Top or Bottom Pipe Entry
Quick Fix Pipe Adapters
Intuitive Programming
Easily Scalable Throughout Life
Programming Wizard
All Channels Together Or
Distributed
Configuration via display UI or
laptop
Backplane concept for 2-phased
install
ModuLaser | Built with the user in mind

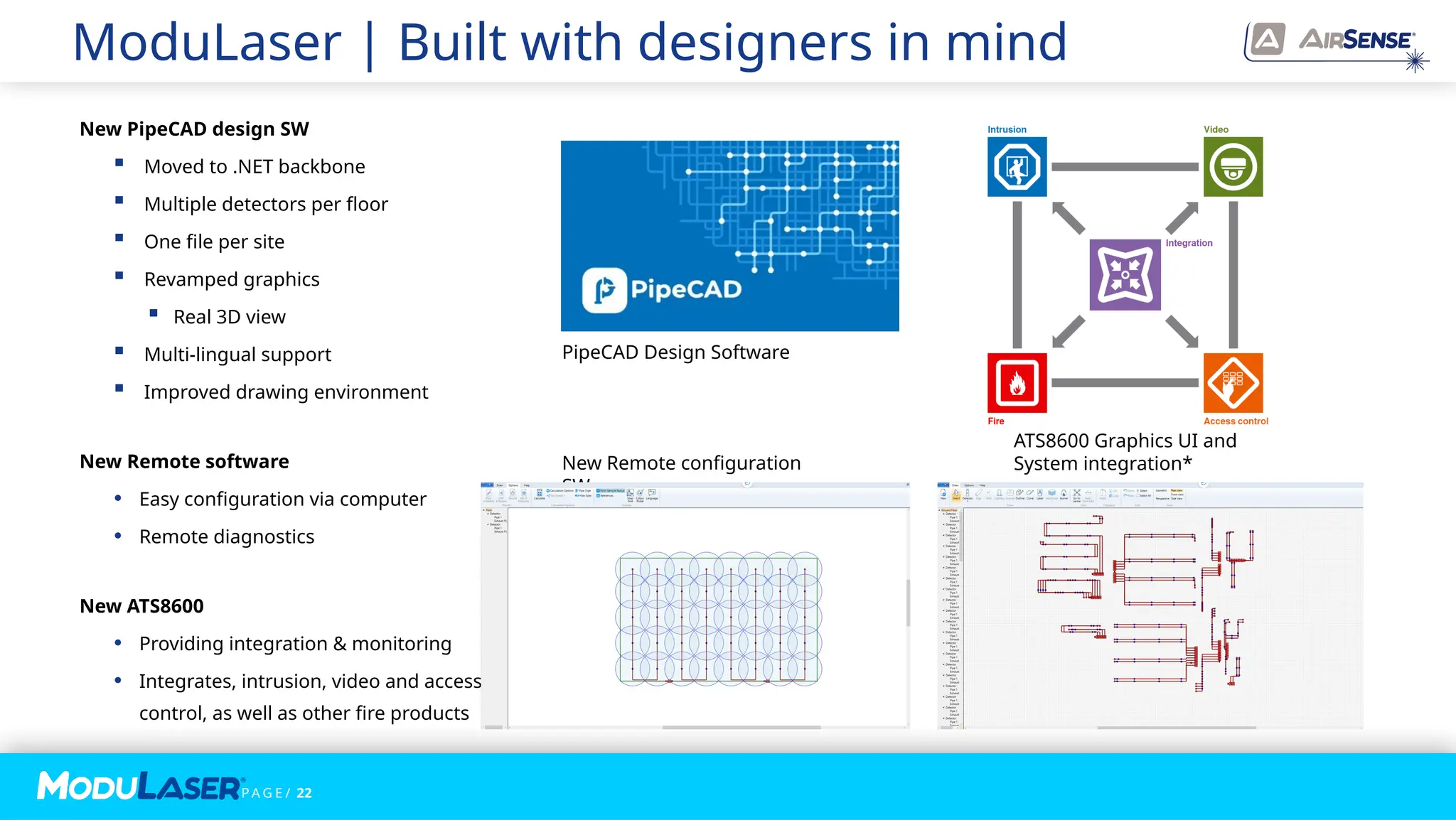

22. P A G E / 22
ModuLaser | Built with designers in mind

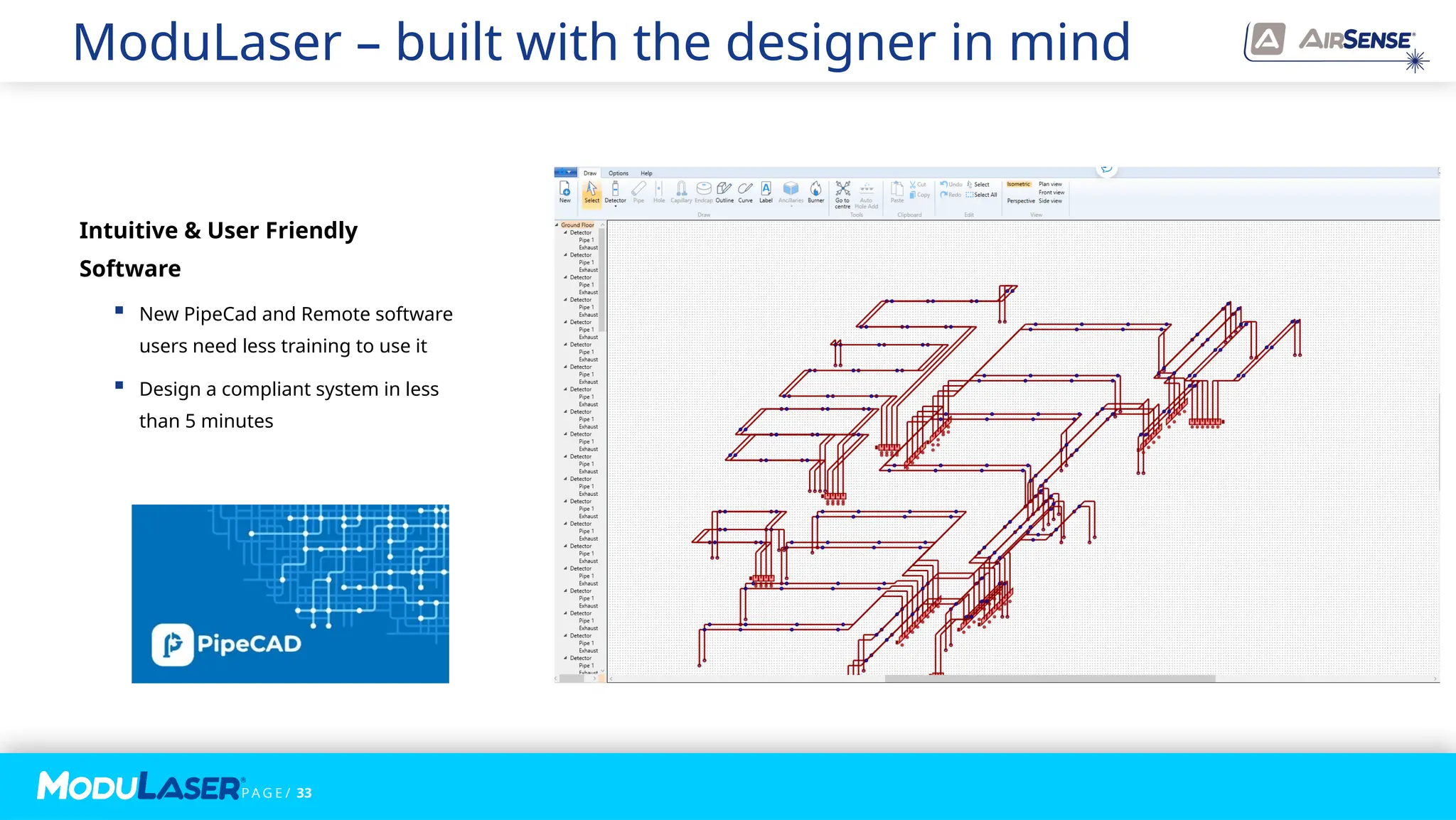

New Remote configuration
SW
PipeCAD Design Software
New PipeCAD design SW
 Moved to .NET backbone
 Multiple detectors per floor
 One file per site
 Revamped graphics
 Real 3D view
 Multi-lingual support
 Improved drawing environment
New Remote software
• Easy configuration via computer
• Remote diagnostics
New ATS8600
• Providing integration & monitoring
• Integrates, intrusion, video and access
control, as well as other fire products
ATS8600 Graphics UI and
System integration*

23. P A G E / 23
ModuLaser | Built with installers in mind

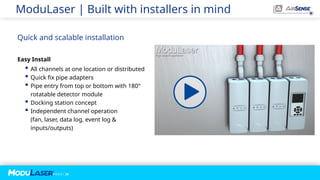

Quick and scalable installation
Easy Install
 All channels at one location or distributed
 Quick fix pipe adapters
 Pipe entry from top or bottom with 180°
rotatable detector module
 Docking station concept
 Independent channel operation
(fan, laser, data log, event log &
inputs/outputs)

24. P A G E / 24

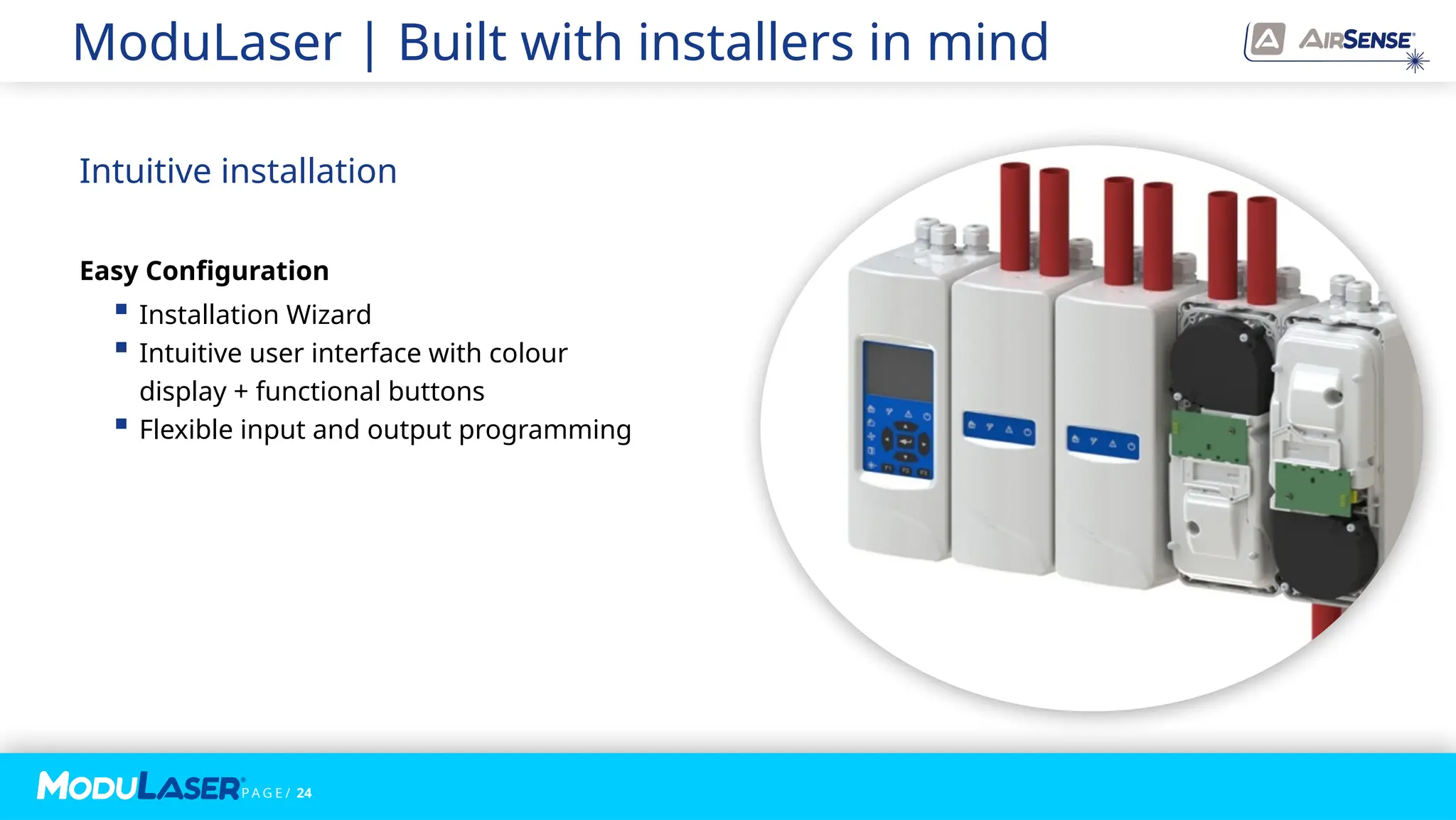

ModuLaser | Built with installers in mind
Intuitive installation
Easy Configuration
 Installation Wizard
 Intuitive user interface with colour
display + functional buttons
 Flexible input and output programming

25. P A G E / 25

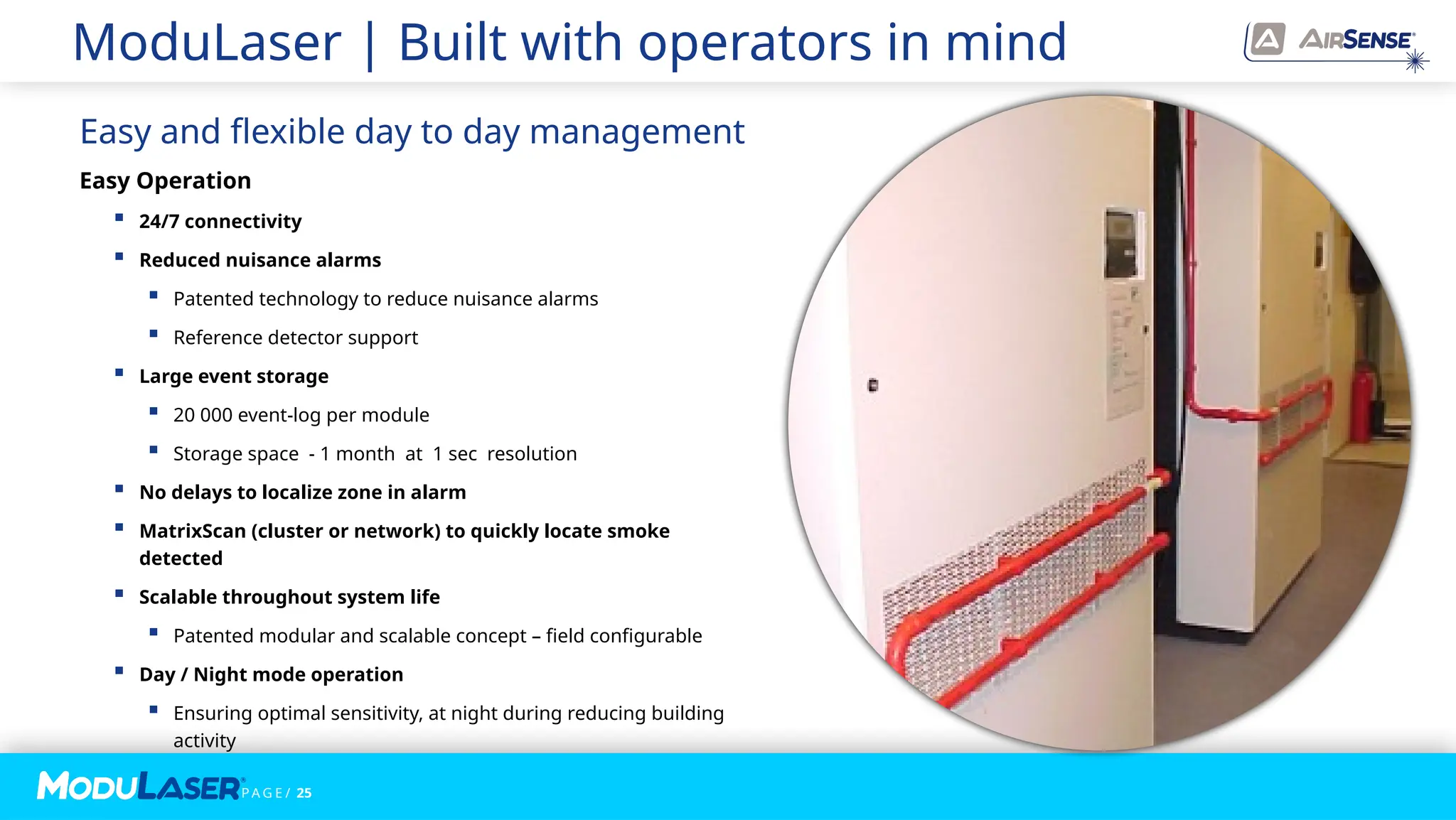

ModuLaser | Built with operators in mind
Easy Operation
 24/7 connectivity
 Reduced nuisance alarms
 Patented technology to reduce nuisance alarms
 Reference detector support
 Large event storage
 20 000 event-log per module
 Storage space - 1 month at 1 sec resolution
 No delays to localize zone in alarm
 MatrixScan (cluster or network) to quickly locate smoke
detected
 Scalable throughout system life
 Patented modular and scalable concept – field configurable
 Day / Night mode operation
 Ensuring optimal sensitivity, at night during reducing building
activity
Easy and flexible day to day management

26. P A G E / 26

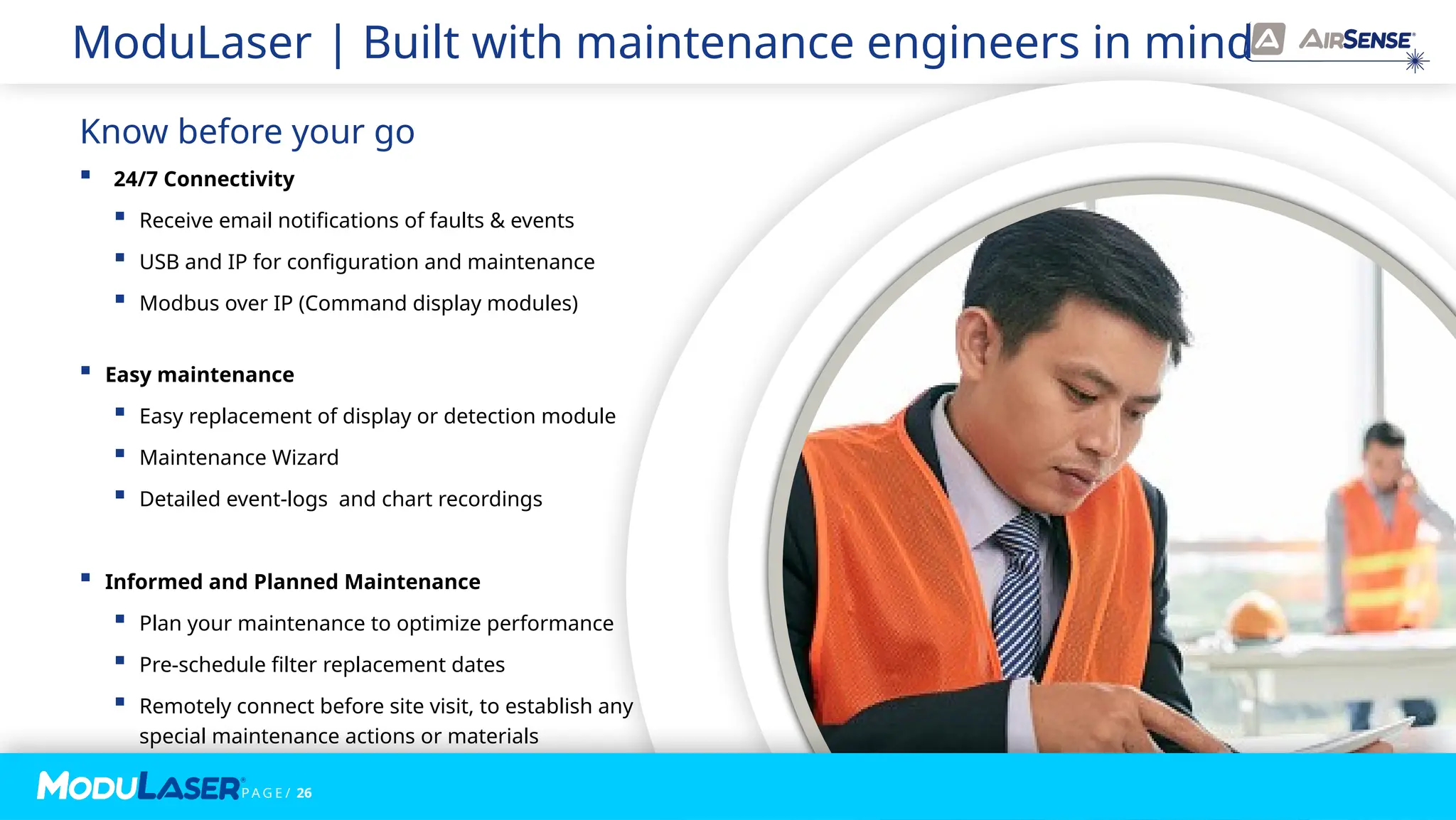

ModuLaser | Built with maintenance engineers in mind
 24/7 Connectivity
 Receive email notifications of faults & events
 USB and IP for configuration and maintenance
 Modbus over IP (Command display modules)
 Easy maintenance
 Easy replacement of display or detection module
 Maintenance Wizard
 Detailed event-logs and chart recordings
 Informed and Planned Maintenance
 Plan your maintenance to optimize performance
 Pre-schedule filter replacement dates
 Remotely connect before site visit, to establish any
special maintenance actions or materials
Know before your go

27. P A G E / 27
P A G E / 27
Key Features &
Benefits

28. P A G E / 28
Multi-Channel High Sensitivity Smoke
Detector
Modular and scalable concept
Global language support and approvals
Fully backwards compatible with current
range
Flexible connectivity options
Easy to use interface
Standalone or networked solution
Relay or APIC* connectivity to fire system
* SenseNET
RS485
SenseNET+
RS485
Relay outputs &
Supervised inputs
Addressable loop via
APIC**
Command Module
Display
LAN/WAN

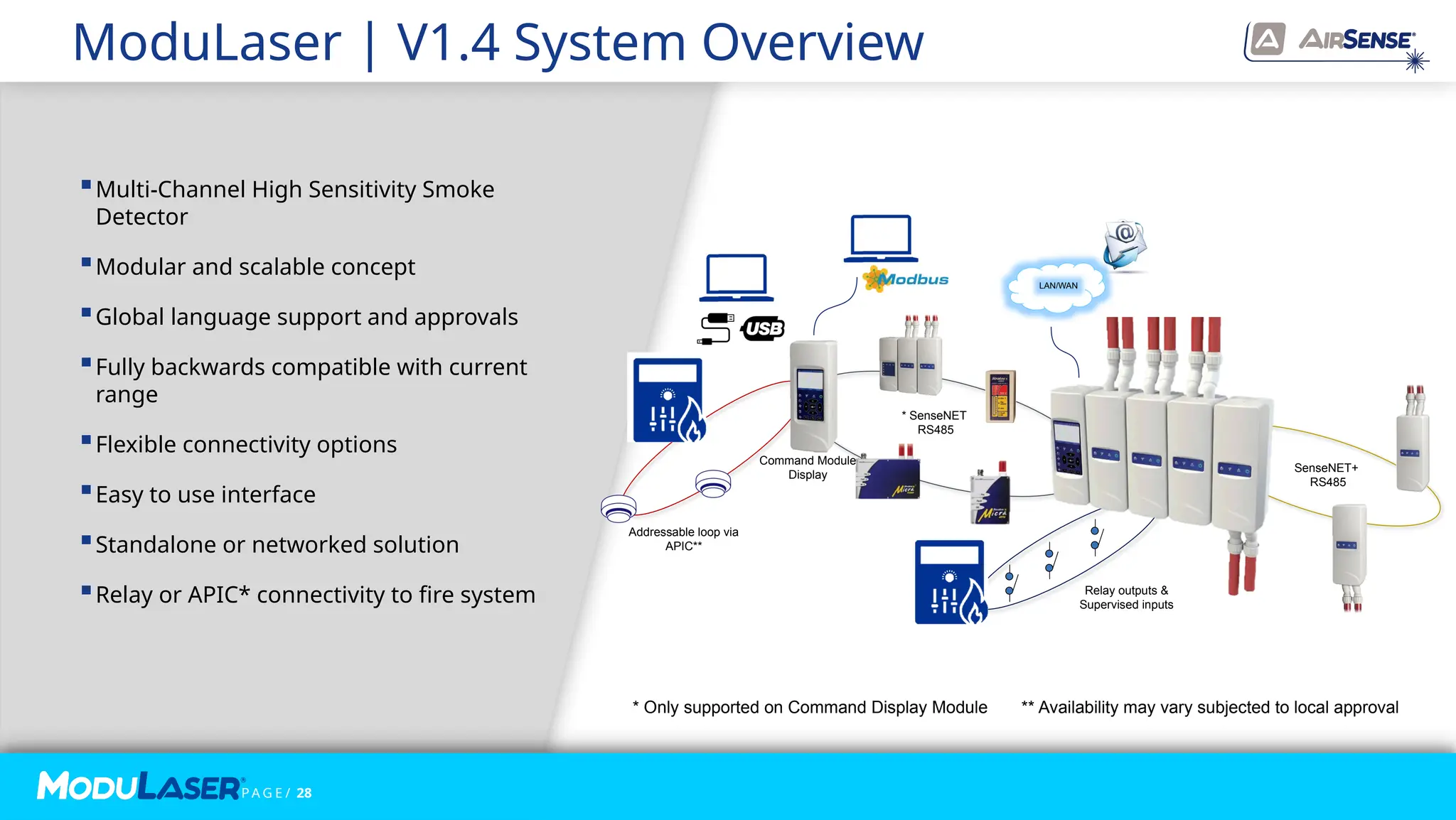

ModuLaser | V1.4 System Overview
P A G E / 28
* Only supported on Command Display Module ** Availability may vary subjected to local approval​

29. P A G E / 29

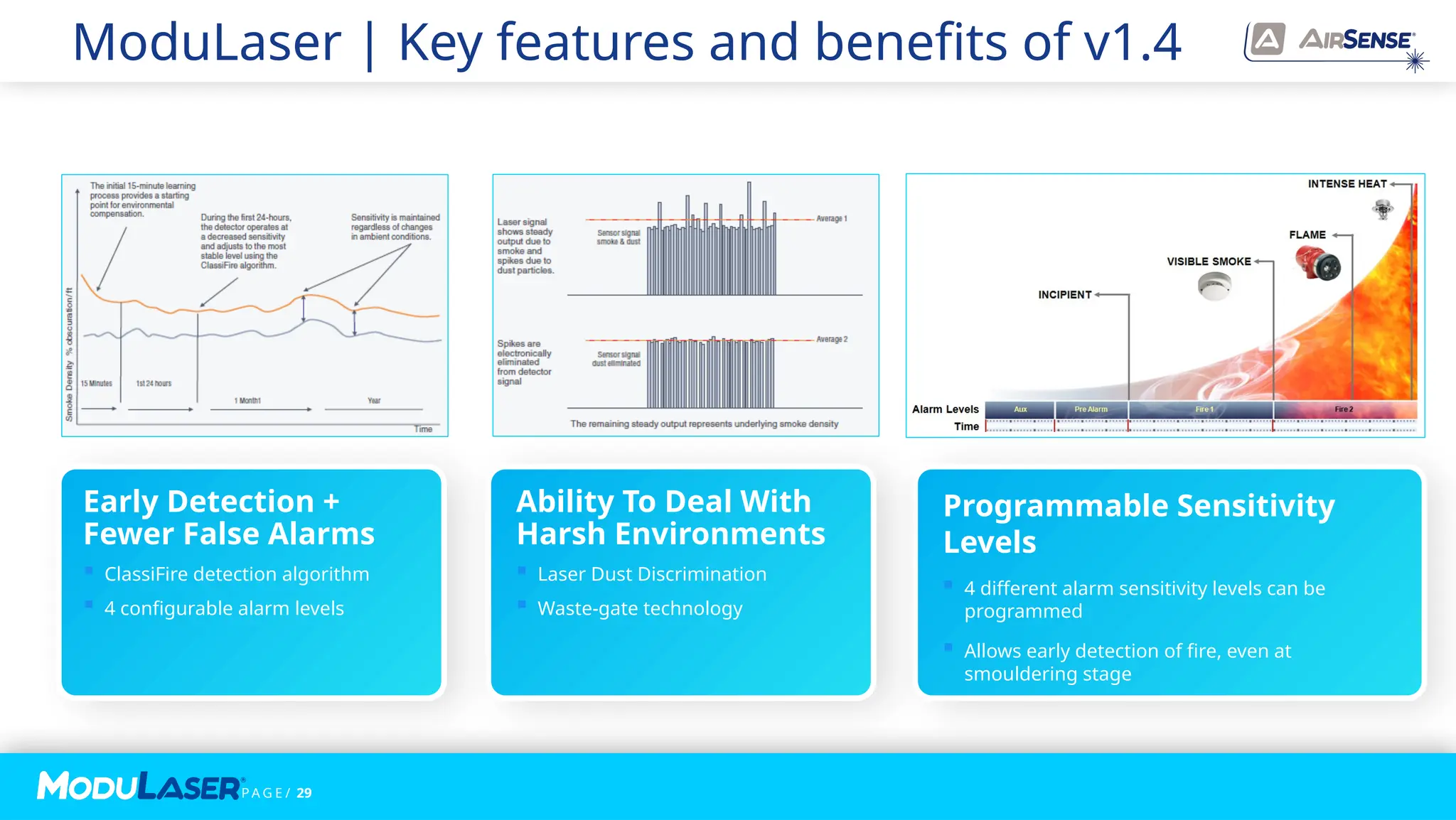

ModuLaser | Key features and benefits of v1.4
Early Detection +
Fewer False Alarms
 ClassiFire detection algorithm
 4 configurable alarm levels
Ability To Deal With
Harsh Environments
 Laser Dust Discrimination
 Waste-gate technology
Programmable Sensitivity
Levels
 4 different alarm sensitivity levels can be
programmed
 Allows early detection of fire, even at
smouldering stage

30. P A G E / 30

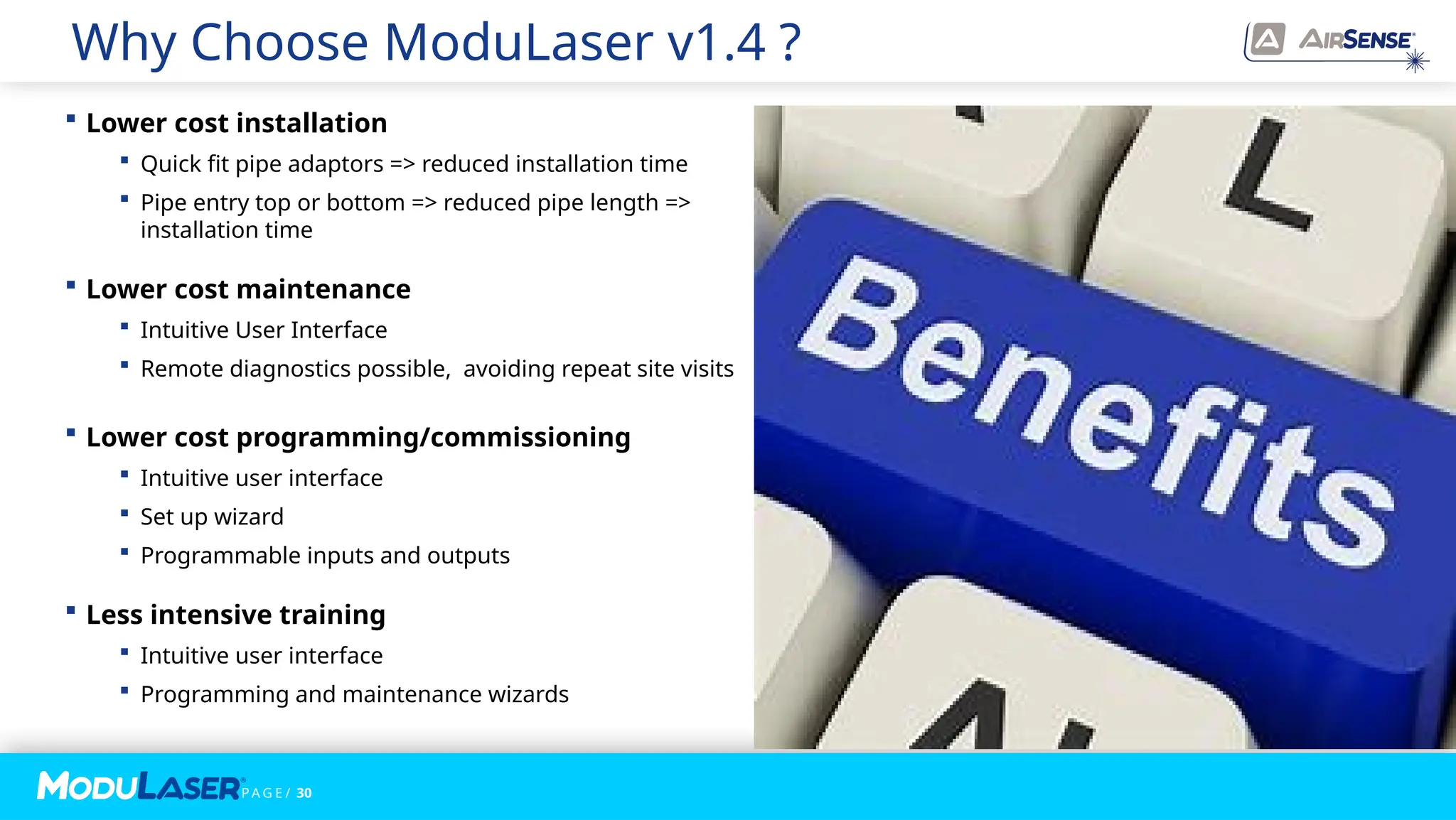

Why Choose ModuLaser v1.4 ?
 Lower cost installation
 Quick fit pipe adaptors => reduced installation time
 Pipe entry top or bottom => reduced pipe length =>
installation time
 Lower cost maintenance
 Intuitive User Interface
 Remote diagnostics possible, avoiding repeat site visits
 Lower cost programming/commissioning
 Intuitive user interface
 Set up wizard
 Programmable inputs and outputs
 Less intensive training
 Intuitive user interface
 Programming and maintenance wizards

31. P A G E / 31

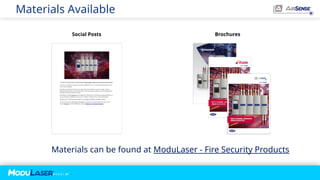

Materials Available
Social Posts Brochures
Materials can be found at ModuLaser - Fire Security Products

32. P A G E / 32

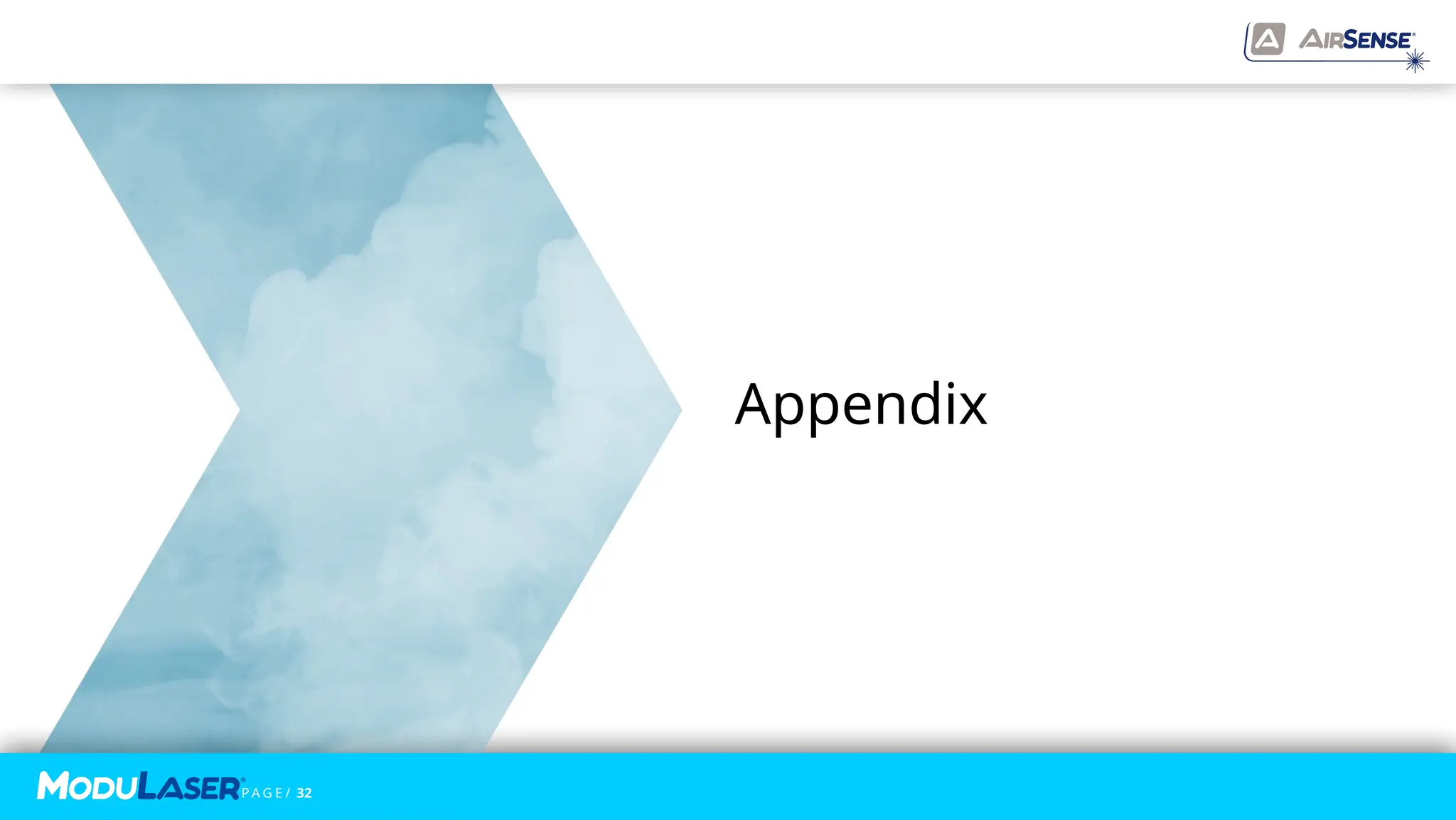

P A G E / 32
Appendix

33. P A G E / 33
ModuLaser – built with the designer in mind
Intuitive & User Friendly
Software
 New PipeCad and Remote software
users need less training to use it
 Design a compliant system in less
than 5 minutes

34. P A G E / 34
ModuLaser – built with the installer in mind
Top or Bottom Pipe Entry
 Makes for easy installation, whatever the site
configuration
Quick Fix Pipe Adapters
 Making installation both easy and quick
All Channels Together Or Distributed
 The flexibility of ModuLaser means that systems can be
installed with all pipework being fed back to one place, or
with detectors installed at different locations around the
building, whichever provides that best operating and
maintenance regime
Programming Wizard
 To make programming easier and quicker, a programming
wizard is available to set up the system once the hardware
has been installed, ensuring that critical parameters are
set
Intuitive Programming
 Programming of the system has been specifically designed
to be intuitive, again helping to ensure that set and
commissioning are quick and easy
.Easily Scalable Throughout Life Of System
 As with everything in life, things change. However, if a
system needs to be expanded, or shrunk, to
accommodate a changing operating environment,
this can be easily done, as the system is fully scalable
throughout its life, with changes in the field possible
No Delays To locate Alarm Zone – Matrixscan
Early Detection – 4 Alarm Levels
 Ability to set different alarm levels (per detector),
from very sensitive to pick up very early traces of
smoke to full alarm condition
 Enables checks to take place, even at smouldering
stage, to prevent fire before it takes hold and avoid
need for full evacuation
Email Notification Of Early Alarms
 Selected personnel can be notified of possible fire
before it takes hold and becomes a full alarm –
saving assets and, potentially, lives

35. P A G E / 35
P A G E / 35

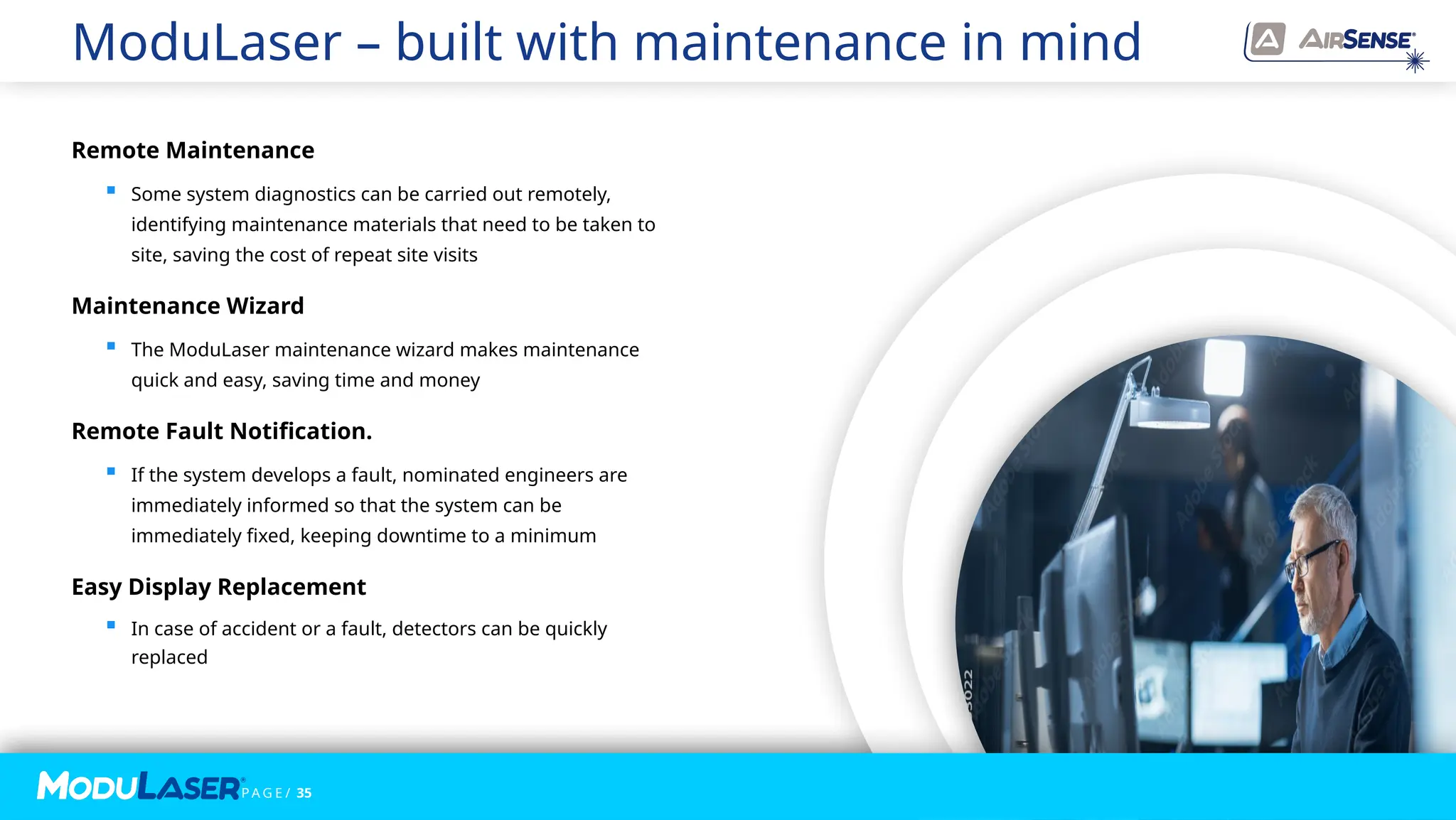

Remote Maintenance
 Some system diagnostics can be carried out remotely,
identifying maintenance materials that need to be taken to
site, saving the cost of repeat site visits
Maintenance Wizard
 The ModuLaser maintenance wizard makes maintenance
quick and easy, saving time and money
Remote Fault Notification.
 If the system develops a fault, nominated engineers are
immediately informed so that the system can be
immediately fixed, keeping downtime to a minimum
Easy Display Replacement
 In case of accident or a fault, detectors can be quickly
replaced
ModuLaser – built with maintenance in mind

36. P A G E / 36
ASD System Overview
Connectivity RS232
RS485 network Not Supported
USB Connectivity No
IP Connectivity No
CONNECTIVITY
EN54-20 Class A Up to 2
EN54-20 Class B Up to 4
EN54-20 Class C Up to 10
UL 268 6th
ed. & FM Up to 10
UL 268 7th
ed. & FM N/A
Pipe length Up to 50m / 164 ft.**
Alarm Levels 4
Outputs 2 x Alarm + Fault
Inputs Optional expansion
Micra 10*
1 pipe
entry,
limited
holes
Connectivity RS232
RS485 network Yes
USB Connectivity No
IP Connectivity No
CONNECTIVITY
EN54-20 Class A Up to 10
EN54-20 Class B Up to 10
EN54-20 Class C Up to 10
UL 268 6th
ed. & FM Up to 10
UL 268 7th
ed. & FM TBD
Pipe length Up to 50m / 164 ft.**
Alarm Levels 4
Outputs 2 x Alarm + Fault
Inputs Optional expansion
Micra 25*
1 pipe entry
Connectivity RS232
RS485 network Yes
USB Connectivity No
IP Connectivity No
CONNECTIVITY
EN54-20 Class A Up to 20
EN54-20 Class B Up to 20
EN54-20 Class C Up to 20
UL 268 6th
ed. & FM Up to 20
UL 268 7th
ed. & FM N/A
Pipe length Up to 100m / 328 ft.*
Alarm Levels 4
Outputs 2 x Alarm + Fault
Inputs Optional expansion
Micra 100*
2 pipe entry
Connectivity RS232
RS485 network Yes
USB Connectivity No
IP Connectivity No
CONNECTIVITY
EN54-20 Class A Up to 20
EN54-20 Class B Up to 40
EN54-20 Class C Up to 100
UL 268 6th
ed. & FM Up to 100
UL 268 7th
ed. & FM N/A
Pipe length Up to 200m / 356 ft.*
Alarm Levels 4
Outputs 4 x Alarm + Fault
Inputs 3 x programmable
HSSD2*
4 pipe entry
Connectivity USB
RS485 network Yes
USB Connectivity Yes
IP Connectivity Yes
CONNECTIVITY per detector
EN54-20 Class A Up to 20
EN54-20 Class B Up to 40
EN54-20 Class C Up to 50
UL 268 6th
ed. & FM N/A
UL 268 7th
ed. & FM Up to 50
Pipe length Up to 250m / 820 ft.*
Alarm Levels 4
Outputs 3 x programmable
per module
Inputs 2 x programmable
per module
ModuLaser*
1 to 8 pipe entries,
with pipe location
* Availability may vary subjected to local approval

37. P A G E / 37
P A G E / 37

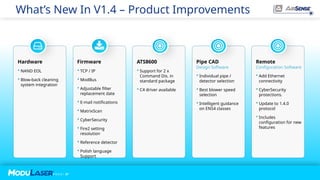

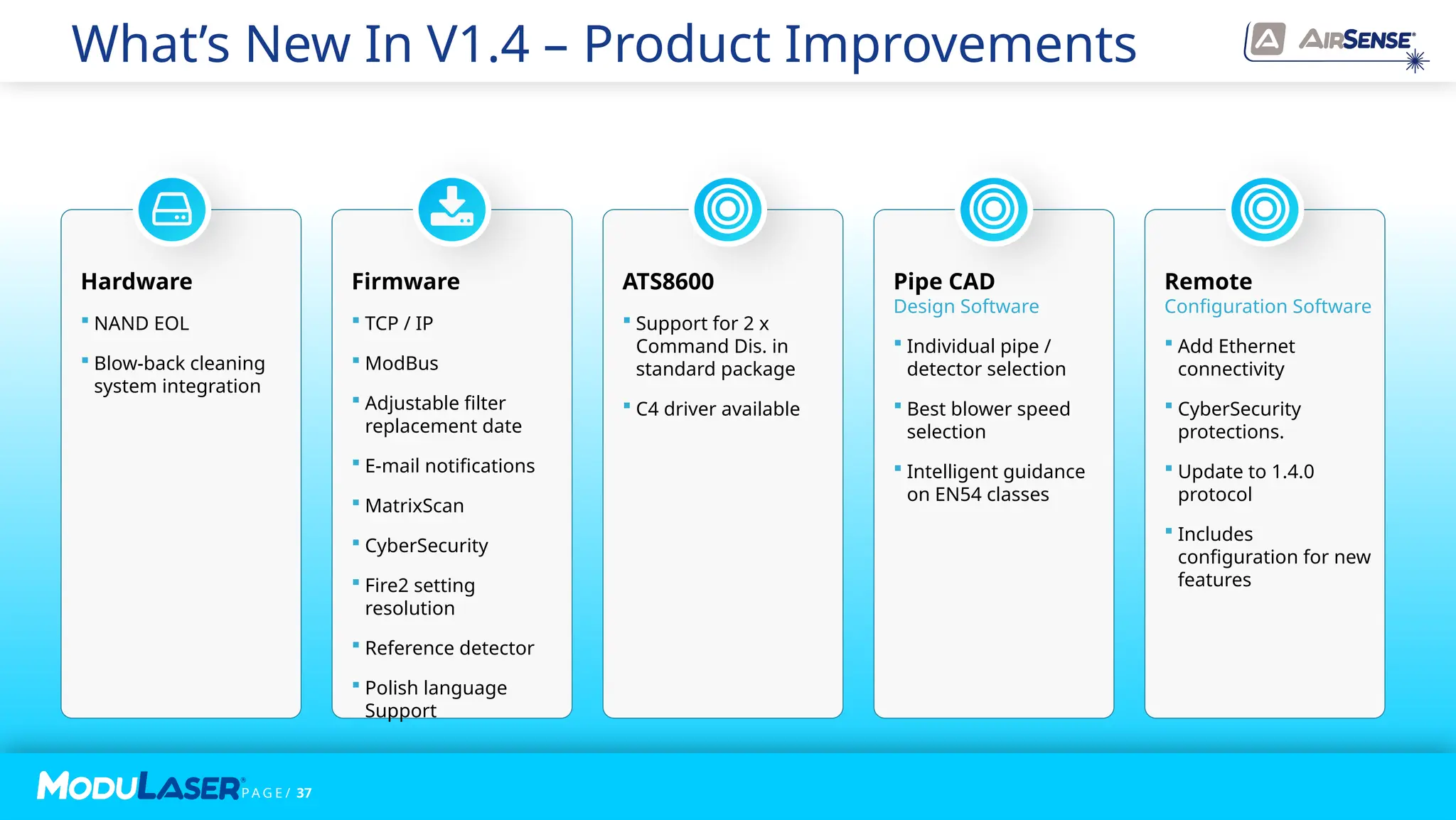

What’s New In V1.4 – Product Improvements
Firmware
 TCP / IP
 ModBus
 Adjustable filter
replacement date
 E-mail notifications
 MatrixScan
 CyberSecurity
 Fire2 setting
resolution
 Reference detector
 Polish language
Support
Hardware
 NAND EOL
 Blow-back cleaning
system integration
ATS8600
 Support for 2 x
Command Dis. in
standard package
 C4 driver available
Pipe CAD
Design Software
 Individual pipe /
detector selection
 Best blower speed
selection
 Intelligent guidance
on EN54 classes
Remote
Configuration Software
 Add Ethernet
connectivity
 CyberSecurity
protections.
 Update to 1.4.0
protocol
 Includes
configuration for new
features

38. P A G E / 38
* Availability may vary subjected to local approval

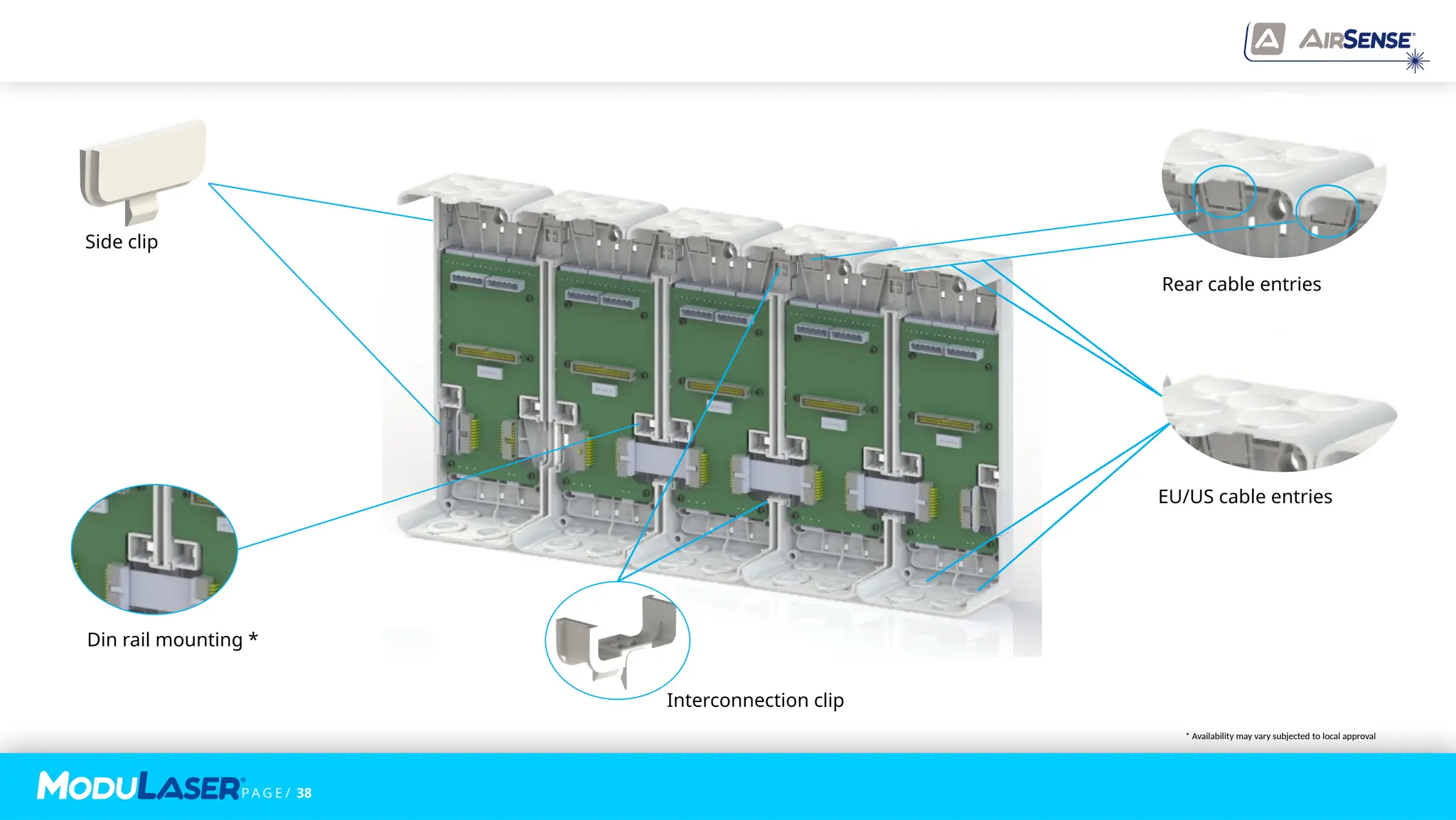

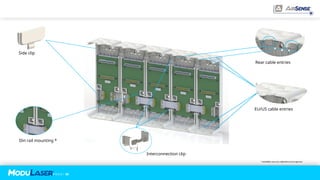

EU/US cable entries
Din rail mounting *
Interconnection clip
Rear cable entries
Side clip
