1. How to stay sane during your
Vagrant journey
Jakub Wądołowski

2. • Focus goes primarily towards staging and production
• Local environments are often underrated and left behind
• Engineers need their own playgrounds
Environment hierarchy
https://flic.kr/p/daxeMY

3. Why should I care about local
environments?

4. Everyone runs the same
https://flic.kr/p/aiBHiz

5. Fast onboarding
https://flic.kr/p/dMP2zA

6. Break things!
https://flic.kr/p/c7a8iE

7. Experiment!
https://flic.kr/p/pZg3vQ

8. Start over any time you need it
https://flic.kr/p/8Mw9gq

9. Before Vagrant

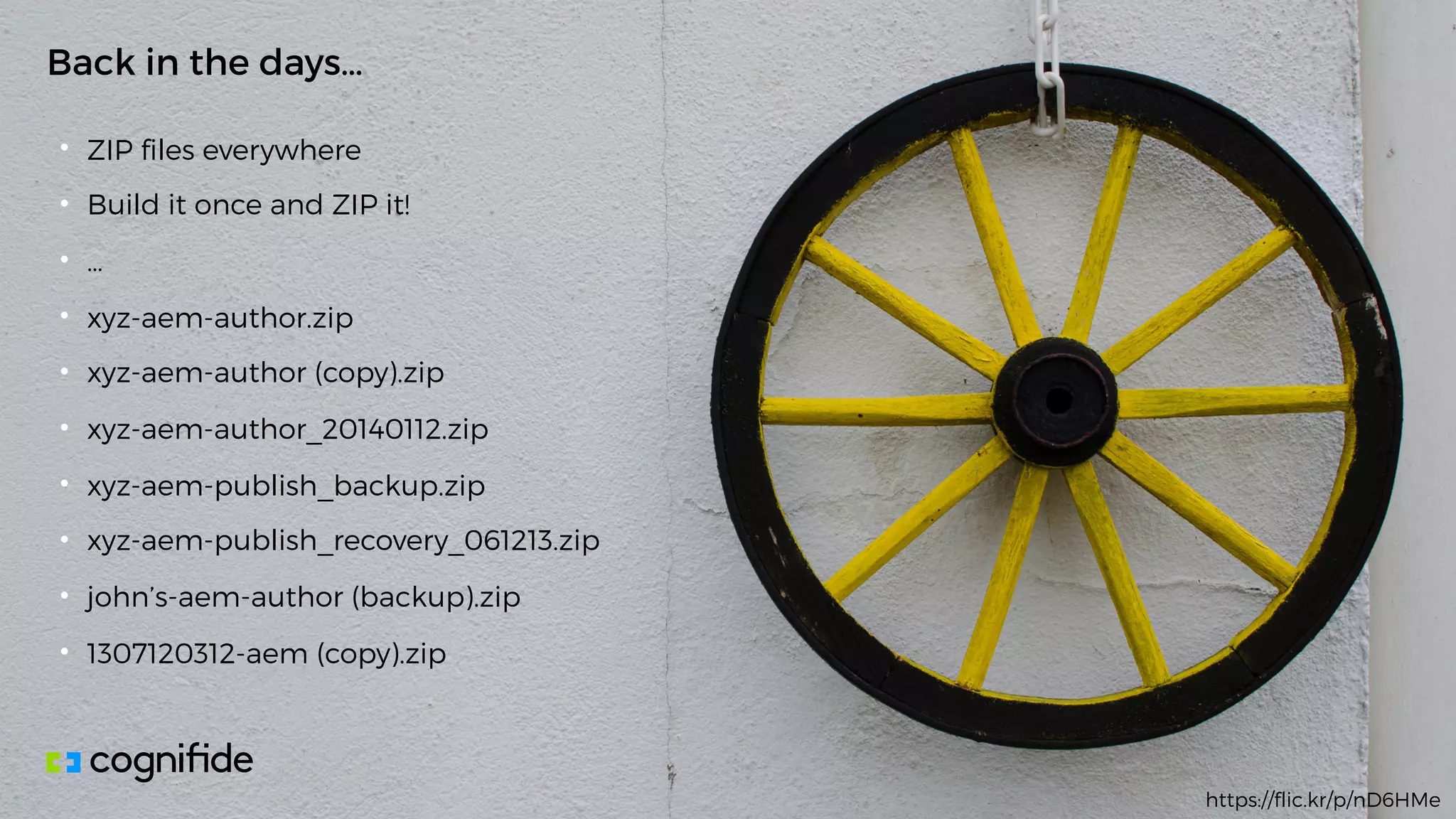

10. • ZIP files everywhere
• Build it once and ZIP it!
• …
• xyz-aem-author.zip
• xyz-aem-author (copy).zip
• xyz-aem-author_20140112.zip
• xyz-aem-publish_backup.zip
• xyz-aem-publish_recovery_061213.zip
• john’s-aem-author (backup).zip
• 1307120312-aem (copy).zip
Back in the days…
https://flic.kr/p/nD6HMe

11. • The overall complexity increased
• Much more moving parts
• Whatever Works™ doesn’t scale anymore
• New technologies emerged
Things have changed
https://flic.kr/p/EQbNYd

12. • Isolation
• Reliability
• Completeness
• Ability to upgrade
• Decent UX
The right balance
https://flic.kr/p/6cKwNy

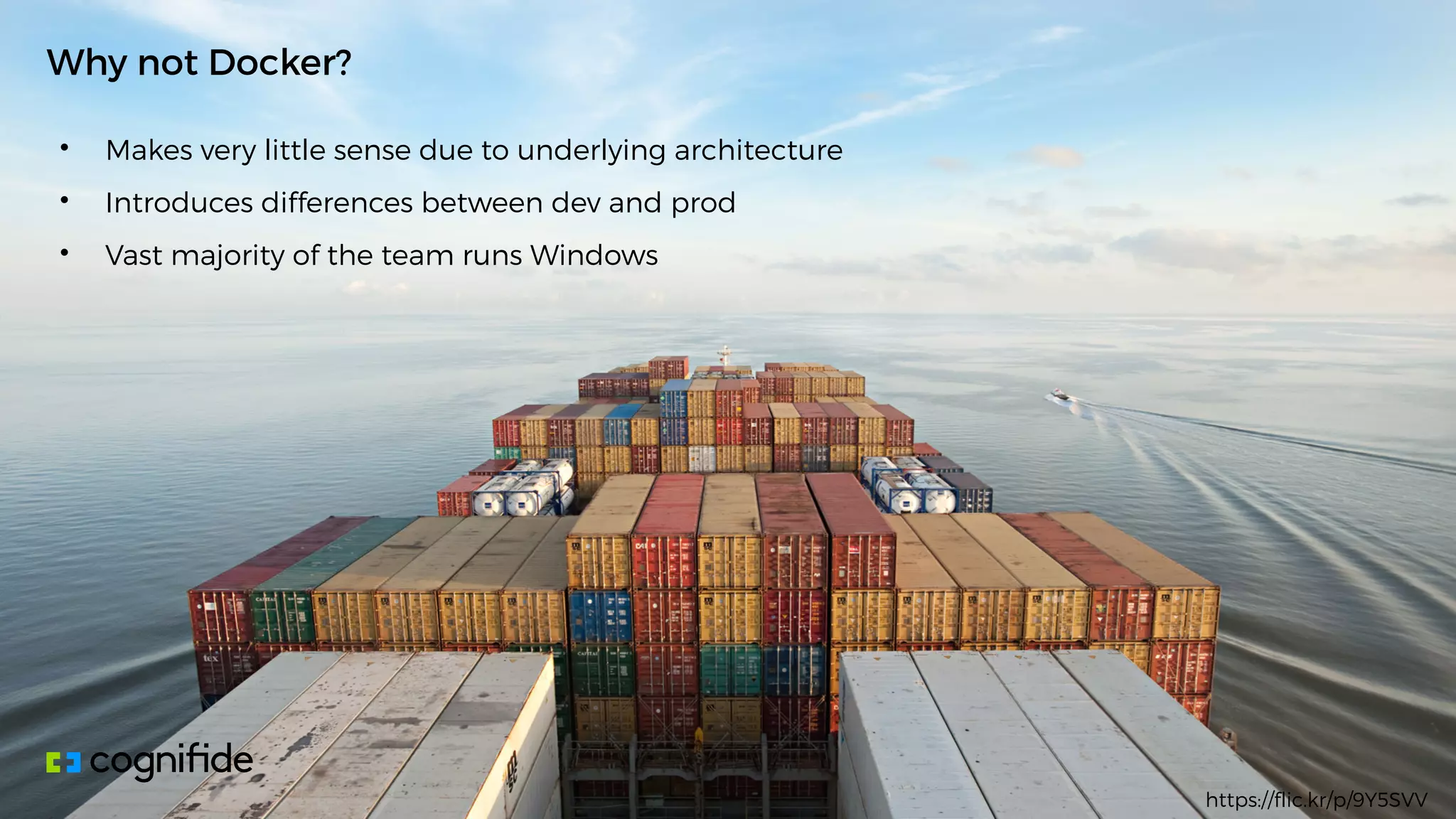

13. • Makes very little sense due to underlying architecture
• Introduces differences between dev and prod
• Vast majority of the team runs Windows
Why not Docker?
https://flic.kr/p/9Y5SVV

14. Vagrant beginnings

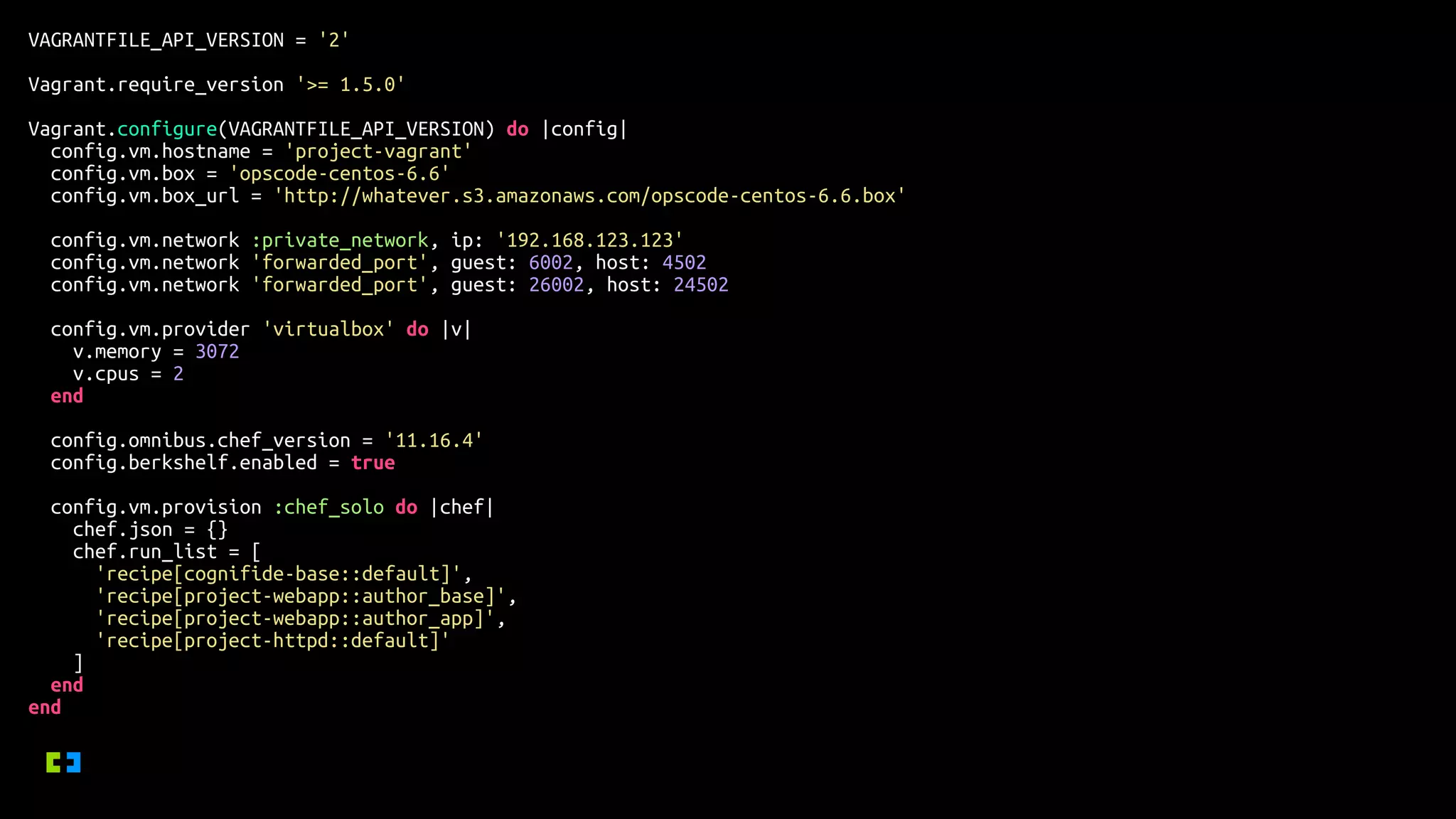

15. VAGRANTFILE_API_VERSION = '2'
Vagrant.require_version '>= 1.5.0'
Vagrant.configure(VAGRANTFILE_API_VERSION) do |config|
config.vm.hostname = 'project-vagrant'
config.vm.box = 'opscode-centos-6.6'
config.vm.box_url = 'http://whatever.s3.amazonaws.com/opscode-centos-6.6.box'
config.vm.network :private_network, ip: '192.168.123.123'
config.vm.network 'forwarded_port', guest: 6002, host: 4502
config.vm.network 'forwarded_port', guest: 26002, host: 24502
config.vm.provider 'virtualbox' do |v|
v.memory = 3072
v.cpus = 2
end
config.omnibus.chef_version = '11.16.4'
config.berkshelf.enabled = true
config.vm.provision :chef_solo do |chef|
chef.json = {}
chef.run_list = [
'recipe[cognifide-base::default]',
'recipe[project-webapp::author_base]',
'recipe[project-webapp::author_app]',
'recipe[project-httpd::default]'
]
end
end

16. • Pros
• full application stack
• provisioned the same way as all other
environments (Chef)
• all in one box
• managed as Chef cookbook
Nothing extraordinary, huh?
https://flic.kr/p/dwvcSo
• Cons
• based on completely clean box
• first vagrant up takes over 2 hours
• everyone waits for the same process
to complete
• poor user experience

17. Custom boxes

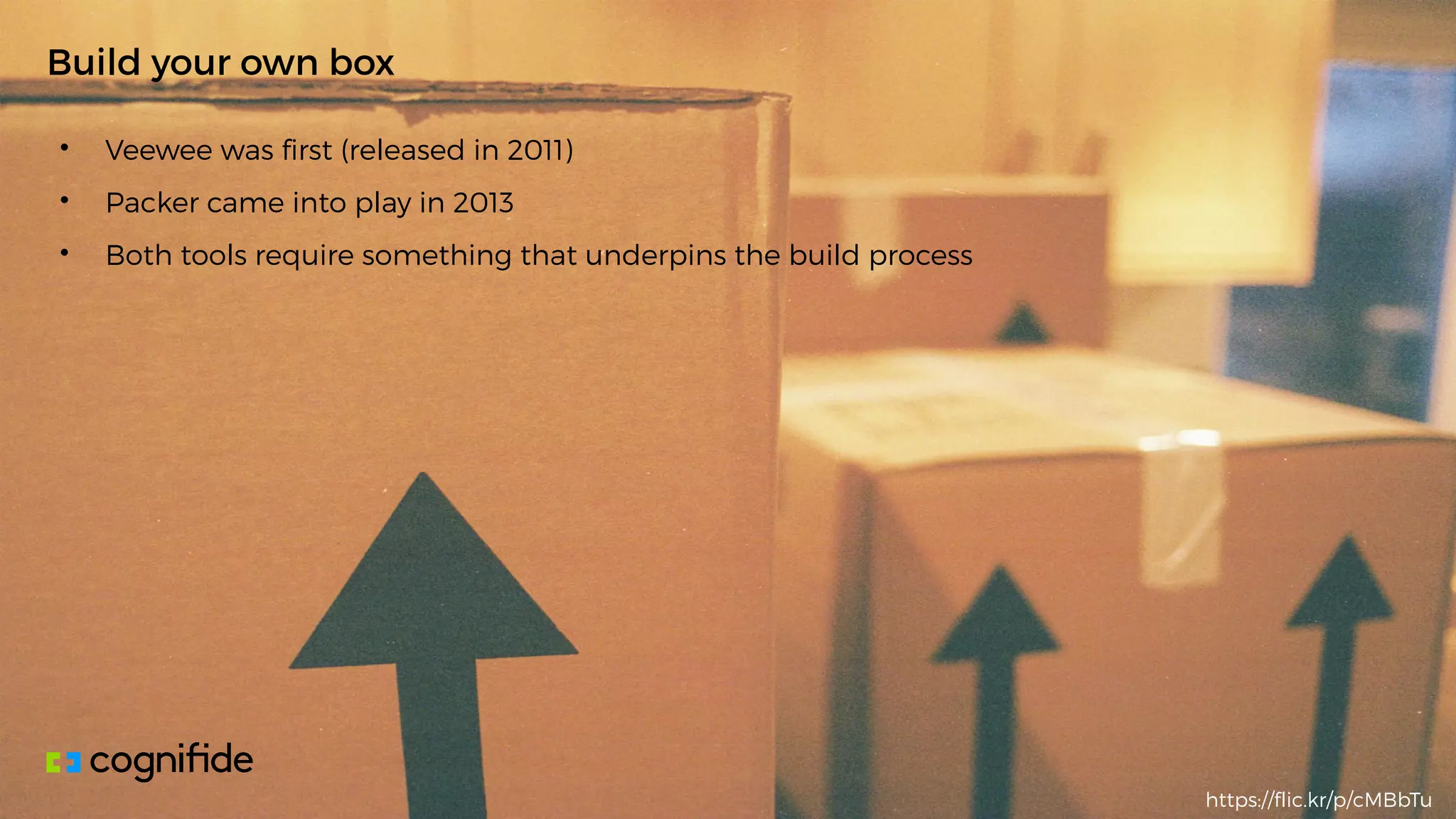

18. • Veewee was first (released in 2011)
• Packer came into play in 2013
• Both tools require something that underpins the build process
Build your own box
https://flic.kr/p/cMBbTu

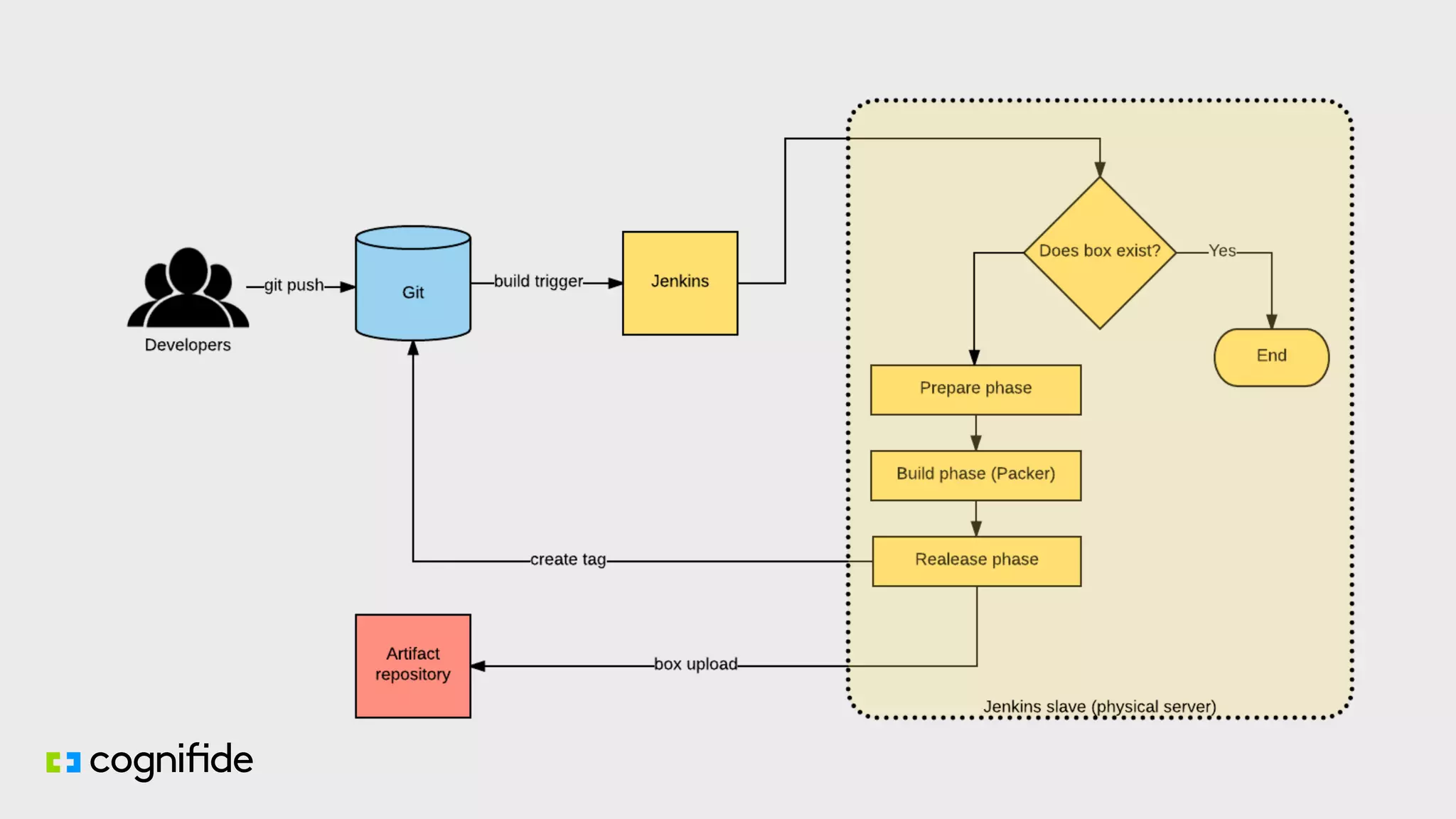

19. • In-house tool that goes through 3 phases
• prepare
• build (Packer)
• release
• Requires physical machine
Build process
https://flic.kr/p/GQopsq

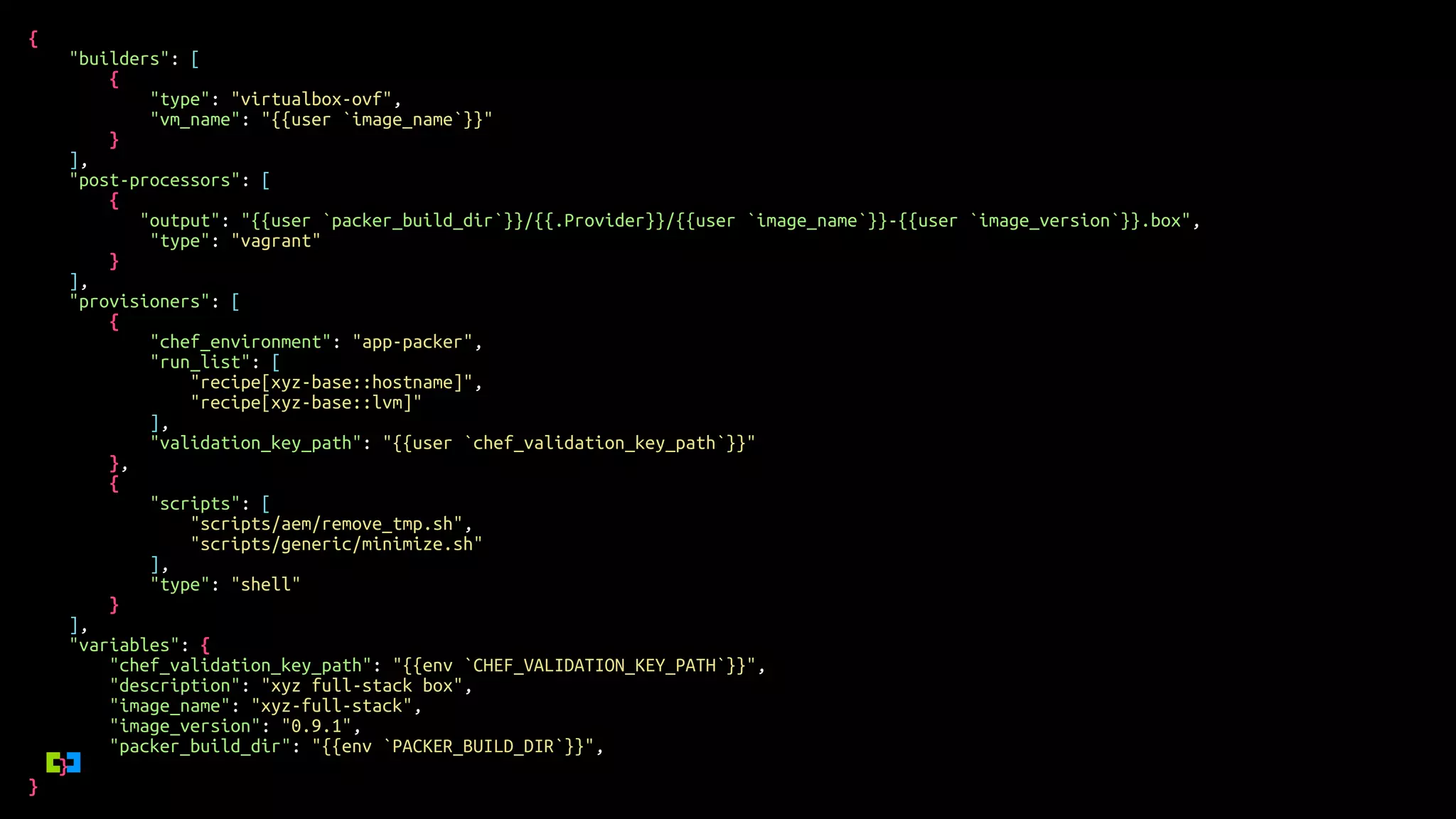

21. {
"builders": [
{
"type": "virtualbox-ovf",
"vm_name": "{{user `image_name`}}"
}
],
"post-processors": [
{
"output": "{{user `packer_build_dir`}}/{{.Provider}}/{{user `image_name`}}-{{user `image_version`}}.box",
"type": "vagrant"
}
],
"provisioners": [
{
"chef_environment": "app-packer",
"run_list": [
"recipe[xyz-base::hostname]",
"recipe[xyz-base::lvm]"
],
"validation_key_path": "{{user `chef_validation_key_path`}}"
},
{
"scripts": [
"scripts/aem/remove_tmp.sh",
"scripts/generic/minimize.sh"
],
"type": "shell"
}
],
"variables": {
"chef_validation_key_path": "{{env `CHEF_VALIDATION_KEY_PATH`}}",
"description": "xyz full-stack box",
"image_name": "xyz-full-stack",
"image_version": "0.9.1",
"packer_build_dir": "{{env `PACKER_BUILD_DIR`}}",
}
}

22. • Build takes 1-3 hours (varies by project)
• Packer destroys everything on error
• Say hello to github.com/mitchellh/packer/issues/409
• Extremely frustrating at the very beginning
• Even more frustrating when it happens during box export
Take your time…
https://flic.kr/p/e88Ce2

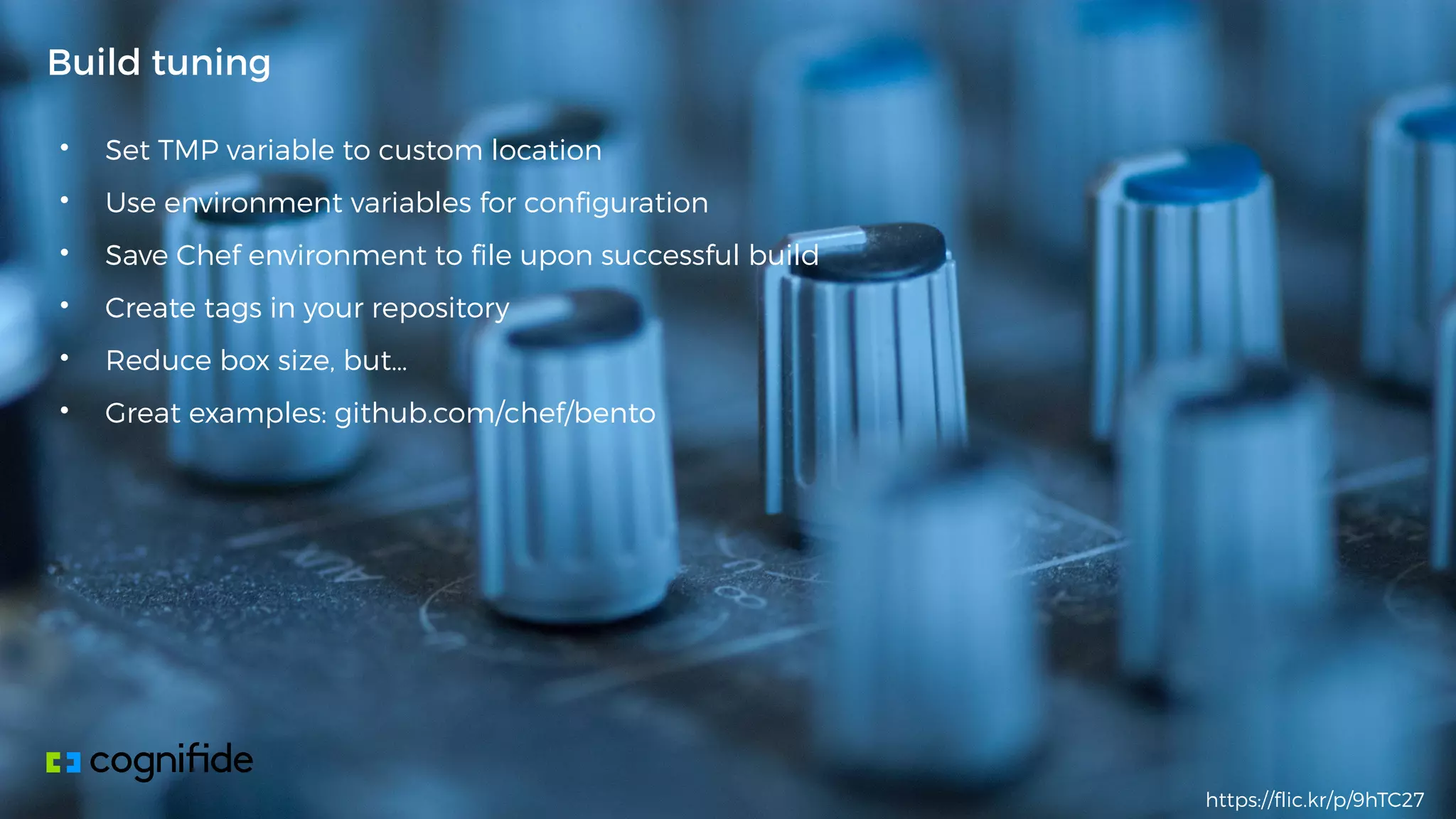

23. • Set TMP variable to custom location
• Use environment variables for configuration
• Save Chef environment to file upon successful build
• Create tags in your repository
• Reduce box size, but…
• Great examples: github.com/chef/bento
Build tuning
https://flic.kr/p/9hTC27

24. • Why one VM is better than many?
• Consider incremental boxes
• Don’t repeat yourself (start from scratch)
Even more tuning
https://flic.kr/p/kmYSYT

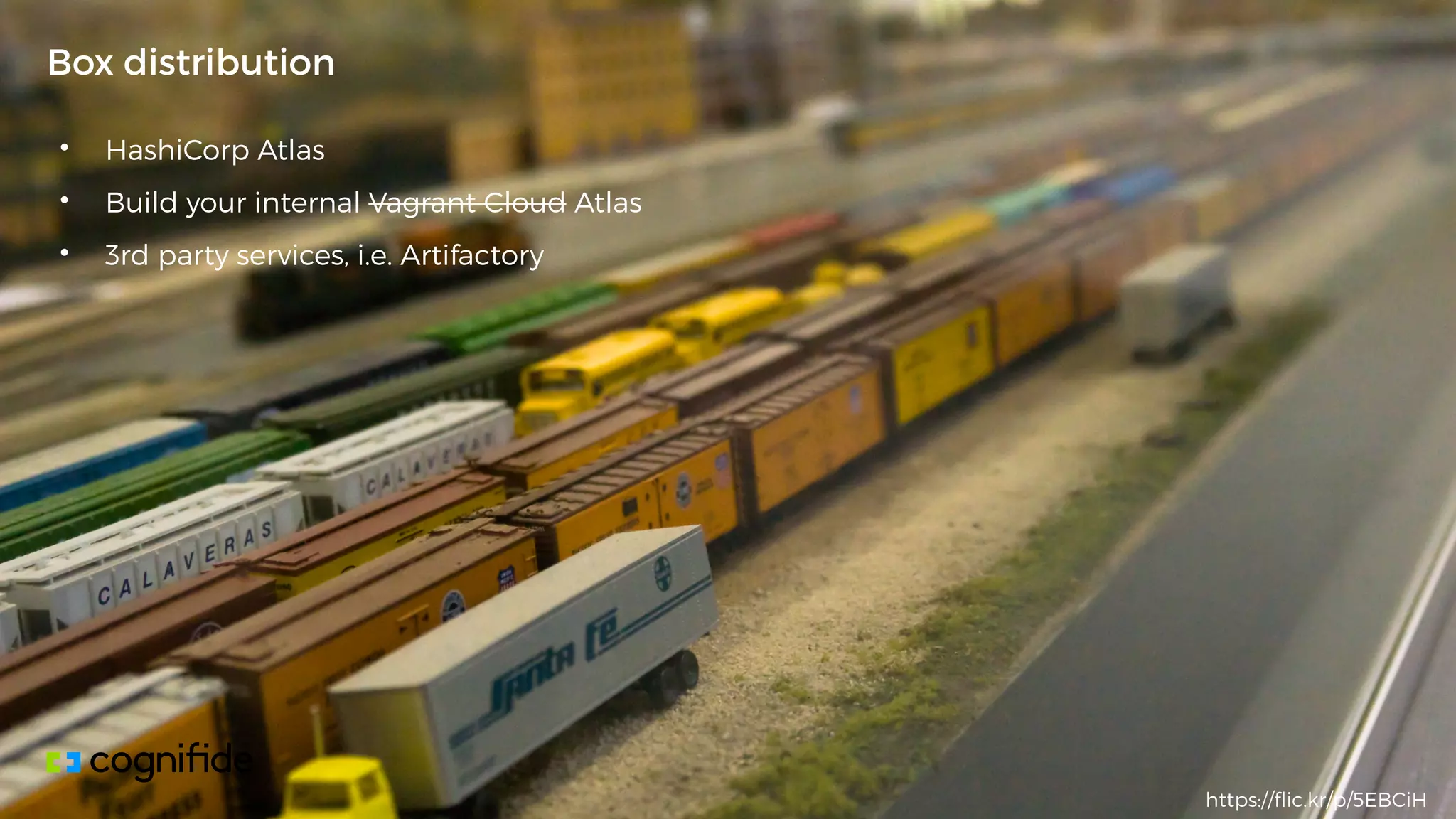

25. • HashiCorp Atlas
• Build your internal Vagrant Cloud Atlas
• 3rd party services, i.e. Artifactory
Box distribution
https://flic.kr/p/5EBCiH

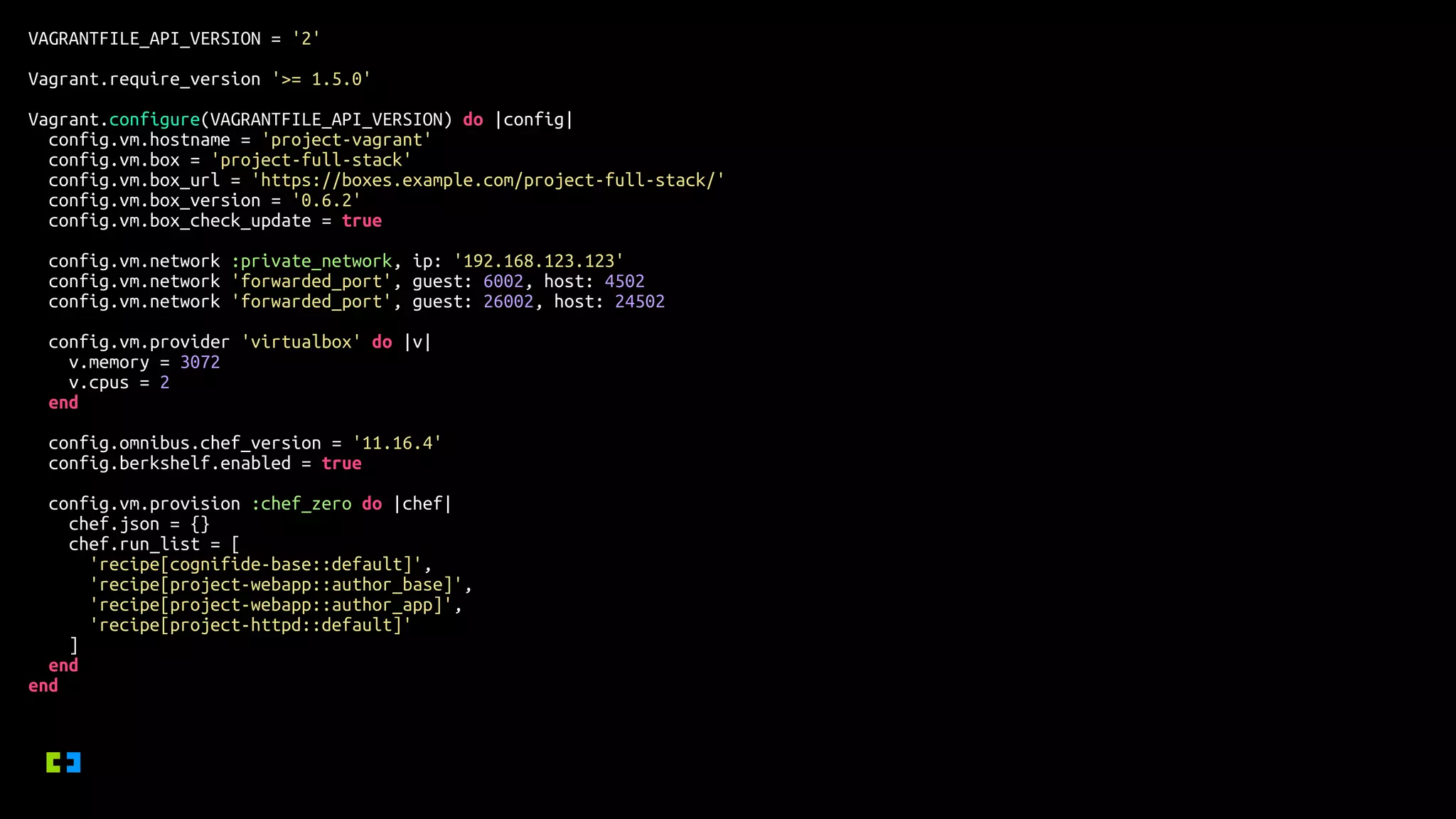

26. VAGRANTFILE_API_VERSION = '2'
Vagrant.require_version '>= 1.5.0'
Vagrant.configure(VAGRANTFILE_API_VERSION) do |config|
config.vm.hostname = 'project-vagrant'
config.vm.box = 'project-full-stack'
config.vm.box_url = 'https://boxes.example.com/project-full-stack/'
config.vm.box_version = '0.6.2'
config.vm.box_check_update = true
config.vm.network :private_network, ip: '192.168.123.123'
config.vm.network 'forwarded_port', guest: 6002, host: 4502
config.vm.network 'forwarded_port', guest: 26002, host: 24502
config.vm.provider 'virtualbox' do |v|
v.memory = 3072
v.cpus = 2
end
config.omnibus.chef_version = '11.16.4'
config.berkshelf.enabled = true
config.vm.provision :chef_zero do |chef|
chef.json = {}
chef.run_list = [
'recipe[cognifide-base::default]',
'recipe[project-webapp::author_base]',
'recipe[project-webapp::author_app]',
'recipe[project-httpd::default]'
]
end
end

27. • vagrant up provides complete environment
• Don’t force vagrant provision on first run
• All services are in place
Final product
https://flic.kr/p/gs9NMG

28. On-going work with Vagrant

29. • Preserve habits and routines
• Compile/build/install flow stays the same
• No config changes is required
• Feels like a first-class environment
• Easy to upgrade
Provisioning rules
https://flic.kr/p/csrifU

30. • git pull && berks update && vagrant provision
• git pull && berks update && vagrant provision
• git pull &&
Keep it simple
https://flic.kr/p/iYHqv2

31. Featureful, but slow and heavy
https://flic.kr/p/9nHAfM

32. Better UX , much faster
https://flic.kr/p/nA2Tf1

33. • Automate repetitive tasks
• Reduce CLI complexity
• Eliminate confusion related to Berkshelf
• 15 minutes to deploy a single config change?!
• 8/789 resources updated in 04 minutes 41 seconds?!
Time to rake
https://flic.kr/p/aEaKWh

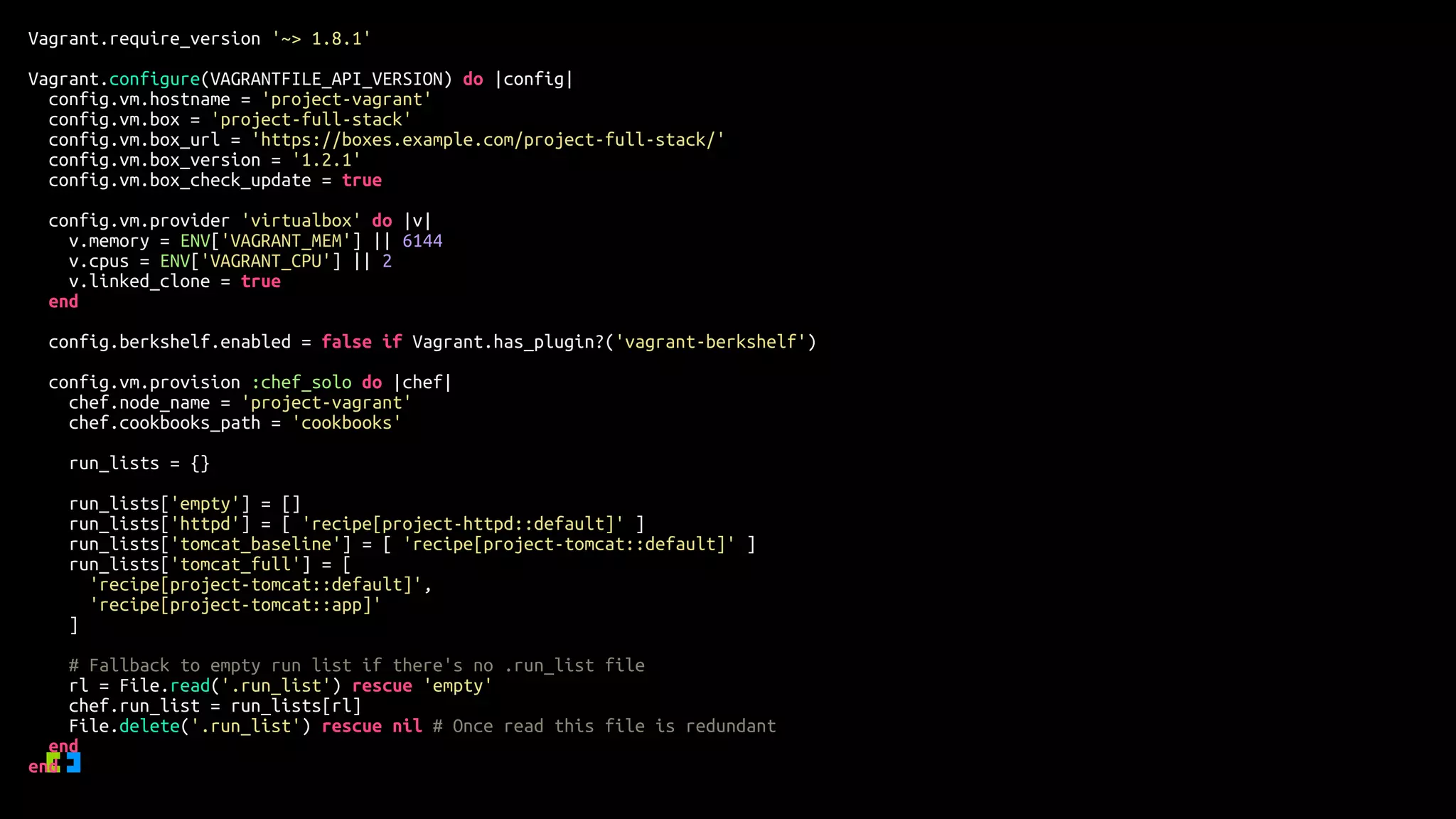

34. Vagrant.require_version '~> 1.8.1'
Vagrant.configure(VAGRANTFILE_API_VERSION) do |config|
config.vm.hostname = 'project-vagrant'
config.vm.box = 'project-full-stack'
config.vm.box_url = 'https://boxes.example.com/project-full-stack/'
config.vm.box_version = '1.2.1'
config.vm.box_check_update = true
config.vm.provider 'virtualbox' do |v|
v.memory = ENV['VAGRANT_MEM'] || 6144
v.cpus = ENV['VAGRANT_CPU'] || 2
v.linked_clone = true
end
config.berkshelf.enabled = false if Vagrant.has_plugin?('vagrant-berkshelf')
config.vm.provision :chef_solo do |chef|
chef.node_name = 'project-vagrant'
chef.cookbooks_path = 'cookbooks'
run_lists = {}
run_lists['empty'] = []
run_lists['httpd'] = [ 'recipe[project-httpd::default]' ]
run_lists['tomcat_baseline'] = [ 'recipe[project-tomcat::default]' ]
run_lists['tomcat_full'] = [
'recipe[project-tomcat::default]',
'recipe[project-tomcat::app]'
]
# Fallback to empty run list if there's no .run_list file
rl = File.read('.run_list') rescue 'empty'
chef.run_list = run_lists[rl]
File.delete('.run_list') rescue nil # Once read this file is redundant
end
end

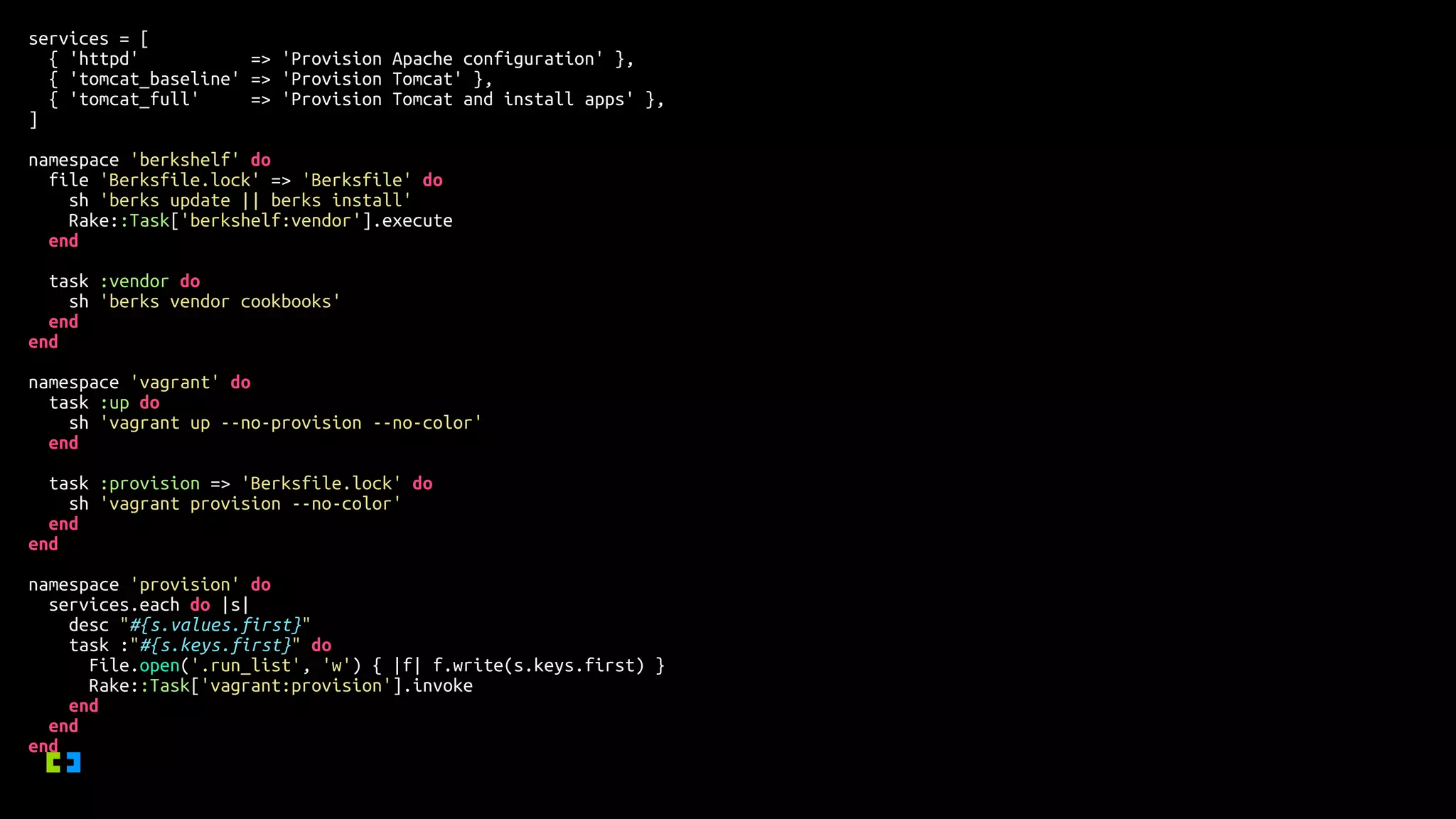

35. services = [
{ 'httpd' => 'Provision Apache configuration' },
{ 'tomcat_baseline' => 'Provision Tomcat' },
{ 'tomcat_full' => 'Provision Tomcat and install apps' },
]
namespace 'berkshelf' do
file 'Berksfile.lock' => 'Berksfile' do
sh 'berks update || berks install'
Rake::Task['berkshelf:vendor'].execute
end
task :vendor do
sh 'berks vendor cookbooks'
end
end
namespace 'vagrant' do
task :up do
sh 'vagrant up --no-provision --no-color'
end
task :provision => 'Berksfile.lock' do
sh 'vagrant provision --no-color'
end
end
namespace 'provision' do
services.each do |s|
desc "#{s.values.first}"
task :"#{s.keys.first}" do
File.open('.run_list', 'w') { |f| f.write(s.keys.first) }
Rake::Task['vagrant:provision'].invoke
end
end
end

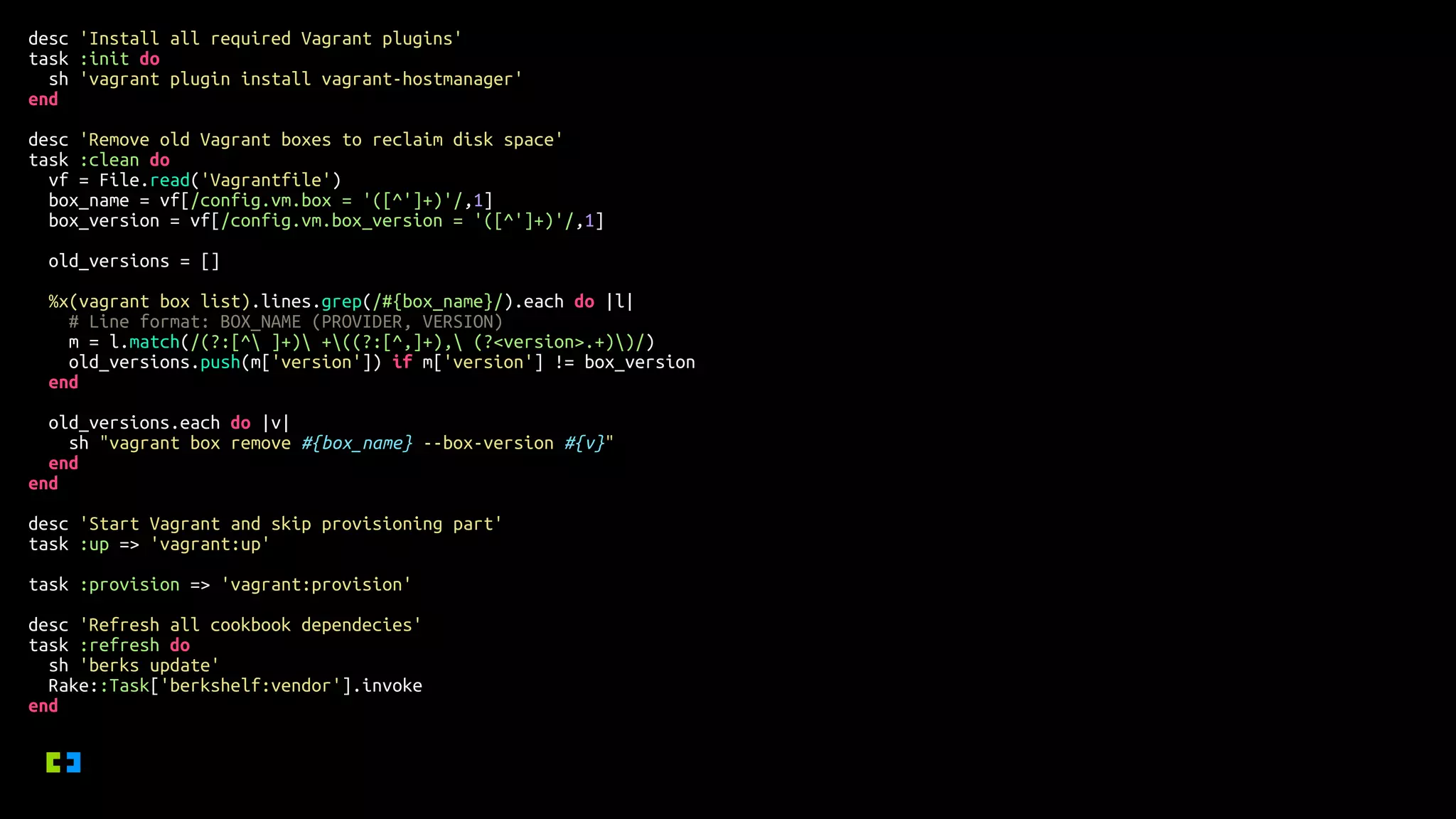

36. desc 'Install all required Vagrant plugins'
task :init do
sh 'vagrant plugin install vagrant-hostmanager'
end
desc 'Remove old Vagrant boxes to reclaim disk space'
task :clean do
vf = File.read('Vagrantfile')
box_name = vf[/config.vm.box = '([^']+)'/,1]
box_version = vf[/config.vm.box_version = '([^']+)'/,1]
old_versions = []
%x(vagrant box list).lines.grep(/#{box_name}/).each do |l|
# Line format: BOX_NAME (PROVIDER, VERSION)
m = l.match(/(?:[^ ]+) +((?:[^,]+), (?<version>.+))/)
old_versions.push(m['version']) if m['version'] != box_version
end
old_versions.each do |v|
sh "vagrant box remove #{box_name} --box-version #{v}"
end
end
desc 'Start Vagrant and skip provisioning part'
task :up => 'vagrant:up'
task :provision => 'vagrant:provision'
desc 'Refresh all cookbook dependecies'
task :refresh do
sh 'berks update'
Rake::Task['berkshelf:vendor'].invoke
end

37. The reward
https://flic.kr/p/do51TU

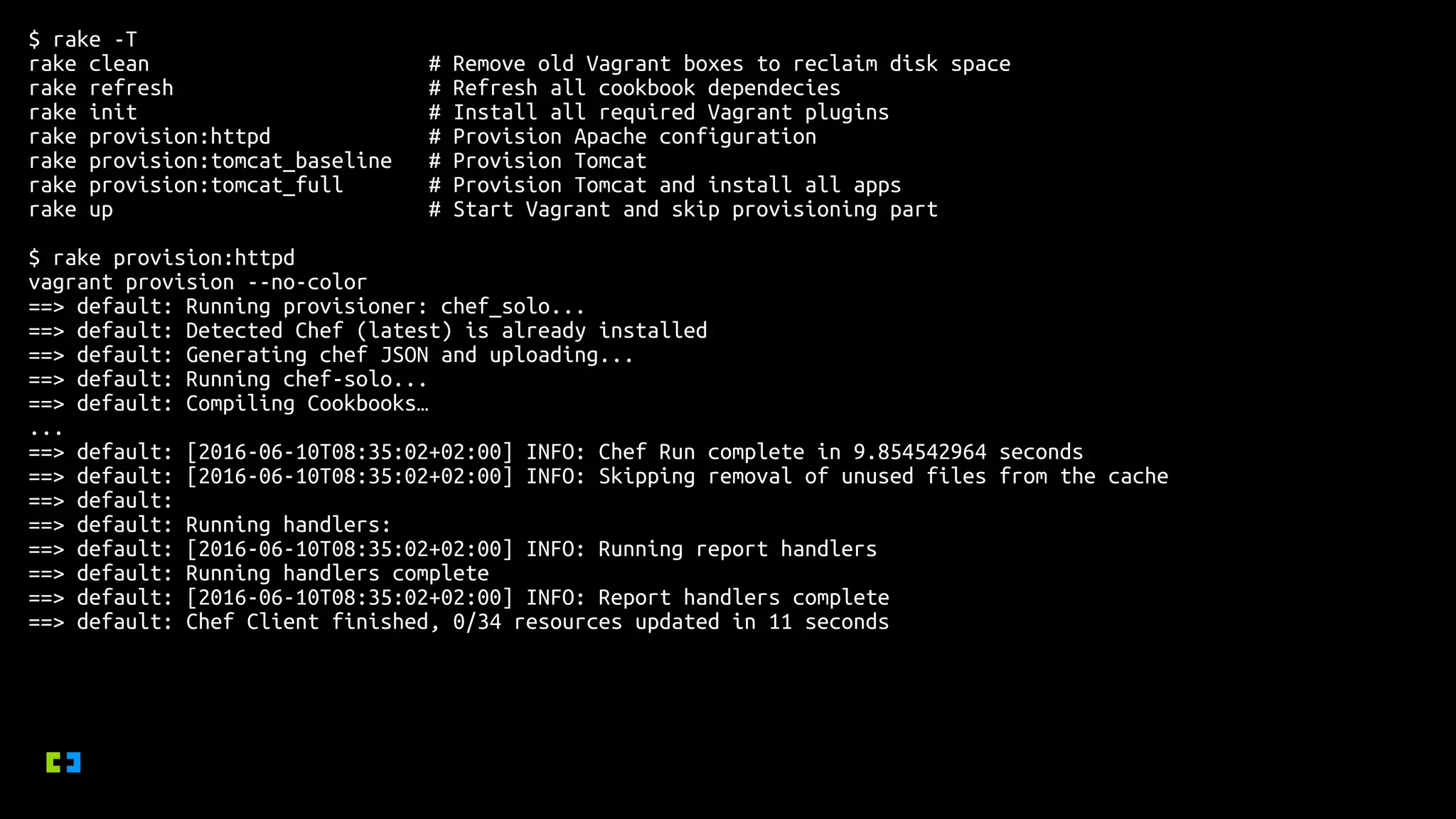

38. $ rake -T
rake clean # Remove old Vagrant boxes to reclaim disk space
rake refresh # Refresh all cookbook dependecies
rake init # Install all required Vagrant plugins
rake provision:httpd # Provision Apache configuration
rake provision:tomcat_baseline # Provision Tomcat
rake provision:tomcat_full # Provision Tomcat and install all apps
rake up # Start Vagrant and skip provisioning part
$ rake provision:httpd
vagrant provision --no-color
==> default: Running provisioner: chef_solo...
==> default: Detected Chef (latest) is already installed
==> default: Generating chef JSON and uploading...
==> default: Running chef-solo...
==> default: Compiling Cookbooks…
...
==> default: [2016-06-10T08:35:02+02:00] INFO: Chef Run complete in 9.854542964 seconds
==> default: [2016-06-10T08:35:02+02:00] INFO: Skipping removal of unused files from the cache
==> default:
==> default: Running handlers:
==> default: [2016-06-10T08:35:02+02:00] INFO: Running report handlers
==> default: Running handlers complete
==> default: [2016-06-10T08:35:02+02:00] INFO: Report handlers complete
==> default: Chef Client finished, 0/34 resources updated in 11 seconds

39. • Does it make any sense?
• Consul + dnsmasq
• Update nameservers in /etc/resolv.conf
• Prevent DNS changes via /etc/dhcp/dhclient-enter-hooks
• Works most of the time
Service discovery and Vagrant
https://flic.kr/p/83mv7r

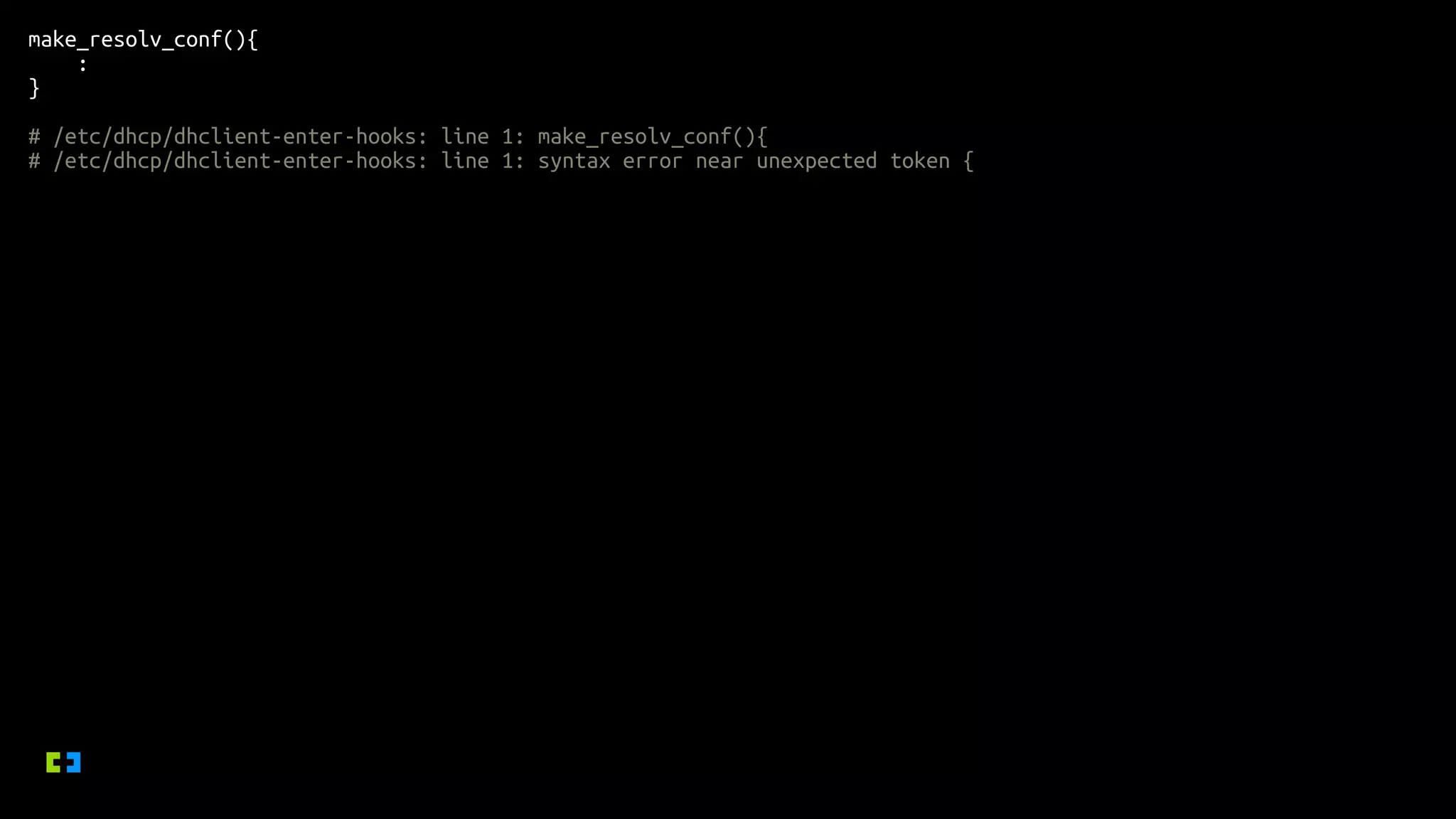

40. make_resolv_conf(){
:
}
# /etc/dhcp/dhclient-enter-hooks: line 1: make_resolv_conf(){
# /etc/dhcp/dhclient-enter-hooks: line 1: syntax error near unexpected token {

41. • EOL characters (.gitattributes)
• Chef Solo vs Chef Zero
• https://github.com/chef/chef/issues/4980
• Less plugins equals faster processing
• Useful helpers
• Vagrant.require_version
• Vagrant.has_plugin?(‘plugin')
• Vagrant::VERSION =~ /^1.8/
Vagrant tips
https://flic.kr/p/nzMBtw

42. https://flic.kr/p/tt2yB7
