Power system stability refers to a power system's ability to maintain equilibrium after disturbances such as changes in power output. There are two types of stability: steady-state stability which involves small, slow disturbances; and transient stability which involves large, sudden disturbances like faults or load changes. Transient stability studies ensure a system can withstand transient conditions following major disturbances using tools like the swing equation and equal area criterion.

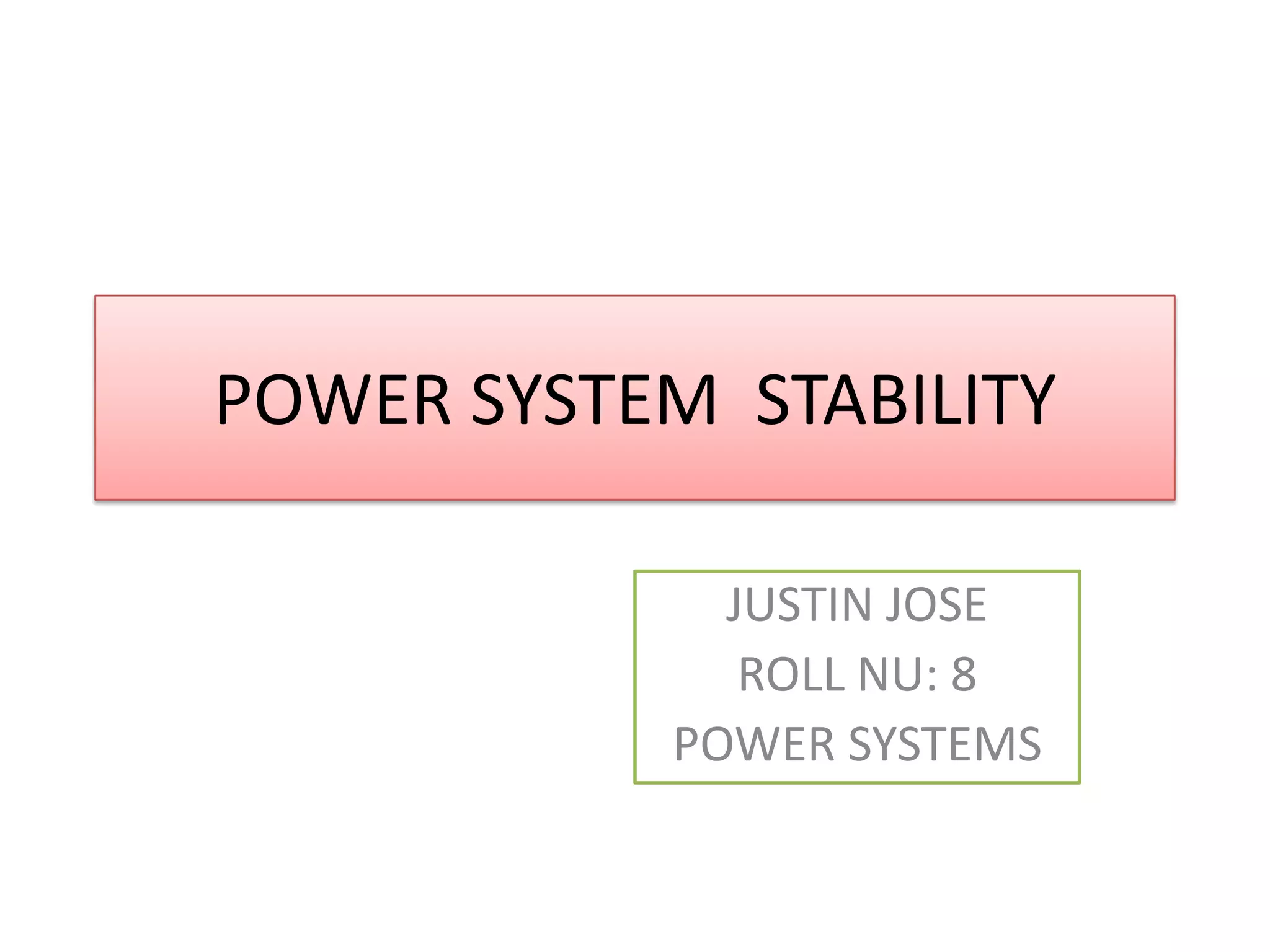

1. POWER SYSTEM STABILITY
JUSTIN JOSE
ROLL NU: 8
POWER SYSTEMS

2. WHAT IS STABILITY
• The tendency of a power system to develop restoring forces equal to or greater
than the disturbing forces to maintain the state of equilibrium is known as
stability. If the forces tending to hold machines in synchronism with one another
are sufficient to overcome the disturbing forces, the system is said to remain stable
(to stay in synchronism).
• The stability problem is concerned with the behavior of the synchronous
machines after a disturbance.
• stability problems are generally divided into two major categories —
steady-state stability and transient stability

3. • Steady-state stability… refers to the ability of the power
system to regain synchronism after small and slow
disturbances, such as gradual power changes. An extension of
the steady-state stability is known as the dynamic stability
• The dynamic stability …is concerned with small disturbances
lasting for a long time with the inclusion of automatic control
devices.
• Transient stability… studies deal with the effects of
large, sudden disturbances such as the occurrence of a
fault, the sudden outage of a line or the sudden application or
removal of loads. Transient stability studies are needed to
ensure that the system can withstand the transient condition
following a major disturbance.

4. SWING EQUATION

5. ASSIGNMENT……
• HW ABOVE FIGURE CAME…….

7. Swing eqn contd…..

12. EQUQL AREA CRITERION

18. APPLICATION TO SUDDEN INCREASE IN
INPUT

23. REFER……

24. IN ……REFERENCES
• Power System Analysis - Hadi Saadat
• power system analysis by nagrath and kothari

25. THANKS
